Grille - Lower Front Fascia (Performance) (Remove and Replace)

Correction code TBD FRT 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the front fascia assembly from the vehicle. See Front Fascia (Remove and Install).

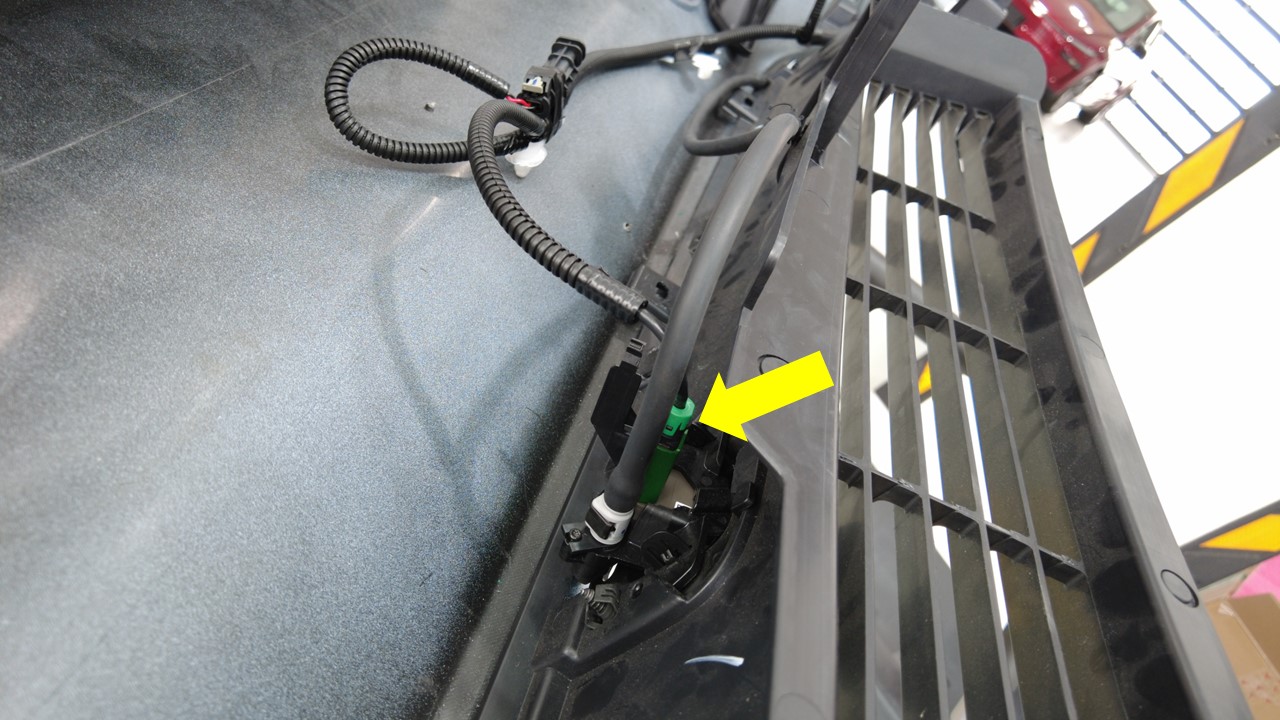

  2. Release the locking tab and disconnect the front fascia camera connector.

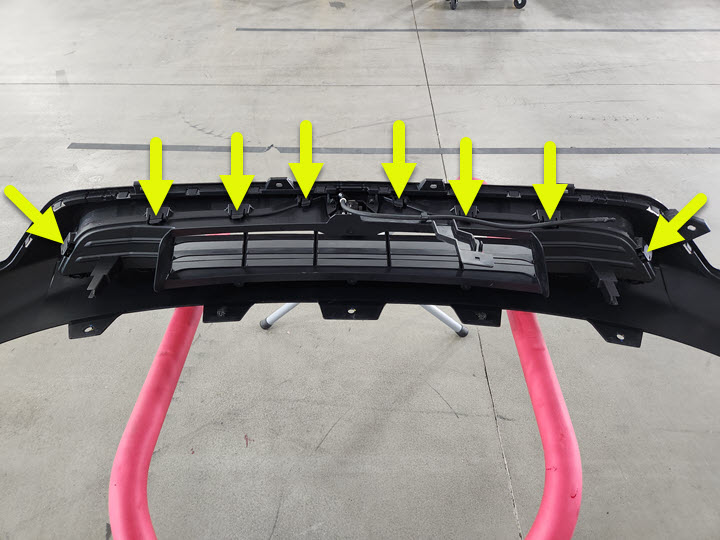

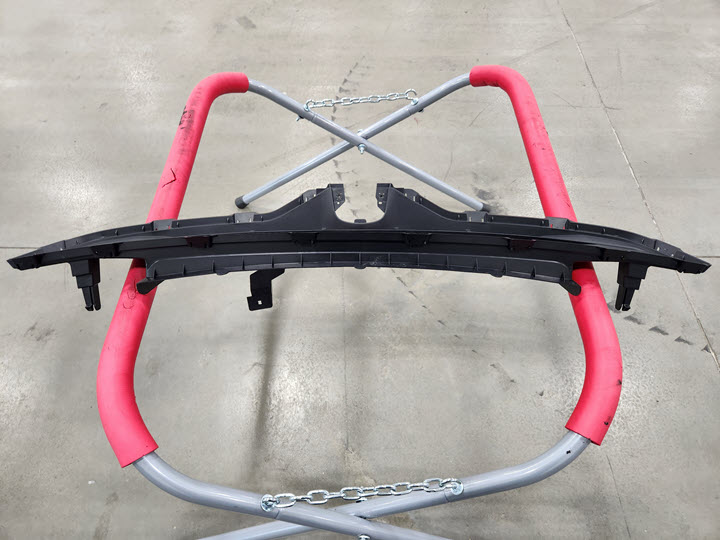

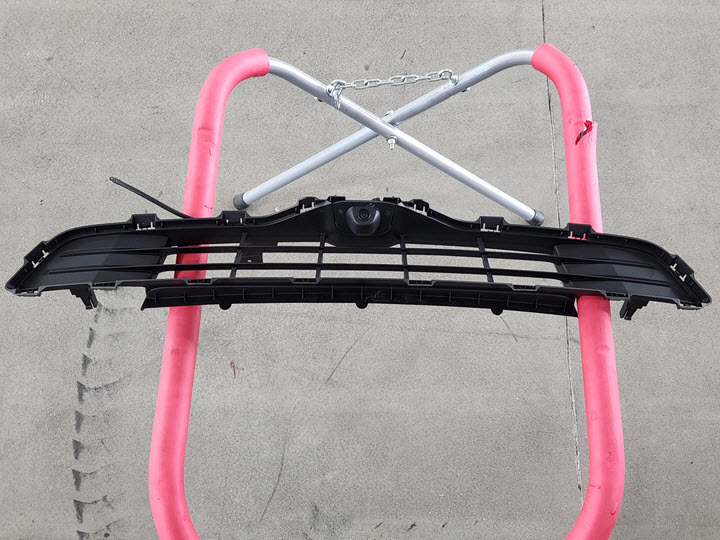

  3. Release the clips (x16) that attach the grille to the lower front fascia.

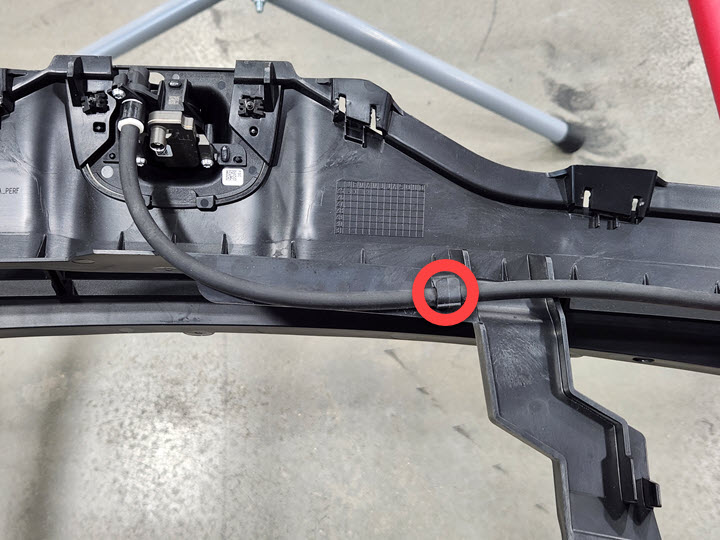

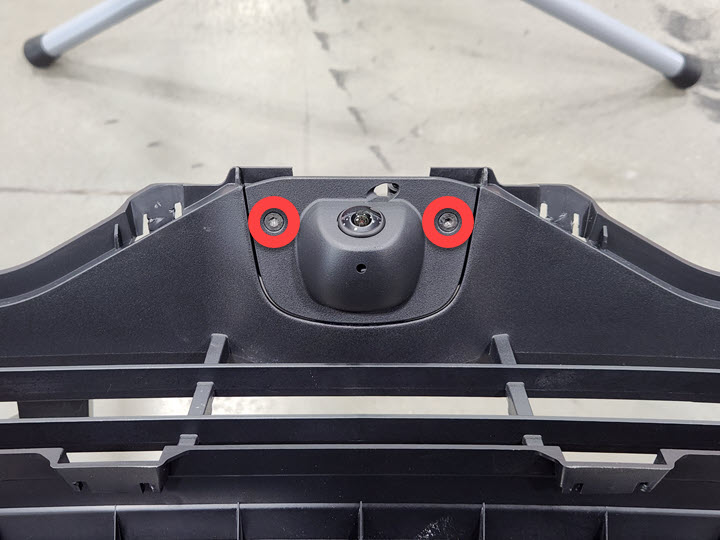

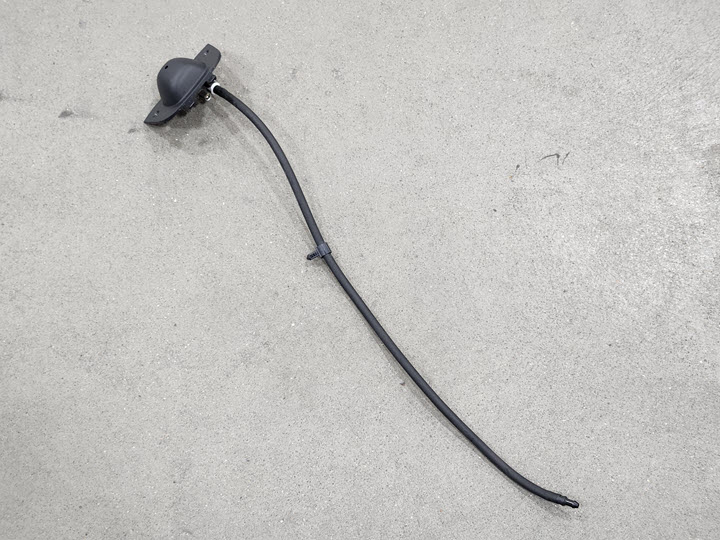

  4. Release the clip, remove the screws (x2) that attach the front fascia camera to the grille, then disengage the tabs (x2) to remove the camera from the grille.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Replace

  1. Install the front fascia camera to the grille by engaging the tabs (x2), installing the screws (x2), and securing the clip in place.
    0.9 Nm (8 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  2. Secure the clips (x16) that attach the grille to the lower front fascia.
  3. Secure the locking tab and connect the front fascia camera connector.
  4. Install the front fascia assembly to the vehicle. See Front Fascia (Remove and Install).
