Correction code 1630021902 FRT NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications:Busbar Fast Charge - Input - Negative - PN Prefixed with 2xx (Remove and Replace) / Busbar Fast Charge - Input - Positive - PN Prefixed with 2xx (Remove and Replace) / GUID-FA8D7B29-13D3-44A9-A807-CDA4F807ACE1.html / GUID-6CE3EB62-55CE-4E62-8513-9A5D9219A988.html

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

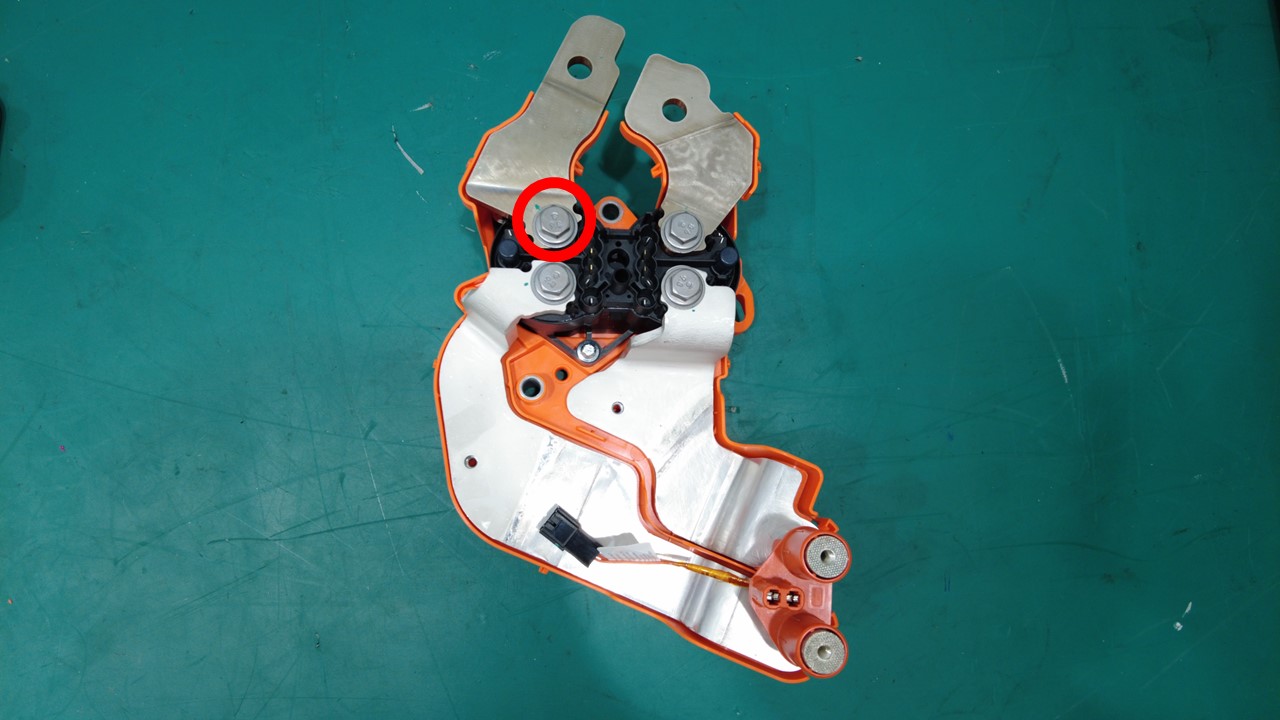

Patch bolt that attaches the input fast charge busbar / DC link busbar to the fast charge contactor	10 Nm (7.4 lbs-ft) - 180 degrees	SKT, 1/4" SQ DR, 13MM, HV INSULATED	Replace	1104475-00-F
