Soft Trim Cover - Seat Back - 1st Row - LH (Remove and Replace)

Correction code 1307010702 FRT 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-11-10: Added information for Sport seats.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.

Torque Specifications

Table 1. Torque Specifications: Soft Trim Cover - Seat Back - 1st Row - LH (Remove and Replace) / 1st Row Headrest Post Guide (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the bottom of the lumbar support to the seat back frame
5 Nm (3.7 lbs-ft)
  • 10 mm socket
  • 2 in extension
  • Ratchet/torque wrench
Reuse
Nuts (x2) that attach the driver seat side airbag/FSAB to the seat back frame
5.4 Nm (4.0 lbs-ft)
  • Ratchet/torque wrench
  • 10 mm deep socket
Replace 1068309-00-A

Remove

  1. Remove the driver seat. See 1st Row Seat- LH (Remove and Install).
  2. Remove the driver headrest. See Headrest - Front Seat - LH (Non-Sport Seat) (Remove and Replace) or Headrest - Front Seat - LH (Sport Seat) (Remove and Replace).

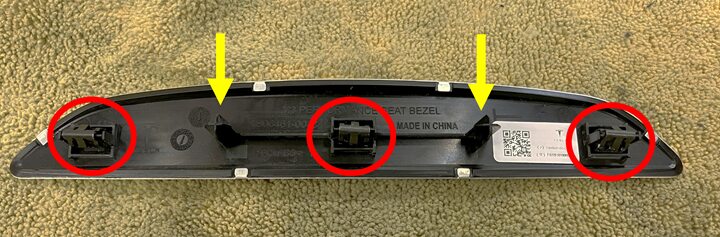

  3. Sport seat: remove the décor panel. See Décor Panel - 1st Row Seat - LH (Sport Seat) (Remove and Replace).

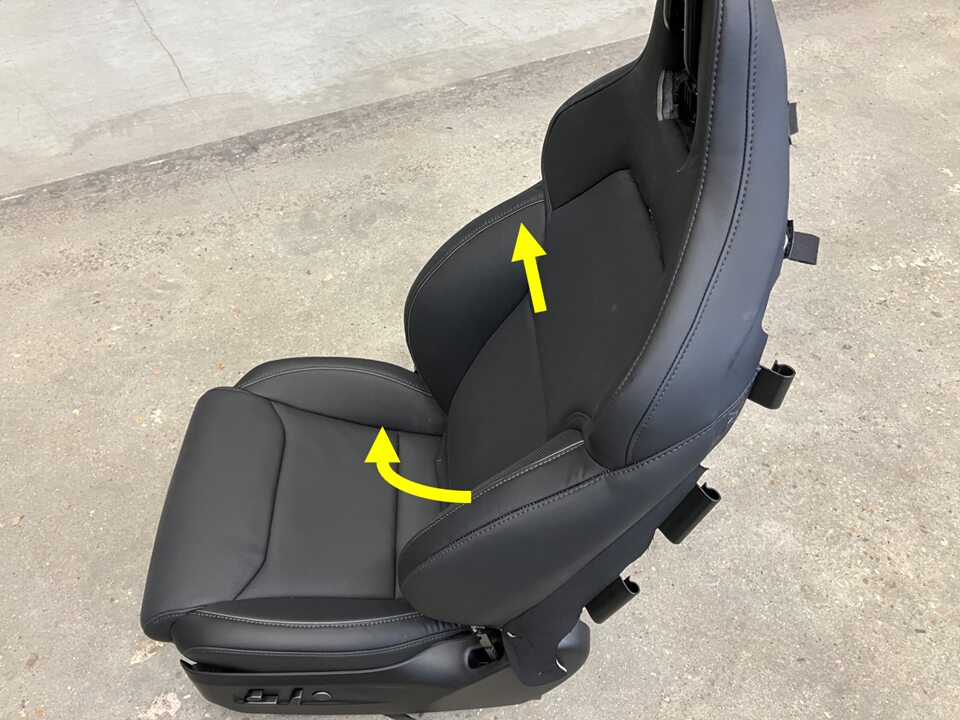

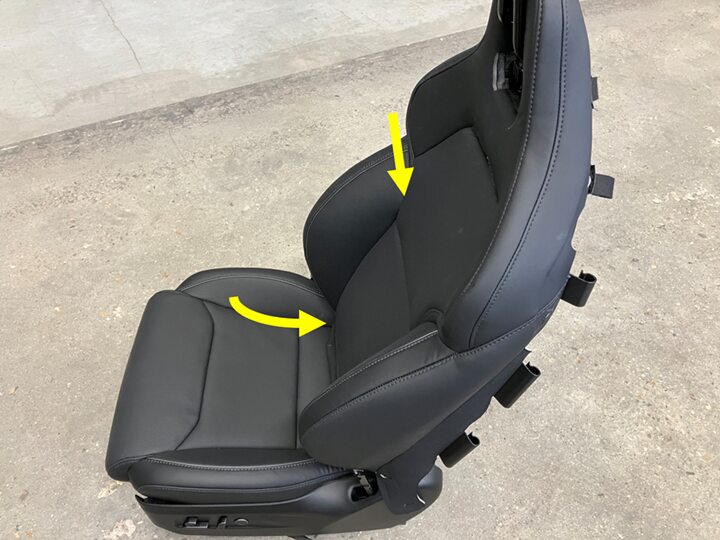

  4. Tilt the LH front seat rearward to gain access to the underside of the LH front seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to disconnect the LH seat harness from the body controller.

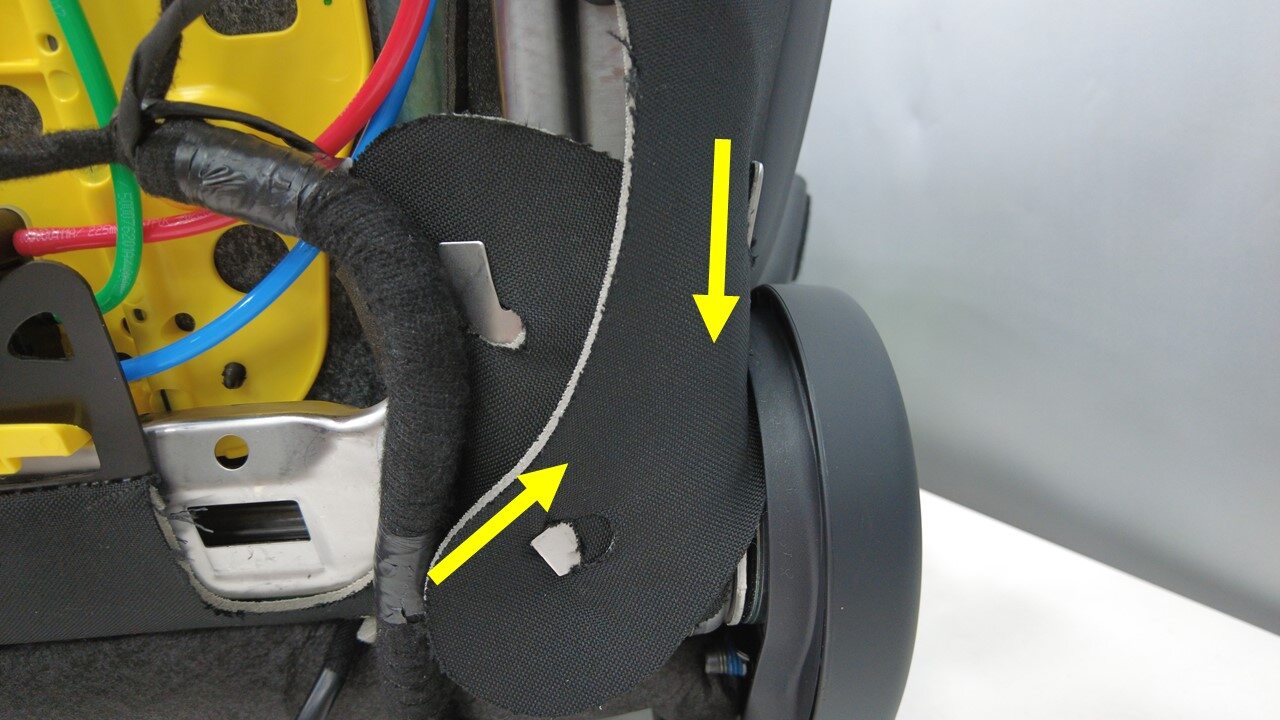

  5. Unhook the straps (x2) for the lower section of seat back, and move the seat back flap away from the underside of the seat.

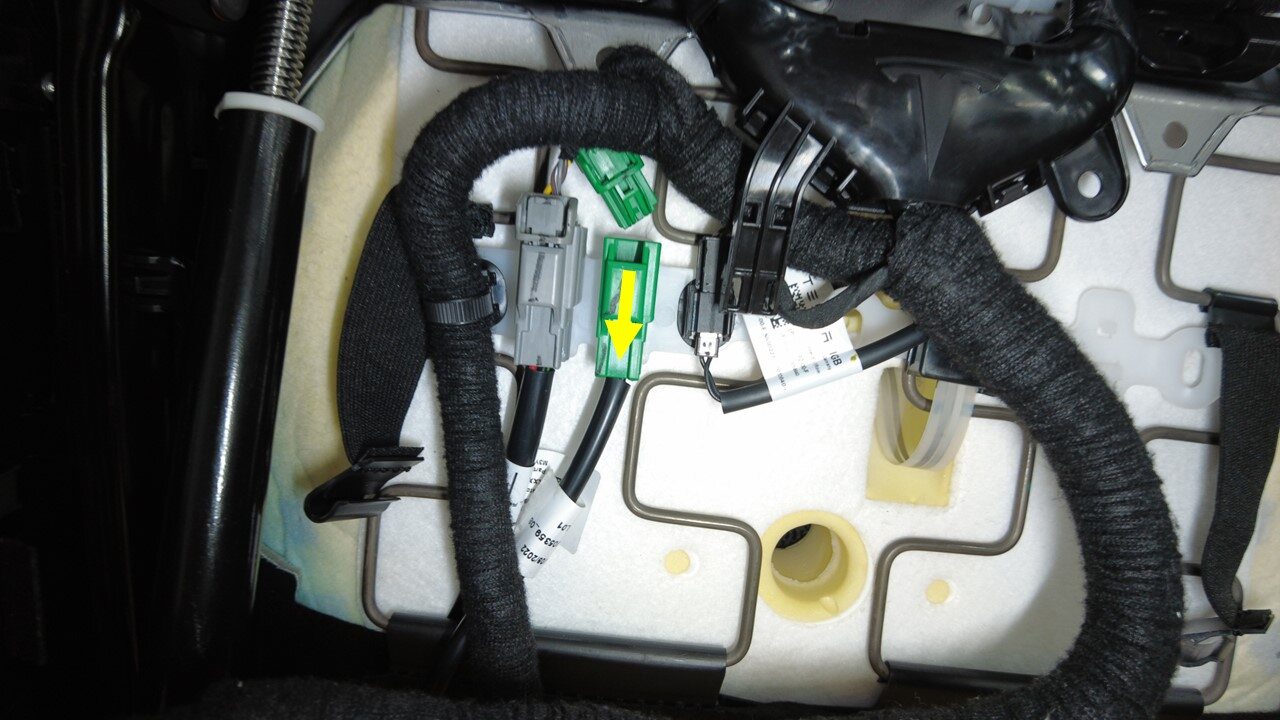

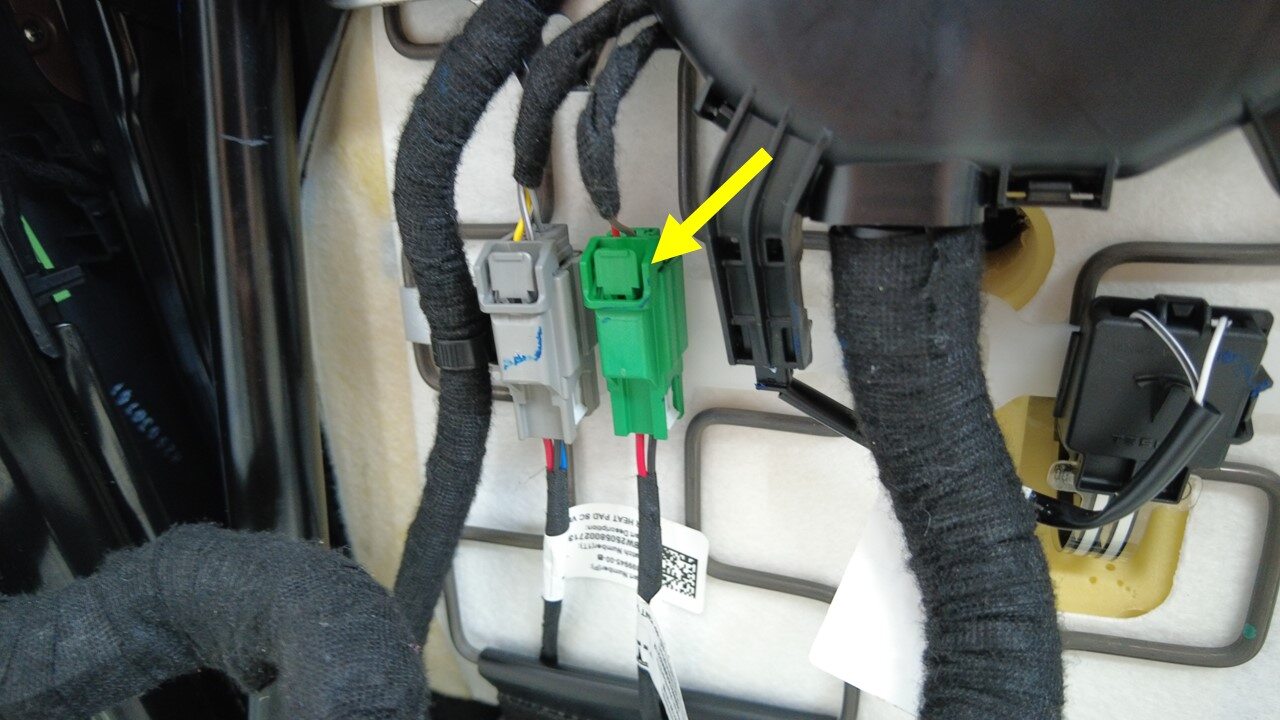

  6. Disconnect the seat back heater connector, and then separate the connector from the seat underside.
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the connector forward to release it from the seat assembly.
  7. Return the seat to upright position.
  8. Remove the driver seat back shell. See Shell - Seat Back - 1st Row (Remove and Replace) or Shell - Seat Back - Front Seat (Sport Seat) (Remove and Replace).

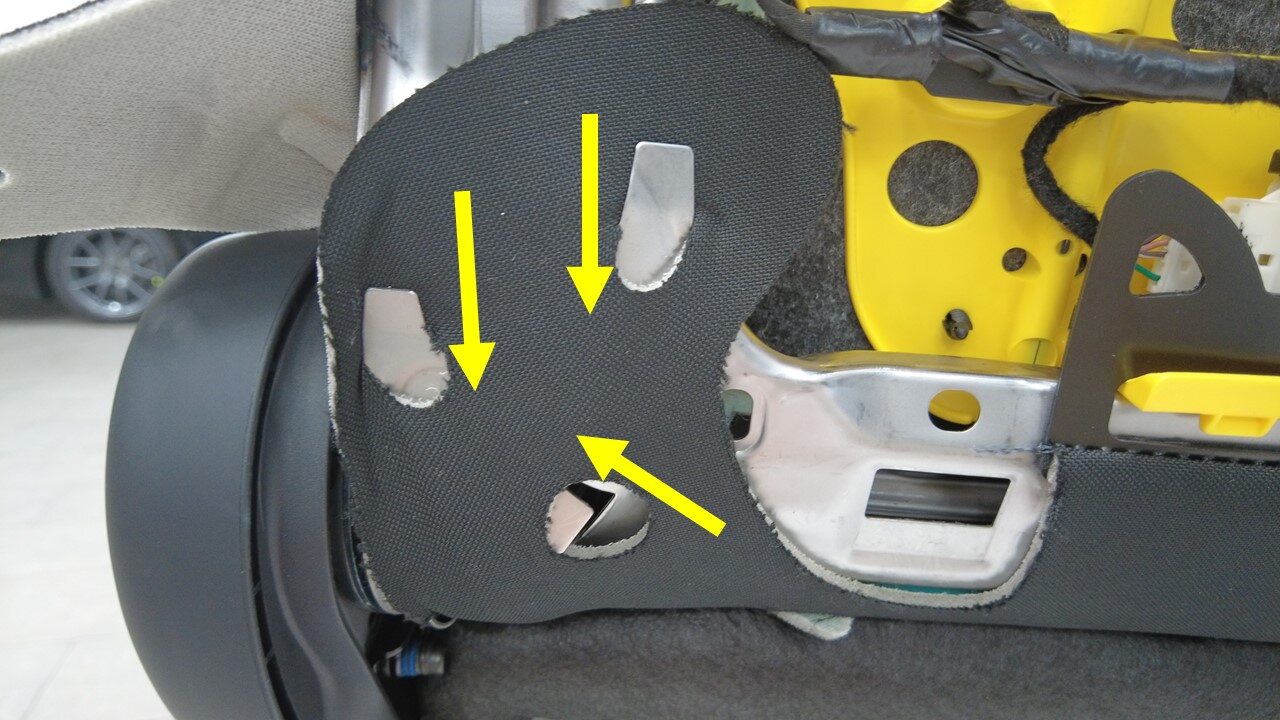

  9. Remove the upper and lower flaps covering the outboard side of the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flaps out of the metal retaining tabs to release them.
  10. Remove the upper and lower flaps covering the inboard side of the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flaps out of the metal retaining tabs to release them.

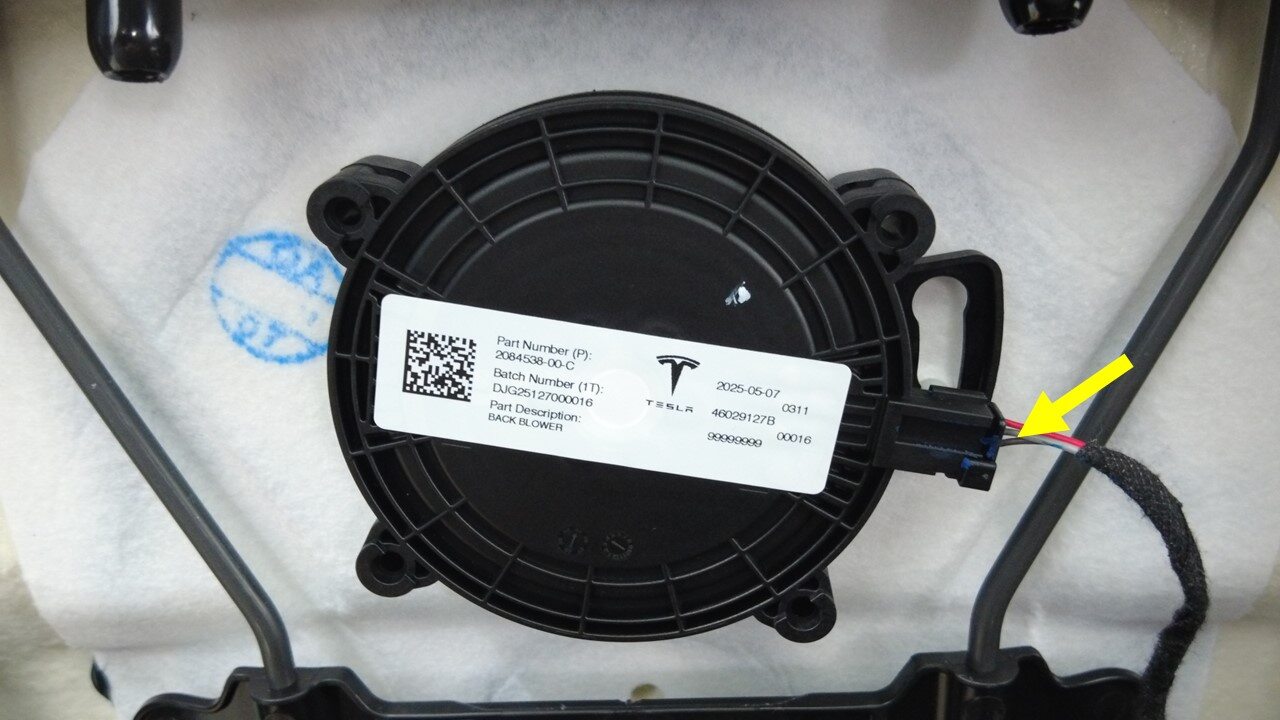

  11. Disconnect LH front seat back blower connector.

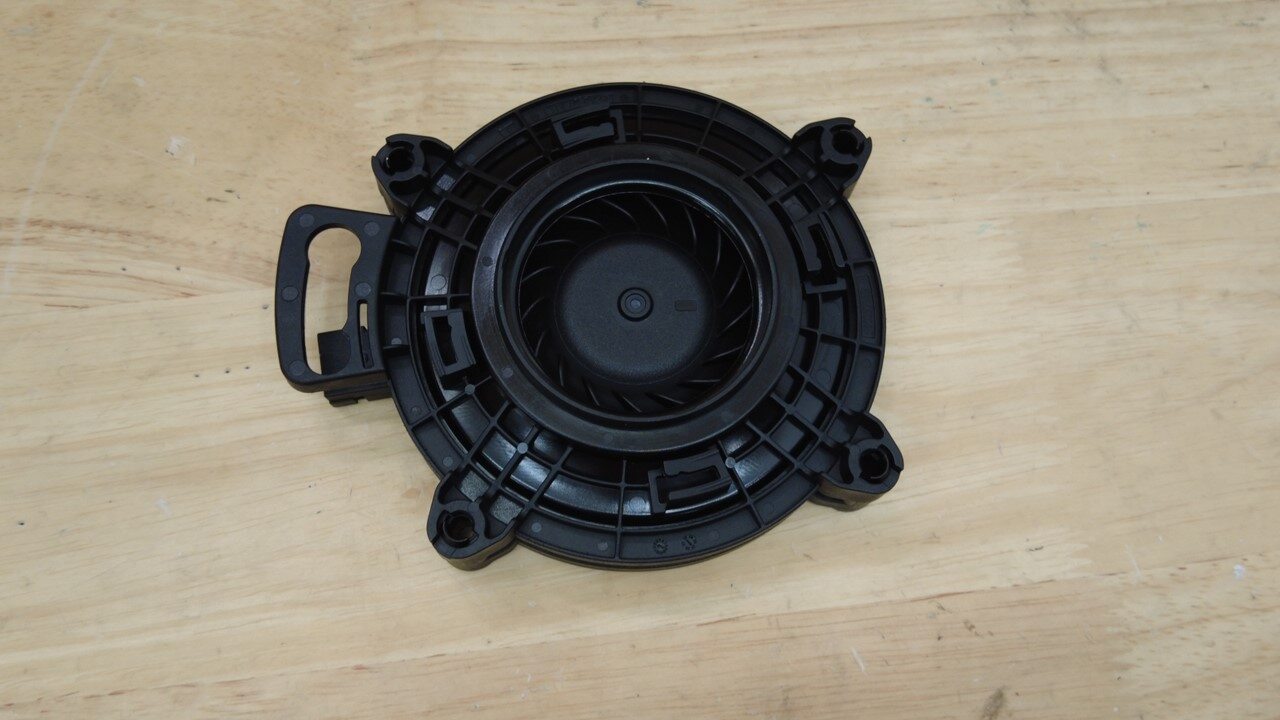

  12. Remove LH front seat back blower.

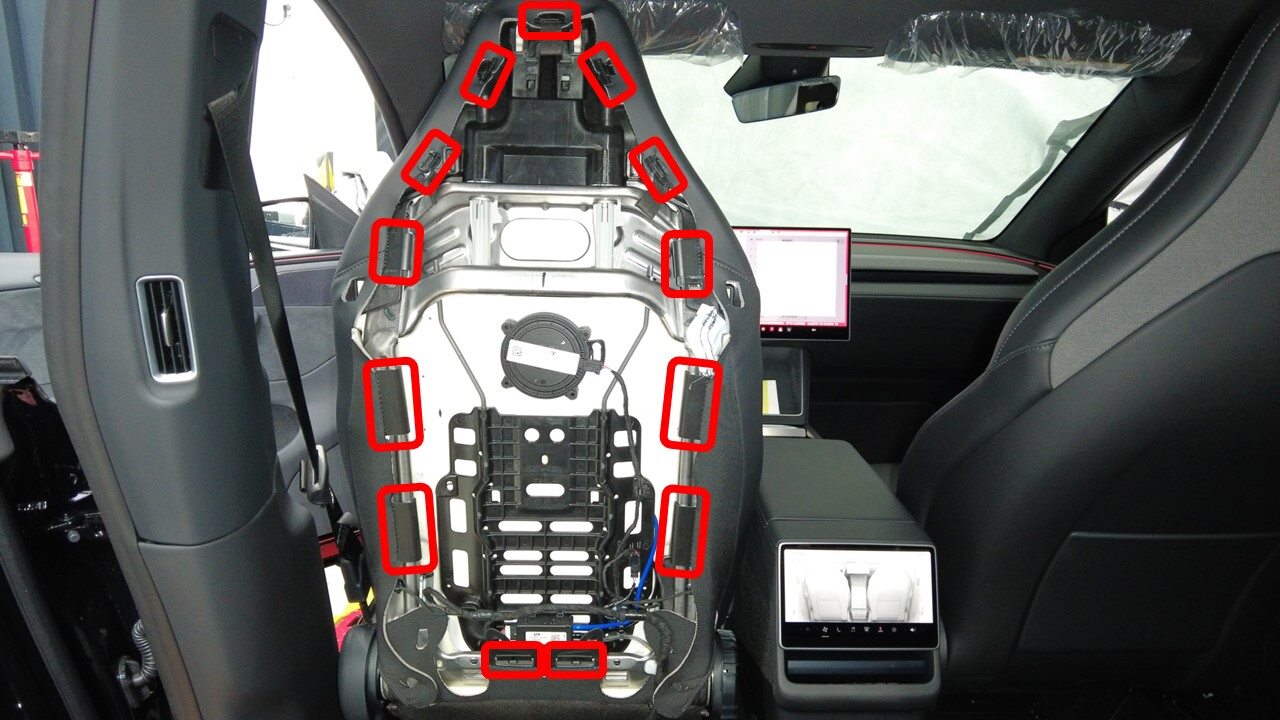

  13. Release the driver seat back trim retainers (x7 on non-Sport seat, x13 on Sport seat) from the driver seat back frame.
    Figure 1. Non-Sport Seat
    Figure 2. Sport Seat

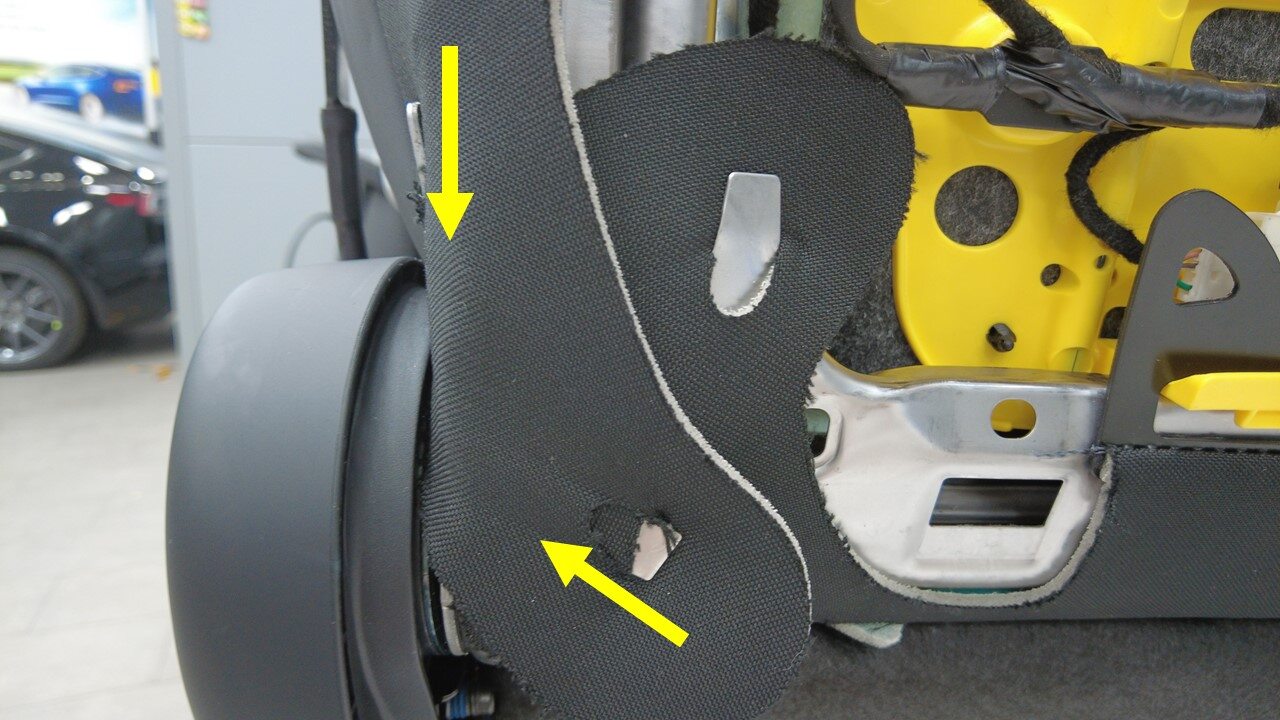

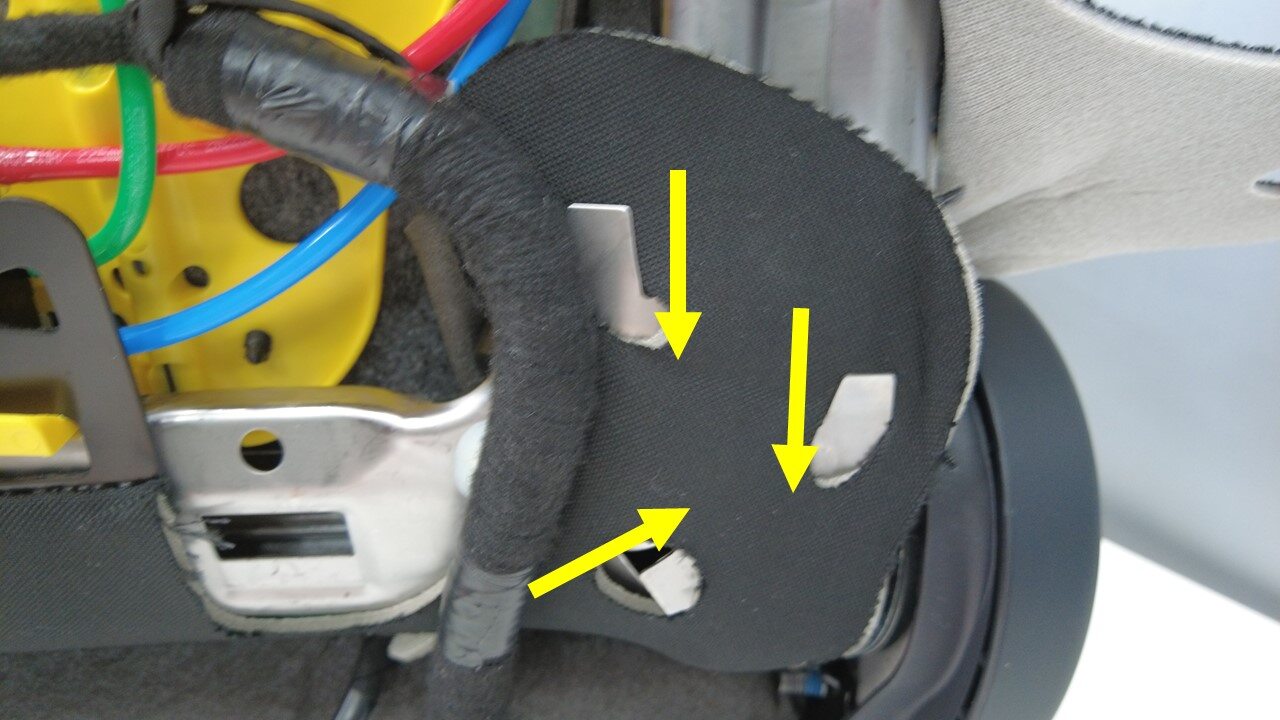

  14. Non-Sport seat: untie the locking flaps that cover the upper part of the seat back frame

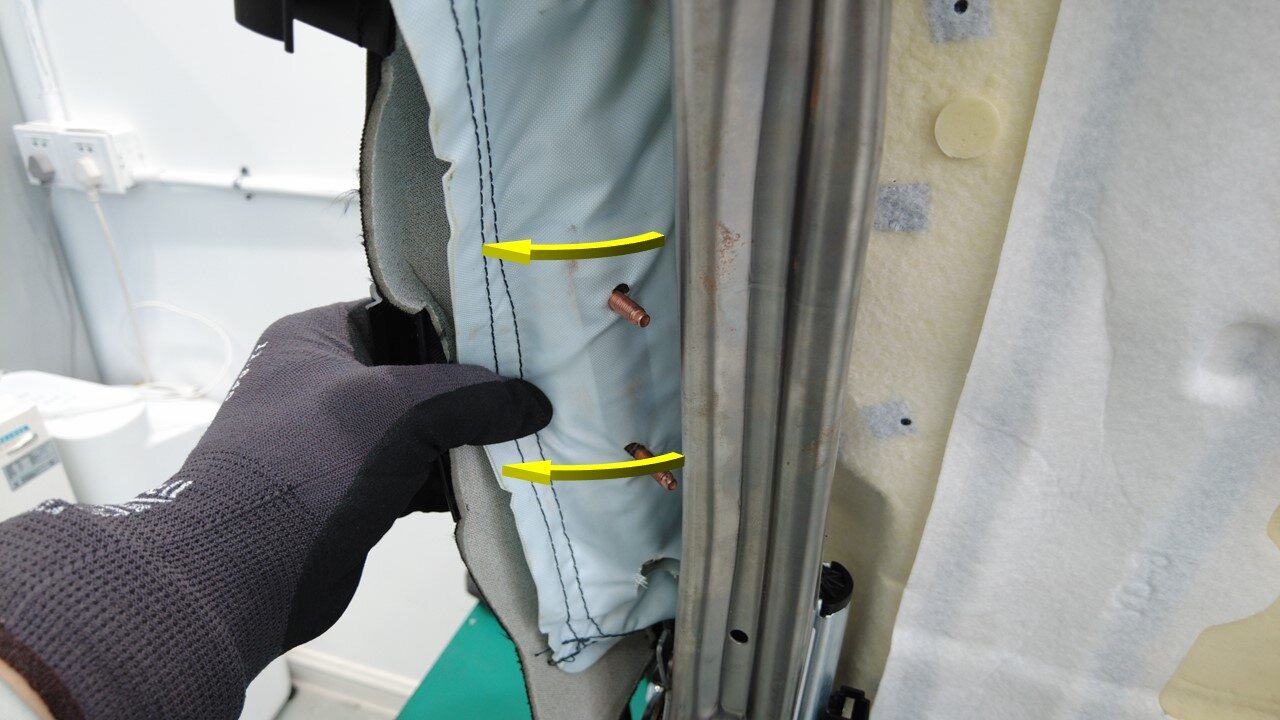

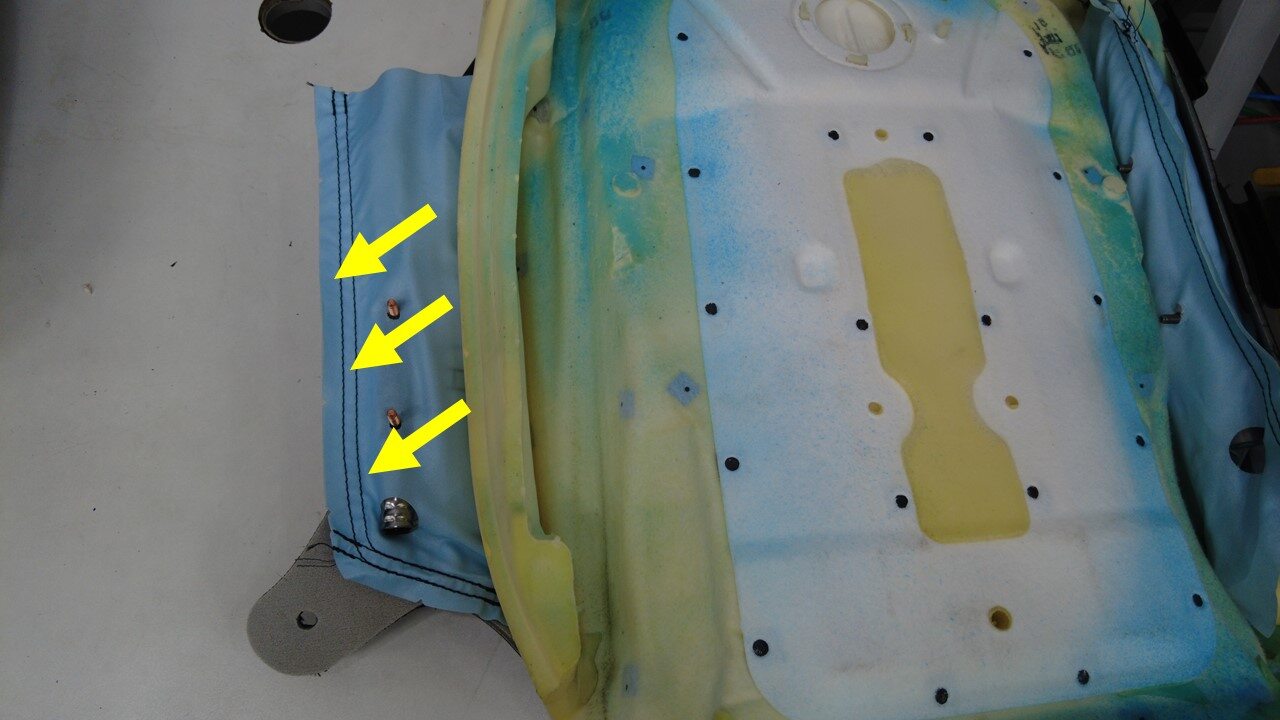

  15. Pull the seat upholstery away from the side air bag to gain access to the outer side air bag electrical connector.

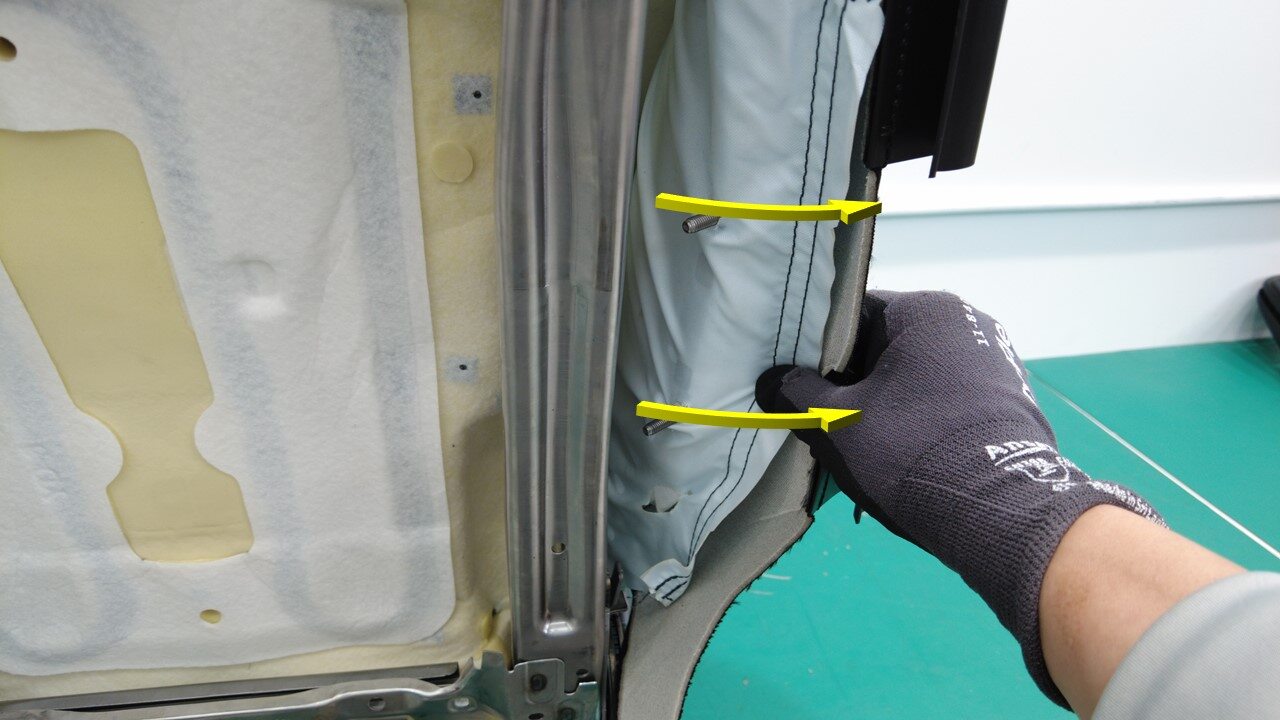

    Figure 3. Non-Sport Seat
    Figure 4. Sport Seat

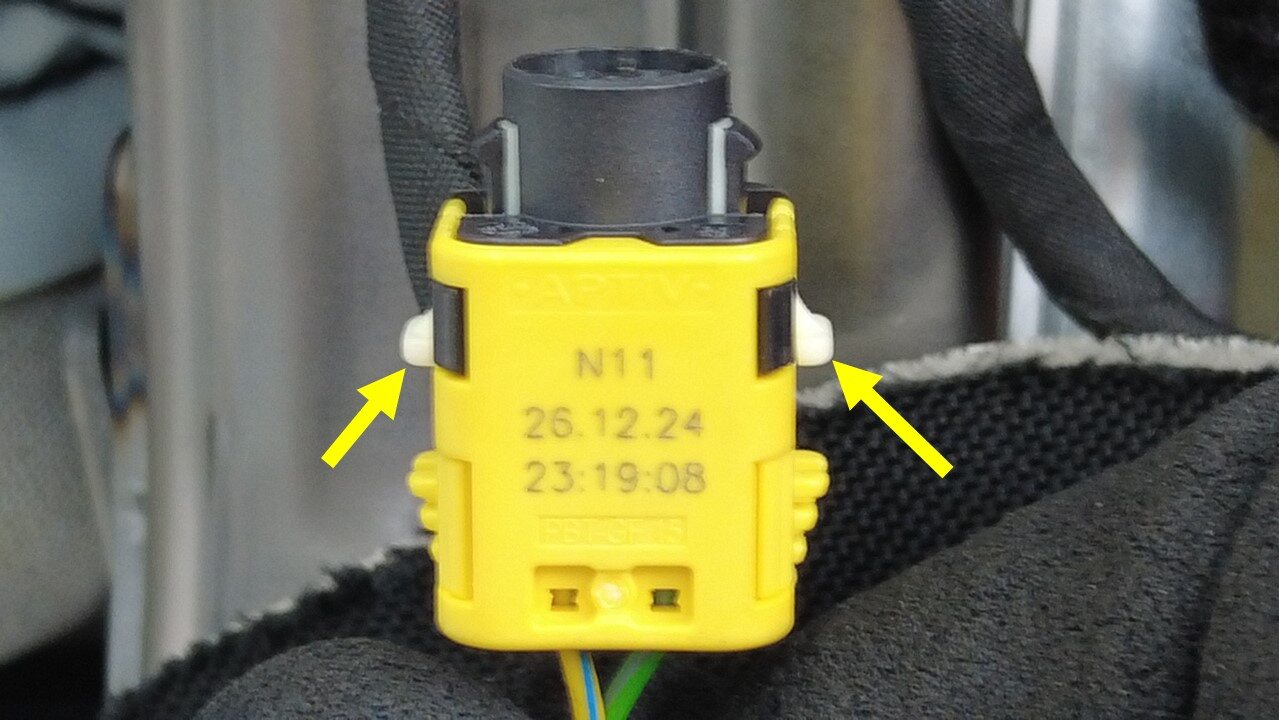

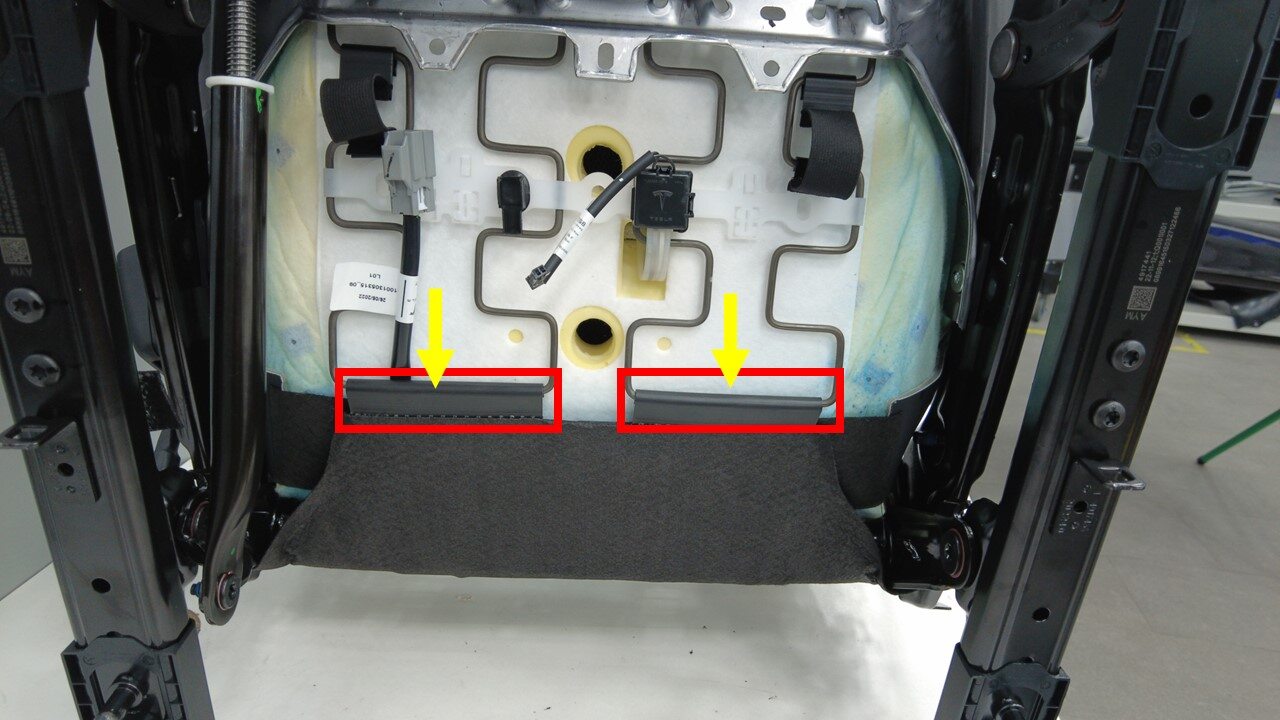

  16. Press and hold the black tabs (non-Sport seats) or push down the white tabs (Sport seats) and pull down to disconnect the outer side airbag electrical connector.
    Figure 5. Non-Sport Seat
    Figure 6. Sport Seat

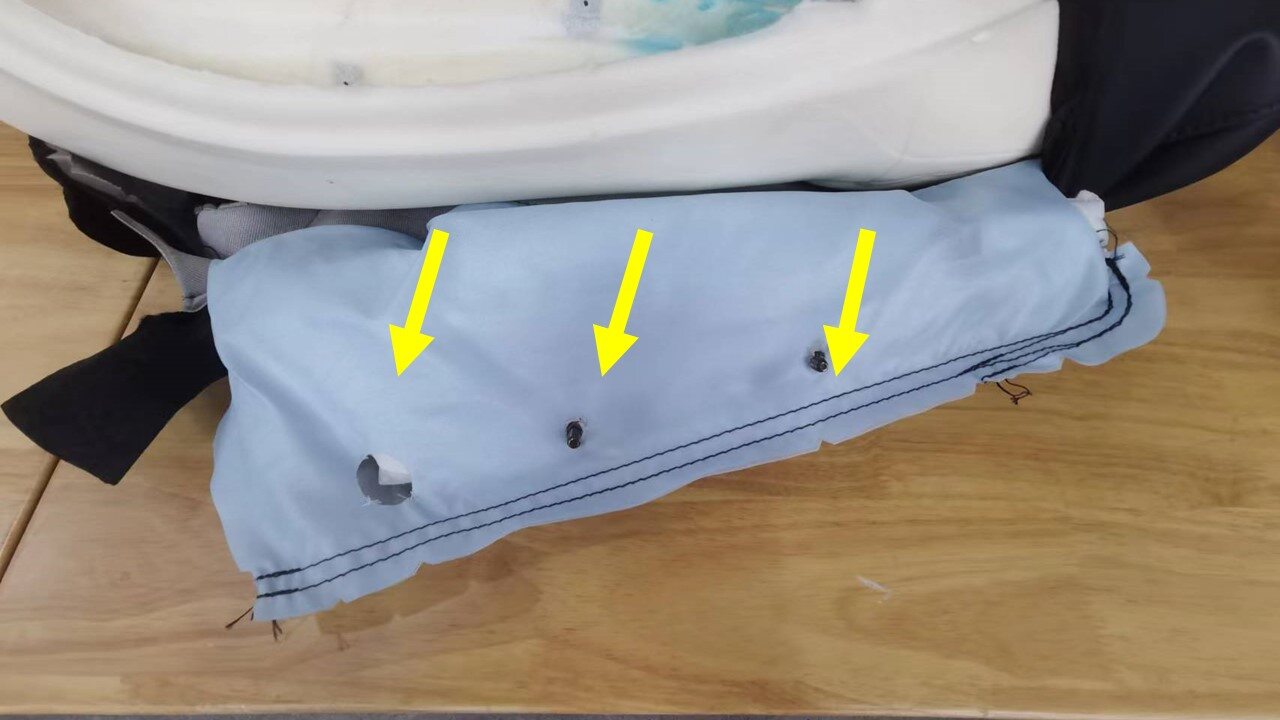

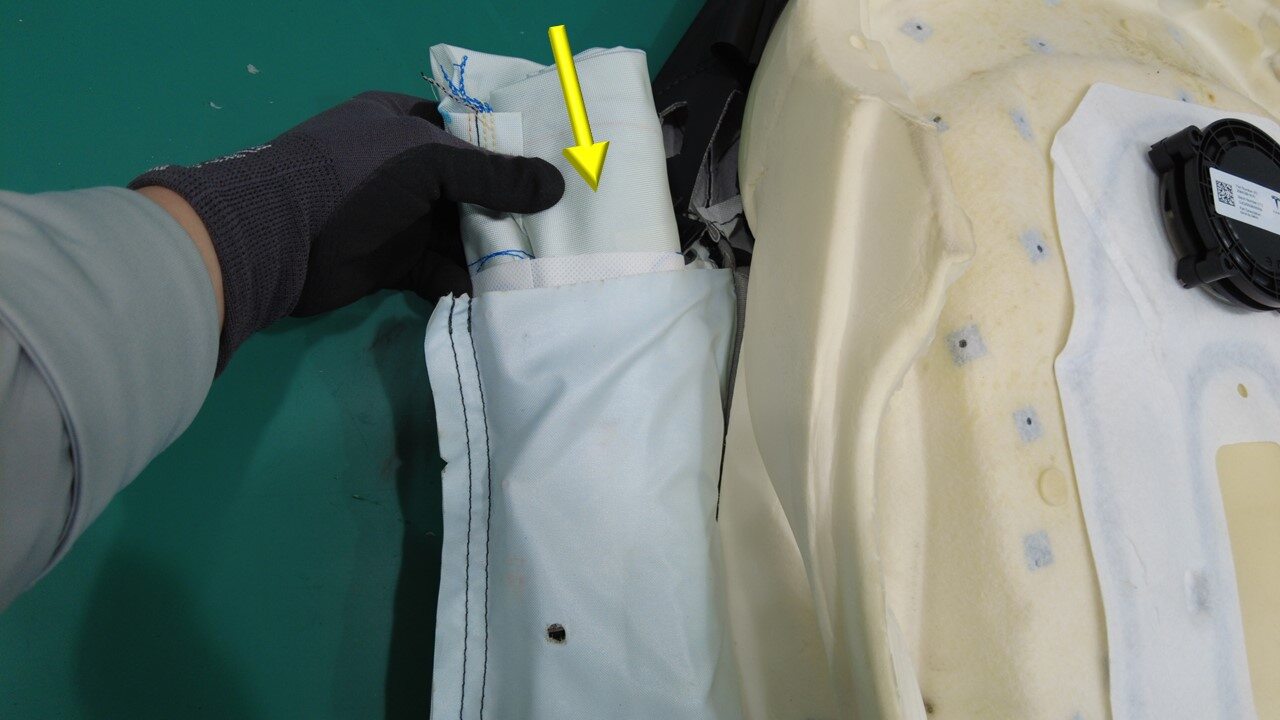

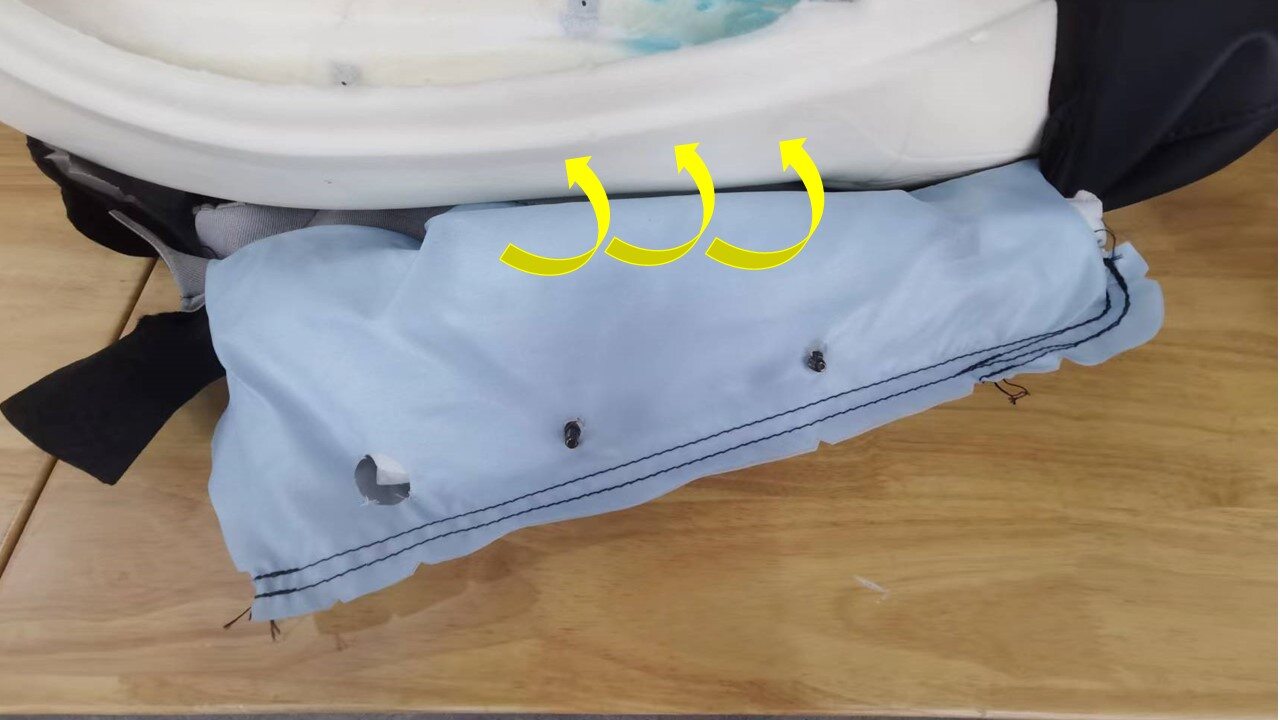

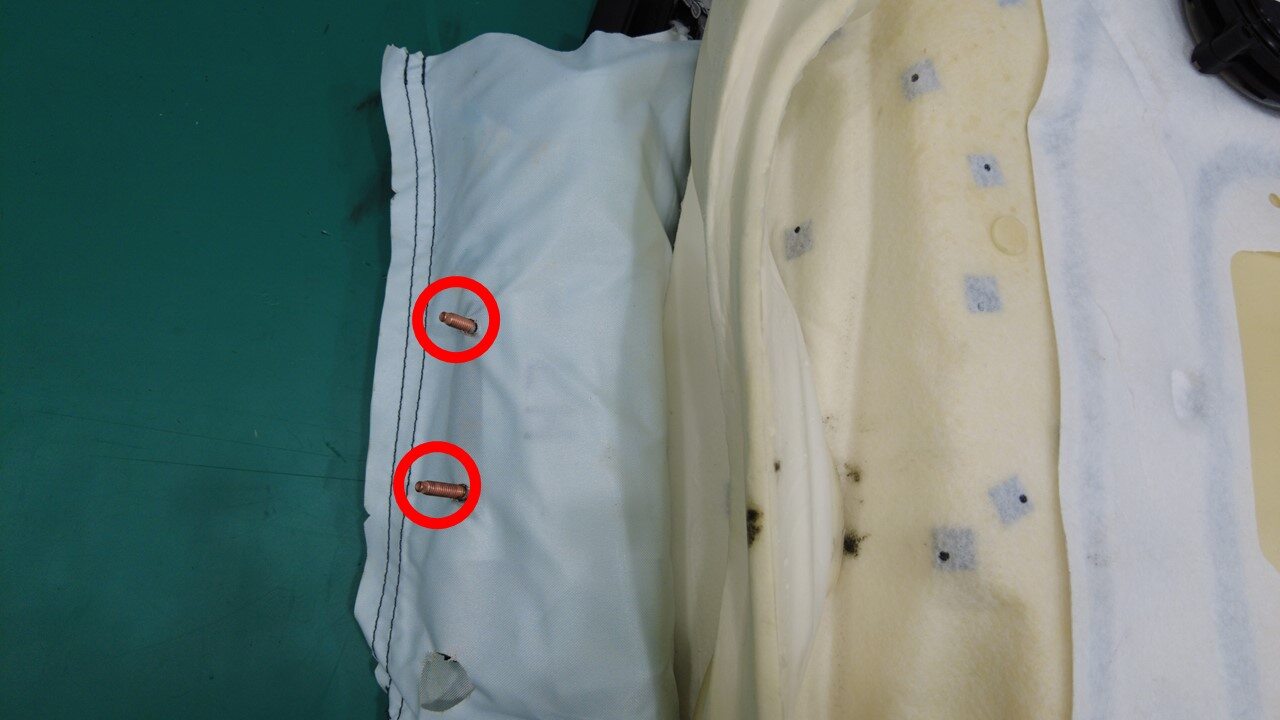

  17. Pull the seat upholstery away from the Far Side Air Bag (FSAB) to gain access to the air bag electrical connector.
    Figure 7. Non-Sport Seat
    Figure 8. Sport Seat
  18. Press and hold the black tabs on both sides (non-Sport seat) or push down the white tabs (Sport seats) and pull down to disconnect the seat FSAB electrical connector.
    Figure 9. Non-Sport Seat
    Figure 10. Sport Seat
  19. Remove the bolt that attaches the bottom of the lumbar support to the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt is located below the lumbar ECU. Removing this bolt allows ease of access for the following step.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • 2 in extension
    • Ratchet/torque wrench

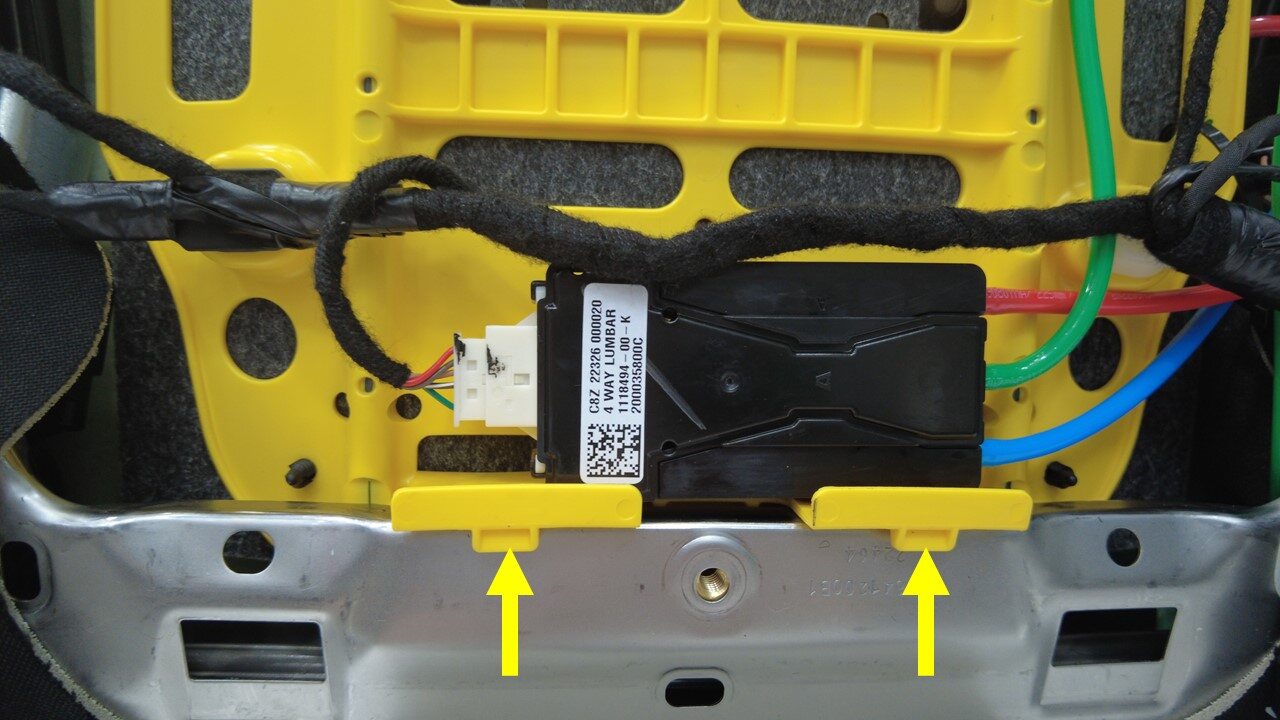

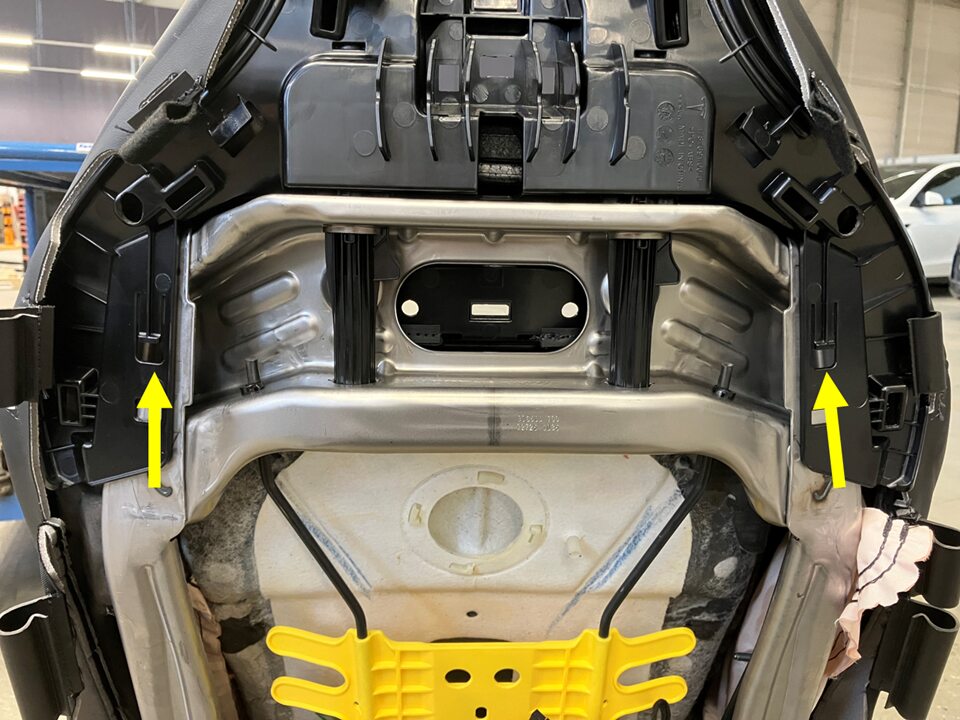

  20. Release the tabs (x2) that attach the bottom of the lumbar support to the seat back frame.

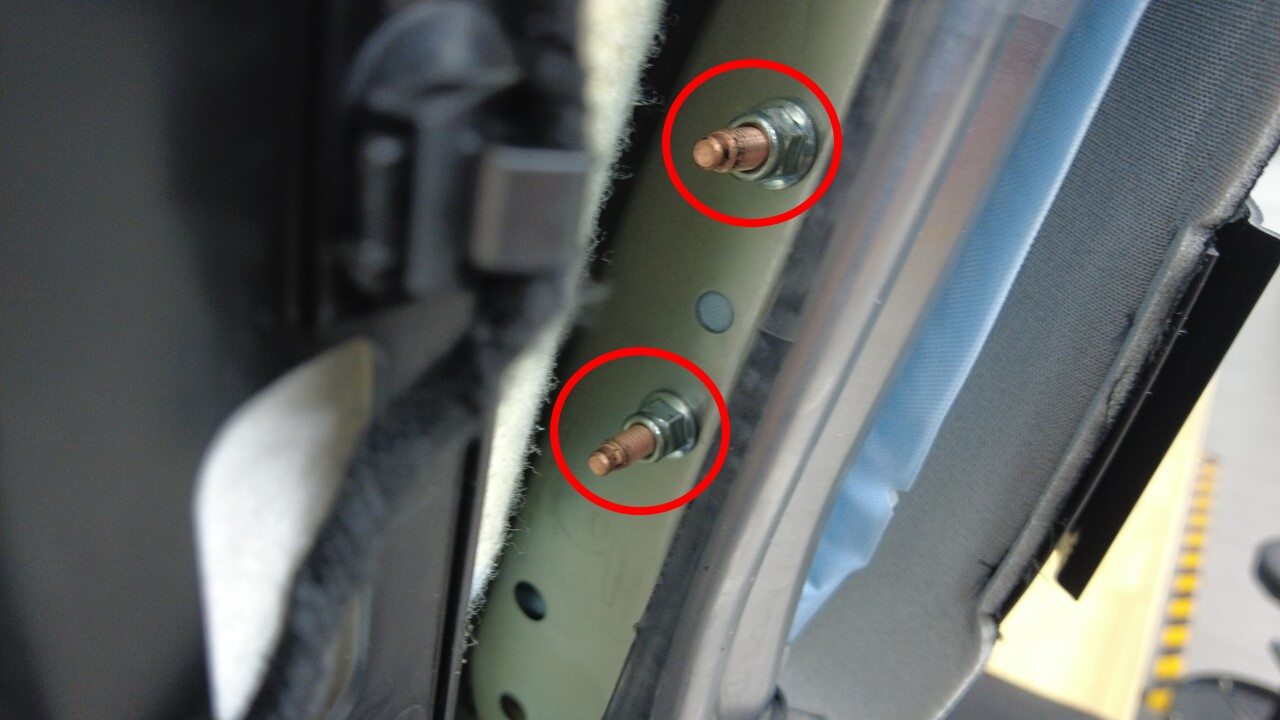

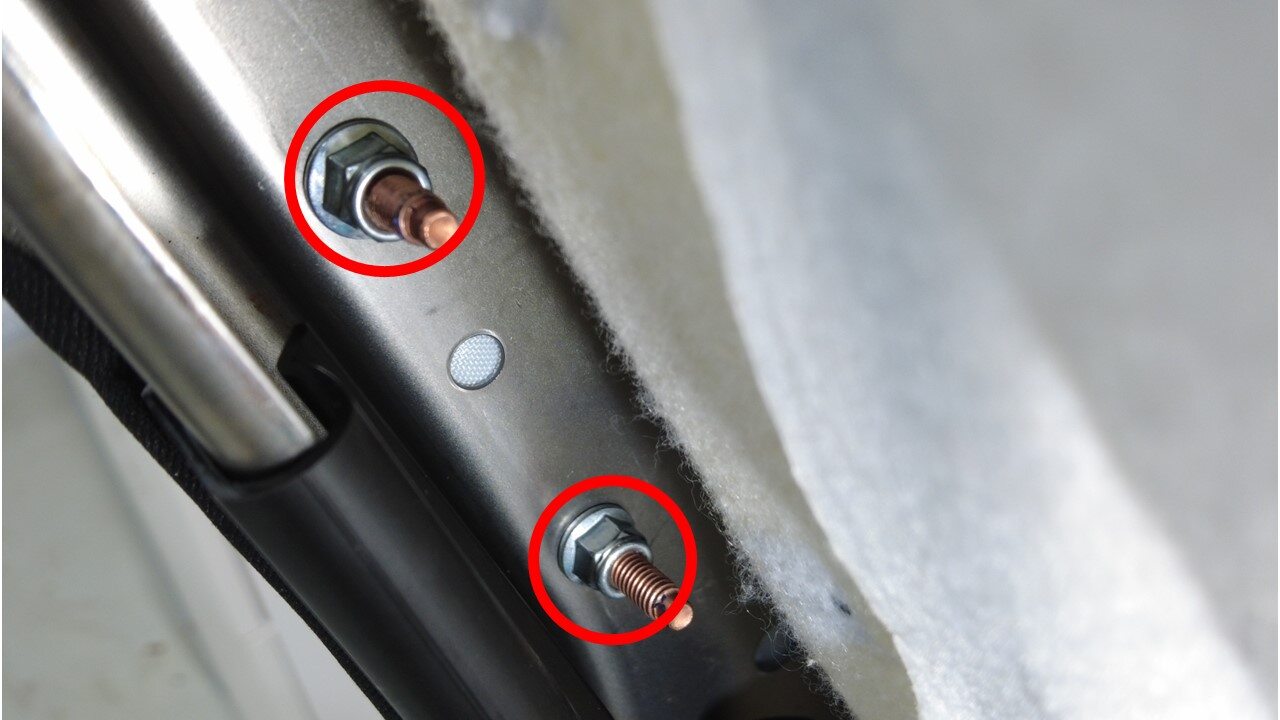

  21. Remove and discard the nuts (x2) that attach the driver seat side airbag to the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not use impact tool.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 10 mm deep socket

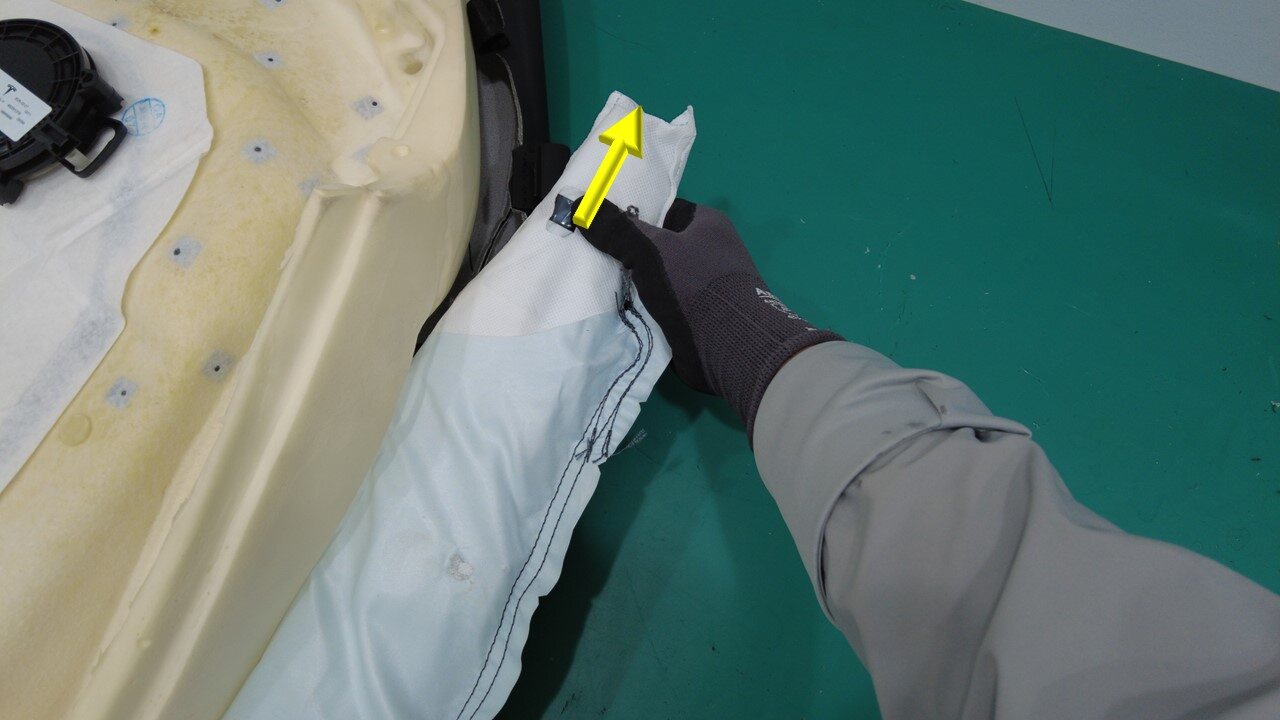

  22. Carefully pull the driver seat side airbag chute away from the seat back frame.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not remove the airbag from the airbag chute.
  23. Remove and discard the nuts (x2) that attach the driver seat FSAB to the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not use impact tool.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 10 mm deep socket

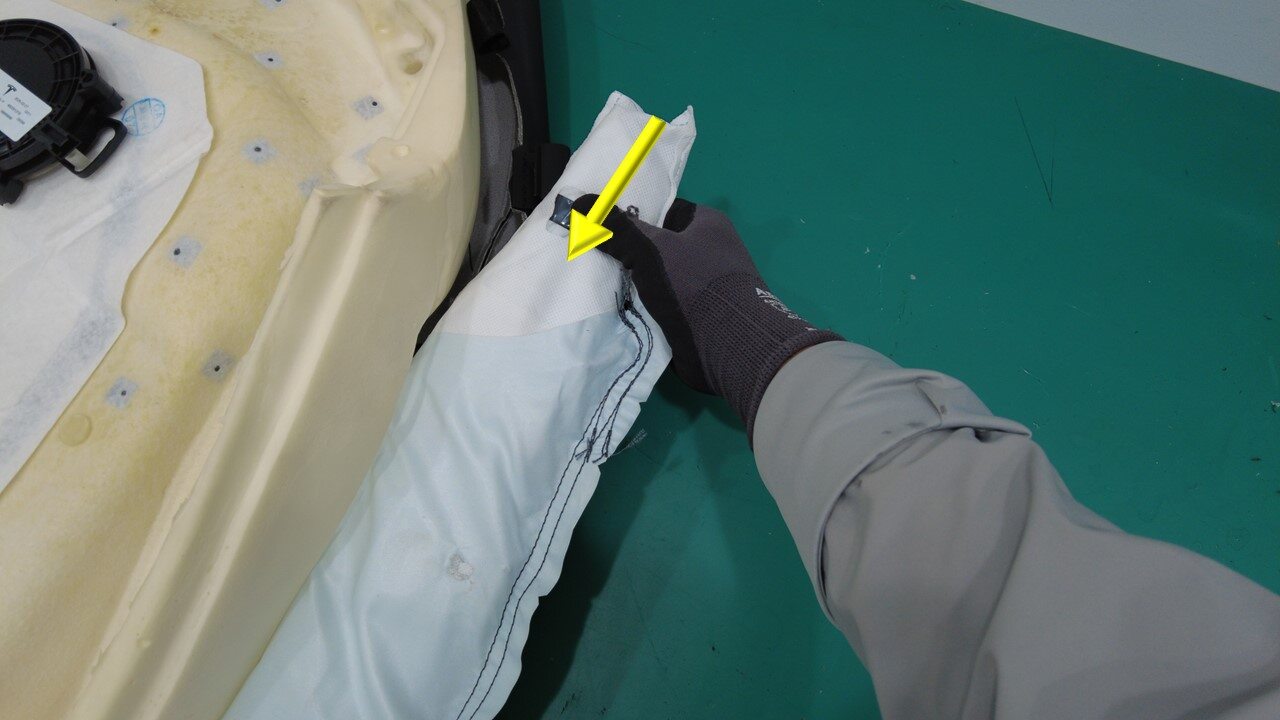

  24. Carefully pull the FSAB and fasteners away from the seat back frame.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not remove the airbag from the airbag chute.

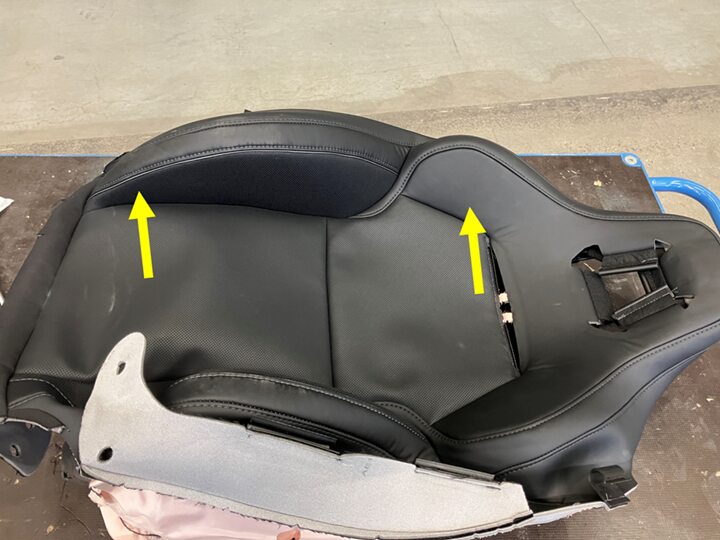

  25. Sport seat: Remove front seat back soft trim cover assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs. Start by pulling the bottom of the seat trim away from the seat frame, ensure the heater harness and the trim is clear of the frame. Lift straight up on the sides of the trim, moving the trim from side to side, to free it from the frame.

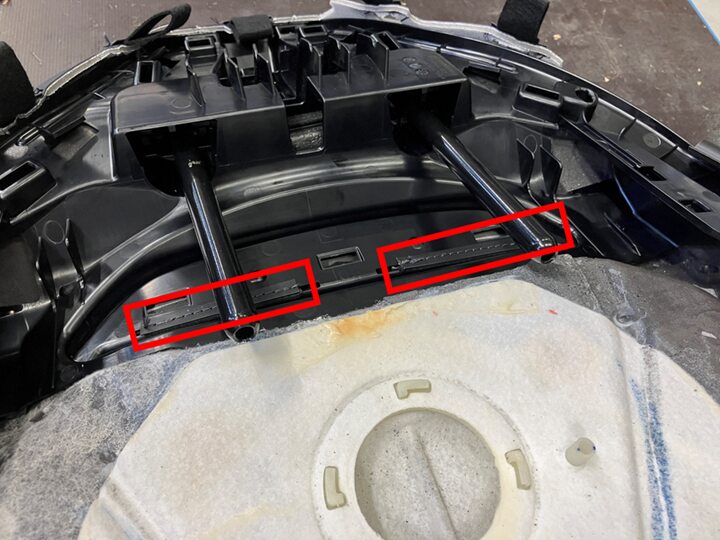

  26. Sport seat: Remove the substrate from the front seat back soft trim cover assembly.
  27. Non-Sport seat: remove the seat upholstery by pulling the bottom of the seat back trim away from the seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the heater harness and the seat back trim is clear of the seat back frame.

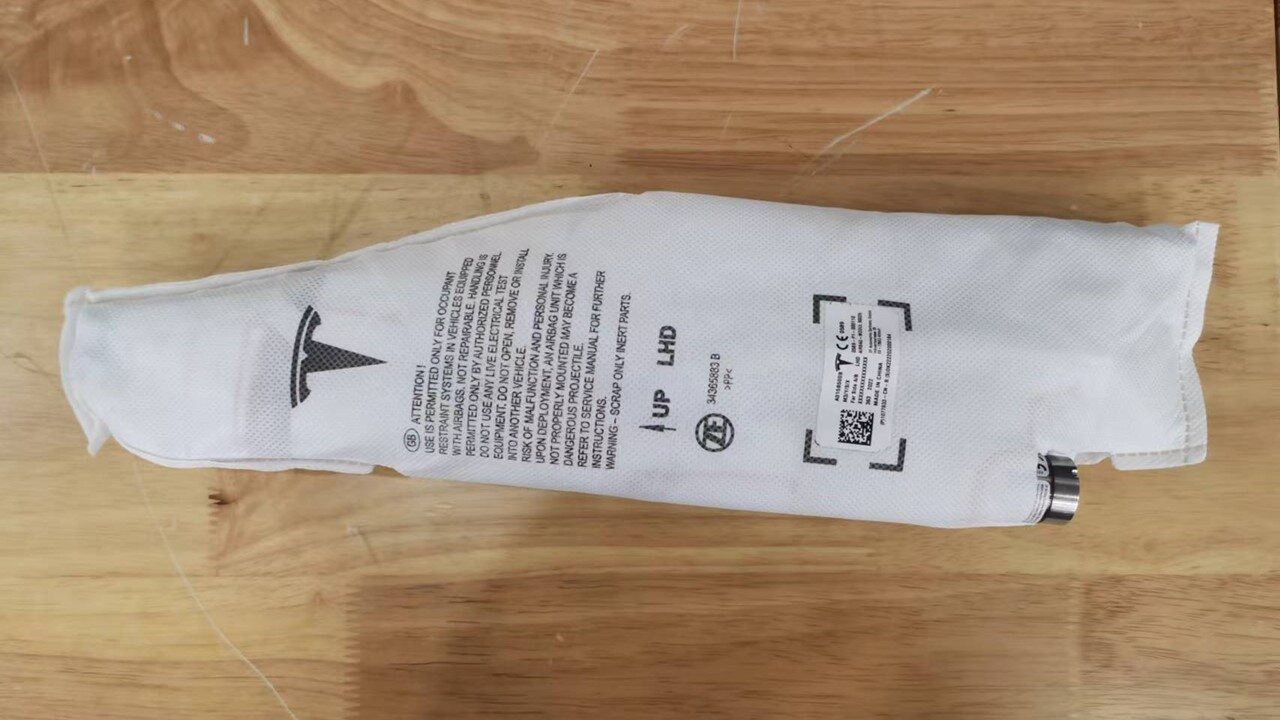

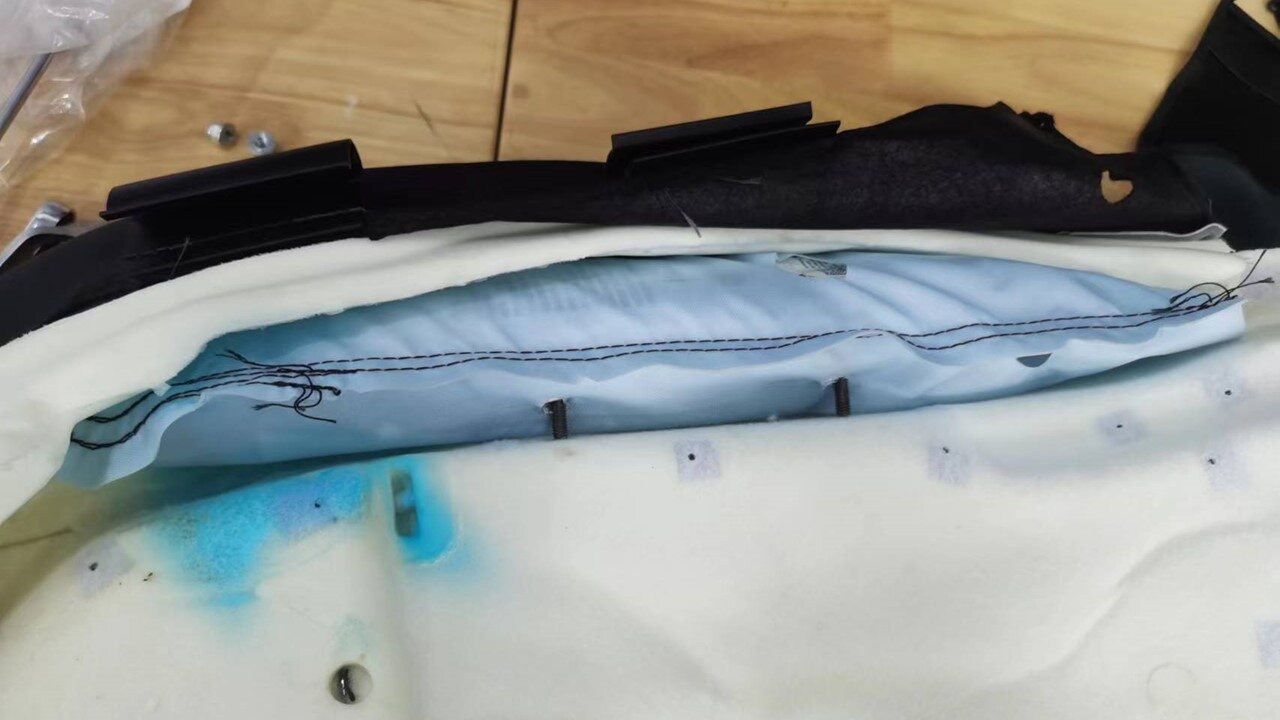

  28. Pull the outer air bag chute away from the LH front seat back foam assembly.

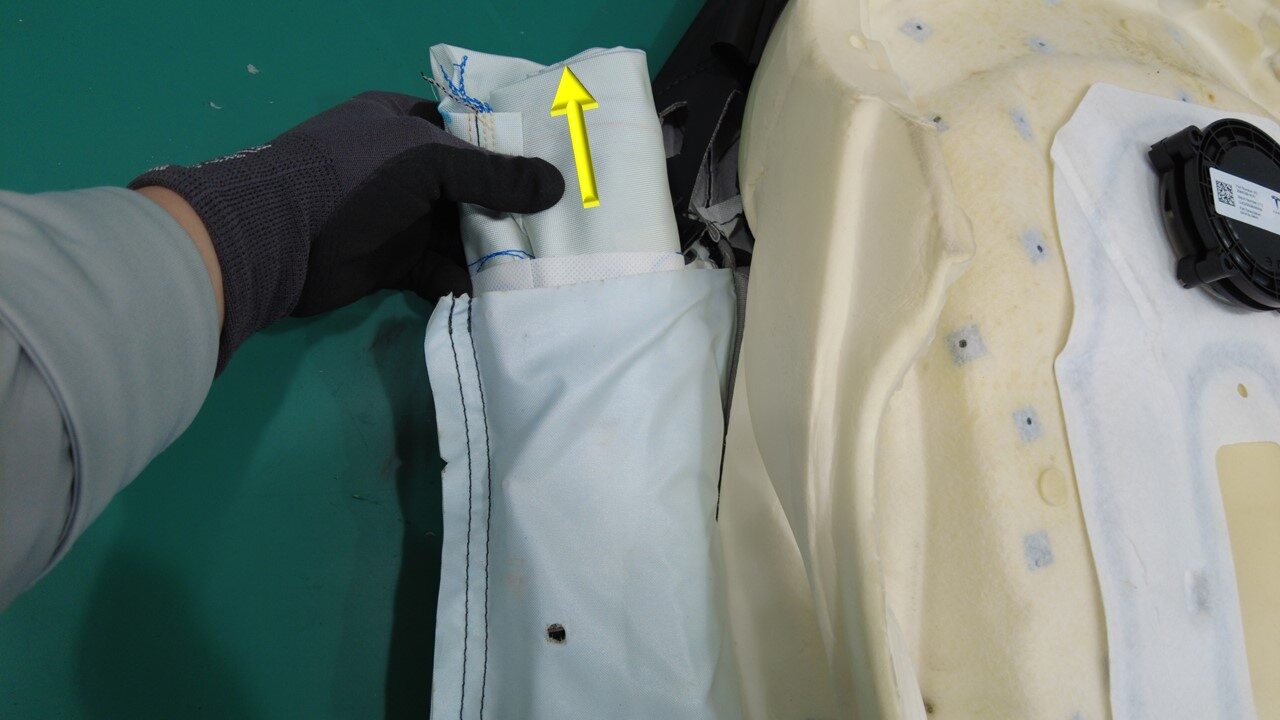

  29. Remove the outer air bag from the LH front seat back assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

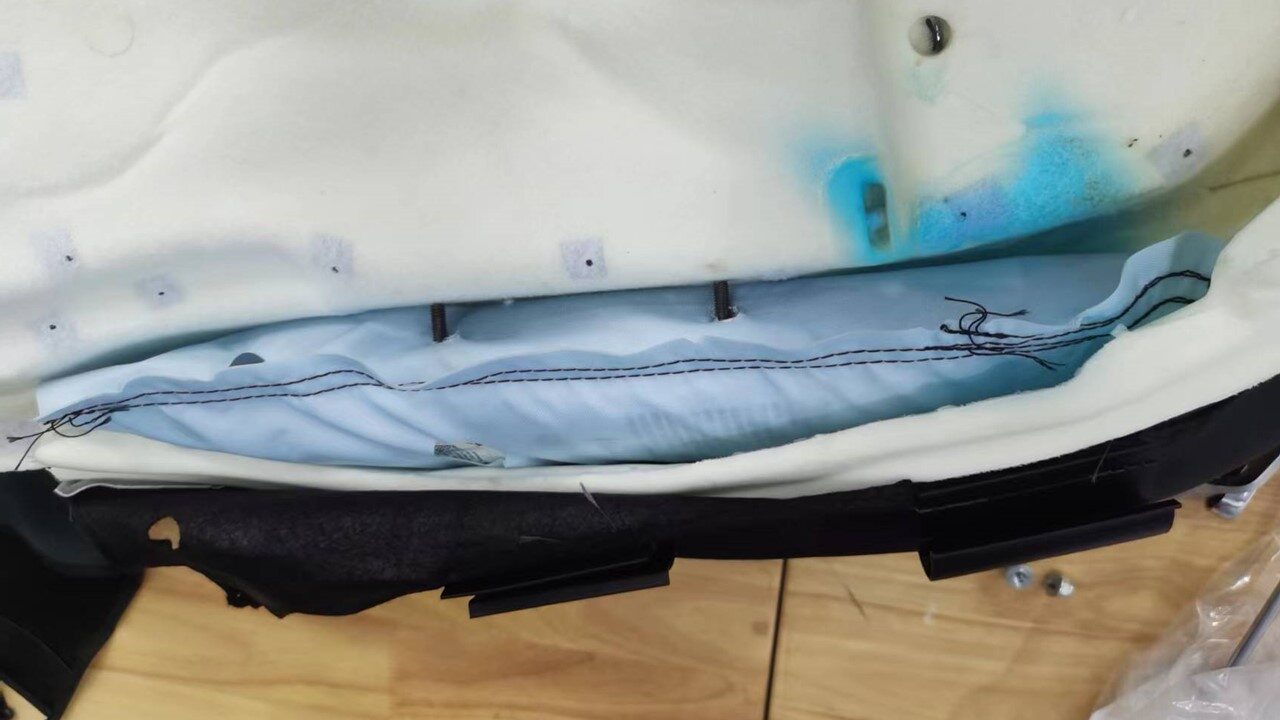

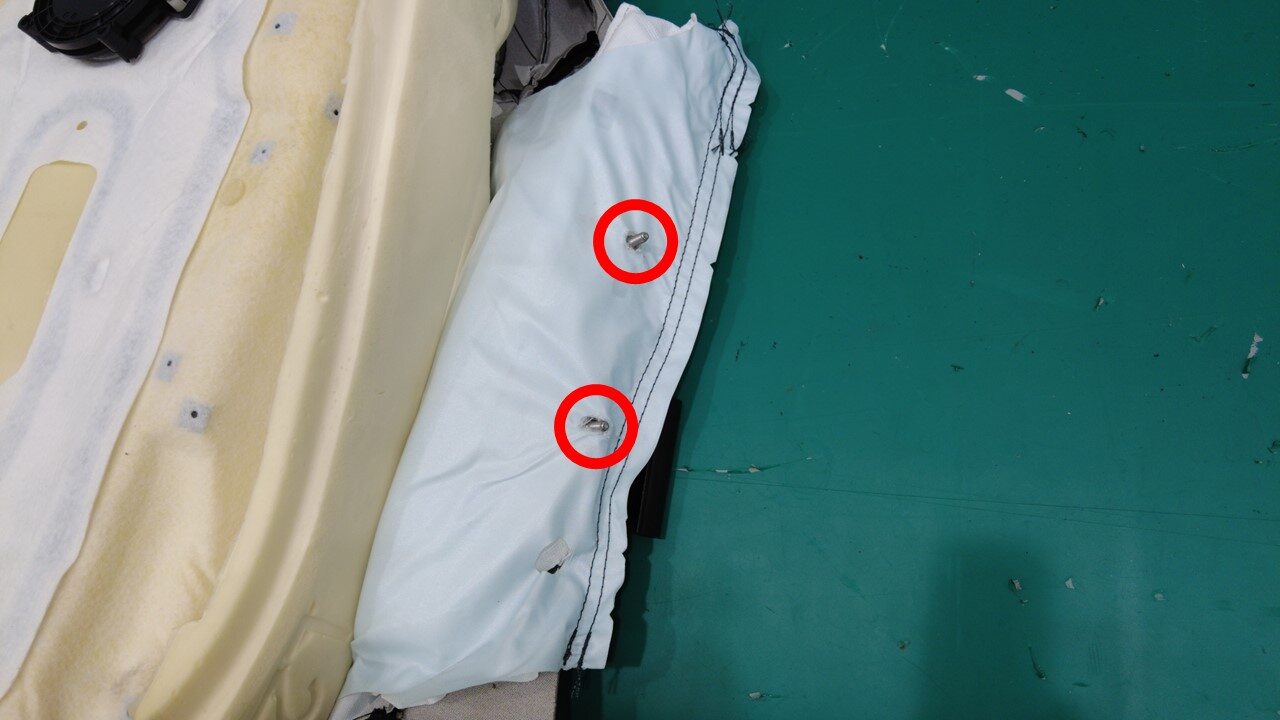

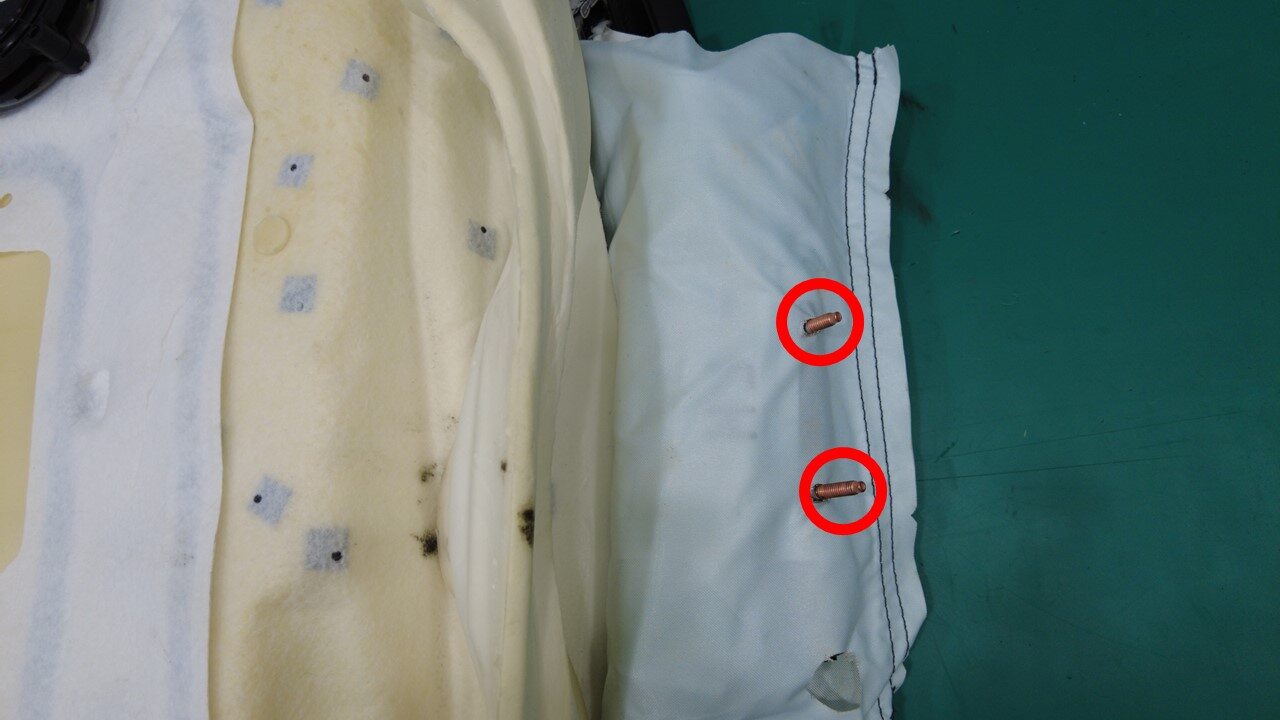

    2x studs. Clear air bag studs from air bag pouch and slide the air bag assembly out. If air bag is dropped or damaged, replace the air bag.
  30. Pull the FSAB chute away from the seat back foam assembly.
  31. Remove the FSAB from the seat back assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x studs. Clear air bag studs from the air bag pouch and slide the air bag assembly out. If the air bag is dropped or damaged, replace the air bag.

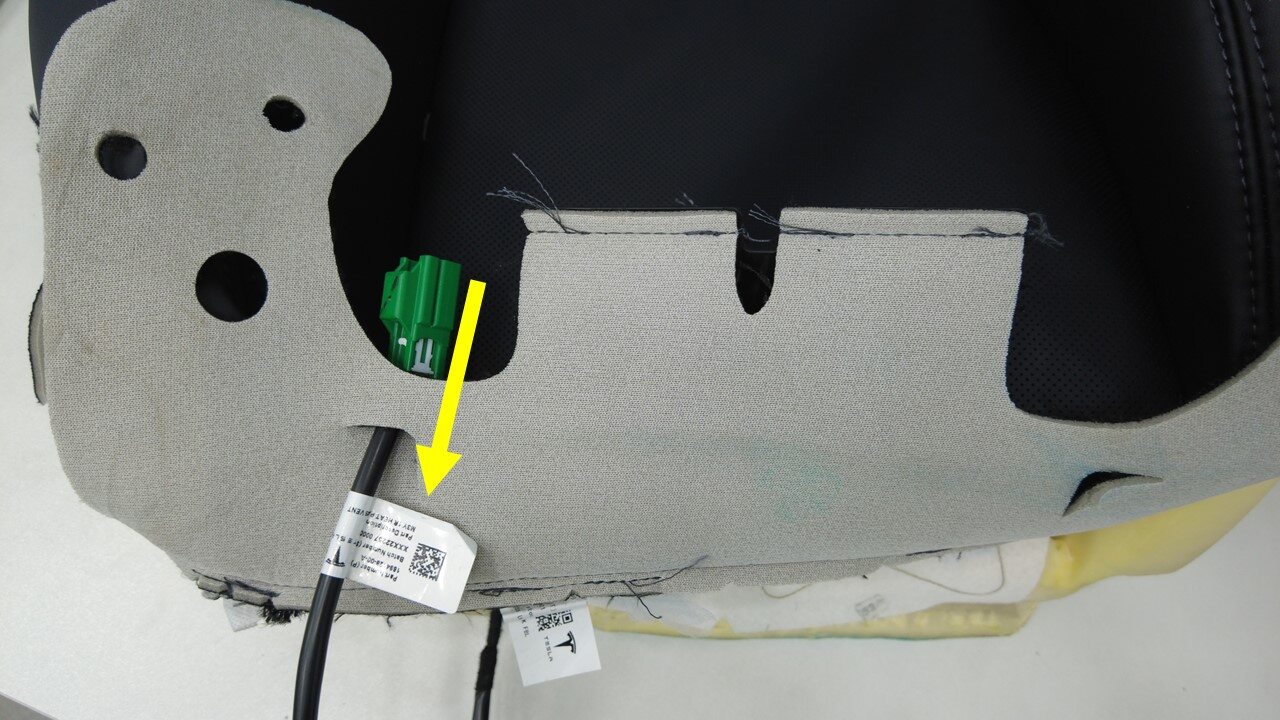

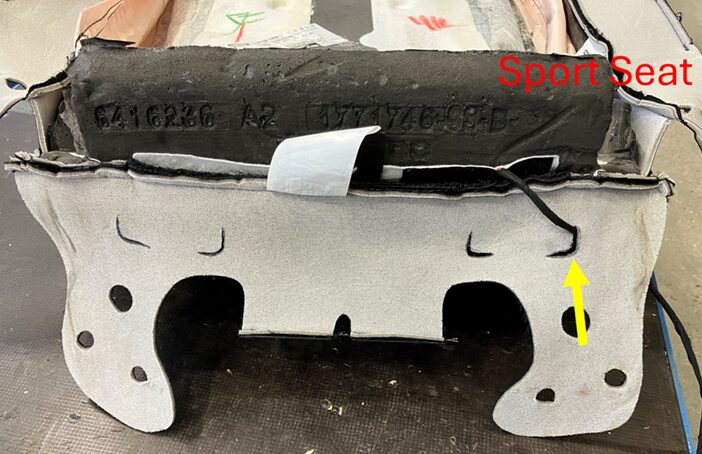

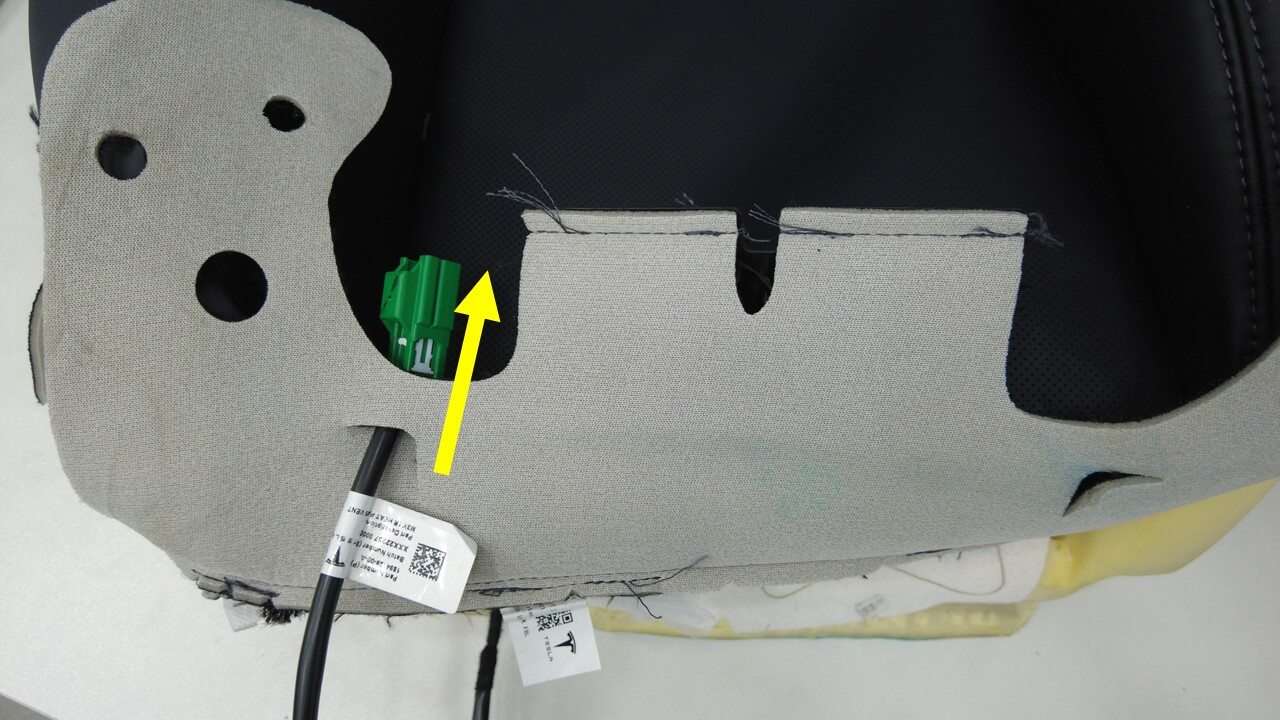

  32. Remove the heater harness from the seat back trim assembly.
    Figure 11. Non-Sport Seat
    Figure 12. Sport Seat

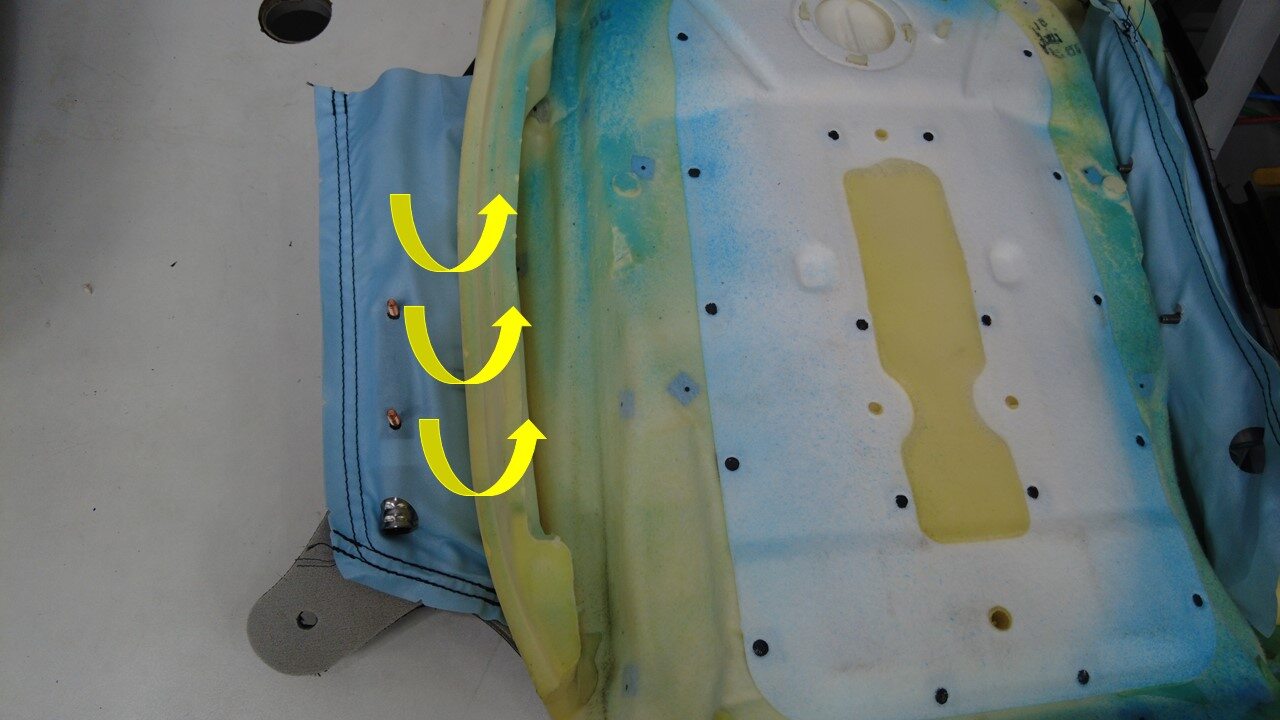

  33. Non-Sport seat: Release the Velcro straps (x4) that attach the driver seat seat back trim to the seat back foam and remove the driver seat seat back trim from the seat back foam.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful when releasing the straps to avoid damage.
  34. Sport Seat: Remove the front seat back trim assembly from the foam assembly .
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 5x Velcro strips. Be cautious when releasing Velcro to avoid damage

Install

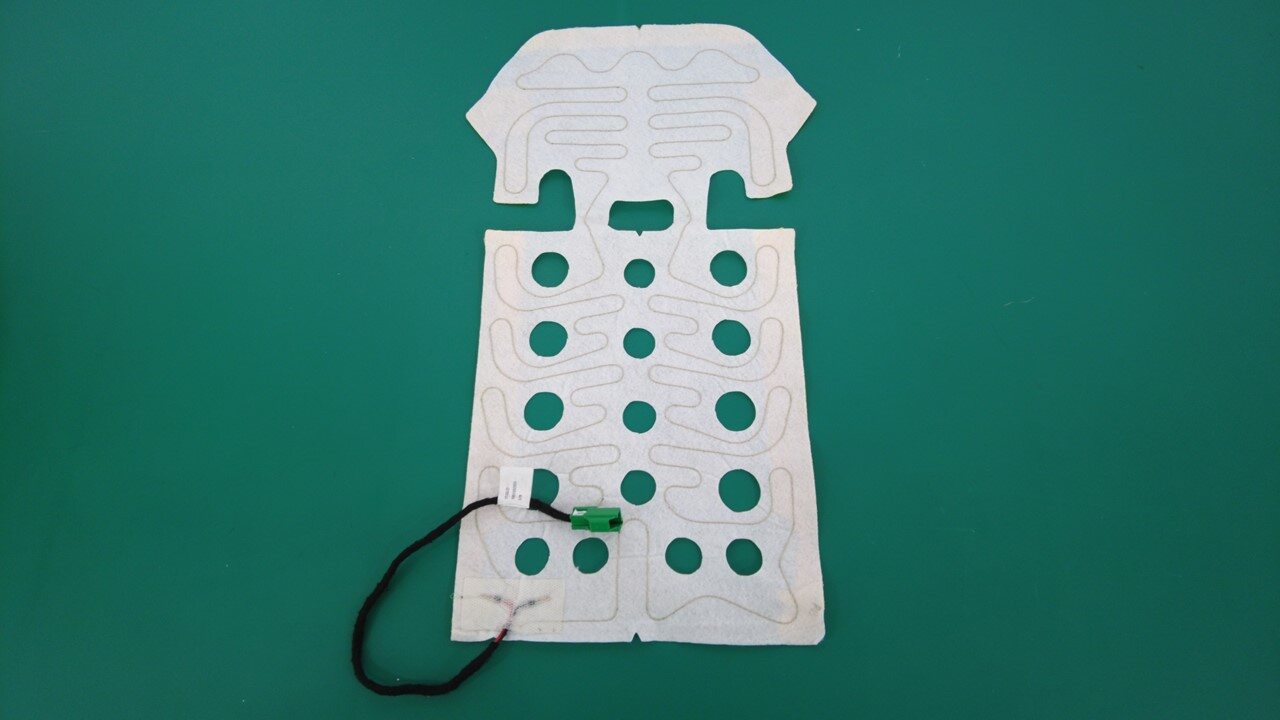

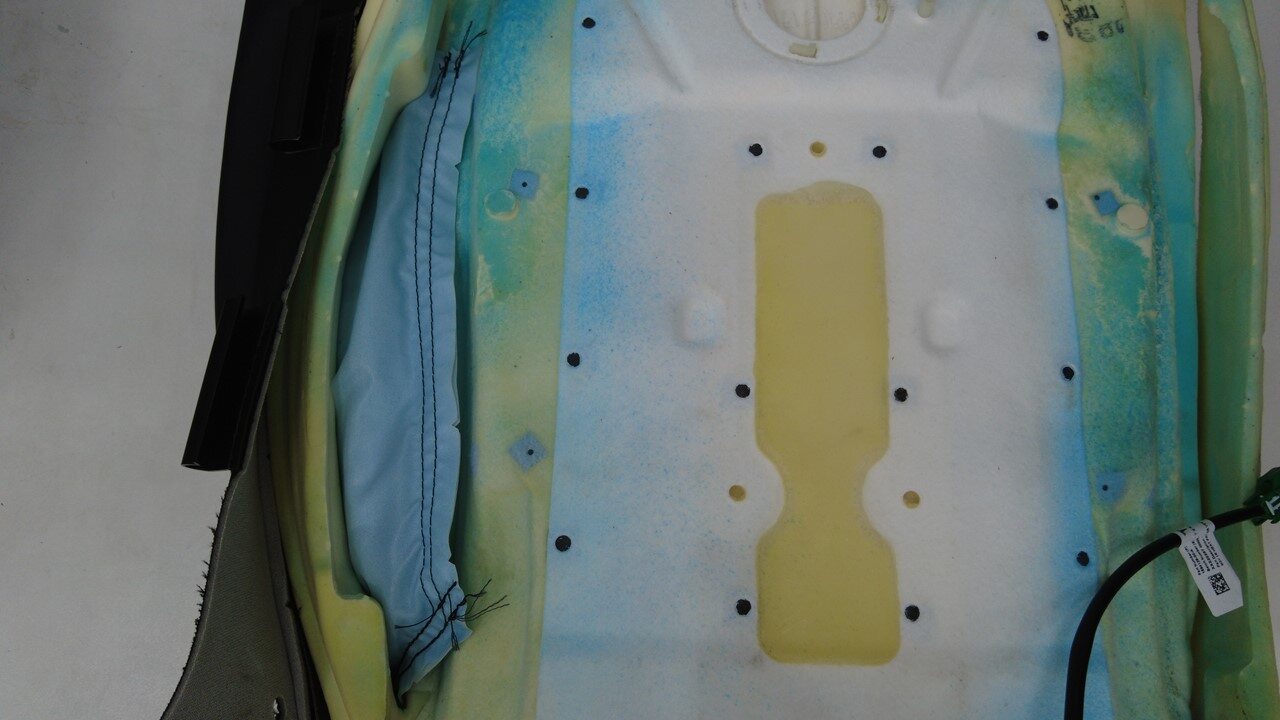

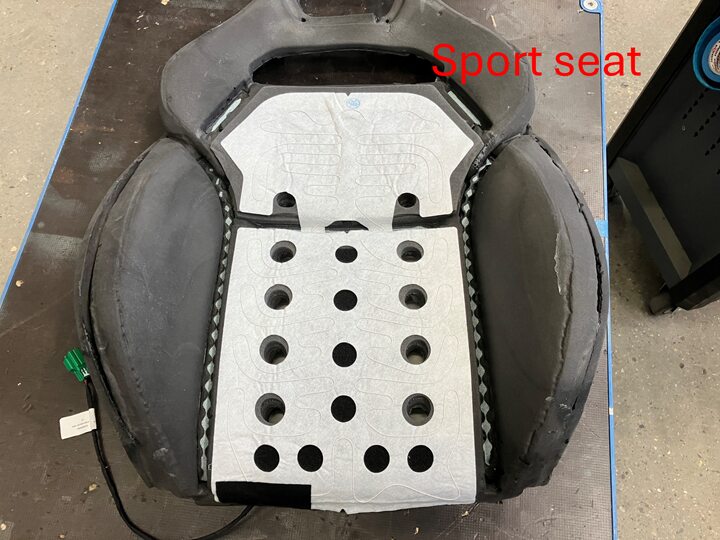

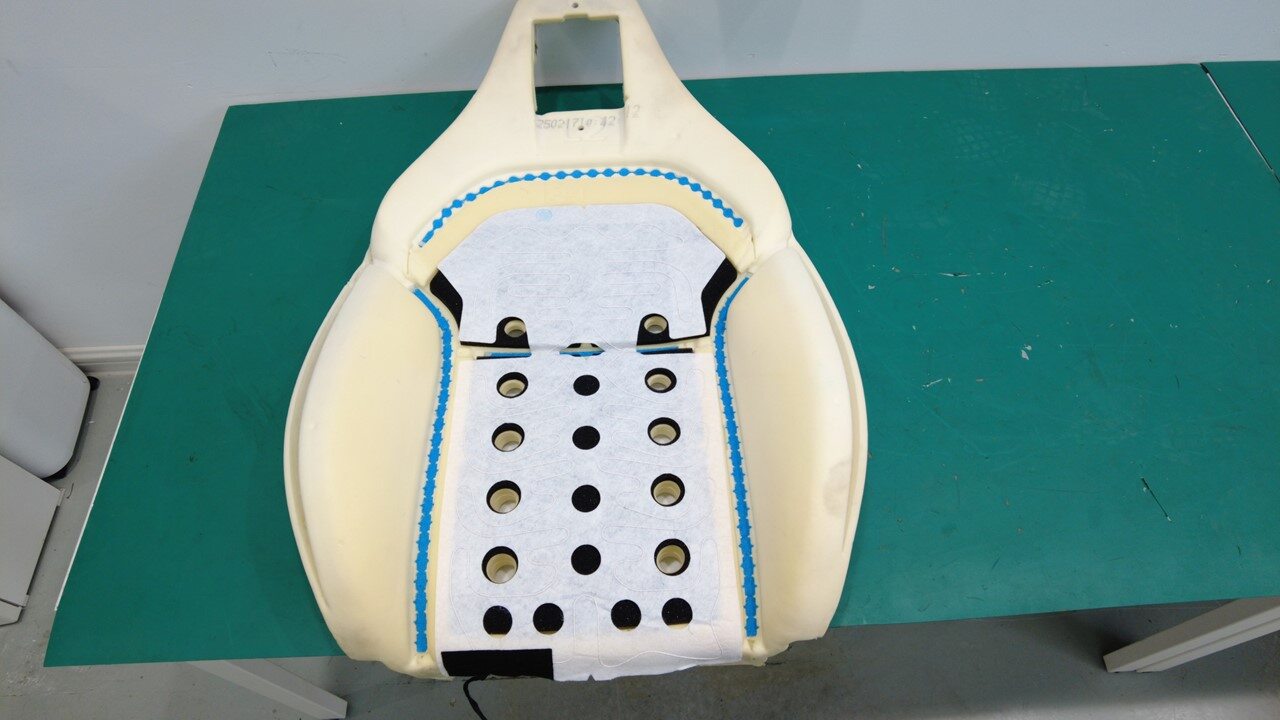

  1. Install the seat back heat pad onto the seat back foam.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a new heat pad and new foam pad.
    Figure 13. Non-Sport Seat
    Figure 14. Sport Seat

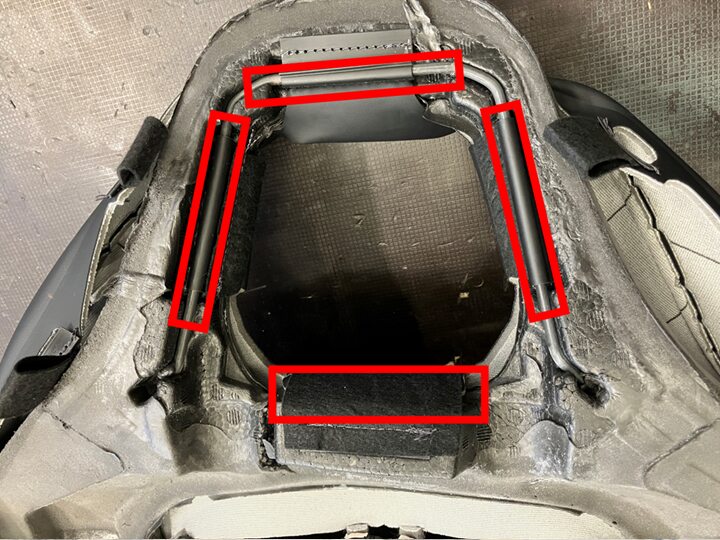

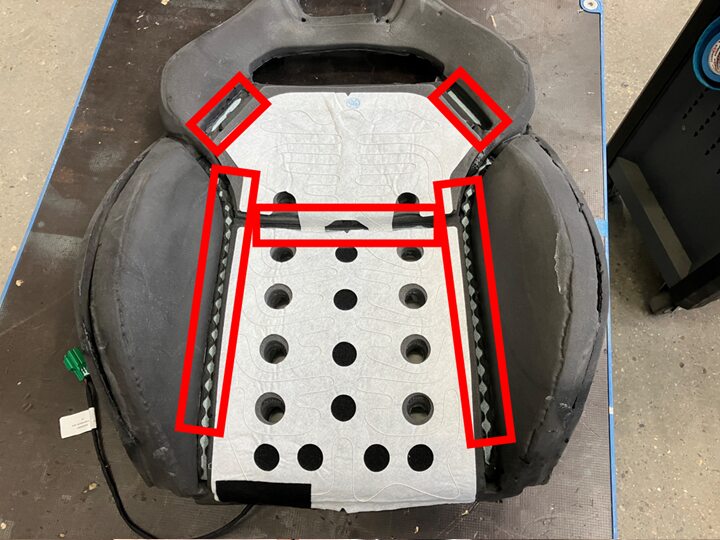

  2. Install the Velcro strips that attach the driver seat seat back trim to the seat back foam.
    • Non-sport seat: 4x Velcro strips
    • Sport seat: 5x Velcro strips, 4x clips
    Figure 15. Non-Sport Seat
    Figure 16. Sport Seat
    Figure 17. Sport Seat
  3. Install the heater harness to the LH front seat back trim assembly.
    Figure 18. Non-Sport Seat
    Figure 19. Sport Seat

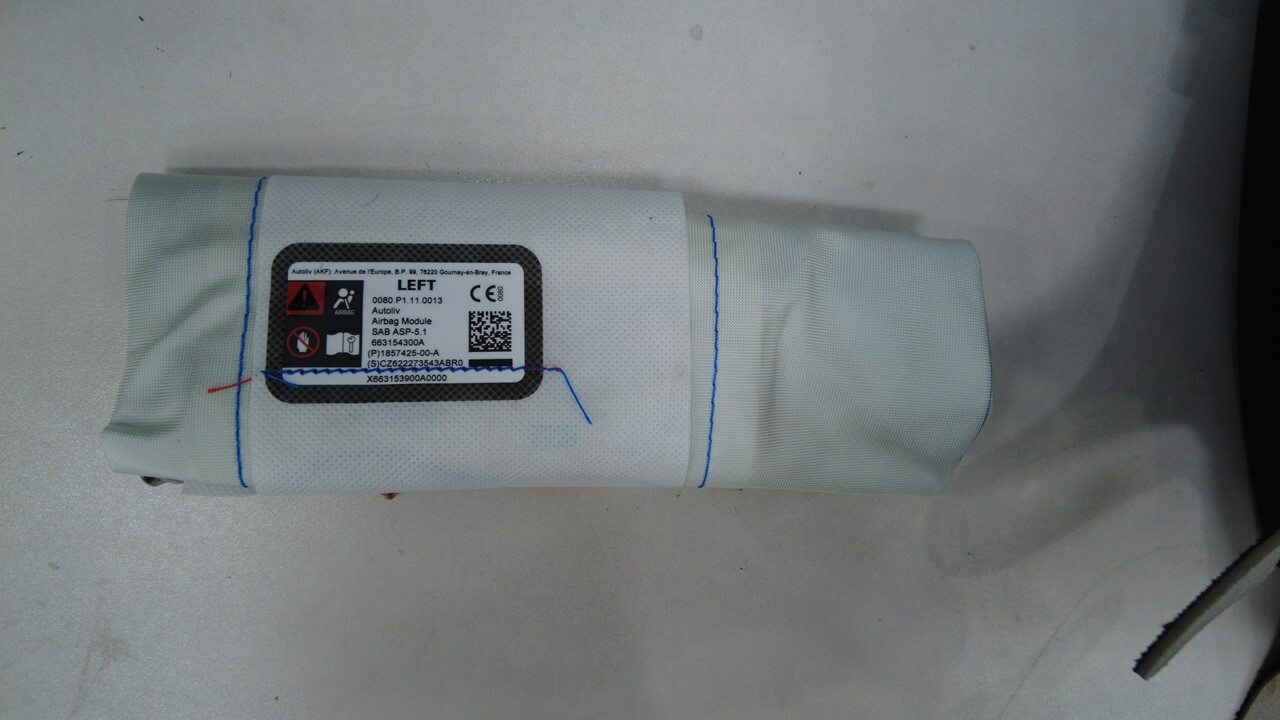

  4. Install the FSAB into the airbag chute.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x studs. Clear studs and slide the air bag into position. Align the studs with the access holes.
  5. Position the FSAB chute into the seat back foam.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure that the driver FSAB mounting studs extend out of the holes of the chute.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Handle the airbag with extreme care when installing it into the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
  6. Install the driver side (outer) airbag into the airbag chute, and then insert the airbag chute with the airbag inside through the slot in the seat back foam.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure that the driver side airbag mounting studs extend out of the holes of the chute.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Handle the airbag with extreme care when installing it into the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
  7. Position the outer air bag chute into front seat back foam
  8. Sport seat: Install Substrate to front Seat back soft trim cover assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs
  9. Install the front Seat back soft trim cover assembly onto the seat back frame
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs. Start by sliding the foam trim straight onto the seat back frame, make sure that the posts for the headrests engage the seat back foam. Make sure that the heater harness and lower trim that engages the frame are pushed through to the back side of the frame.
    Figure 20. Non-Sport Seat
    Figure 21. Non-Sport Seat
    Figure 22. Non-Sport Seat
    Figure 23. Sport Seat
    Figure 24. Sport Seat
    Figure 25. Sport Seat
  10. Position the driver side air bag studs into the seat frame and install new nuts (x2) that attach the driver seat airbag to the seat back frame.
    5.4 Nm (4.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 10 mm deep socket

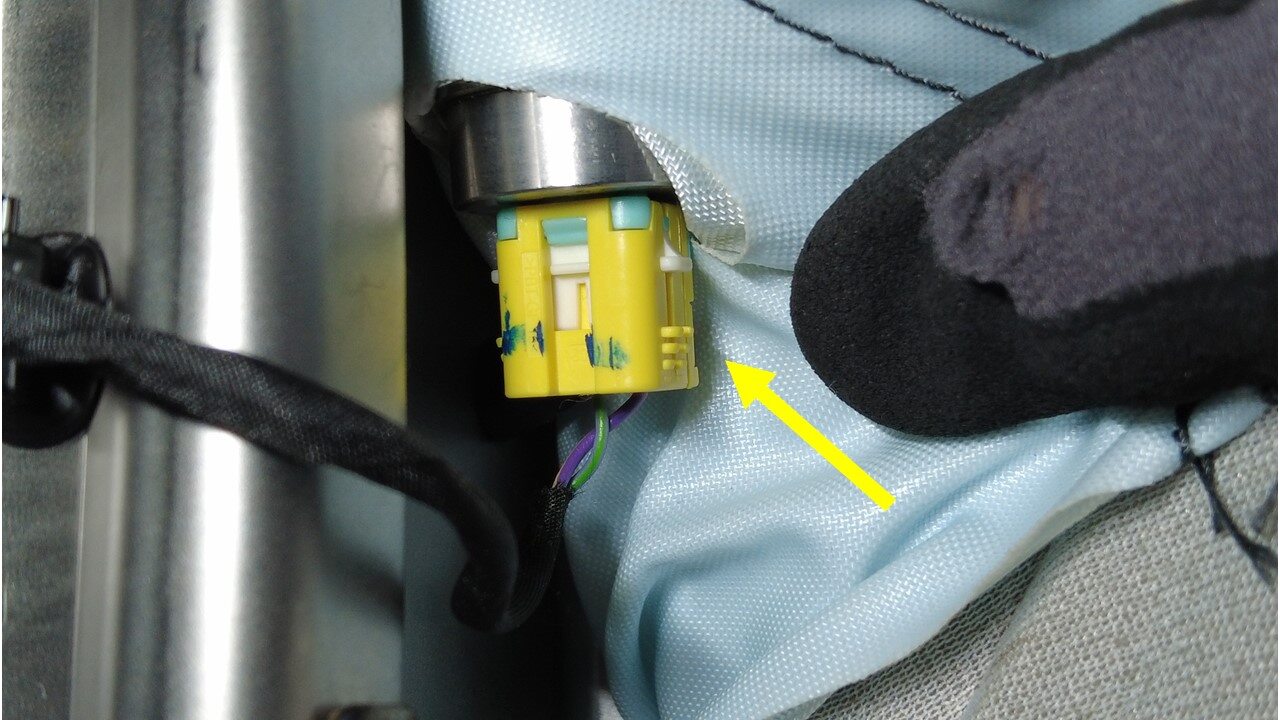

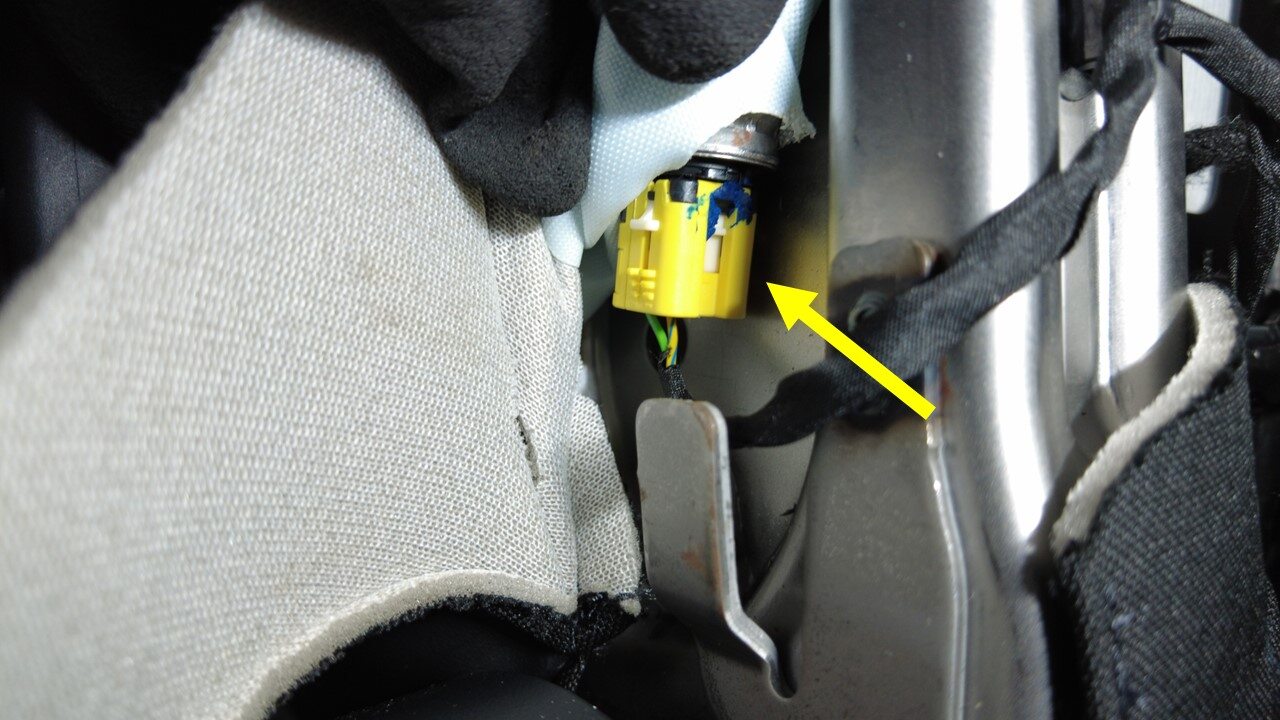

  11. Connect the outer side airbag electrical connector.
    Figure 26. Non-Sport Seat
  12. Position the driver FSAB studs into the seat frame and install new nuts (x2) that attach the FSAB to the seat back frame.
    5.4 Nm (4.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 10 mm deep socket
  13. Connect the seat FSAB electrical connector.
    Figure 27. non-Sport Seat
    Figure 28. Sport Seat
  14. Install the tabs(x2) that attach the bottom of the lumbar support to the seat back frame.
  15. Install the bolt that attaches the bottom of the lumbar support to the seat back frame.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt is located below the lumbar ECU.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • 2 in extension
    • Ratchet/torque wrench
  16. Install the lower flap covering the inboard corner of the LH front seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flap over the metal tangs to secure.
  17. Install the upper flap covering the inboard corner of LH front seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flap over the metal tangs to secure.
  18. Install the lower flap covering the outboard corner of the LH front seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flap over the metal tangs to secure.
  19. Install the upper flap covering the outboard corner of the LH front seat back frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the flap over the metal tangs to secure.

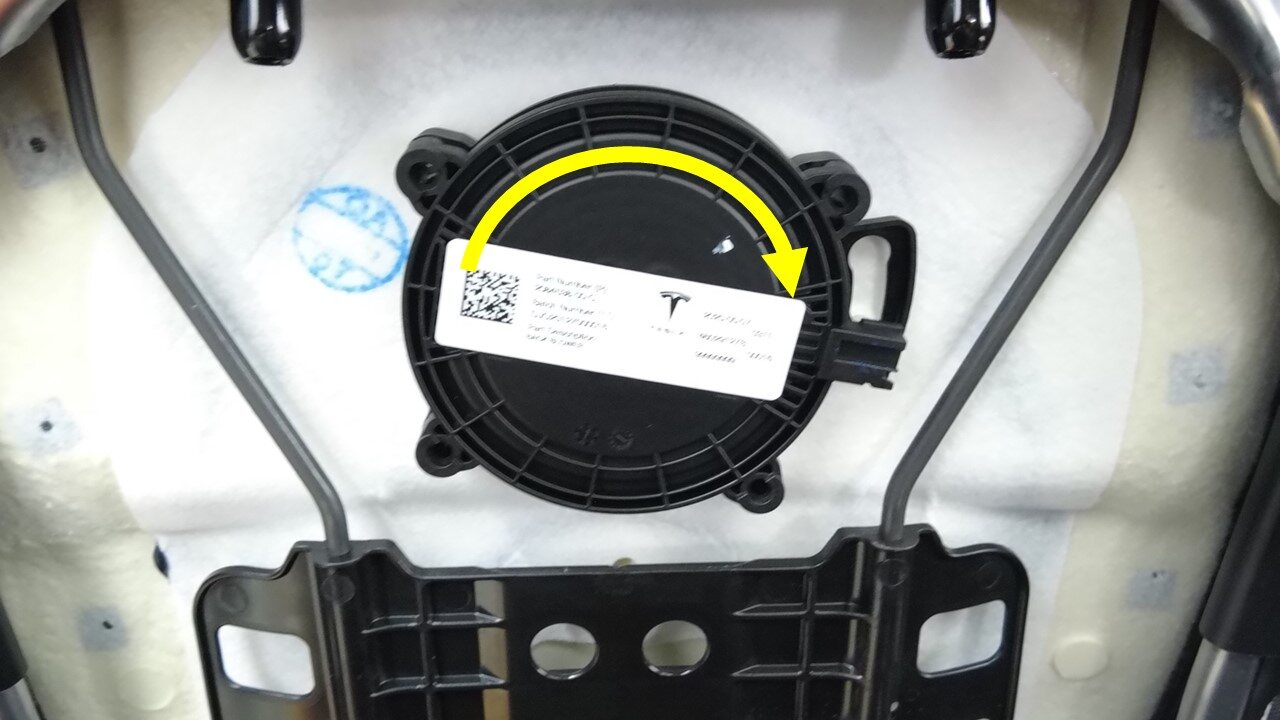

  20. Install the front seat back blower.
    Informational PurposesAn informational icon, calling your attention
    Note

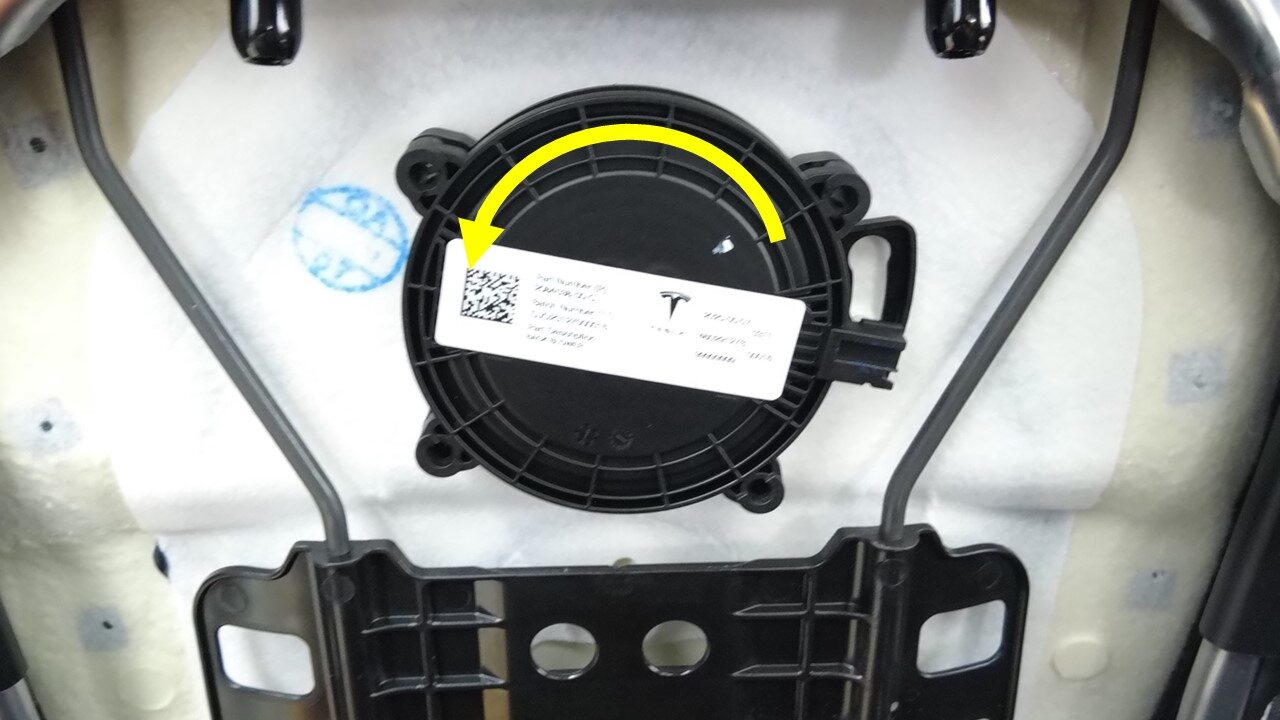

    Install blower by rotating it counter-clockwise.
  21. Connect the LH front seat back blower connector.
  22. Install the seat back trim.
    • Non-sport seat: tie the locking flaps that cover the upper part of the seat back frame and then install the driver seat back trim retainers (x7) to the driver seat back frame.
    • Sport seat: Install the seat back trim retainers (x13) onto the LH front seat back frame.
  23. Install the driver seat back shell. See Shell - Seat Back - 1st Row (Remove and Replace).

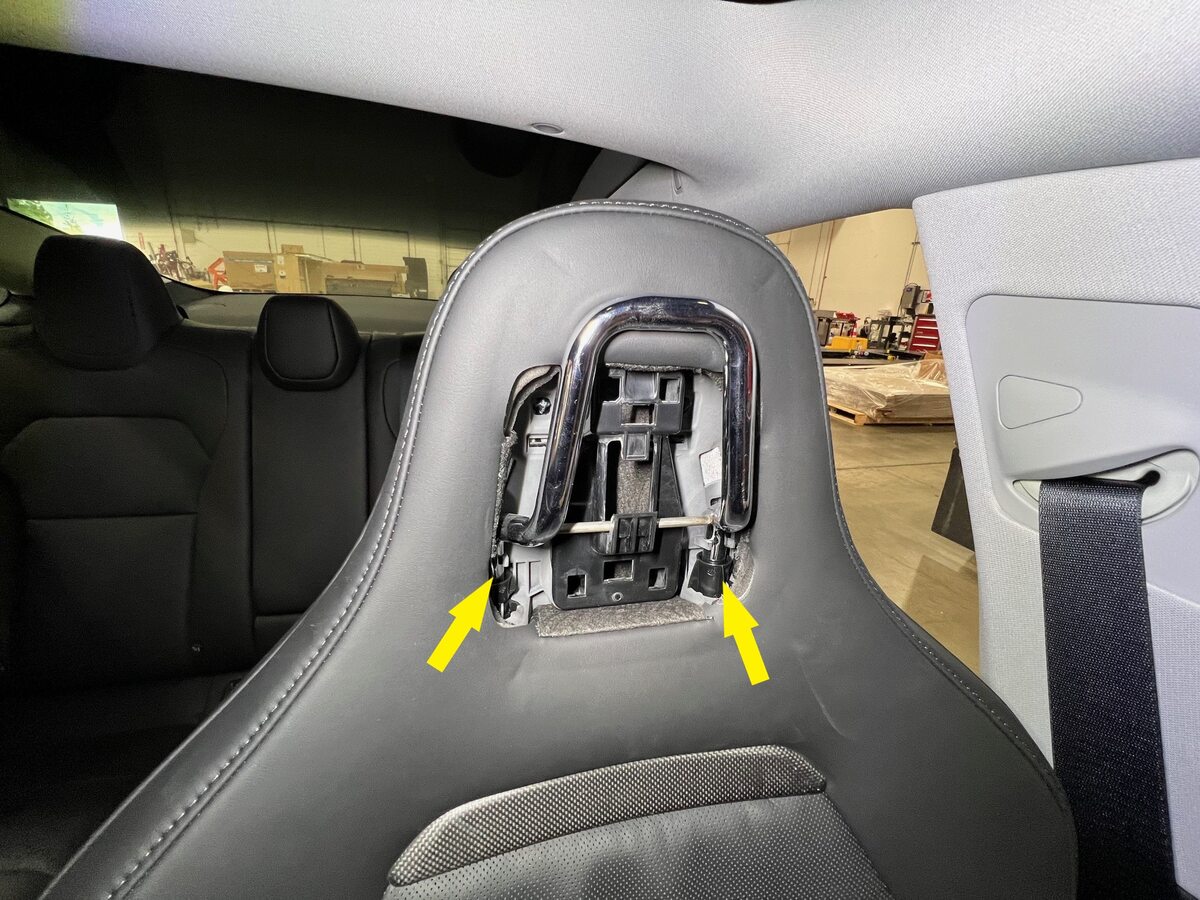

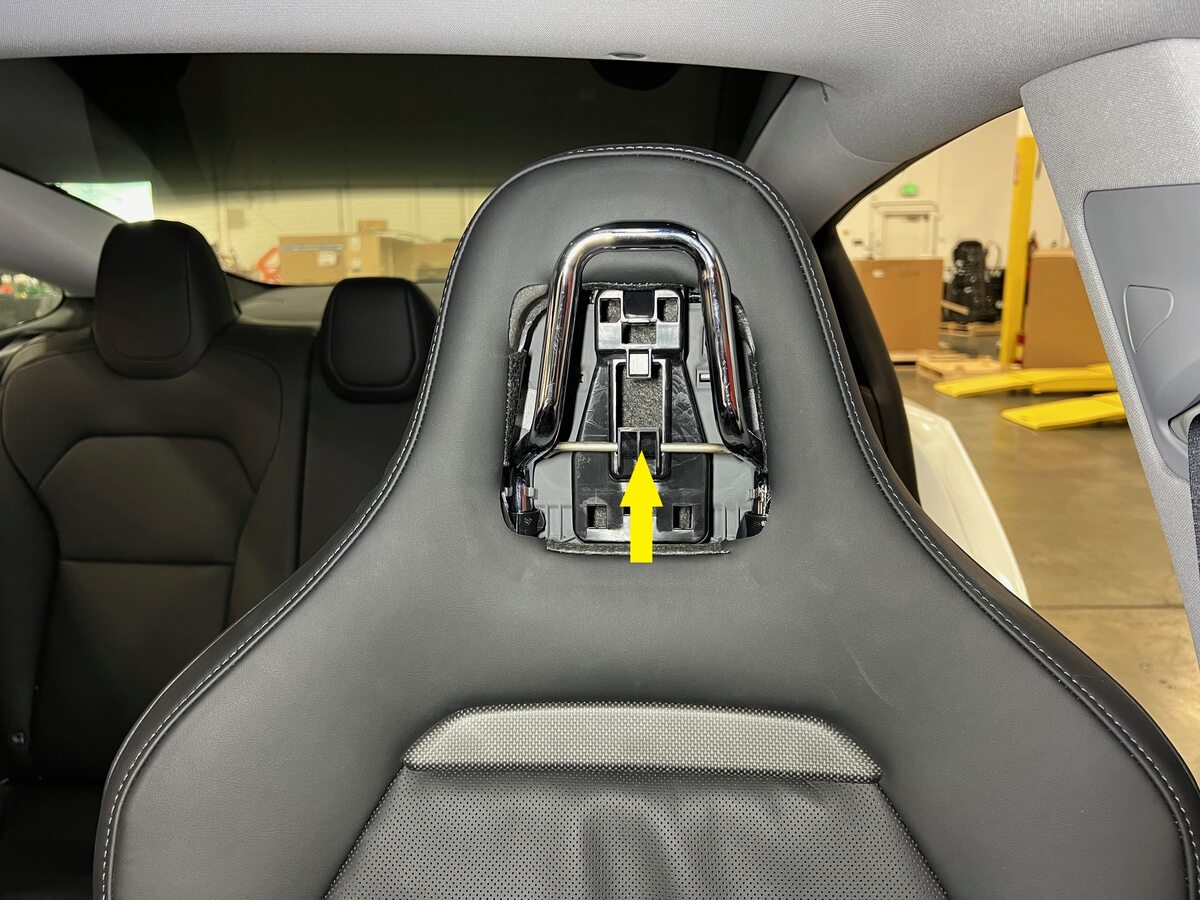

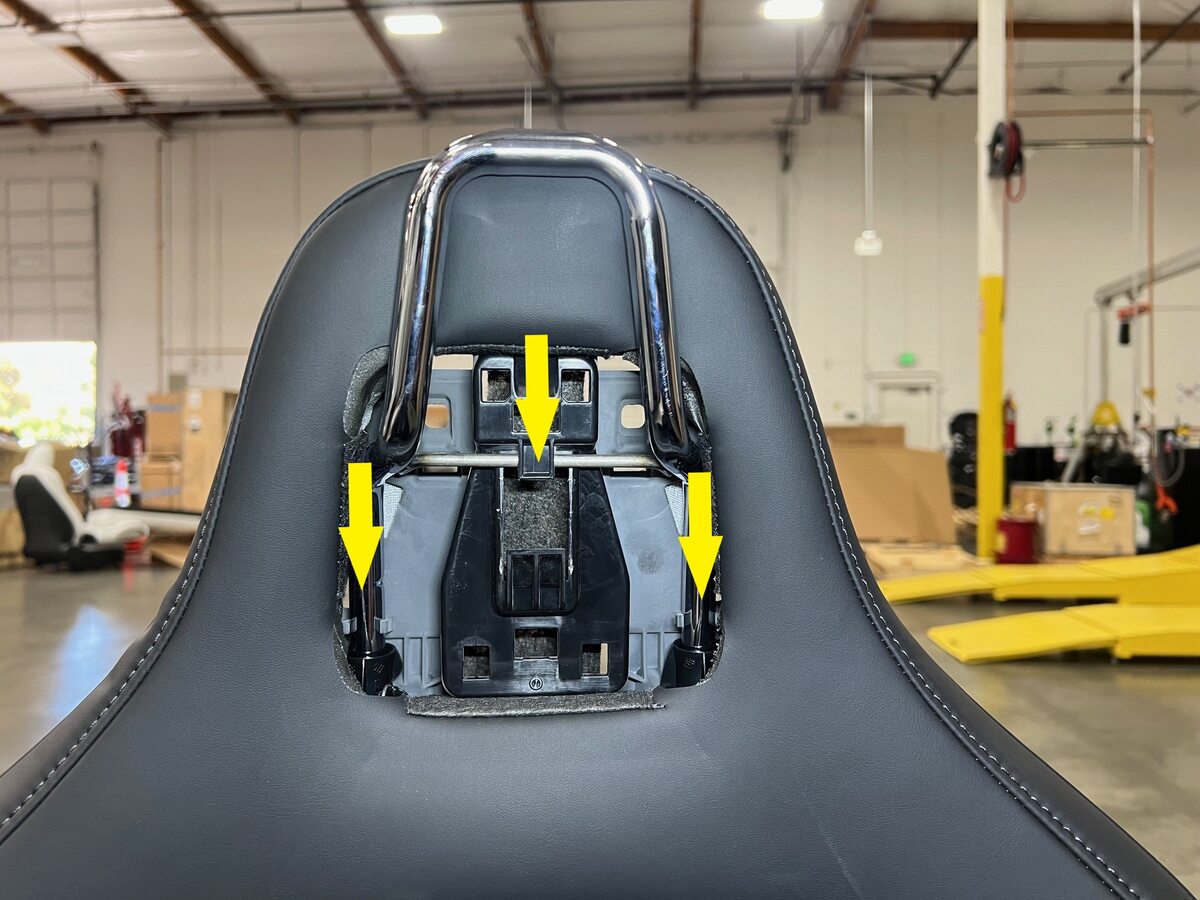

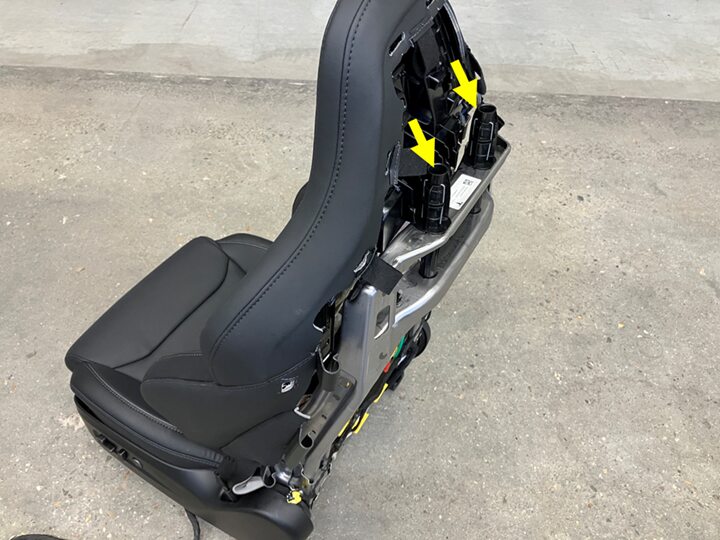

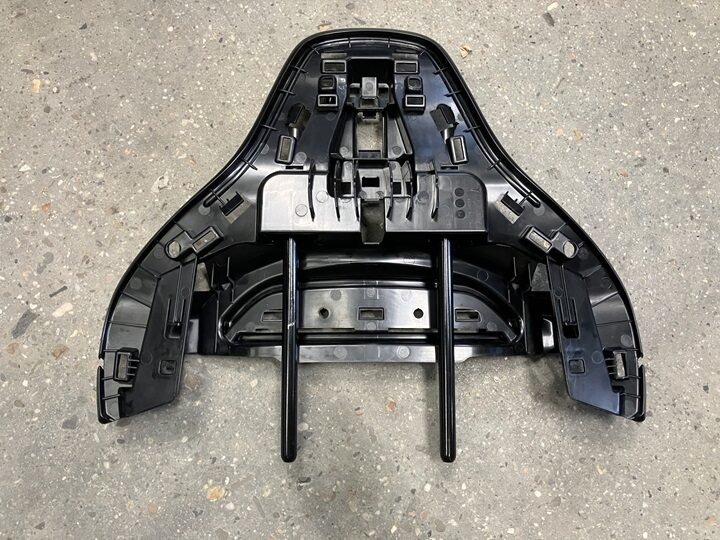

  24. Sport seat: install the headrest bracket assembly.
  25. Install headrest bracket assembly
  26. Install the driver seat headrest. See Headrest - Front Seat - LH (Non-Sport Seat) (Remove and Replace) or Headrest - Front Seat - LH (Sport Seat) (Remove and Replace).

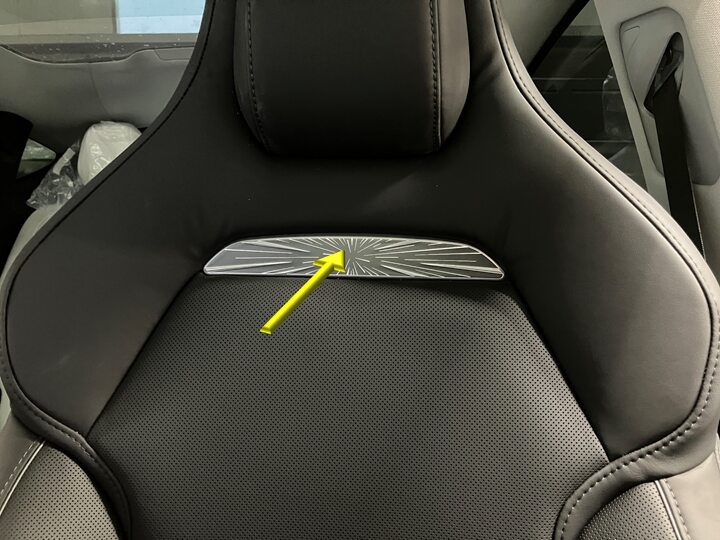

  27. Sport Seat: Install the LH front décor assembly to the front seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    3x Clips, 2x datums
  28. Rotate seat to gain access to underside of seat.

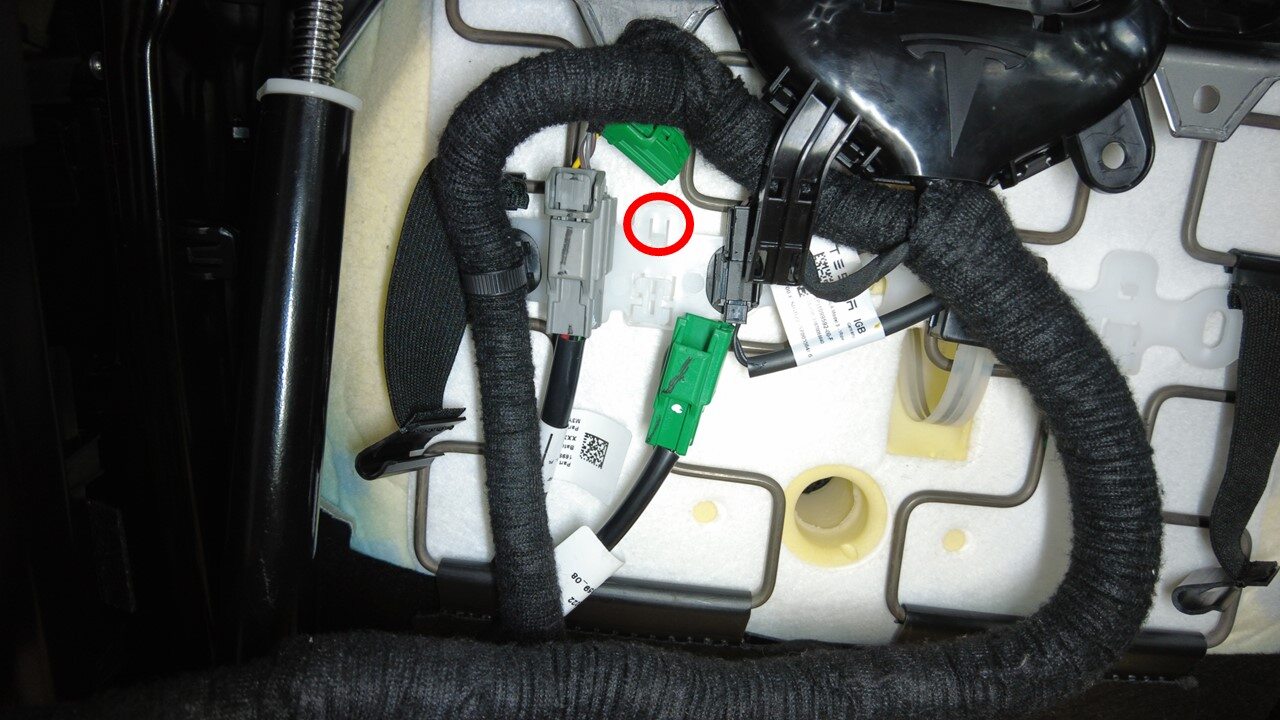

  29. Install the seat back heater harness connector to the LH front seat cushion suspension.
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the connector onto the seat frame clip to secure it.
  30. Connect the LH front seat back heater connector.
  31. Install the seat cushion retaining clips (x2) to the LH front seat suspension.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the clips tight till the seat suspension is at a proper position for installation.
  32. Return the seat to upright position.
  33. Install the driver seat. See 1st Row Seat- LH (Remove and Install).
