Wrap Around Assembly - Instrument Panel (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.3 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Remove the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace)

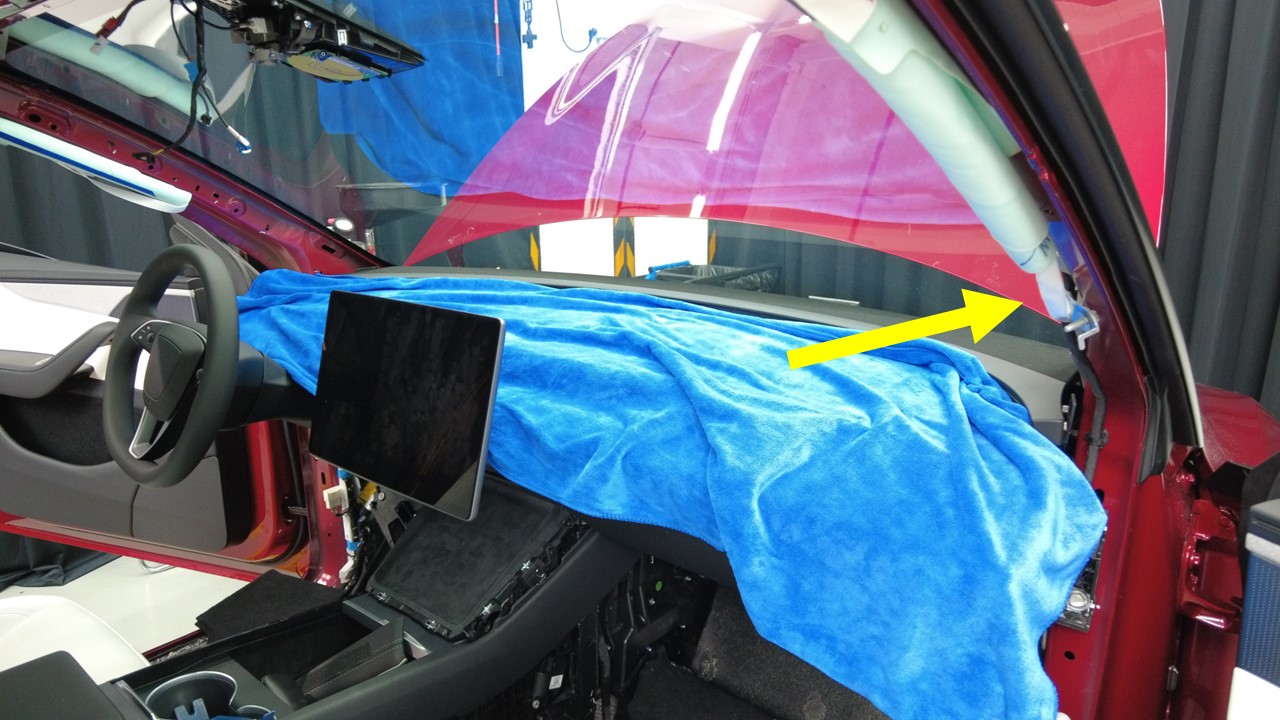

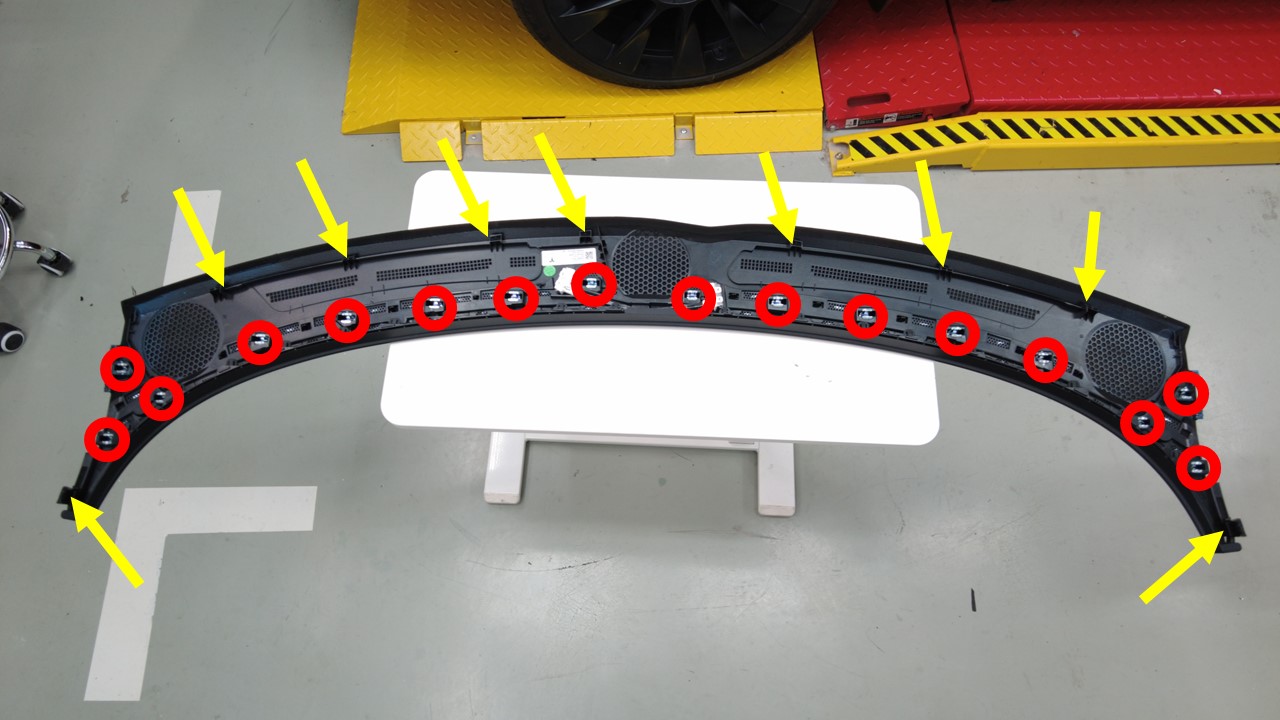

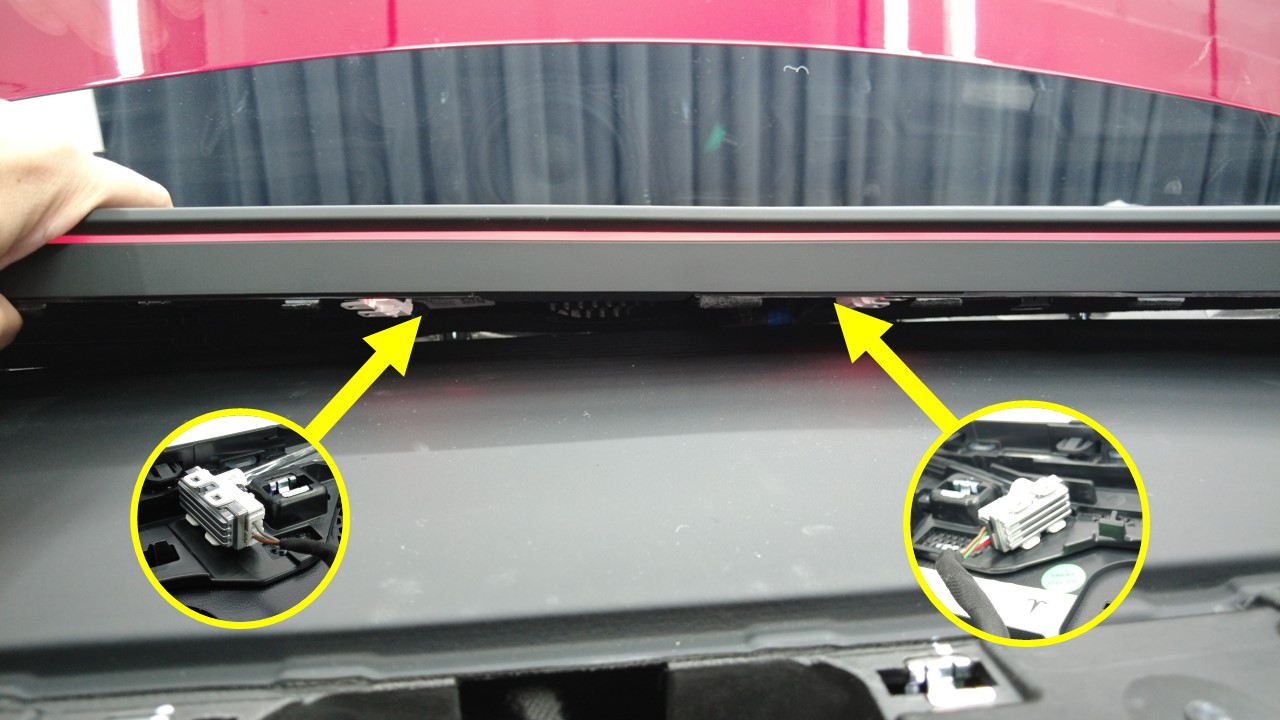

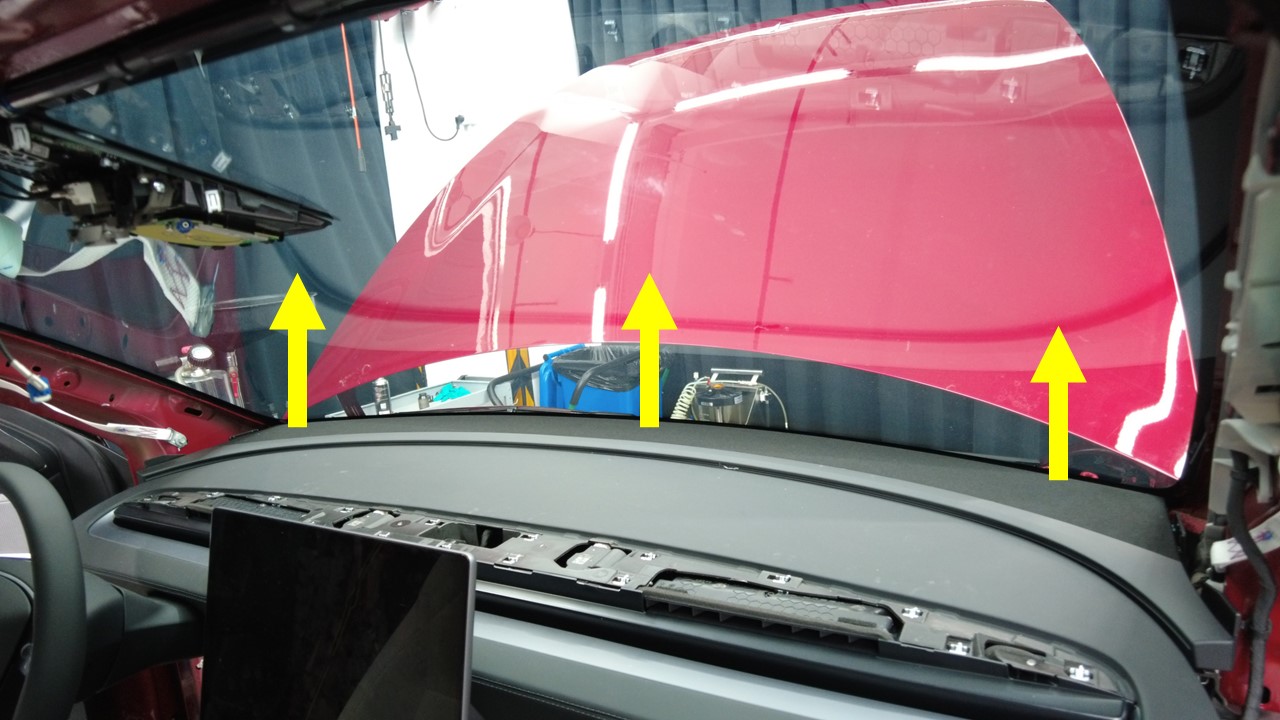

  2. Position a protective pad on the instrument panel, then carefully remove the wrap around assembly by disconnecting the connectors (x2), releasing the clips (x16), and disengaging the tabs (x9).
    Informational PurposesAn informational icon, calling your attention
    Note
    Use caution to avoid damaging the instrument panel or windshield.

Install

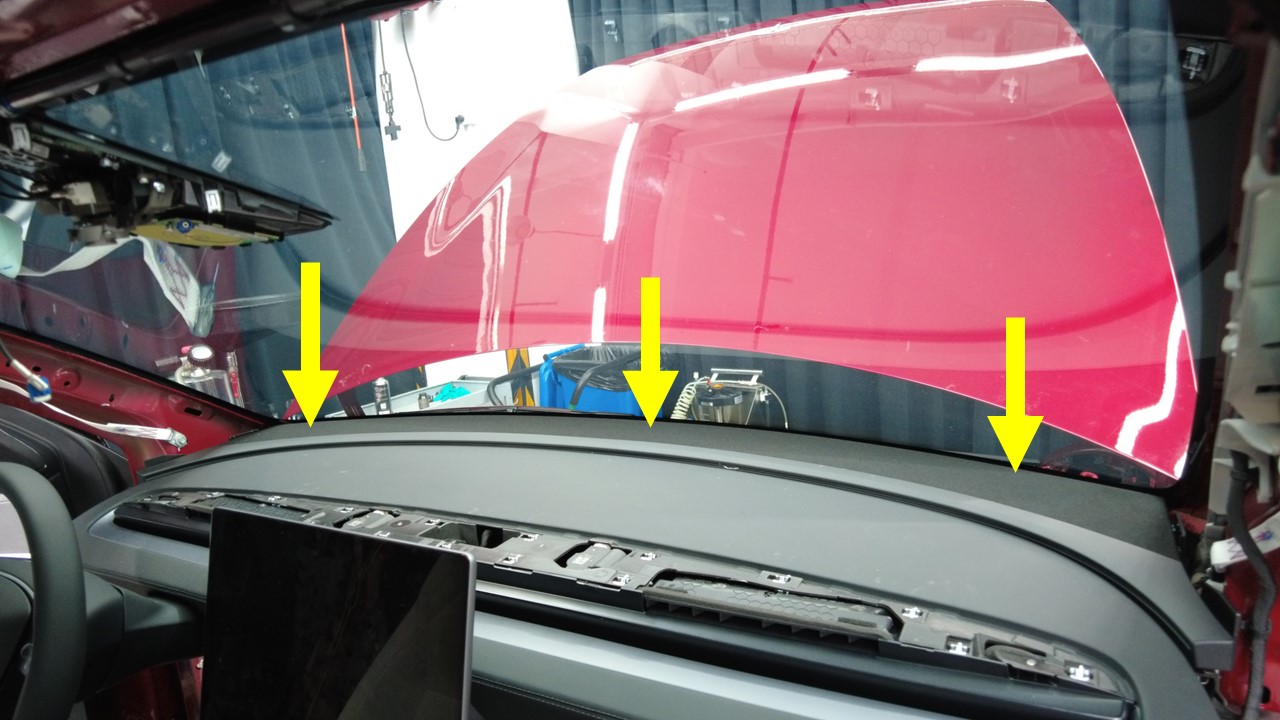

  1. Install the wrap around assembly by connecting the connectors (x2), securing the clips (x16), and engaging the tabs (x9), and then remove the protective pad.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use caution to avoid damaging the instrument panel or windshield.
  2. Install the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace)
