Air Duct - Center Console (Model Y Standard) (Remove and Install)
Correction code
15190402801
15190402802
FRT
0.36
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Screws (X2) that secure the center console air duct |
 1.2 Nm (.9 lbs-ft) |
|
Reuse |
Remove
- Remove the center console. See Center Console (Model Y Standard) (Remove and Install).
-

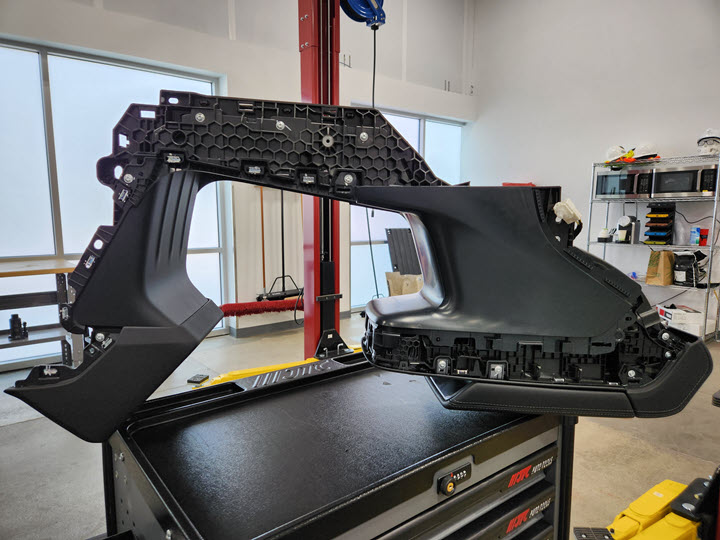

Position center console upside down.
NoteMake sure work area is clean to prevent damage.
-

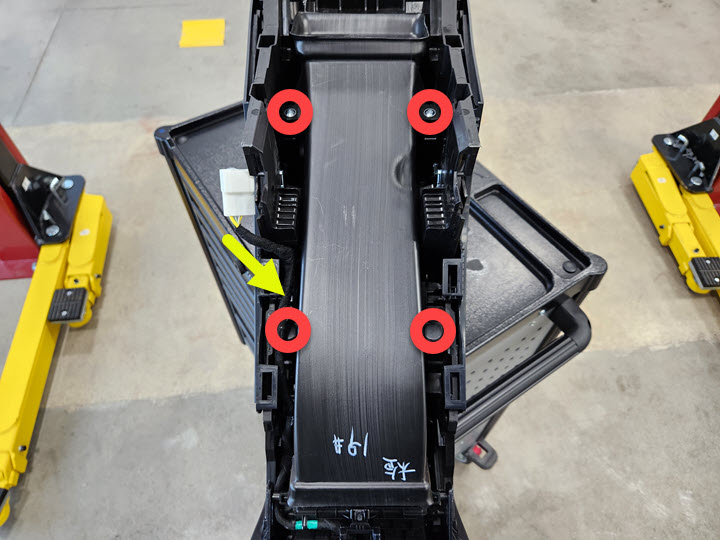

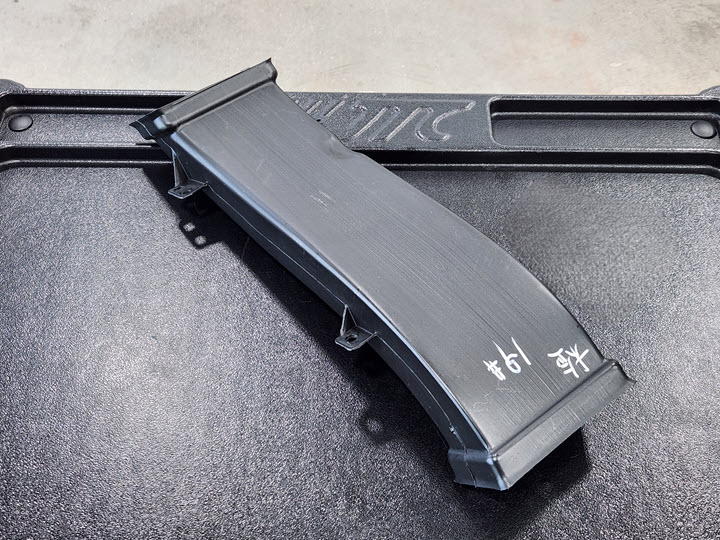

Remove center console air duct.
NoteMove harness aside as needed.TipUse of the following tool(s) is recommended:
- Torx T20 socket
Install
-
Install center console air duct.1.2 Nm (.9 lbs-ft)NoteMove harness aside as needed.TipUse of the following tool(s) is recommended:
- Torx T20 socket
- Install the center console. See Center Console (Model Y Standard) (Remove and Install).
