Shell - Seat Back - 2nd Row - RH (Remove and Replace)

Correction code 1308011902 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the 2nd row RH seat assembly. See 2nd Row Seat 5 Seater - RH (Remove and Install).
  2. Remove the 2nd row LH height adjuster guide. See 2nd Row Headrest Guide Lock - LH (Remove and Replace).
  3. Remove the 2nd row RH height adjuster guide. See 2nd Row Height Adjuster Guide - RH (Remove and Replace).

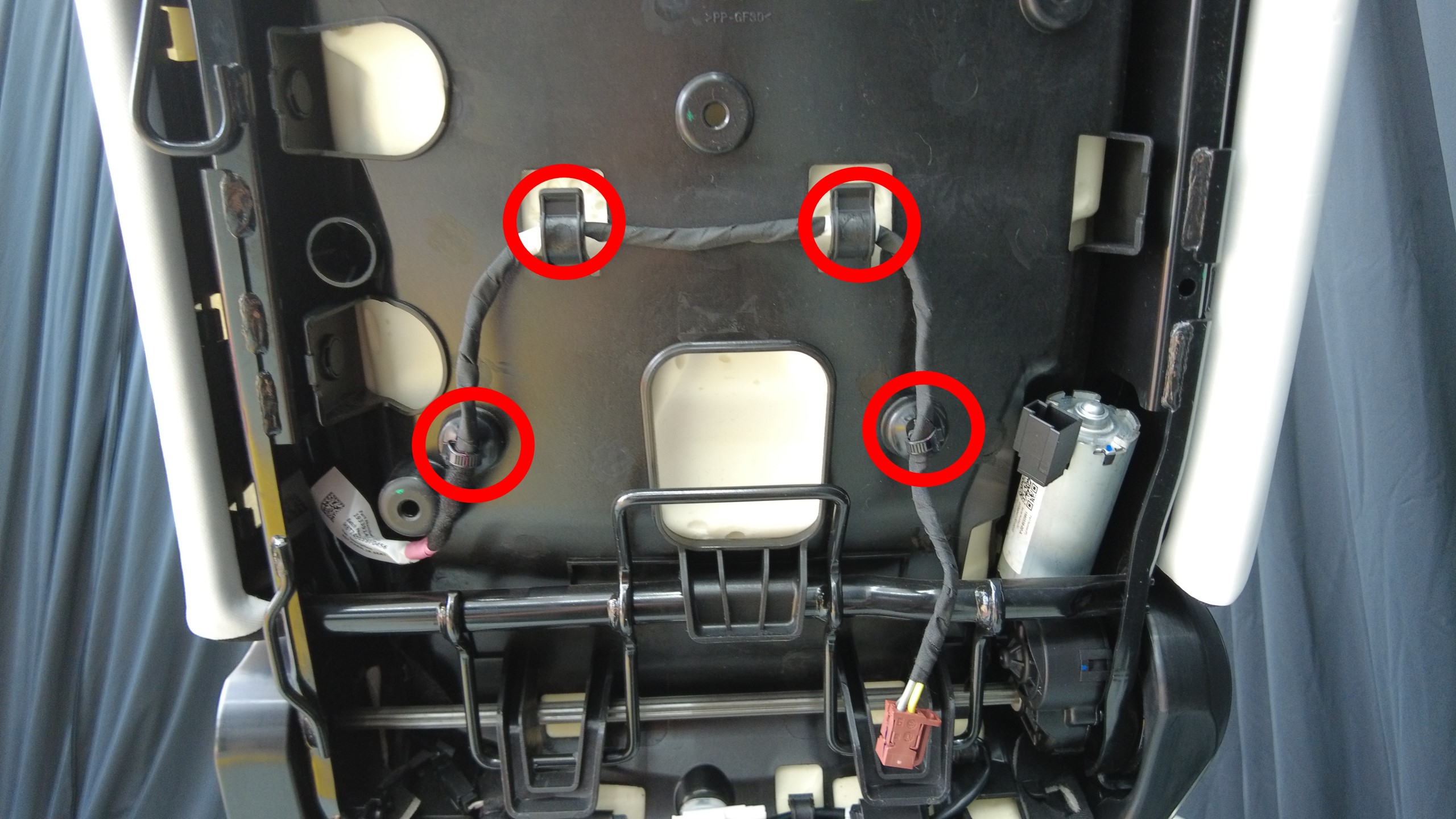

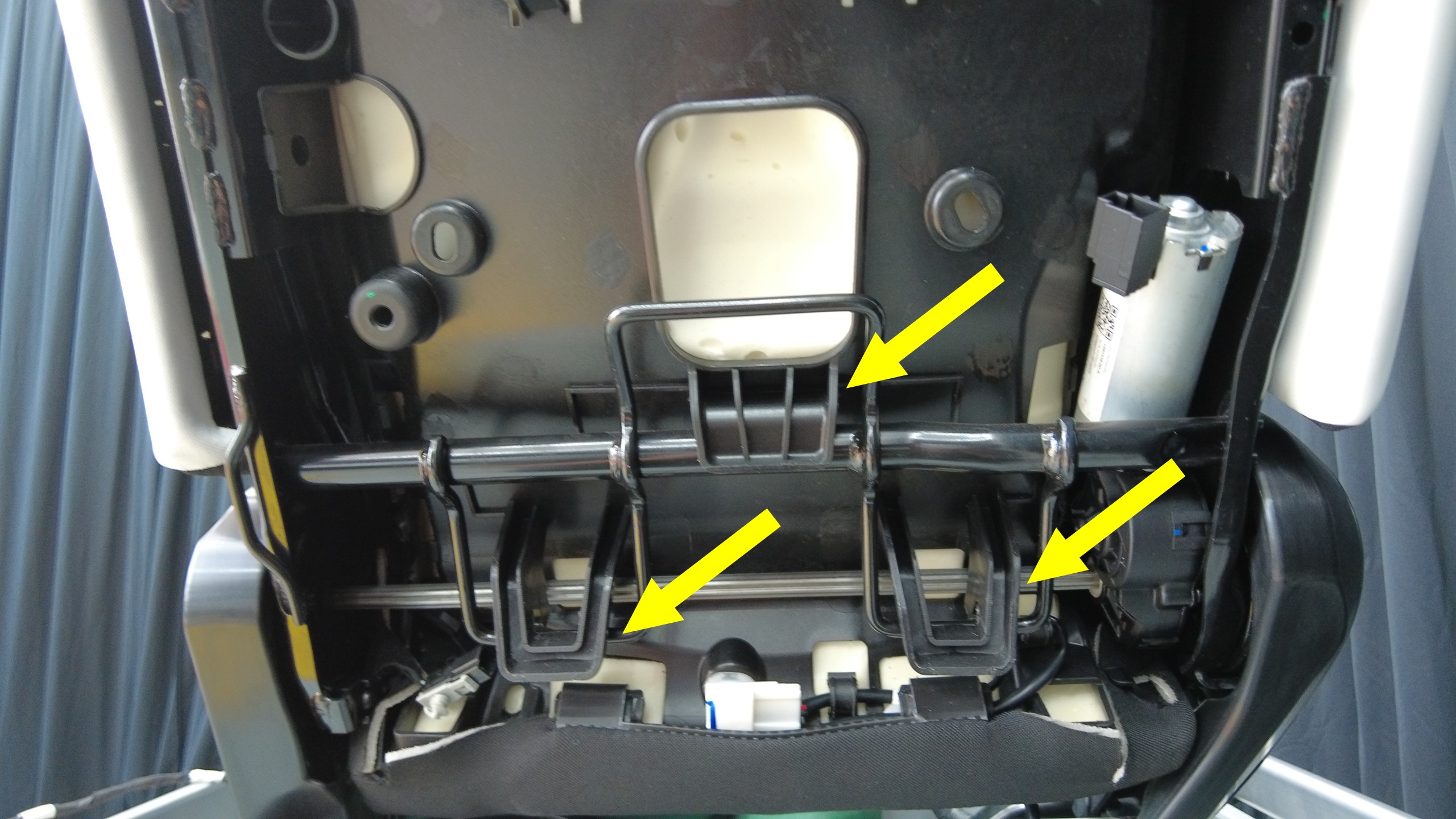

  4. Remove clips securing 2nd row 40 seatback substrate to frame.

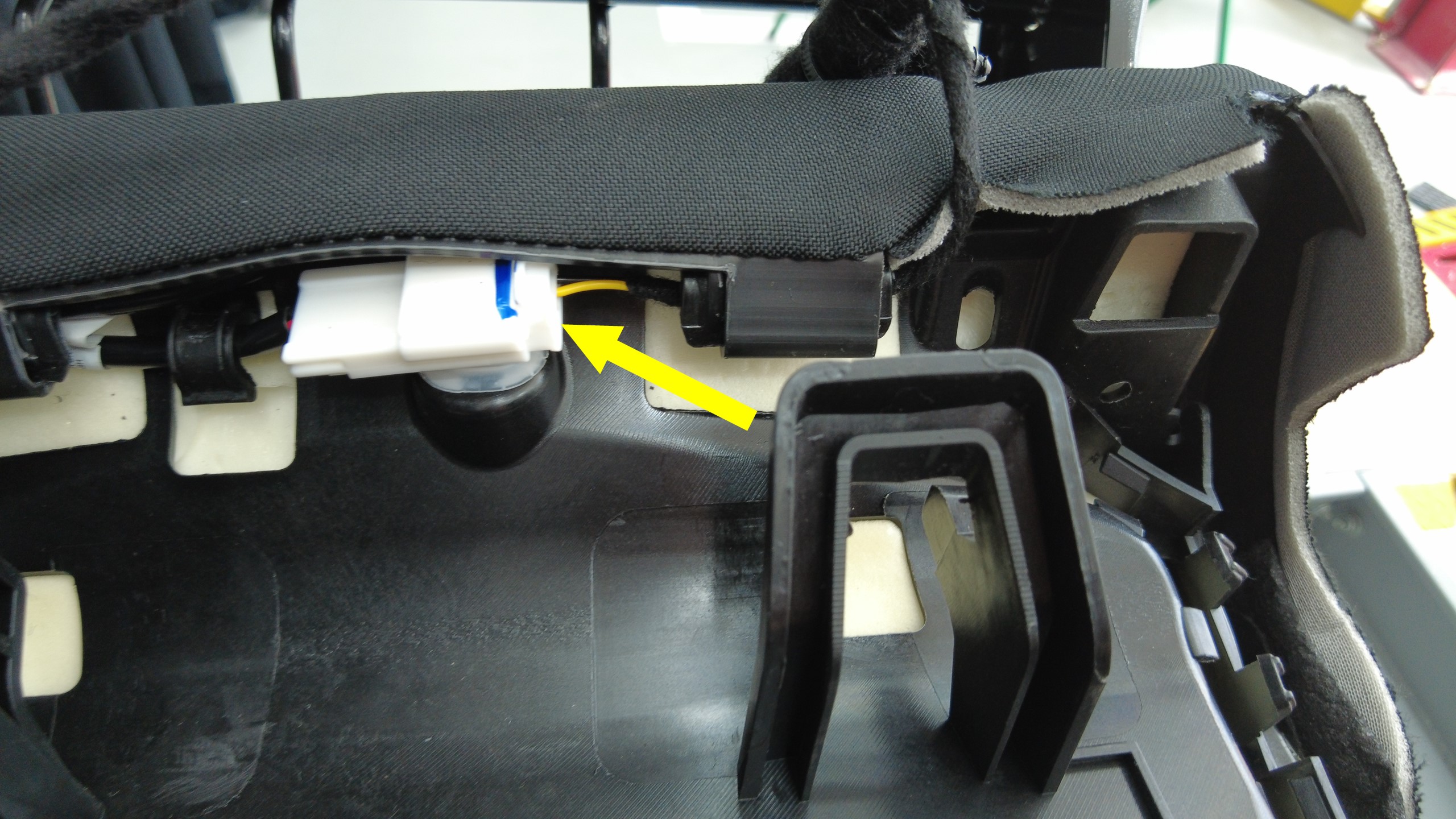

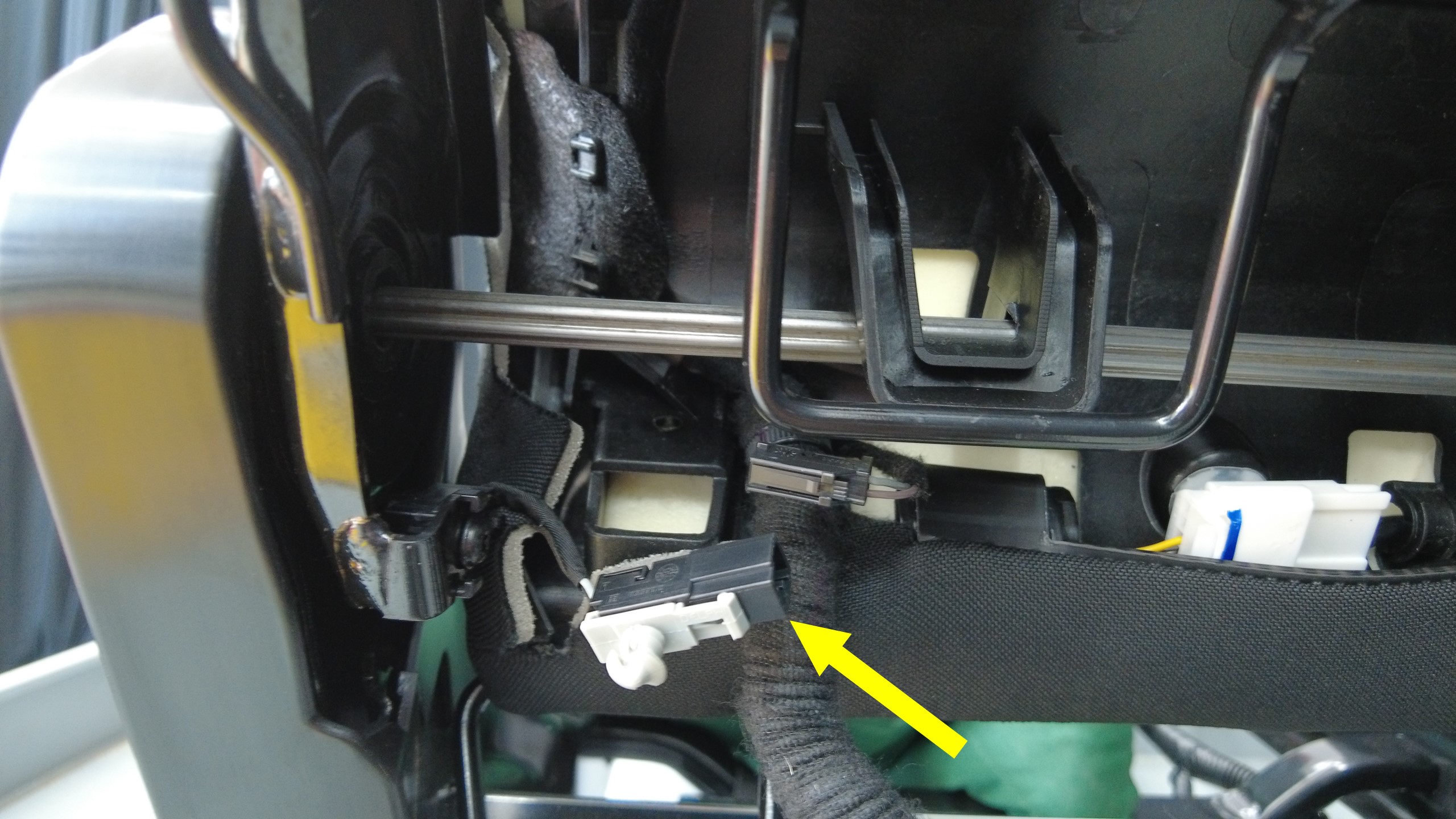

  5. Disconnect 2nd row 40 seat backrest adjustment motor connector.
  6. Release 2nd row 40 seat backrest adjustment motor harness from substrate.

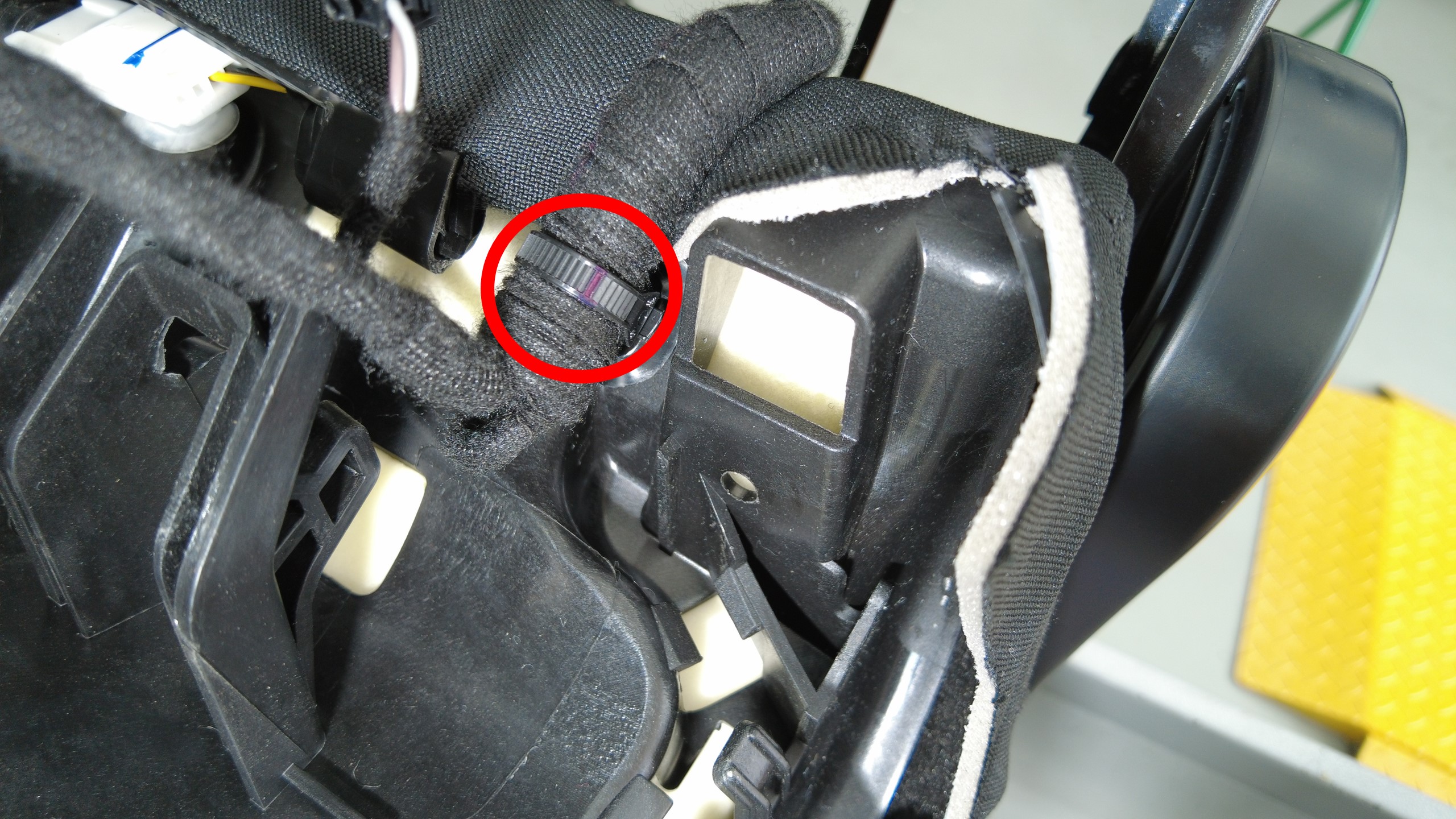

  7. Remove clip securing 2nd row 40 seat position sensor connector.

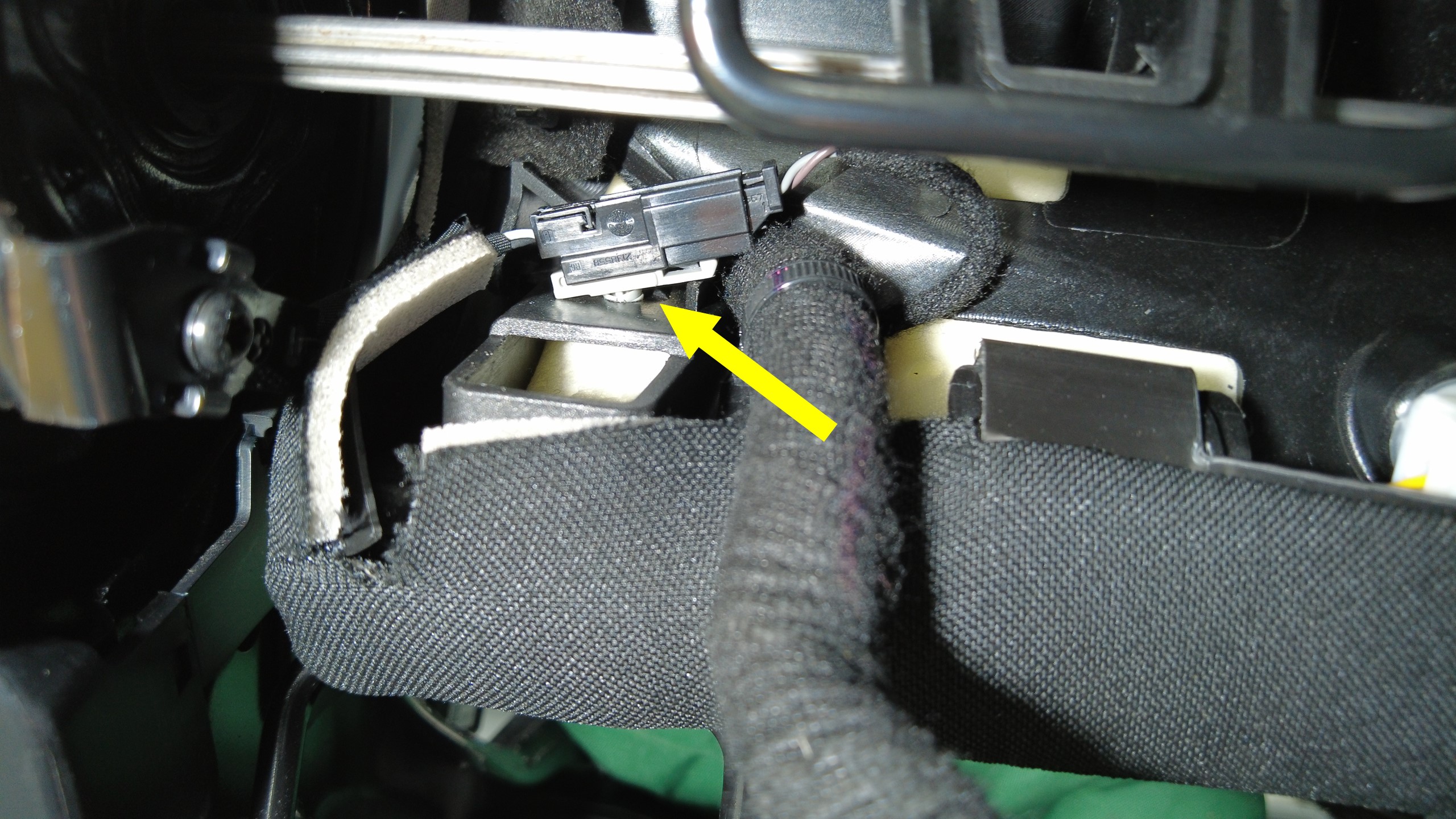

  8. Disconnect 2nd row 40 seat position sensor connector.

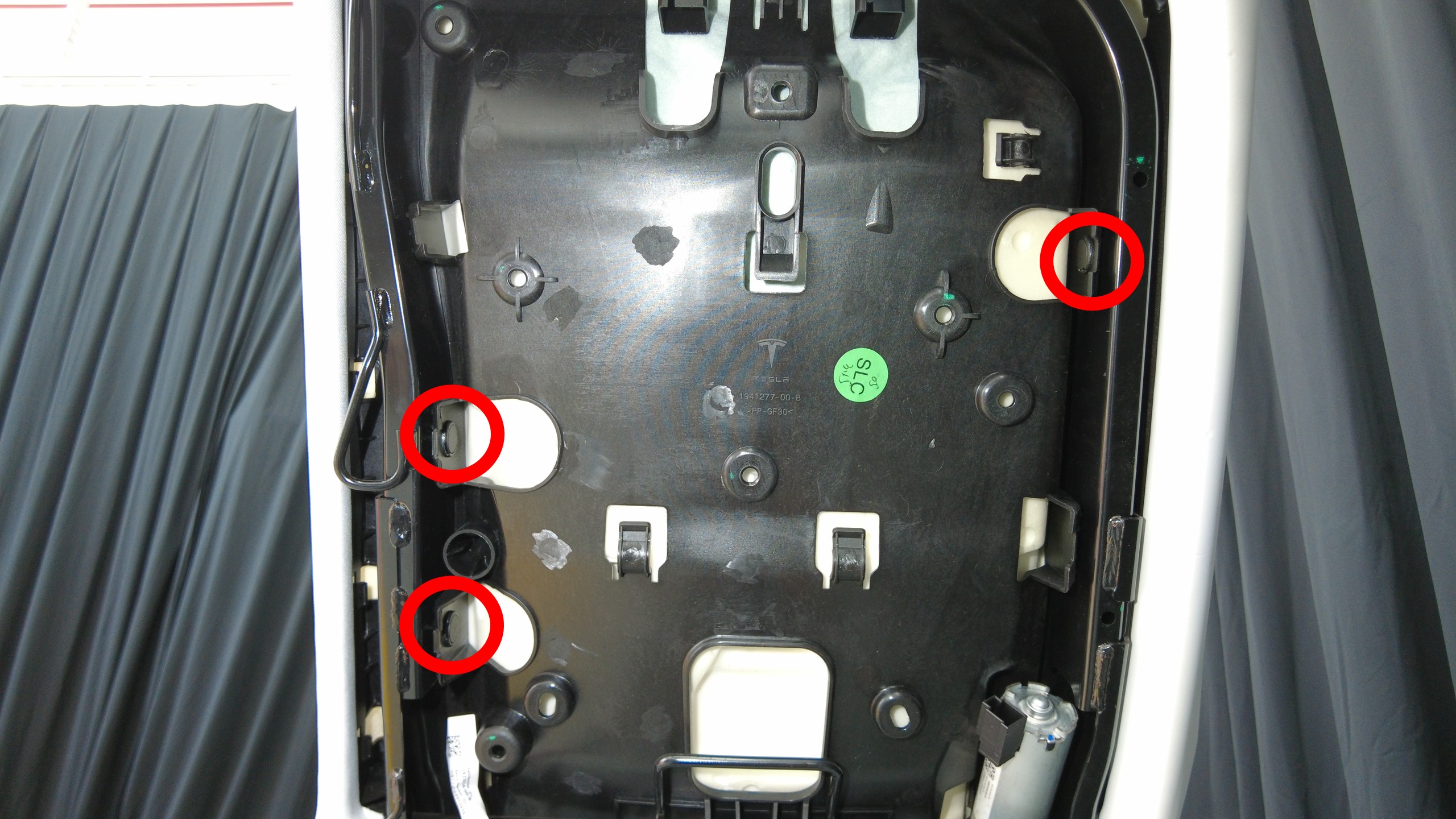

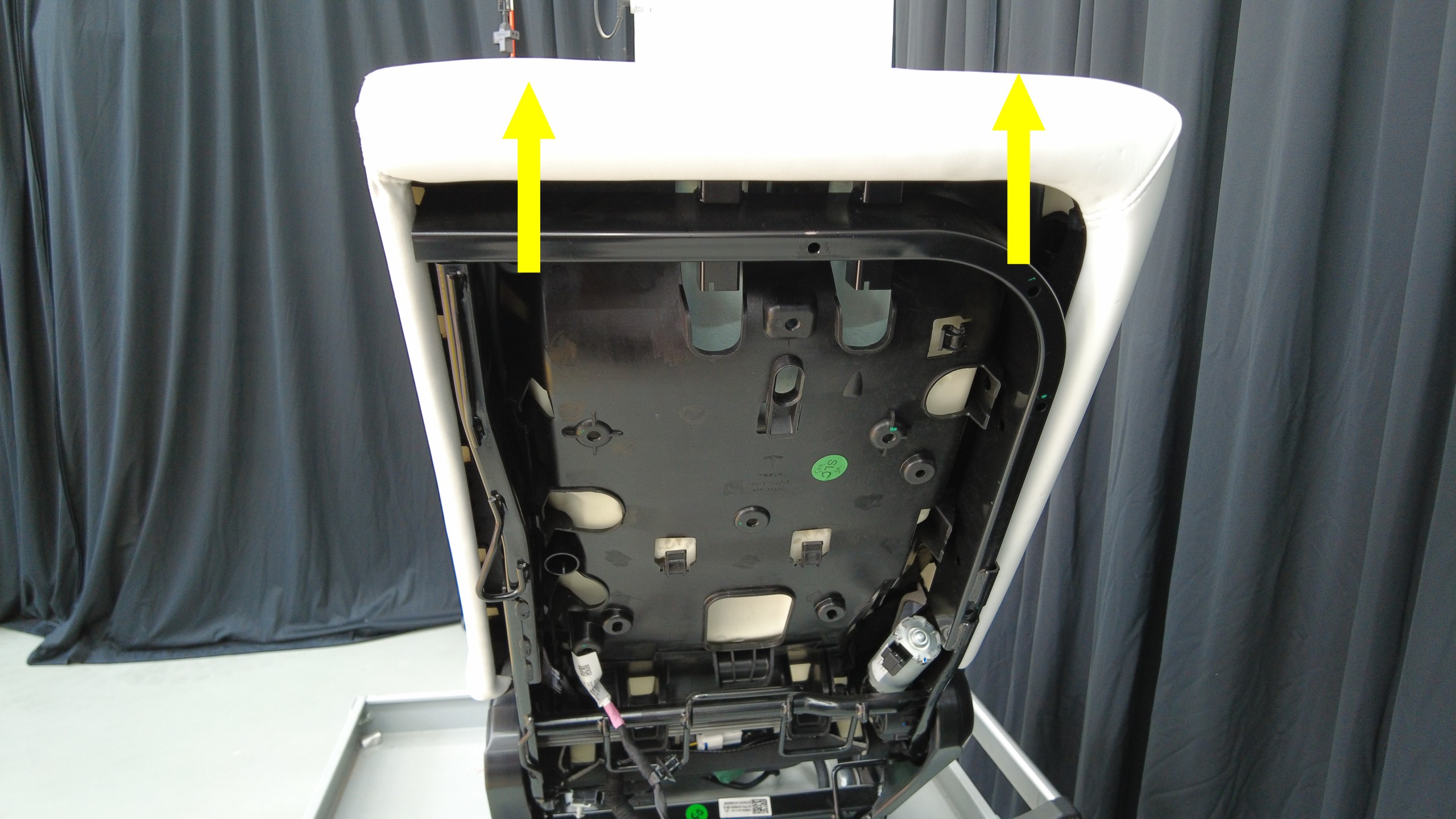

  9. Remove 2nd row 40 seat substrate from frame.
    Informational PurposesAn informational icon, calling your attention
    Note

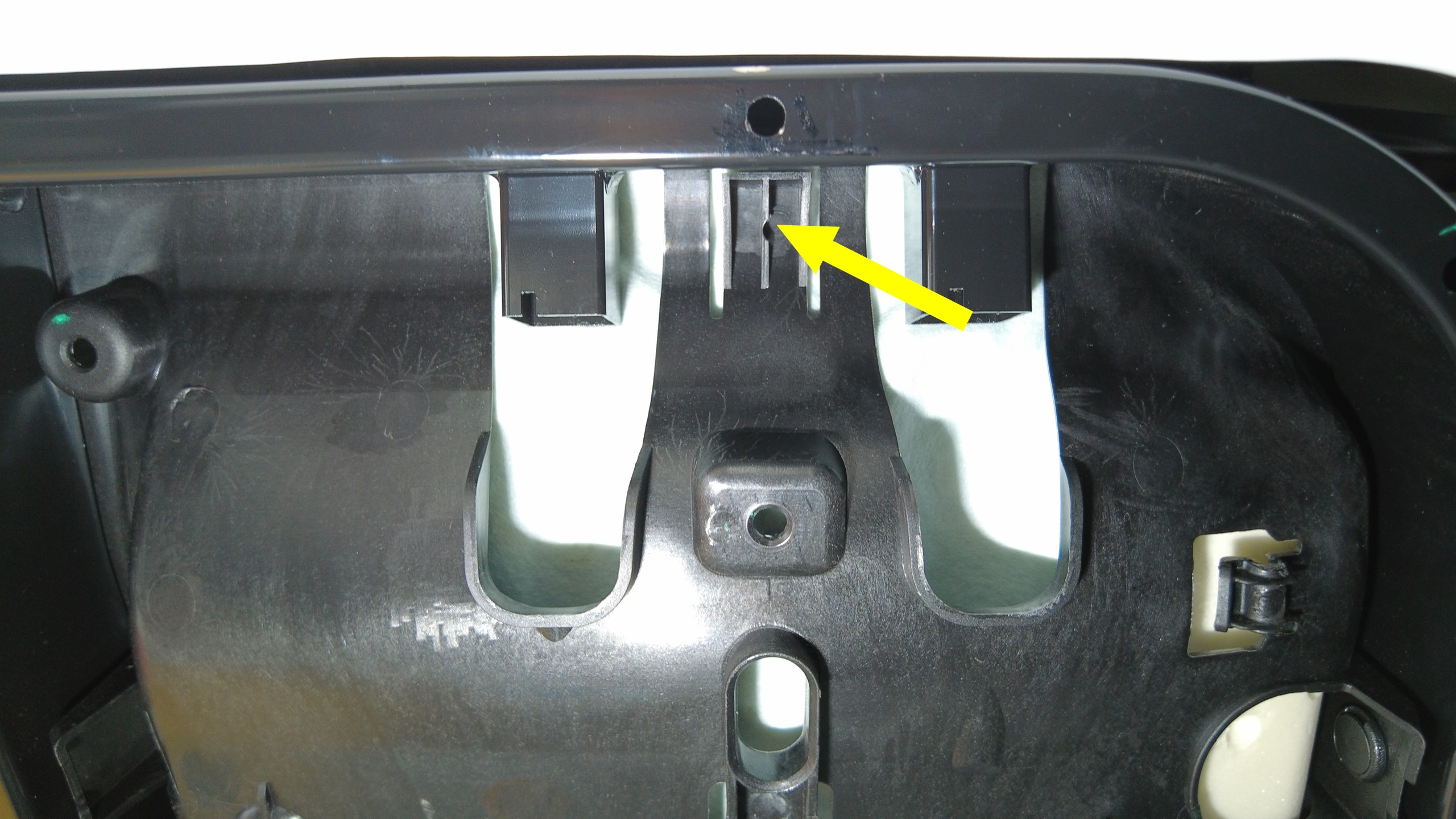

    3x hooks, 1x tab, Push tab forward, and Lift up and unhook from seat railing.
  10. Remove 2nd row 40 seatback harness from shell and pull the assembly from rail.

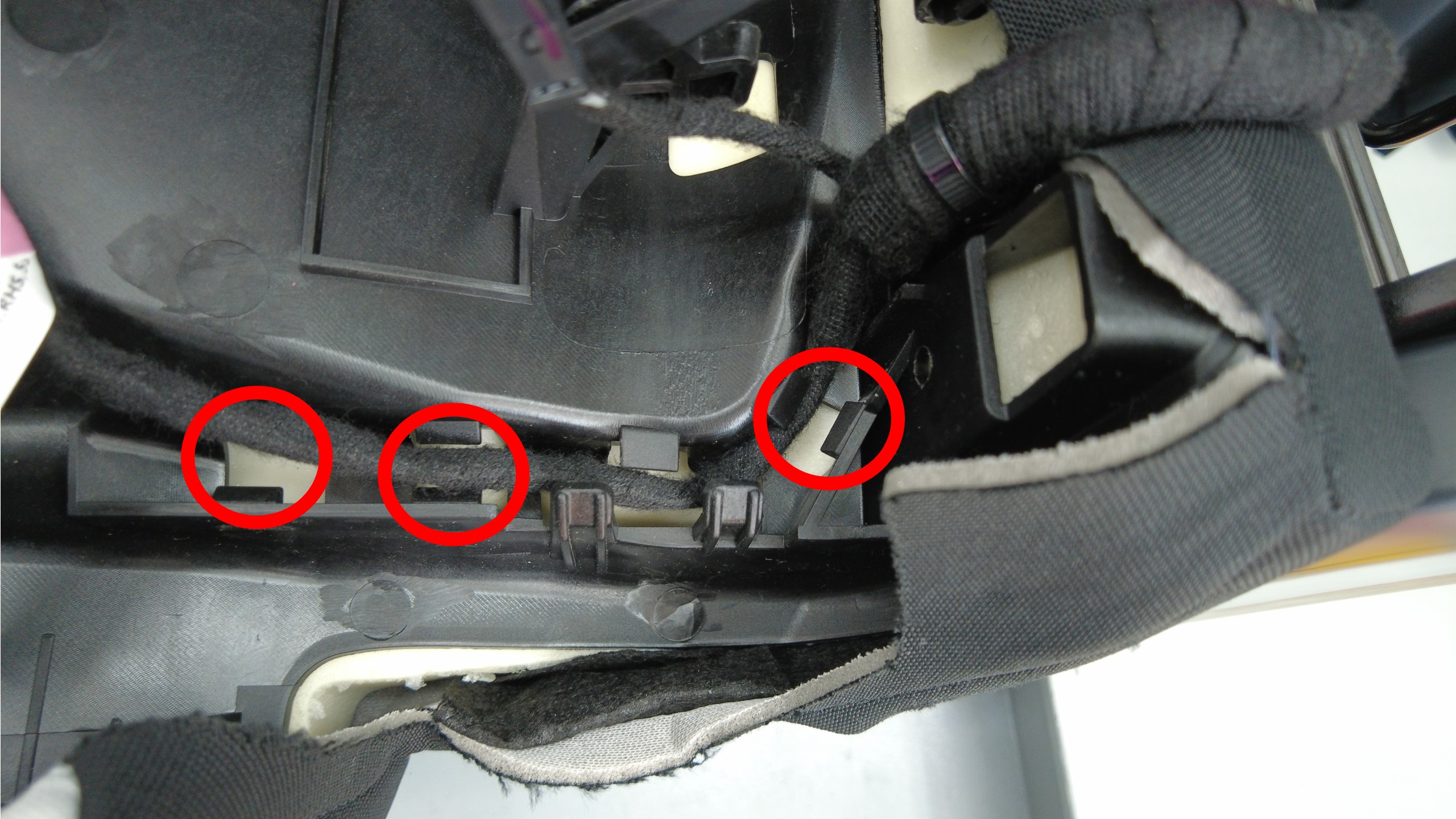

  11. Release RH seat back assembly trim flaps from RH seat back shell.

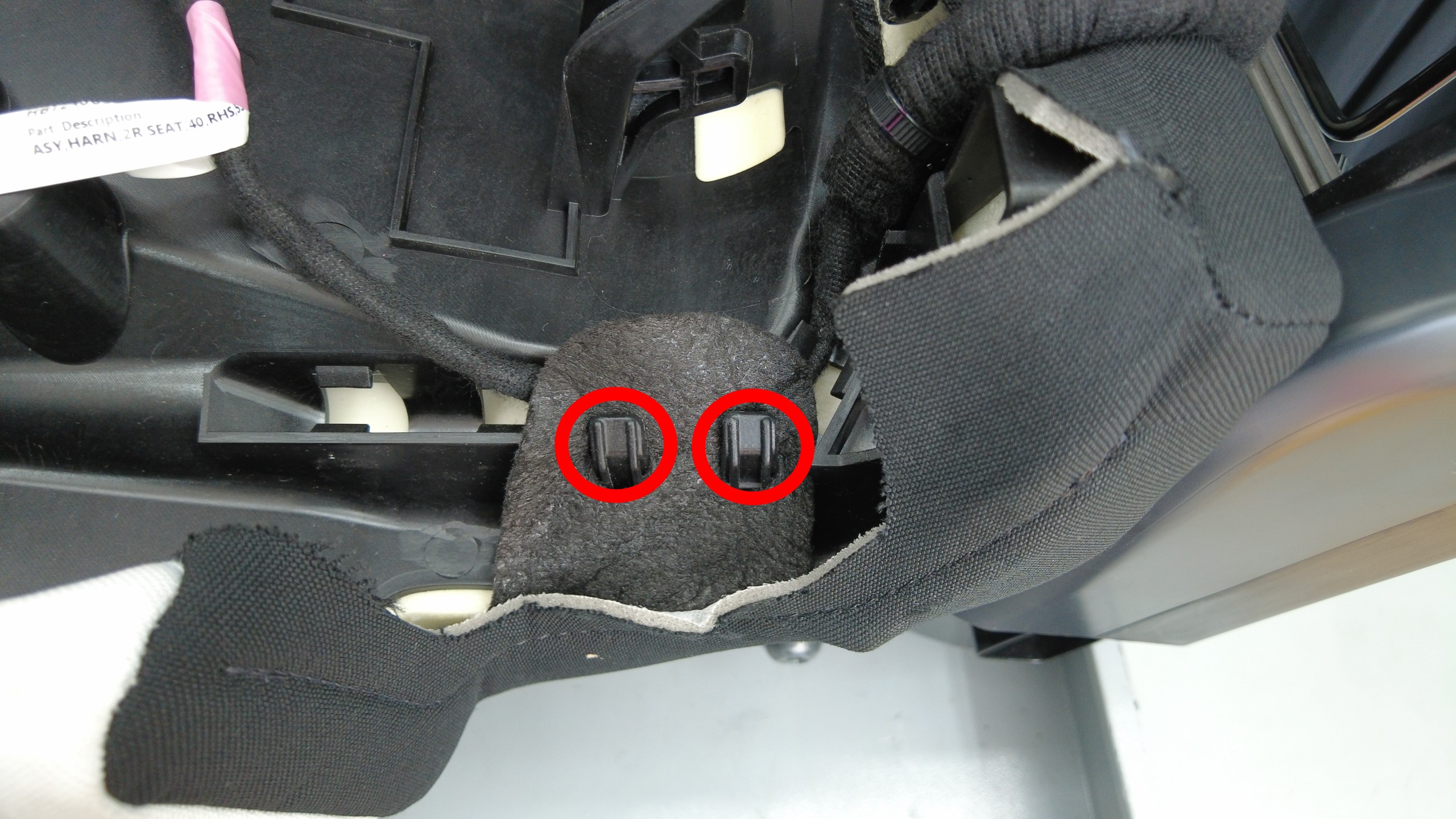

  12. Remove 40 seat back heat pad harness from RH seat back shell

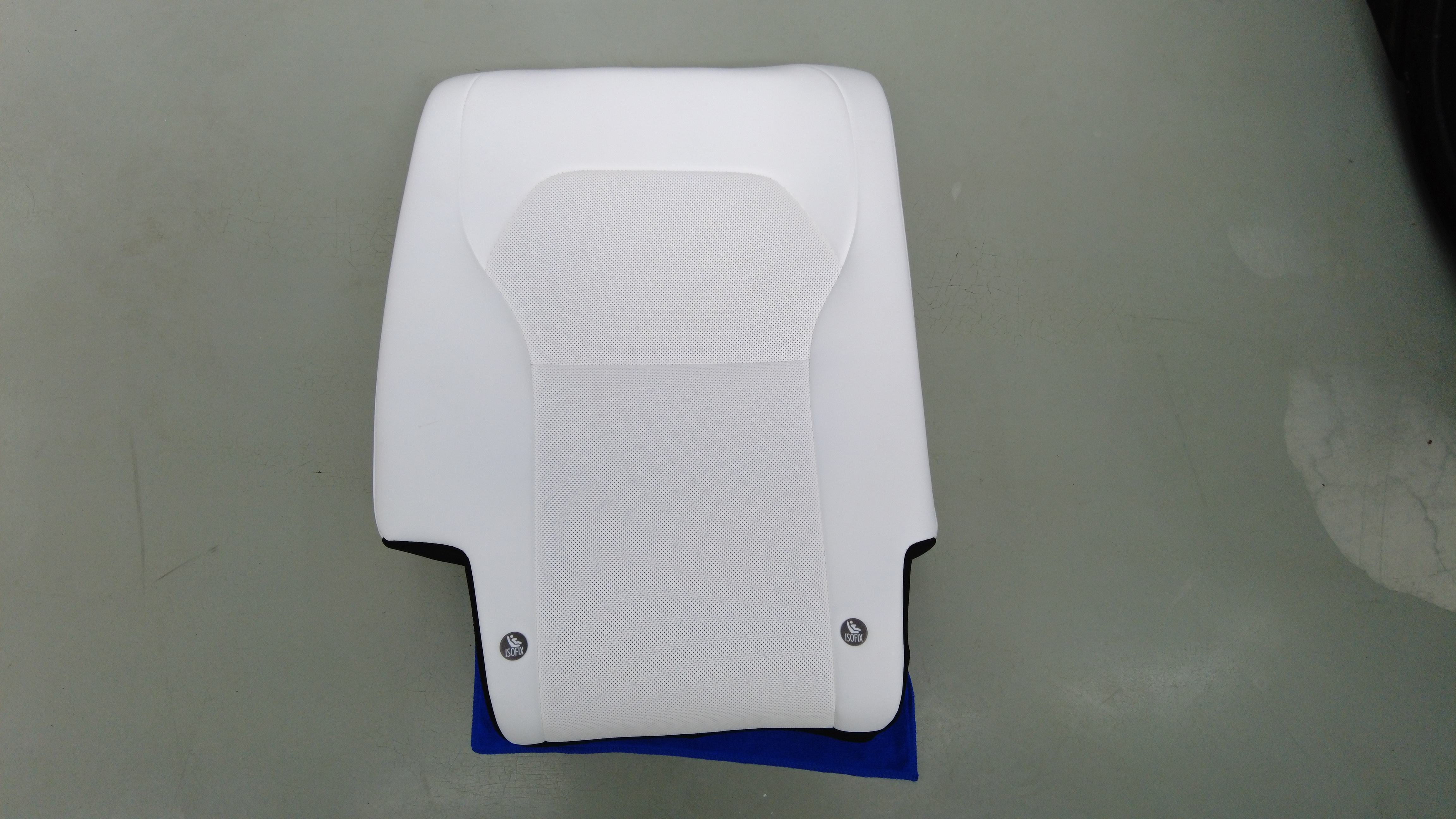

  13. Remove RH seat back shell from foam trim assembly.

Install

  1. Install RH seat back shell to foam trim assembly.
  2. Install 40 seat back heat pad harness to RH seat back shell
  3. Connect RH seat back assembly trim flaps to RH seat back shell.
  4. Routine 2nd row 40 seatback harness to shell and insert assembly into rail.
  5. Install 2nd row 40 seat substrate to frame.
  6. Connect 2nd row 40 seat position sensor connector.
  7. Install clip securing 2nd row 40 seat position sensor connector.
  8. Install 2nd row 40 seat backrest adjustment motor harness onto substrate.
  9. Connect 2nd row 40 seat backrest adjustment motor connector.
  10. Install clips securing 2nd row 40 seatback substrate to frame.
  11. Install the 2nd row LH height adjuster guide. See 2nd Row Headrest Guide Lock - LH (Remove and Replace).
  12. Install the 2nd row RH height adjuster guide. See 2nd Row Height Adjuster Guide - RH (Remove and Replace).
  13. Install the 2nd row RH seat assembly. See 2nd Row Seat 5 Seater - RH (Remove and Install).
