USB Panel - Center Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH doors and lower the LH windows.
  2. Move the LH front seat forward.
    Informational PurposesAn informational icon, calling your attention
    Note
    If needed, on the touchscreen, touch Seat Controls, use the scroll wheel to move the seat forward.

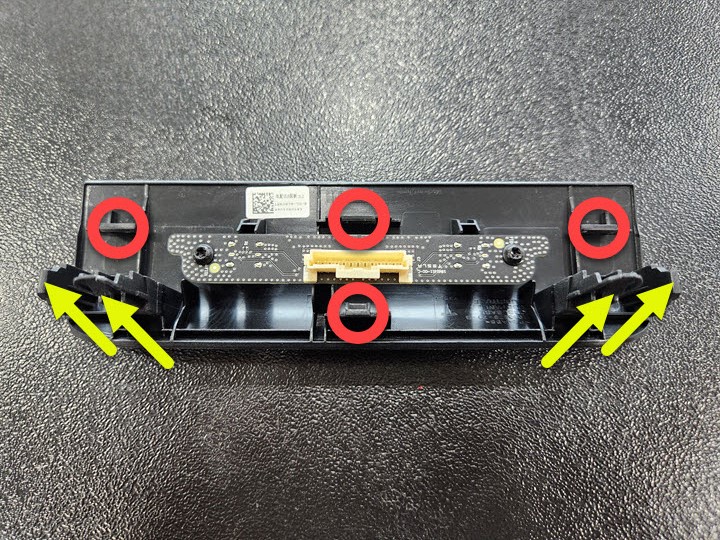

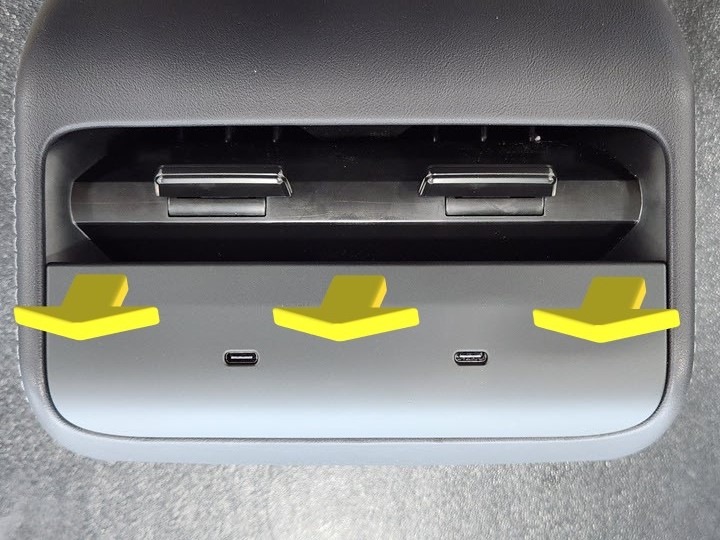

  3. Release the clips (x4) and tabs (x4) that attach the USB panel to the rear end module.

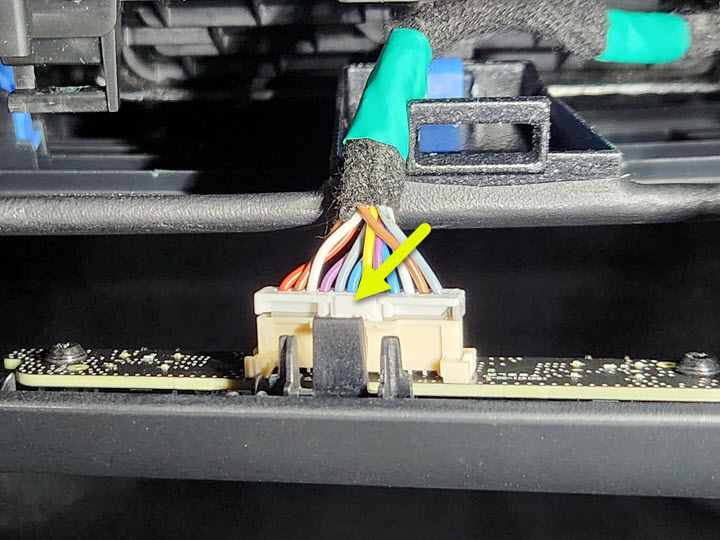

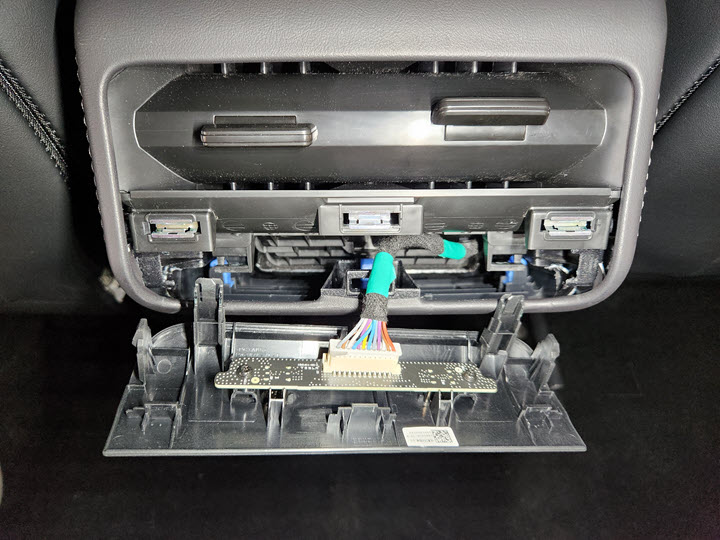

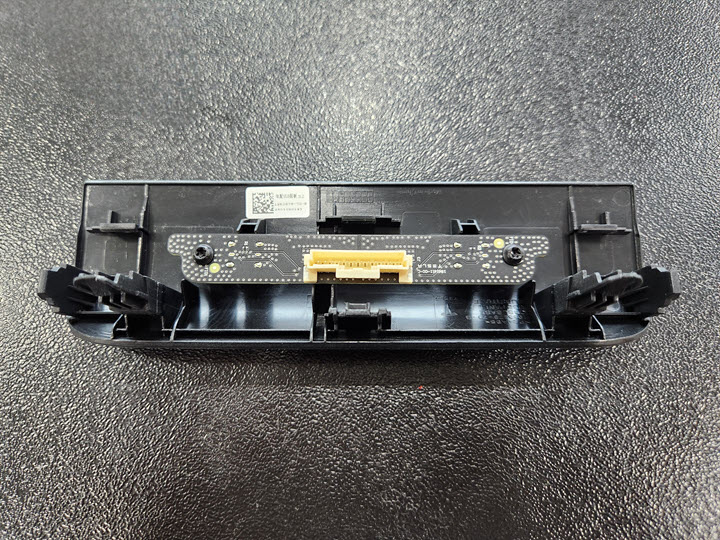

  4. Disconnect the USB panel connector, and then remove the USB panel from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Route the electrical harness as needed.

Install

  1. Connect the USB panel connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    Route the electrical harness as needed.

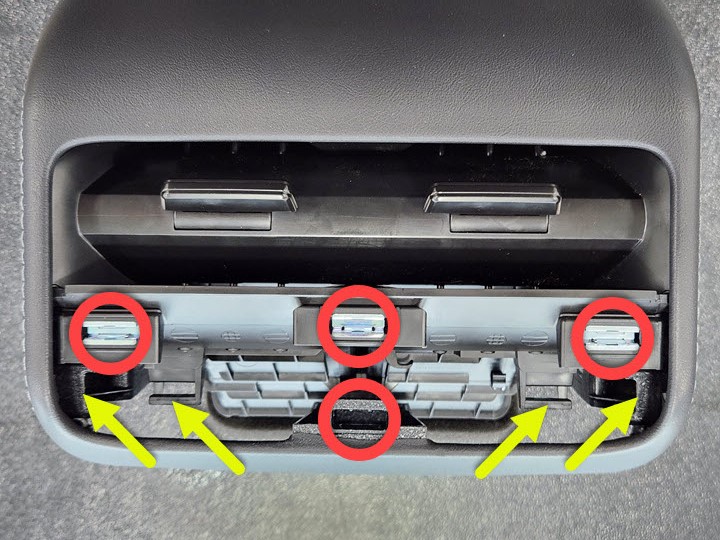

  2. Install the clips (x4) and tabs (x4) that attach the USB panel to the rear end module.
  3. Return the LH front seat back to its original position.
    Informational PurposesAn informational icon, calling your attention
    Note
    If needed, on the touchscreen, touch Seat Controls, use the scroll wheel to move the seat.
  4. Raise the LH windows and close the LH doors.
