Phone Dock Assembly - Center Console (Model Y Standard) (Remove and Install)

Correction code TBD FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

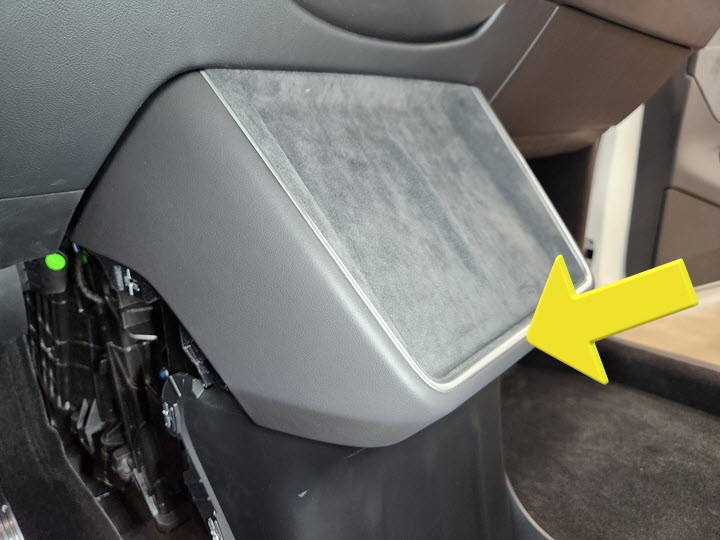

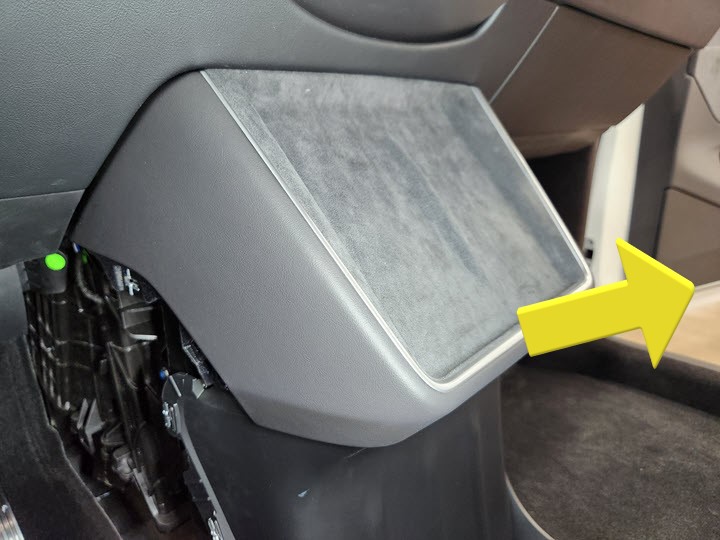

  1. Remove the LH and RH front side panels from the center console. See Side Panel - Center Console - Front - LH (Model Y Standard) (Remove and Replace).

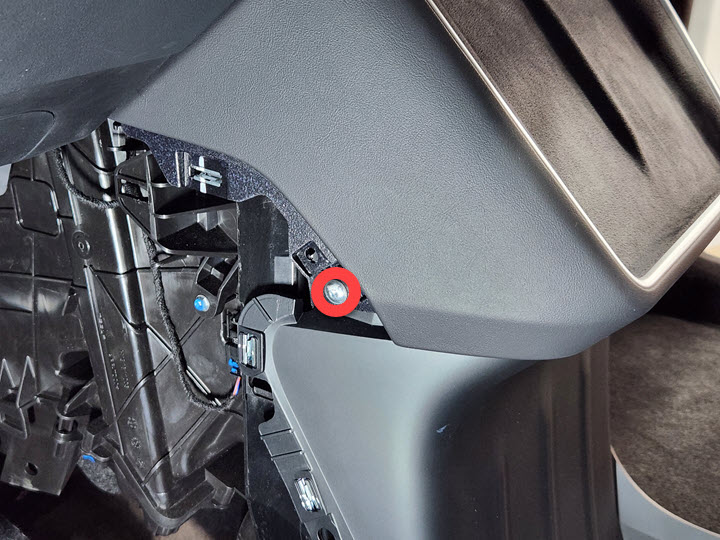

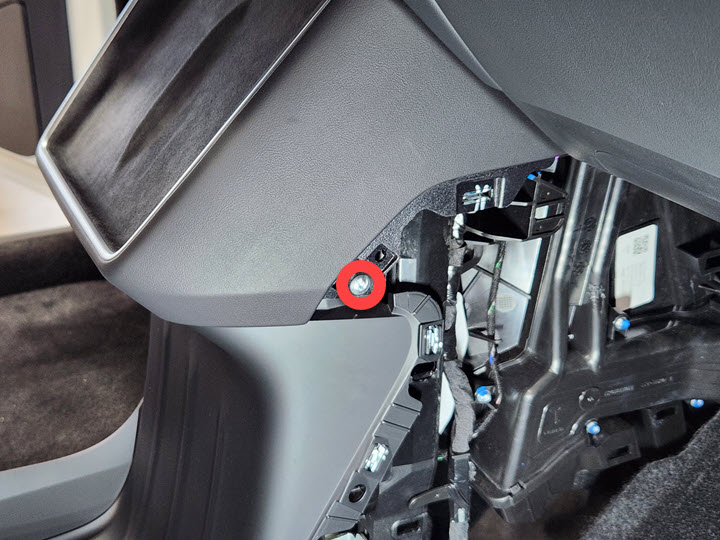

  2. Remove the screws (x2) that attach the phone dock assembly to the center console.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 1/4in Dr T20 Socket

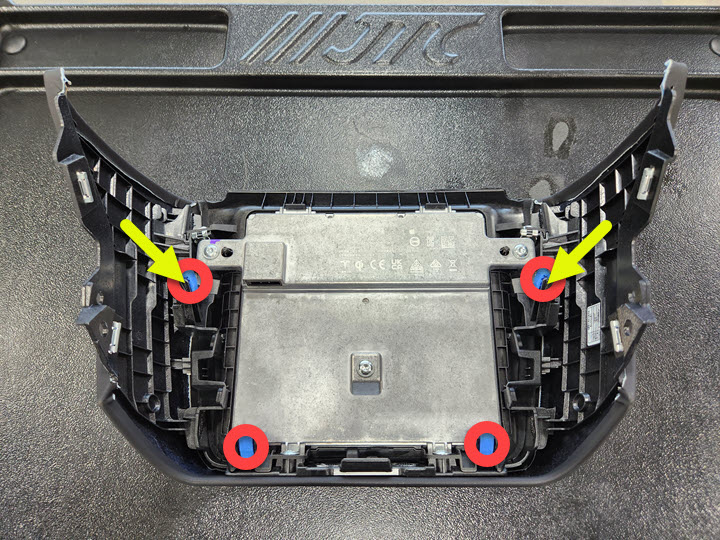

  3. Release the clips (x4) and datums (x2) that attach the phone dock assembly to the center console.

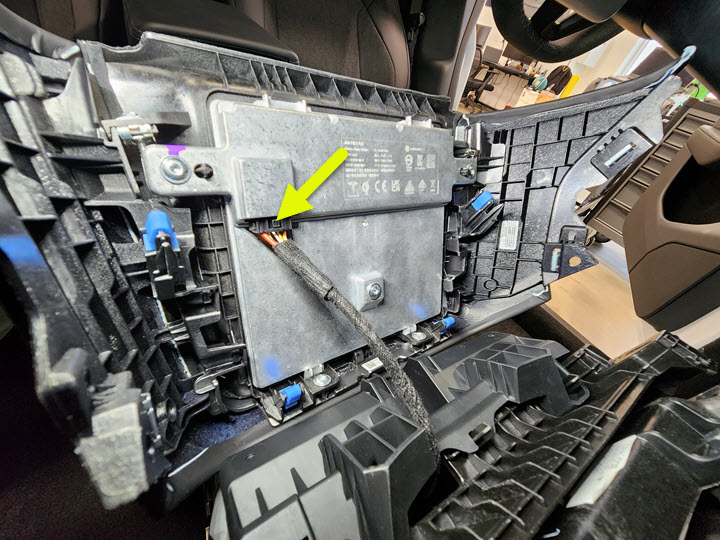

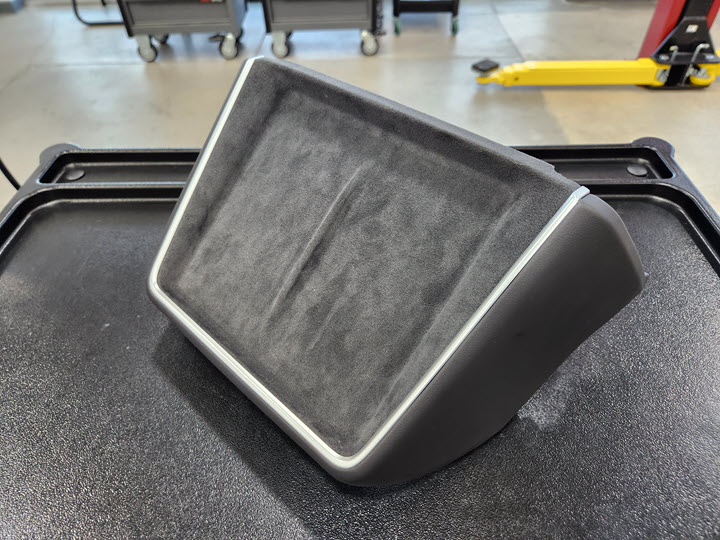

  4. Disconnect the electrical connector, and then remove the phone dock assembly from the center console.

Install

  1. Connect the electrical connector.
  2. Align the datums (x2) and secure the clips (x4) that attach the phone dock assembly to the center console.
  3. Install the screws (x2) that attach the phone dock assembly to the center console.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 1/4in Dr T20 Socket
  4. Install the LH and RH front side panels to the center console. See Side Panel - Center Console - Front - LH (Model Y Standard) (Remove and Replace).
