Instrument Panel - RHD - Air Wave Duct - Right (Remove and Replace)
Correction code
1405031202
FRT
1.15
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the instrument panel upper assembly. See Assembly - Instrument Panel - Upper (RHD) (Remove and Install).
-

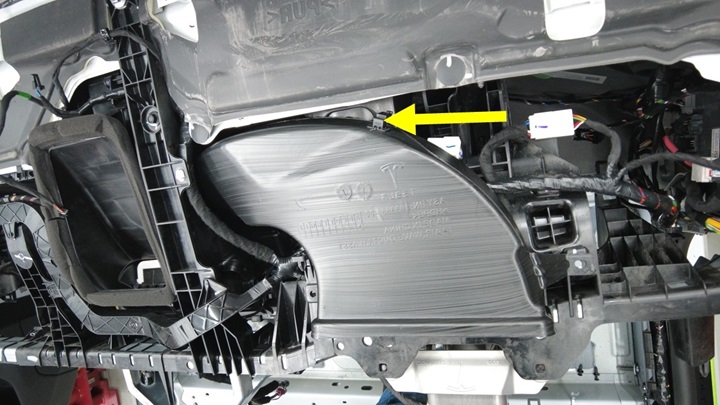

Release the RH instrument panel air
wave duct push clips (x2).
-
Disconnect the RH air wave duct
connector, and remove the duct from the vehicle.
Install
-
Position the RH air wave duct into the
vehicle, and connect the connector.
-
Install the RH instrument panel air
wave duct push clips (x2).
- Install the instrument panel upper assembly. See Assembly - Instrument Panel - Upper (RHD) (Remove and Install).
