Module - Body Controller - RH (Remove and Replace)

Correction code 1715010702 FRT 0.4 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Disconnect LV battery. See LV Power (Disconnect and Connect).
  2. Remove the RH lower A-pillar trim. See A PILLAR LOWER TRIM - LEFT HAND (Remove and Install).
  3. Remove the RH footwell hush panel. See Hush Panel - Footwell - Front Passenger (Remove and Replace).

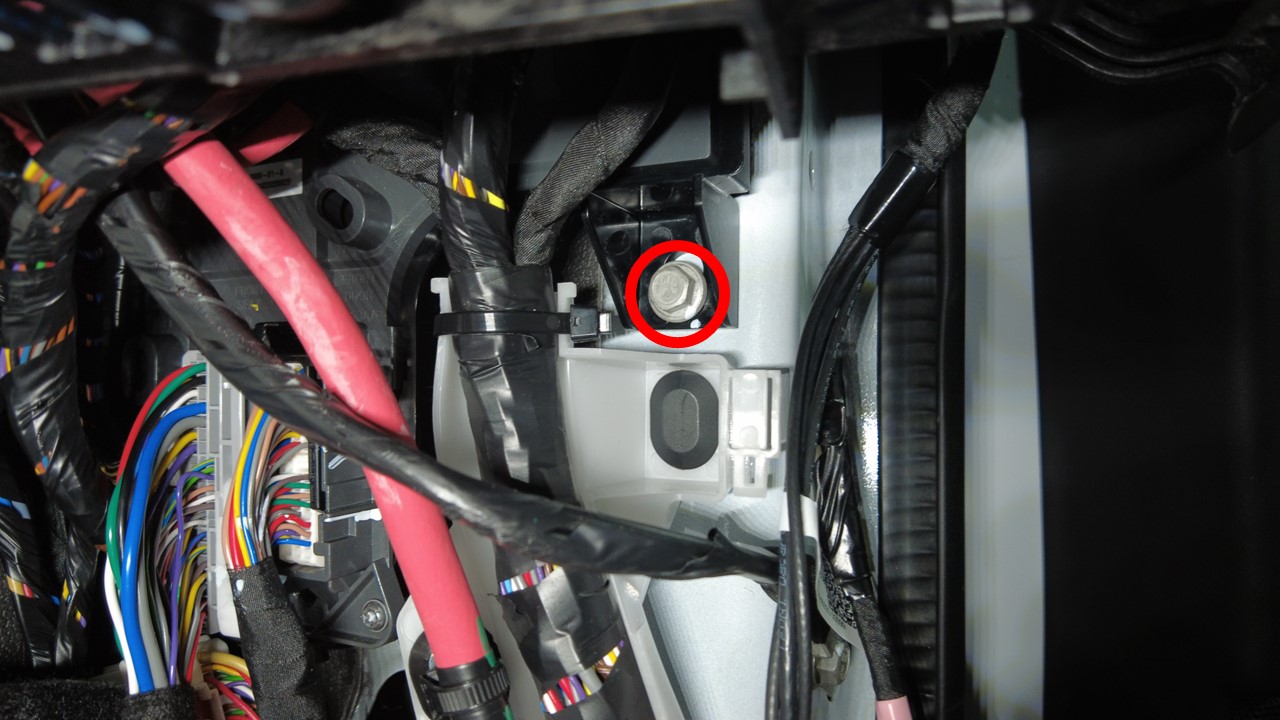

  4. Remove the bolt that attaches the electrical harness to the RH A-pillar.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

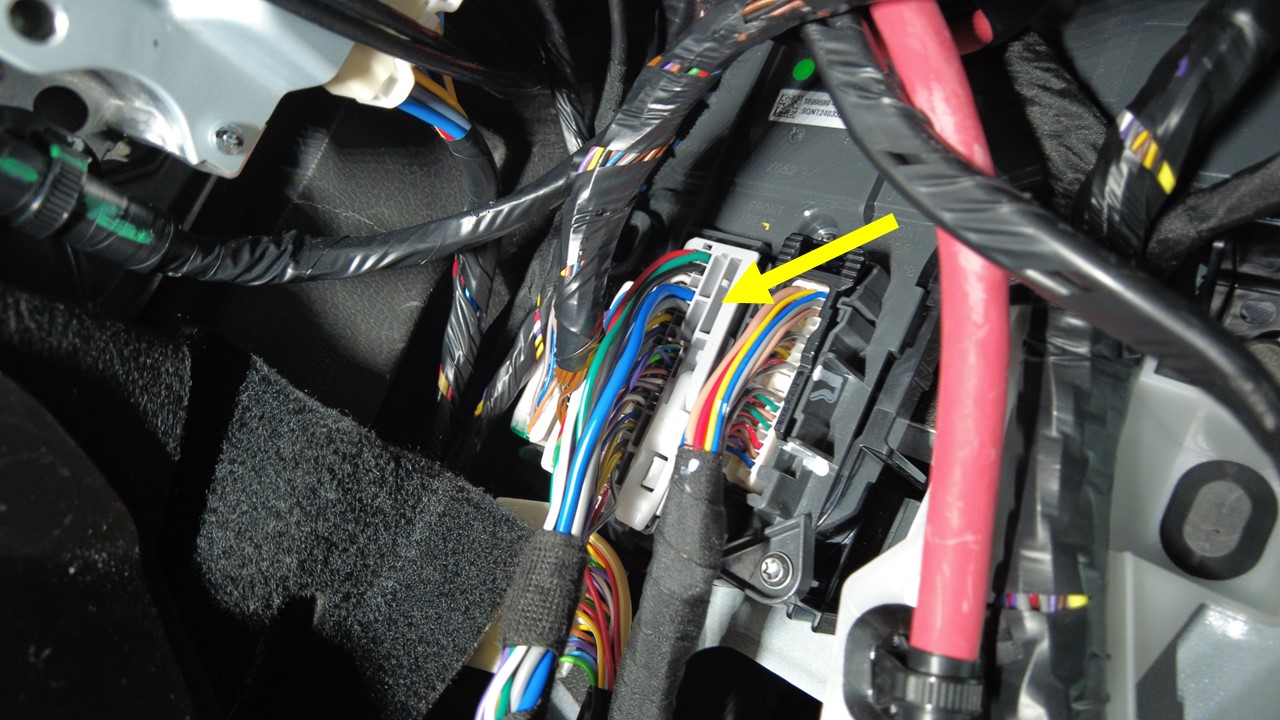

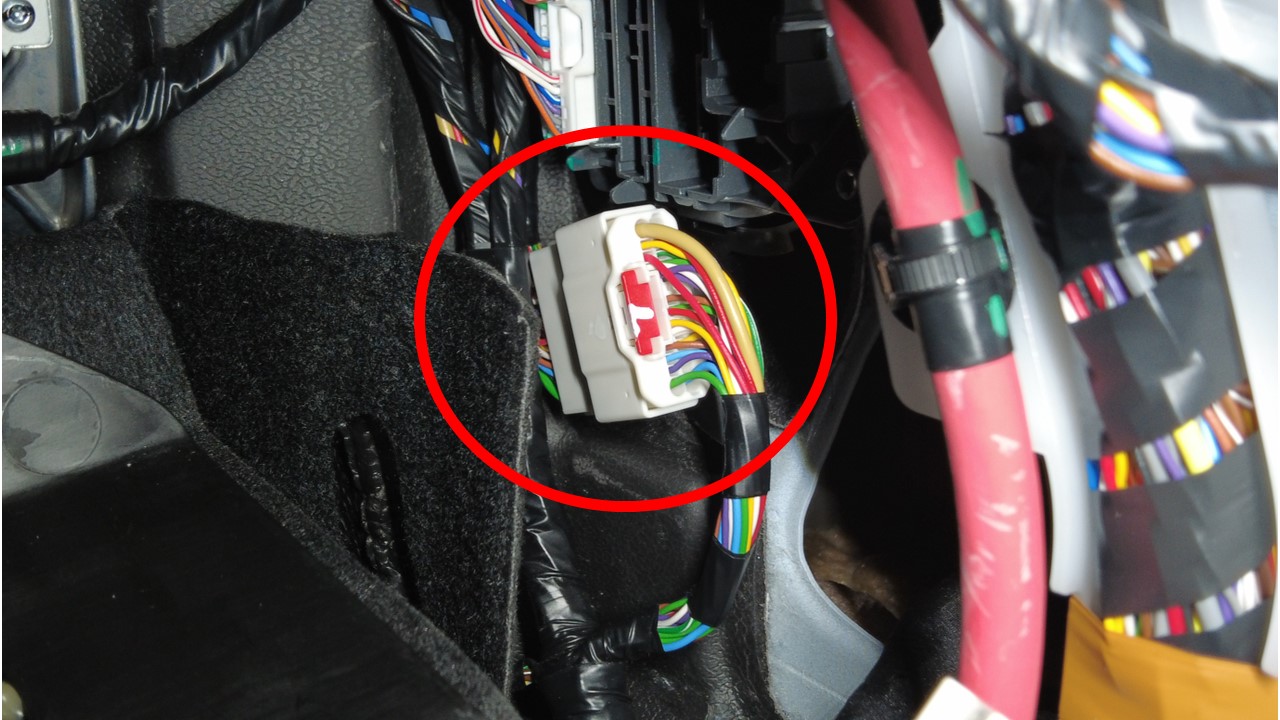

  5. Release the clip that attaches the connector to the RH body control module.

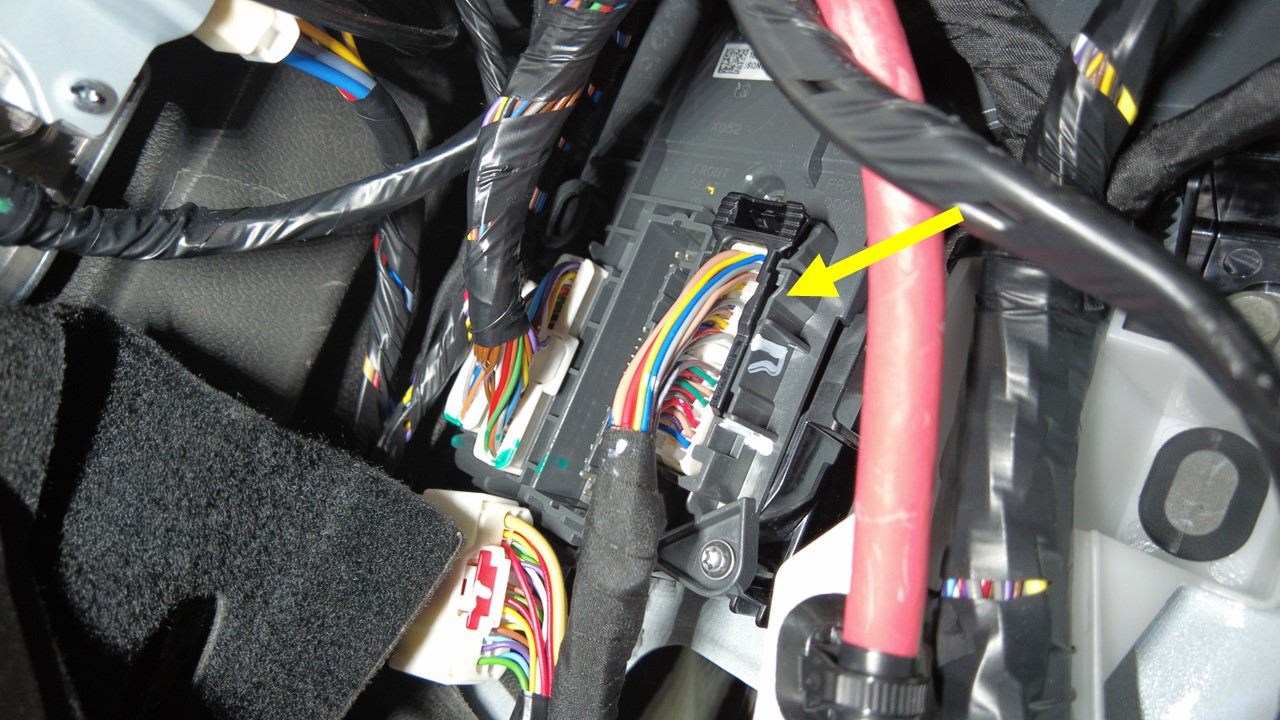

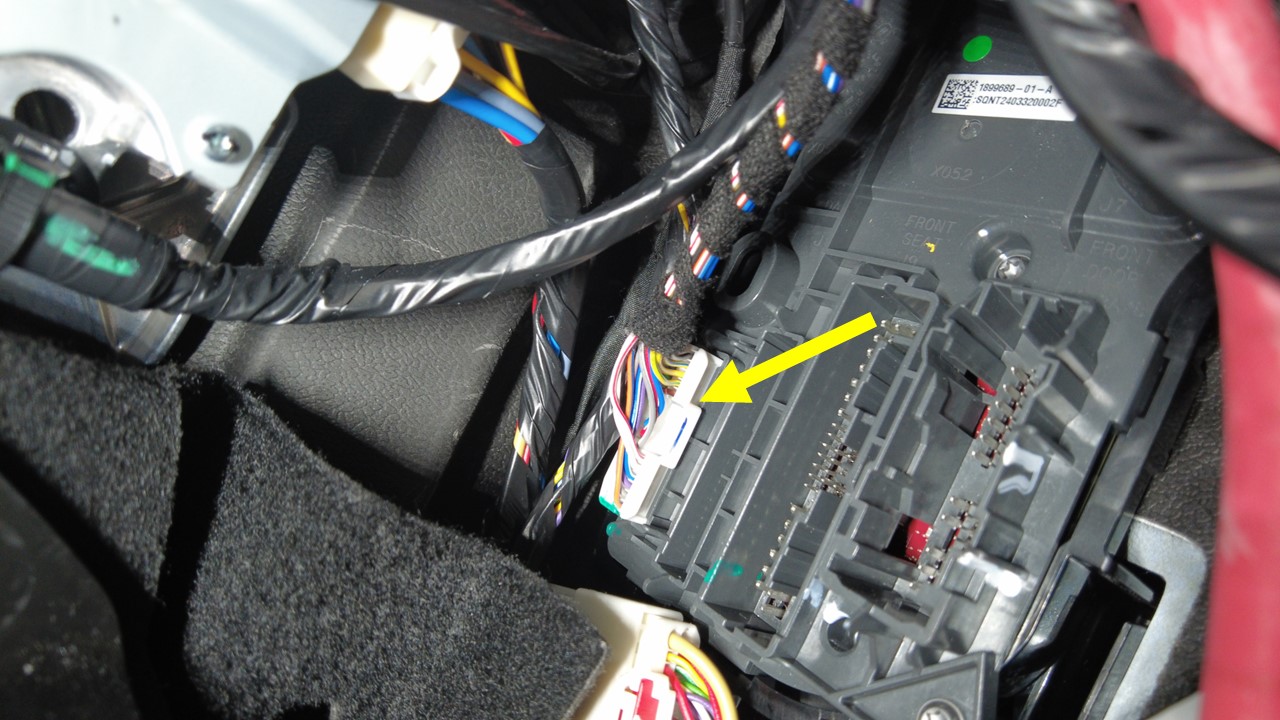

  6. Release the connector lock, and then disconnect the front passenger seat electrical connector from the RH body controller module.
  7. Release the lock, and then disconnect the J7 RH front door electrical connector from the RH body controller module.

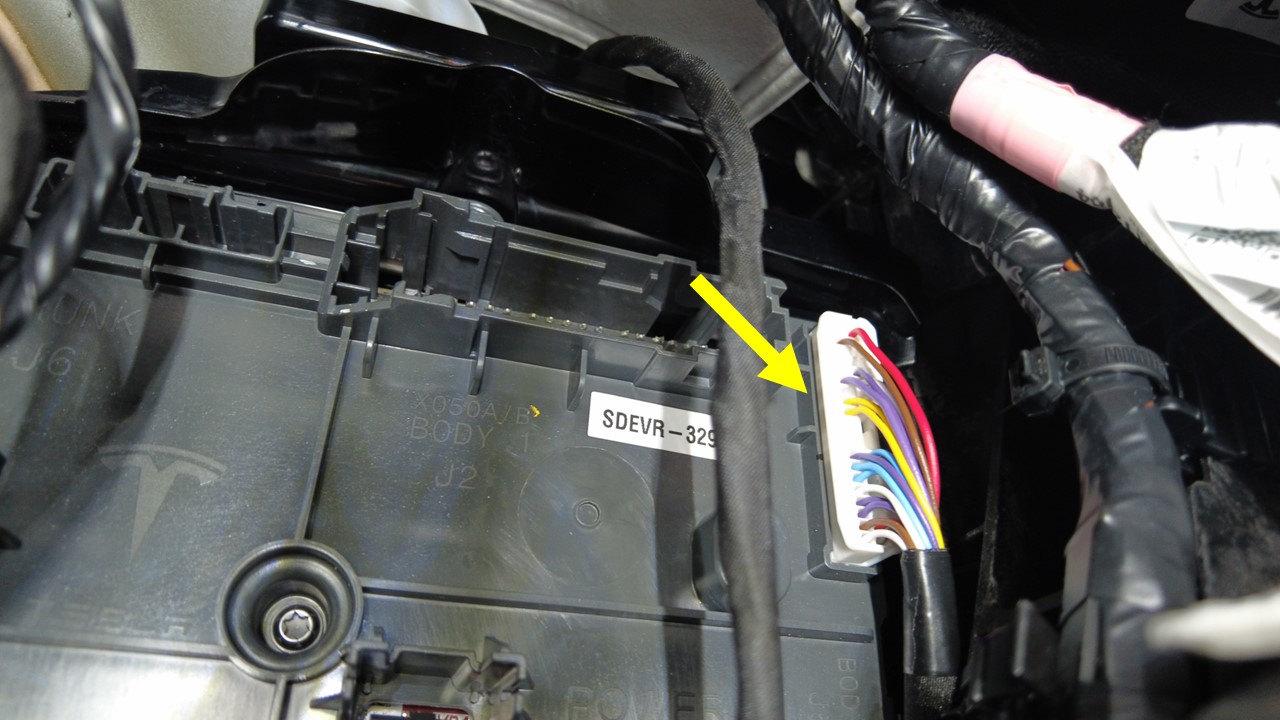

  8. Disconnect the J10 instrument panel electrical connector from the RH body controller module.
  9. Disconnect the J11 HVAC electrical connector from the RH body controller module.
  10. Release the connector lock, and then disconnect the J1 power electrical connector from the RH body controller module.

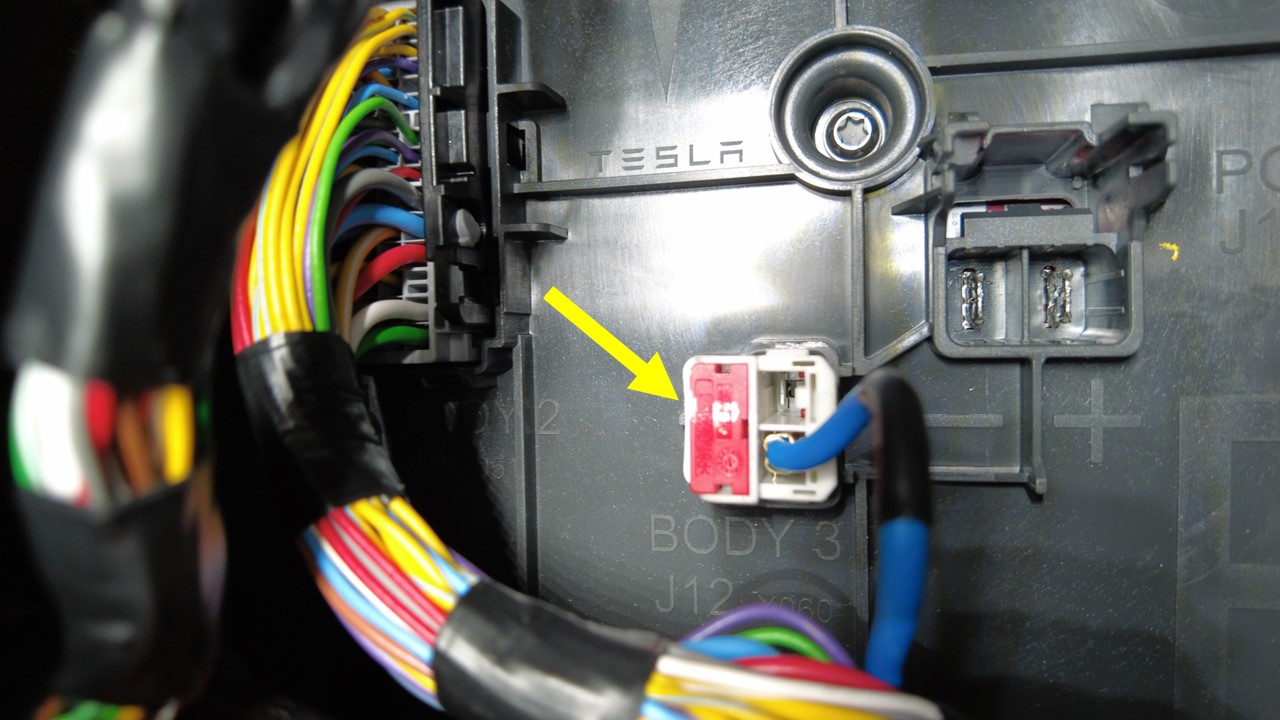

  11. Disconnect the J12 body electrical connector from the RH body controller module.
  12. Release the connector lock, and then disconnect the J4 body electrical connector from the RH body controller module.

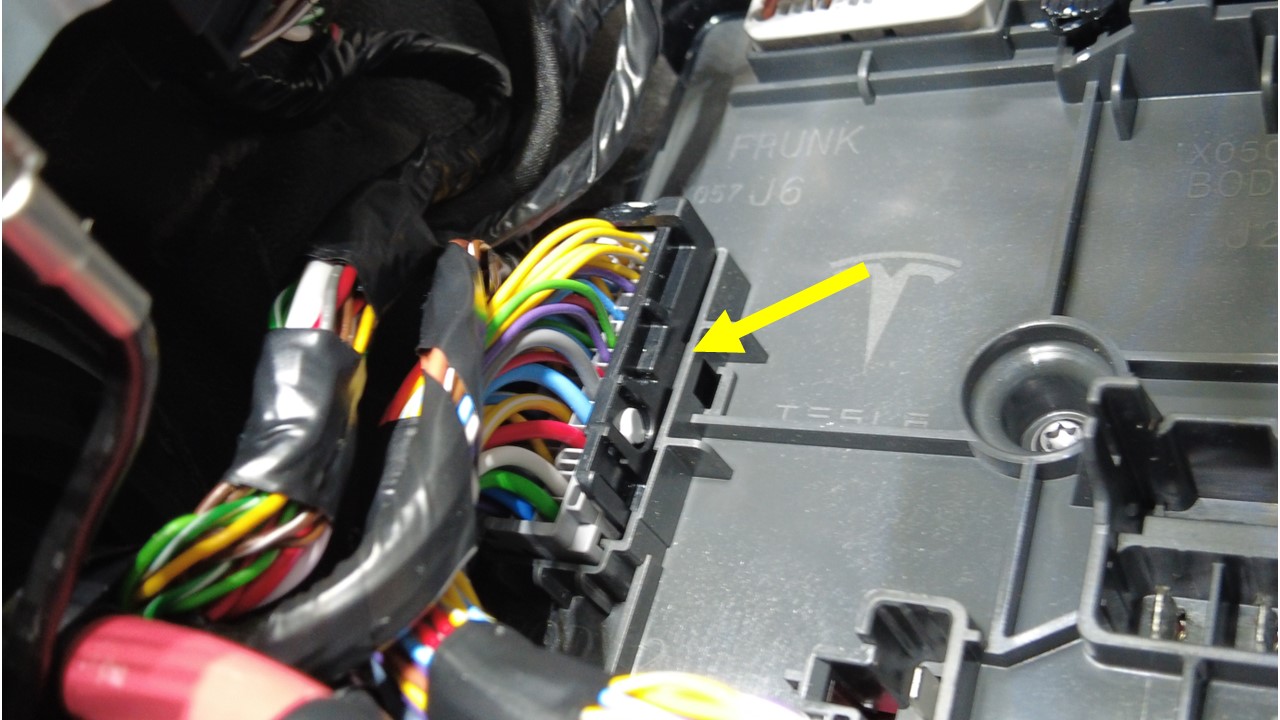

  13. Disconnect the J6 underhood storage unit electrical connector from the RH body controller module.

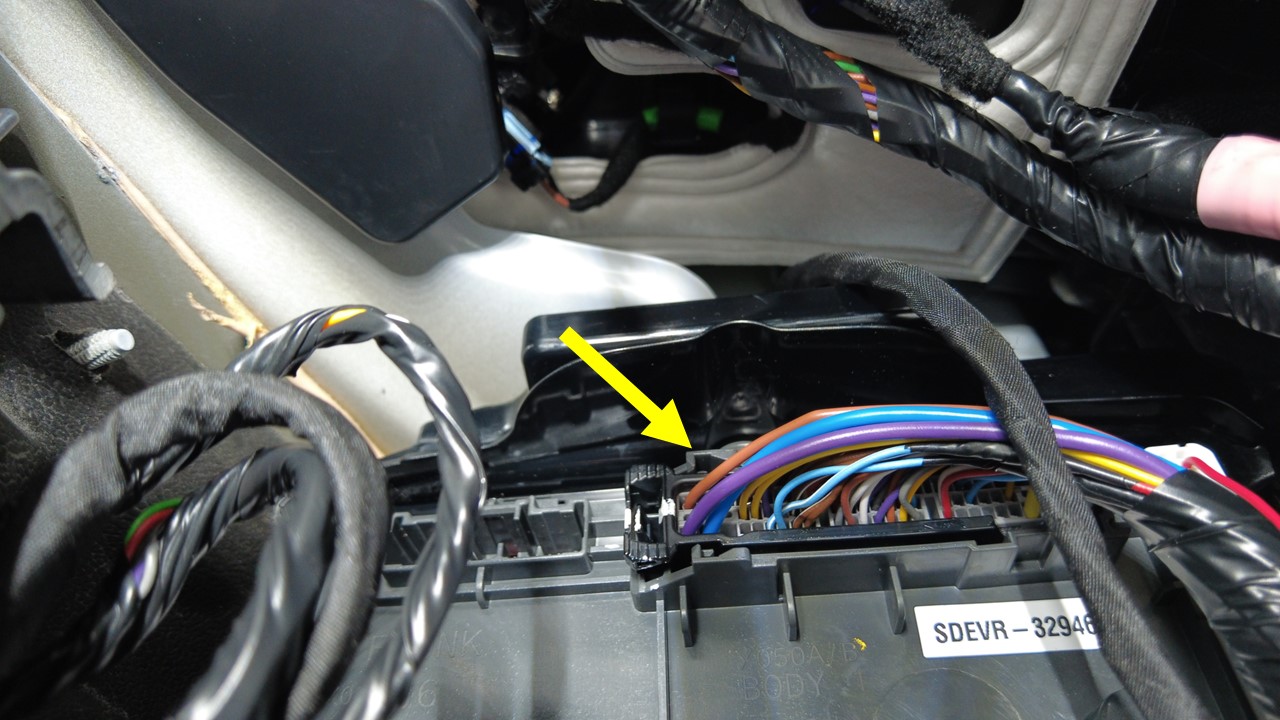

  14. Release the connector lock, and then disconnect the J2 body electrical connector from the RH body controller module.
  15. Disconnect the J5 body electrical connector from the RH body controller module.

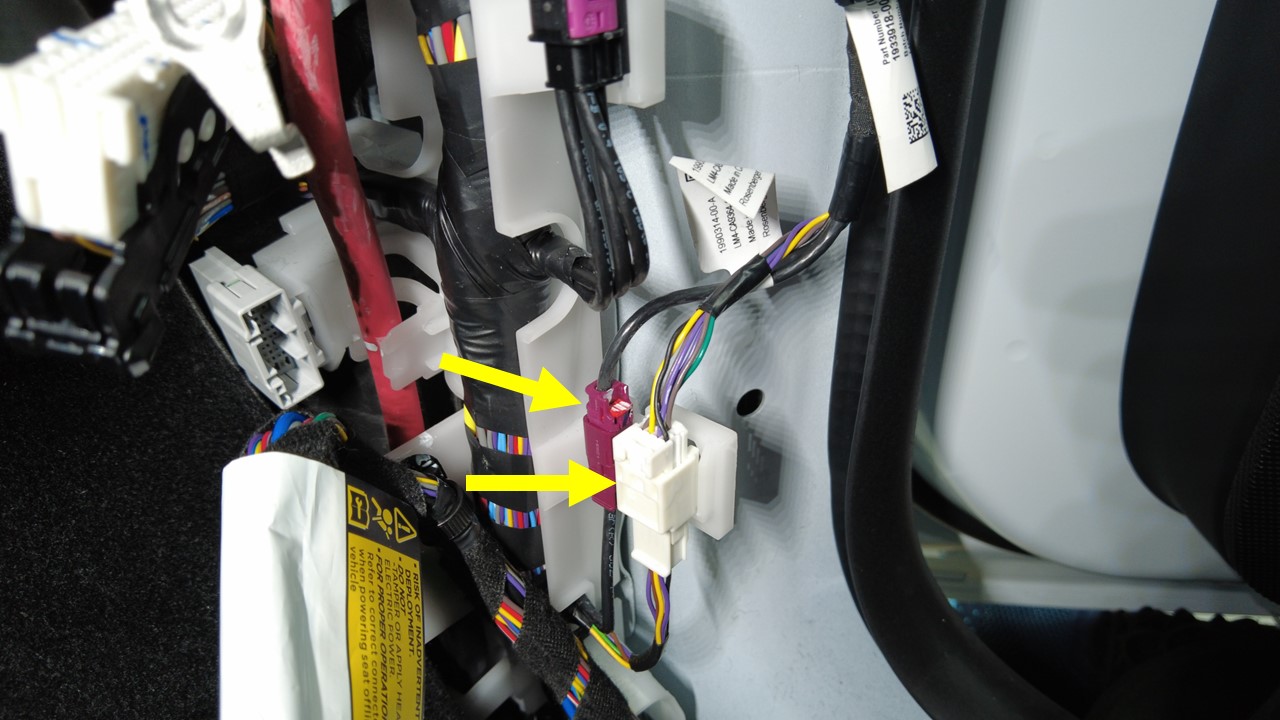

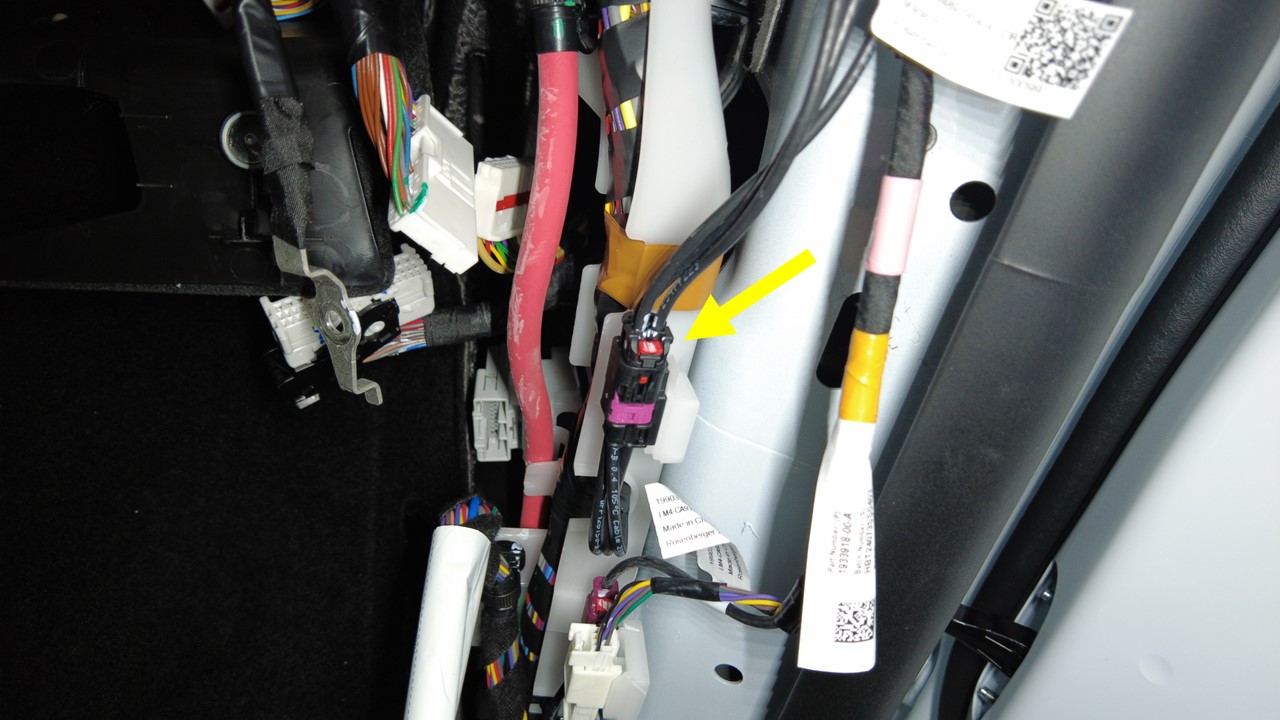

  16. Release the connector locks, and then disconnect the windshield electrical connectors (x3).
  17. Remove the bolt that attaches the RH body control module to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

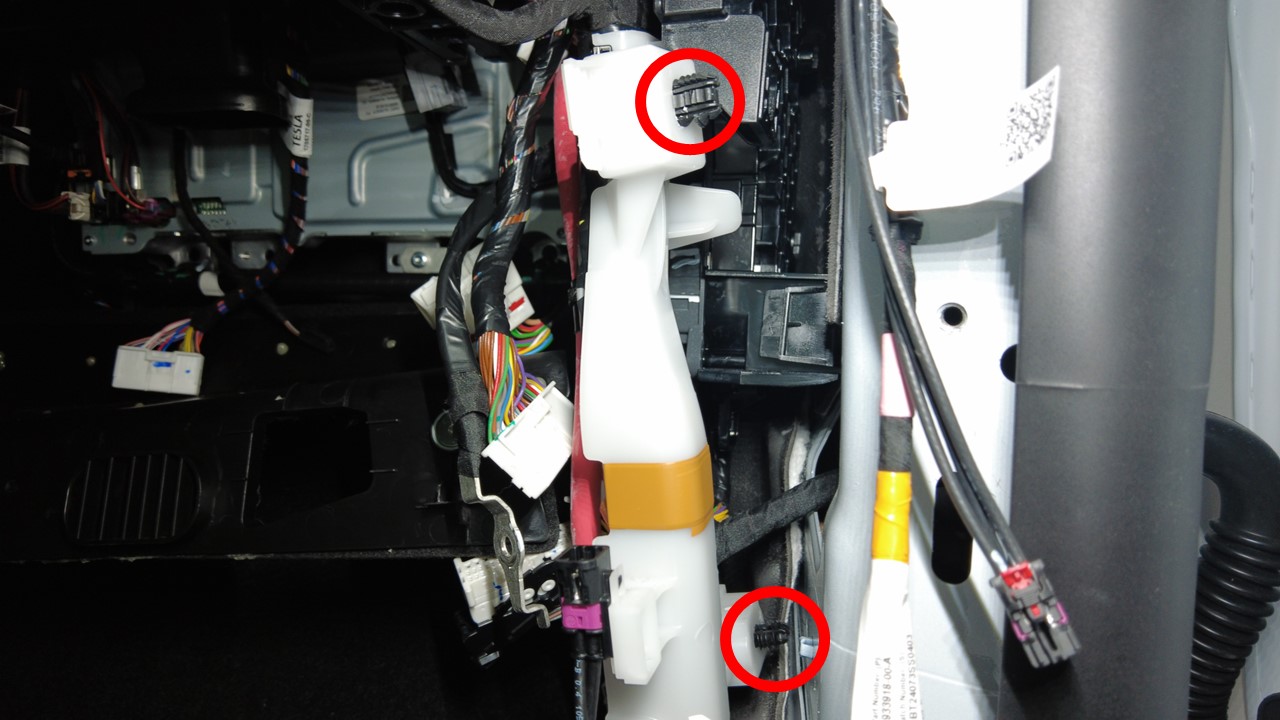

  18. Release the clips (x2) that attach the electrical harness to the body at the RH A-pillar area.
  19. Remove the RH body control module from the vehicle.

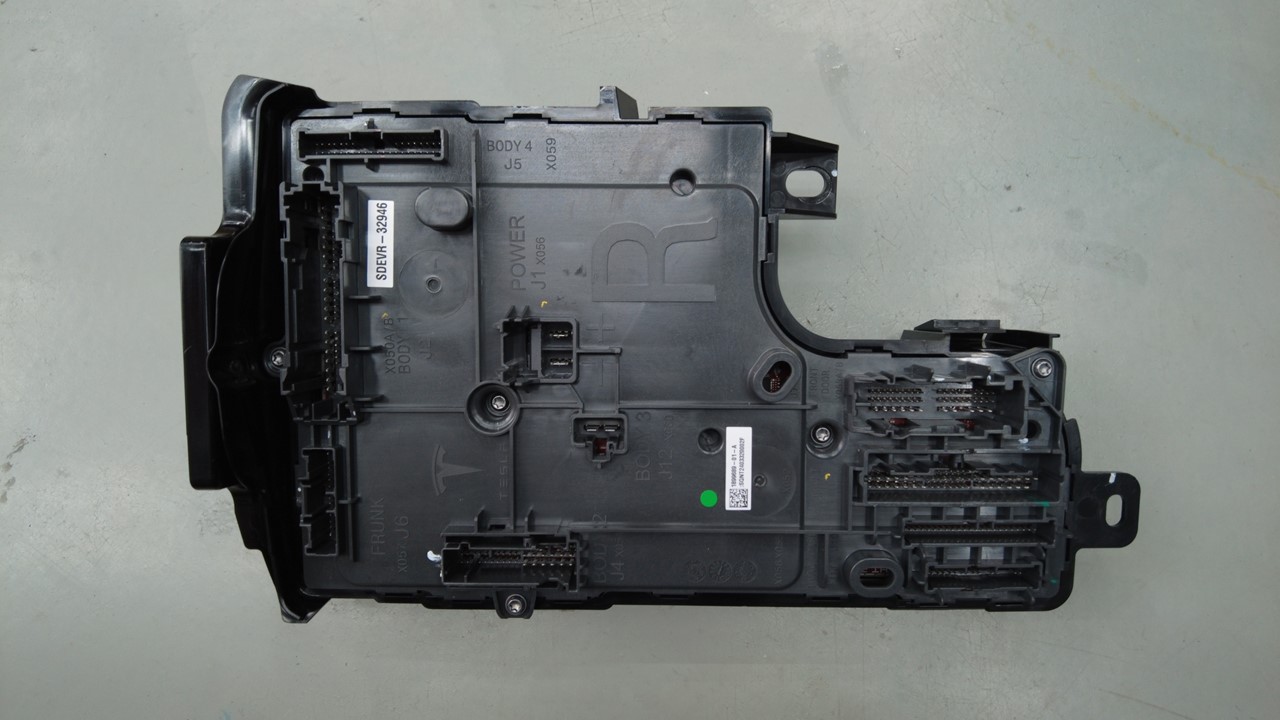

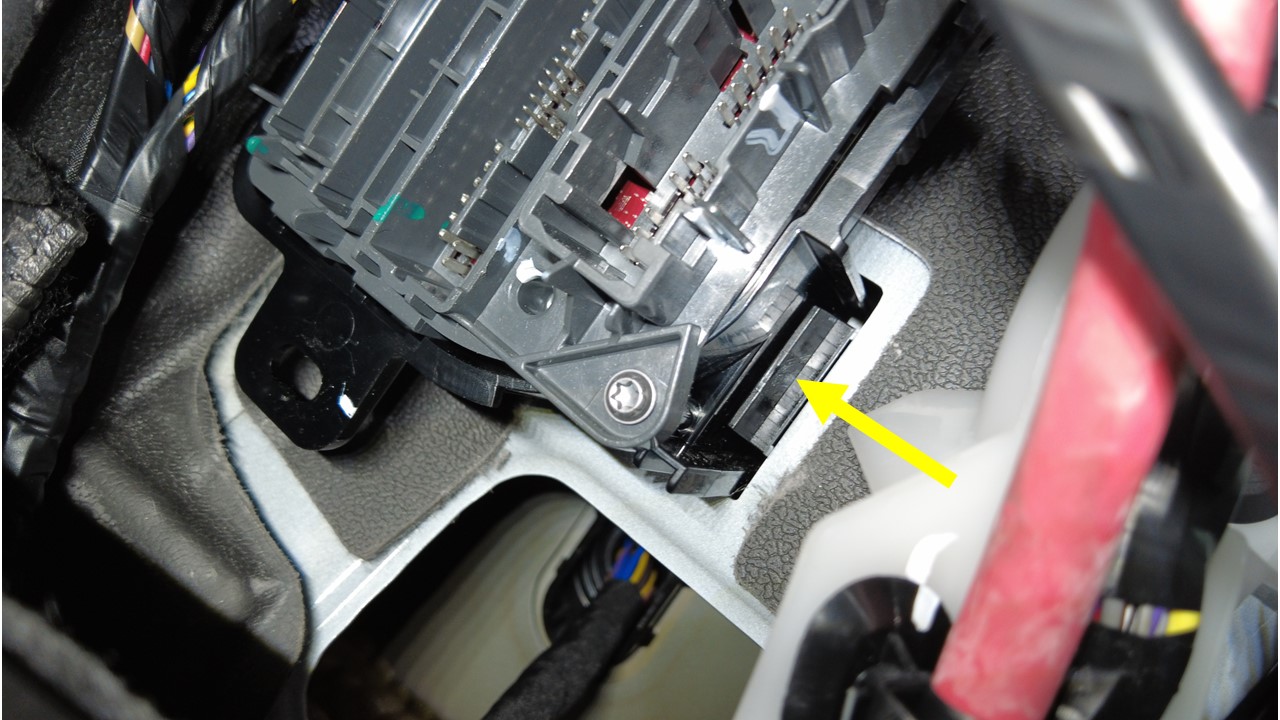

    1. Release the clip that attaches the RH body control module to the body.

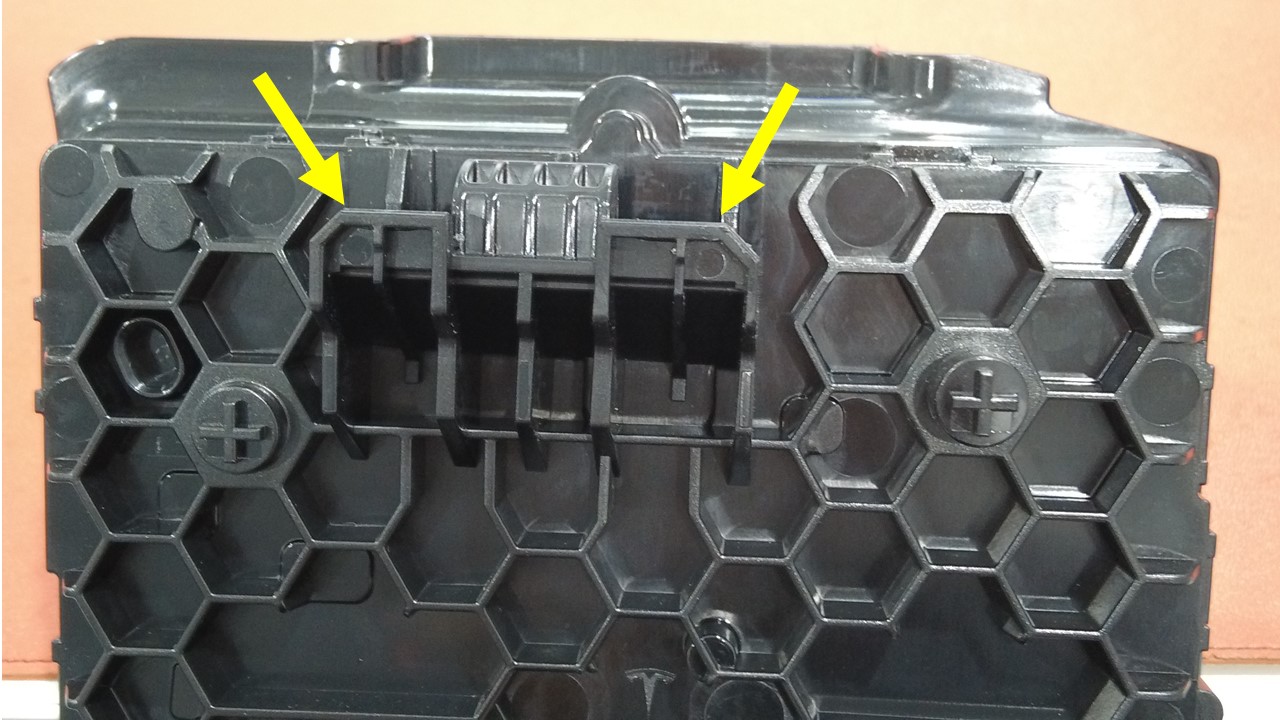

    2. Slide the module downward to release the tabs (x2).
    3. Maneuver the RH body controller module from under the IP.

Install

  1. Maneuver the RH body controller module into position under the IP carrier, and align the tabs with body cut out.
  2. Install the clips (x2) that attach the electrical harness to the body at the RH A-pillar area.
  3. Install the bolt that attaches the RH body control module to the body.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  4. Connect the windshield electrical connectors (x3).
  5. Connect the J5 body electrical connector to the RH body controller module.
  6. Secure the connector lock, and then connect the J2 body electrical connector to the RH body controller module.
  7. Connect the J6 underhood storage unit electrical connector to the RH body controller module.
  8. Secure the connector lock, and then connect the J4 body electrical connector to the RH body controller module.
  9. Connect the J12 body electrical connector to the RH body controller module.
  10. Secure the connector lock, and then connect the J1 power electrical connector to the RH body controller module.
  11. Connect the J11 HVAC electrical connector to the RH body controller module.
  12. Connect the J10 instrument panel electrical connector to the RH body controller module.
  13. Secure the lock, and then connect the J7 RH front door electrical connector to the RH body controller module.
  14. Secure the connector lock, and then connect the front passenger seat electrical connector to the RH body controller module.
  15. Install the clip that attaches the connector to the RH body control module.
  16. Install the bolt that attaches the electrical harness to the RH A-pillar.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  17. Install the RH footwell hush panel. See Hush Panel - Footwell - Front Passenger (Remove and Replace).
  18. Install the RH lower A-pillar trim. See A PILLAR LOWER TRIM - LEFT HAND (Remove and Install).
  19. Connect LV battery. See LV Power (Disconnect and Connect).
  20. Reinstall the vehicle firmware. See Software Reinstall - Touchscreen.
  21. SelectLow Voltage➜ Procedures➜VCRIGHT Post Replacement➜ VCRIGHT Post Replacement, click Run, and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    The operator needs to sit in the front driver's seat keep RH front seat clear from all items/objects during calibration.
  22. Disconnect the laptop from the vehicle.
  23. Disable Service Mode. See Service Mode.
  24. Raise LH front windows and close the LH front door.
