Seat Position Sensor - 5-Seater - LH (Remove and Replace)

Correction code Correction code 1305011902 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the LH 2nd row backpanel. See 2nd Row - Backpanel - LH (Remove and Replace).

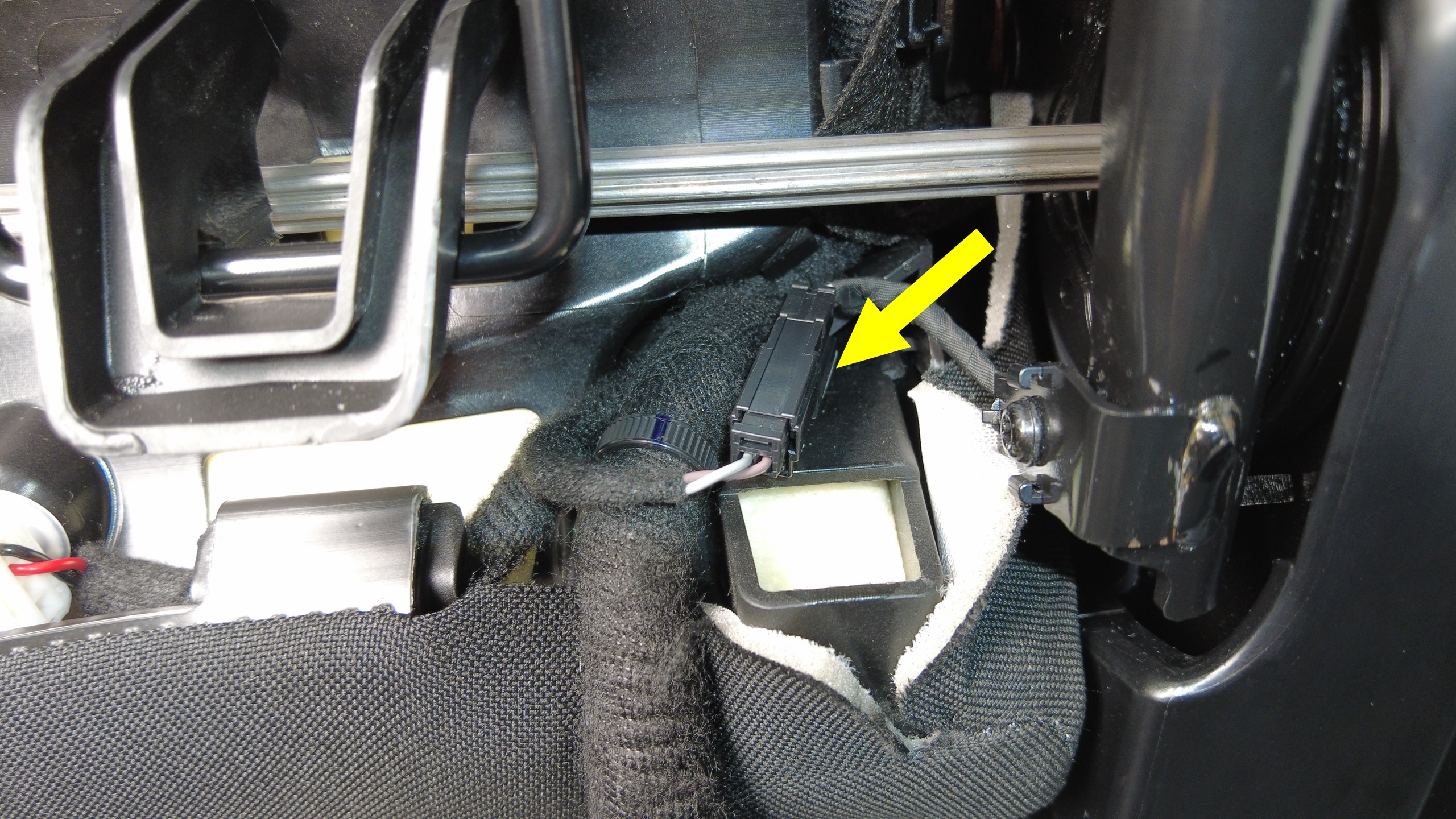

  2. Remove the clip that secures the 2nd row 60 seat position sensor connector.
  3. Disconnect the 2nd row 60 seat position sensor connector.

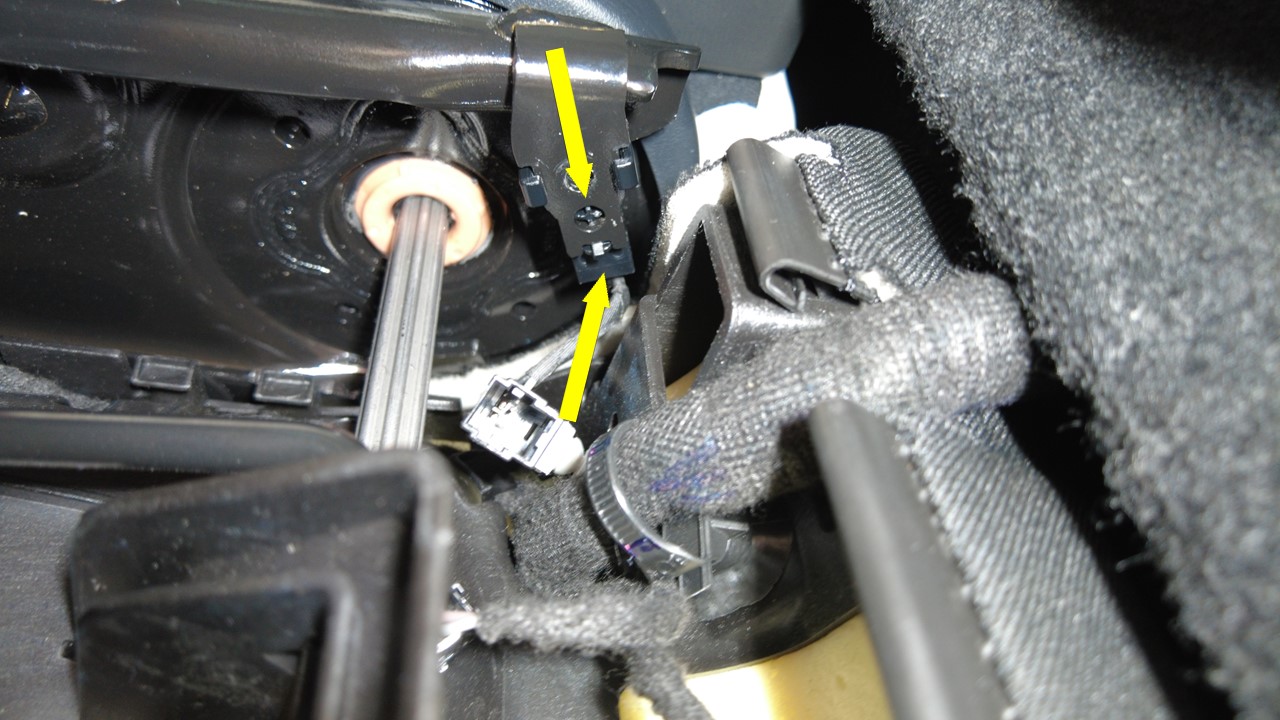

  4. Remove the screw that attaches the seat position sensor to the LH 2nd row seat frame.
    Informational PurposesAn informational icon, calling your attention
    Note

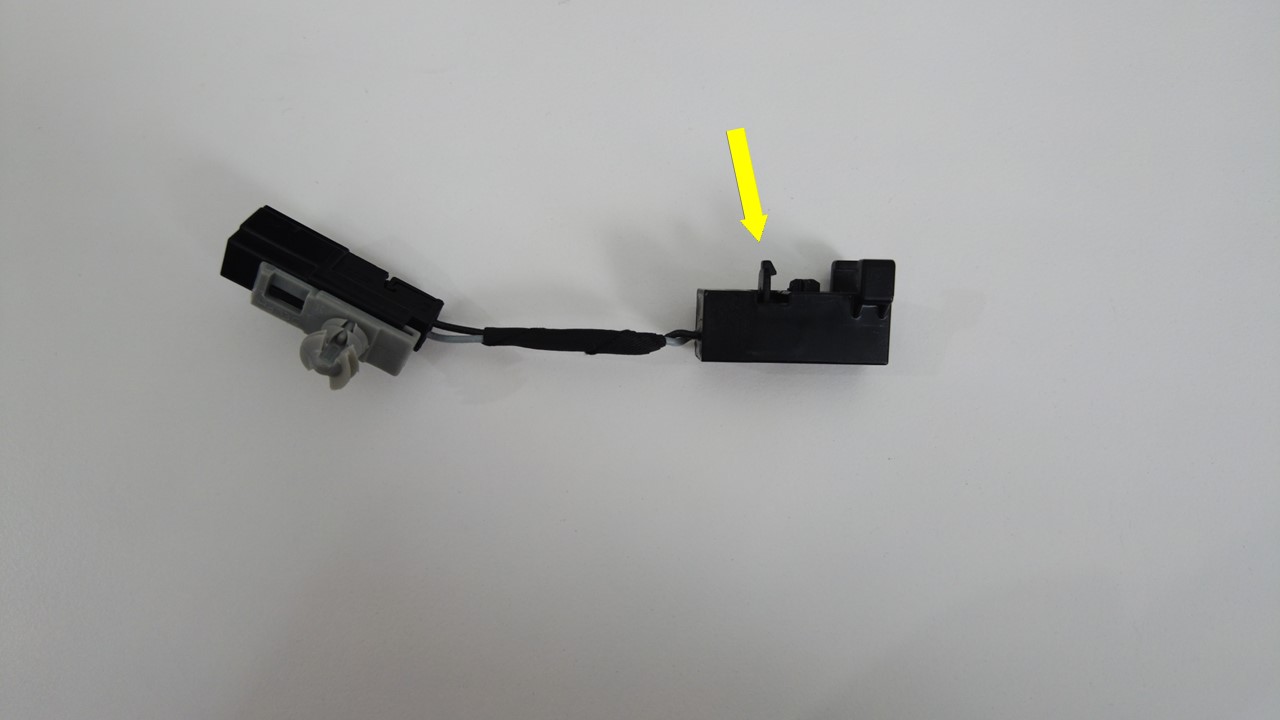

    Gently press inward to disengage the sensor, then pull downward to detach it.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Replace

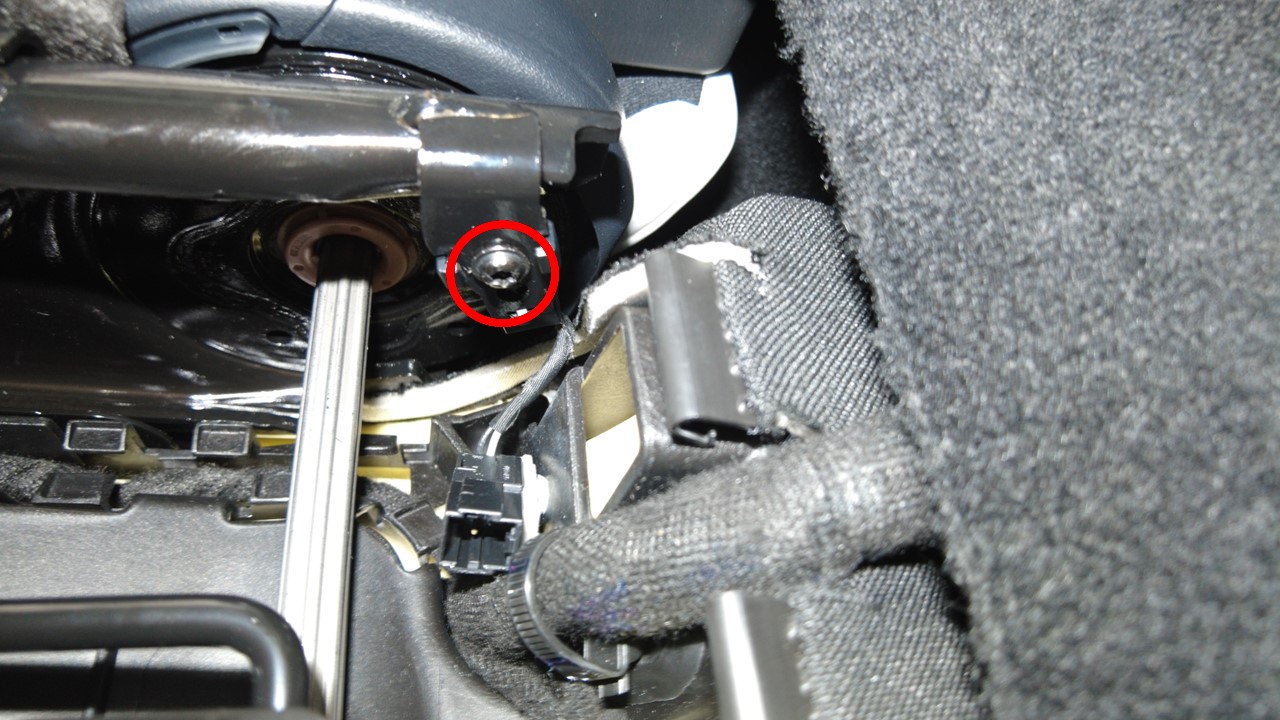

  1. Install the screw that attaches the seat position sensor to the LH 2nd row seat frame.
    0.8 Nm (7 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    Note
    Gently push the sensor upward.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

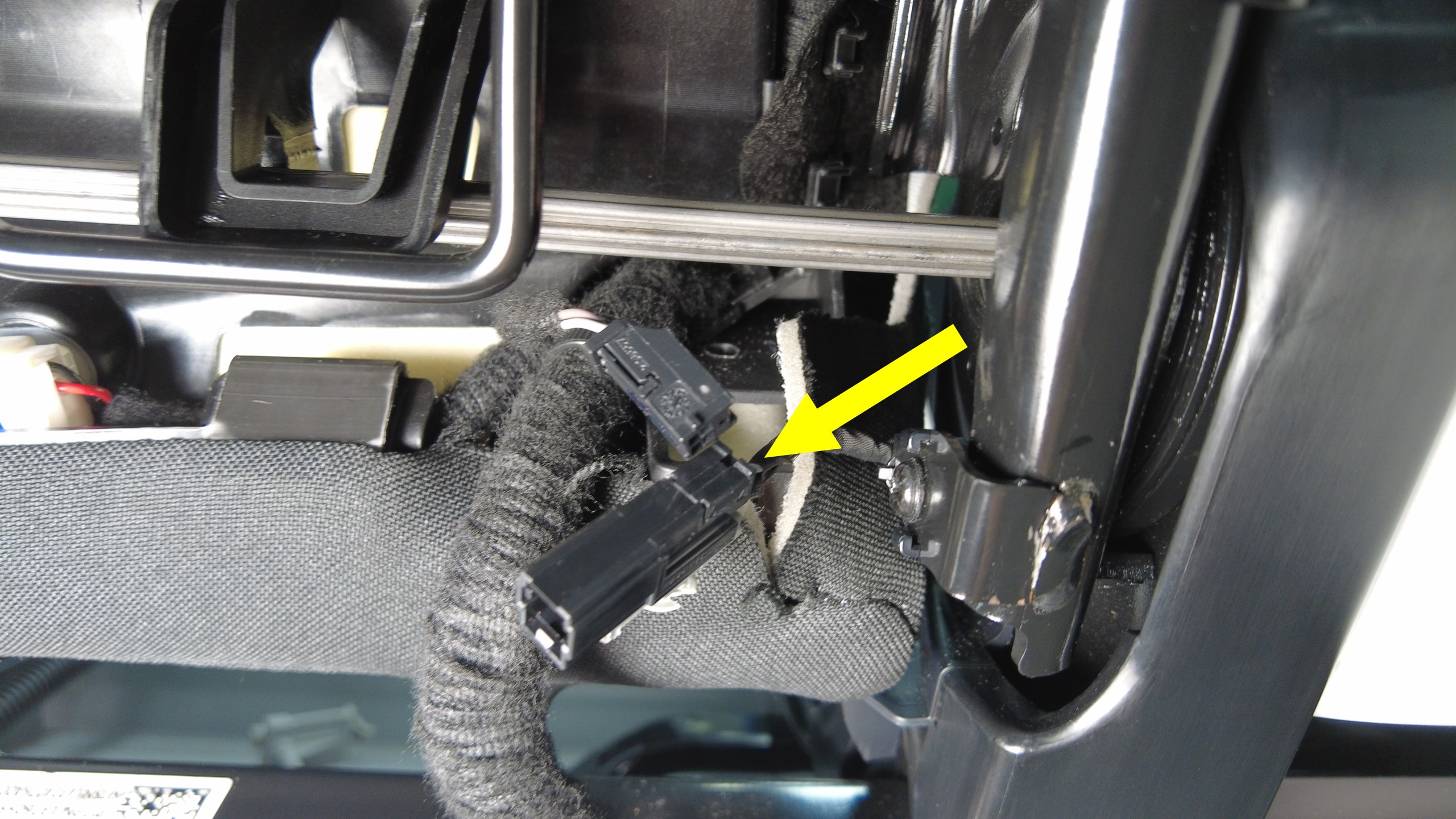

  2. Connect the 2nd row 60 seat position sensor connector.
  3. Install the clip that secures the 2nd row 60 seat position sensor connector.
  4. Install the LH 2nd row backpanel. See 2nd Row - Backpanel - LH (Remove and Replace).
  5. Connect a laptop to the diagnostic port of the vehicle, and then use Toolbox 3 to locally connect to the vehicle. See Toolbox 3 (Connect and Disconnect).
  6. In Toolbox 3.0, click the Actions tab, type "Recline" into the search field, click PROC_VCLEFT_X_2R-SEAT-RECLINE-CALIBRATIONvia Toolbox: (link)via Service Mode: Low Voltage ➜ Second Row Seats ➜ Calibrate, click Run, and allow the routine to complete.
  7. Exit Service Mode Plus and disconnect the laptop from the vehicle. See Service Mode Plus.
