Glove Box (RHD) (Remove and Replace)

Correction code 1405011102 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-25: Added a step to open the glove box door using the touchscreen.

Torque Specifications

Table 1. Torque Specifications: Glove Box (RHD) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x4) that attach the glove box assembly to the IP carrier
2.3 Nm (1.7 lbs-ft)
  • Torx T20 socket
 Reuse

Remove

  1. Remove the passenger IP end cap. See Instrument Panel - End Cap - Substrate - LH (Remove and Replace).
  2. Remove the passenger footwell cover. See Hush Panel - Footwell - Front Passenger (RHD) (Remove and Replace).
  3. Release the locking tab, and then disconnect the connector that attaches the glove box USB cable to the car computer.
  4. Release the clip that attaches the passenger footwell duct to the vehicle.
  5. Remove the screws (x4) that attach the glove box assembly to the IP carrier.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  6. On the touchscreen, tap Controls > Glovebox to open the glove box door.

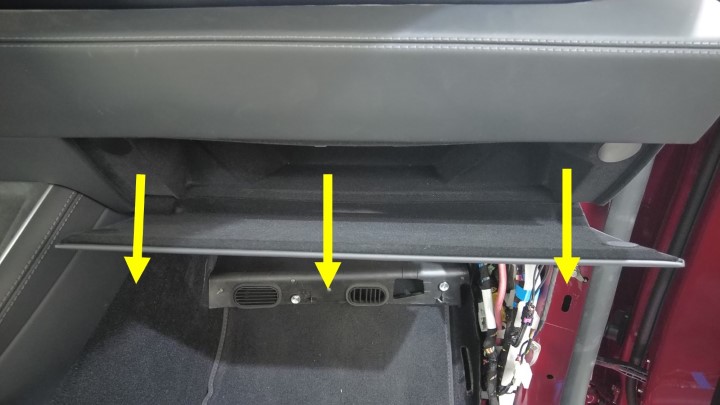

  7. Release the clips (x8) and the locator pins (x3) that attach the glove box to the IP carrier, then carefully pull the glove box outward from the inner side.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use caution to avoid damaging the leather surface due to tight retaining clips.
  8. Disconnect the glove box assembly electrical connectors (x2), and then remove the glove box from the vehicle.

Install

  1. Connect the glove box assembly electrical connectors (x2).
  2. Install the clips (x8) and the locator pins (x3) that attach the glove box to the IP carrier.
  3. Install the screws (x4) that attach the glove box assembly to the IP carrier.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  4. Install the clip that attaches the passenger footwell duct to the vehicle.
  5. Connect the connector that attaches the glove box USB cable to the car computer, and engage the locking tab.
  6. Install the passenger footwell cover. See Hush Panel - Footwell - Front Passenger (RHD) (Remove and Replace).
  7. Install the passenger IP end cap. See Instrument Panel - End Cap - Substrate - LH (Remove and Replace).
