Bracket - Front License Plate - NA (Model Y Standard) (Install)

Correction code TBD FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-11: Released new procedure.

Install

  1. Use IPA wipes to clean the front fascia surface in preparation for installation of the front license plate bracket, and allow 1 minute to dry.

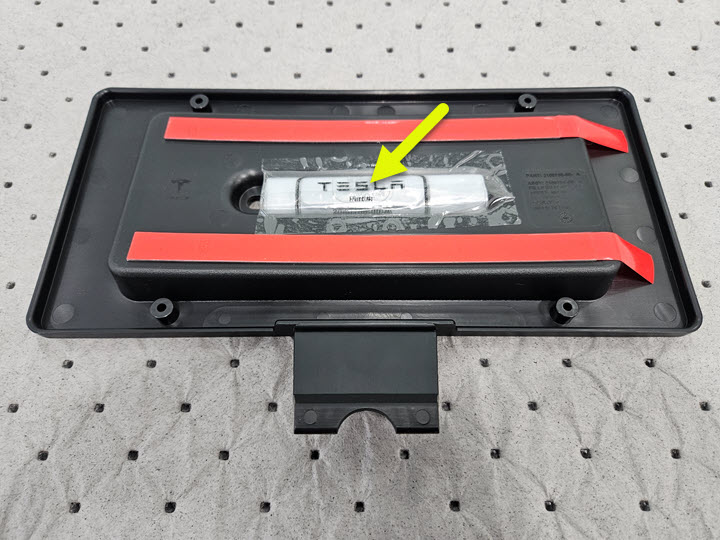

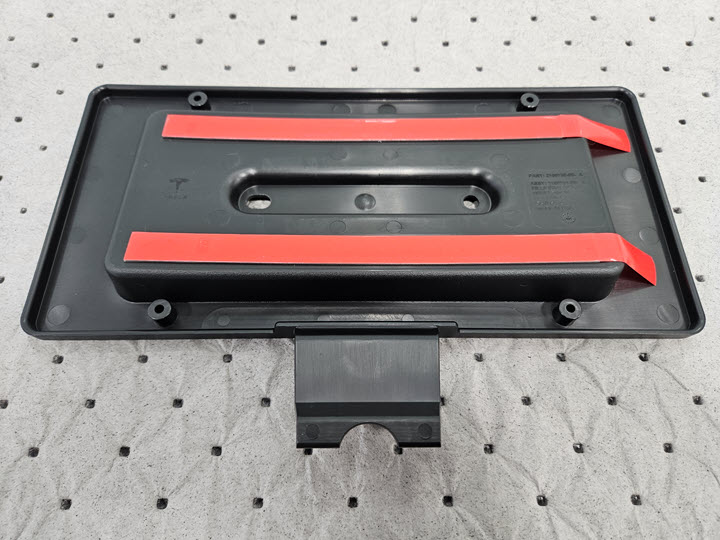

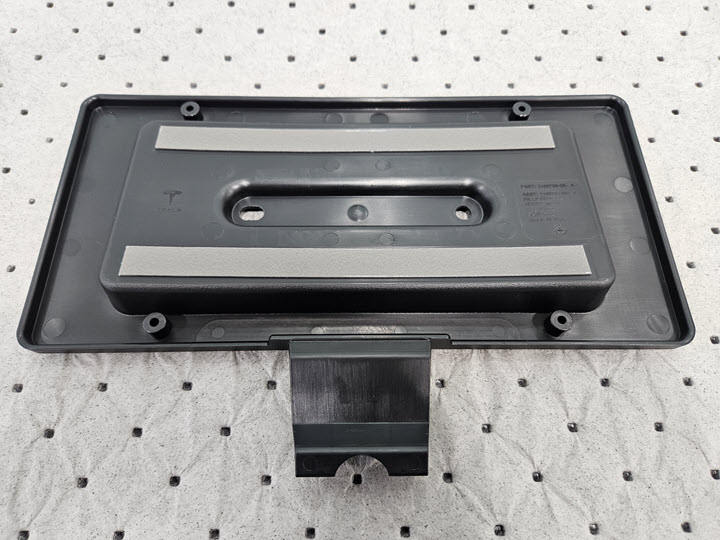

  2. Remove the packaging from the fasteners of the license plate bracket.

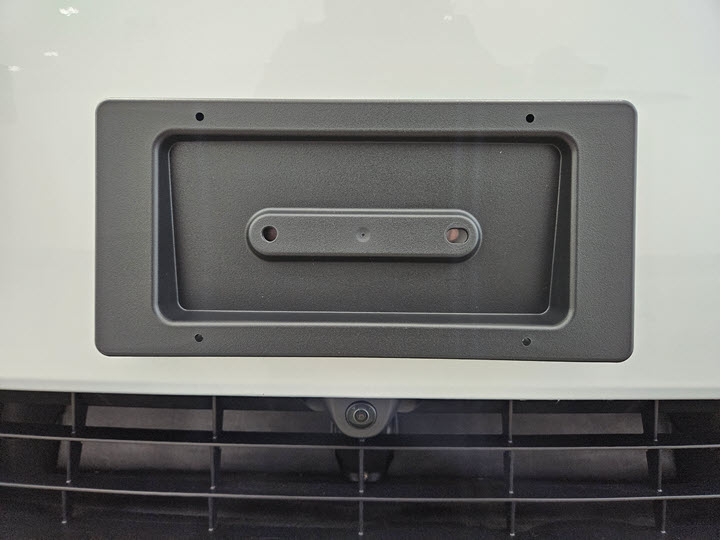

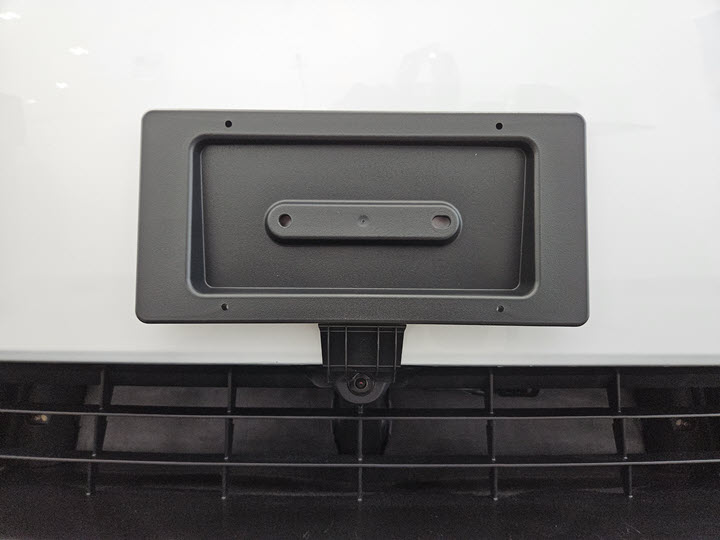

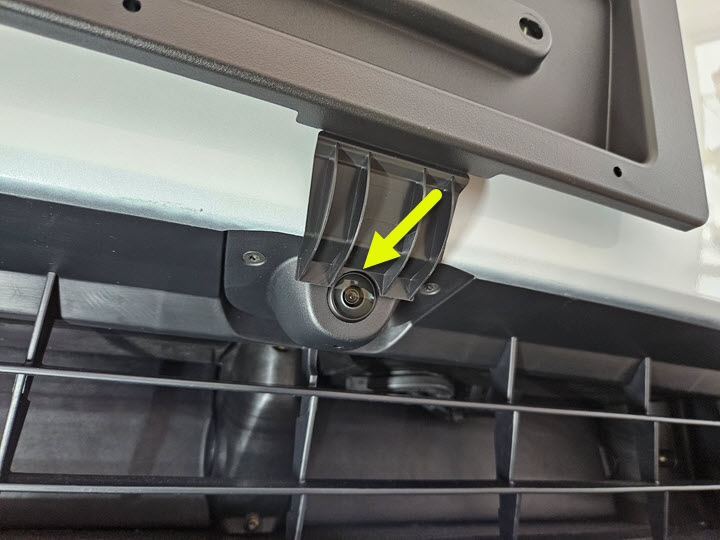

  3. Dry fit the license plate bracket onto the front fascia by aligning the guide with the front fascia camera.

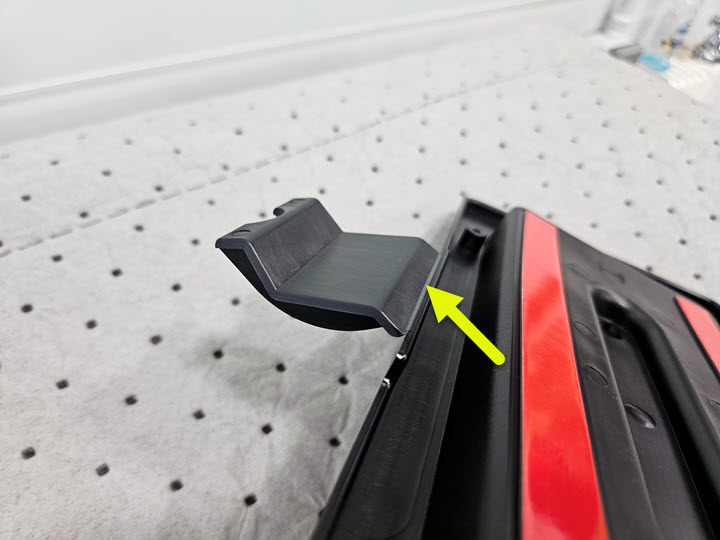

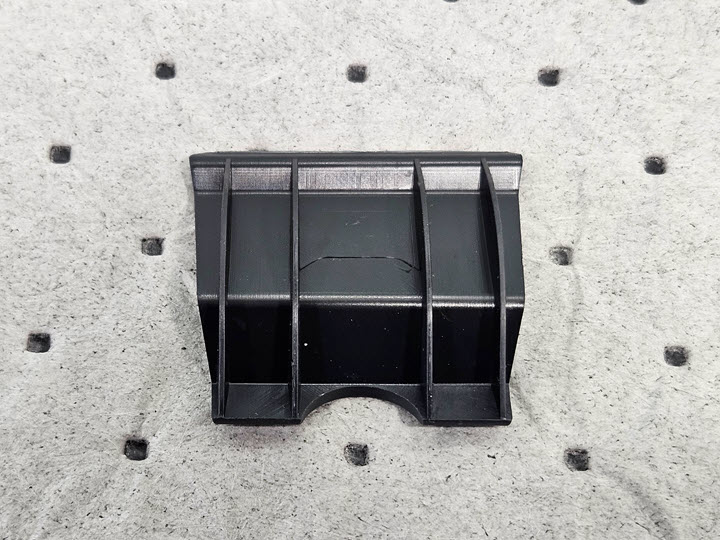

  4. Fold the guide at the attachment point with the license plat bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not rotate or remove the guide.

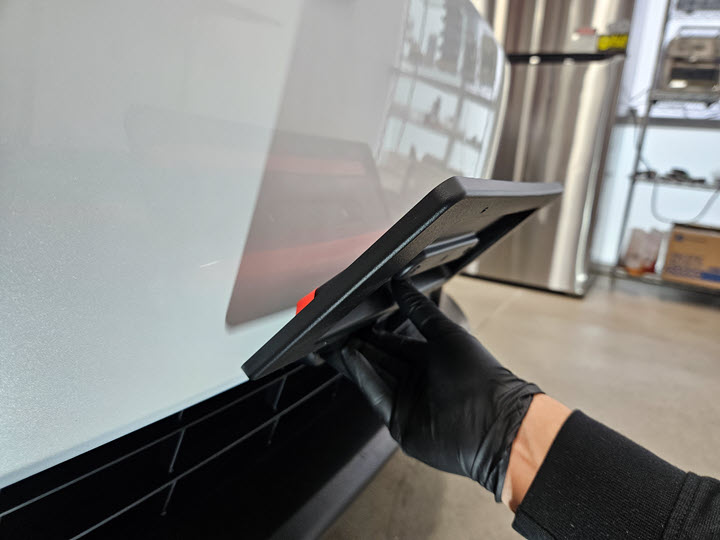

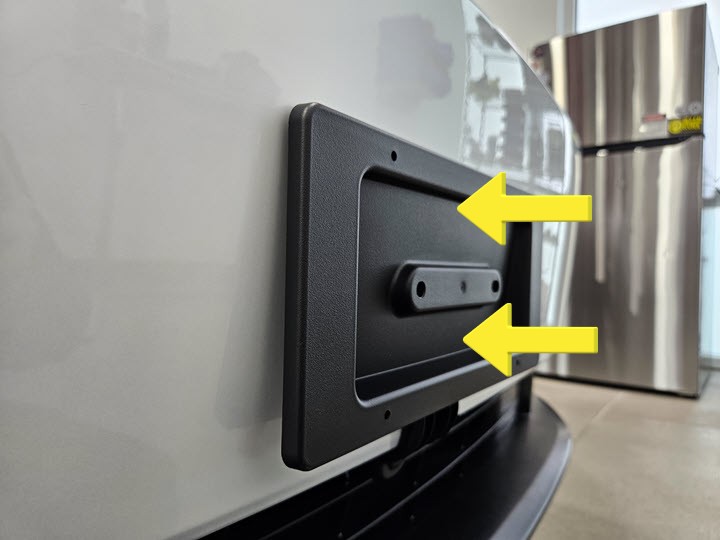

  5. Remove the adhesive backing of the license plate bracket, align the guide with the front fascia camera, position the bracket onto the fascia, then press firmly along the adhesive to secure it.

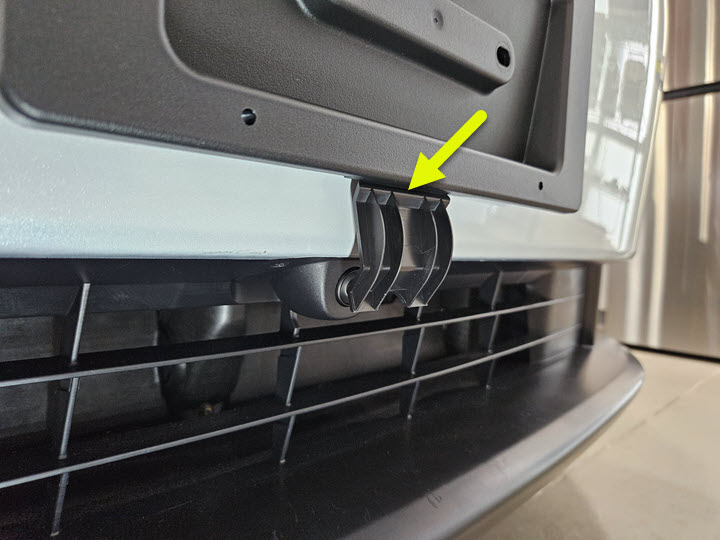

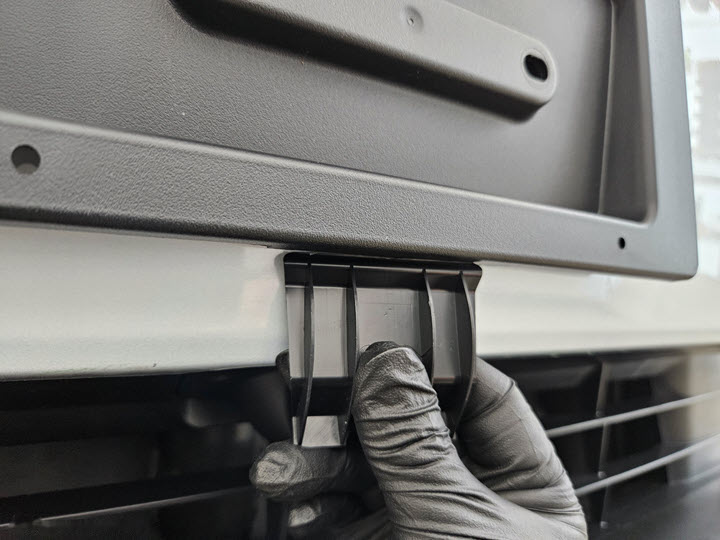

  6. Fold and rotate the guide to remove it from the bracket.
