Armrest - Outer - Center Console (Model Y Standard) (Remove and Replace)
Correction code
TBD
FRT
0.54
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are
created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make
sure wearing proper PPE when performing the below procedure.NOTE:
See Ergonomic Precautionsfor safe
and healthy working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Screws (x4) that attach the armrest hinge to the outer armrest |
 1.2 Nm (.9 lbs-ft) |
|
Reuse |
Remove
- Remove the center console inner armrest. See Armrest - Inner - Center Console (Model Y Standard) (Remove and Replace).
-

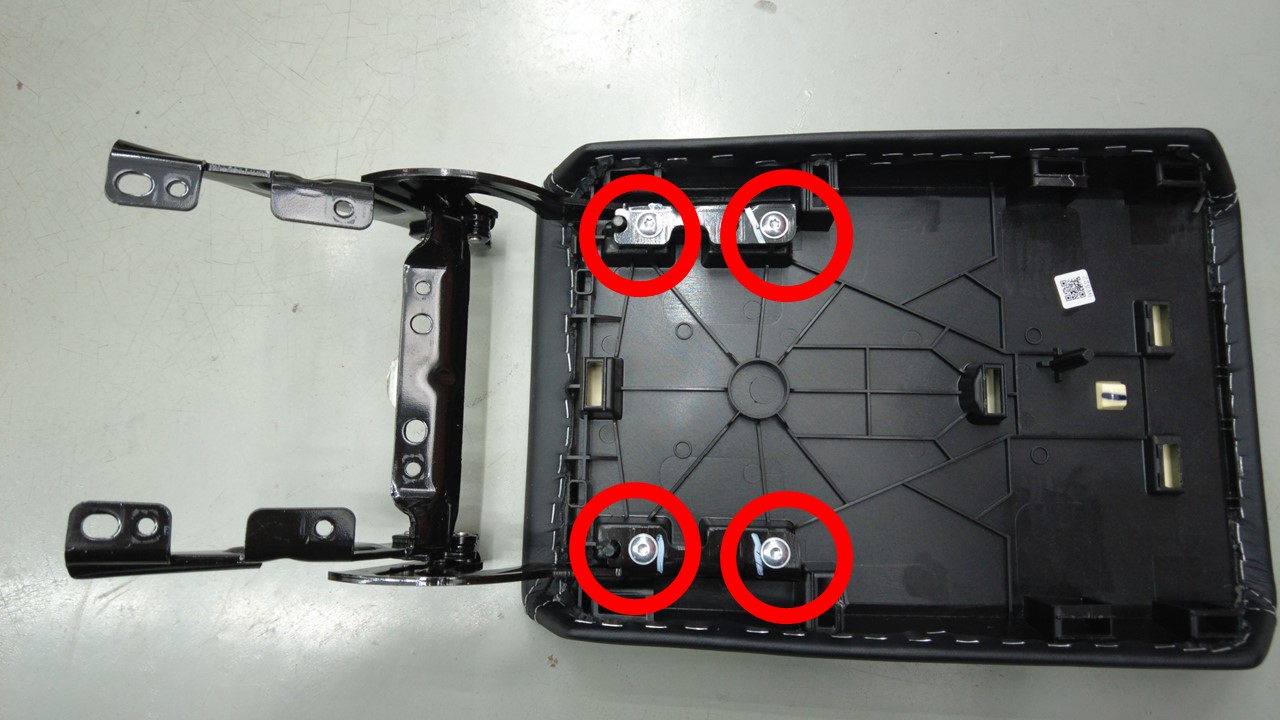

Remove the screws (x4) that attach the
armrest hinge to the outer armrest.
TIpUse of the following tool(s) is recommended:
- Torx T20 bit
- Digital Torque Screwdriver 0.10Nm - 2.0Nm
-

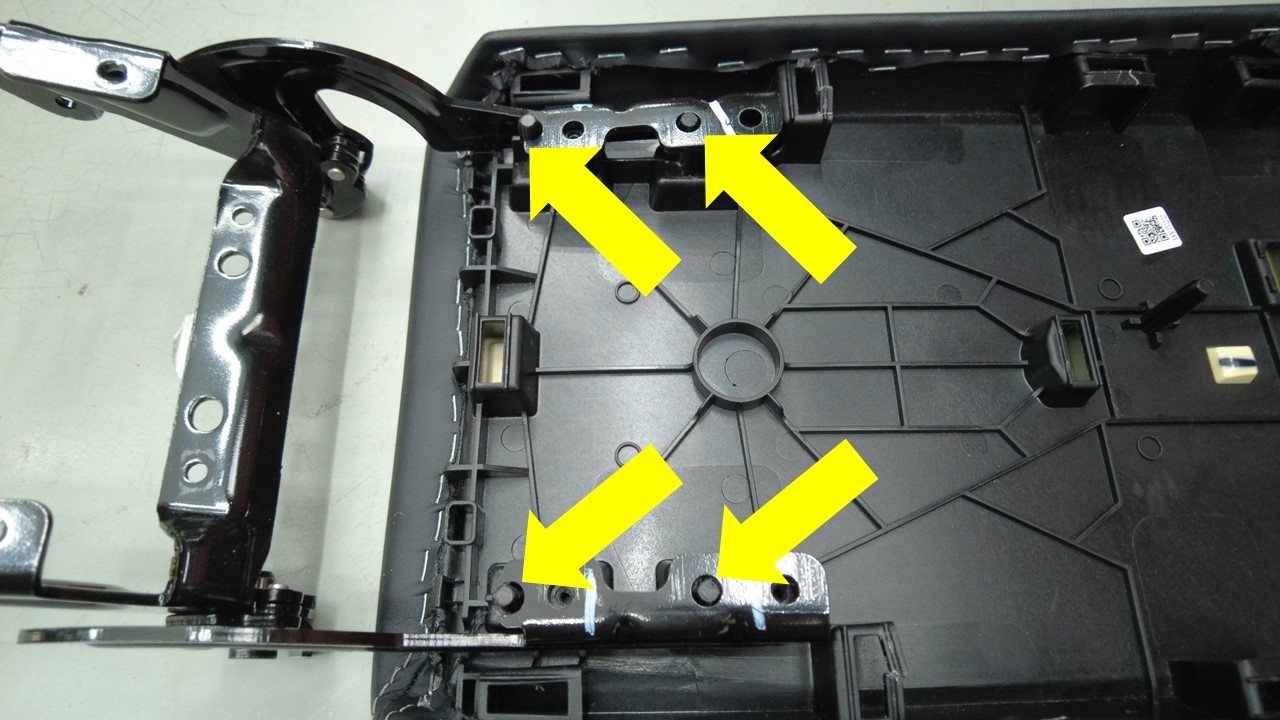

Release the datums (x4) that attach the armrest hinge to the outer armrest, and then
separate the outer armrest and the armrest hinge.
Install
-
Install the datums (x4) that attach the armrest hinge to the outer armrest.
-
Install the screws (x4) that attach the armrest hinge to the outer armrest.1.2 Nm (.9 lbs-ft)TIpUse of the following tool(s) is recommended:
- Torx T20 bit
- Digital Torque Screwdriver 0.10Nm - 2.0Nm
- Install the center console inner armrest. See Armrest - Inner - Center Console (Model Y Standard) (Remove and Replace).
