Surround - Phone Dock - Center Console (Model Y Standard) (Remove and Replace)
Correction code TBD FRT 0.3 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Screws (x4) that attach the phone dock surround to the phone dock panel |
 1.2 Nm (.9 lbs-ft) |
|
Reuse |
Remove
- Remove the phone dock assembly. See Inductive Charger Module (Model Y Standard) (Remove and Replace).
-

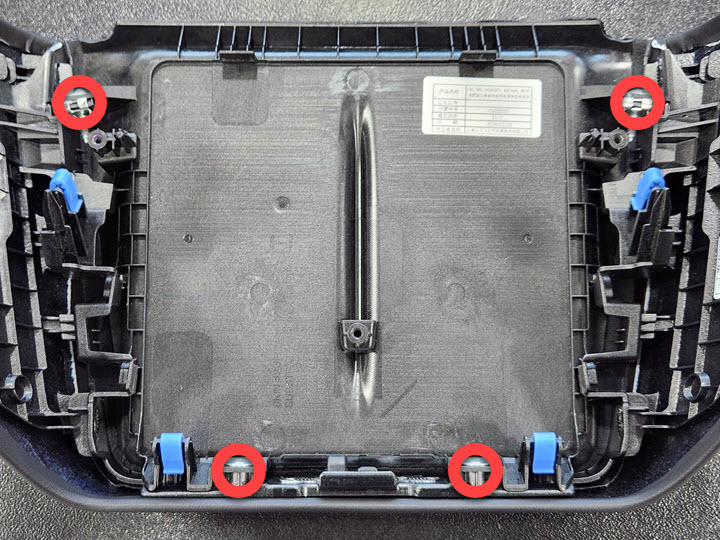

Remove the screws (x4) that attach the phone dock surround to the phone dock
panel.
TIpUse of the following tool(s) is recommended:
- 1/4in Dr T20 Socket
-

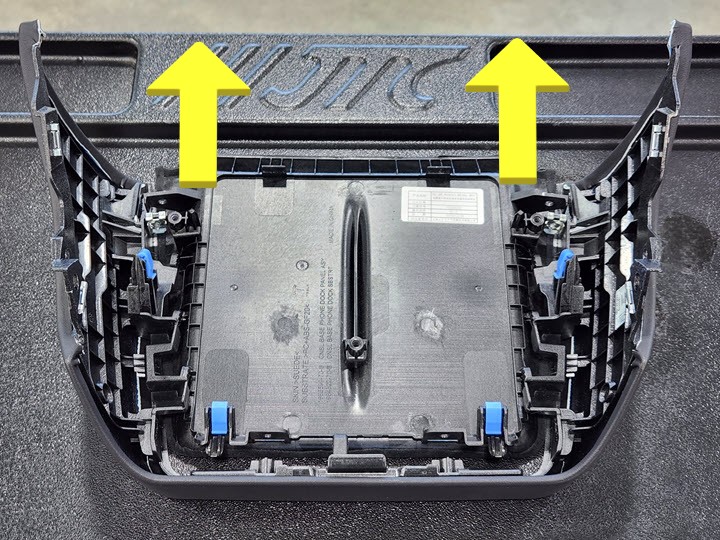

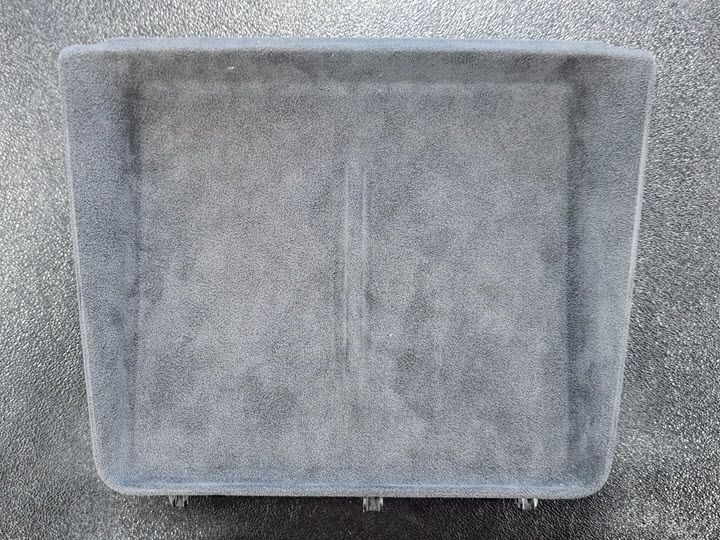

Release the tabs (x6) and guides (x3) that attach the phone dock surround to the

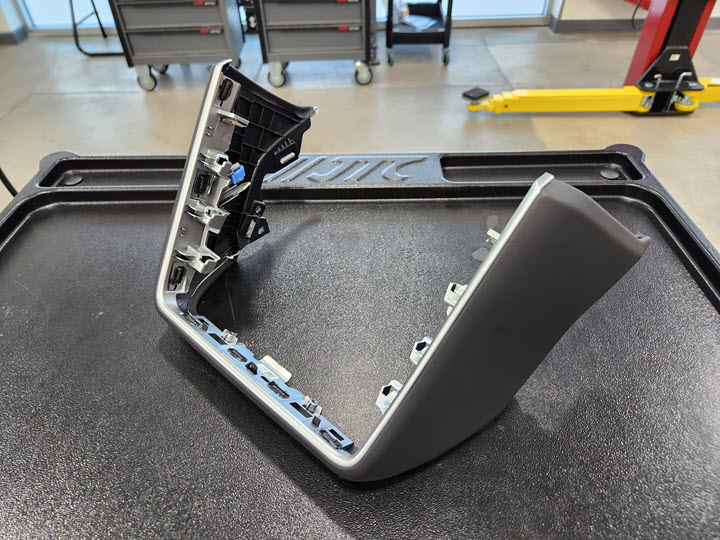

phone dock panel, and then remove the phone dock surround from the vehicle.
Install
-

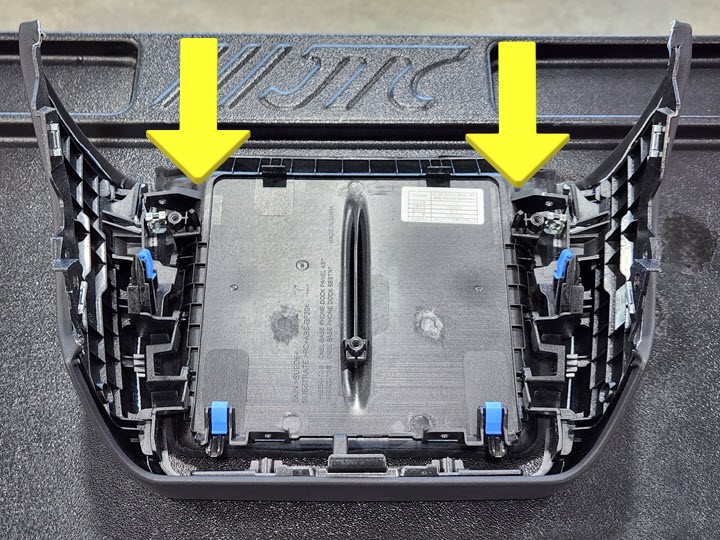

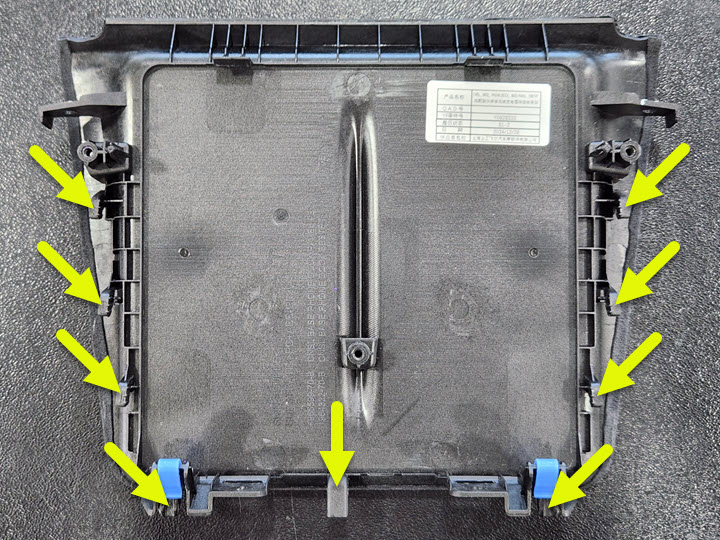

Position the phone dock surround to the phone dock panel, and secure the tabs (x6)
and guides (x3) that attach the surround to the phone dock.
-
Install the screws (x4) that attach the phone dock surround to the phone dock
panel.1.2 Nm (.9 lbs-ft)TIpUse of the following tool(s) is recommended:
- 1/4in Dr T20 Socket
- Install the phone dock assembly. See Inductive Charger Module (Model Y Standard) (Remove and Replace).
