Wrap Around - Instrument Panel (Remove and Replace)

Correction code 1405012202 FRT 0.25 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the LH and RH upper A-Pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
  2. Use a plastic trim tool to gently release the clips (x16) and guide tabs (x9) that attach the speaker grille to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not pull the grille too far away from the instrument panel, as the grille electrical connectors are still attached.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care of not damaging the instrument panel and the windshield.

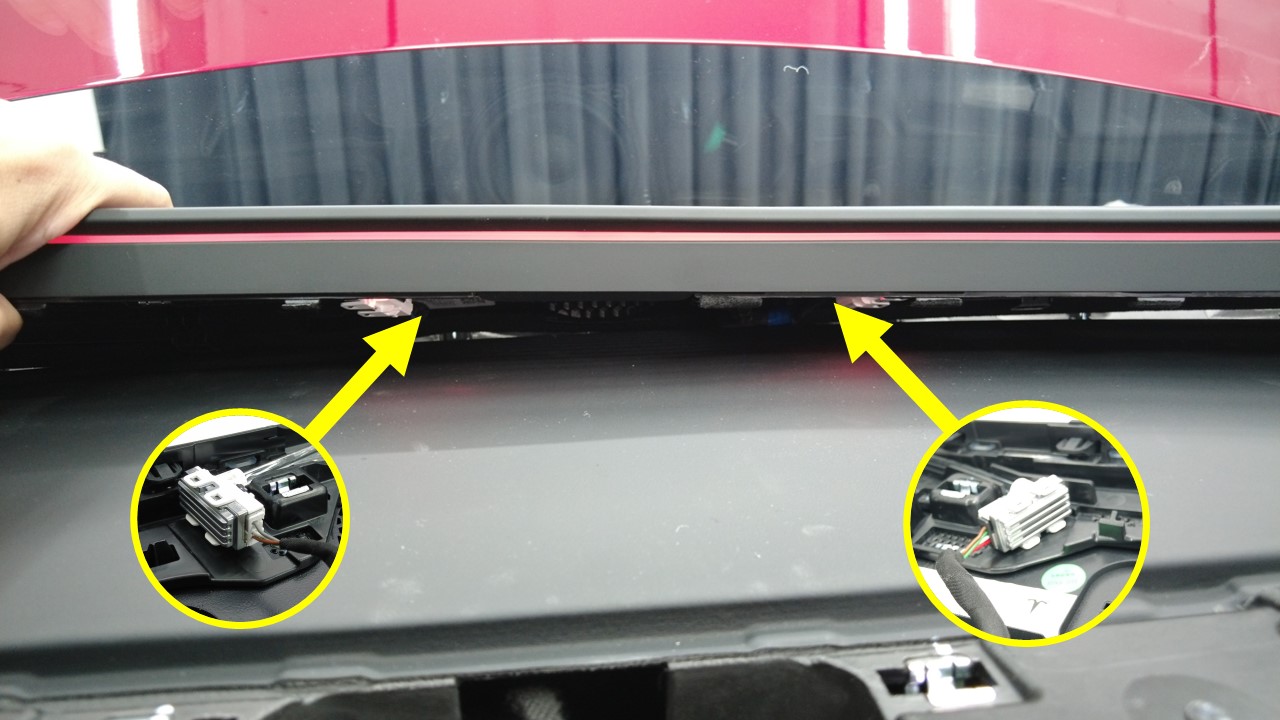

  3. Disconnect the grille ambient light connectors (x2), and remove the grille from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care of not damaging the instrument panel and the windshield.

Install

  1. Position the speaker grille to the vehicle, and connect the grille ambient light connectors (x2).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care of not damaging the instrument panel and the windshield.
  2. Fasten the clips (x16) and guide tabs (x9) that attach the speaker grille to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care of not damaging the instrument panel and the windshield.
  3. Install the LH and RH upper A-Pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
