INDUCTIVE CHARGER MODULE - GENERATION 2 (Remove and Install)

Correction code 1519021601 FRT 0.10 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: INDUCTIVE CHARGER MODULE - GENERATION 2 (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes

Screws (x2) that attach the phone dock and charger module assembly to the center console

Screws (x3) that attach the inductive charger module to the phone dock

1.2 Nm (.9 lbs-ft)
  • Torx T20 bit
  • Ratchet/torque wrench
  • 2 in extension
Reuse

Remove

  1. Open the LH front door and lower the LH front window.

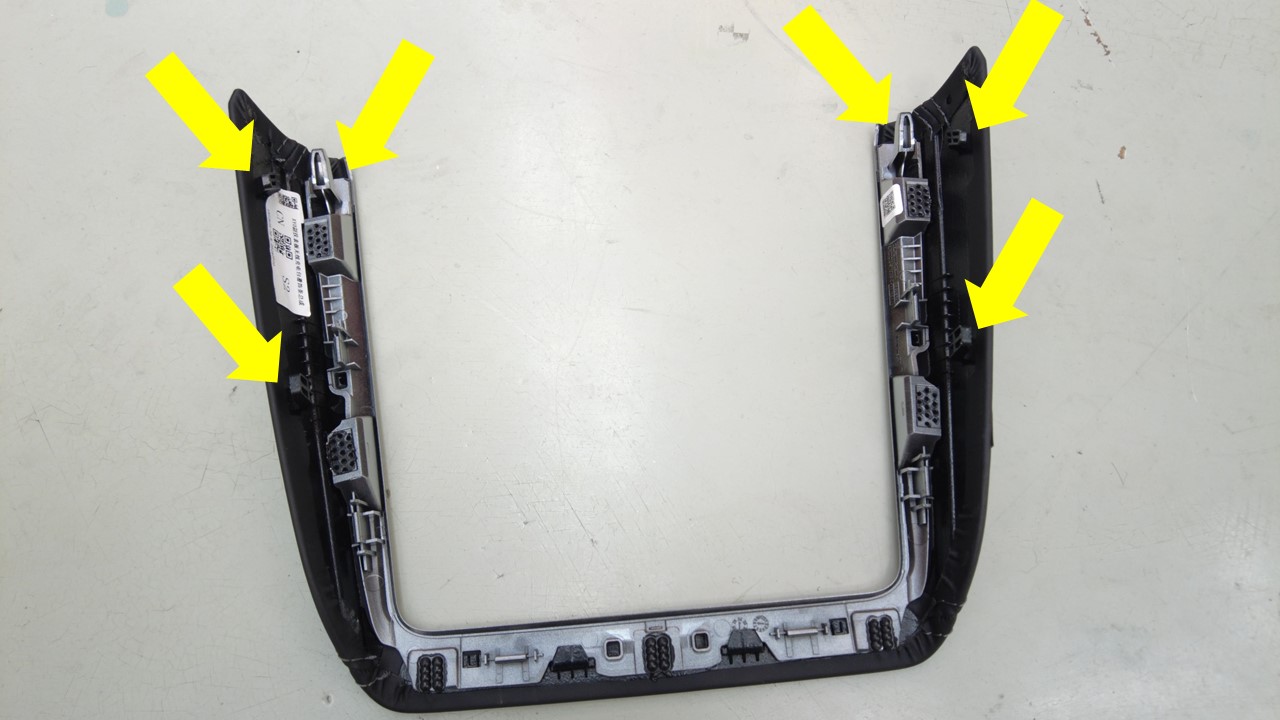

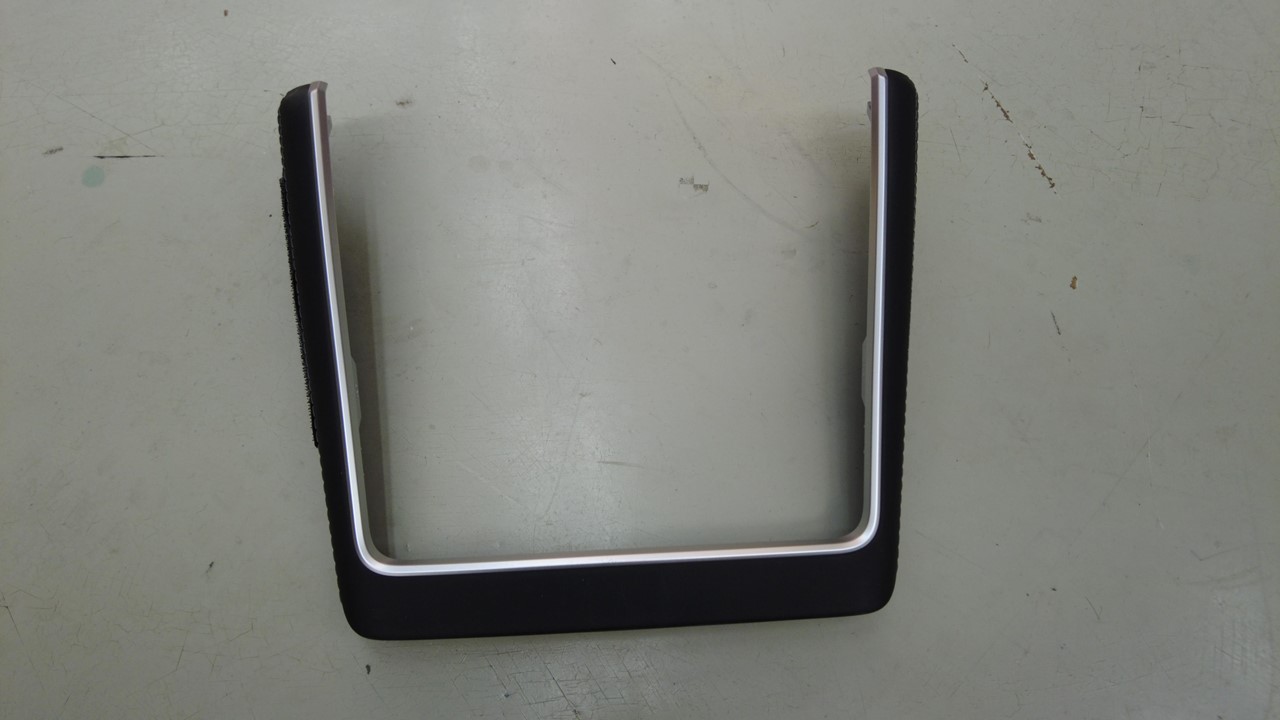

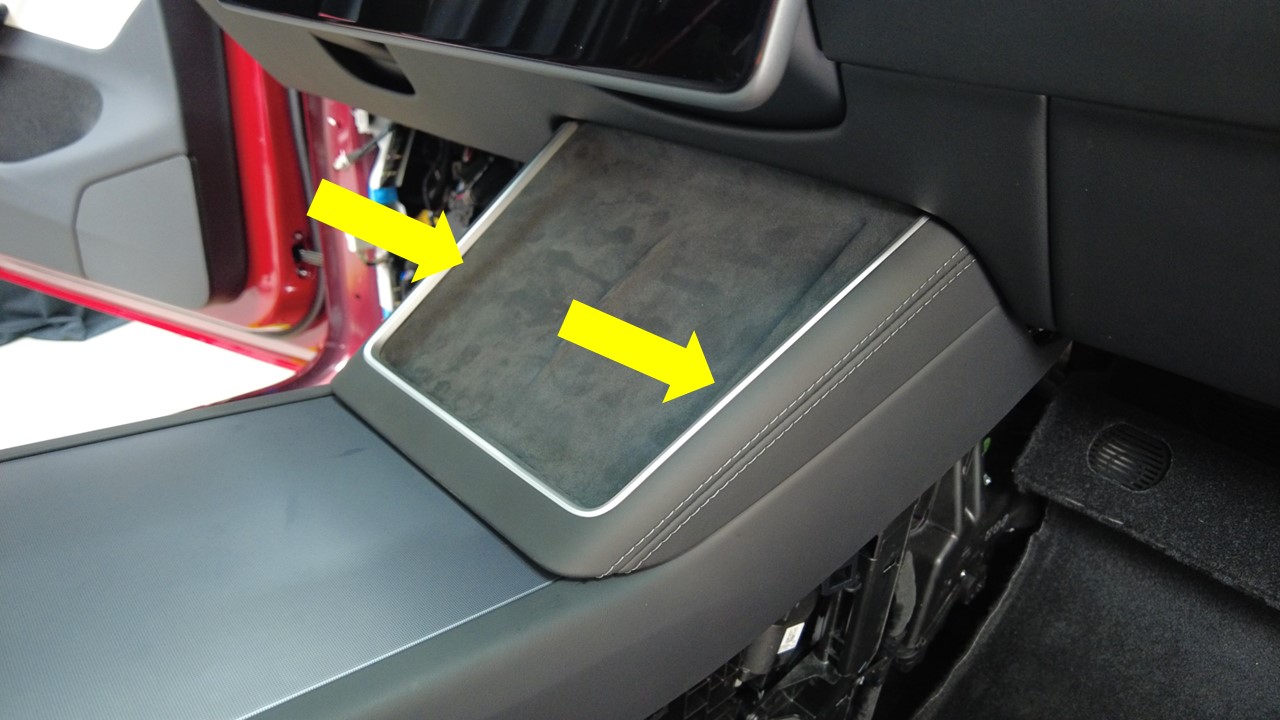

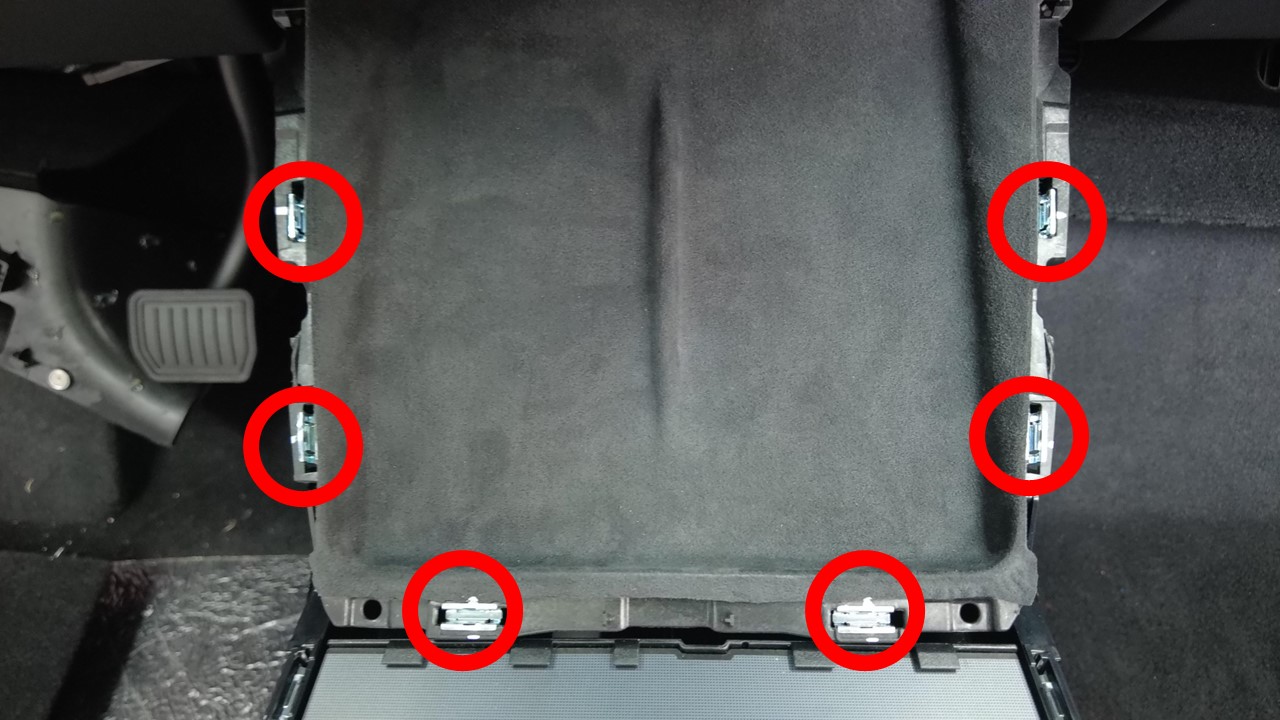

  2. Remove the guide tabs (x6) and clips (x2) that secure the phone dock surround.
    Informational PurposesAn informational icon, calling your attention
    Note
    First release the both sides of the phone dock surround, and then release the phone dock middle surround. Be careful not to damage the phone dock surround.

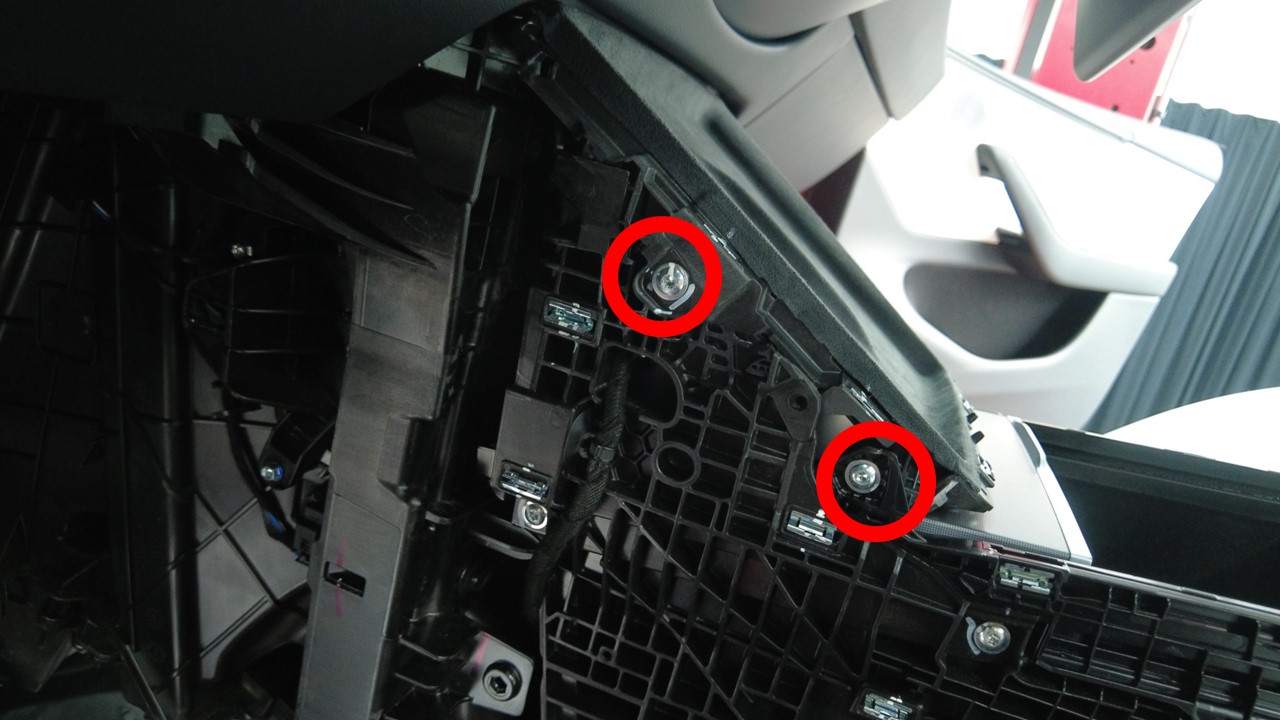

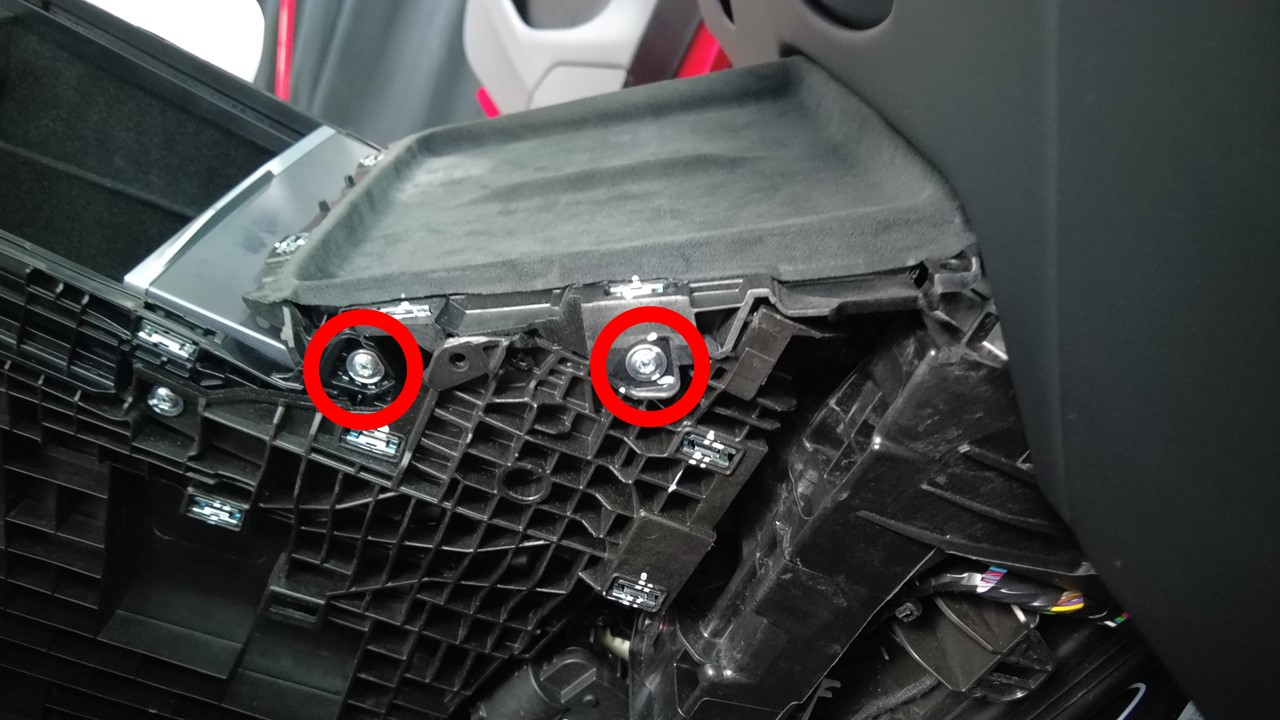

  3. Remove the screws (x2) that attach the phone dock and charger module assembly to the center console.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Ratchet/torque wrench
    • 2 in extension

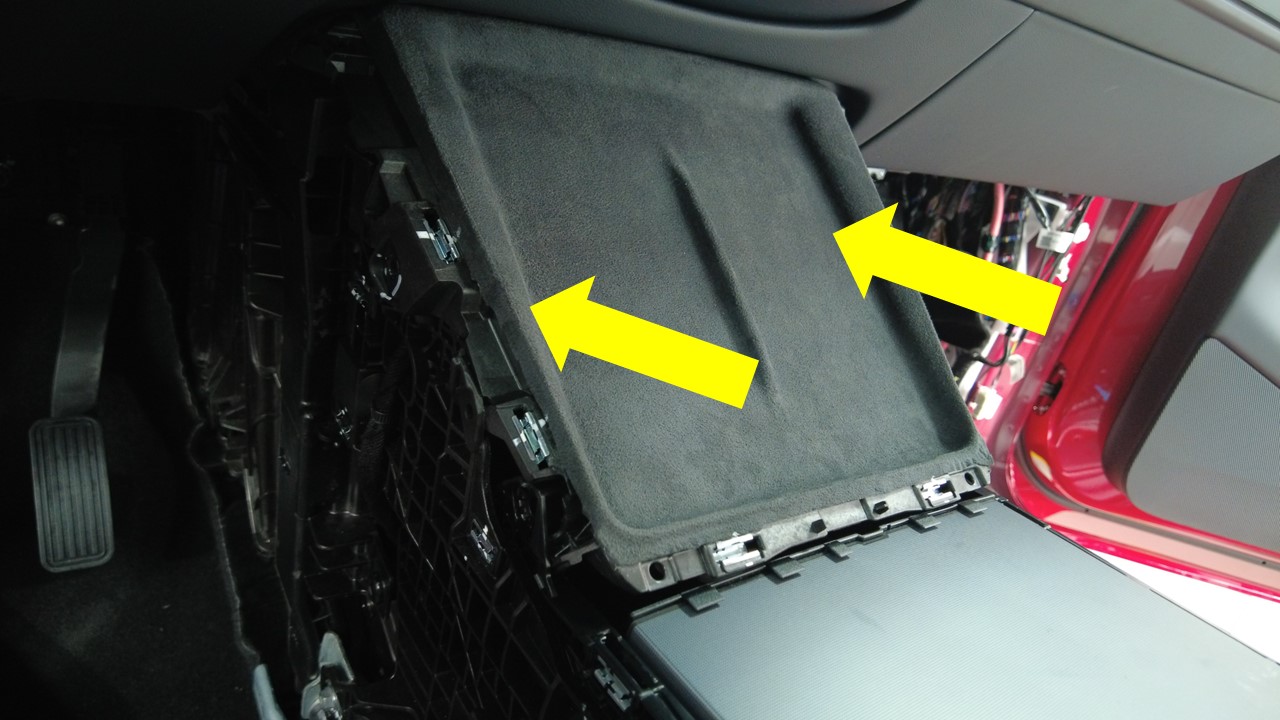

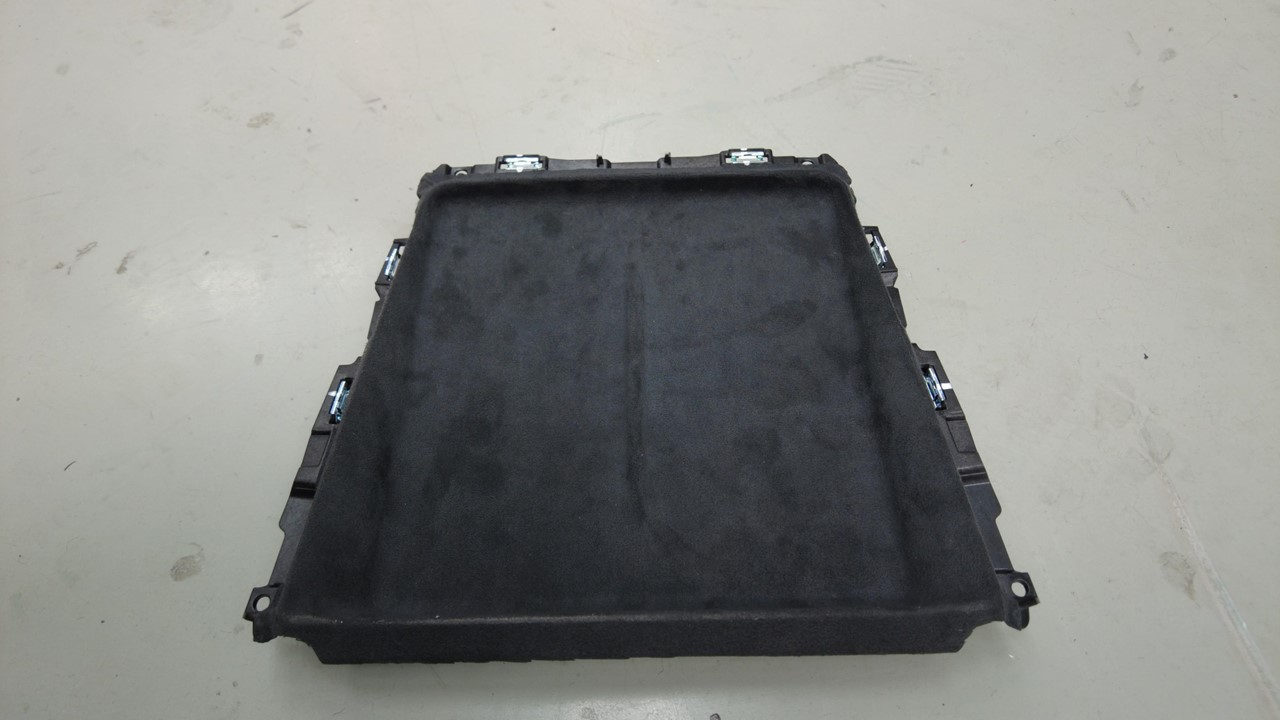

  4. Remove the phone dock and charger module assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not take the assembly fully away as the harness is still attached.

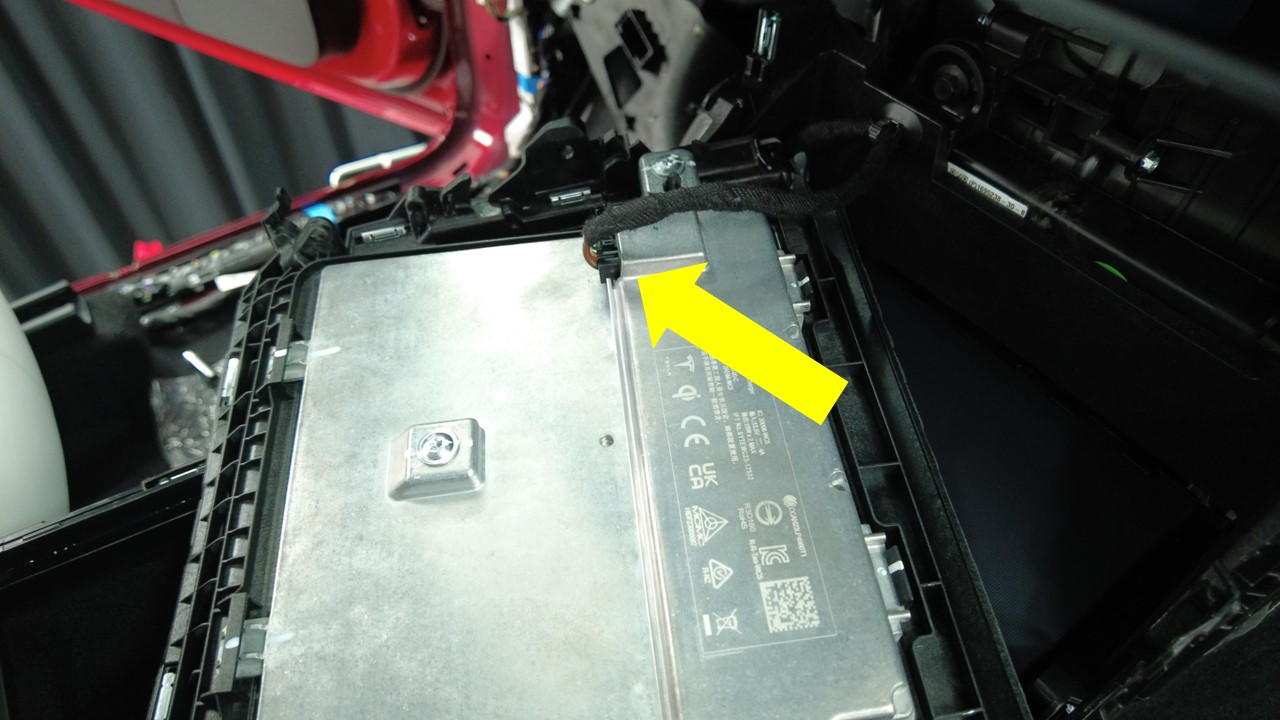

  5. Disconnect the inductive charger module electrical connector.
  6. Remove the screws (x3) that attach the inductive charger module to the phone dock.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Ratchet/torque wrench
    • 2 in extension
  7. Release the tabs (x2) at the top of the inductive charger module, and then angle the module up and remove it from the phone dock.

Install

  1. Slide the inductive charger module into the phone dock datums and positioning clips, and then fully engage the tabs (x2) at the top of the module.
  2. Install the screws (x3) that attach the inductive charger module to the phone dock.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Ratchet/torque wrench
    • 2 in extension
  3. Connect the inductive charger module electrical connector.

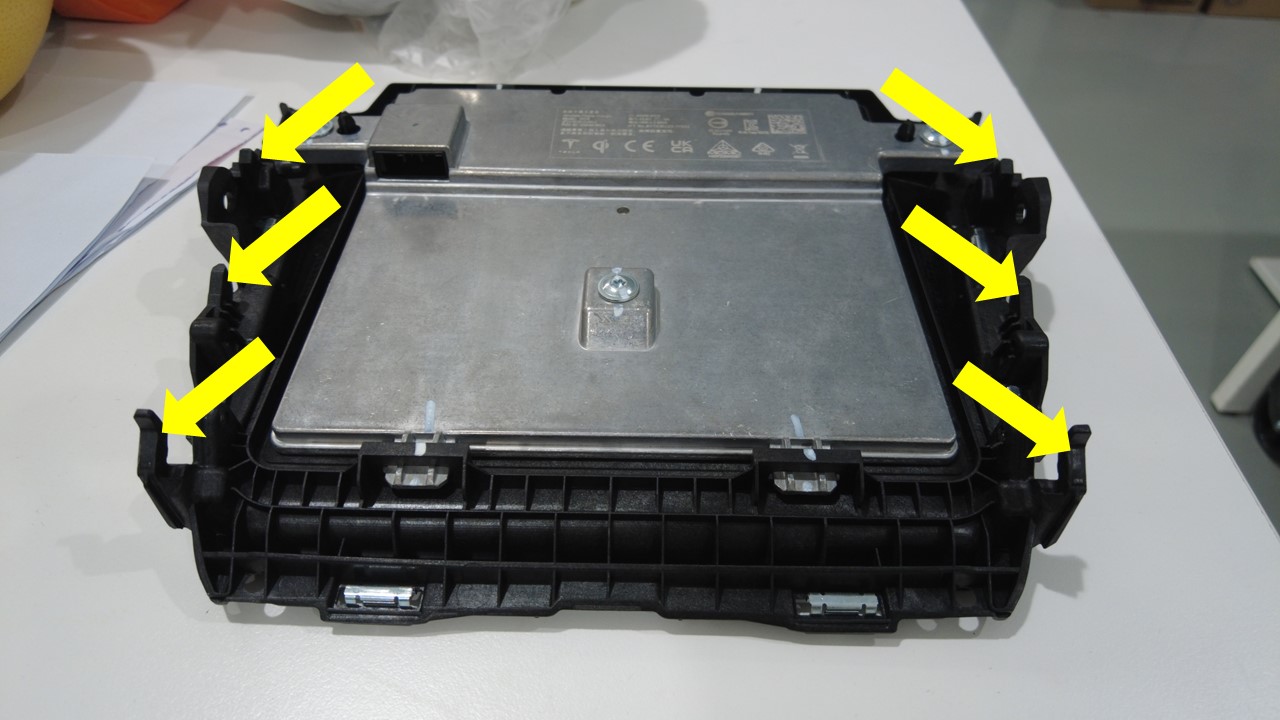

  4. Install the guide tabs (x4) and location pins (x6) that attach the phone dock and charger module assembly to the center console.
  5. Install the screws (x2) that attach the phone dock and charger module assembly to the center console.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Ratchet/torque wrench
    • 2 in extension
  6. Install the guide tabs (x6) and clips (x2) that secure the phone dock surround.
  7. Raise the LH front window and close the LH front door.
