Middle Panel - Center Console (Model Y Standard) (Remove and Replace)
Correction code TBD FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.
Remove
- Remove the center console U-panel. See U-Panel Assembly - Center Console (Model Y Standard) (Remove and Replace).
-

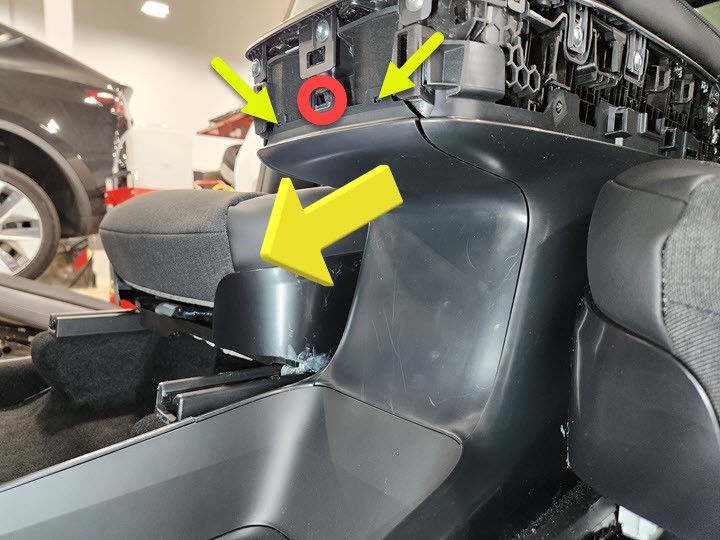

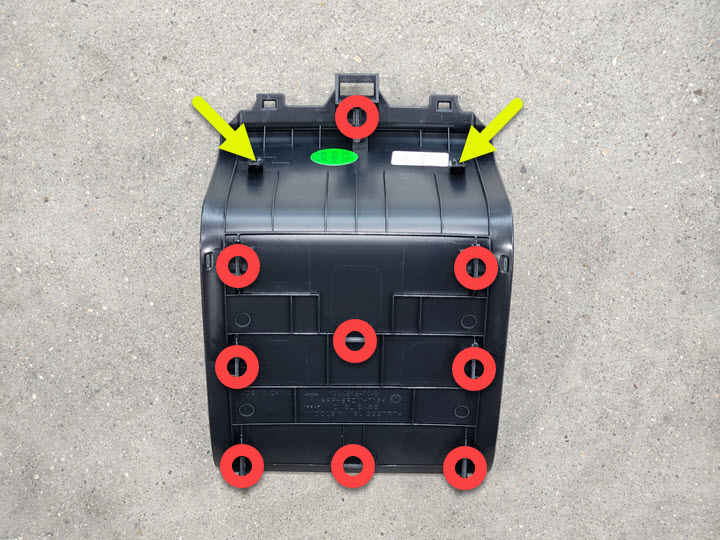

Release the clips (x9), datums (x2) and guides (x2) to remove the center console
middle panel.
Install
-
Secure the clips (x9), datums (x2) and guides (x2) to install the center console
middle panel.
- Install the center console U-panel. See U-Panel Assembly - Center Console (Model Y Standard) (Remove and Replace).
