Cover - Tow Hook - Front Fascia (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

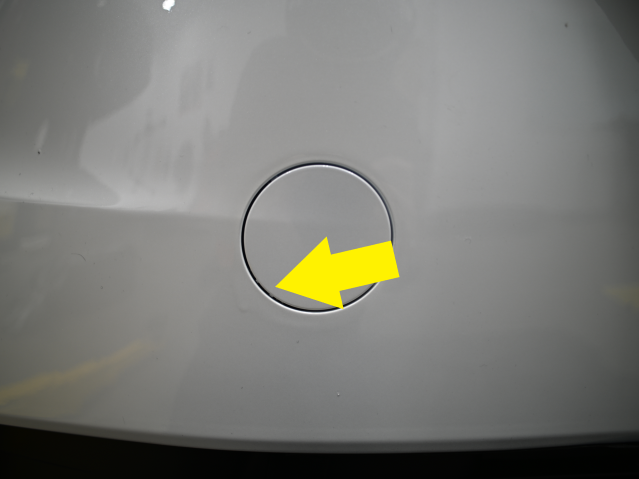

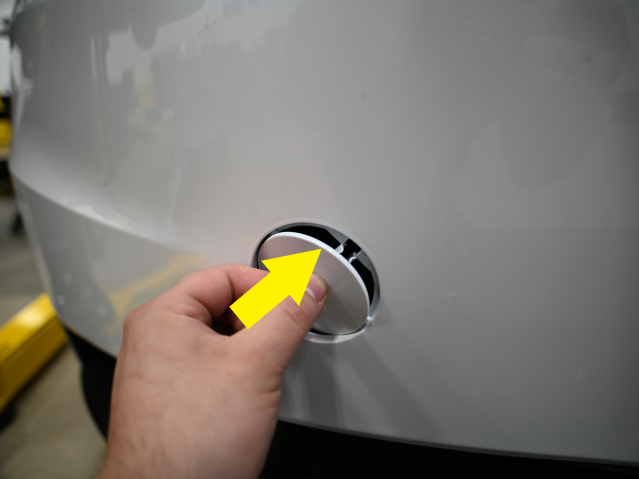

  1. Press the bottom left corner of the cover, then pull the raised section outward to release it.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

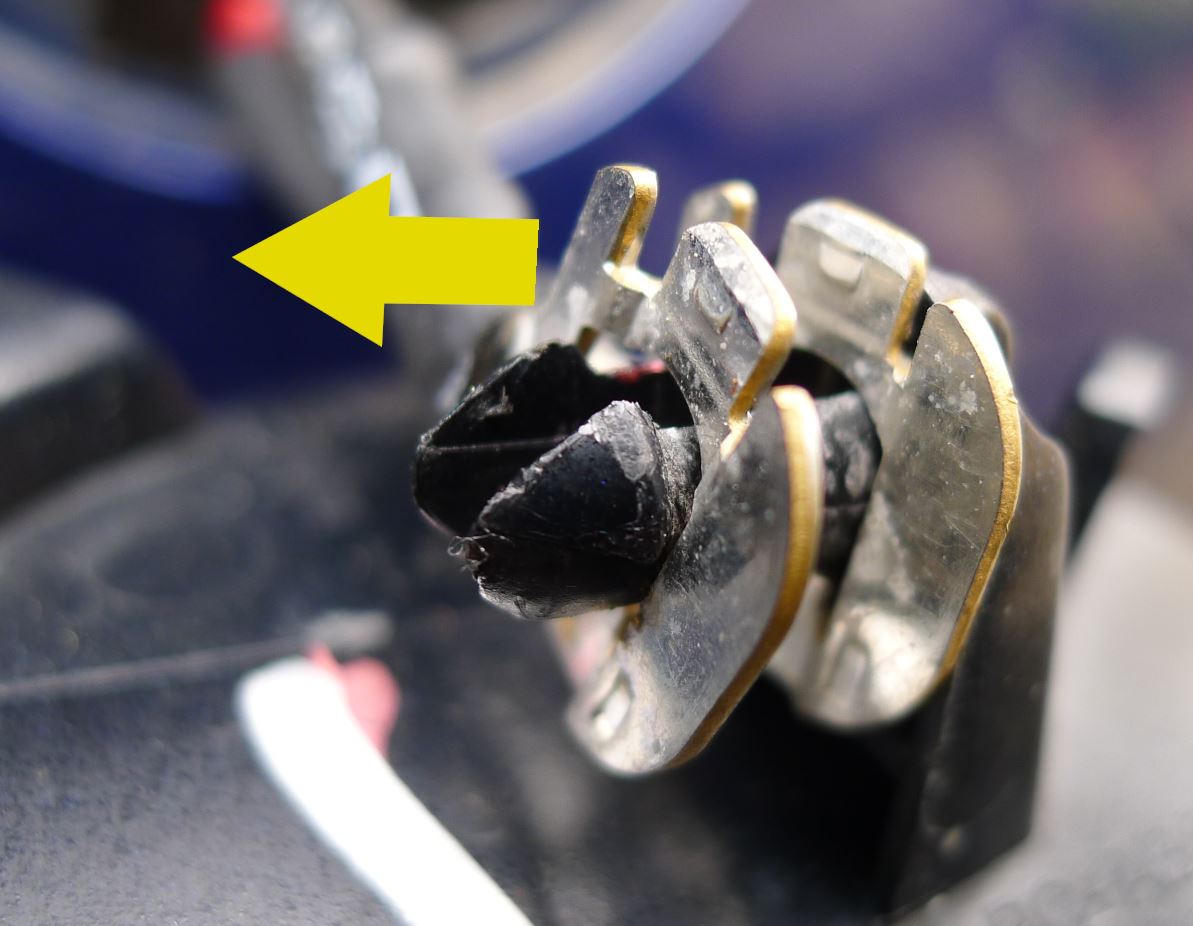

  2. Remove the jumper wires from the front tow hook cover, and then remove the cover from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x terminals

Install

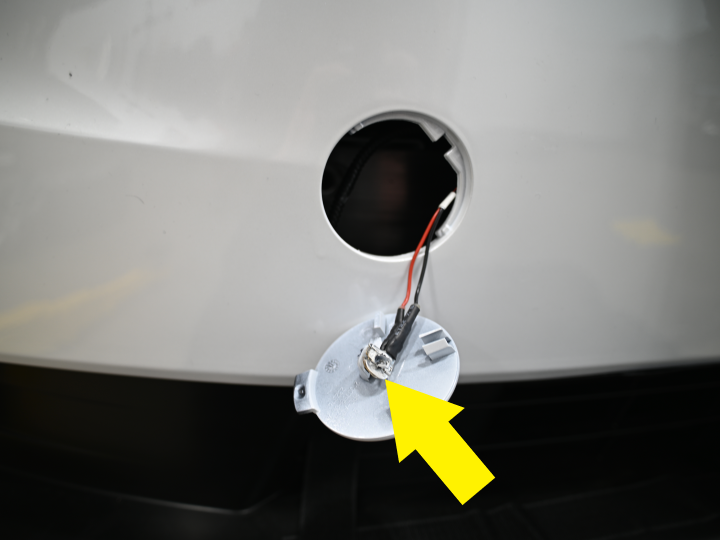

  1. Connect the jumper wires to the front tow hook cover, and then route the jumper wires into the front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure both wire terminals are fully seated on the retaining tabs and the wires are free of pinches and binding.

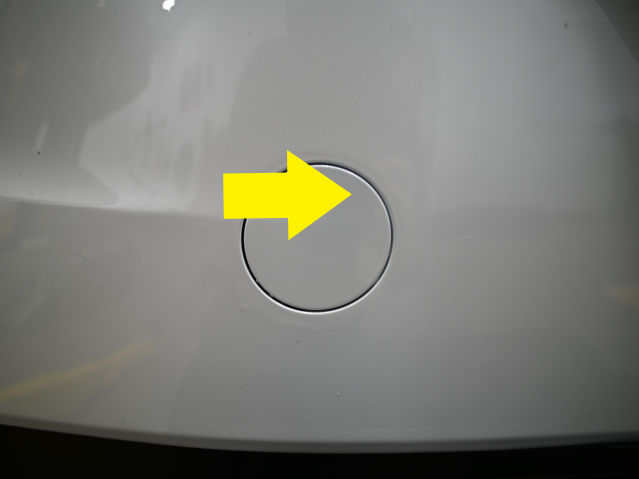

  2. Align the cover tab to the bottom left of the front fascia opening, and then push the top right corner of the cover to secure it.
