Cap - Wheel - Front - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-10: Released new procedure.

Remove

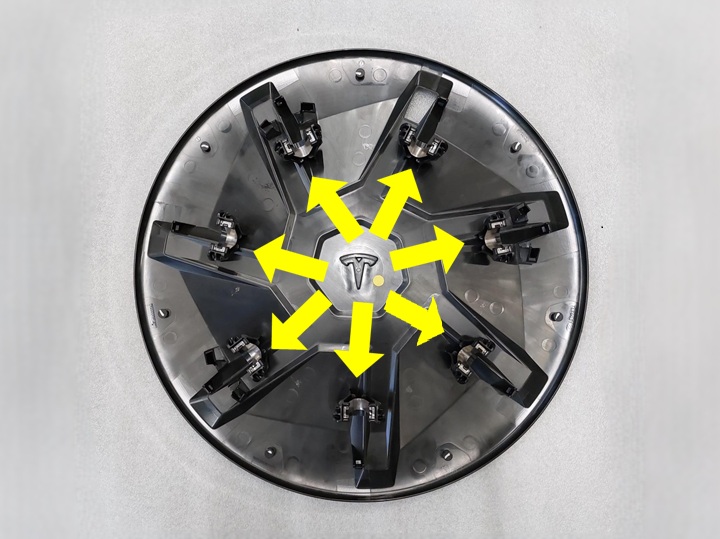

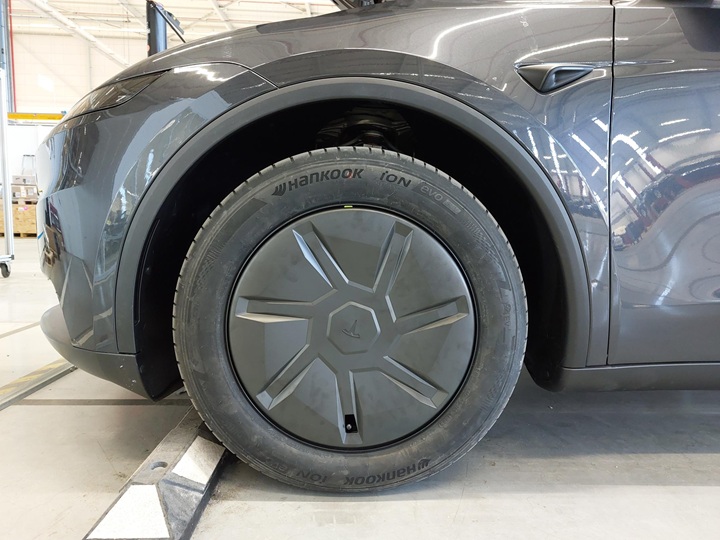

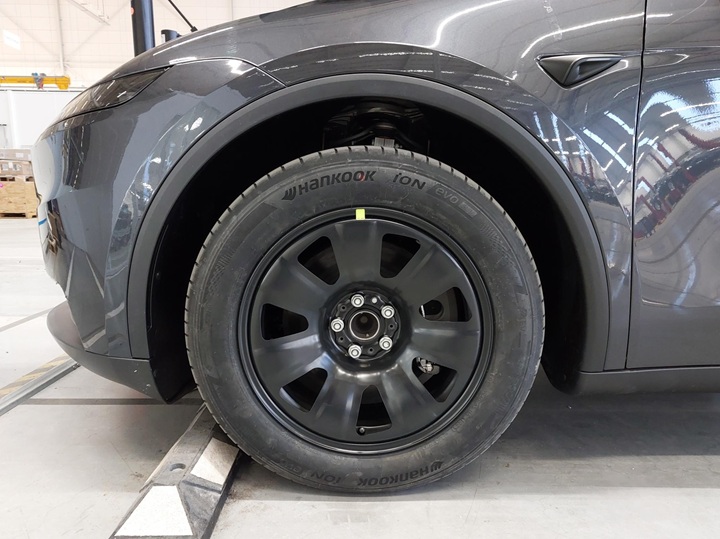

  1. Use plastic pry tool to release the clips (x7), and then remove the wheel cap from the wheel.

Replace

  1. Align the valve stem with the wheel cap cavity, then slightly press the cap to engage the clips (x7).
