Steering Column Shroud Lower (Model Y Standard) (Remove and Install)
Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.
Remove
-

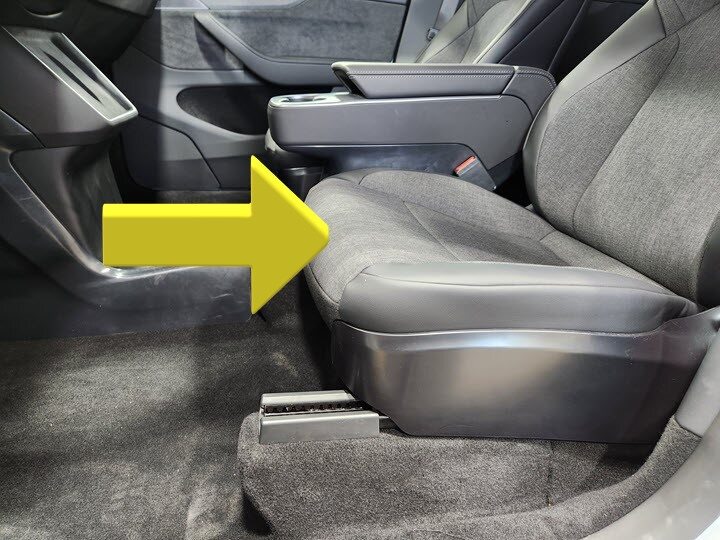

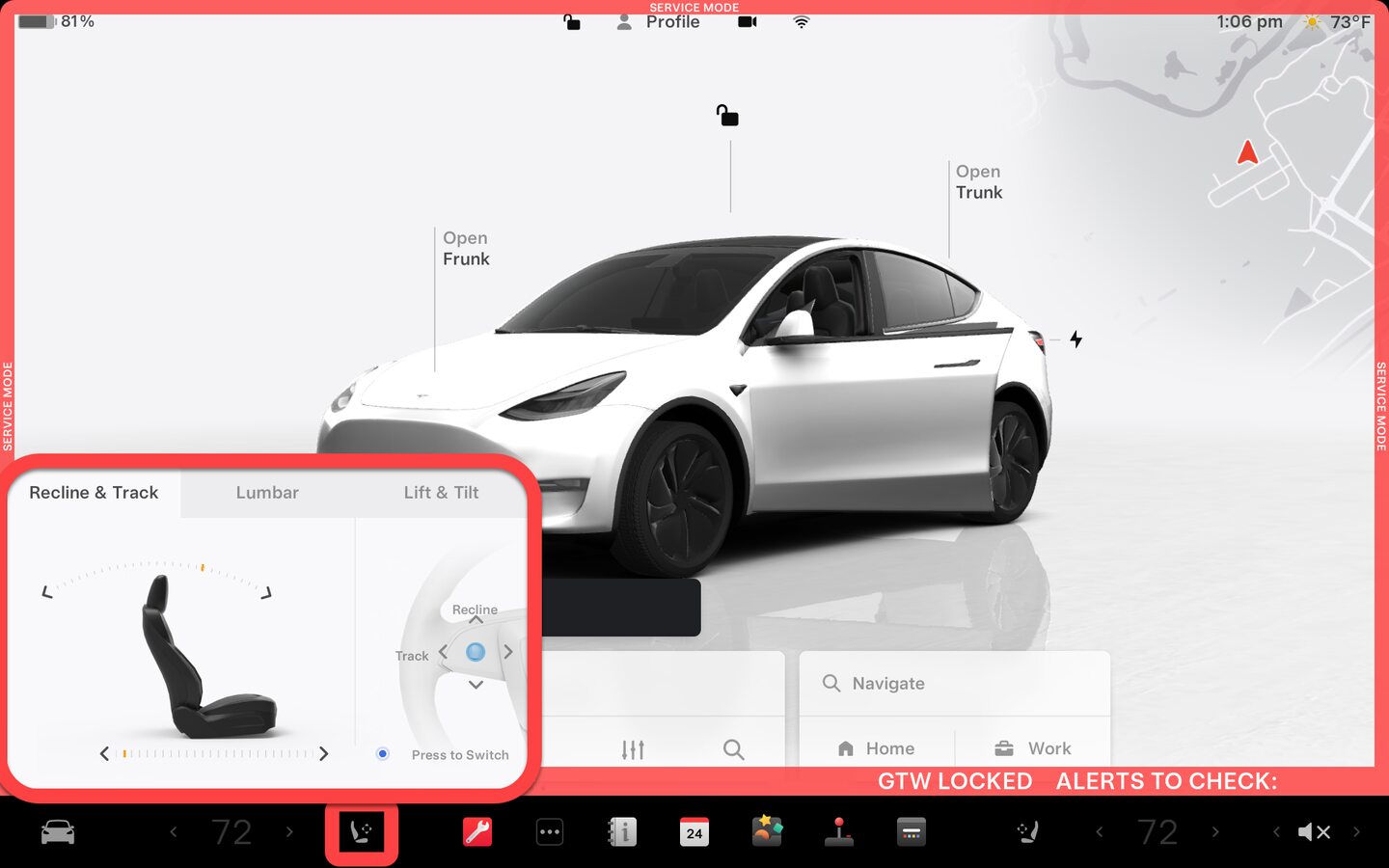

Move LH front seat
backward
NoteVia UI > Seat Controls, Use steering wheel scroll wheel as needed
-

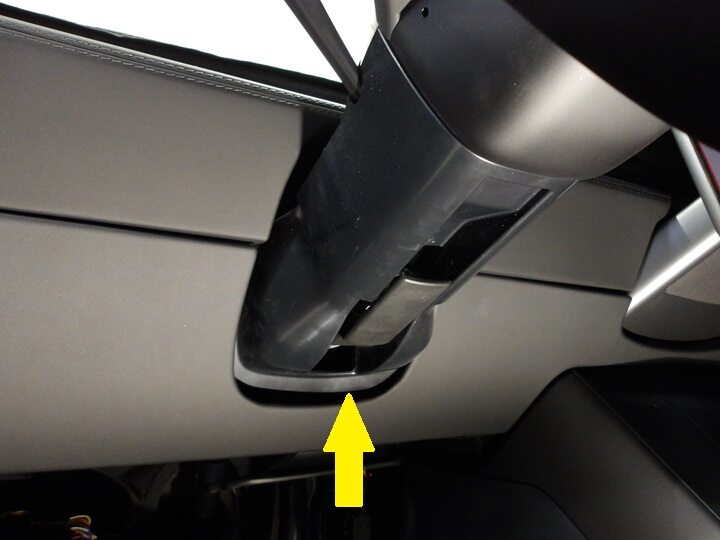

Lower steering wheel
NotePull the lever down, move the steering wheel to lowest position and fully extend it outward and lift the lever back up until it locks

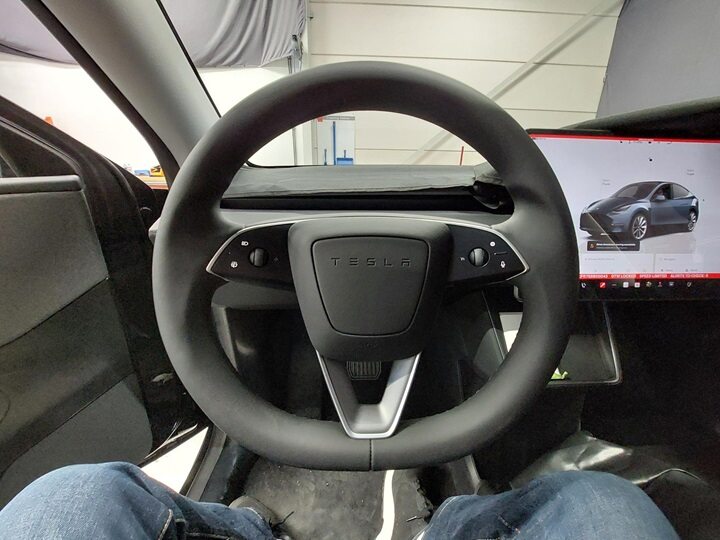

- Remove the steering wheel. See Steering Wheel (Remove and Install).
-

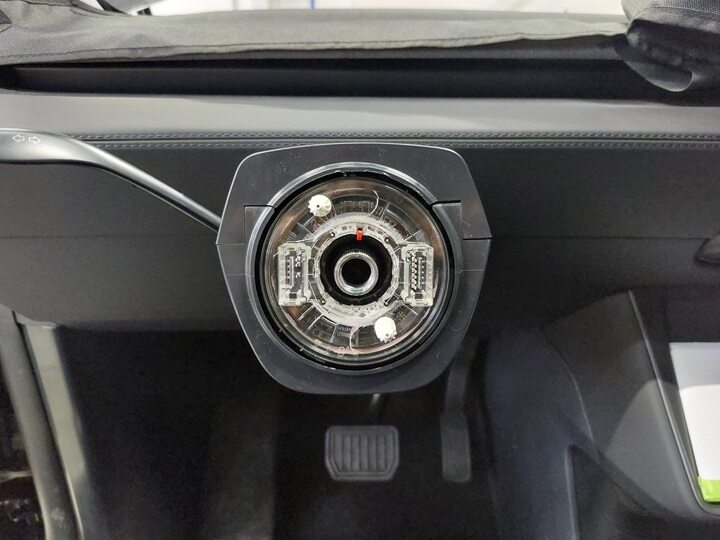

Remove steering column lower
shroud

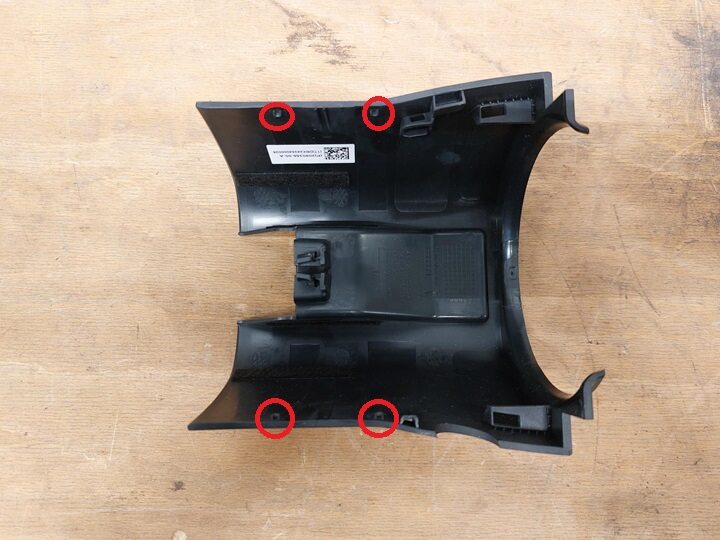

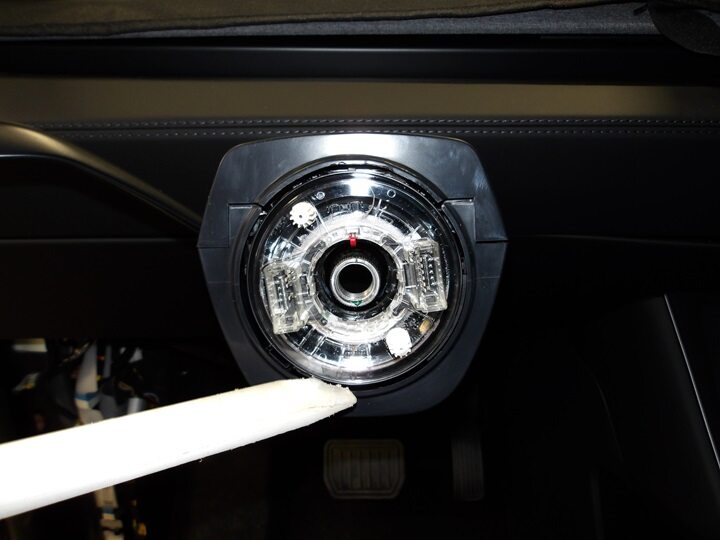

Note4x location tabs, Insert a plastic pry tool between the shroud and the steering column control module, then apply downward pressure to disengage the retaining clips
Install
-
Install steering column
lower shroud
Note4x tabs, Ensure lower shroud is fully seated to upper shroud
- Install the steering wheel. See Steering Wheel (Remove and Install).
-

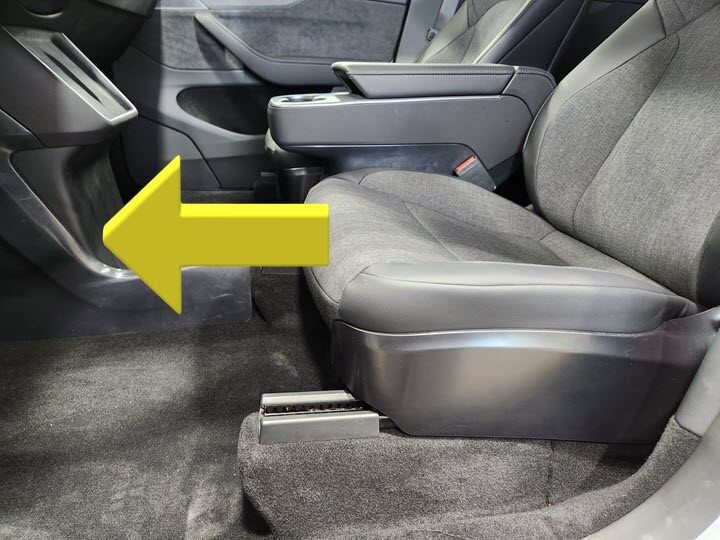

Move LH front seat to
original position
NoteVia UI > Seat Controls, Use steering wheel scroll wheel as needed
-

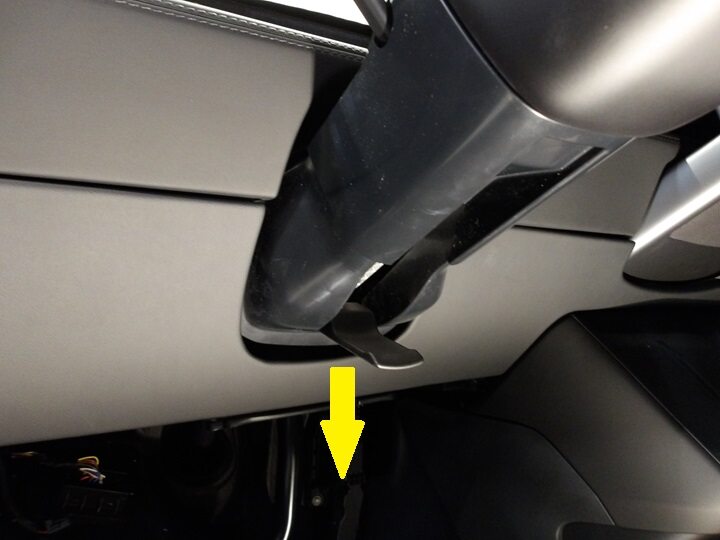

Set steering wheel to
original position
NotePull the lever down, move the steering wheel to Original , lift the lever back up until it locks
