Headlight Assembly - Pair (Model Y Standard) (Remove and Replace)

Correction code 17401200000 FRT 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-04-29: Updated procedure and added relevant routines by using the touchscreen.
  • 2025-10-01: Released new procedure.

Remove

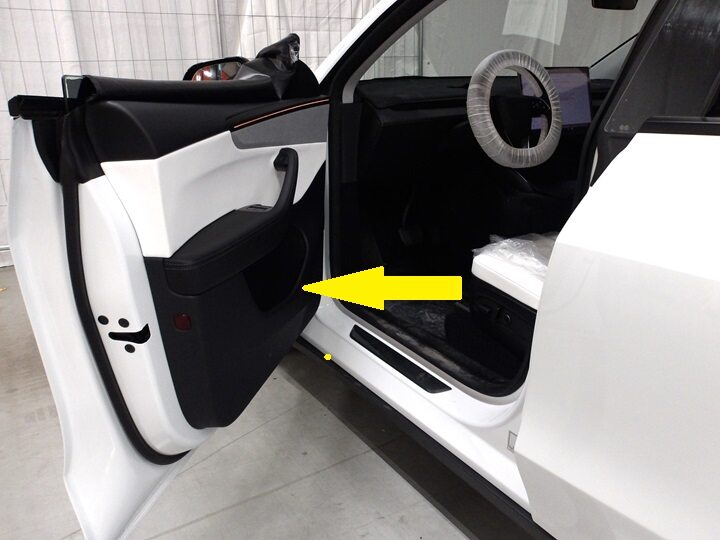

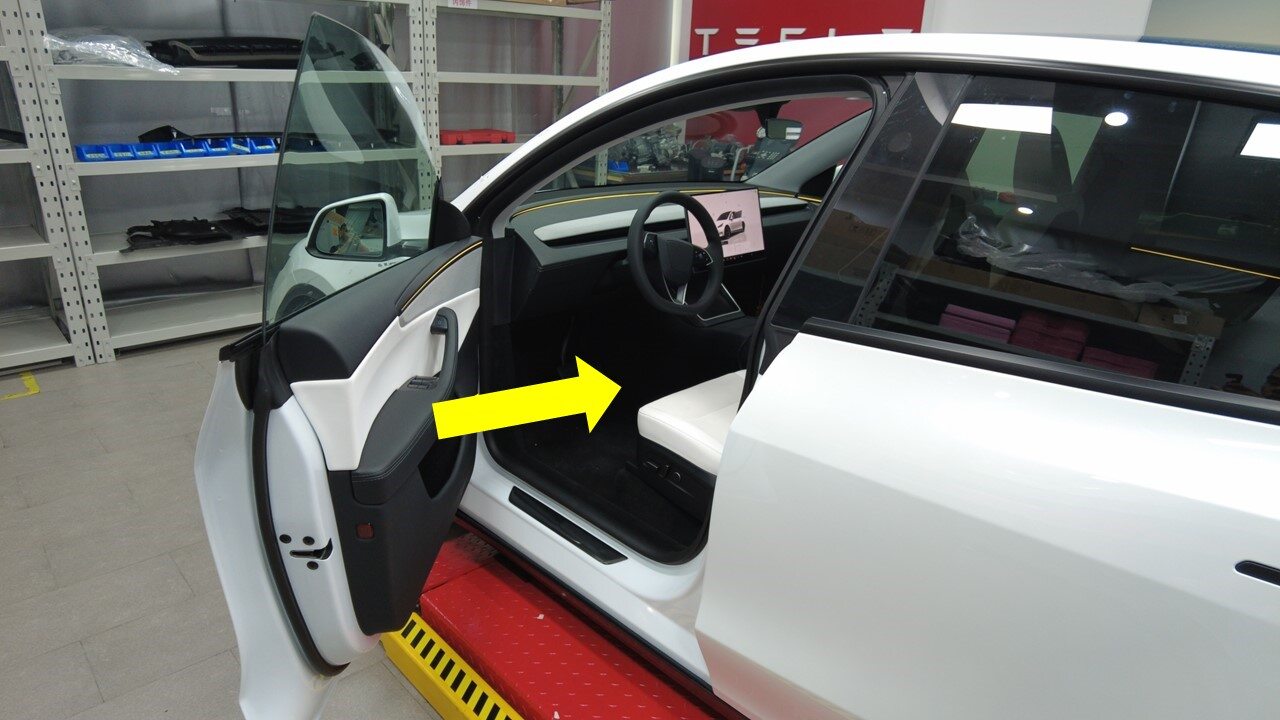

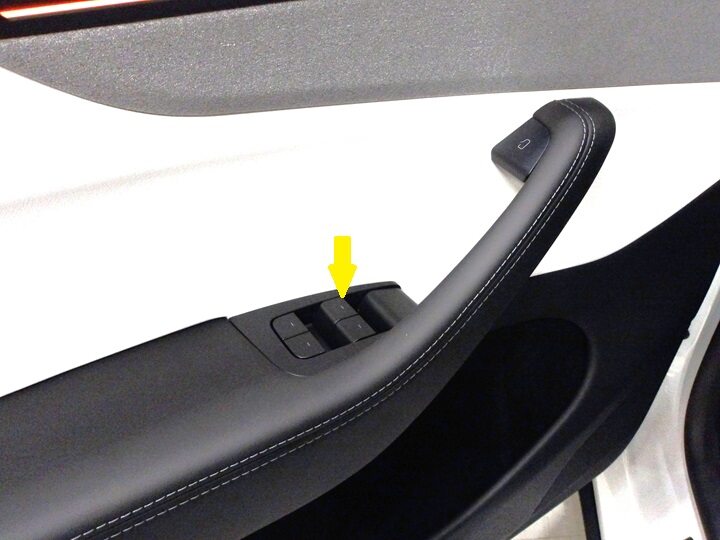

  1. Open the LH front door and lower the window.

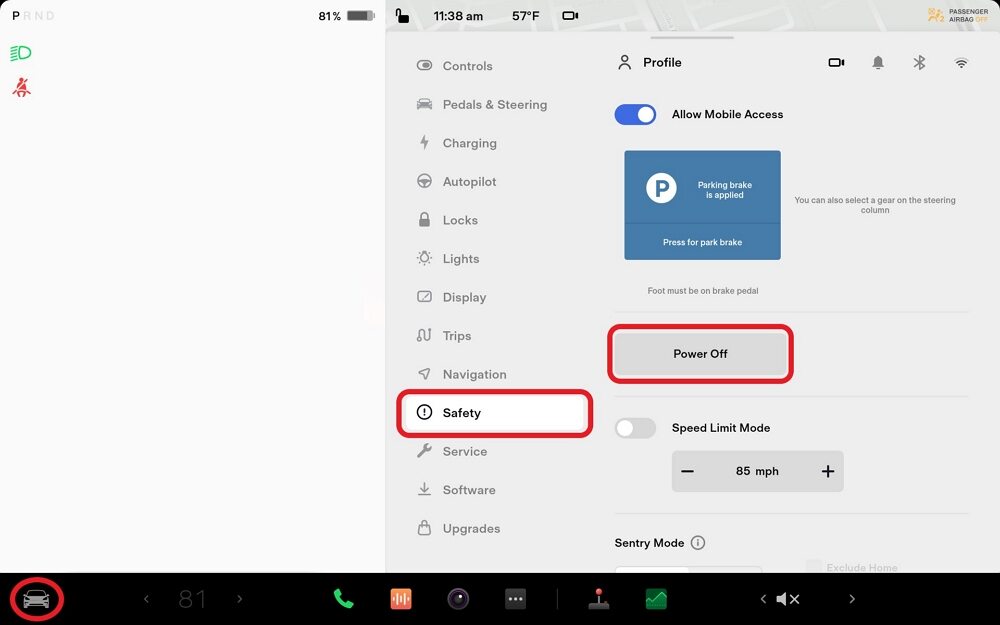

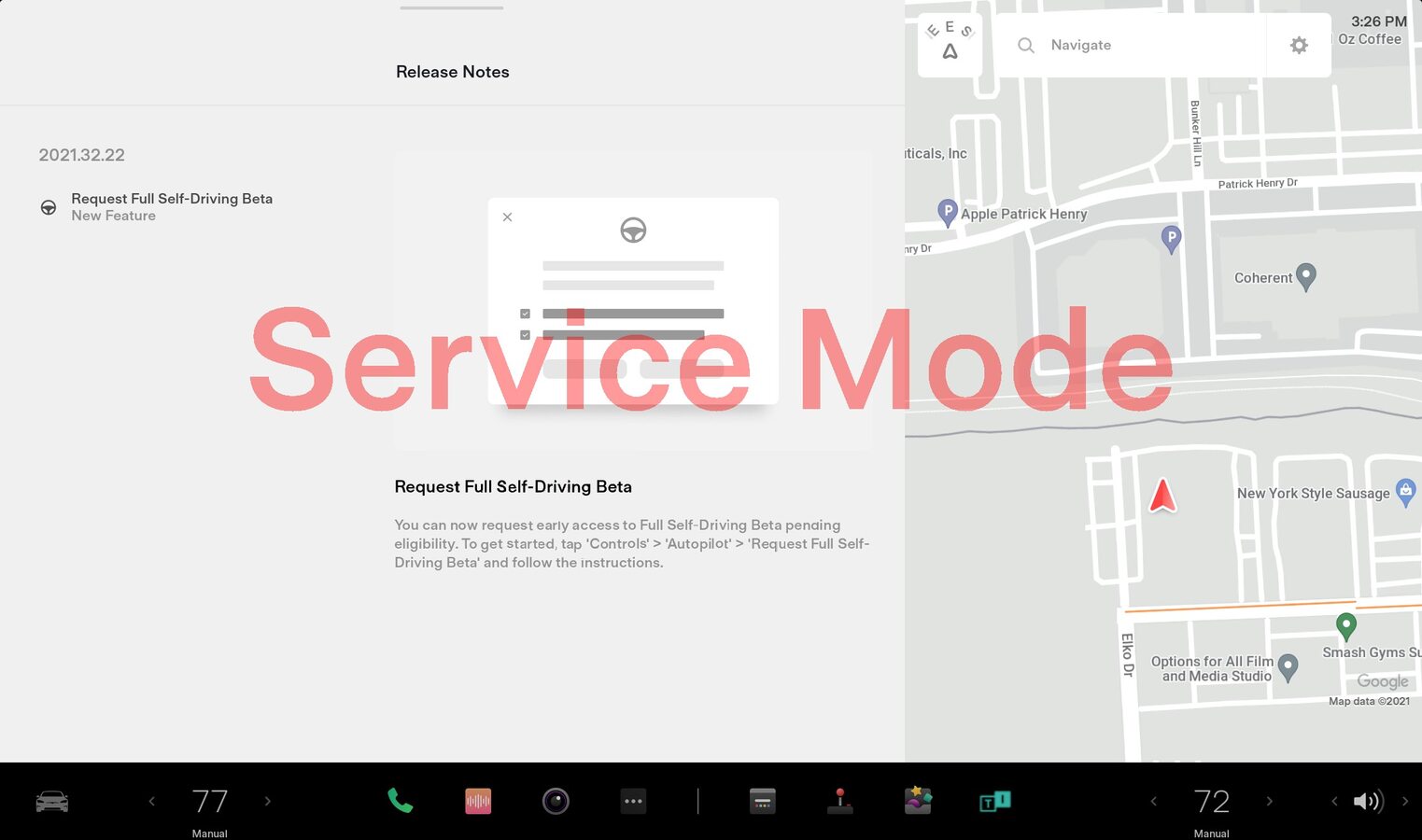

  2. Enable Service Mode. See Service Mode.

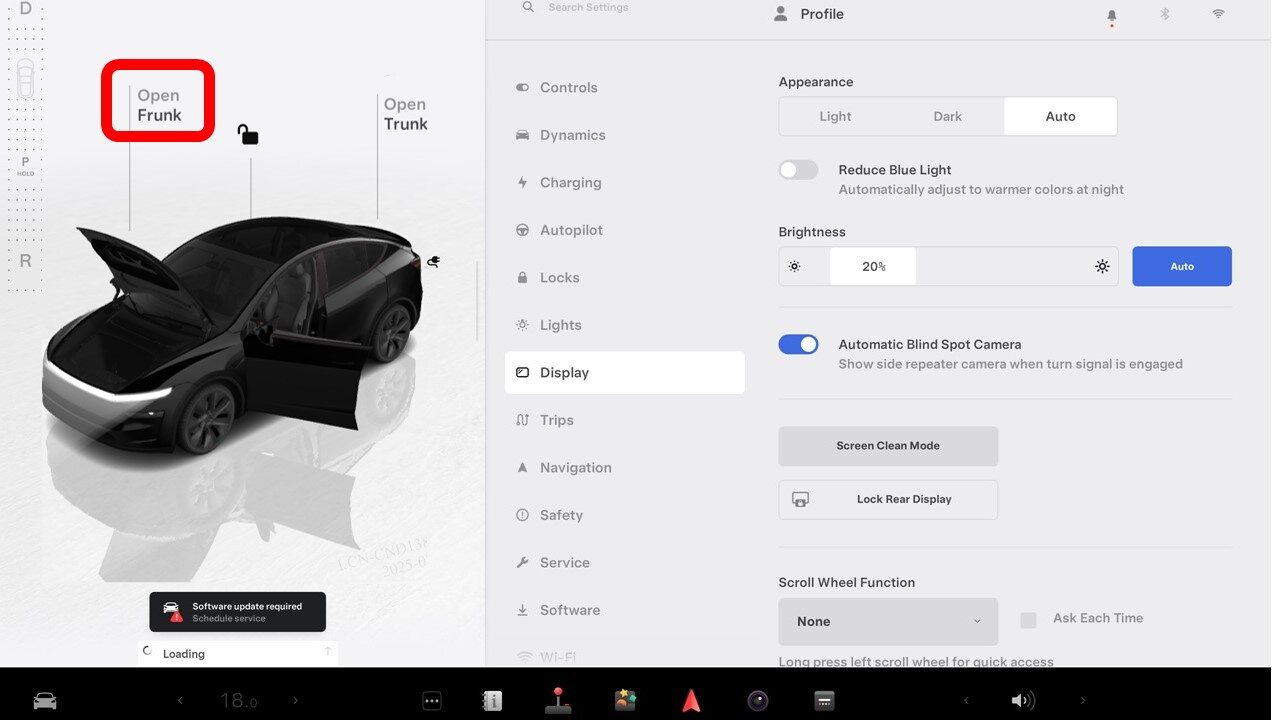

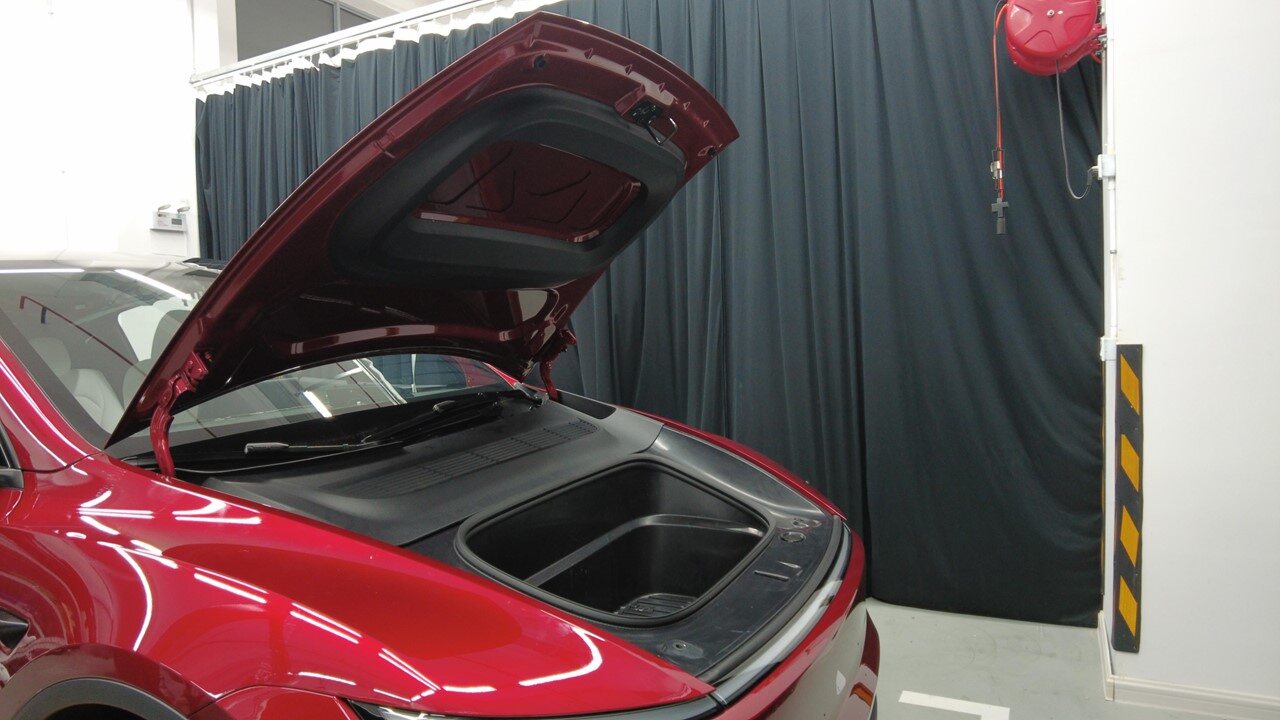

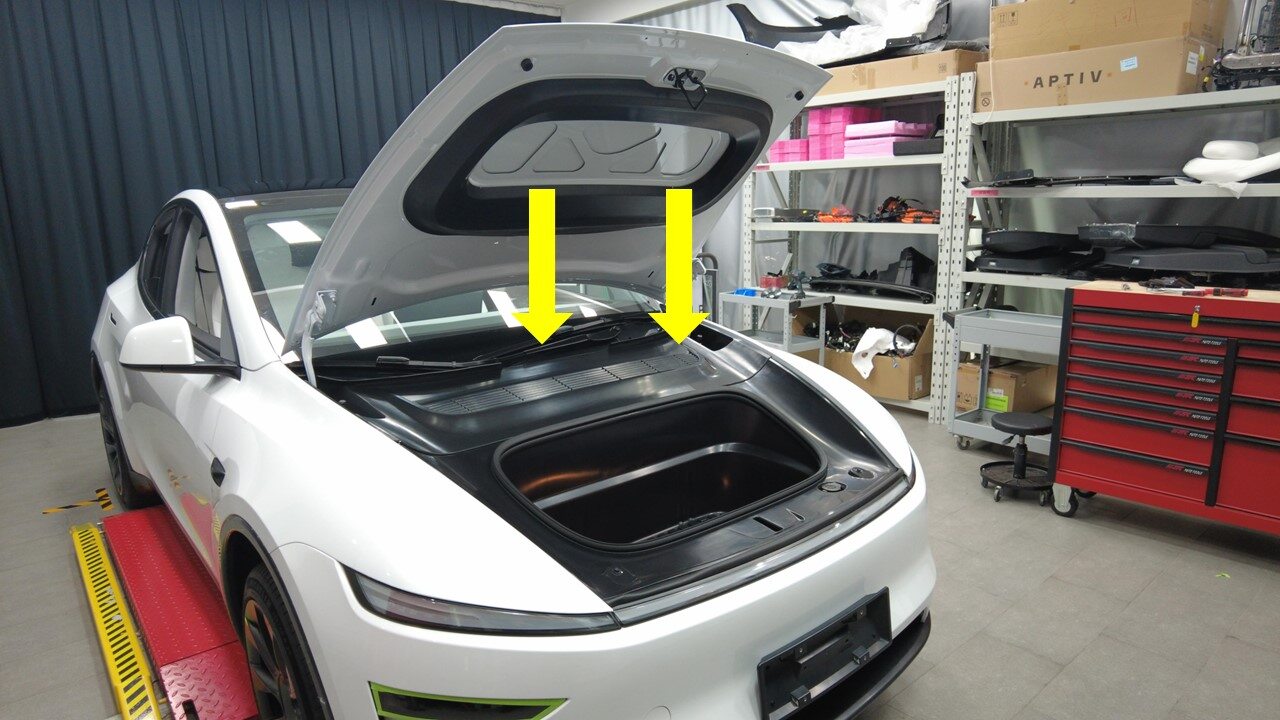

  3. Open the hood.

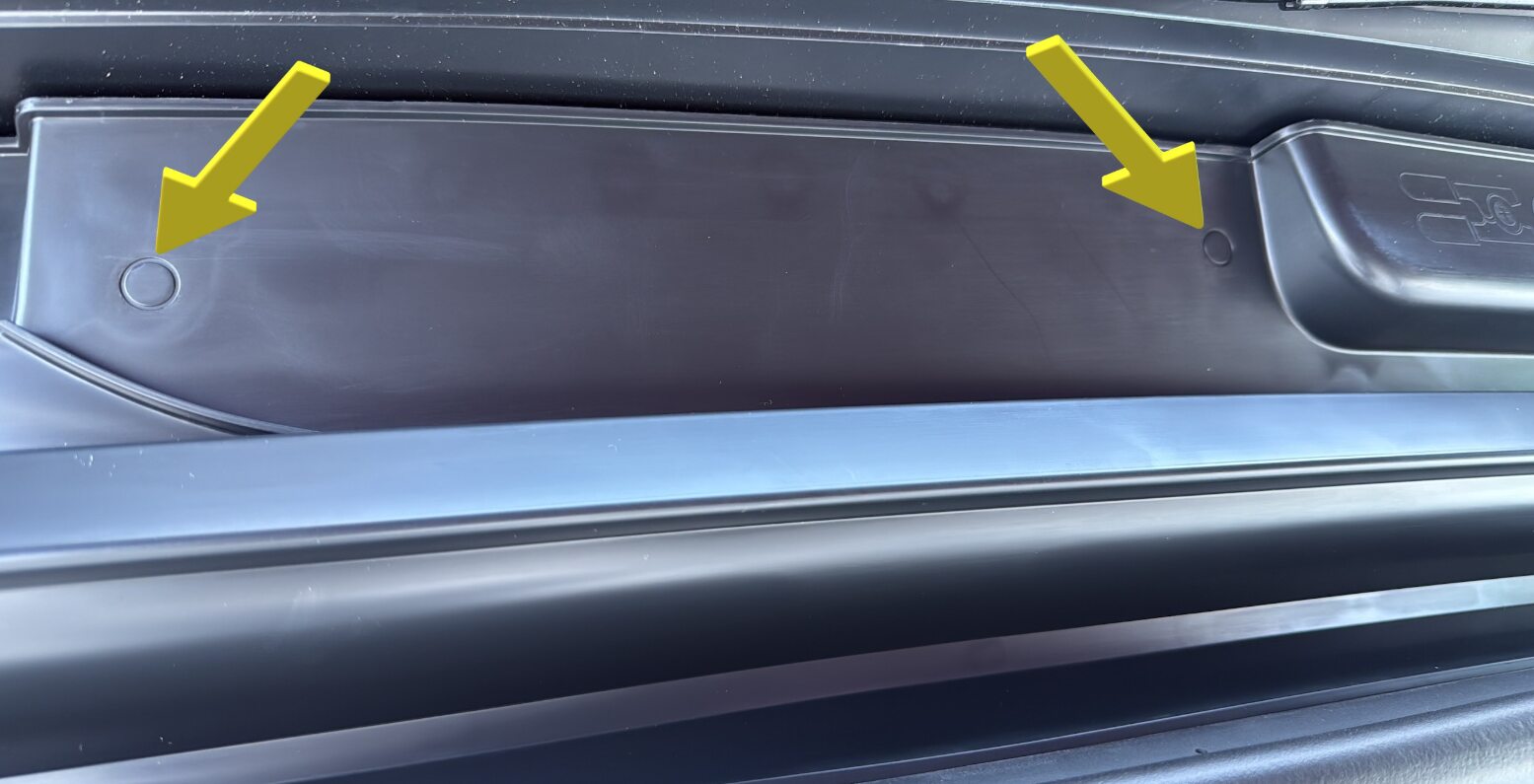

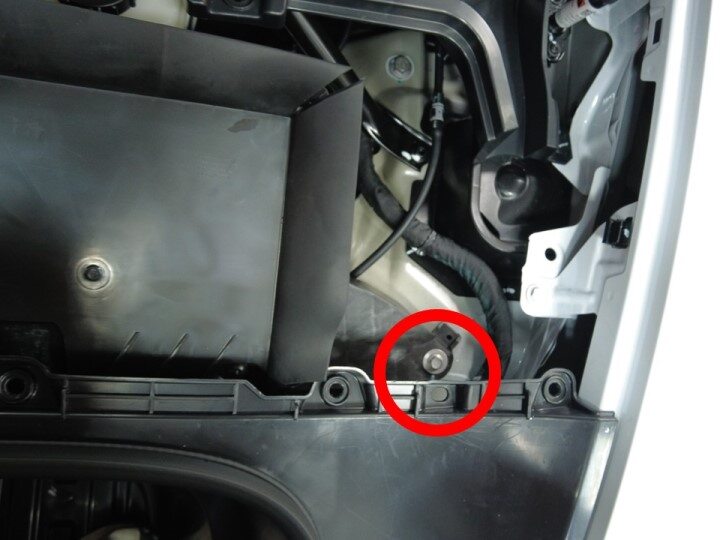

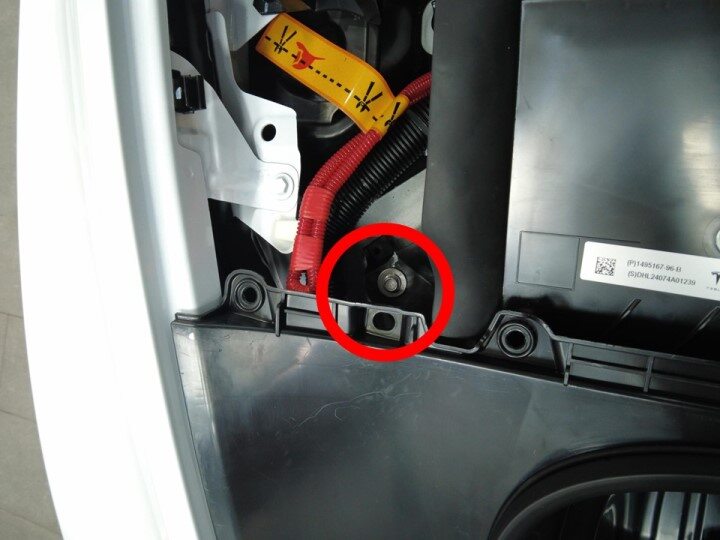

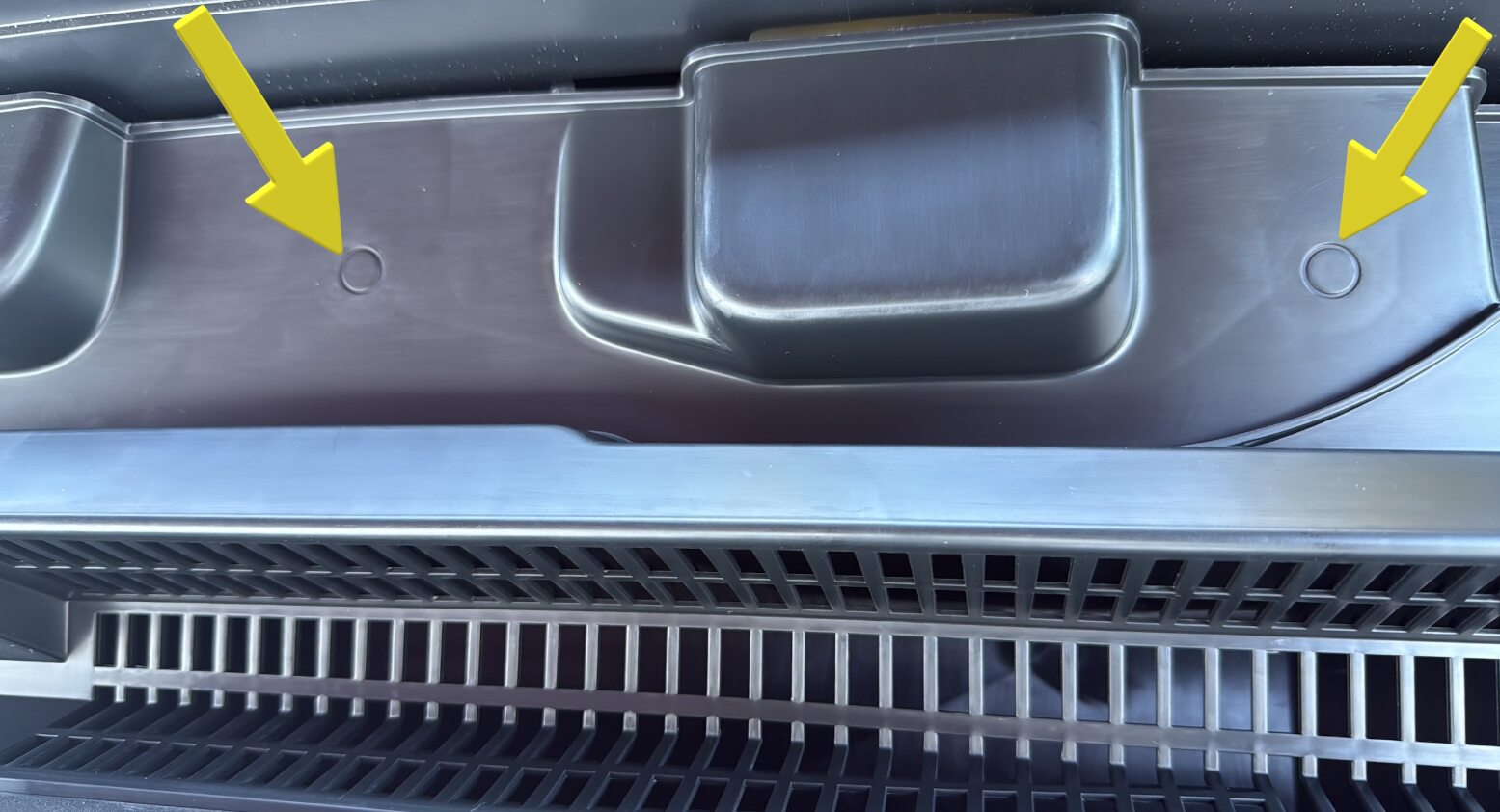

  4. Remove the HEPA filter or cowl assembly
    Informational PurposesAn informational icon, calling your attention
    Note

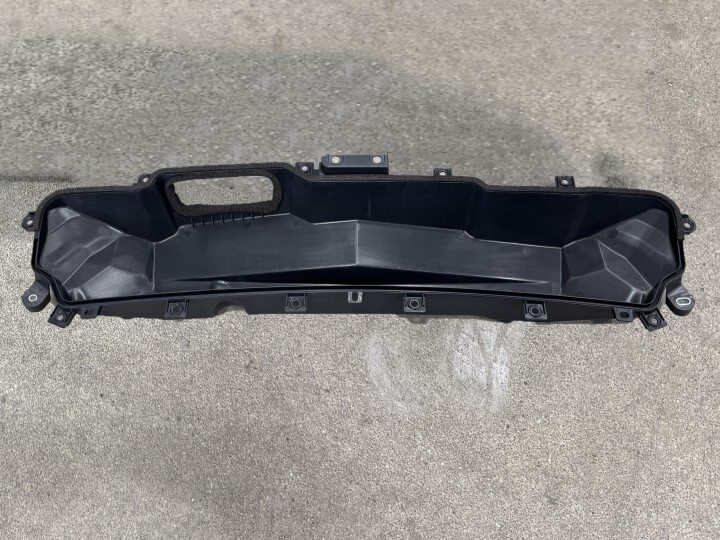

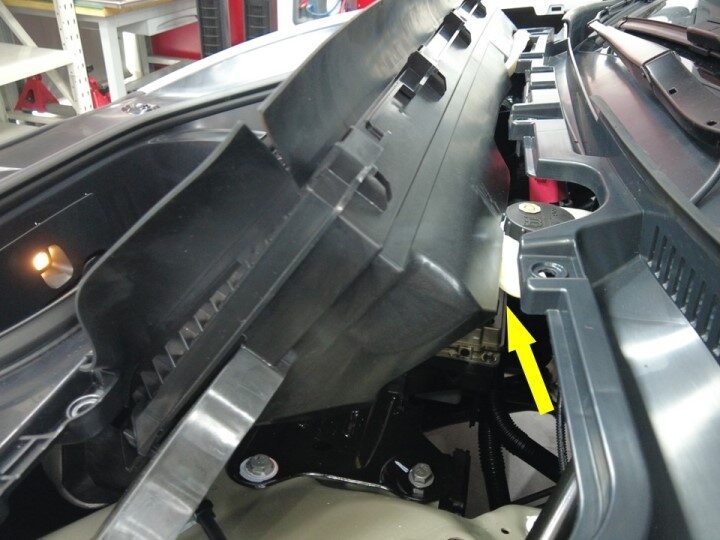

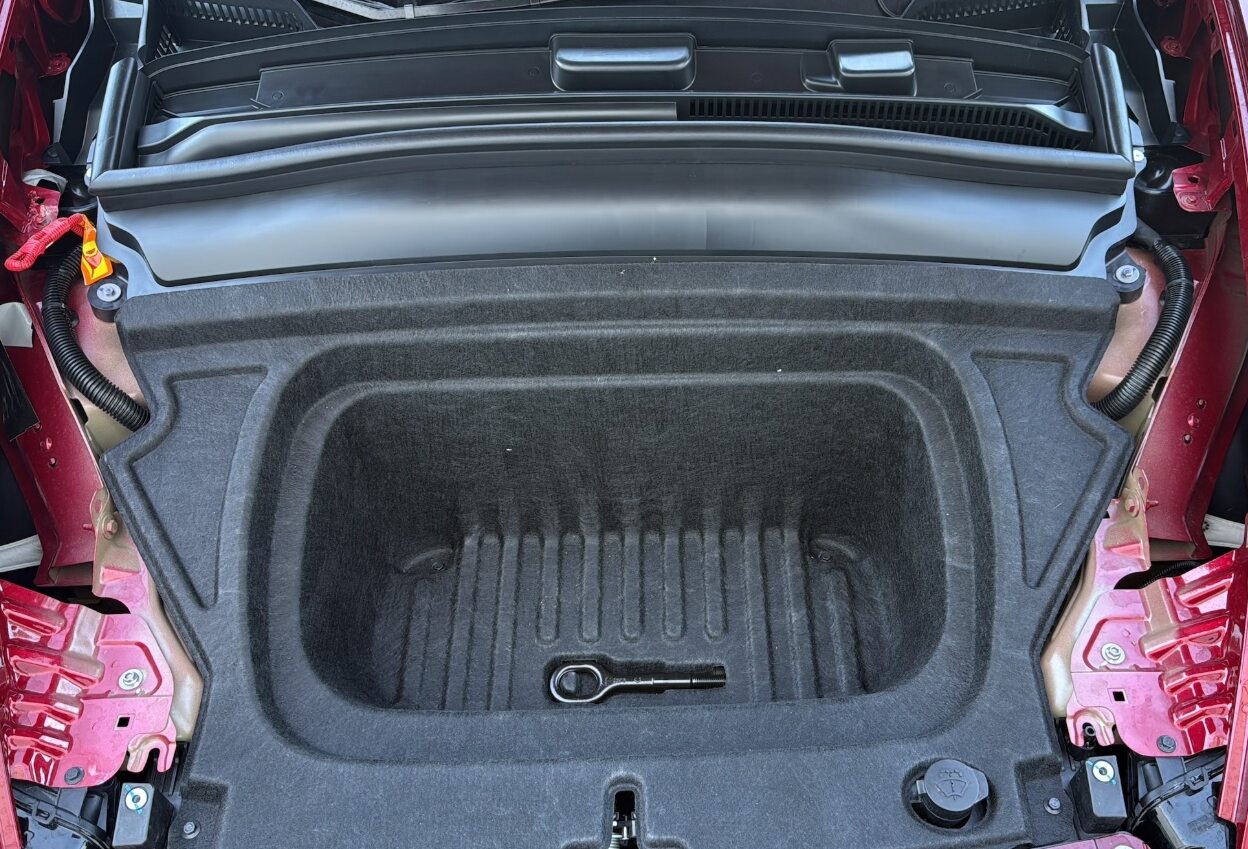

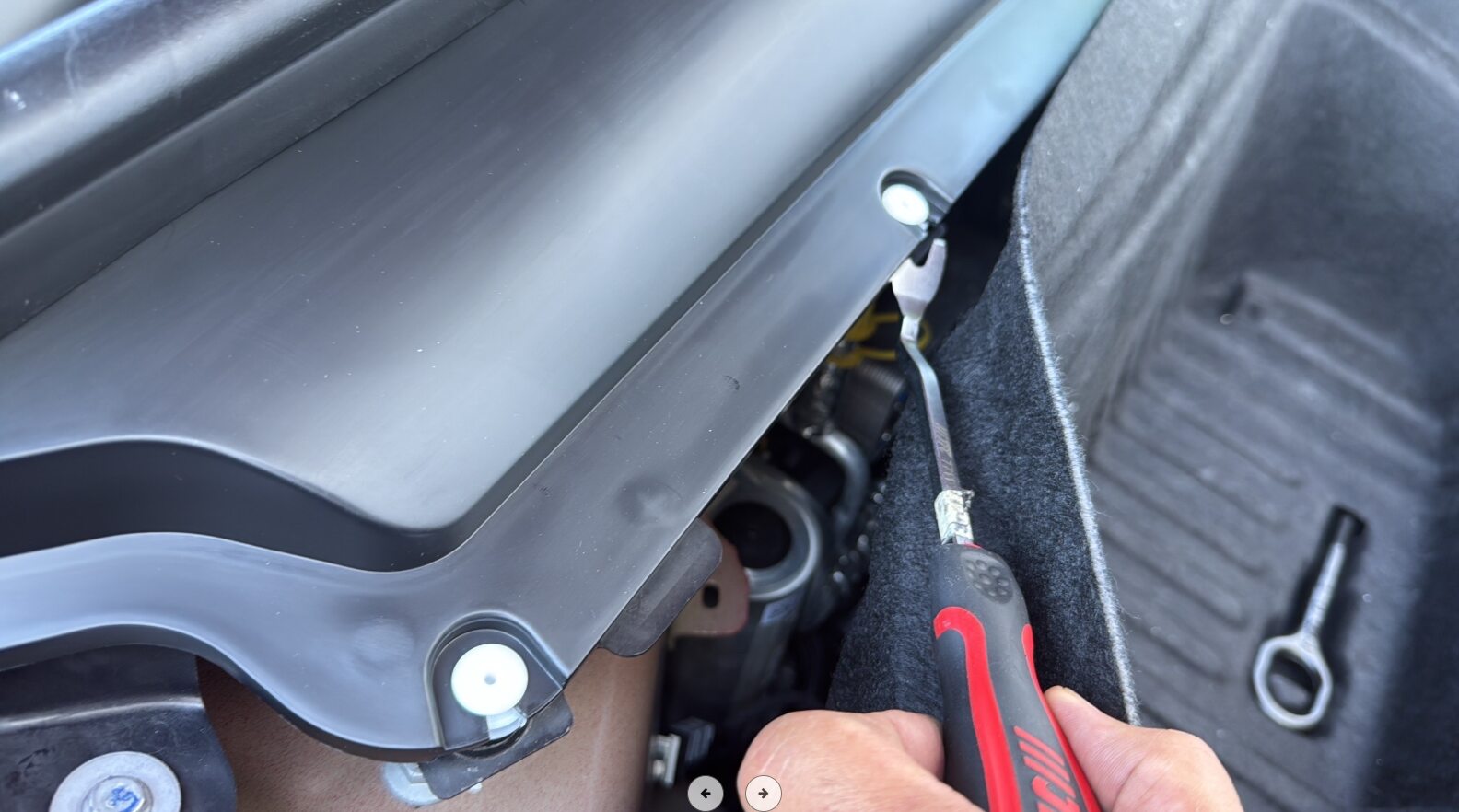

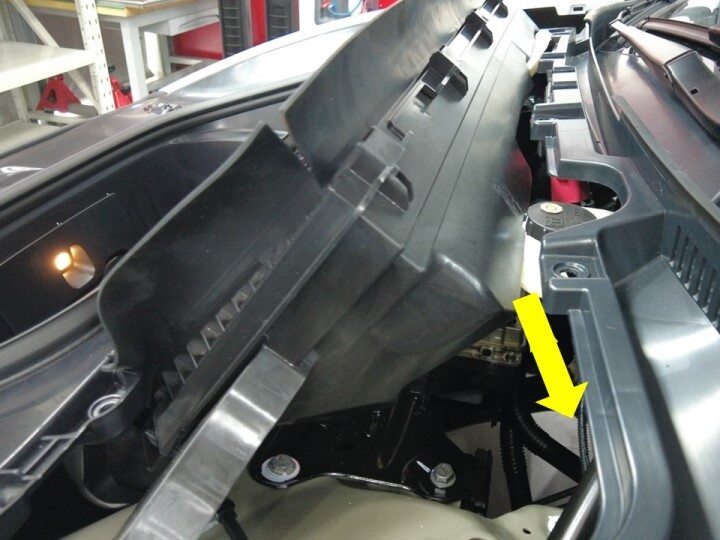

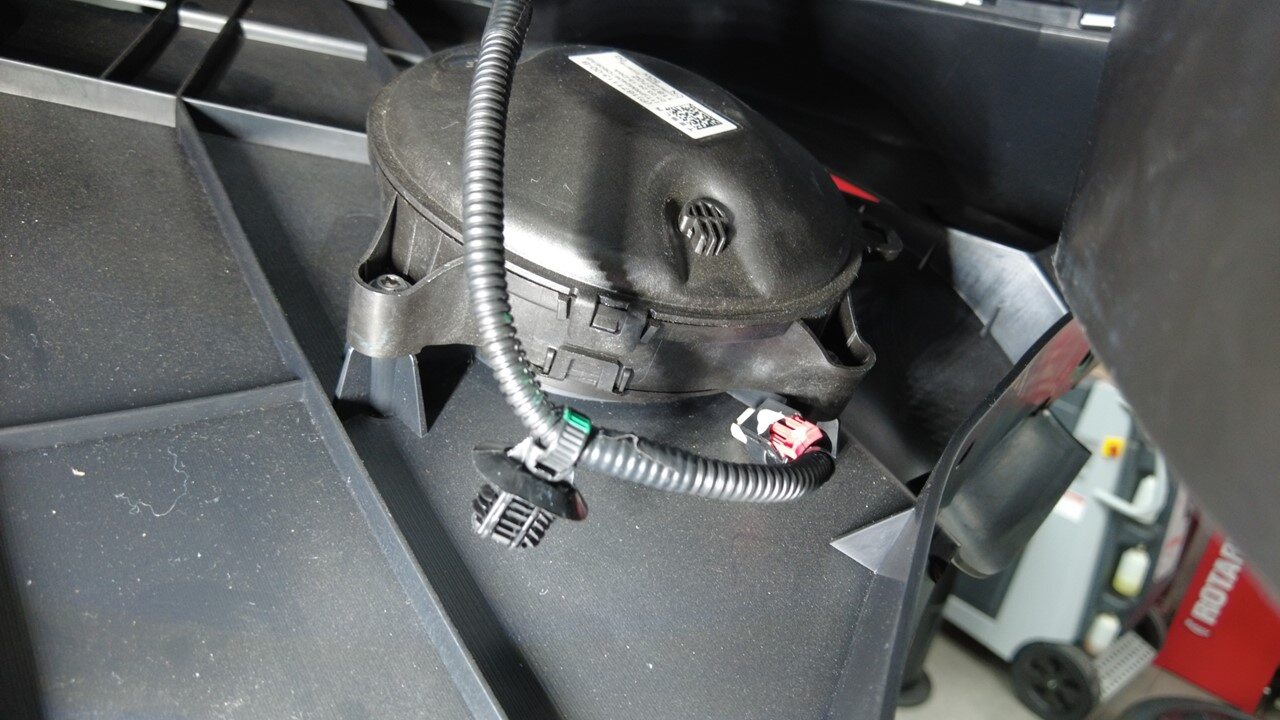

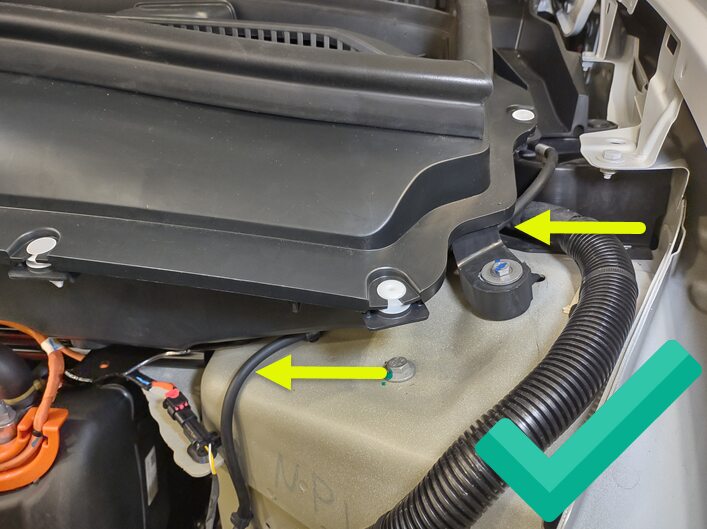

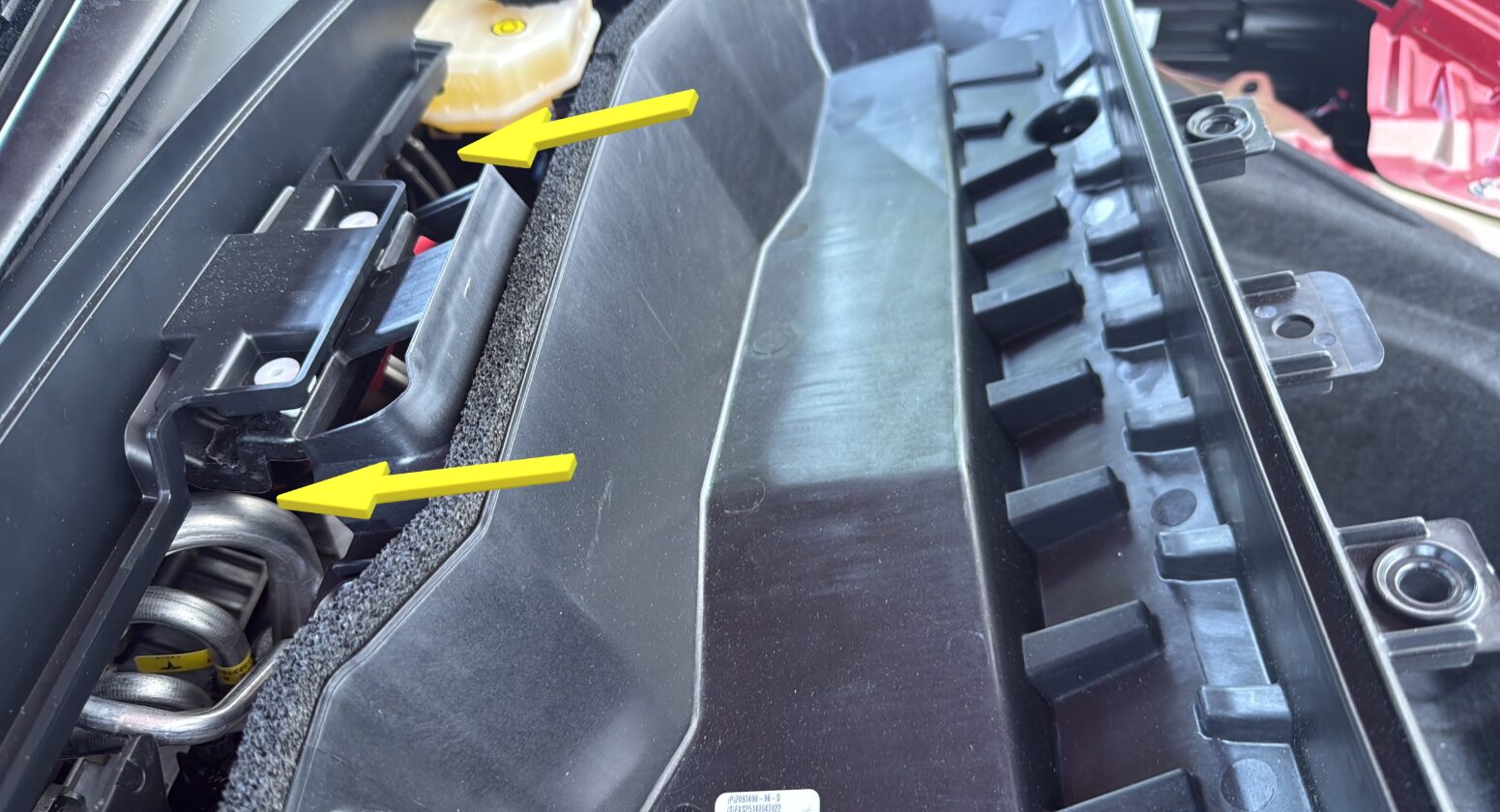

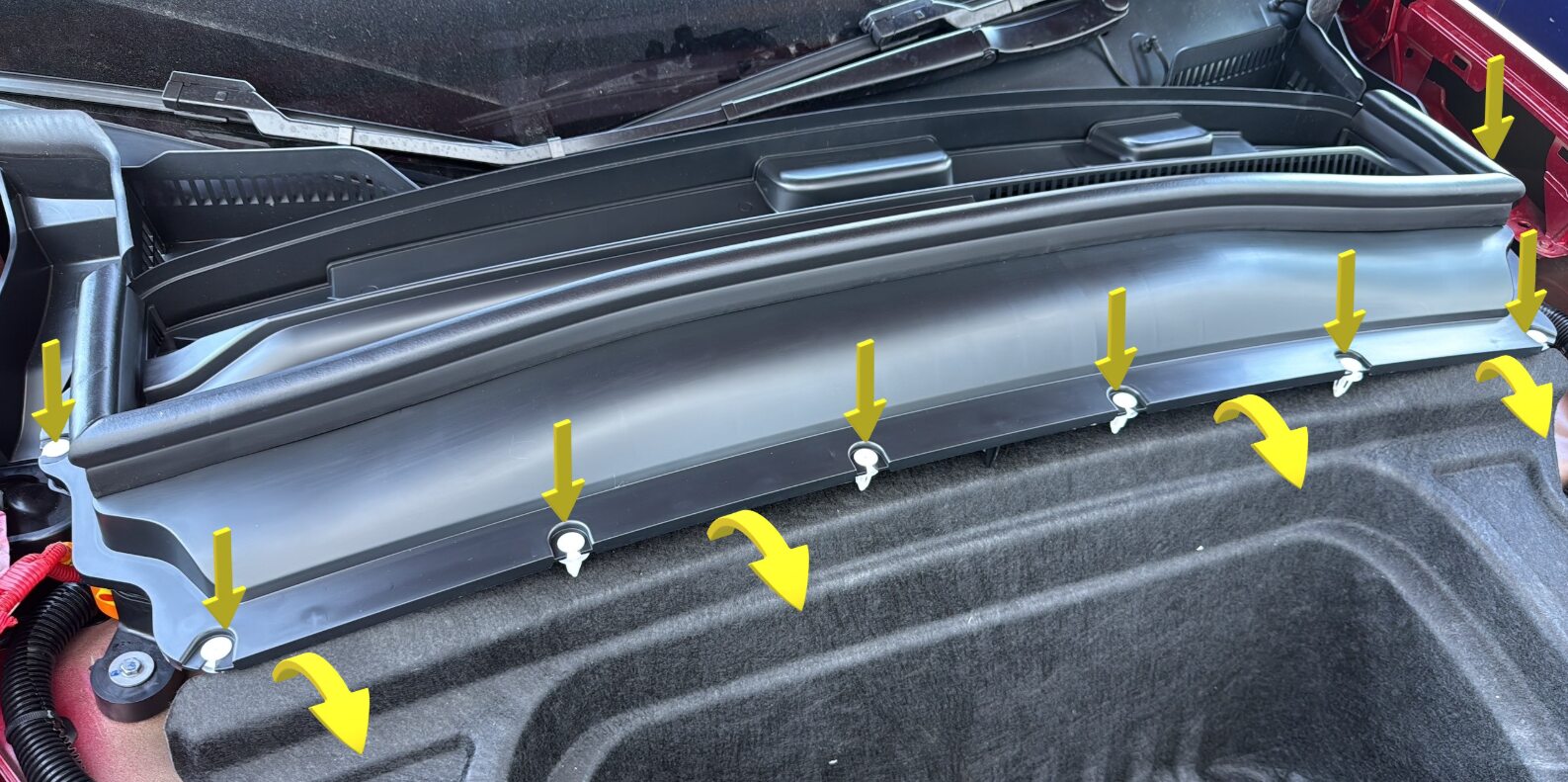

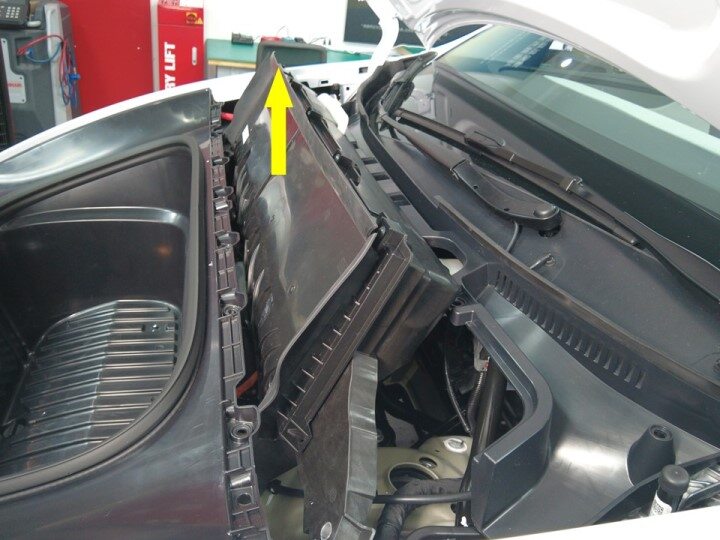

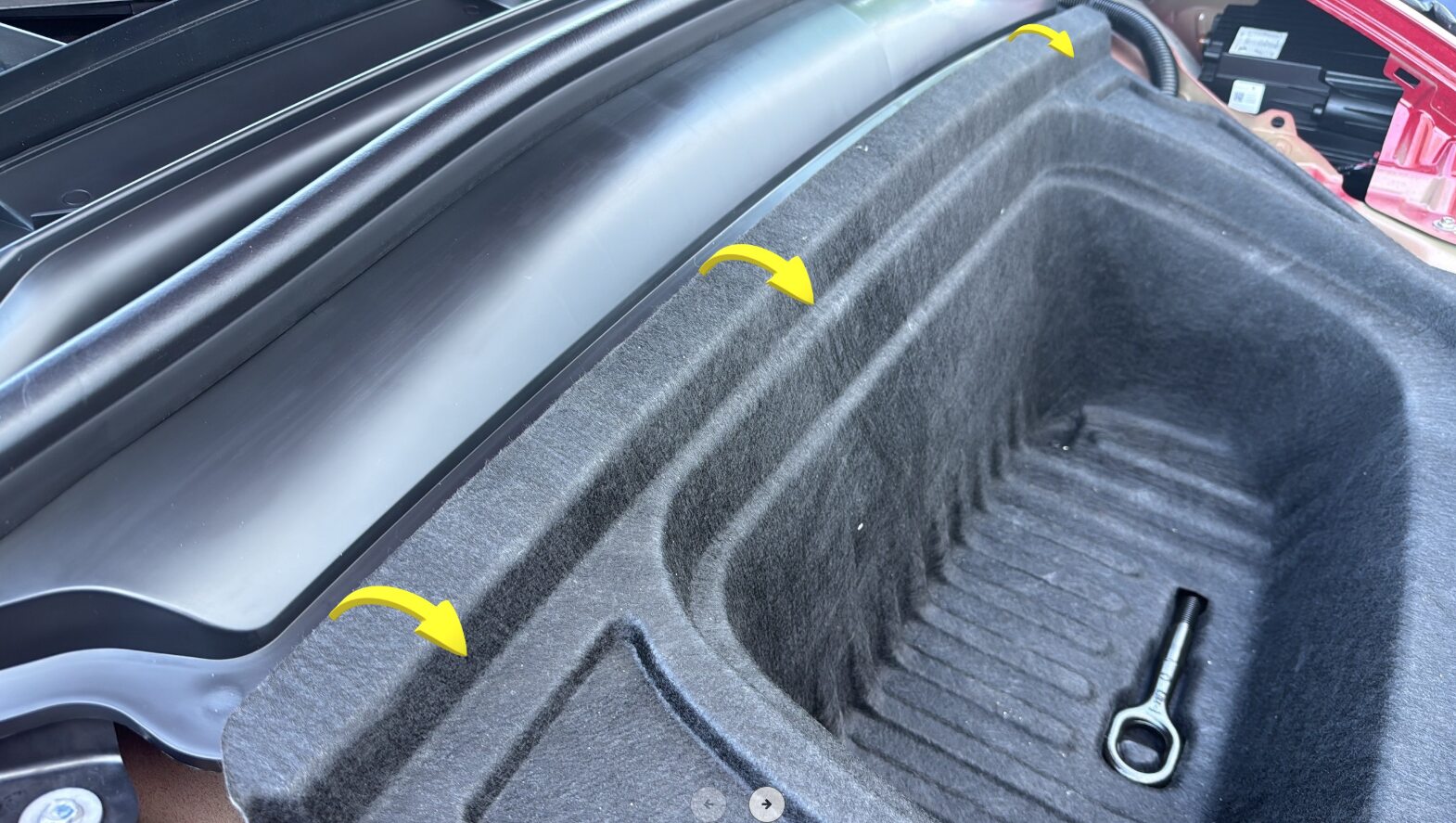

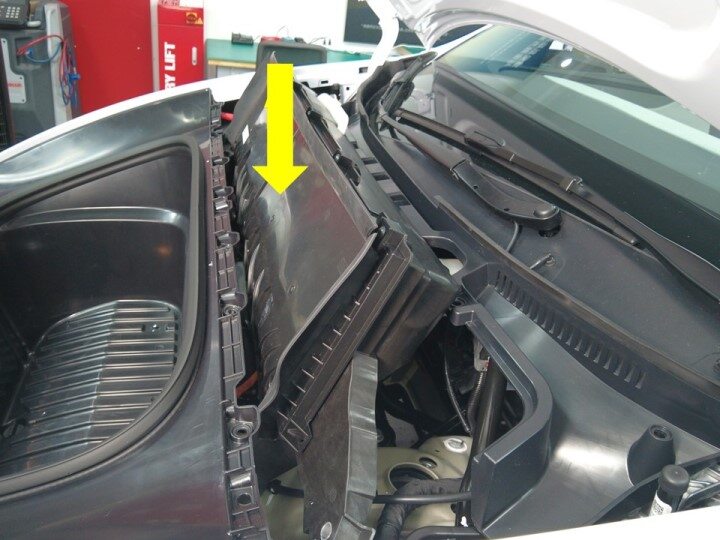

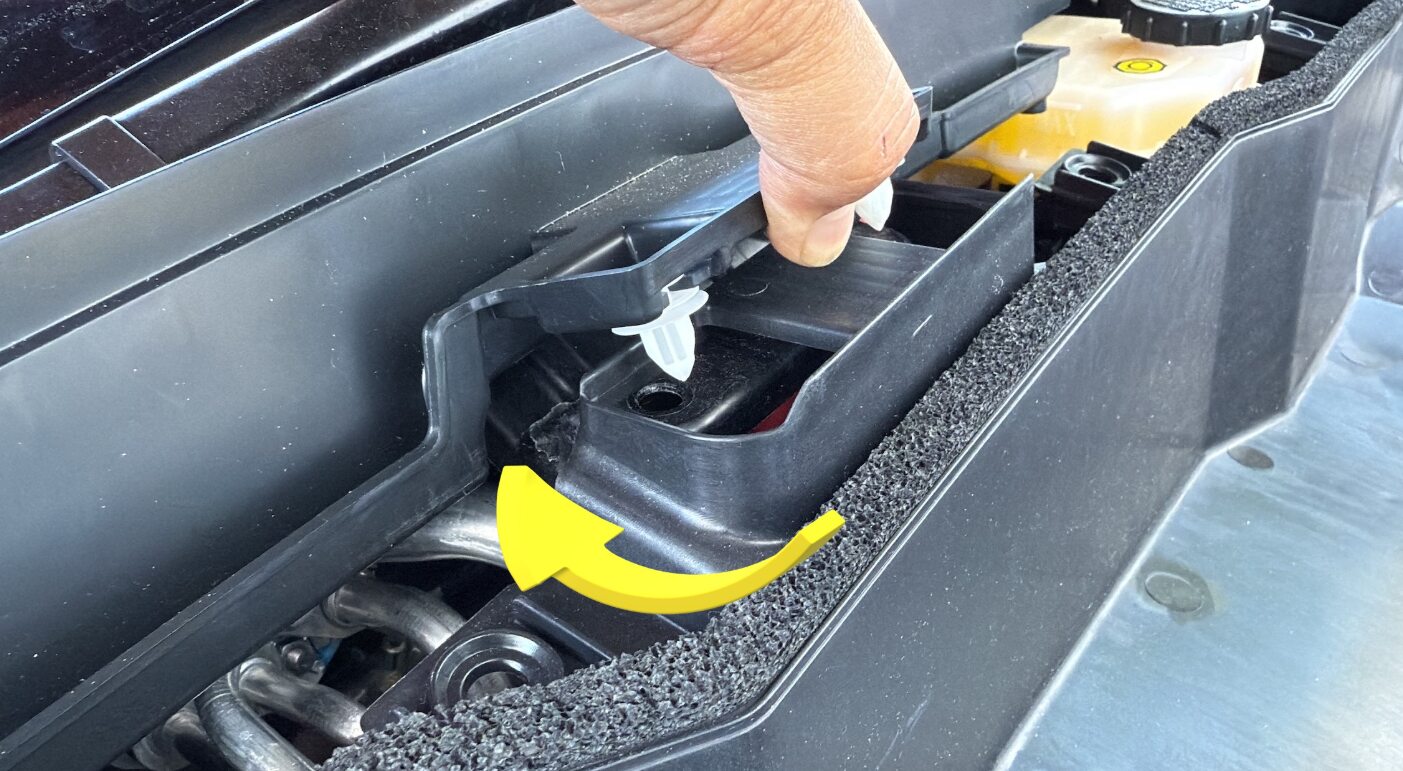

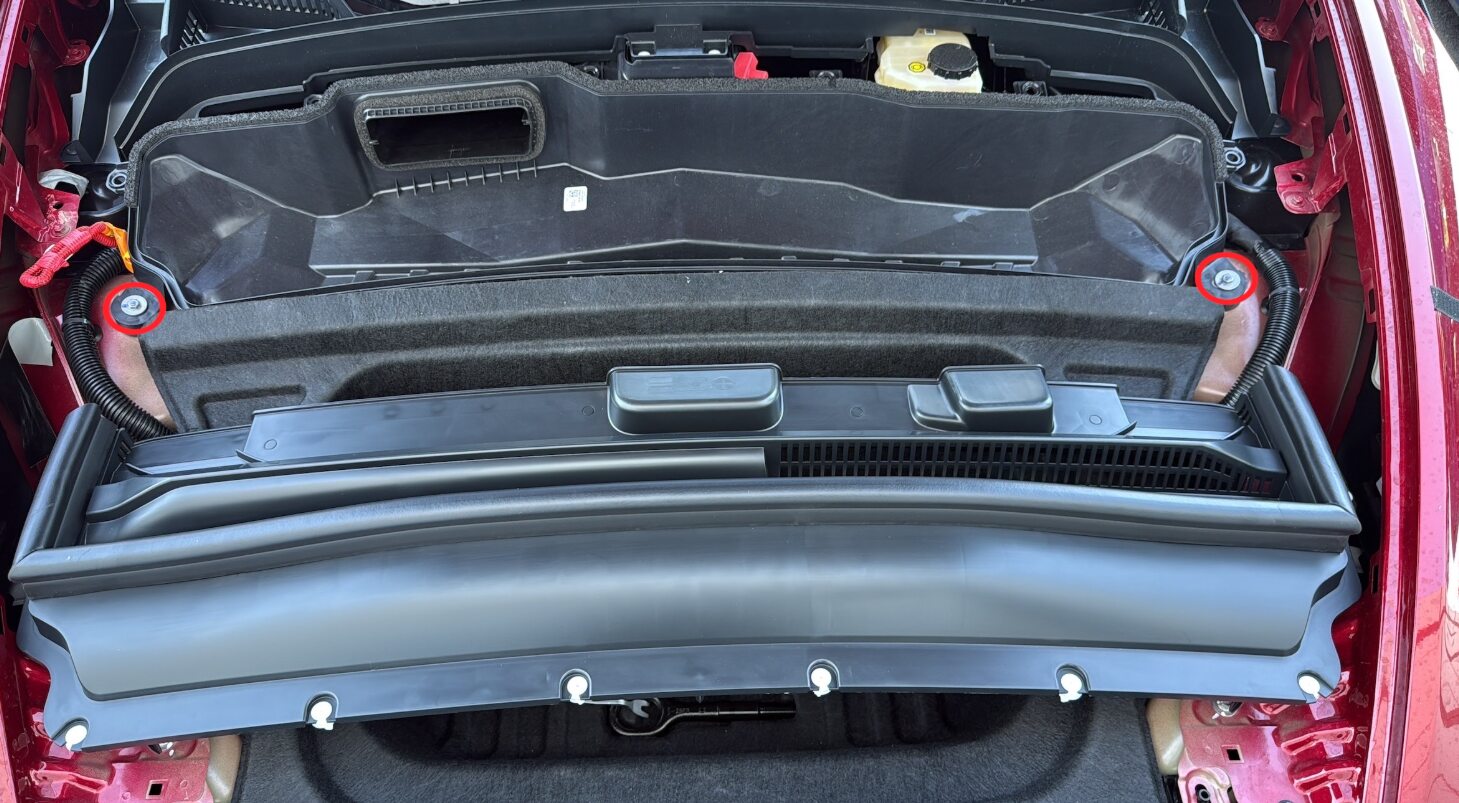

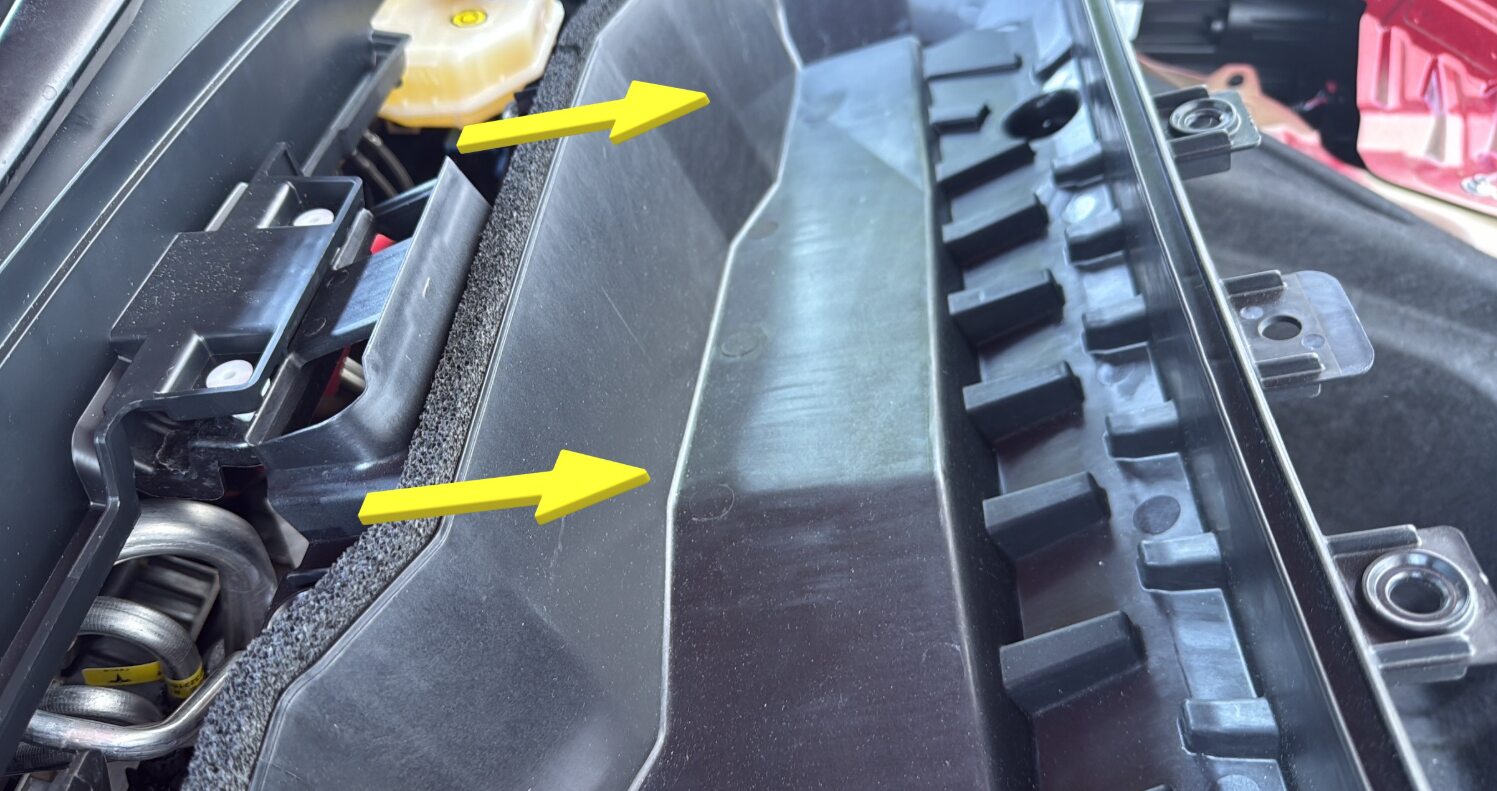

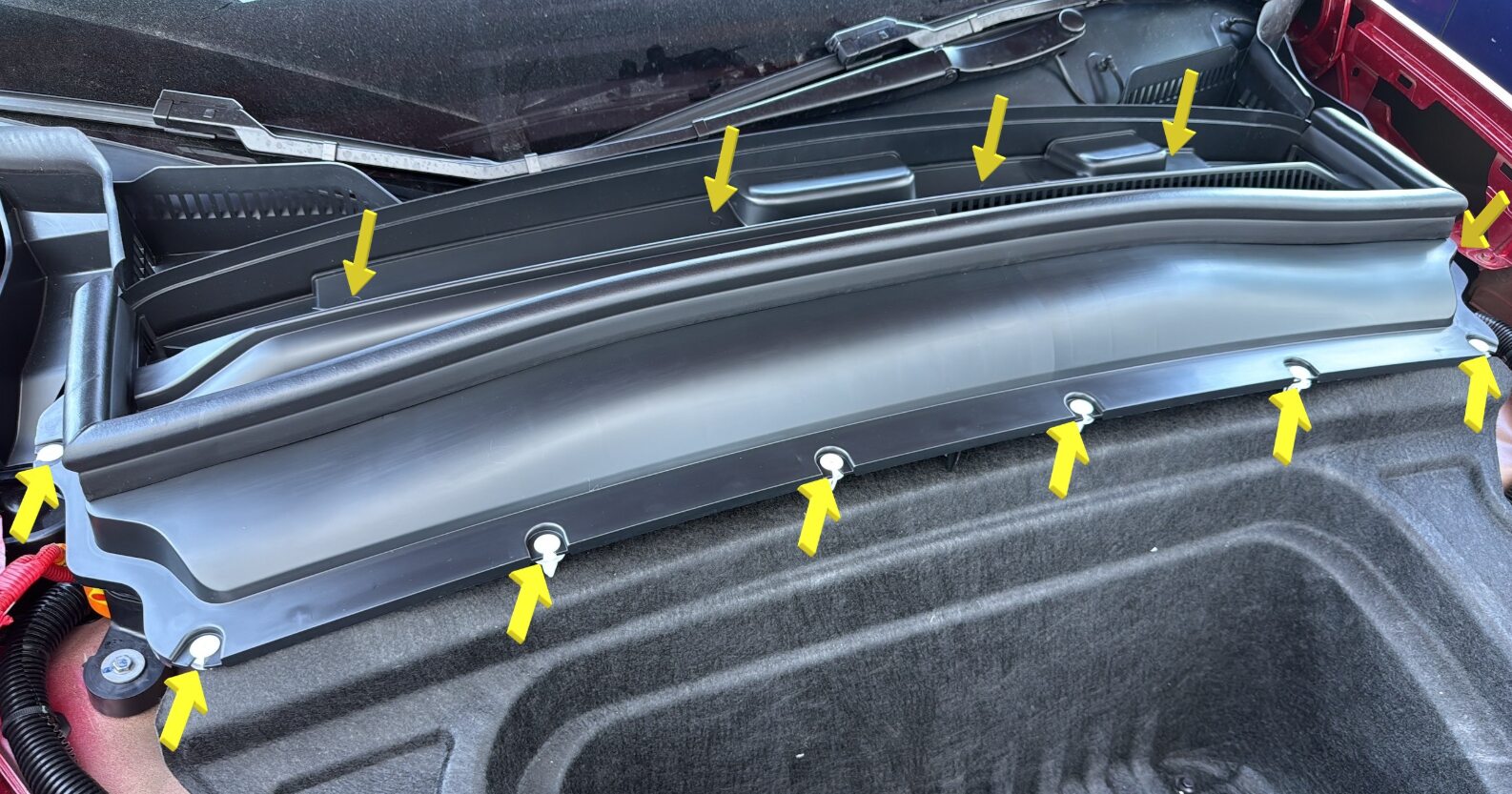

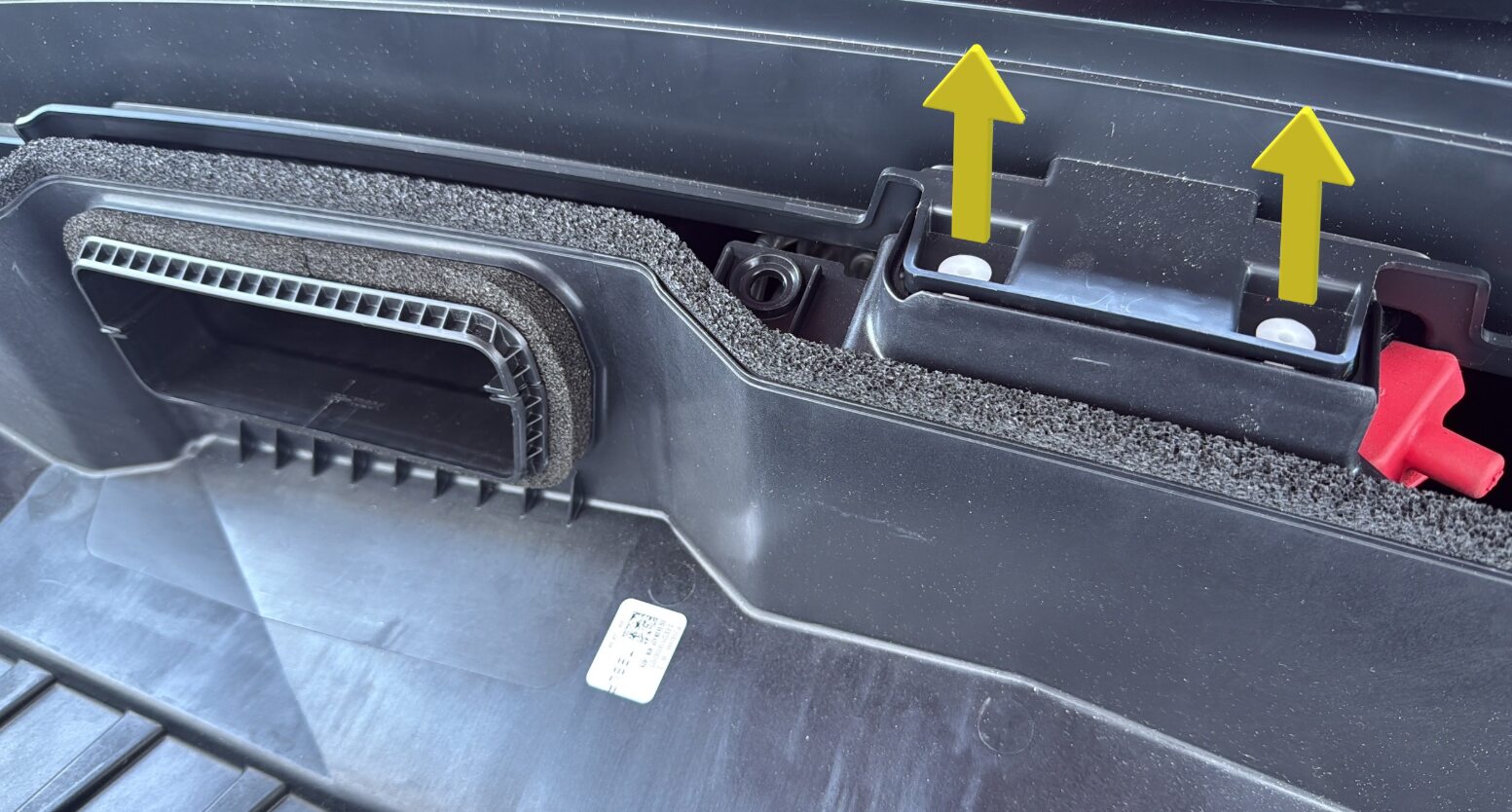

    Vehicle configuration may vary. With HEPA filter: 2x bolts, 10mm, 10 Nm. Pivot rear edge up past the brake fluid reservoir, then lift up to clear the underhood storage unit. Without EPA filter: 2x bolts, 10mm, 10 Nm, 14x clips. Fold rear lip of base underhood storage unit forward to access the forward cowl clips. Lift cowl clips to release the cowl bracket.

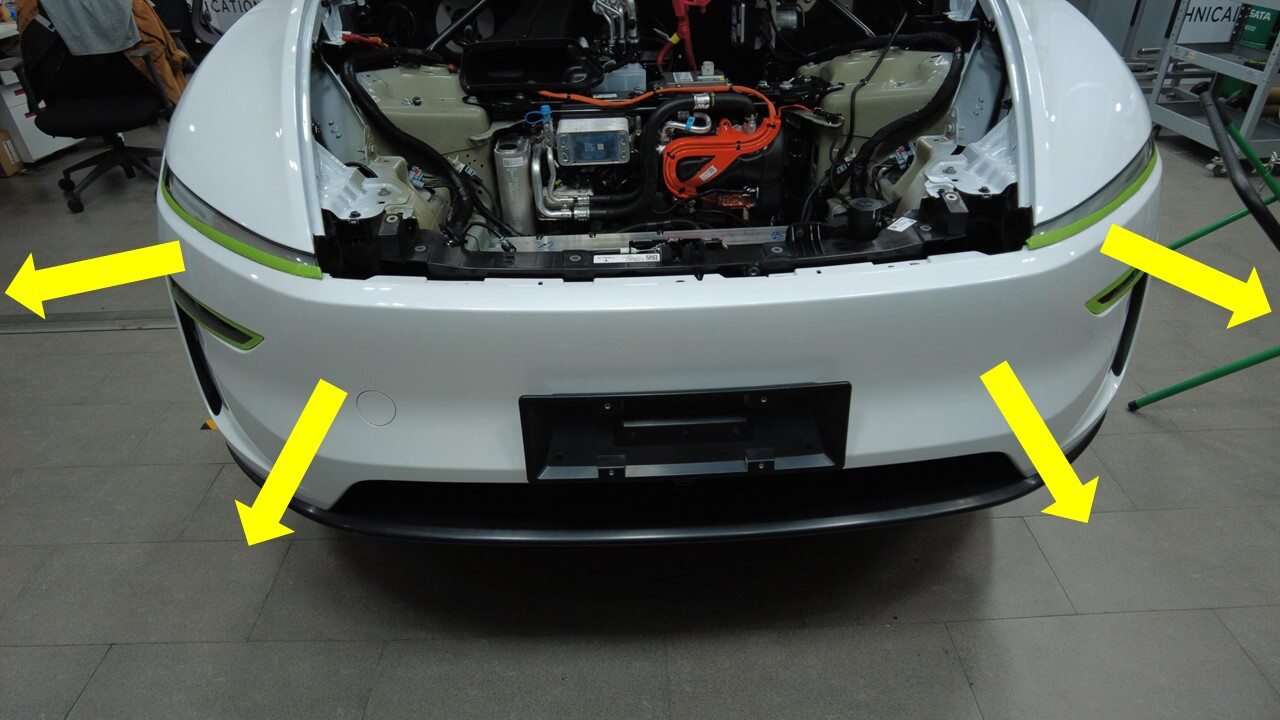

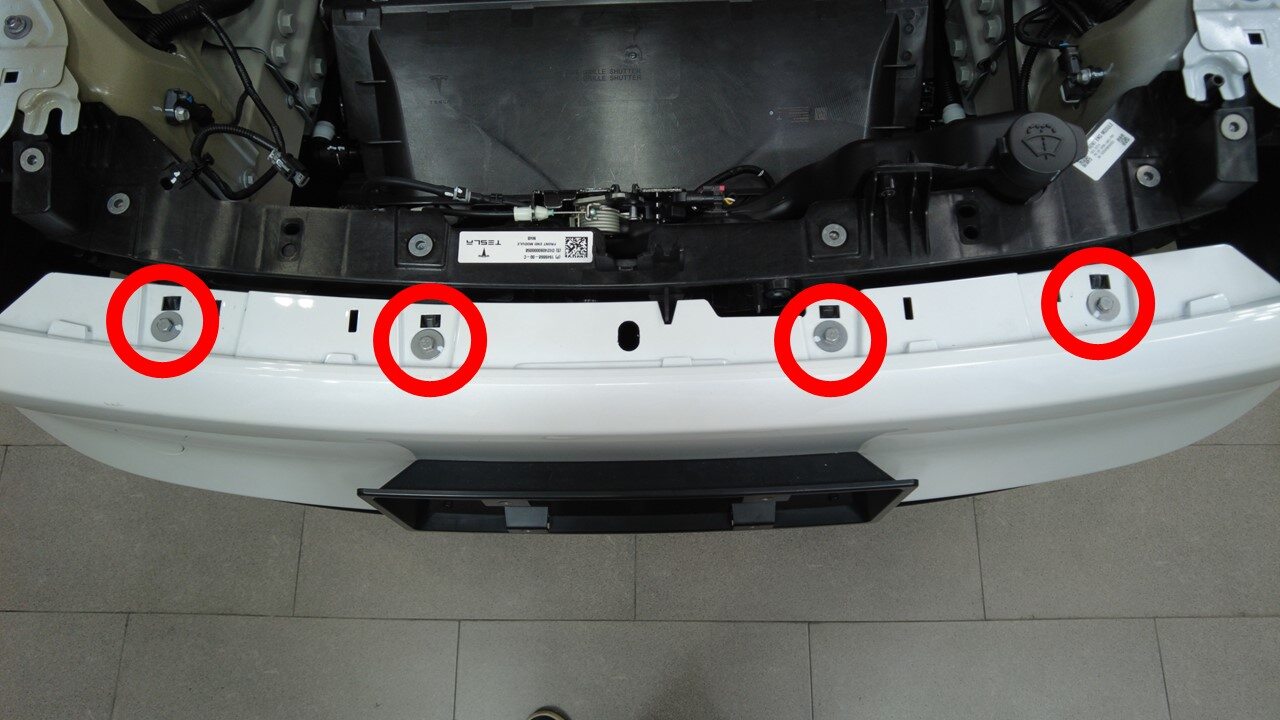

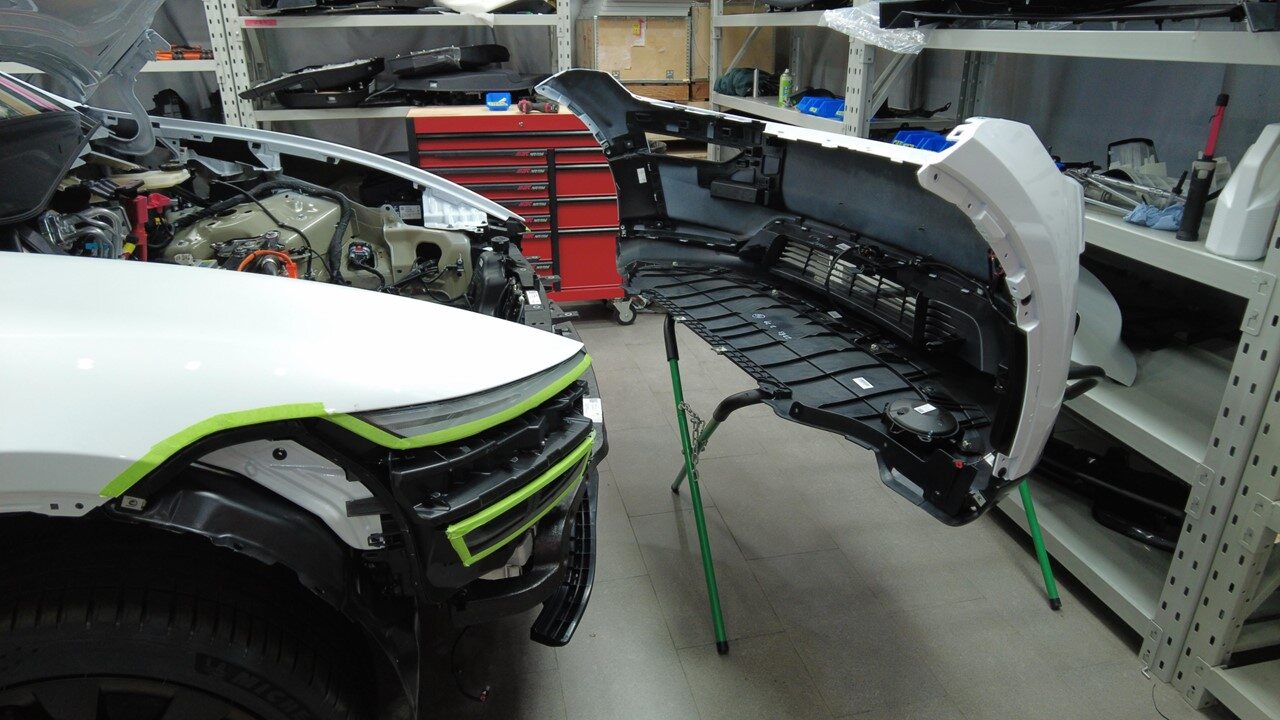

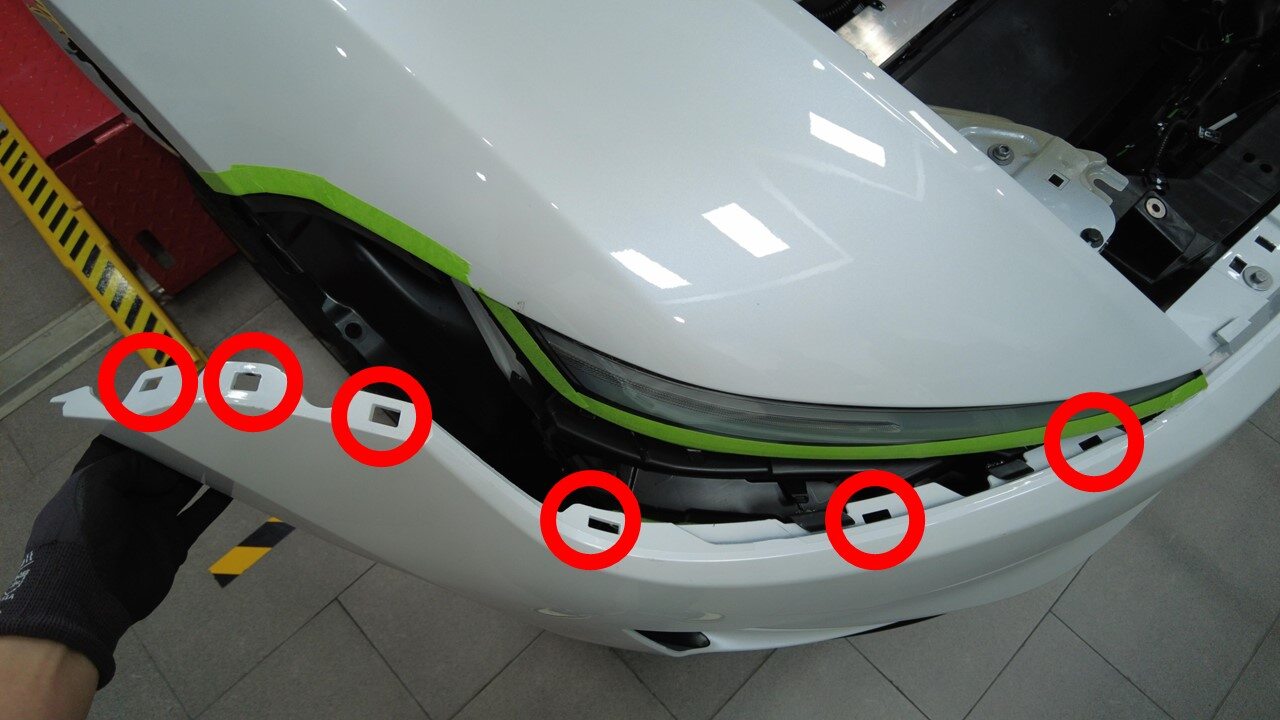

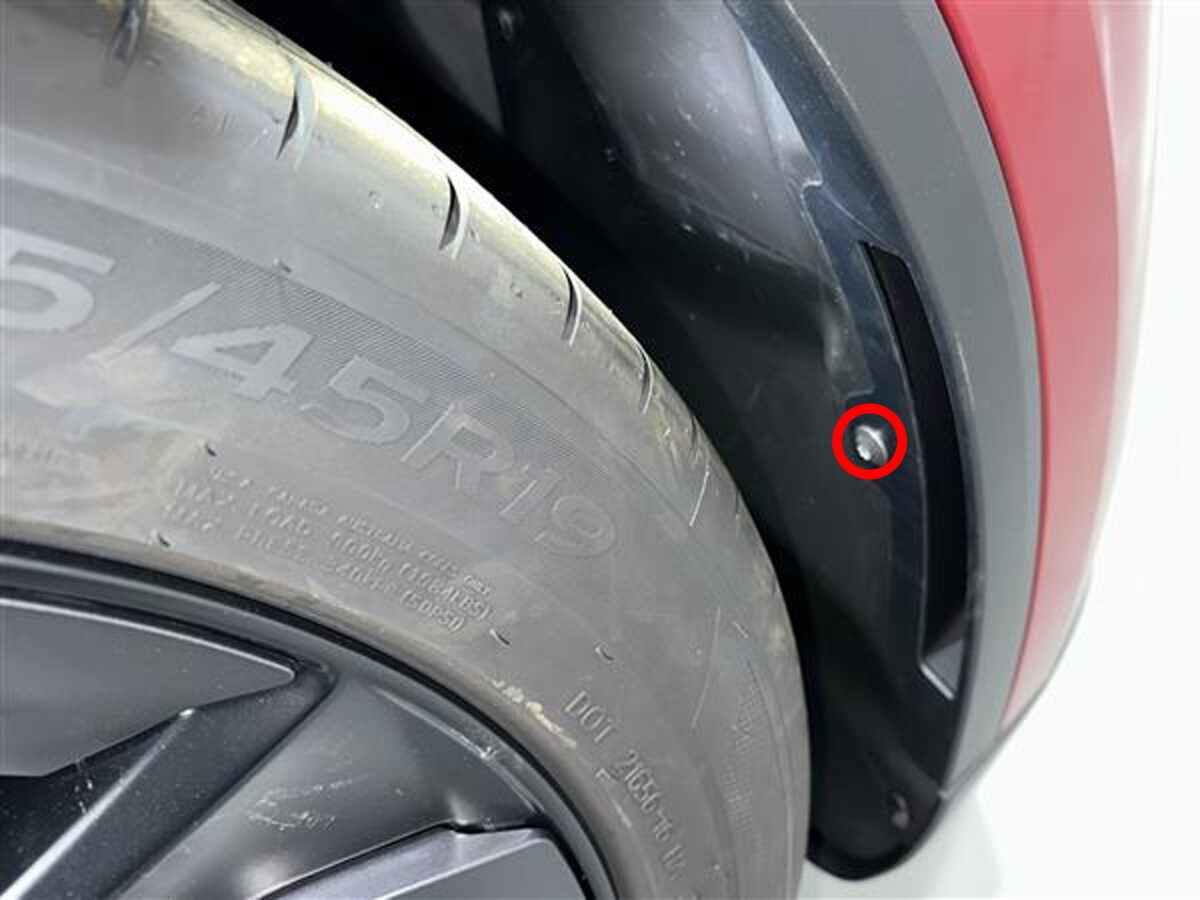

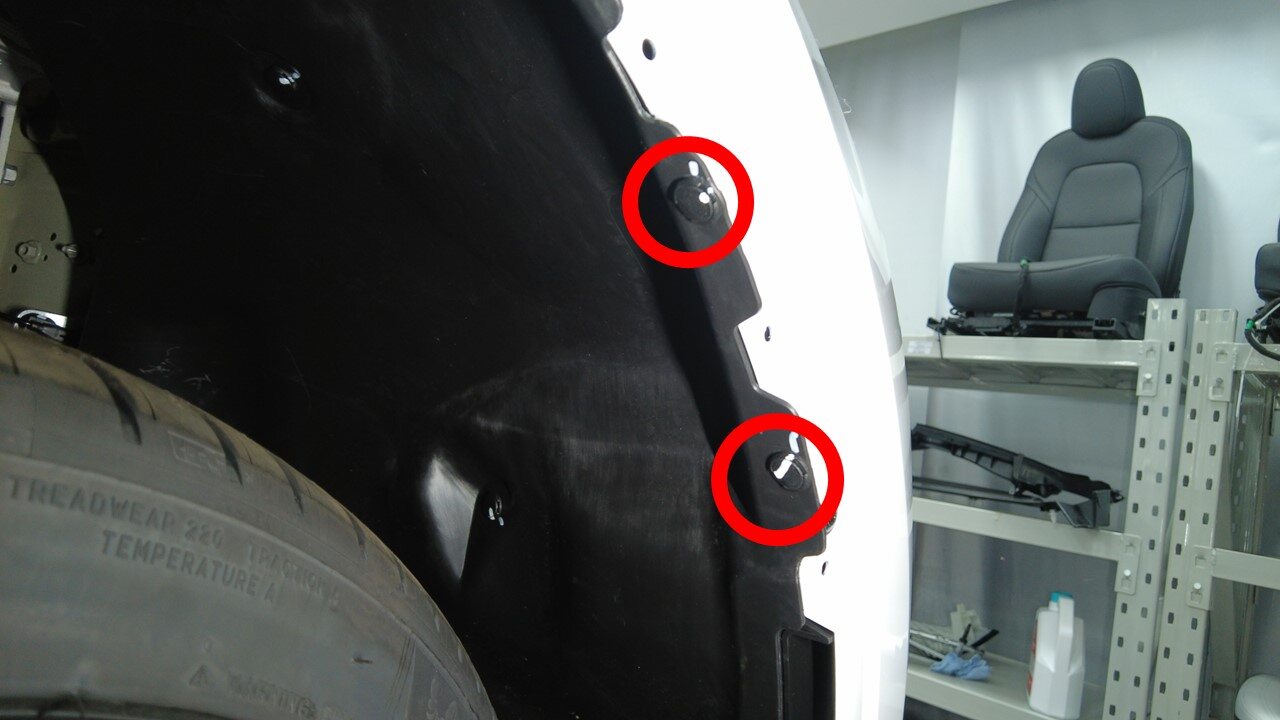

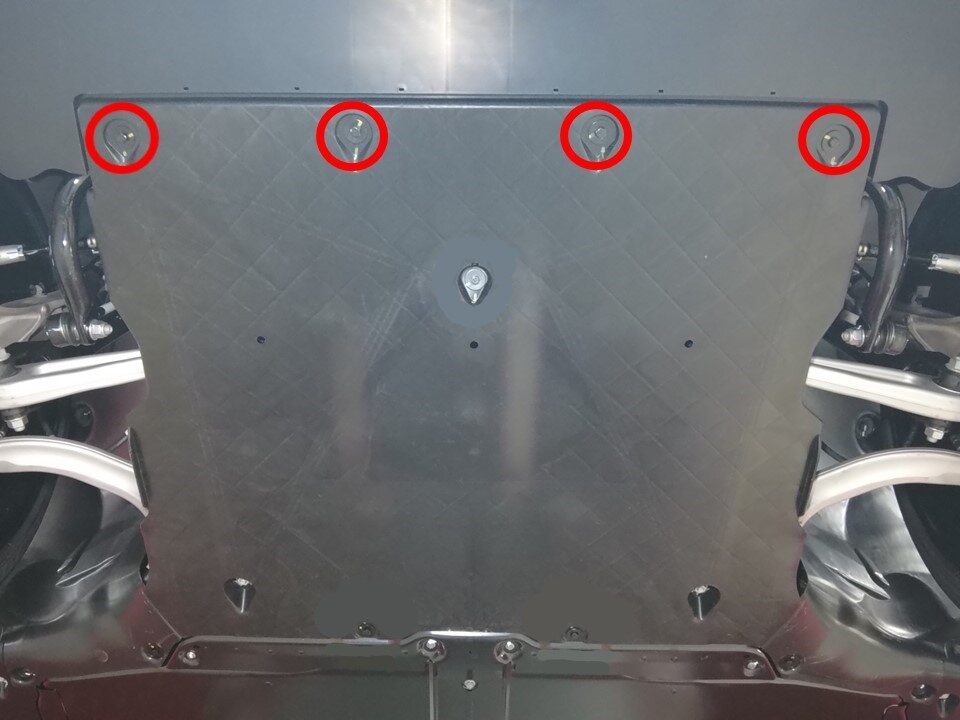

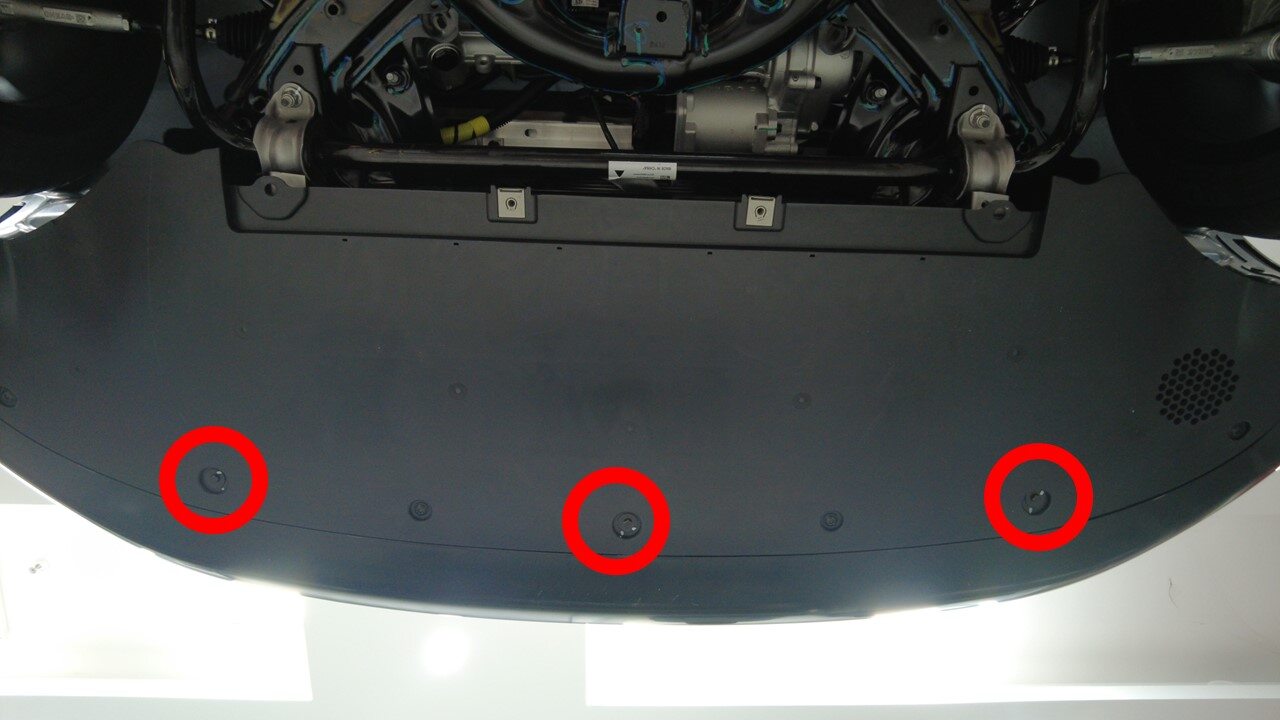

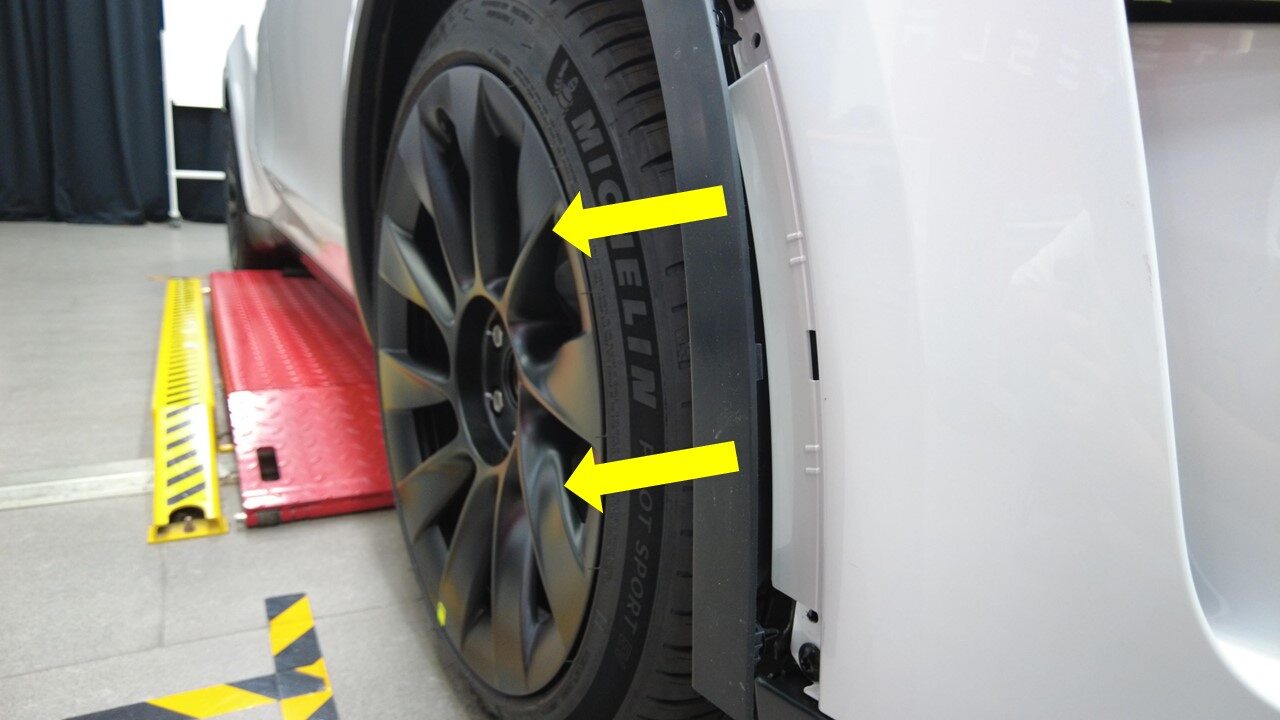

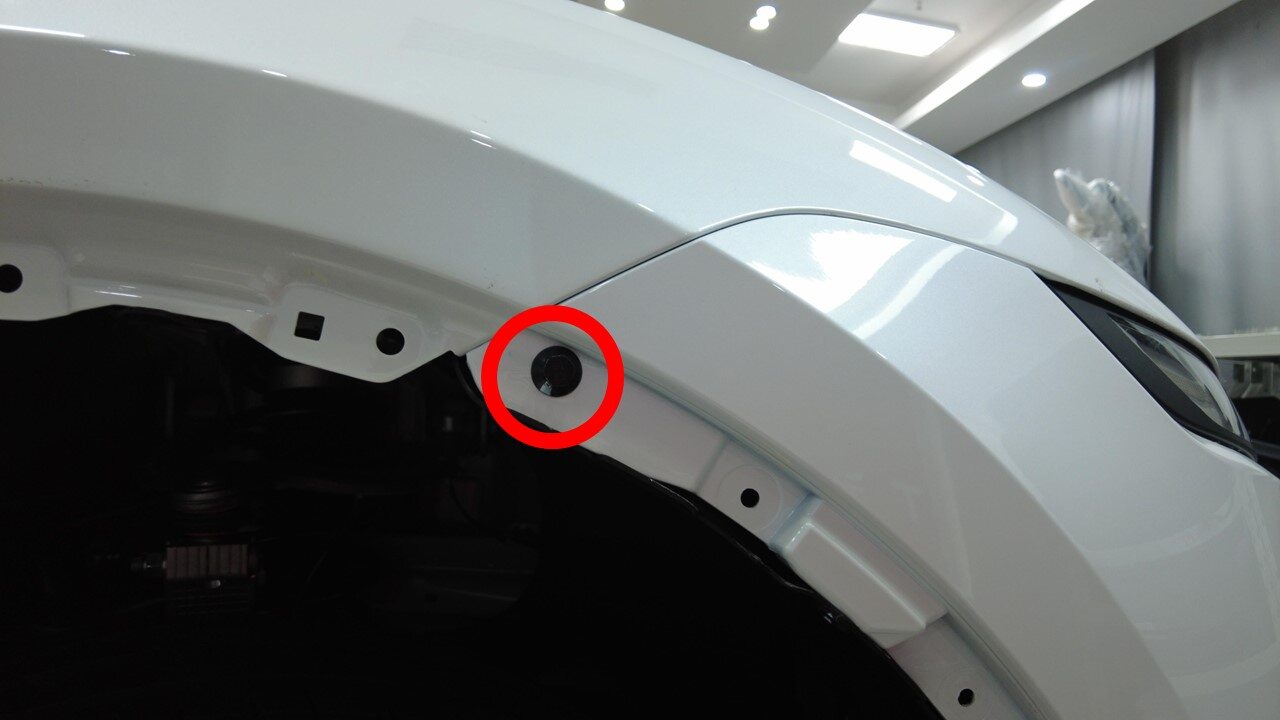

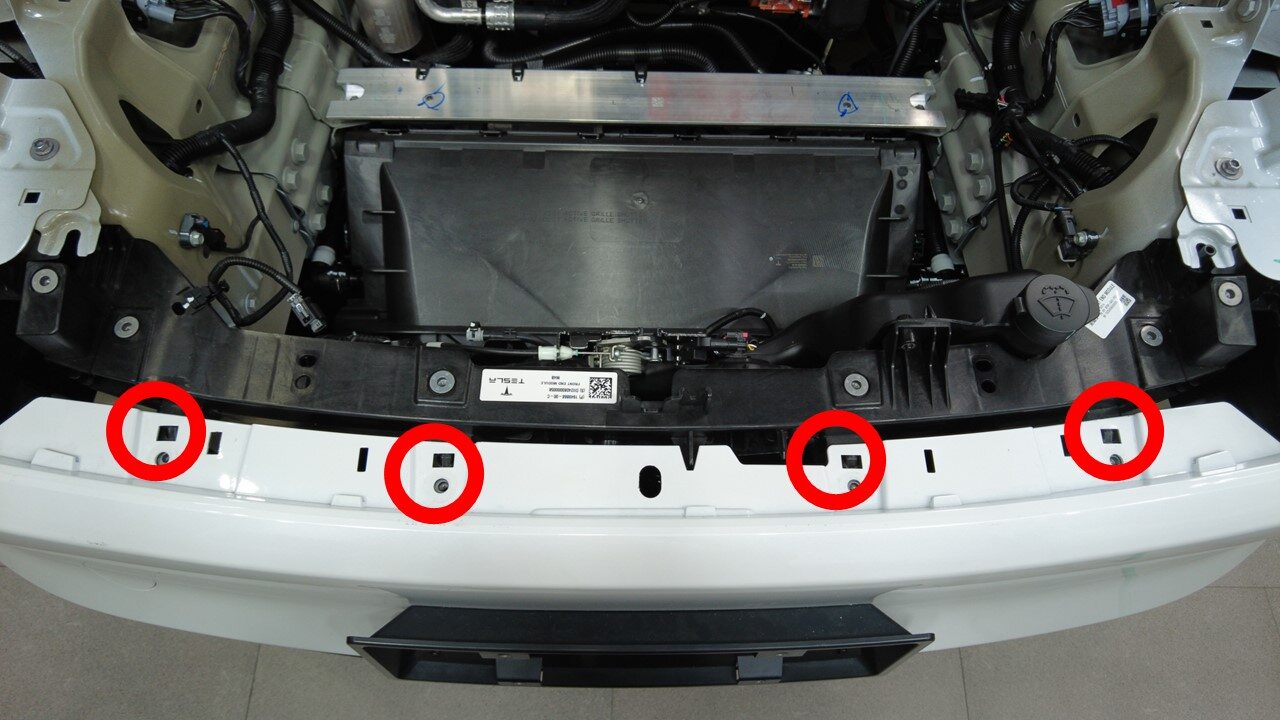

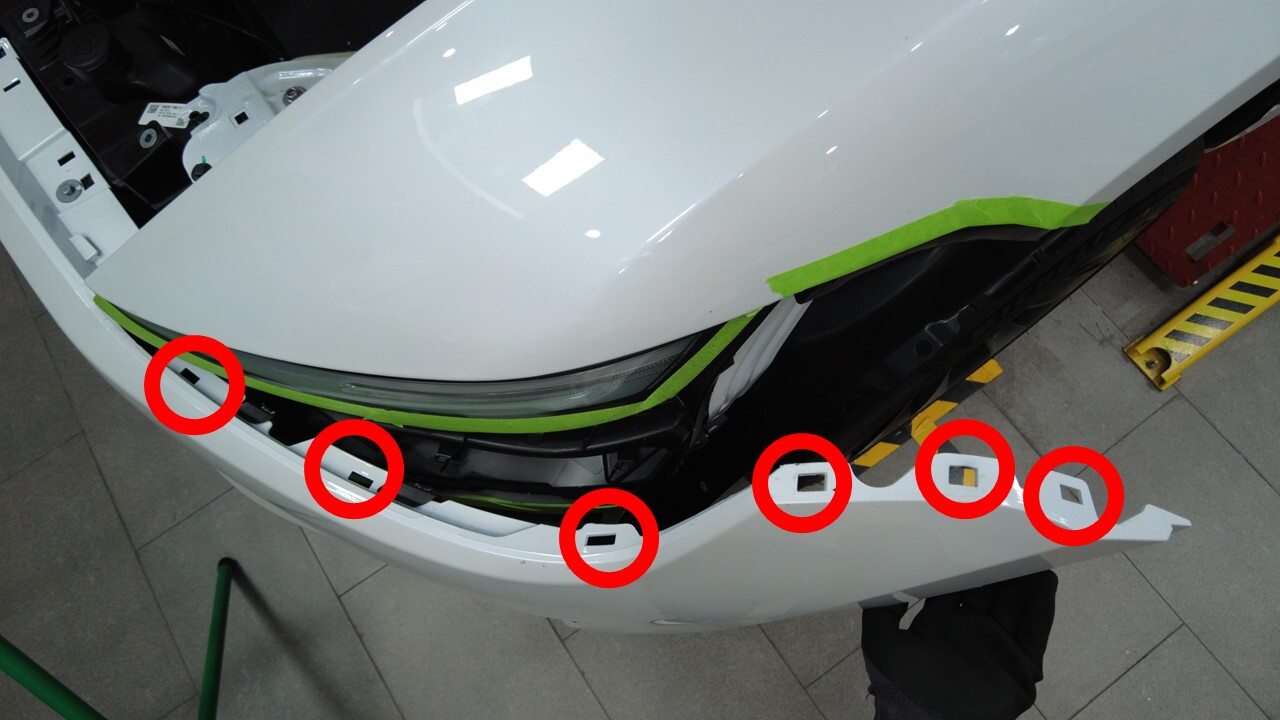

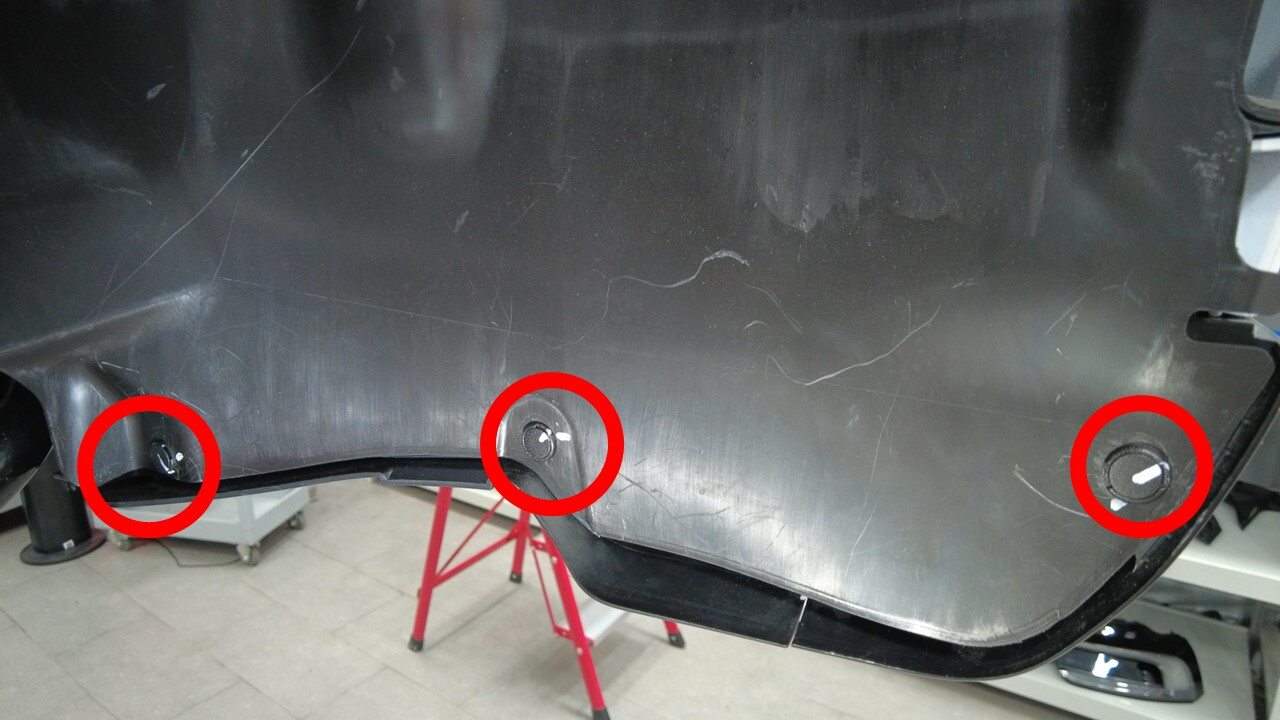

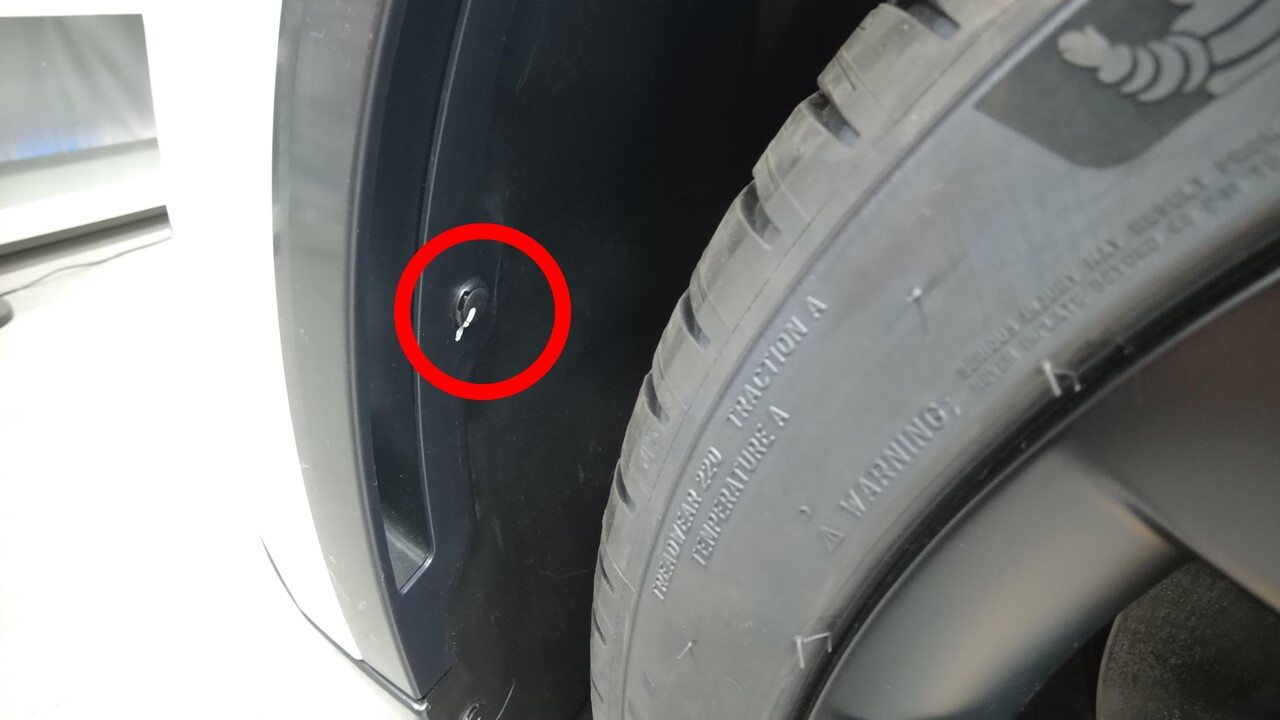

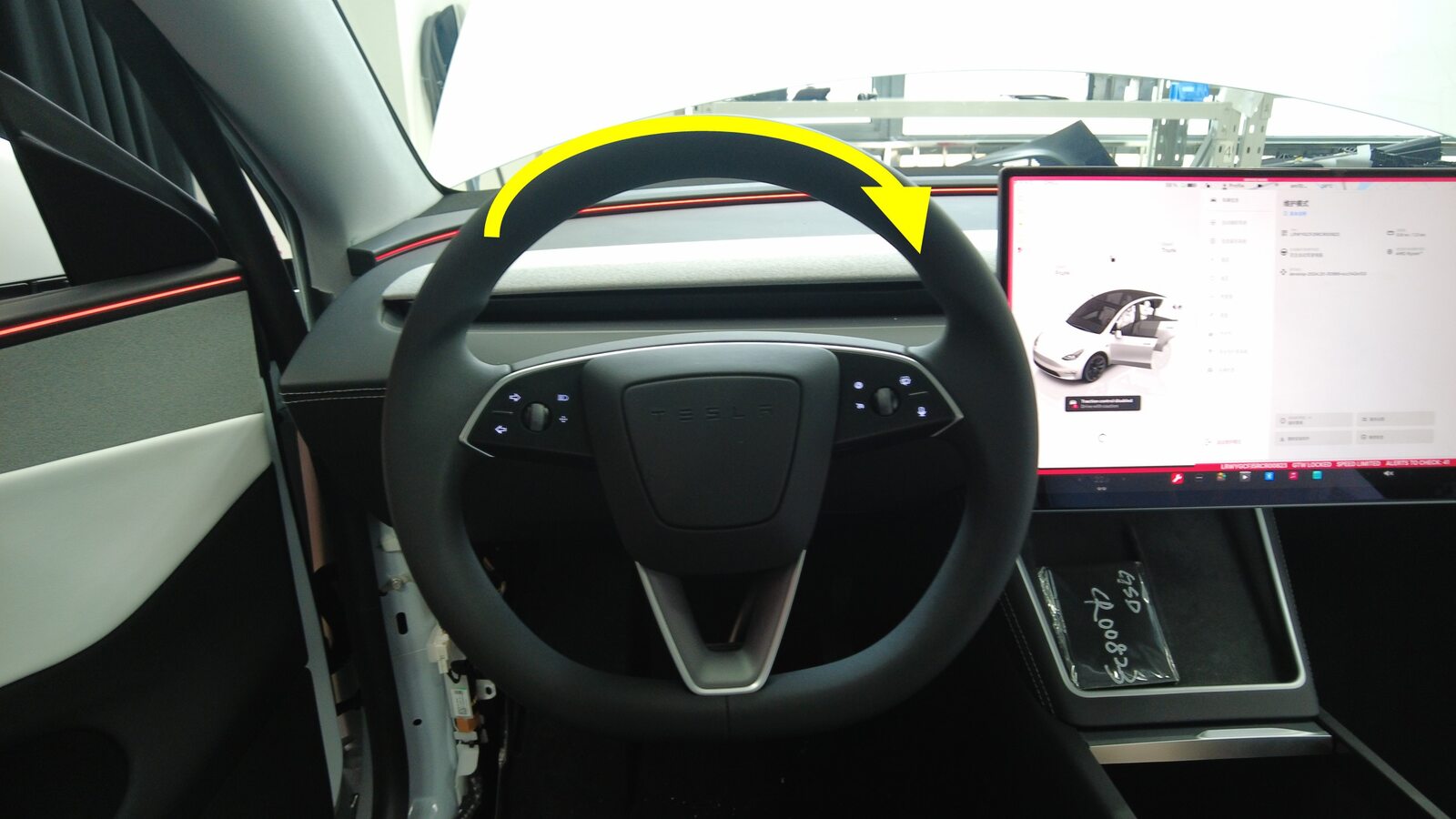

  5. Remove the front fascia. See Front Fascia (Model Y Standard) (Remove and Install).

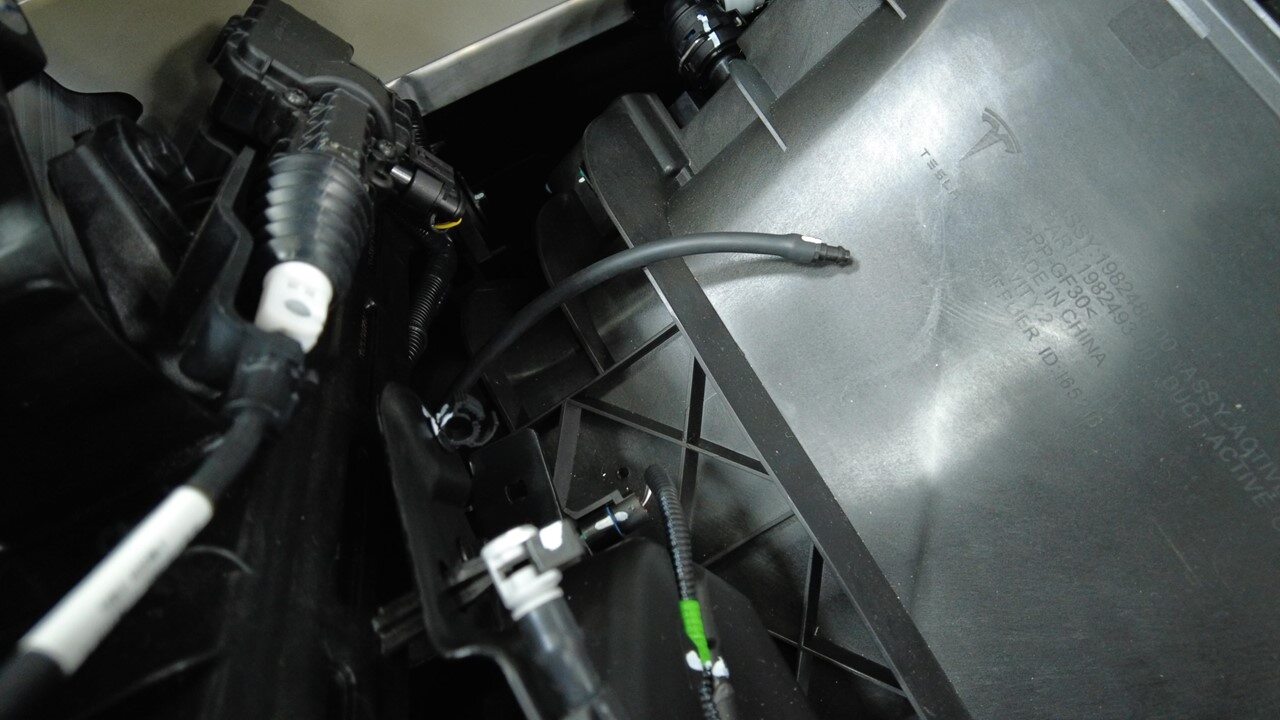

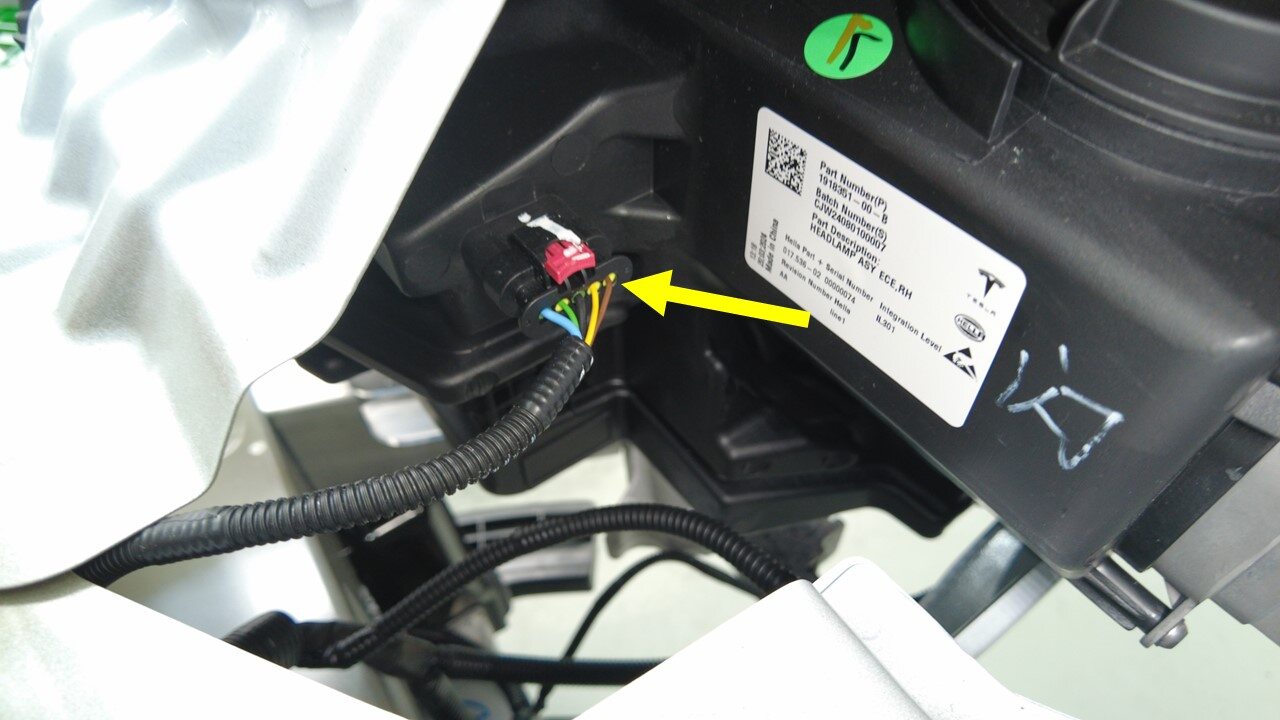

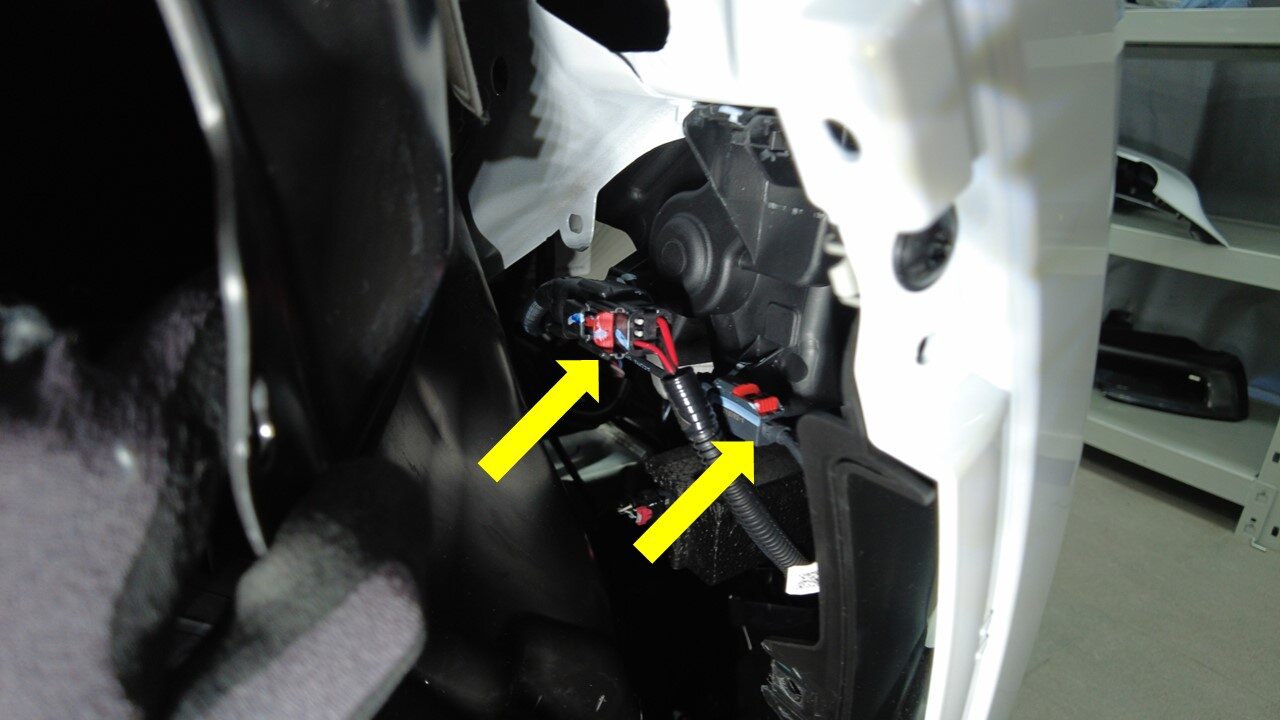

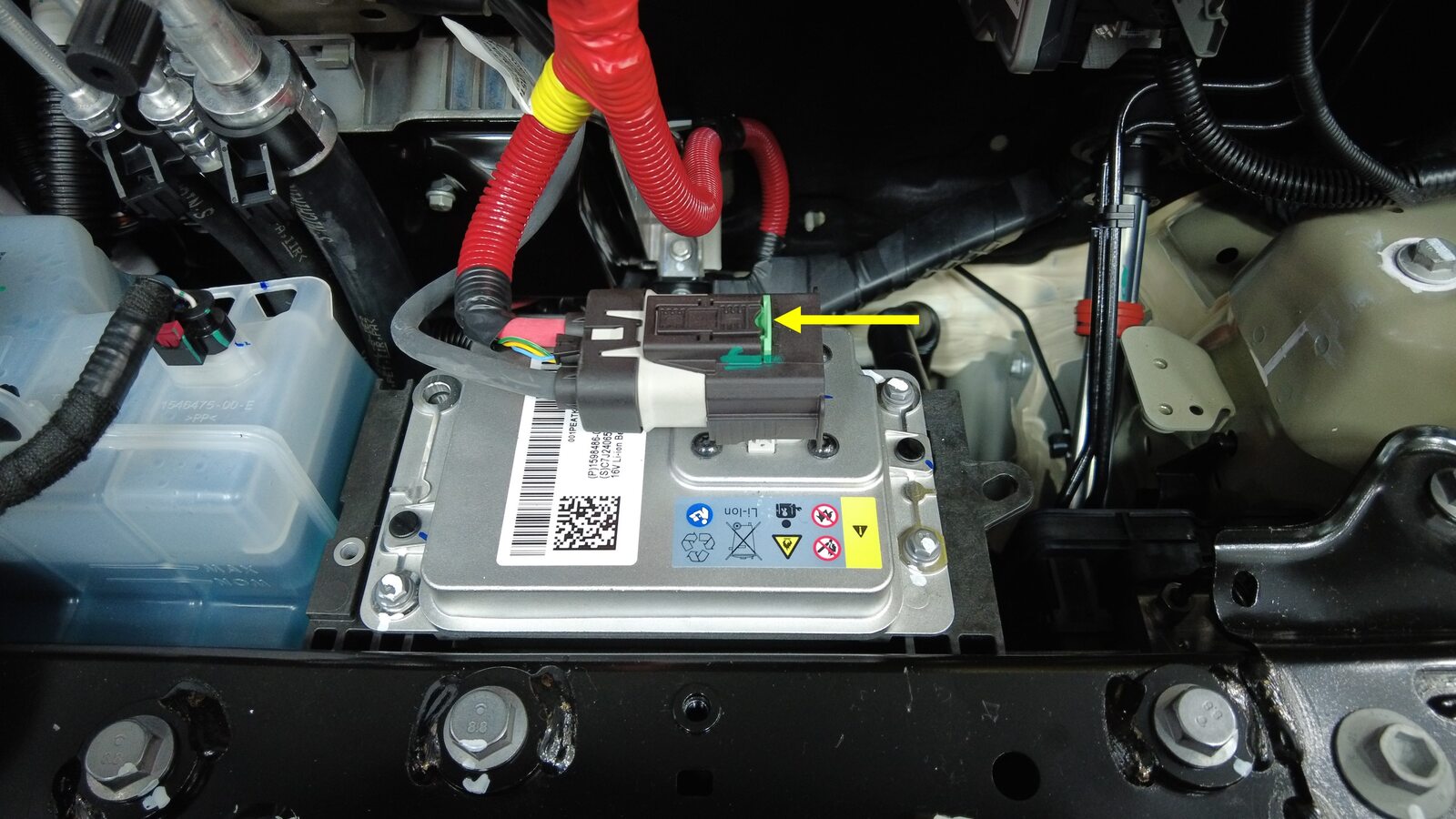

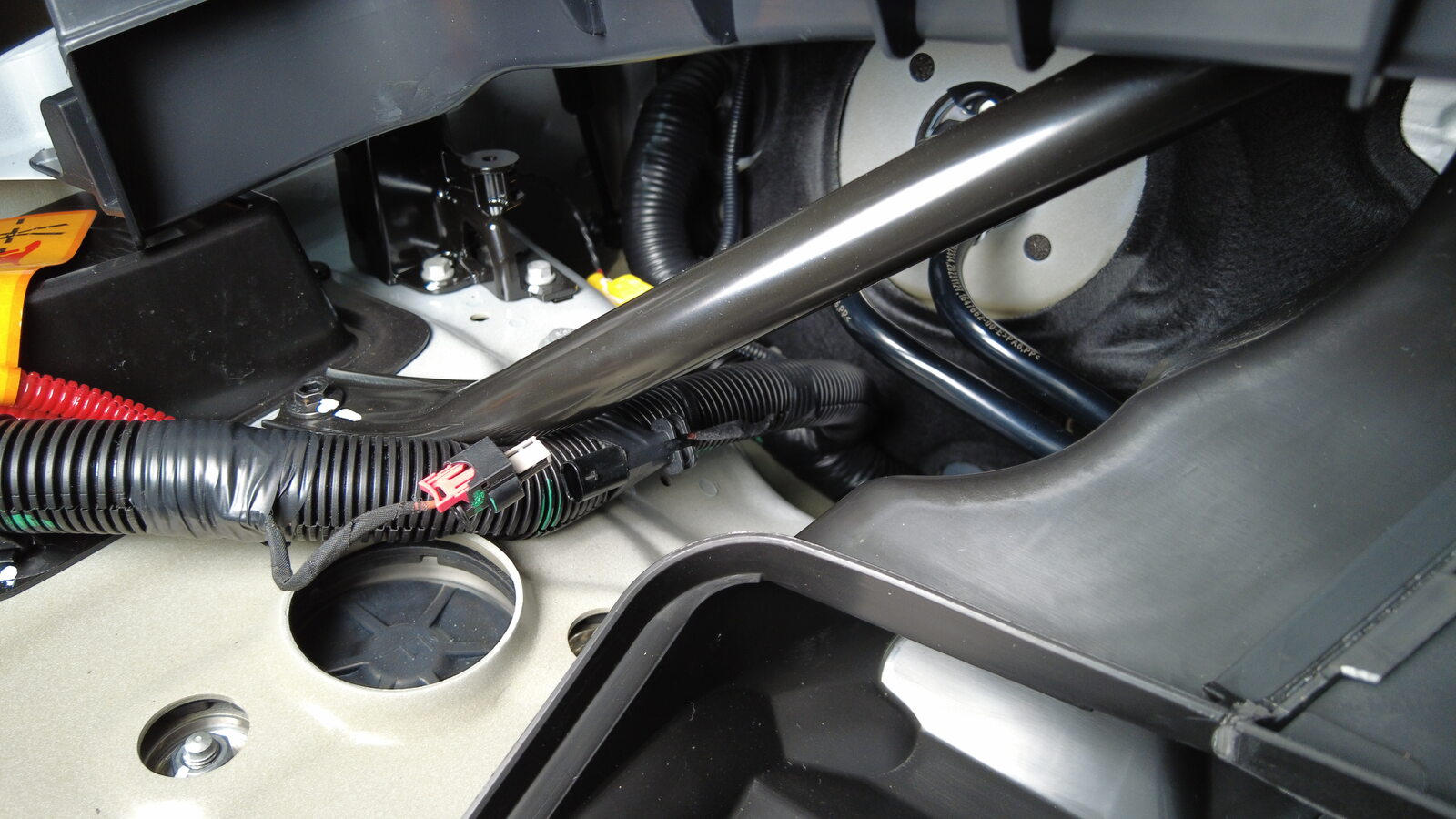

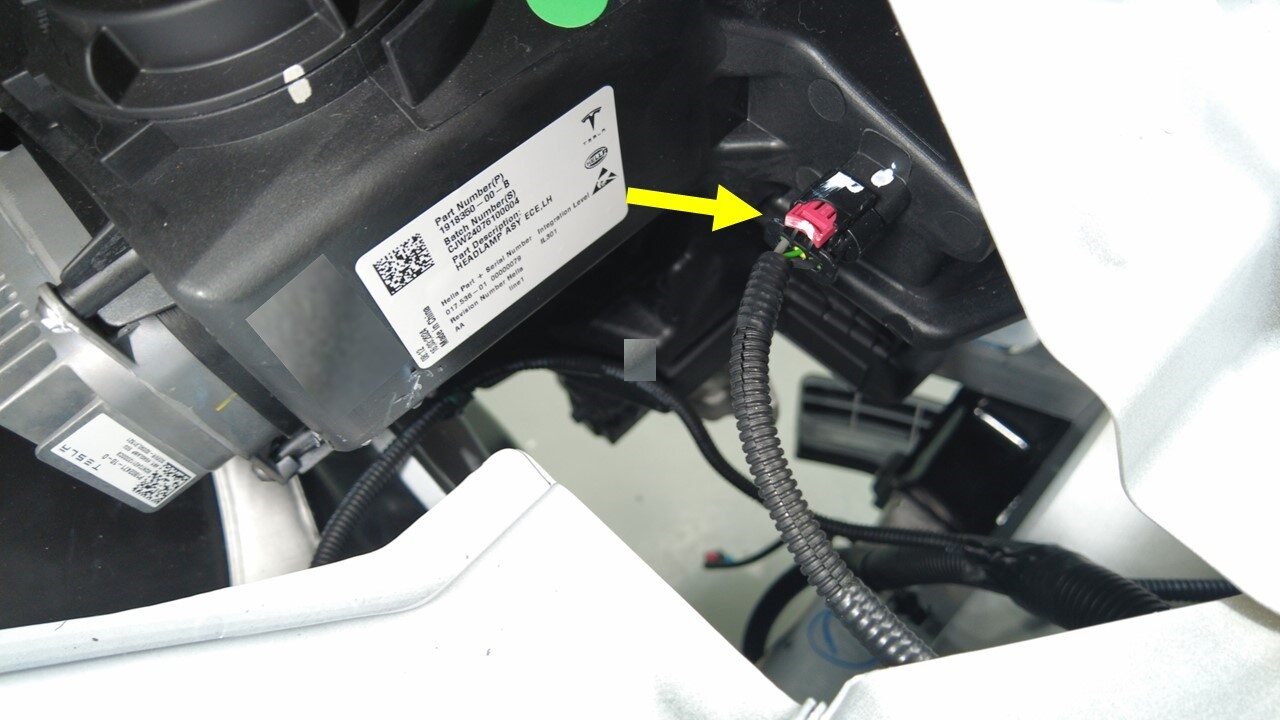

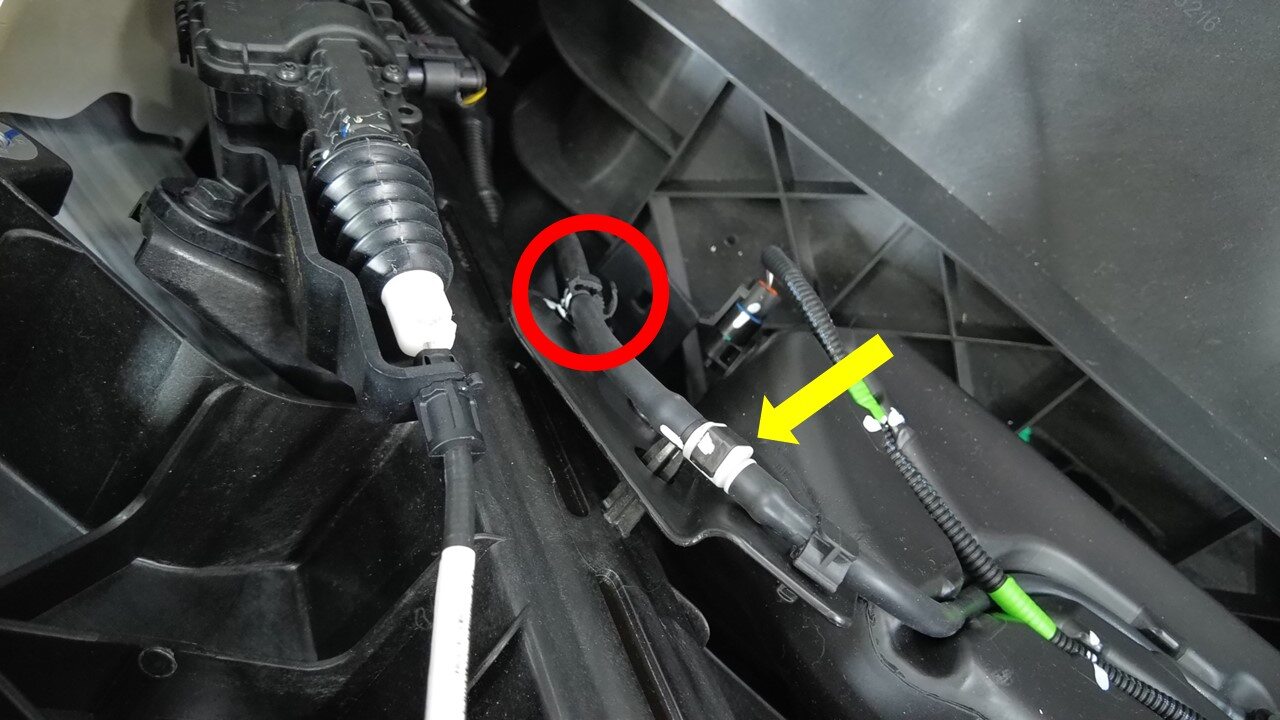

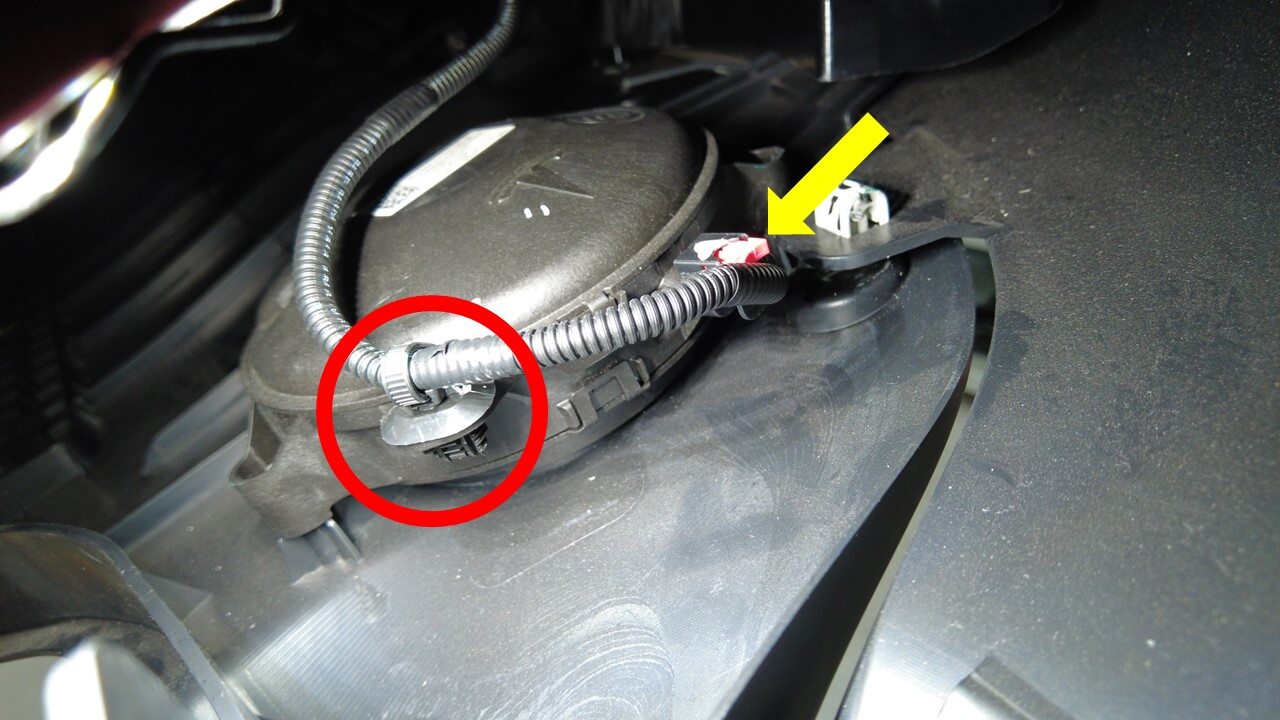

  6. Disconnect the LH headlight connector.

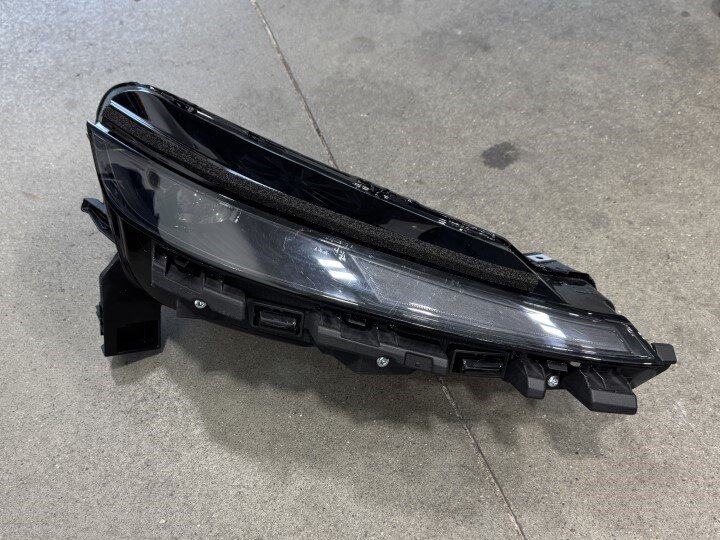

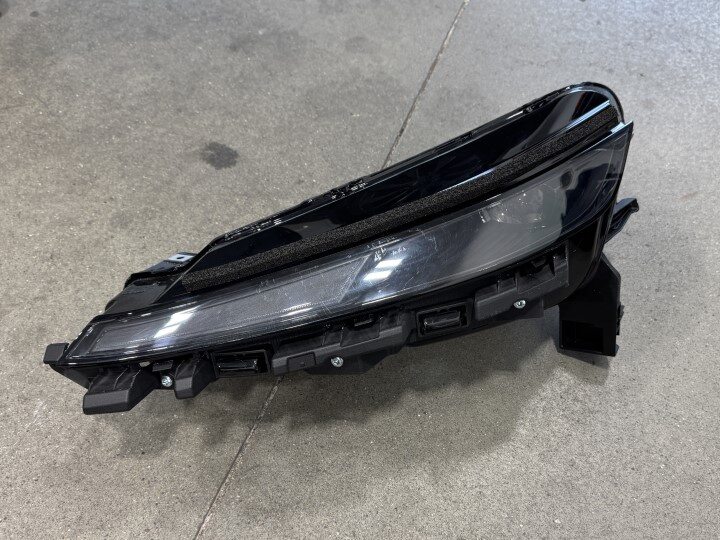

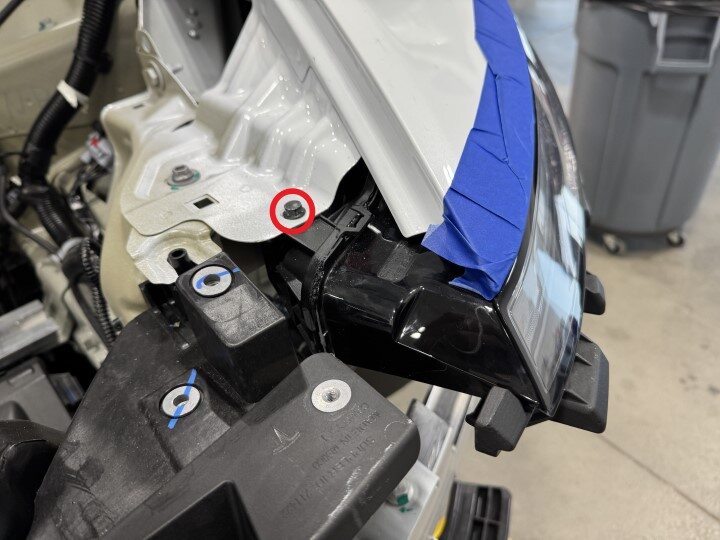

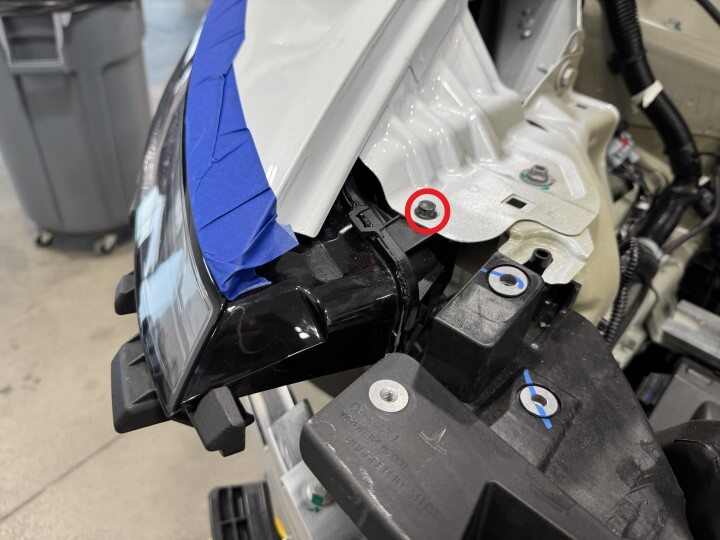

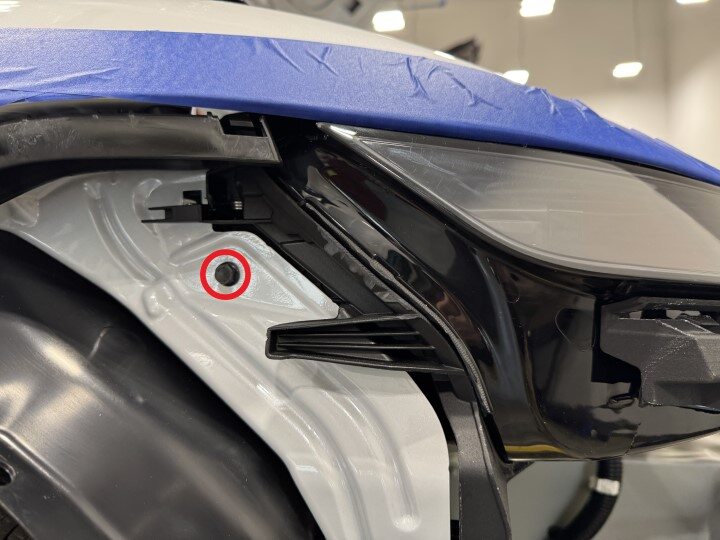

  7. Remove the LH headlight assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

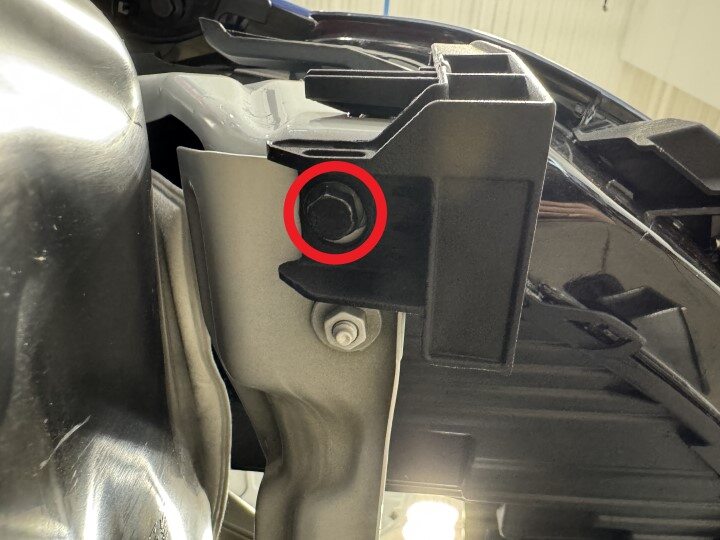

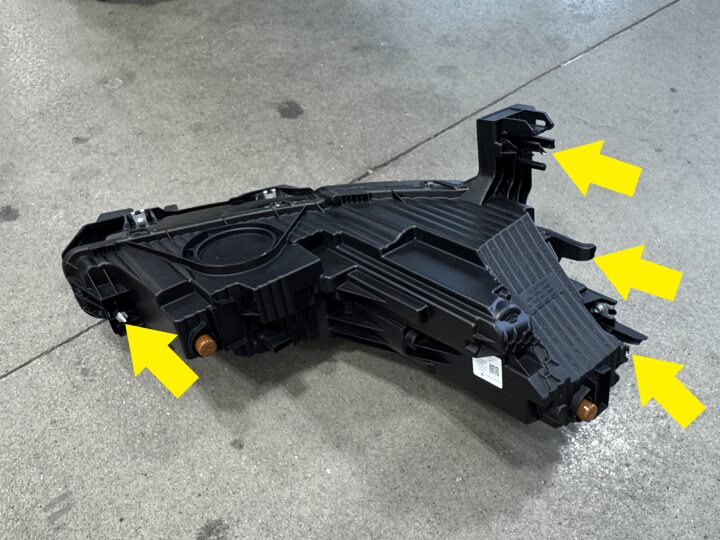

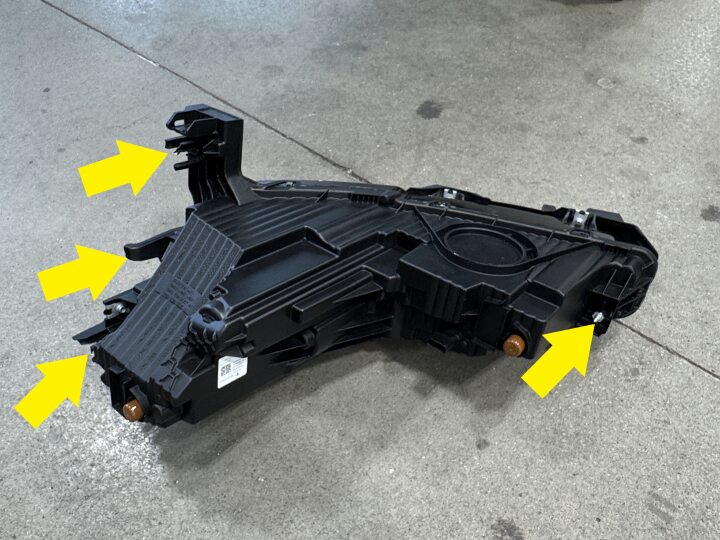

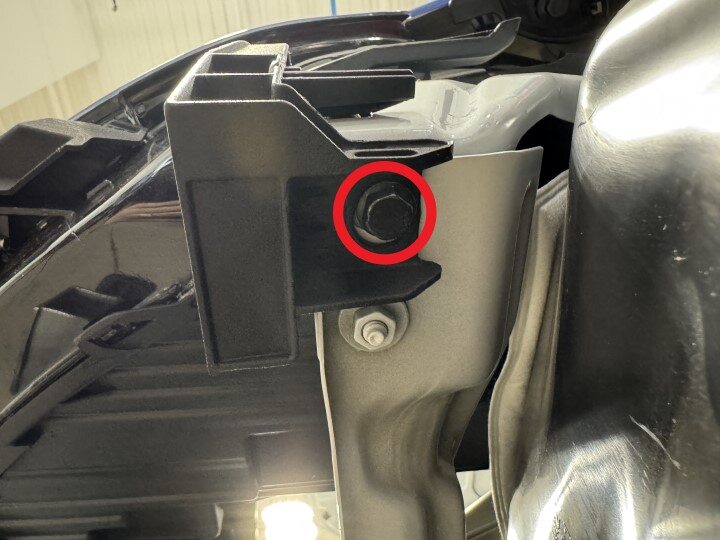

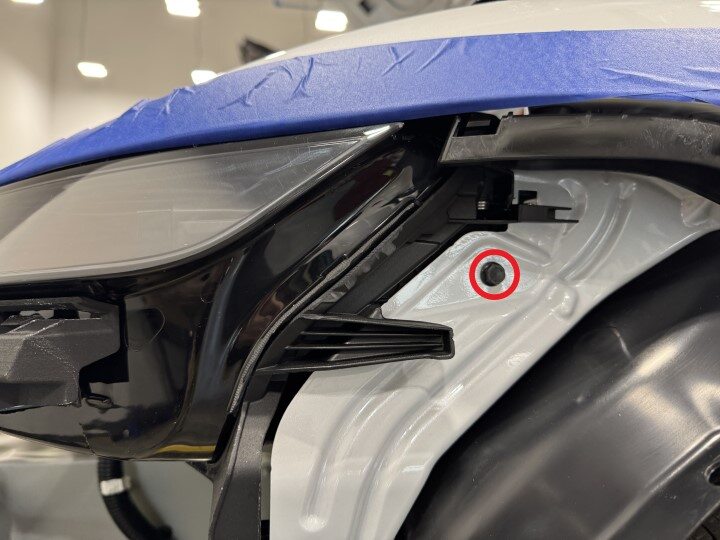

    1x alignment stud, 2x clips, 1x datum, 3x bolts, 10mm, 4 Nm. Remove fasteners, and then firmly push the light forward to release.
  8. Disconnect the RH headlight connector.
  9. Remove the RH headlight.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x alignment stud, 2x clips, 1x datum, 3x bolts, 10mm, 4 Nm. Remove fasteners, and then firmly push the light forward to release.

Install

  1. Install the RH headlight.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x alignment stud, 2x clips, 1x datum, 3x bolts, 10mm, 4 Nm. Make sure that the clips and datums are fully engaged before installing the bolts.
  2. Connect the RH headlight connector.
  3. Install the LH headlight.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x alignment stud, 2x clips, 1x datum, 3x bolts, 10mm, 4 Nm. Make sure that the clips and datums are fully engaged before installing the bolts.
  4. Connect the LH headlight connector.

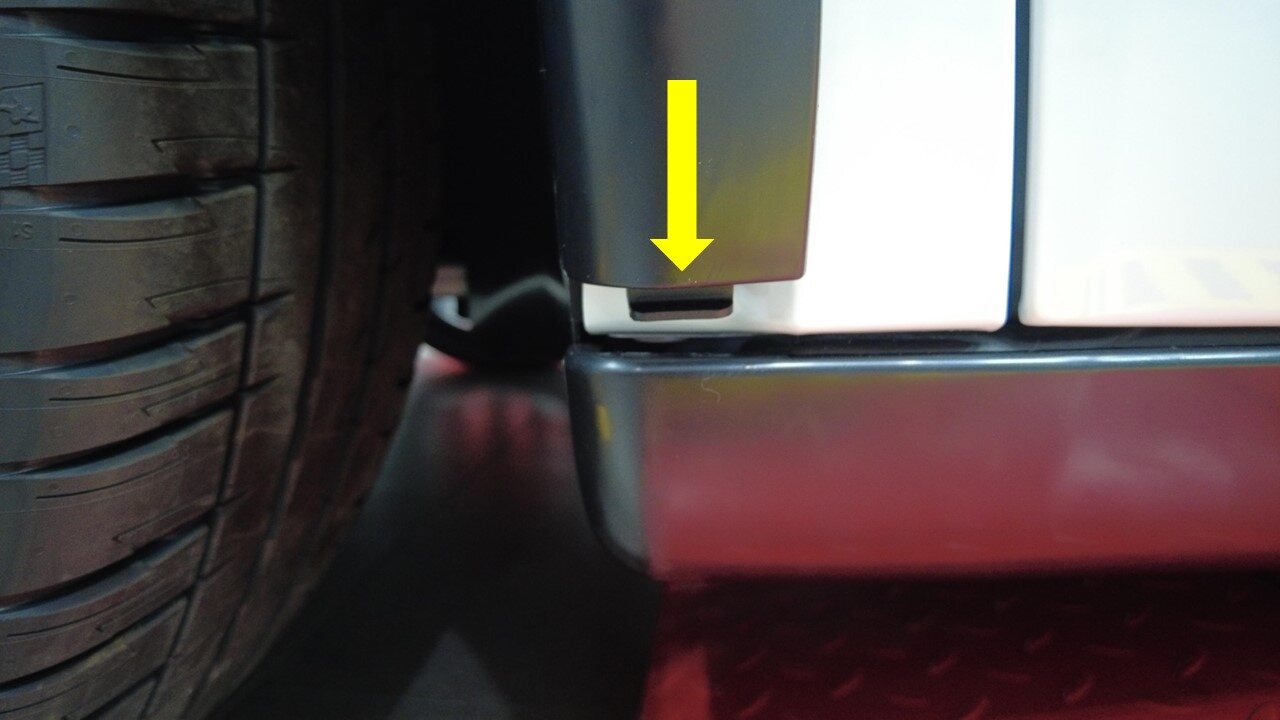

  5. Install the front fascia. See Front Fascia (Model Y Standard) (Remove and Install).

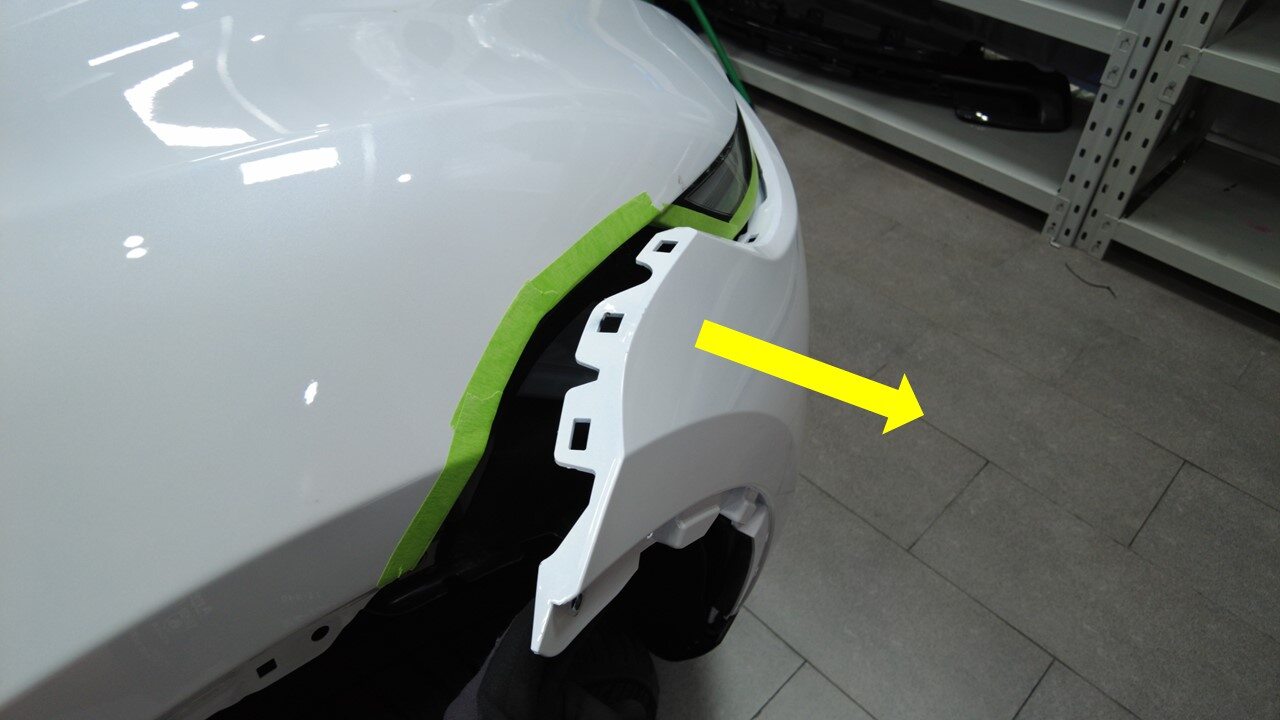

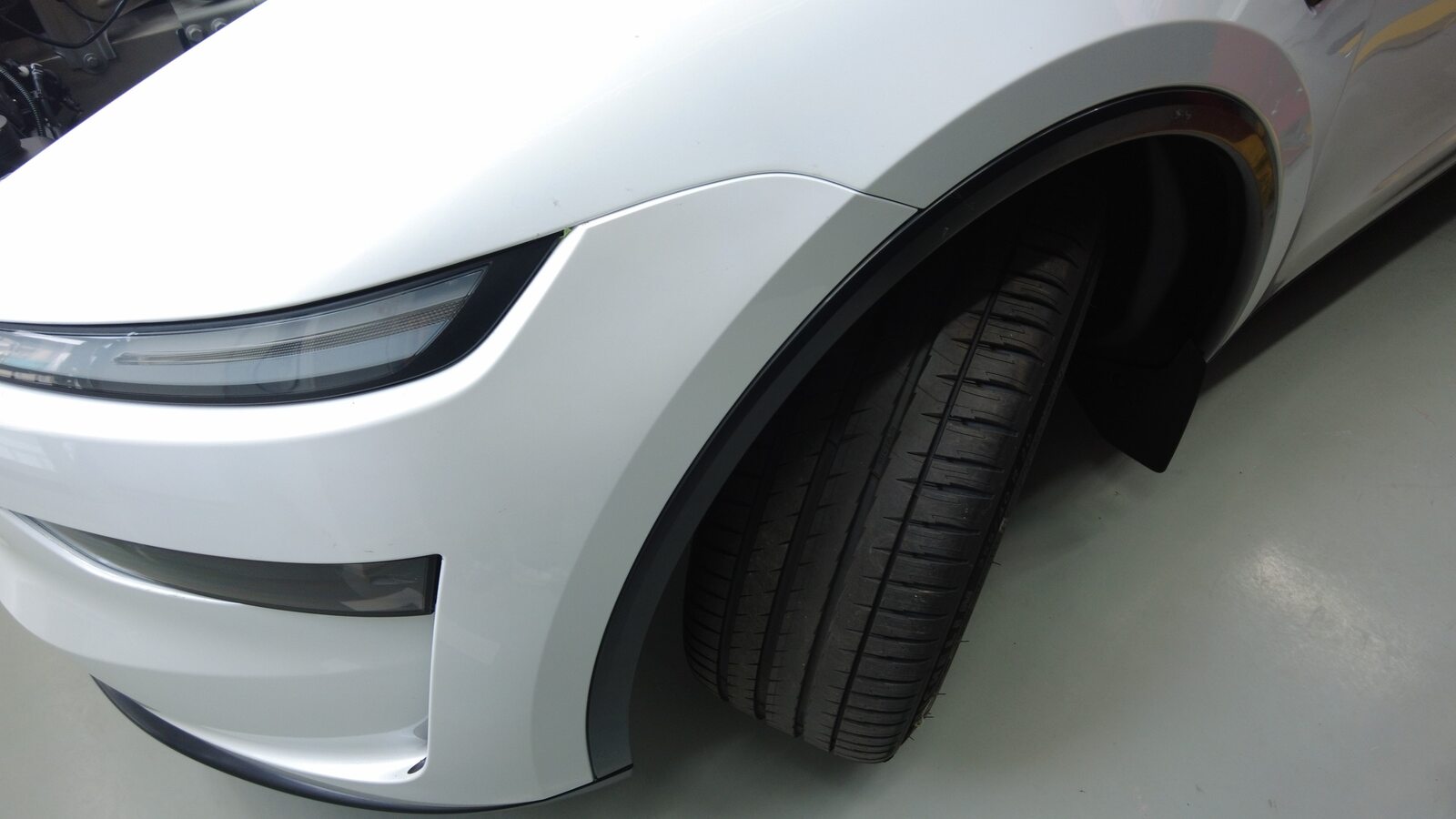

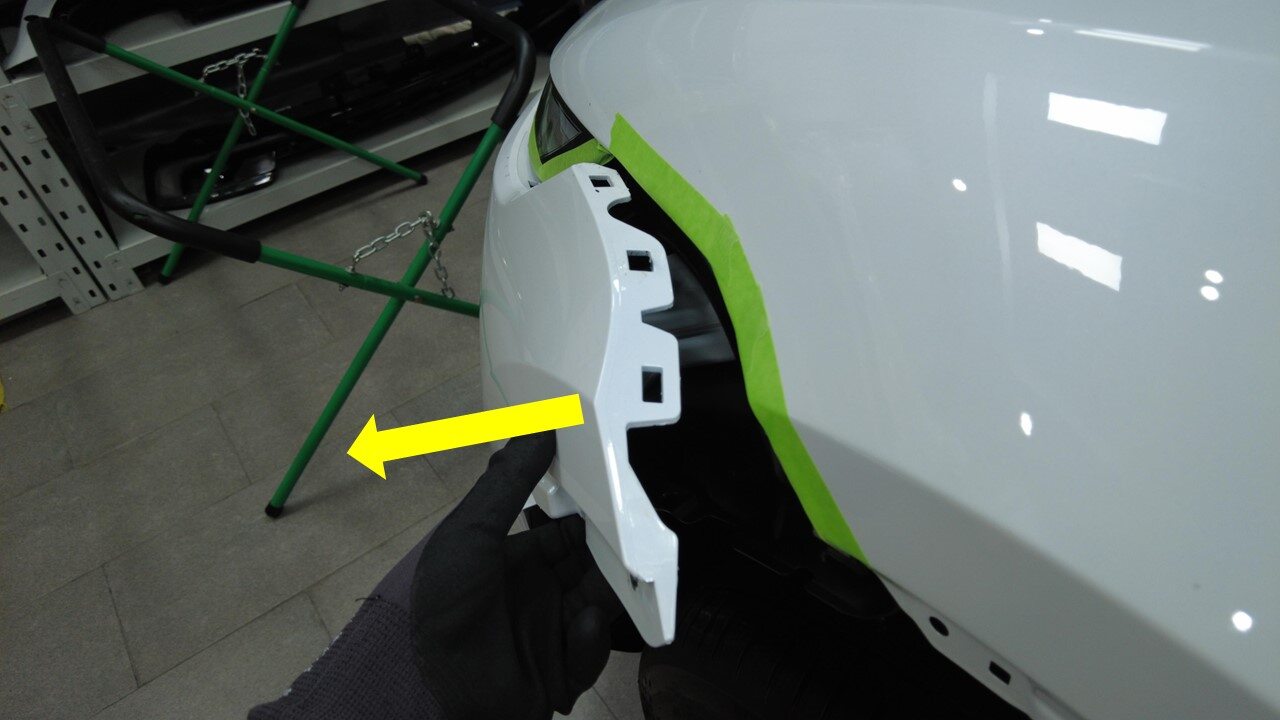

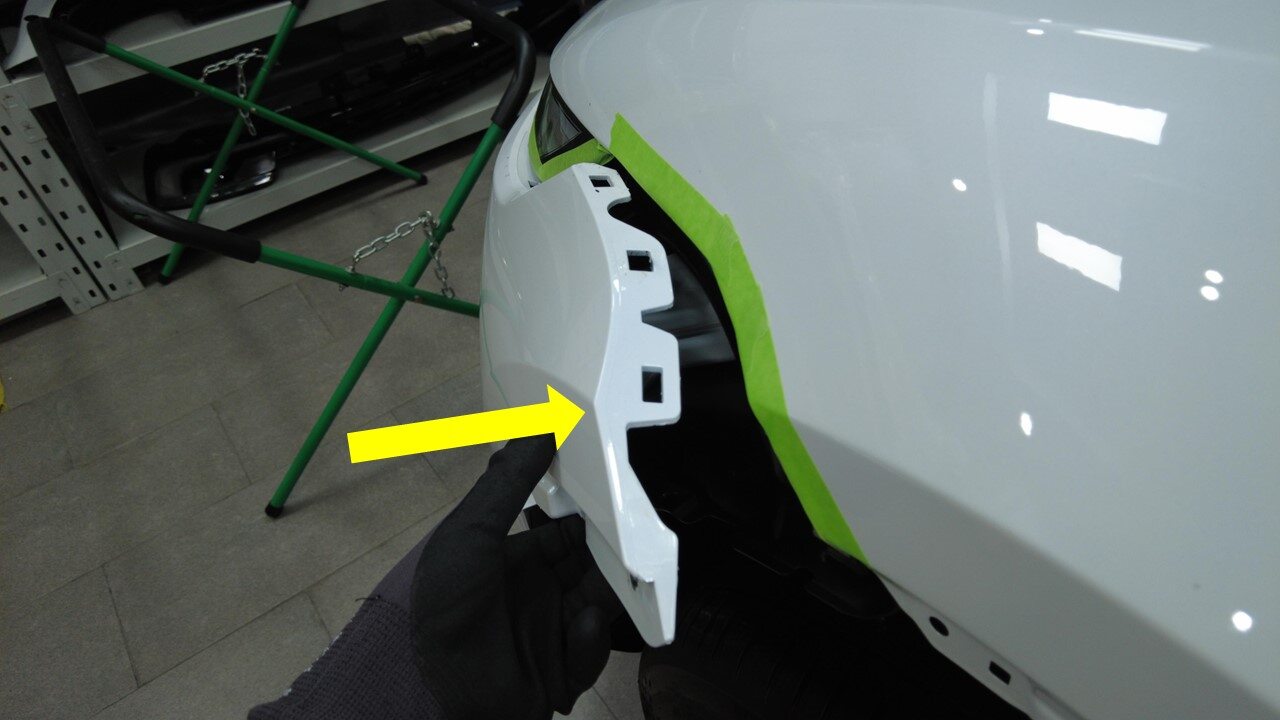

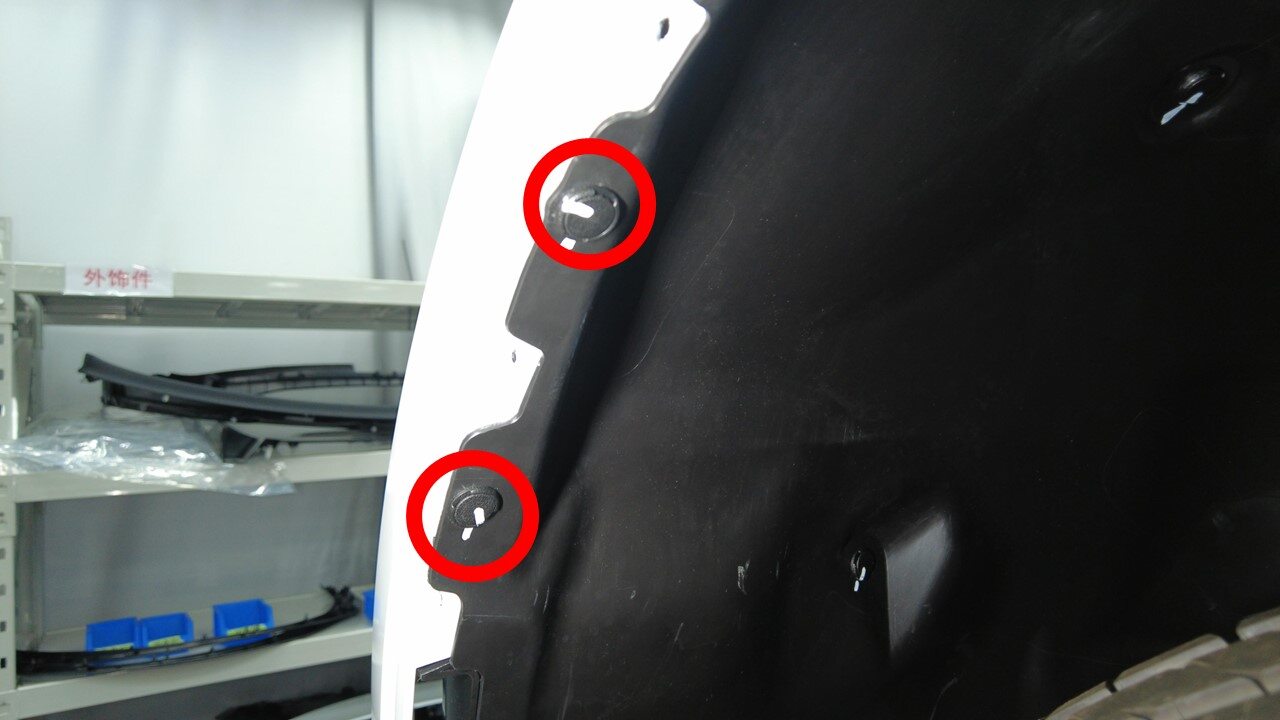

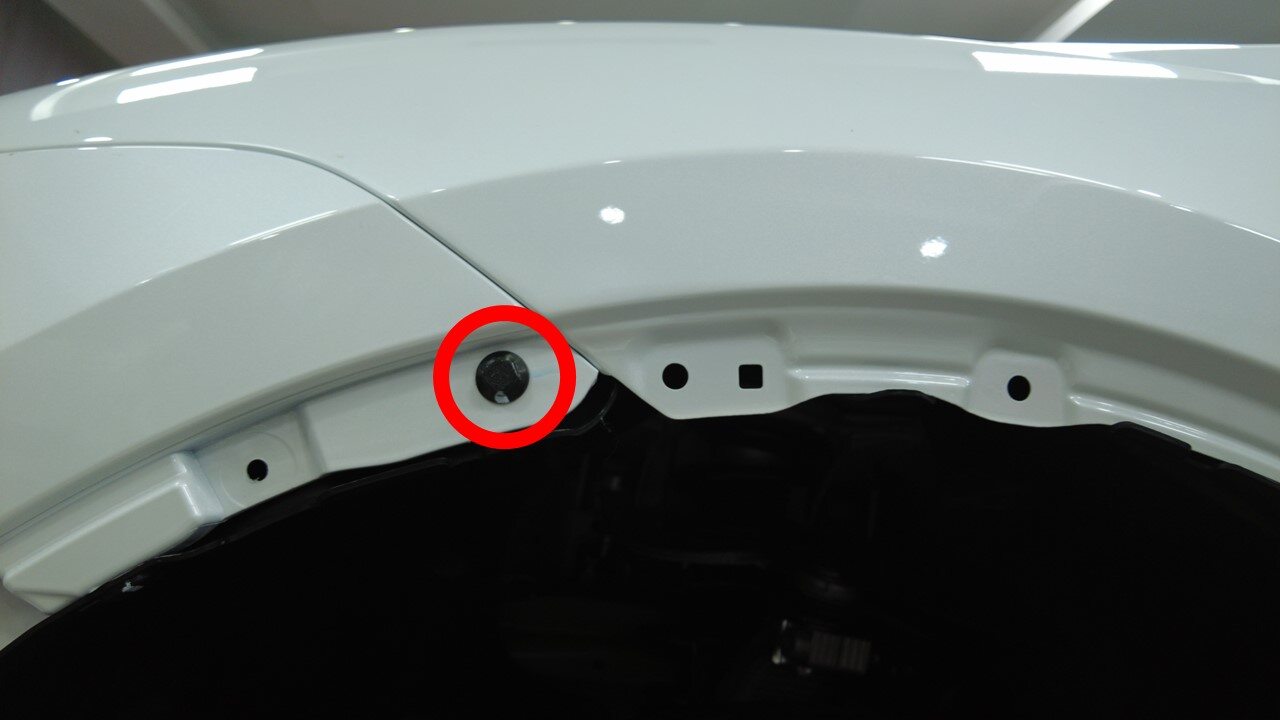

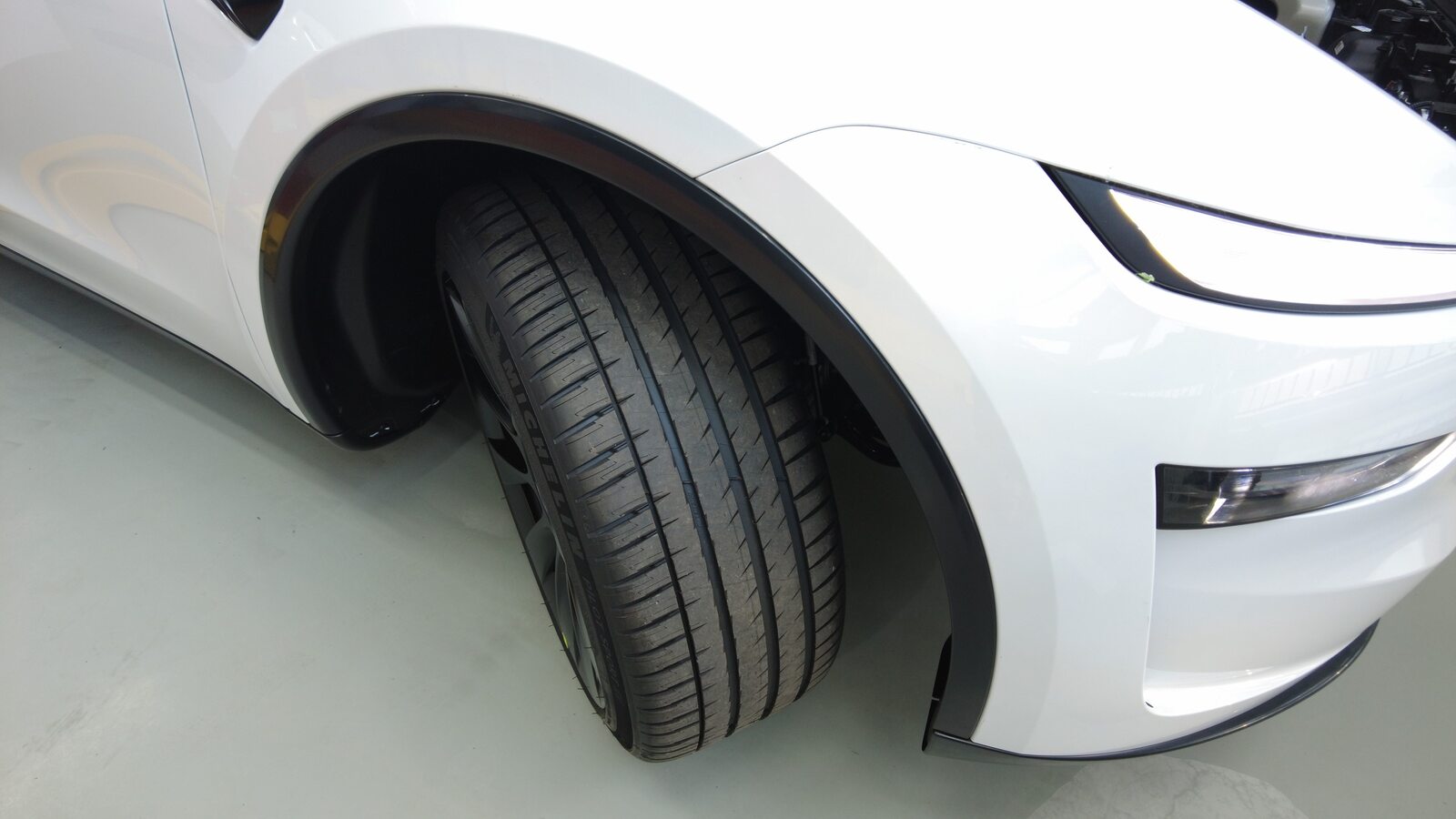

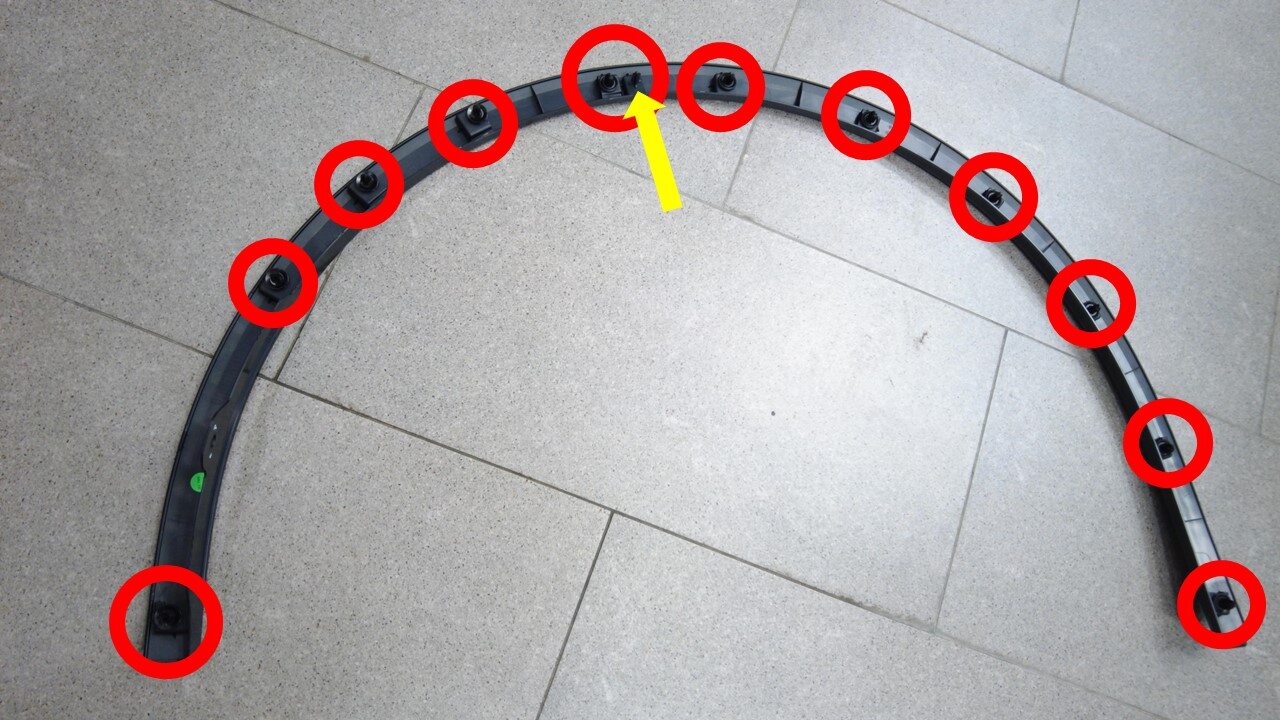

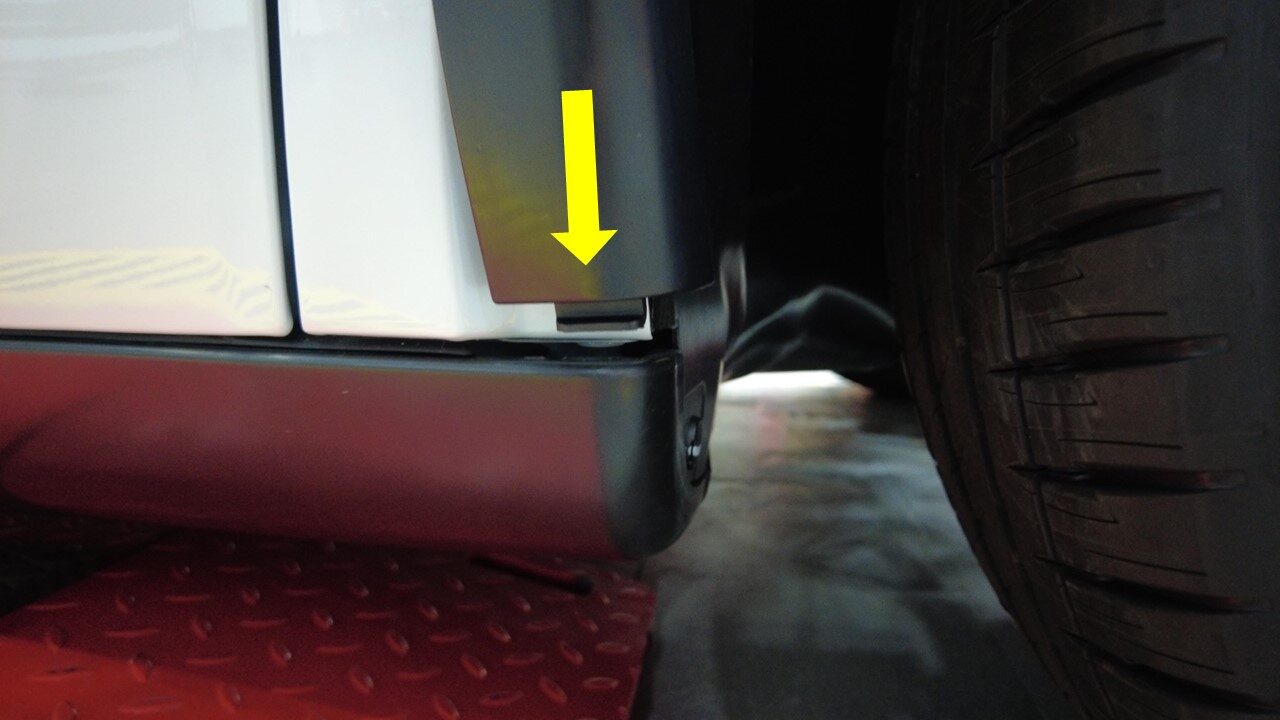

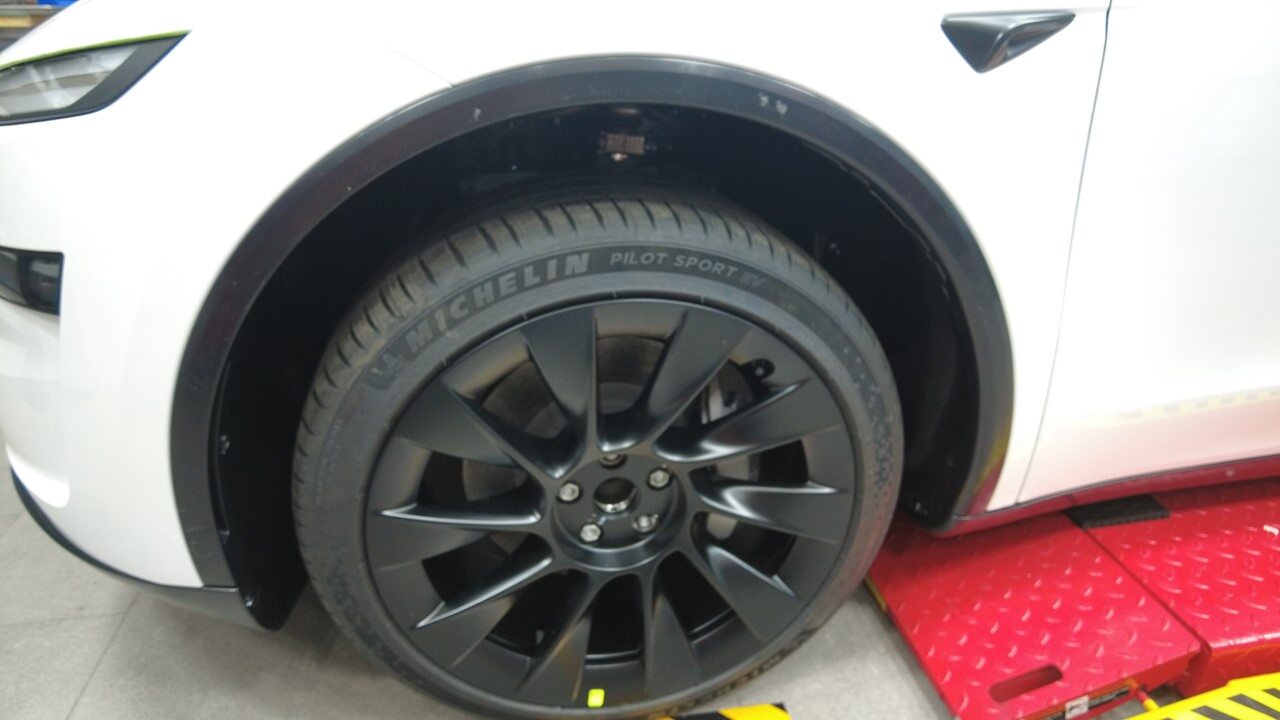

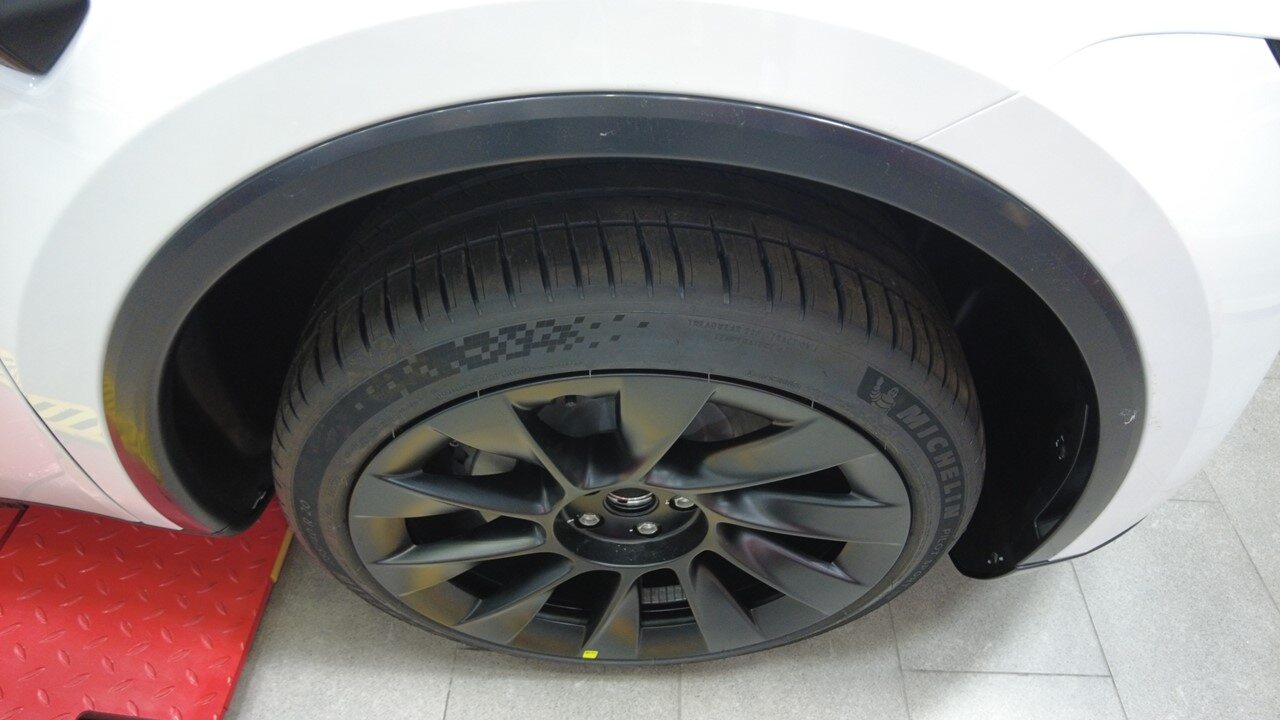

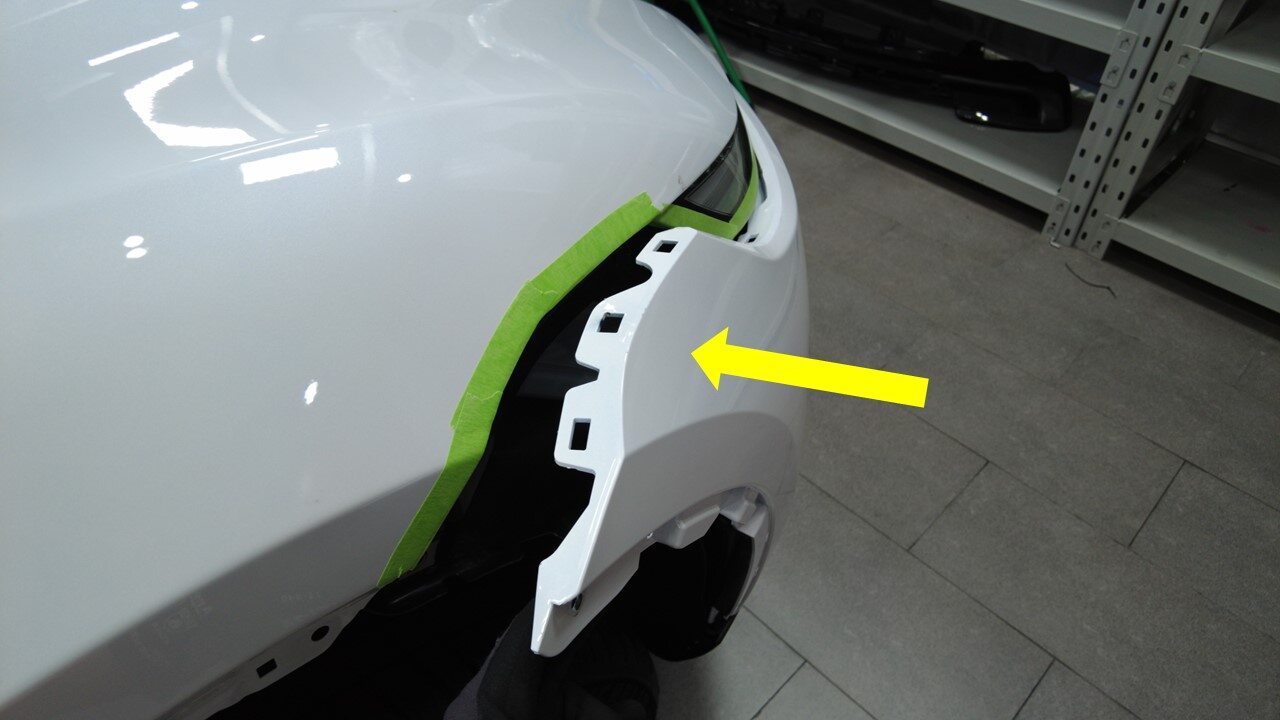

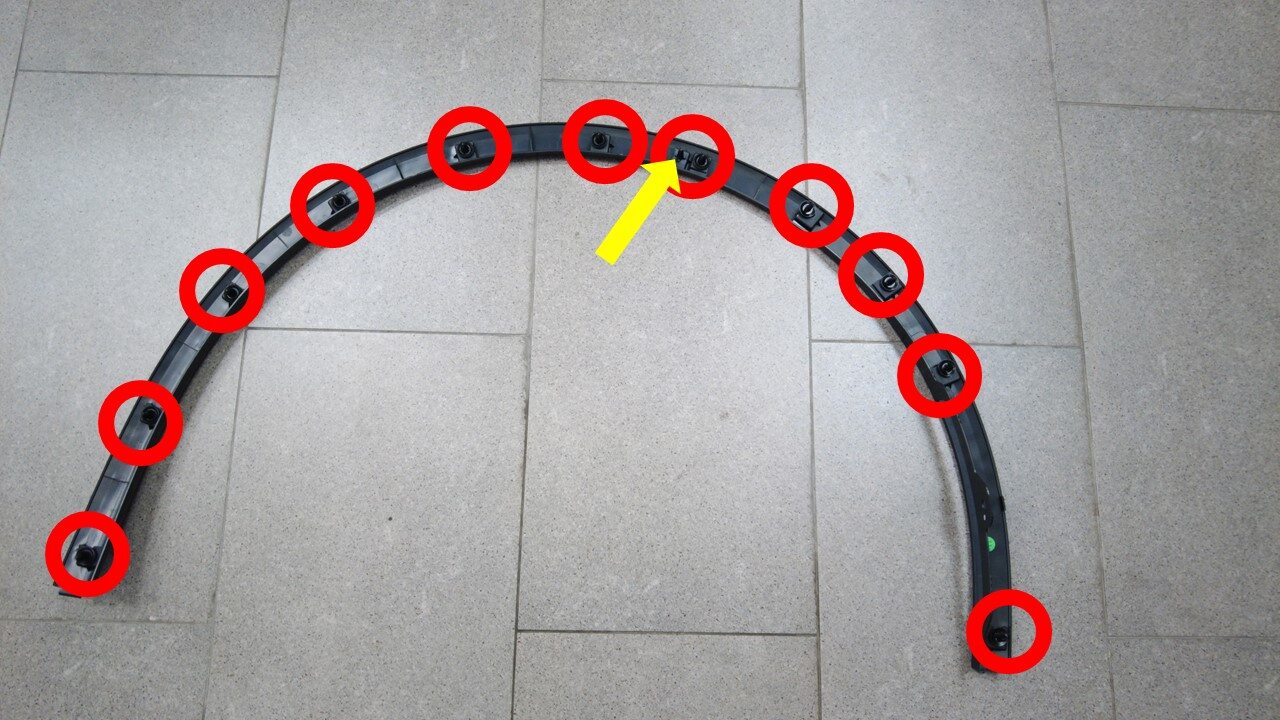

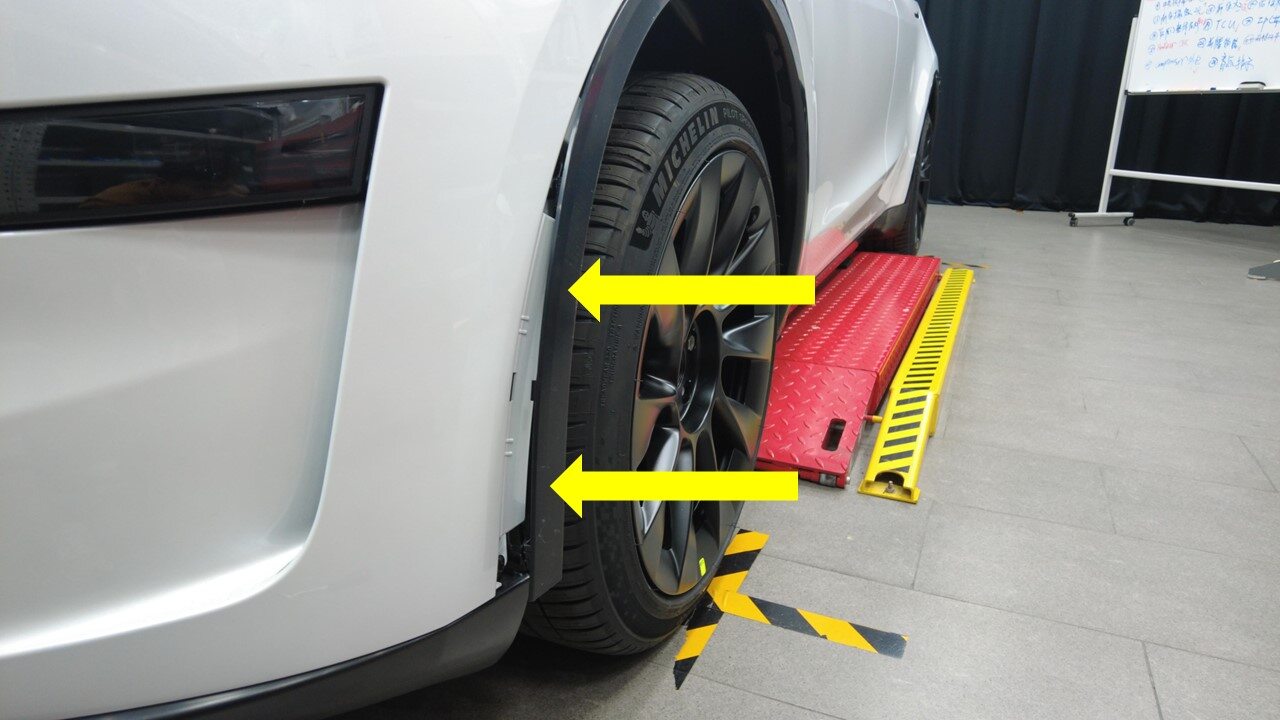

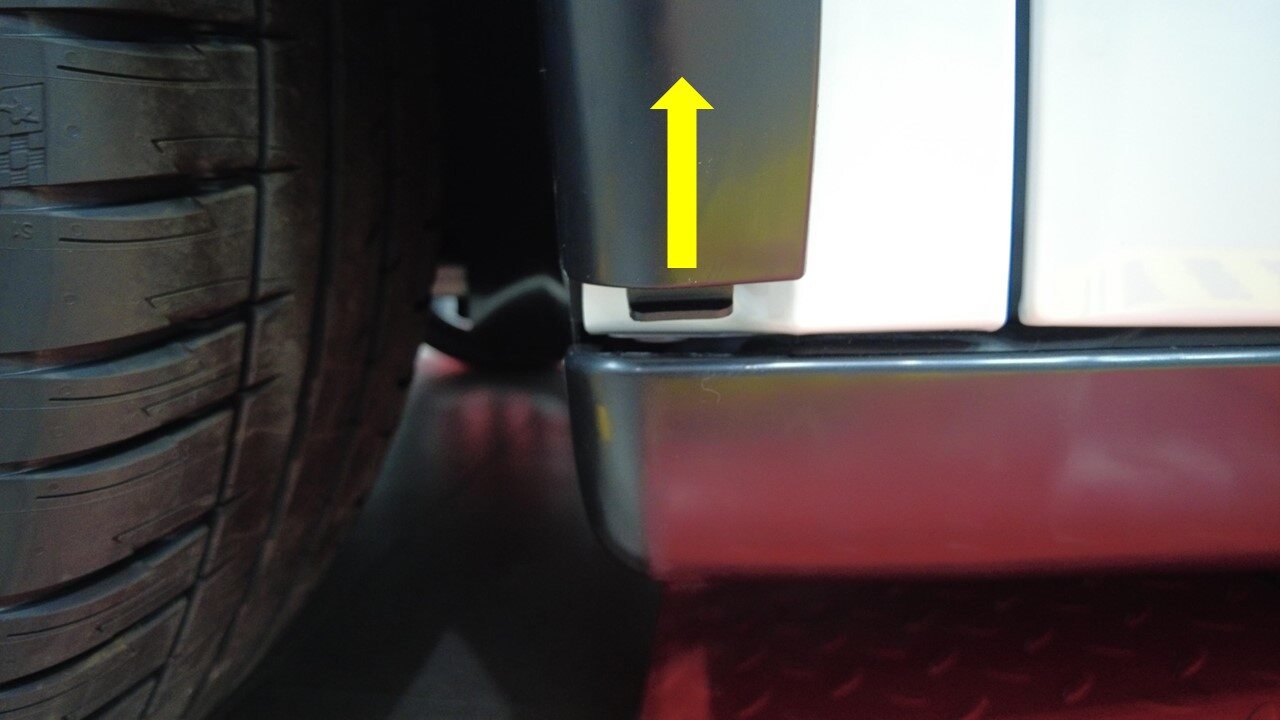

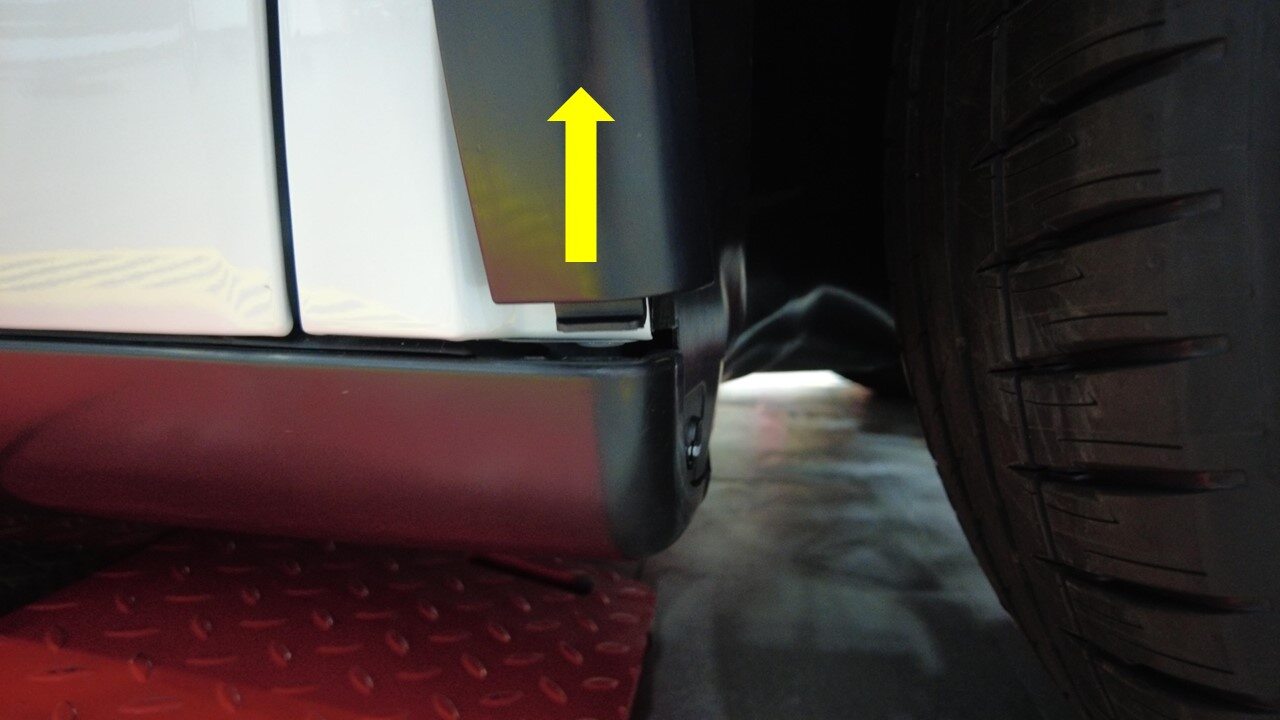

  6. Install the LH and RH front fender garnishes. See Fender Garnish - Front - LH (Remove and Replace) and Fender Garnish - Front - RH (Remove and Replace).

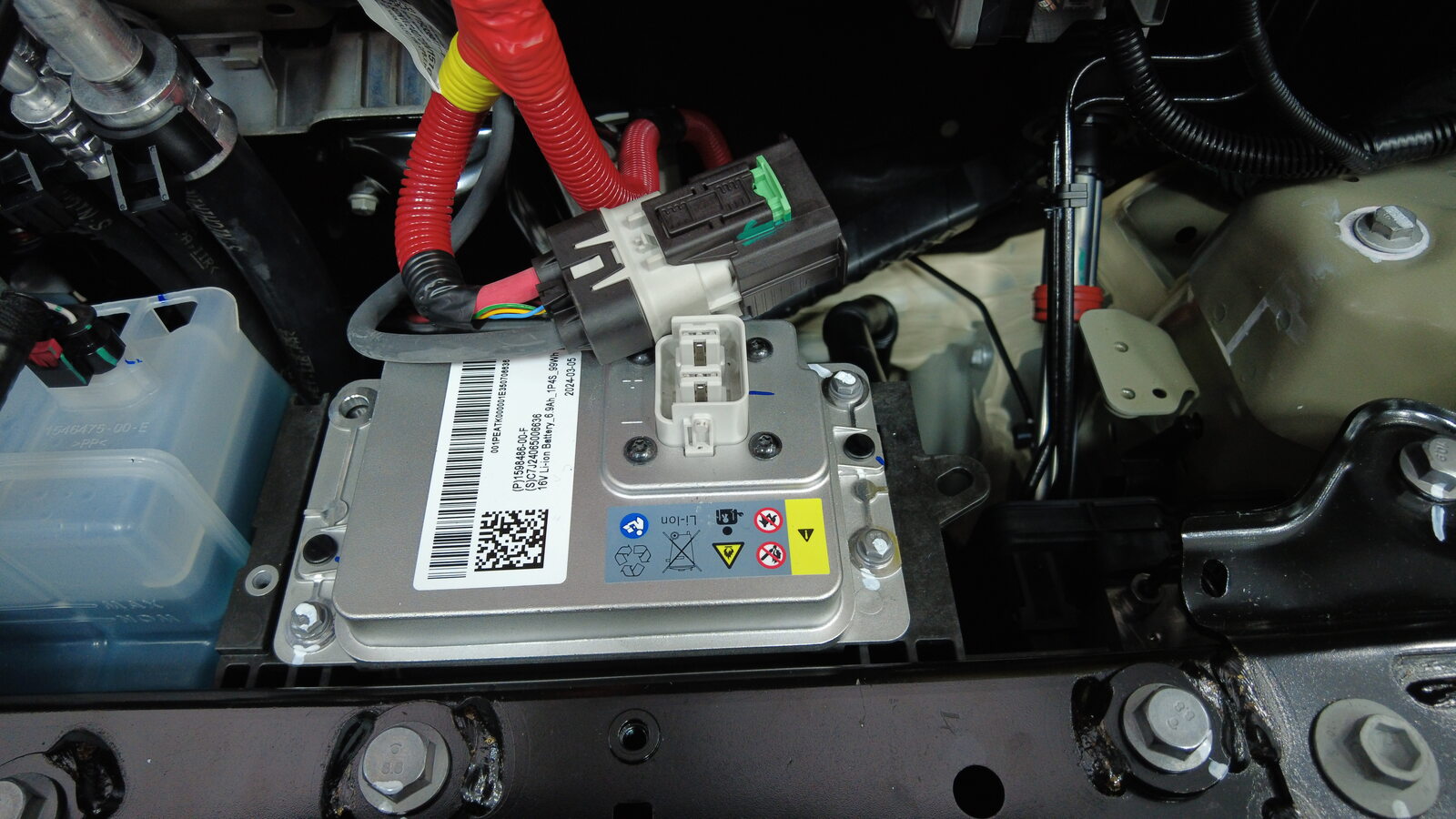

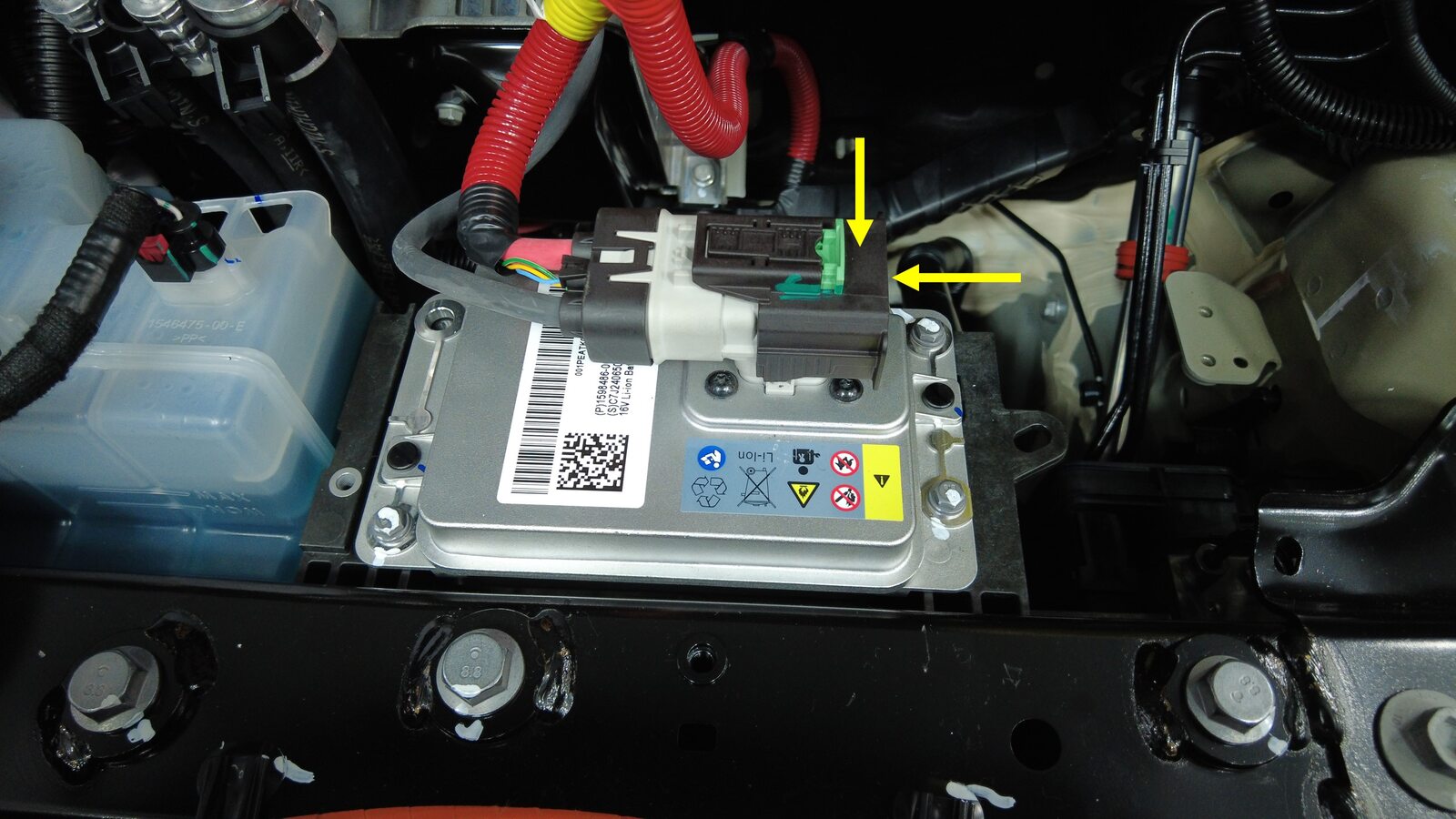

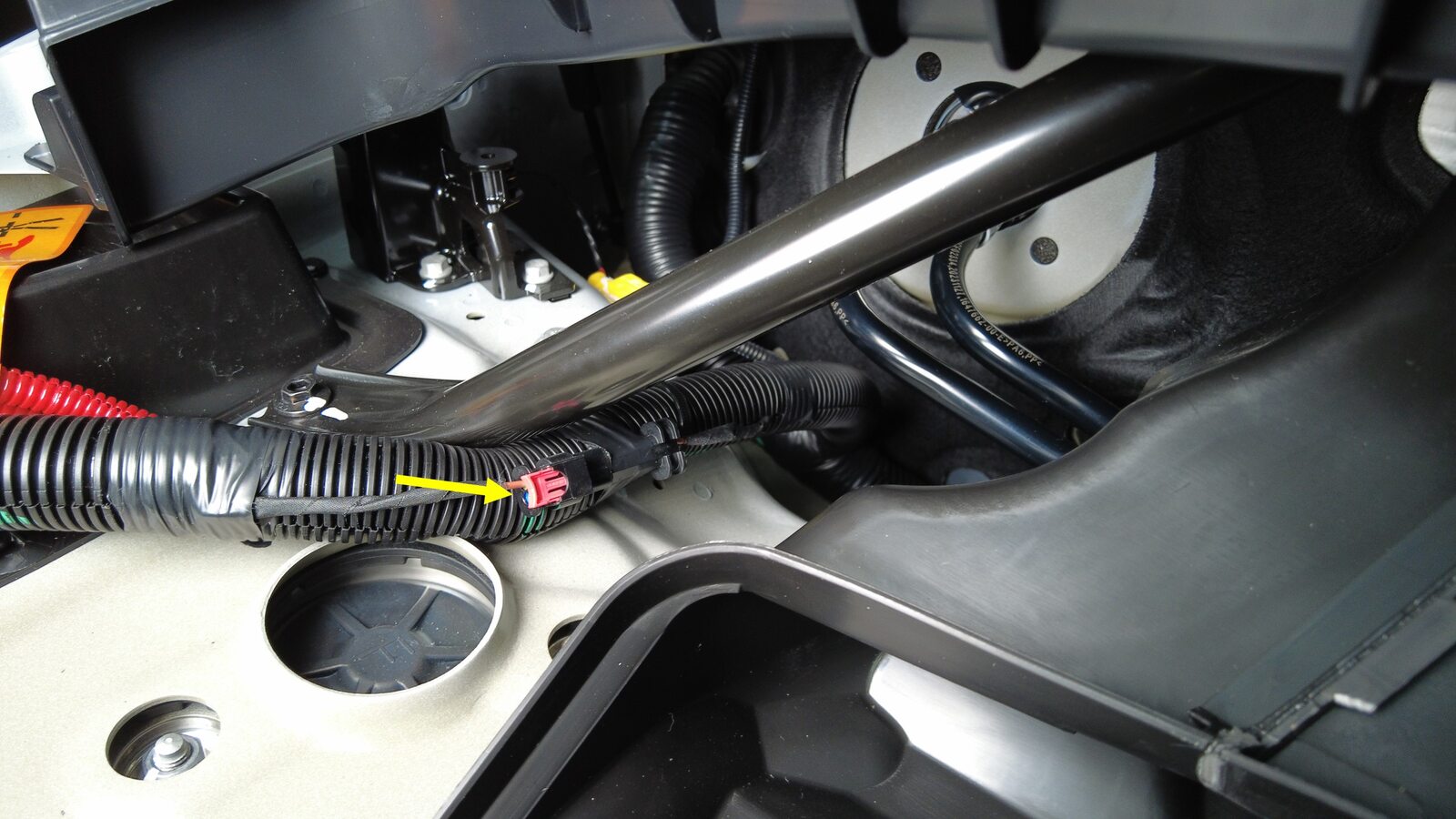

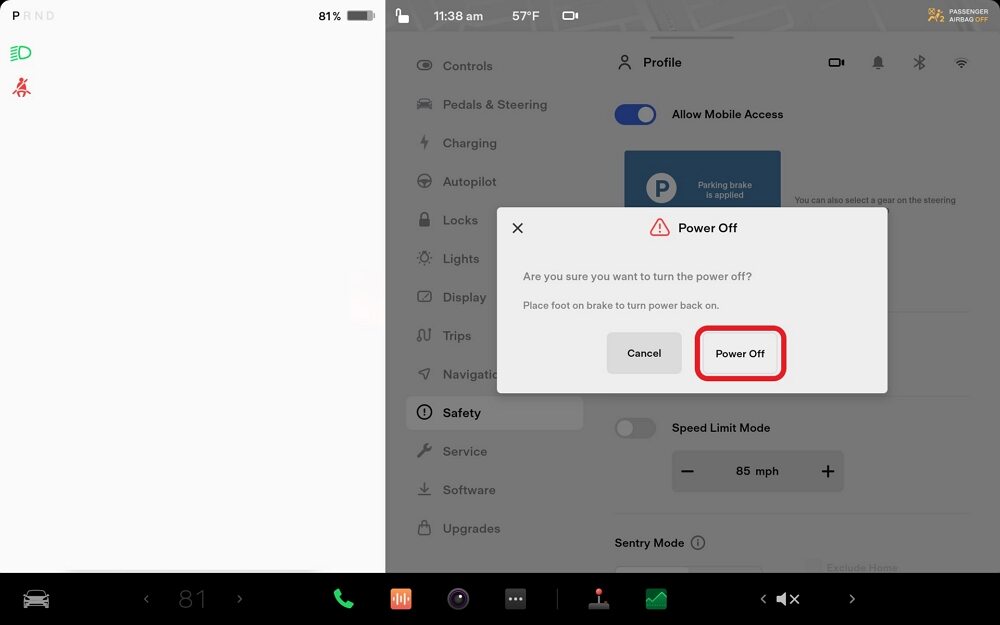

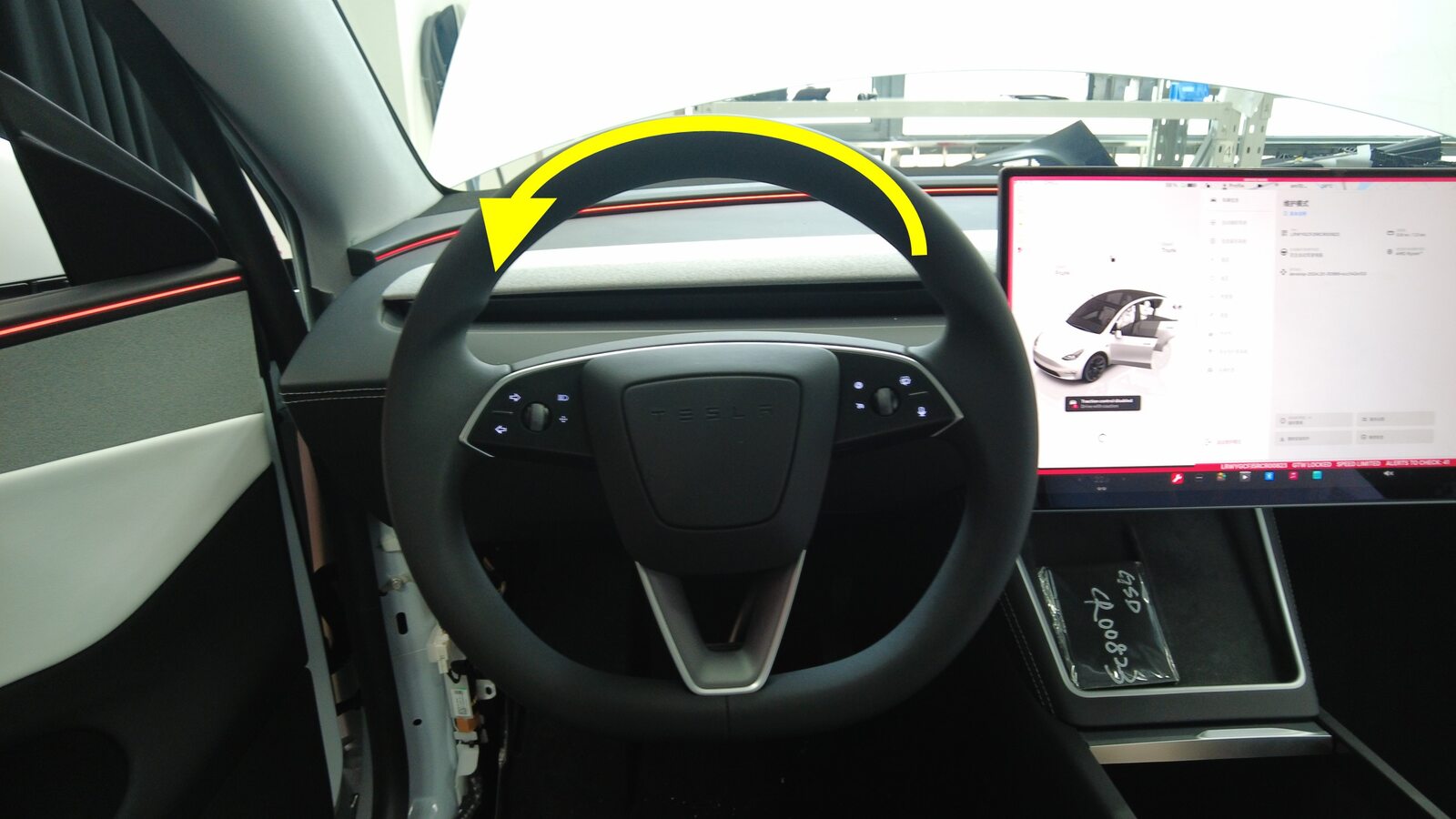

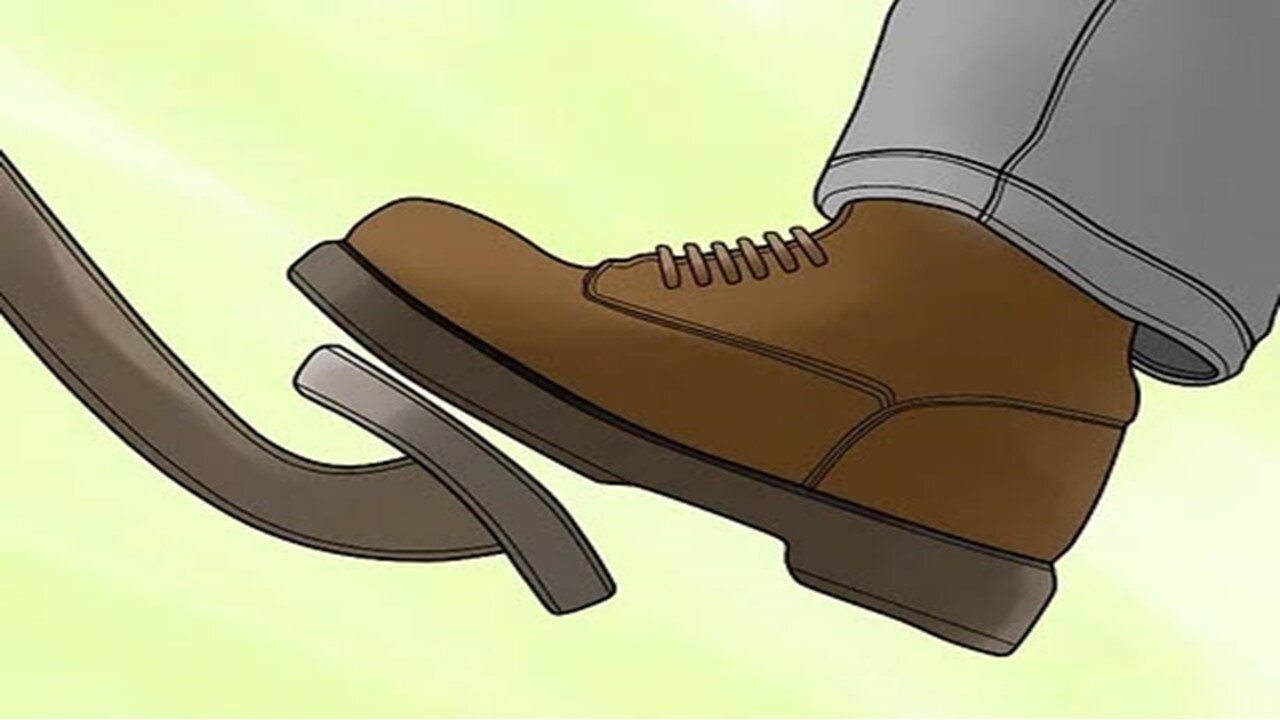

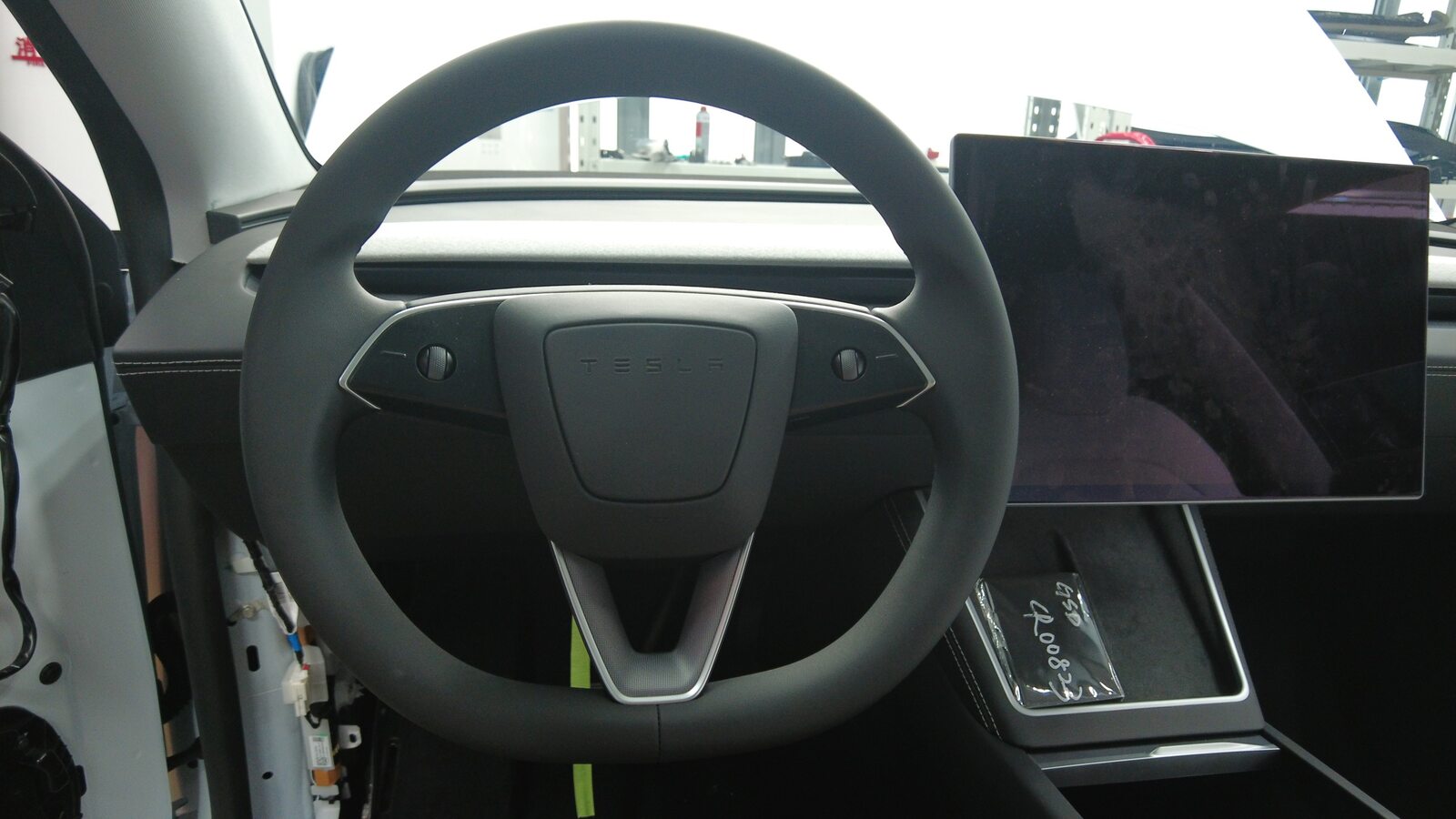

  7. Connect LV power. See LV Power (Disconnect and Connect) (Modify).

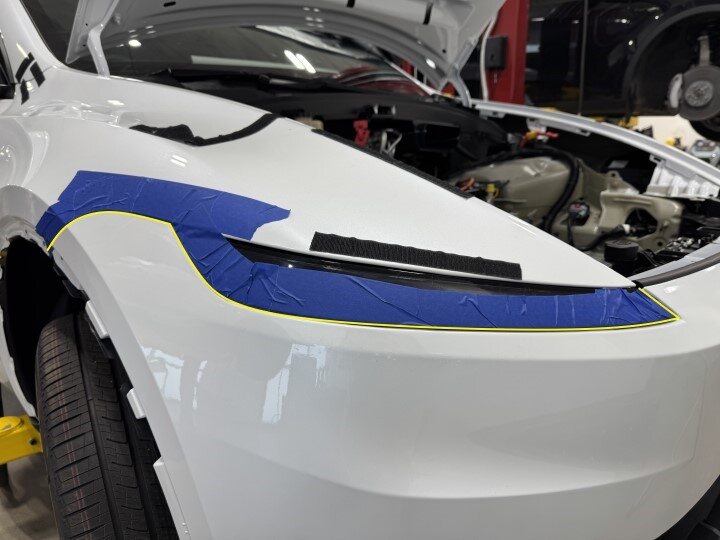

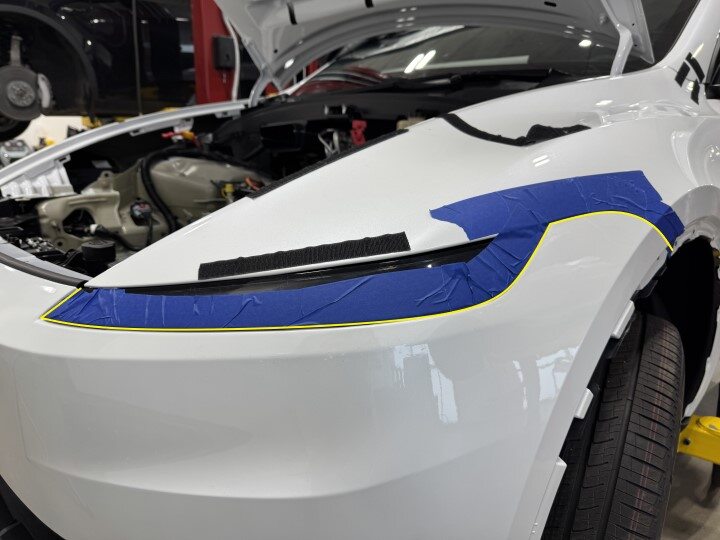

  8. Remove tape from headlamps and fenders
  9. Install HEPA filter or cowl assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

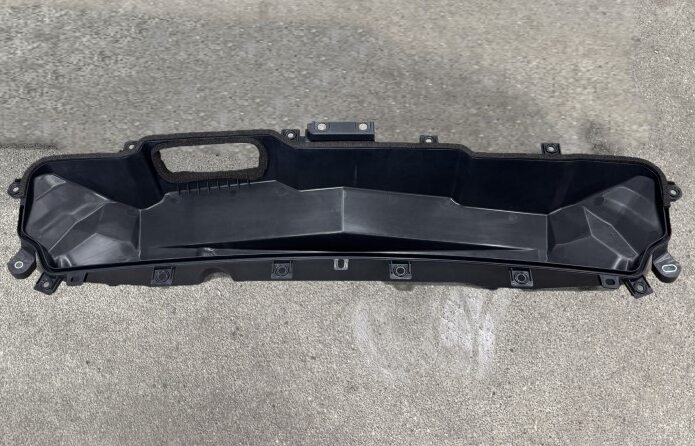

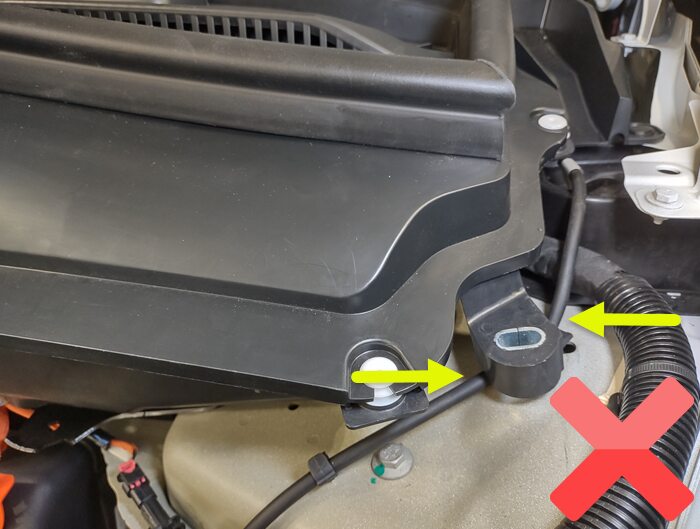

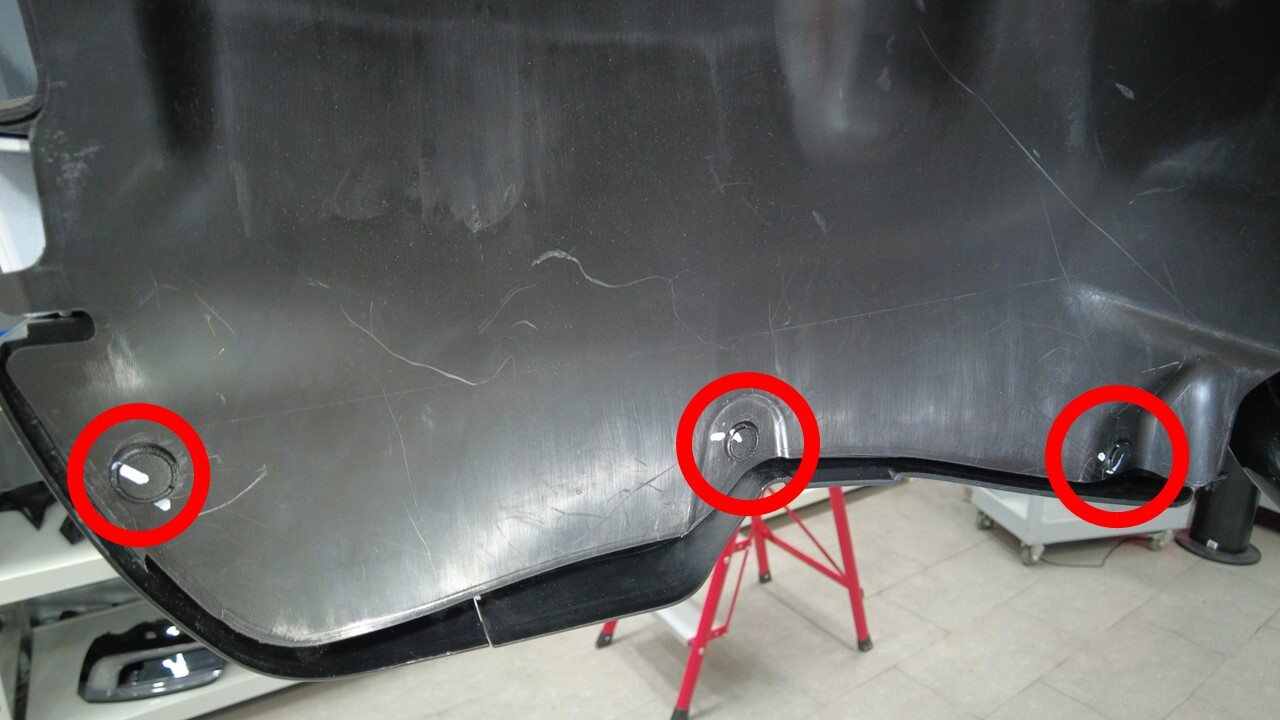

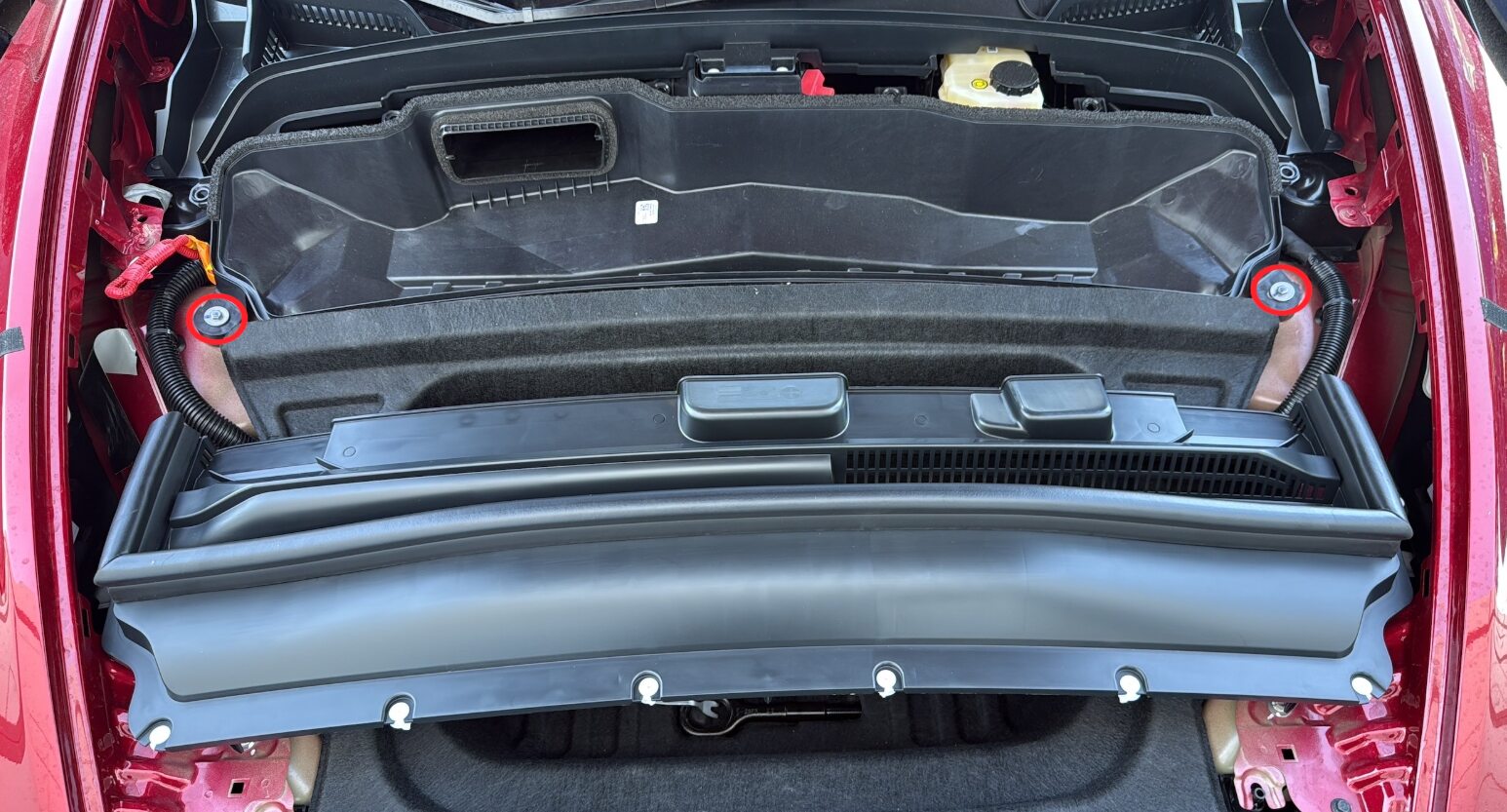

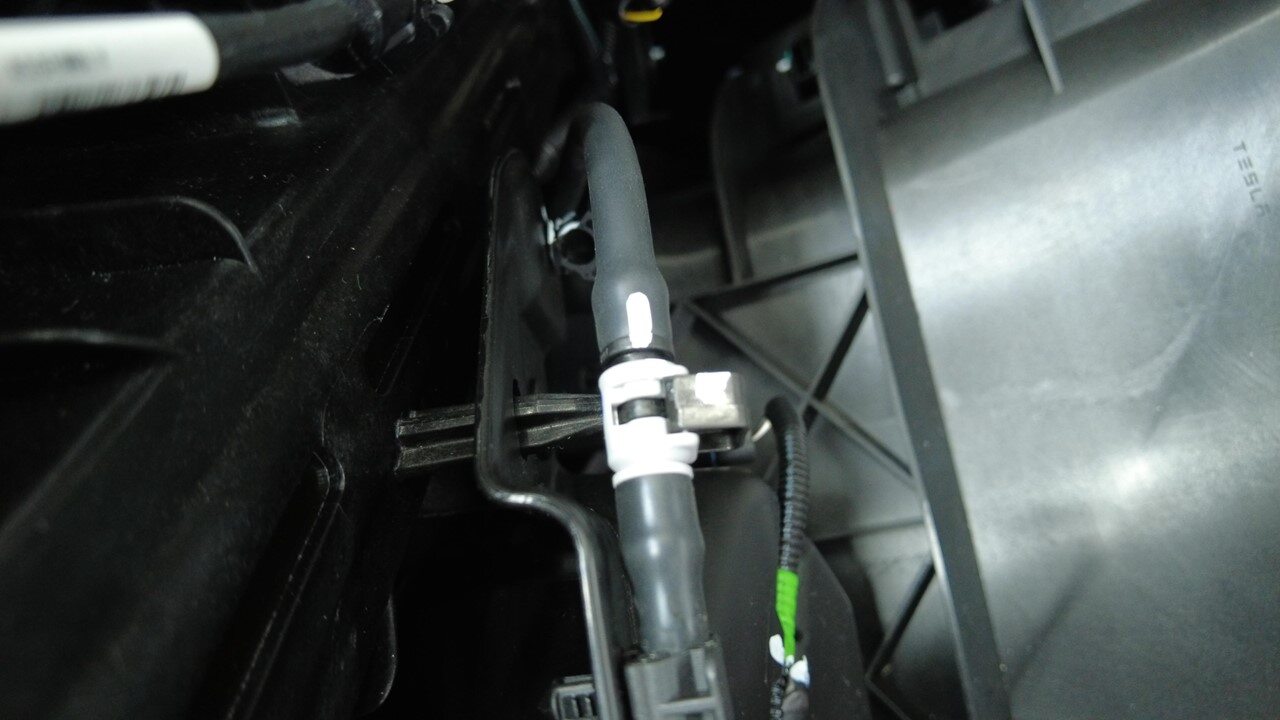

    Vehicle configuration may vary. With HEPA filter: 2x bolts, 10mm, 10 Nm, Pivot forward edge down past the underhood storage unit, then carefully move rear edge past the brake fluid reservoir and into position. Gently press on the RH side of the filter to seat seal it onto duct. Without HEPA filter: 2x bolts, 10mm, 10 Nm, 14x clips. Attach cowl assembly fasteners, then install the cowl. Fold it near the flap of the base underhood storage unit to access the front row of clips to the cowl. Replace any missing or damaged clips. Do not pinch the washer line in between the cowl assembly and the body.

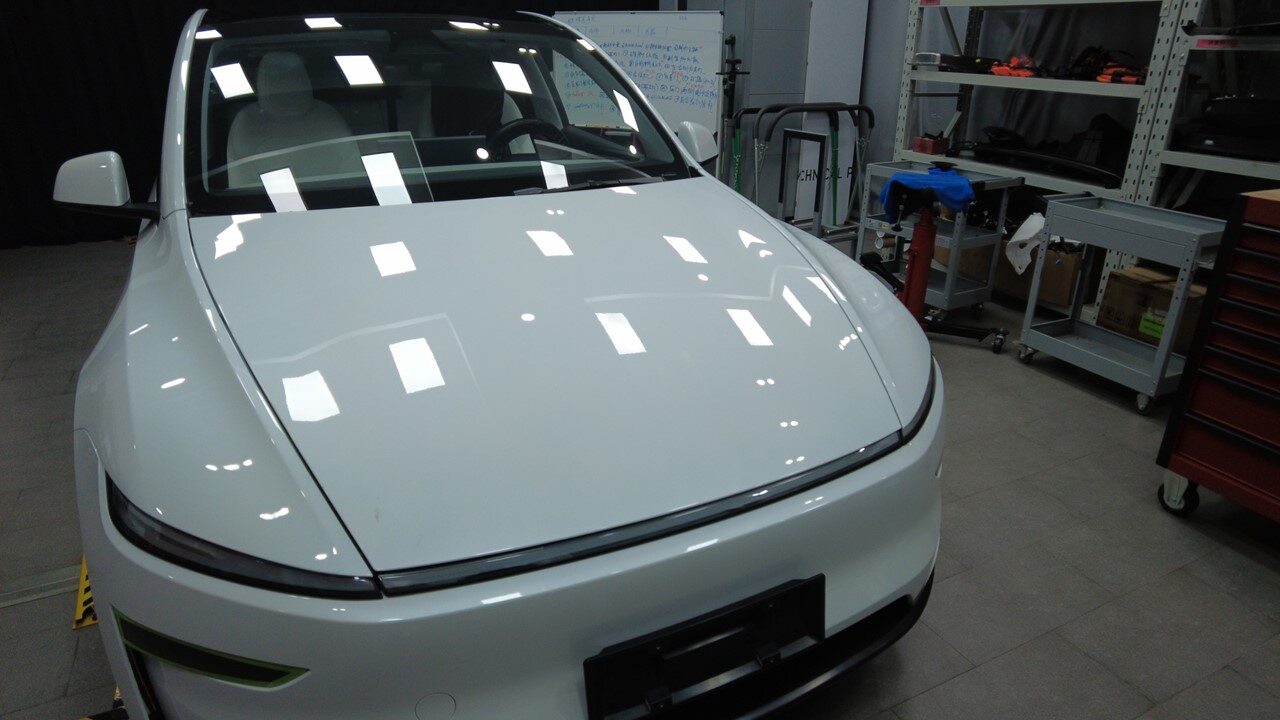

  10. Close the hood.
  11. Unlock the vehicle Gateway. See Gateway (Unlock).
  12. Clear the camera calibration through the touchscreen.
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch Driver Assist > Cameras > Clear Camera Calibration > Camera Input, select the front camera, and then touch Run.
  13. Reinstall the vehicle software. See Software Reinstall - Touchscreen.
  14. Exit Service Mode.

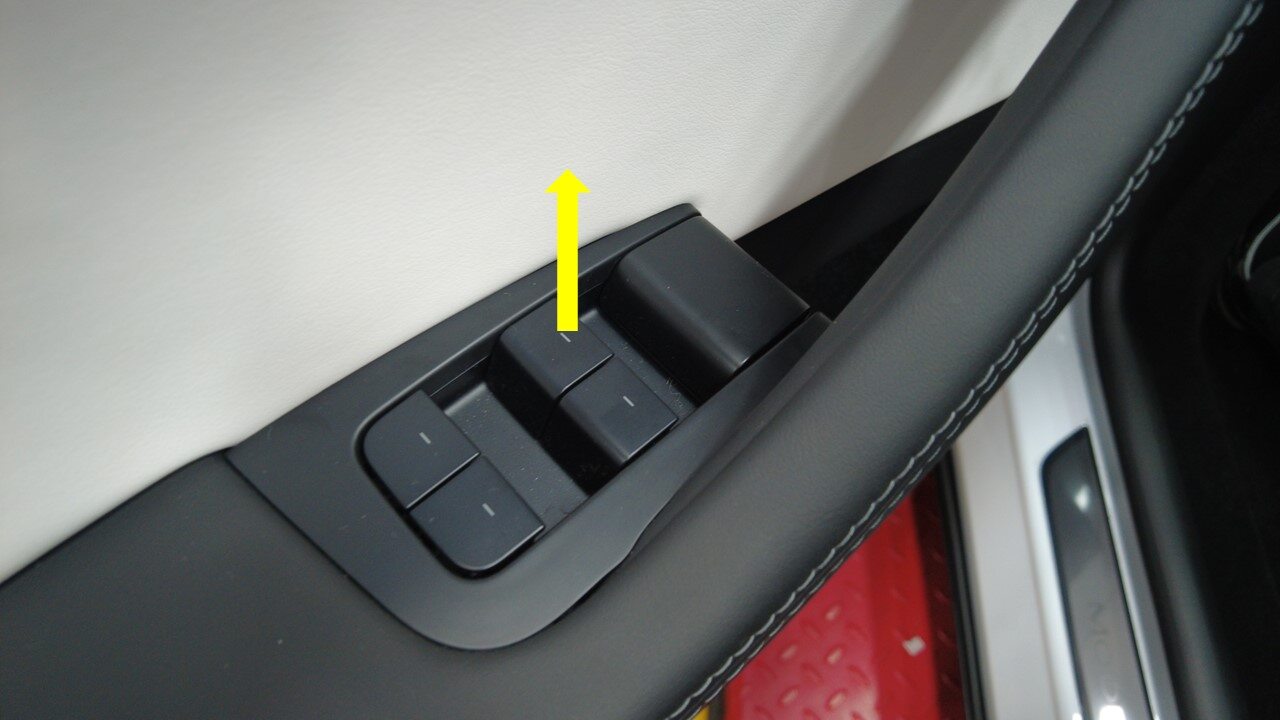

  15. Raise the LH front window and close the door.
  16. Adjust the headlights. See Headlamps - Adjust (SAE) (Model Y Standard) (Adjust w/ Tool) (Test/Adjust) or Headlights - Adjust (ECE) (Model Y Standard) (Tool Method) (Test/Adjust).
