Hush Panel - Footwell - Front Passenger (Remove and Replace)

Correction code 1405010402 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Open the RH front door and lower the RH front window.
  2. Move the RH front seat backward.

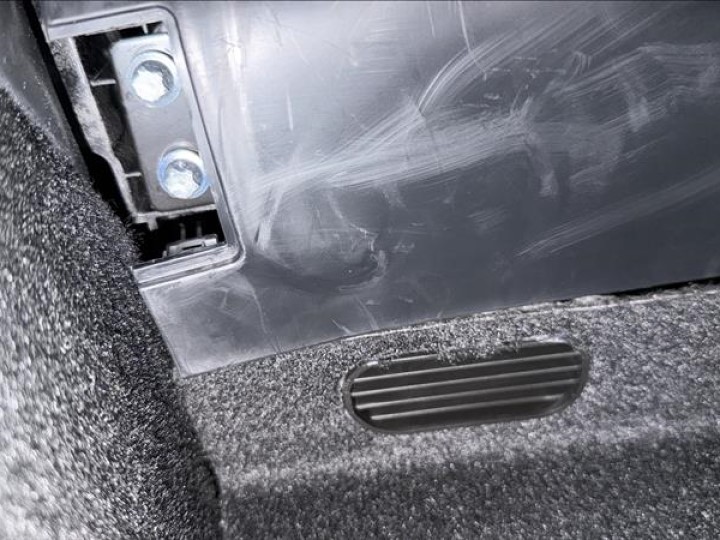

  3. Release the RH front cabin carpet cover from the RH footwell hush panel, and disconnect the electrical connector.
  4. Release the tabs (x5) that attach the RH footwell hush panel to the instrument panel carrier, and then disconnect the electrical connector.
  5. Release the tabs (x4) to separate the puddle lamp from the passenger footwell hush panel.

Install

  1. Secure the tabs (x4) to install the puddle lamp to the passenger footwell hush panel.
  2. Connect the electrical connector, and then secure the tabs (x5) that attach the RH footwell hush panel to the instrument panel carrier.
  3. Connect the electrical connector, and then install the RH front cabin carpet cover to the RH footwell hush panel.
  4. Move the RH front seat to its original position.
  5. Raise the RH front window and close the RH front door.
