USB Hub Assembly (Model Y Standard) (Remove and Install)

Correction code 15190405101 15190405102 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: USB Hub Assembly (Model Y Standard) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x4) that attach the VCUSB to center console assembly
1 Nm (.7 lbs-ft)
  • SKT, 1/4" DR, HEX BIT, T20 TORX; RATCHET, 1/4" DR, M12, BARE TOOL
  • Extension 1/4in Dr. x 2in
  • Torque wrench 1/4" hexagon (0.2Nm-4Nm) for installation only
 Reuse

Remove

  1. Remove the rear end module. See Surround - Phone Dock - Center Console (Model Y Standard) (Remove and Install).

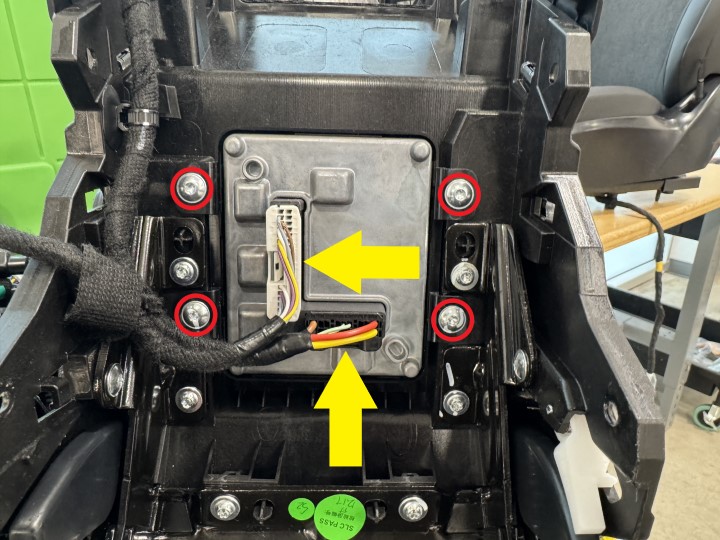

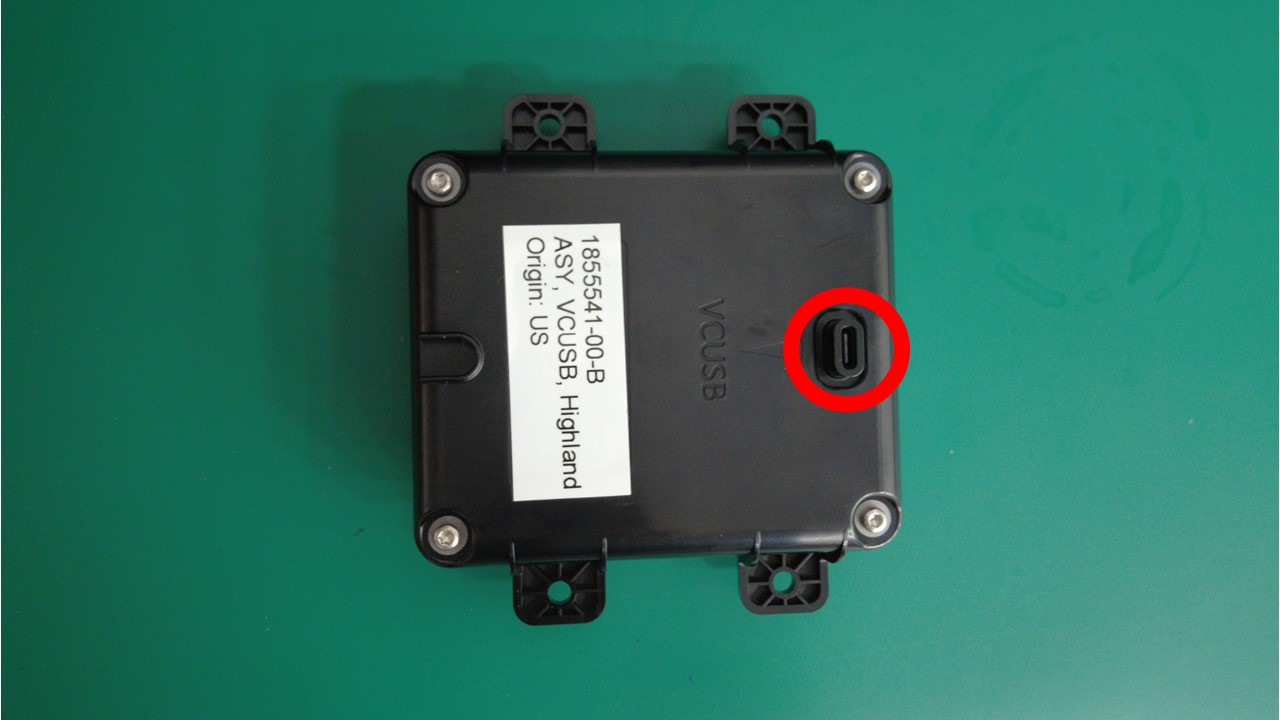

  2. Remove the screws (x4) that attach the VCUSB to center console assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T20 TORX; RATCHET, 1/4" DR, M12, BARE TOOL
    • Extension 1/4in Dr. x 2in
    • Torque wrench 1/4" hexagon (0.2Nm-4Nm) for installation only

Install

  1. Install the screws (x4) that attach the VCUSB to center console assembly.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T20 TORX; RATCHET, 1/4" DR, M12, BARE TOOL
    • Extension 1/4in Dr. x 2in
    • Torque wrench 1/4" hexagon (0.2Nm-4Nm) for installation only
  2. Install the rear end module. See Surround - Phone Dock - Center Console (Model Y Standard) (Remove and Install).
