Rear Floor Bin - Center Console (Model Y Standard) (Remove and Install)

Correction code 15190404701 15190404702 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Rear Floor Bin - Center Console (Model Y Standard) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x3) that attach the center console LH rear side panel to the center console
1.2 Nm (.9 lbs-ft)
  • Torx T20 socket
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Reuse

Remove

  1. Remove the center console. See Center Console (Model Y Standard) (Remove and Install).
  2. Remove the center console middle panel. See Inductive Charger Module (Model Y Standard) (Remove and Install).

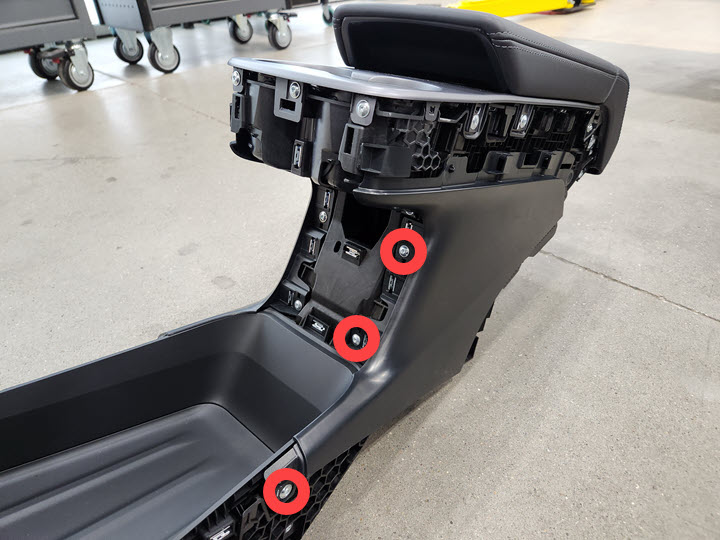

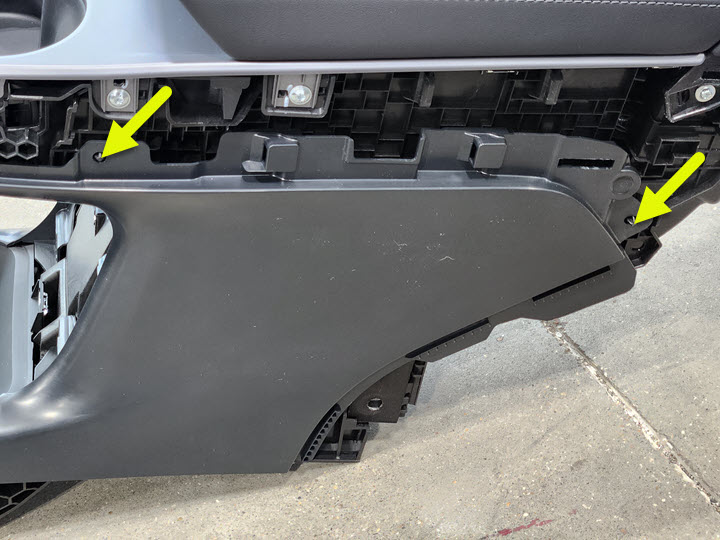

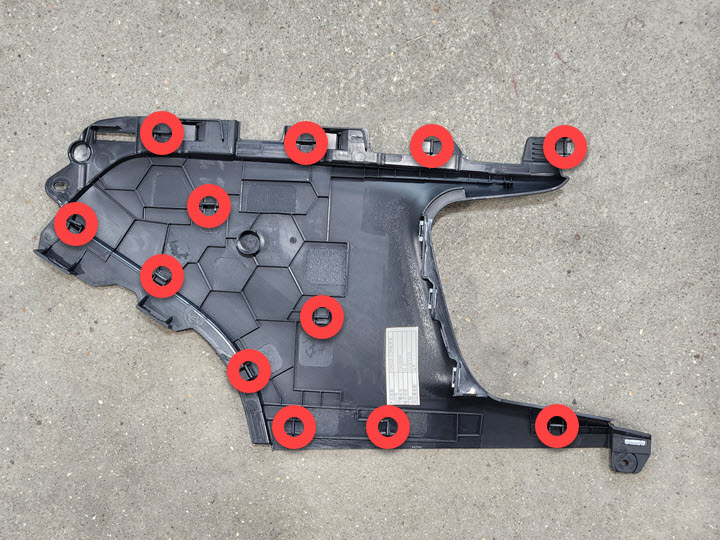

  3. Remove the screws (x3) that attach the center console LH rear side panel to the center console, and then release the datums (x2) and clips (x12) to remove the LH rear side panel.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Install

  1. Secure the datums (x2) and clips (x12) to install the LH rear side panel to the center console, and then install the screws (x3).
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Install the center console middle panel. See Inductive Charger Module (Model Y Standard) (Remove and Install).
  3. Install the center console. See Center Console (Model Y Standard) (Remove and Install).
