Speaker Grille - Front Door - LH (Remove and Replace)
Correction code
1513010052
FRT
0.18
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Remove
- Remove the LH front door trim panel. See Door Trim - Front - LH (Remove and Install).
-

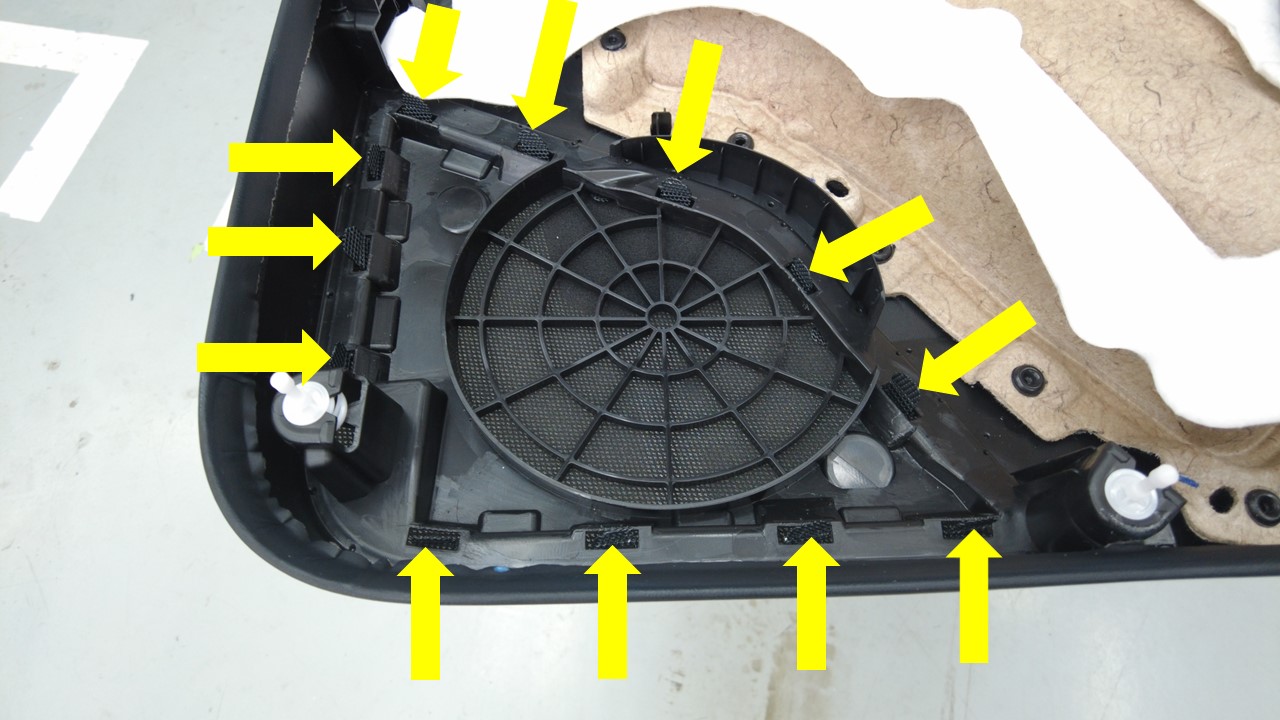

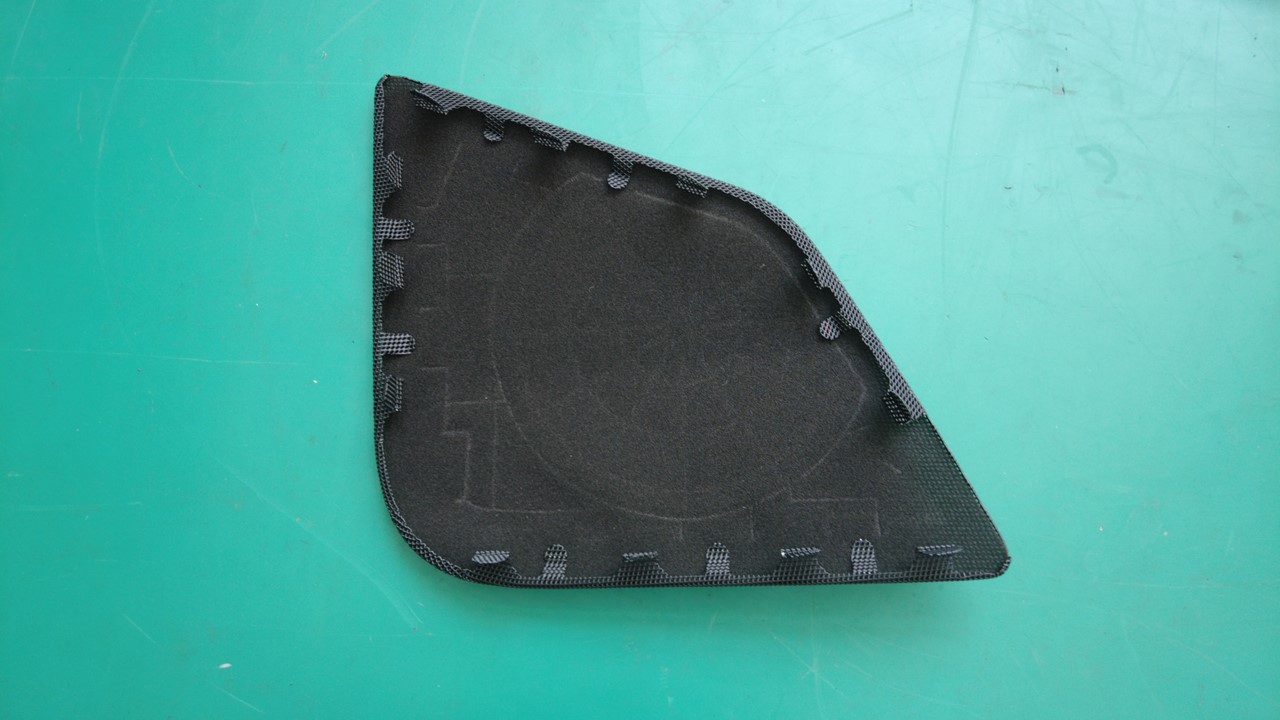

Gently unfold and straighten the folding tabs (x12) to remove the speaker grille from
the LH front door trim.
Install
-

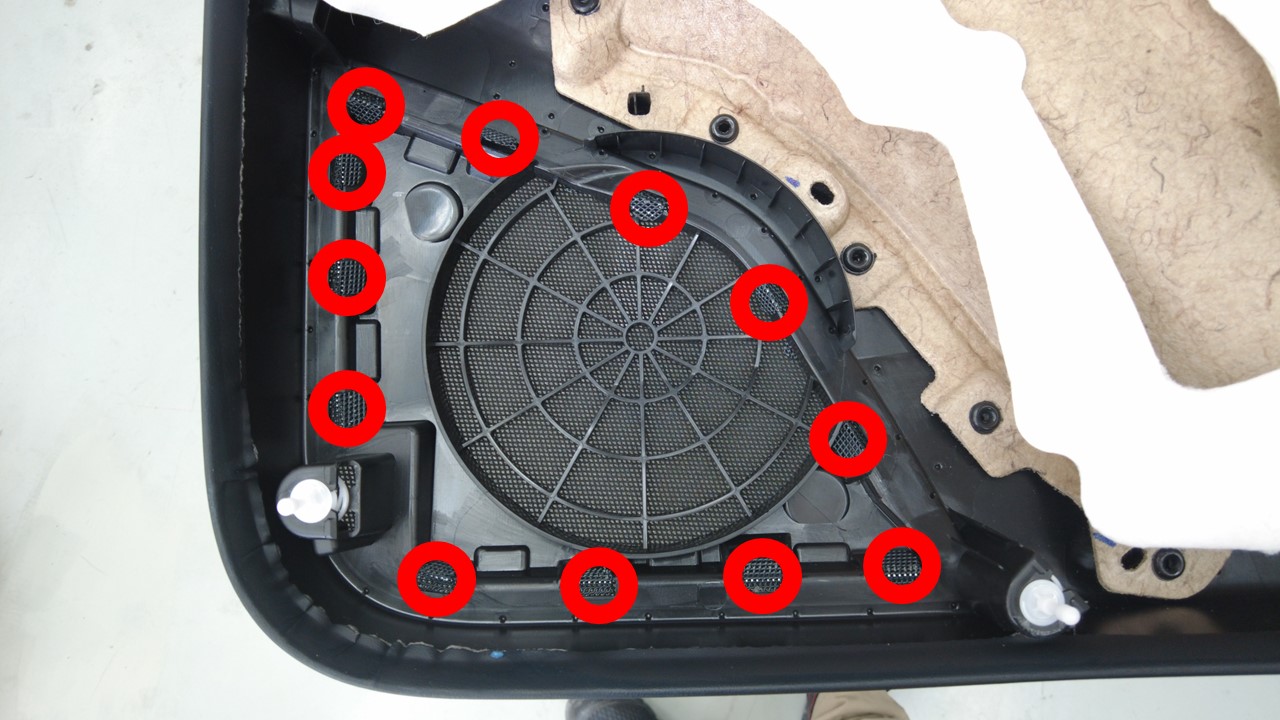

Insert the folding tabs (x12) through the slots in the door trim, fold the tabs over
to secure the speaker grille to the LH front door trim.
- Install the LH front door trim panel. See Door Trim - Front - LH (Remove and Install).
