Duct - Upper Front Fascia - RH (Performance) (Remove and Replace)

Correction code TBD FRT 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Duct - Upper Front Fascia - LH (Performance) (Remove and Replace) / Duct - Upper Front Fascia - RH (Performance) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the lower front fascia assembly to the upper front fascia assembly
2.5 Nm (1.8 lbs-ft)
  • Torx T40 socket
 Reuse
Bolts (x2) that attach the LH and RH upper front fascia ducts to the front fascia upper assembly
2.5 Nm (1.8 lbs-ft)
  • Torx T40 socket
 Reuse

Remove

  1. Remove the front fascia assembly from the vehicle. See Front Fascia (Remove and Install).

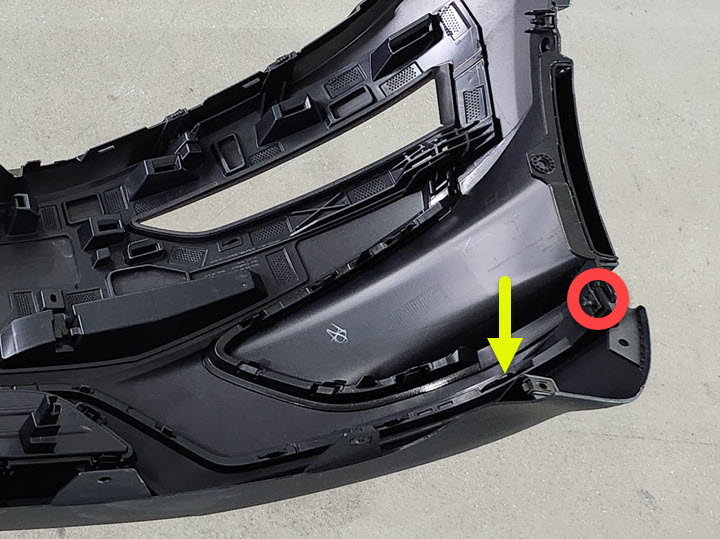

  2. Remove the RH bolt that attaches the lower front fascia assembly to the upper front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
  3. Release the hook that attaches the front fascia electrical harness to the RH duct.
  4. Remove the bolt and clips (x6) that attach the LH upper front fascia duct to the upper front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T40 socket
  5. Remove the bolt and clips (x6) that attach the RH upper front fascia duct to the upper front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T40 socket

Install

  1. Align the datums (x2), then install the bolt and clips (x6) that attach the RH upper front fascia duct to the upper front fascia assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T40 socket
  2. Secure the hook that attaches the front fascia electrical harness to the RH duct.
  3. Install the RH bolt that attaches the lower front fascia assembly to the upper front fascia assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T40 socket
  4. Install the front fascia assembly to the vehicle. See Front Fascia (Remove and Install).
