Bolt Cover - Door Trim - Front - LH (Remove and Replace)

Correction code 1513020502 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.

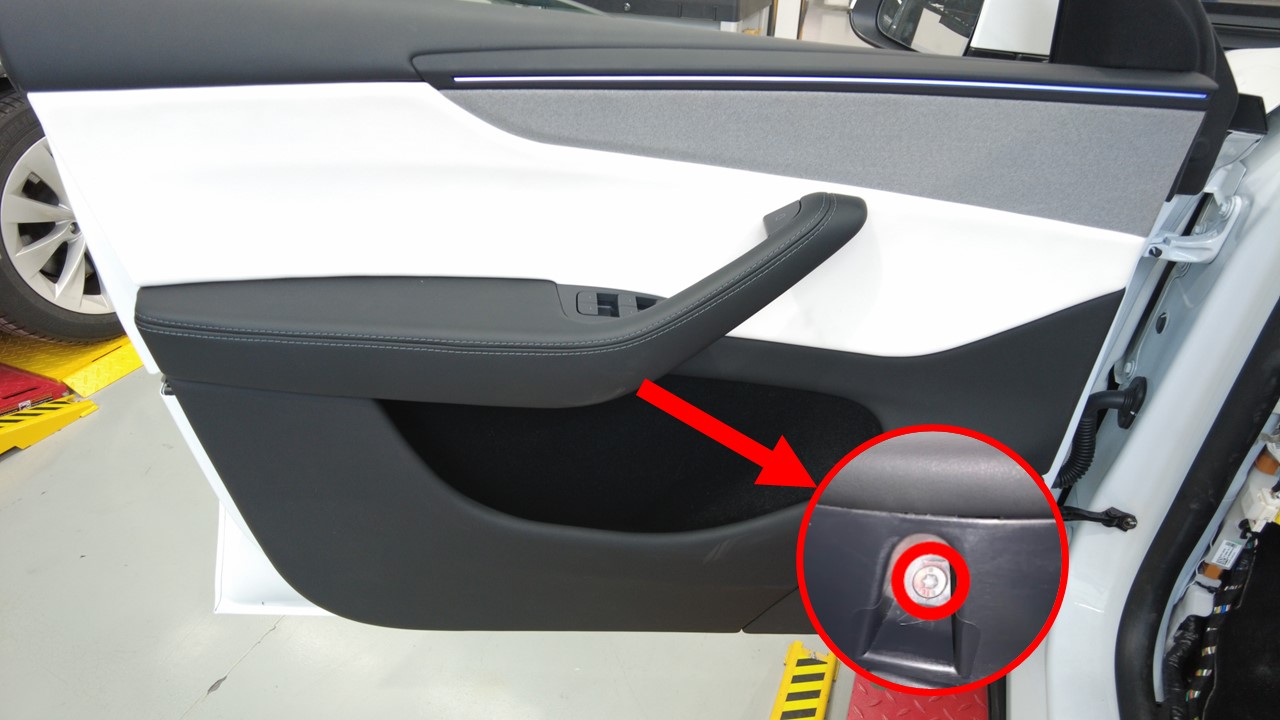

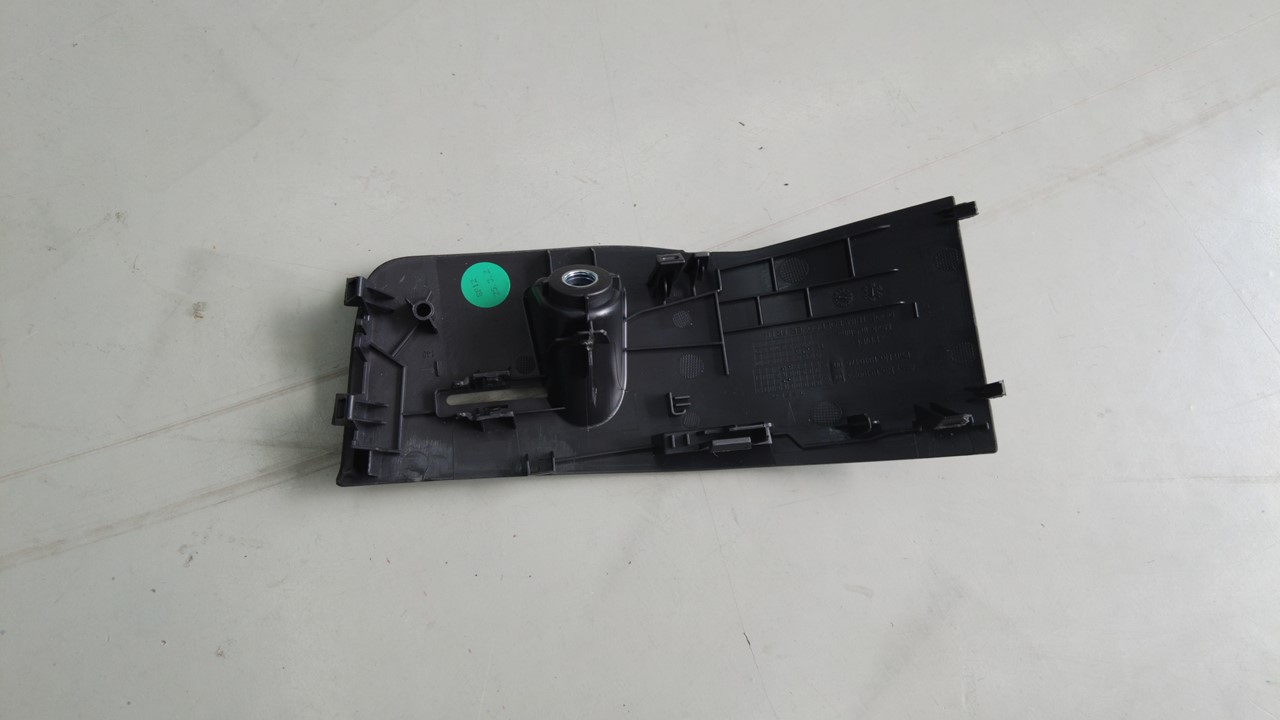

  2. Remove the lower bolt from the LH front door trim.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

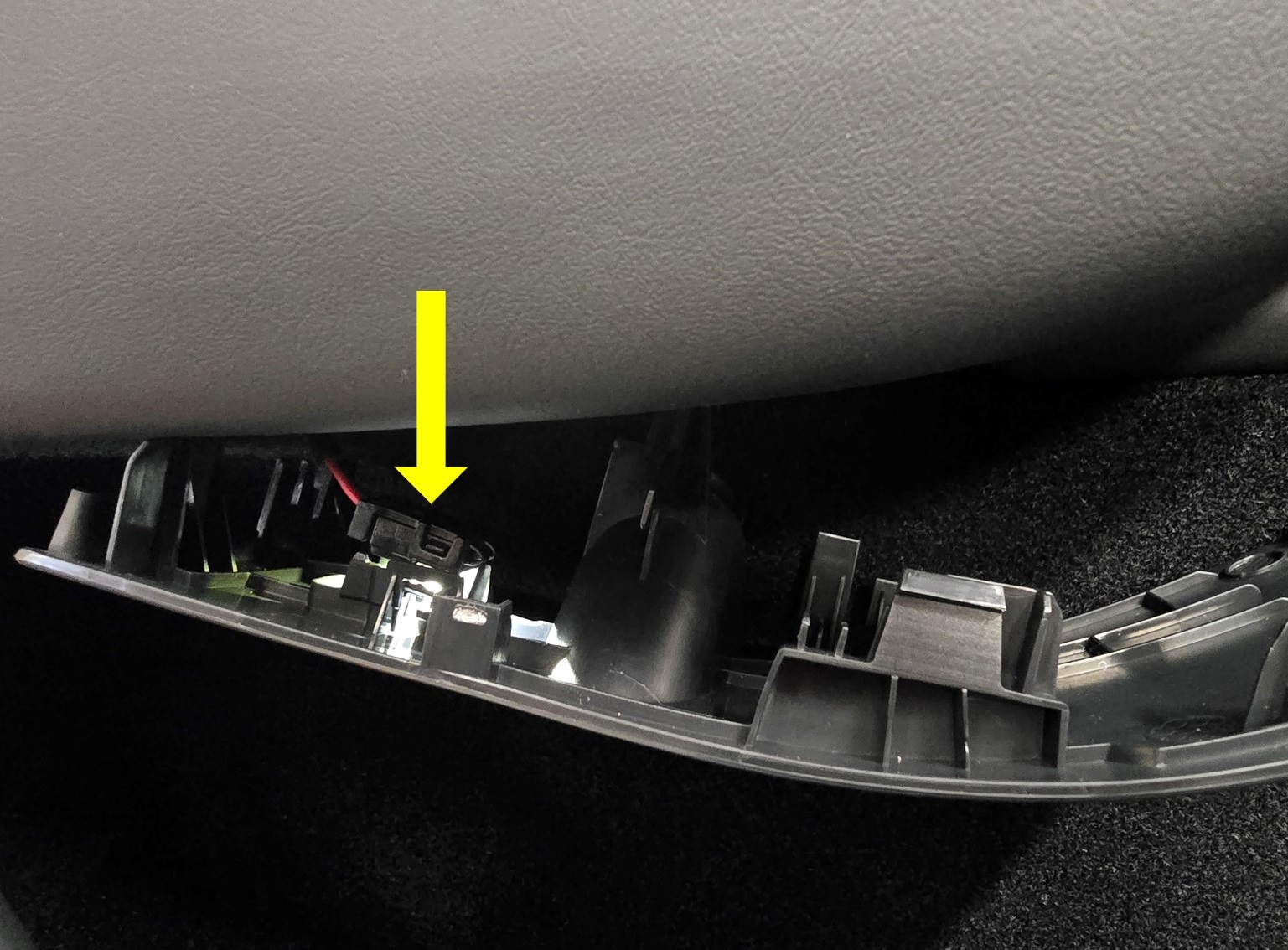

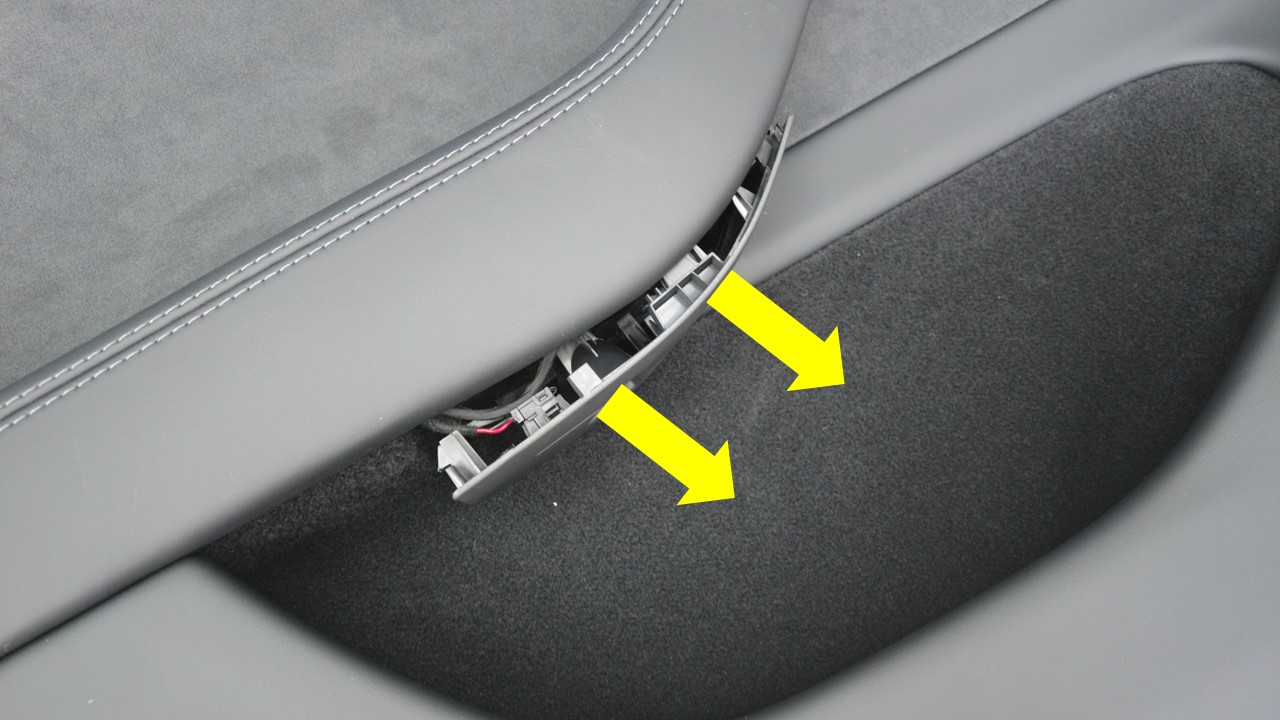

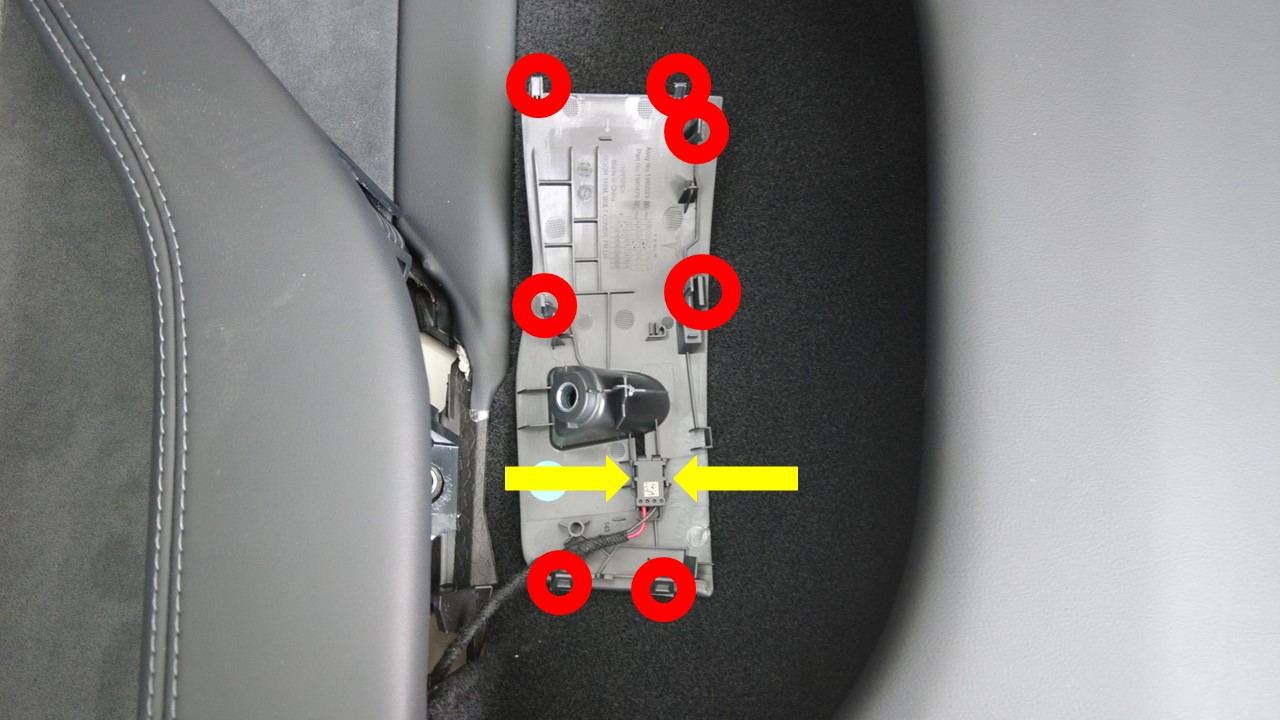

  3. Pry the LH front door trim bolt cover outward, and then release the tabs (x2) to remove the light from the bolt cover.

Install

  1. Install the light into the tabs (x2), and then install the LH front door trim bolt cover.
  2. Install the lower bolt to the LH front door trim.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  3. Raise the LH front window and close the LH front door.
