Steering Column Control Module (Model Y Standard) (Remove and Install)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Remove the steering column upper shroud. See Steering Column Shroud Upper (Model Y Standard) (Remove and Install).

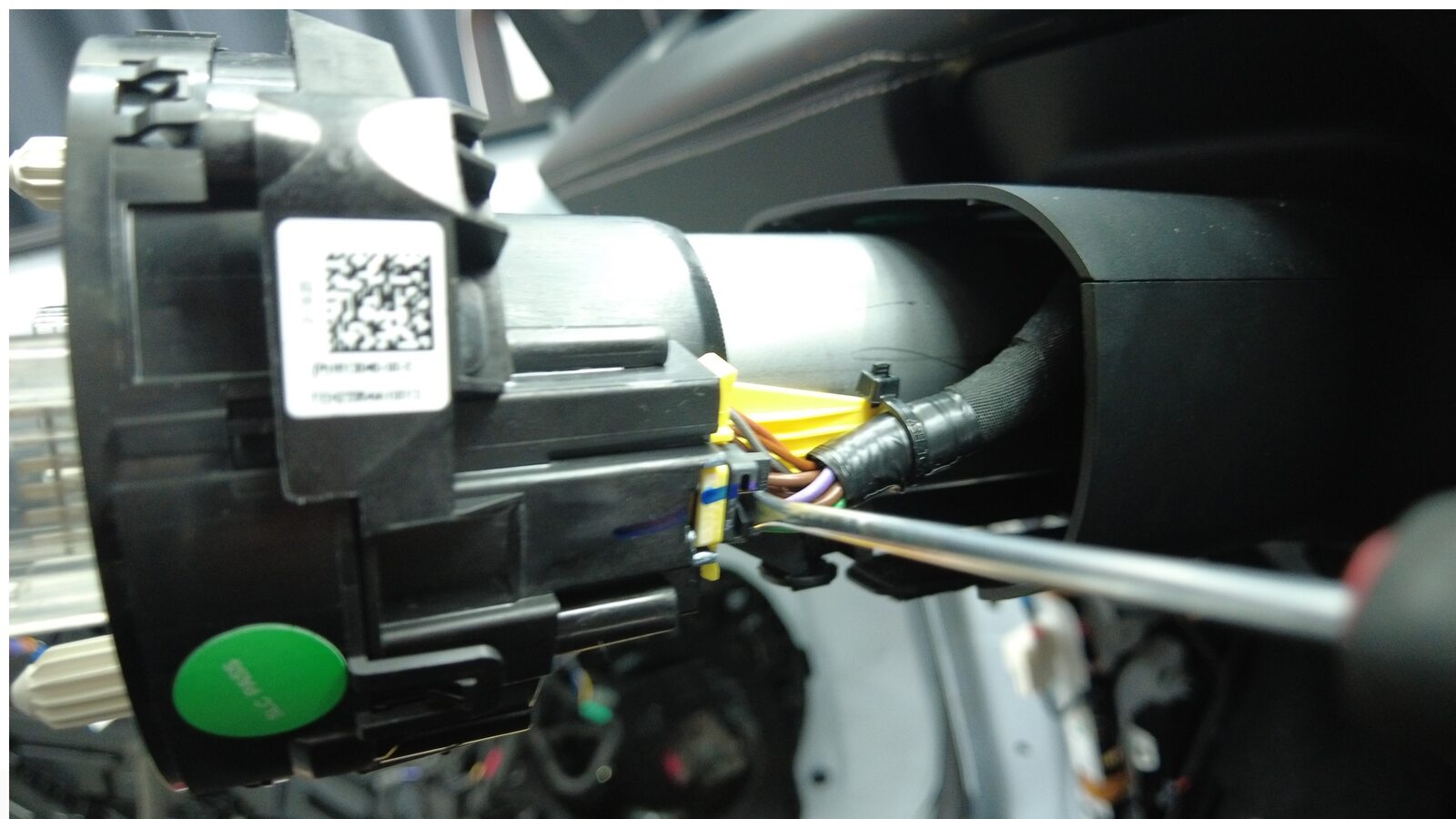

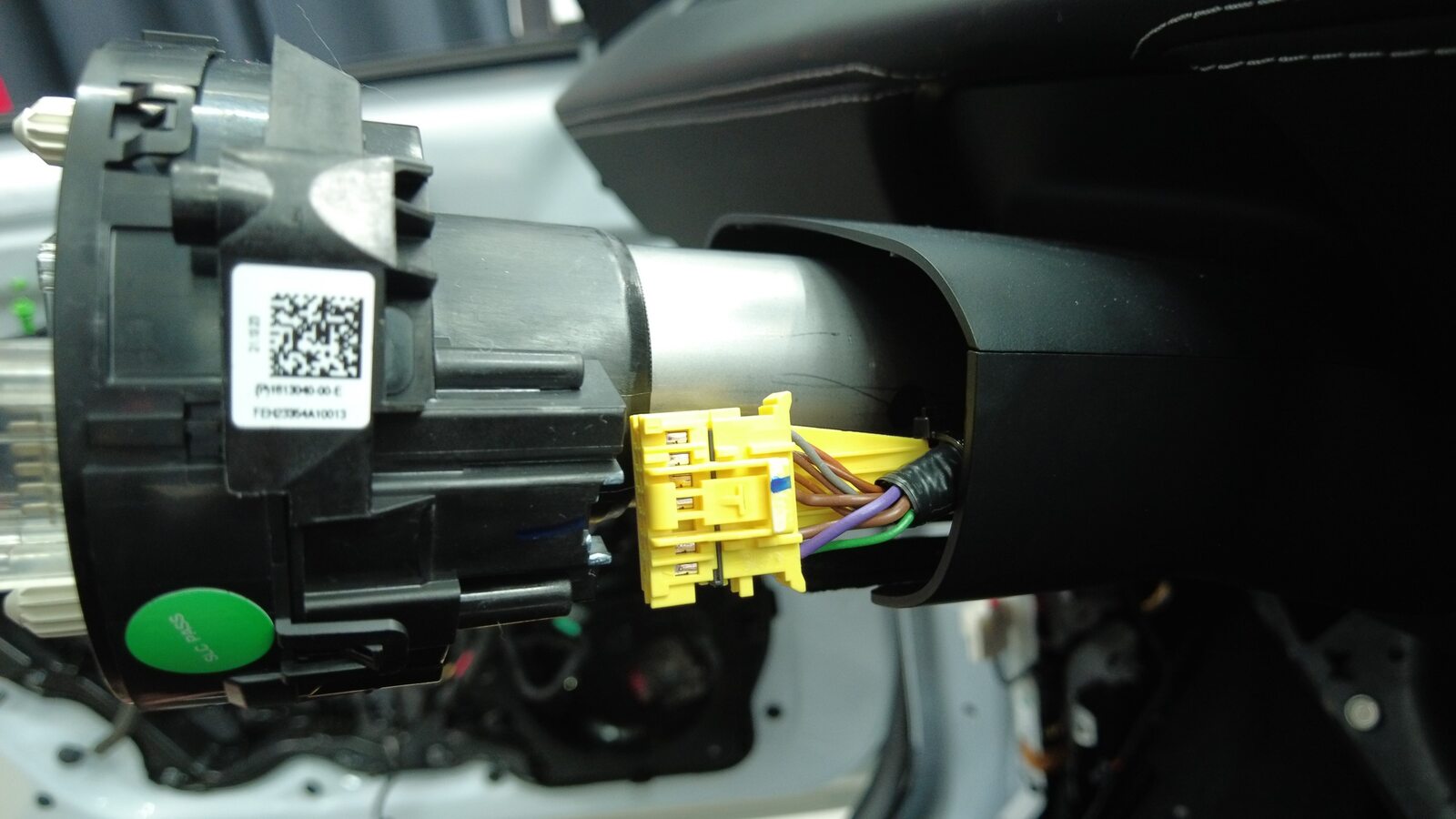

  2. Disconnect steering column control module connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Remove retaining clip on the connector, release connector, then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange

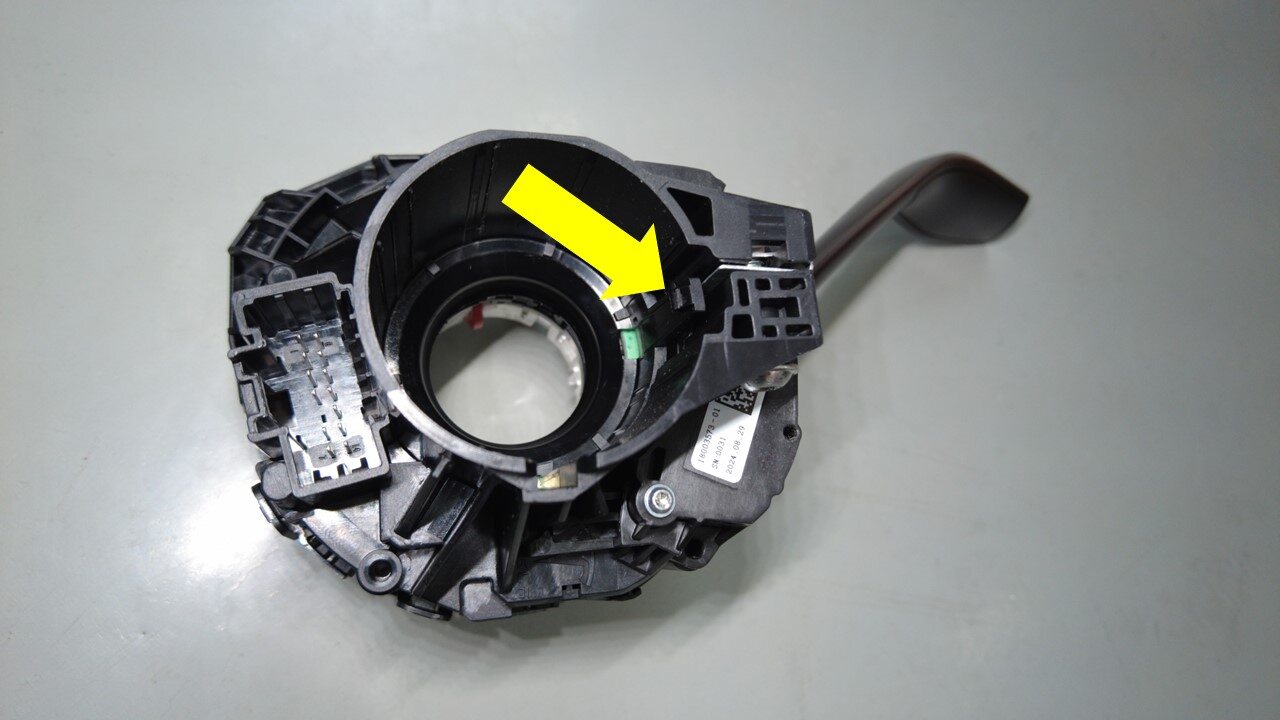

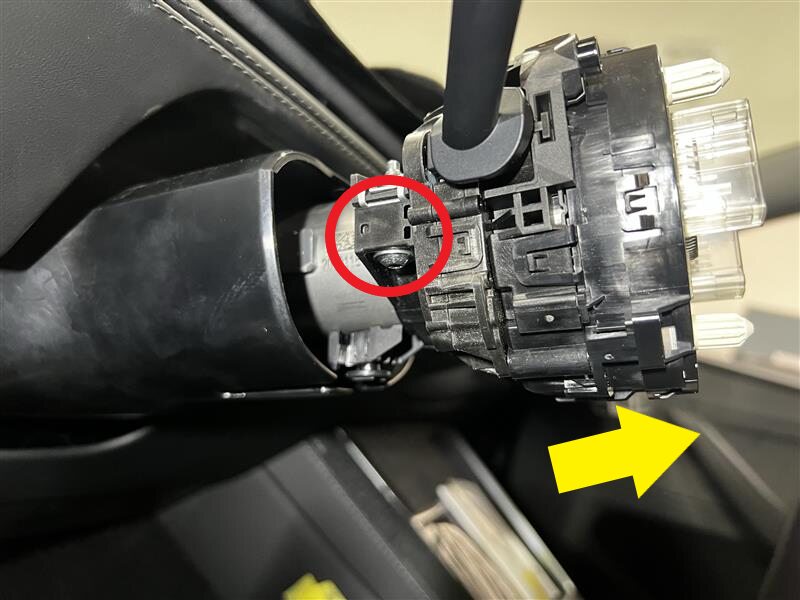

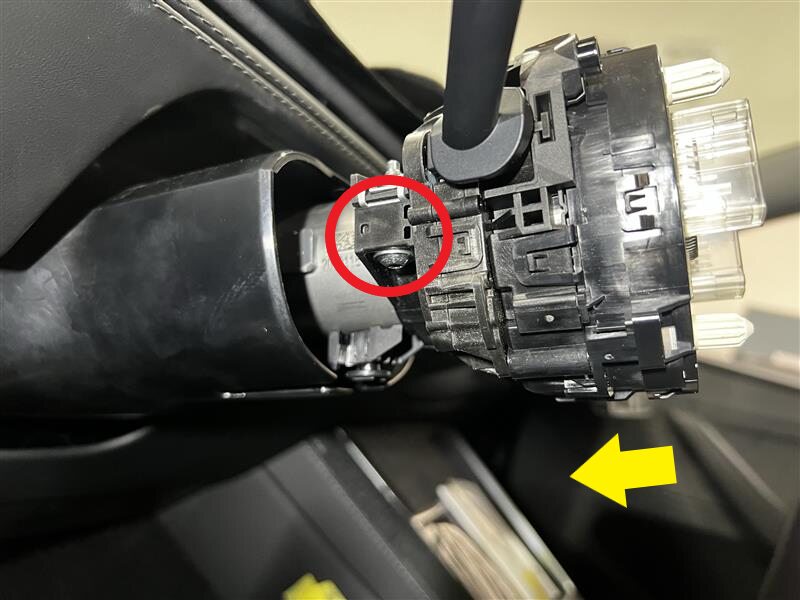

  3. Remove steering column control module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T20, 2.4 Nm, 1x clip, Loosen the bolt, not need remove

Install

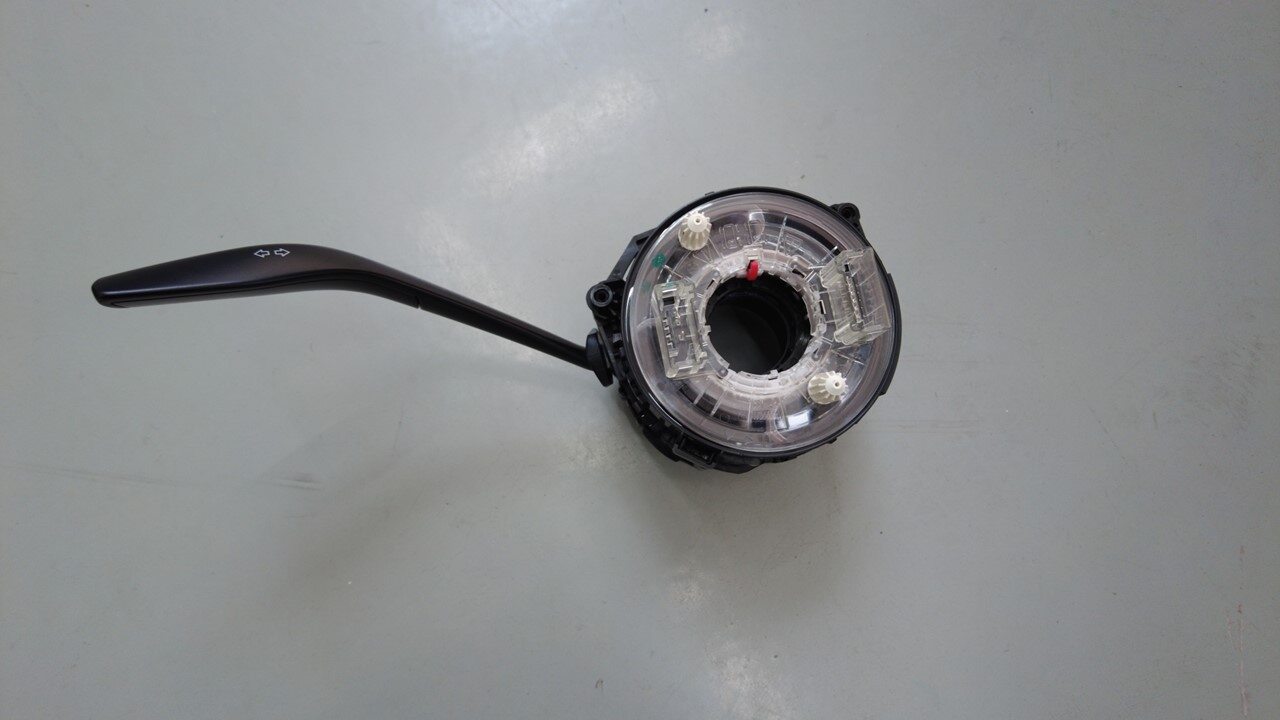

  1. Install steering column control module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T20, 2.4 Nm, 1x clip, Ensure SCCM is fully seated

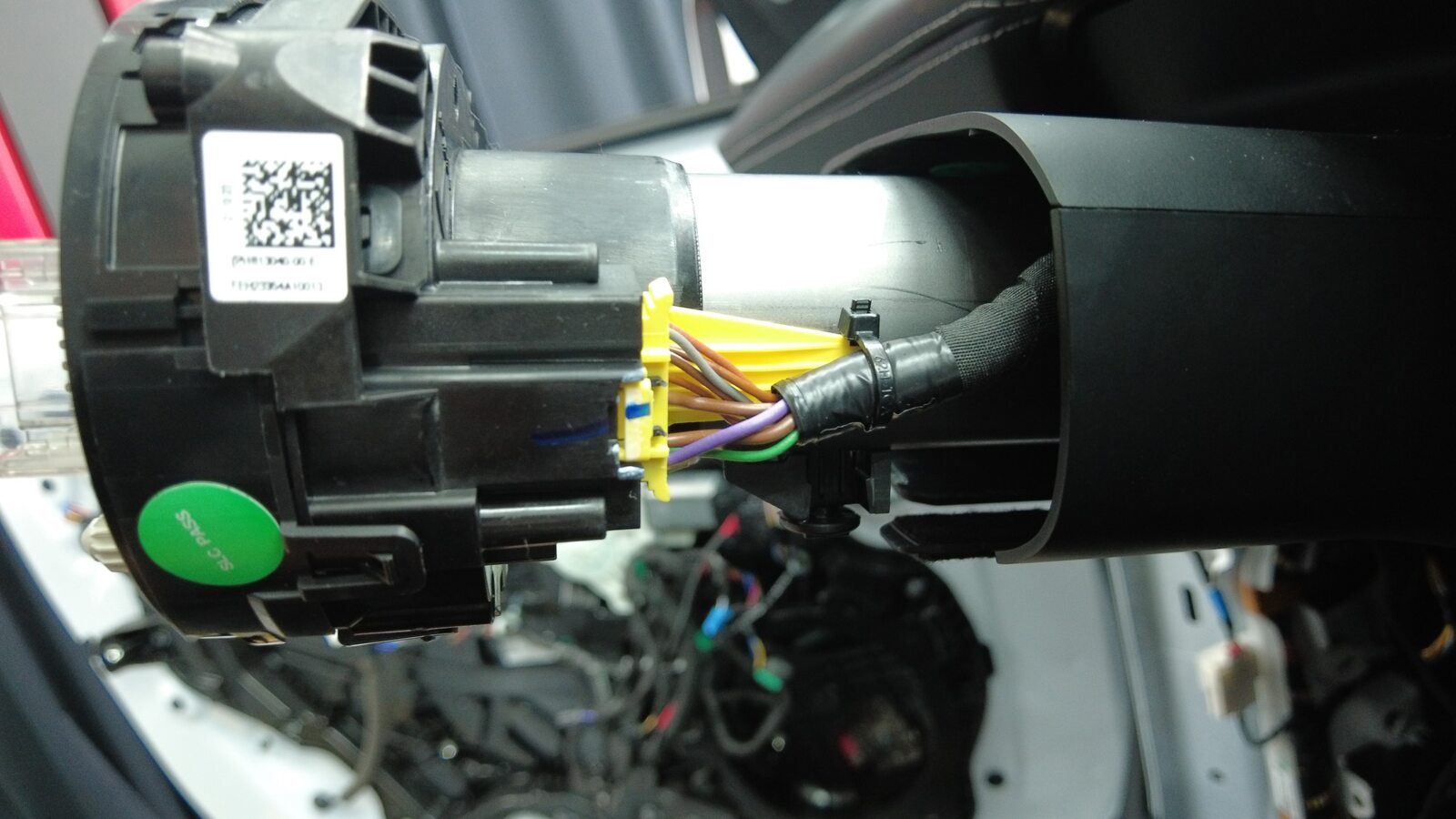

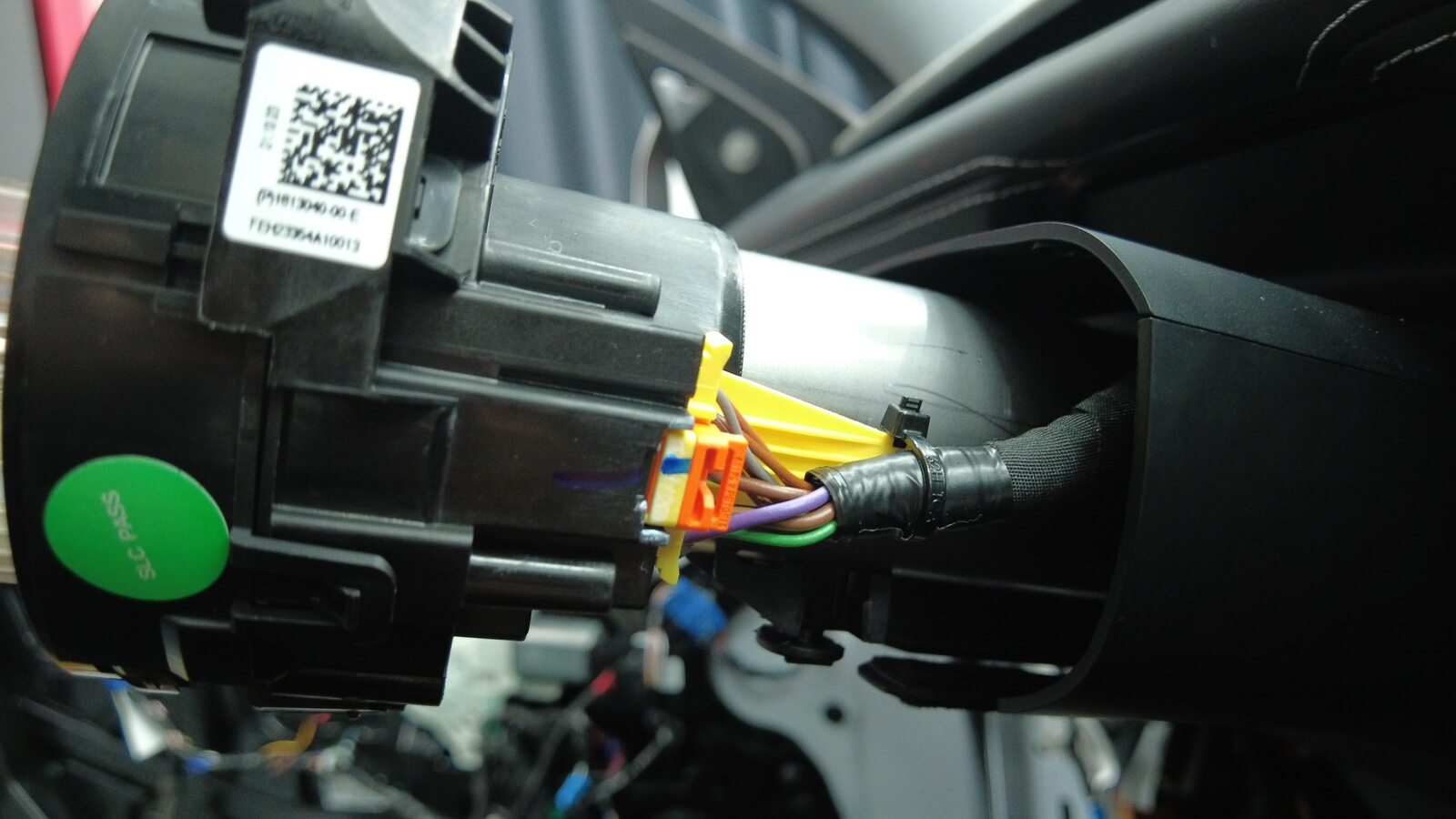

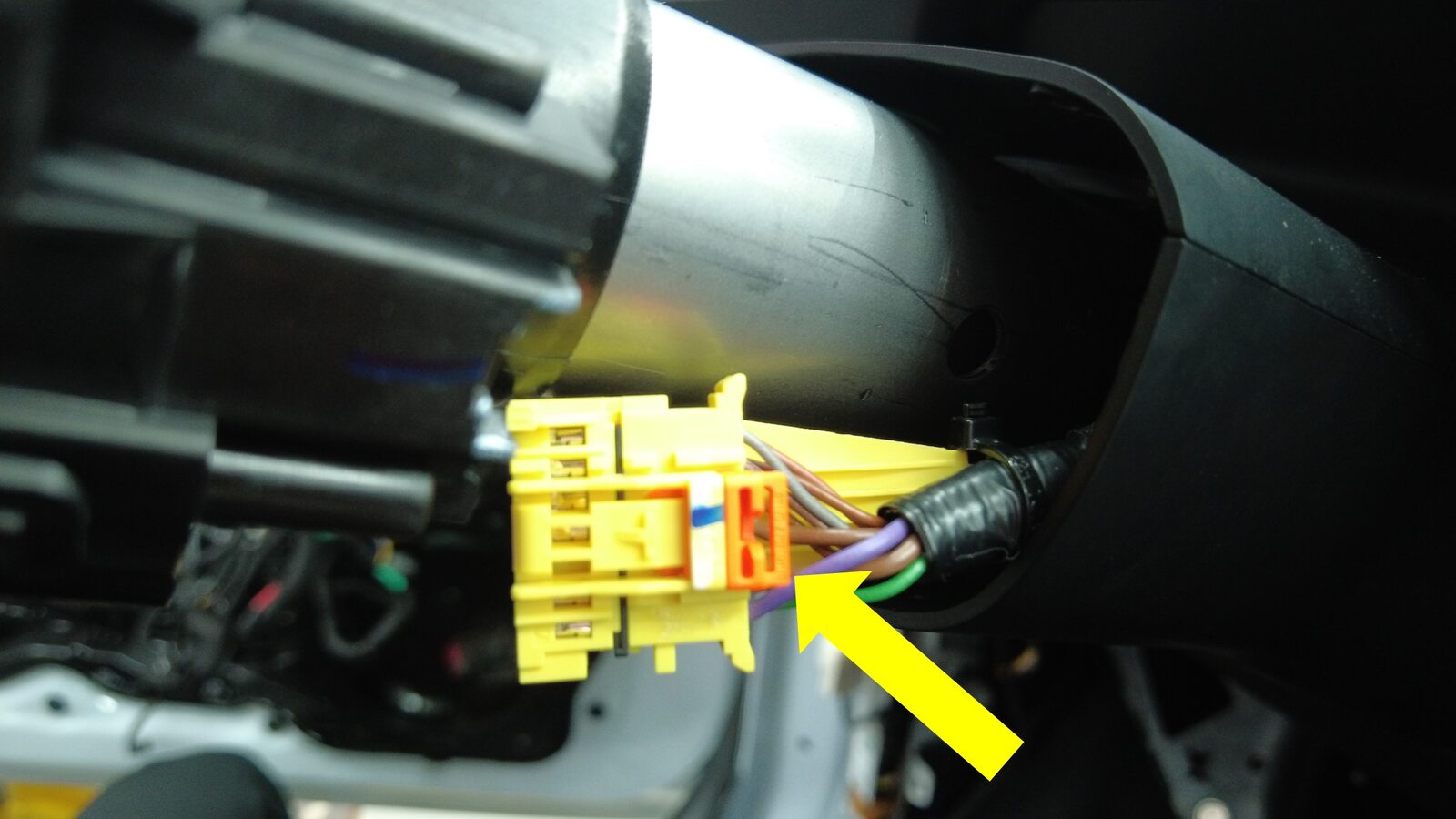

  2. Connect steering column control module connector
    Informational PurposesAn informational icon, calling your attention
    Note

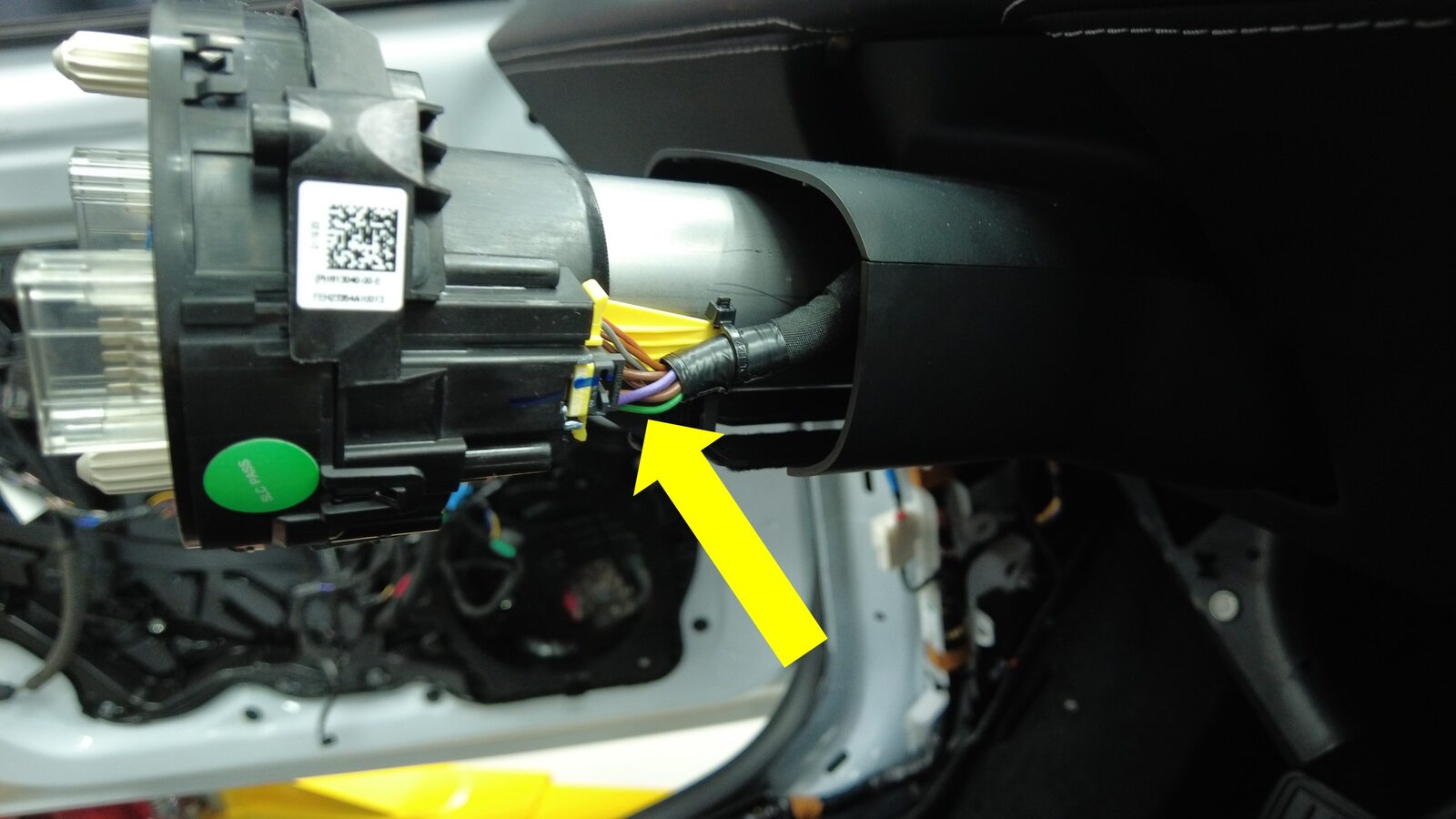

    1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly
  3. Install the steering column upper shroud. See Steering Column Shroud Upper (Model Y Standard) (Remove and Install).
