Tail Light - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Open the LH rear door and lower the LH rear window.
  2. Open the liftgate.
  3. Fold the 2nd row LH and center seat back to the down position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Protect the seat back upholstery if necessary.

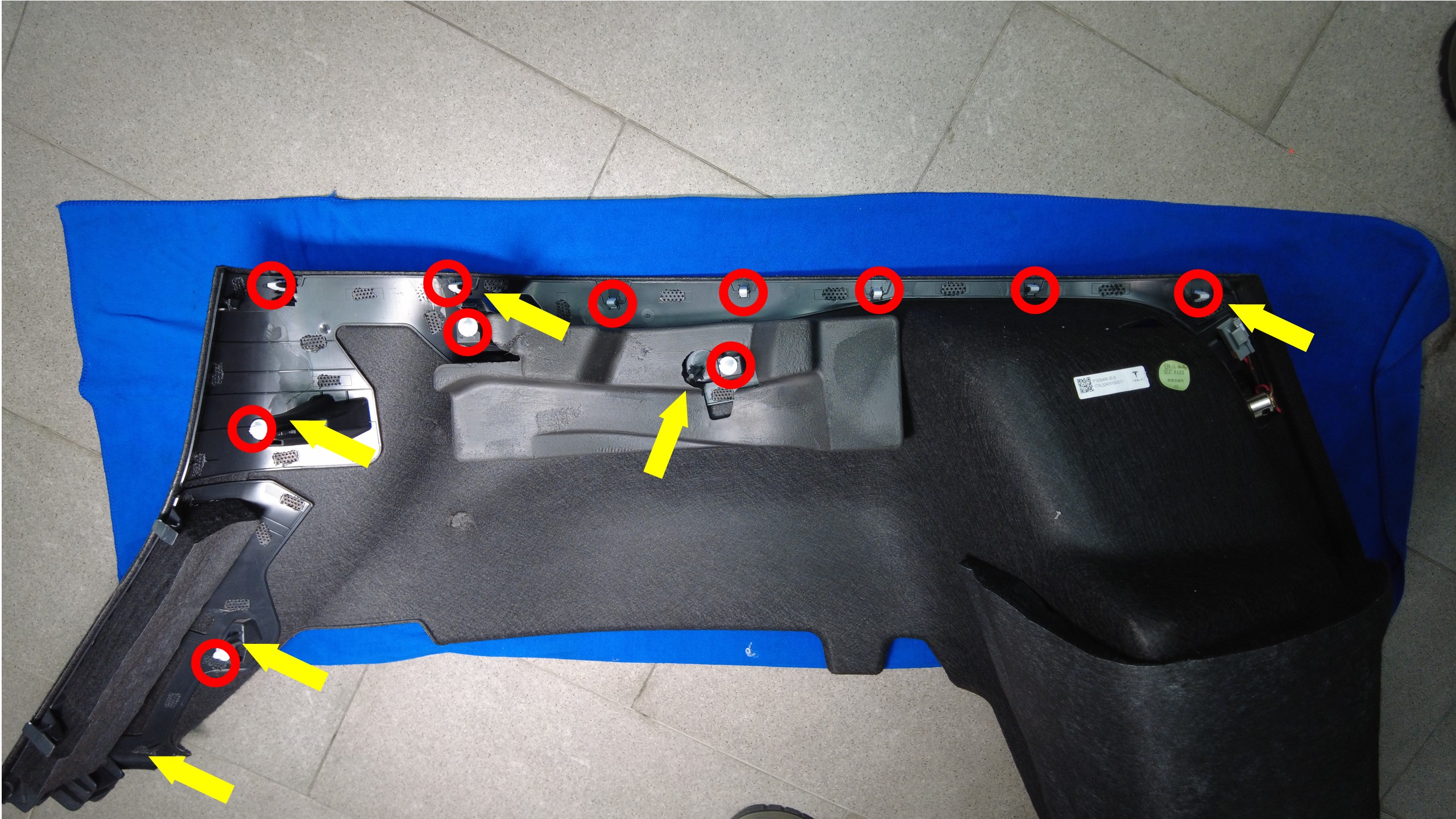

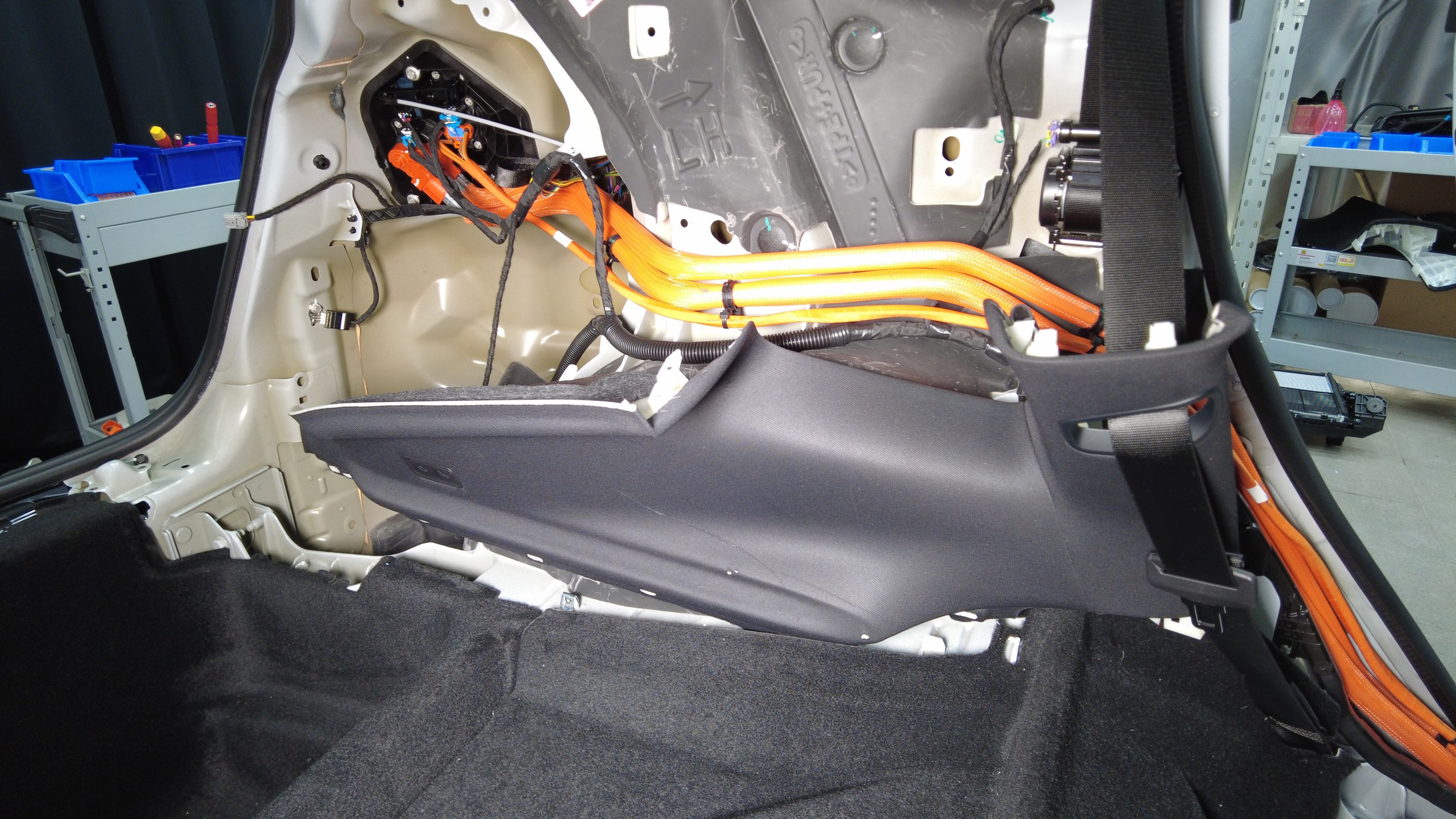

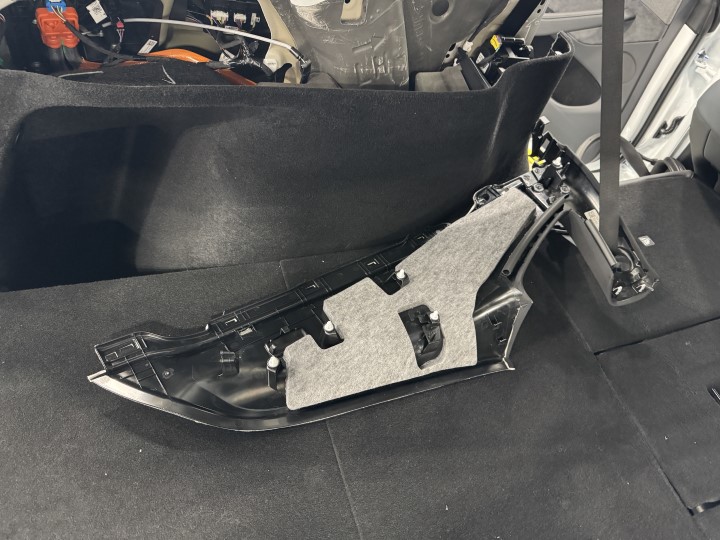

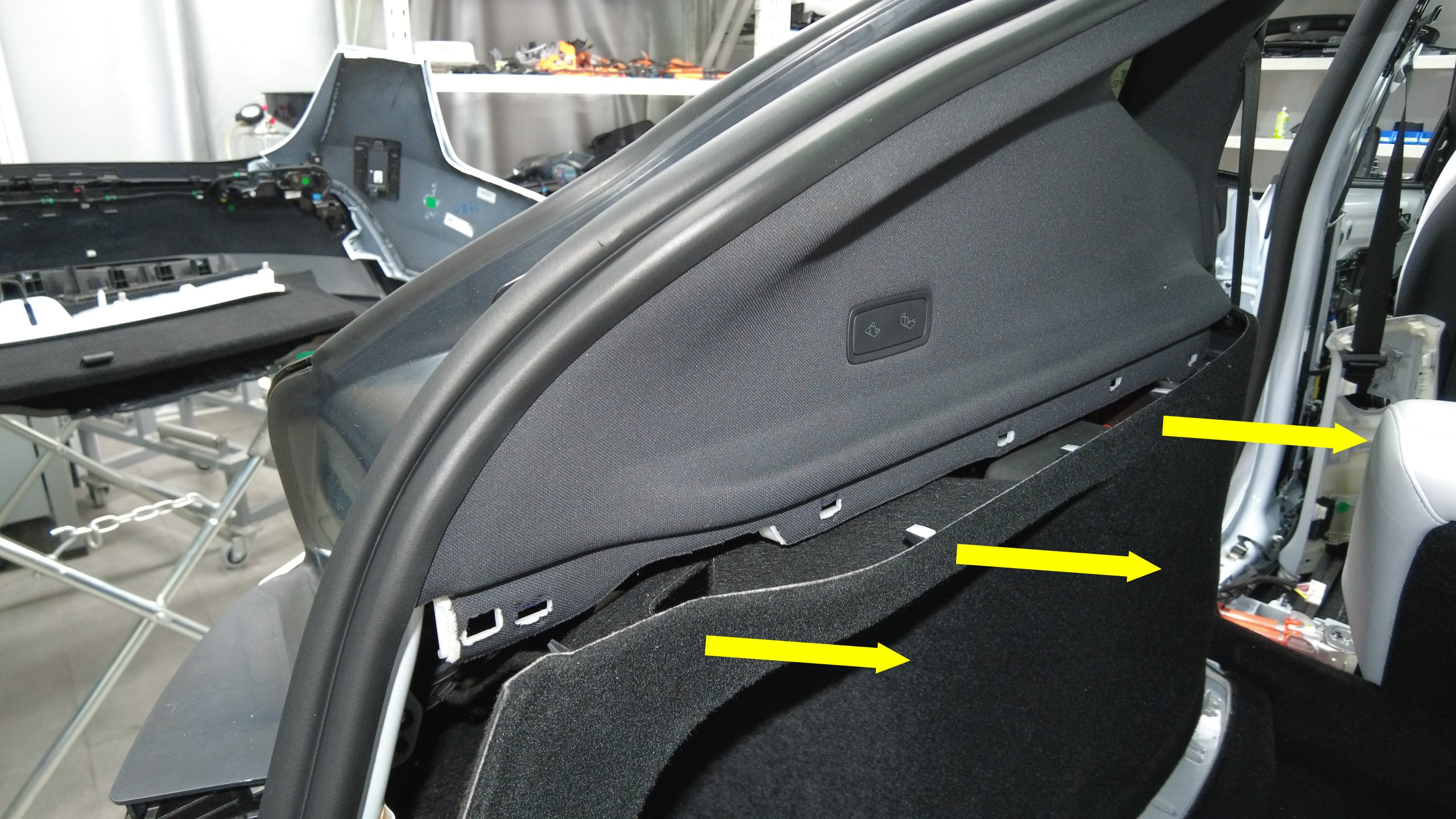

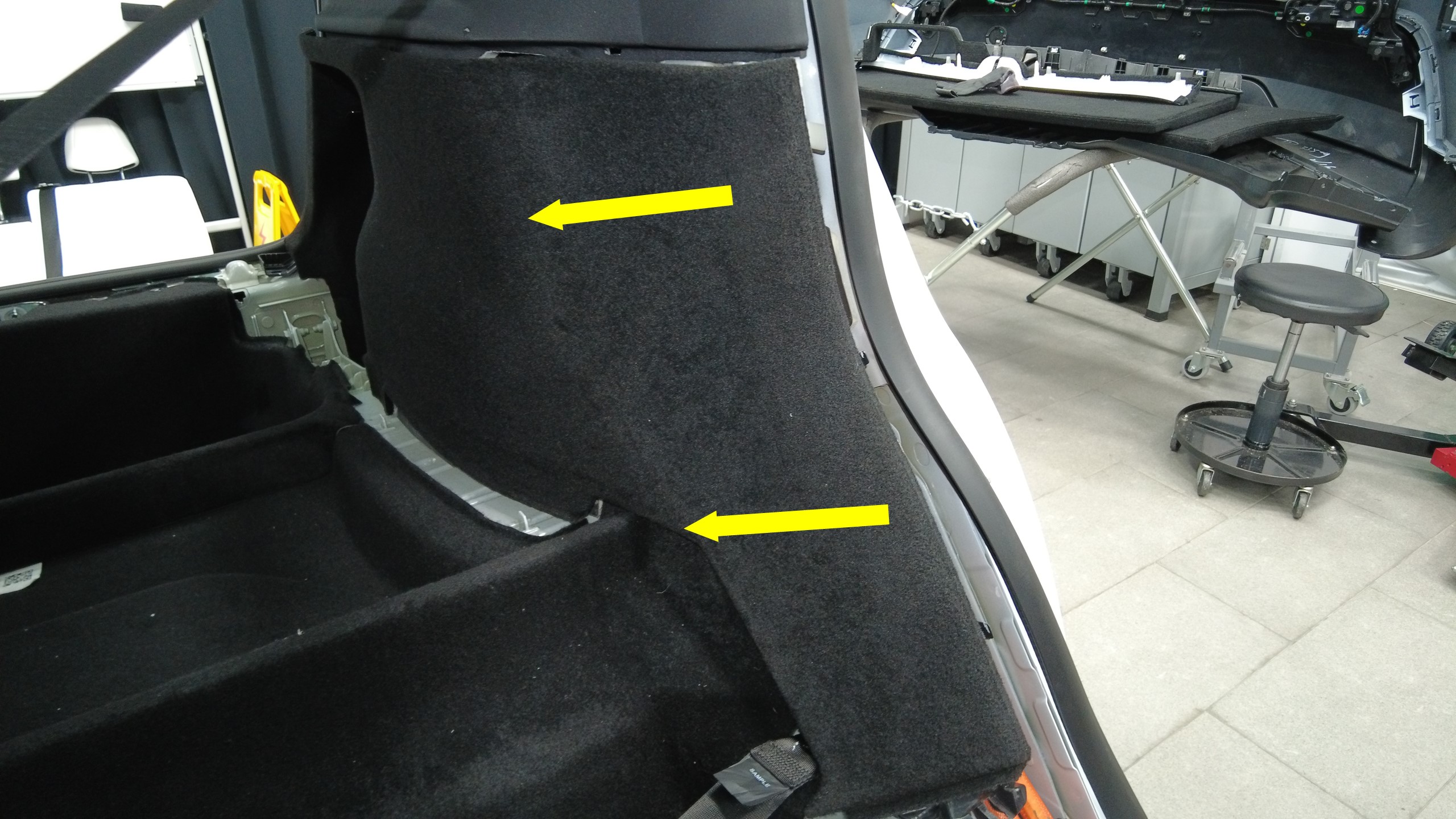

  4. Release the clips (x9) that attach the upper portion of the LH trunk side trim to the body to partially release the LH trunk trim.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution to prevent straining the 12V socket harness at the rear of the trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    All clips and datums are shown in the image for reference and clarity.

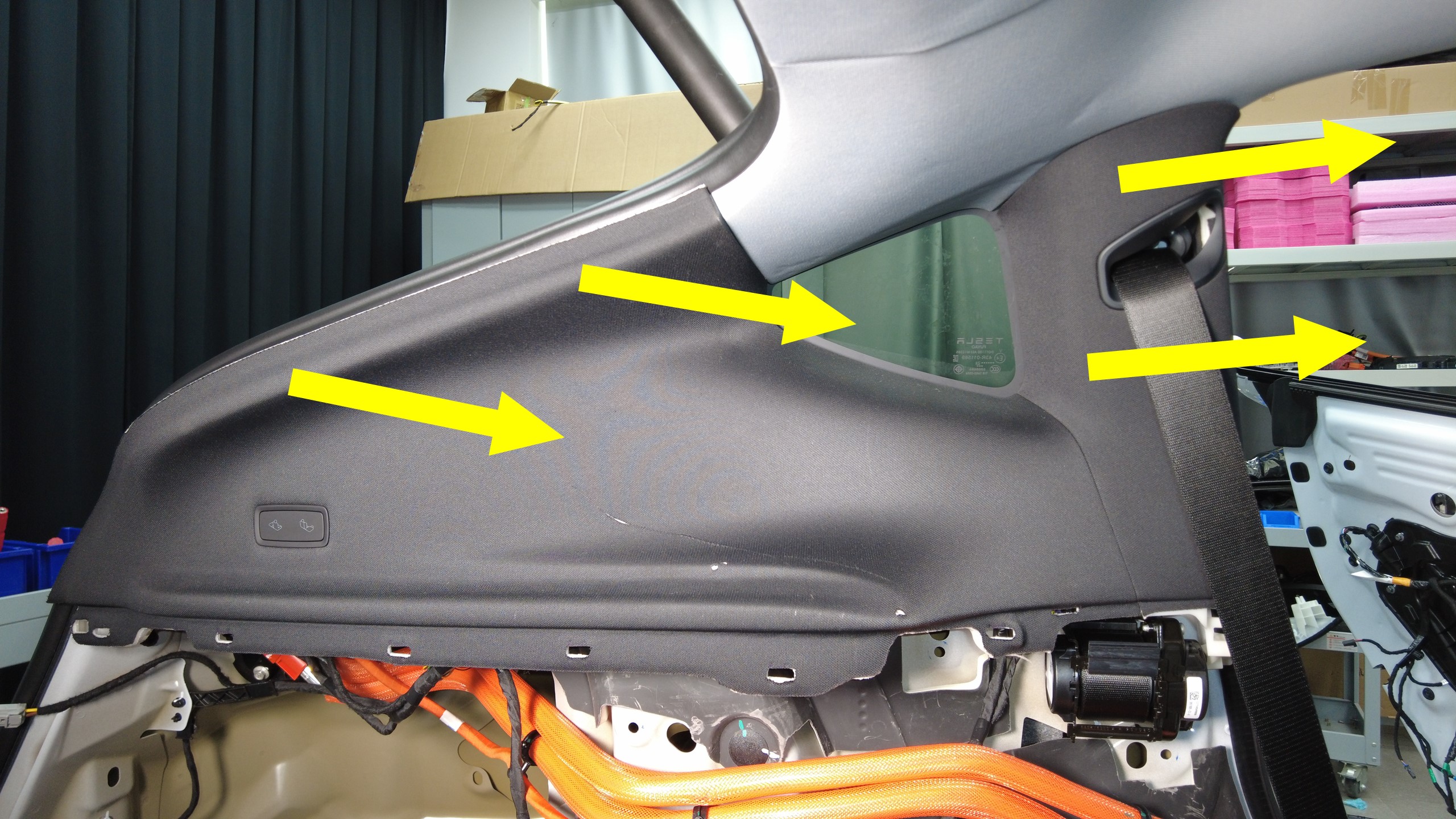

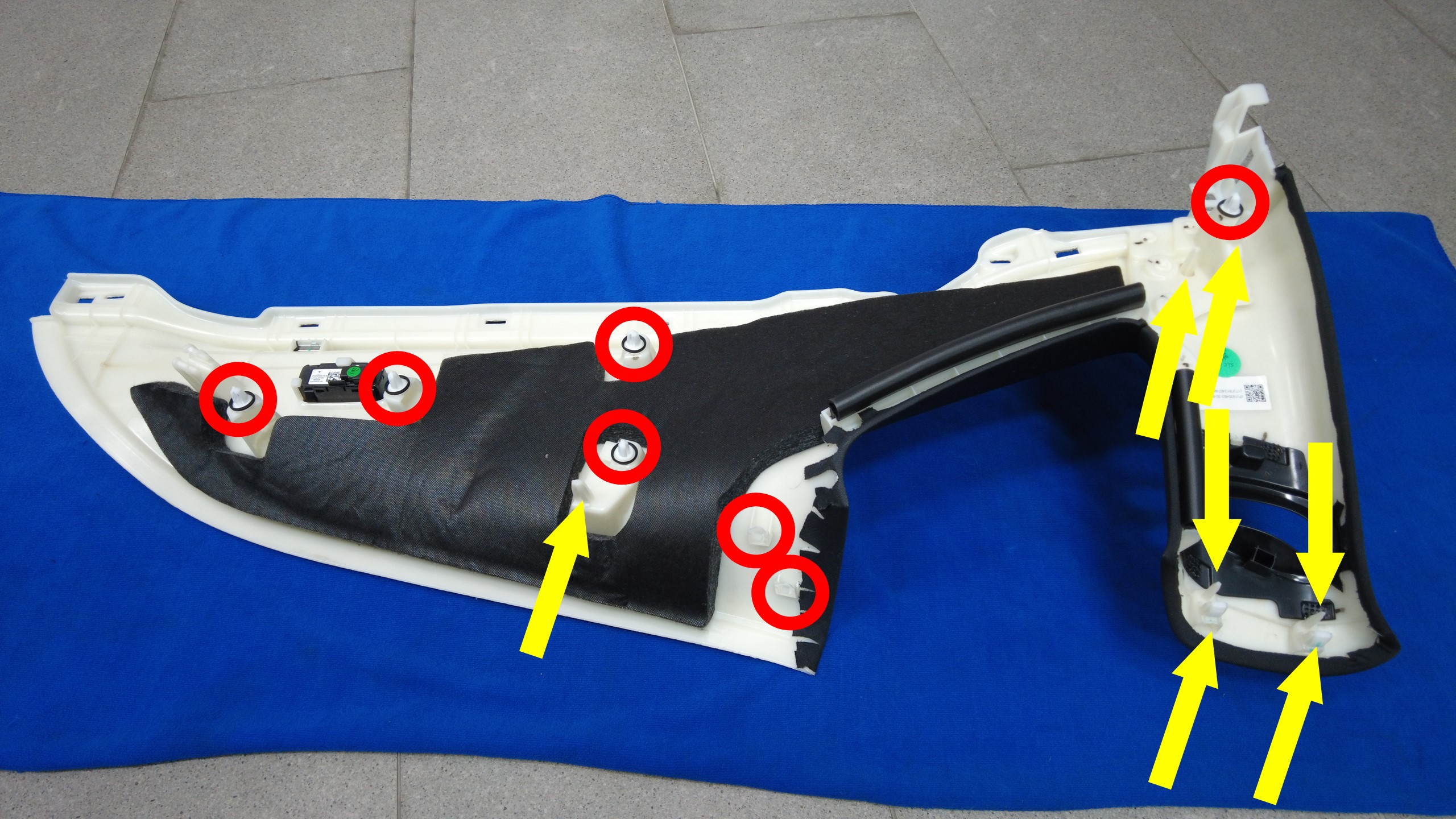

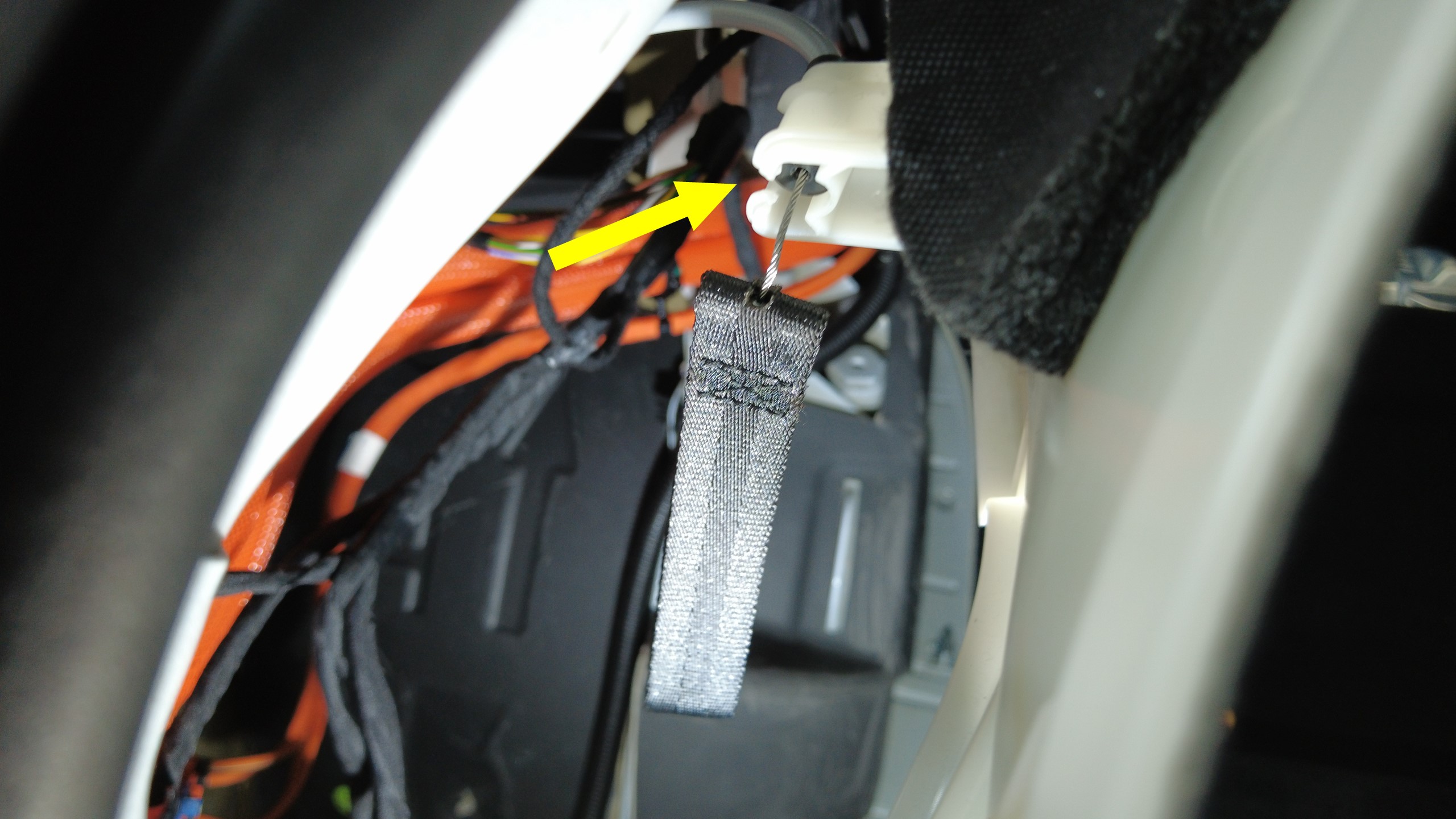

  5. Release the clips (x7), tabs (x2) and datums (x5) that attach the LH upper C-pillar trim to the body, release the charge port manual release cable, and then rest the LH upper C-pillar on the trunk floor.

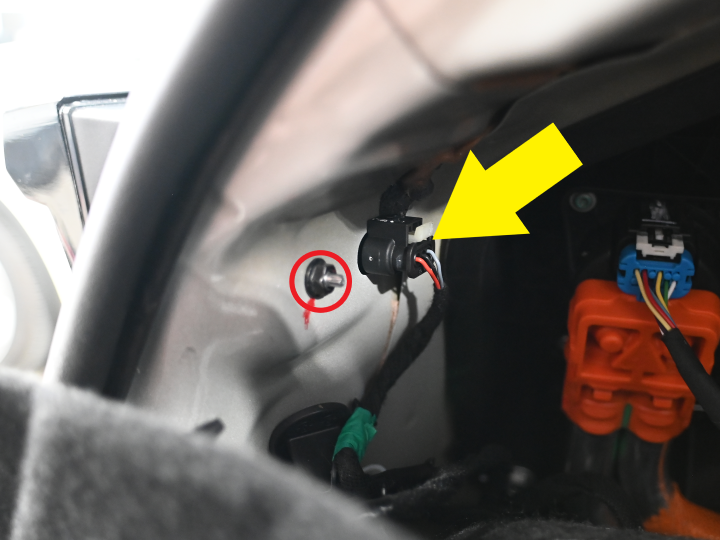

  6. Disconnect the LH tail light connector, and then remove the nut the attaches the LH tail light to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket

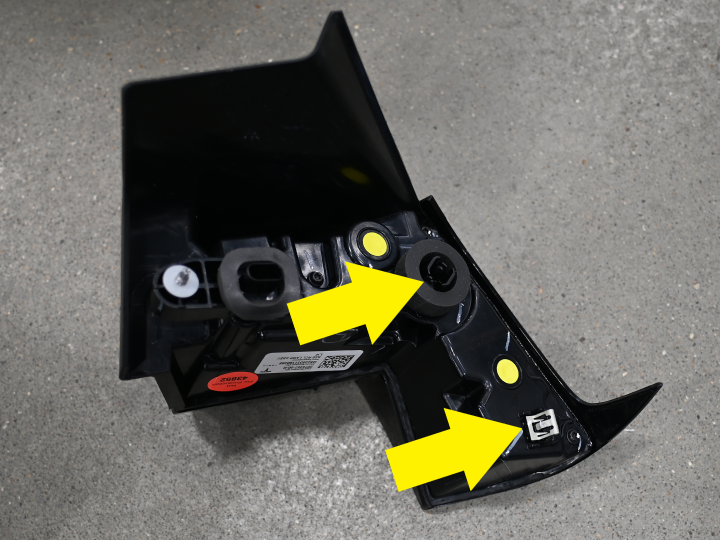

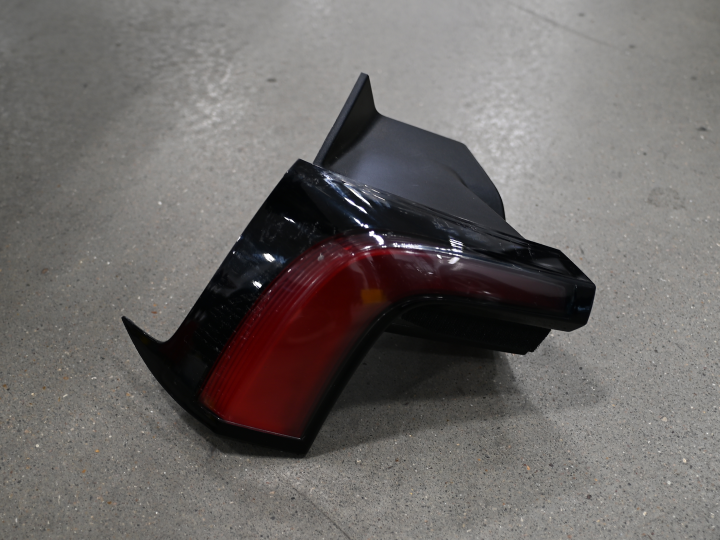

  7. Firmly push the LH tail light rearwards to release the clips (x2), and then remove the light from the vehicle.

Install

  1. Align the LH tail light to the body, and then firmly push the LH tail light forwards to engage the clips (x2).
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the gaskets are in good condition.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any missing or damaged clips.
  2. Connect the LH tail light connector, and then install the nut the attaches the LH tail light to the body.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket
  3. Install the charge port manual release cable, and then install the clips (x7), tabs (x2) and datums (x5) that attach the LH upper C-pillar trim to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the trunk seal correctly overlap the trim.
  4. Install the clips (x9) that attach the upper portion of the LH trunk side trim to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that all clips are properly engaged.
    Informational PurposesAn informational icon, calling your attention
    Note
    All clips and datums are shown in the image for reference and clarity.
  5. Return the 2nd row LH and center seat back to the vertical position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the seat back upholstery if necessary.
  6. Close the liftgate.
  7. Raise the LH rear window and close the LH rear door.
