Tuned Mass Damper (Remove and Replace)

Correction code 1133041202 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications:Tuned Mass Damper (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (X2) secure tuned mass damper to liftgate
9 Nm (6.6 lbs-ft)
  • 10 mm socket
  • Ratchet/torque wrench
 Reuse

Remove

  1. Open liftgate.
  2. Remove liftgate upper trim. See Liftgate Upper Trim (Remove and Replace).
  3. Remove liftgate lower trim from liftgate assembly. See Liftgate Lower Trim (Remove and Replace).

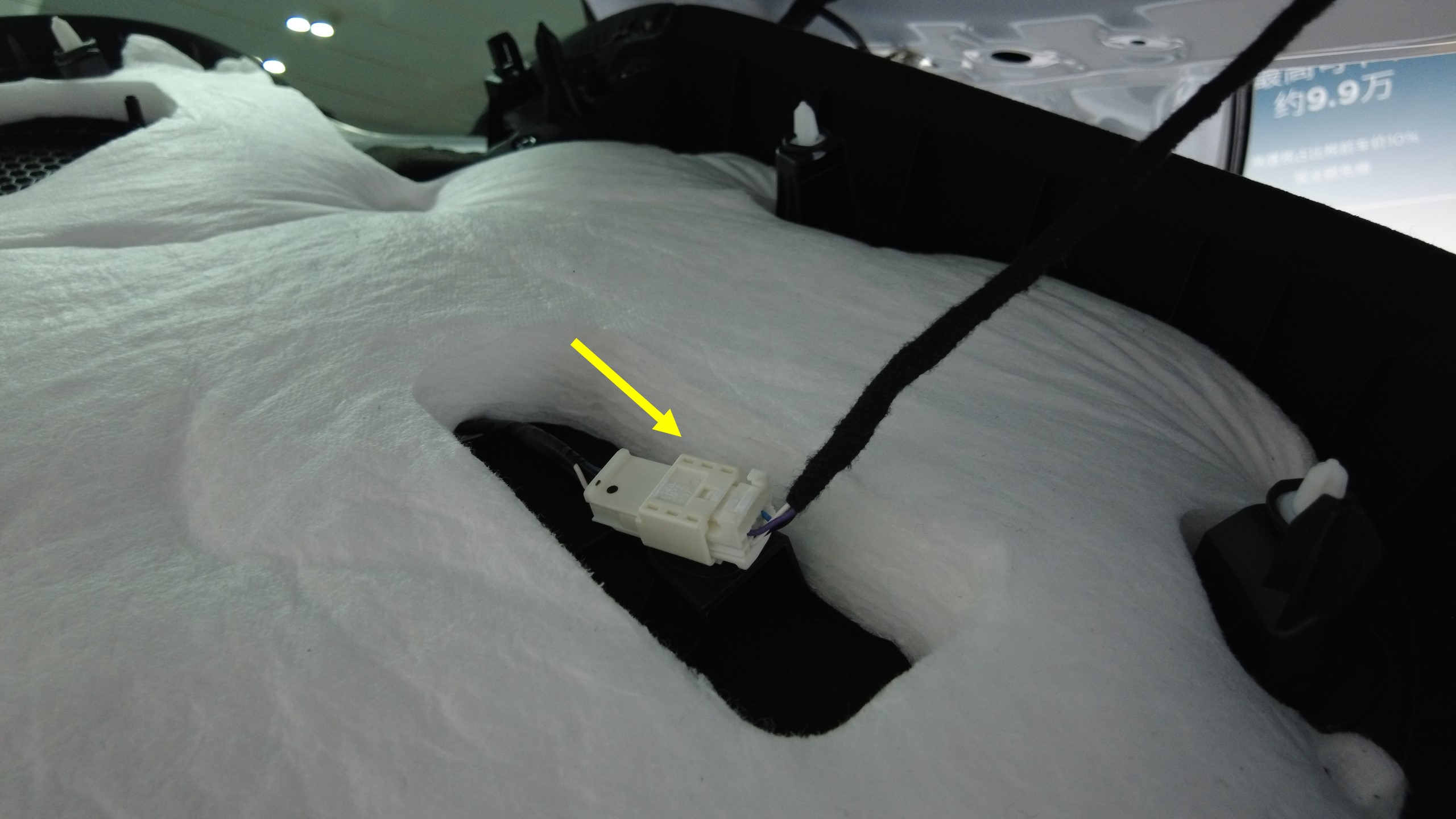

  4. Disconnect liftgate trim connector.

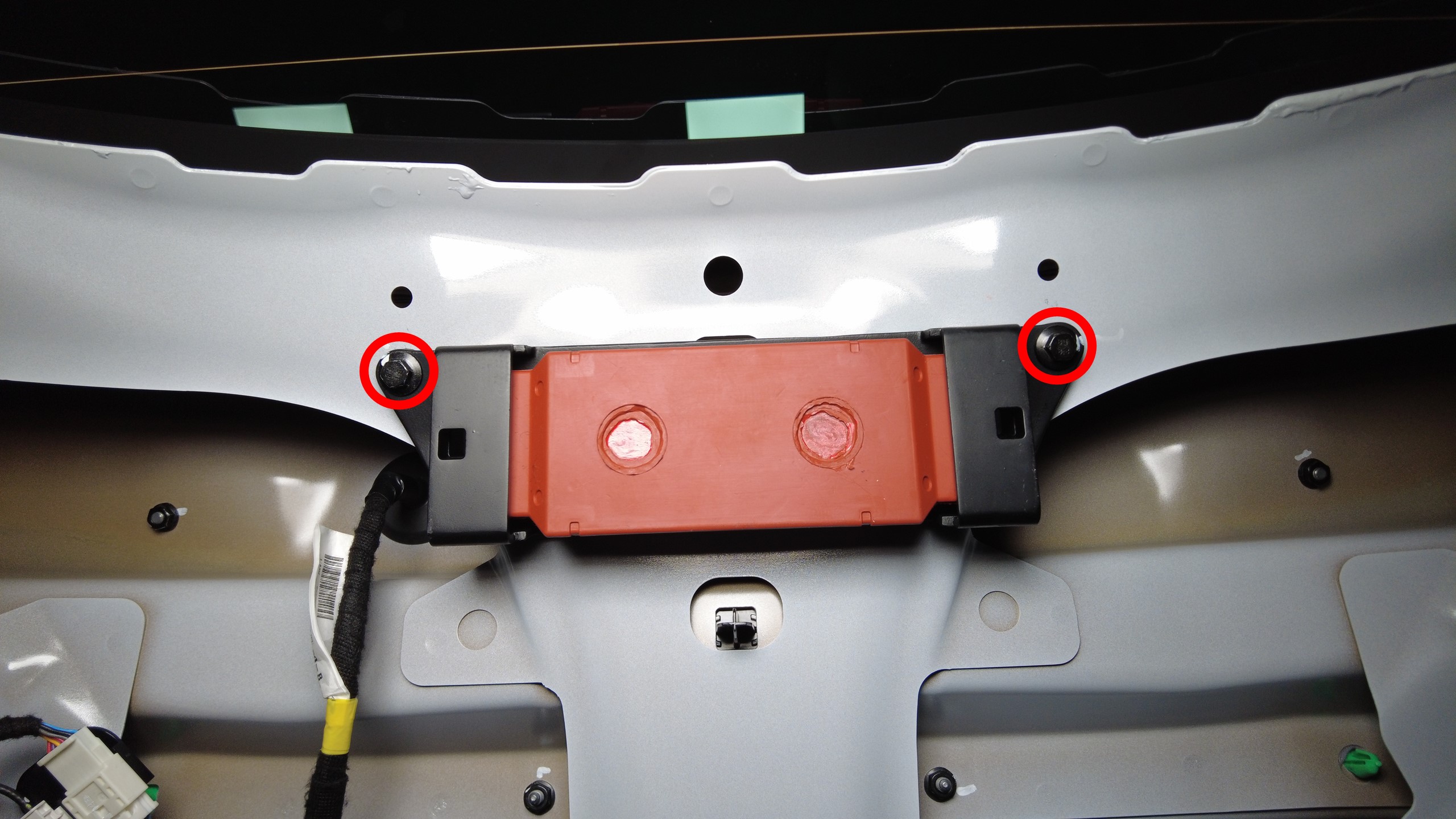

  5. Remove tuned mass damper from liftgate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Ratchet/torque wrench

Install

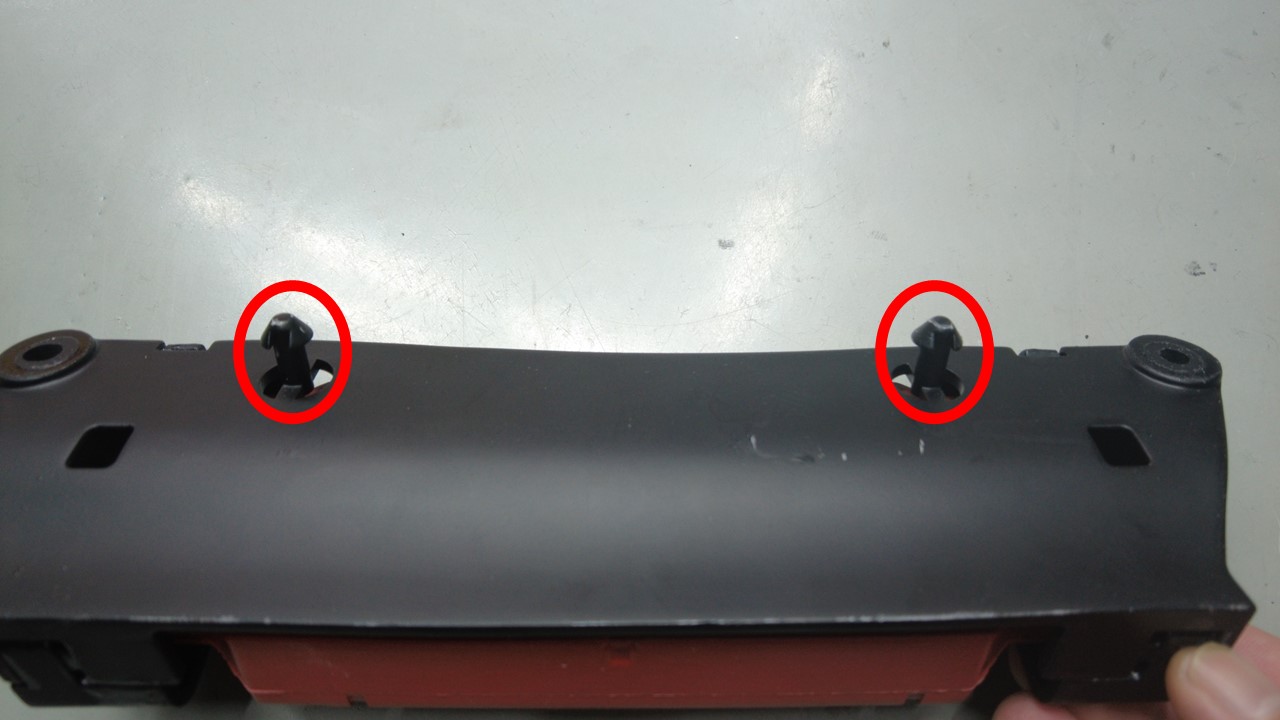

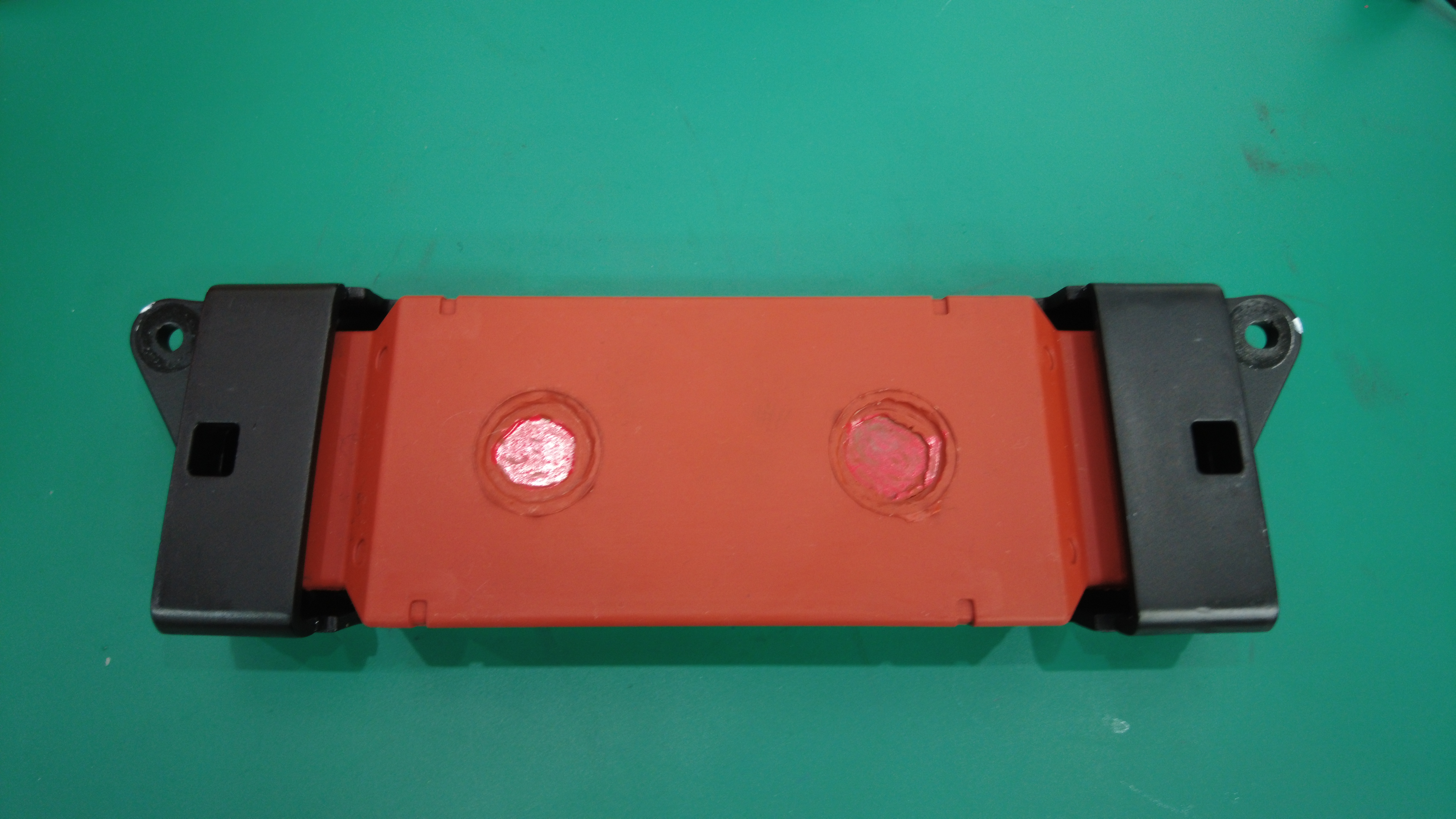

  1. Install tuned mass damper onto liftgate.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Ratchet/torque wrench
  2. Connect liftgate trim connector.
  3. Install liftgate lower trim to liftgate assembly. See Liftgate Lower Trim (Remove and Replace).
  4. Install liftgate upper trim. See Liftgate Upper Trim (Remove and Replace).
  5. Close liftgate.
