Door Trim - Front - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Open the LH front door, and lower the LH front window.
  2. Remove the LH tweeter. See Door Trim Tweeter - Front - LH (Remove and Replace).
  3. Remove the LH front door reflector. See Door Reflector (Remove and Replace).
  4. Remove the bolts (x3) that attach the trim panel to the LH front door.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  5. Use a plastic trim tool to insert the inflatable air bag to the lower left corner of the LH front door trim, then inflate it to release the lower left clip(s).
  6. Continue to pull and release all of the clips around the edge of the trim panel, working from the bottom up.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not pull the trim panel far away from the door as the panel is still attached by connectors.

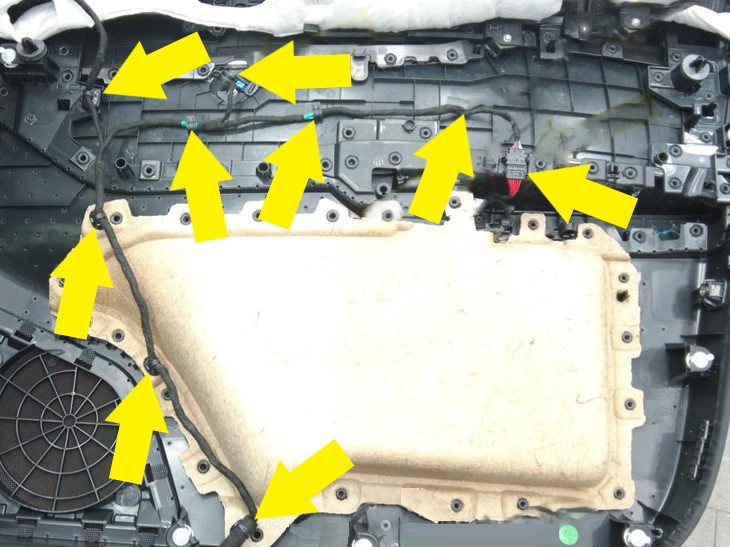

  7. Disconnect the LH front door connectors (x2), release the clips (x7) that attach the electrical harness to the trim, and then remove the panel from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lift the NVH pad to access the working area.

Install

  1. Connect the LH front door connectors (x2), and then install the clips (x7) that attach the electrical harness to the trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the NVH pad is positioned correctly.
  2. Slide the top portion of the door trim into the door seal, and then swing the bottom of the trim into place.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that all clips (x9) are properly seated. Replace any missing or damaged clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the trim panel fits tightly, and that there are no gaps from misaligned or bent clips.
  3. Install the bolts (x3) that attach the trim panel to the LH front door.
    6 Nm (4.4 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure that all fasteners are properly torqued and not cross-threaded.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  4. Install the LH front door reflector. See Door Reflector (Remove and Replace).
  5. Install the LH tweeter. See Door Trim Tweeter - Front - LH (Remove and Replace).
  6. Raise the LH front window and close the door.
