Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

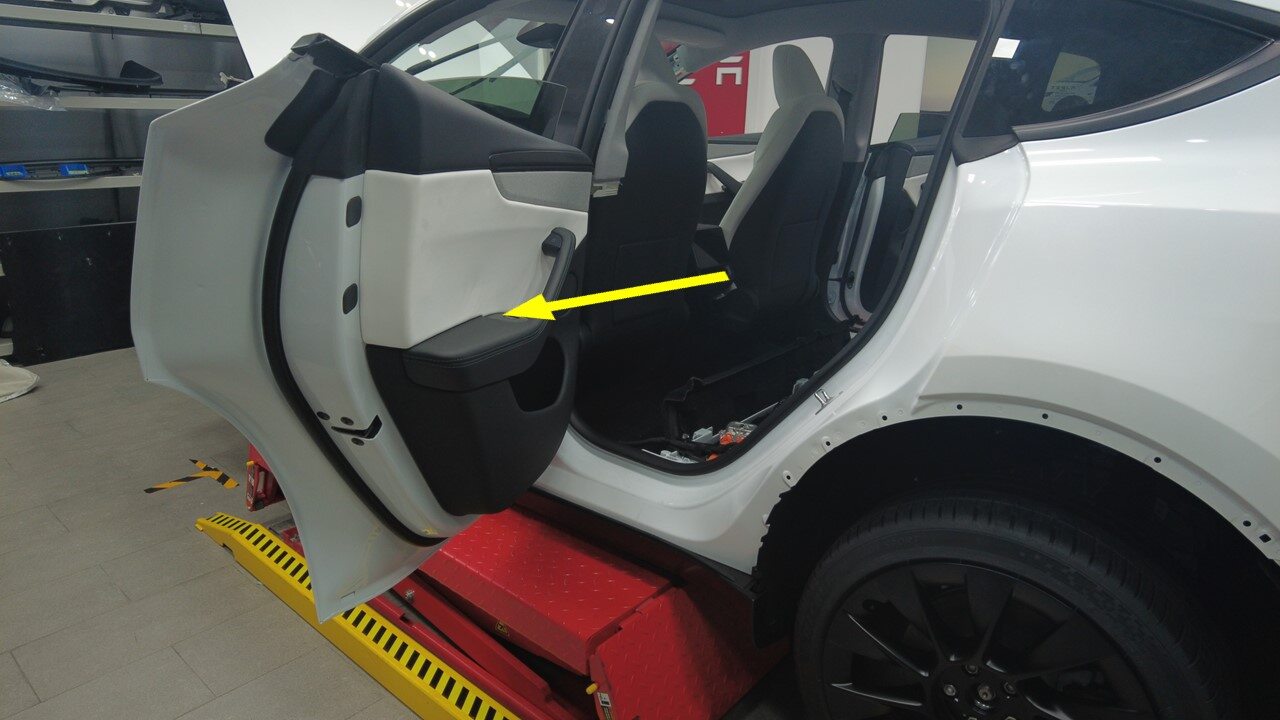

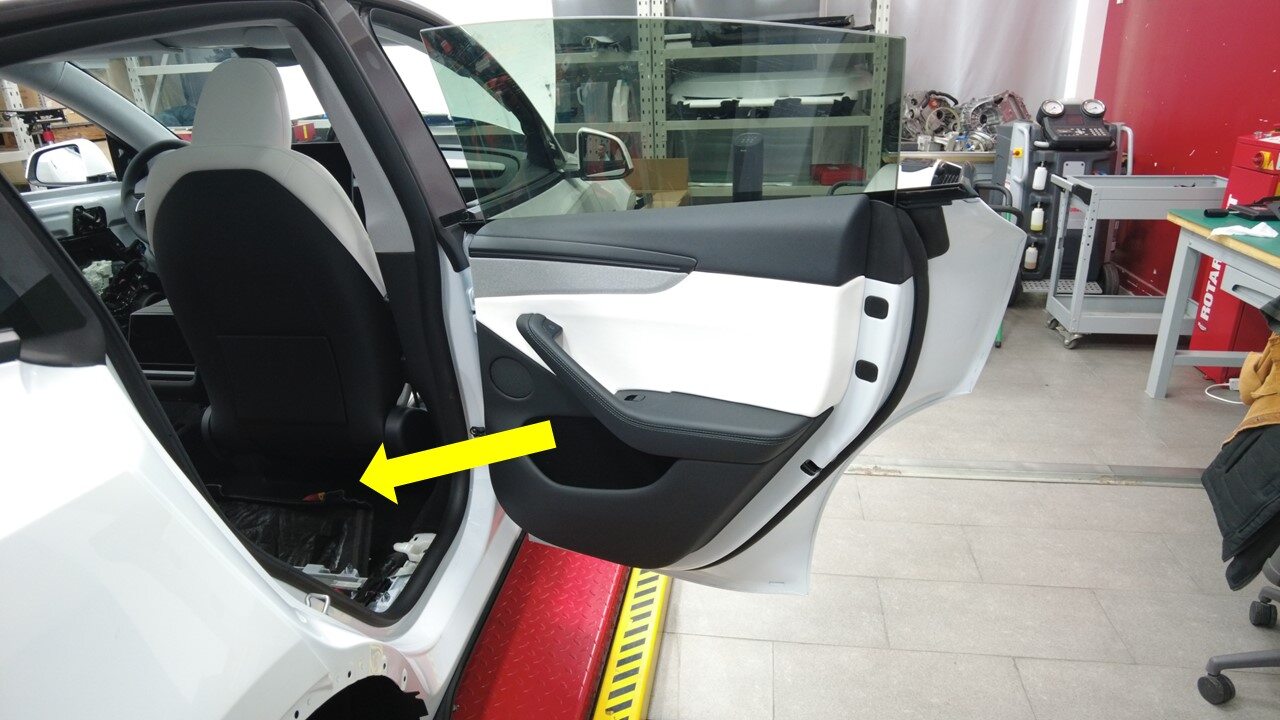

1. Open LH rear door

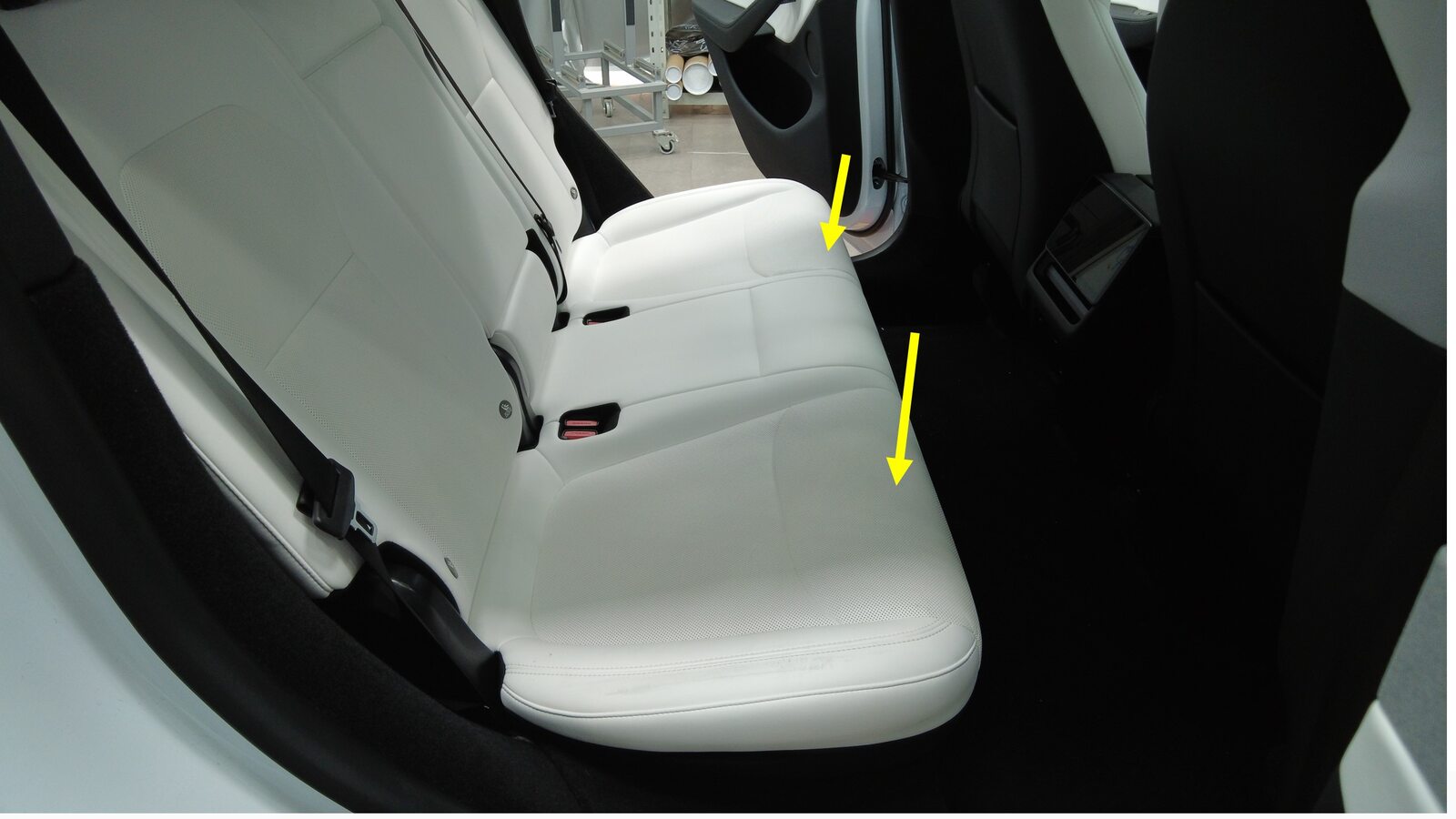

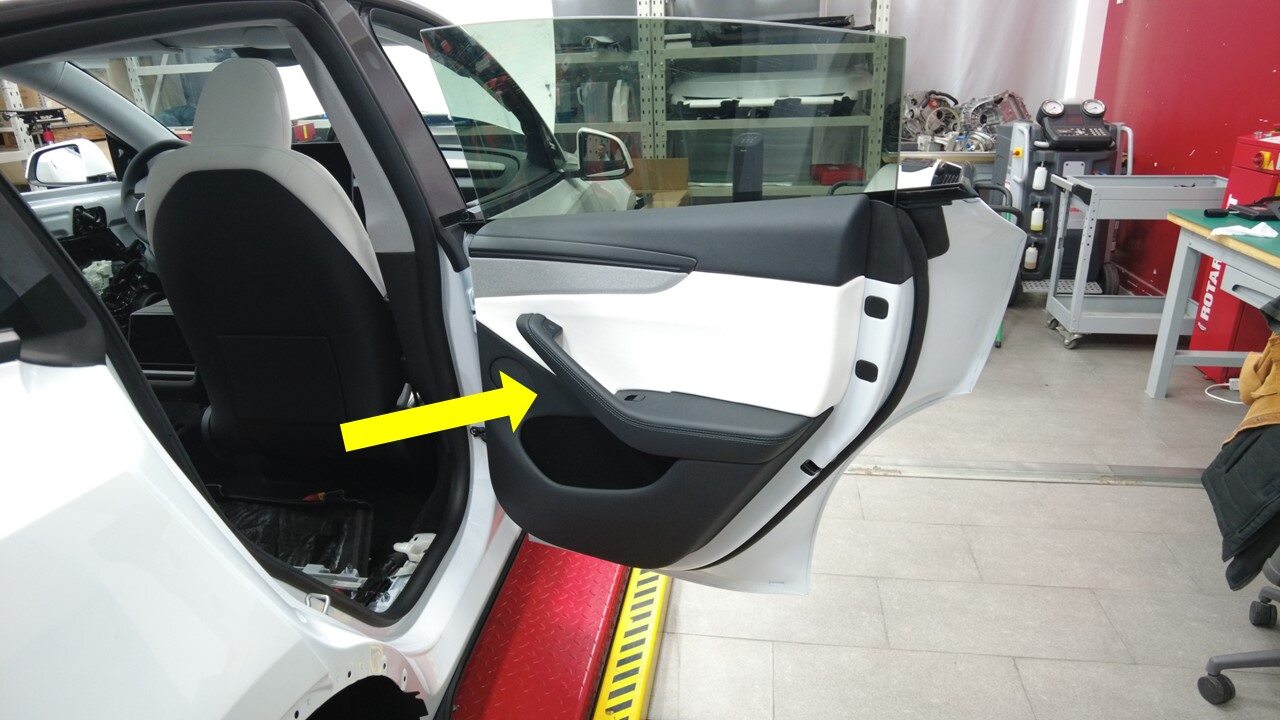

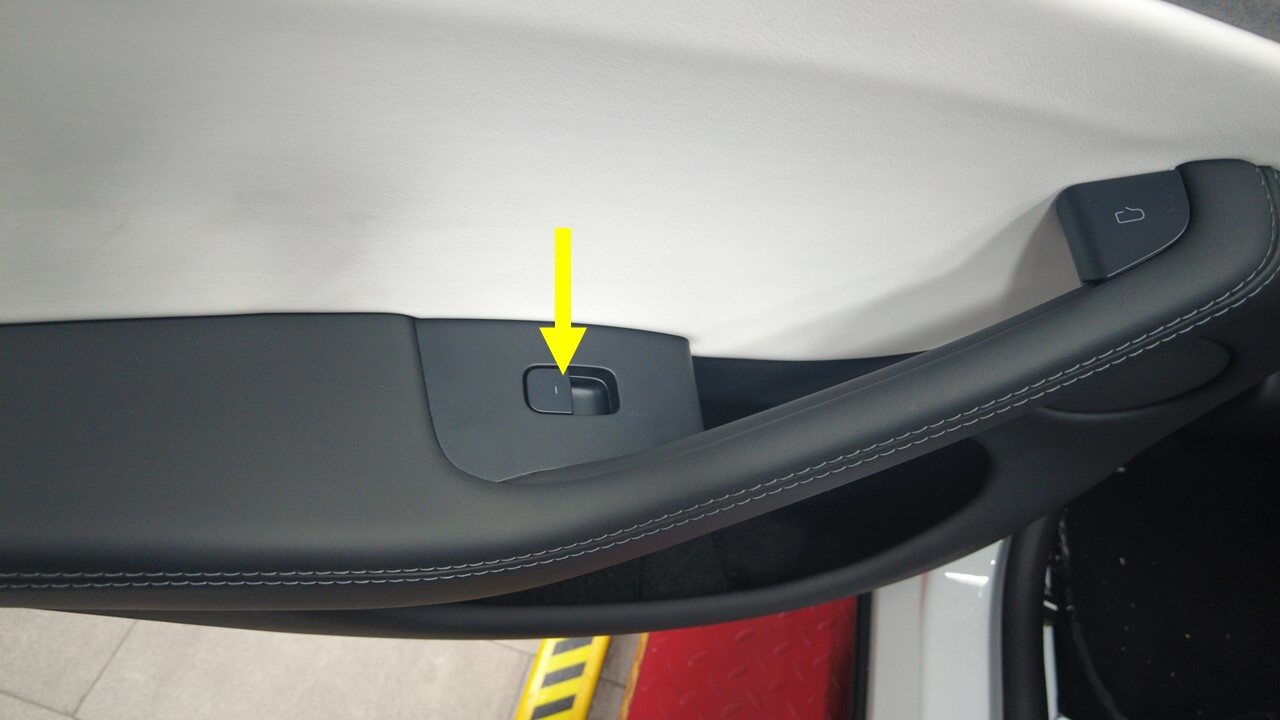

2. Lower LH rear window

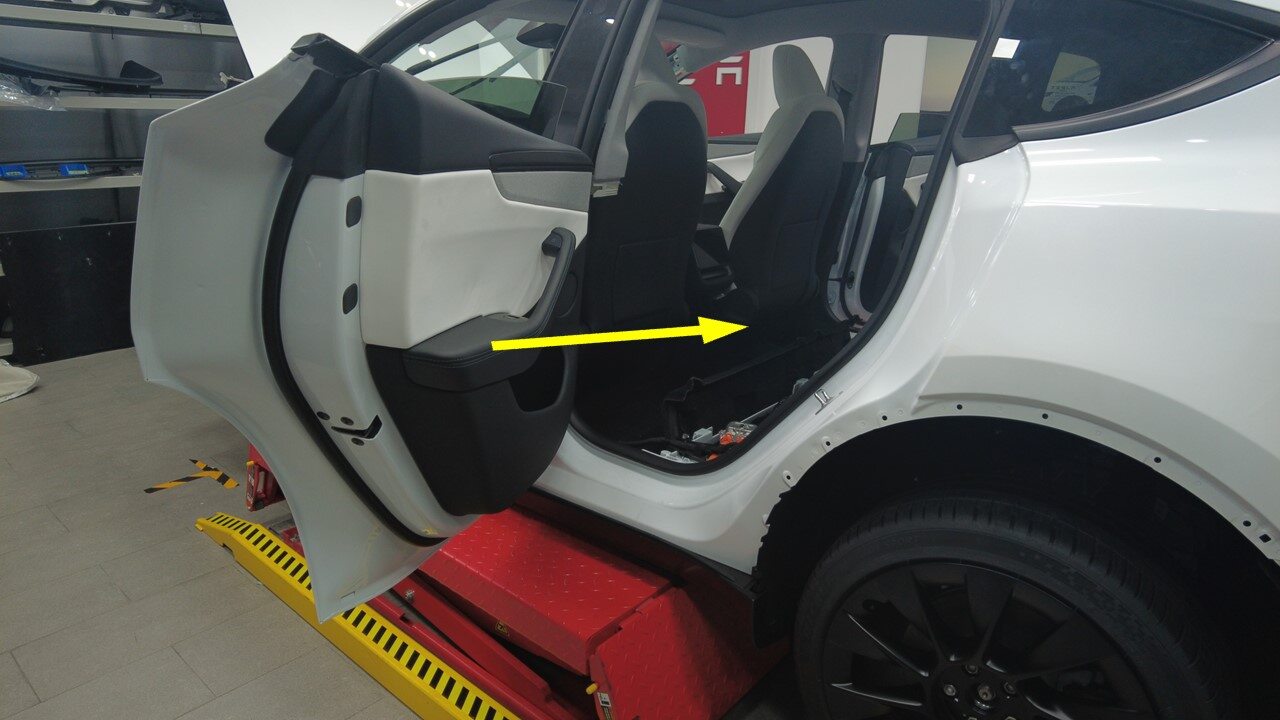

3. Open RH rear door



4. Lower RH rear window

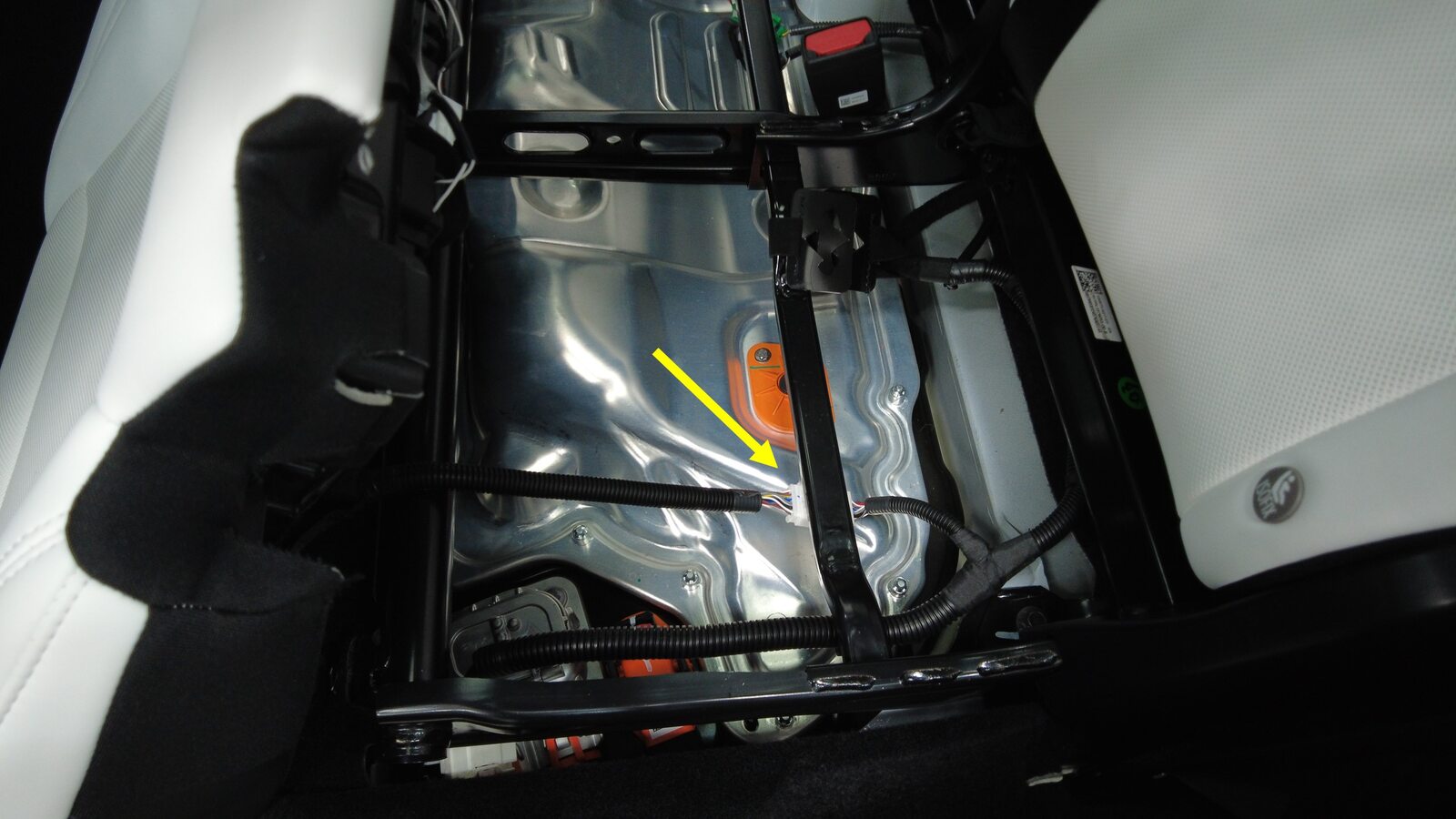

5. Remove 2nd row seat cushion
   Note

   1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed

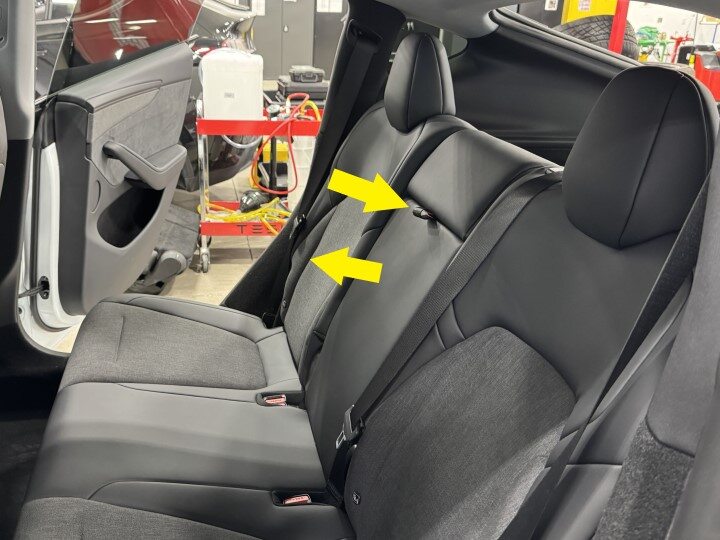

6. Fold down 2nd row armrest
   Note

   Via release strap

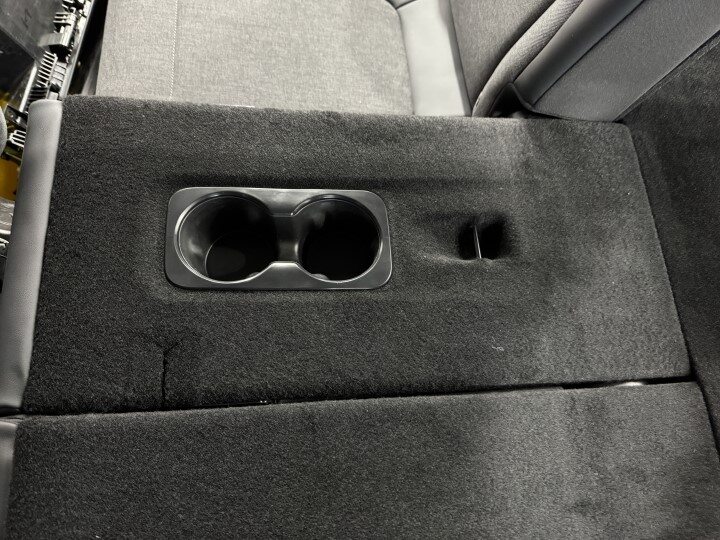

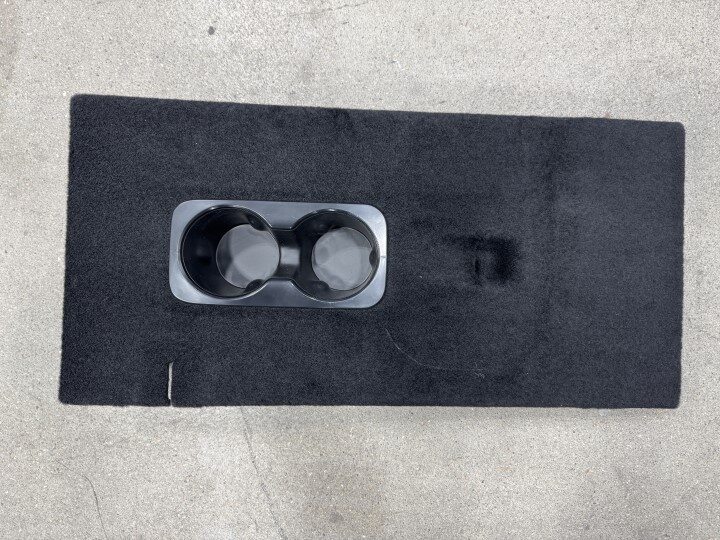

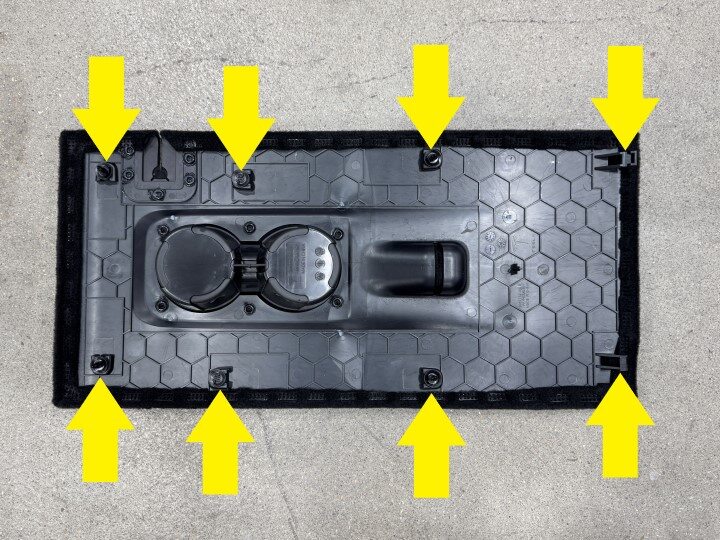

7. Remove 2nd row center back panel
   Note

   6x clips, 2x hooks, Rotate rearwards then pull upwards to release hooks

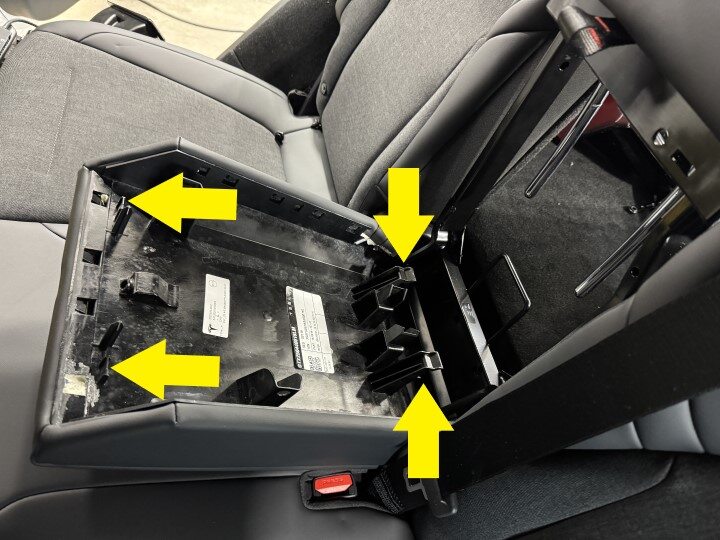

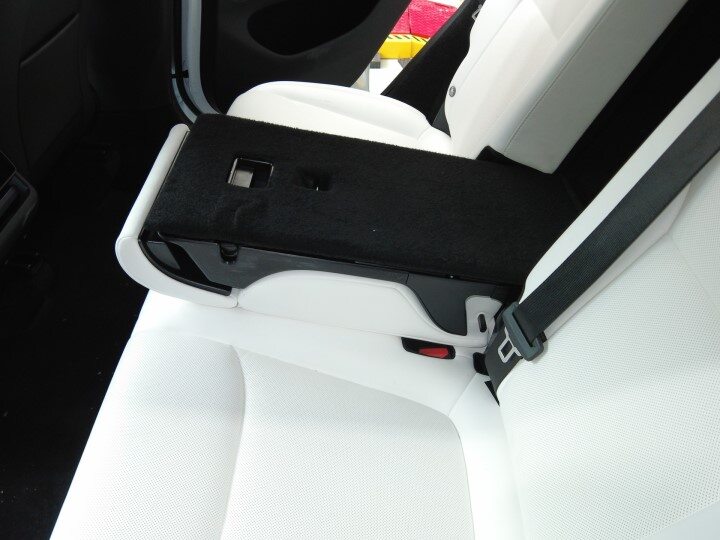

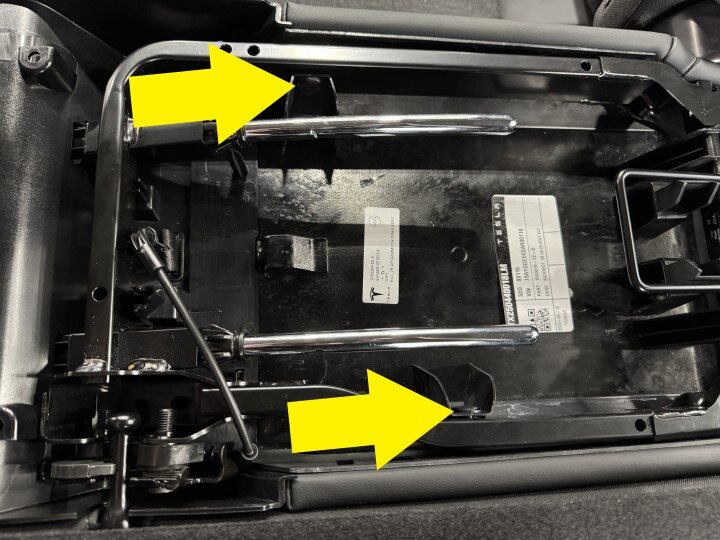

8. Remove 2nd row armrest trim
   Note

   2x push clips, 2x clips, 2x hooks, Rotate armrest frame away from trim





9. Install 2nd row armrest trim
   Note

   2x push clips, 2x clips, 2x hooks, Rotate trim upwards to engage hooks, Secure clips then rotate frame down





10. Install 2nd row center back panel
    Note

    6x clips, 2x hooks, Engage hooks then rotate into position, Replace any missing or damaged clips

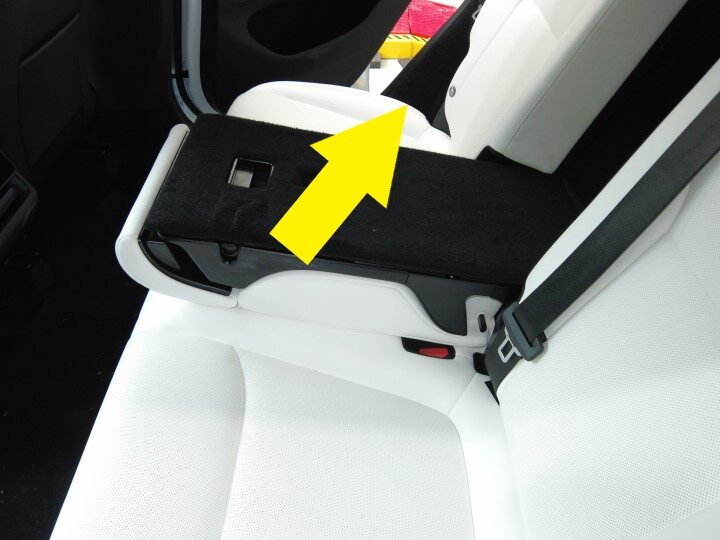

11. Return 2nd row armrest to vertical position
    Note

    Ensure latch engages

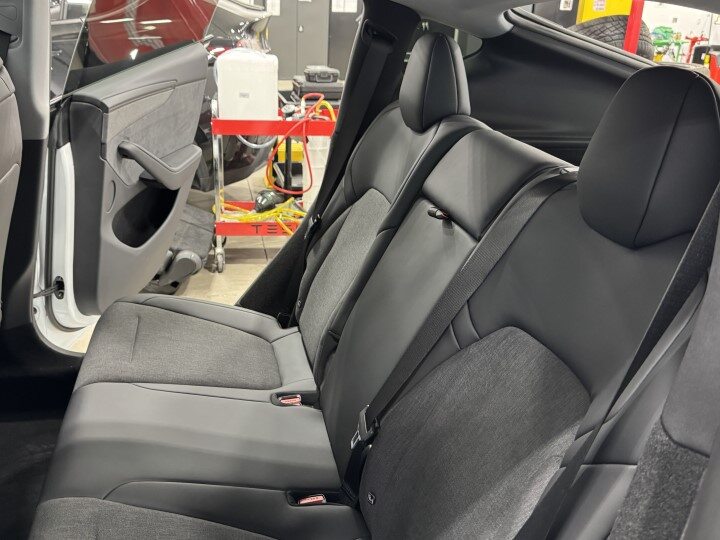

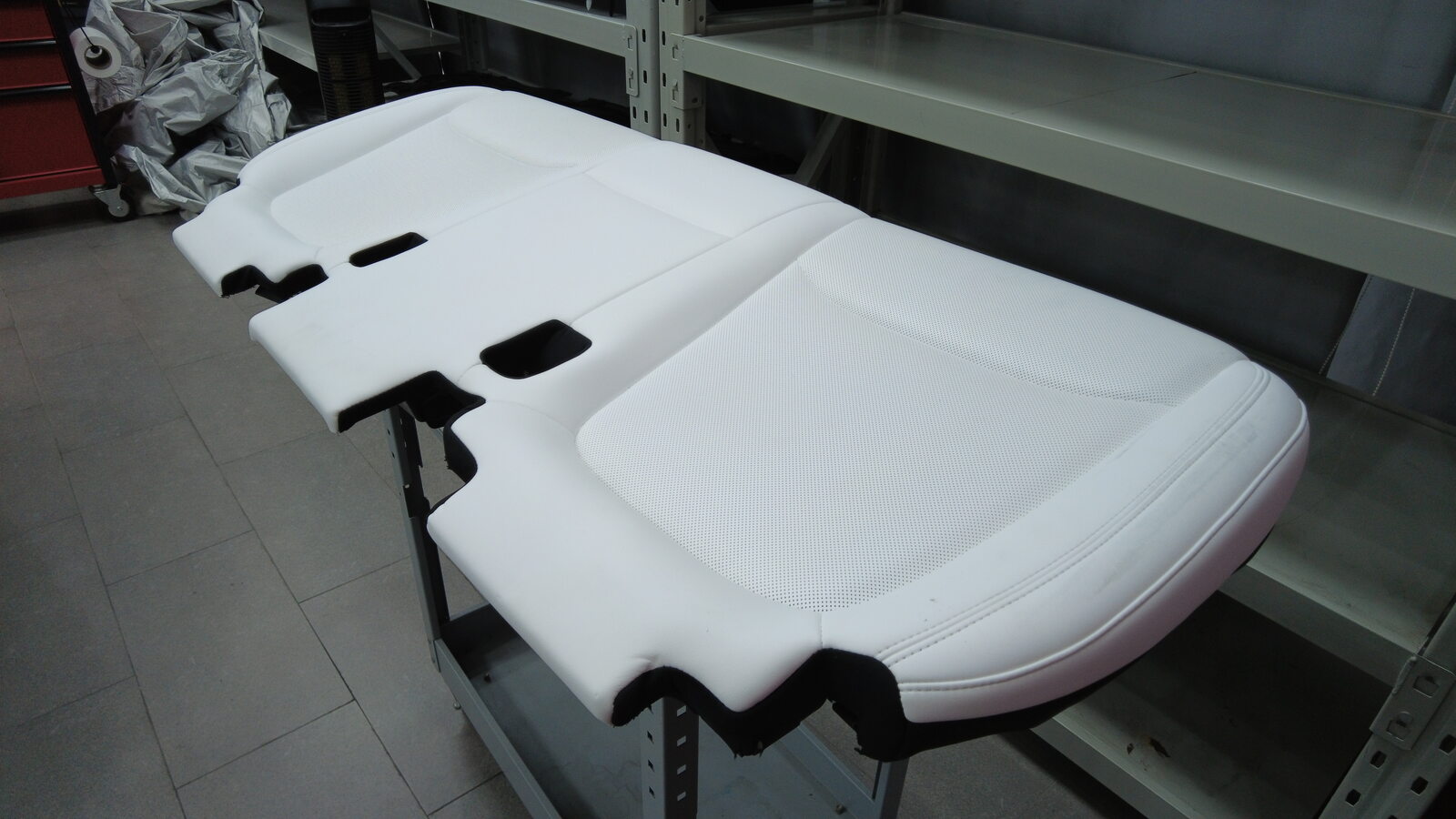

12. Install 2nd row seat cushion
    Note

    1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion

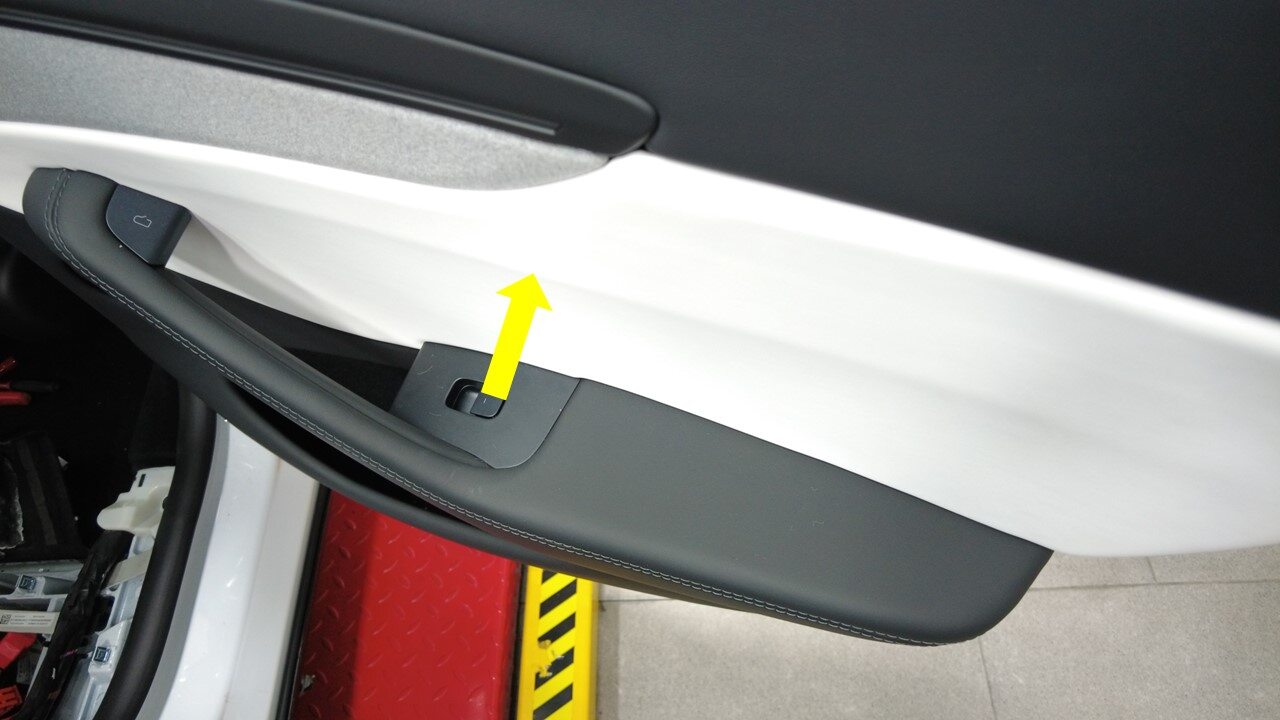

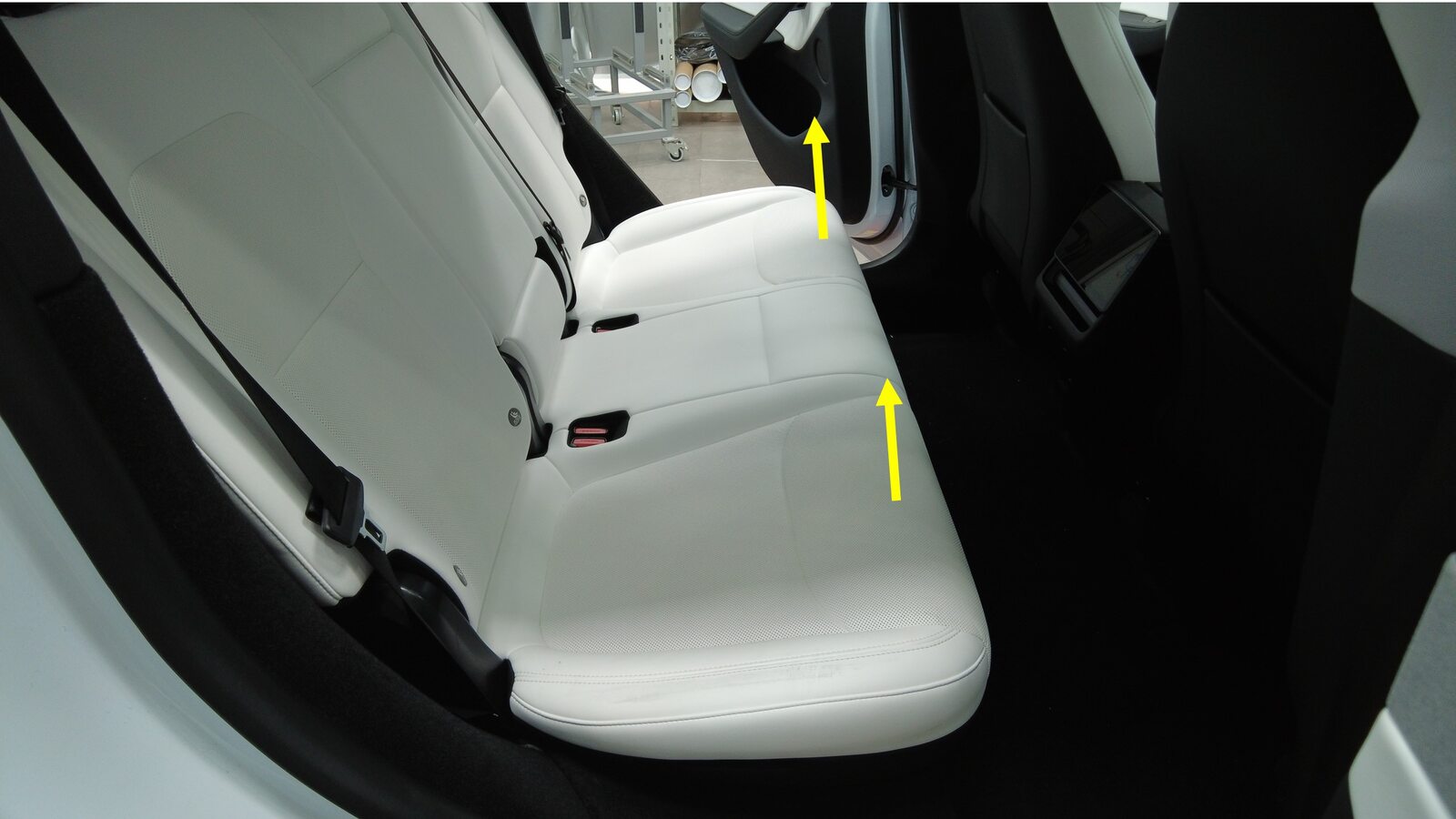

13. Raise RH rear window



14. Close RH rear door



15. Raise LH rear window



16. Close LH rear door
