Armrest - Inner - Center Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Remove the rear end module. See Module - Rear End - Center Console (Model Y Standard) (Remove and Replace).
  2. Remove the screws (x8) that attach the armrest assembly to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note

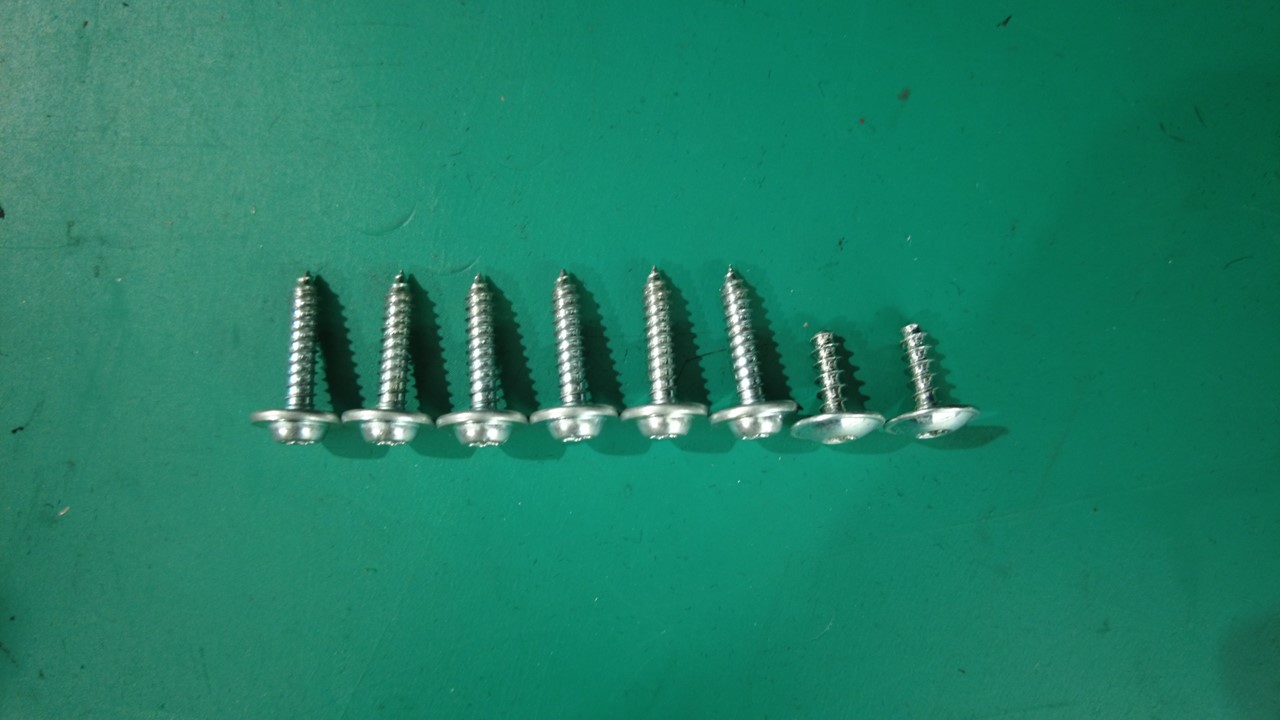

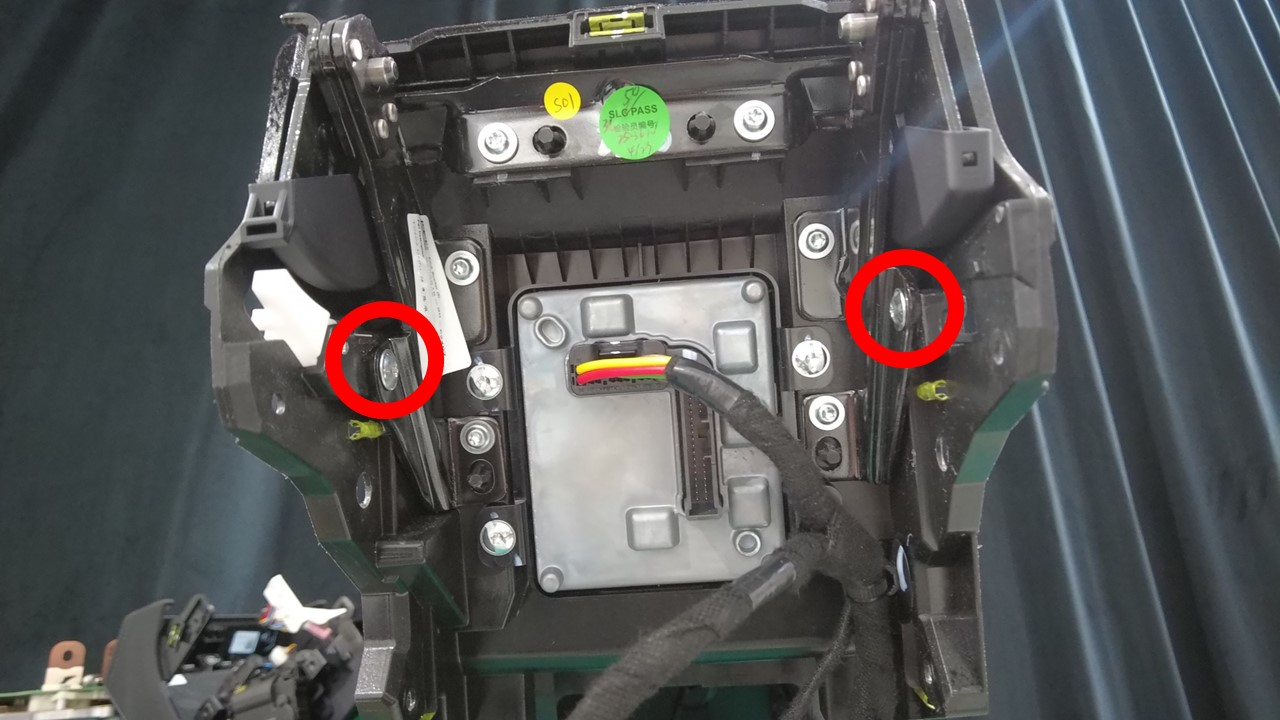

    The outer screws (x2) are shorter than the inner screws (x6).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

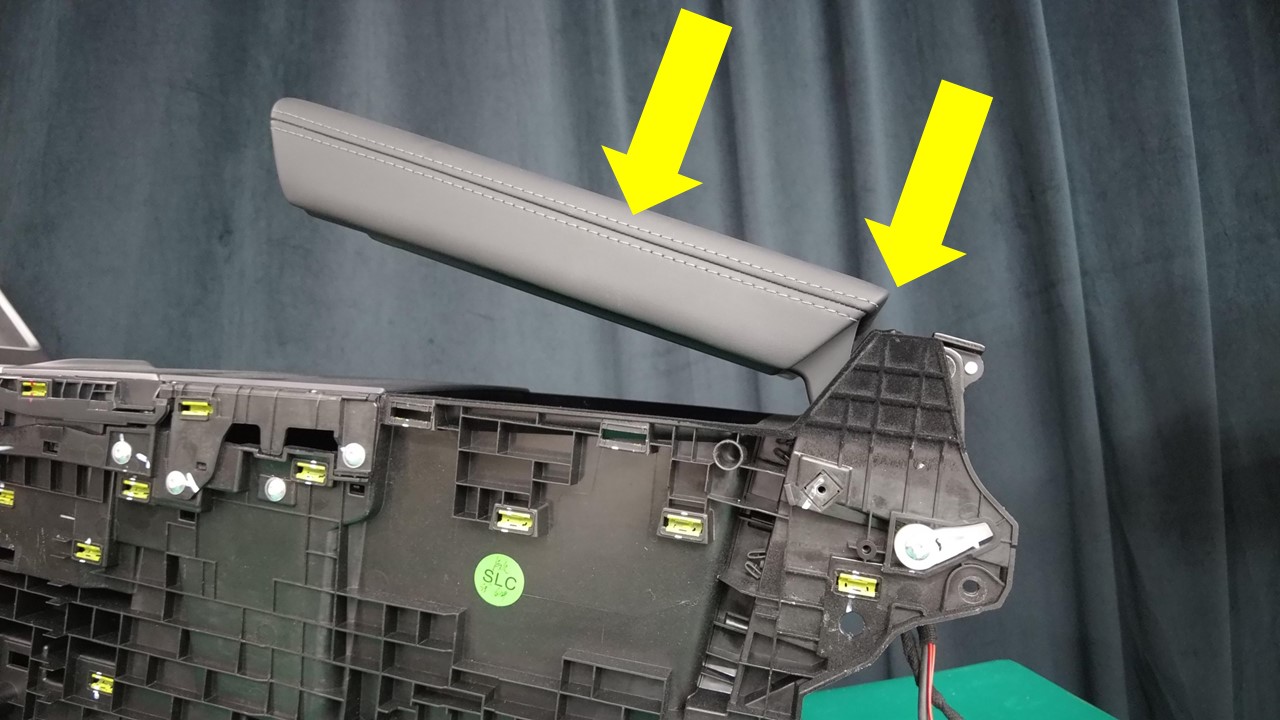

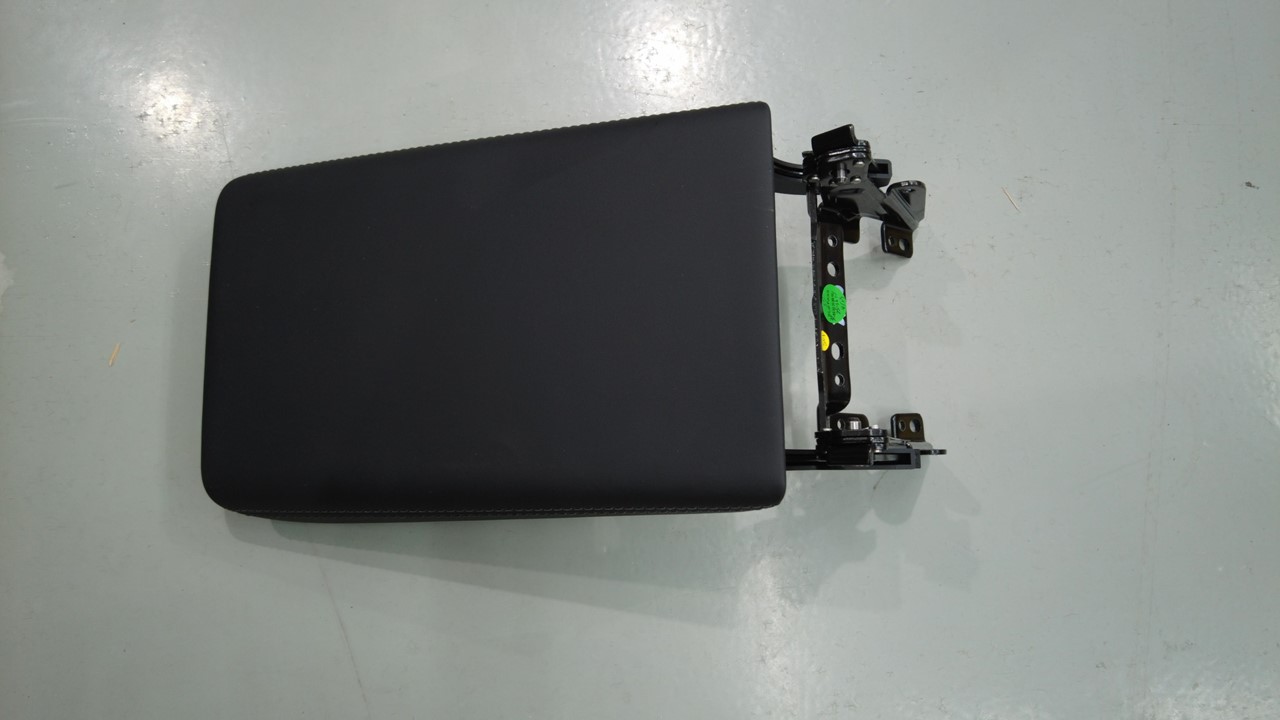

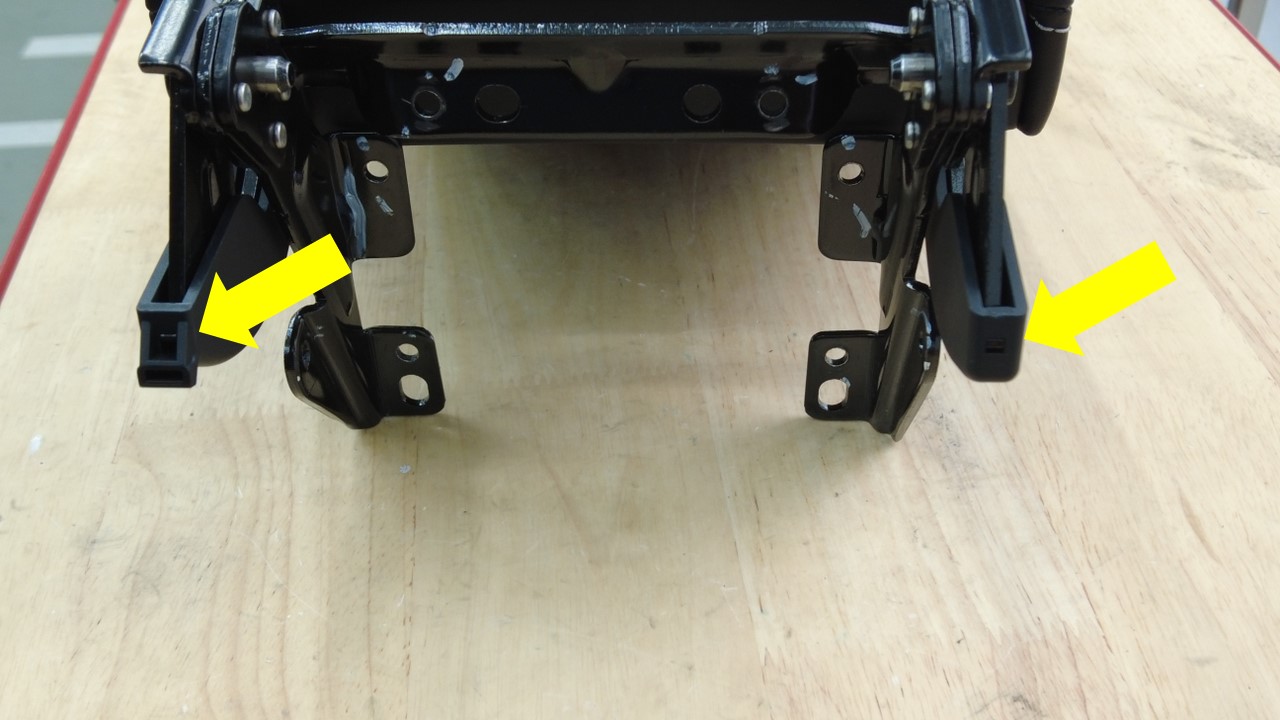

  3. Remove the armrest assembly from the center console assembly.

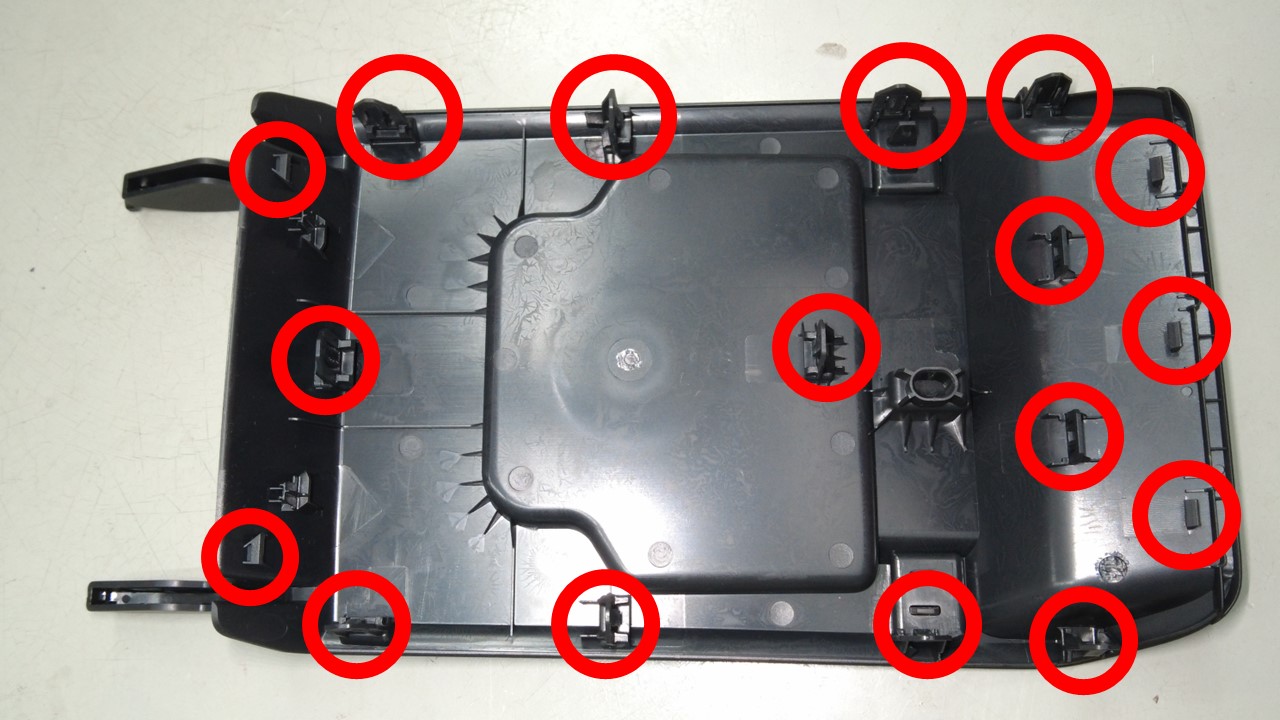

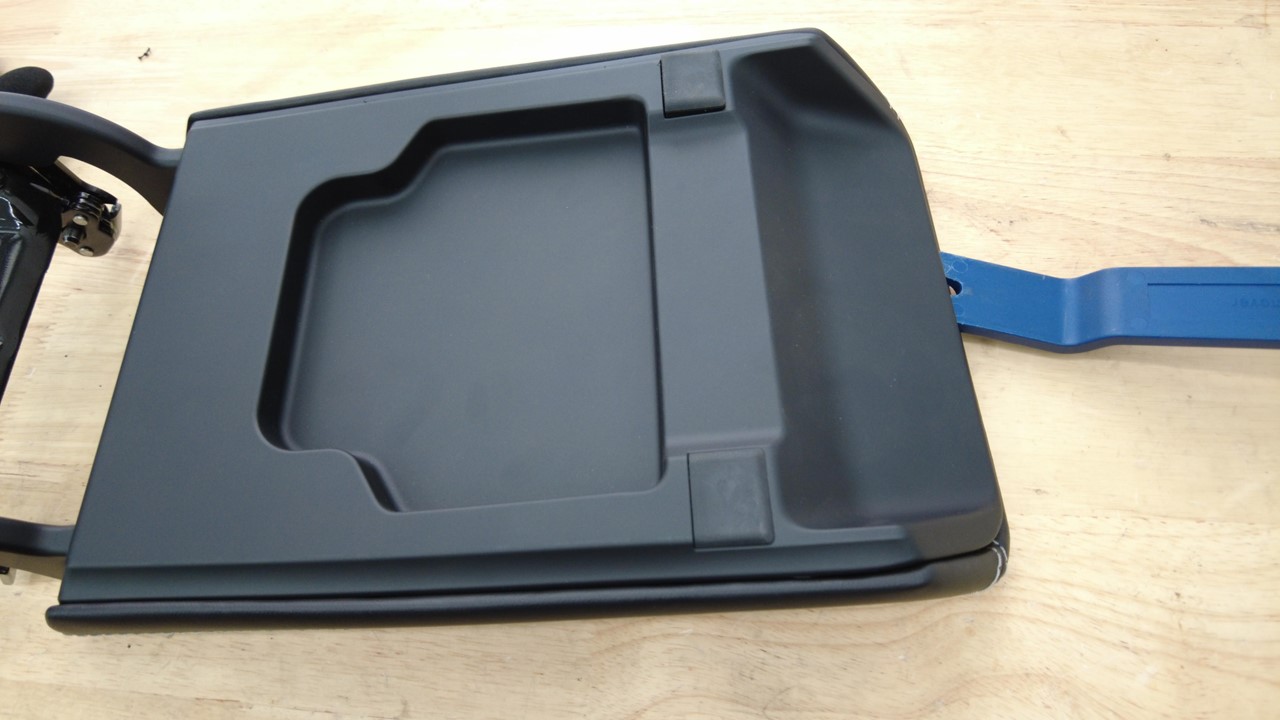

  4. Release the clips (x17) and datums (x5) that attach the inner armrest to the armrest assembly, and then remove the inner armrest.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a trim tool and start from the top of the armrest to release the clips, then work towards the bottom.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use caution when releasing clips, and engage the trim tool as close to the clip as possible. Discard the component if any damage occurs during removal.

Install

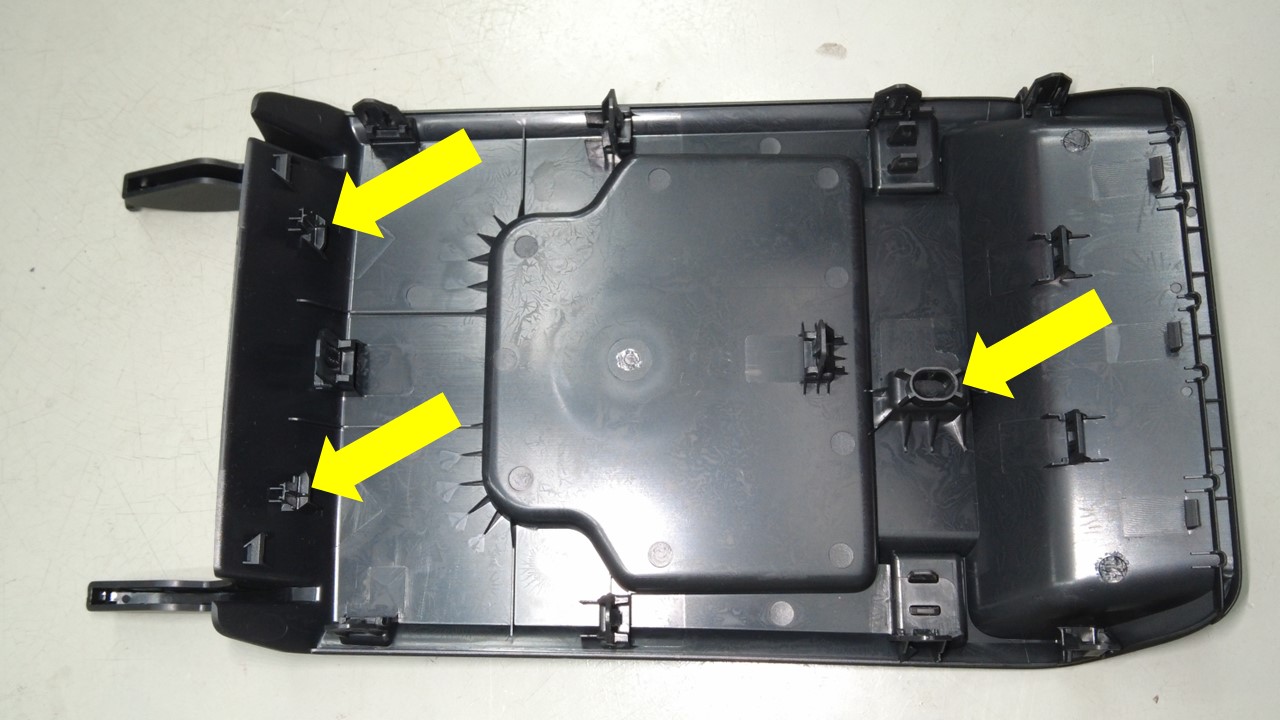

  1. Align the locator datums (x5), and then engage the clips (x17) that attach the inner armrest to the armrest assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure all the clips (x17) are fully engaged.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install a new component if any damage is found.
  2. Install the armrest assembly into the center console assembly.

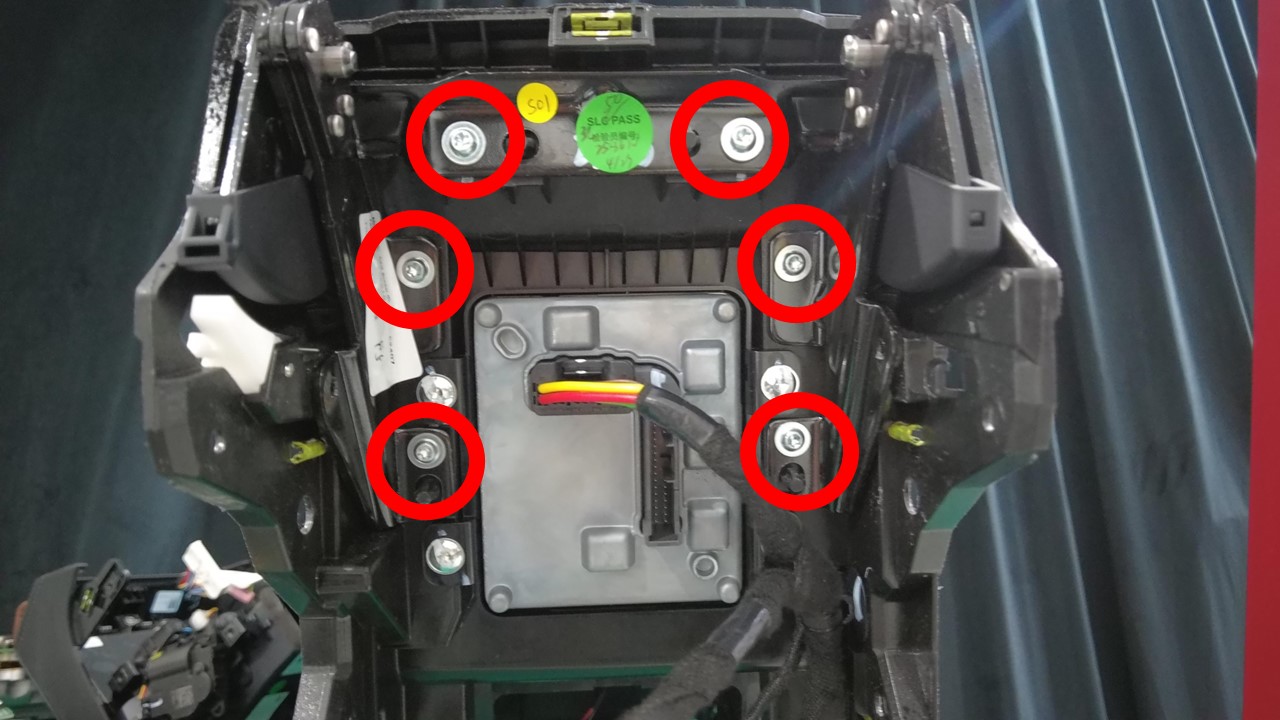

  3. Install the screws (x8) that attach the armrest assembly to the center console.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The outer screws (x2) are shorter than the inner screws (x6).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  4. Install the rear end module. See Module - Rear End - Center Console (Model Y Standard) (Remove and Replace).
