Release Strap - Armrest - Center - 2nd Row - LH (Model Y Standard) (Remove and Install)

Correction code 13050400801 13050400802 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the 2nd row center back panel. See Backpanel - Center - 2nd Row (Model Y Standard) (Remove and Install).

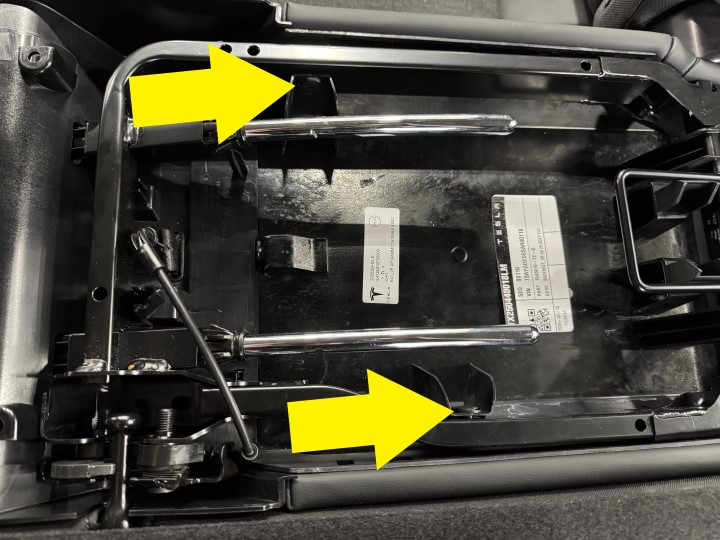

  2. Partially remove the 2nd row armrest trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate the armrest frame away from the trim.

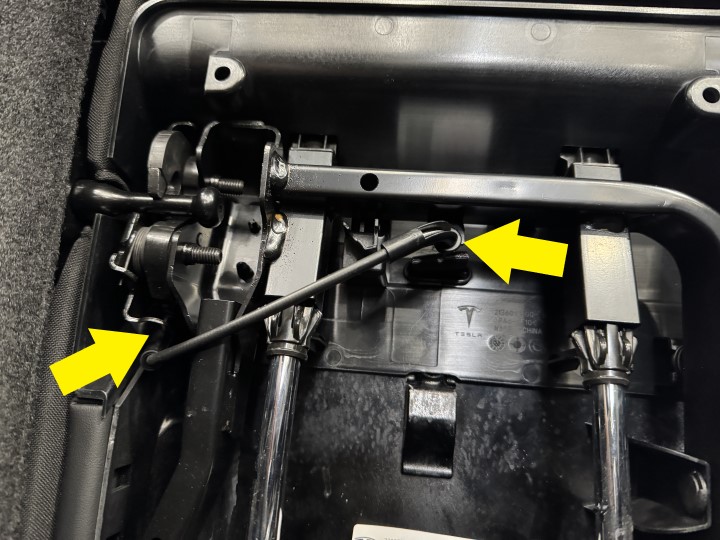

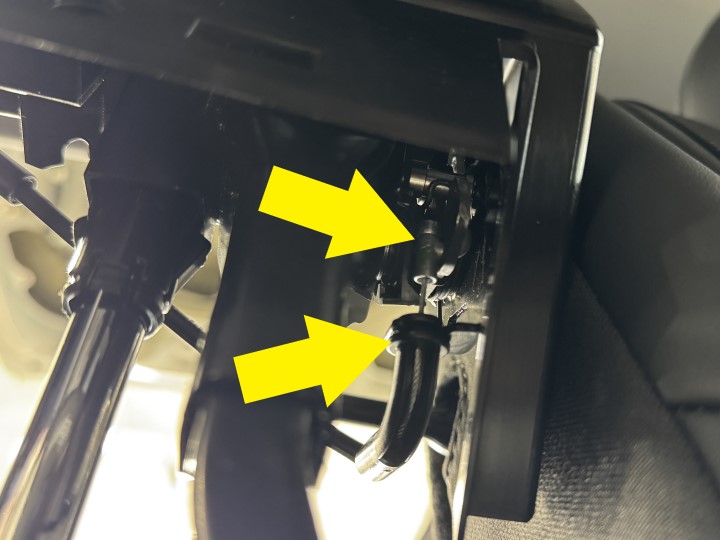

  3. Remove the 2nd row center armrest release strap.
    Informational PurposesAn informational icon, calling your attention
    Note

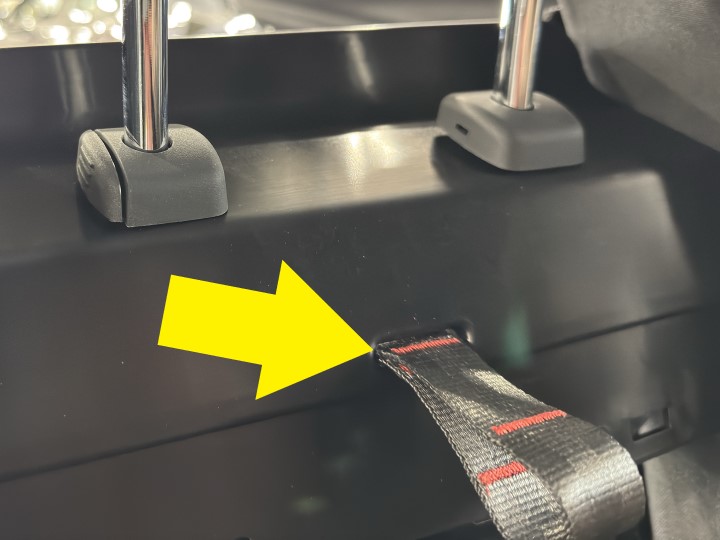

    Pull the strap out of the closeout opening.

Install

  1. Install the 2nd row center armrest release strap.
    Informational PurposesAn informational icon, calling your attention
    Note
    Feed the strap through the closeout opening.
  2. Secure the 2nd row armrest trim.
    Informational PurposesAn informational icon, calling your attention
    Note

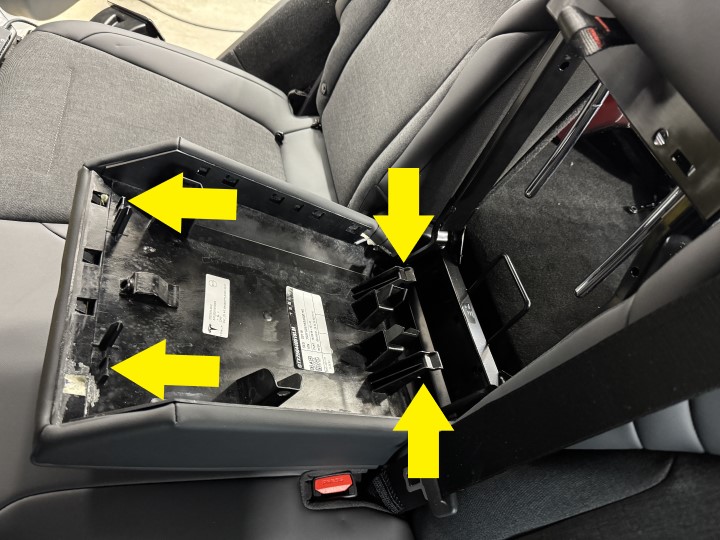

    Rotate the trim upwards to engage the hooks. Secure the clips then rotate the frame down.
  3. Install the 2nd row center back panel. See Backpanel - Center - 2nd Row (Model Y Standard) (Remove and Install).
