DC Charge Port Latch Stick - GB (Remove and Replace)

Correction code 44010102202 FRT 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Remove

  1. Remove the charge port assembly. See Charge Port - GB (Remove and Install).
  2. Remove HV insulating gloves.

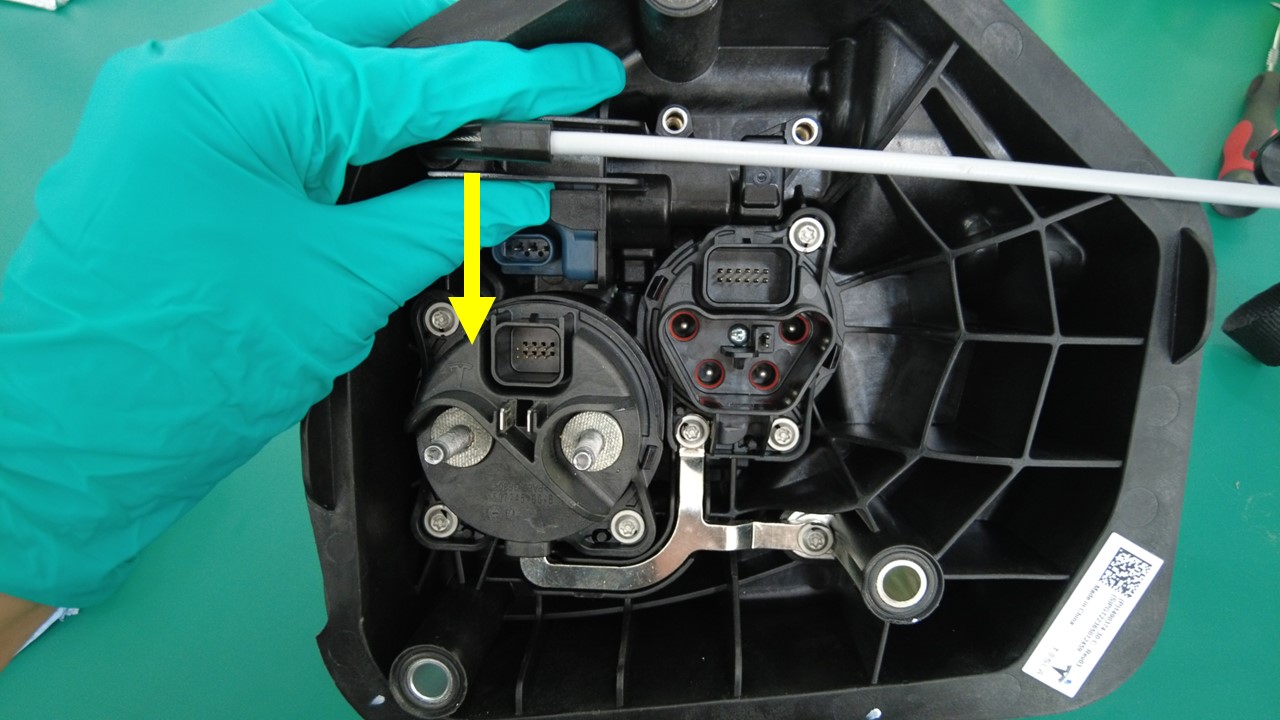

  3. Pull and hold the manual release cable to release the actuator.

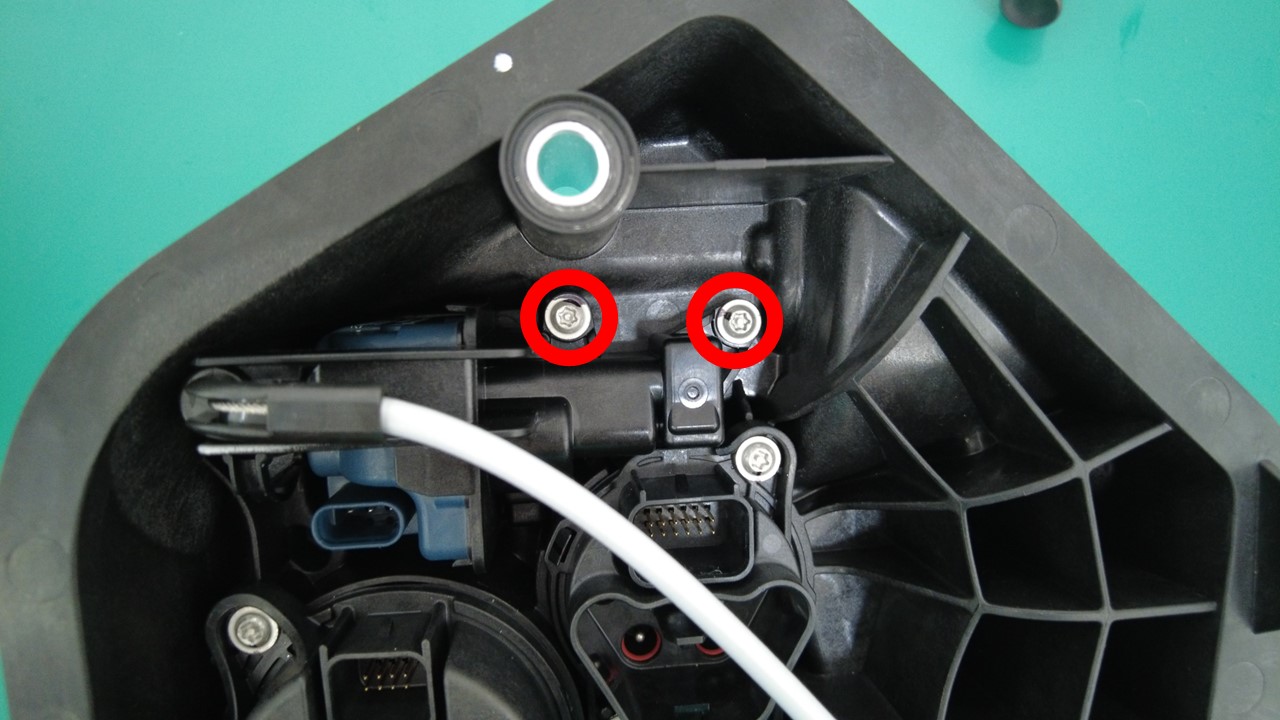

  4. Remove screws securing actuator to charge port assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:

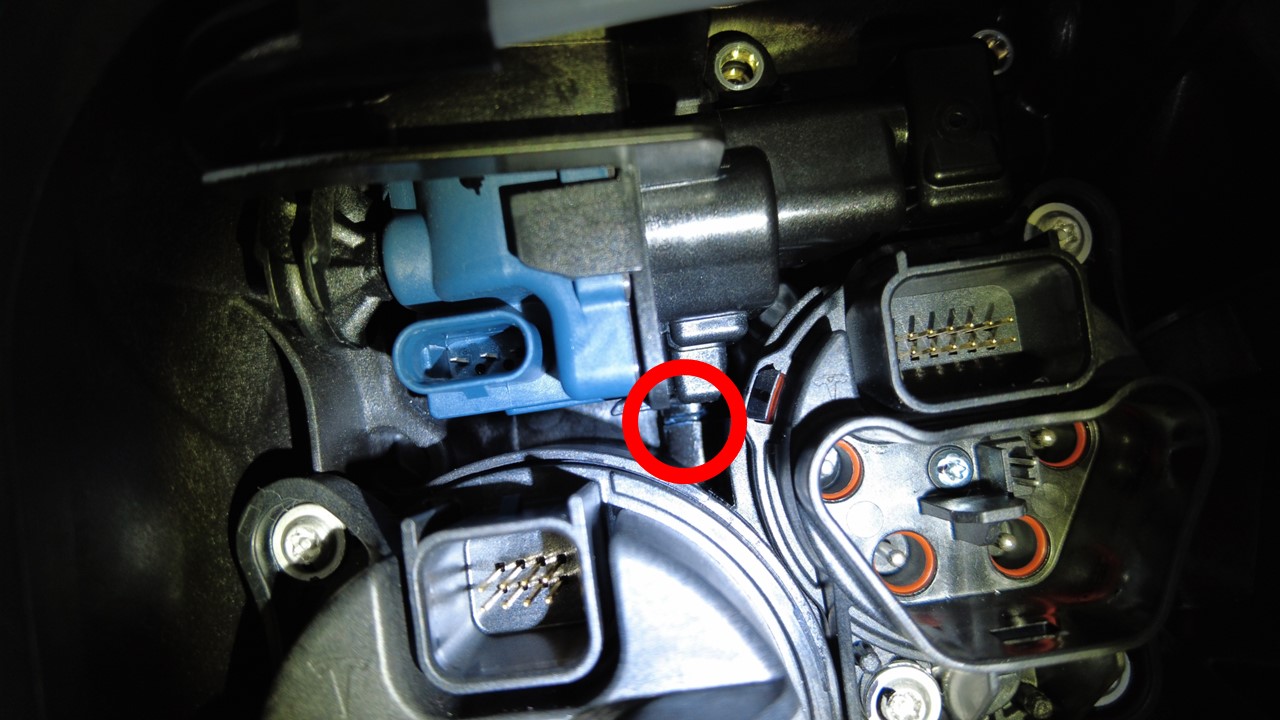

  5. Turn over 30 degrees to take out the actuator from charge port assembly.
  6. Remove DC latch stick o-ring from charge port assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard after removal.
  7. Rotate to release DC charge port latch stick from actuator.

Install

  1. Apply efficient amount of lubricant to latch stick and o-ring.
  2. Rotate to install DC charge port latch stick to actuator.
  3. Install new DC latch stick o-ring onto charge port assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not damage o-ring.
  4. Position actuator onto charge port assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Gently push actuator, make sure there is no gap between actuator and charge port.
  5. Install screws securing actuator to charge port assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
  6. Put on HV insulating gloves and leather over gloves.
  7. Install the charge port assembly. See Charge Port - GB (Remove and Install).
