Rear End Panel - Center Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Move both front seats forward.

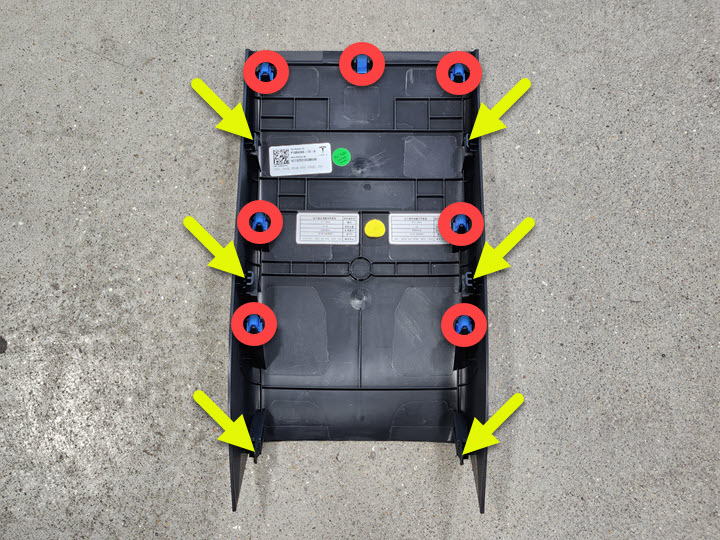

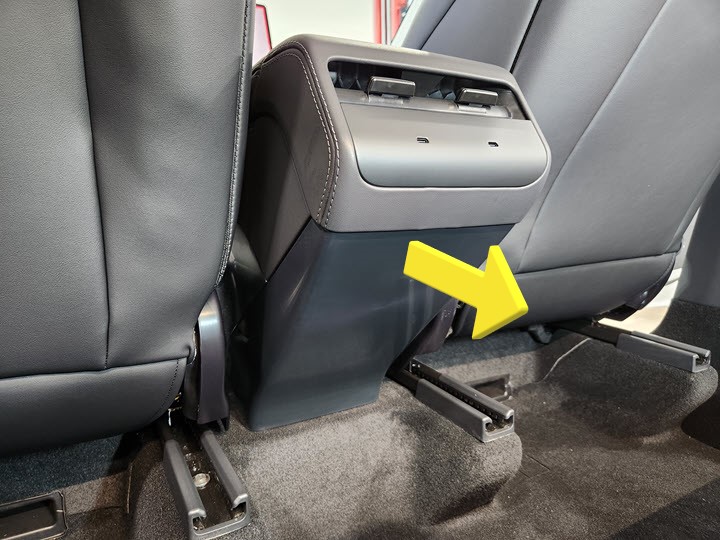

  3. Release the clips (x7) and guides (x6) that attach the center console rear end panel to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the upper clips then the lower guides.

Install

  1. Secure the clips (x7) and guides (x6) that attach the center console rear end panel to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Position the lower guides then secure the upper clips.
  2. Move both front seats to the original position.
  3. Raise the LH front window and close the LH front door.
