Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

1. Open all four doors

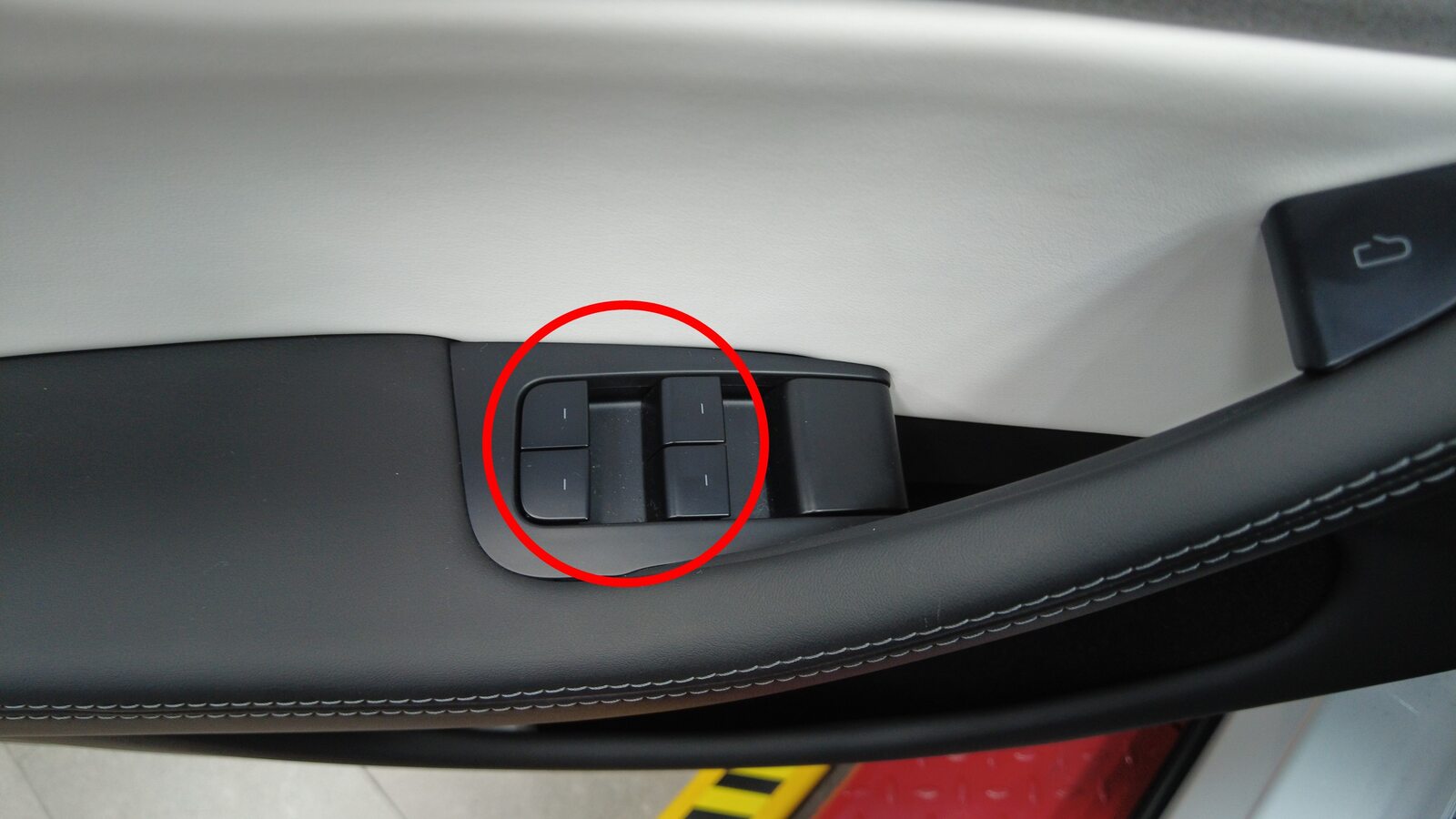

2. Lower all four windows

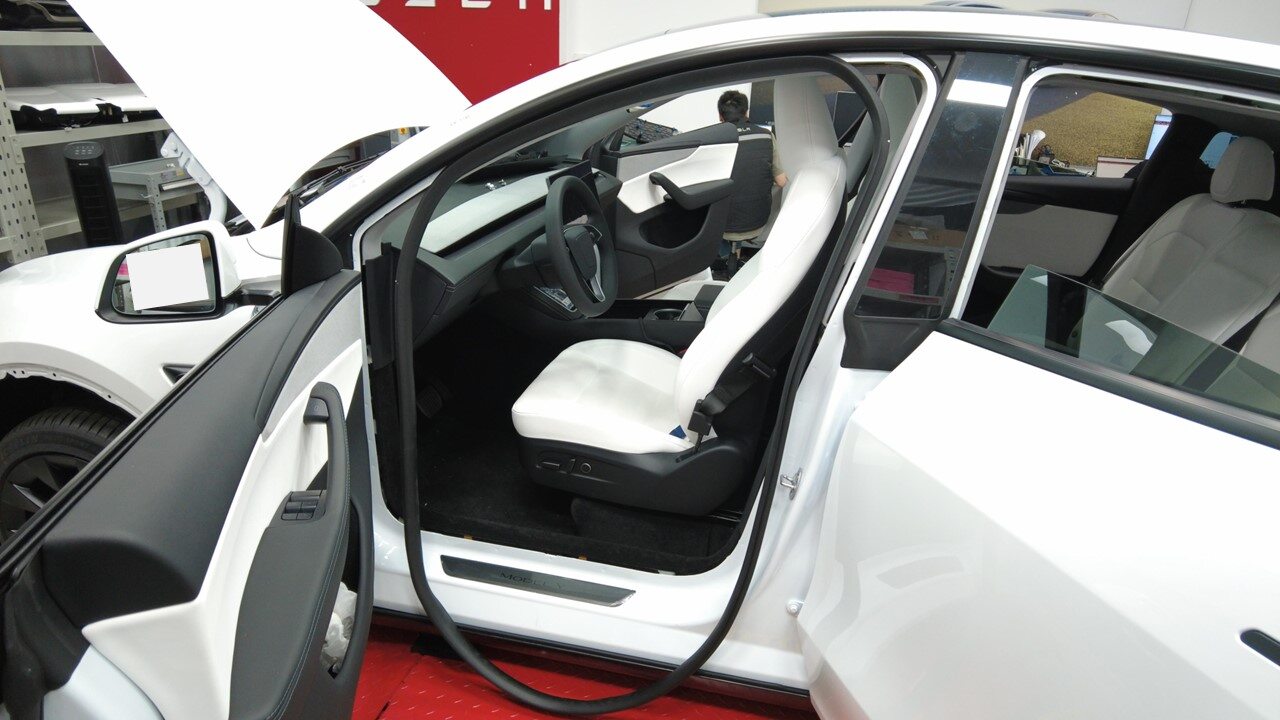

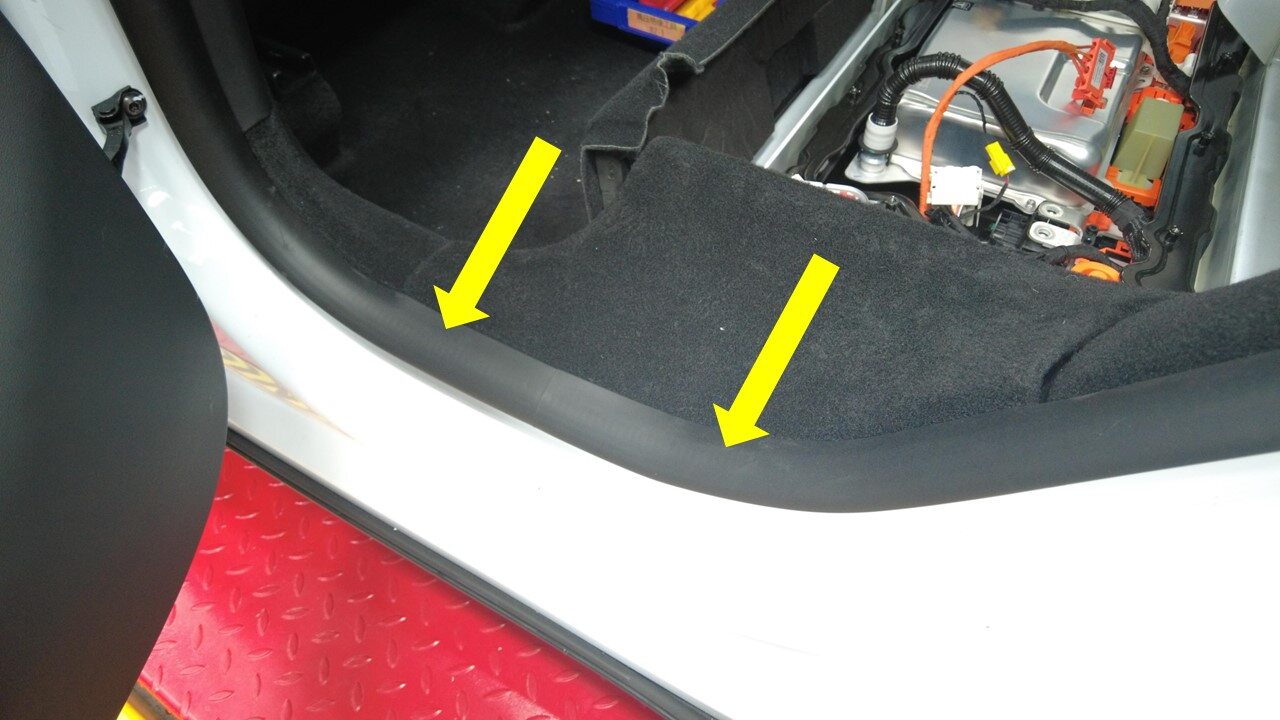

3. Partially remove LH front primary door seal from body





4. Remove LH IP end cap

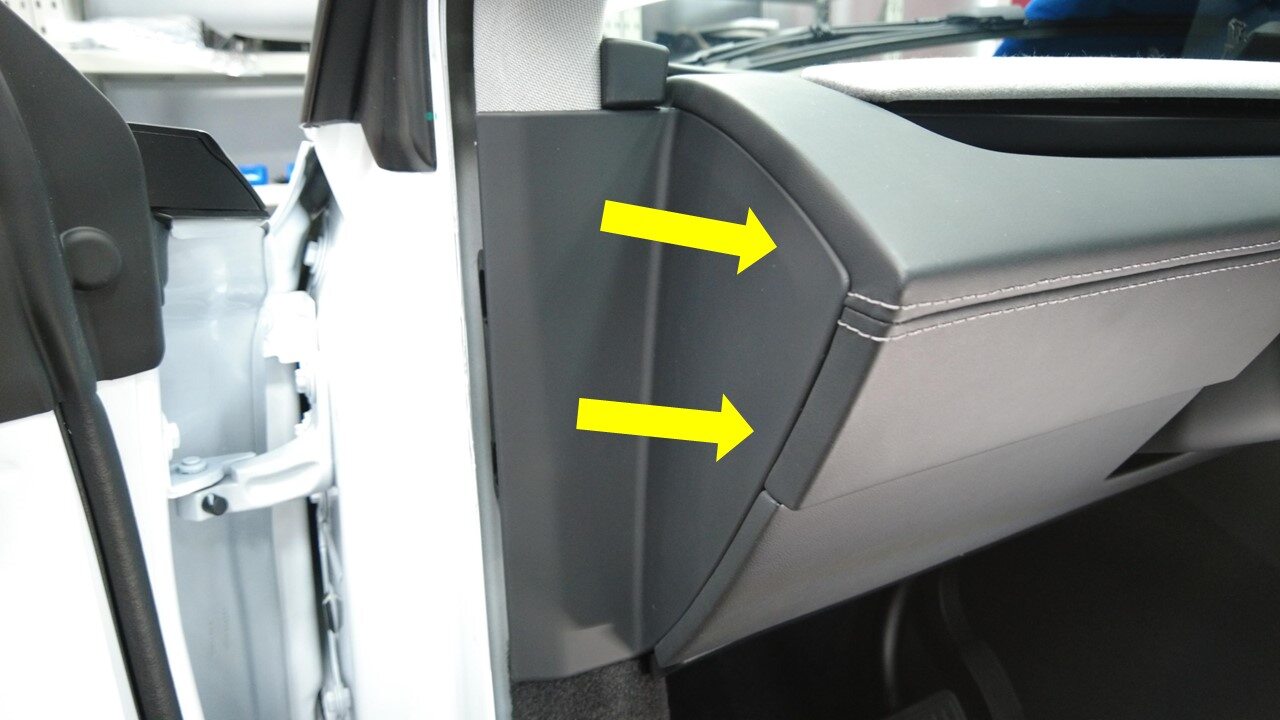

   Note

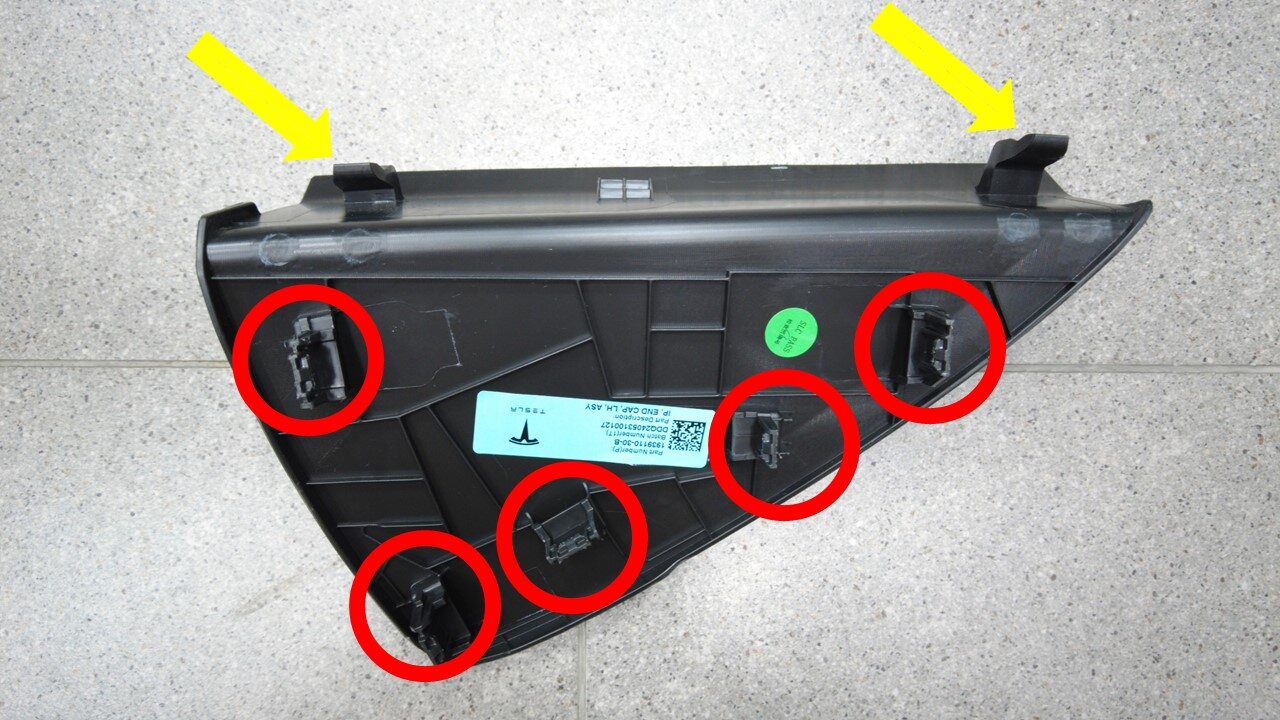

   5x clips, 2x guide tabs

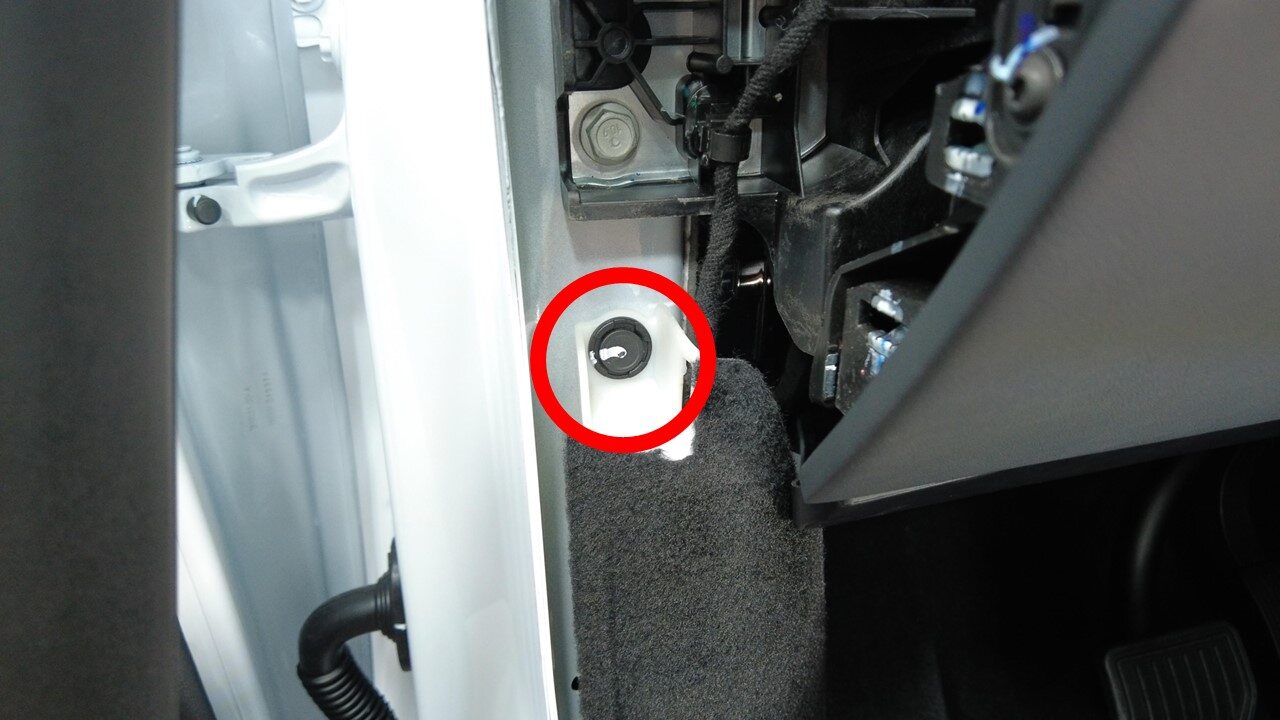

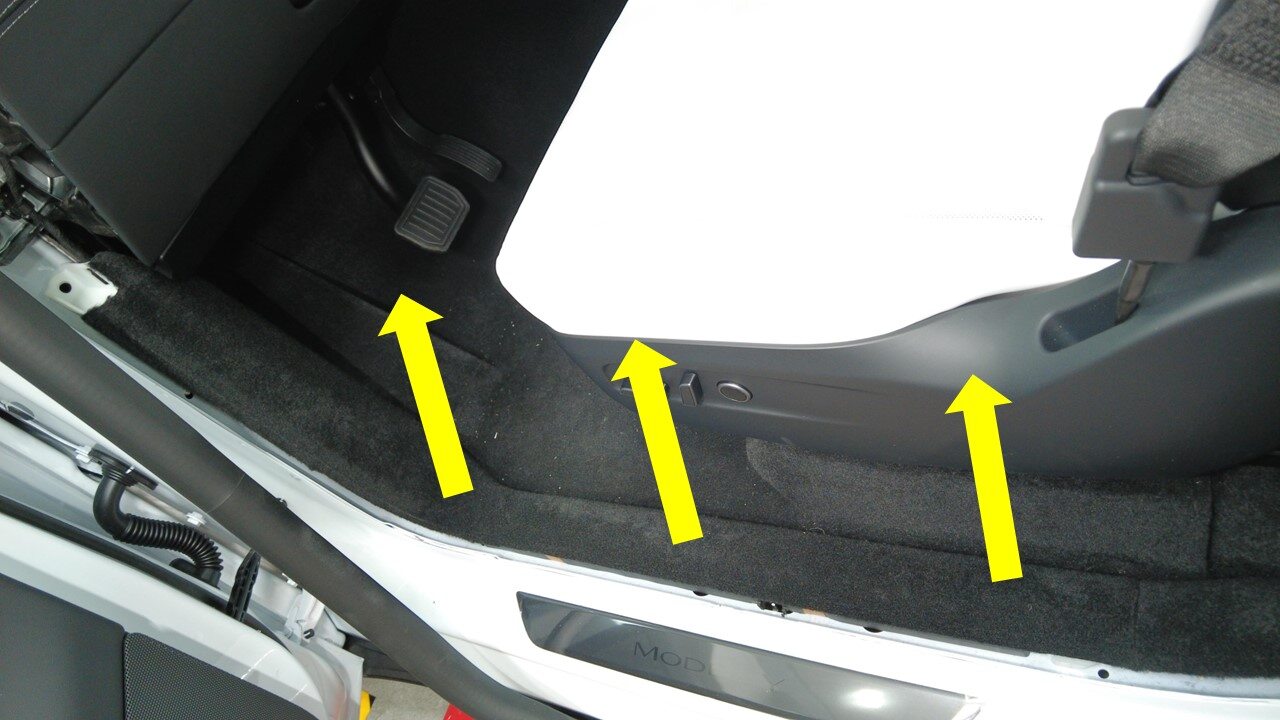

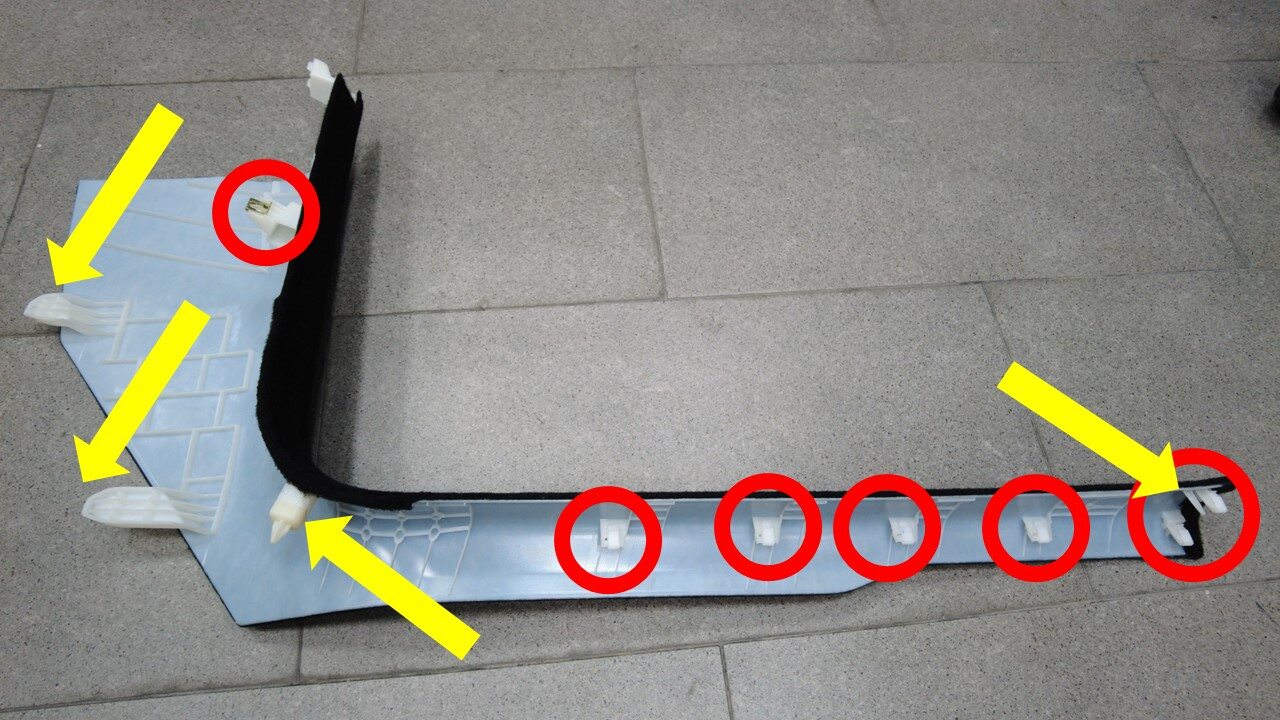

5. Remove LH lower A pillar trim from body
   Note

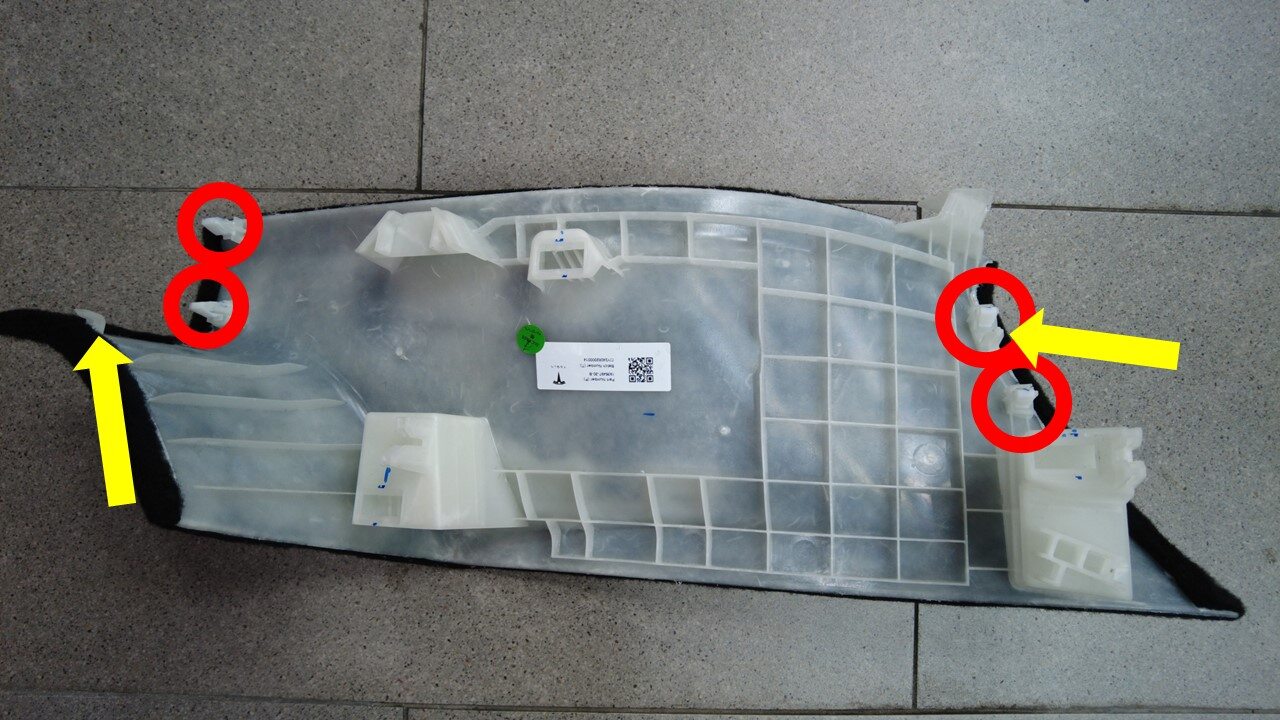

   7x clips,4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet







6. Move LH front seat backward
   Note

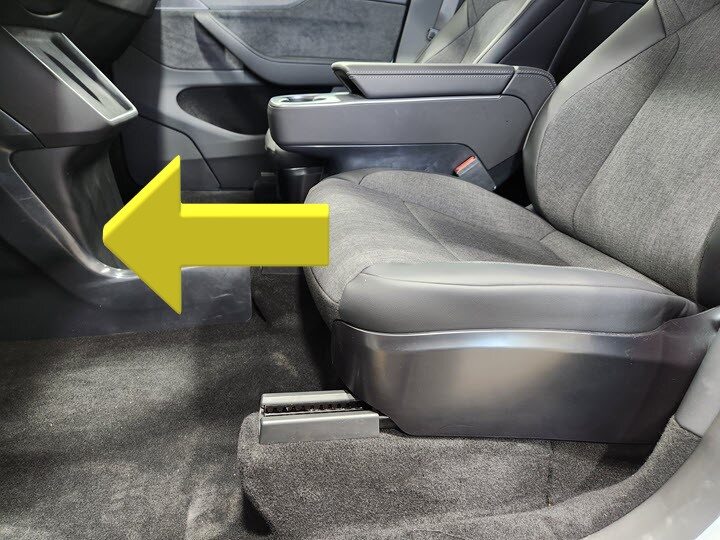

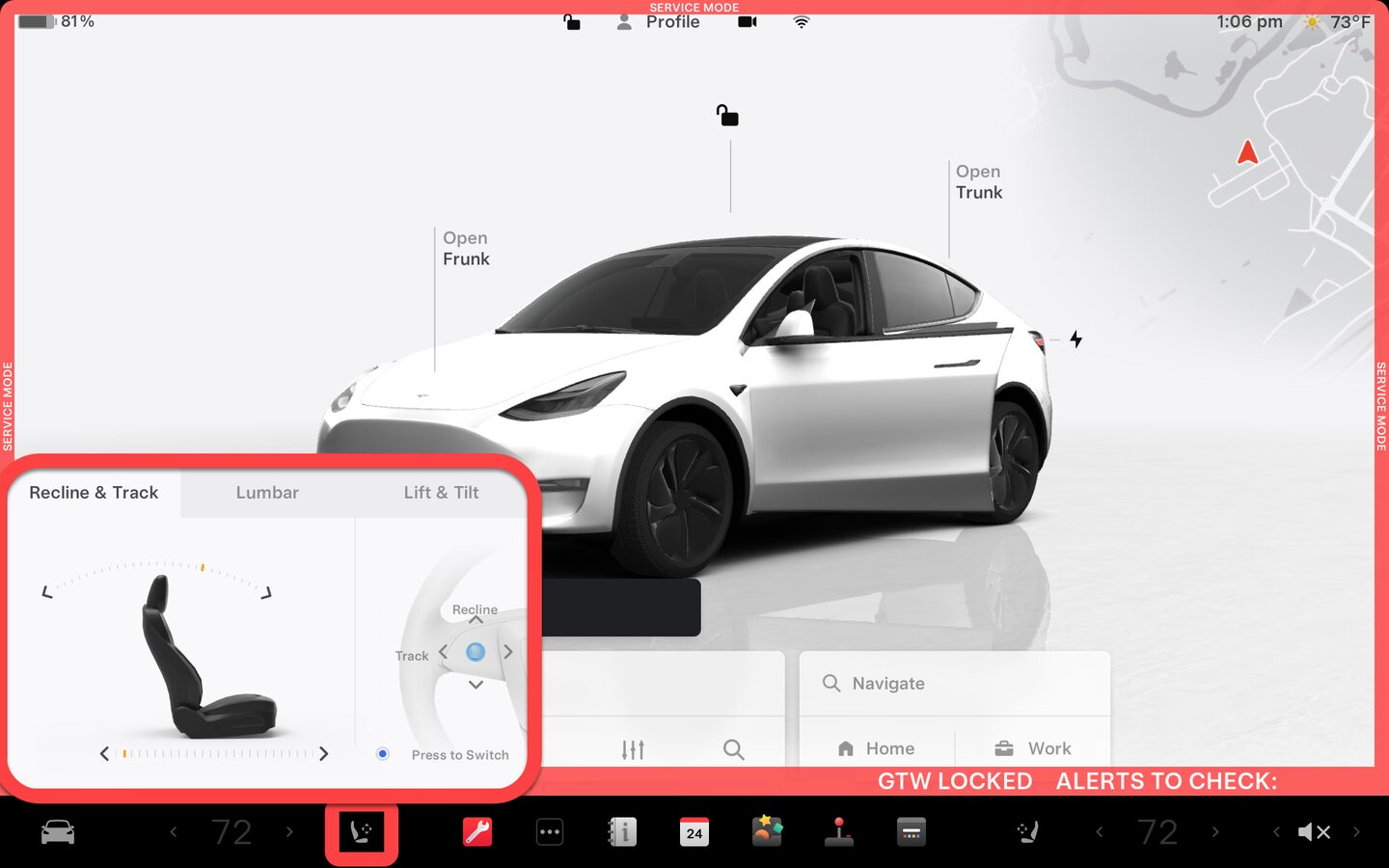

   Via UI > Seat Controls, Use steering wheel scroll wheel as needed





7. Remove LH front seat front bolts
   Note

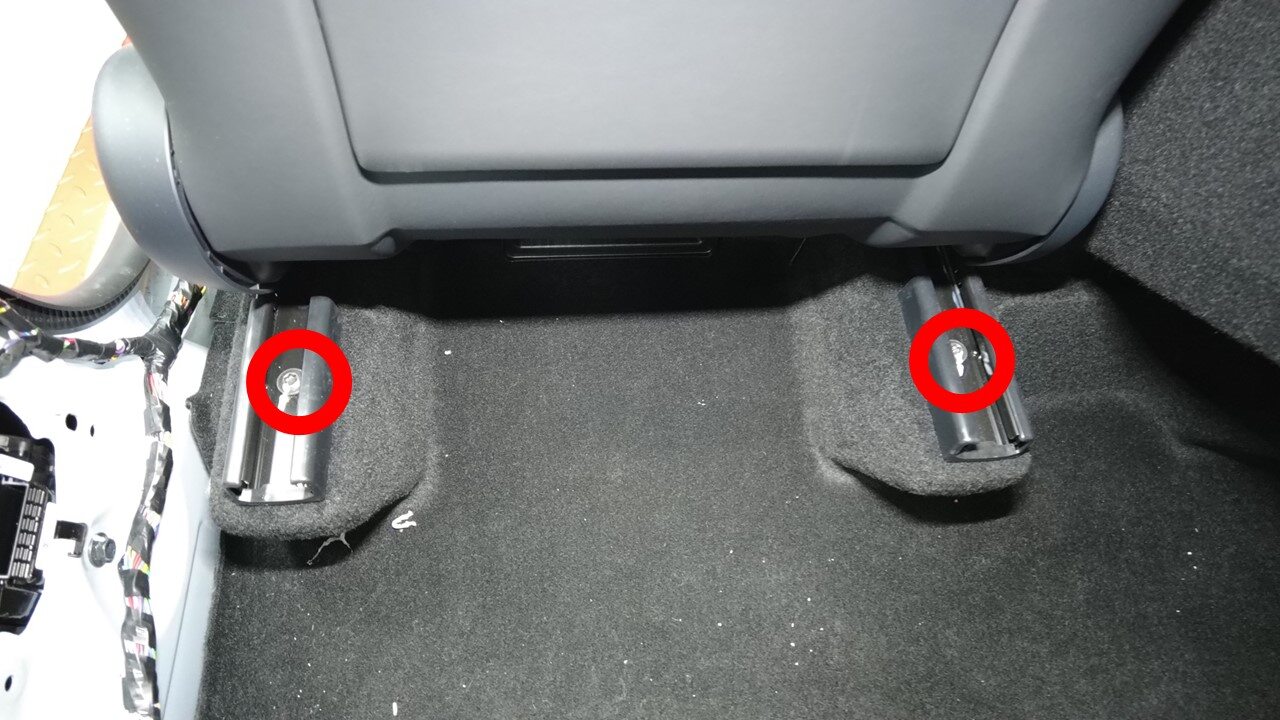

   2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal

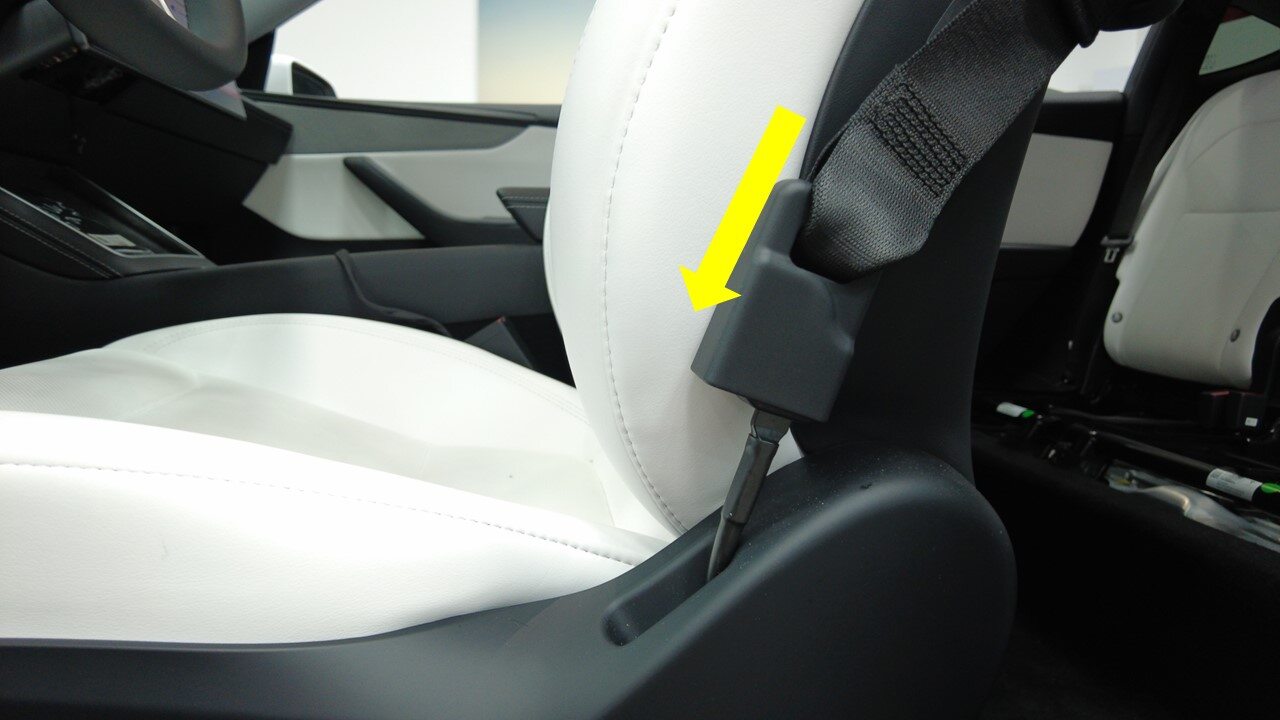

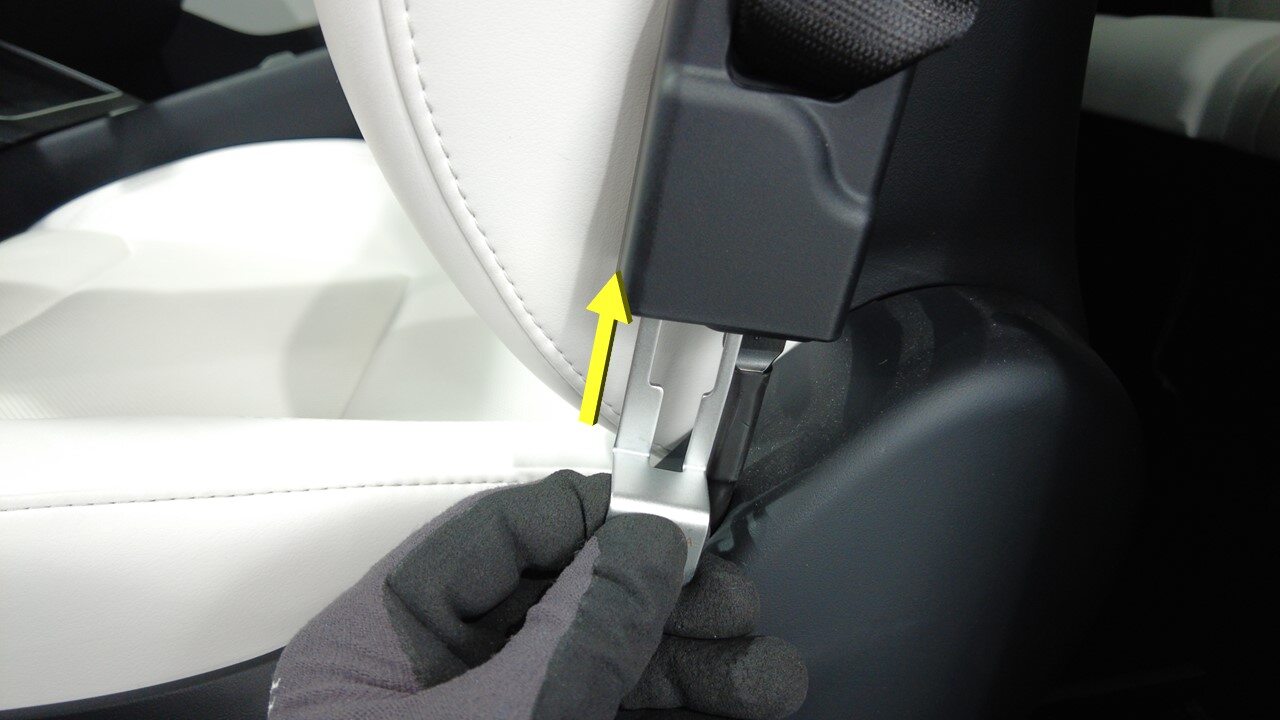

8. Release seat belt retractor from LH front seat pretensioner
   Note

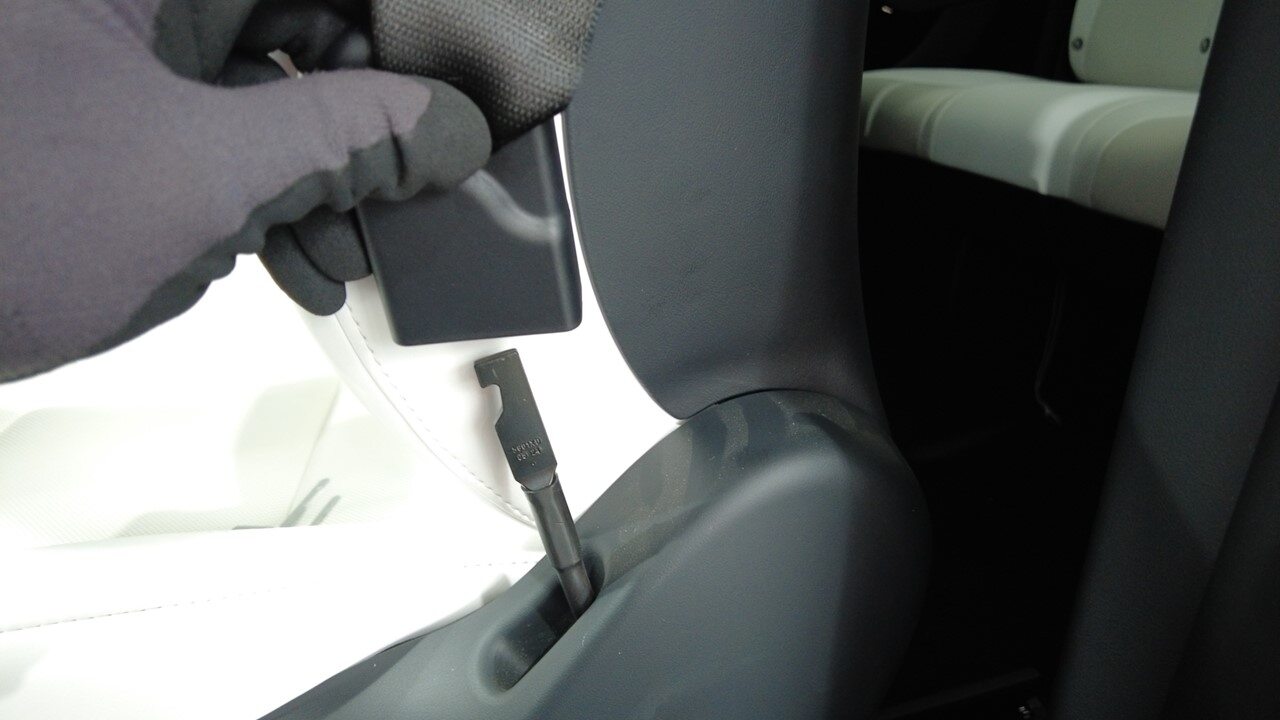

   Insert seat belt release tool in bottom of retractor to release





9. Move LH front seat forward
   Note

   Via UI > Seat Controls, Use steering wheel scroll wheel as needed

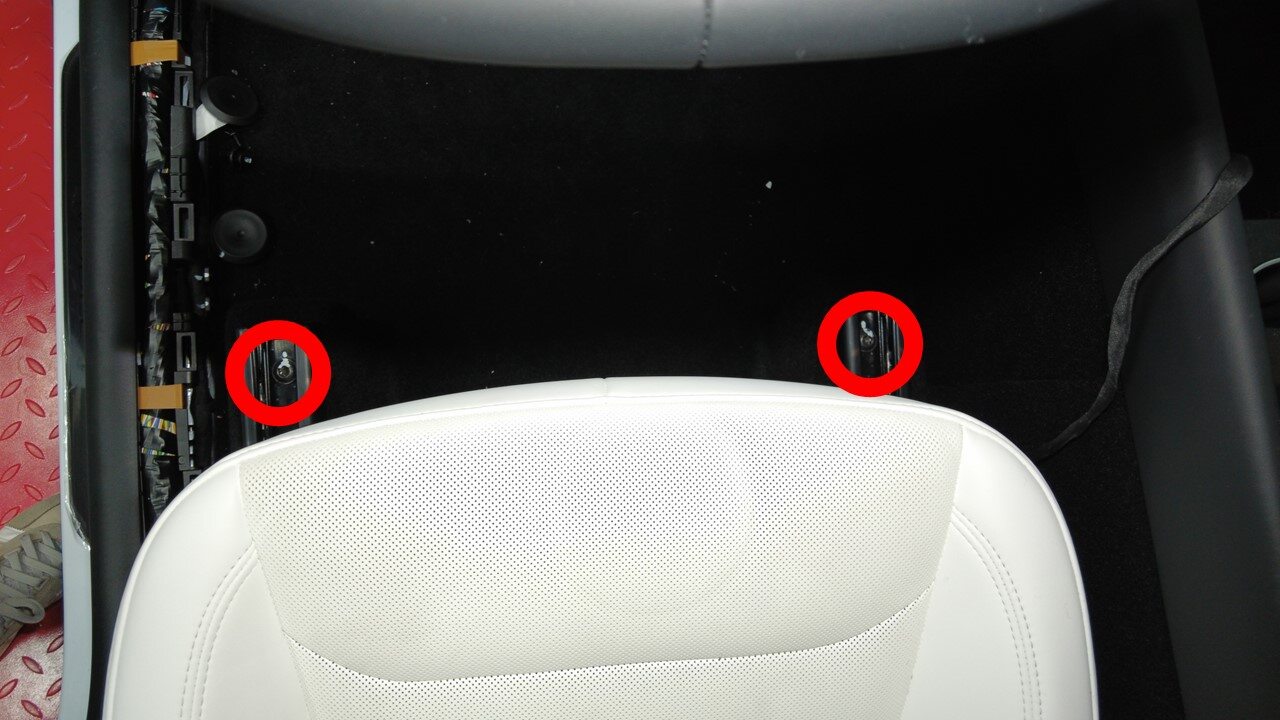

10. Remove LH front seat rear bolts
    Note

    2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal



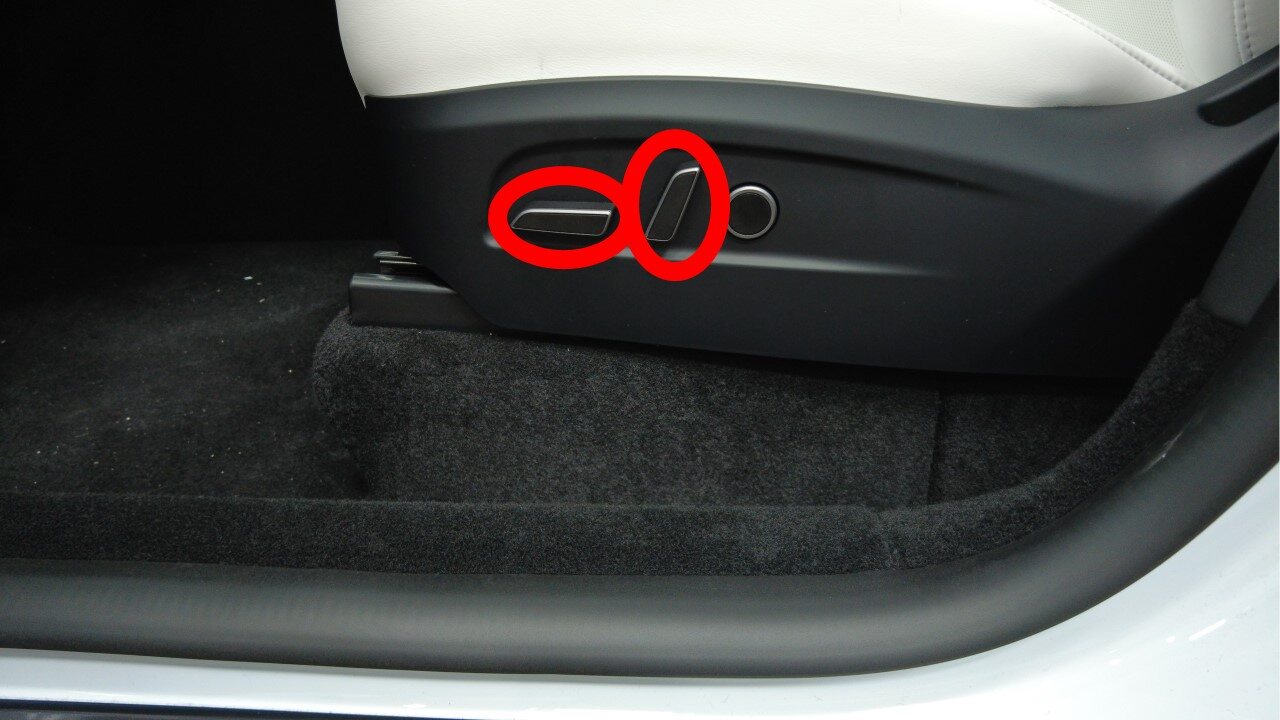

11. Adjust position of LH front seat for easy removal
    Note

    Move seat to middle of track at most upright position with seat fully up off floor

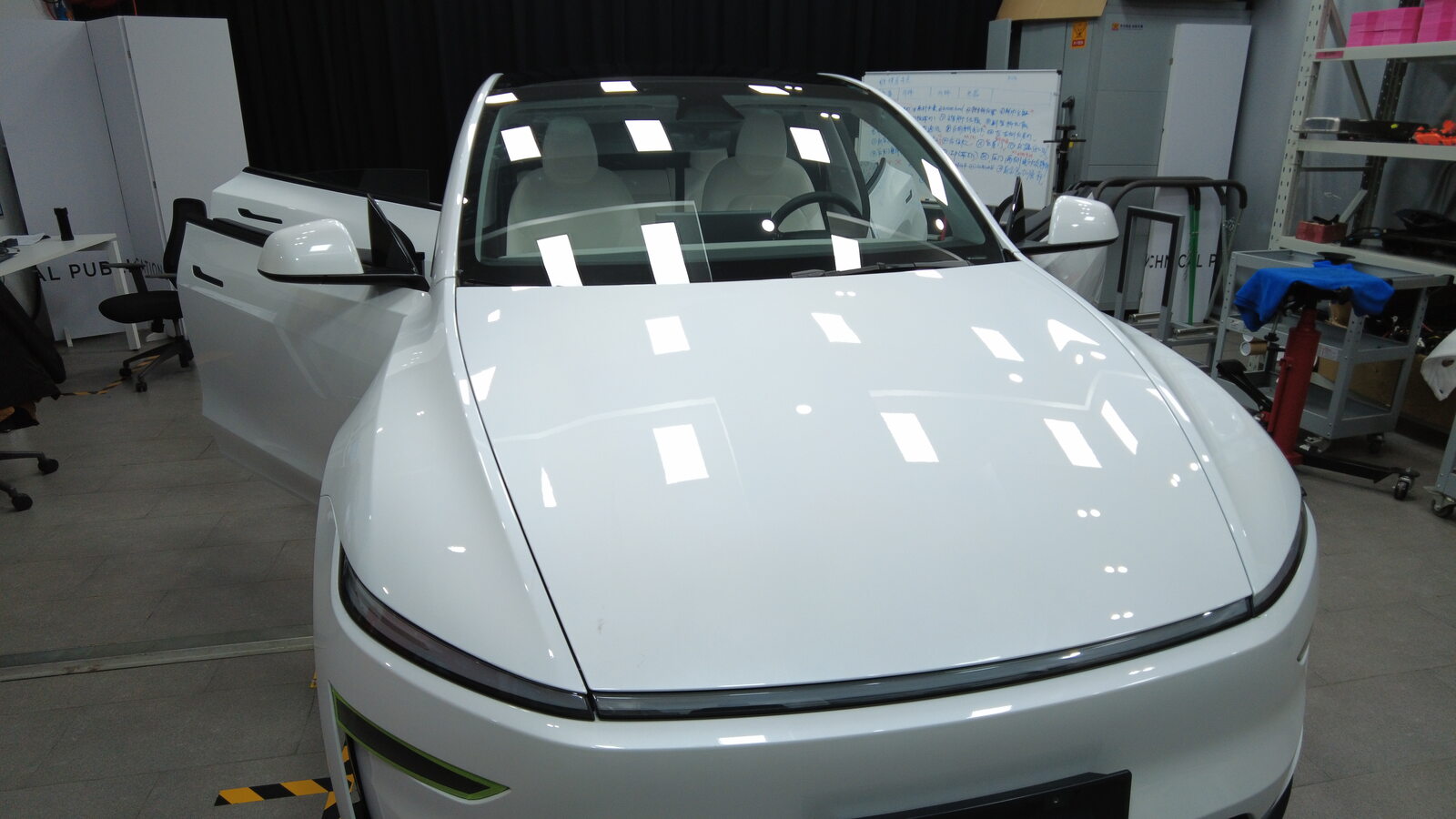

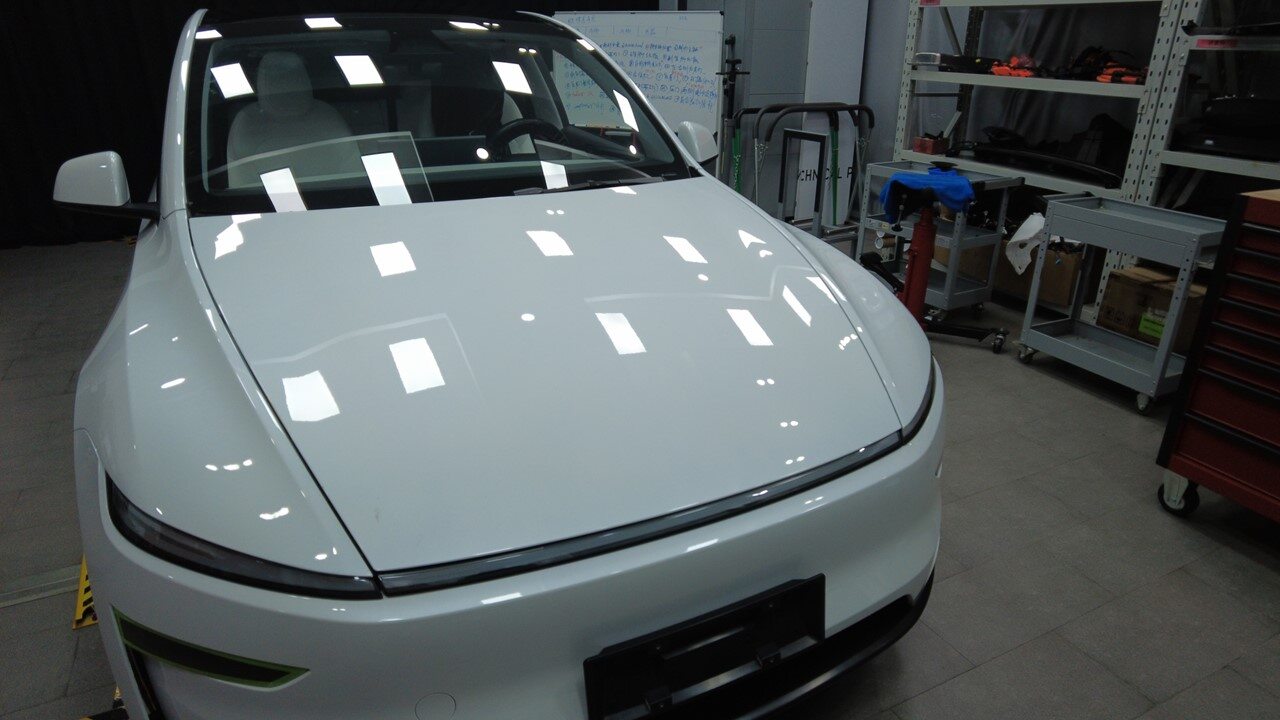

12. Open hood

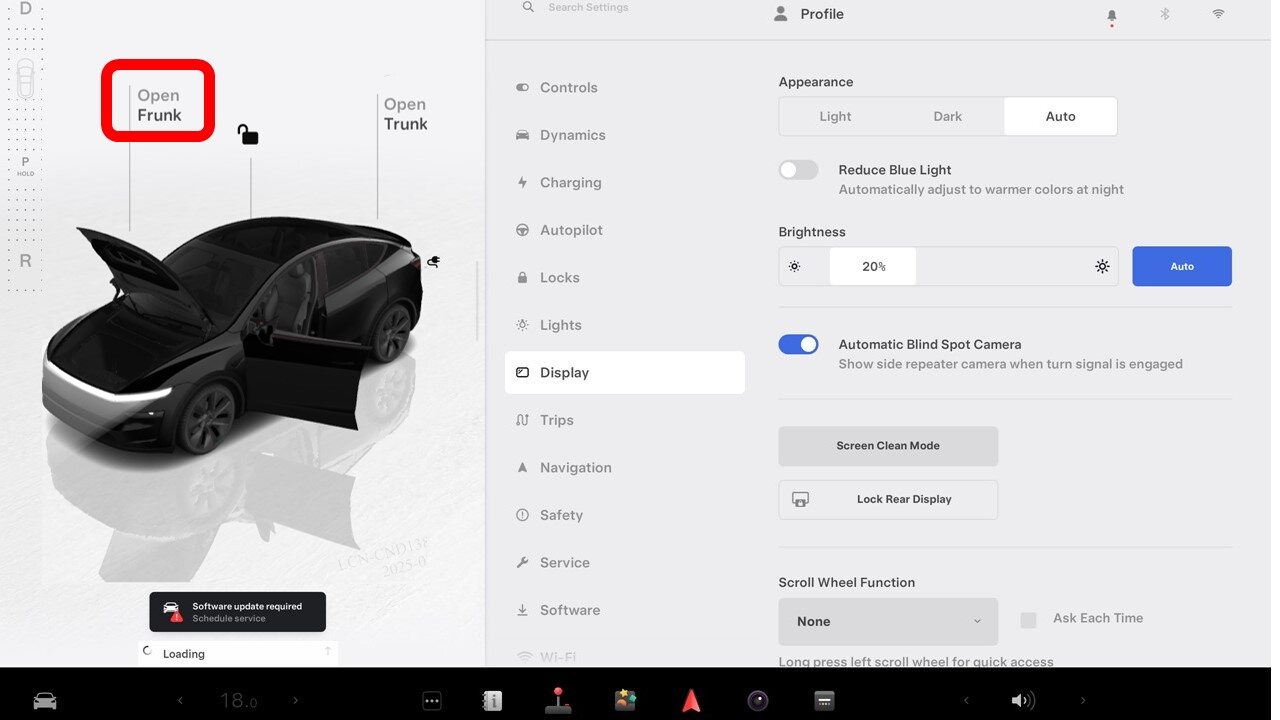

13. Power off vehicle from center display
    Note

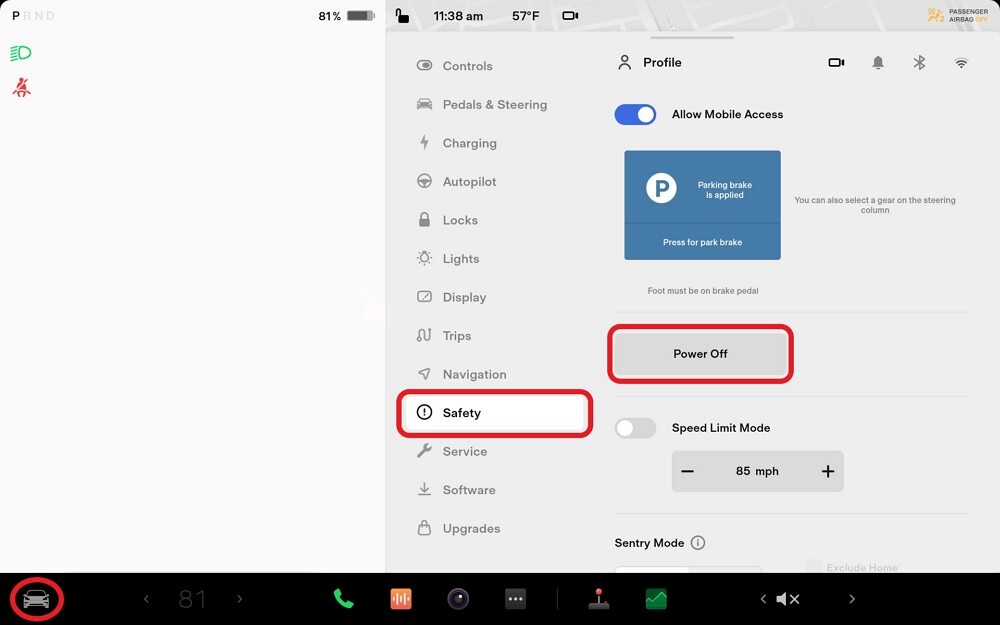

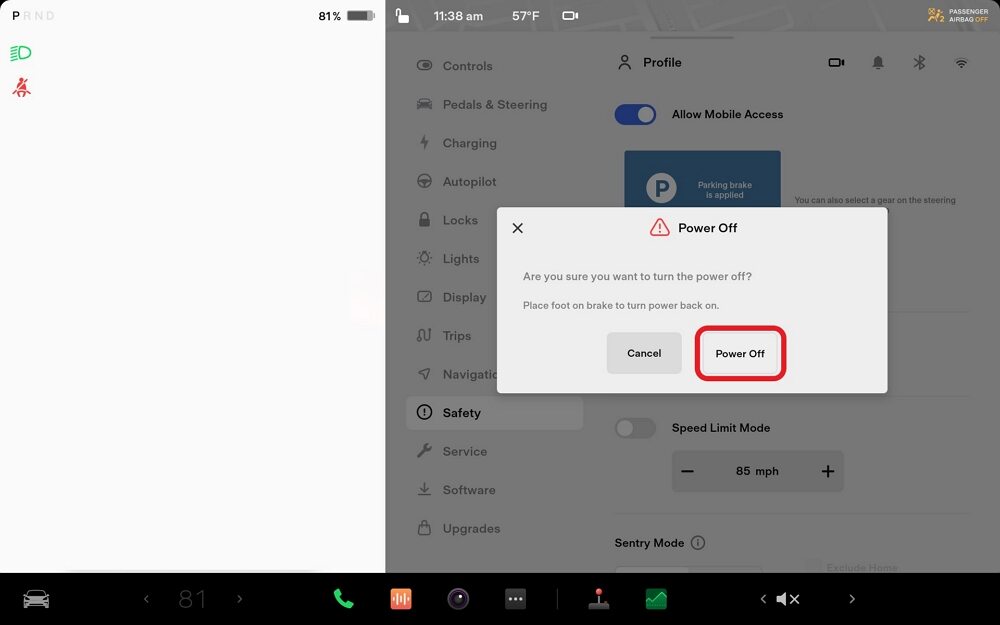

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

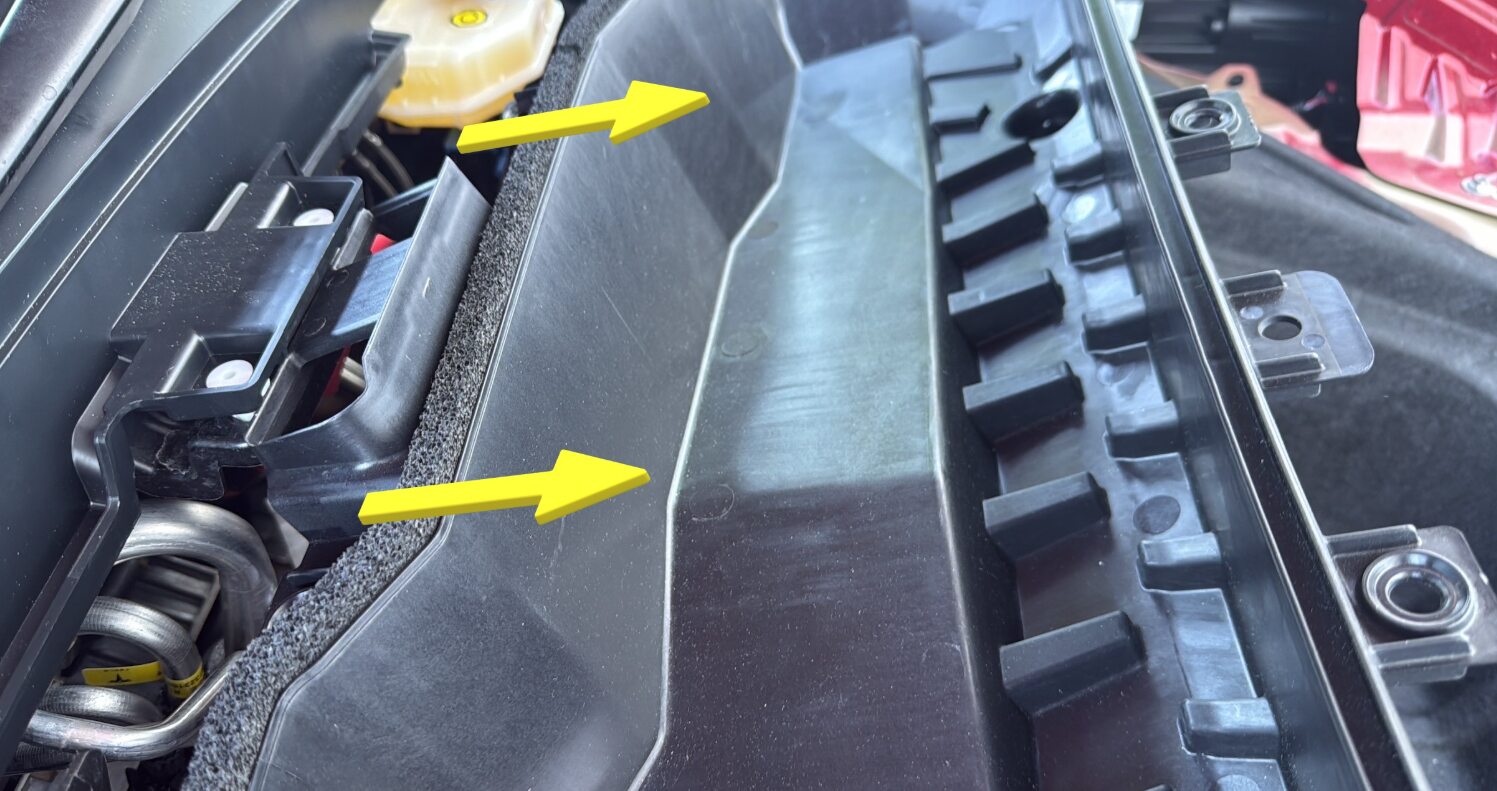

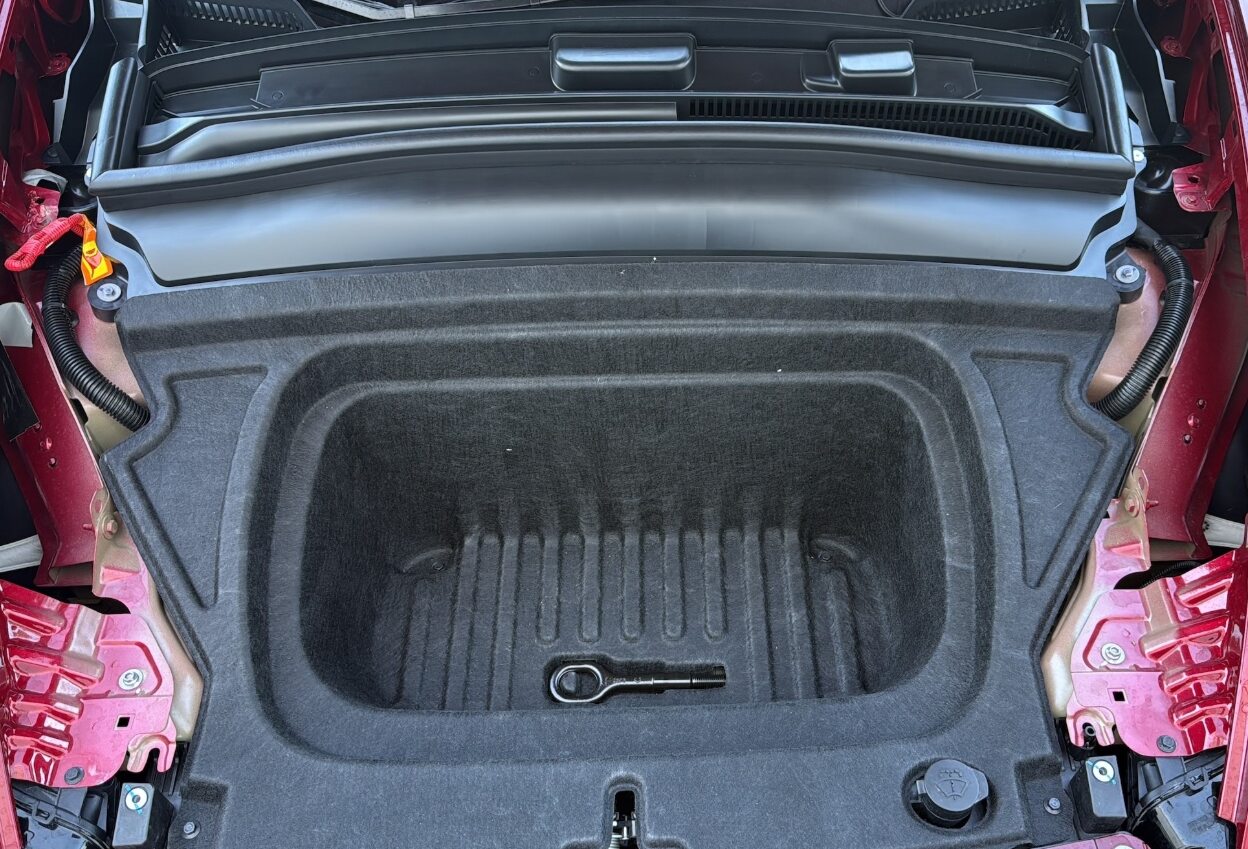

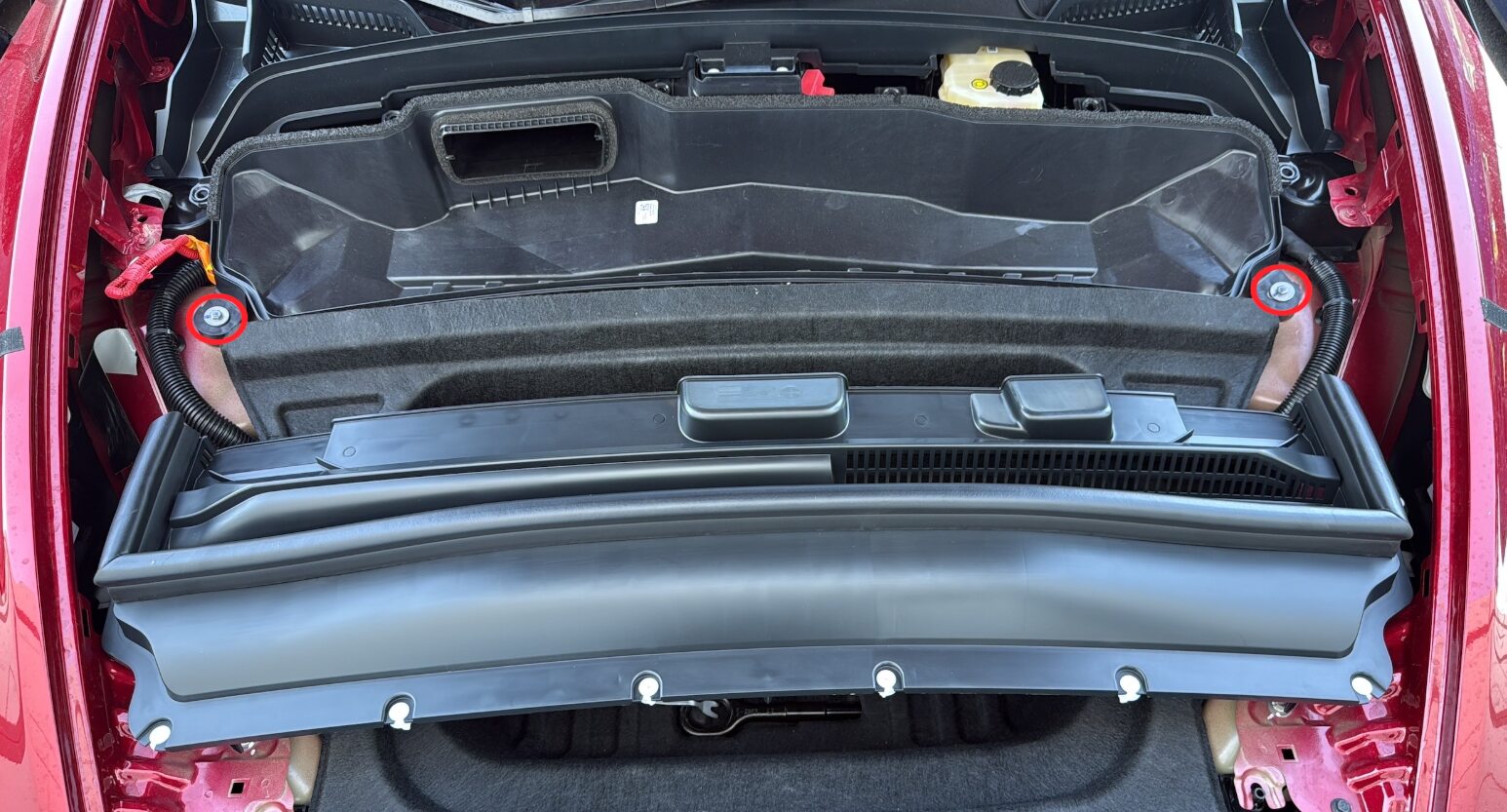

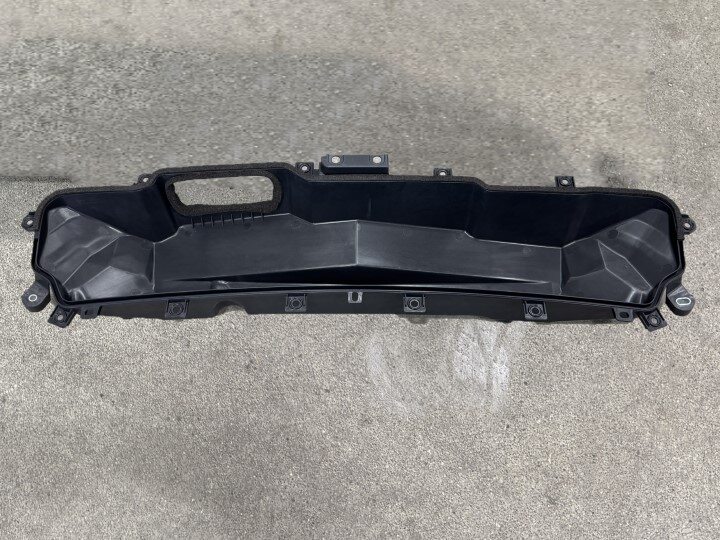

14. Remove HEPA filter or big basin
    Note

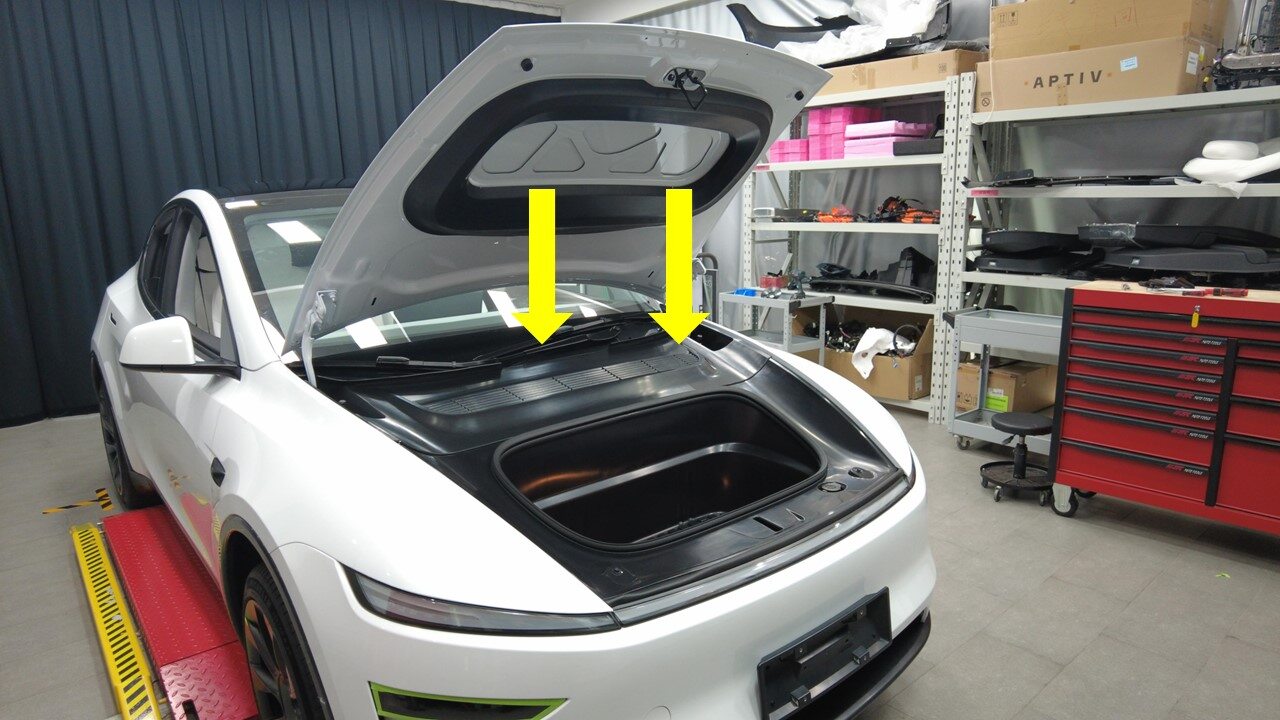

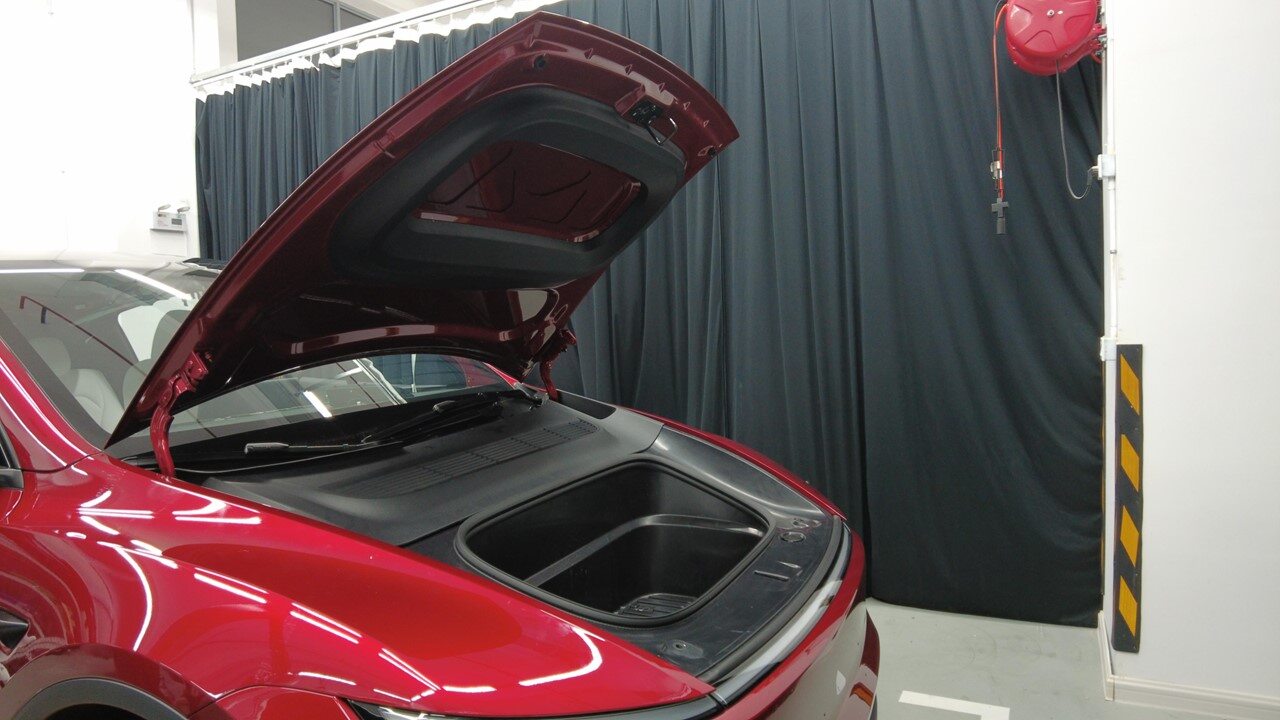

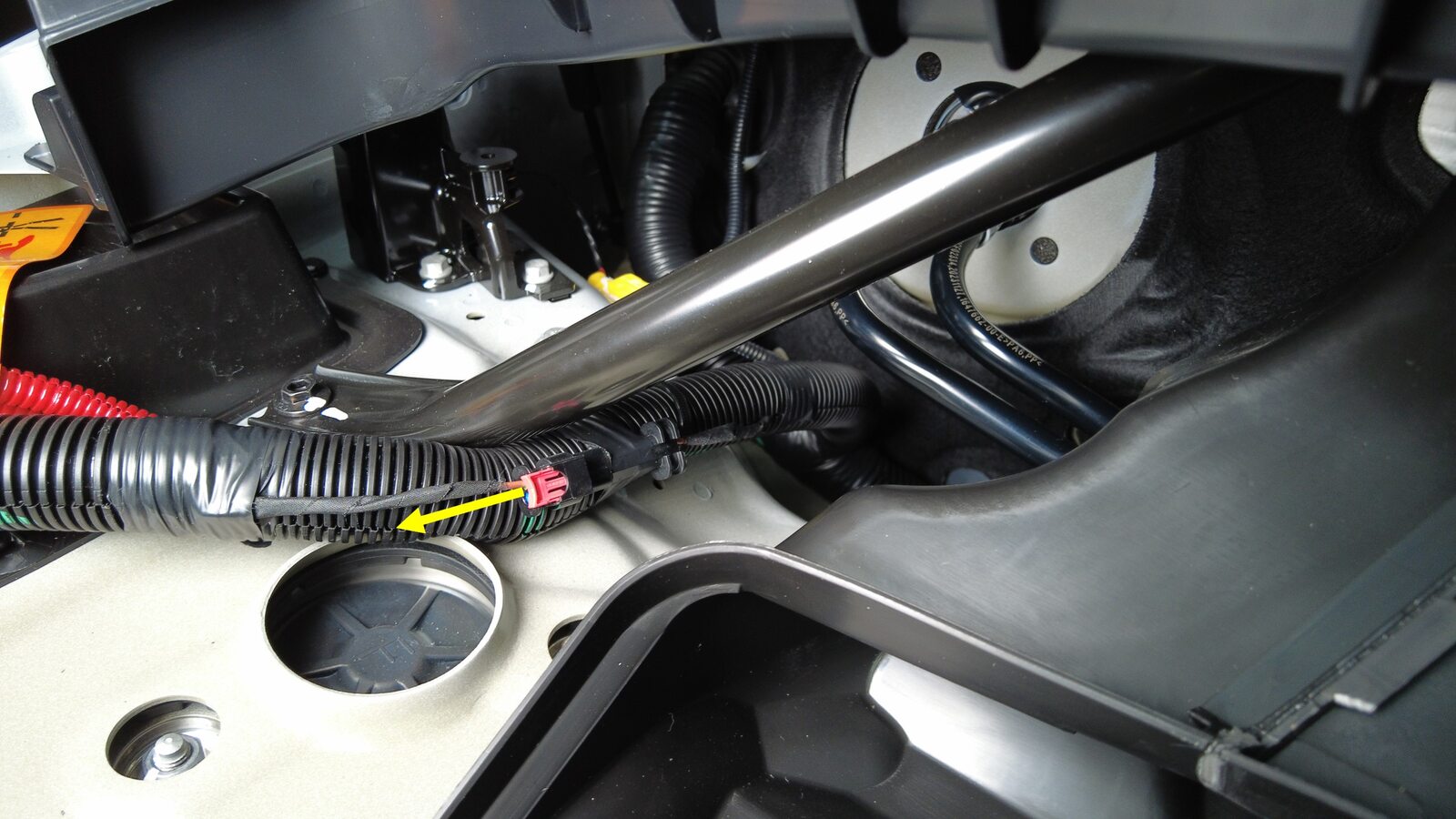

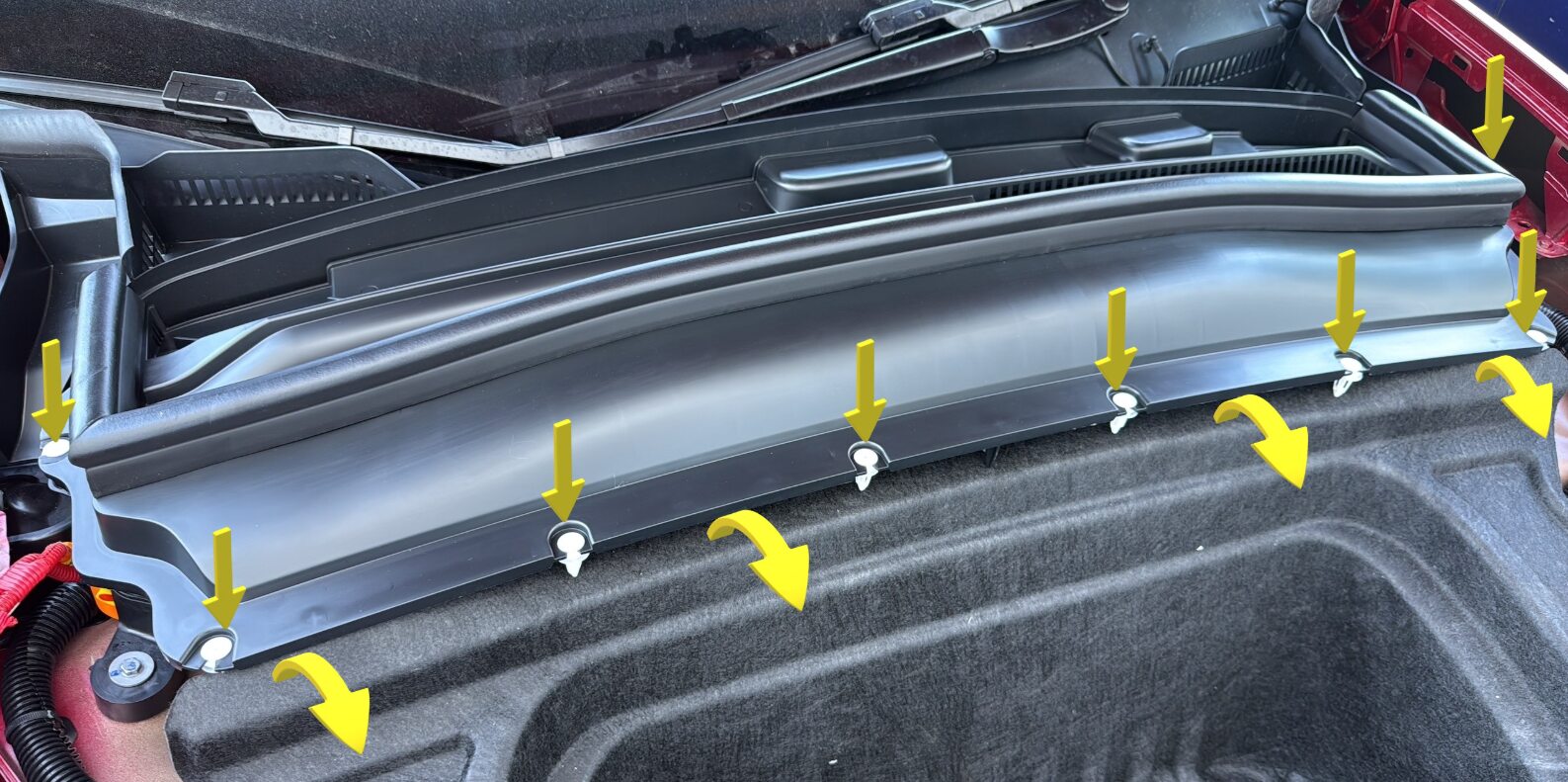

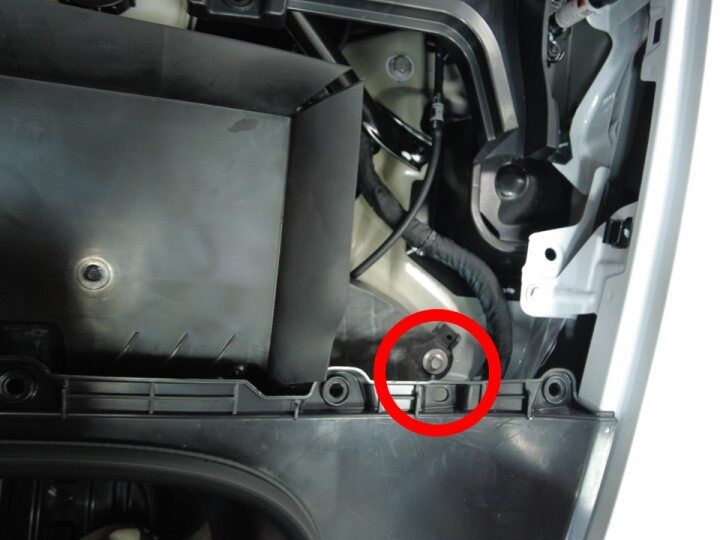

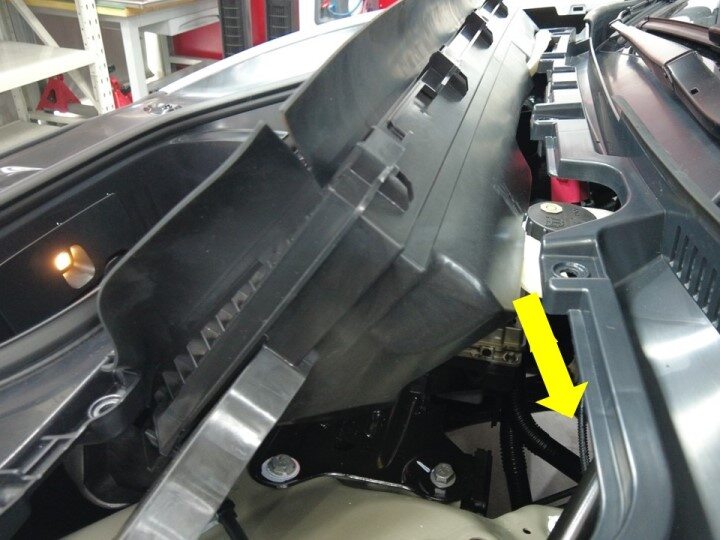

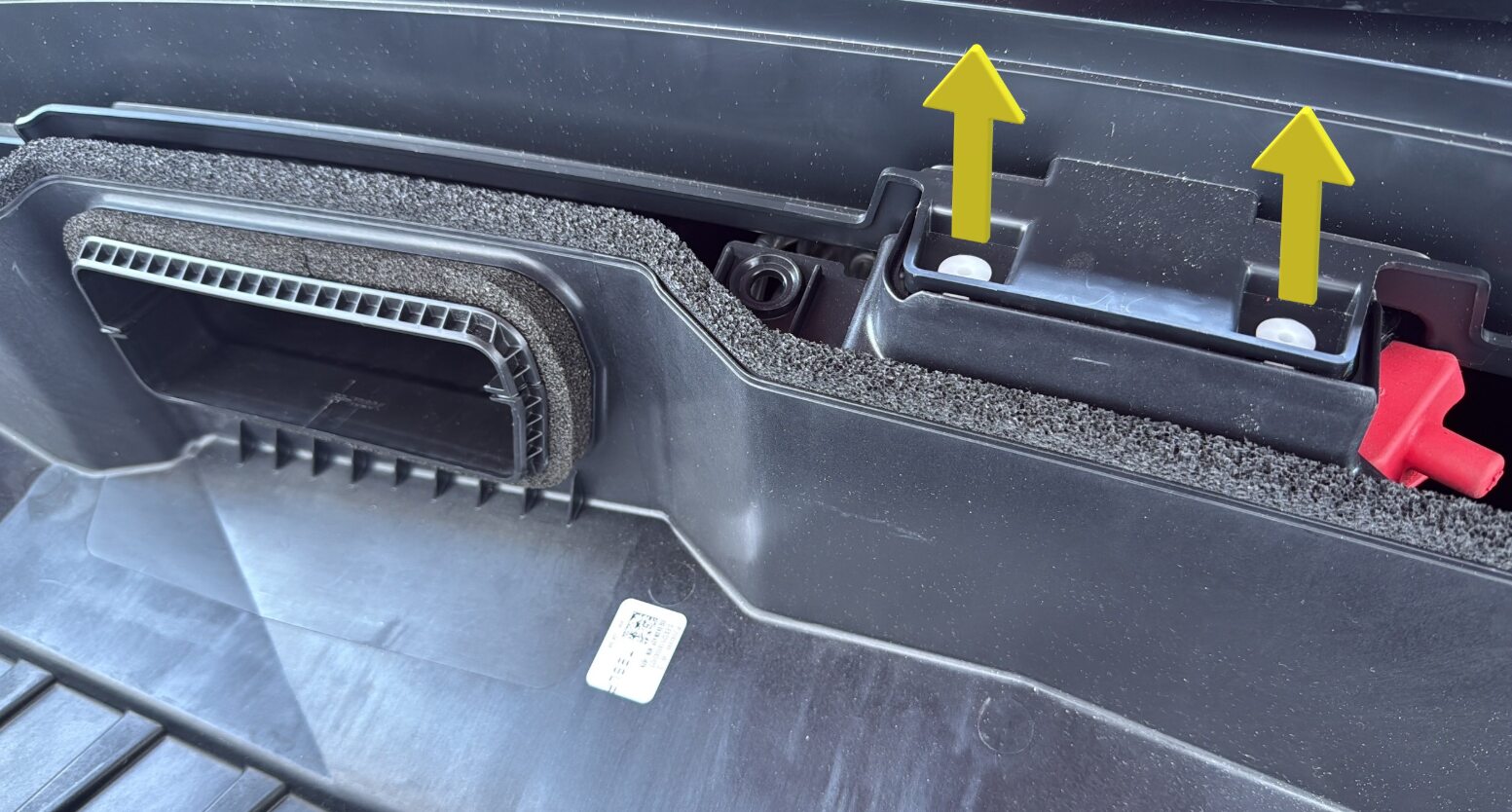

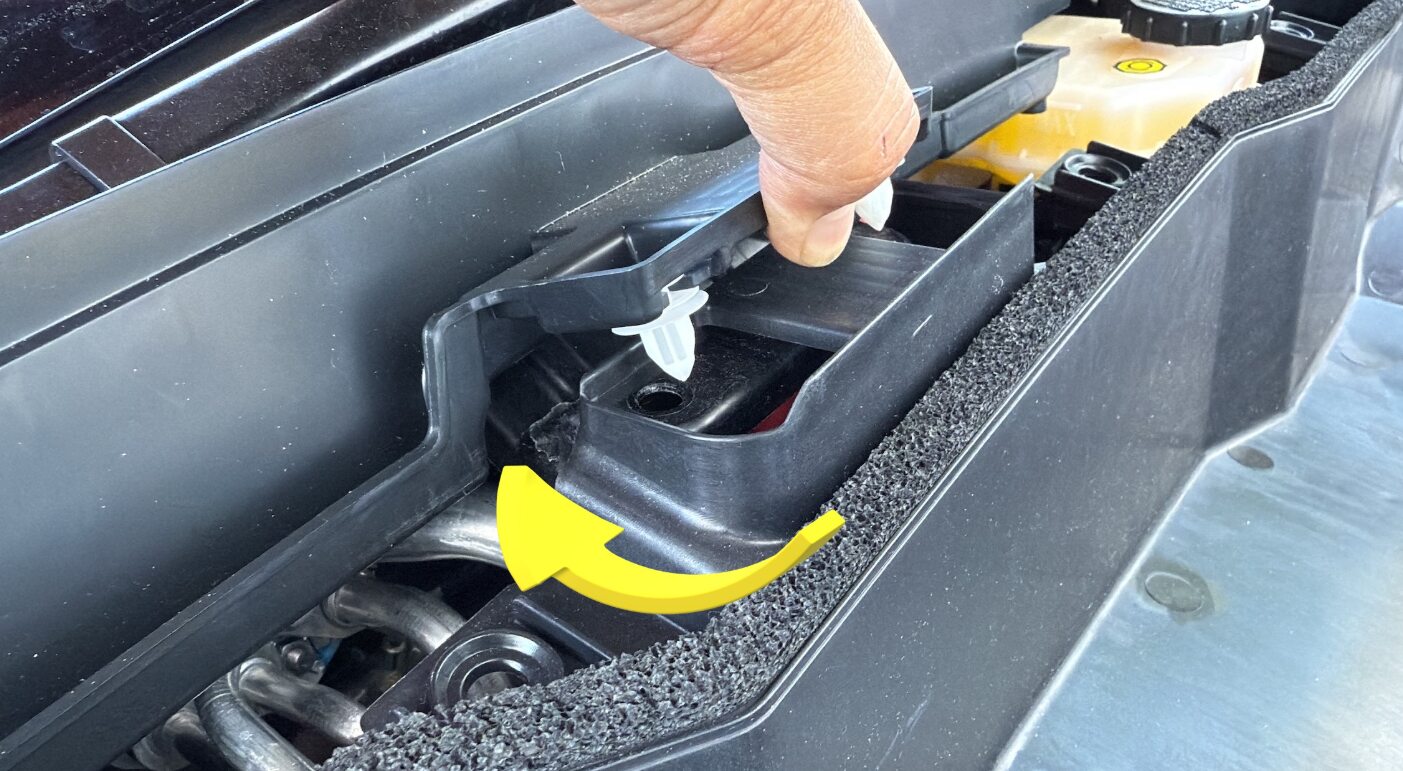

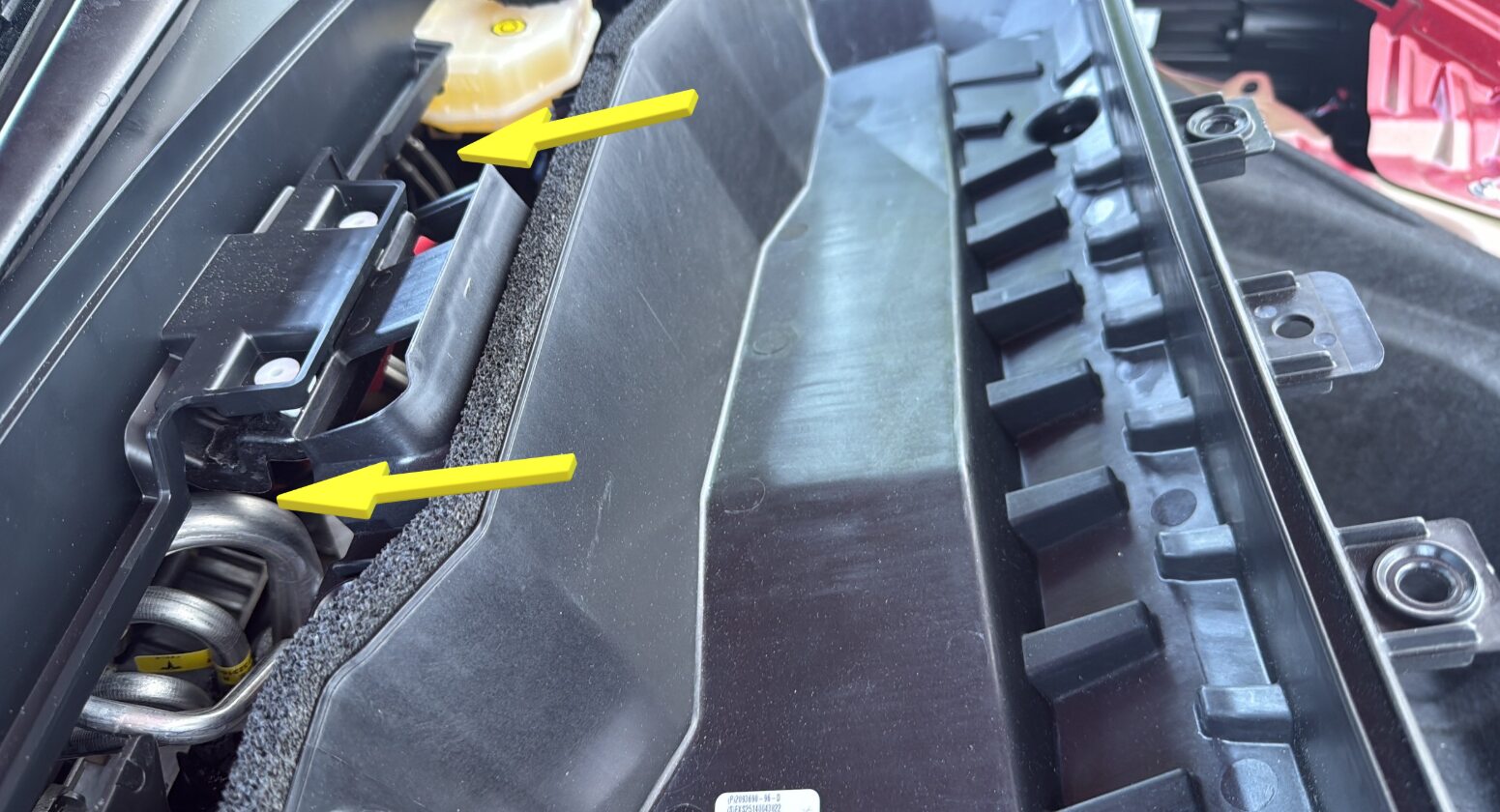

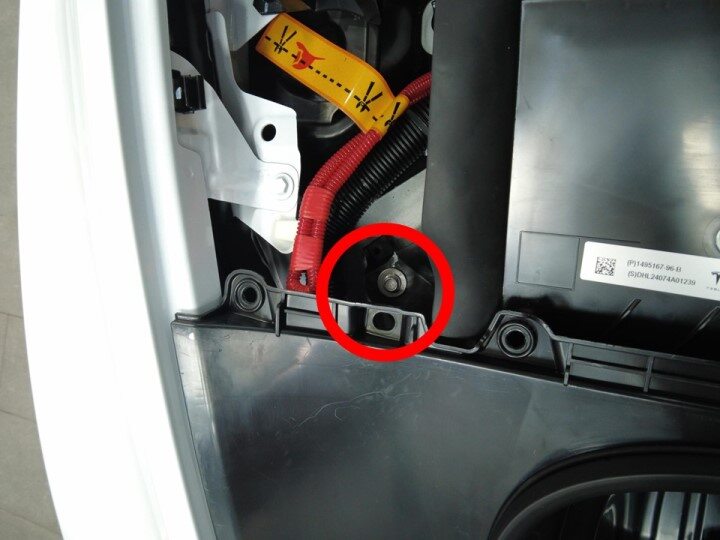

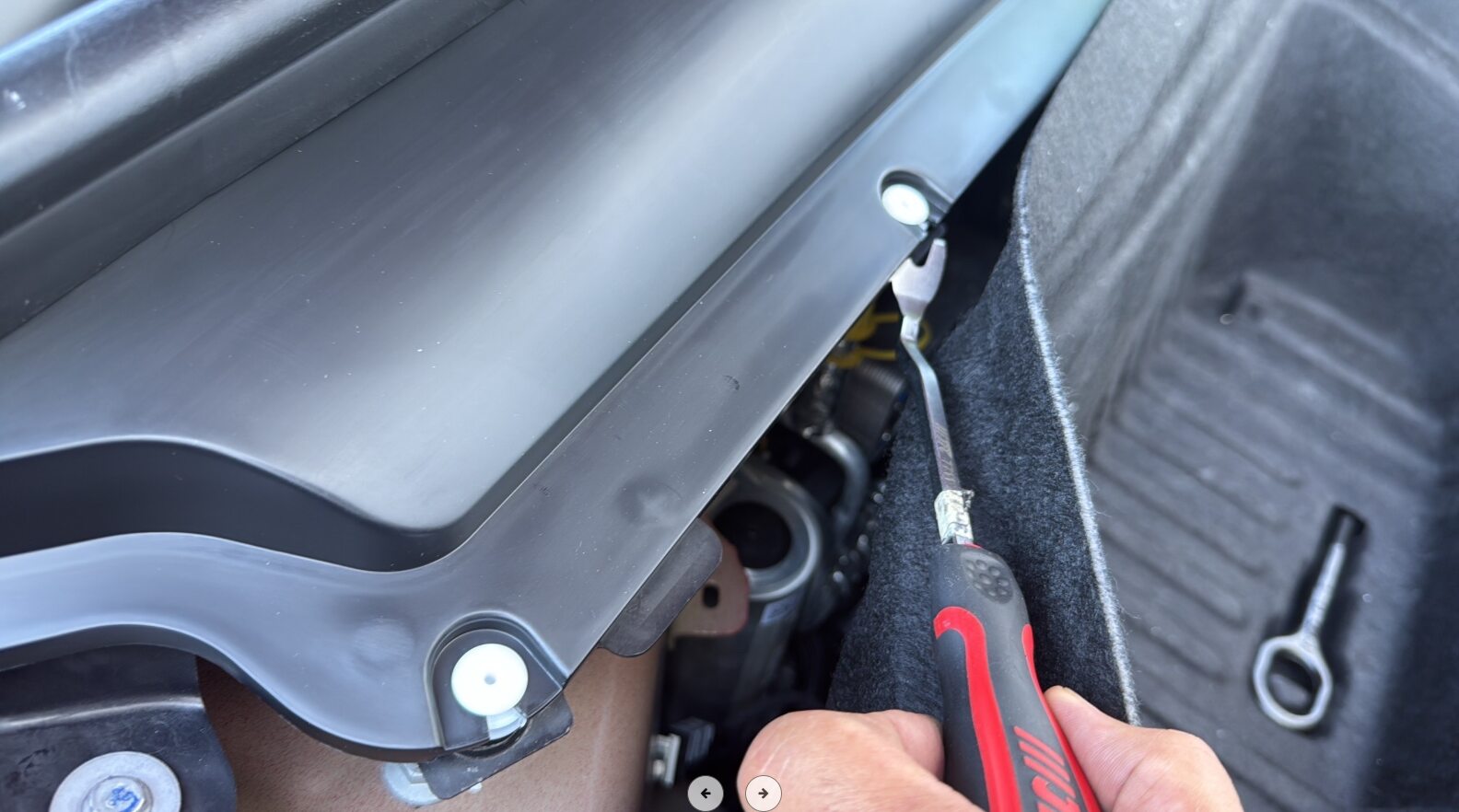

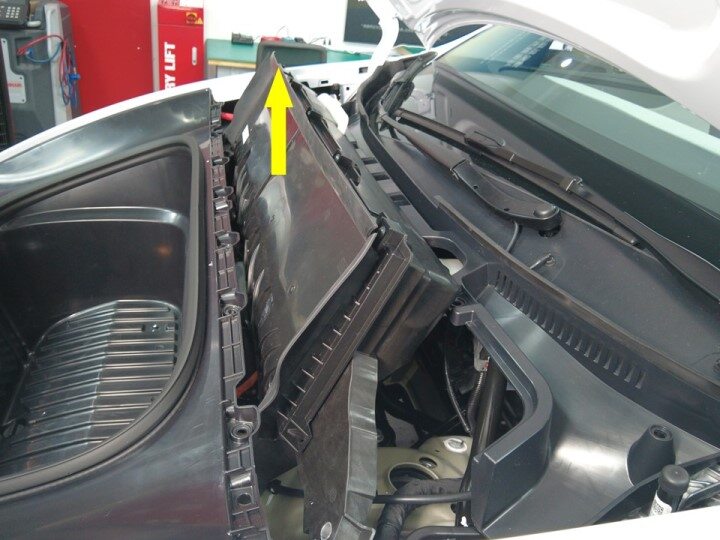

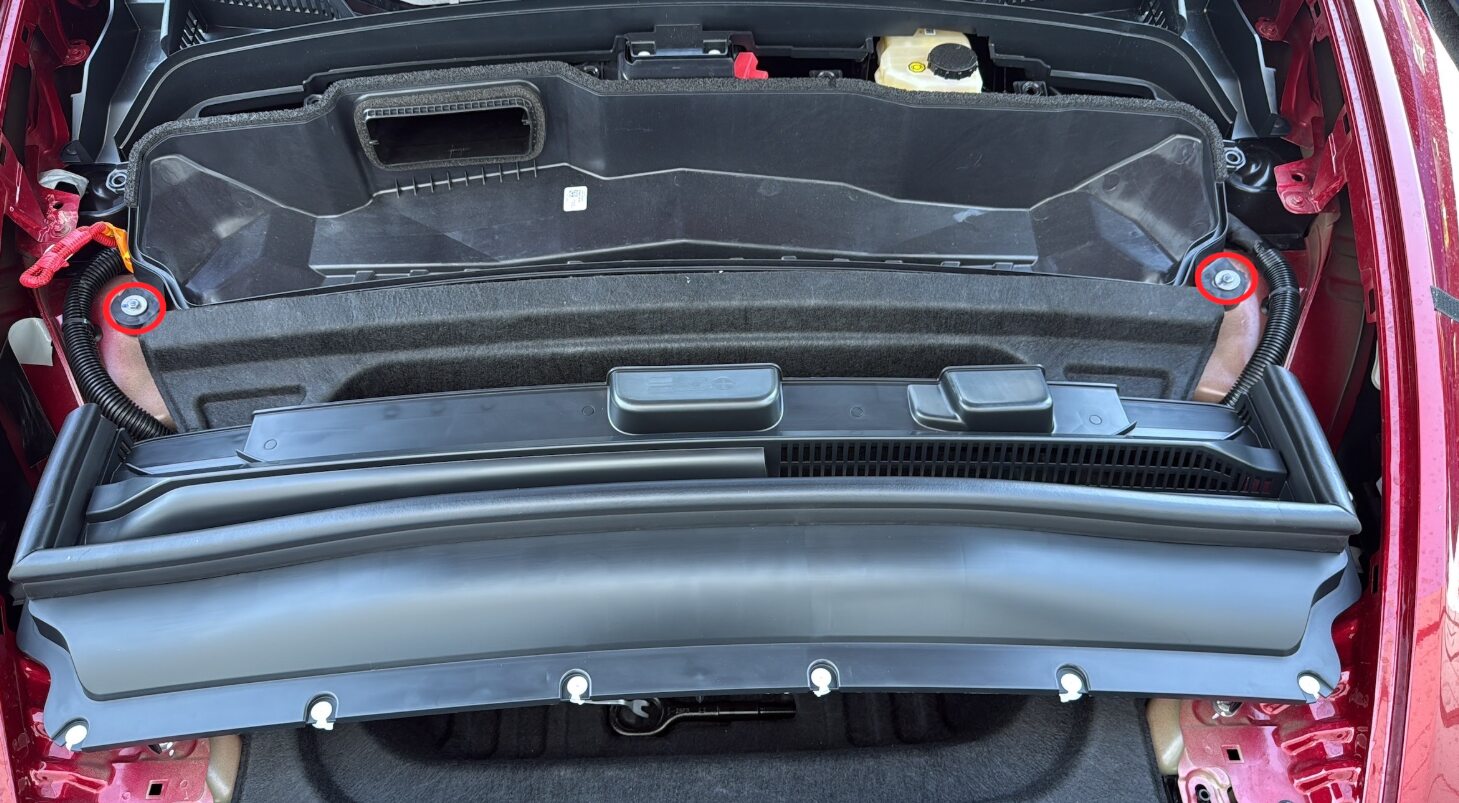

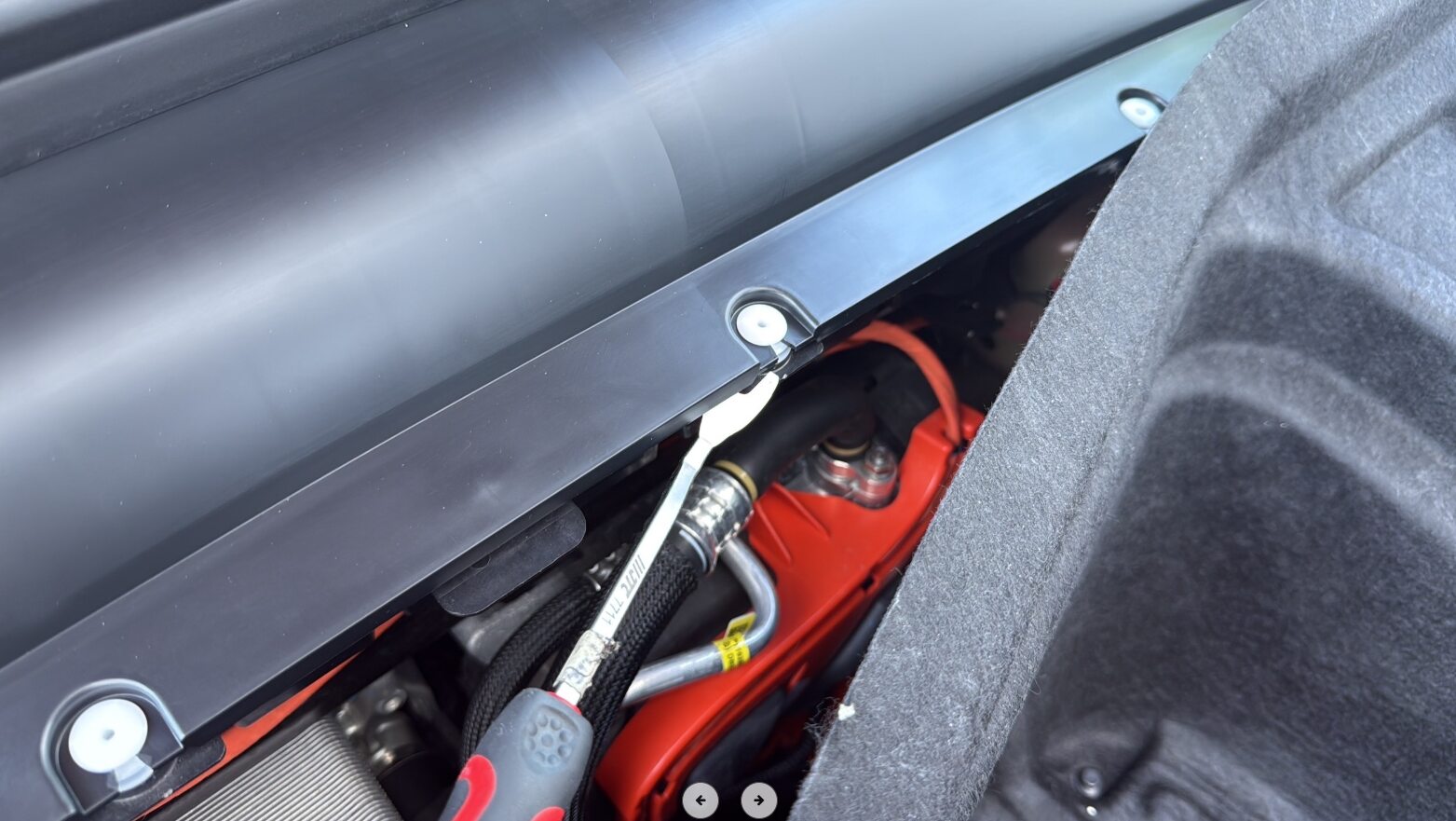

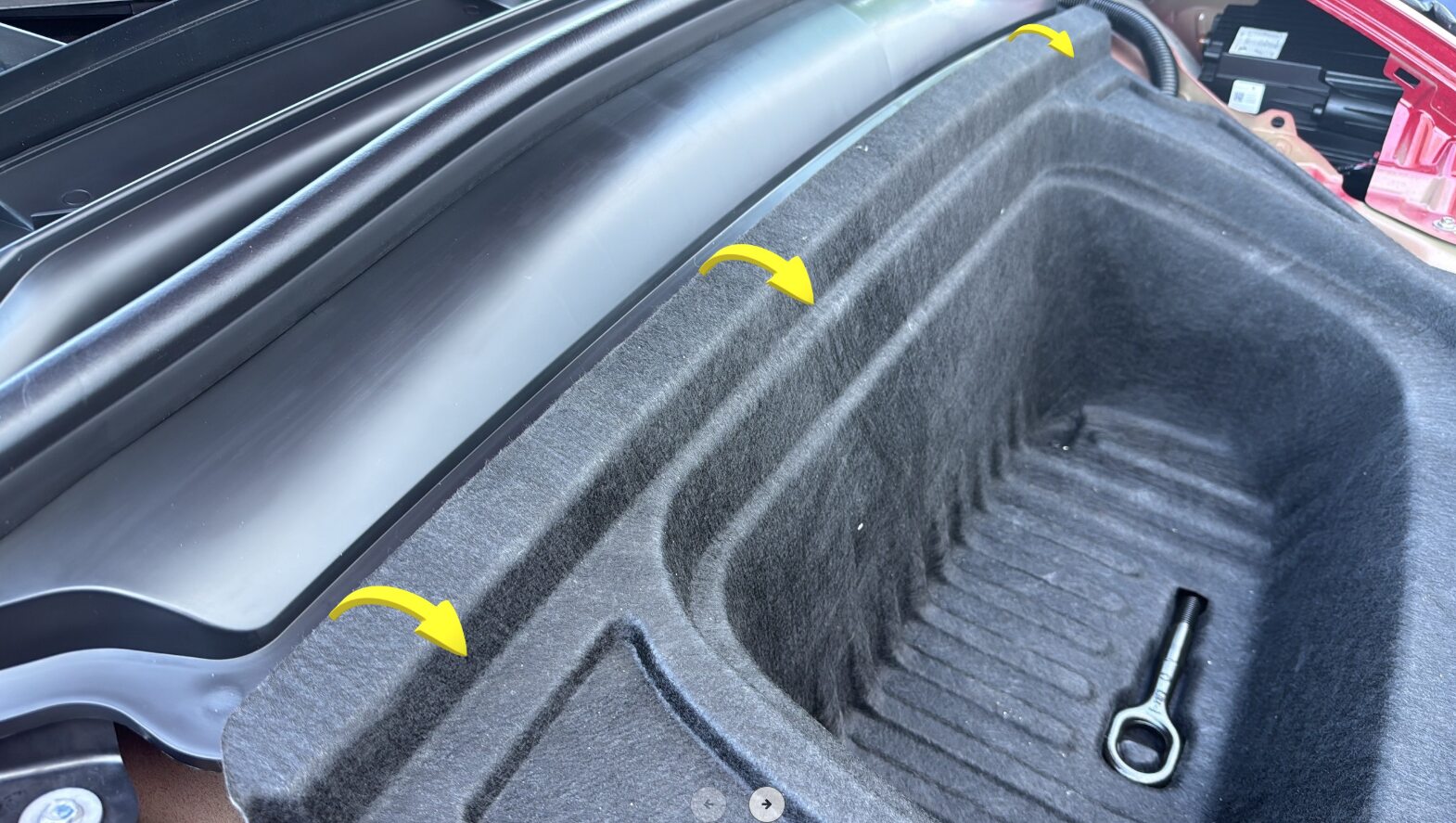

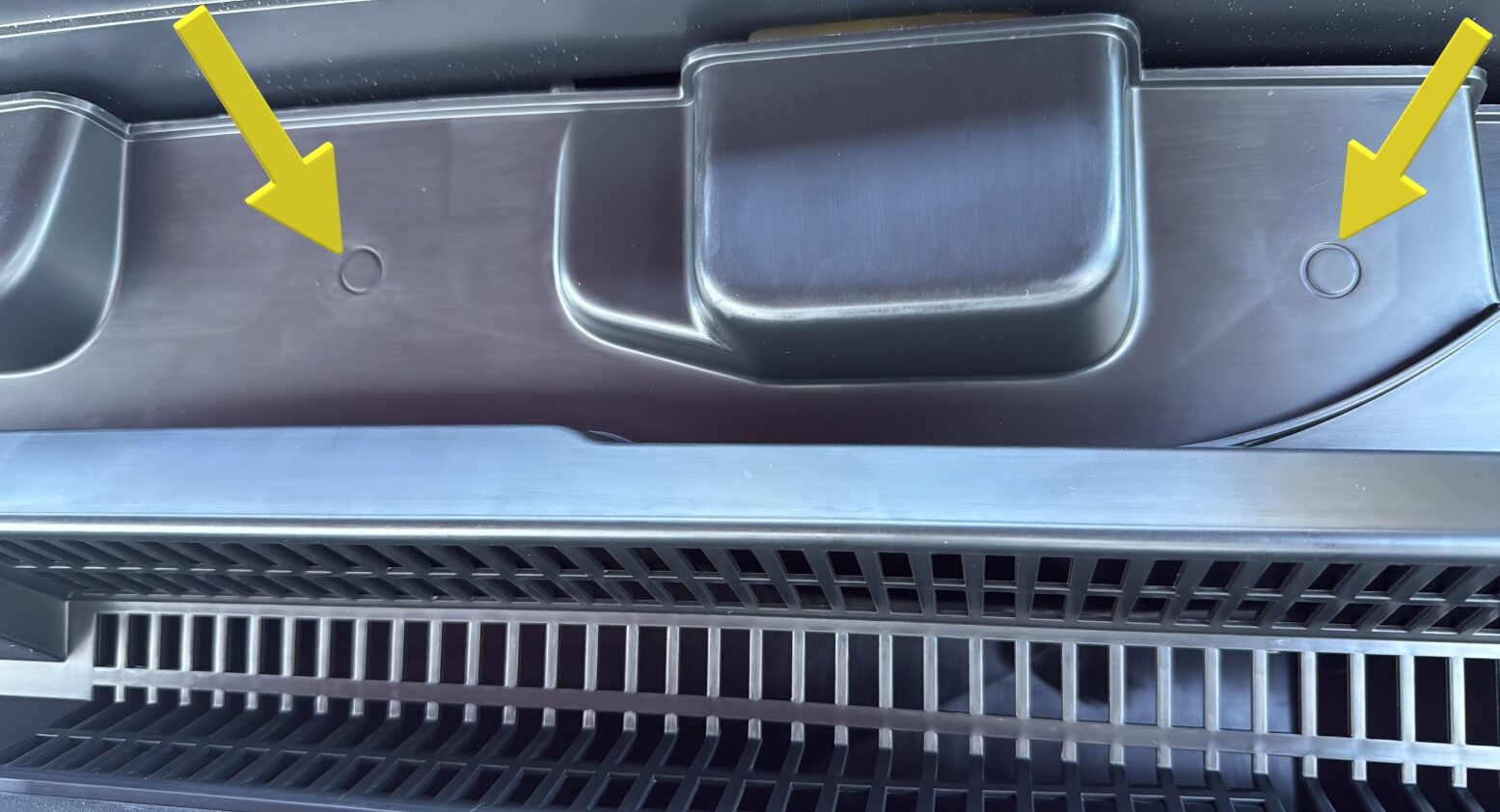

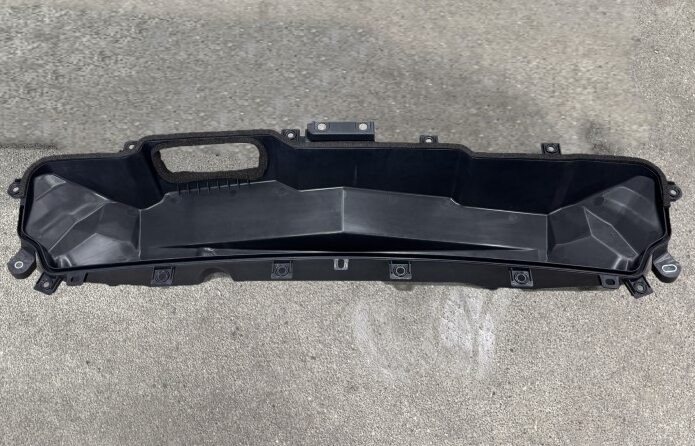

    Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Fold rear lip of base frunk forward to access forward cowl clips, Lift cowl clips to release basin bracket

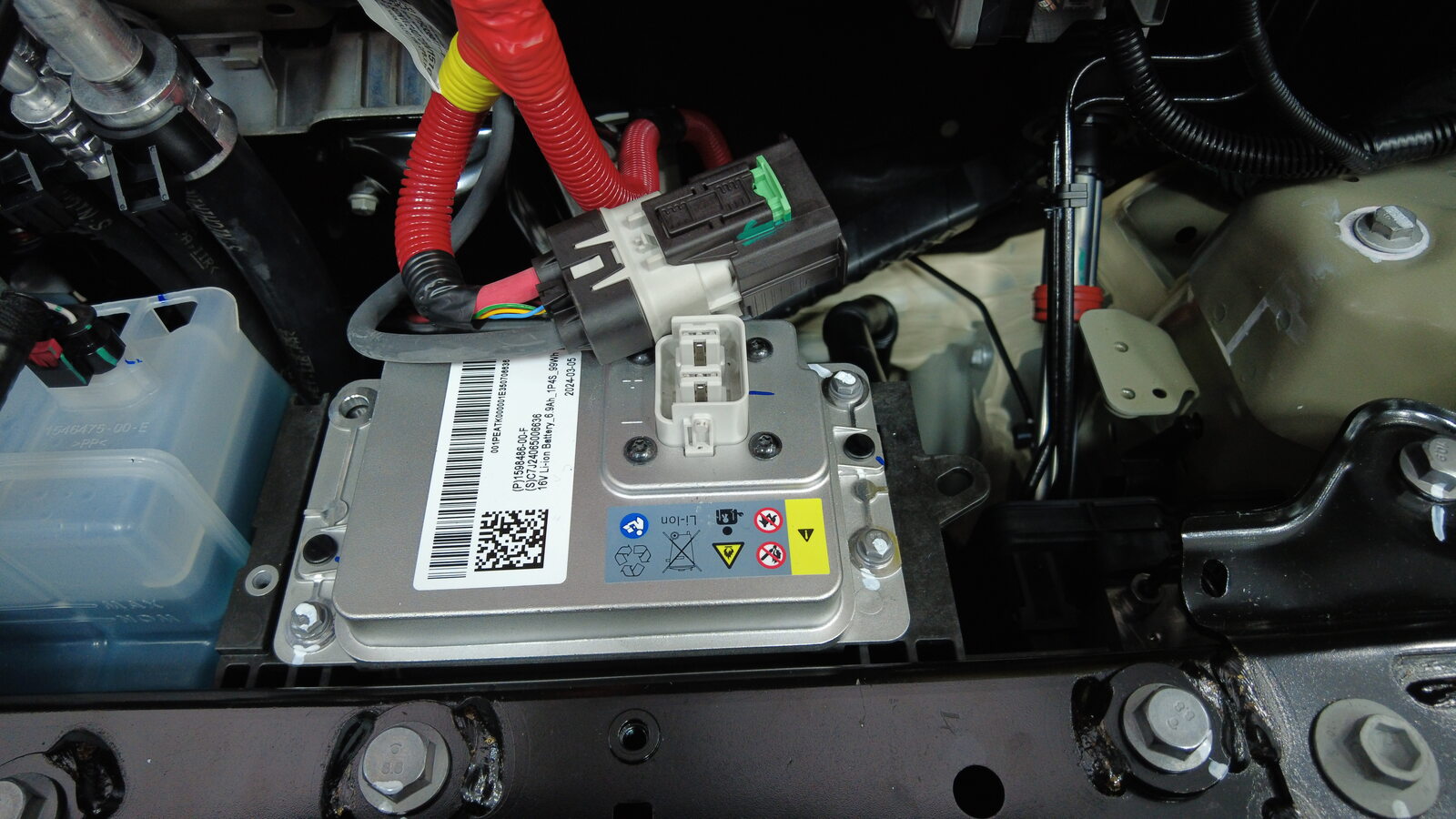

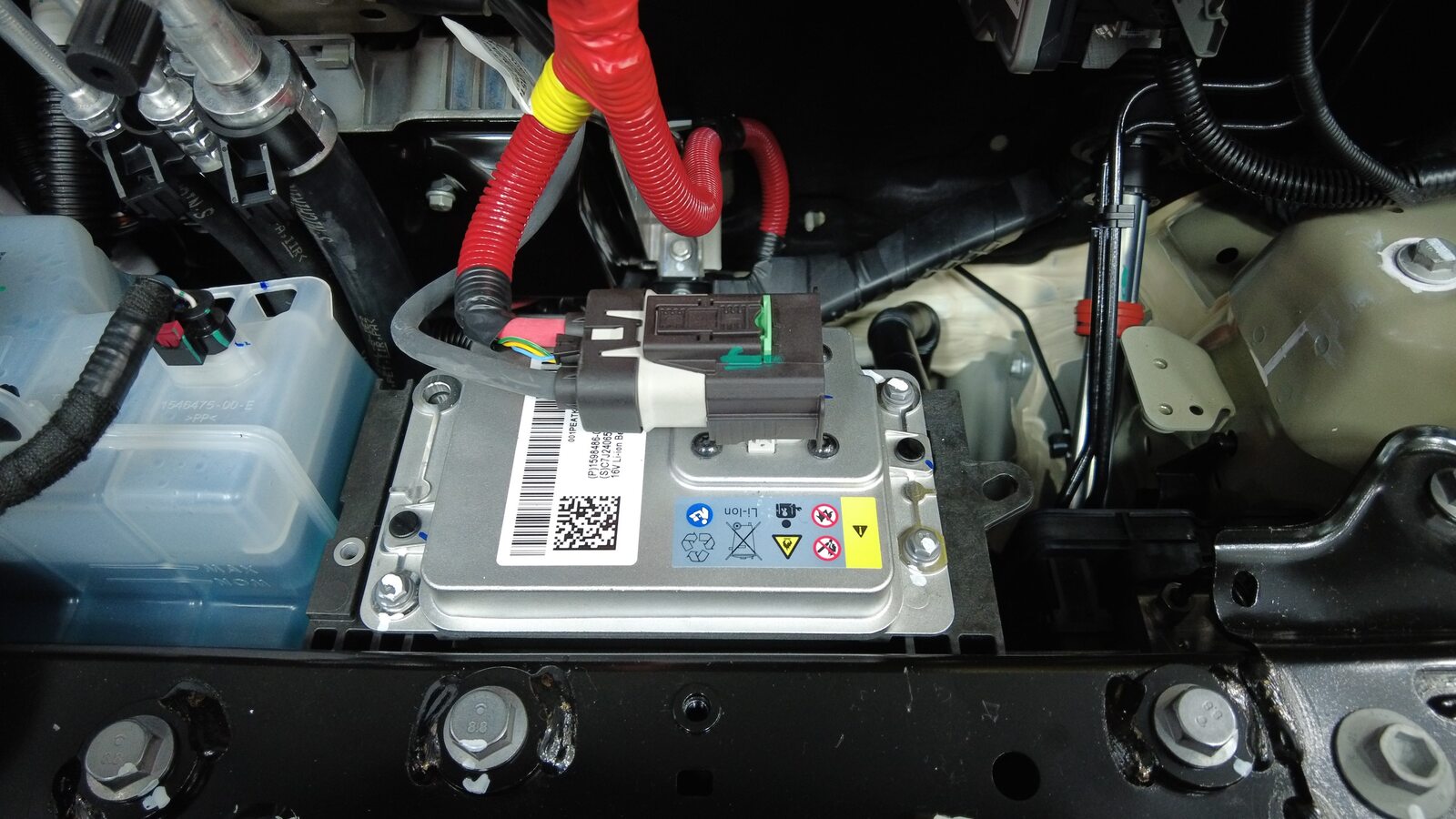

15. Disconnect LV battery and first responder loop
    Note

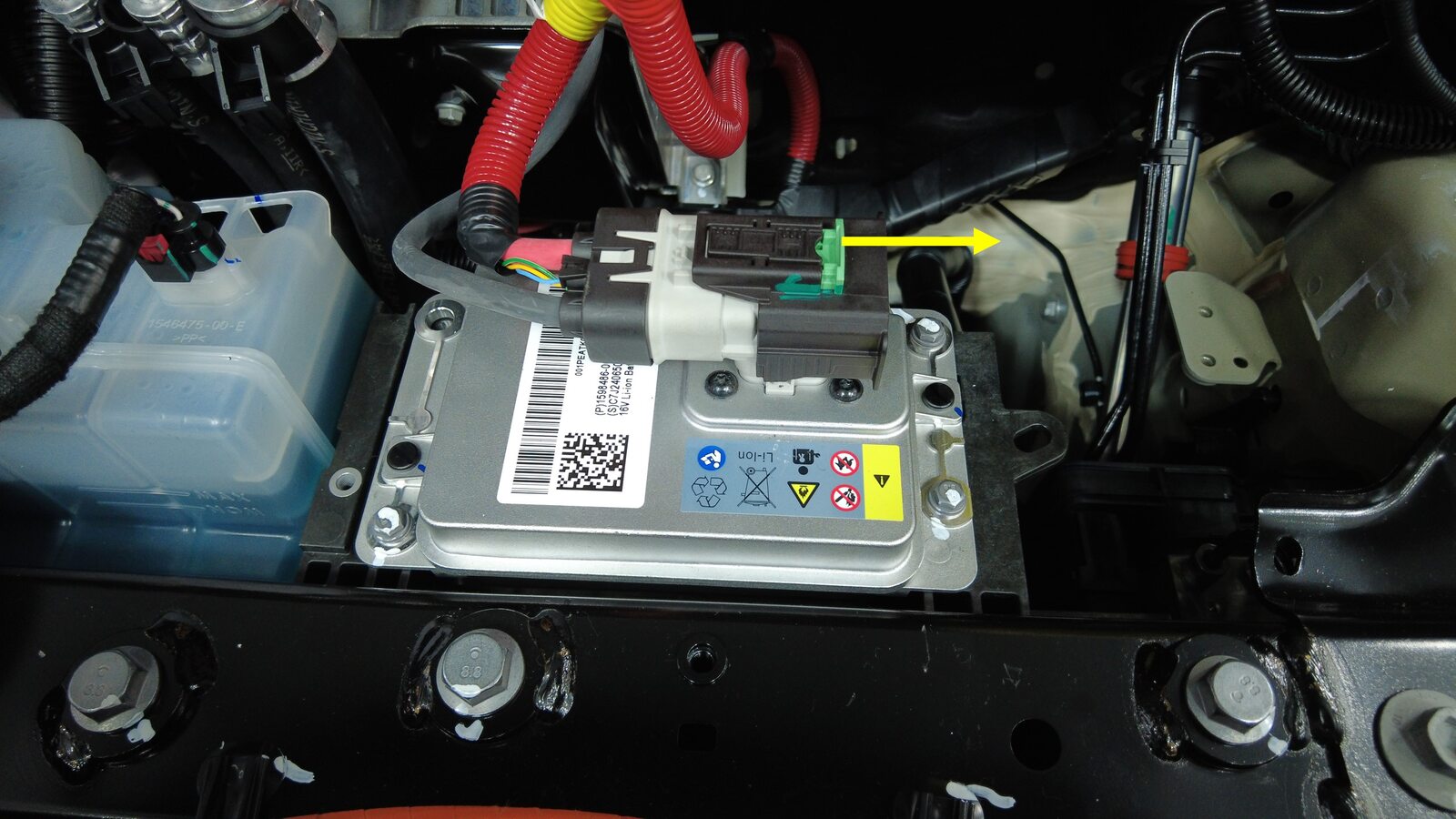

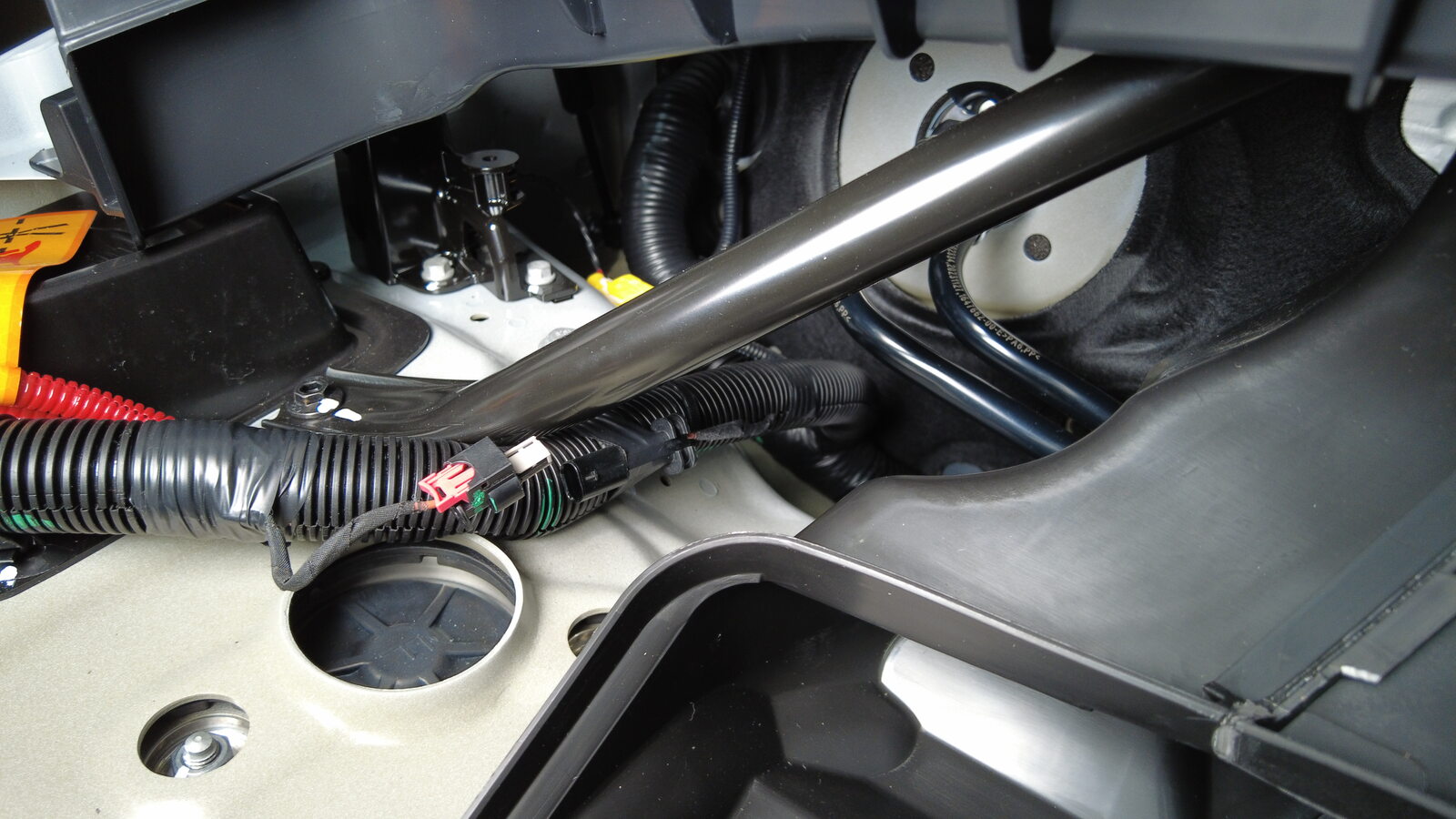

    2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

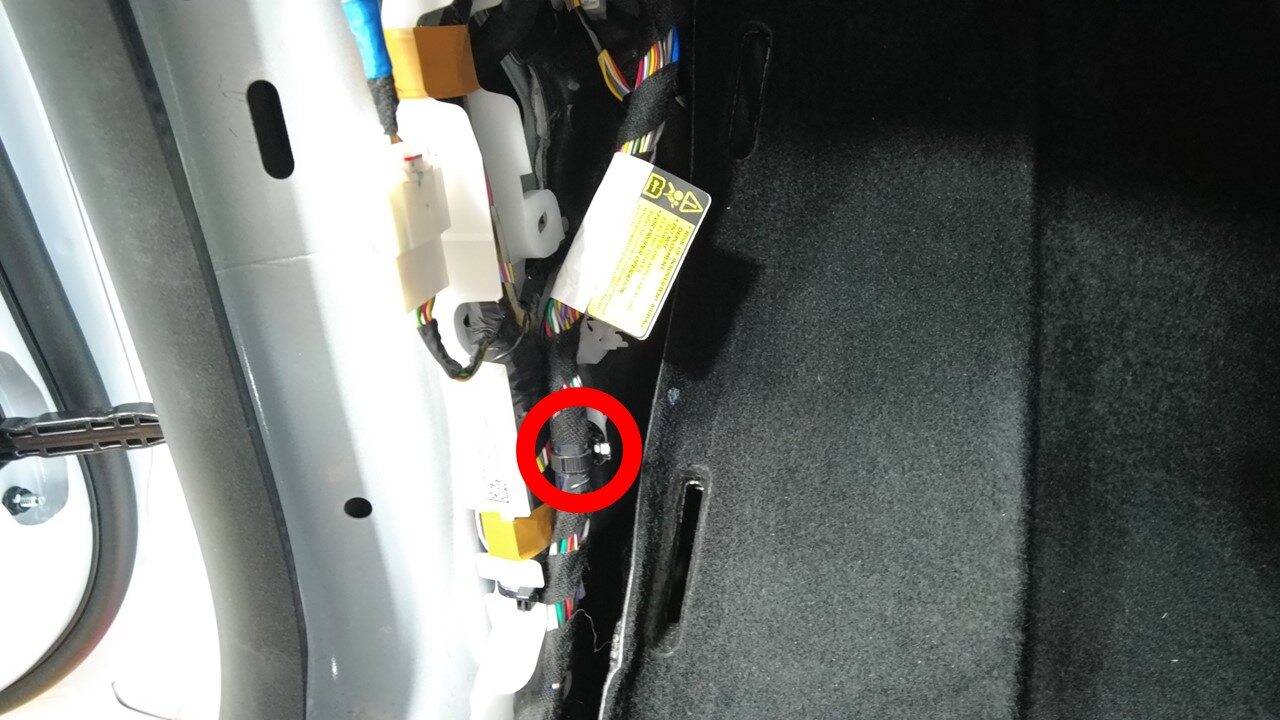

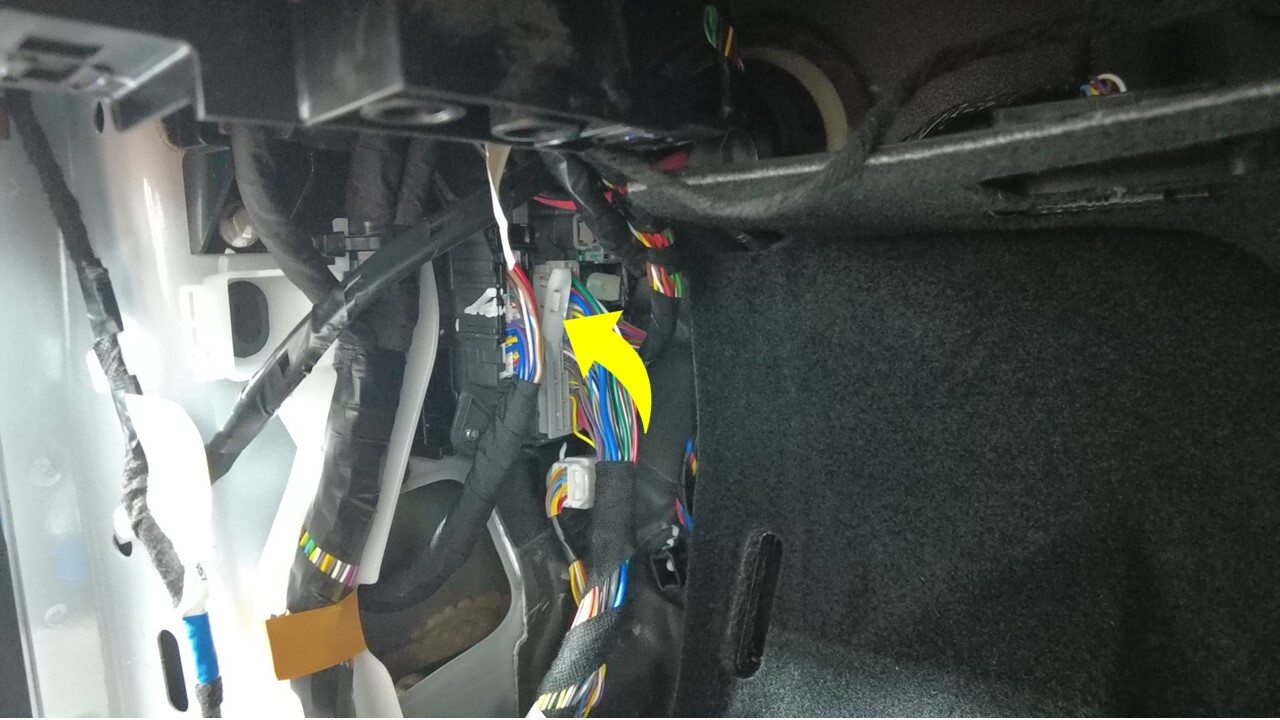

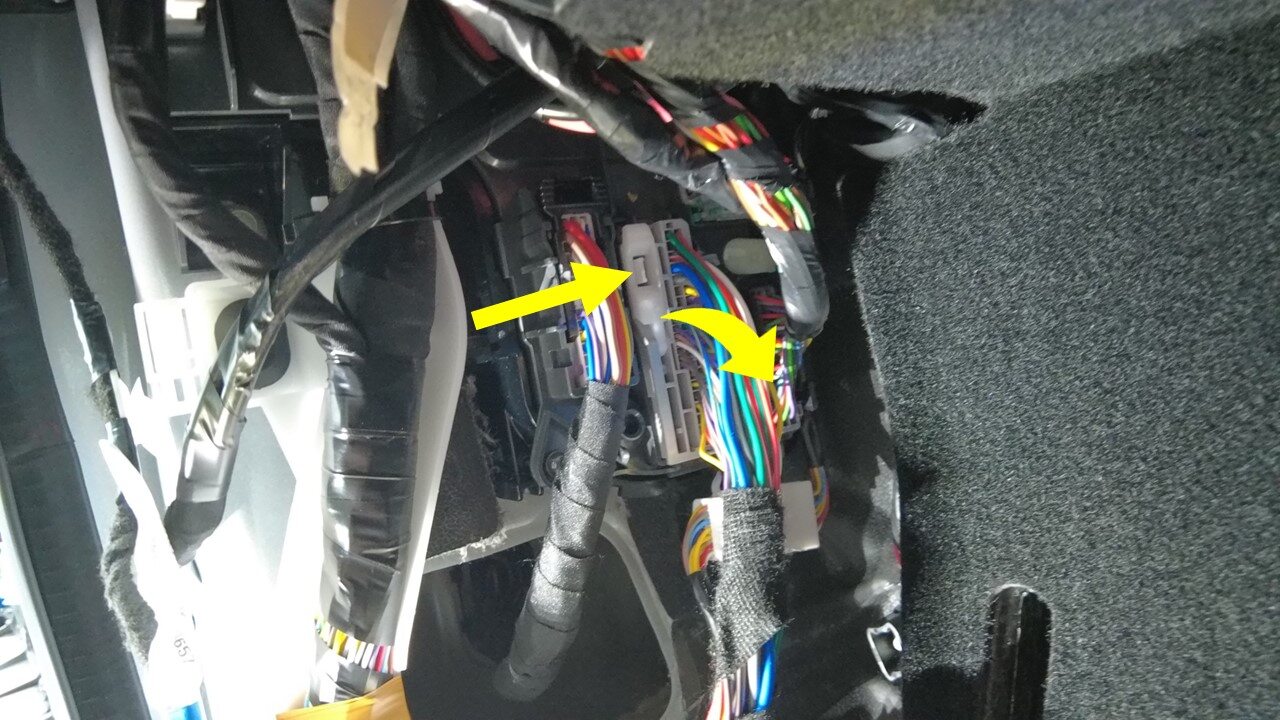

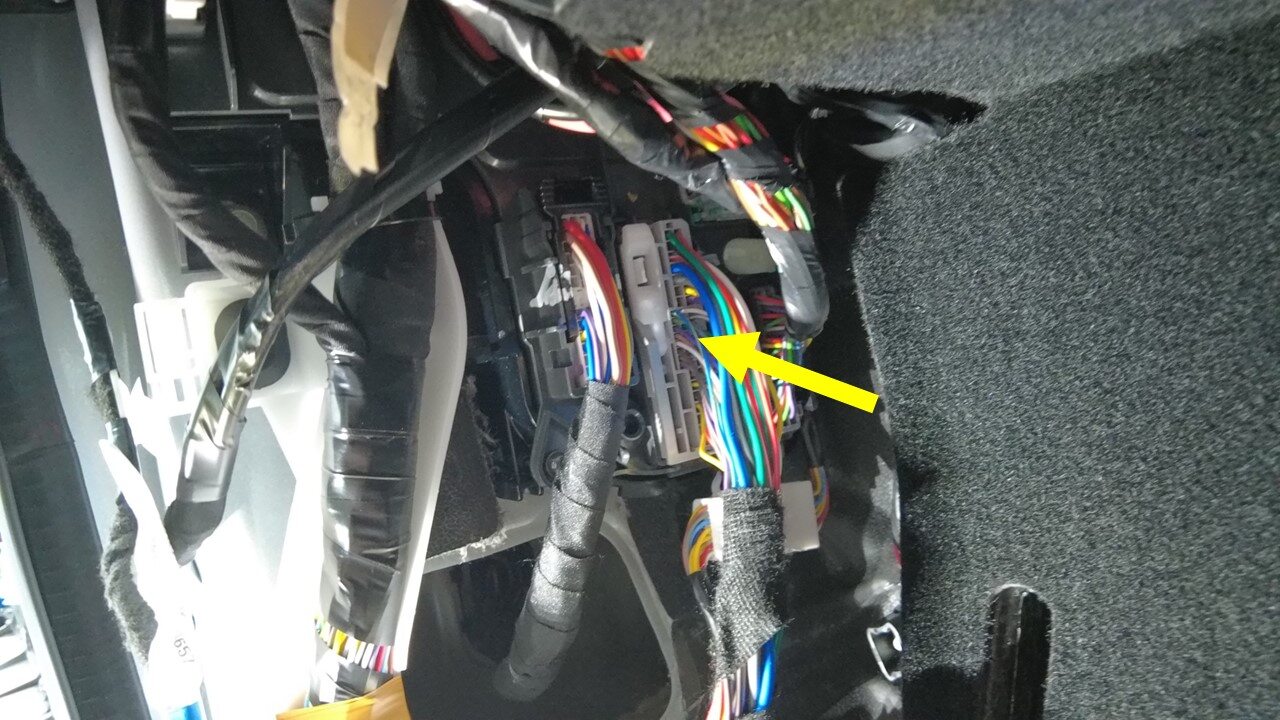

16. Disconnect LH front seat harness connector from LH controller
    Note

    1x connector, Release locking tab

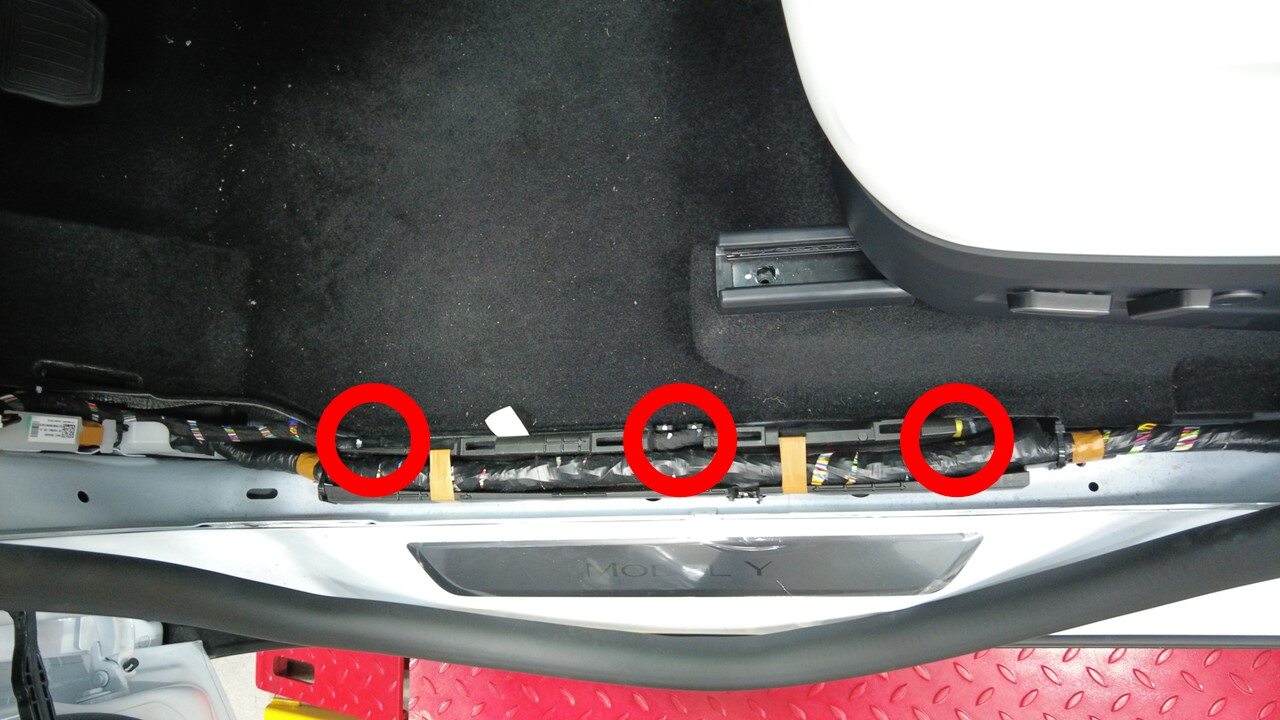

17. Release LH front seat harness from sill trim clips
    Note

    4x clips

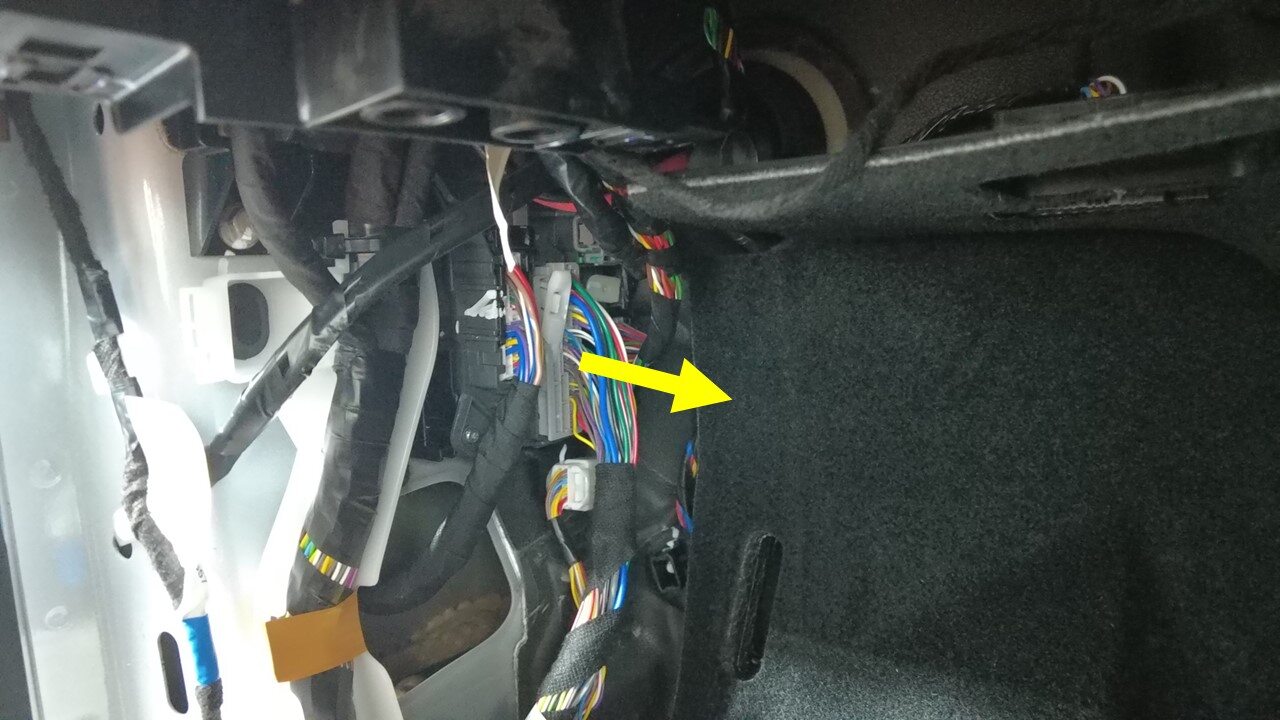

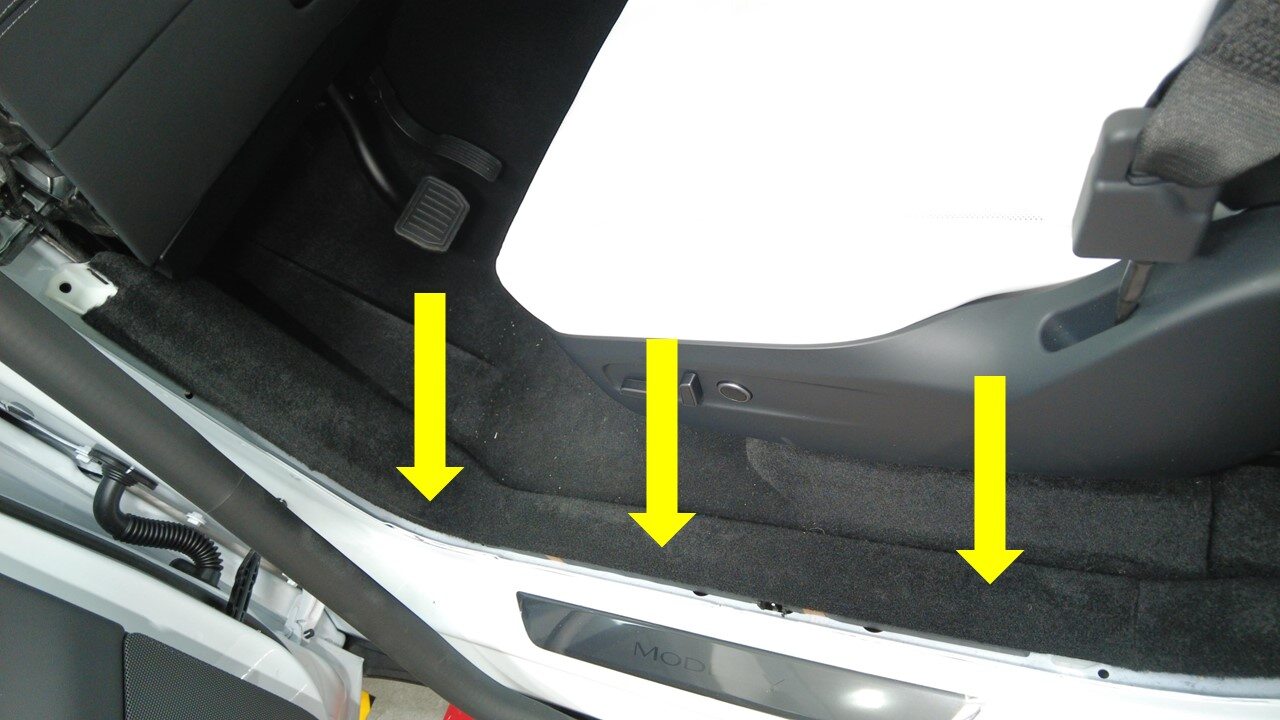

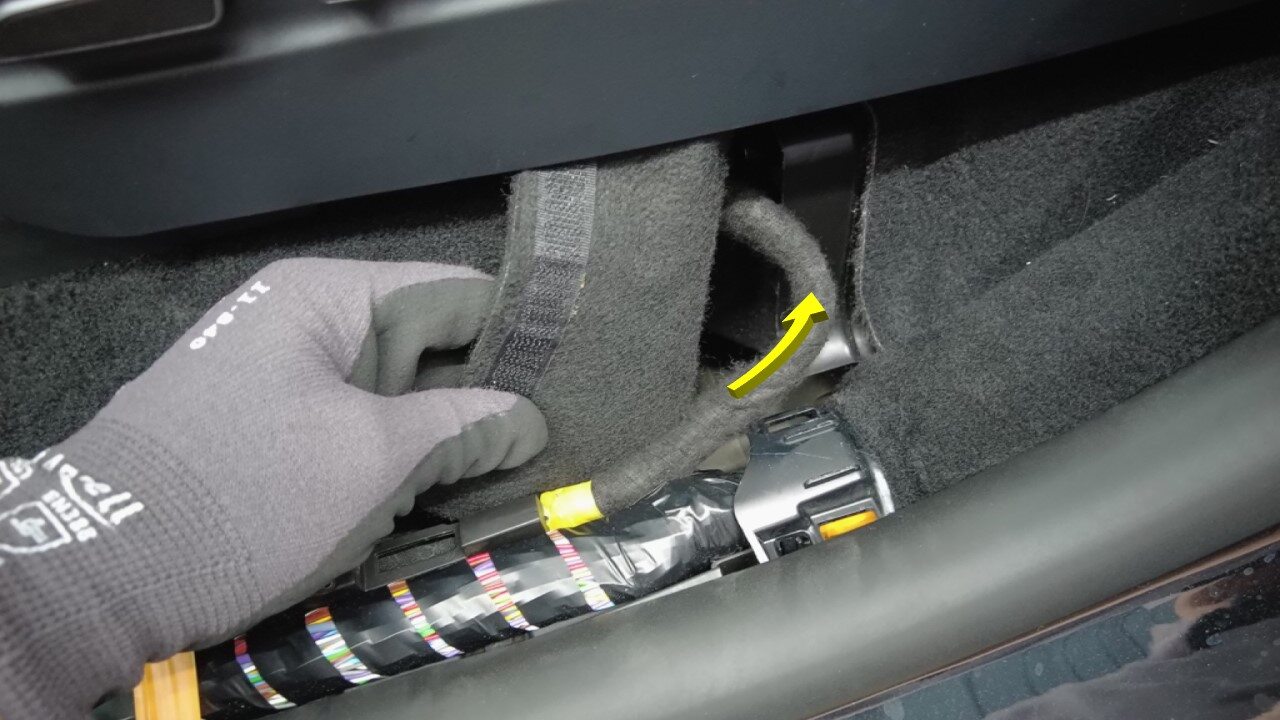

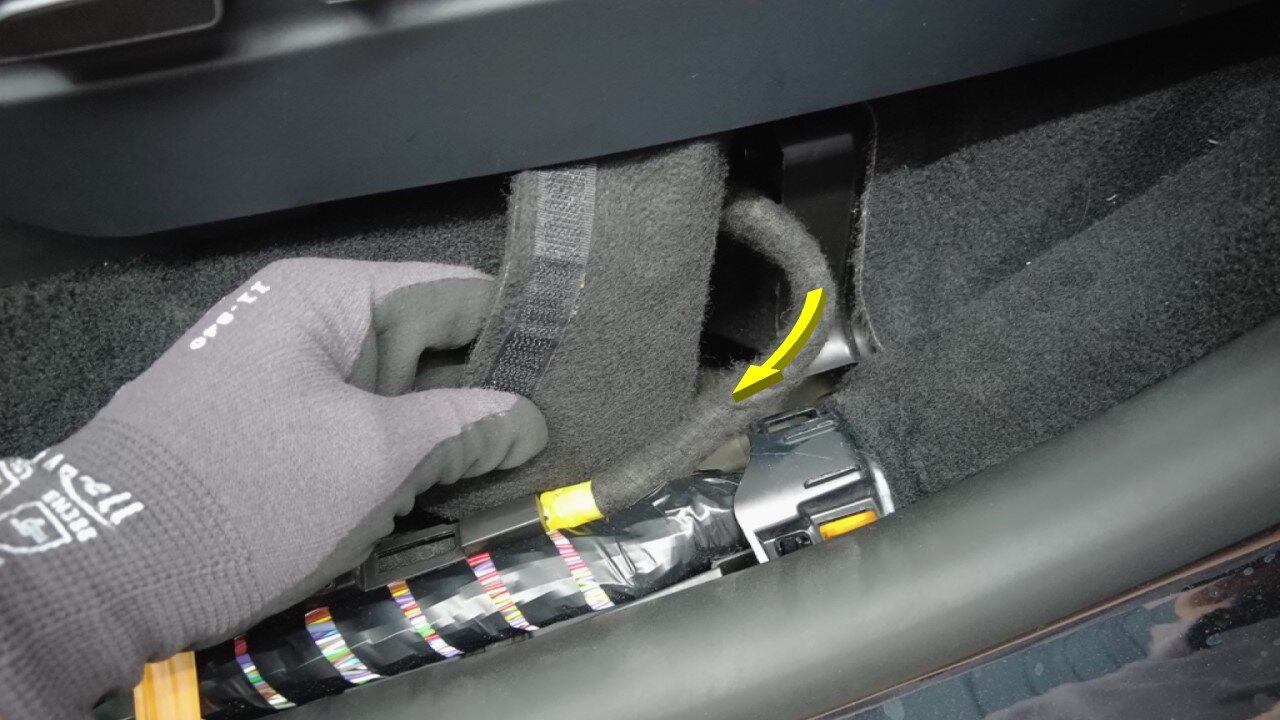

18. Pull LH front seat harness from under LH front cabin carpet

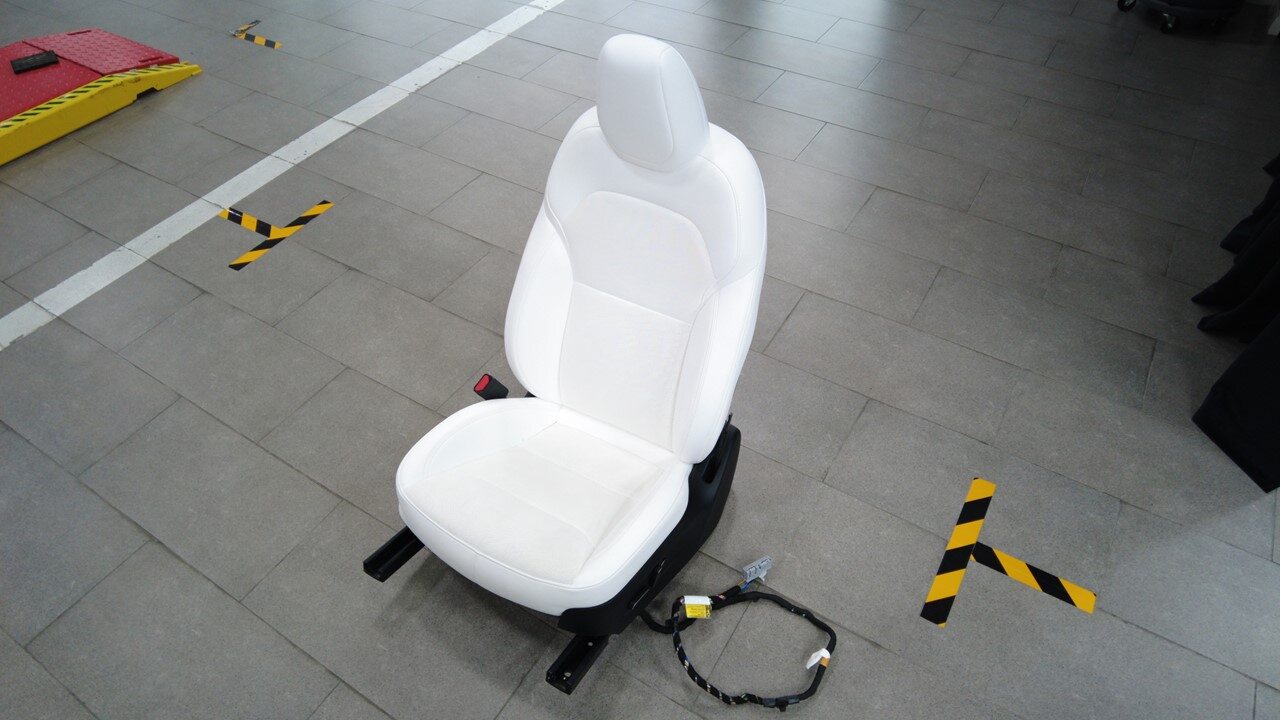

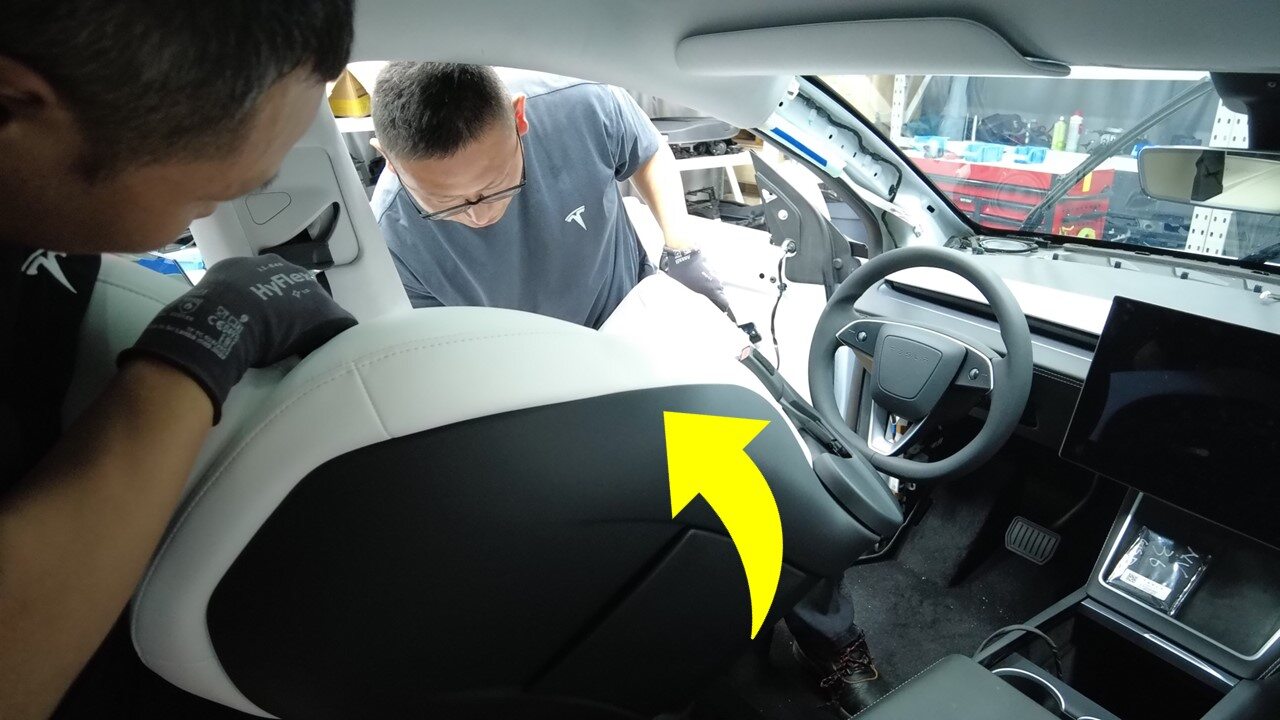

19. Remove LH front seat from vehicle
    Note

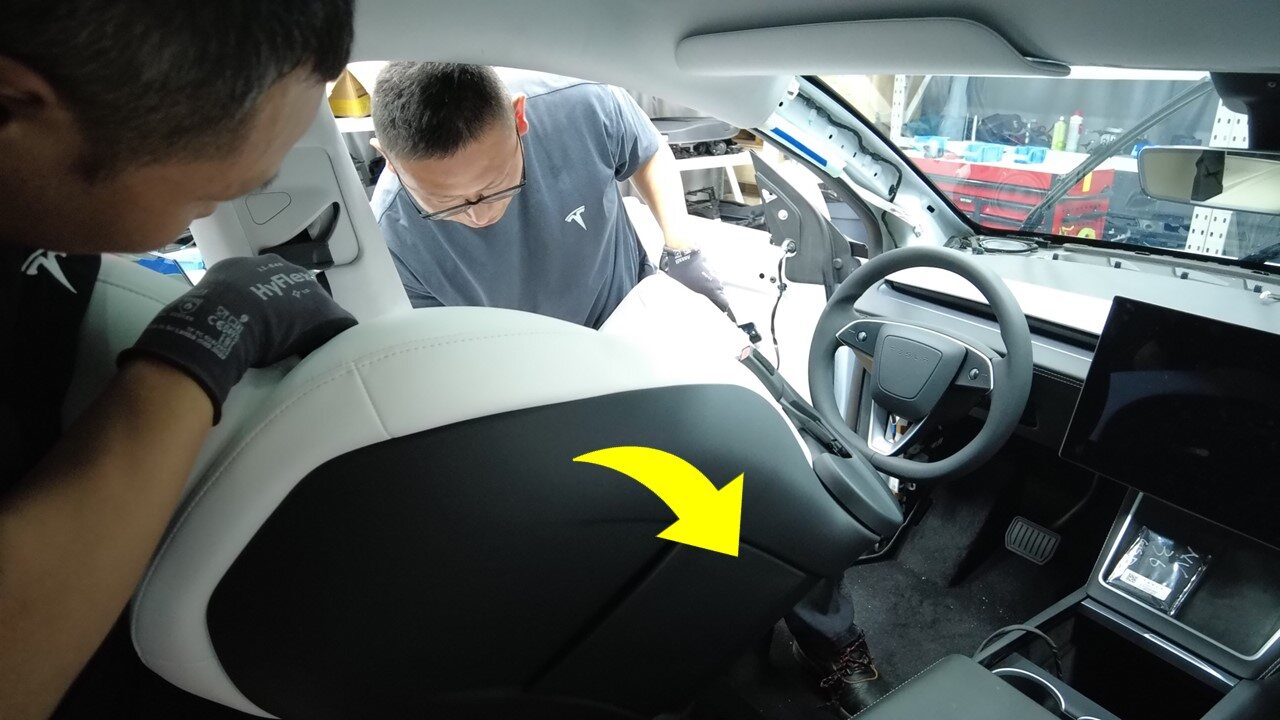

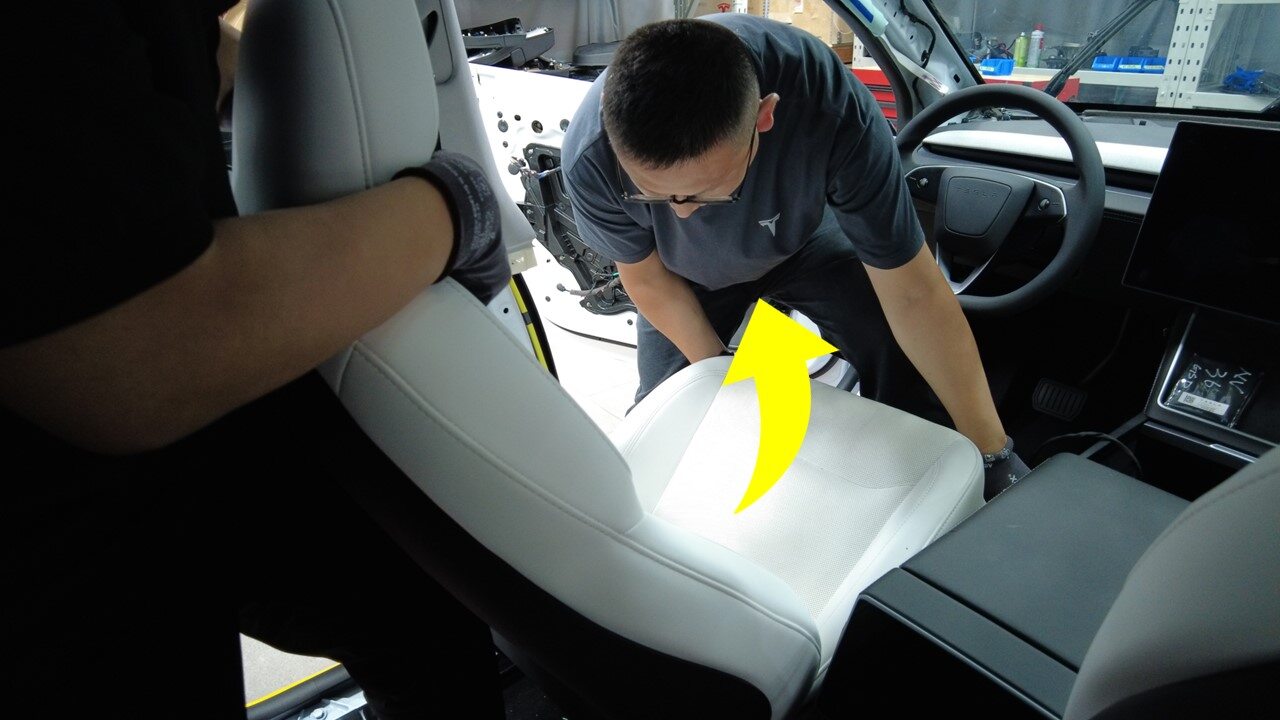

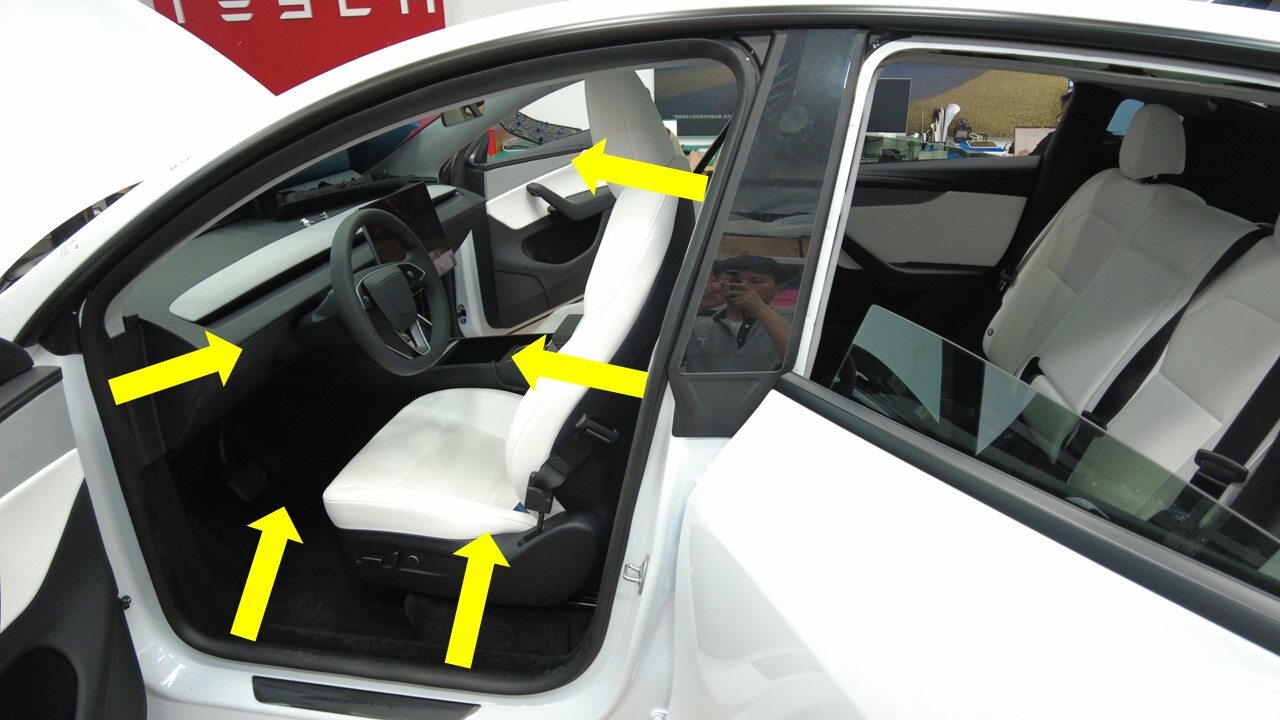

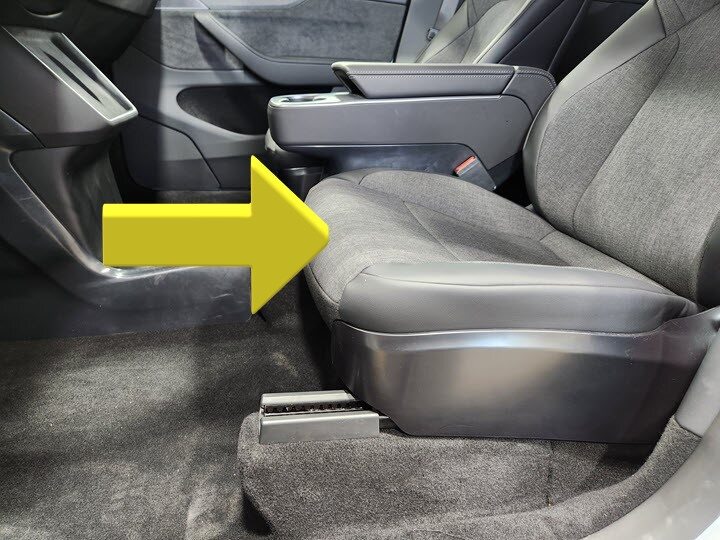

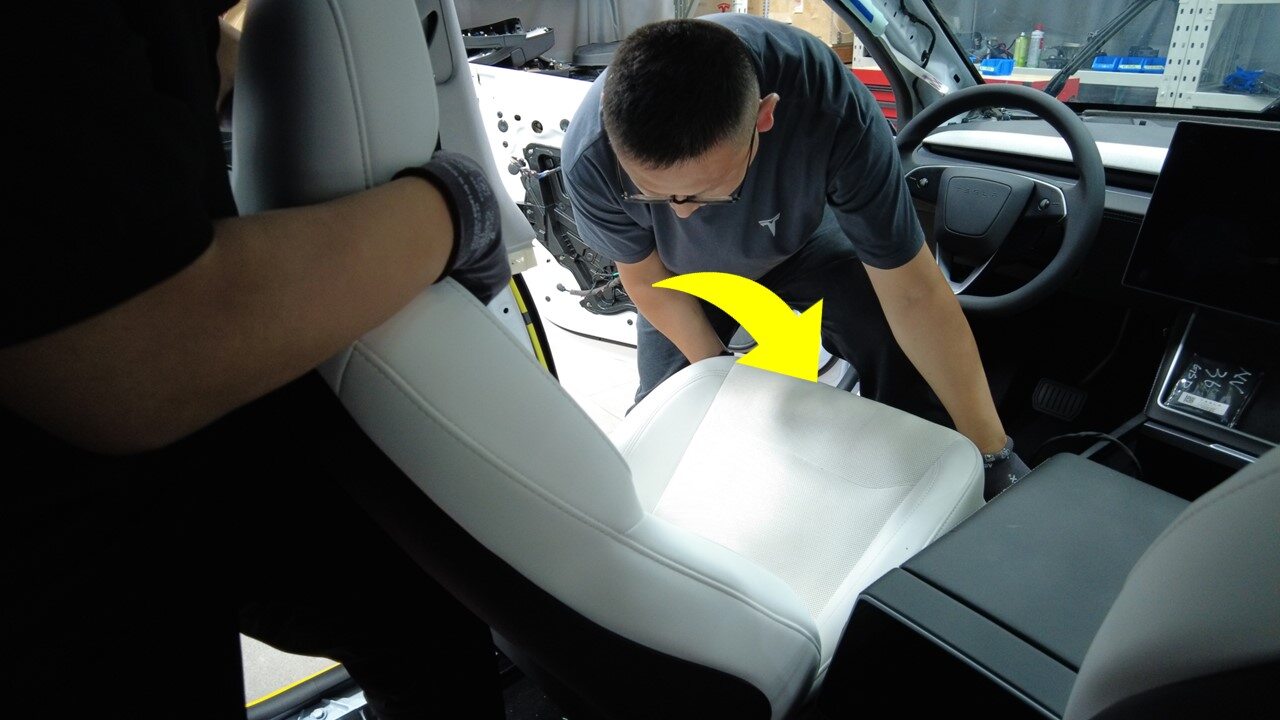

    Recommend assistance, With assistant supporting seat back from 2nd row seat, Remove seat from front LH door opening, Caution not to damage any trim, Protect the seat upholstery when the seat is outside of the vehicle

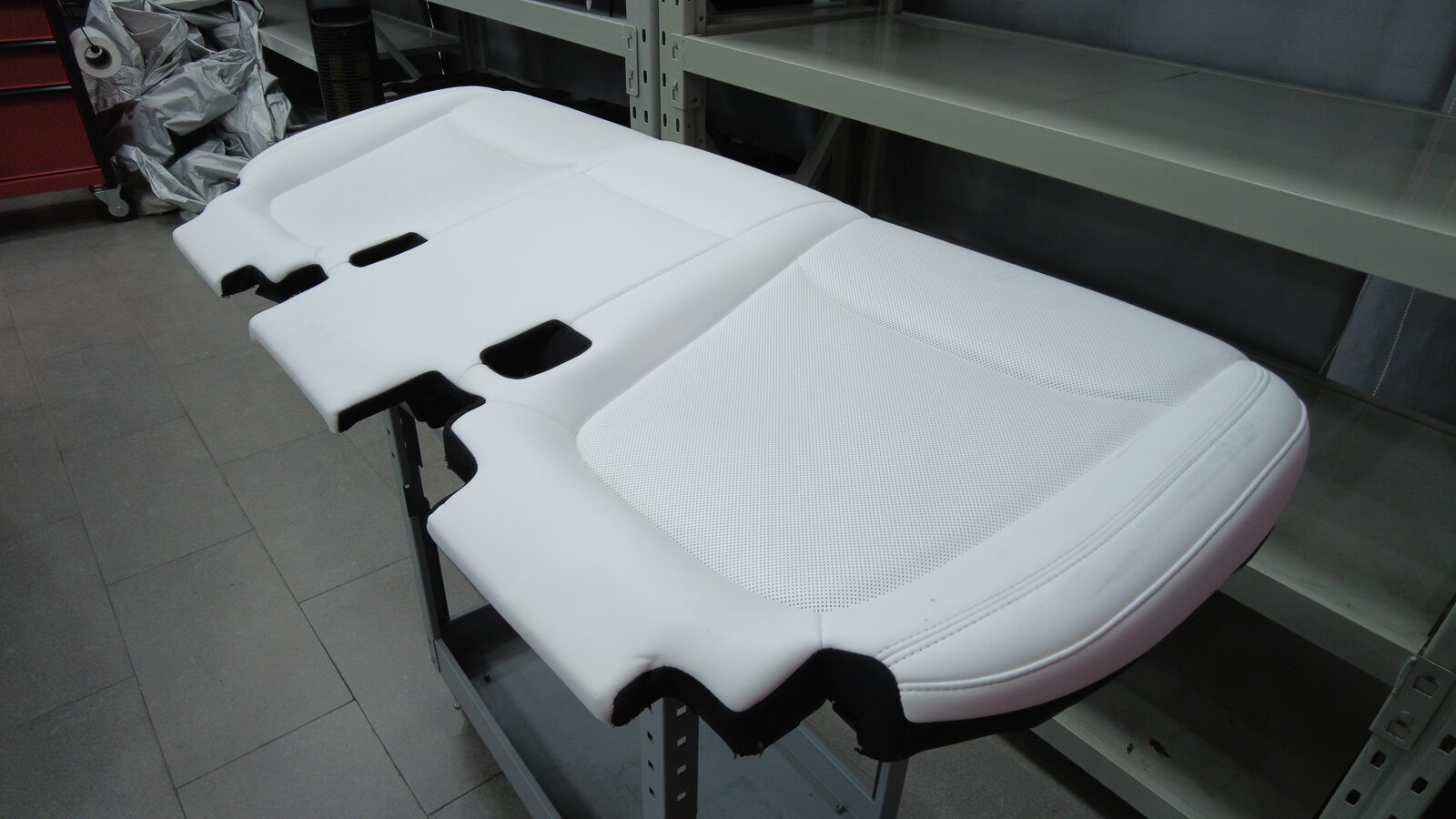

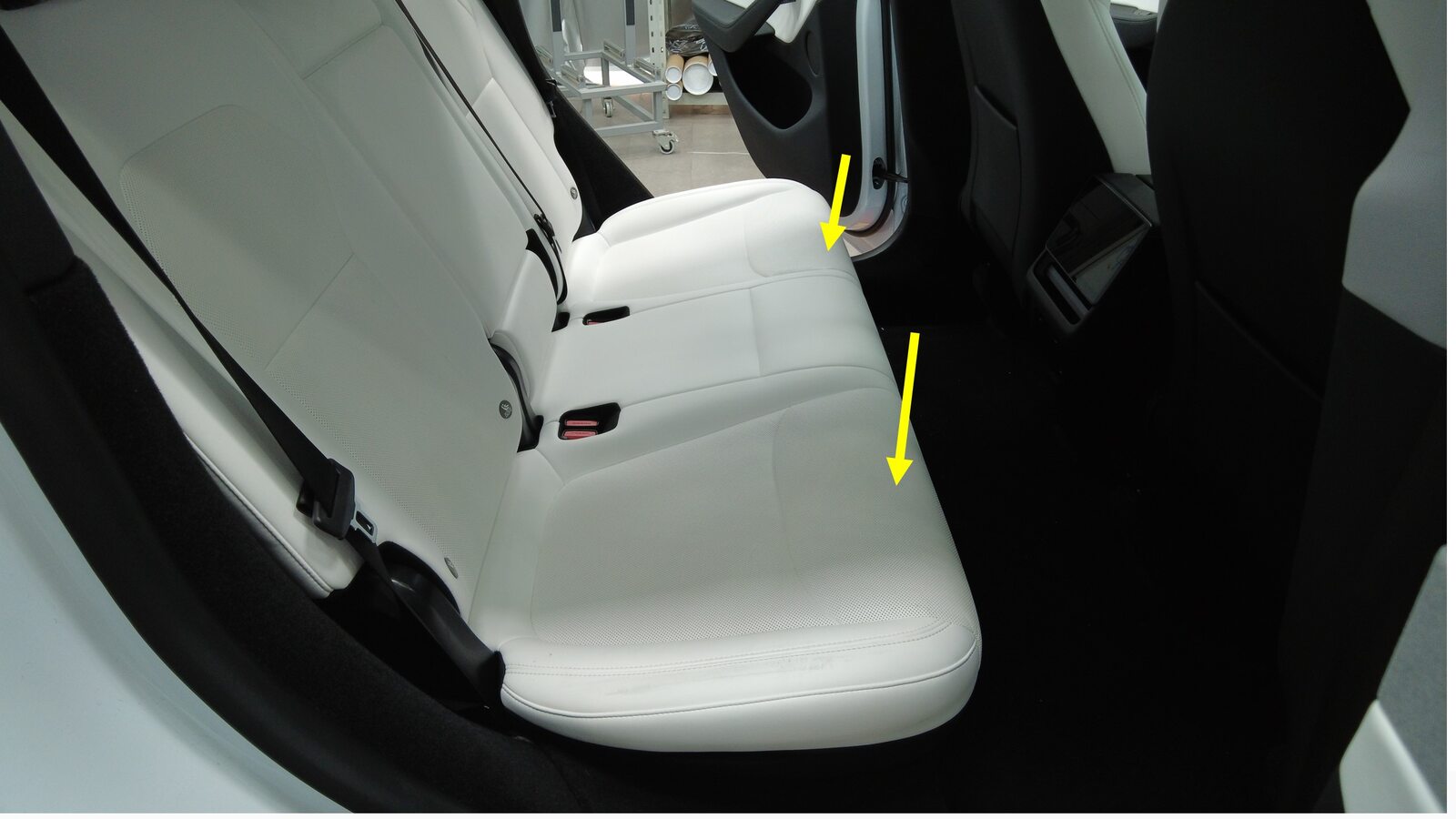

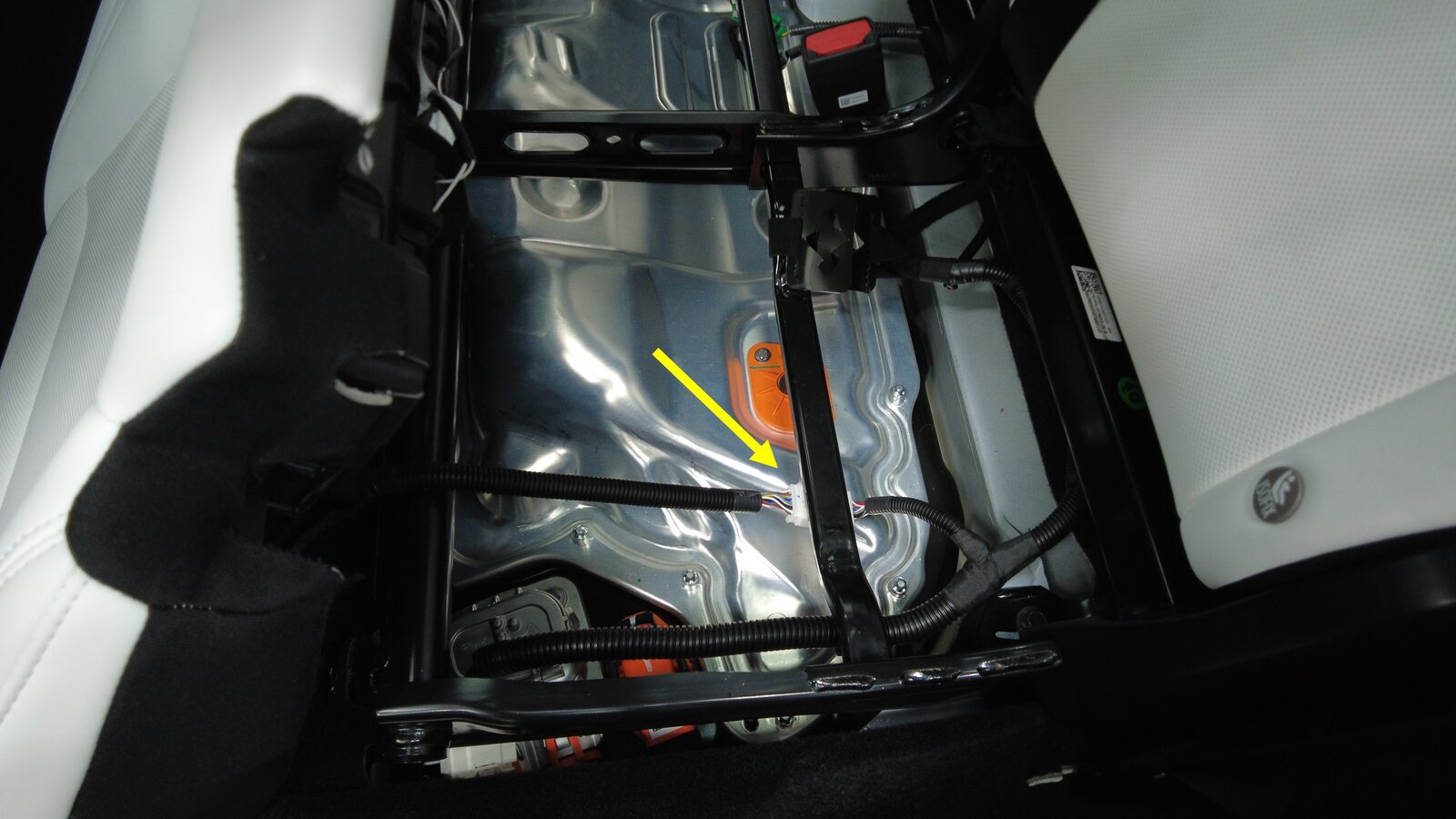

20. Remove 2nd row seat cushion
    Note

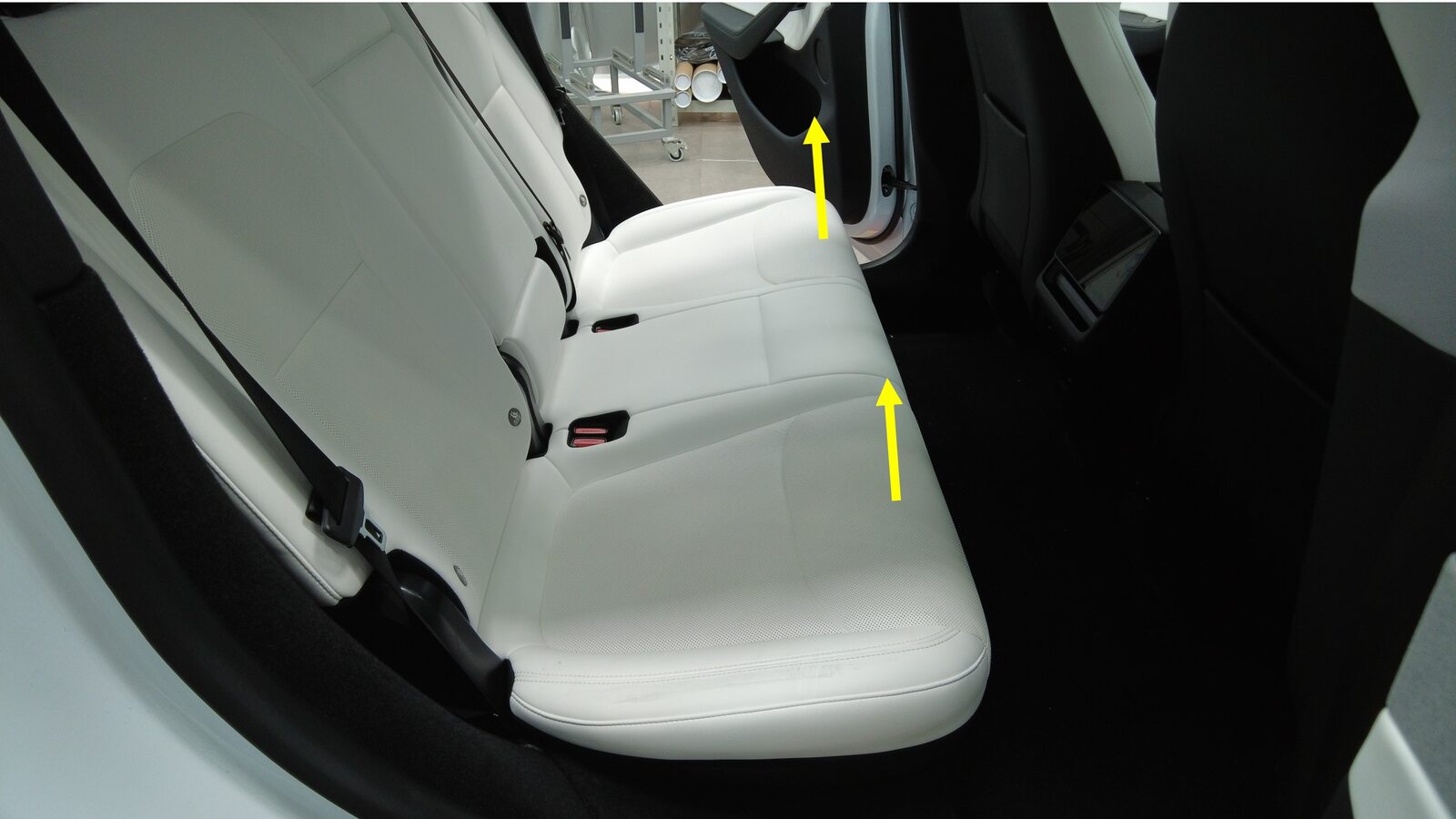

    1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed

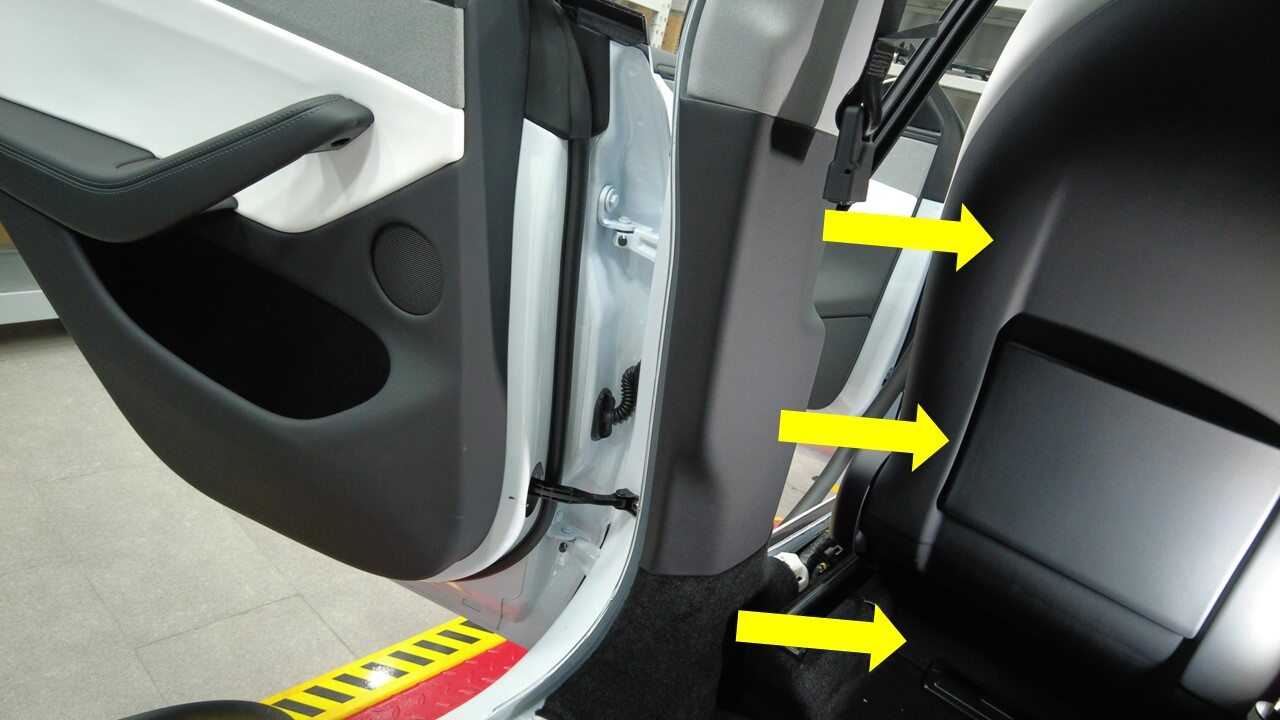

21. Partially release LH rear primary door seal from body

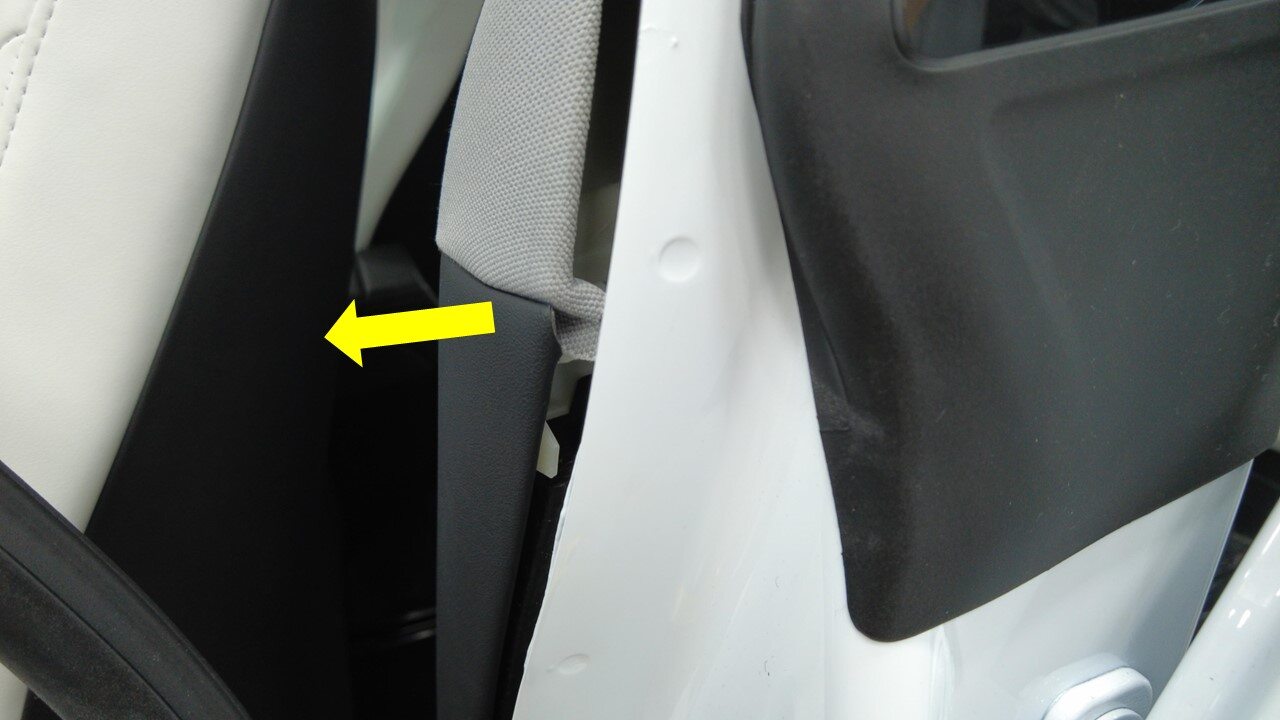

22. Remove LH lower C pillar trim
    Note

    7x clips, 2x guide tabs, Pull the trim upward to release all clips

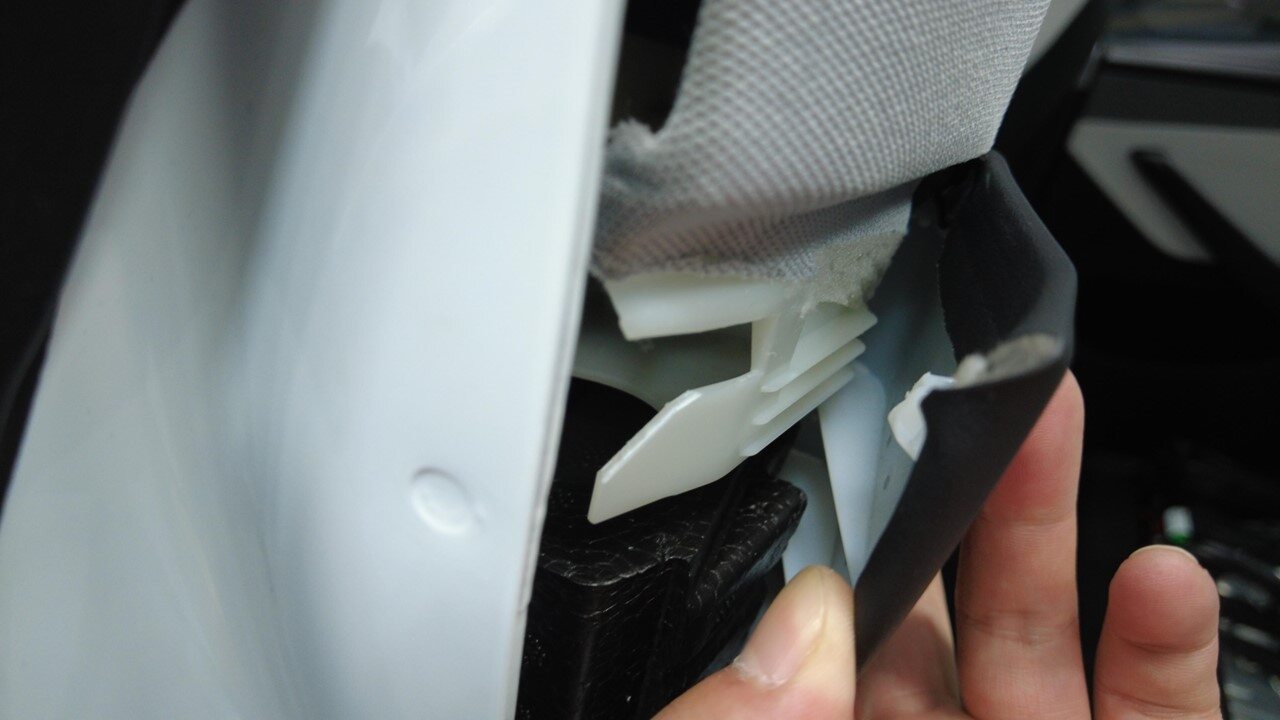

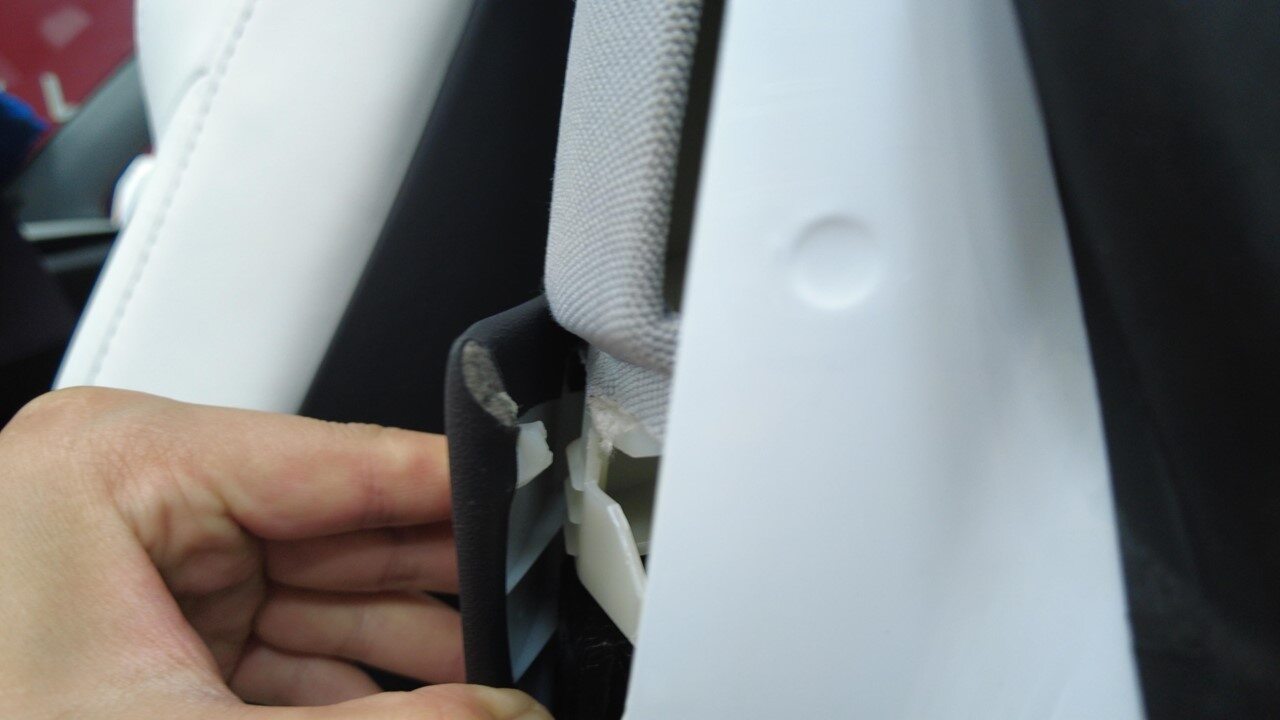

23. Remove LH lower B pillar trim
    Note

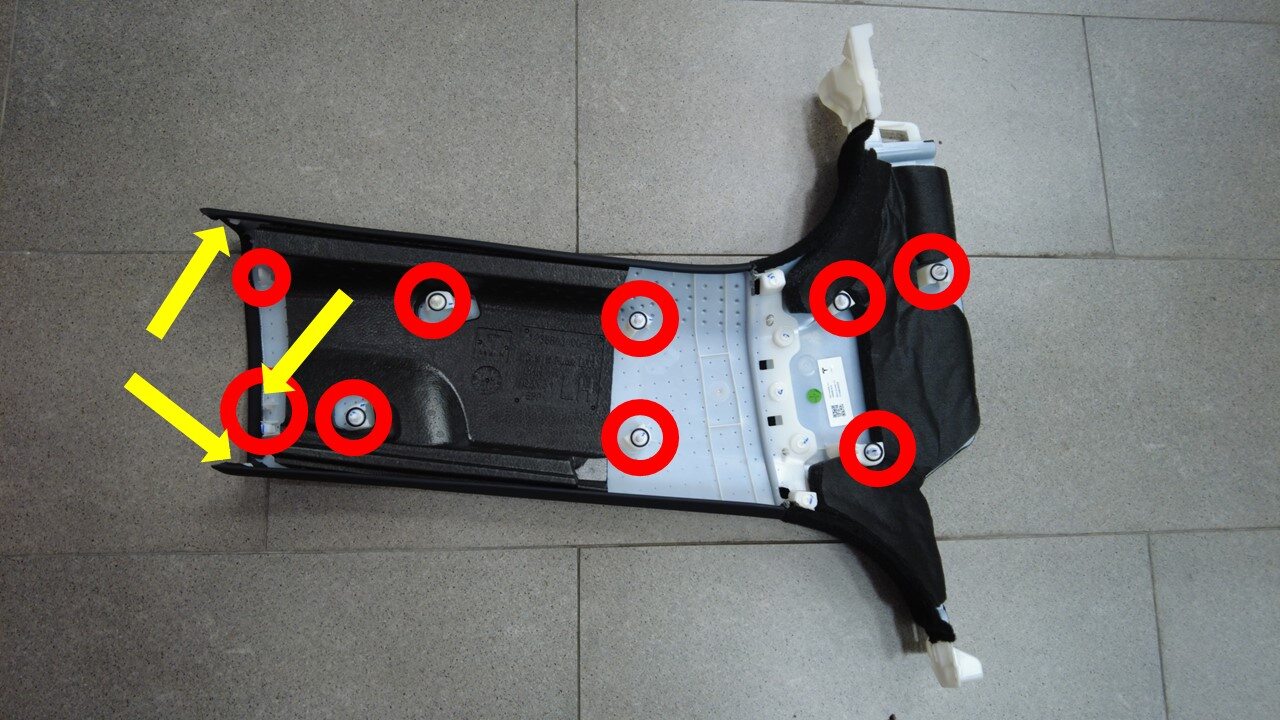

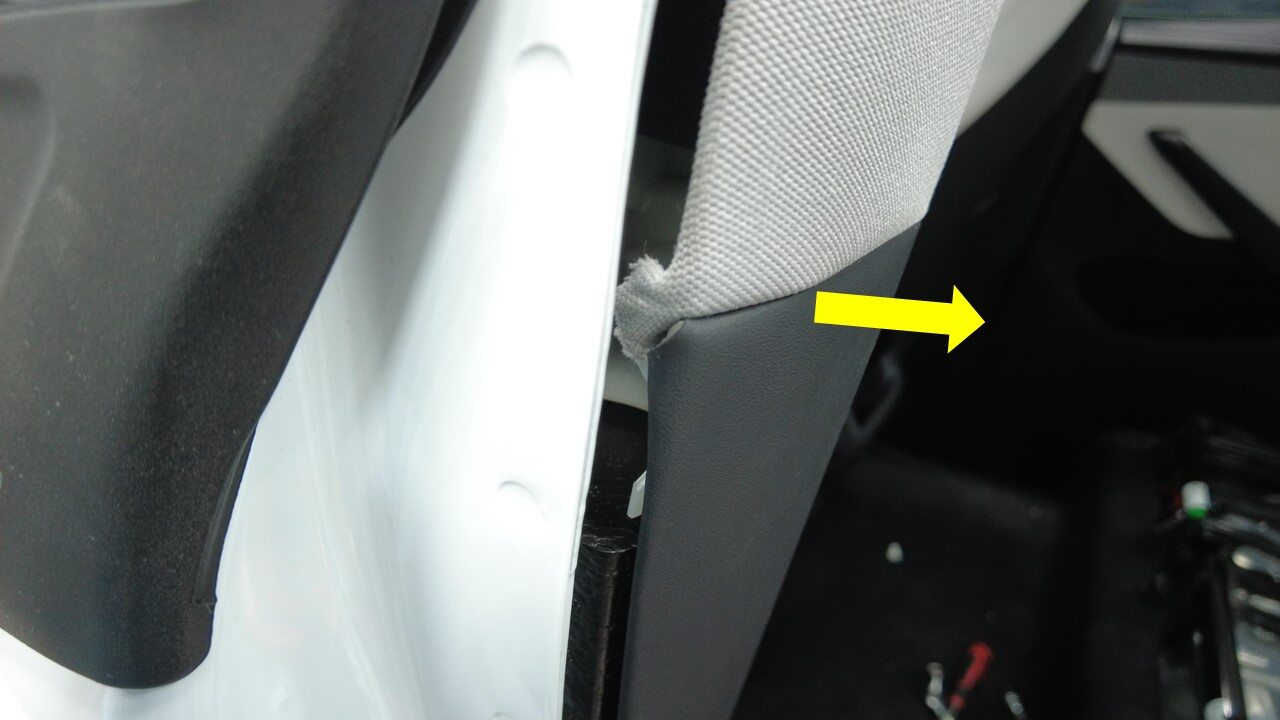

    2x tabs, 1x locator tab, 9x clips, 1x push clip, Release both top side tabs, first pull upper half trim toward inside of the car, and then pull lower half trim outward to release all clips















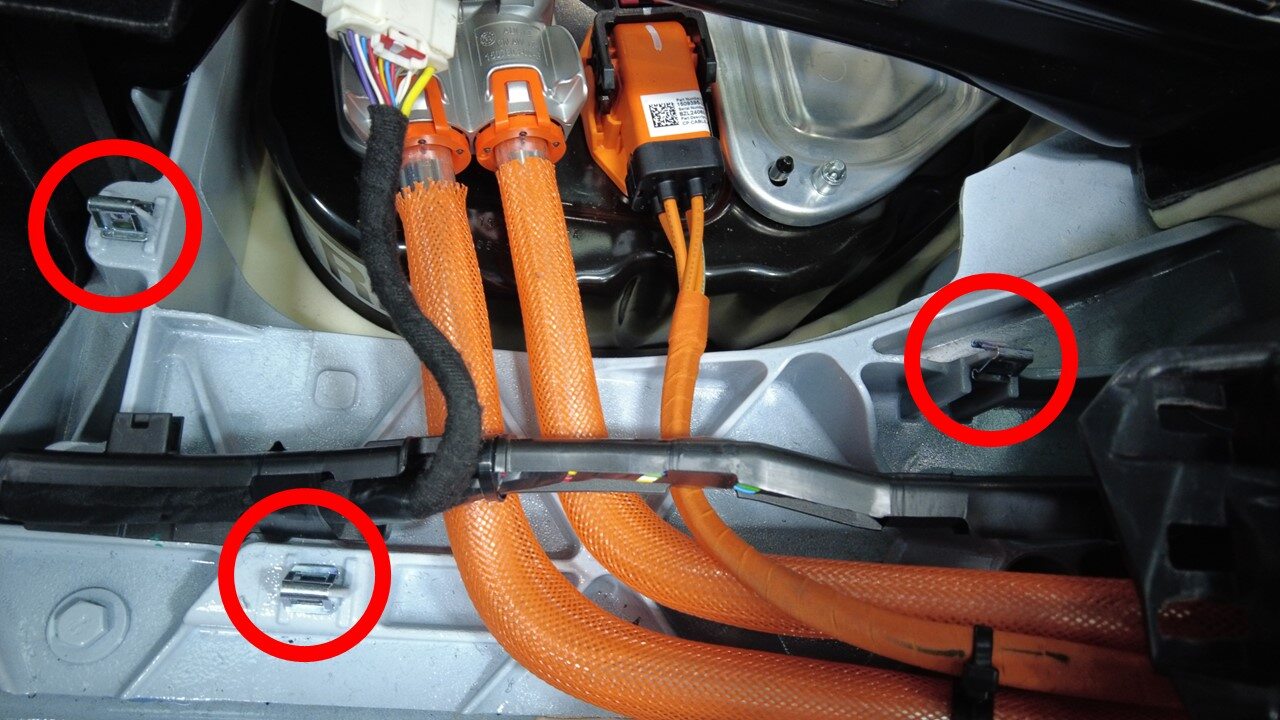

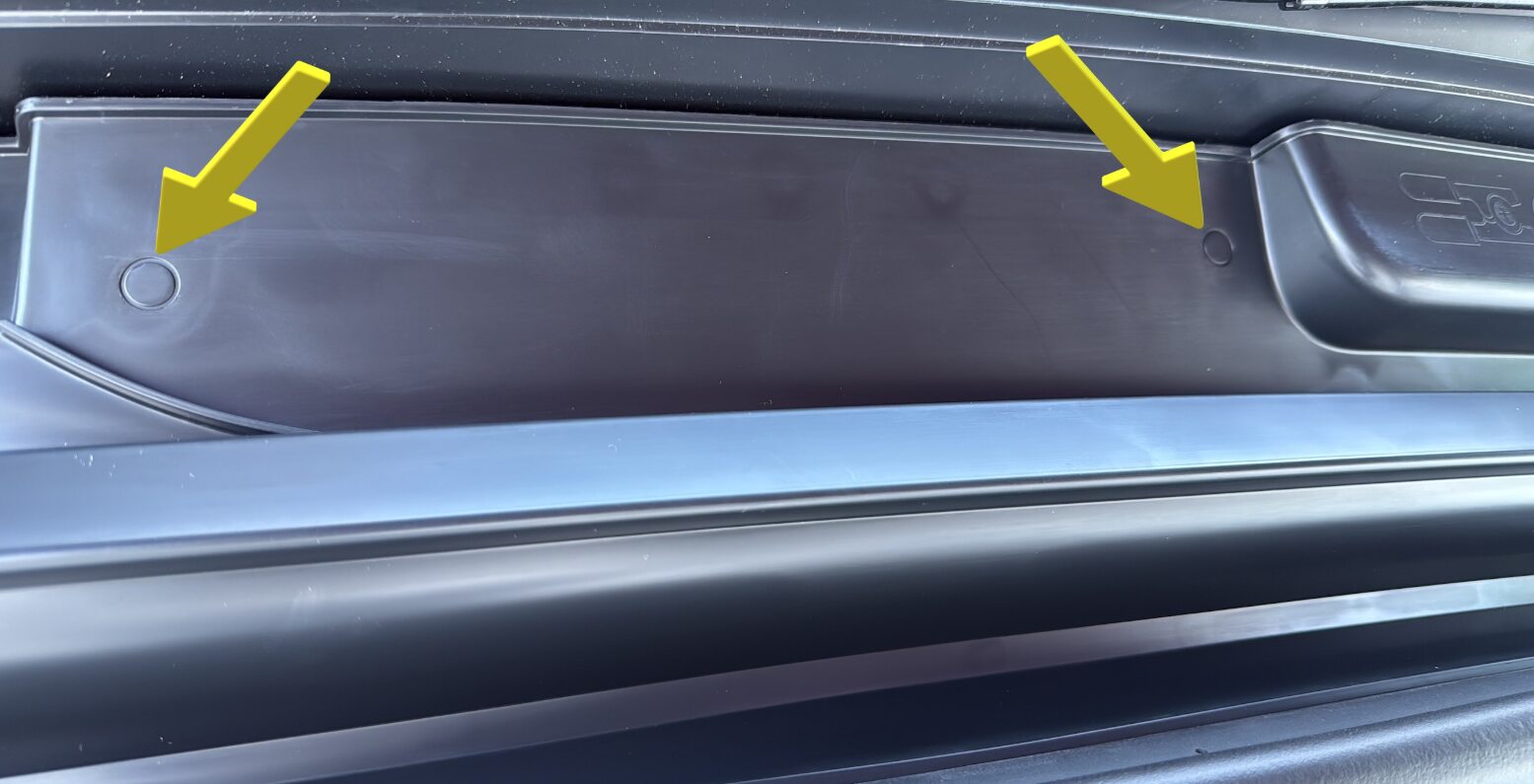

24. Remove clips securing cabin carpet to seat riser
    Note

    4x clips

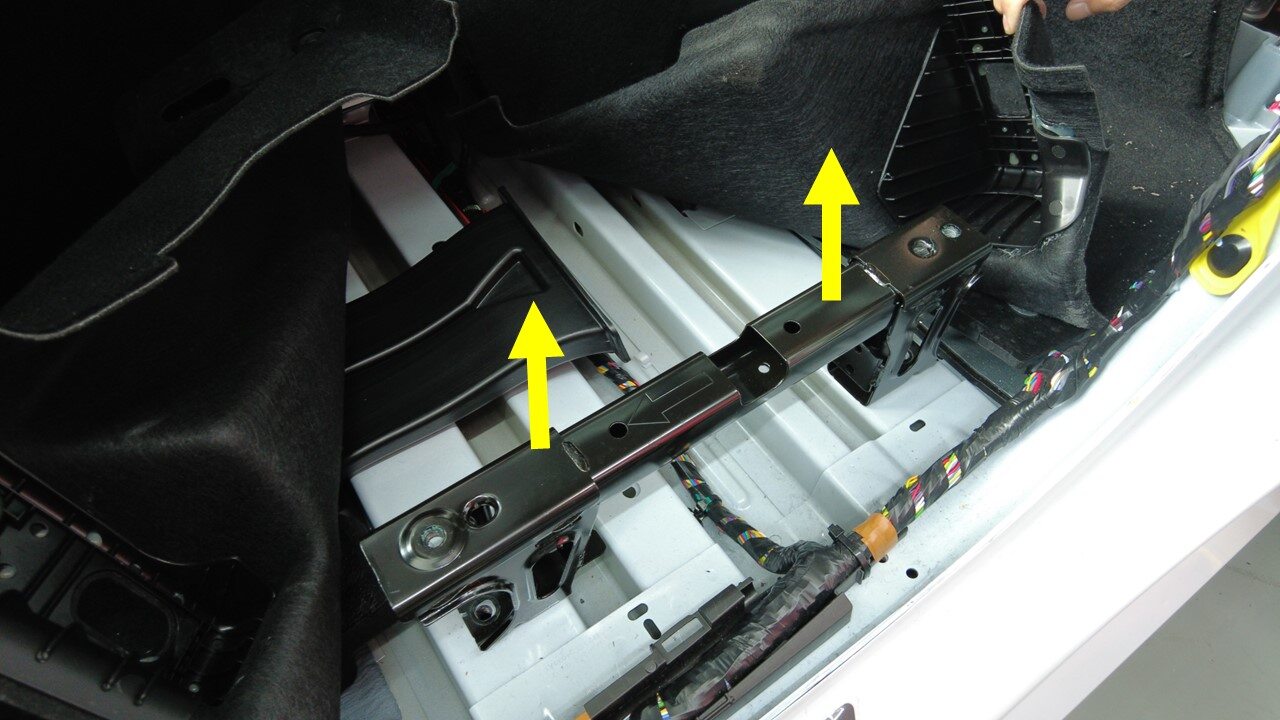

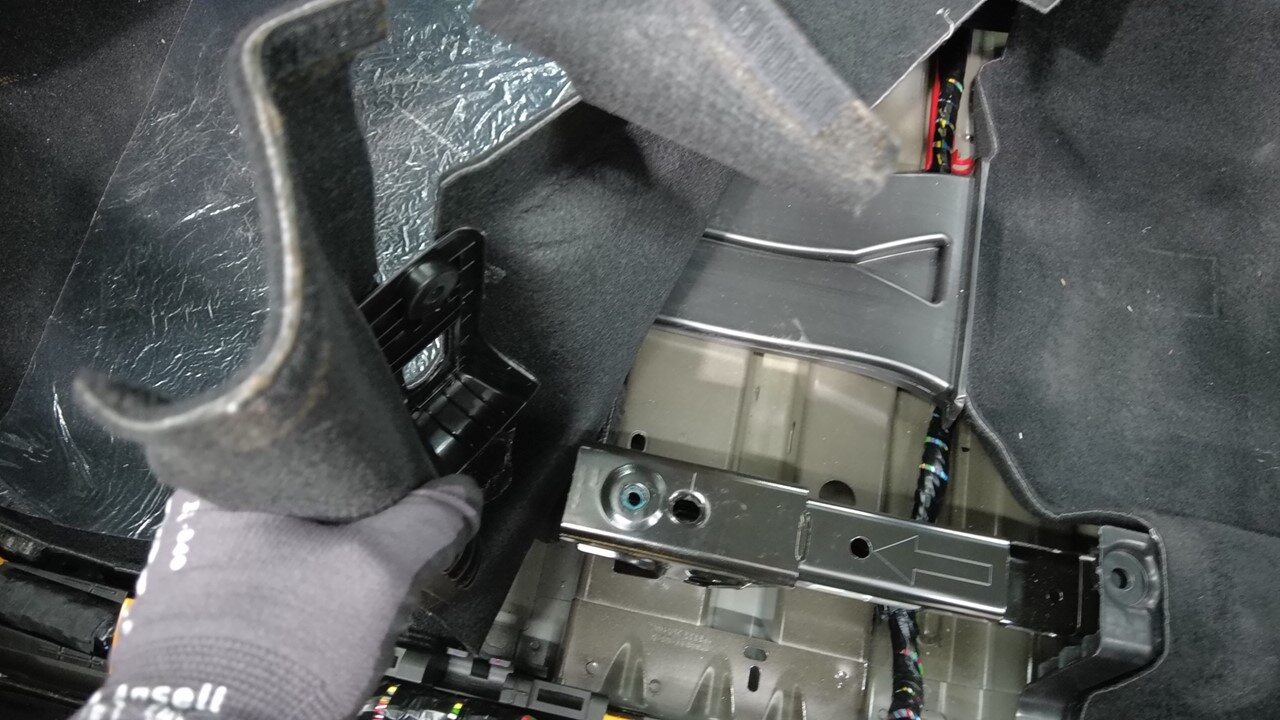

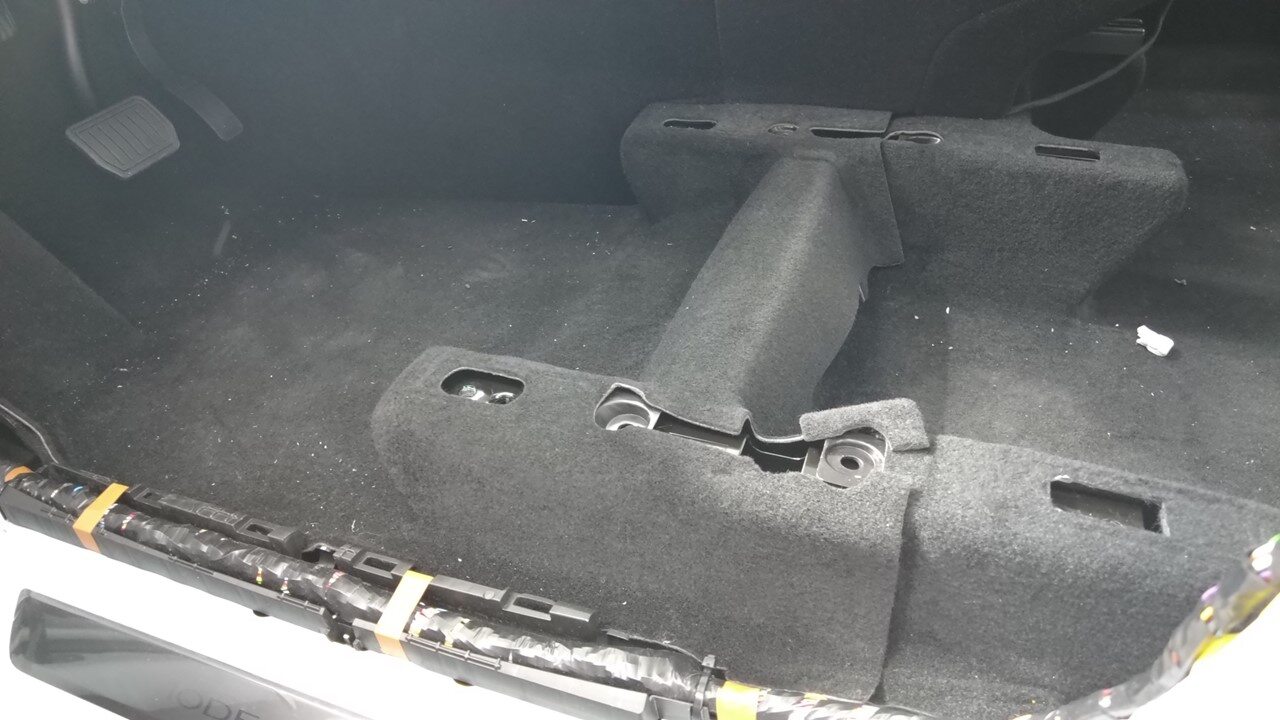

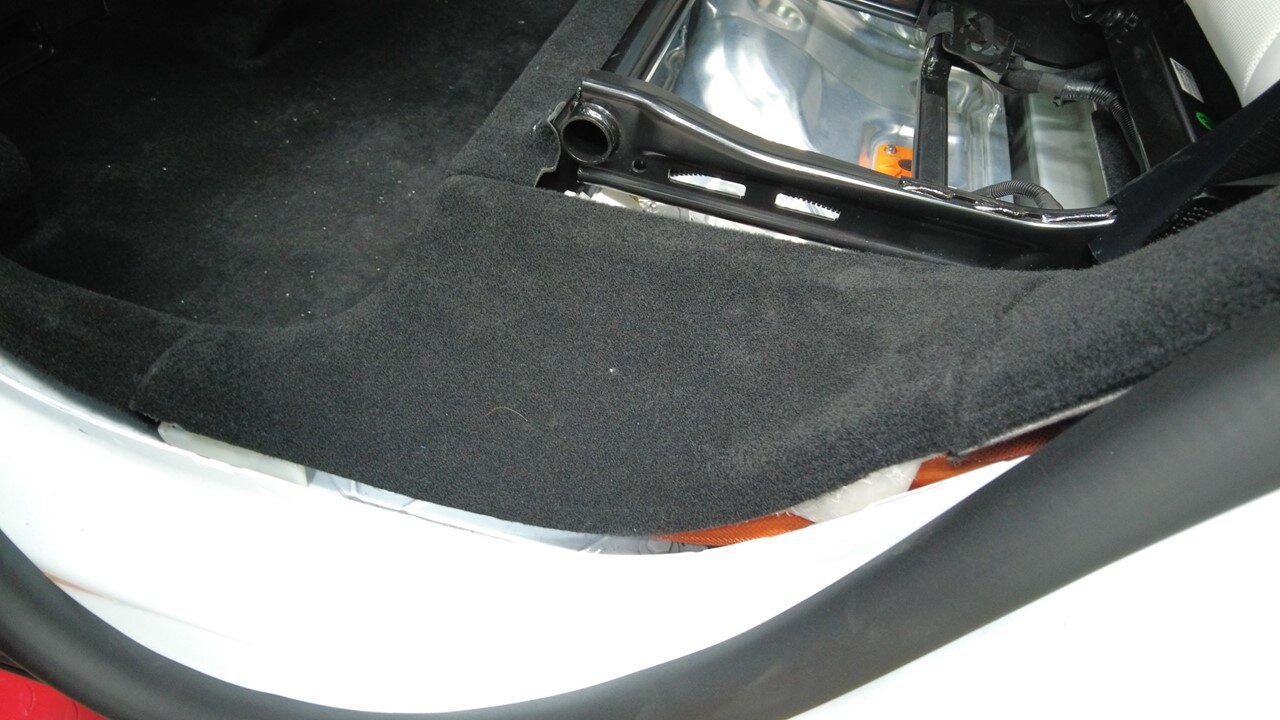

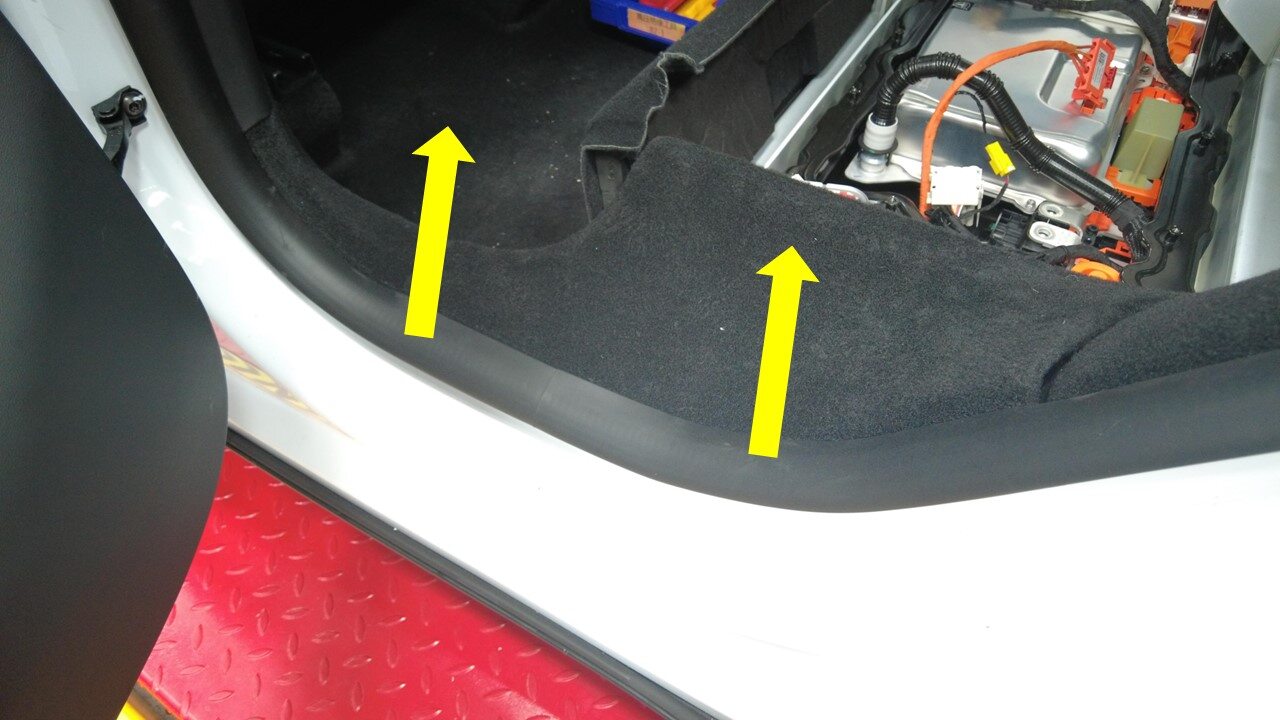

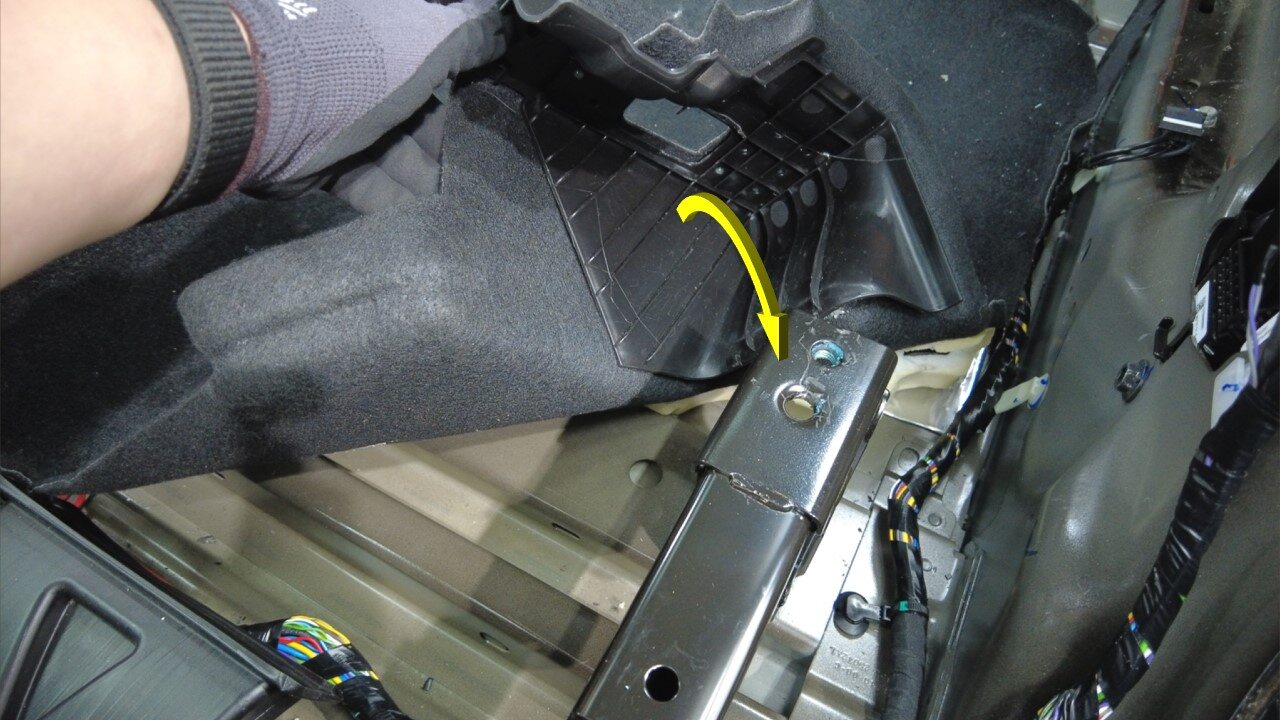

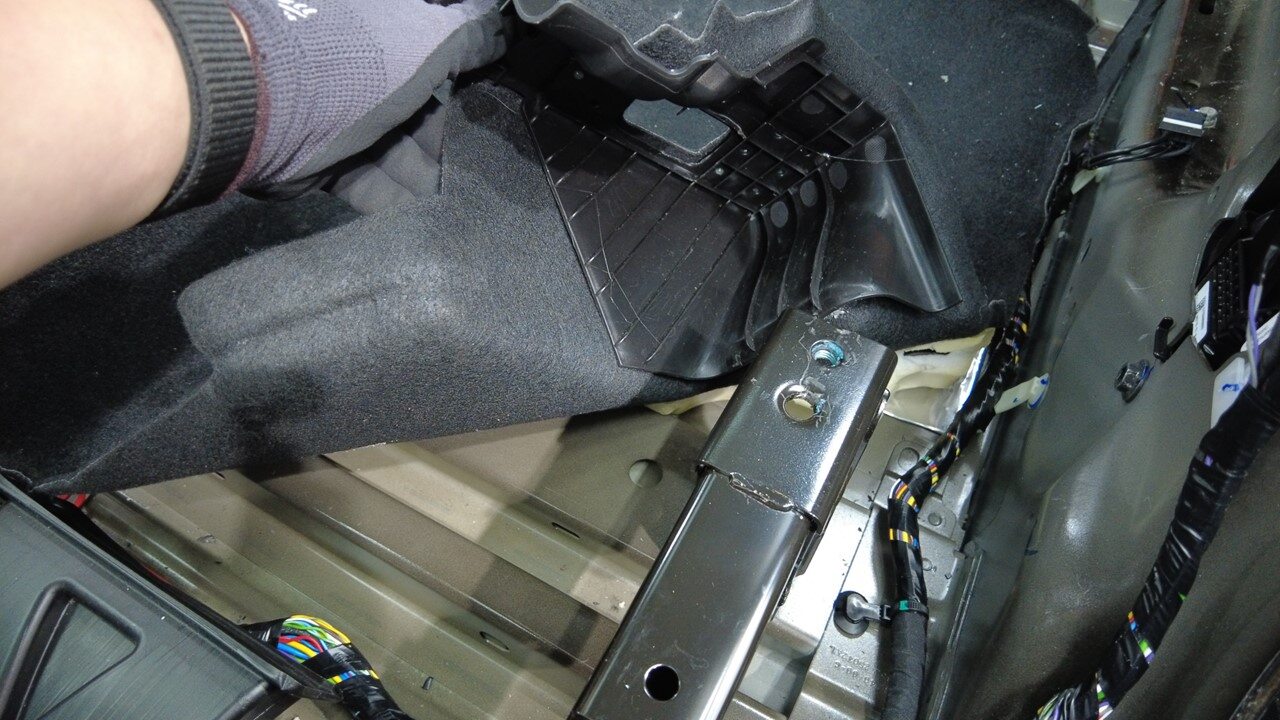

25. Fold LH front cabin carpet over
    Note

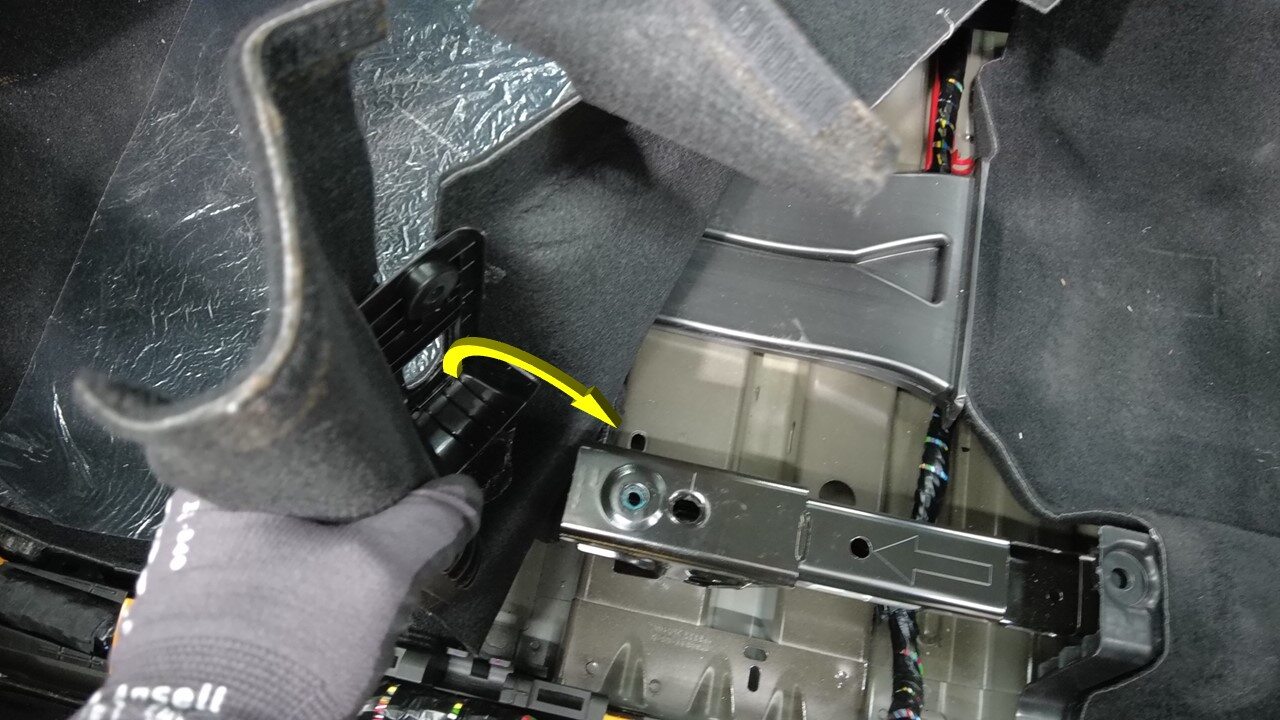

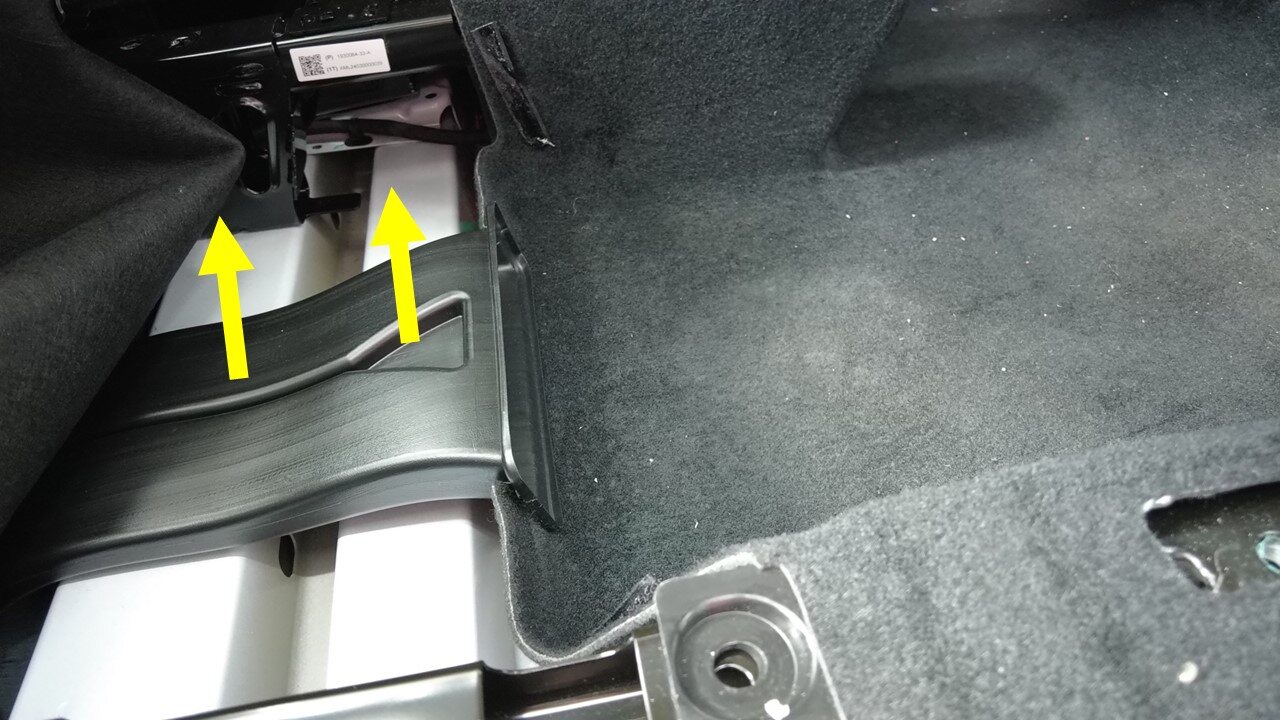

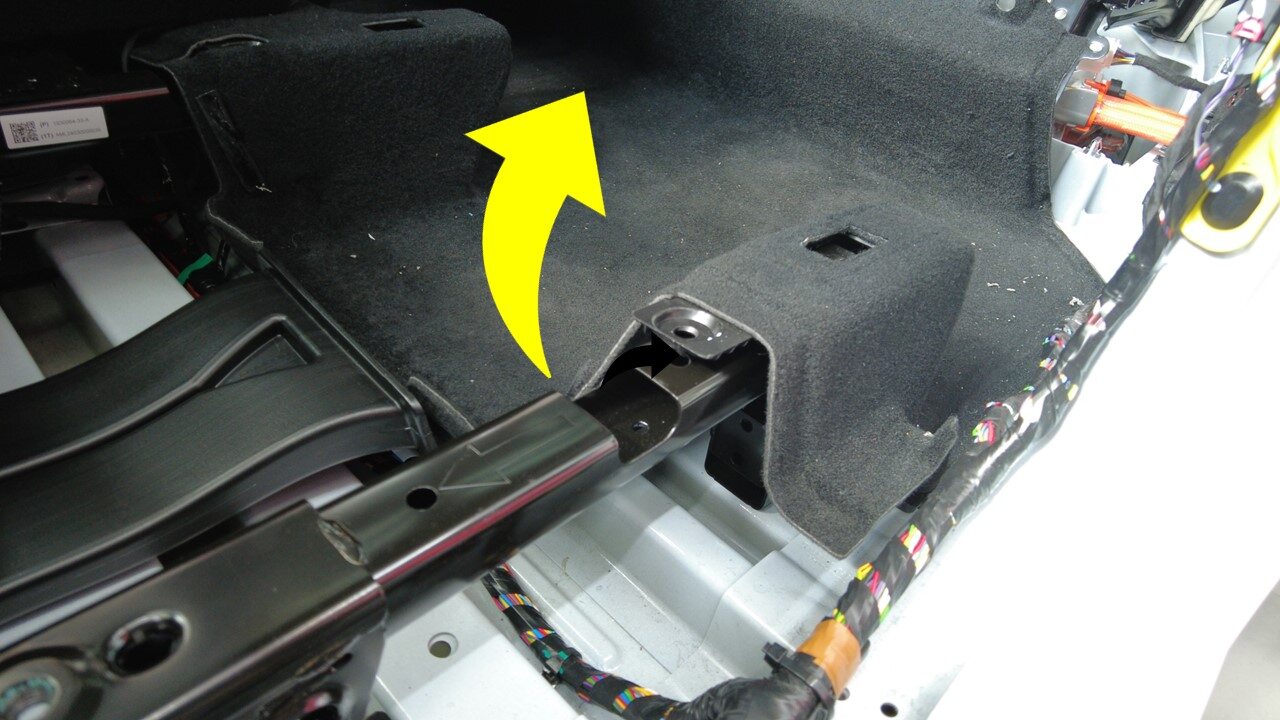

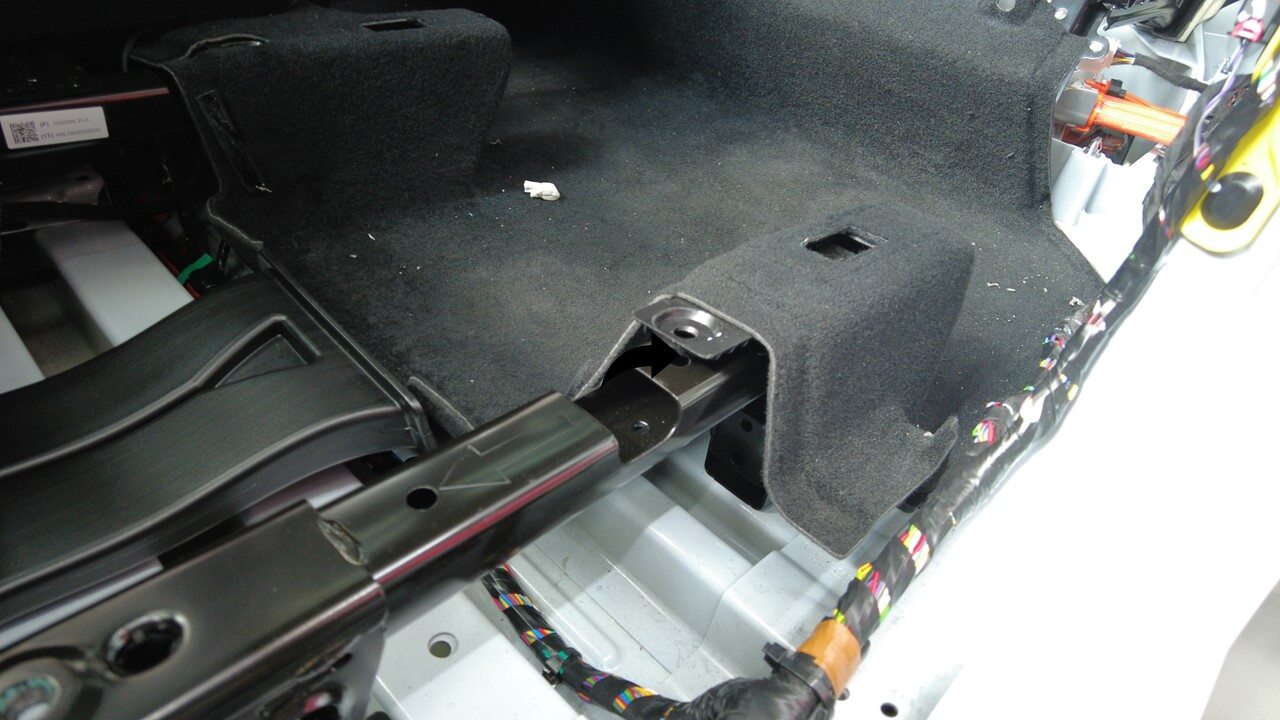

    Lift up rear edge of carpet near outboard seat riser

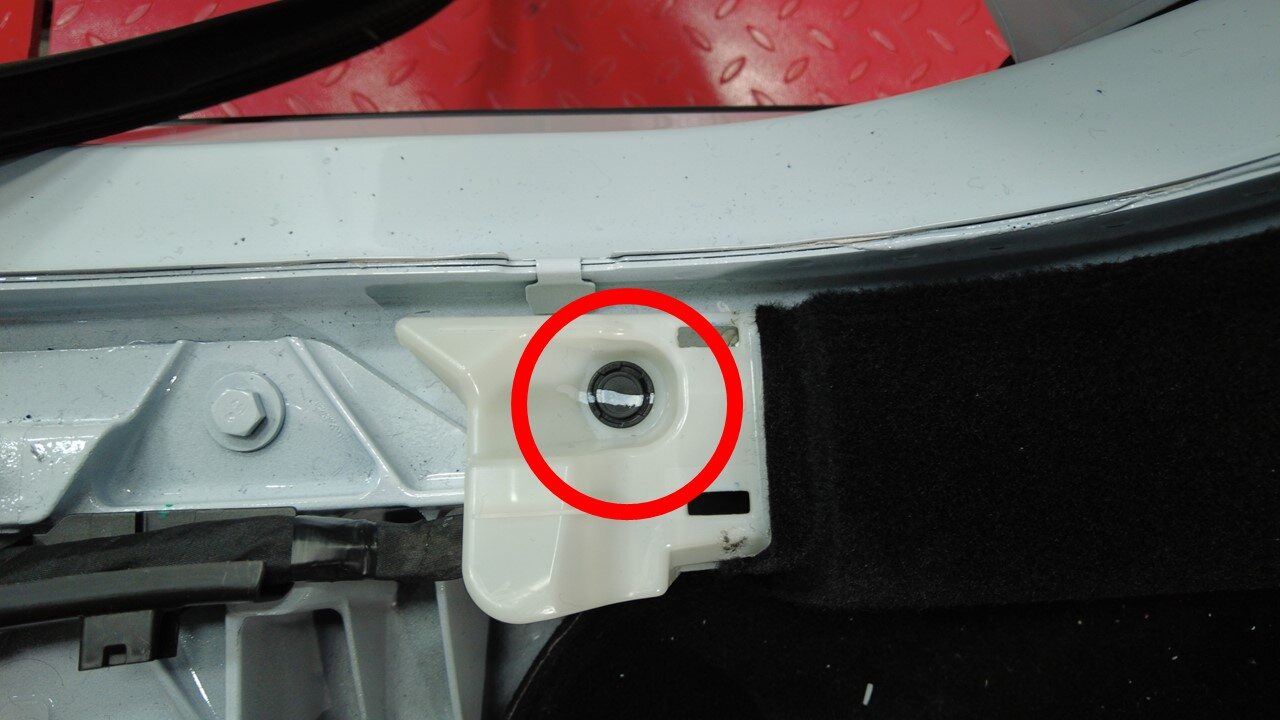

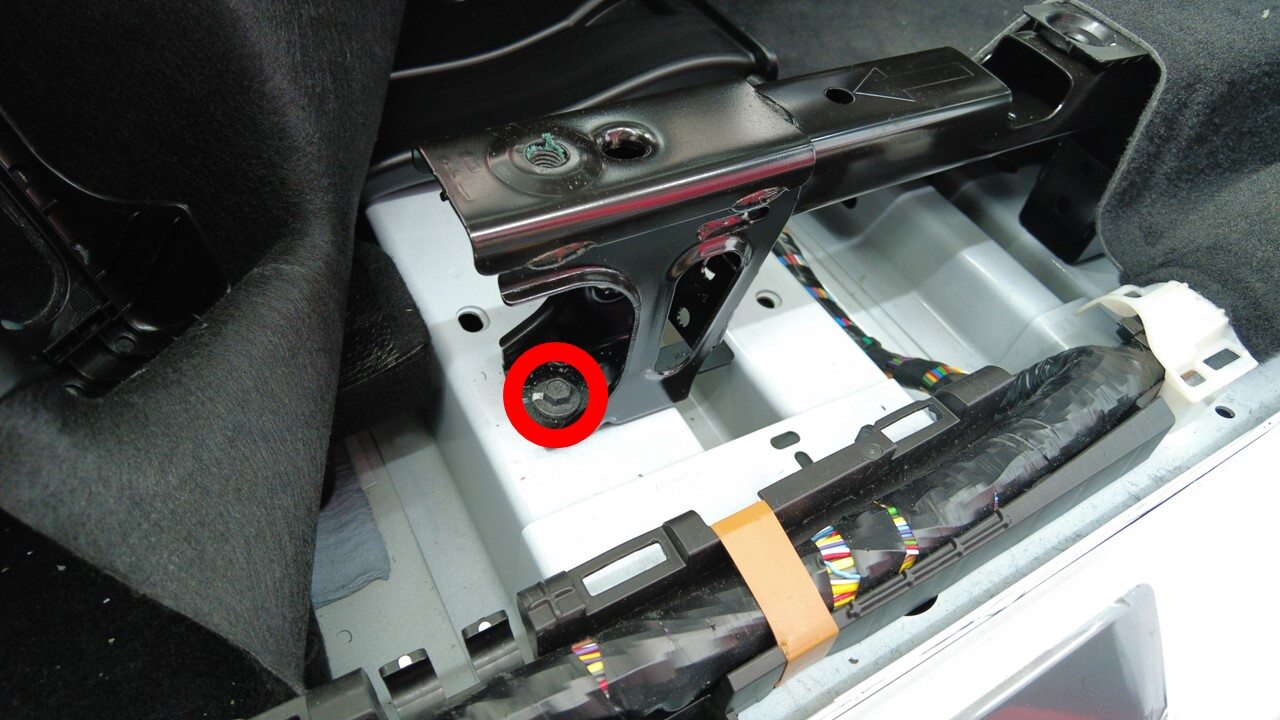

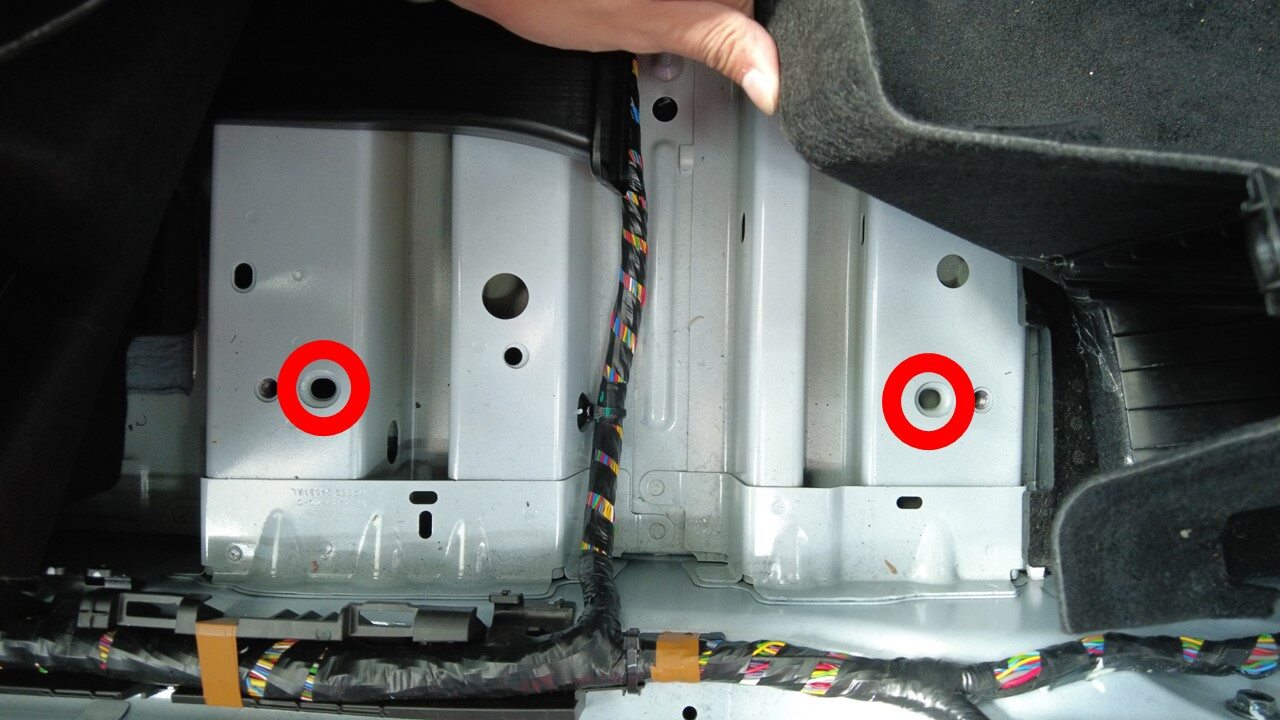

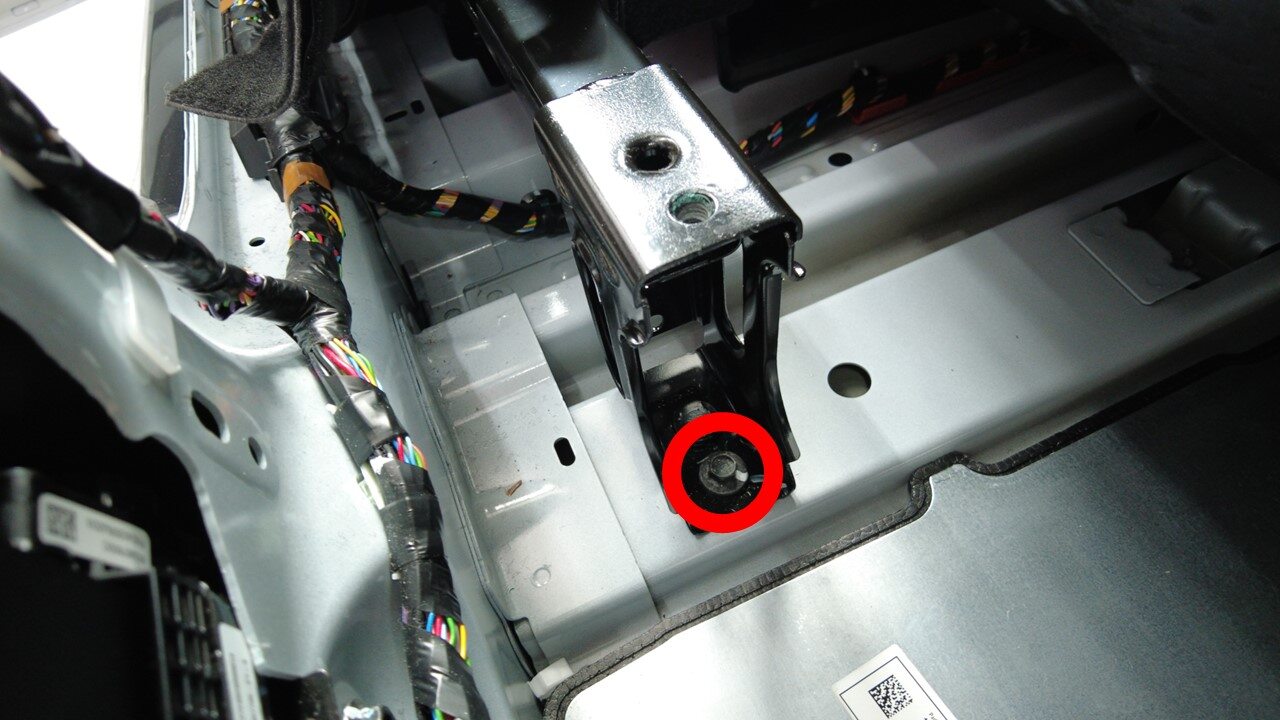

26. Remove LH front outboard seat riser fastener
    Note

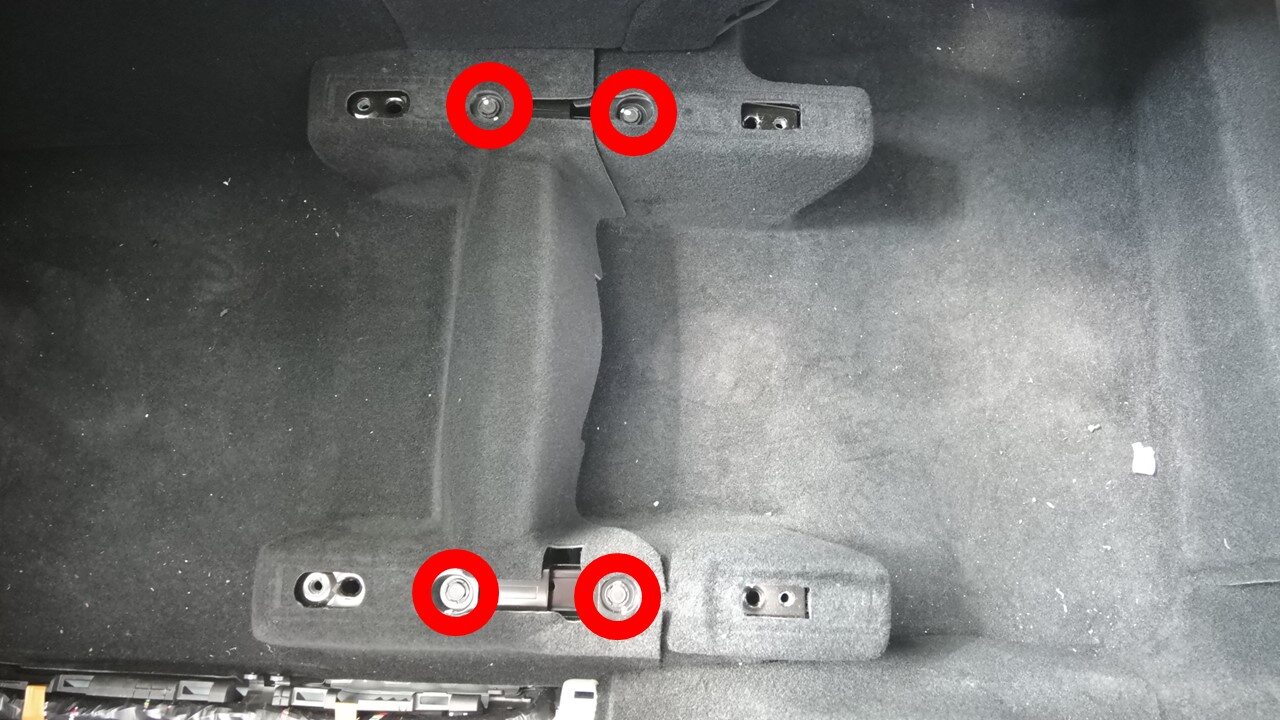

    1x patch bolt, 11mm, 33.5 Nm, Discard after removal

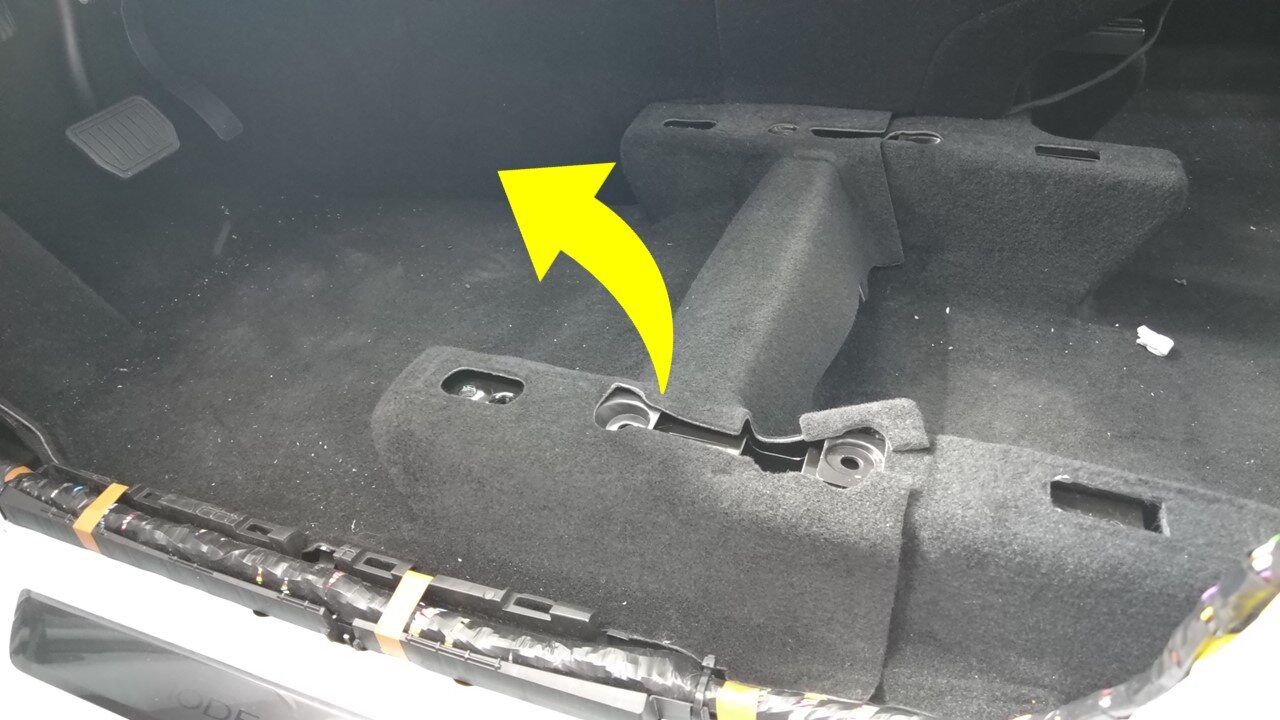

27. Fold LH rear main cabin carpet over
    Note

    Fold the front edge of the LH rear cabin carpet near the outboard seat riser







28. Remove LH rear outboard seat riser fastener
    Note

    1x patch bolt, 11mm, 33.5 Nm, Discard after removal

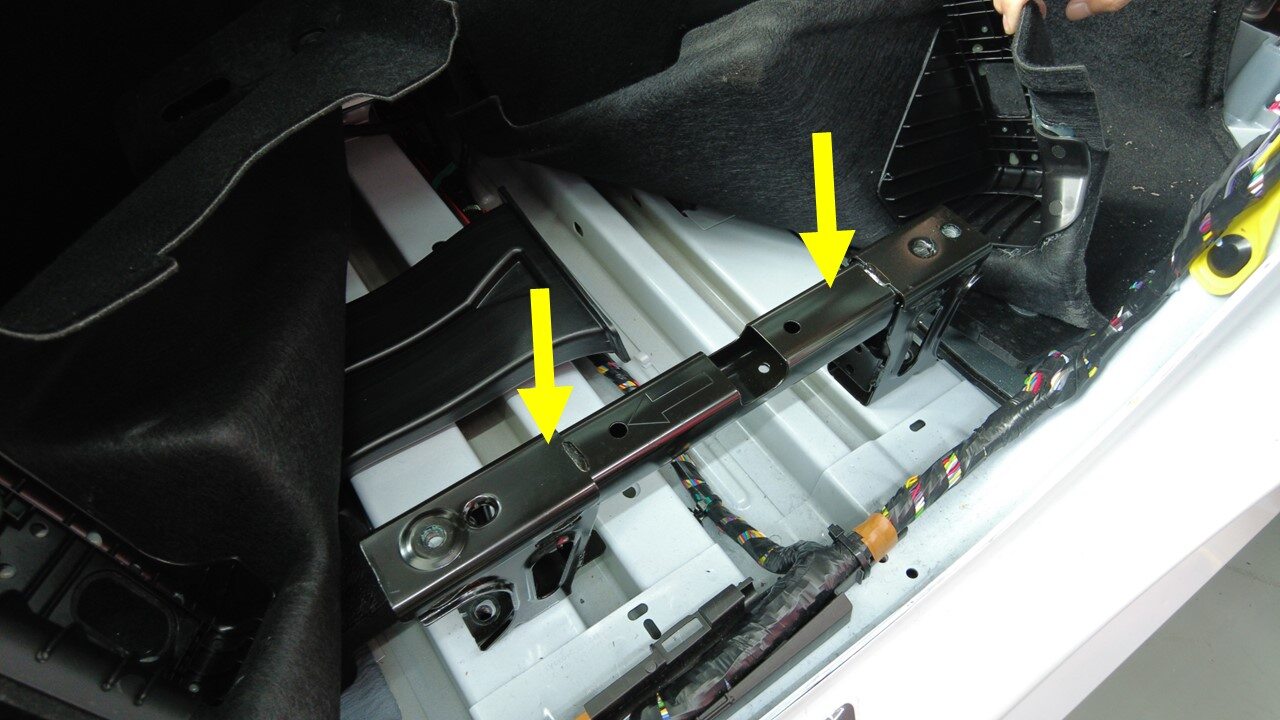

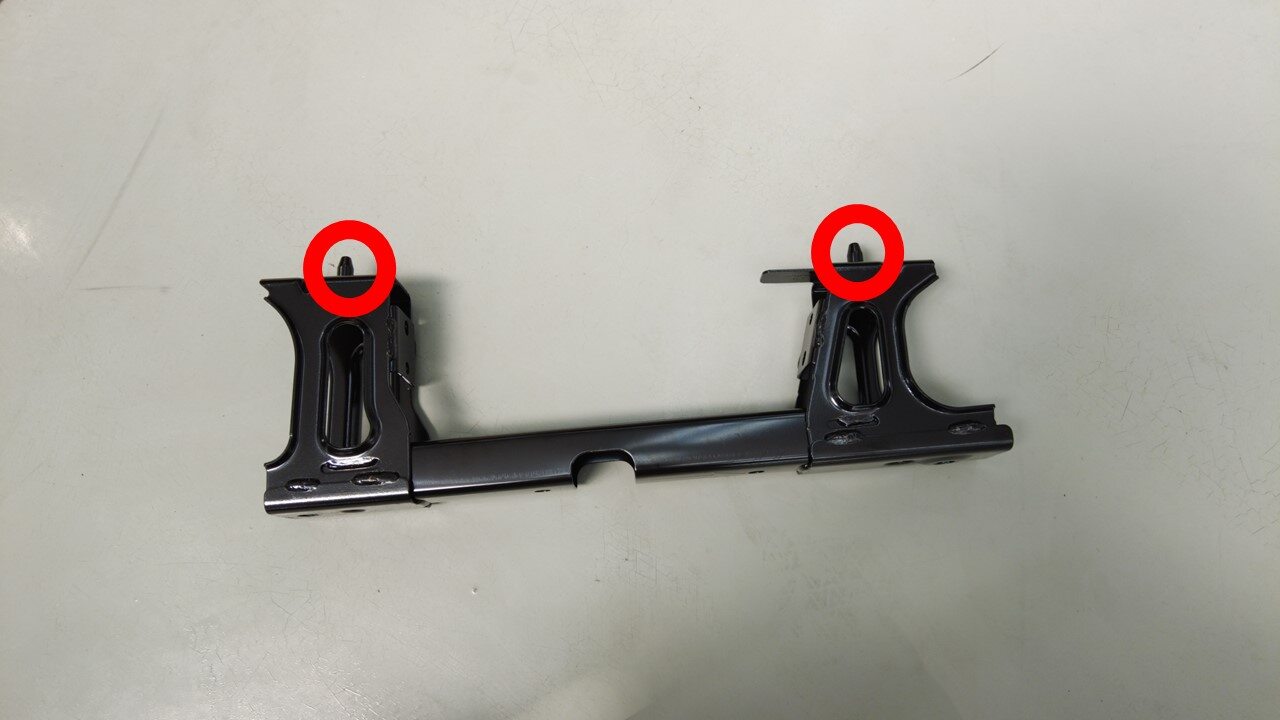

29. Remove LH outboard seat riser
    Note

    2x locating tab





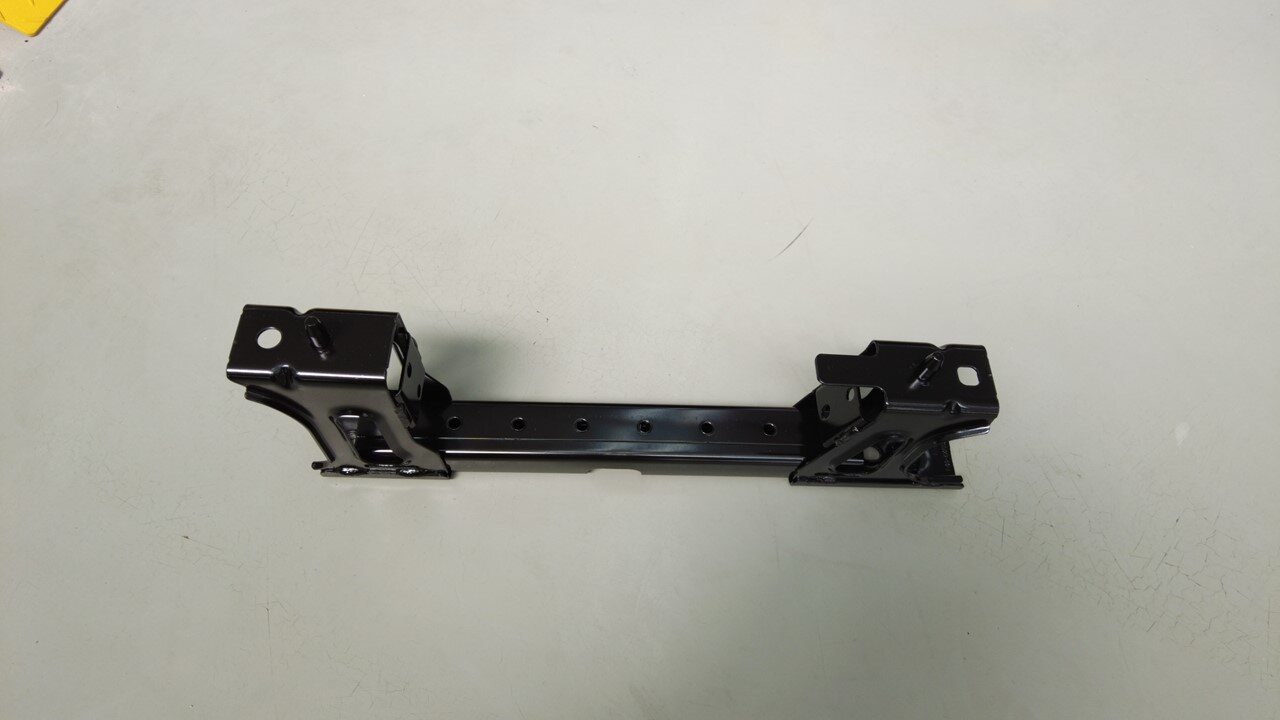

30. Install LH outboard seat riser
    Note

    2x locating tab









31. Install LH rear outboard seat riser fastener
    Note

    1x patch bolt, 11mm, 33.5 Nm, Install new bolt



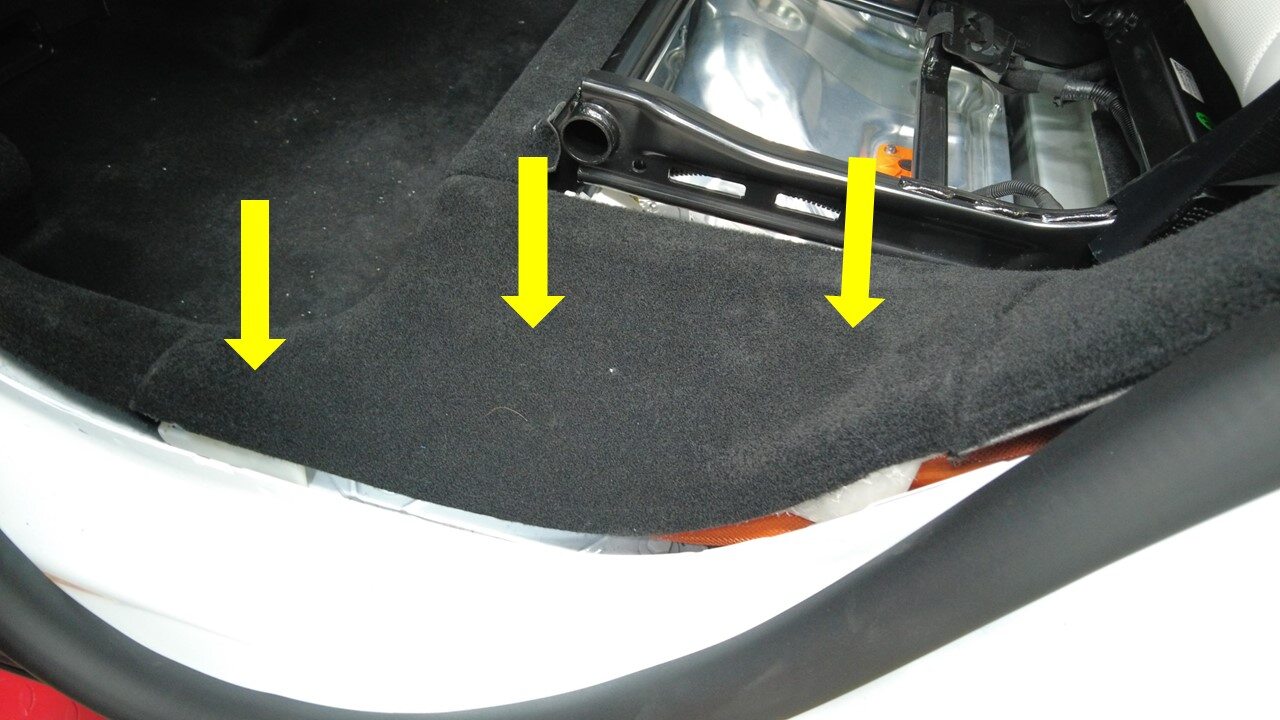

32. Lay LH rear main cabin carpet over LH outboard seat riser





33. Install LH front outboard seat riser fastener
    Note

    1x patch bolt, 11mm, 33.5 Nm, Install new bolt



34. Lay LH front cabin carpet over LH outboard seat riser





35. Install clips securing cabin carpet to seat riser
    Note

    4x clips



36. Install LH lower B pillar trim
    Note

    2x tabs, 1x locator tab, 9x clips, 1x push clip, Align the locator tab to slot, push in the direction of the arrow to install the clips after aligning them, then install both side tabs















37. Install LH lower C pillar trim
    Note

    7x clips, 2x guide tabs, Align guide tabs, Then press down to securing all clips







38. Partially install LH rear primary door seal
    Note

    Verify seal is seated properly on all trim panels





39. Install 2nd row seat cushion
    Note

    1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion





40. Install LH front seat into vehicle
    Note

    Recommend assistance, Install seat from front LH door opening, Assistant should be ready to support seat back once it is in the vehicle, Caution not to damage any trim







41. Secure LH front seat harness under LH front cabin carpet



42. Install clips securing LH seat harness to sill trim
    Note

    4x clips, Tuck excess harness between harness bracket and body





43. Connect LH front seat harness connector to LH controller
    Note

    1x connector, Engage locking tab





44. Install LH lower A pillar trim
    Note

    7x clips, 4x guide tabs, 1x push clip, Align guide tabs with body and harness bracket then push downwards to secure







45. Install LH IP end cap
    Note

    5x clips, 2x guide tabs





46. Partially install LH front primary door seal
    Note

    Verify seal is seated properly on all trim panels





47. Connect first responder loop and LV battery
    Note

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

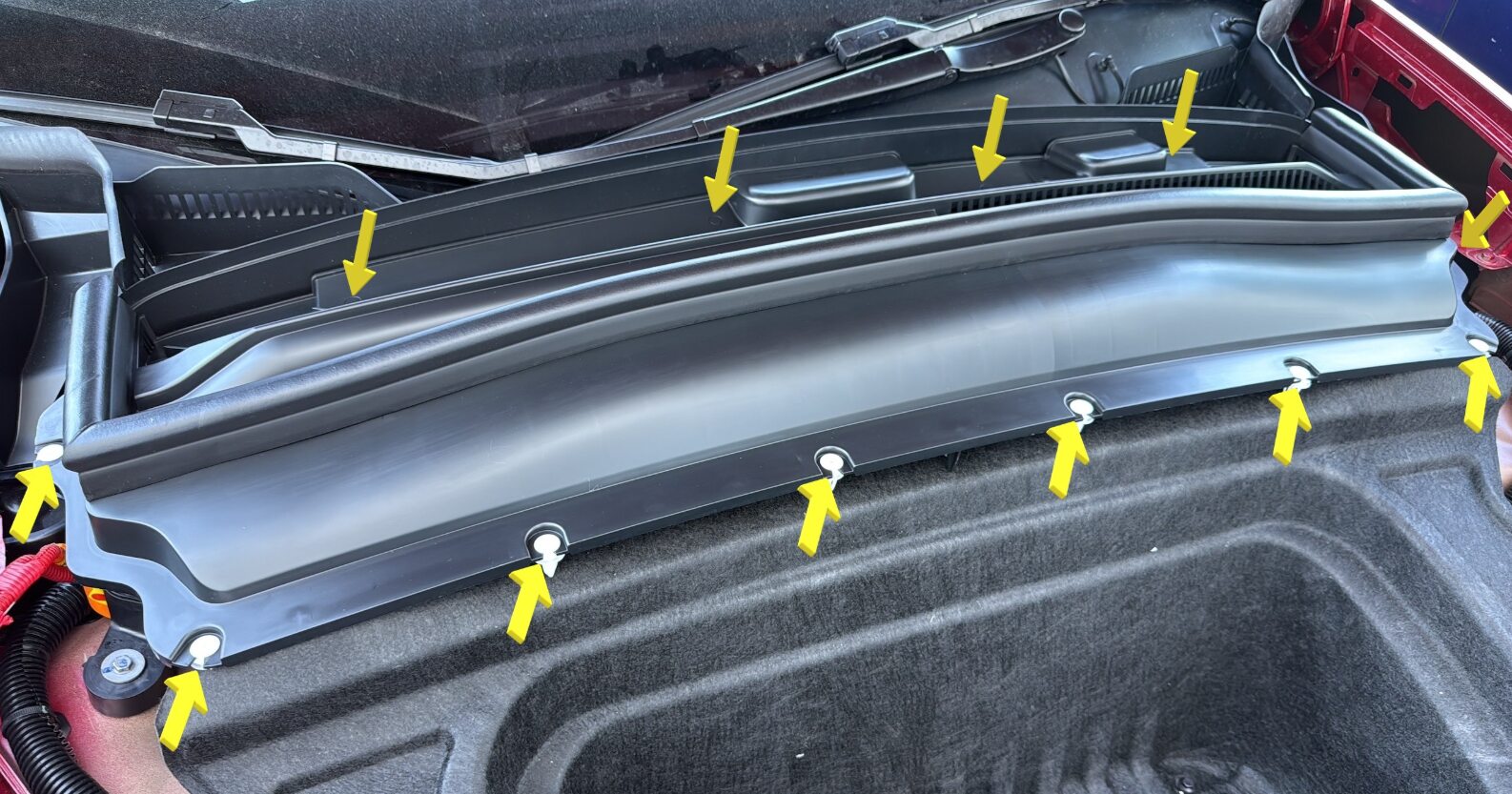

48. Install HEPA filter or big basin
    Note

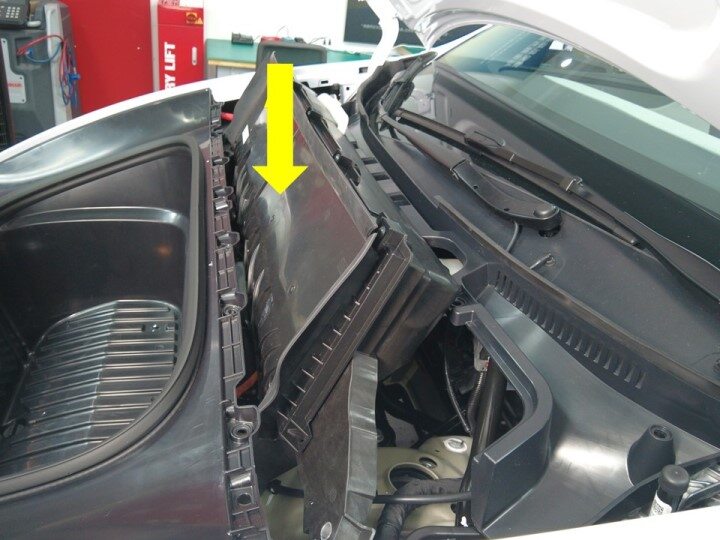

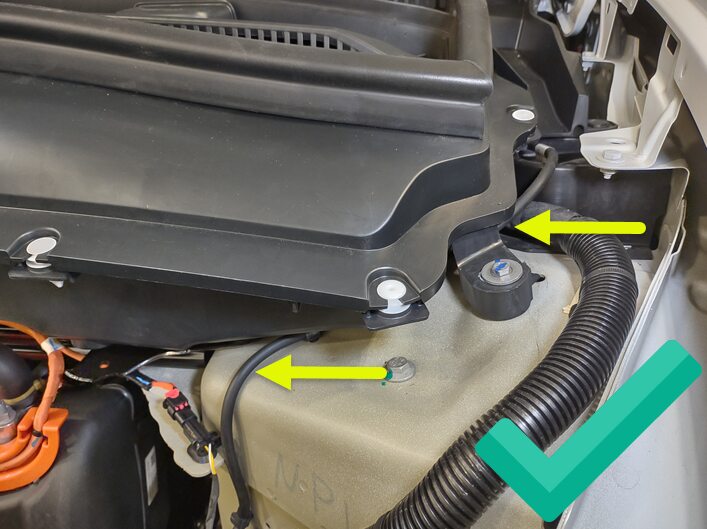

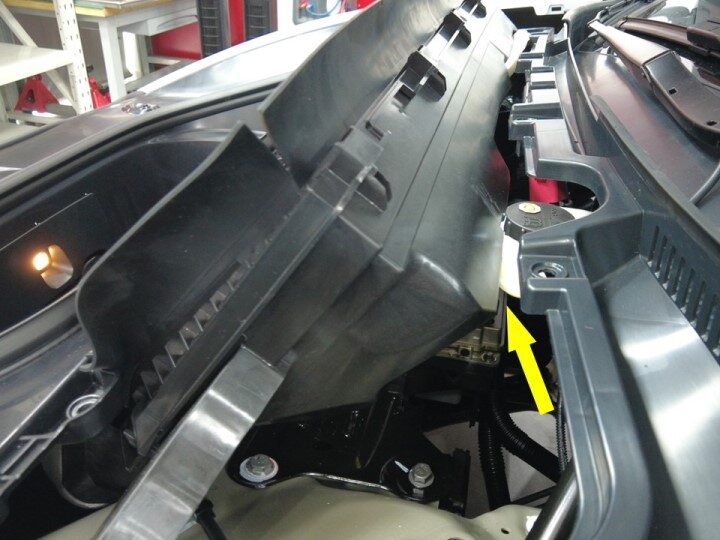

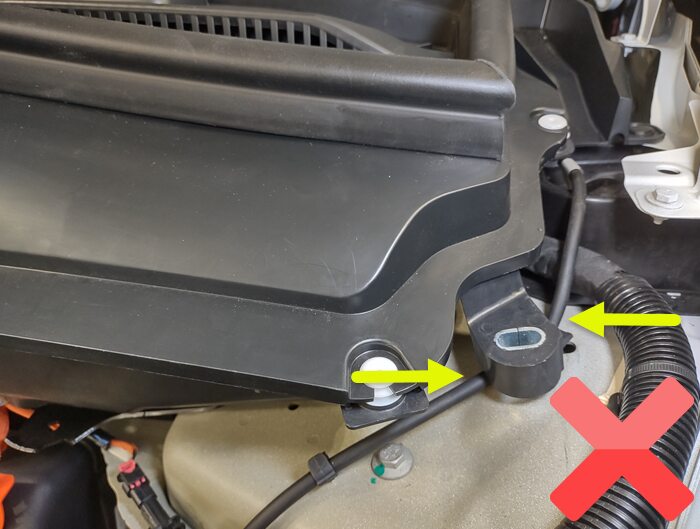

    Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Secure basin fasteners then install basin cowl, Fold rear flap of base frunk back to access front row of clips to cowl, Replace any missing or damaged clips, Do not pinch washer line in between big basin and body





























49. Close hood





50. Move LH front seat forward
    Note

    Via UI > Seat Controls, Use steering wheel scroll wheel as needed





51. Install LH front seat rear bolts
    Note

    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts



52. Move LH front seat backward
    Note

    Via UI > Seat Controls, Use steering wheel scroll wheel as needed





53. Install LH front seat front bolts
    Note

    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts



54. Install seat belt retractor to LH front seat pretensioner
    Note

    Insert retractor into seat pretensioner, Make sure it locks into position with push-pull-push test





55. Move LH front seat to original position
    Note

    Via UI > Seat Controls, Use steering wheel scroll wheel as needed





56. Raise all four window



57. Close all four doors
    Note

    Unlatch doors before closing if necessary
