Overhead Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.

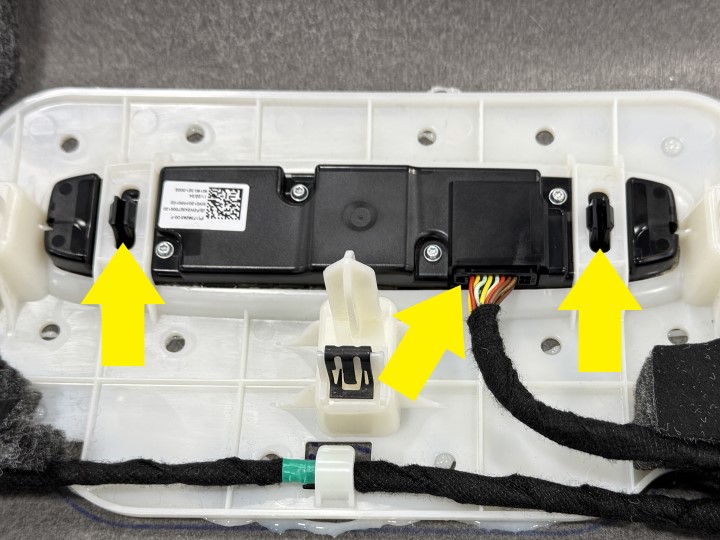

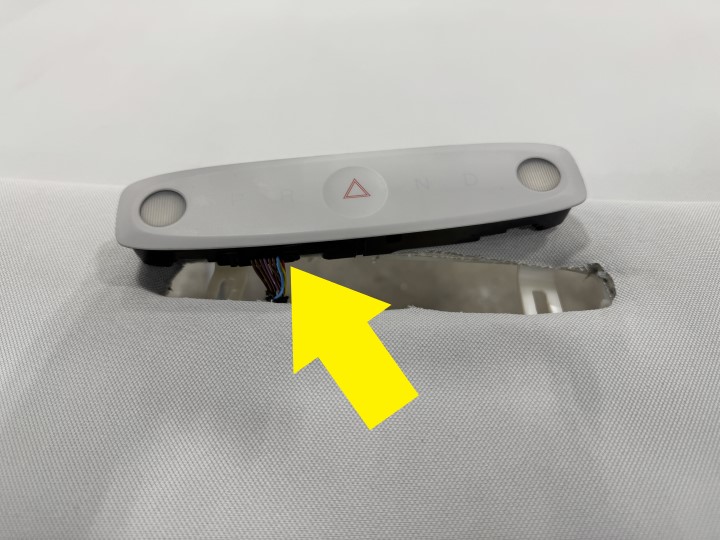

  2. Use a plastic trim tool to release the clips (x2) that attach the over head console to the headliner, and disconnect the over head console connector to remove it from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

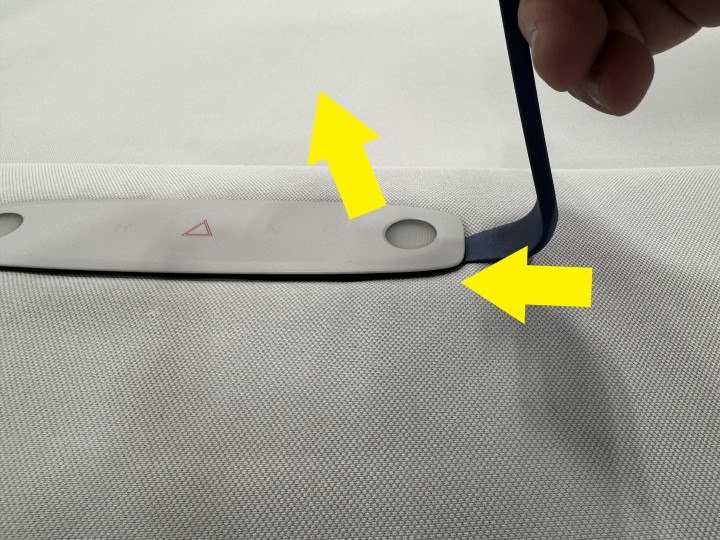

    Carefully insert the plastic trim tool to the lower edge of the over head console housing, and pry it outwards to release the clips (x2).

Install

  1. Connect the over head console connector, and then install the clips (x2) that attach the over head console to the headliner.
  2. Raise the LH front window and close the LH front door.
