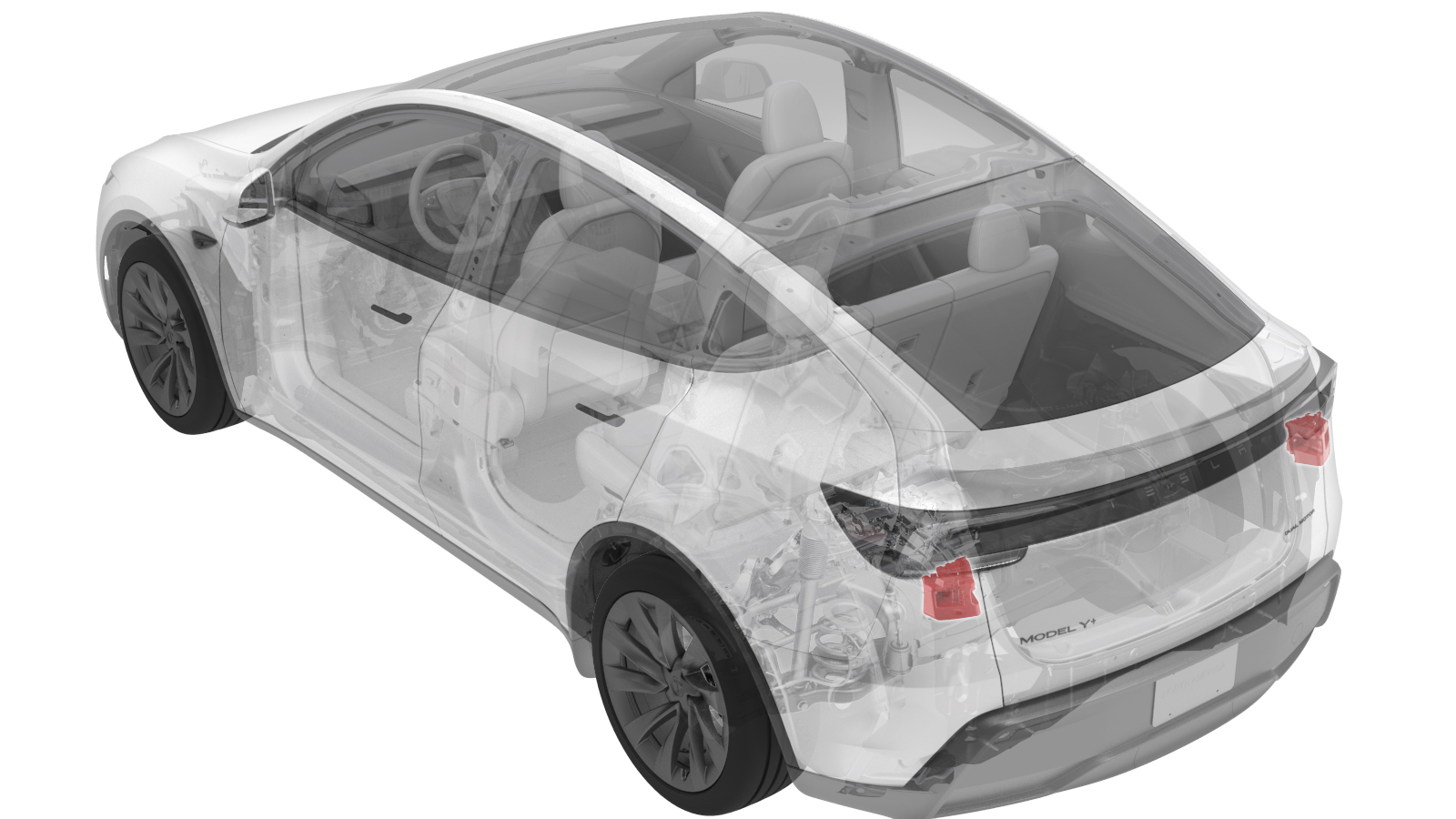

Rear Bumper Fascia - Tail Lamp Bracket - LH (Remove and Replace)

Correction code 1001050502 FRT 0.4 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the rear fascia assembly. See Fascia - Rear - Lower (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to separate the rear lower fascia, LH and RH rear upper fascia from the rear fascia assembly.
  2. Remove the middle aero shield. See Aero Shield - Middle (Remove and Replace).
  3. Remove the bolts (x2) that attach the LH tail lamp bracket to the body, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

  1. Position the LH tail lamp bracket to the body, and then install the bolts (x2) that attach the bracket to the body.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 10 mm socket
  2. Install the middle aero shield. See Aero Shield - Middle (Remove and Replace).
  3. Install the rear fascia assembly. See Fascia - Rear - Lower (Remove and Replace).
