Harness - Body Harness - LH (Model Y Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-01: Released new procedure.

Remove

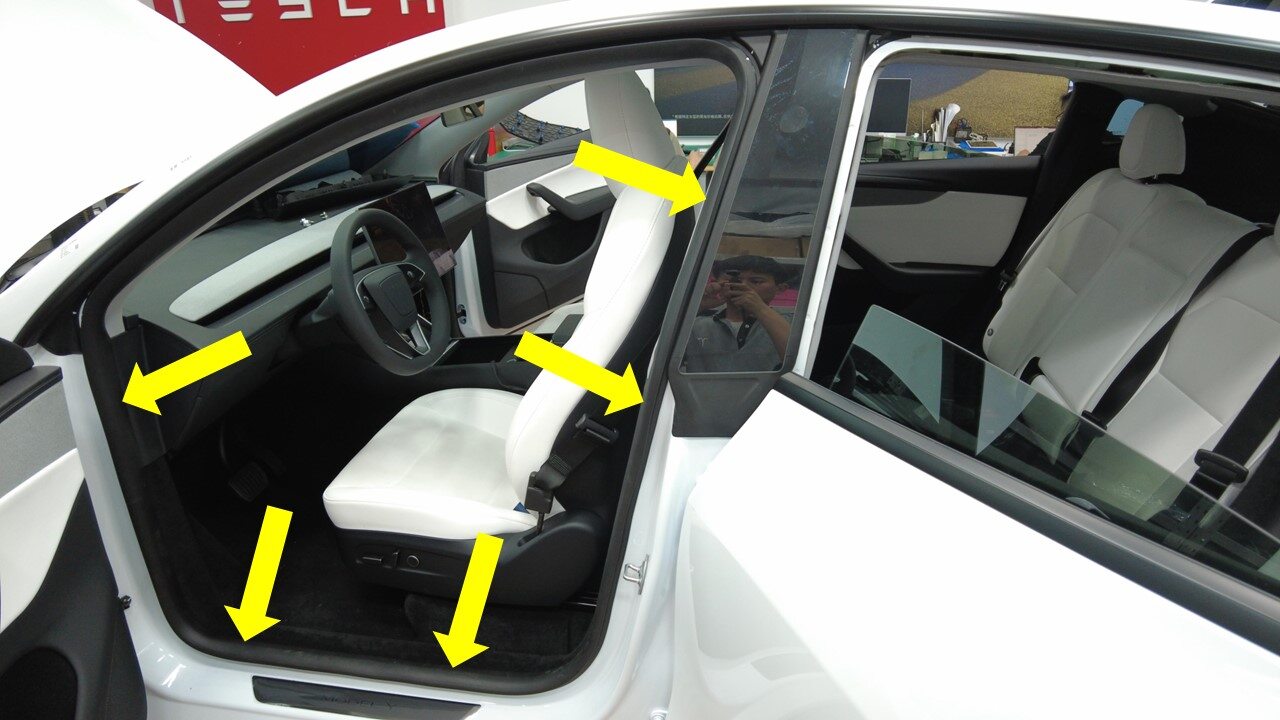

  1. Open all four doors

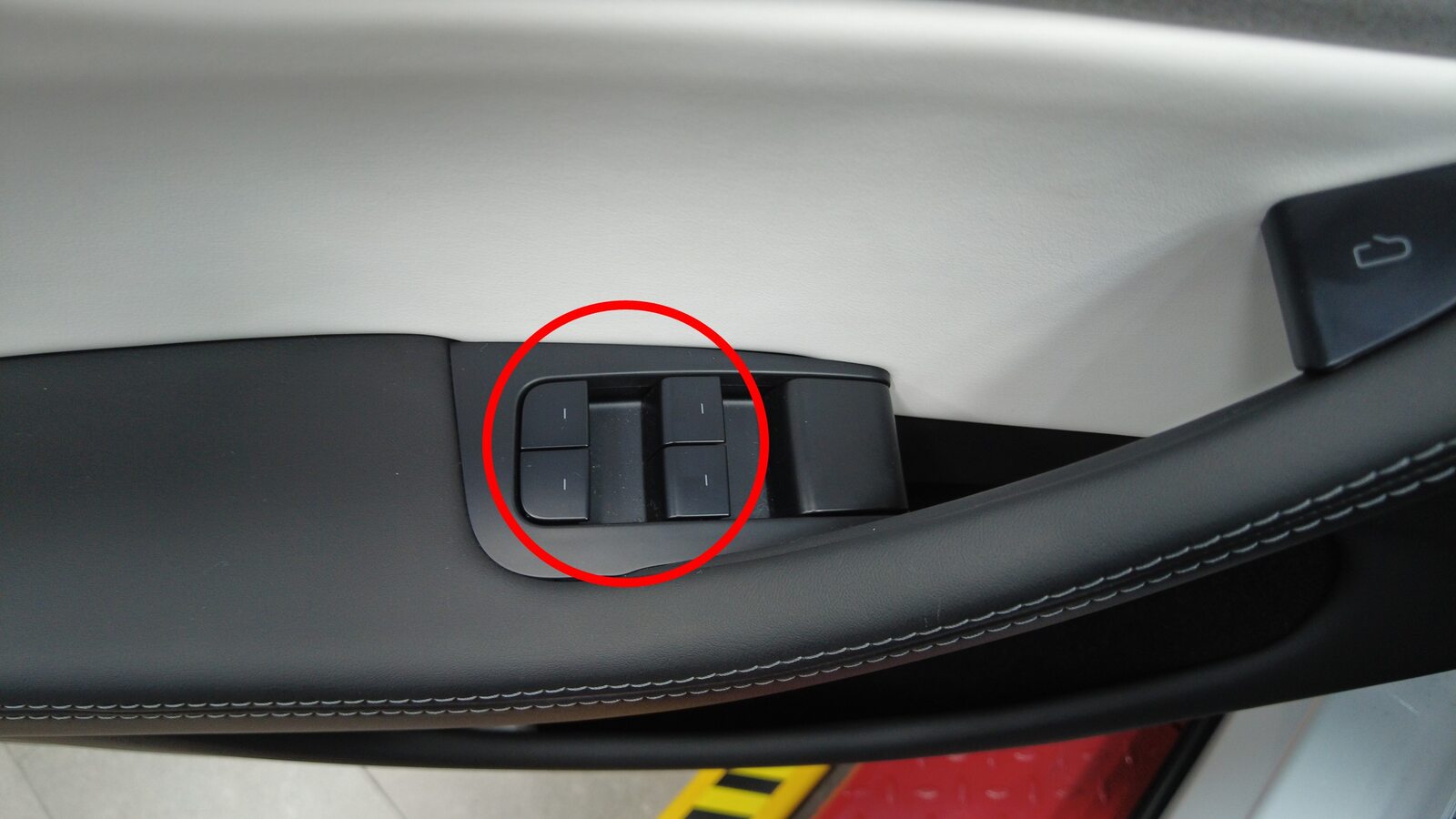

  2. Lower all four windows

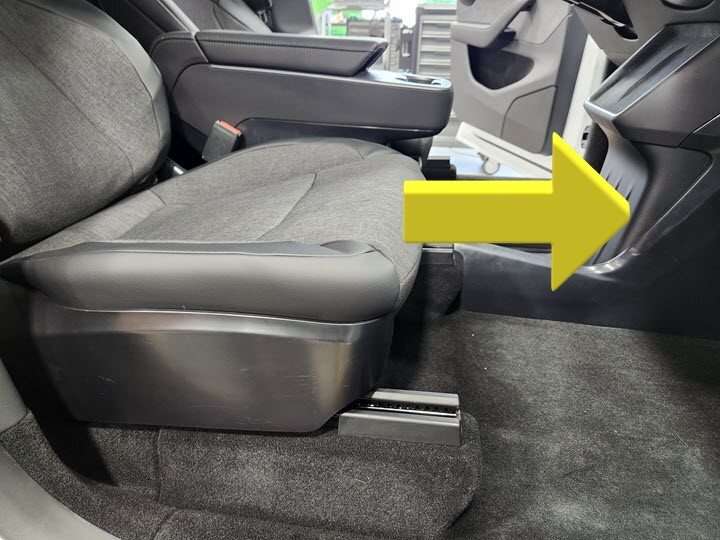

  3. Run ODIN routine

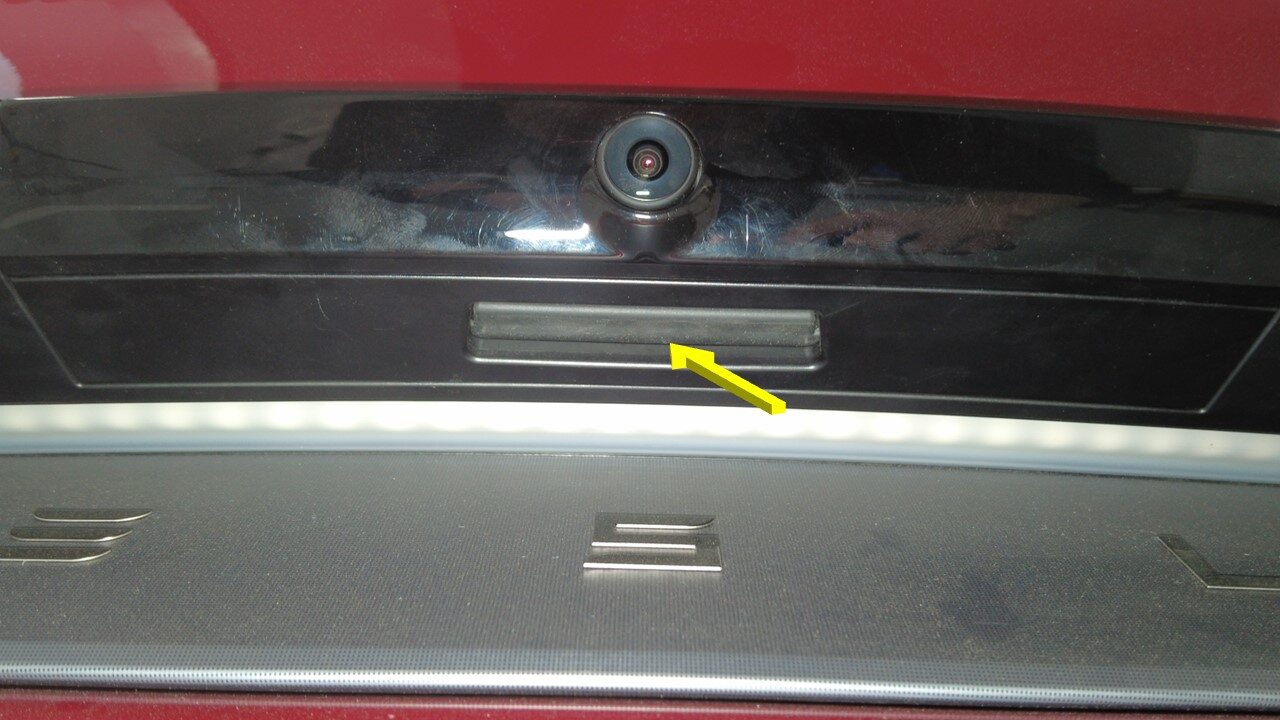

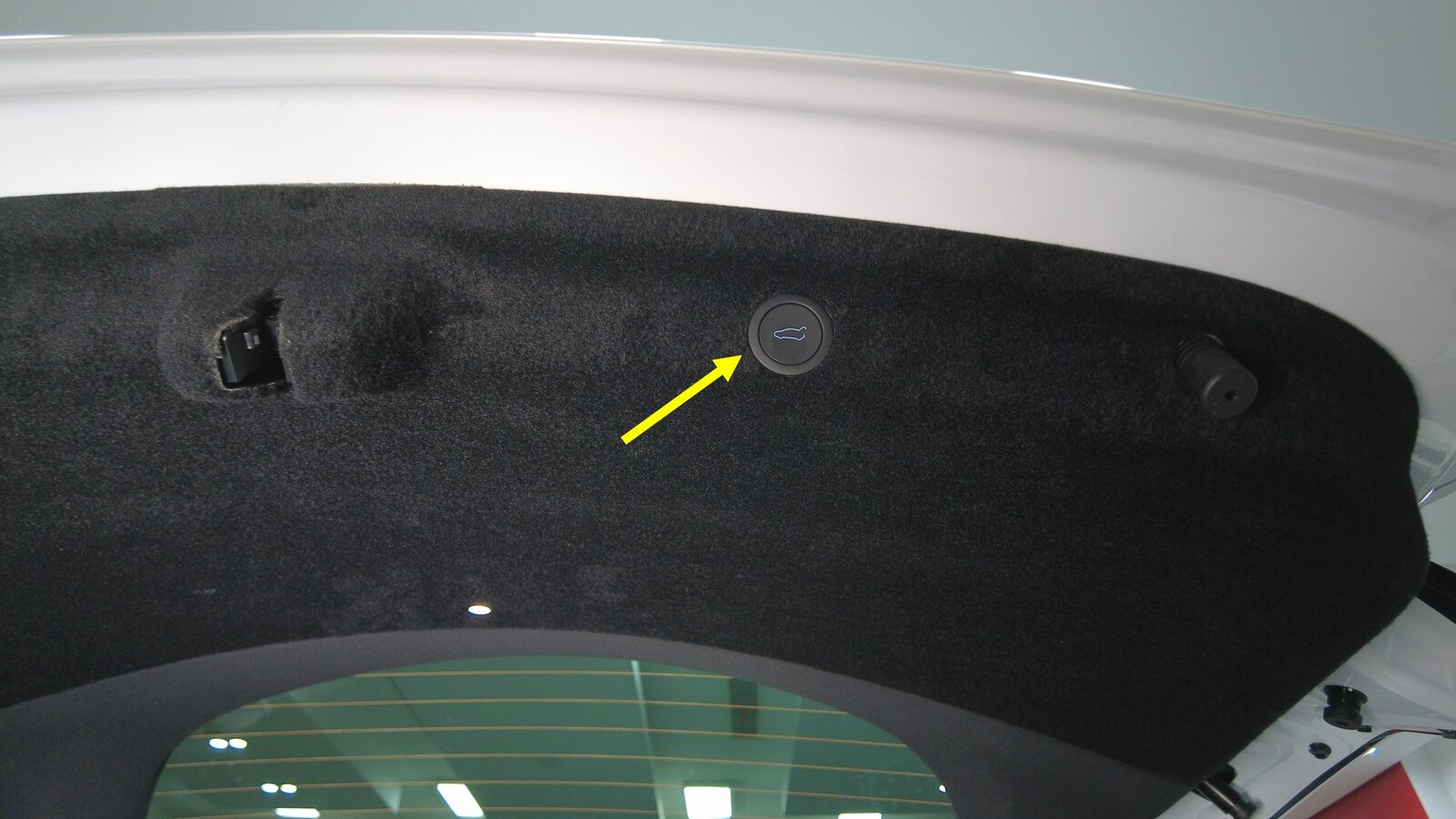

  4. Open liftgate
  5. Run ODIN routine

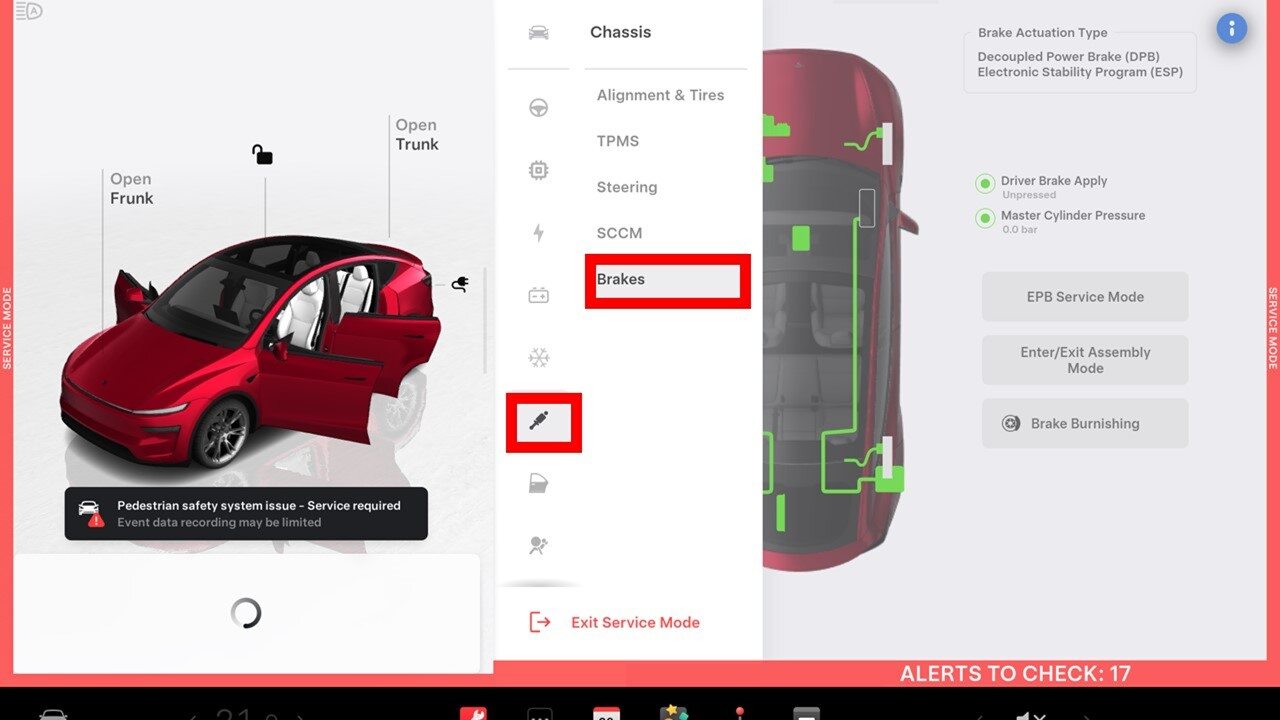

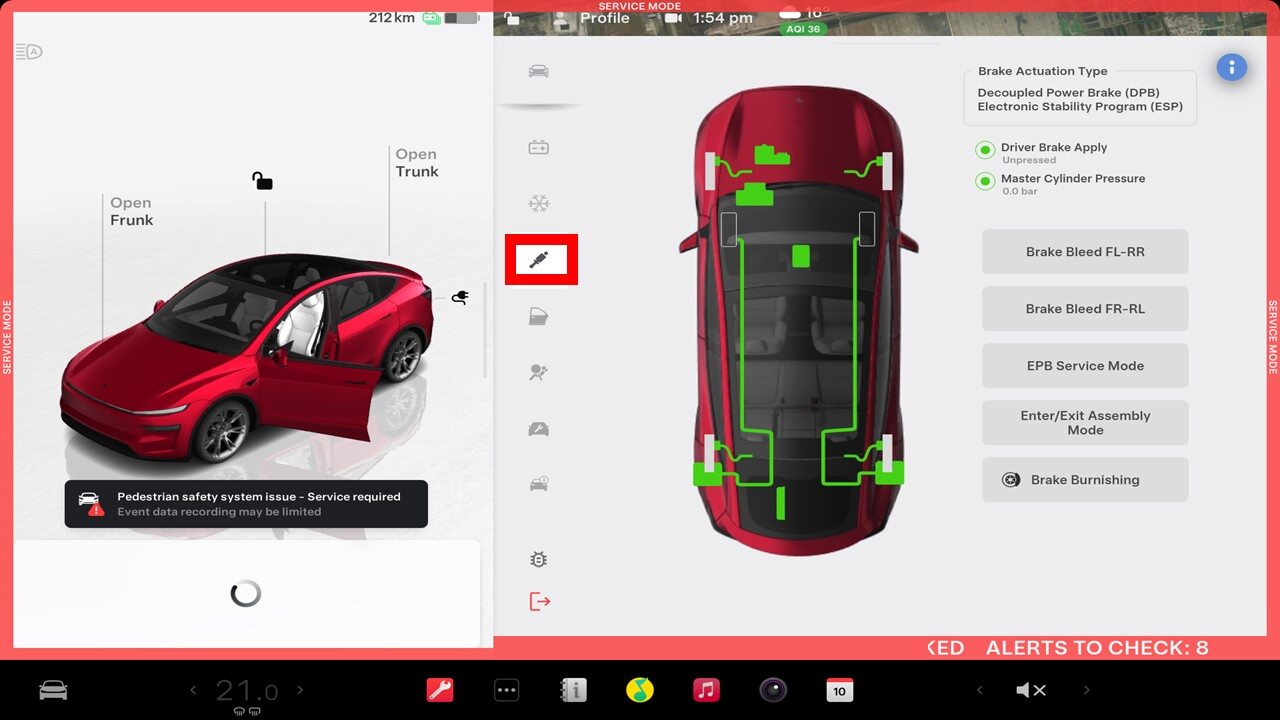

  6. Access chassis system routines using UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Select Chassis > Brakes
  7. Run ODIN routine

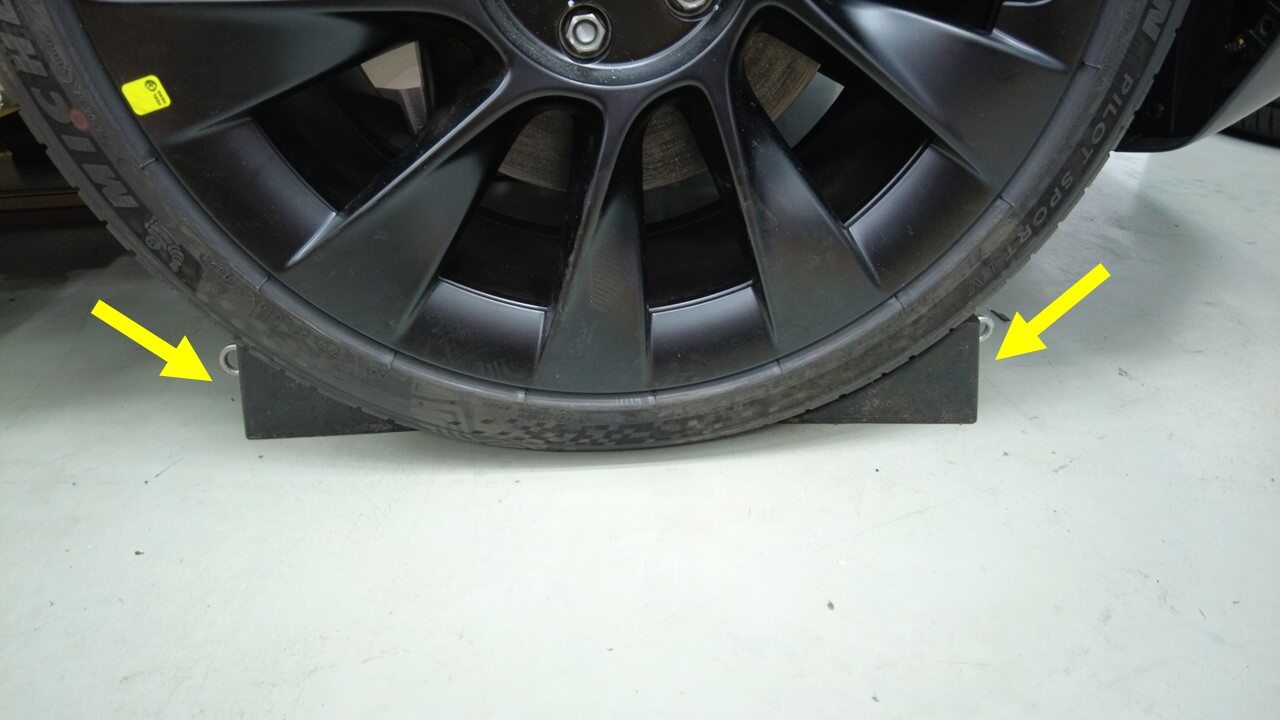

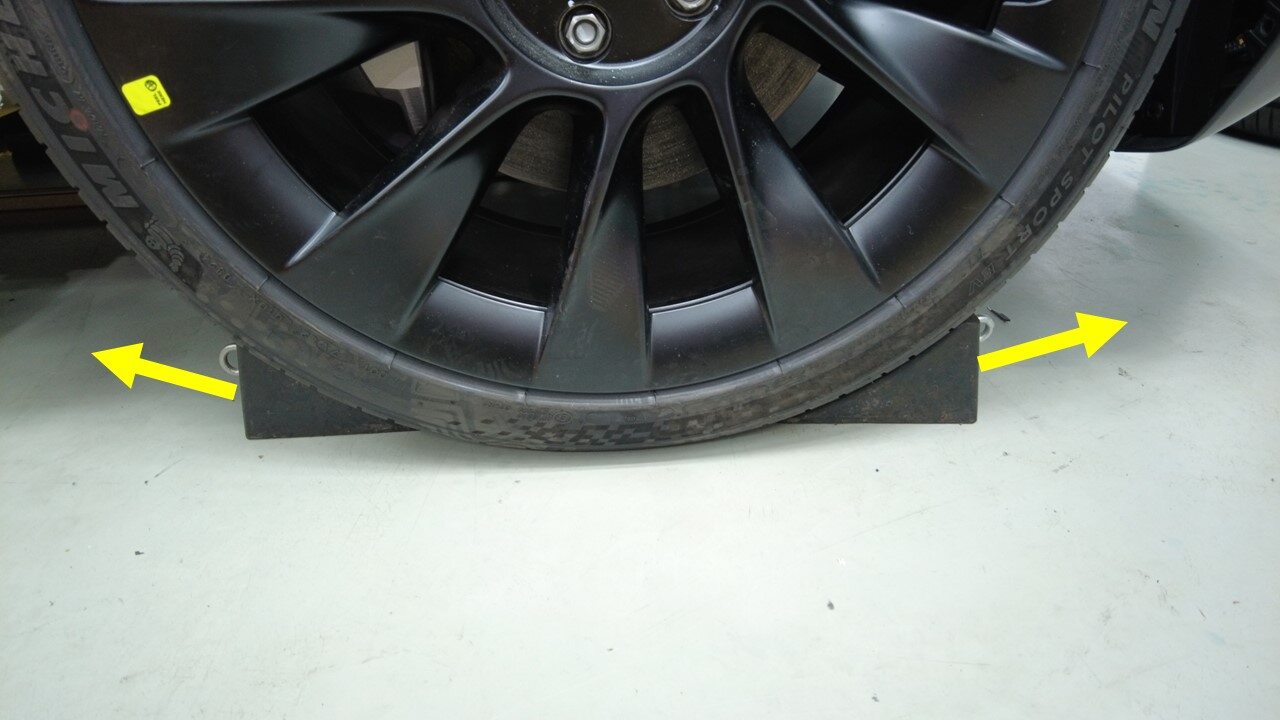

  8. Set wheel chocks
    Informational PurposesAn informational icon, calling your attention
    Note
    Warning: After this action, tire wedges will be set to prevent the vehicle from rolling freely

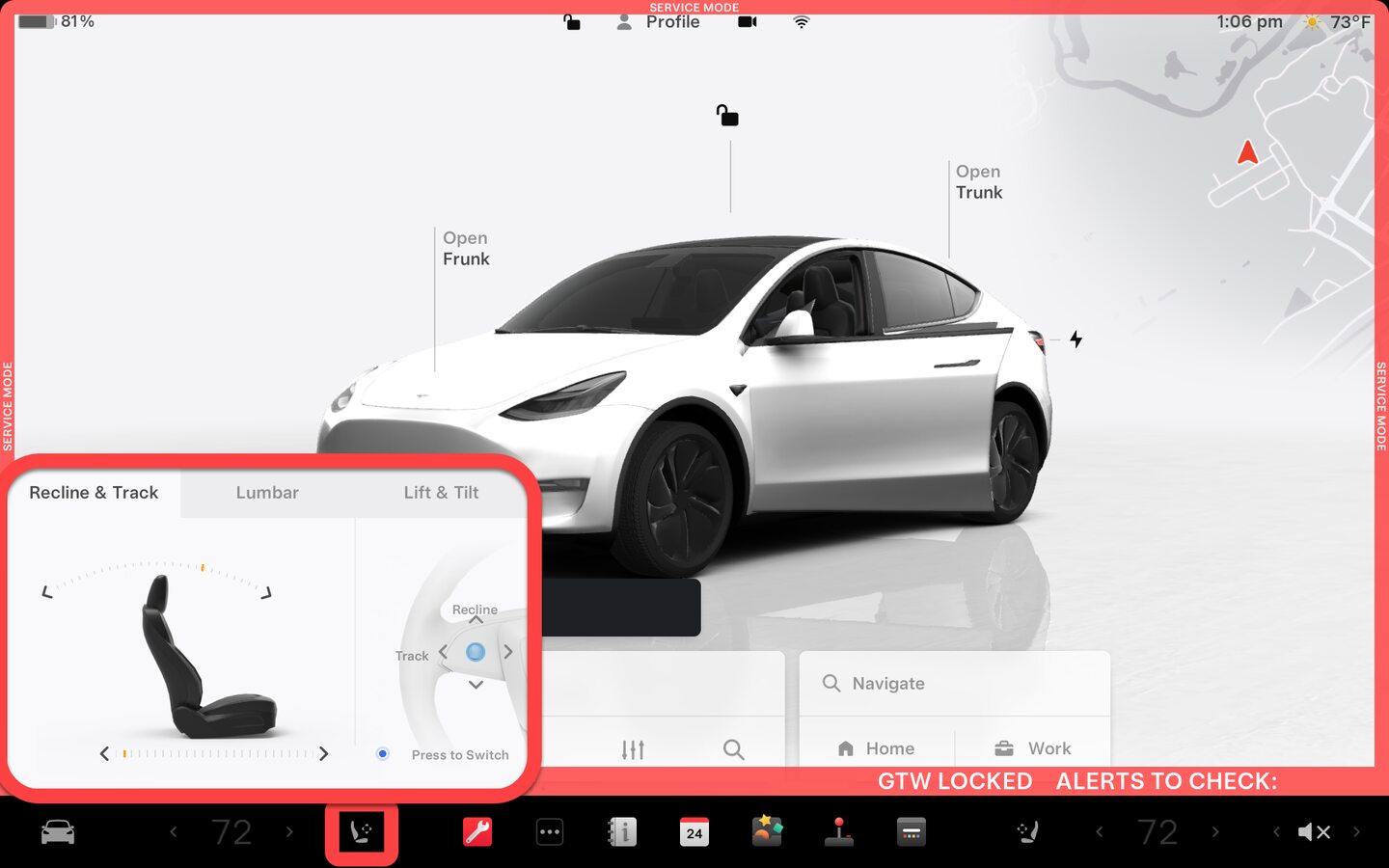

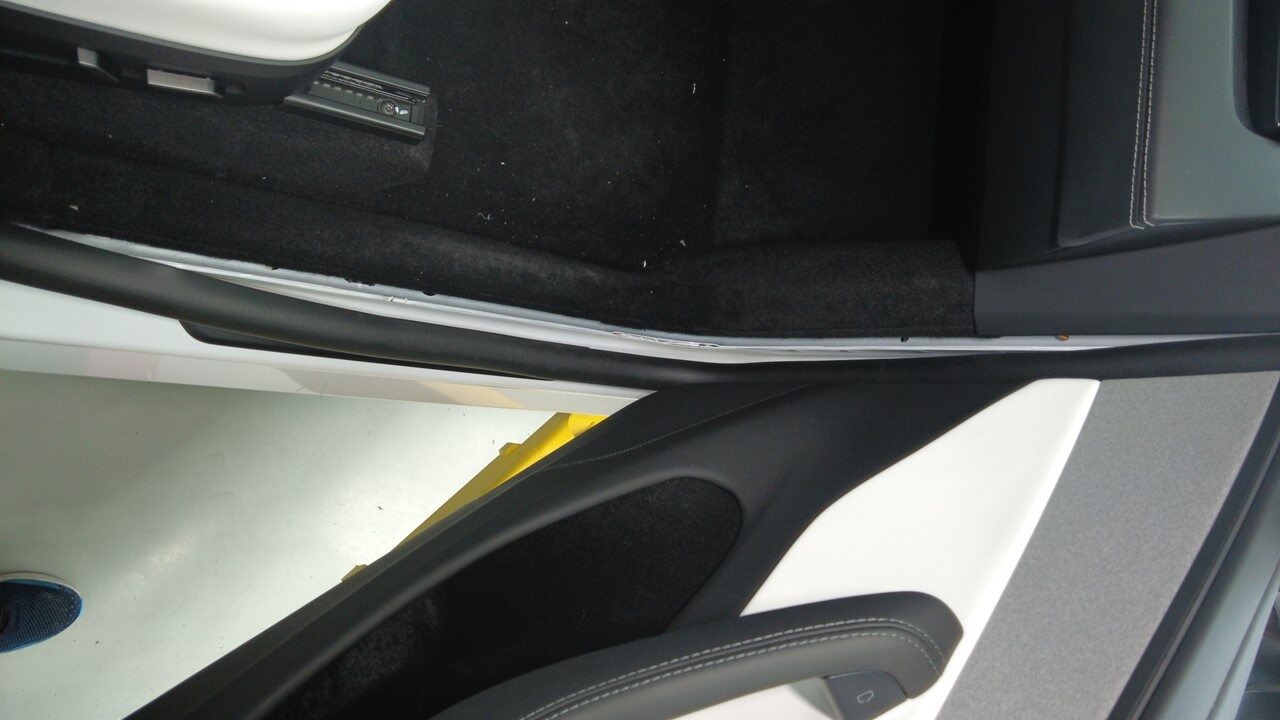

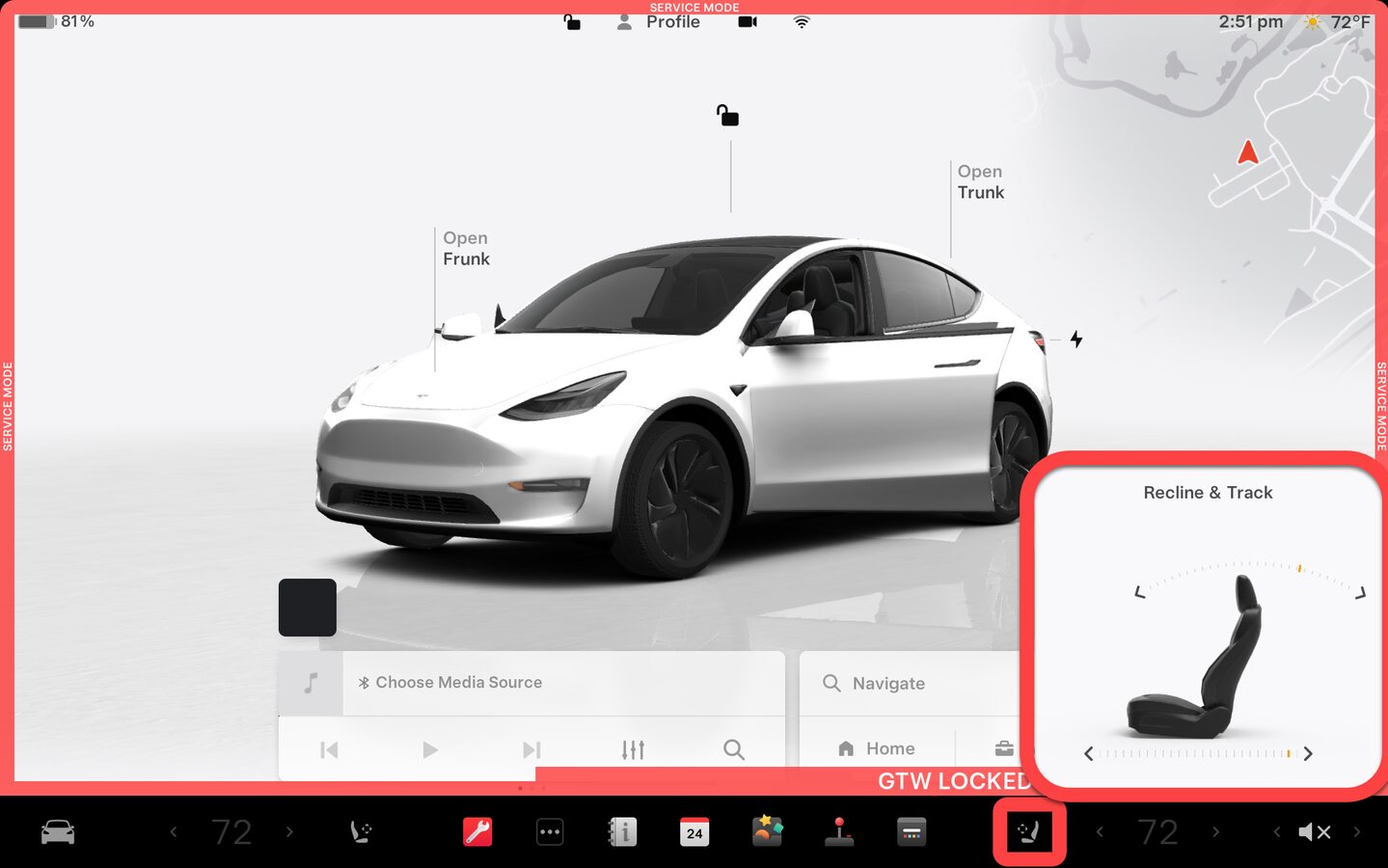

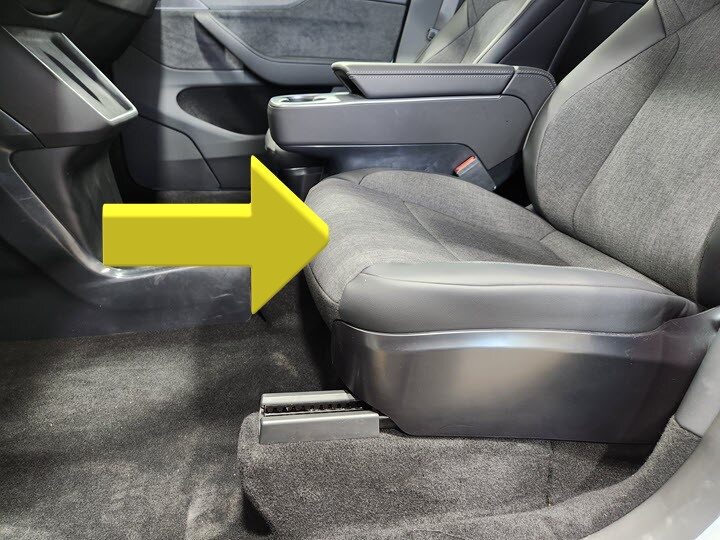

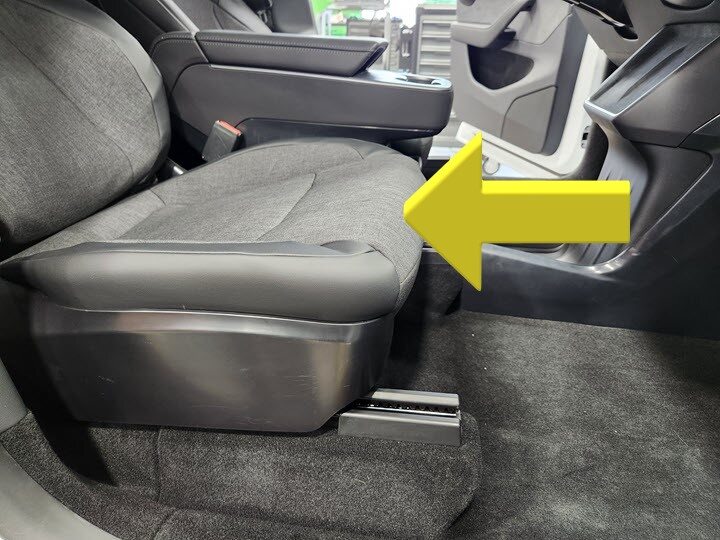

  9. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed

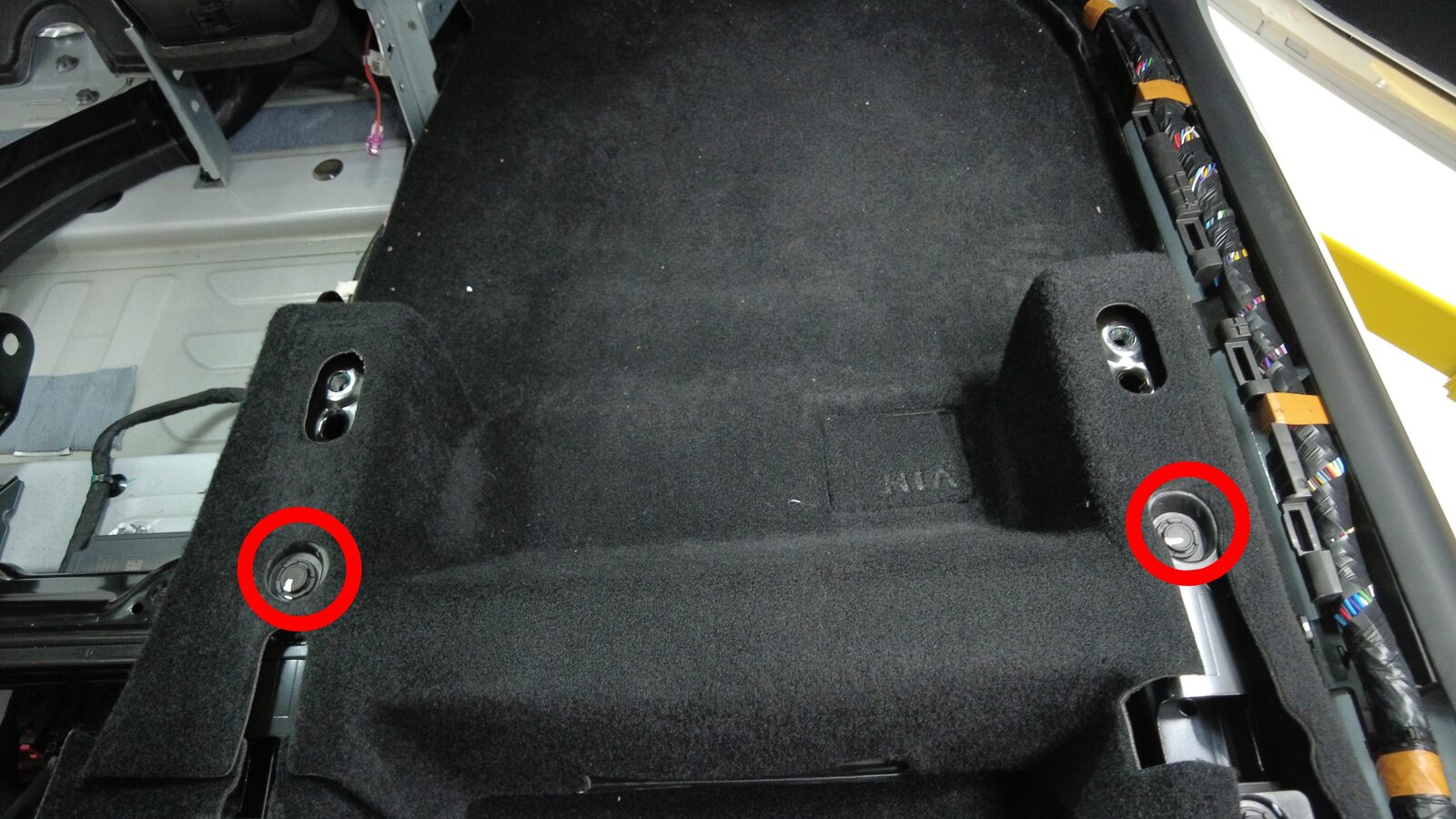

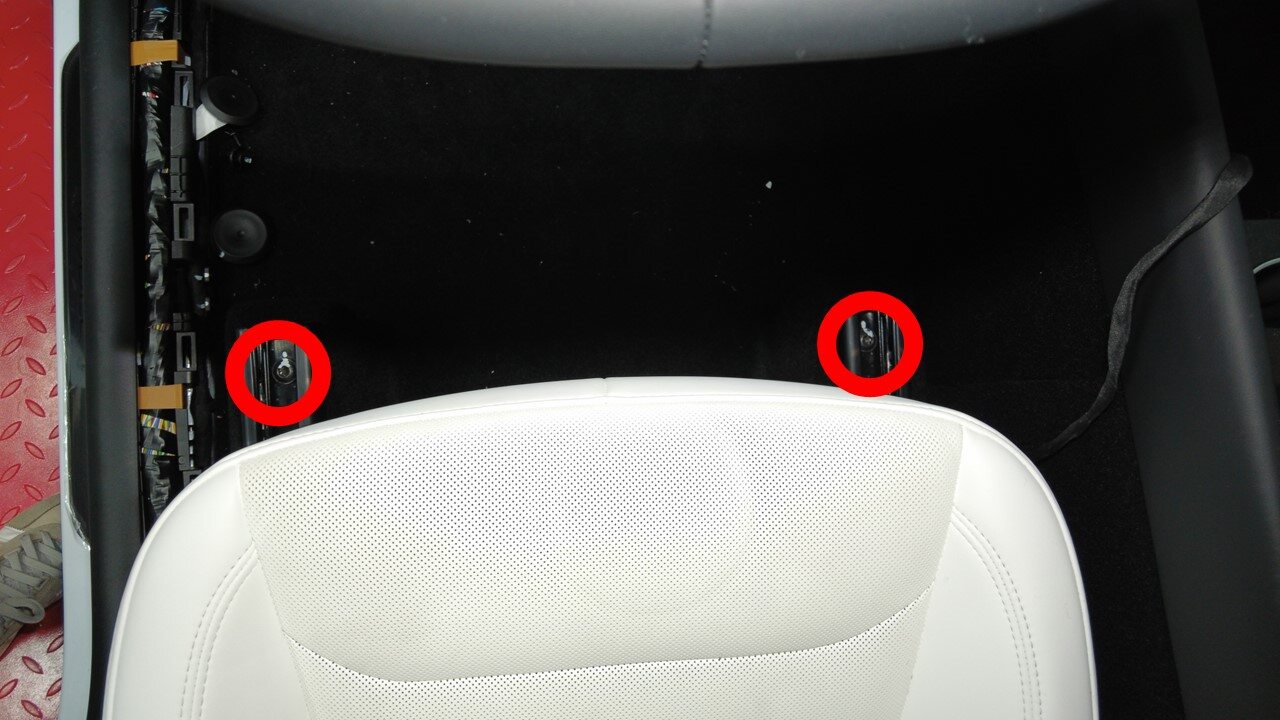

  10. Remove LH front seat front bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal

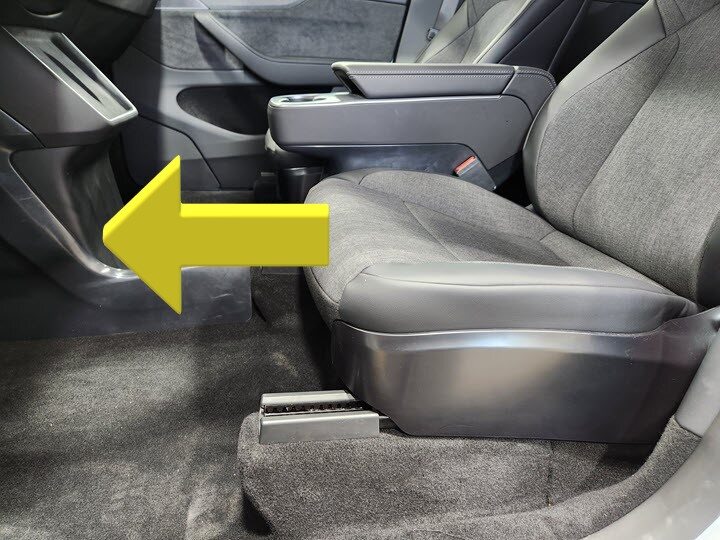

  11. Move LH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed

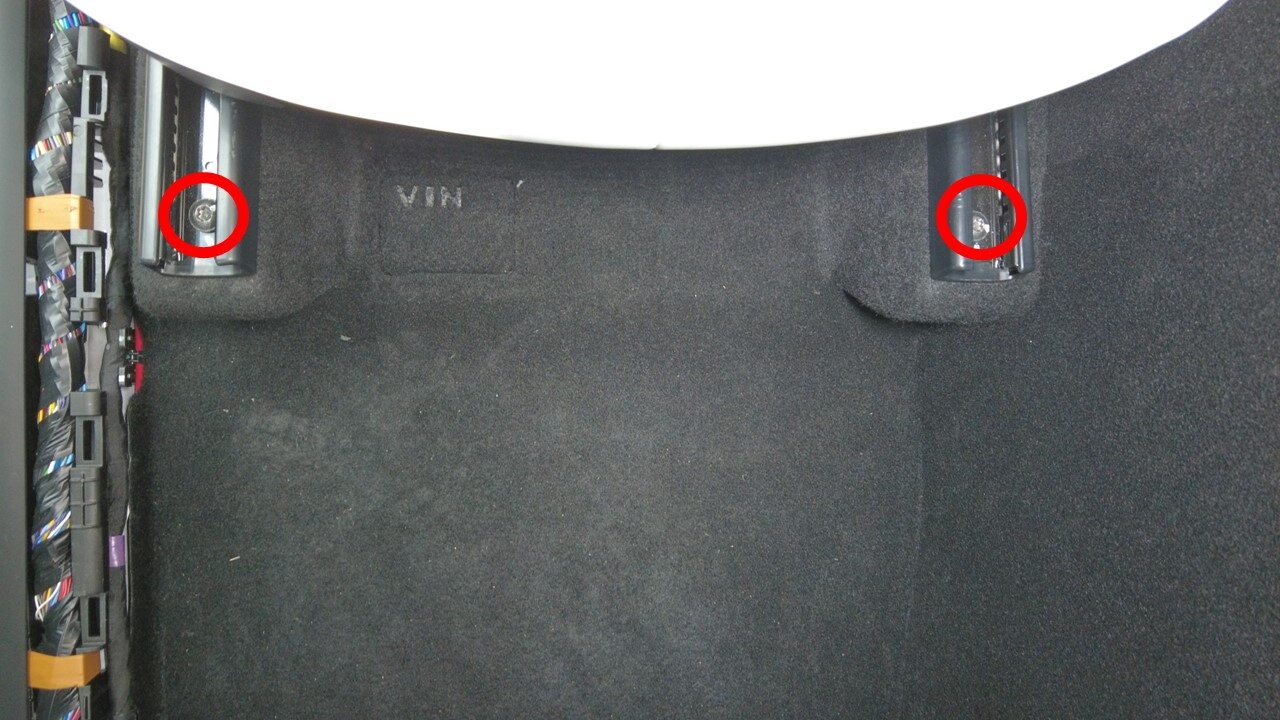

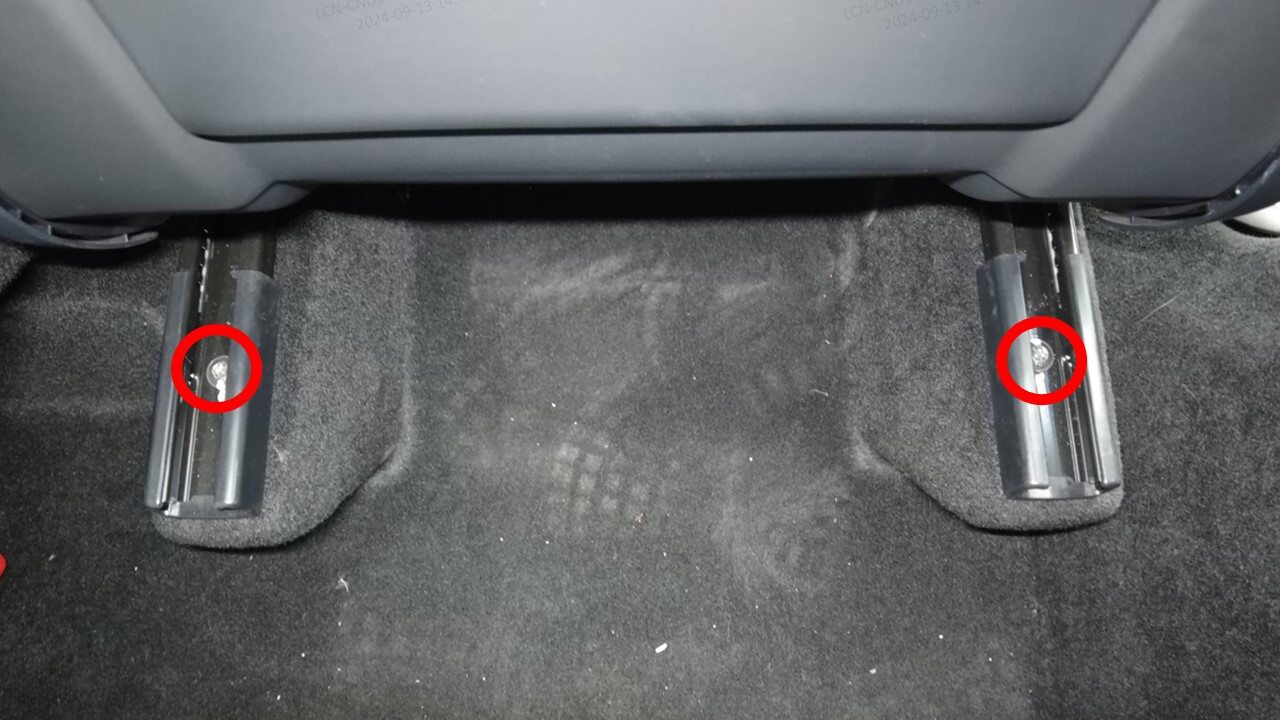

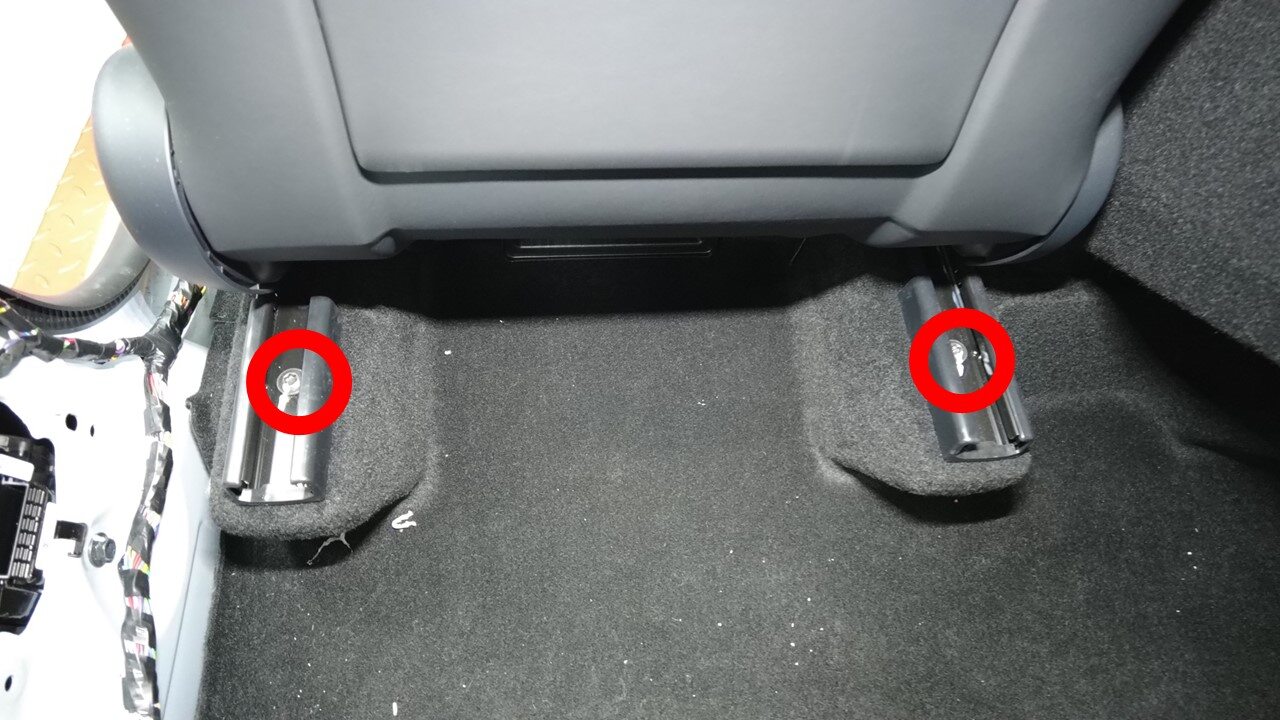

  12. Remove LH front seat rear bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal

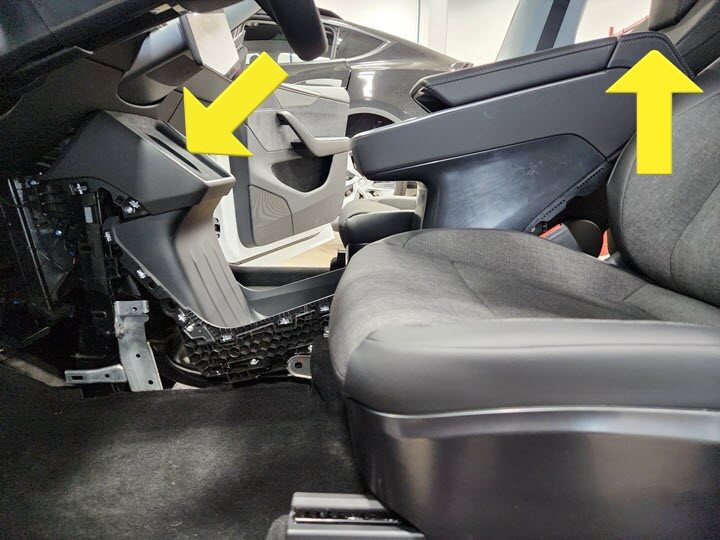

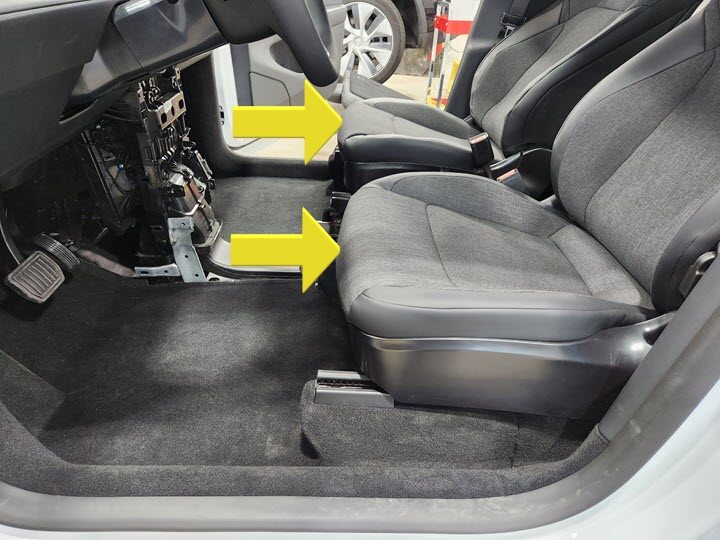

  13. Adjust position of LH front seat for easy removal
    Informational PurposesAn informational icon, calling your attention

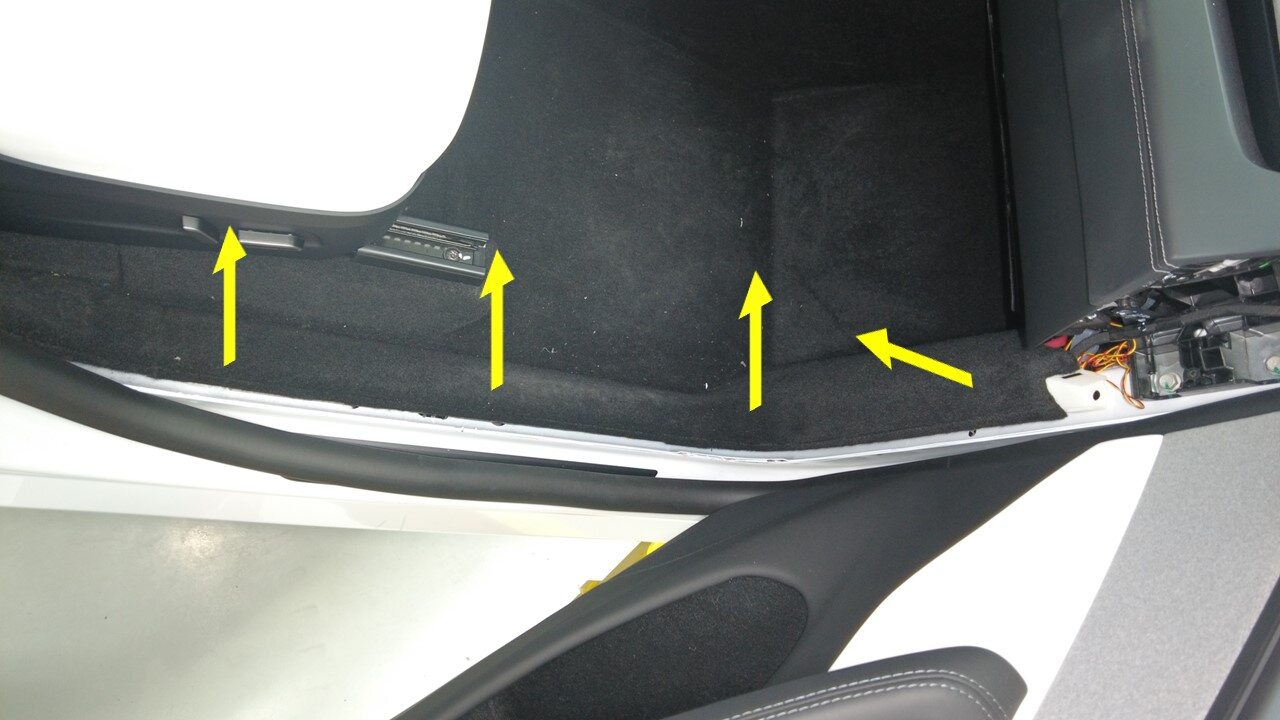

    Note
    Move seat to middle of track at most upright position with seat fully up off floor

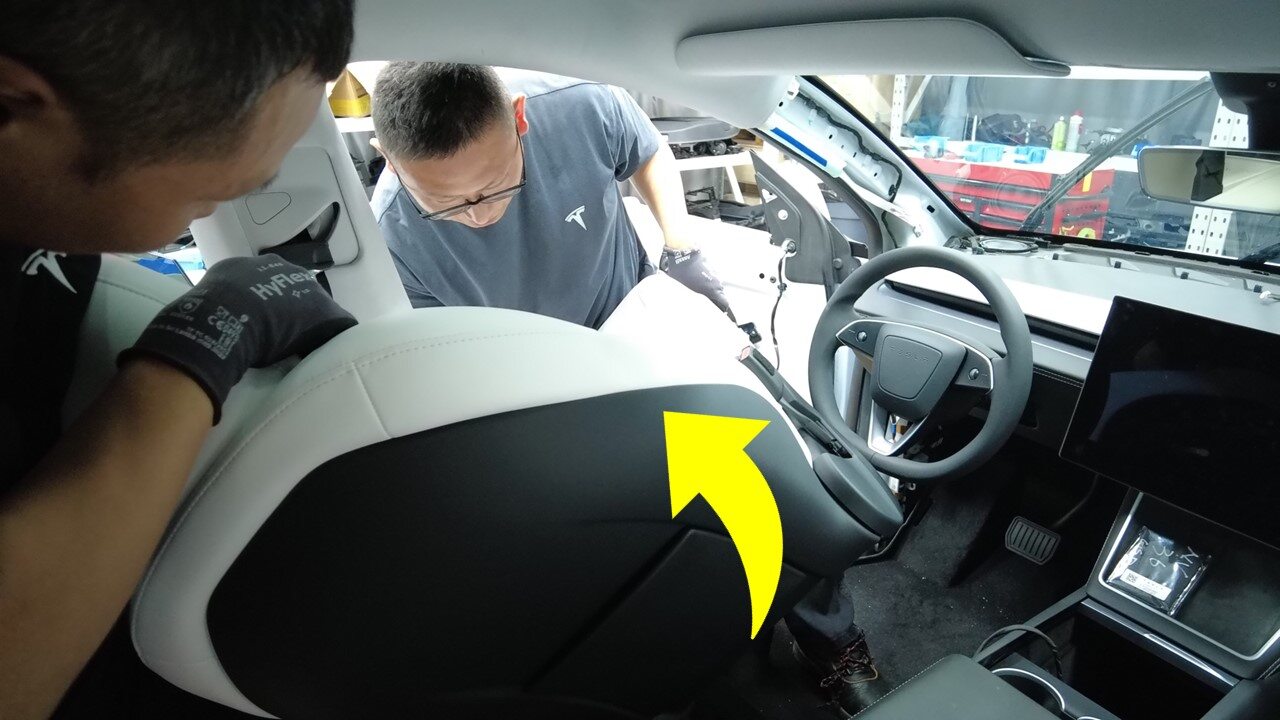

  14. Move RH front seat backward

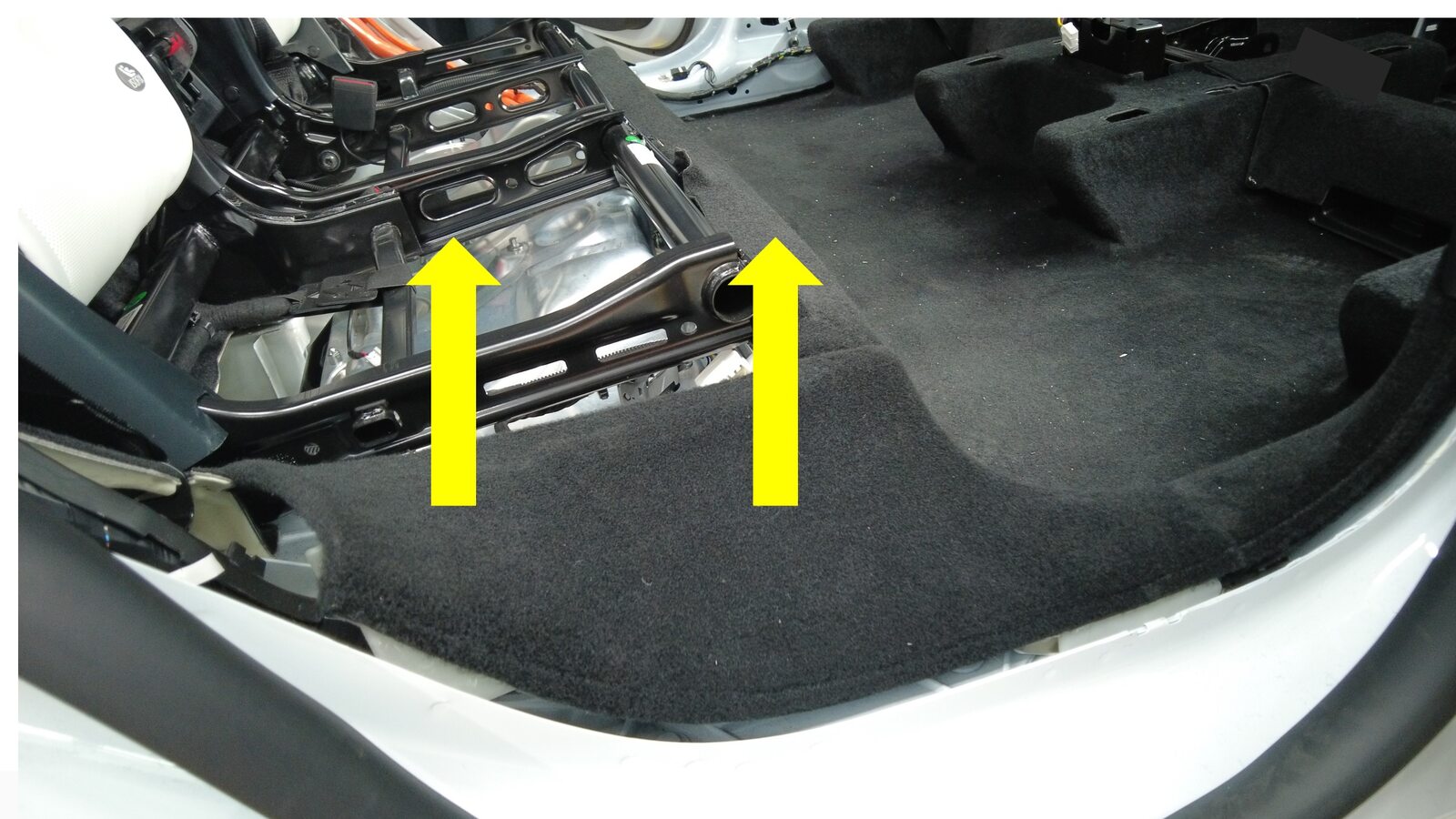

    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls
  15. Remove RH front seat front bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal
  16. Move RH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls
  17. Remove RH front seat rear bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal
  18. Adjust position of RH front seat for easy removal
    Informational PurposesAn informational icon, calling your attention
    Note
    Move seat to middle of track at most upright position with seat fully up off floor

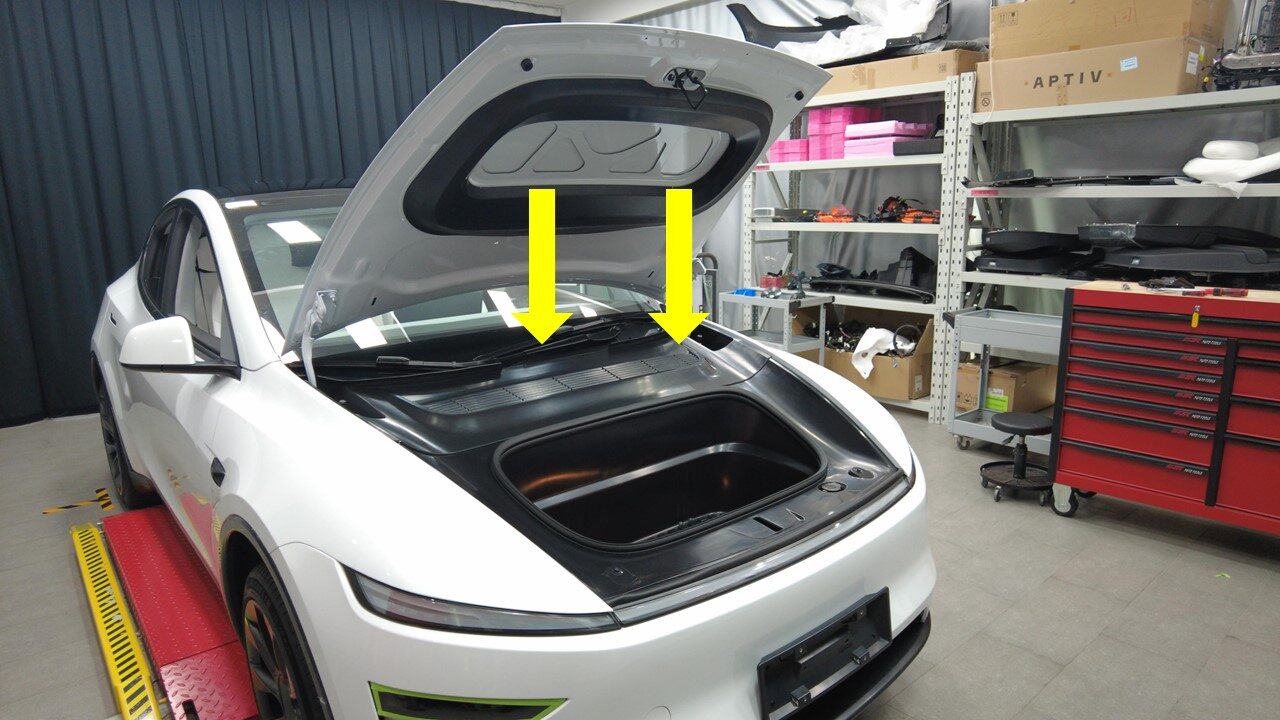

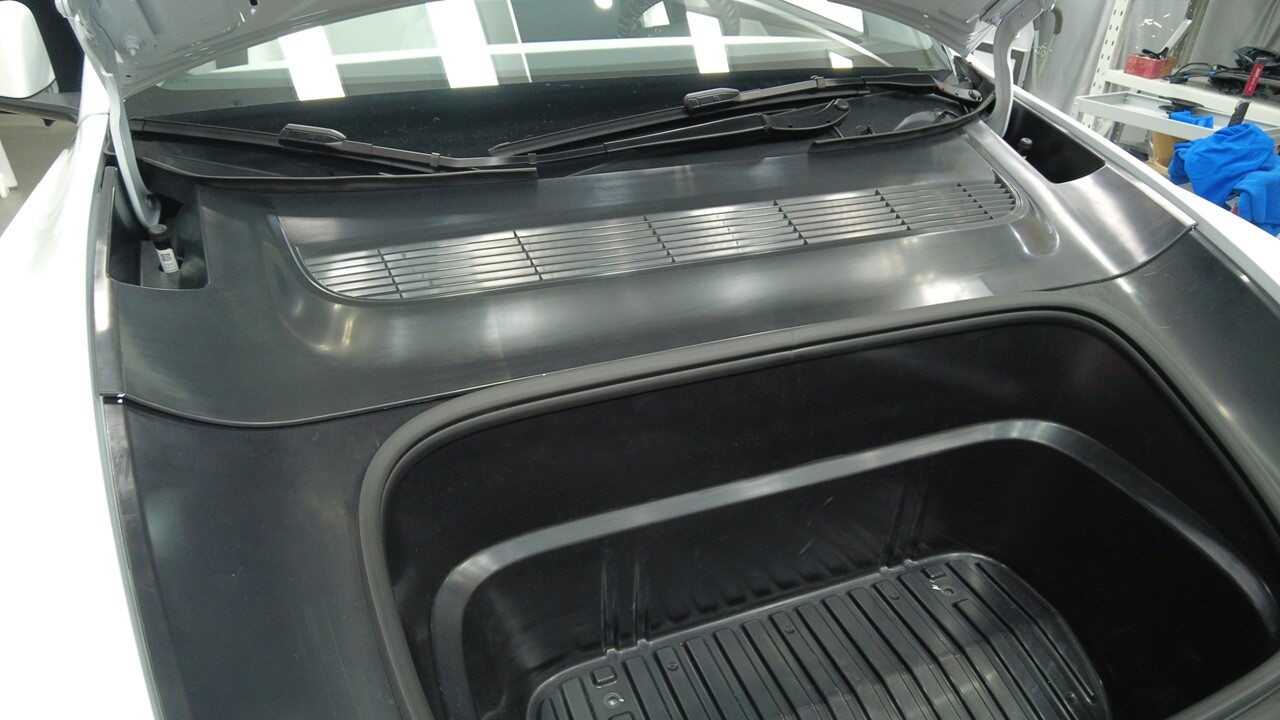

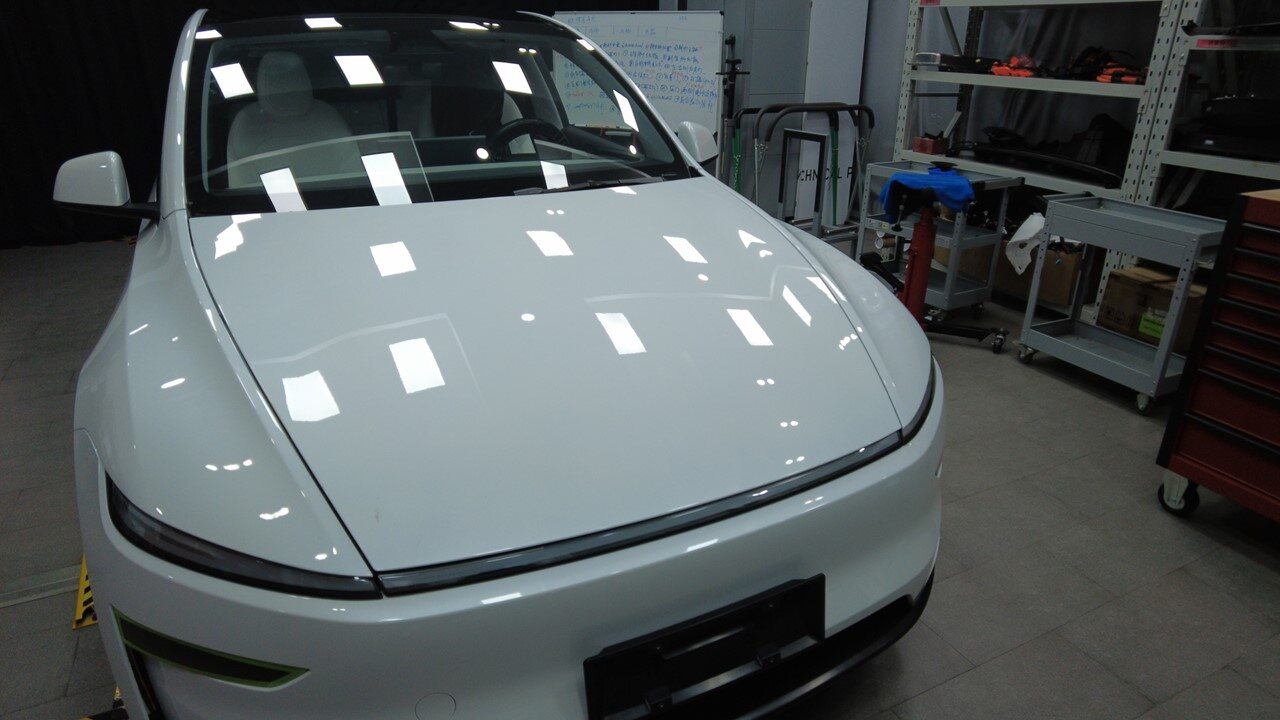

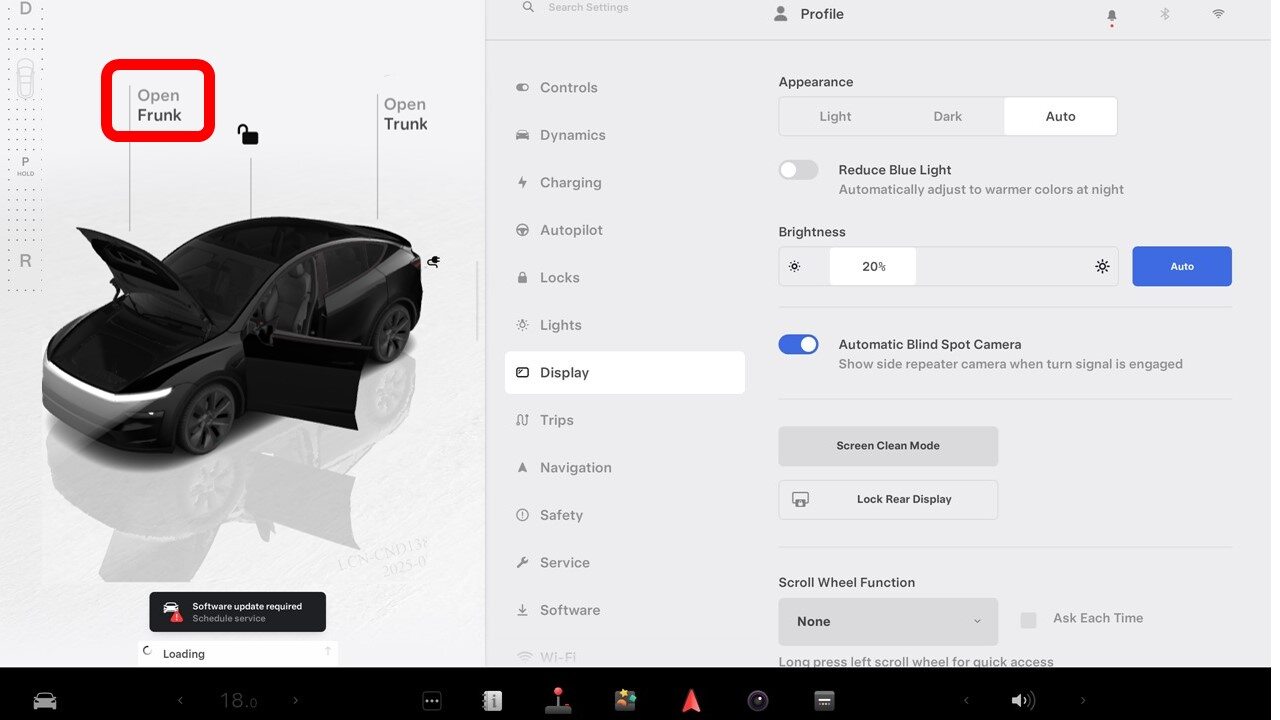

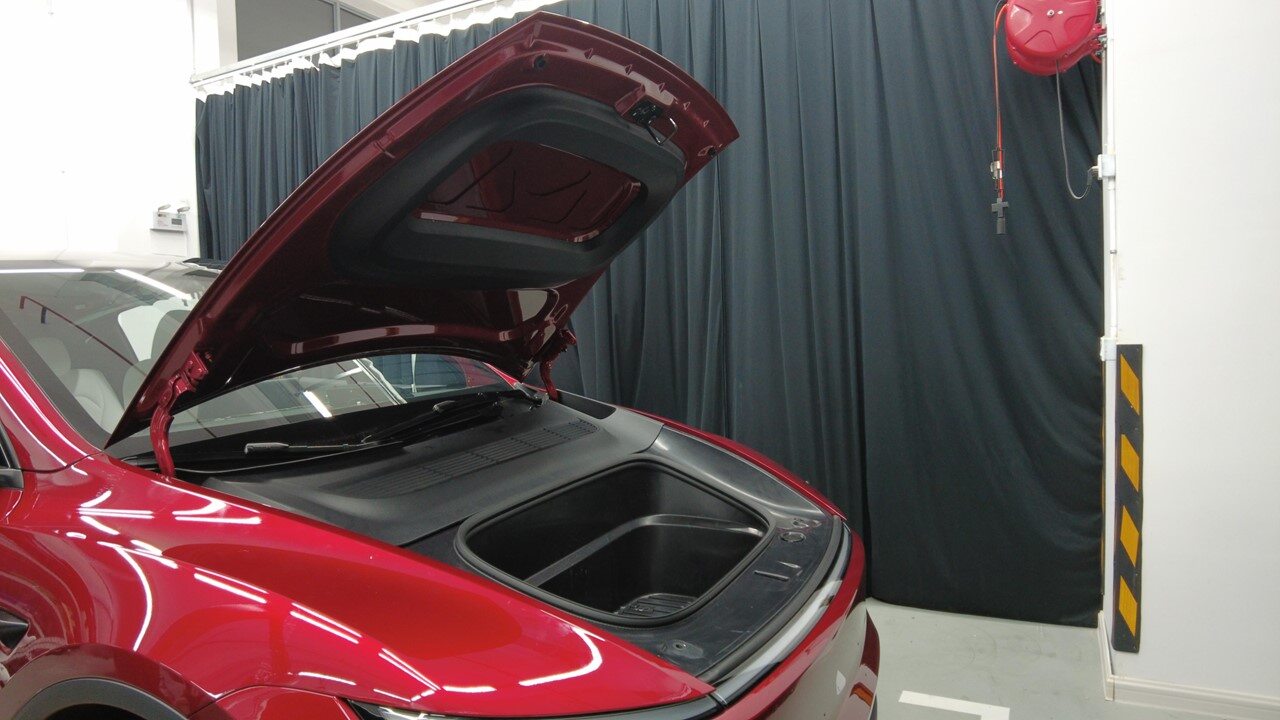

  19. Open hood

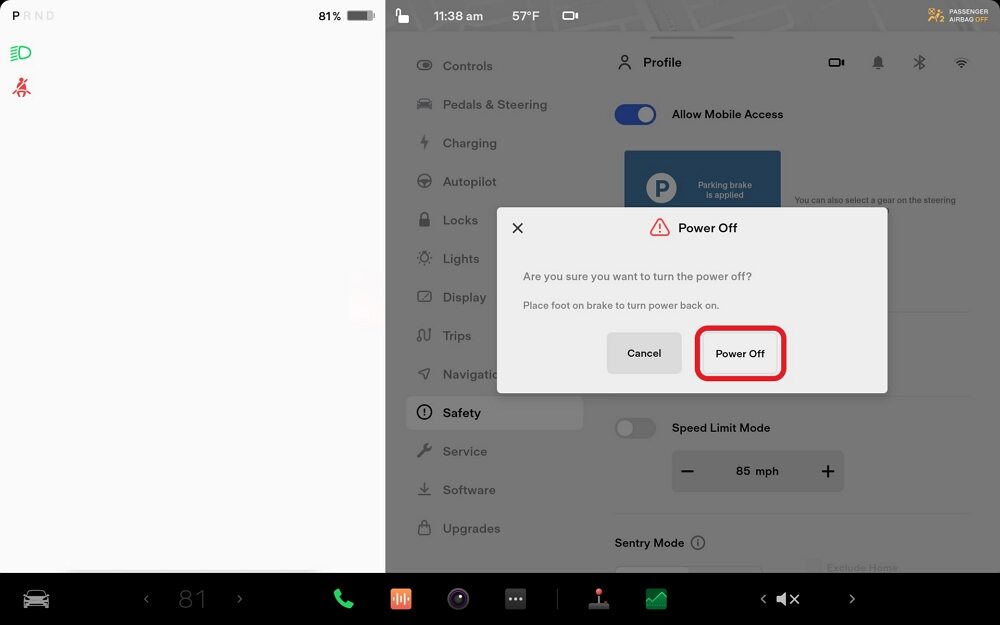

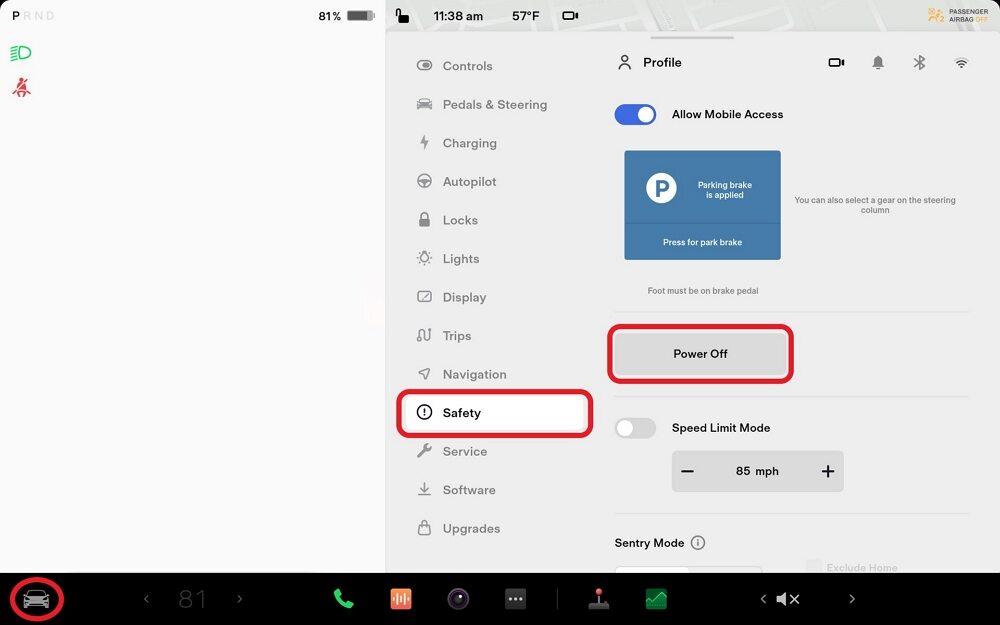

  20. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

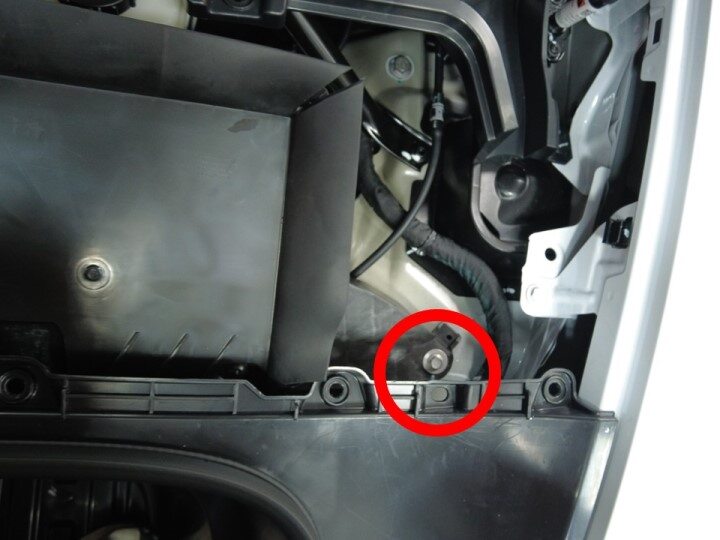

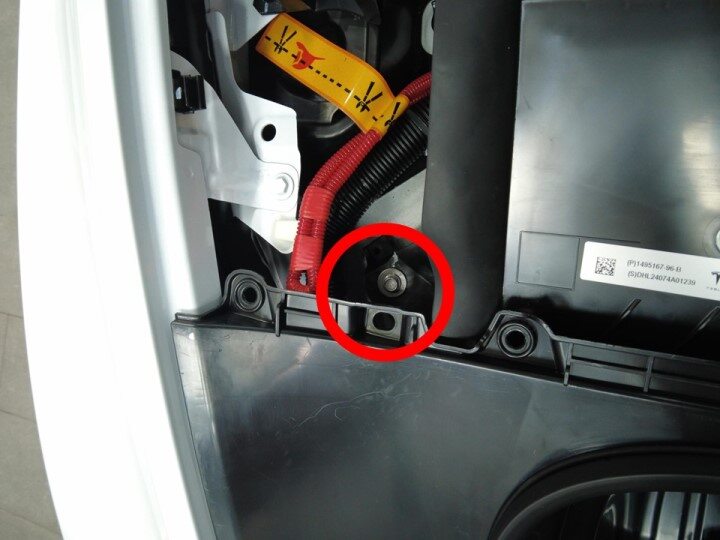

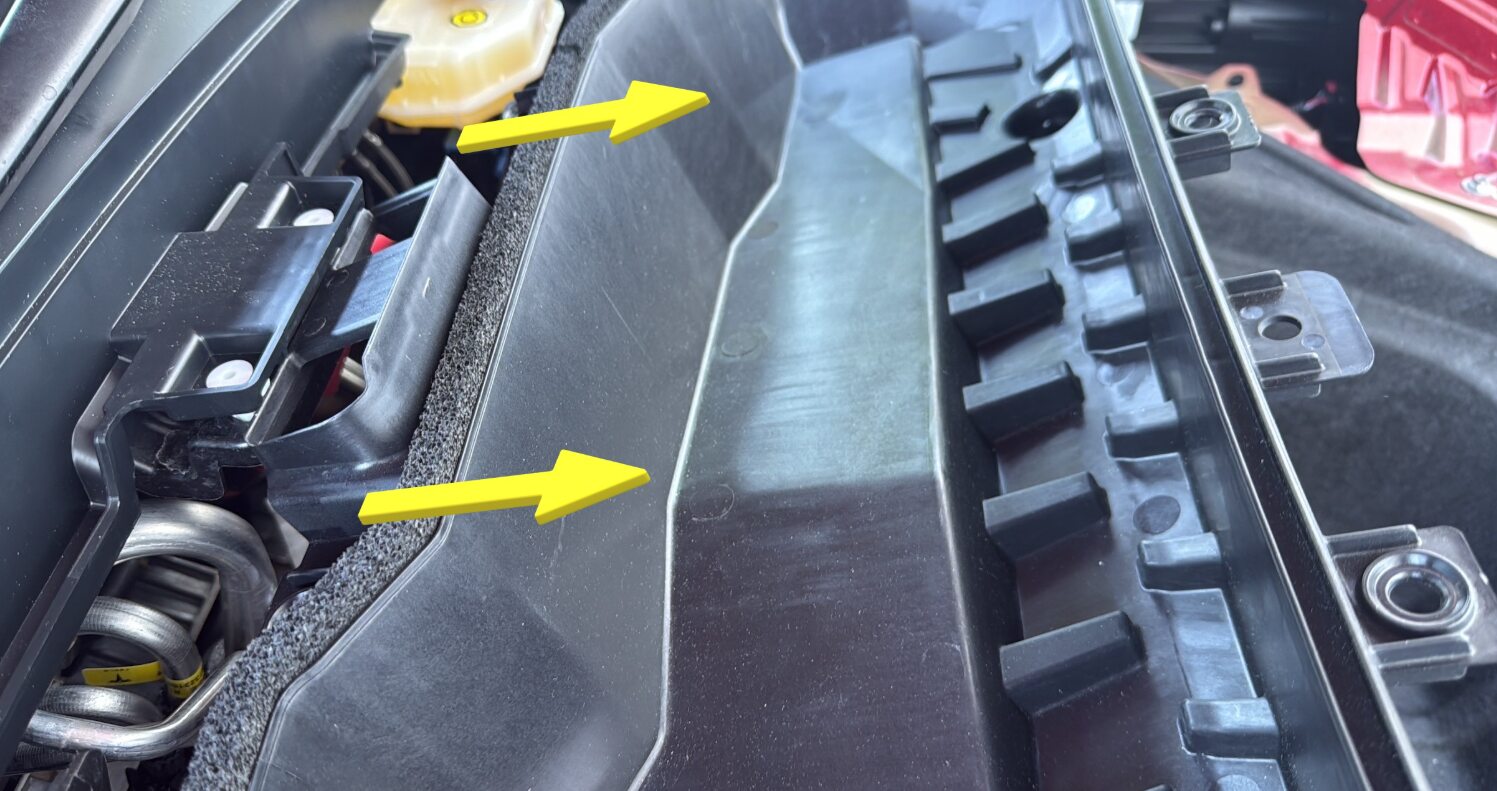

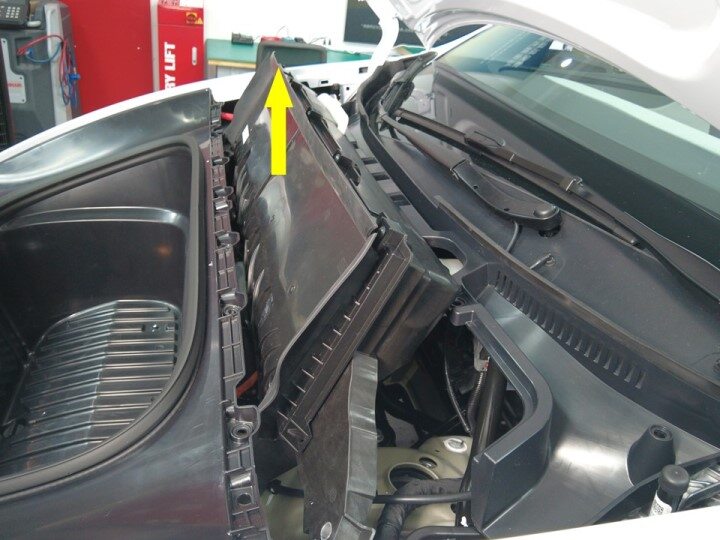

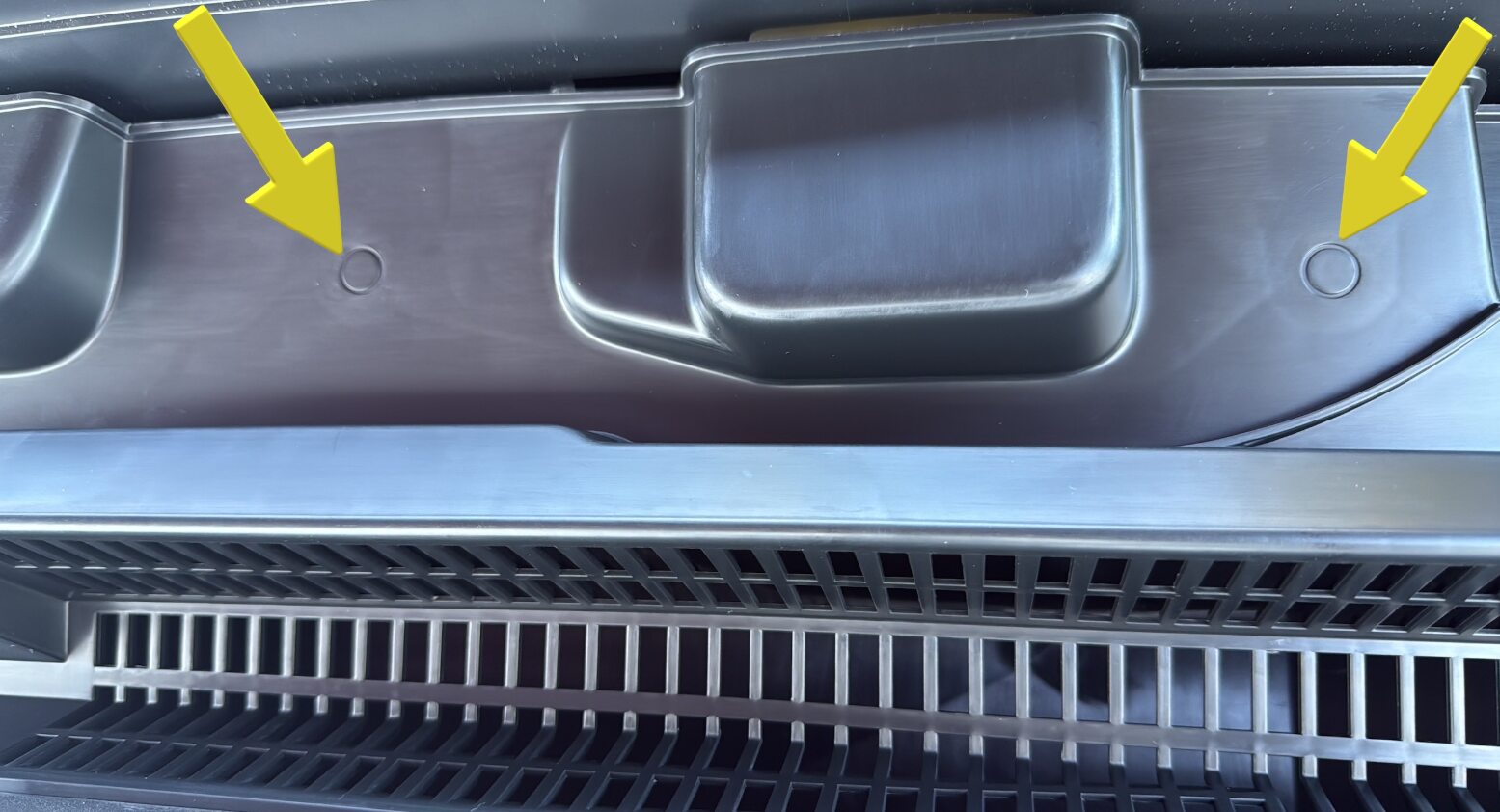

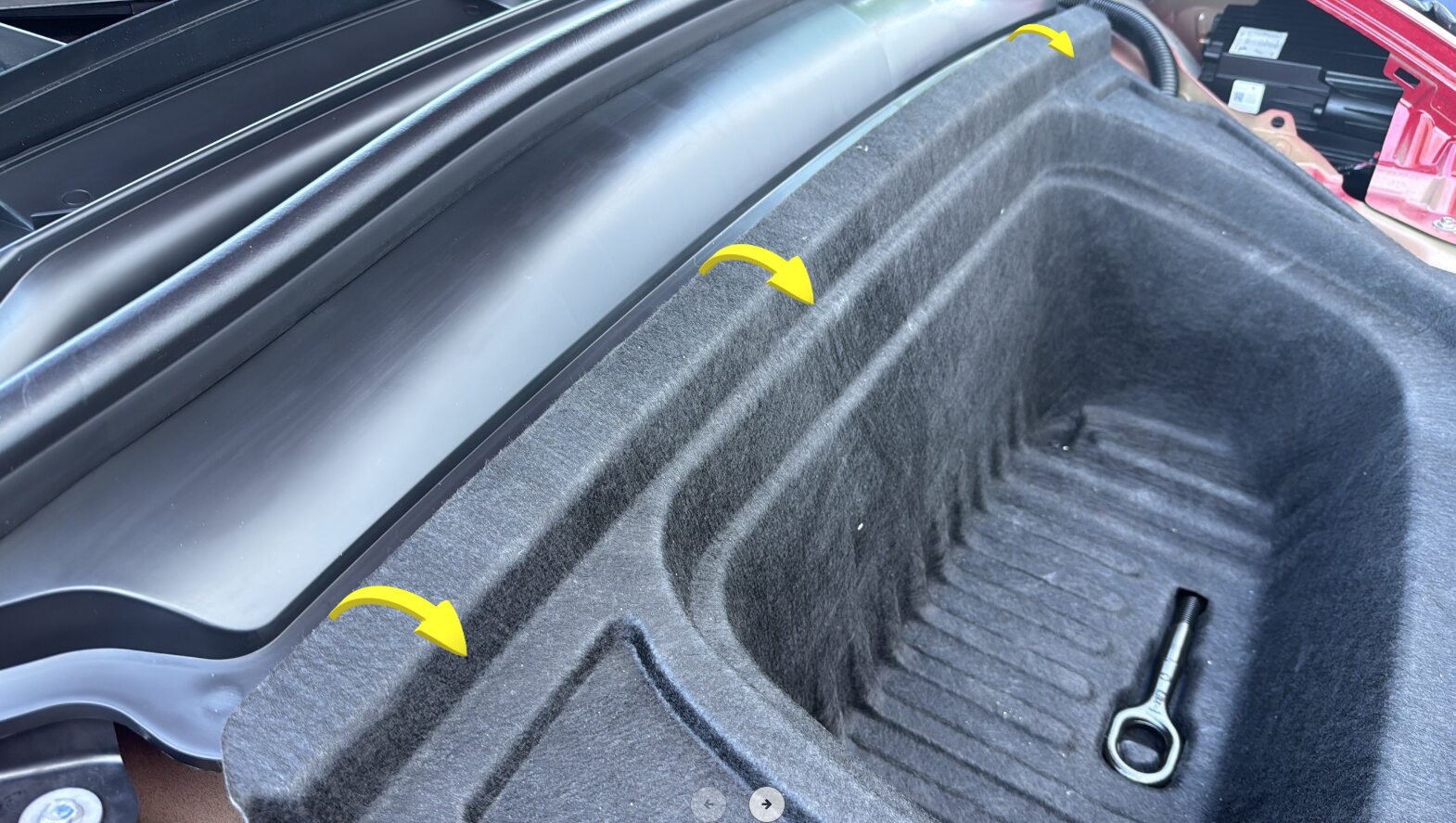

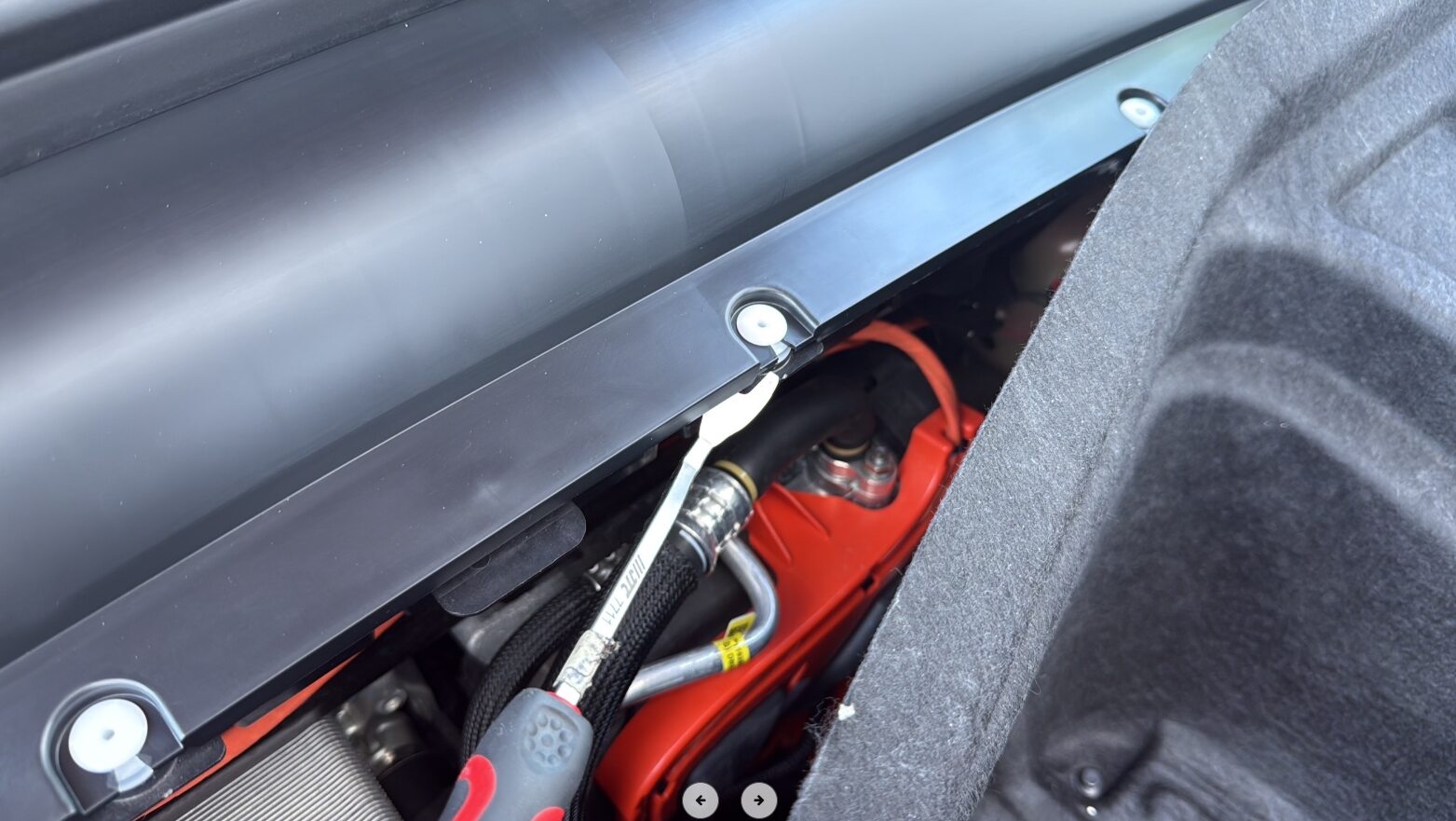

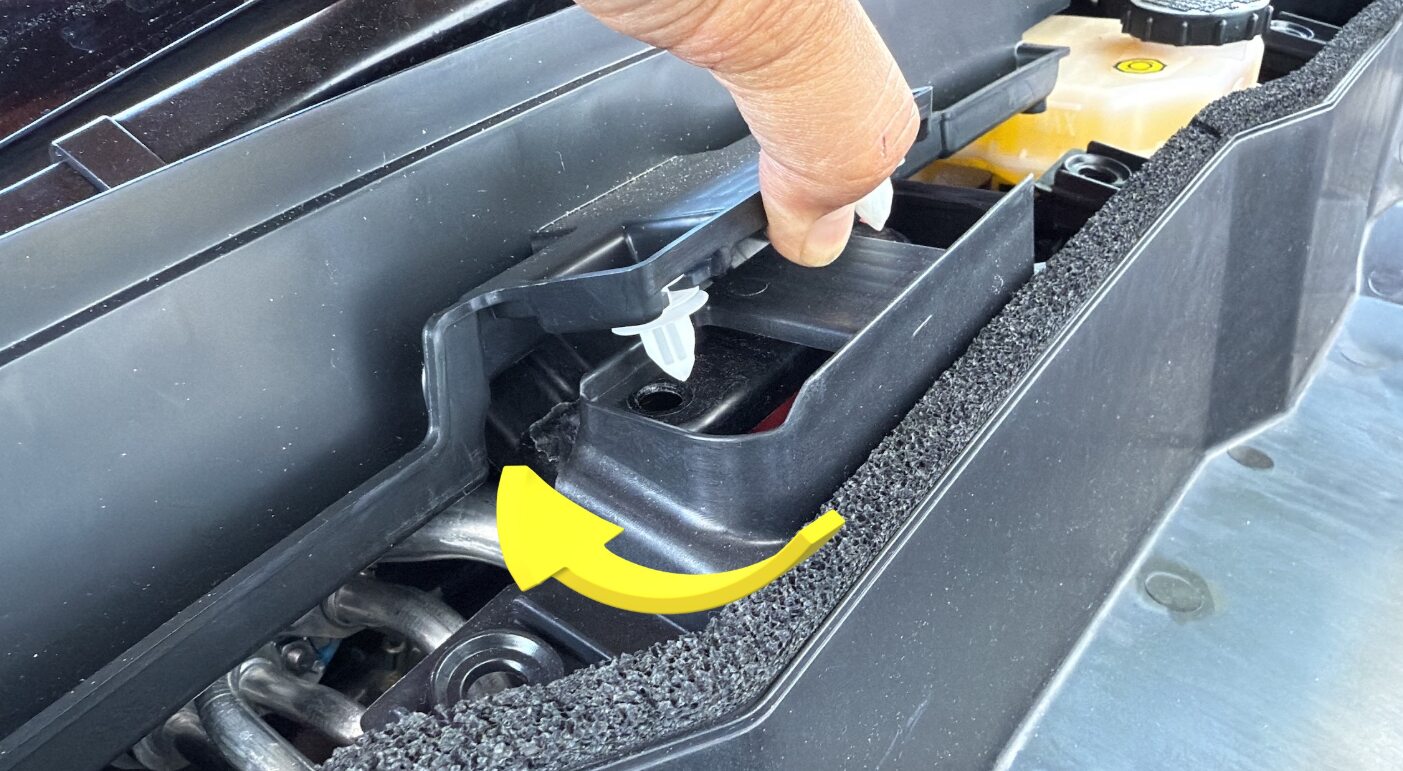

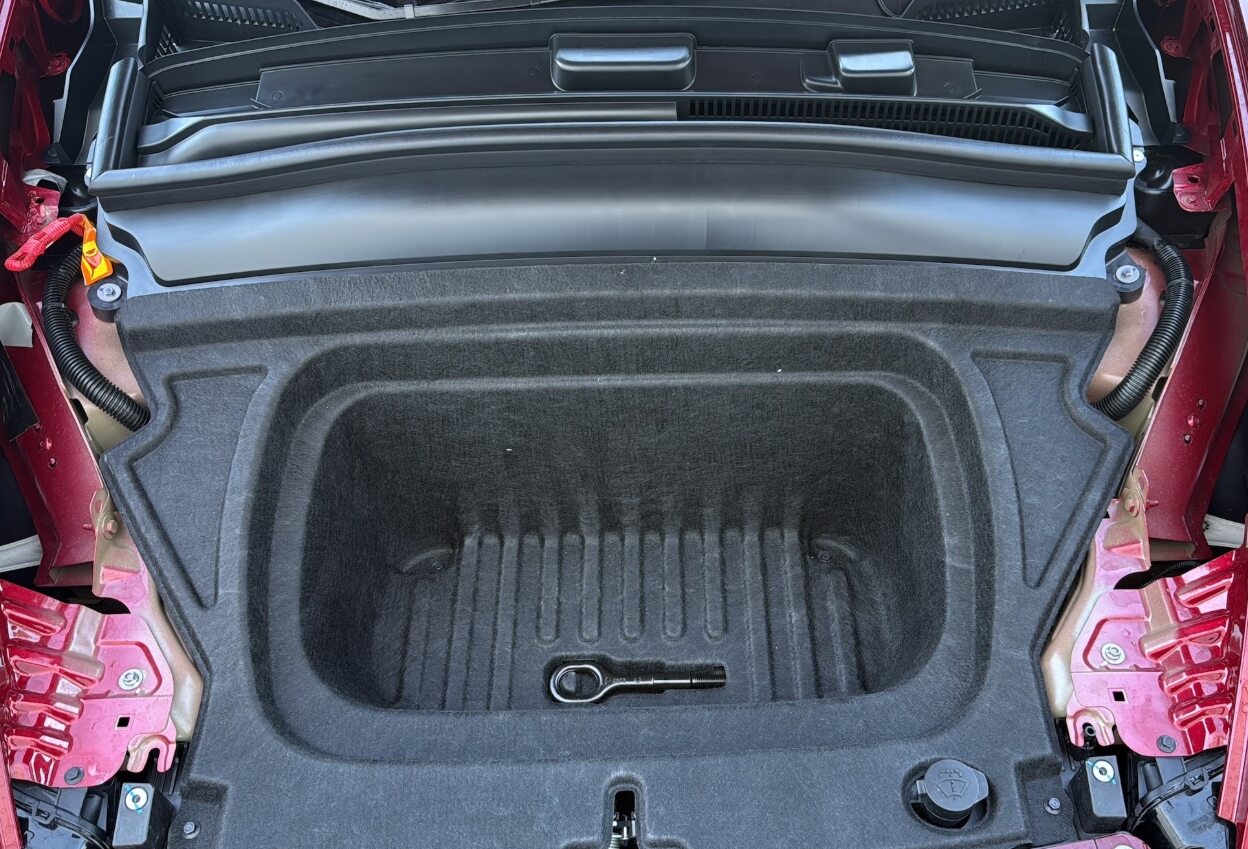

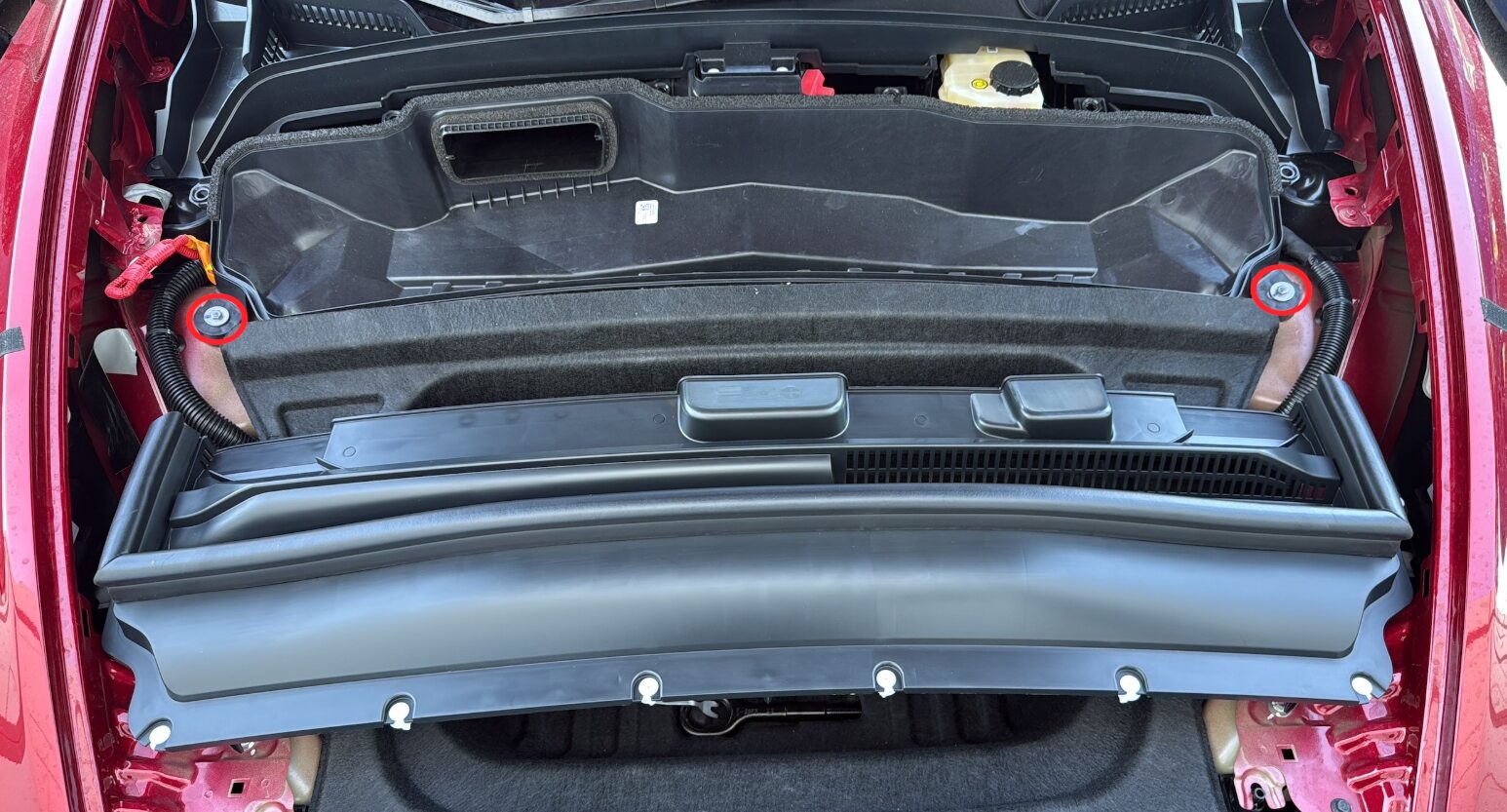

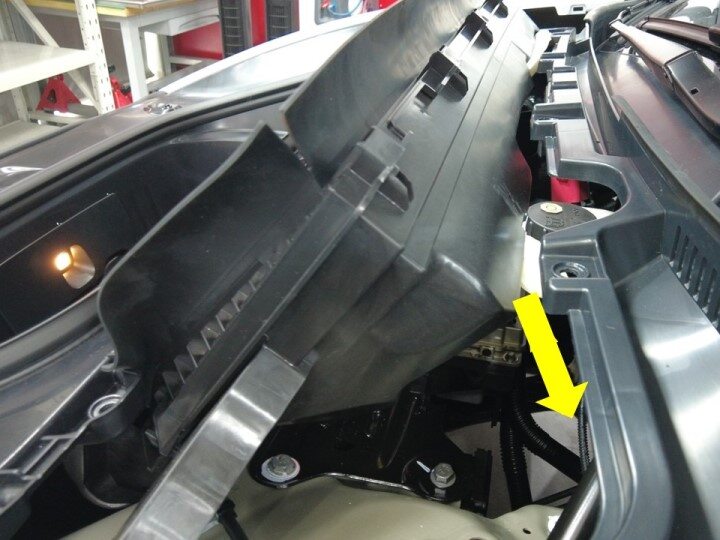

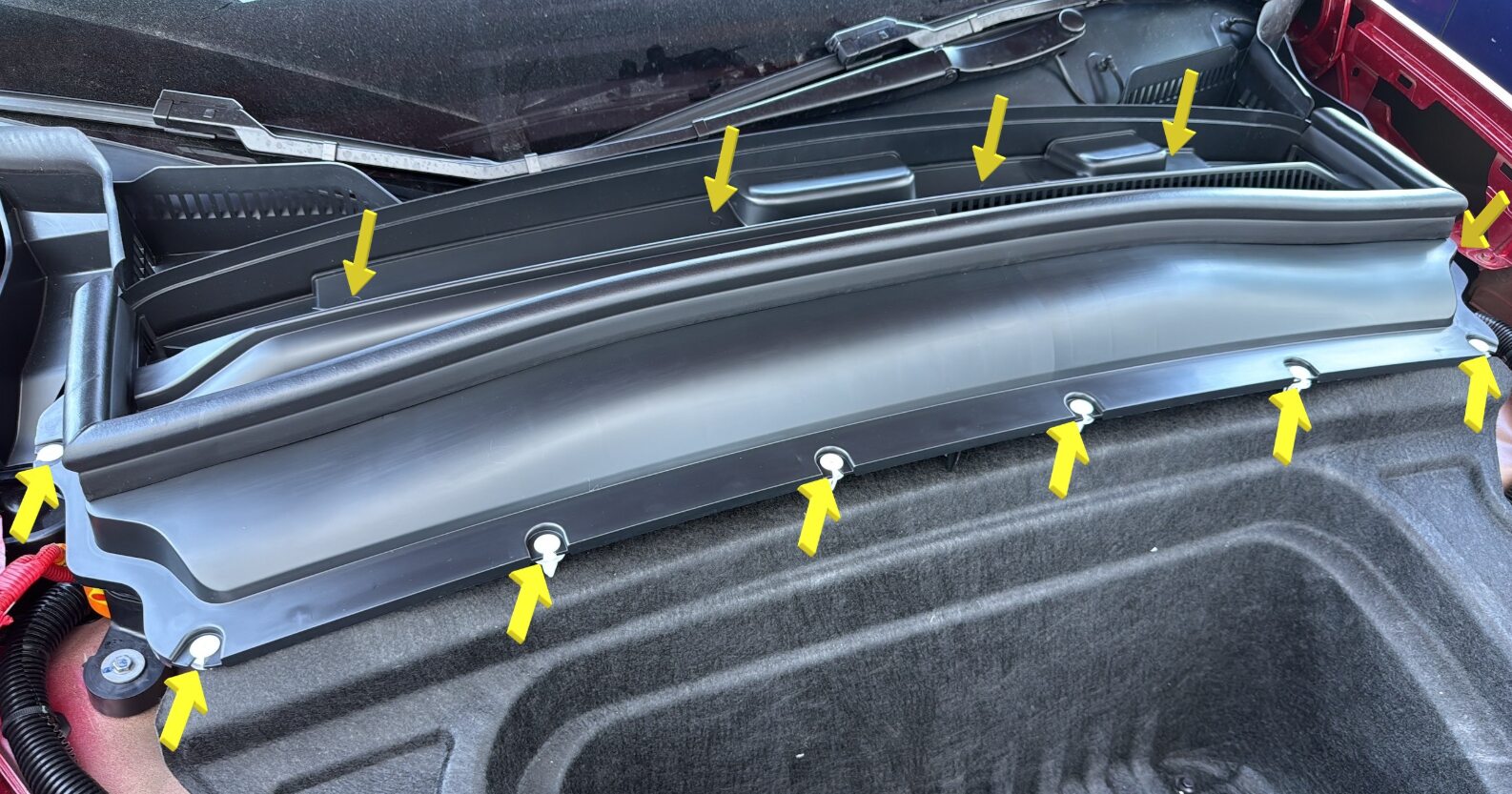

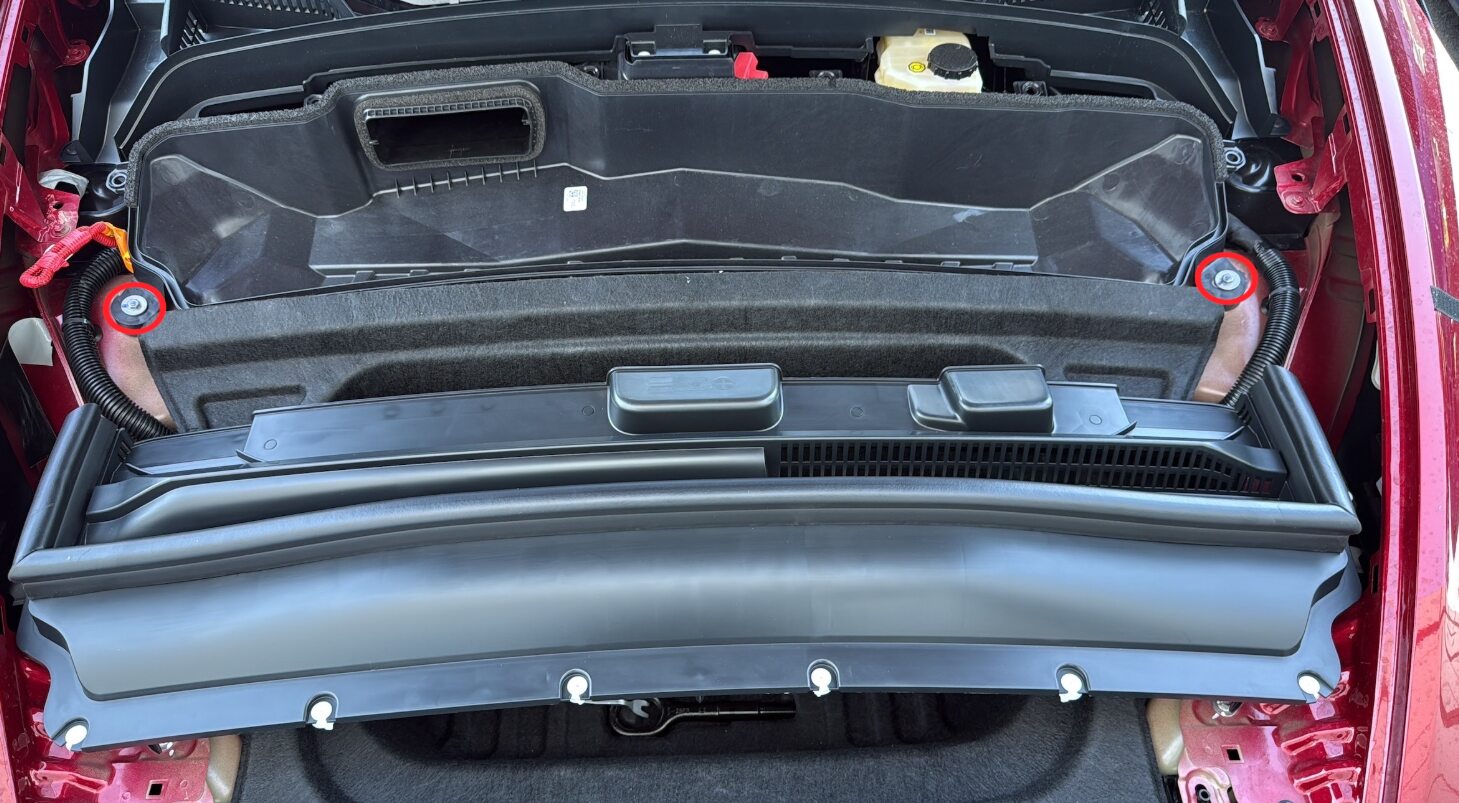

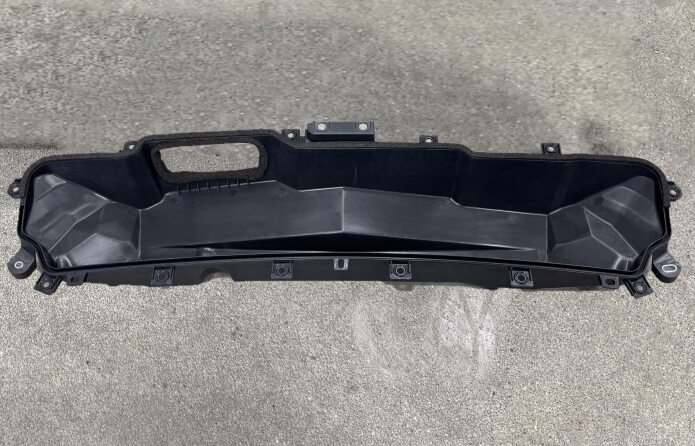

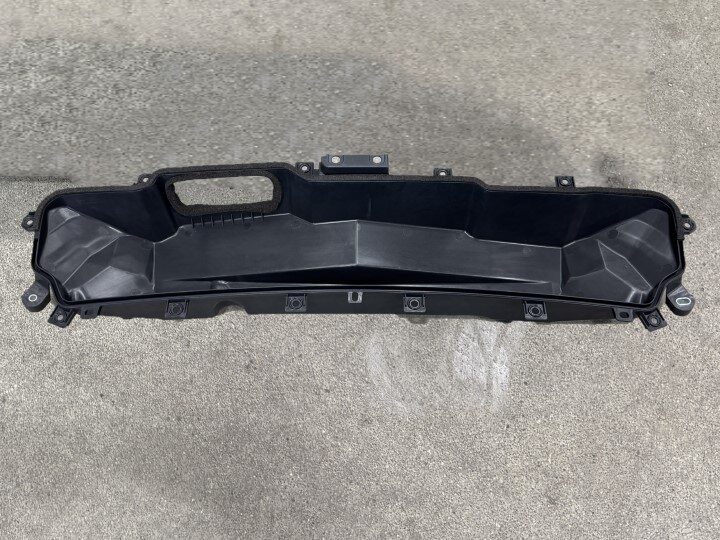

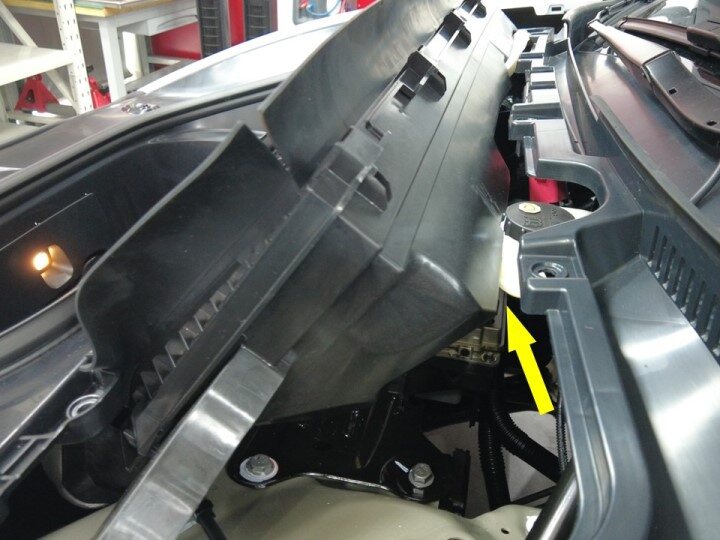

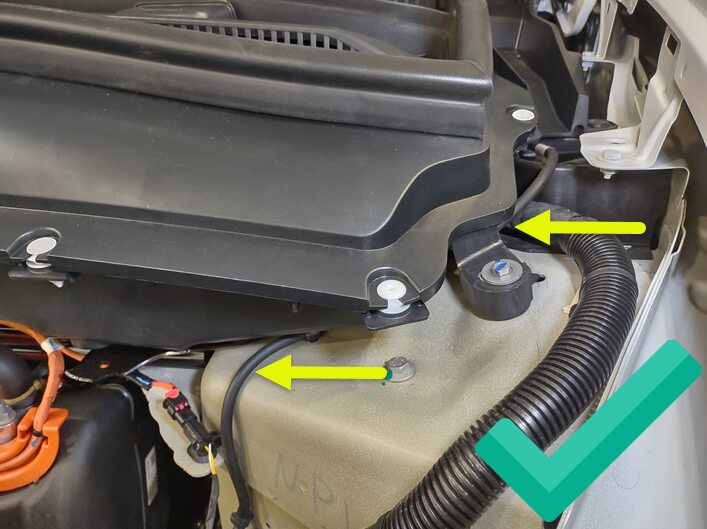

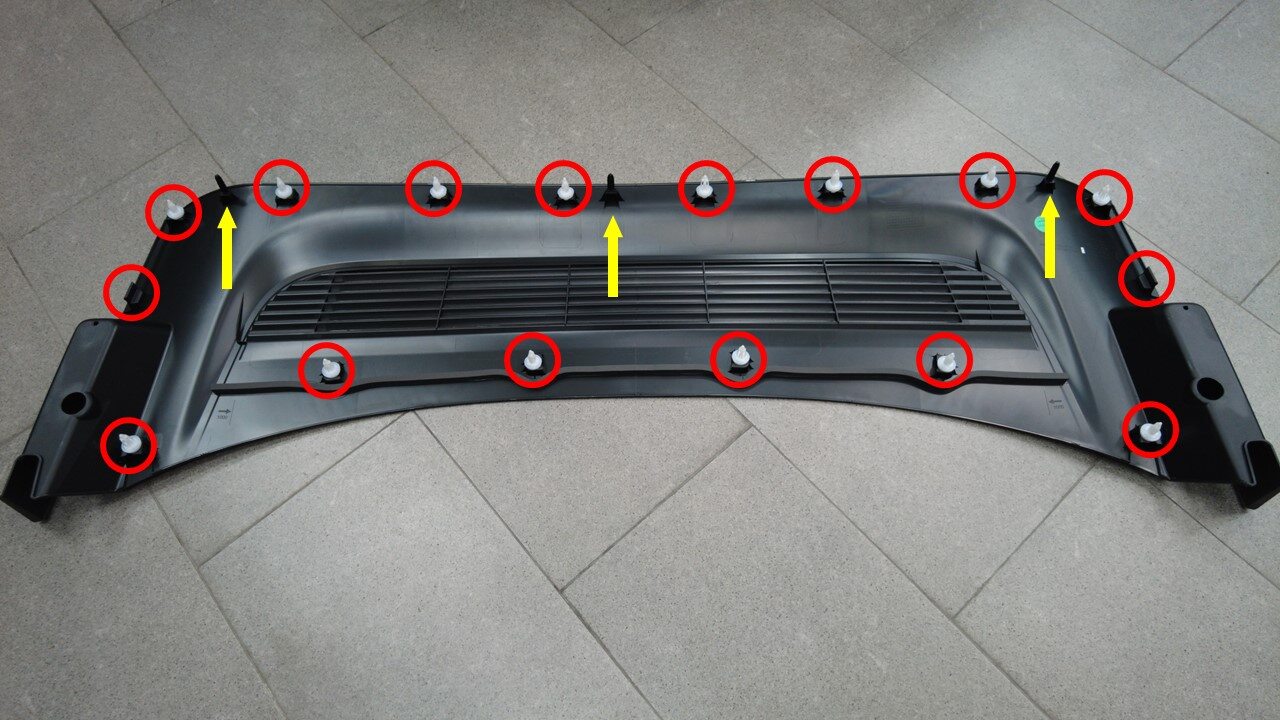

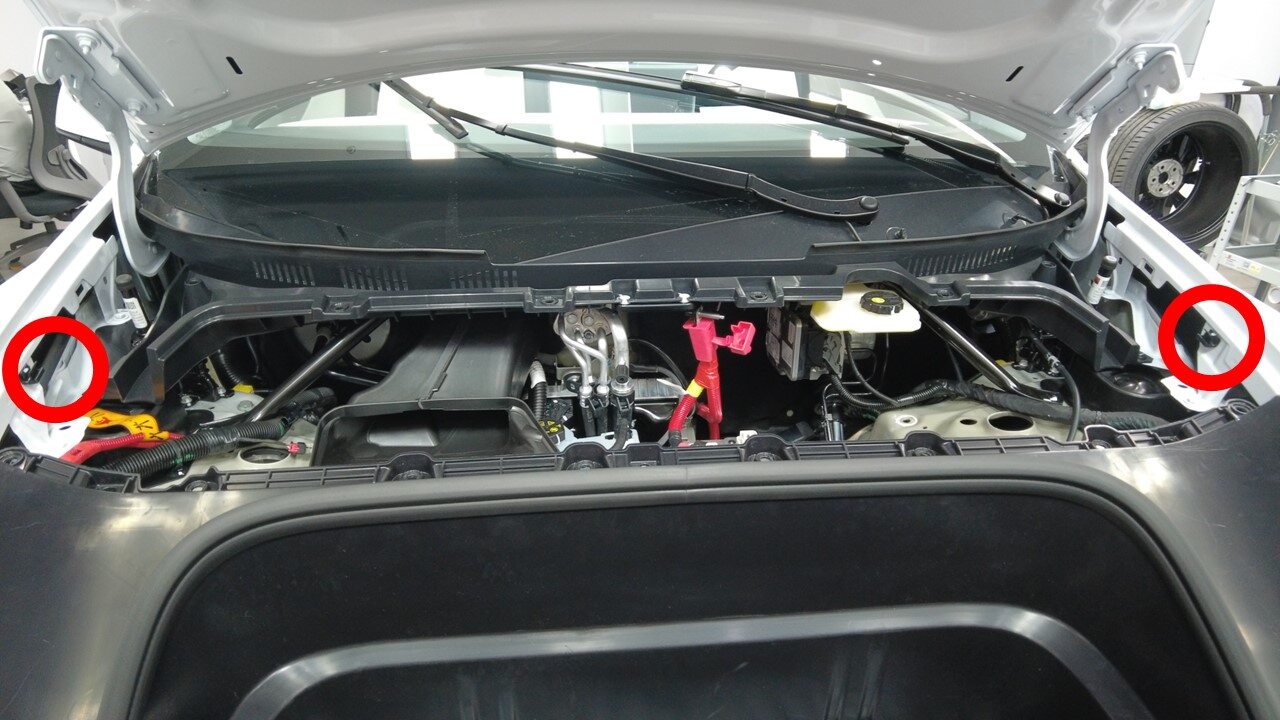

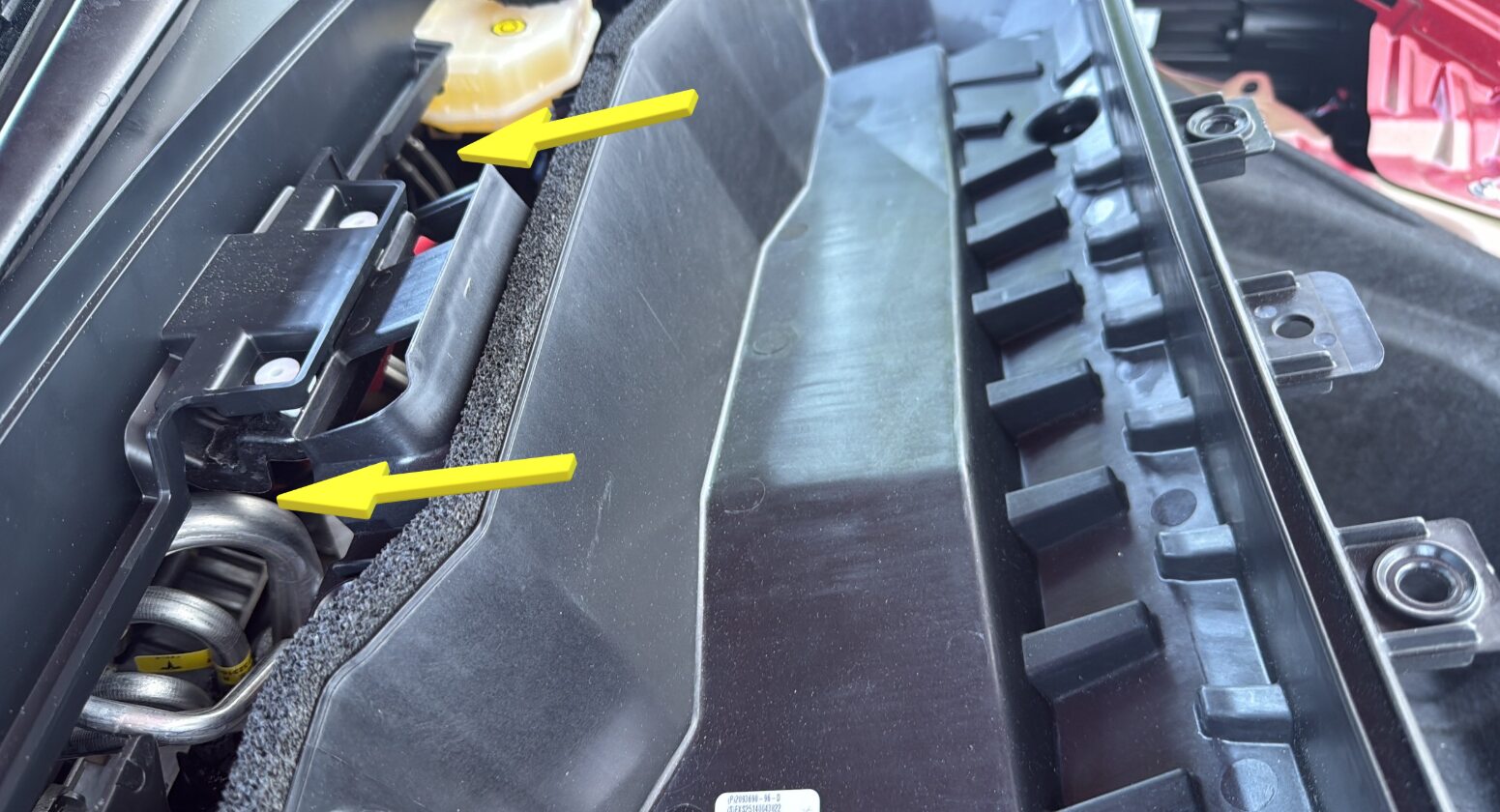

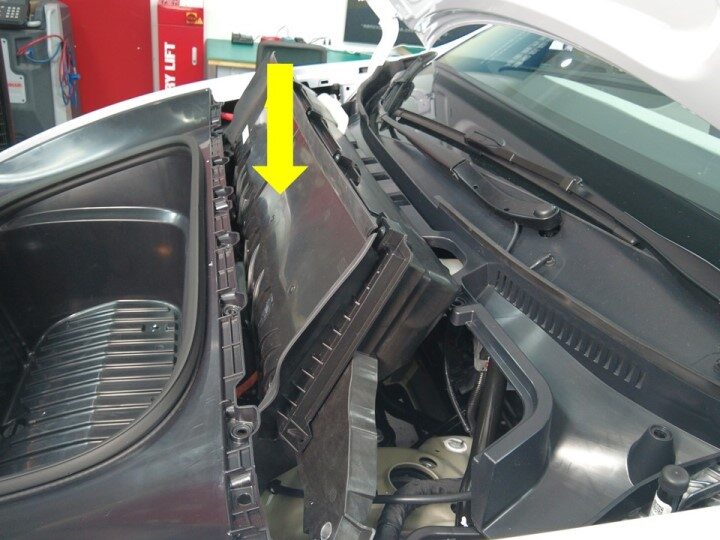

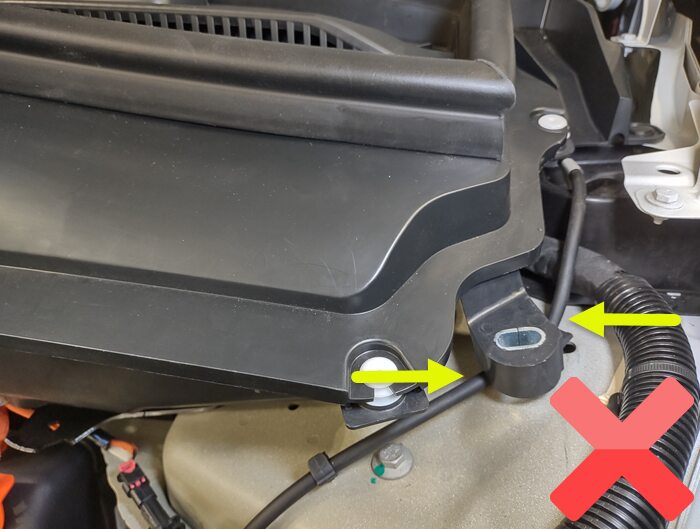

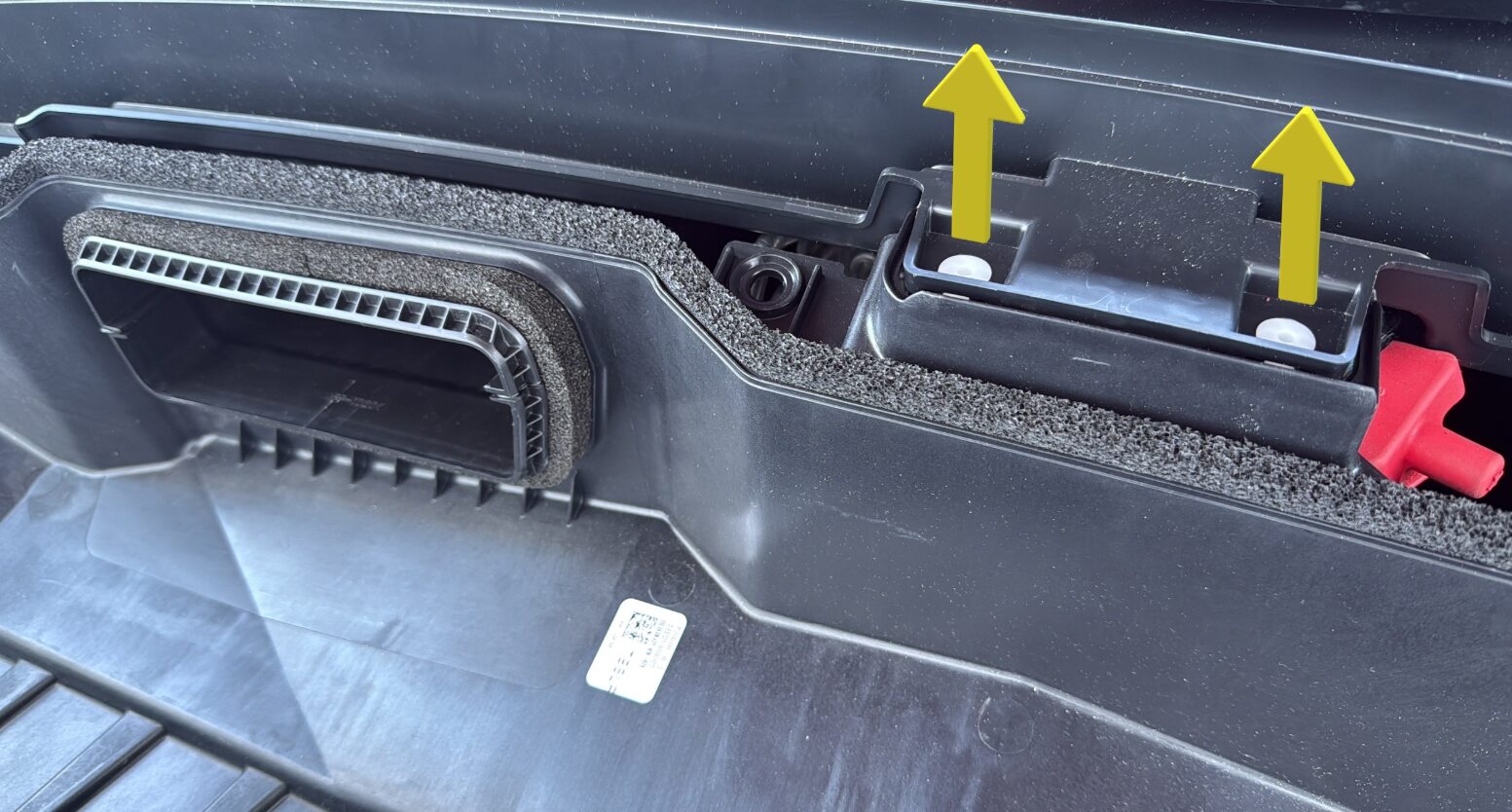

  21. Remove HEPA filter or big basin
    Informational PurposesAn informational icon, calling your attention
    Note
    Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Fold rear lip of base frunk forward to access forward cowl clips, Lift cowl clips to release basin bracket

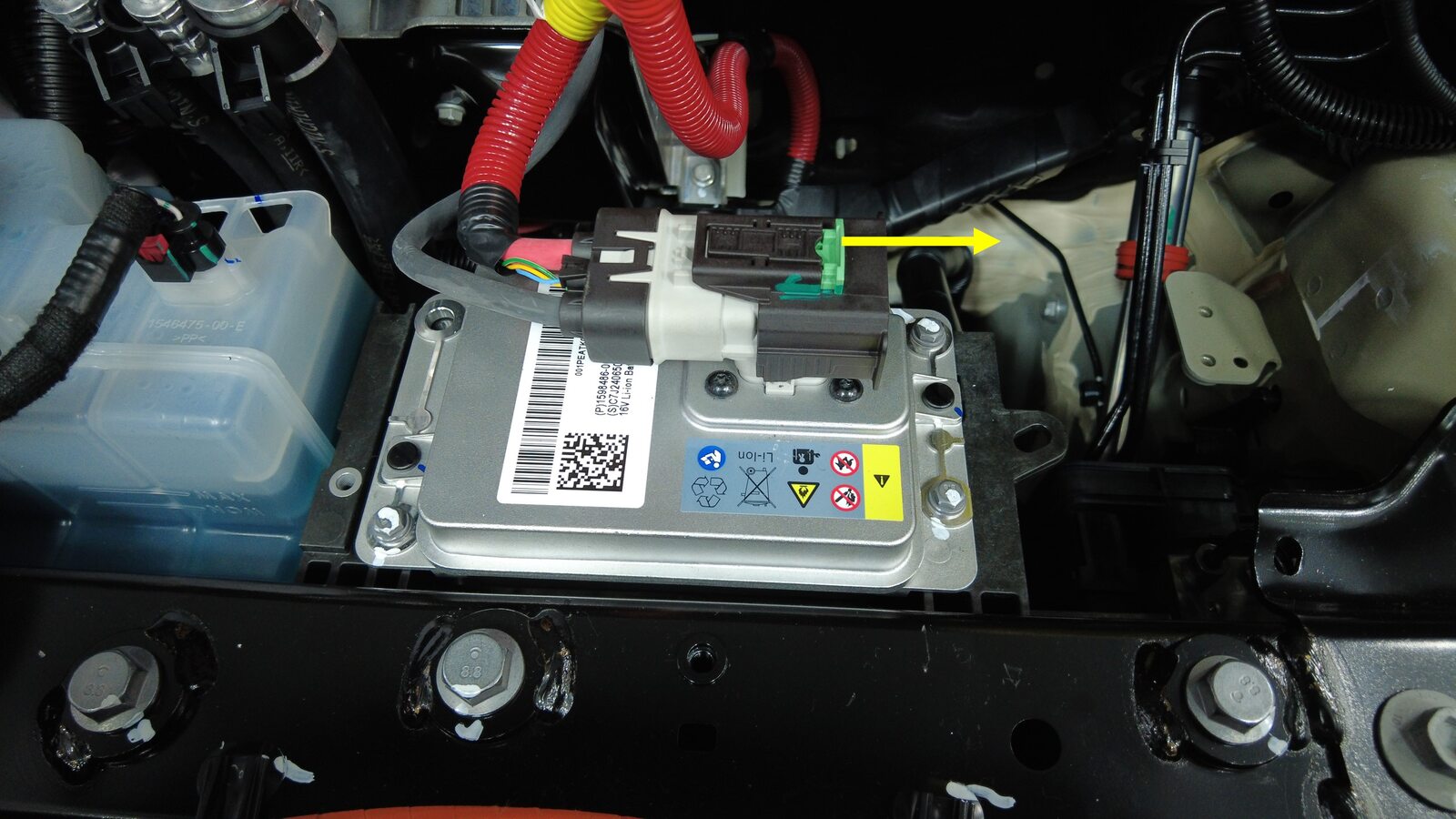

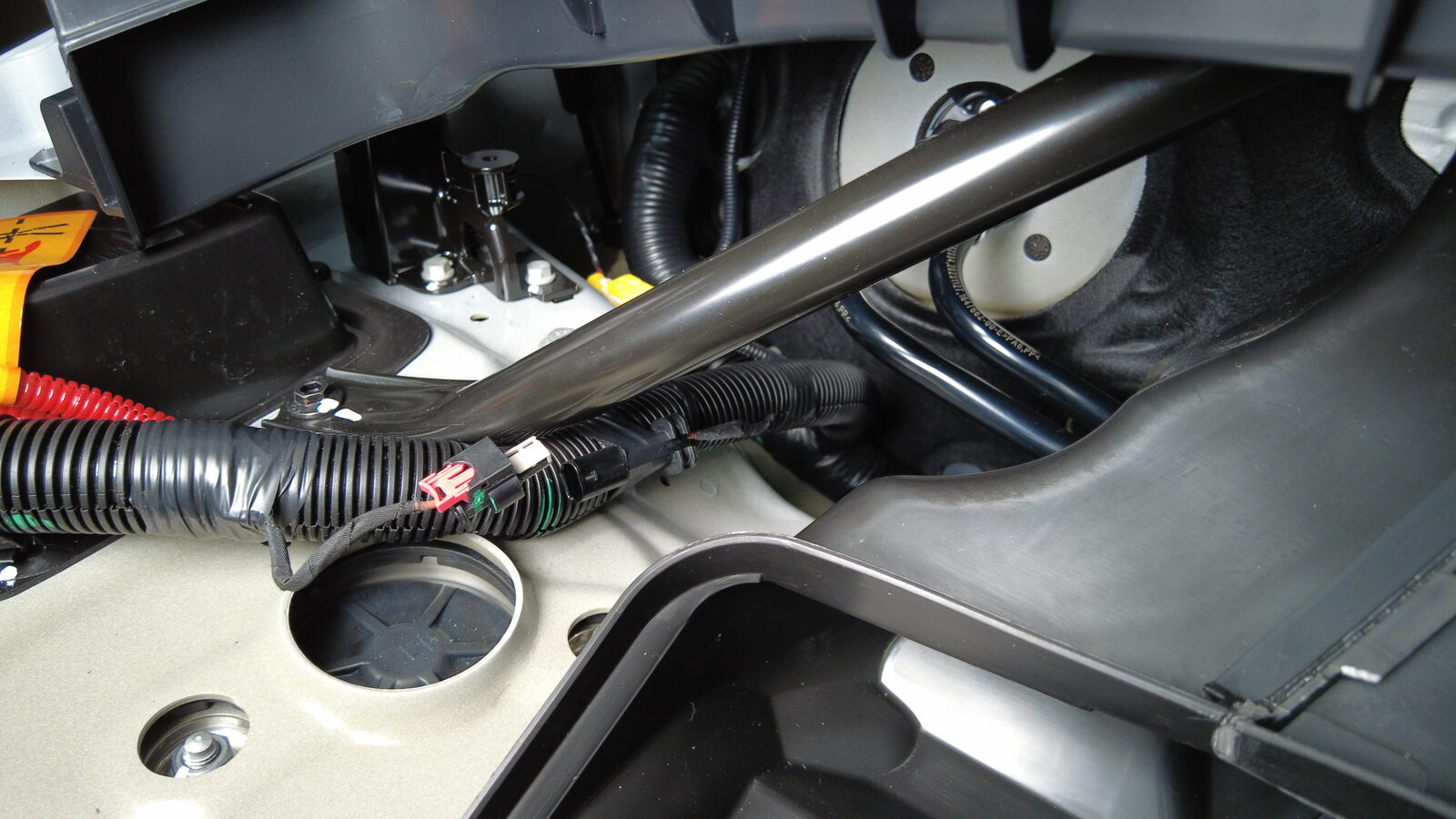

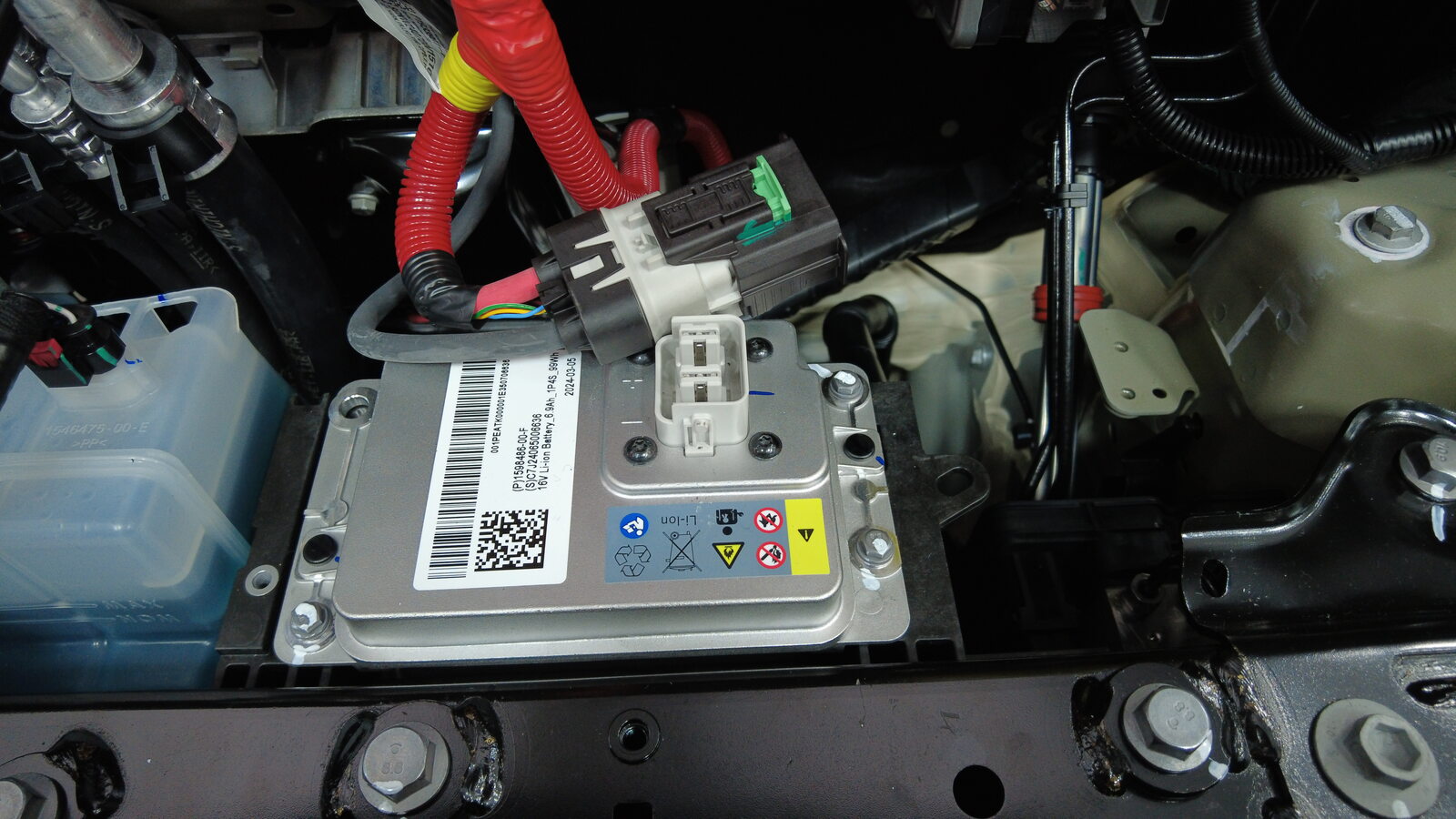

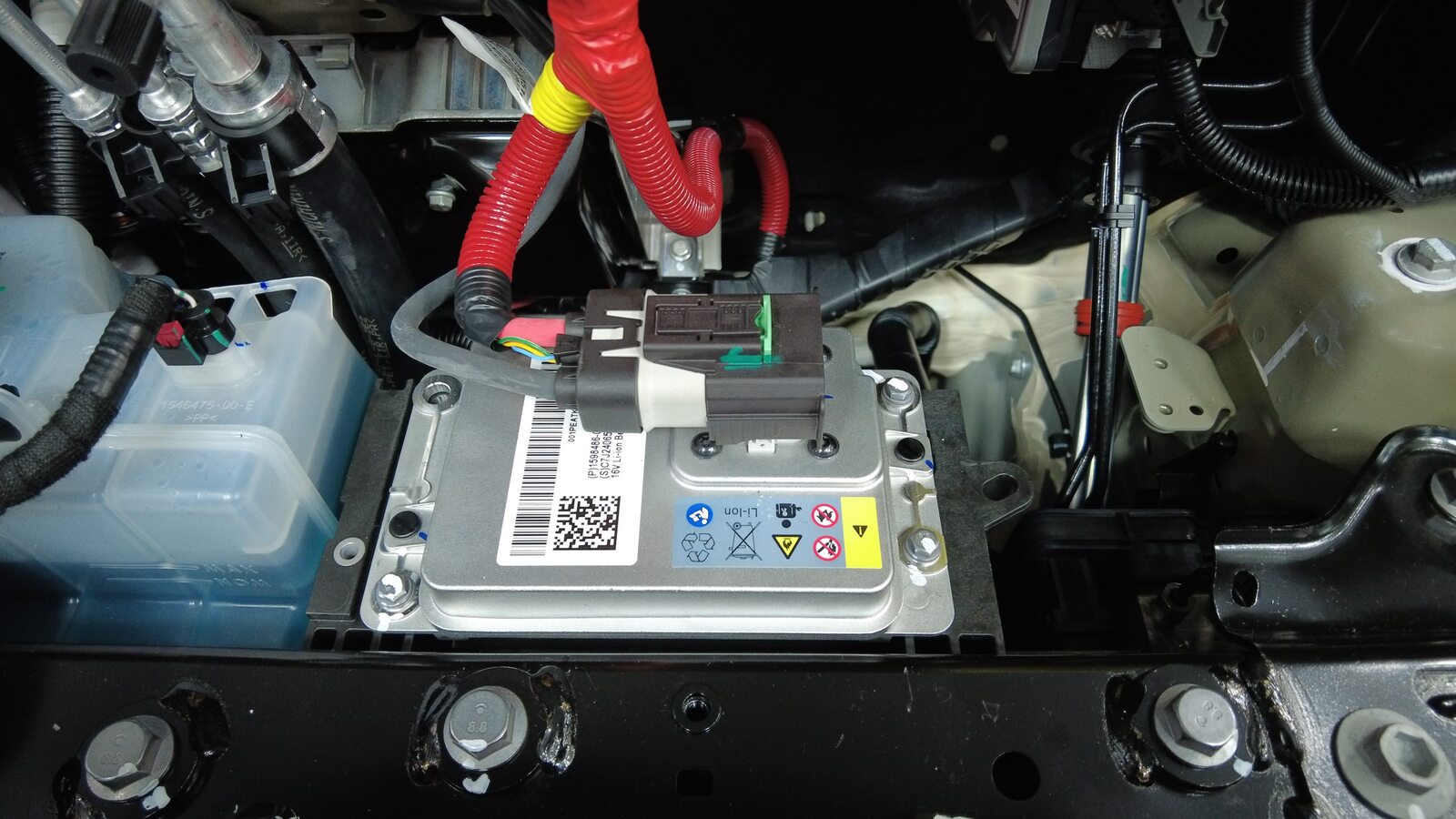

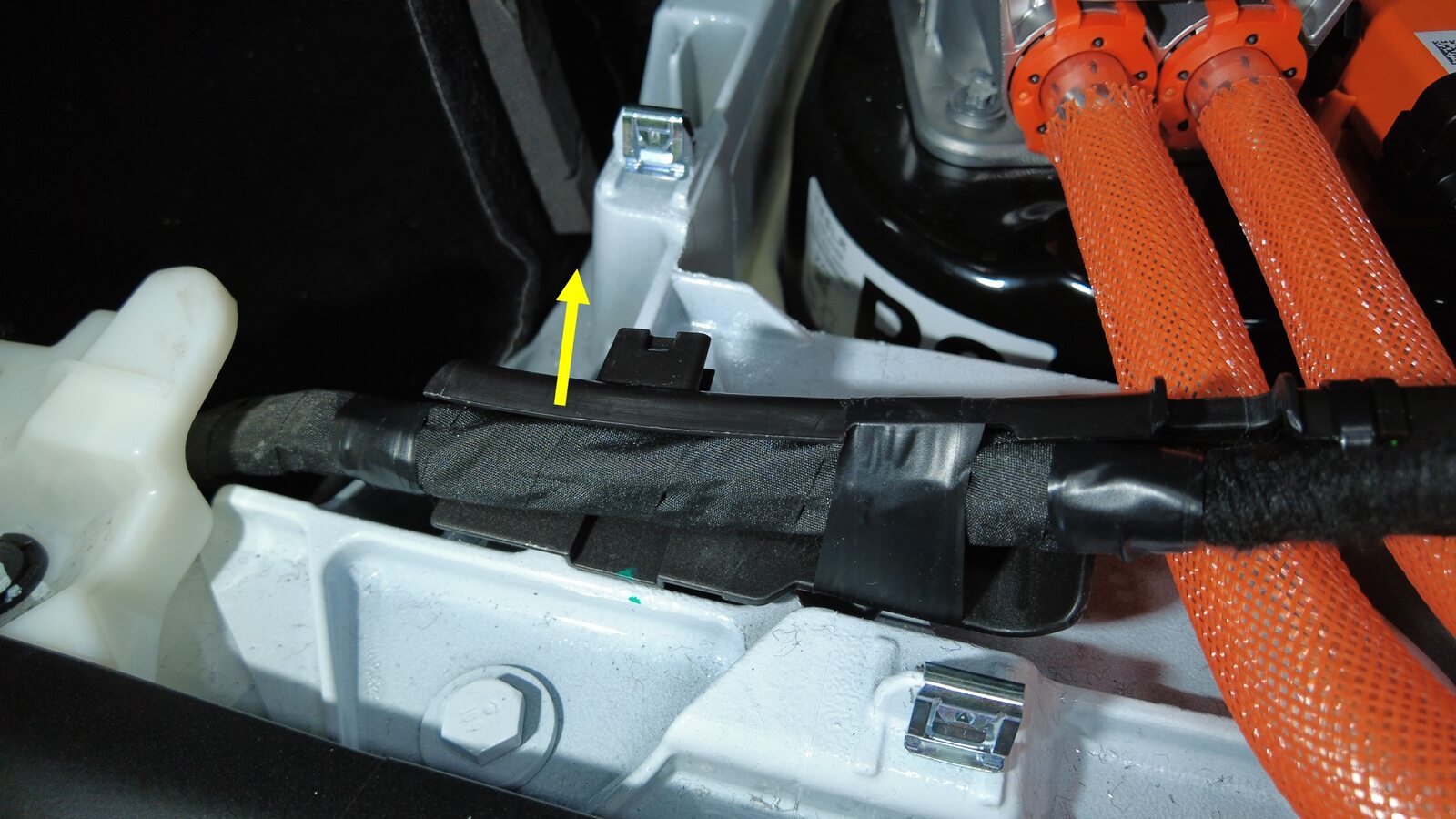

  22. Disconnect LV battery and first responder loop
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

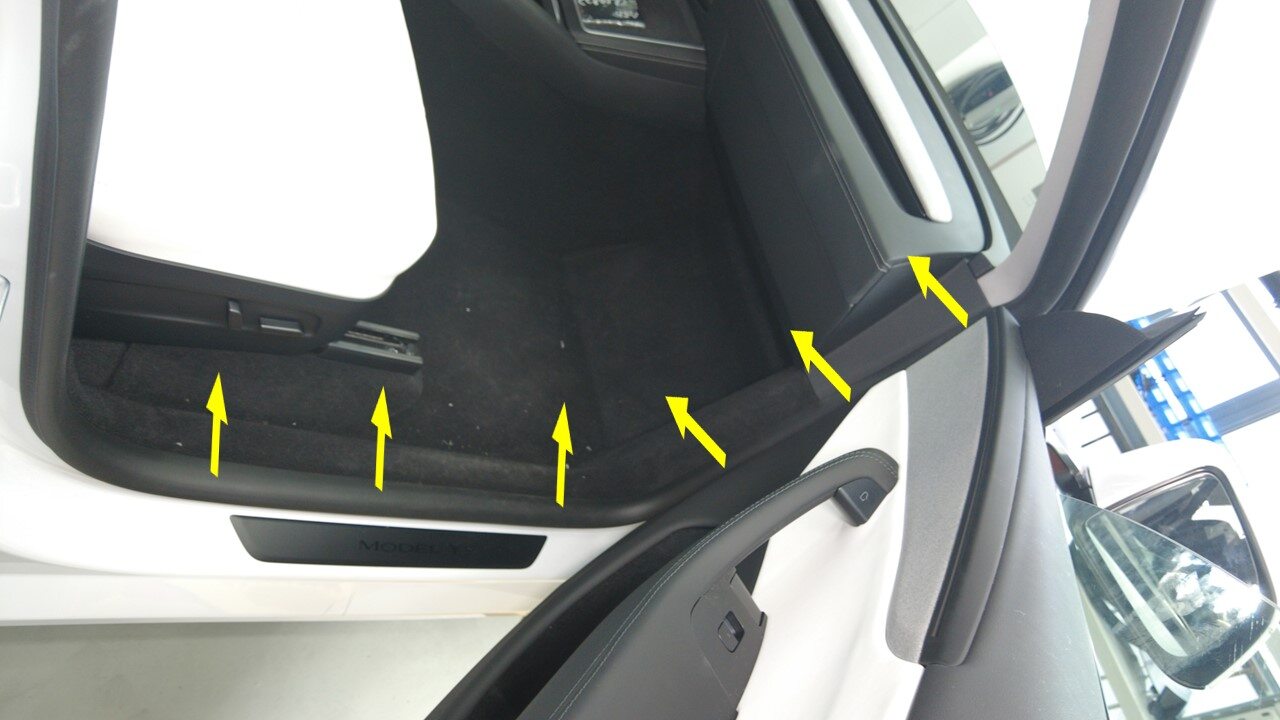

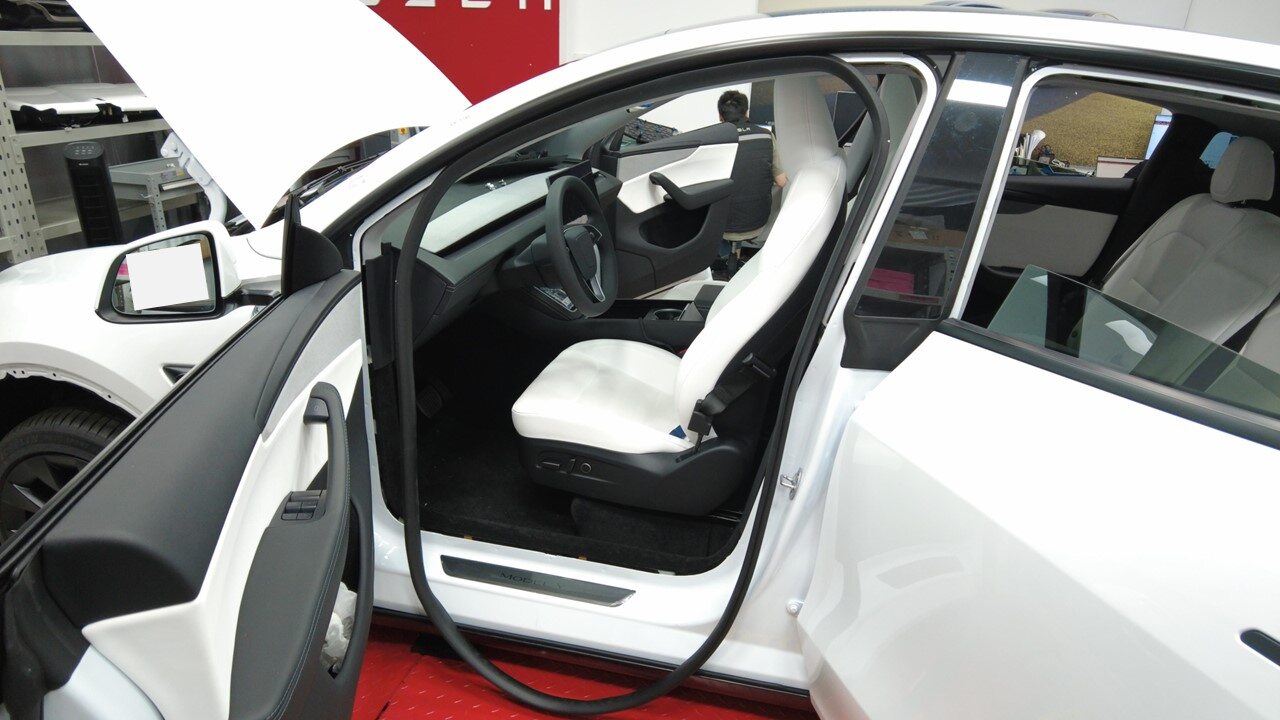

  23. Partially remove LH front primary door seal from body

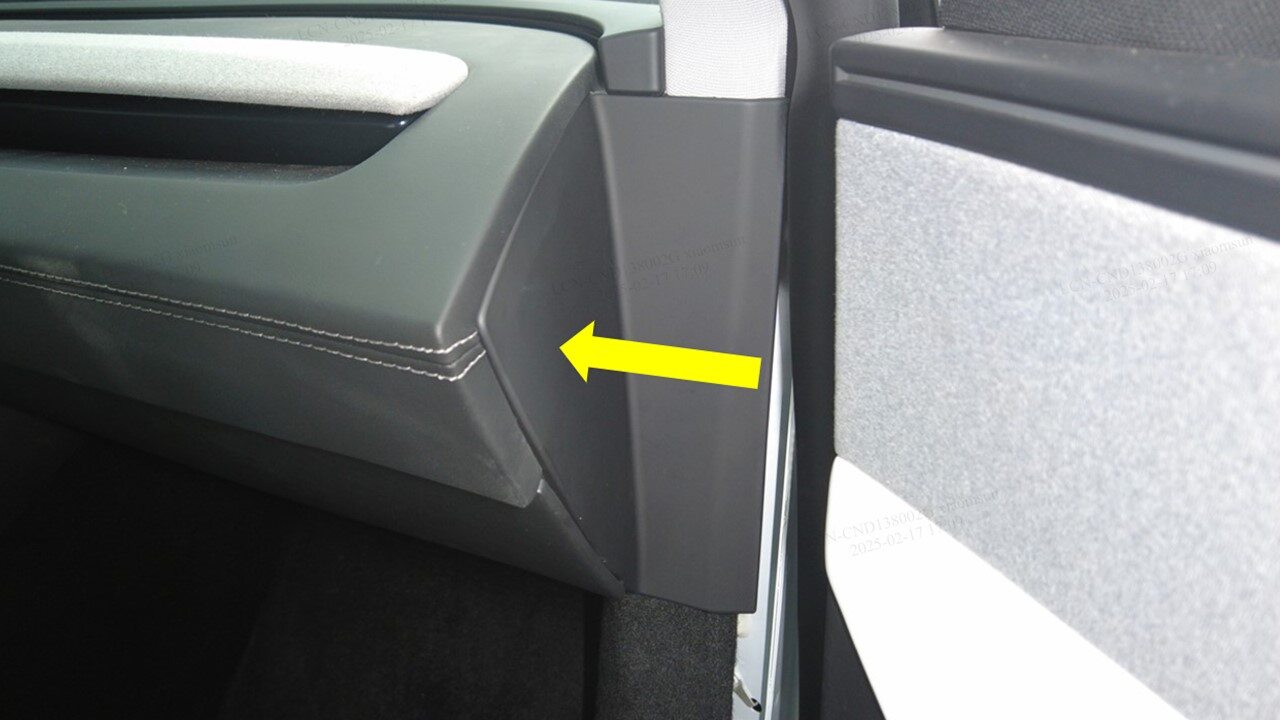

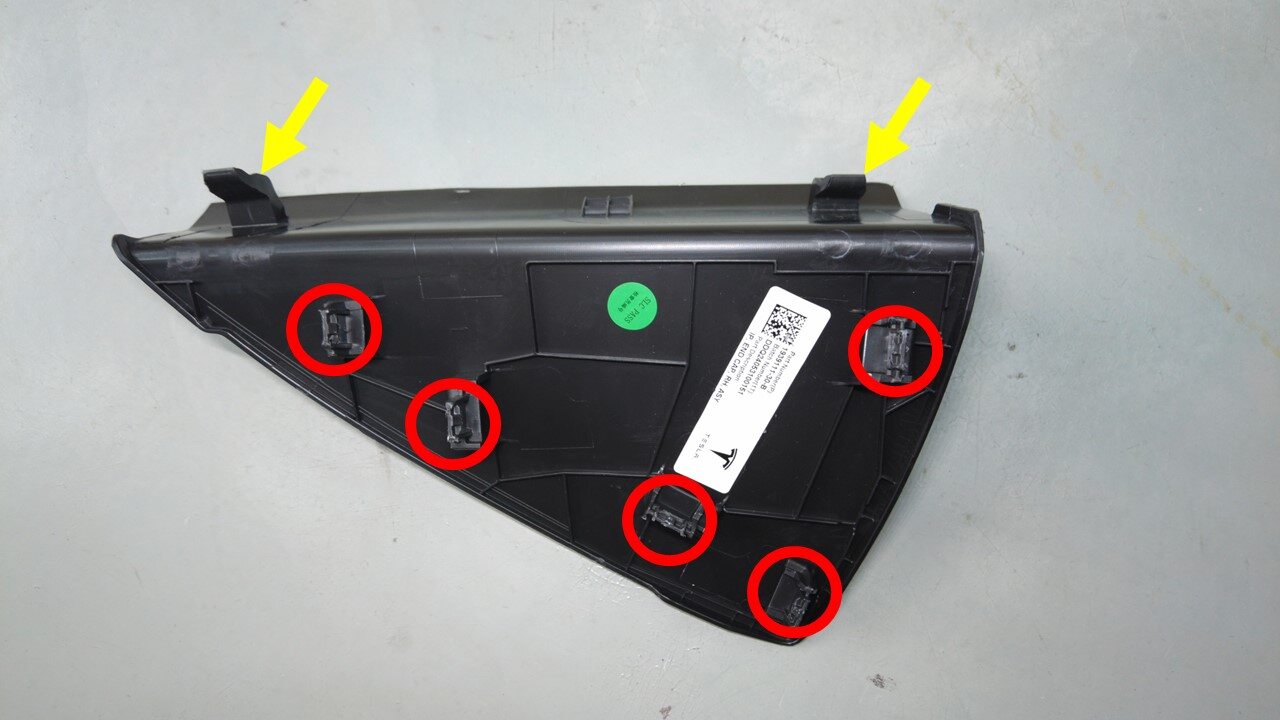

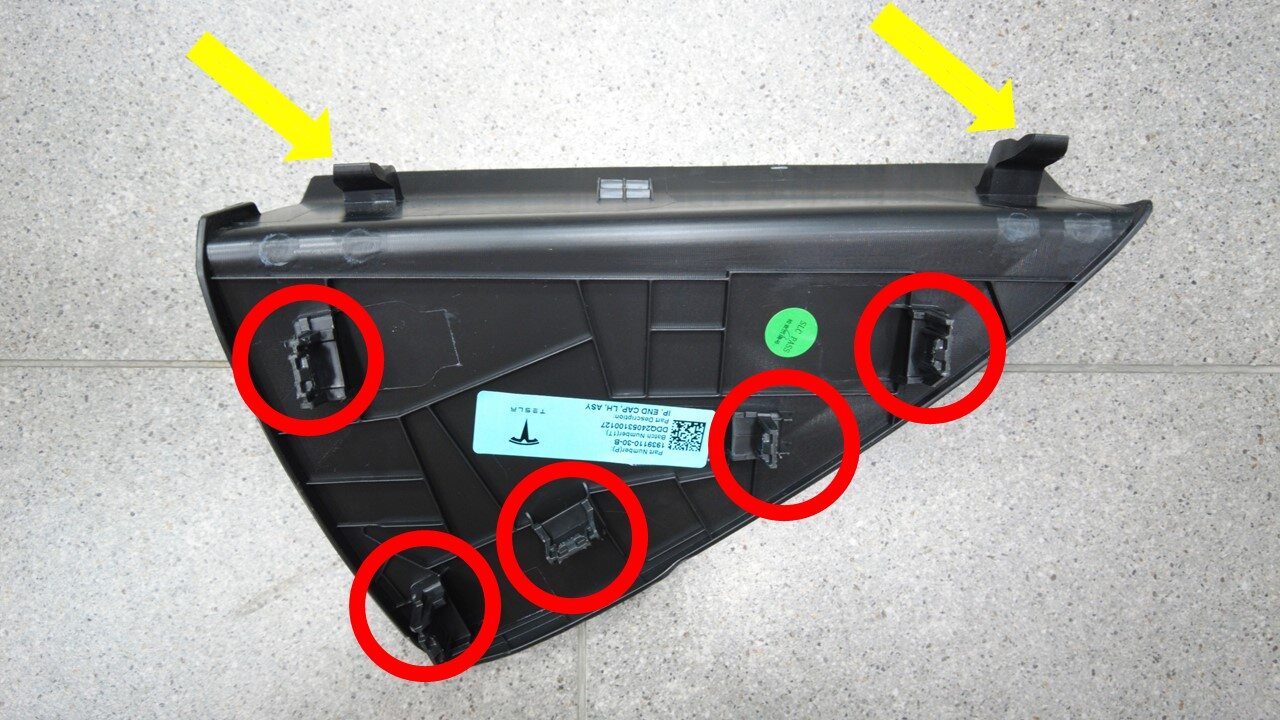

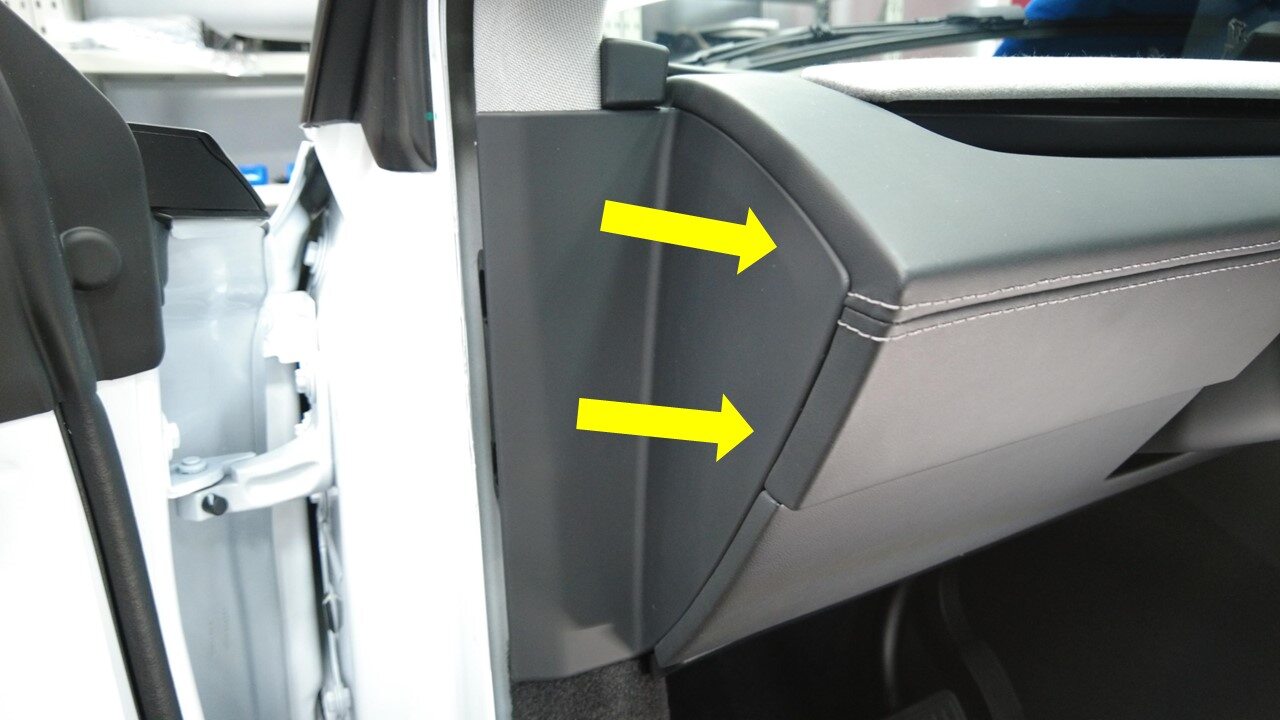

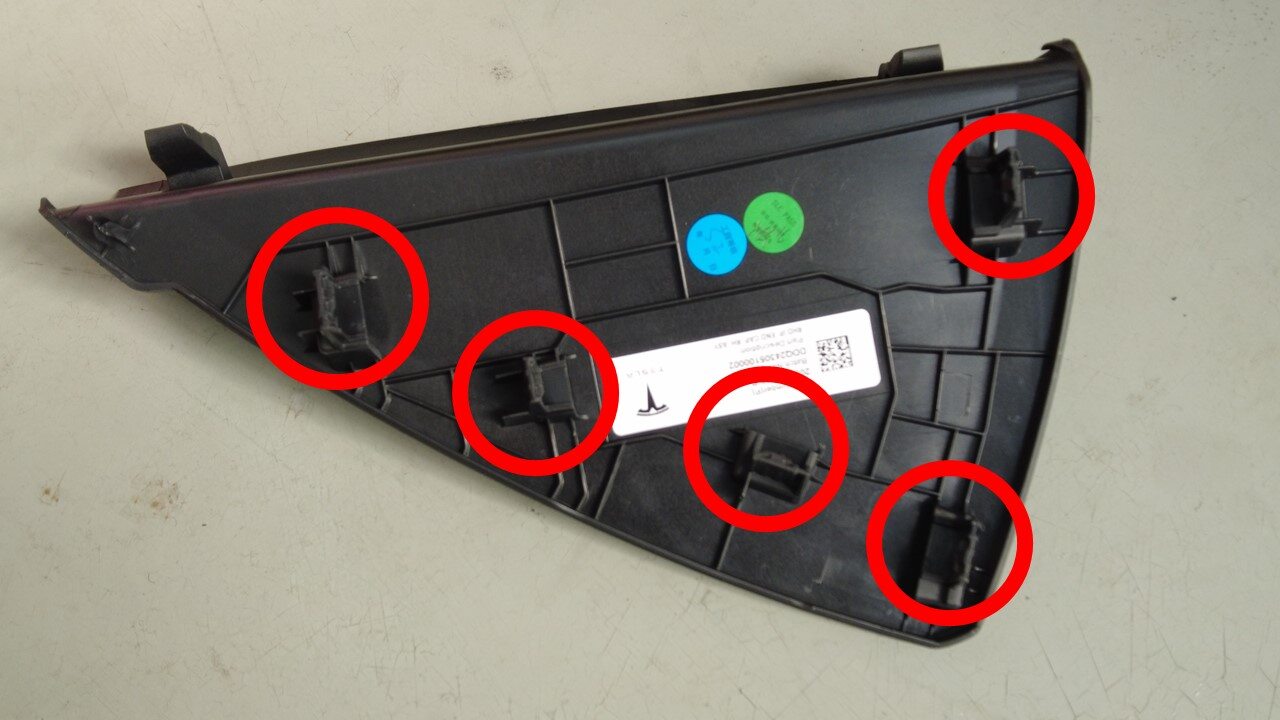

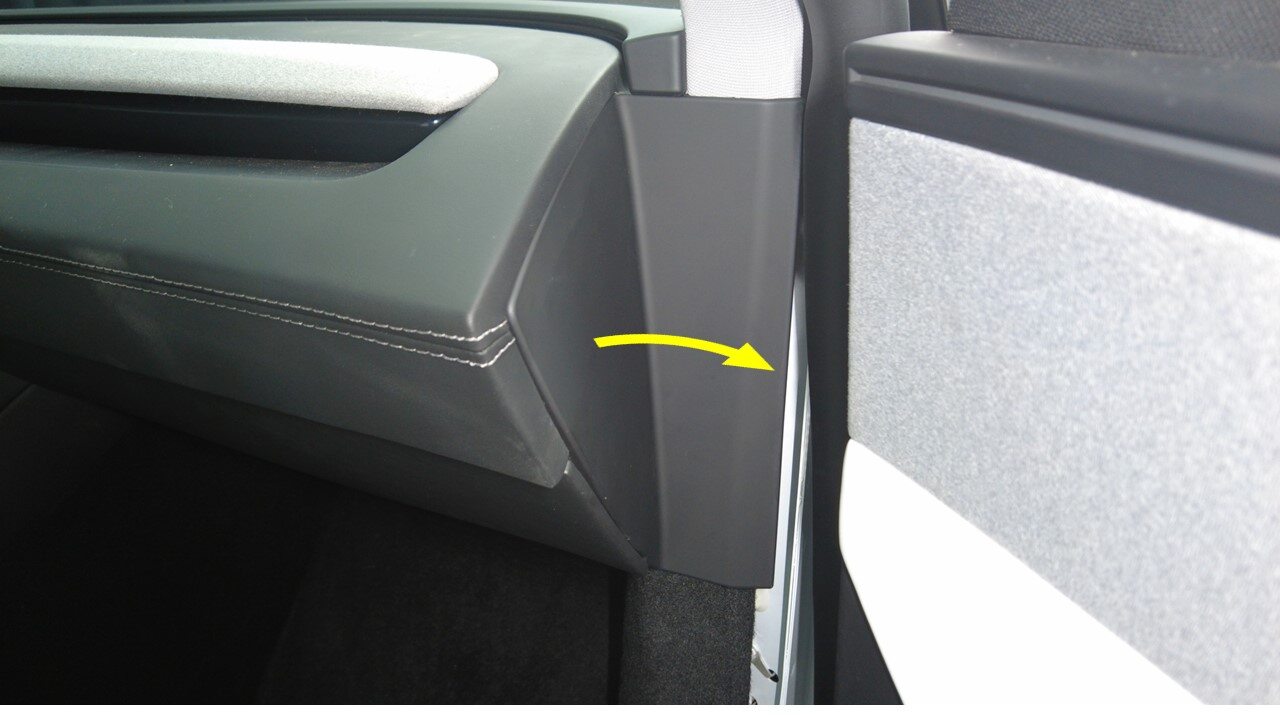

  24. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 2x guide tabs

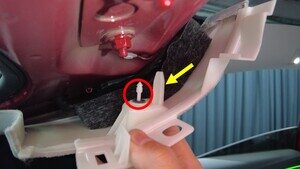

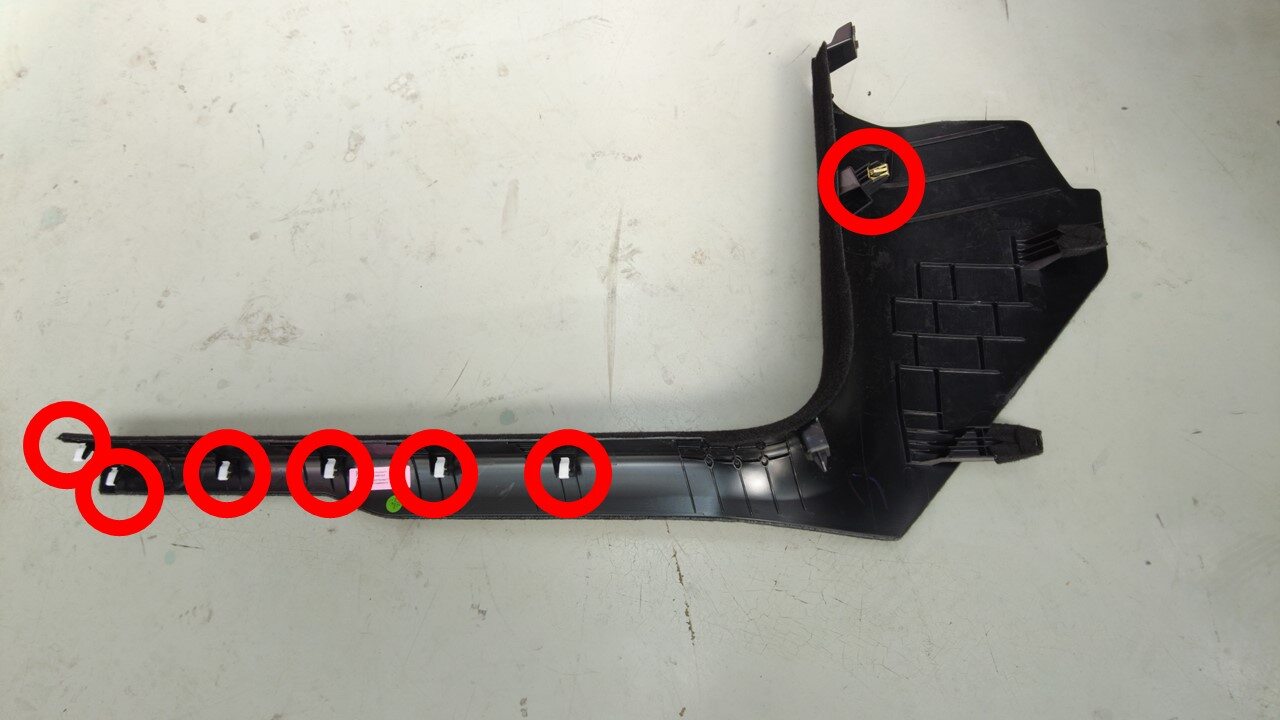

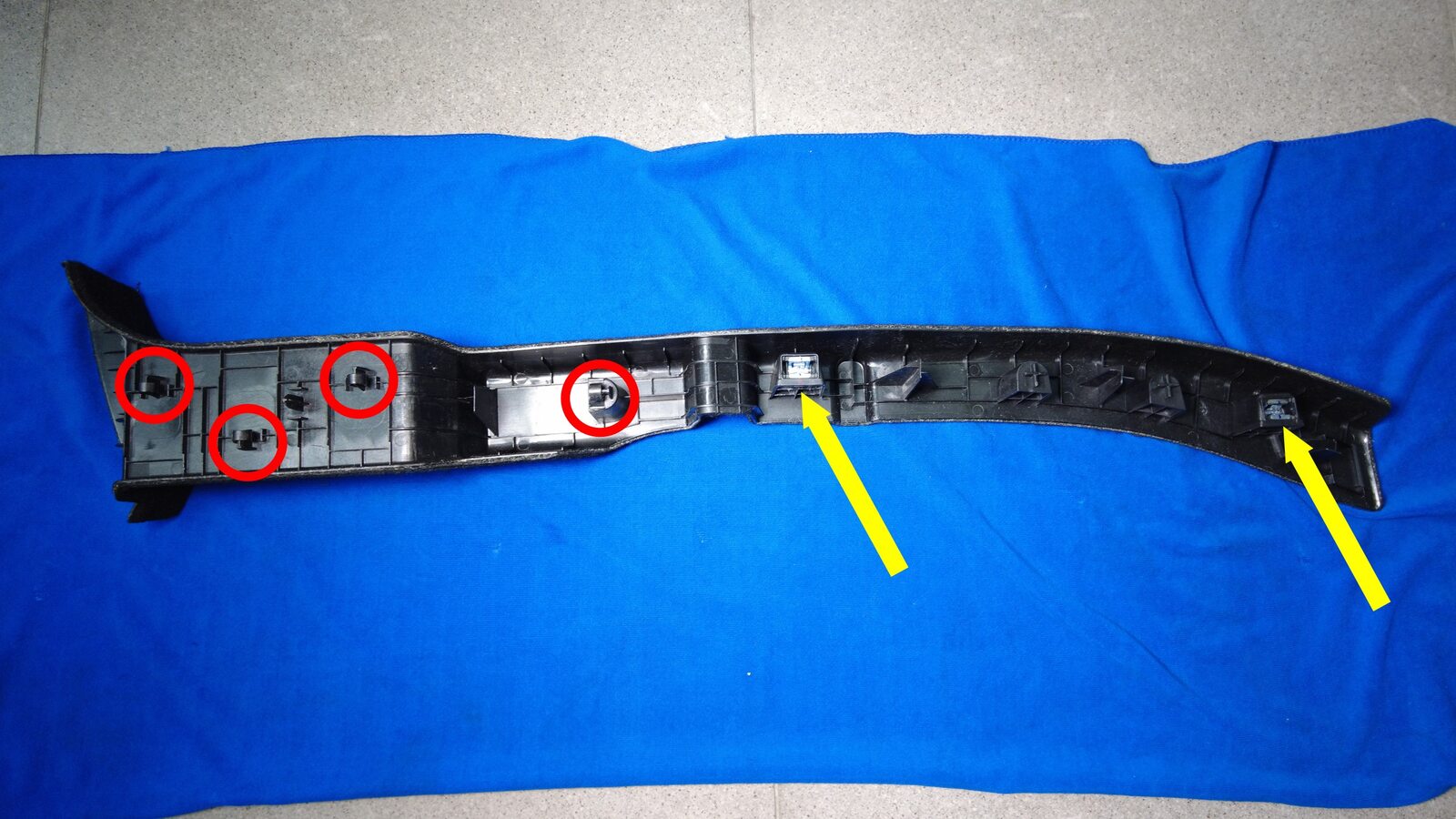

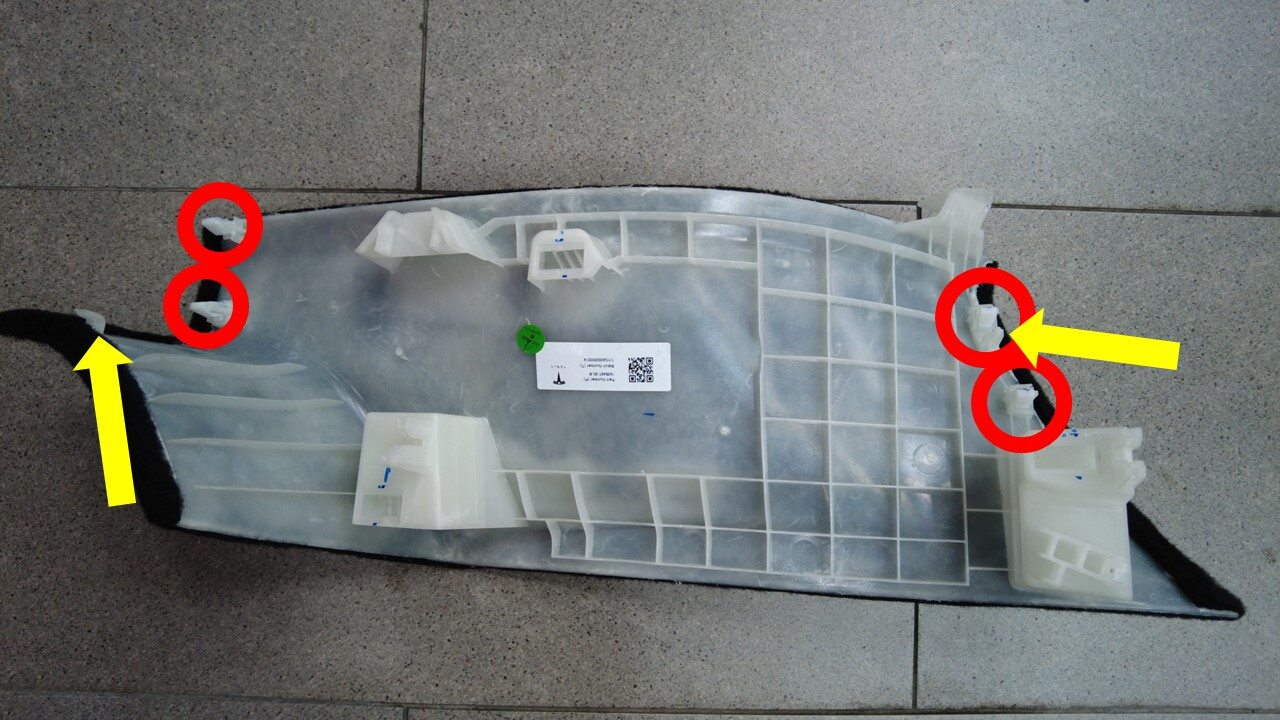

  25. Remove LH lower A pillar trim from body
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips,4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet

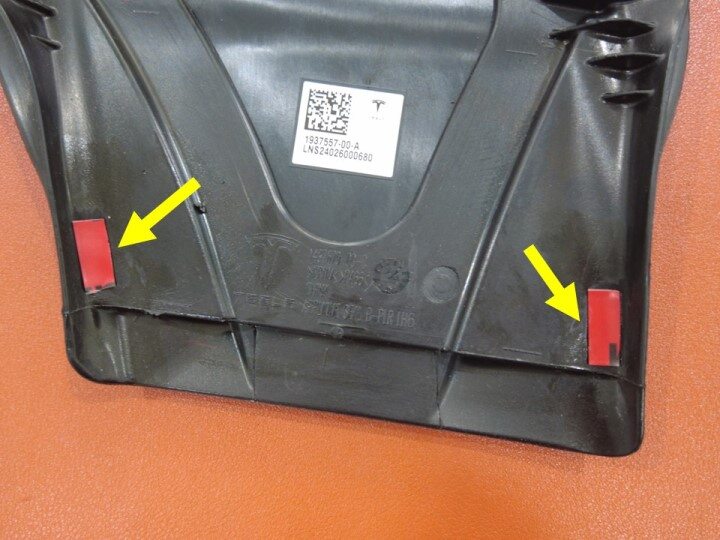

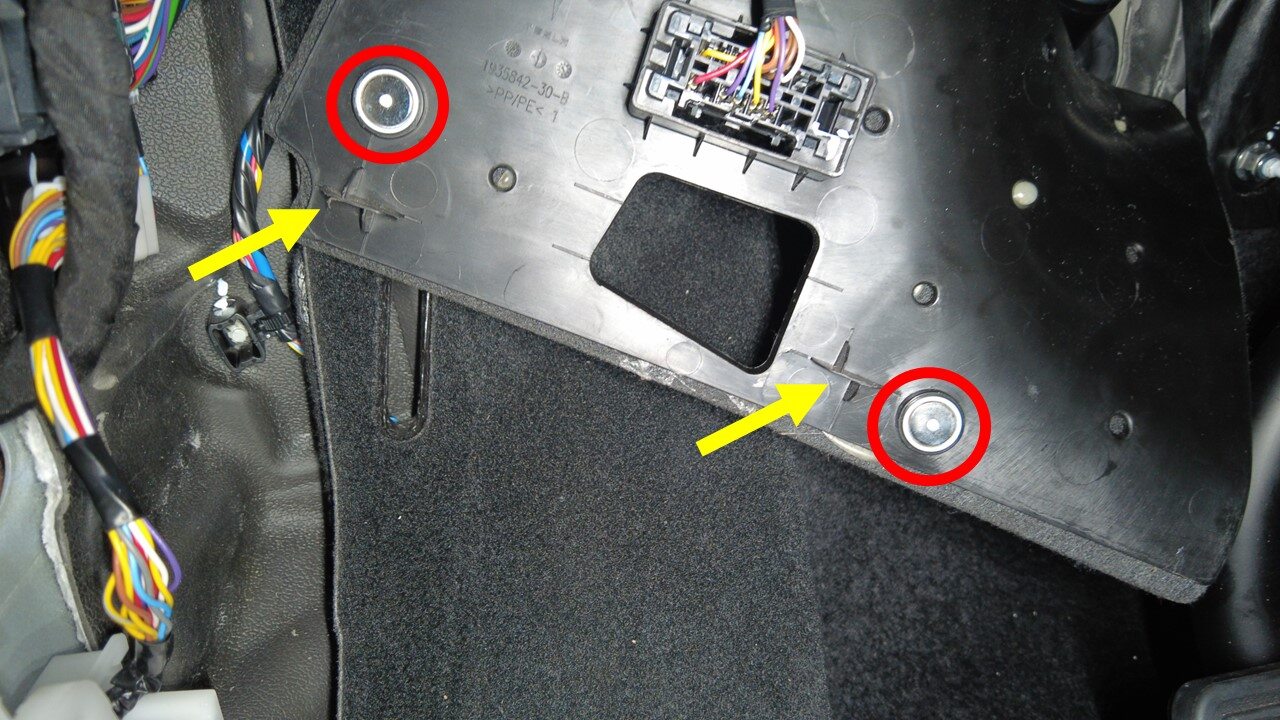

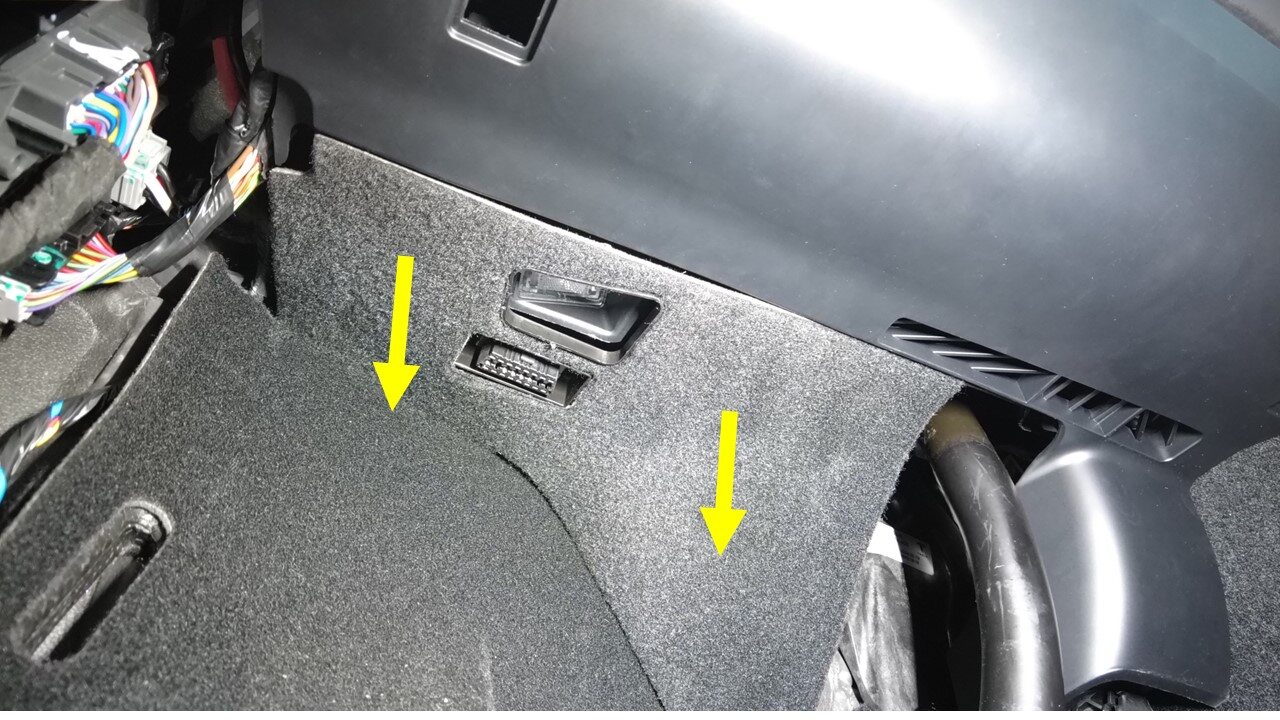

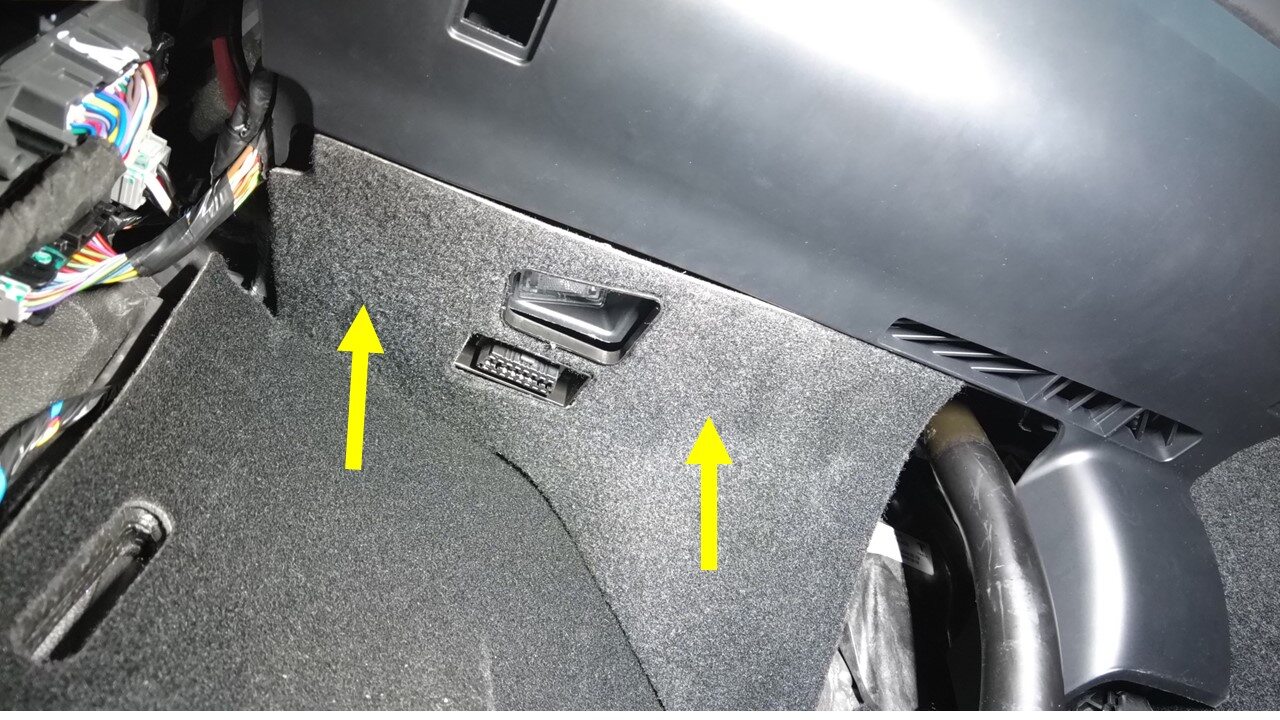

  26. Release LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x magnets, 2x datums, Cover is attached to carpet

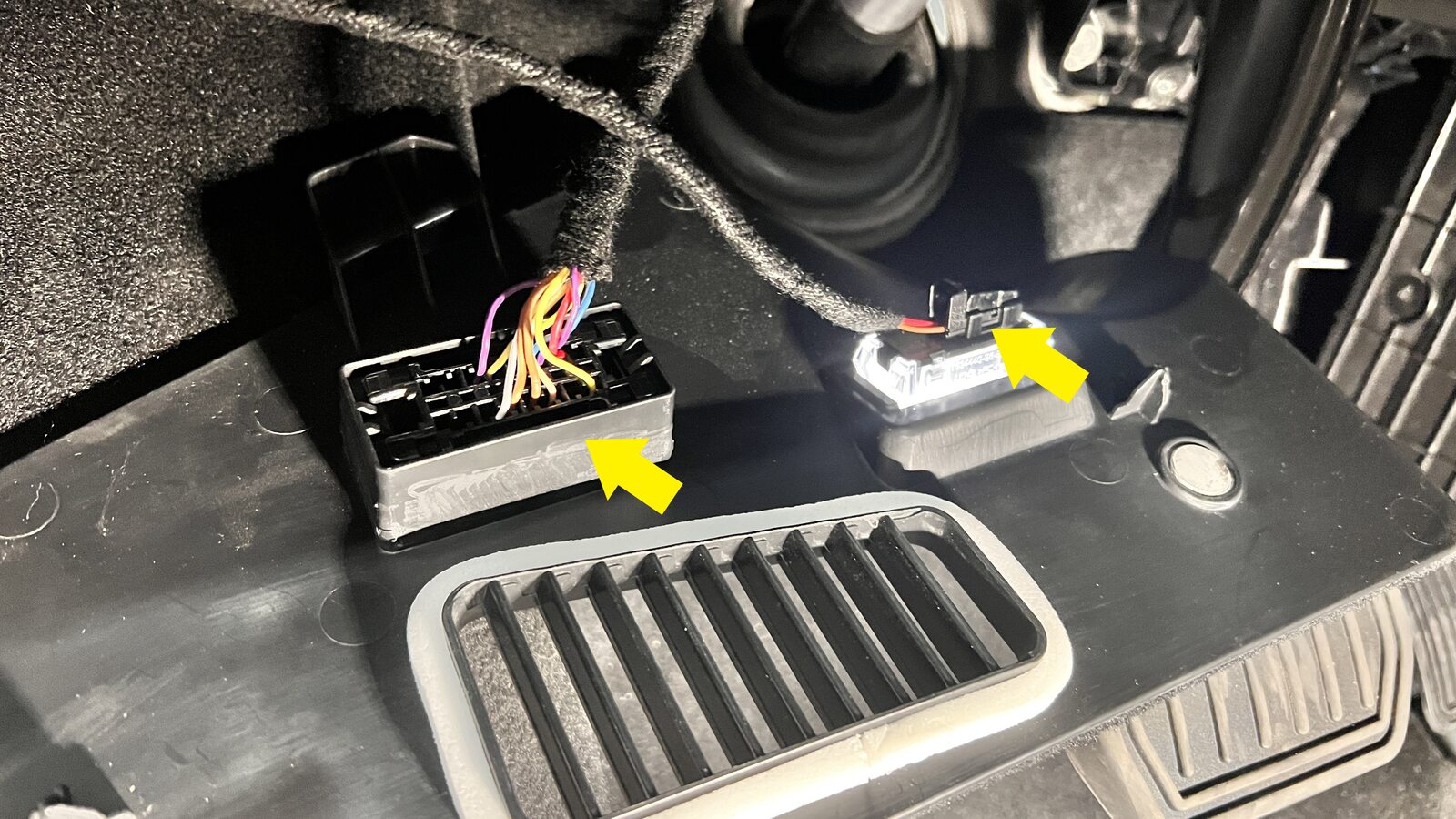

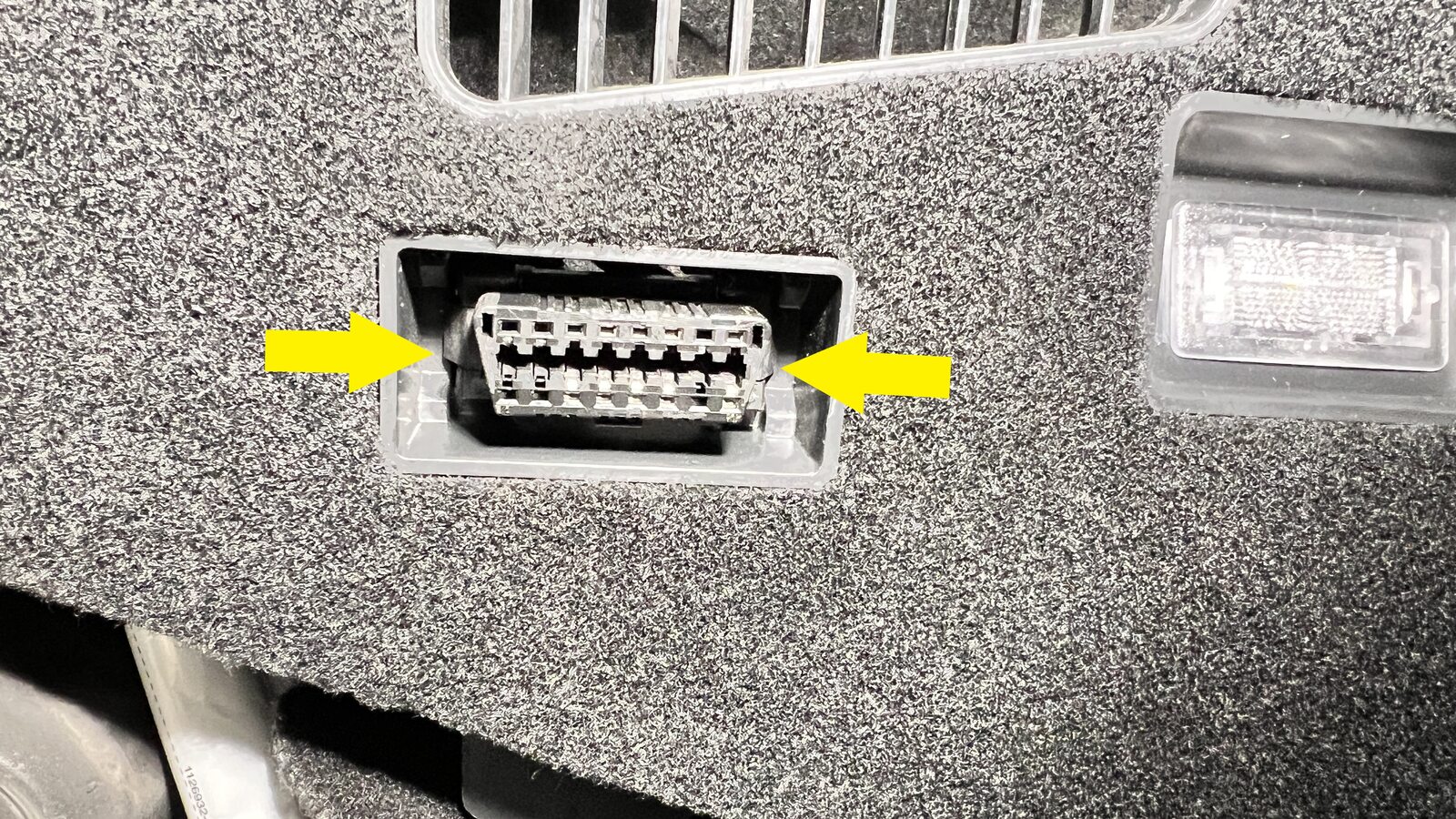

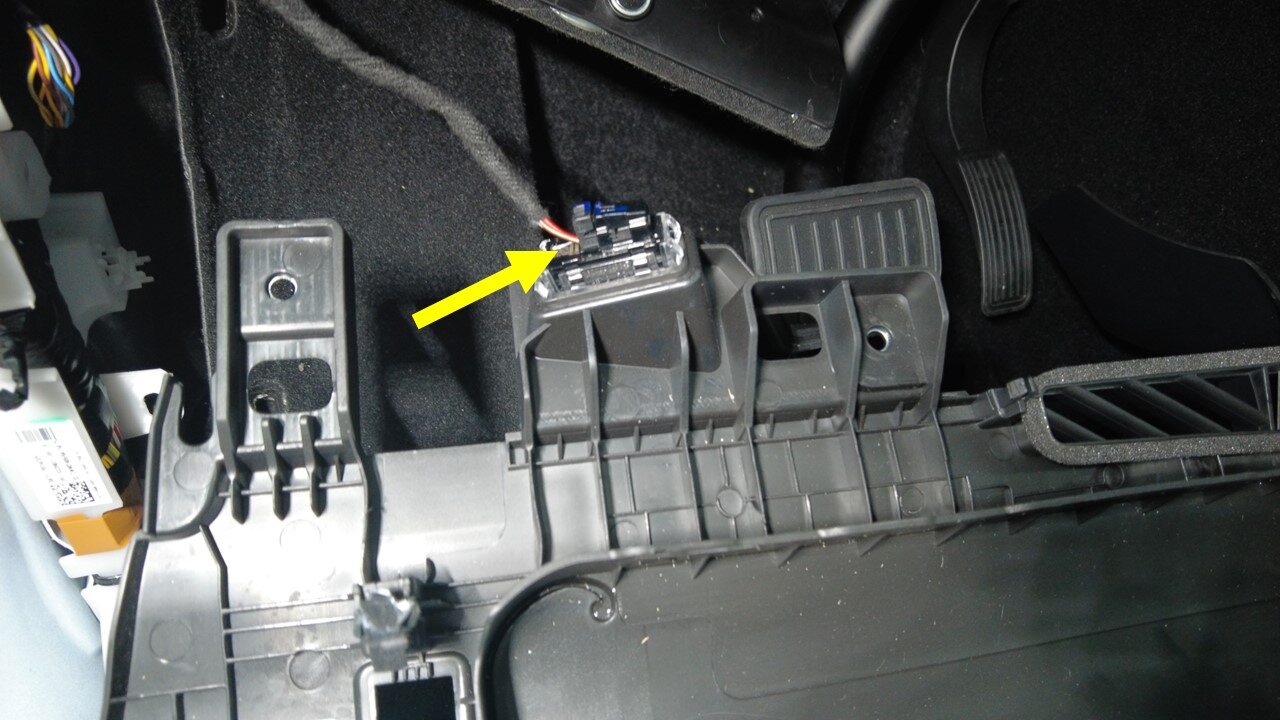

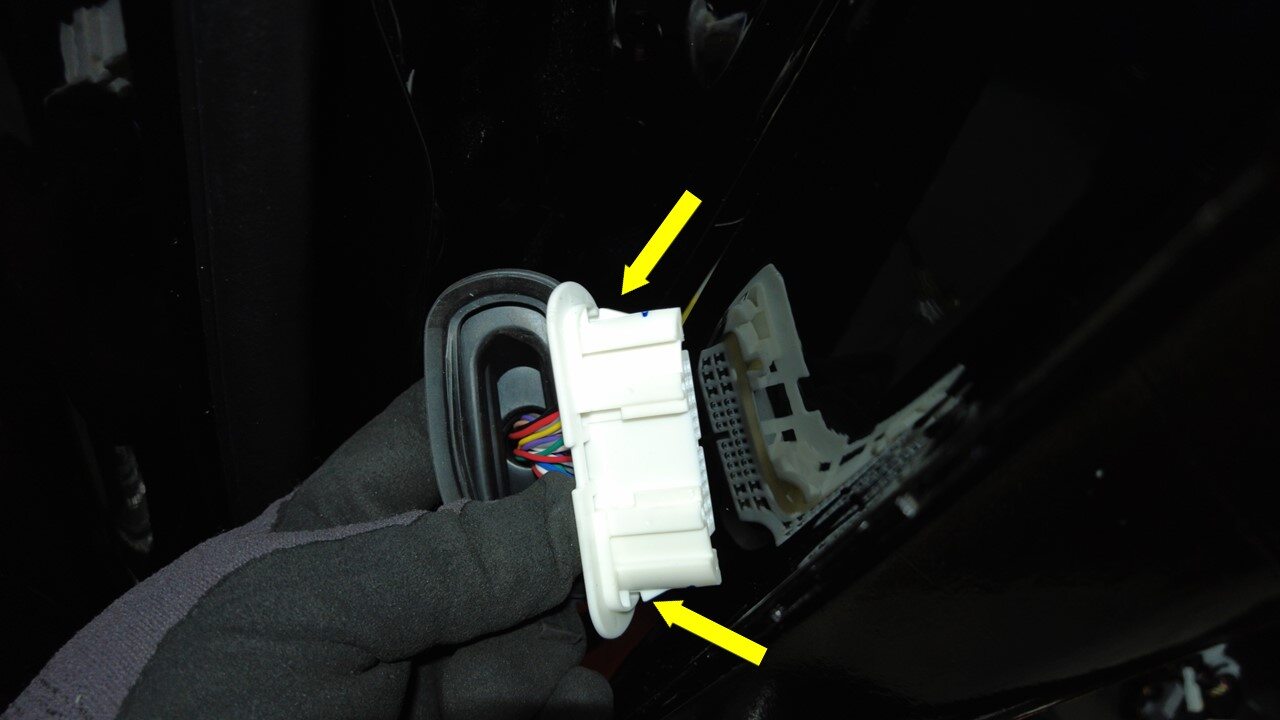

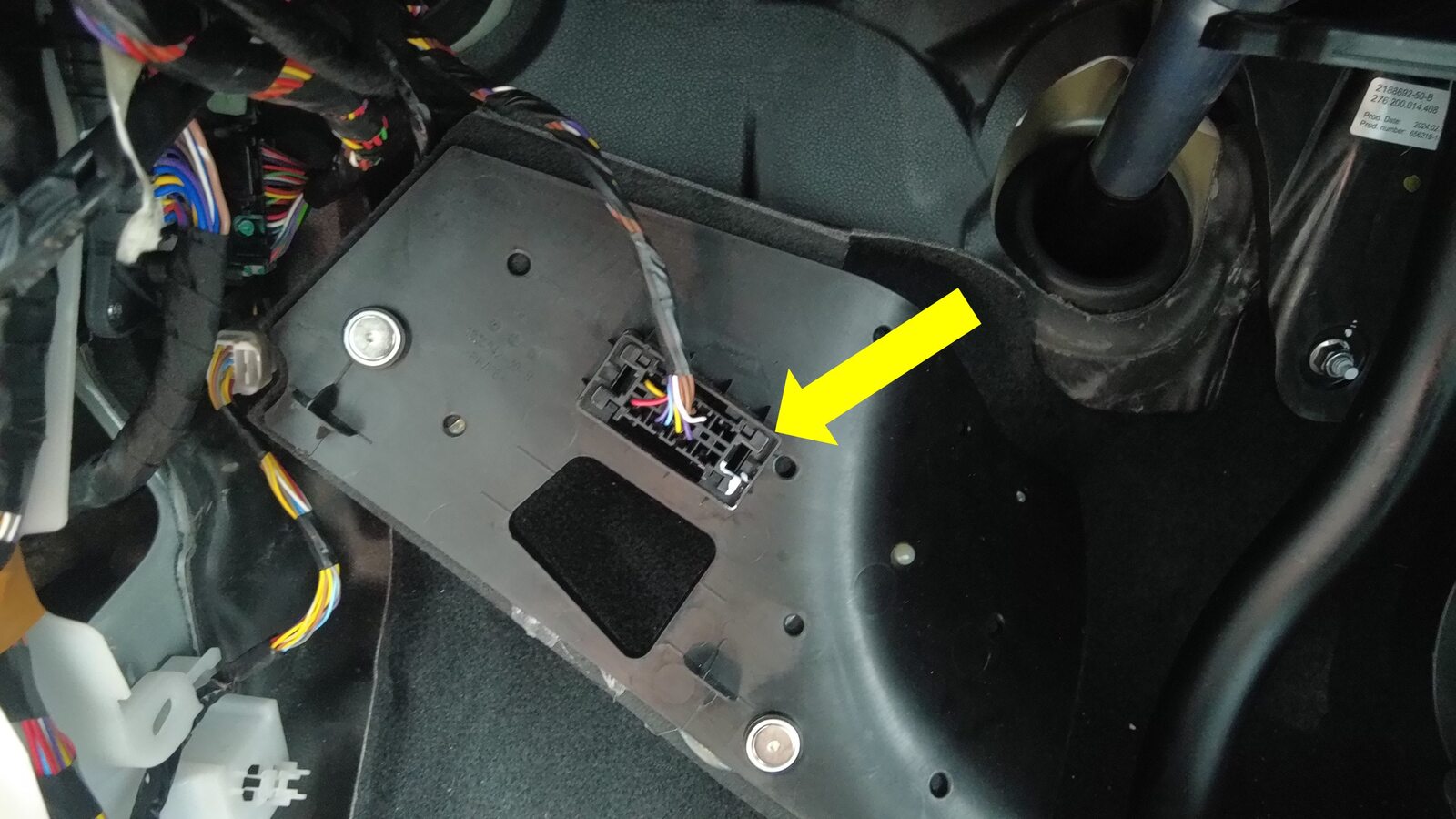

  27. Release connectors from LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x OBDII connector

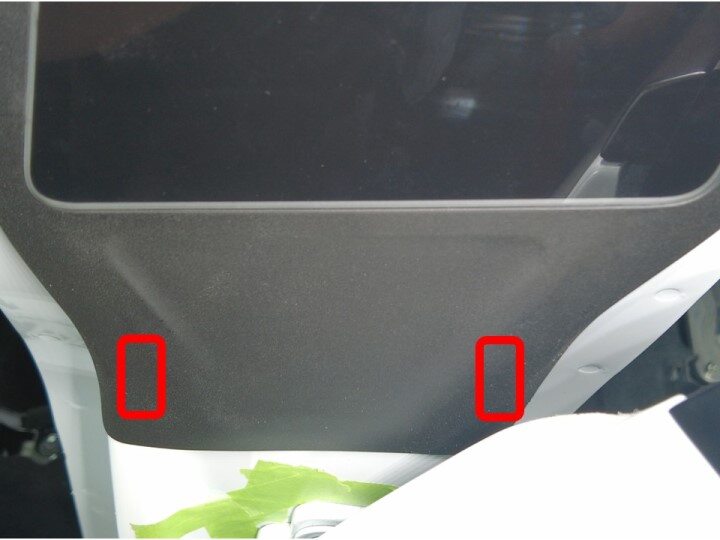

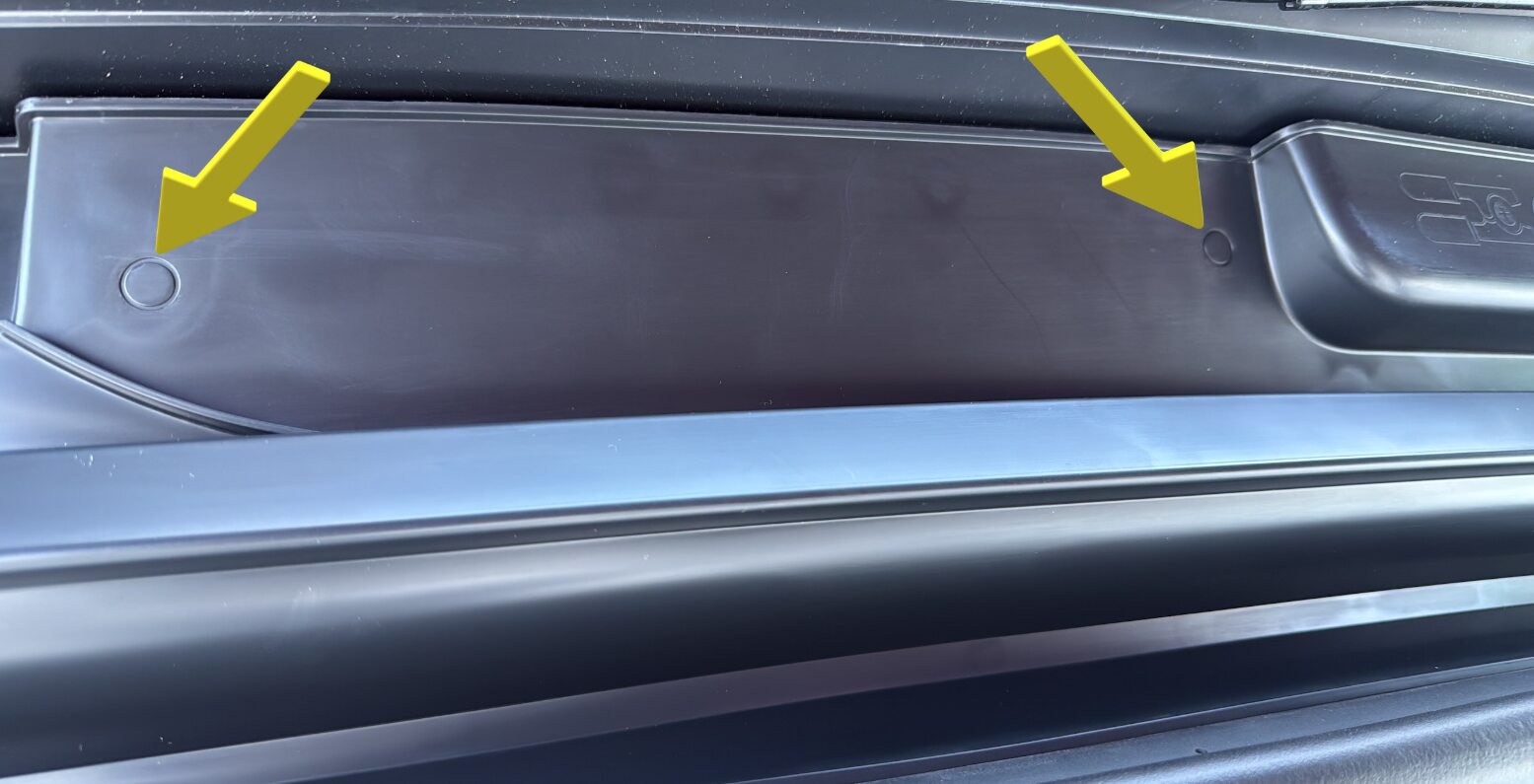

  28. Remove LH knee air bag bolt covers
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers

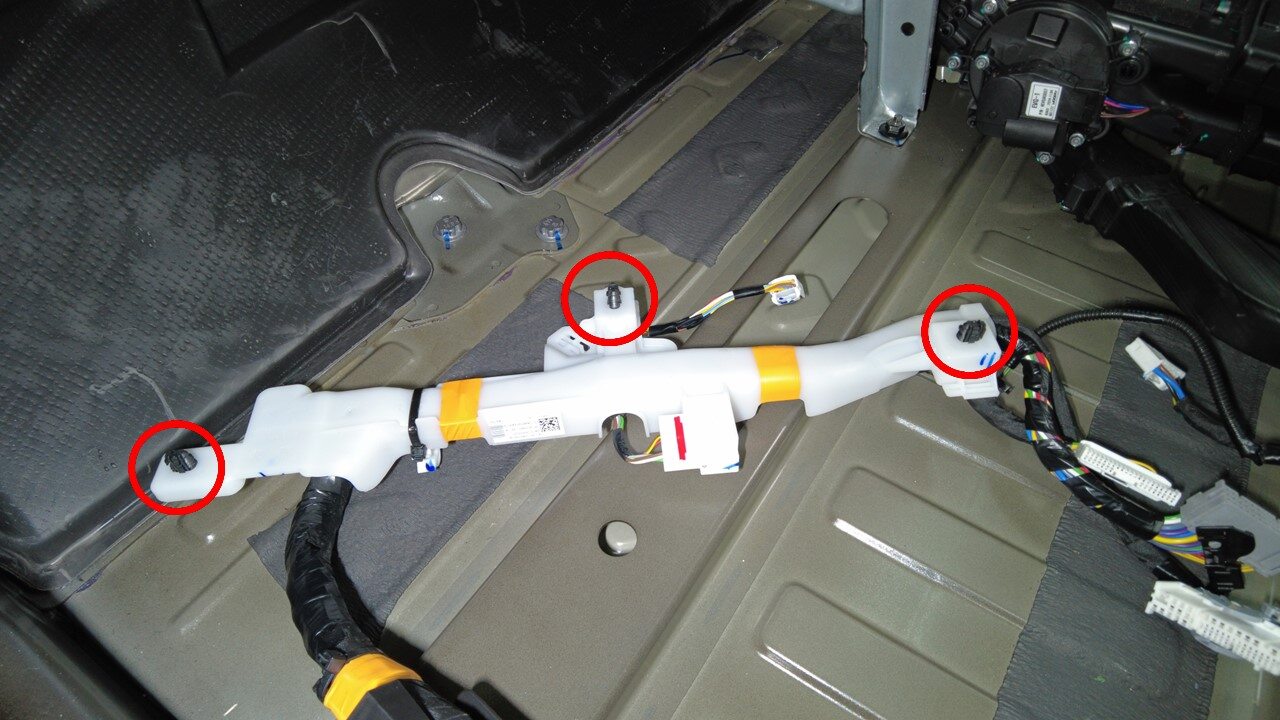

  29. Remove bolts securing LH knee air bag
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, EP10, 8.5 Nm, Discard after removal

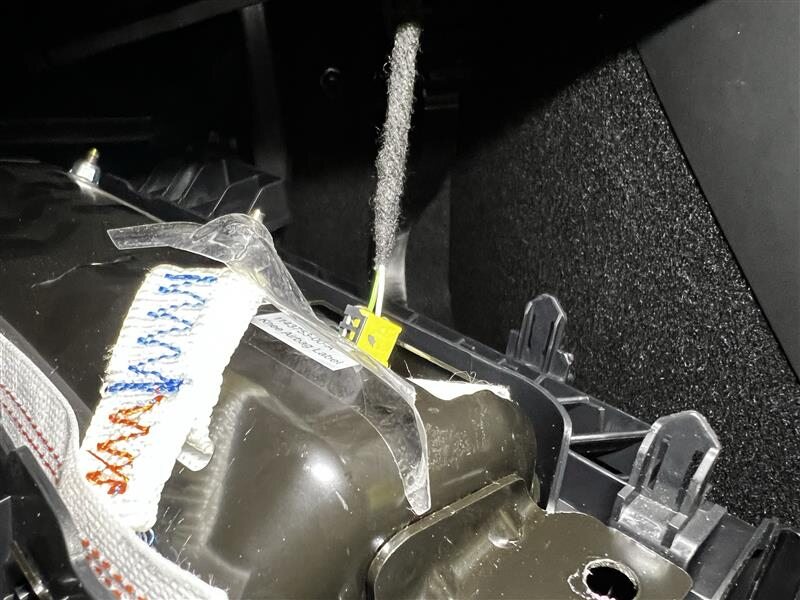

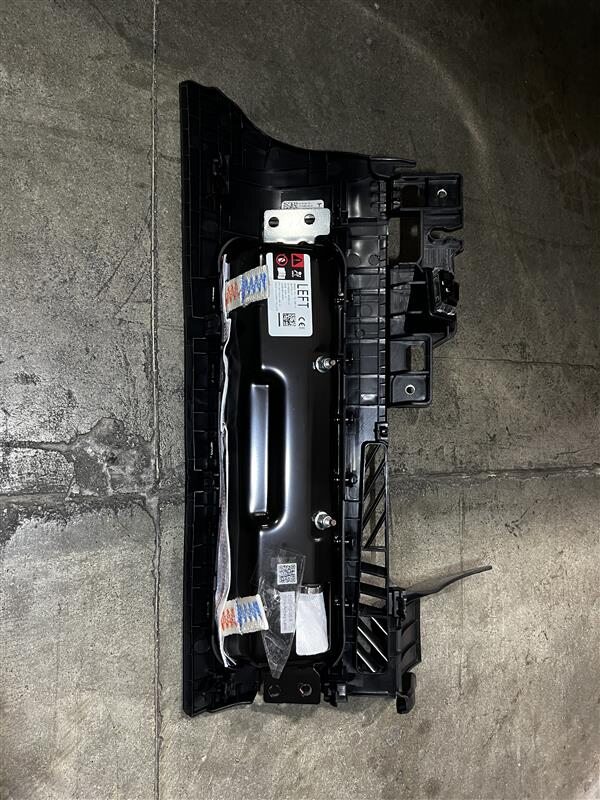

  30. Remove LH knee air bag assembly from IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Peel back plastic film, Release airbag connector by pulling back both white tabs simultaneously, Avoid straining harness, Only one tab visible in image matching tab is on opposite side

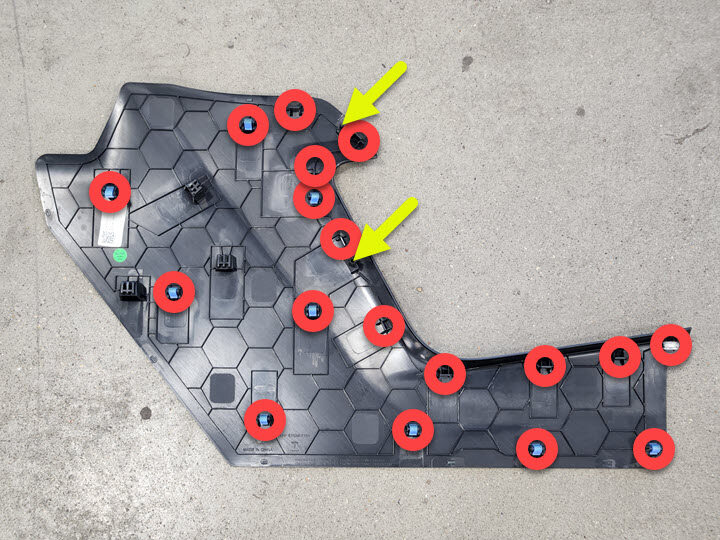

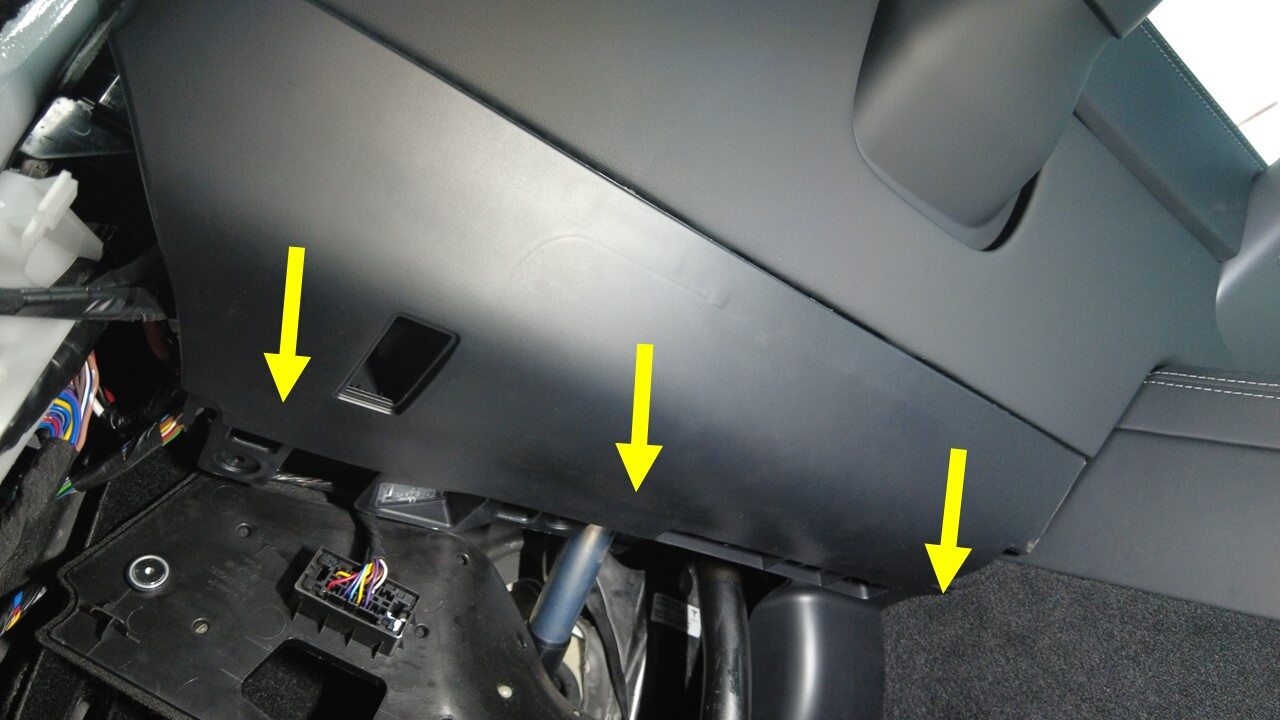

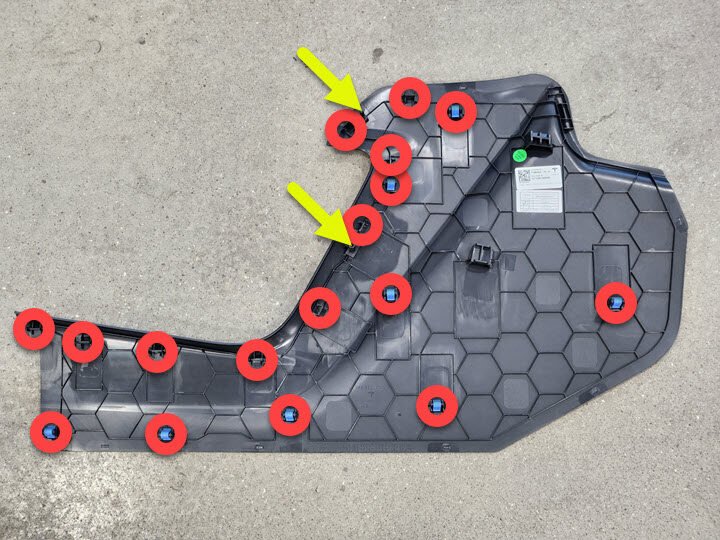

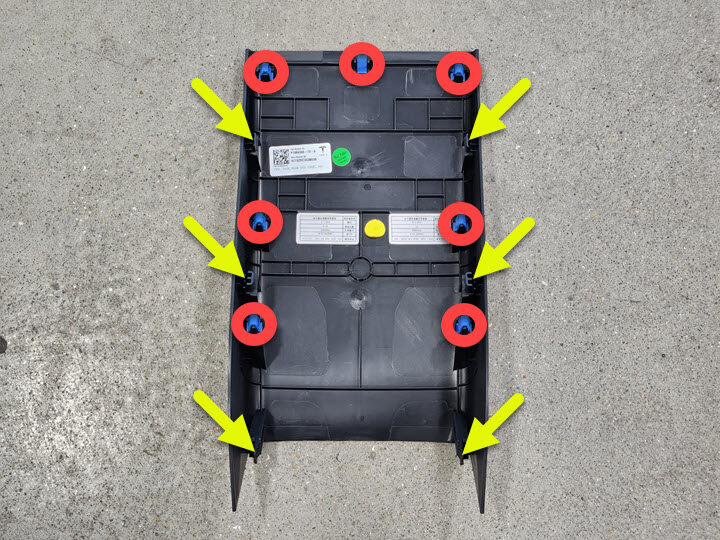

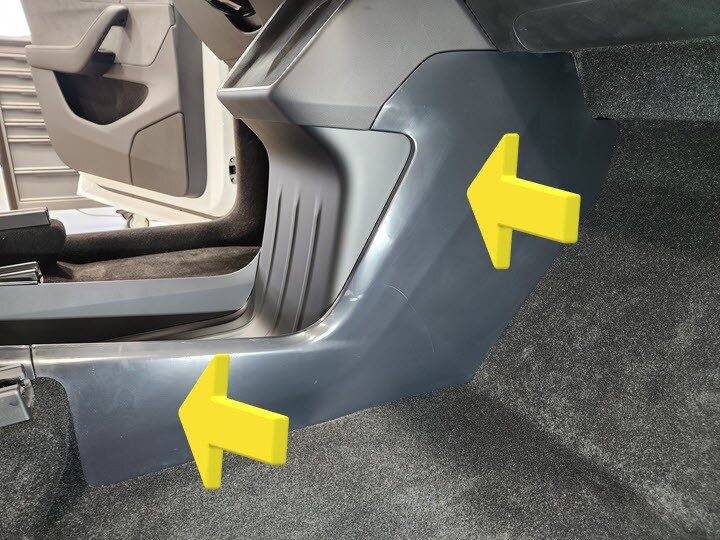

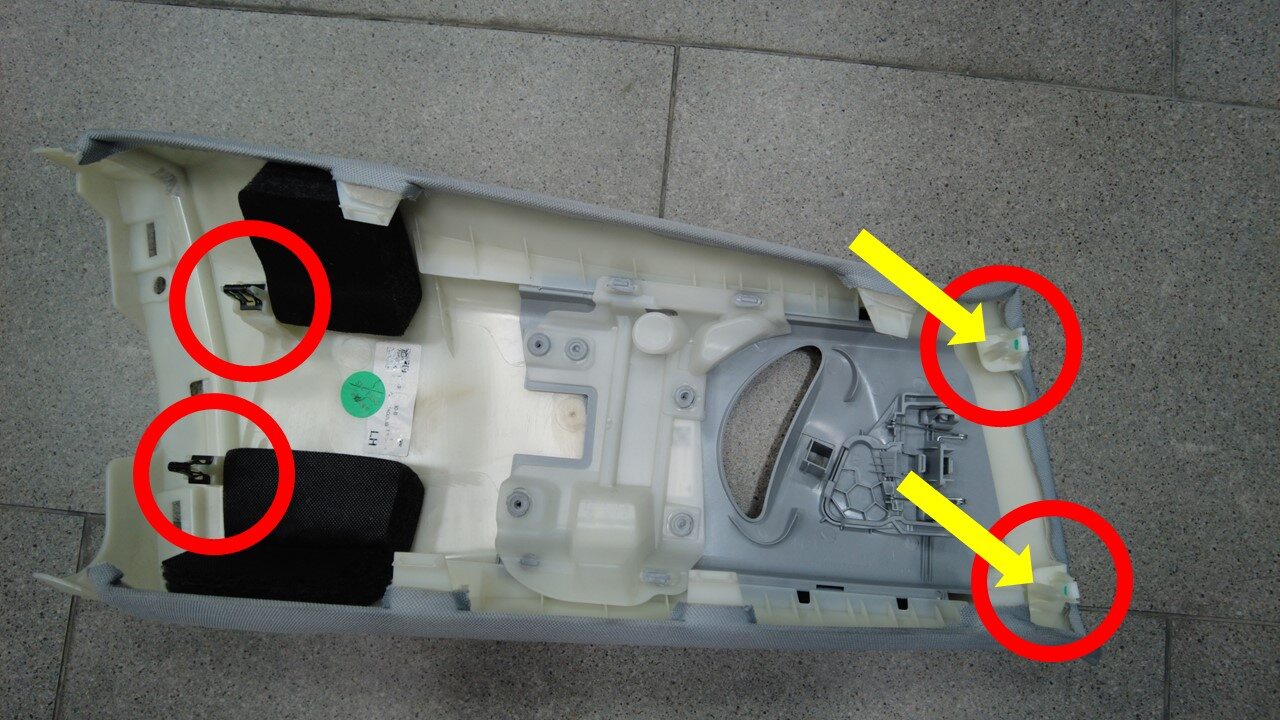

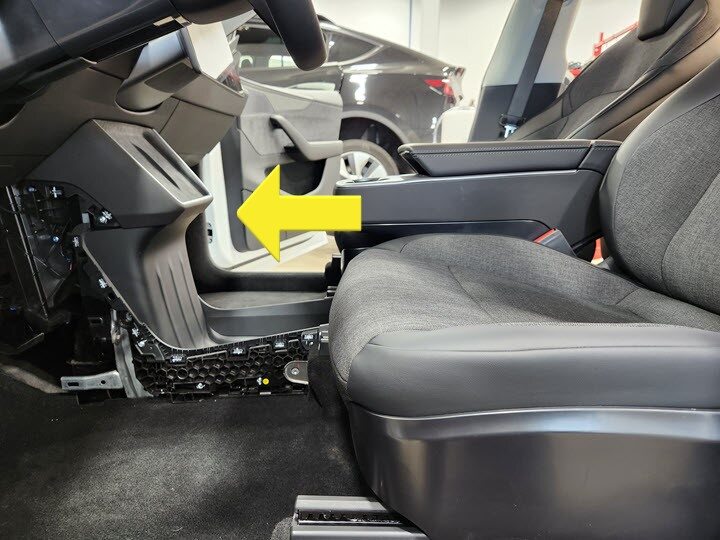

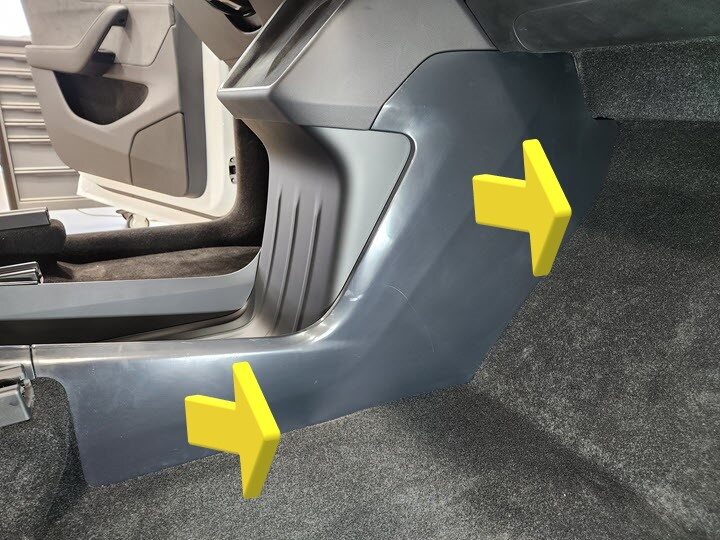

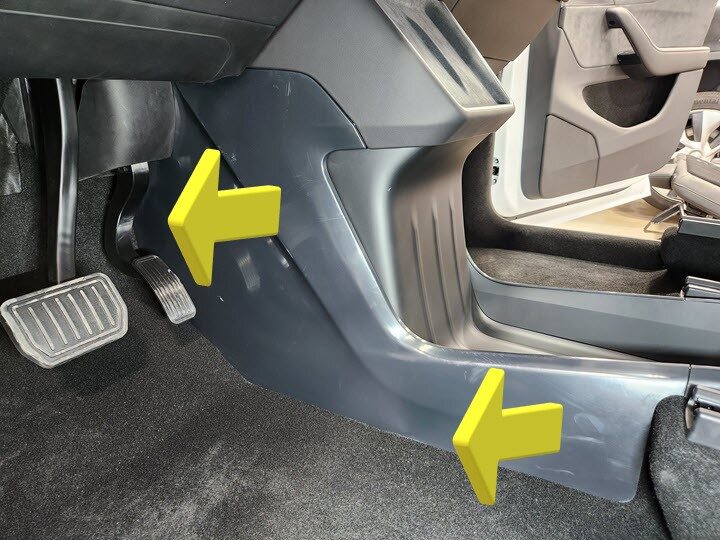

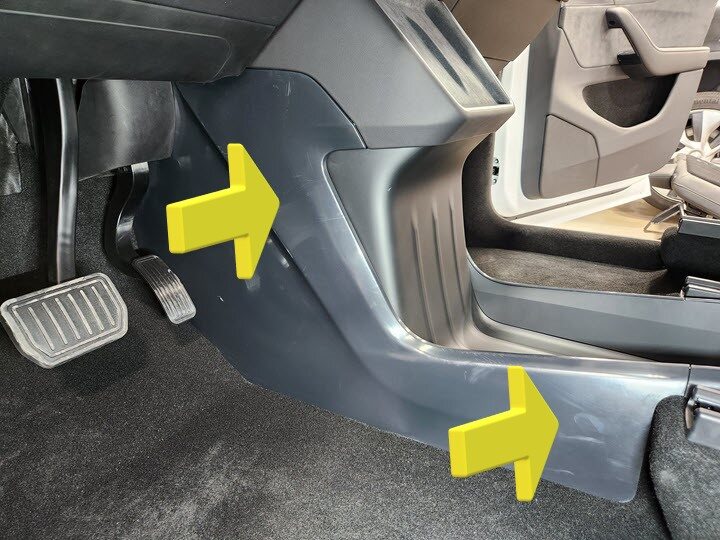

  31. Remove center console LH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note
    17x clips, 2x datums, Maneuver around KAB cover to prevent damage

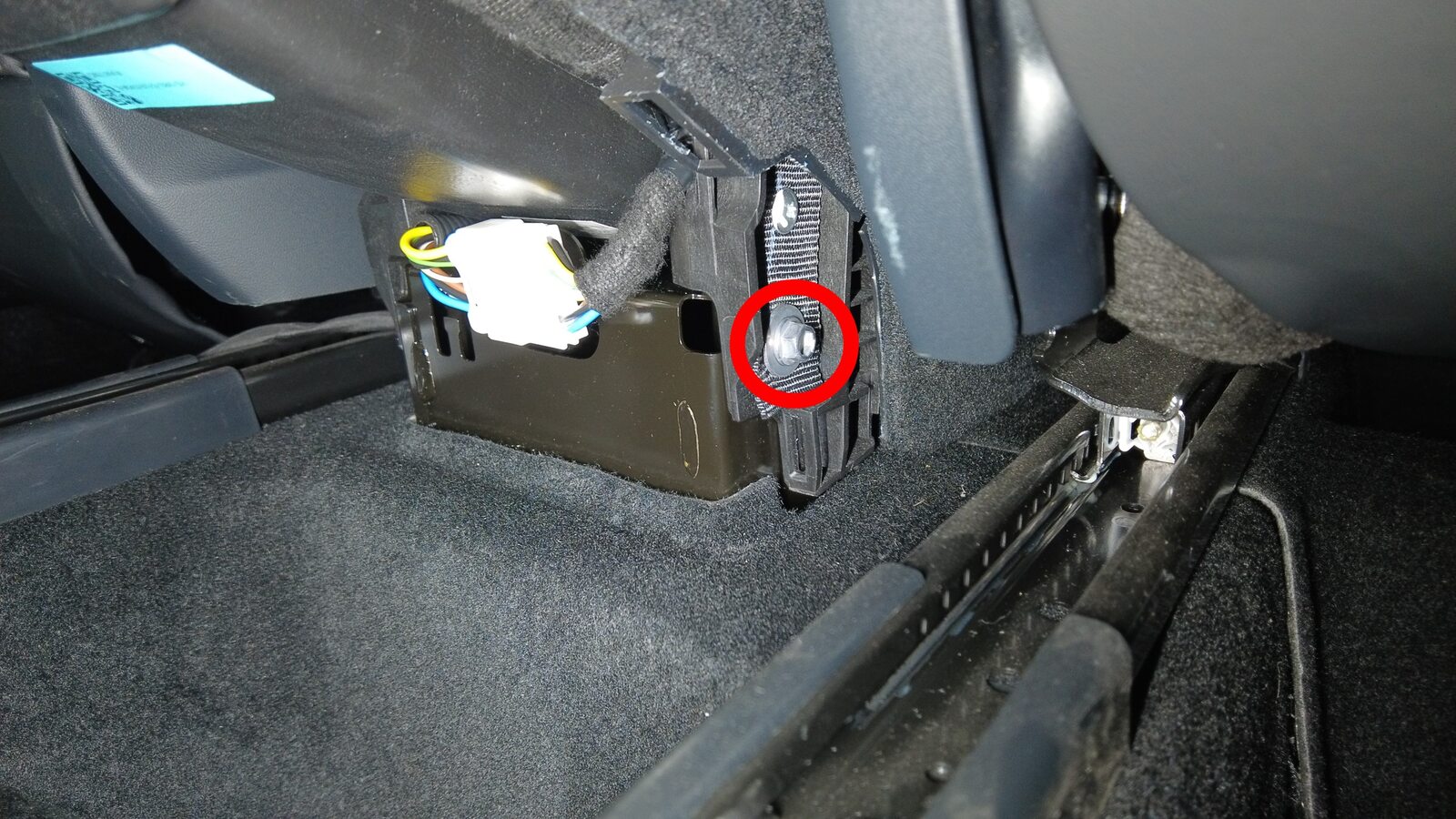

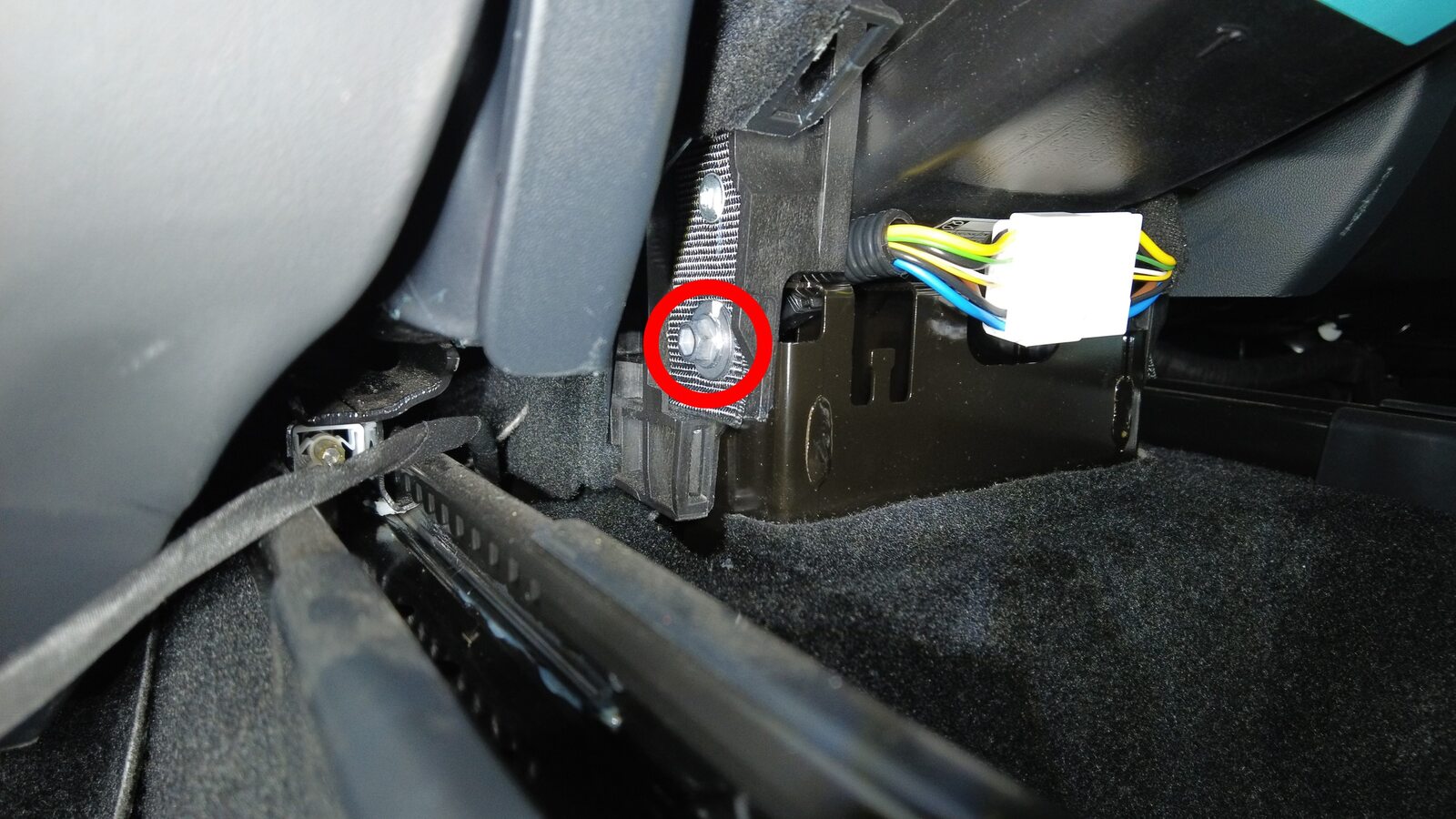

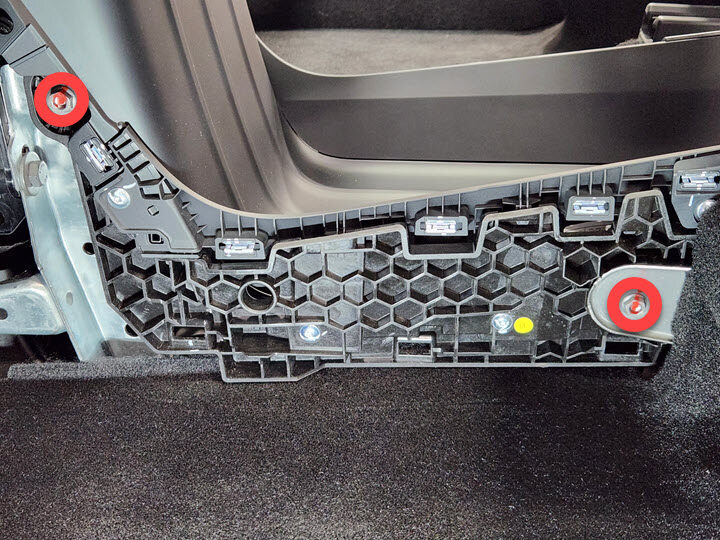

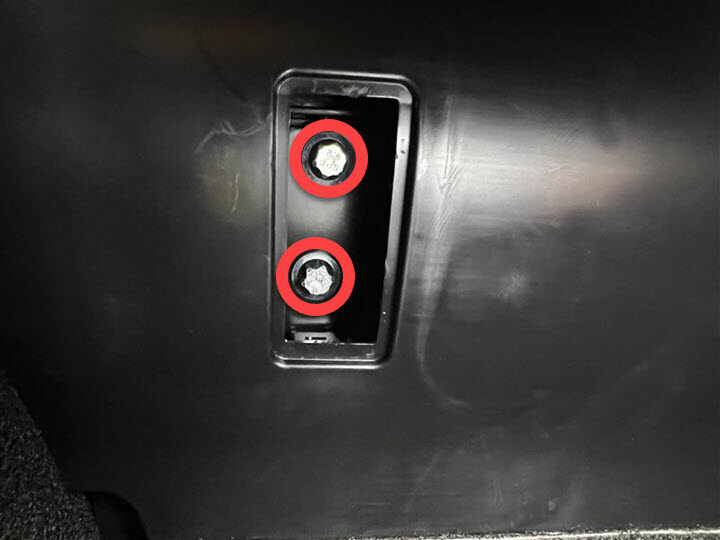

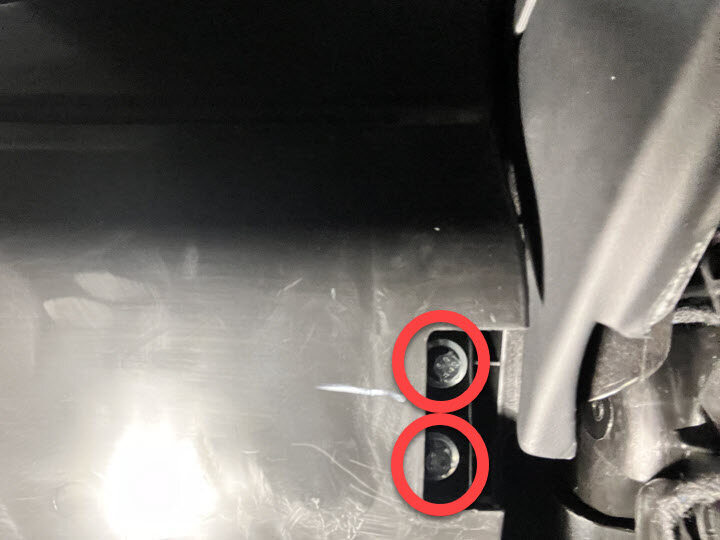

  32. Remove LH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm

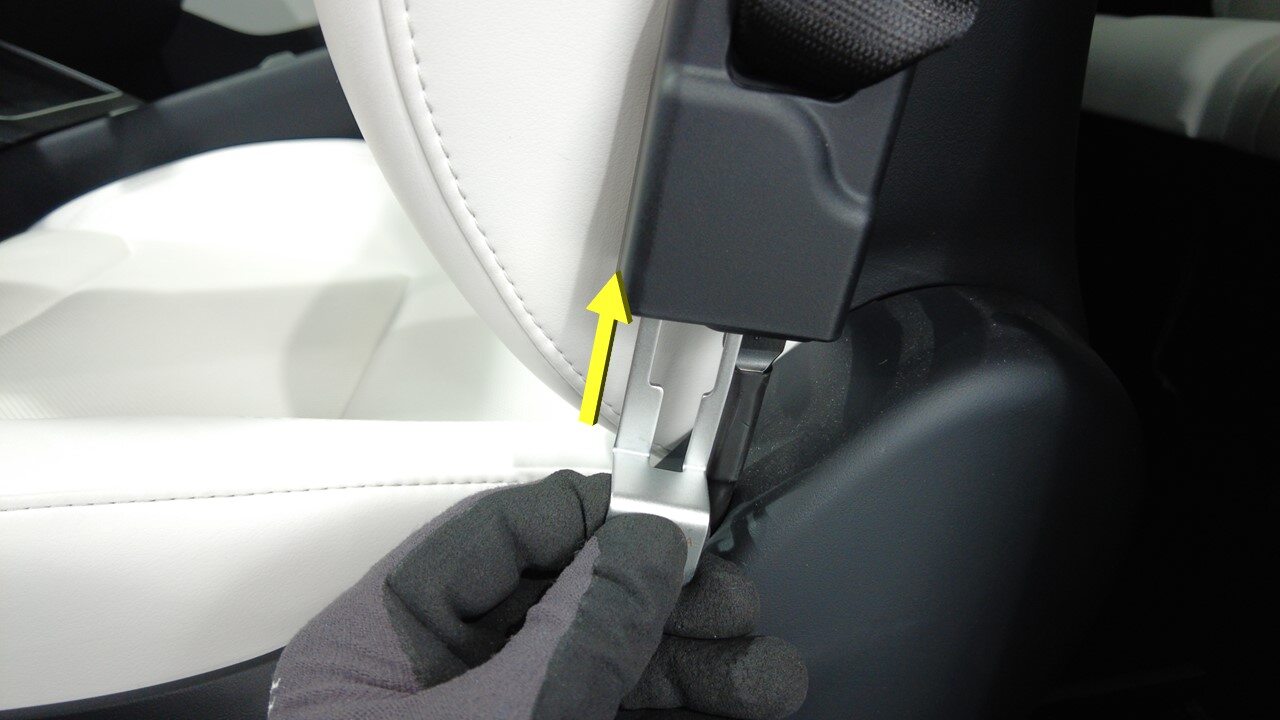

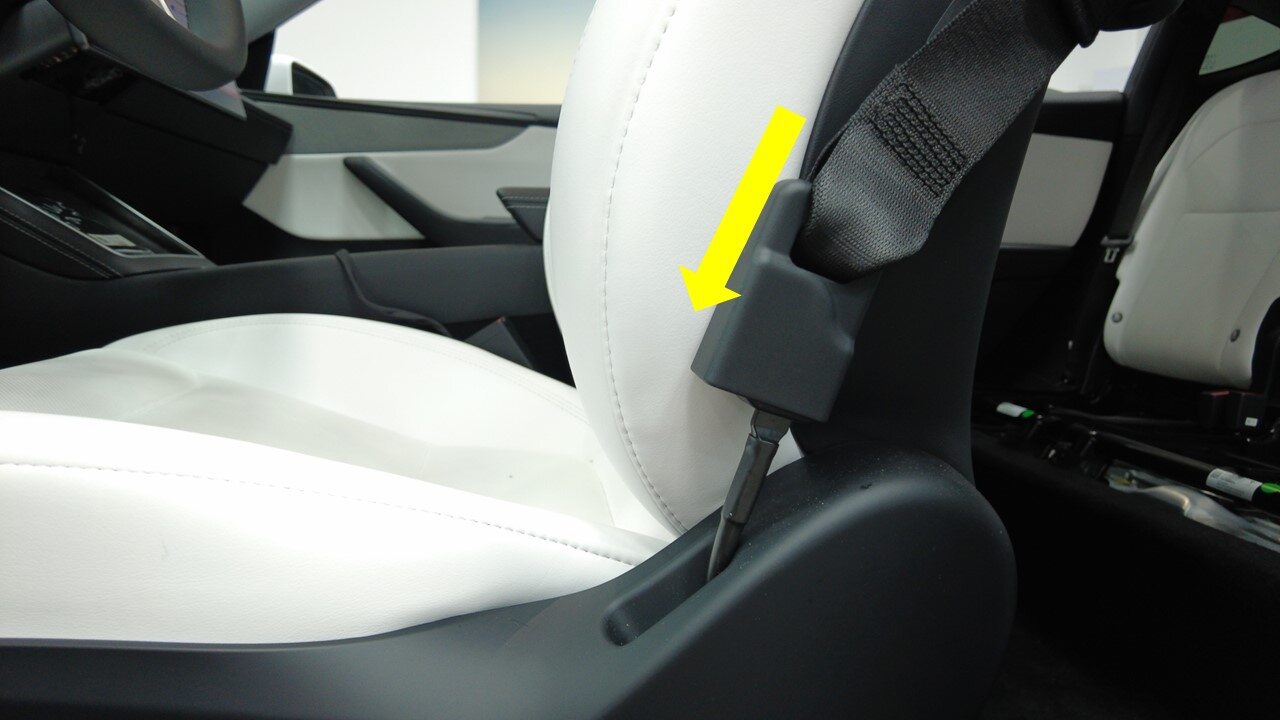

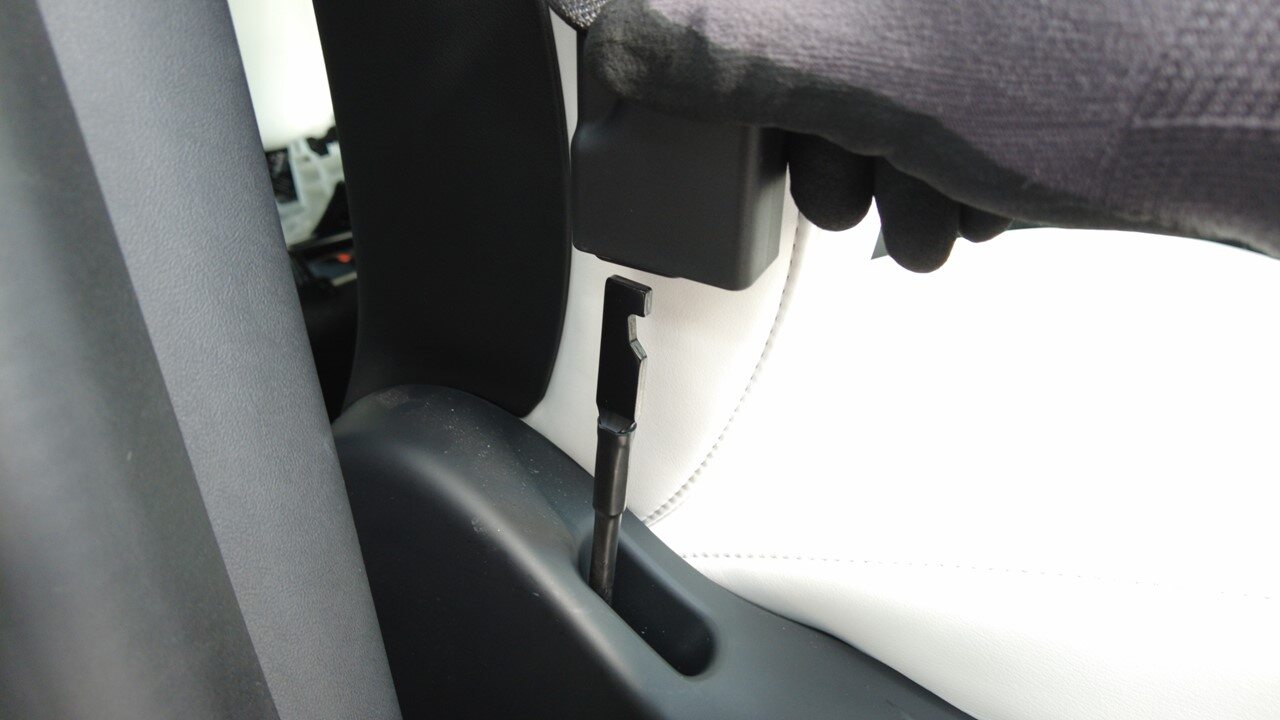

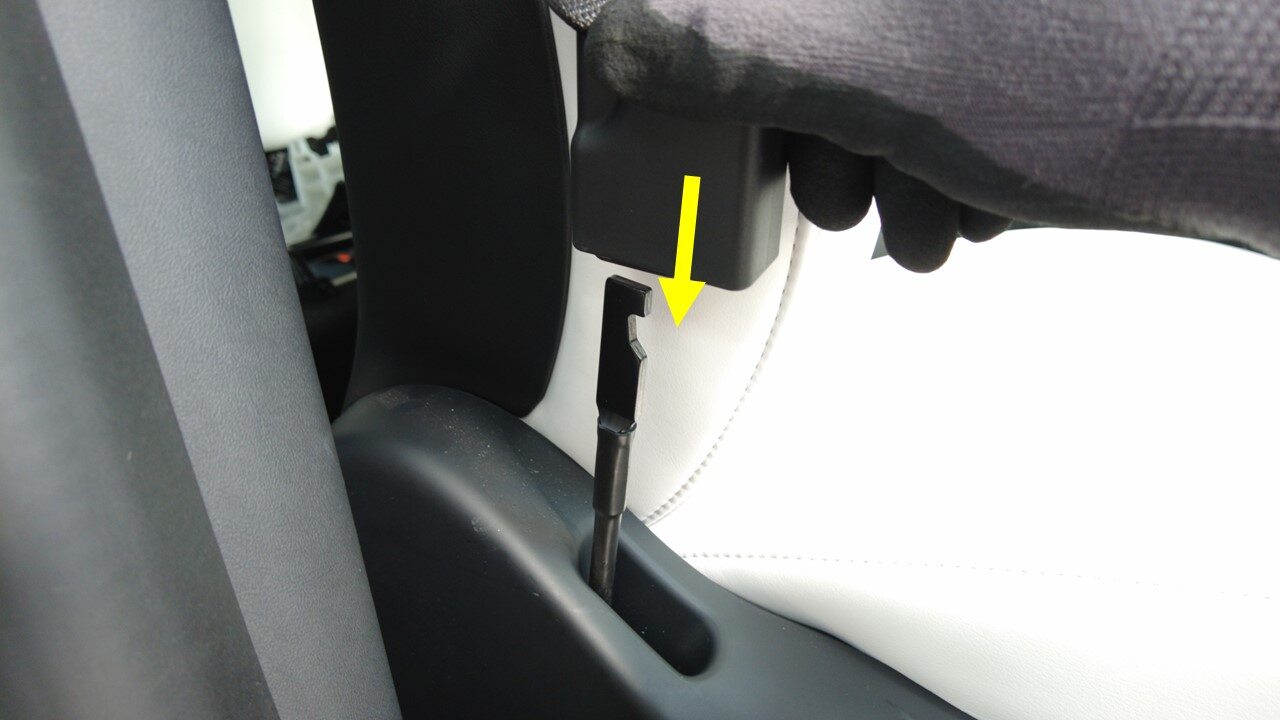

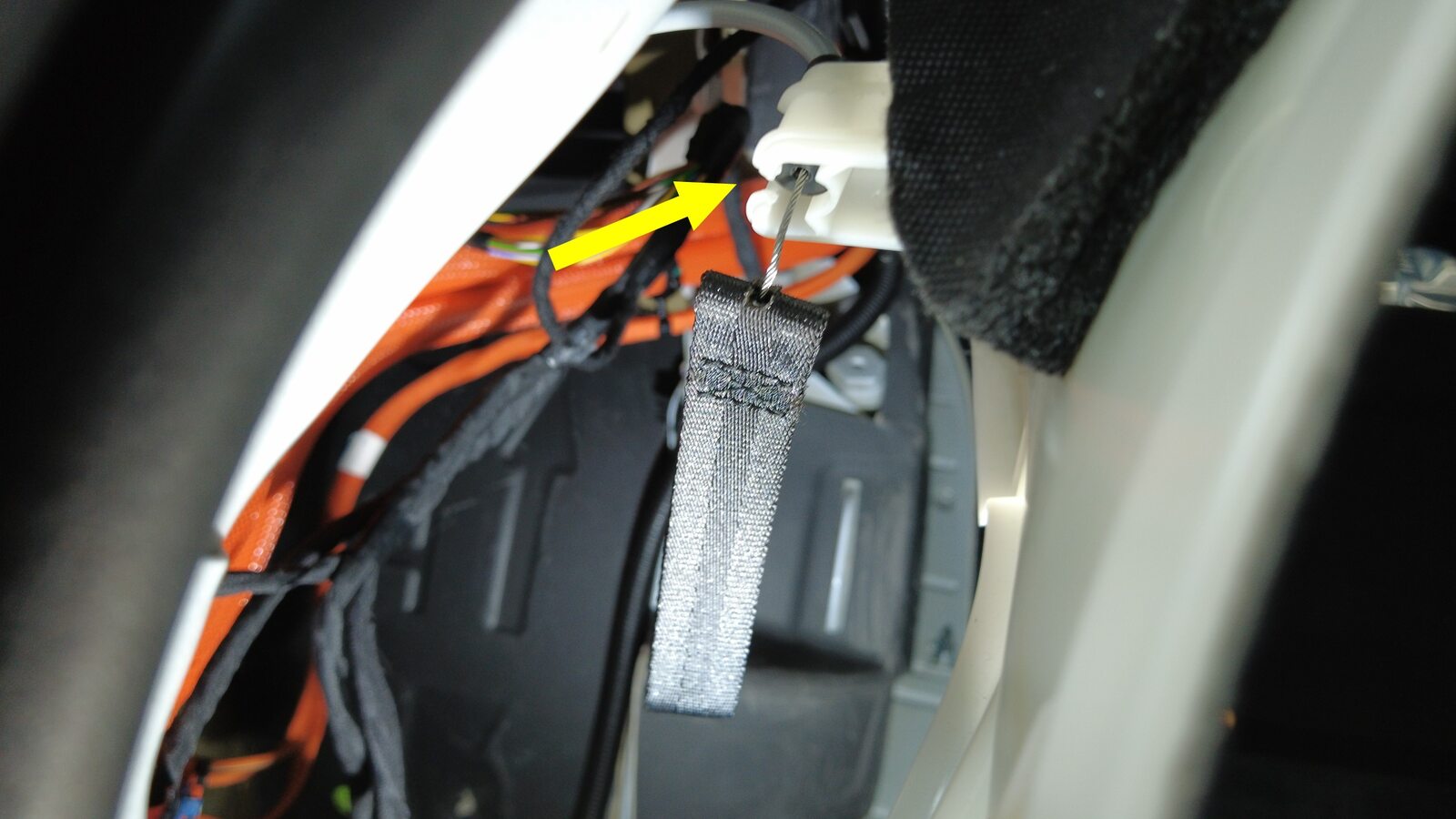

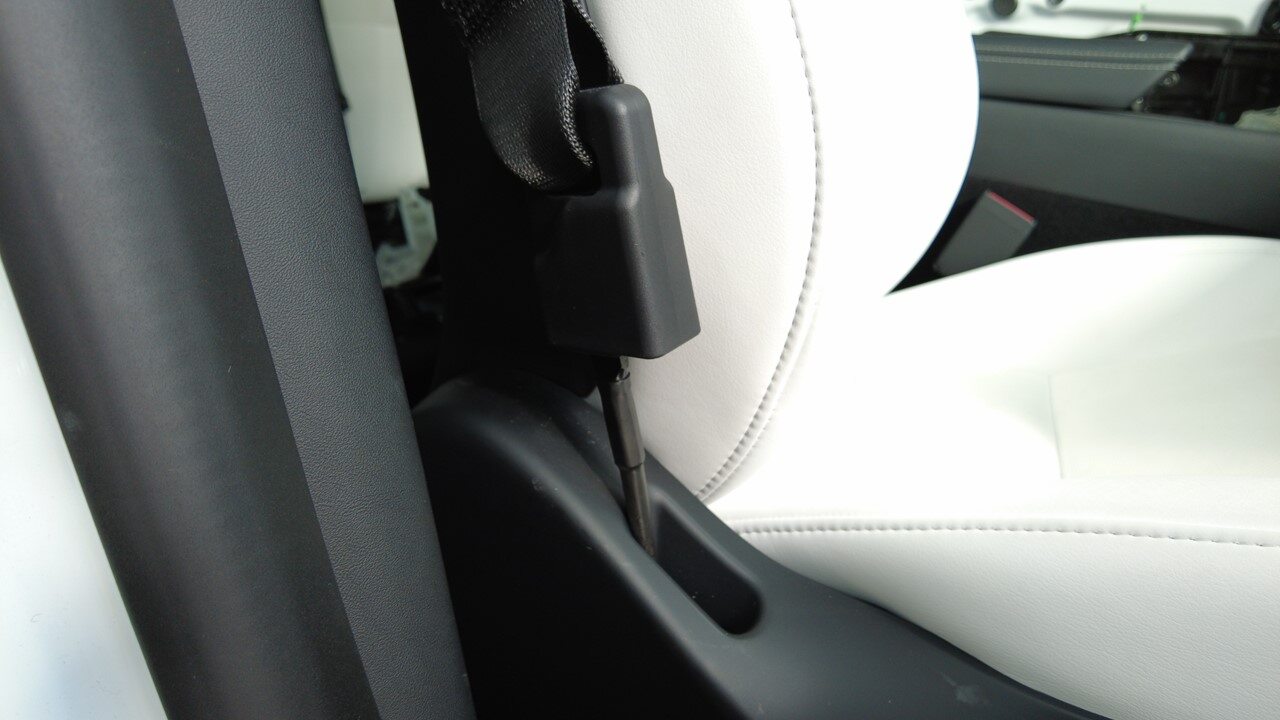

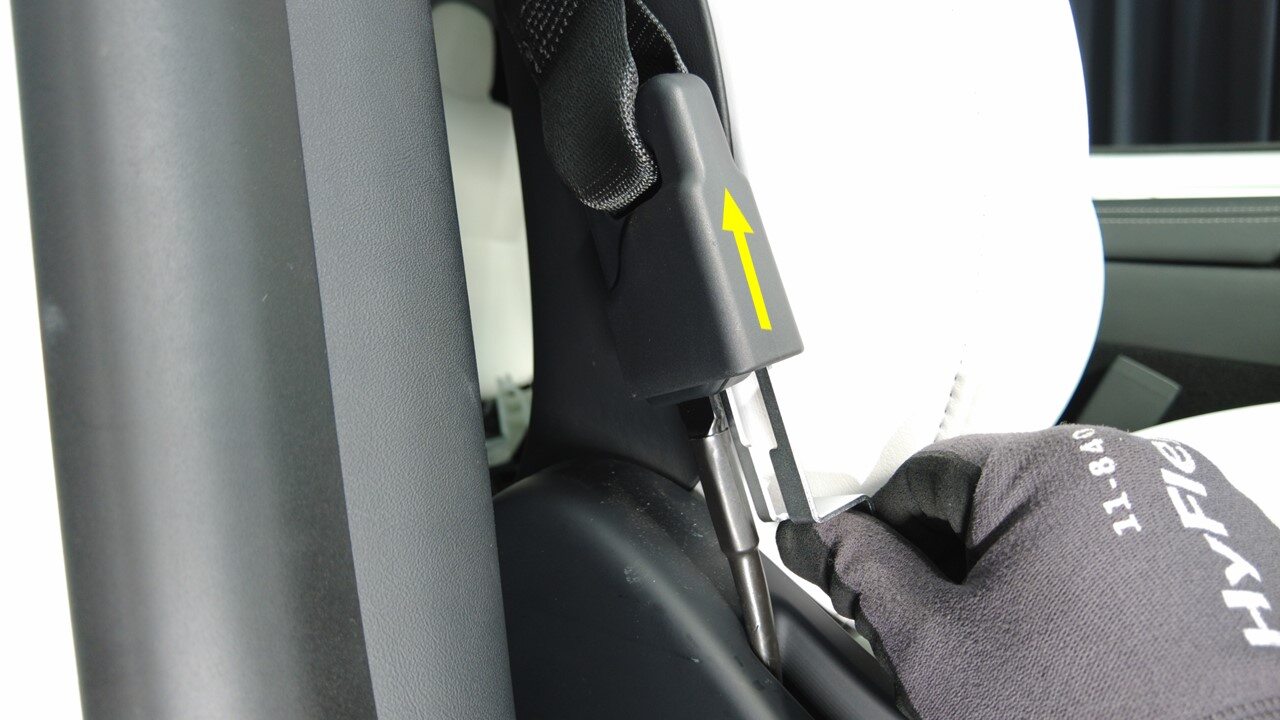

  33. Release seat belt retractor from LH front seat pre tensioner
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert seat belt release tool in bottom of retractor to release

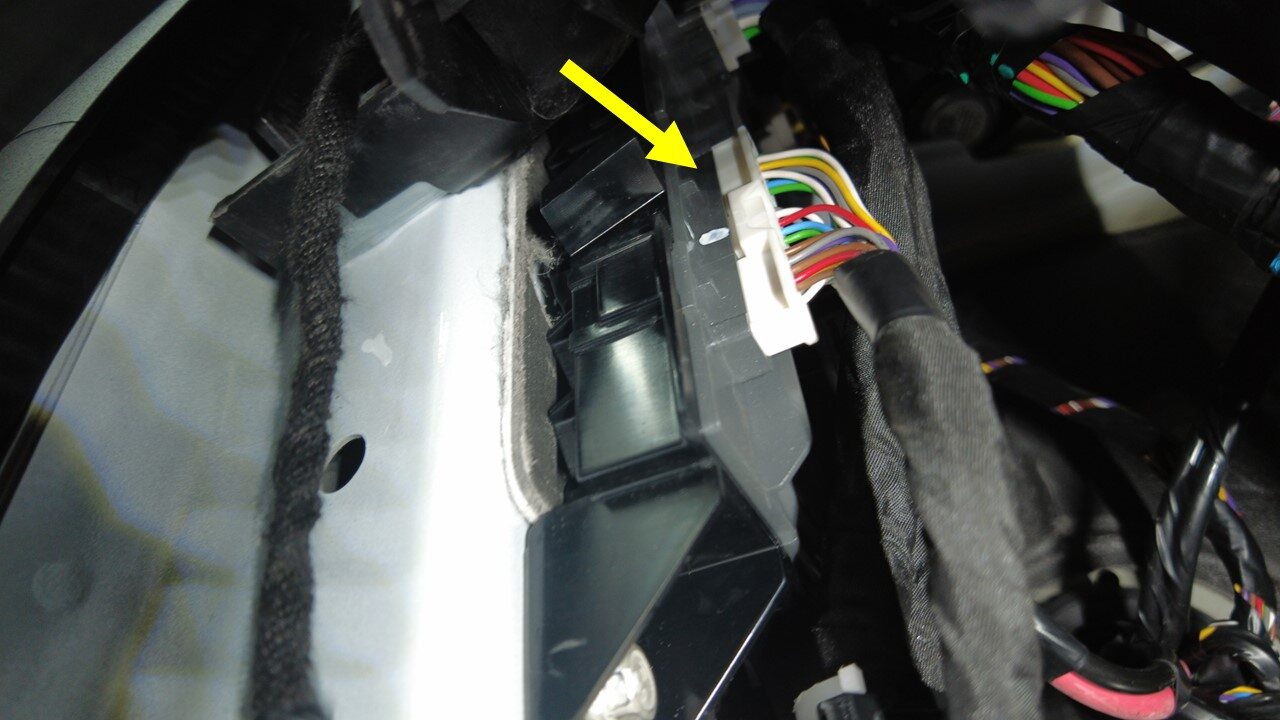

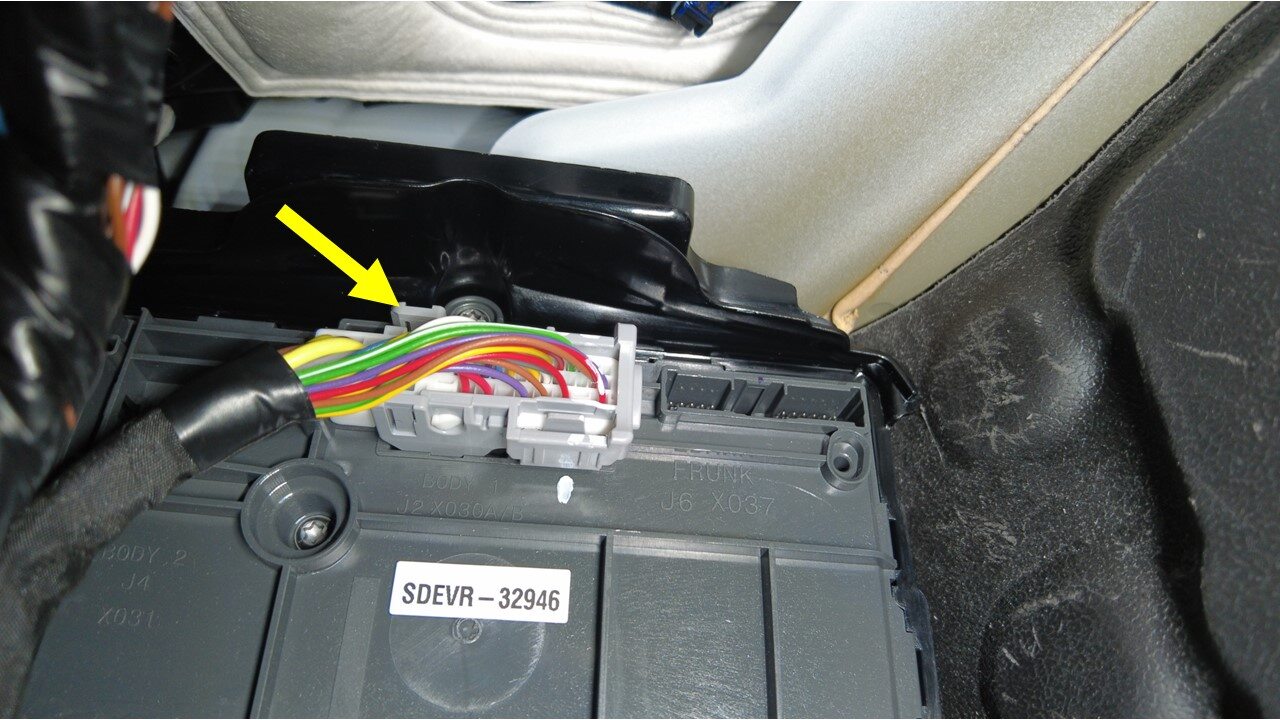

  34. Disconnect LH front seat harness connector from LH controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab
  35. Release LH front seat harness from sill trim clips
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  36. Disconnect front main harness from LH body harness
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Connector X909

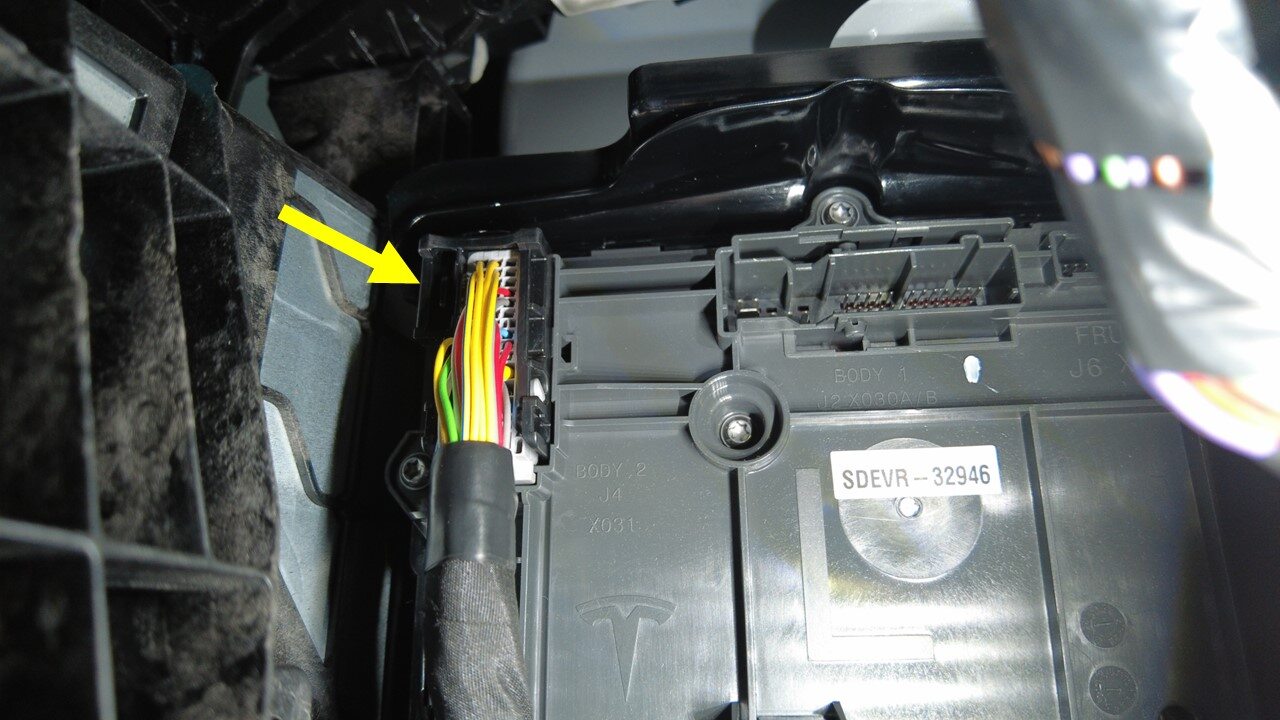

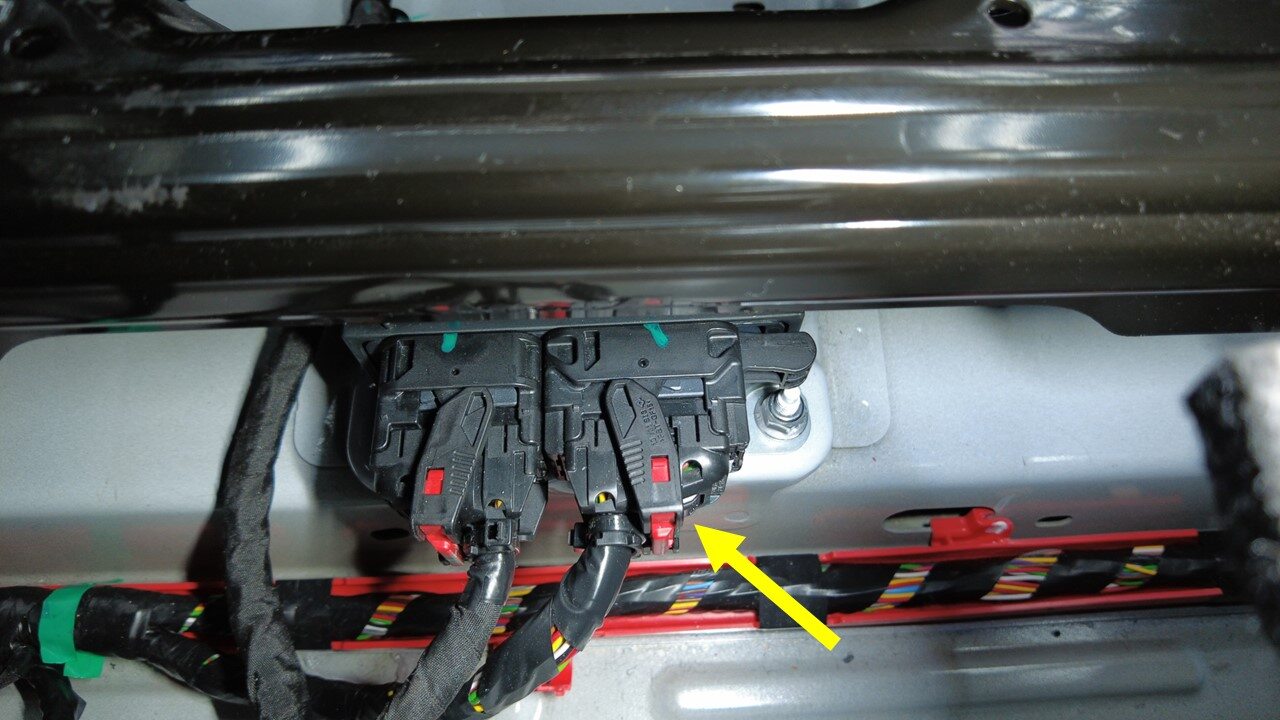

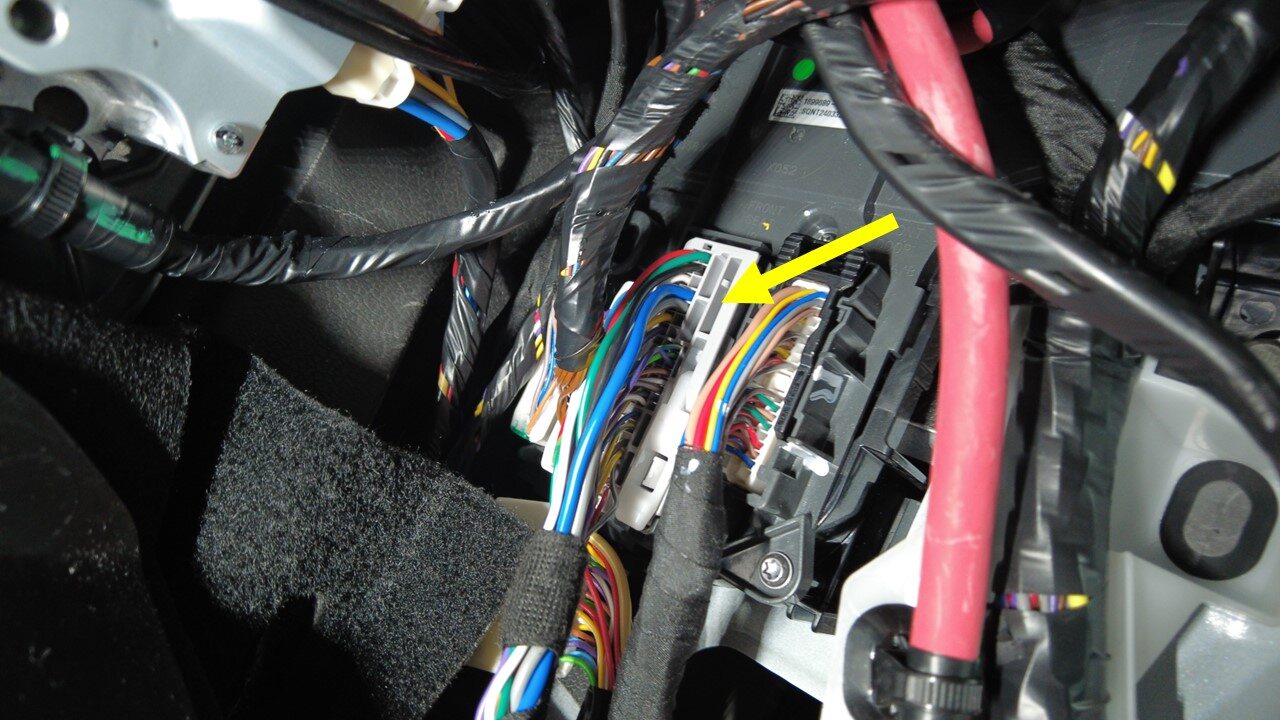

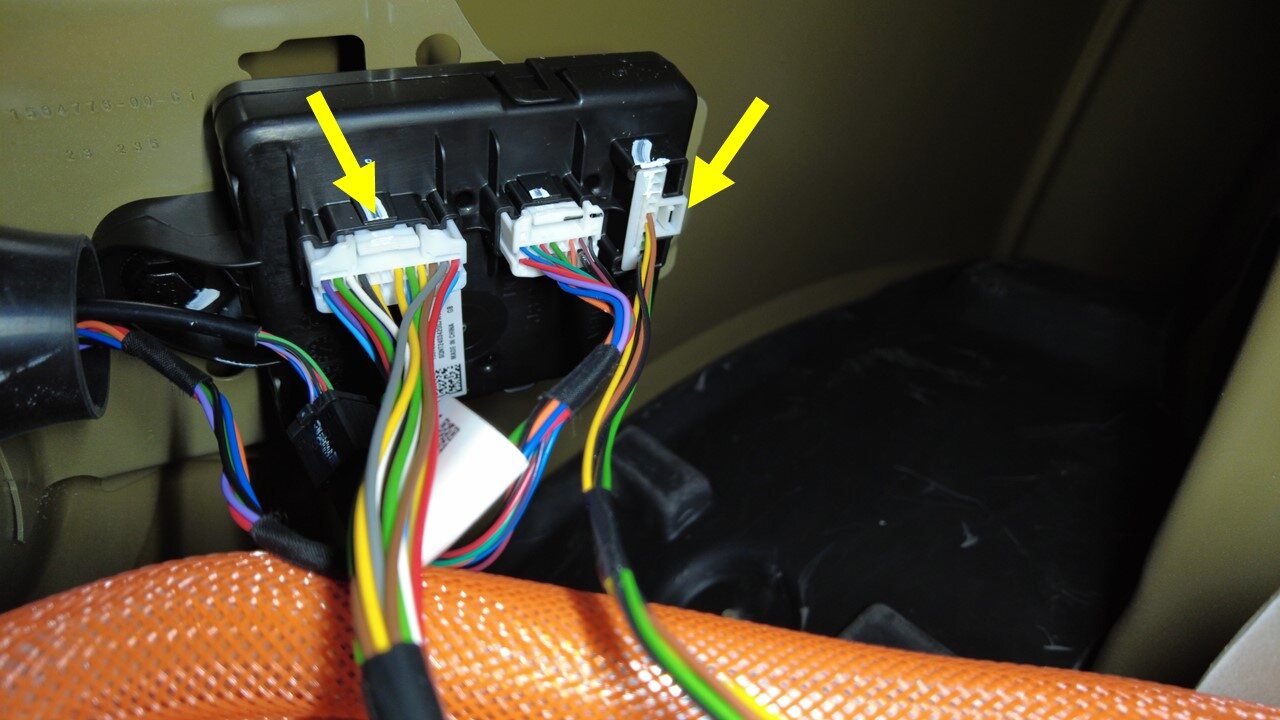

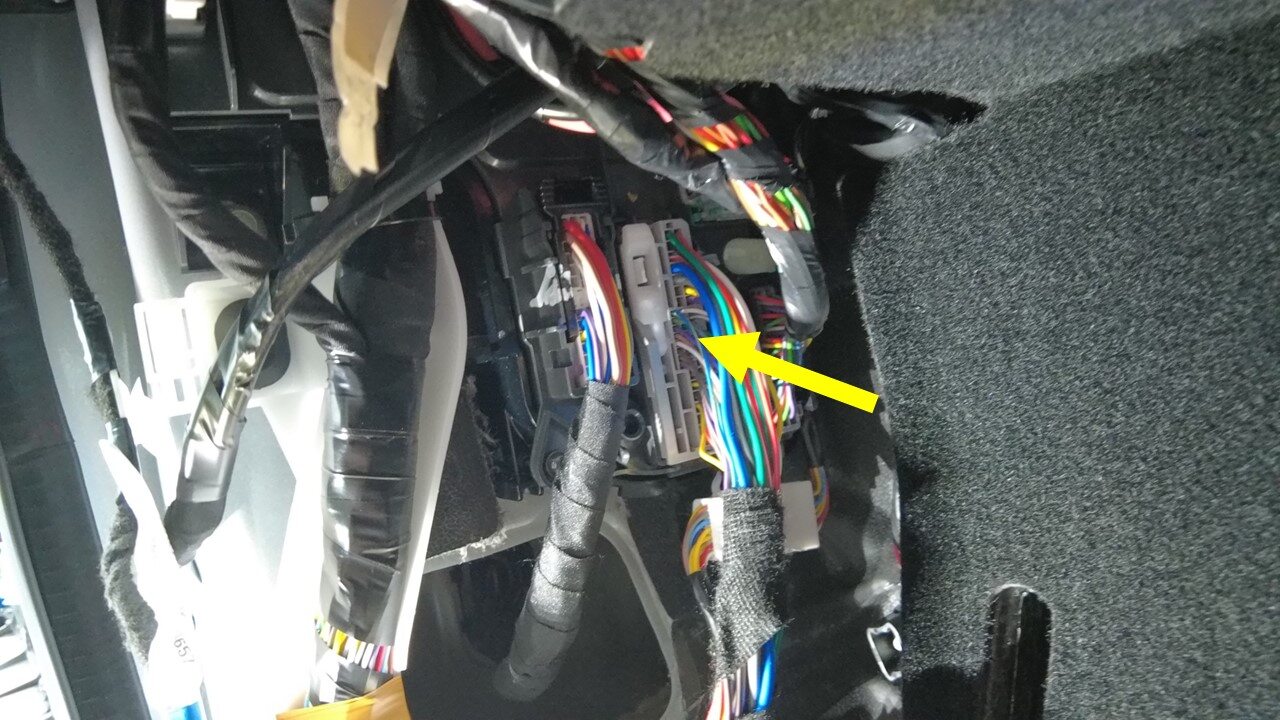

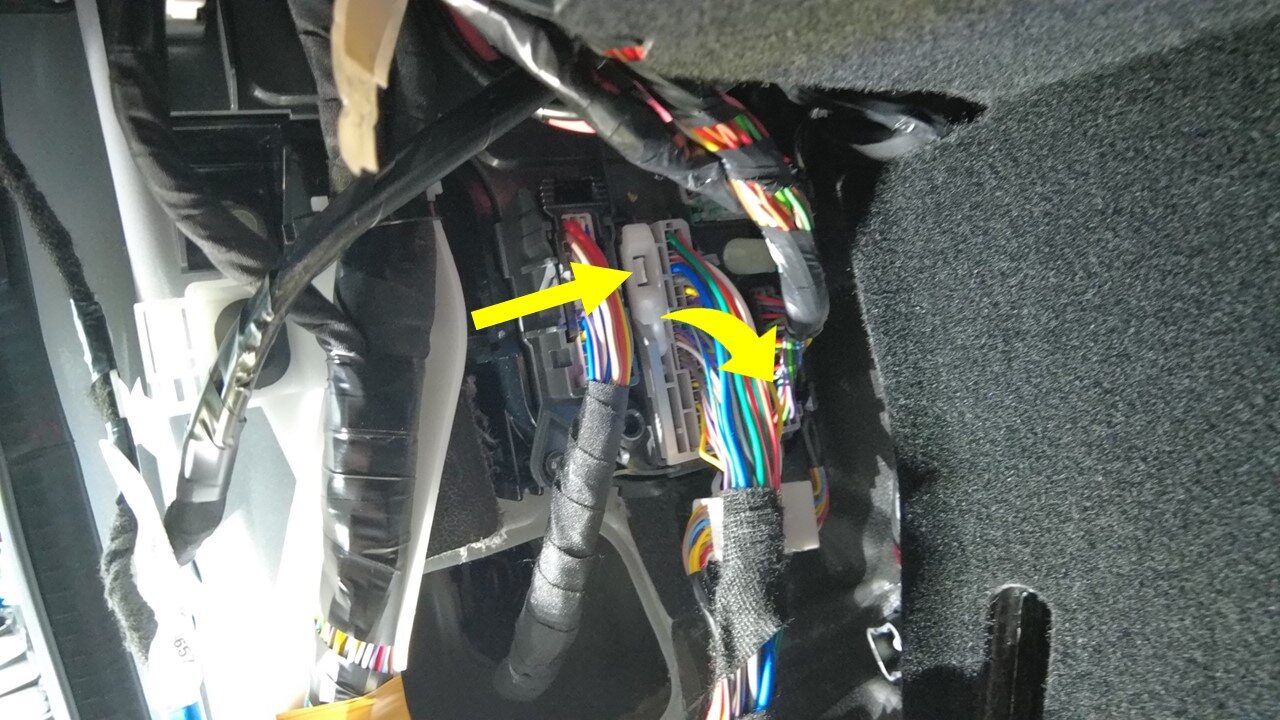

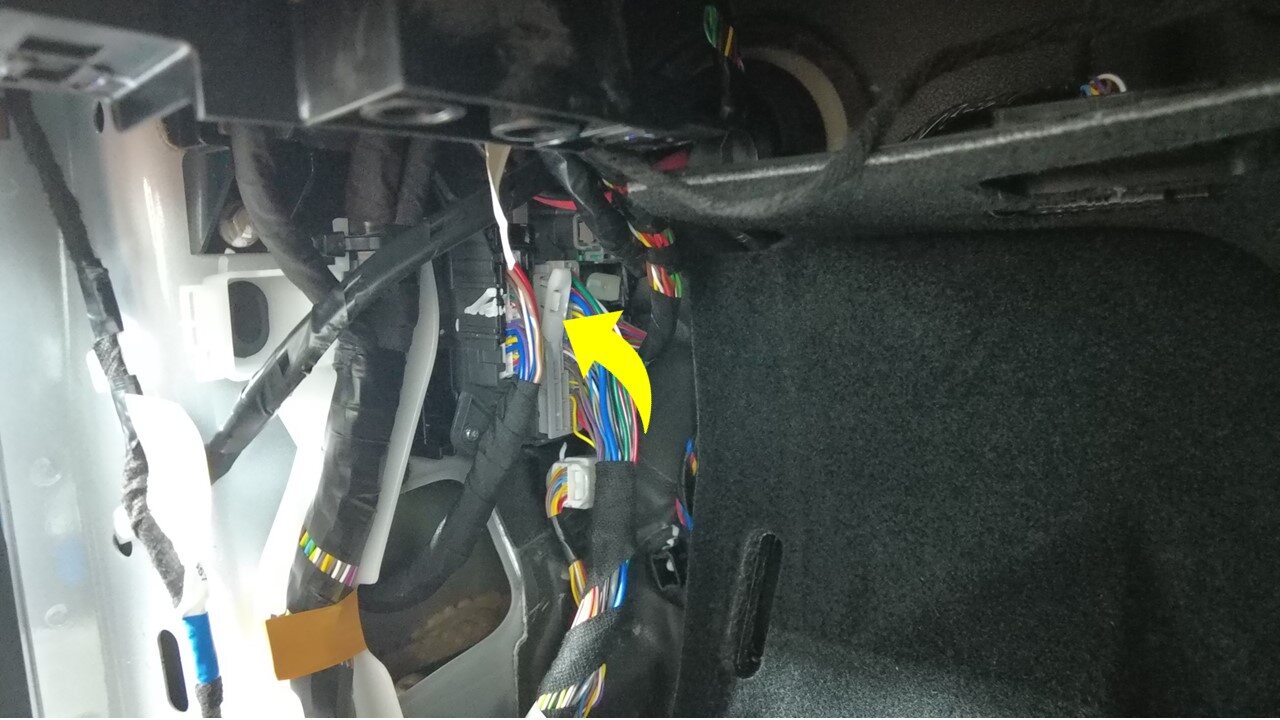

  37. Disconnect LH body harness from left controller
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, Connector J2, Connector J4, Connector J5, Release locking tabs
  38. Disconnect headliner harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab

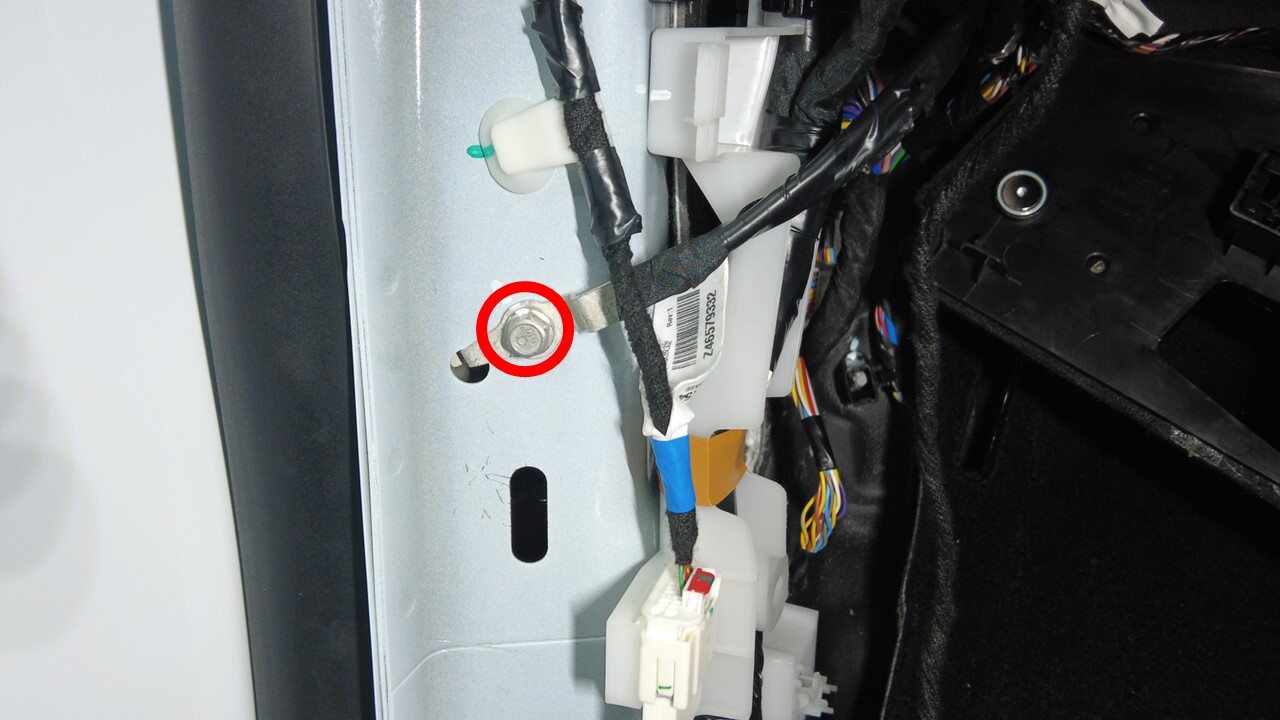

  39. Release front main harness ground on LH A-pillar
    Informational PurposesAn informational icon, calling your attention

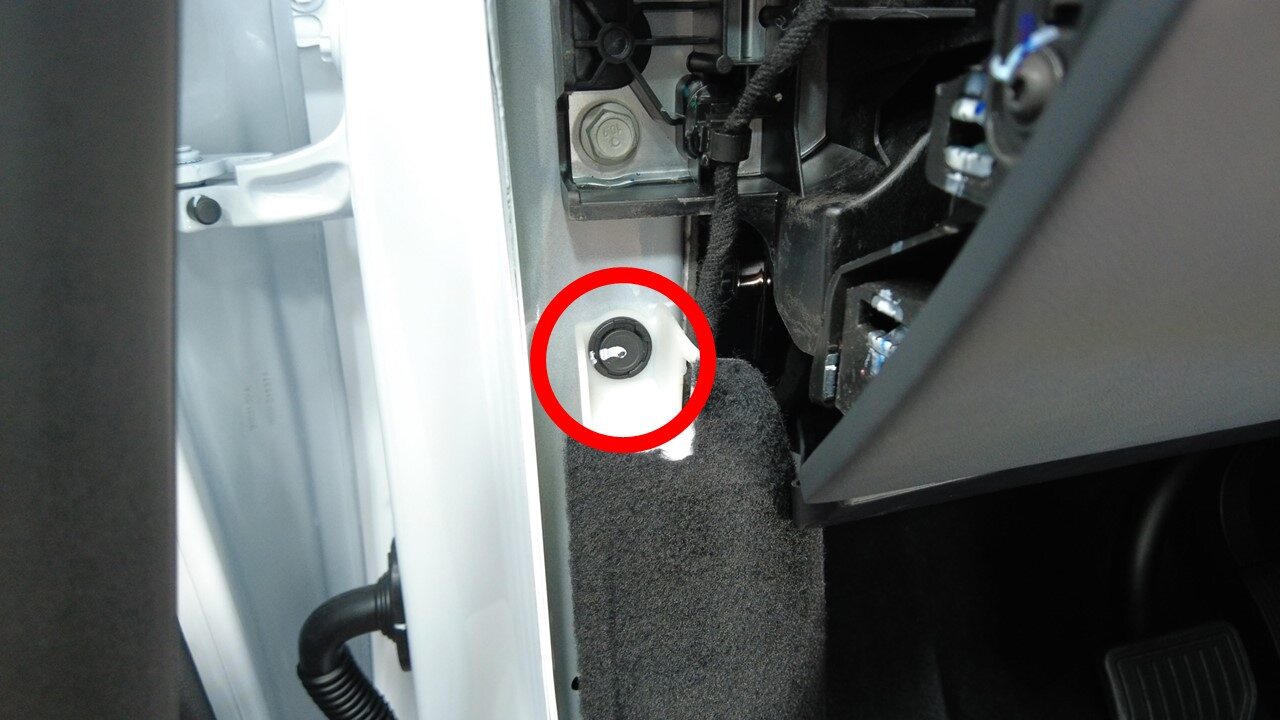

    Note
    1x bolt, 10mm, 10 Nm

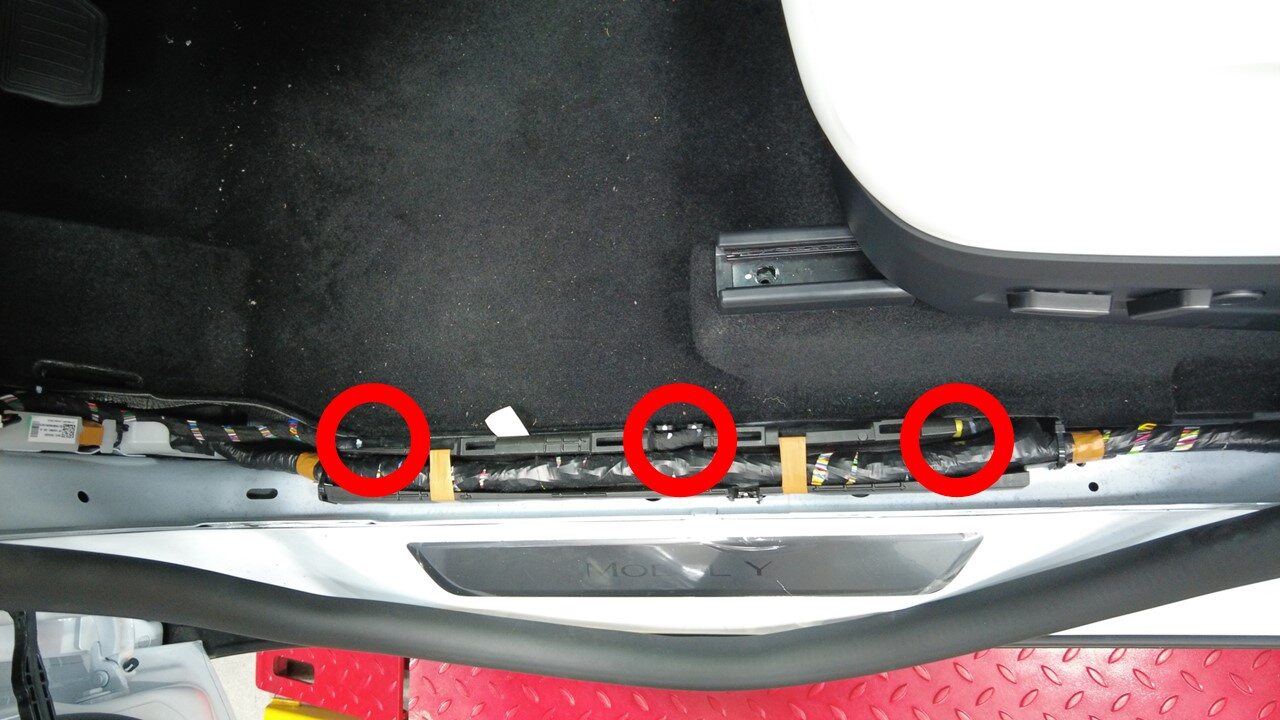

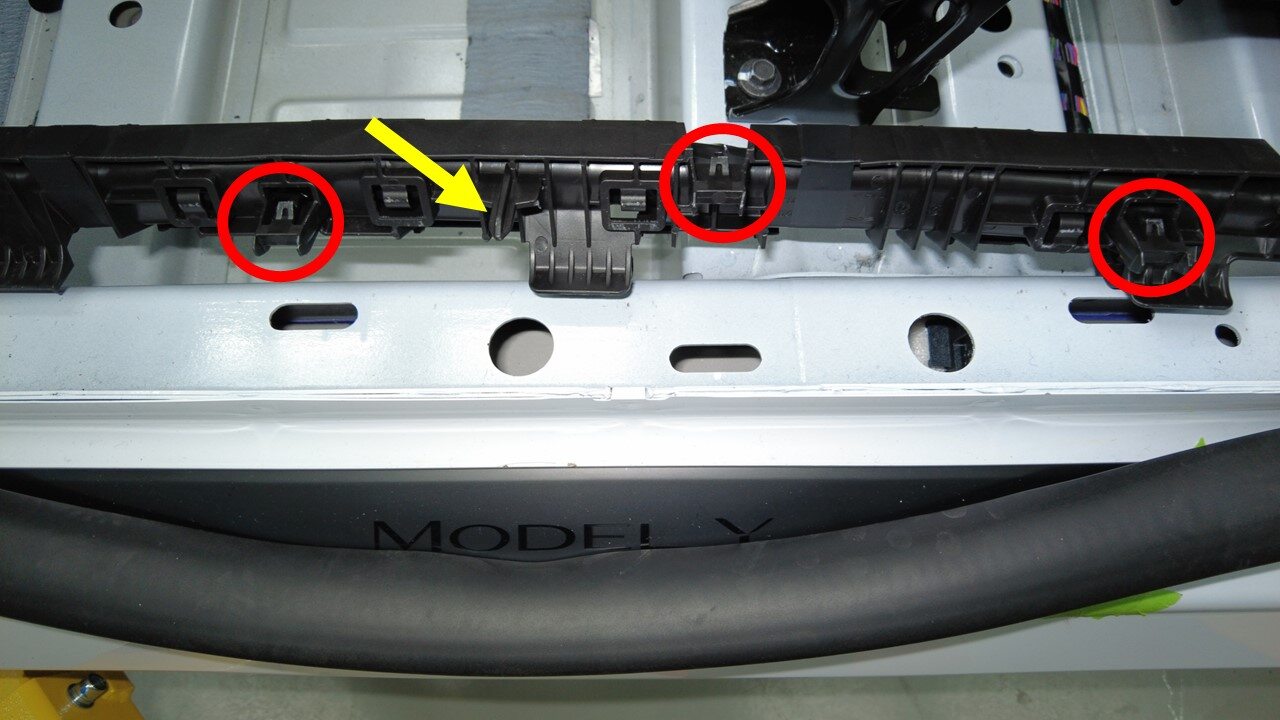

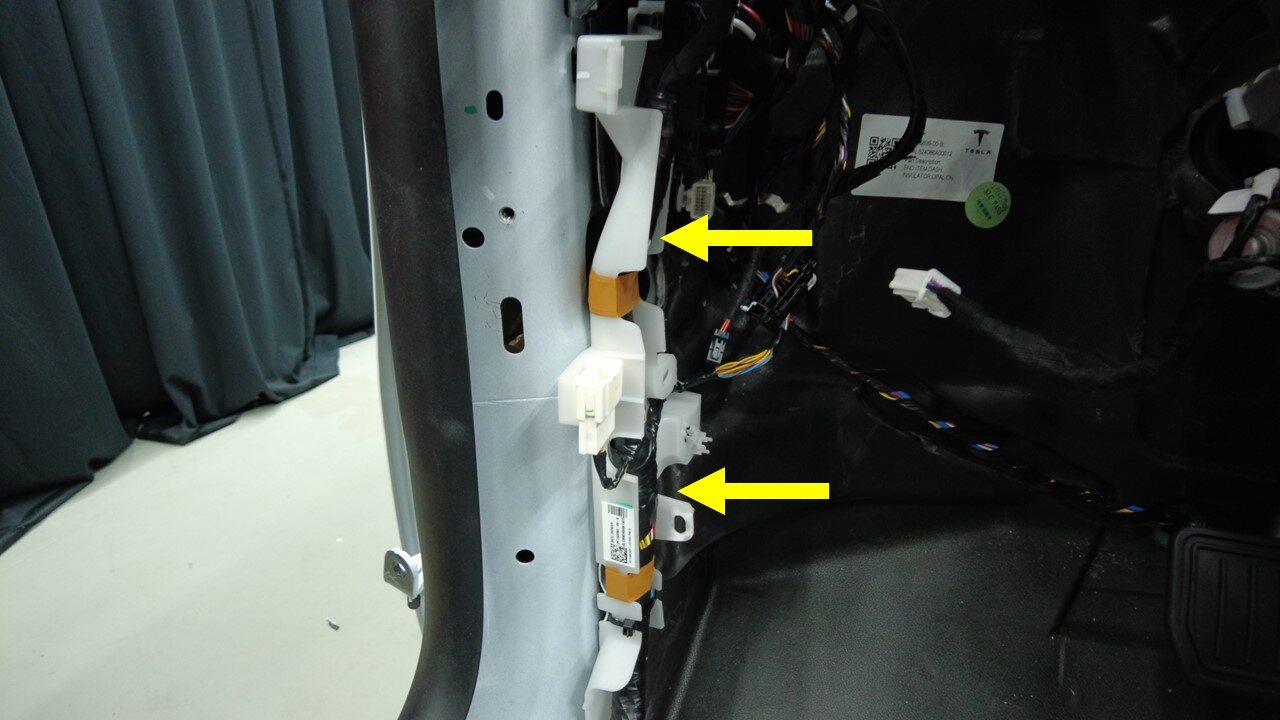

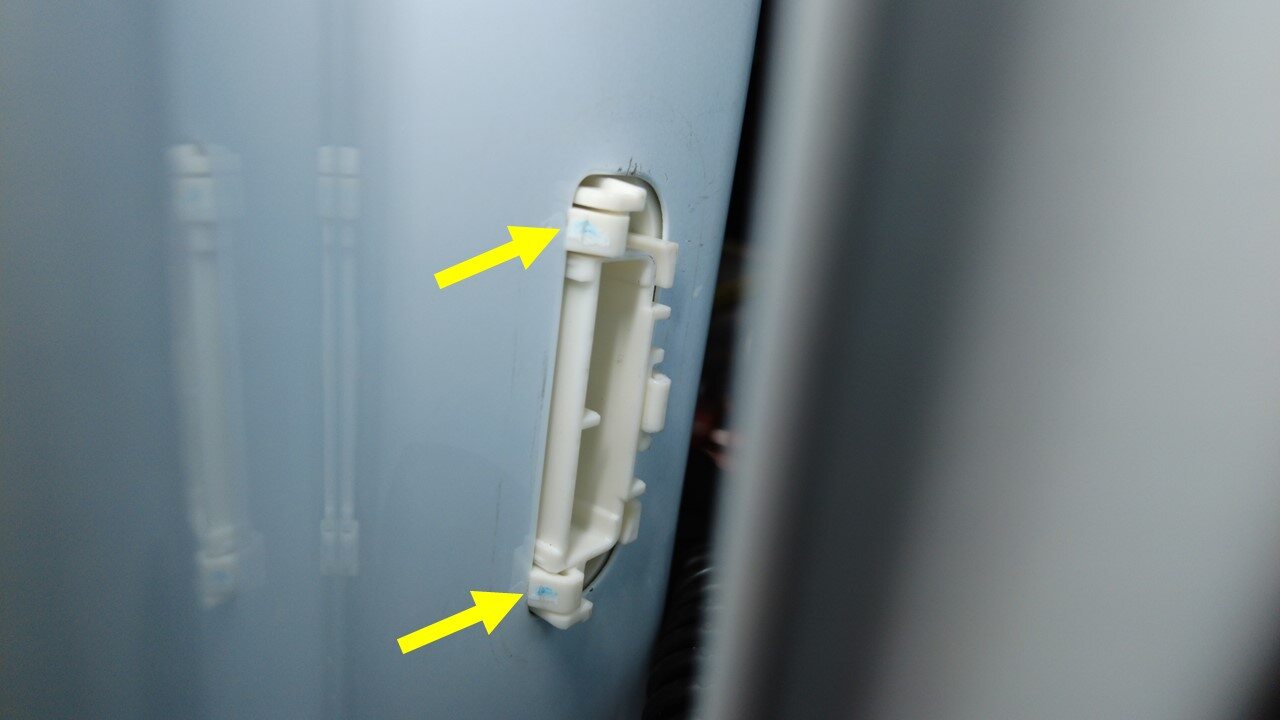

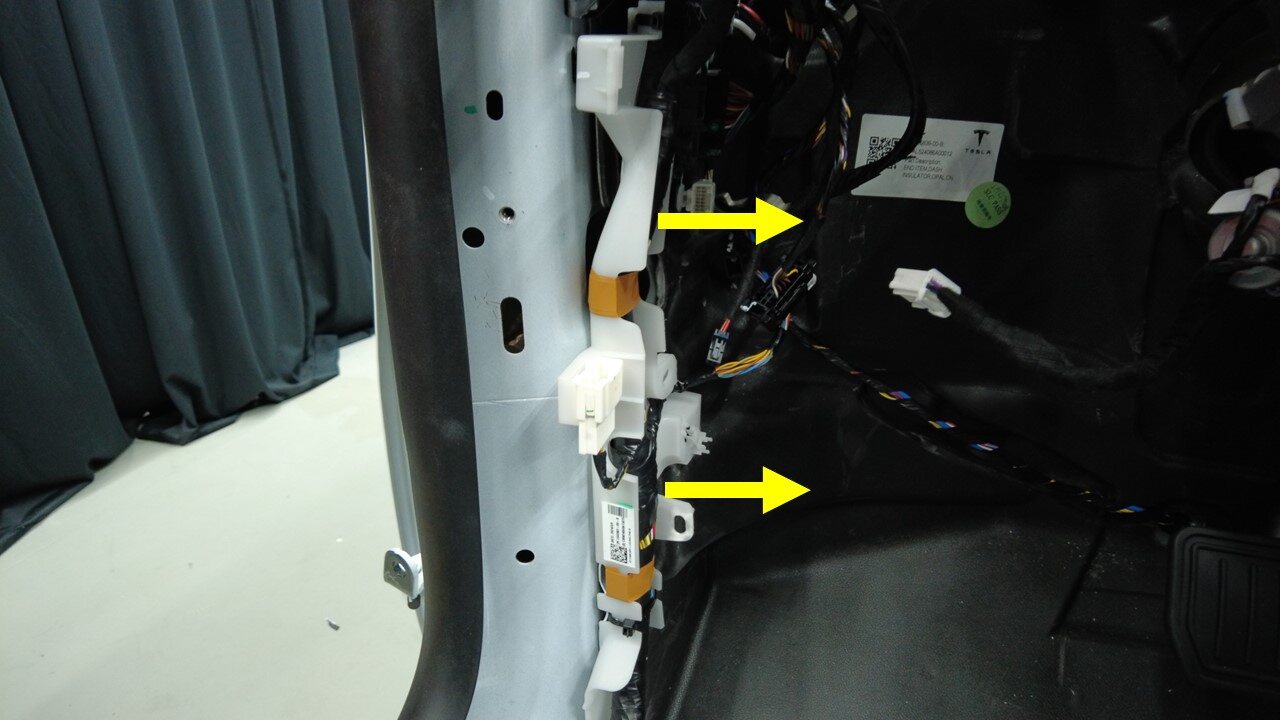

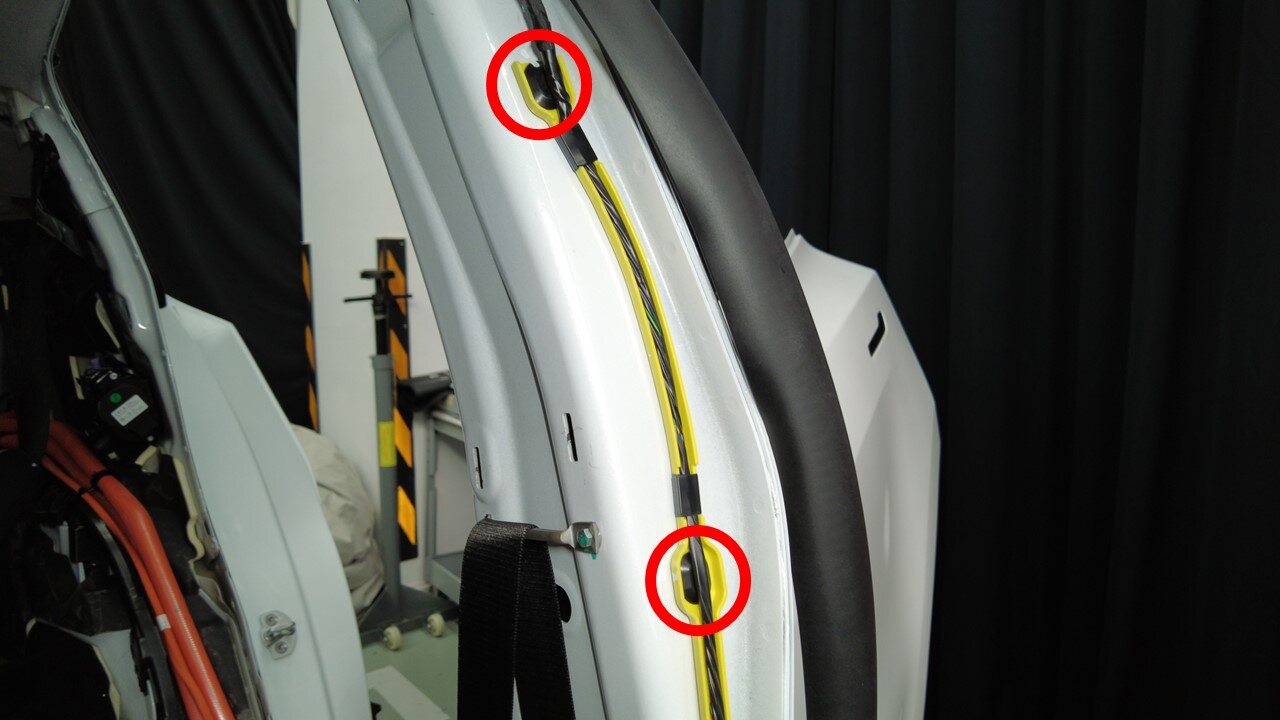

  40. Release LH body harness clips from LH A-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips

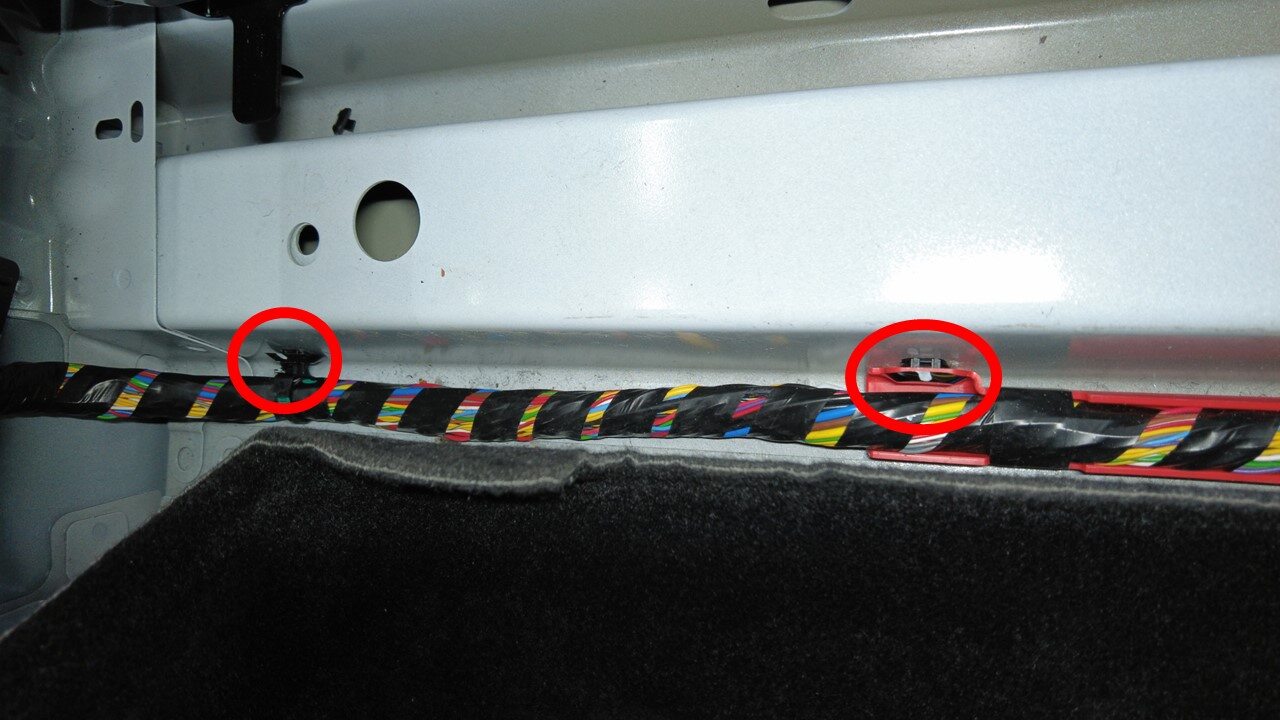

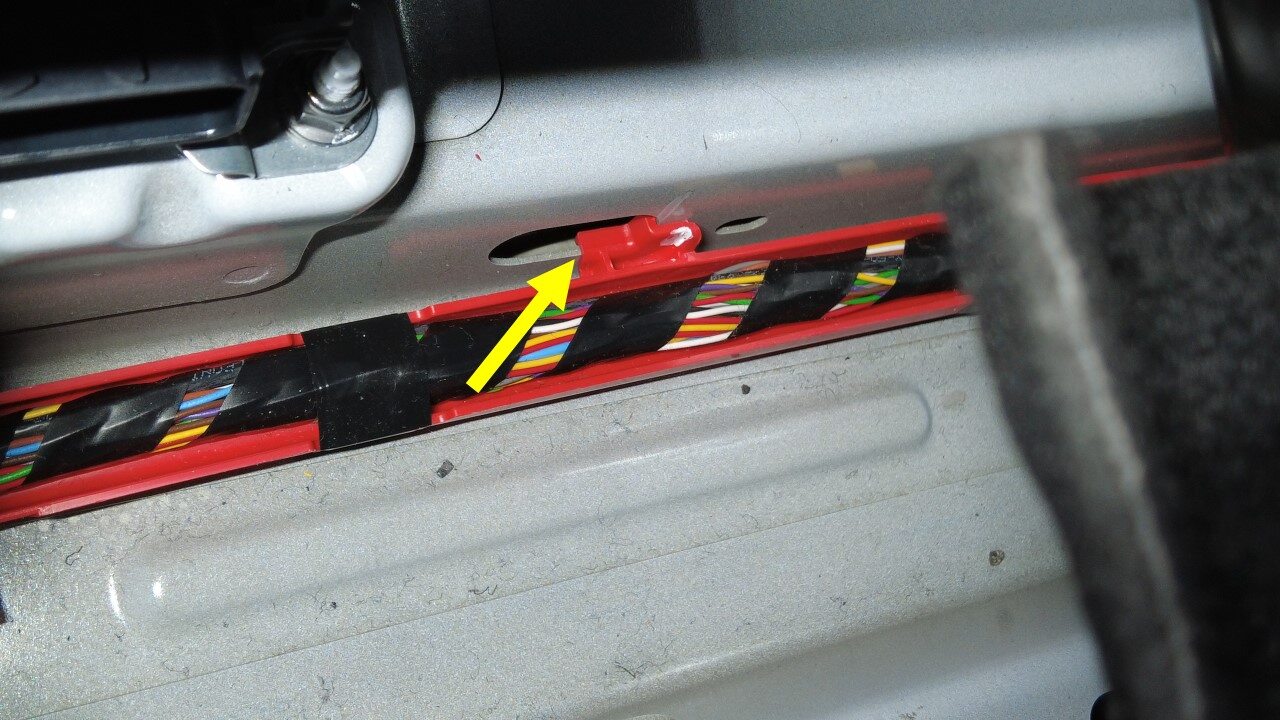

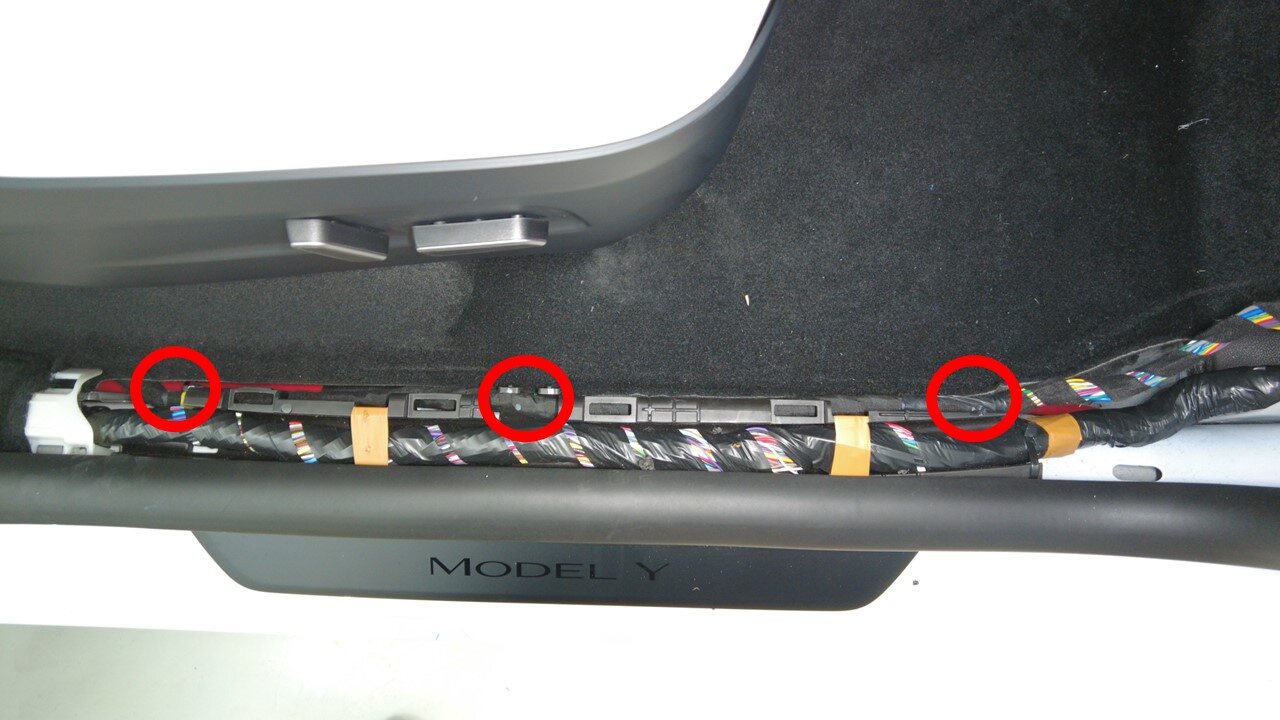

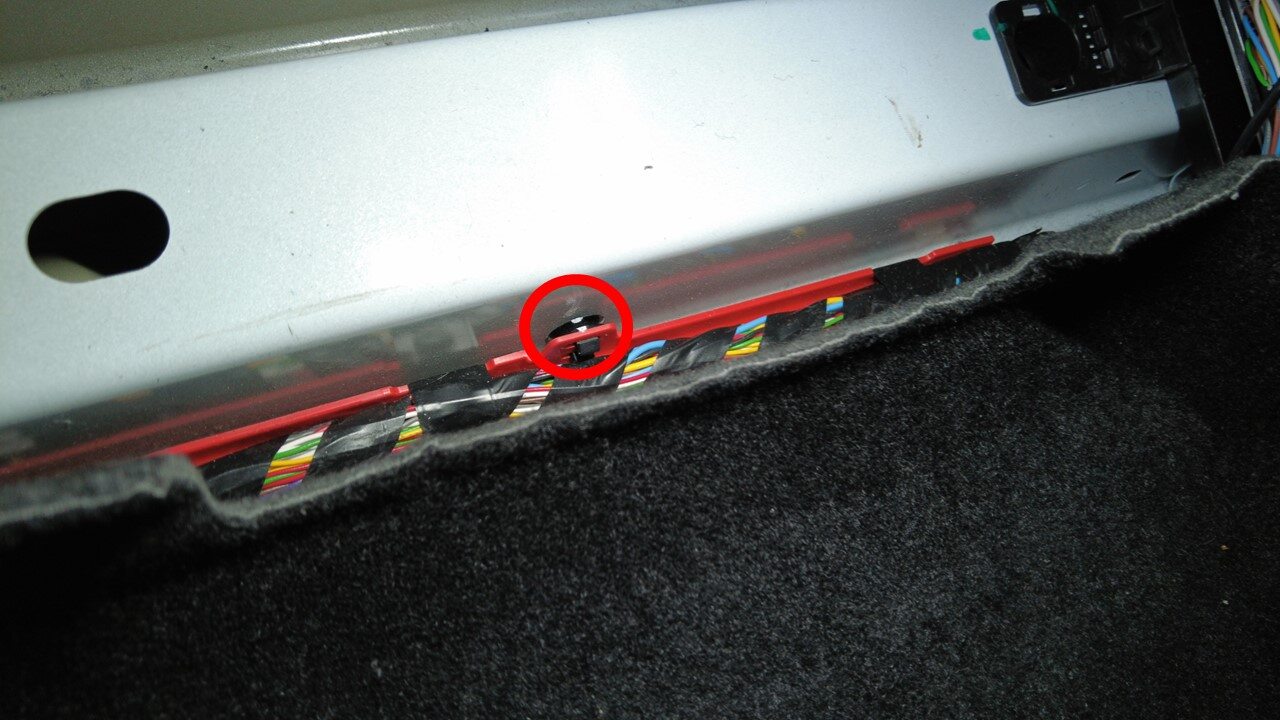

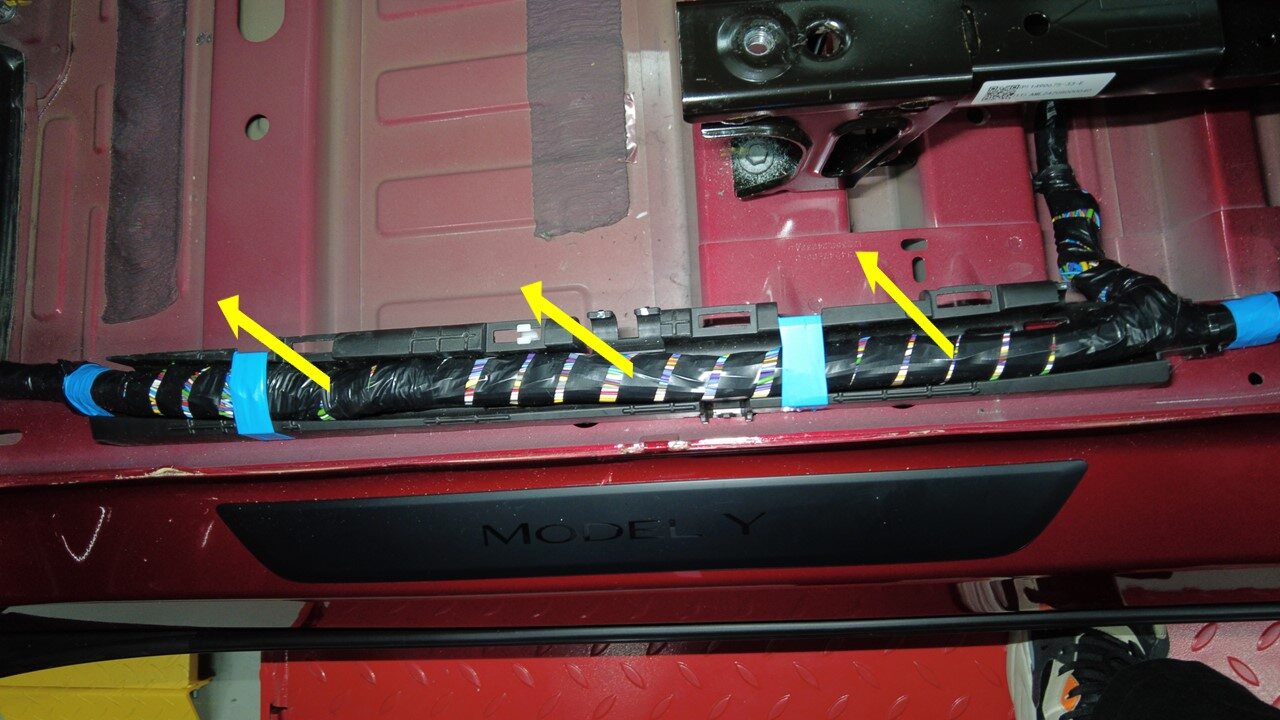

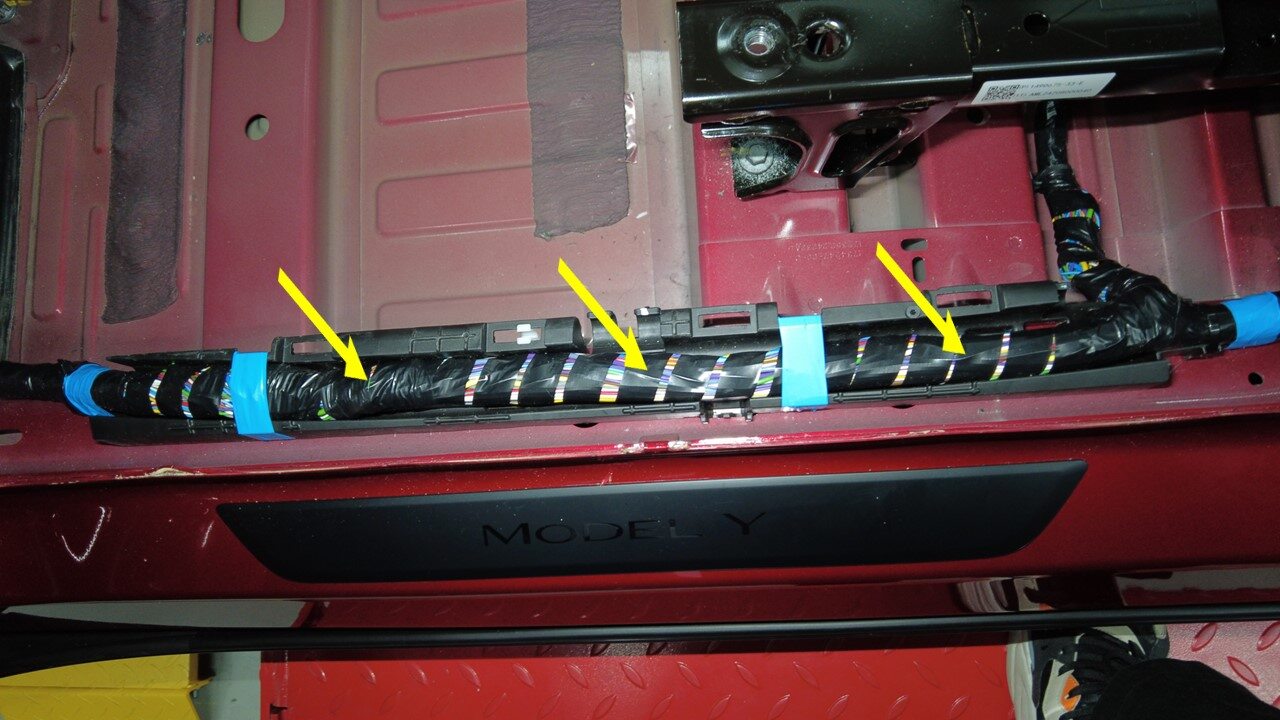

  41. Release LH body harness from LH front sill
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x datum

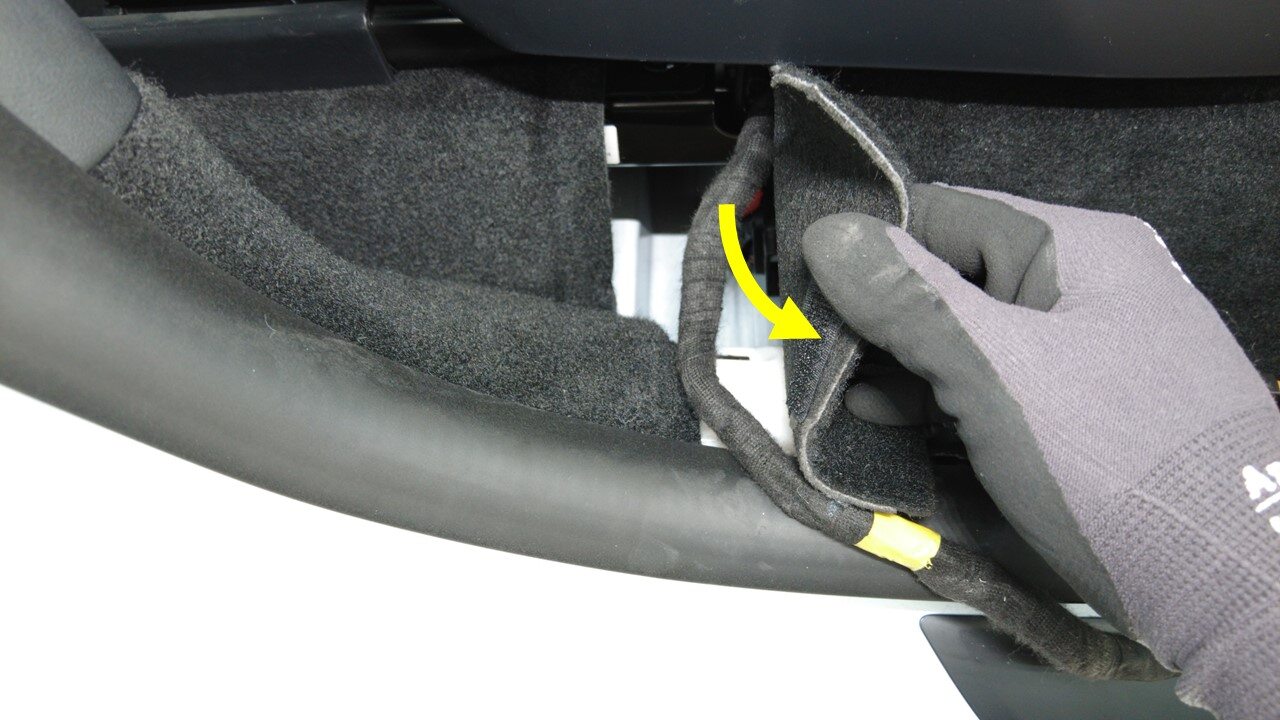

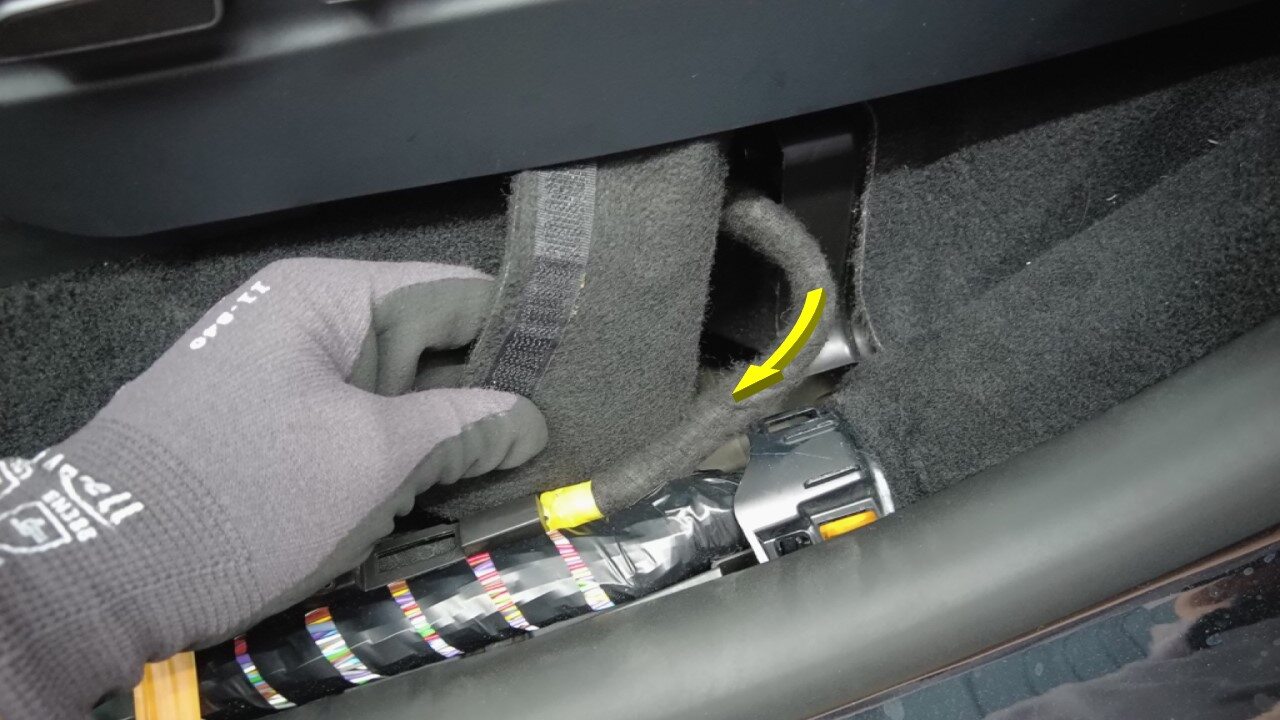

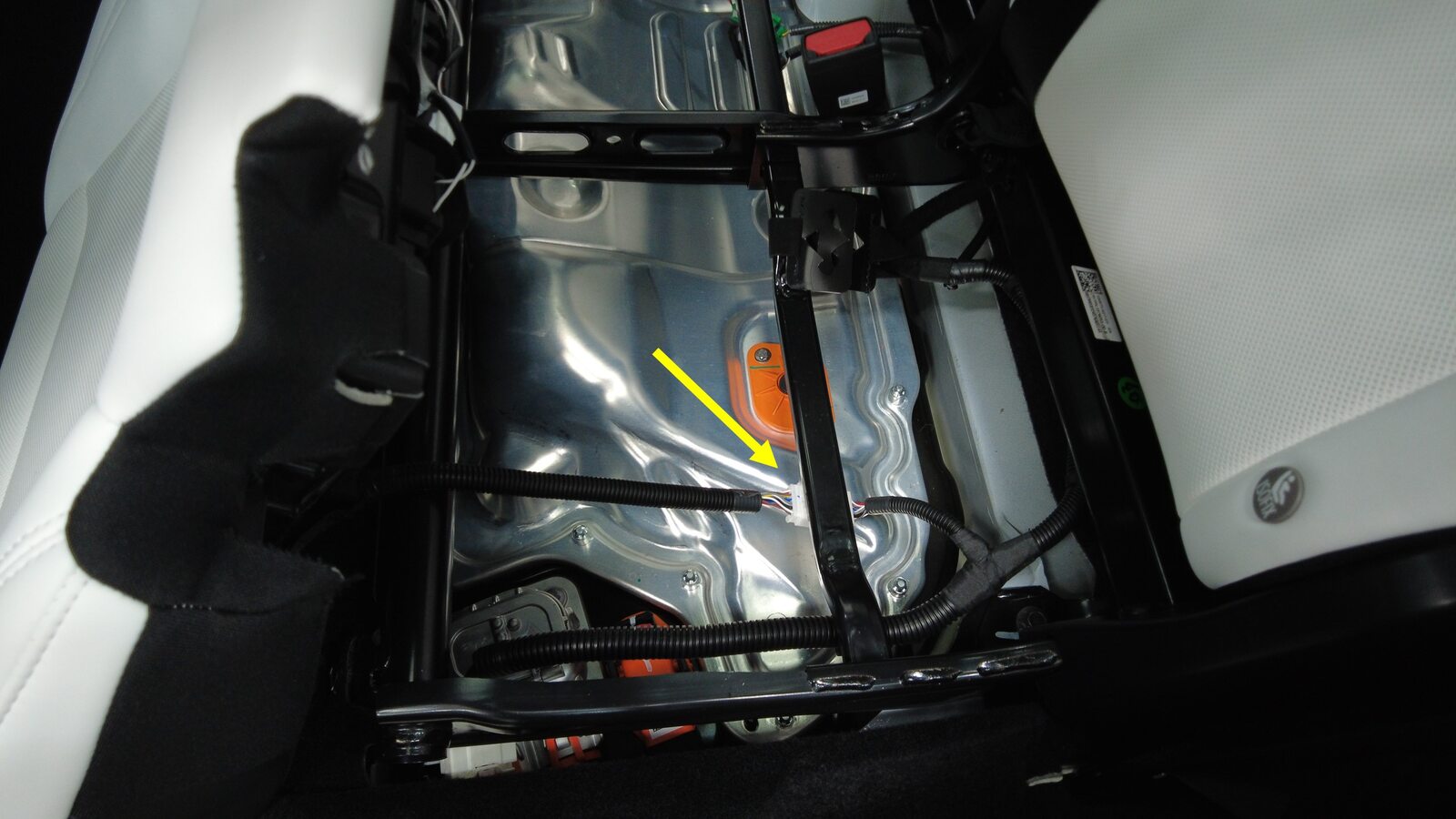

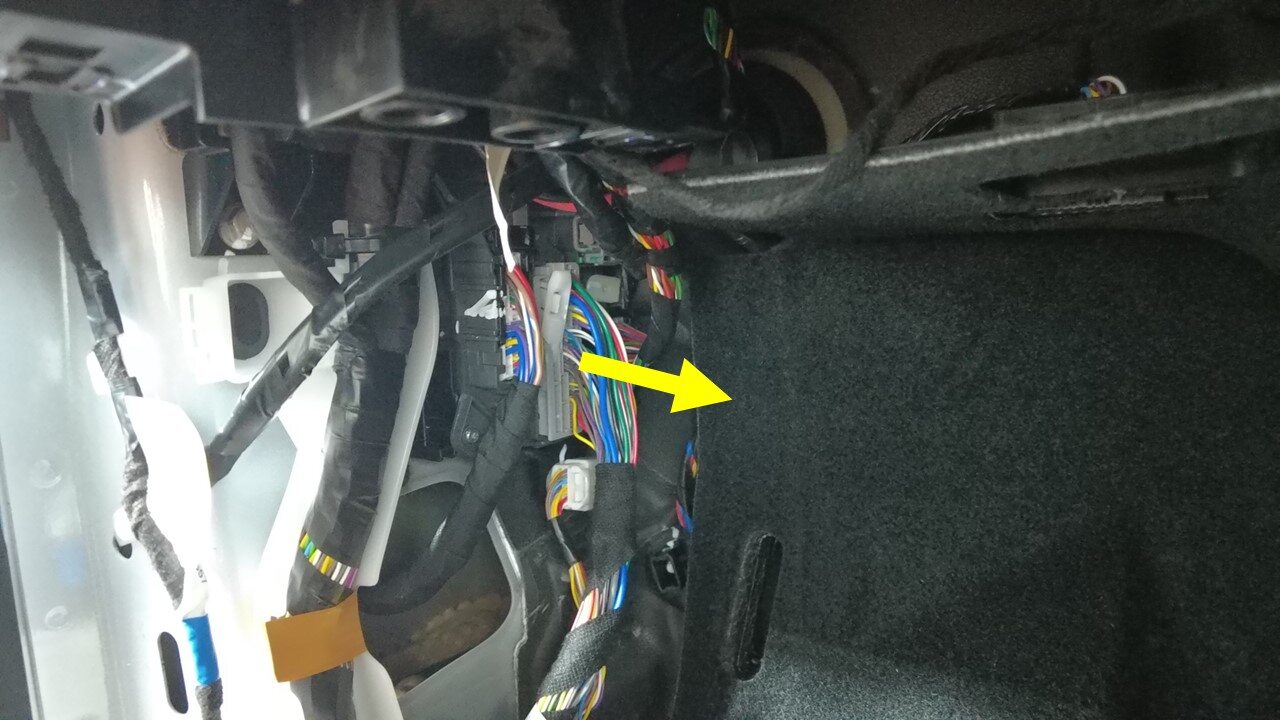

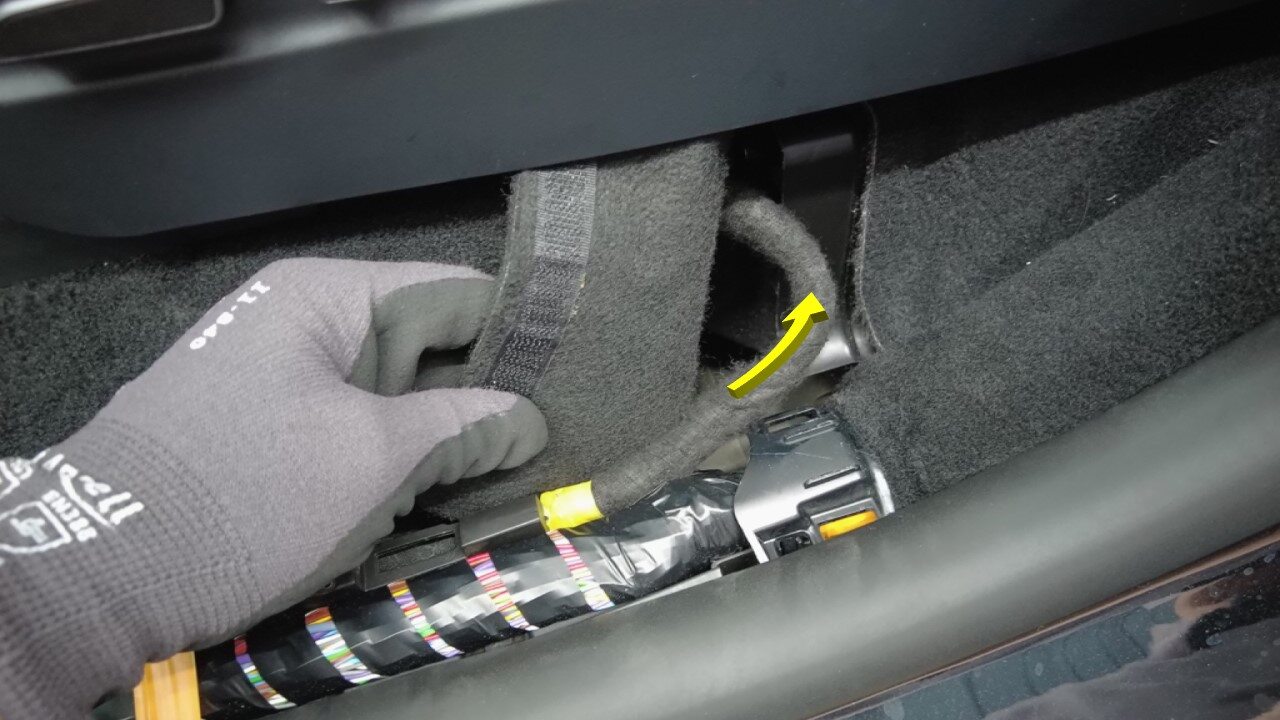

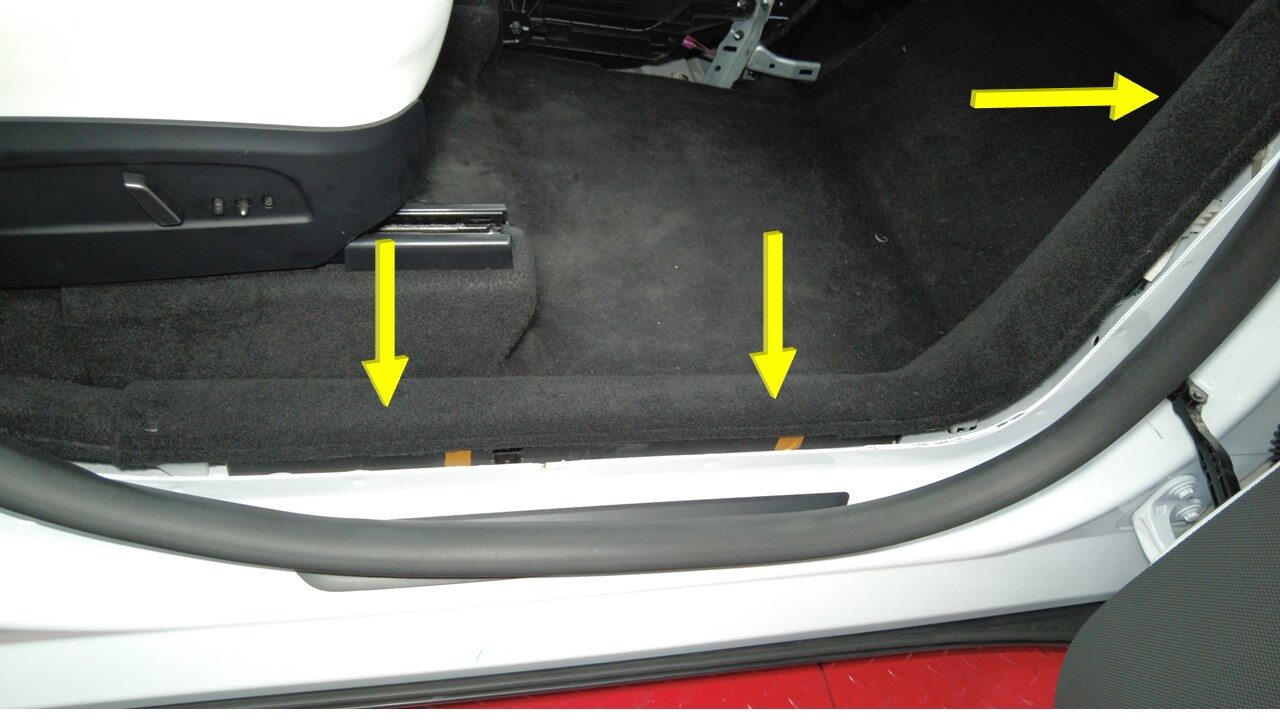

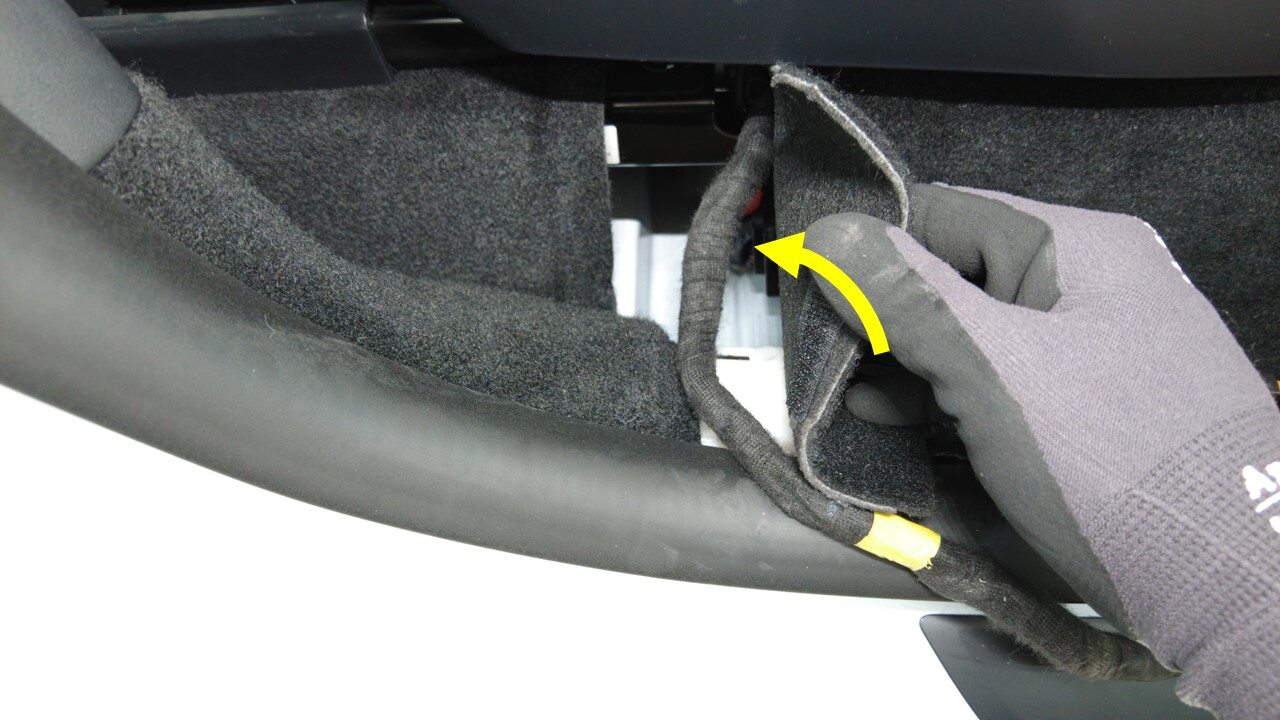

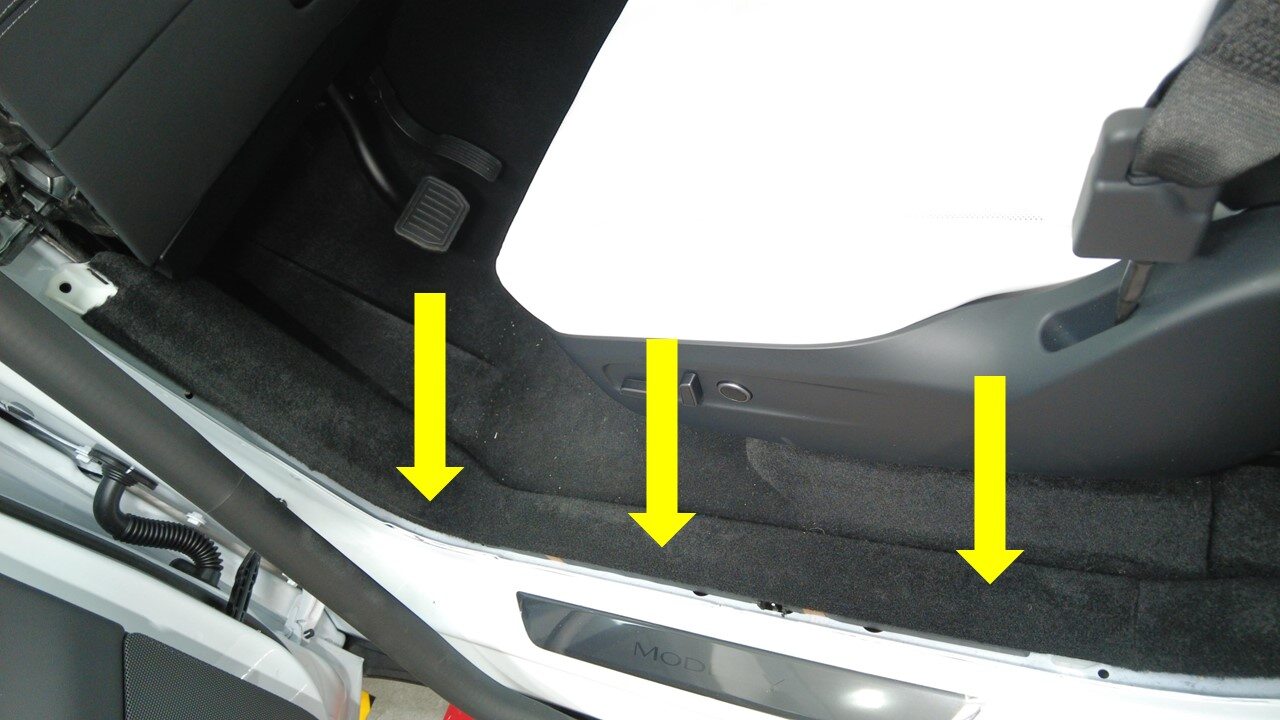

  42. Pull LH front seat harness from under LH front cabin carpet

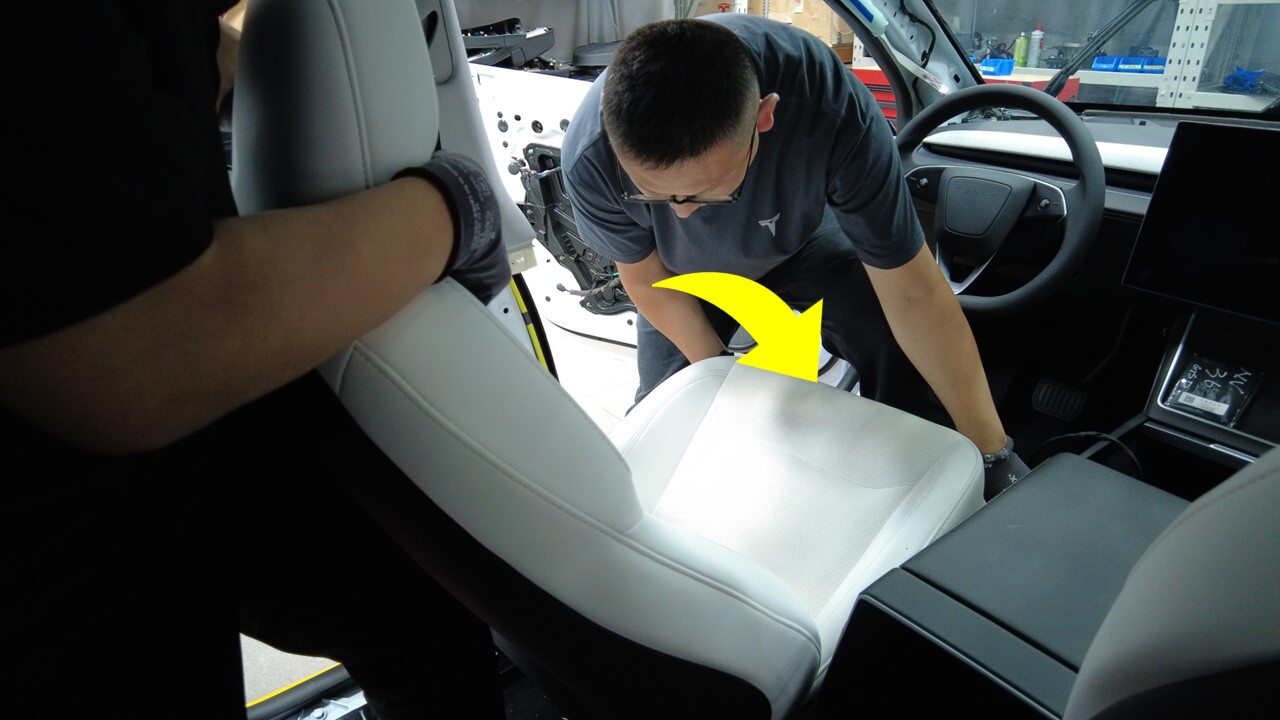

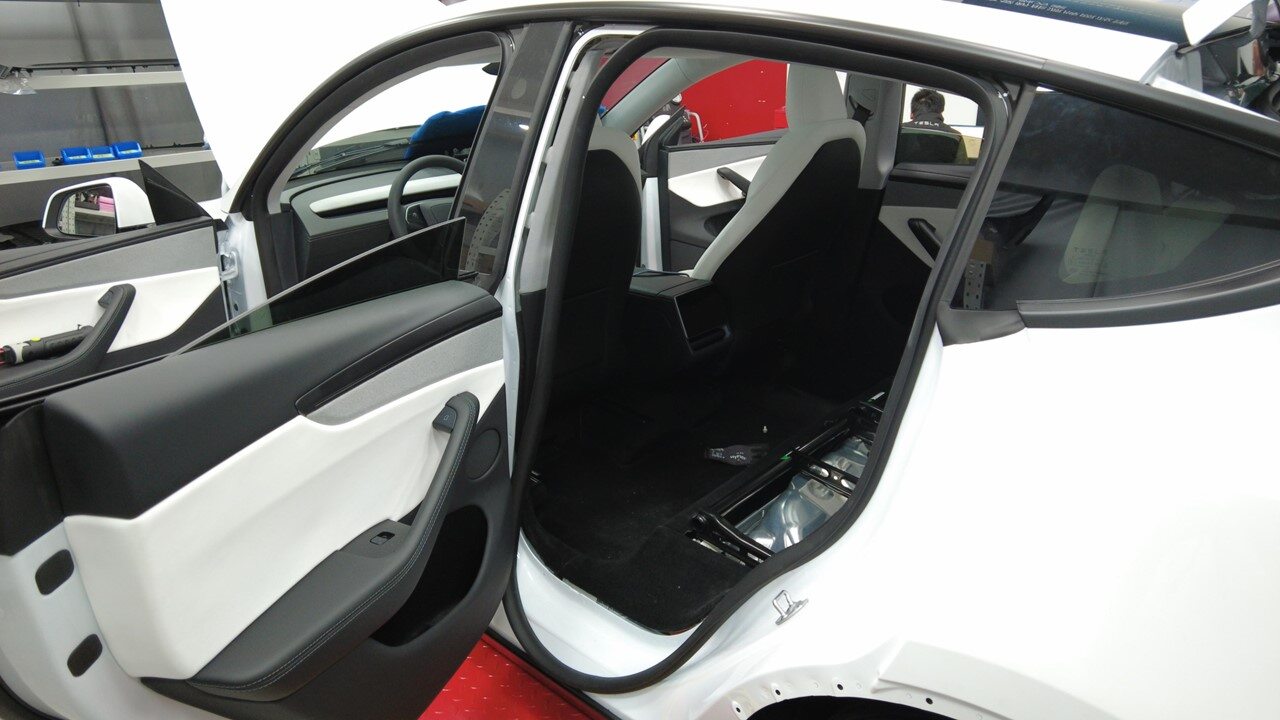

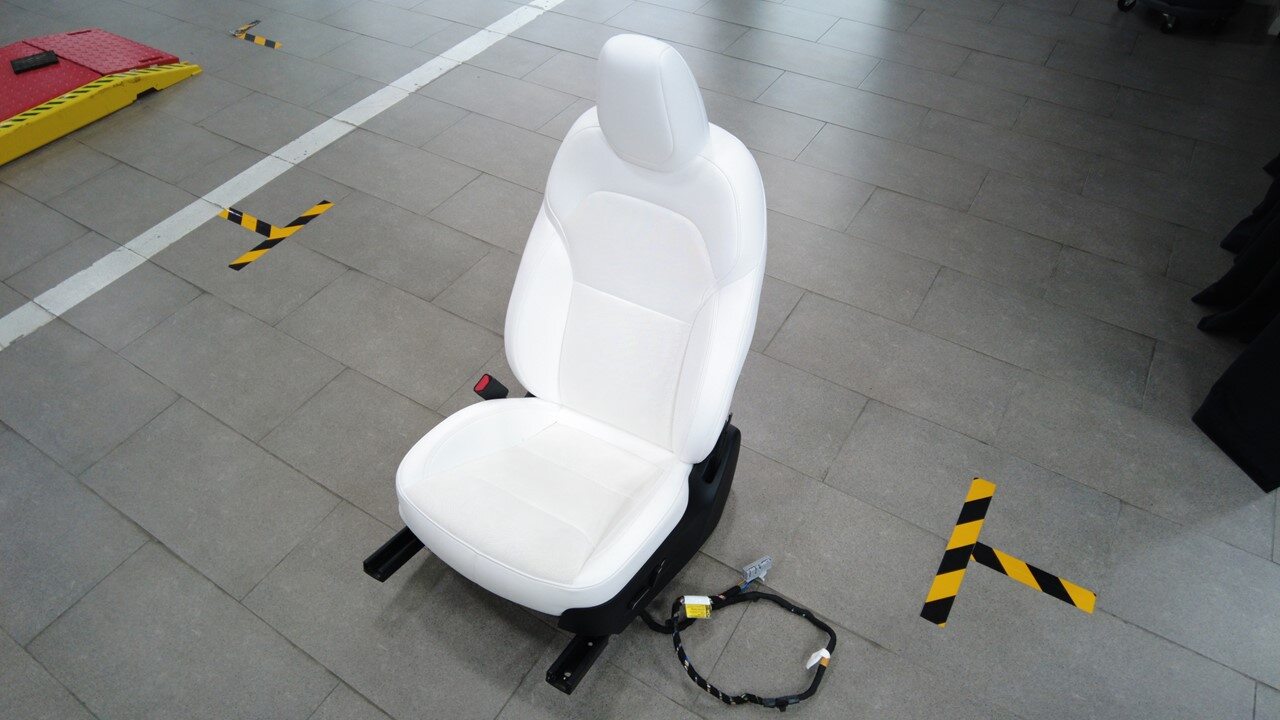

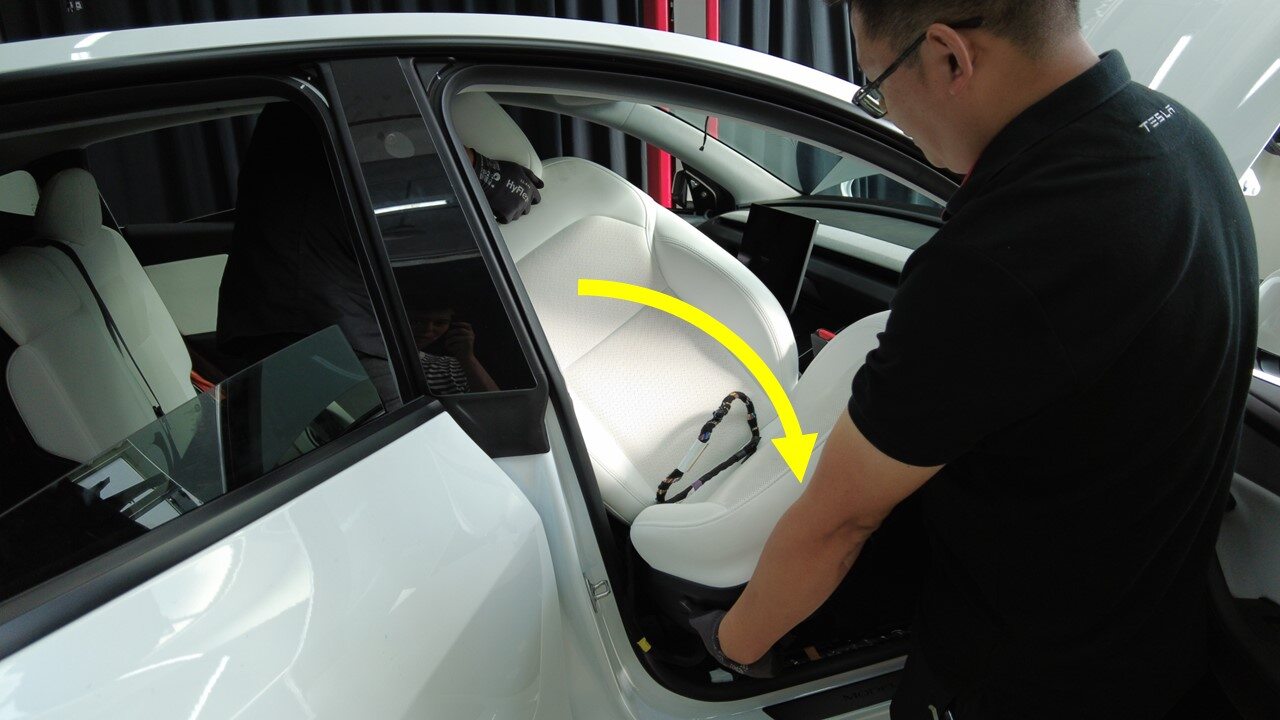

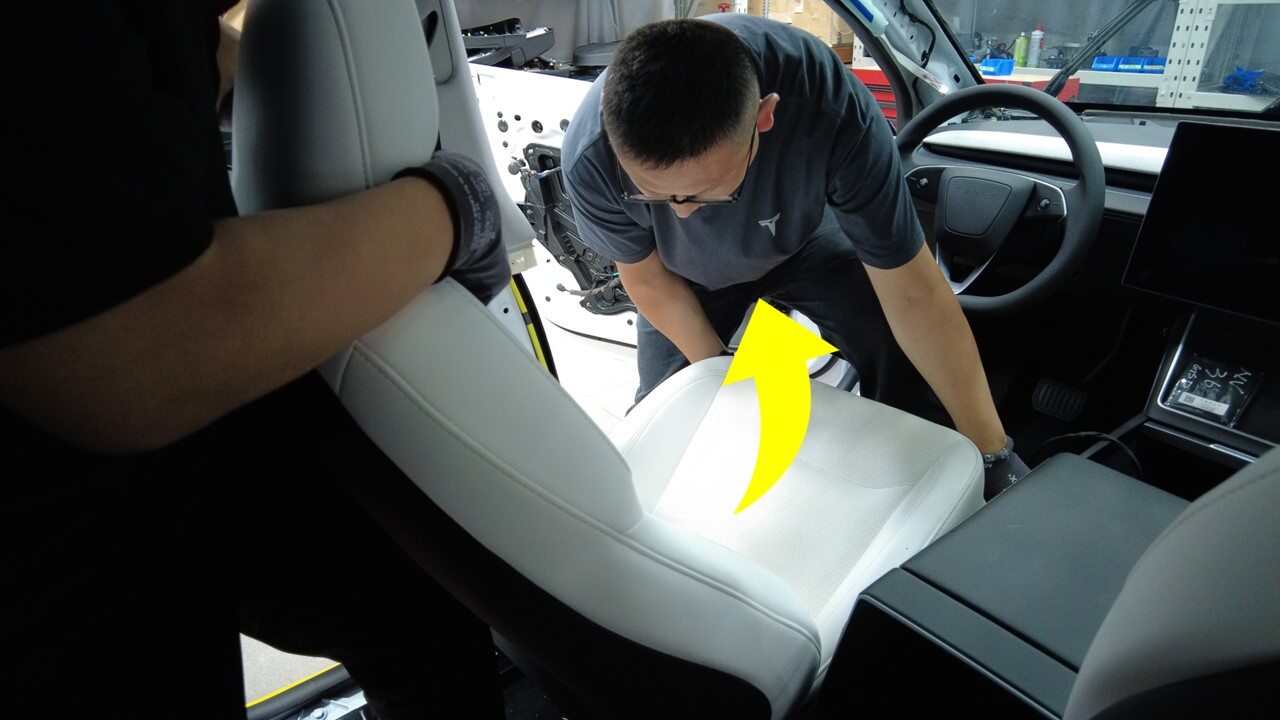

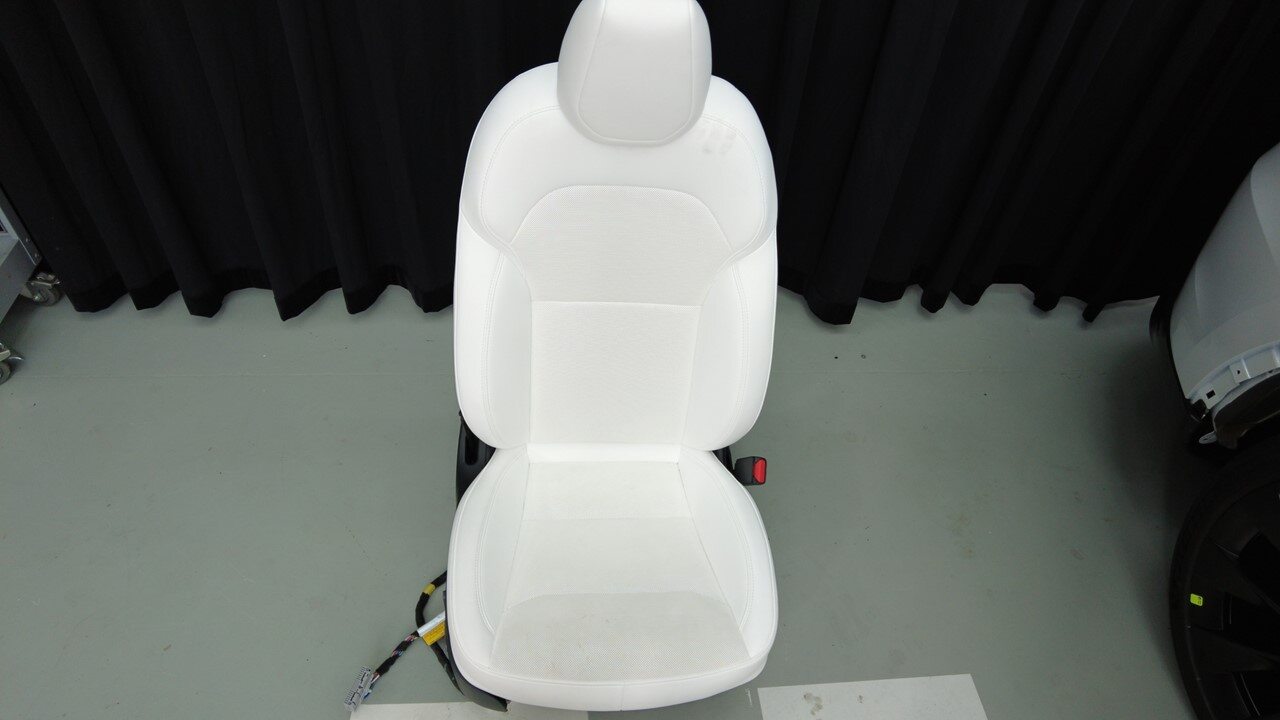

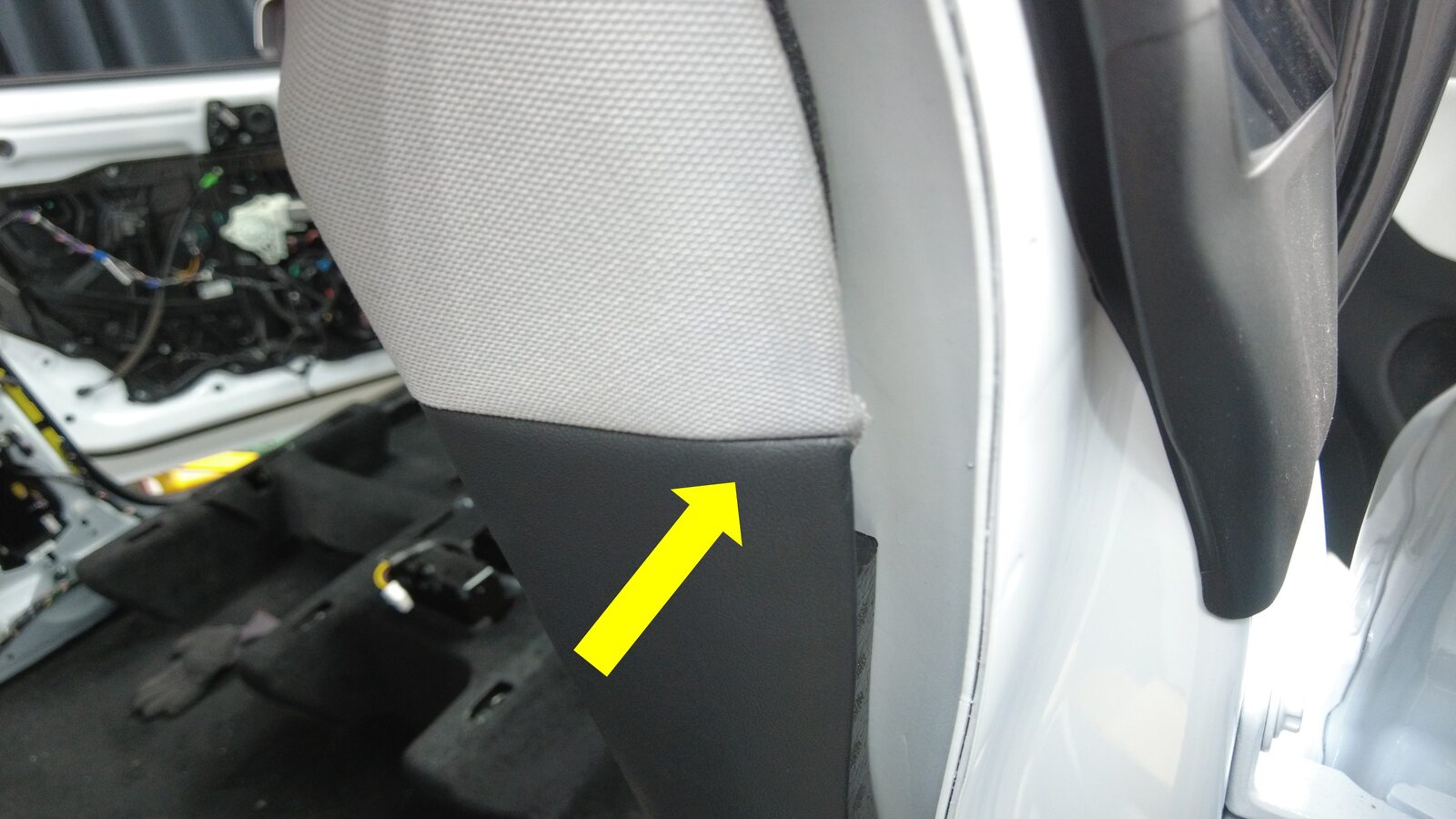

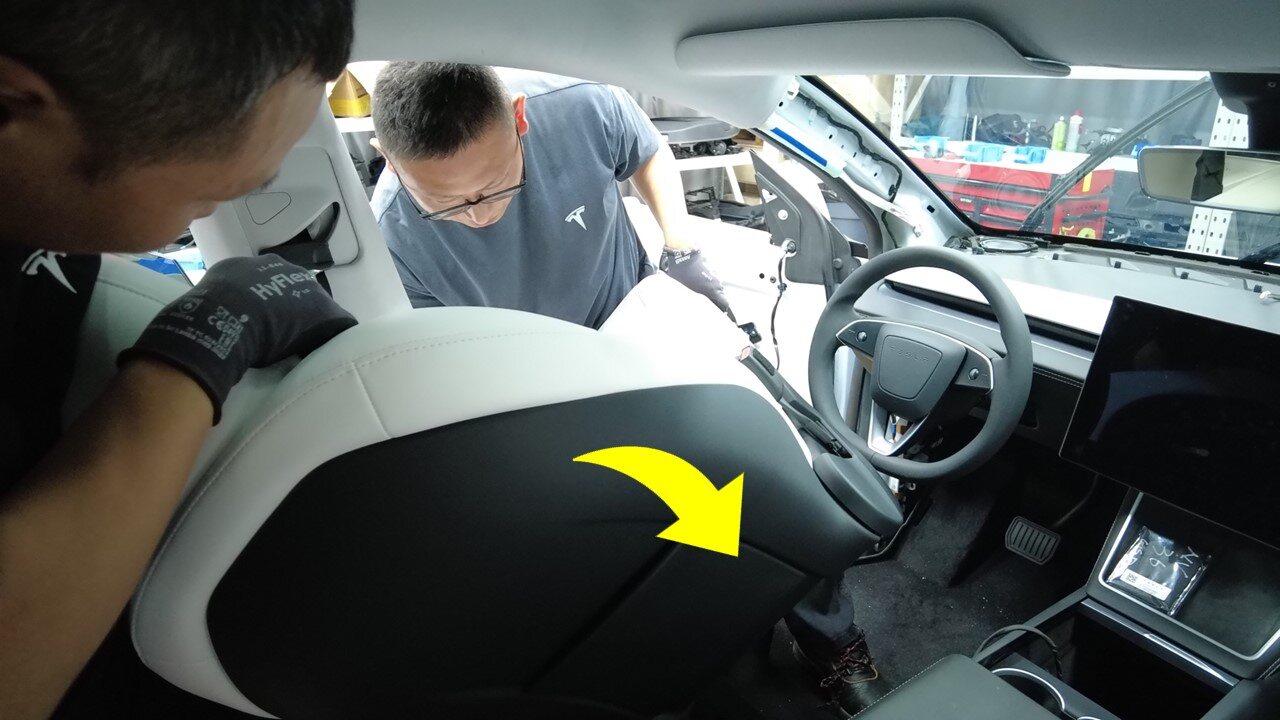

  43. Remove LH front seat from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, With assistant supporting seat back from 2nd row seat, Remove seat from front LH door opening, Caution not to damage any trim, Protect the seat upholstery when the seat is outside of the vehicle

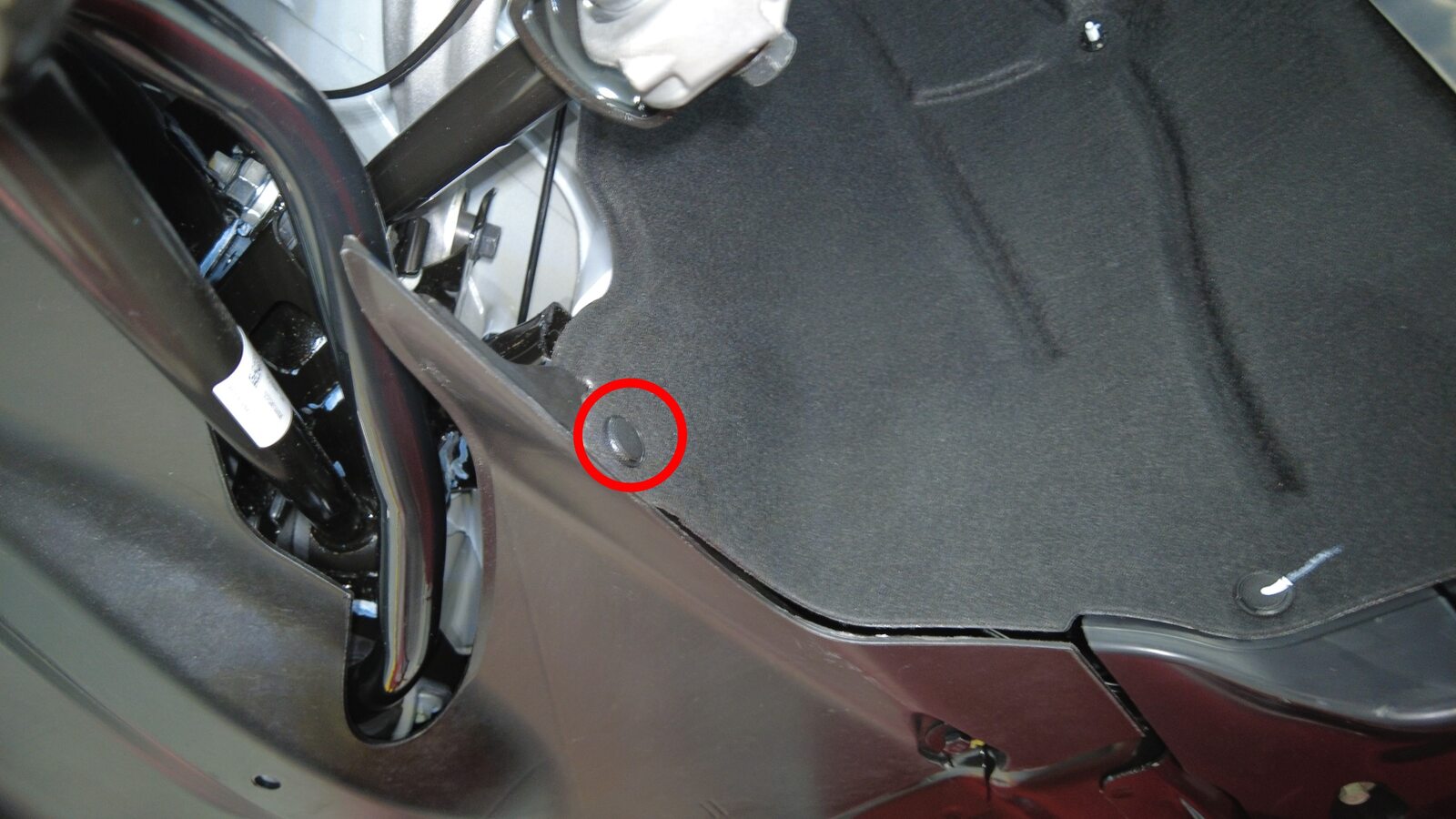

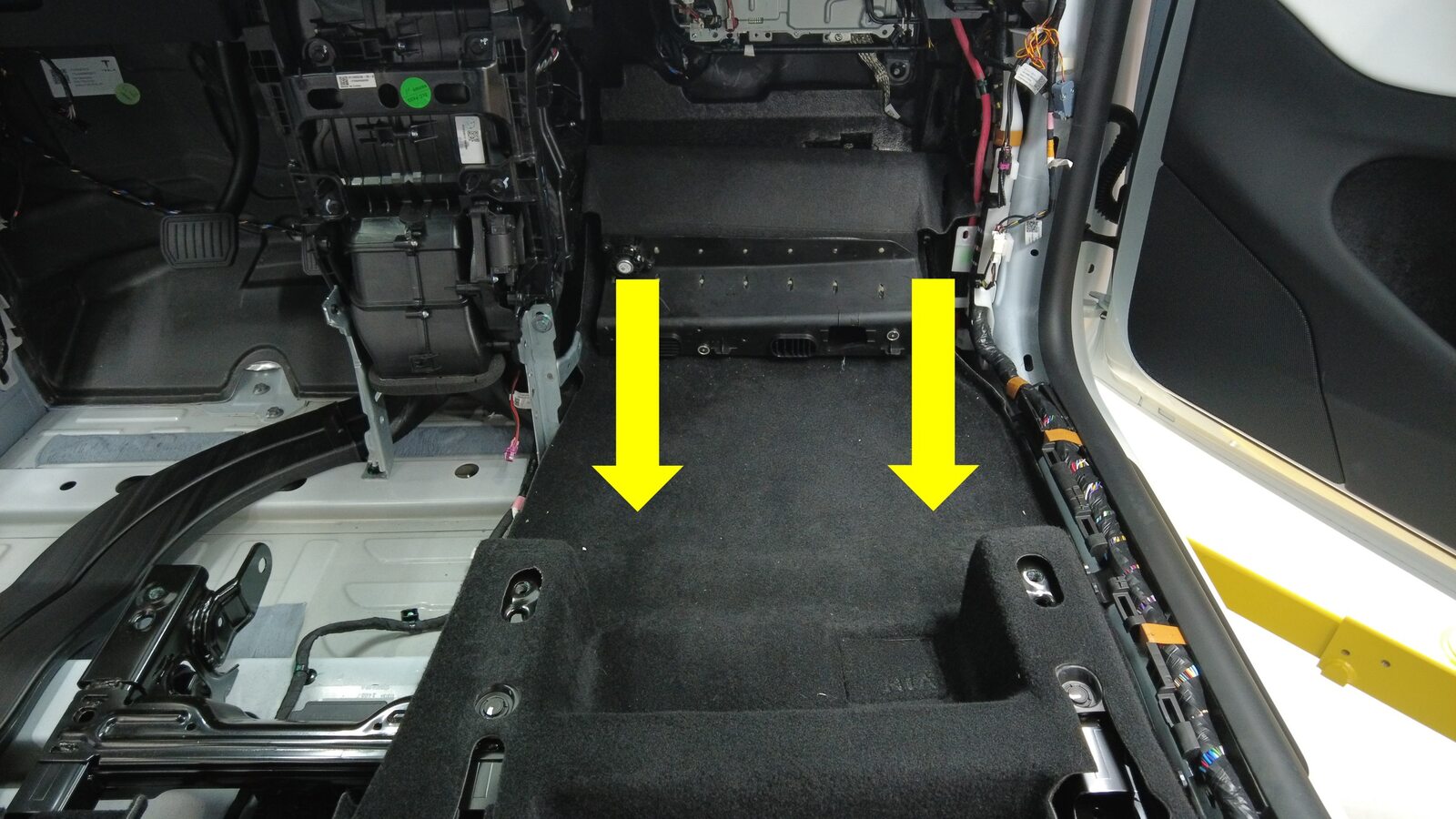

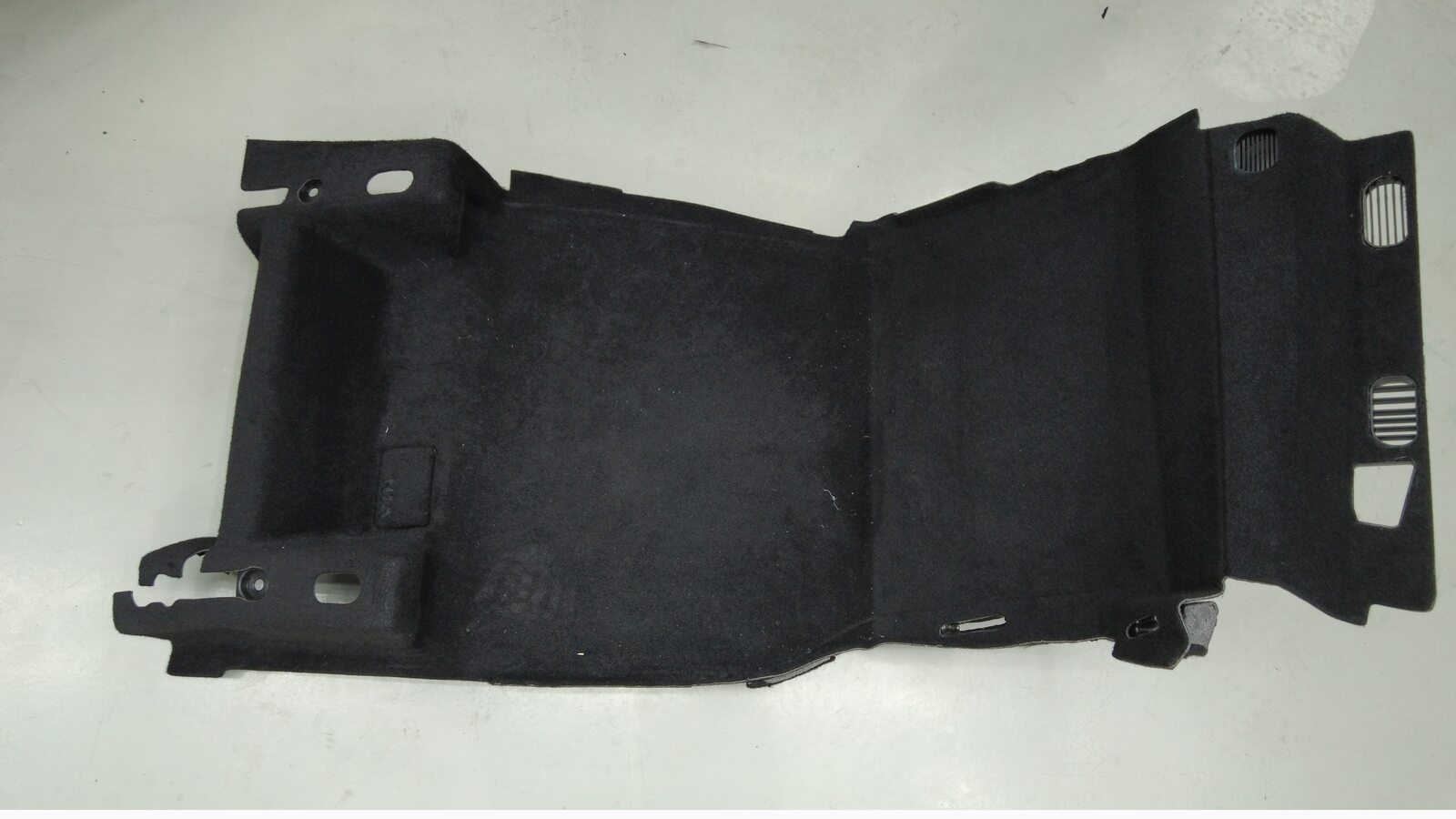

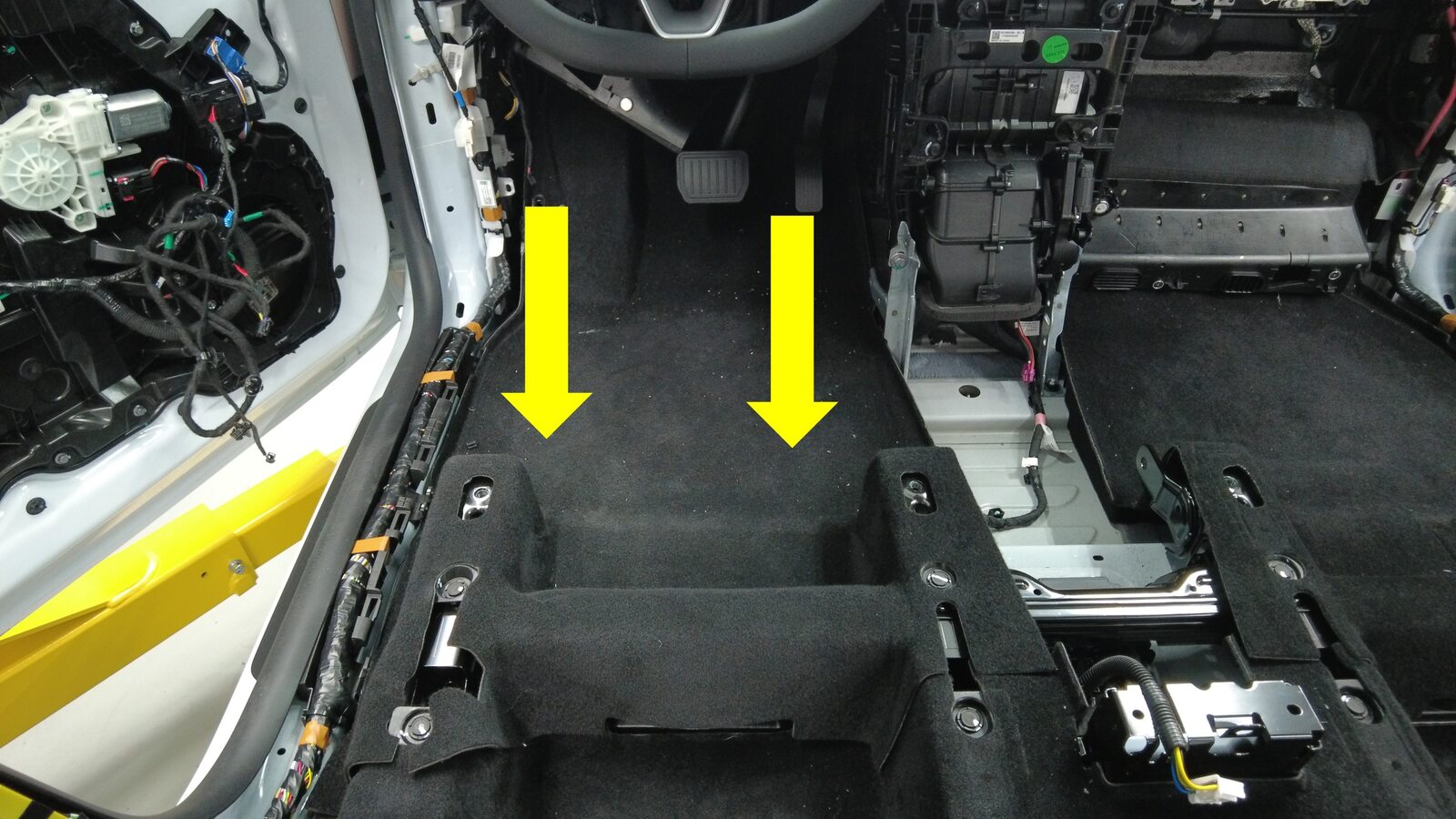

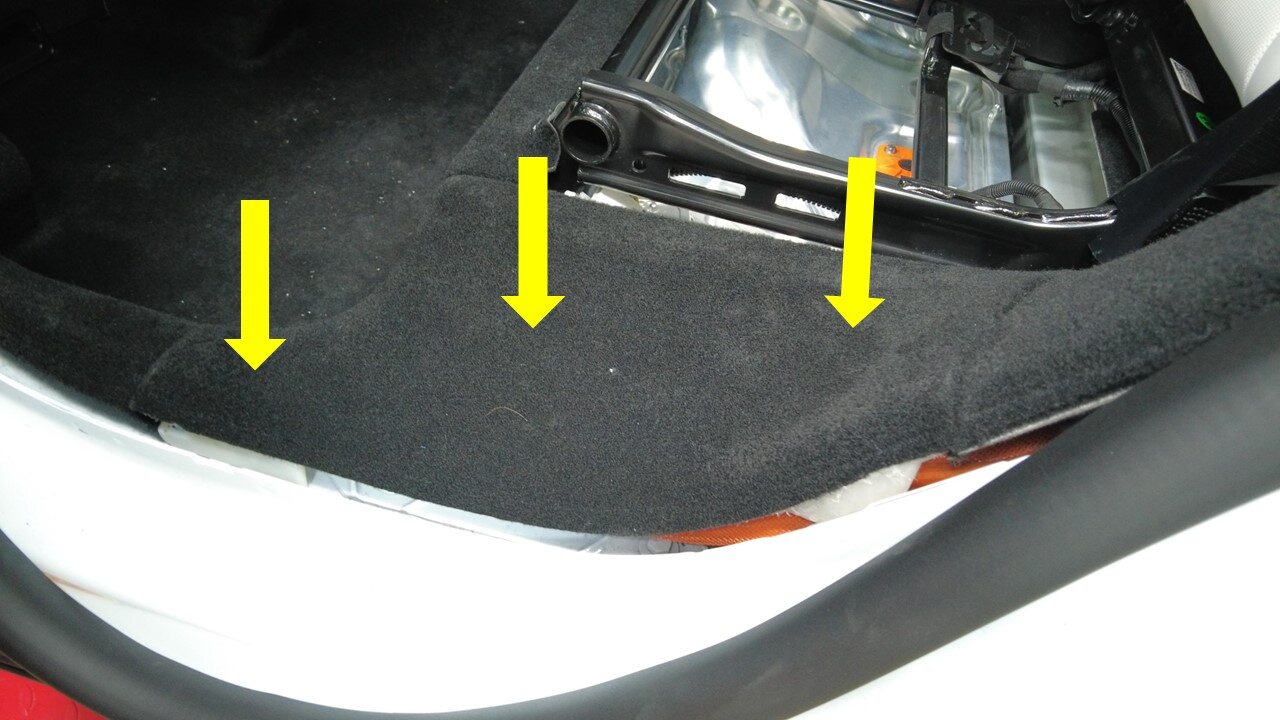

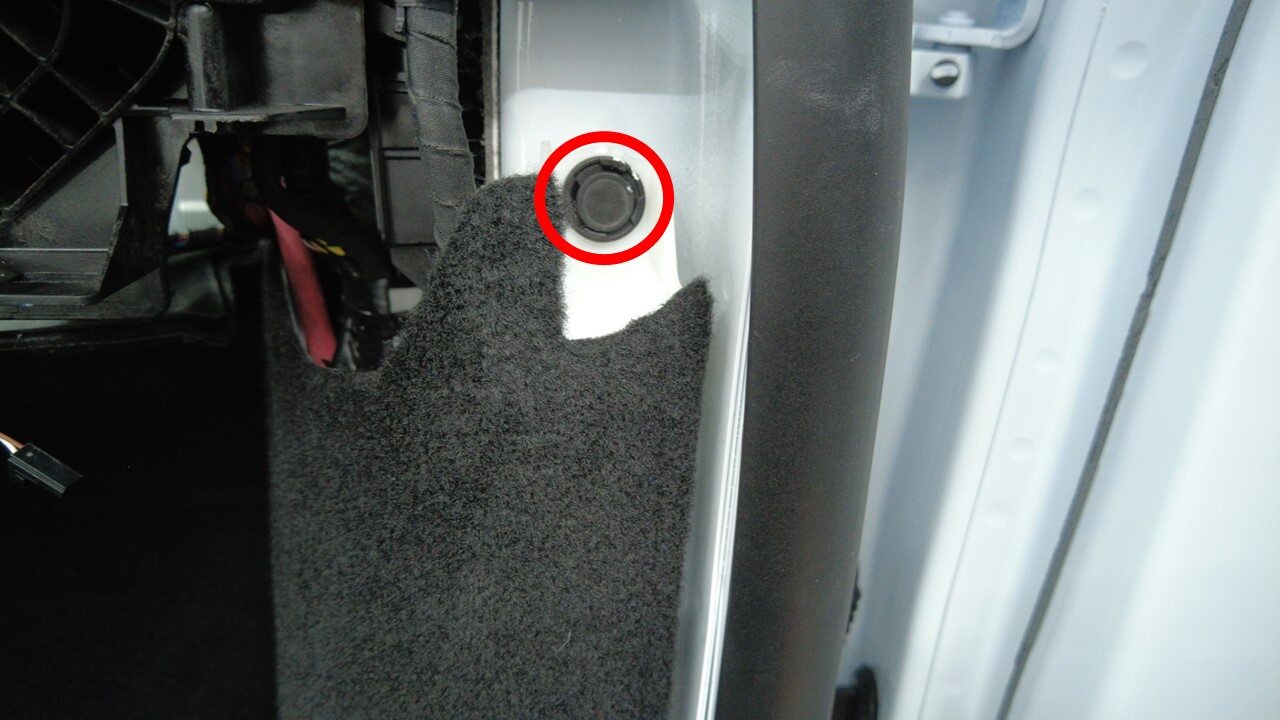

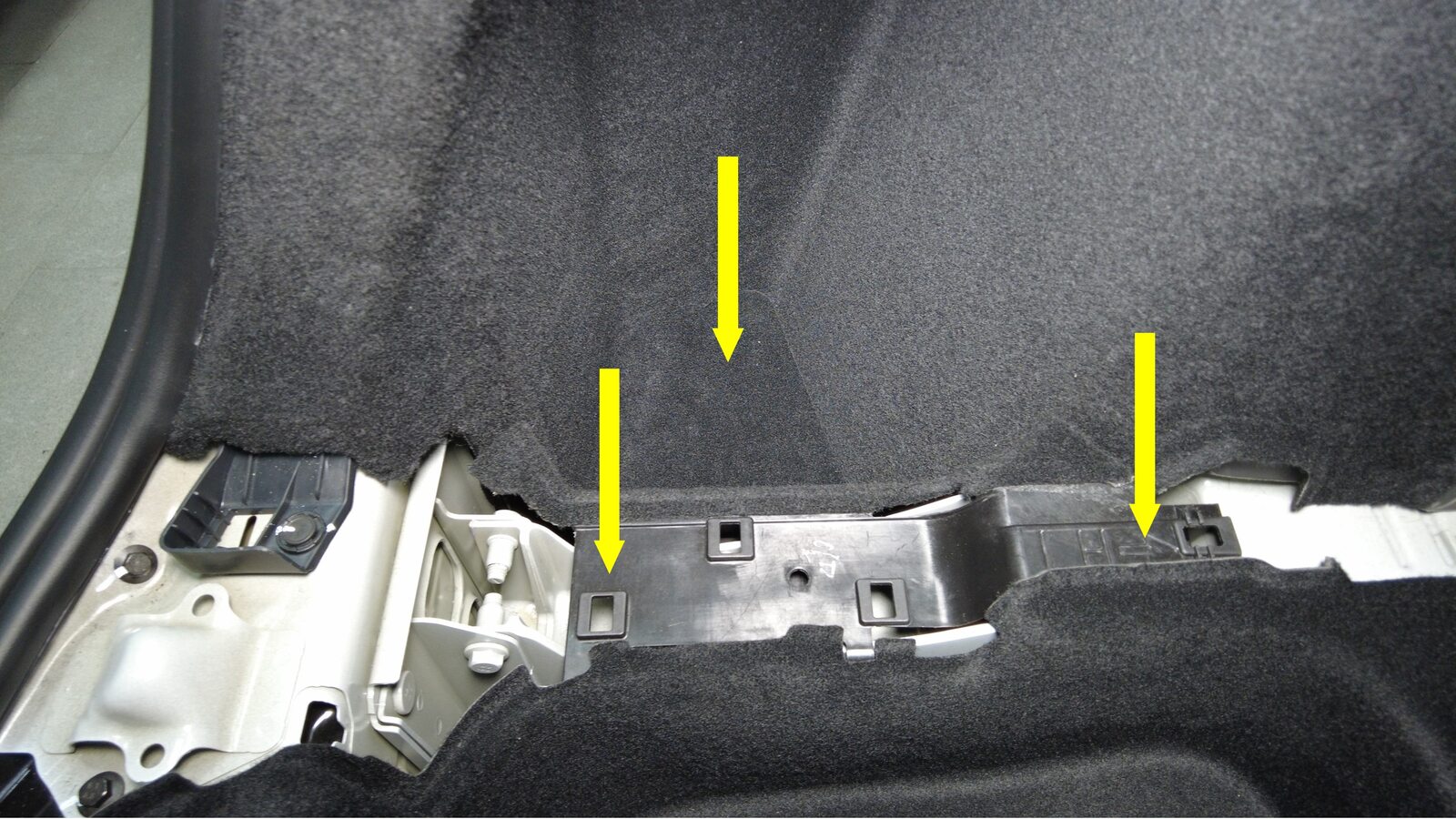

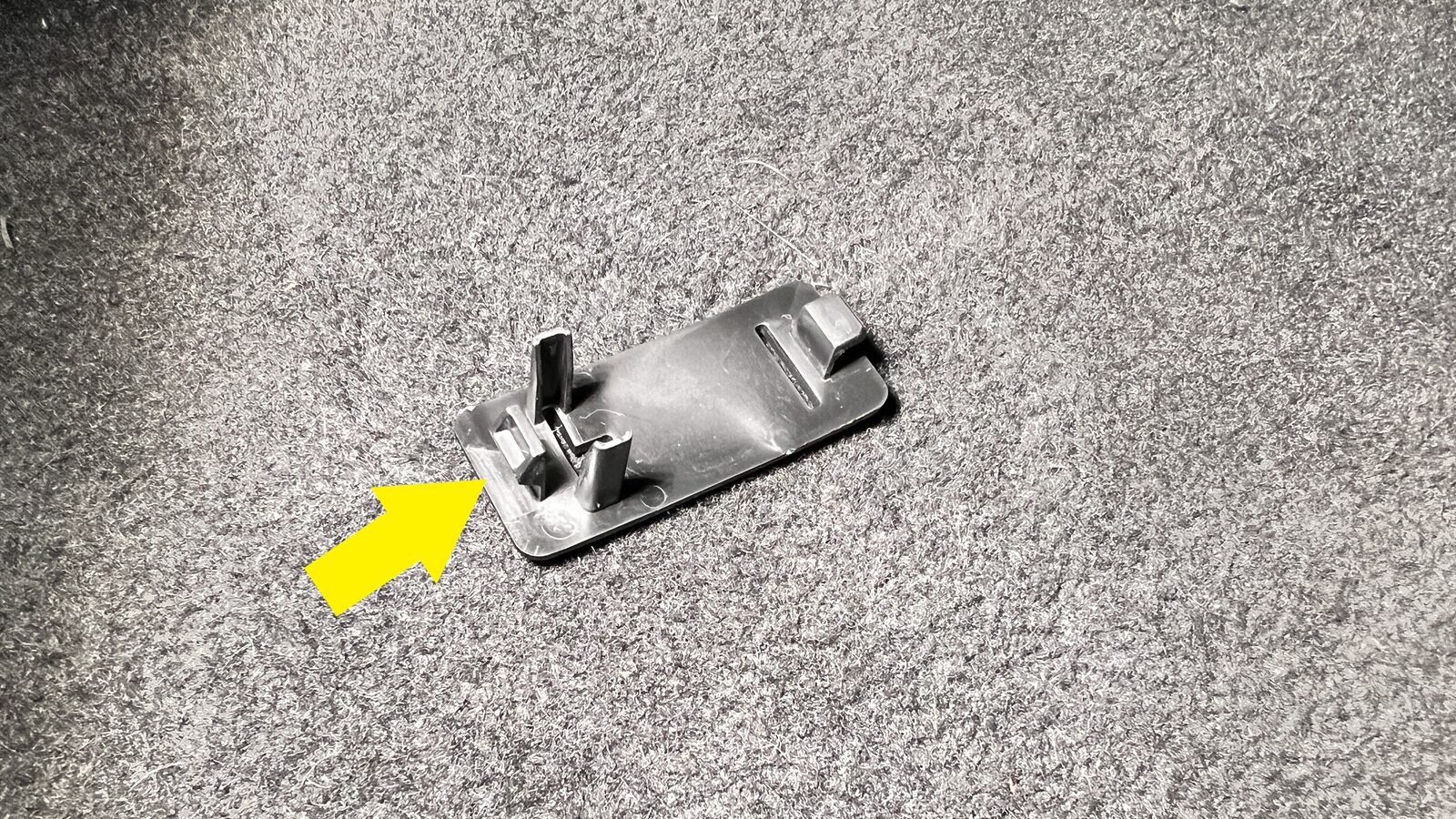

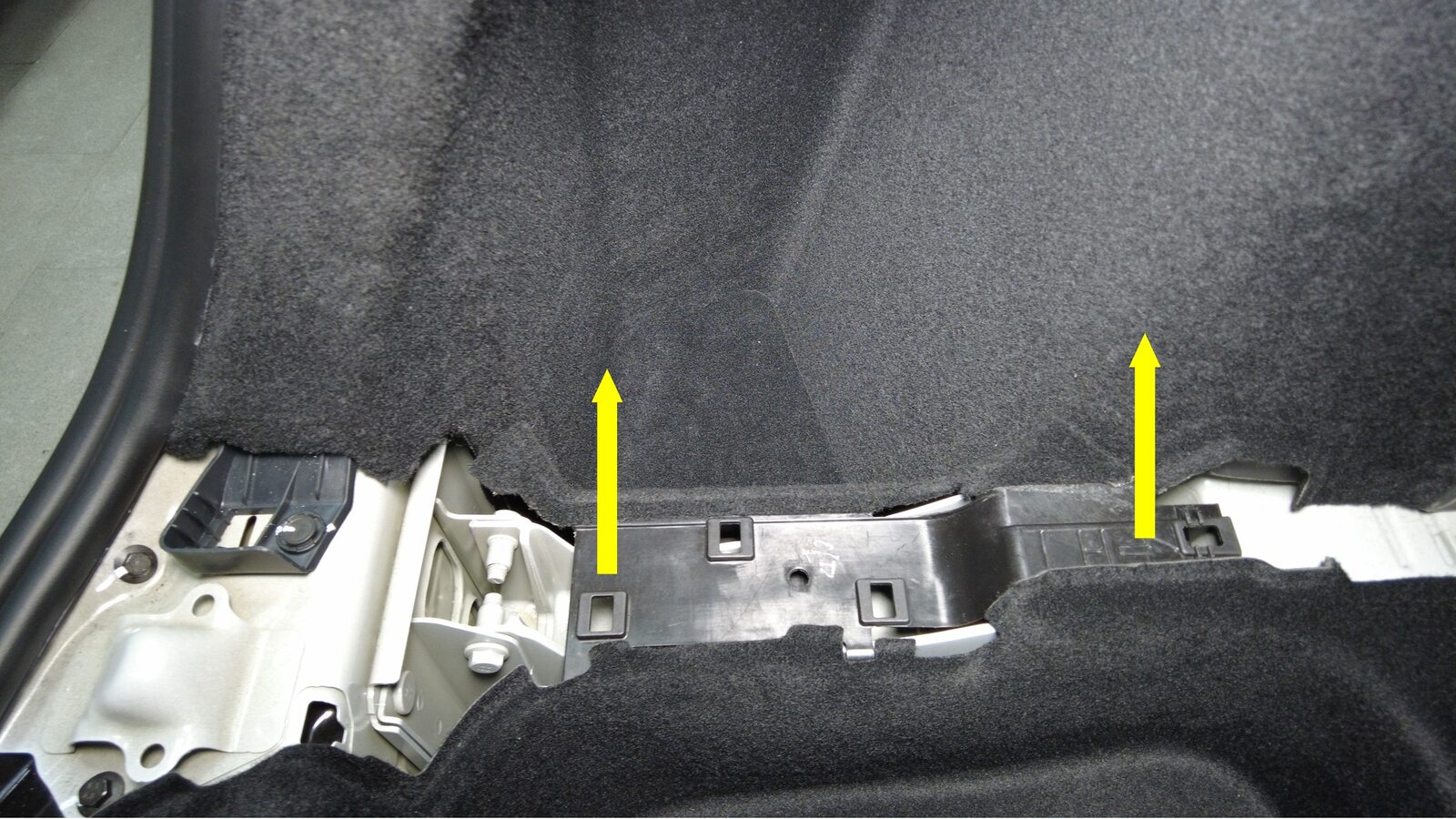

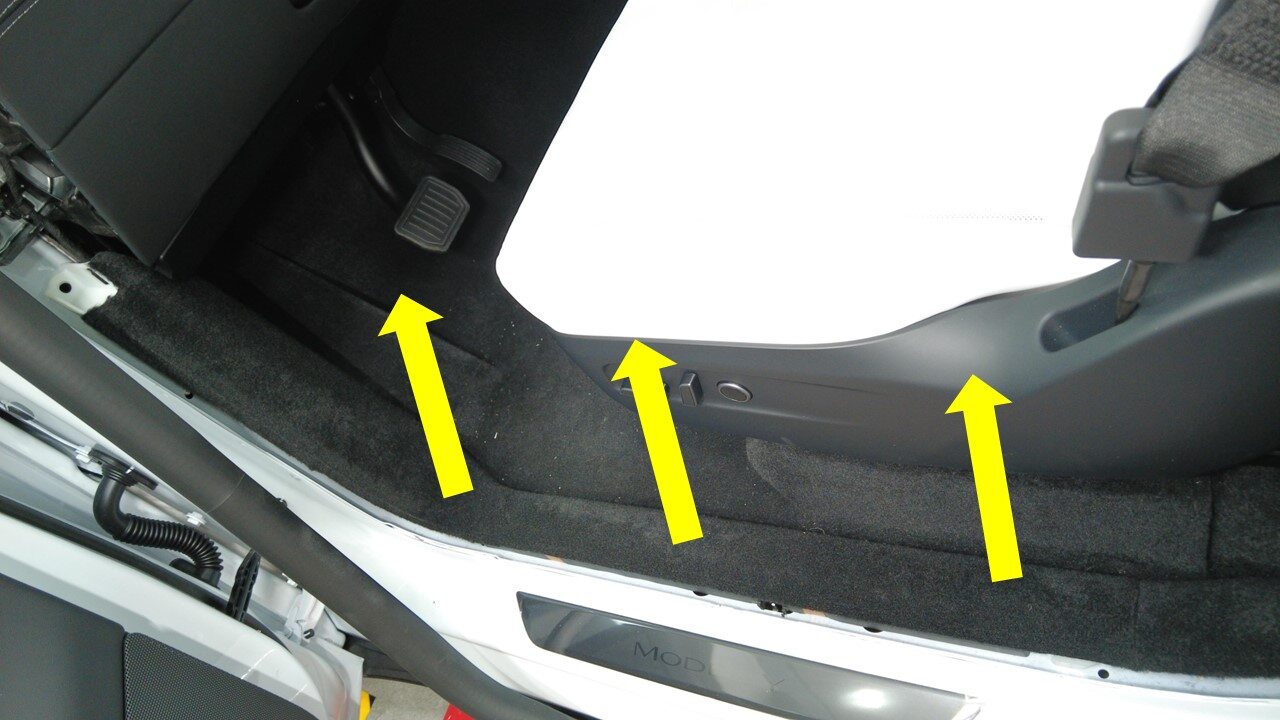

  44. Remove LH front cabin carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips

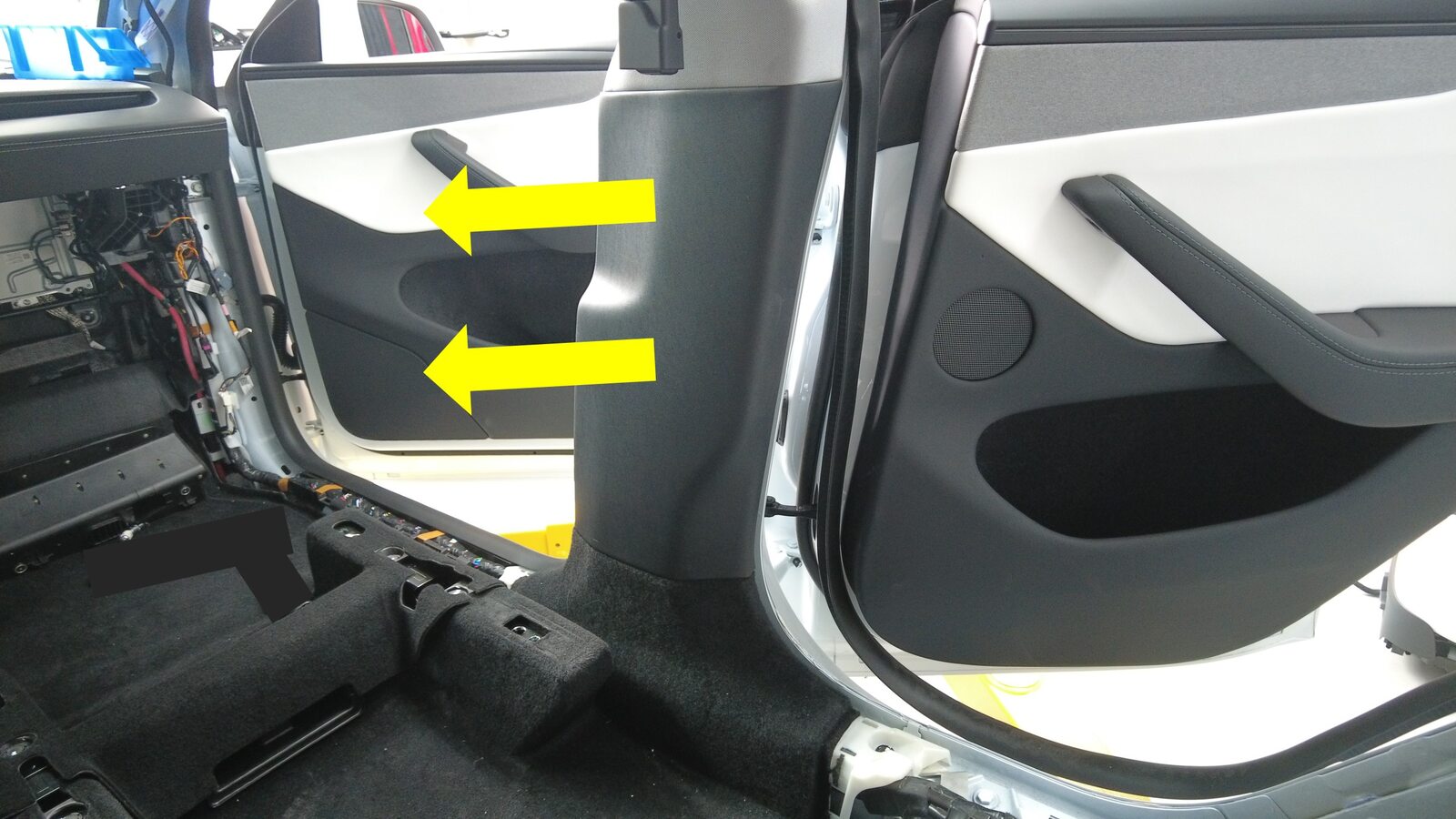

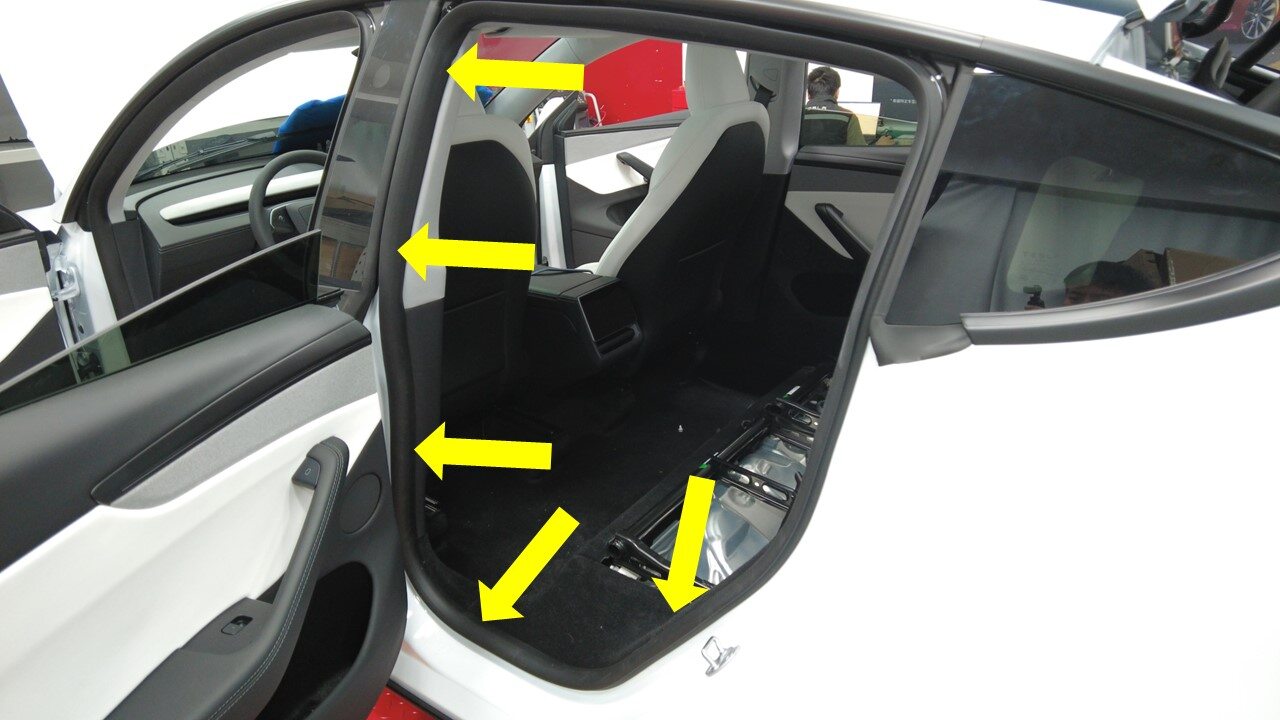

  45. Partially release LH rear primary door seal from body
    Informational PurposesAn informational icon, calling your attention
    Note
    For remove LH rear B pillar trim, LH lower C pillar trim

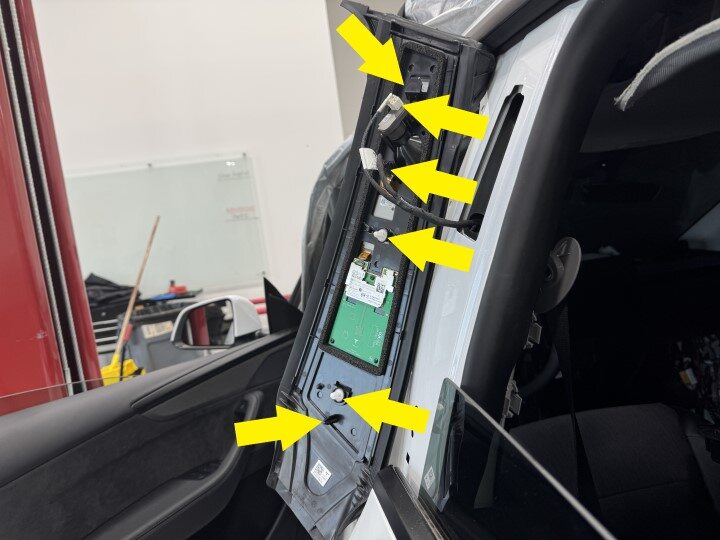

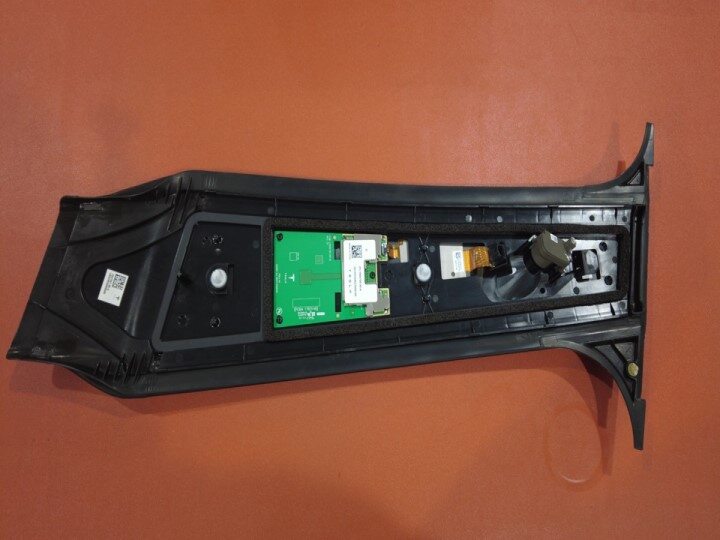

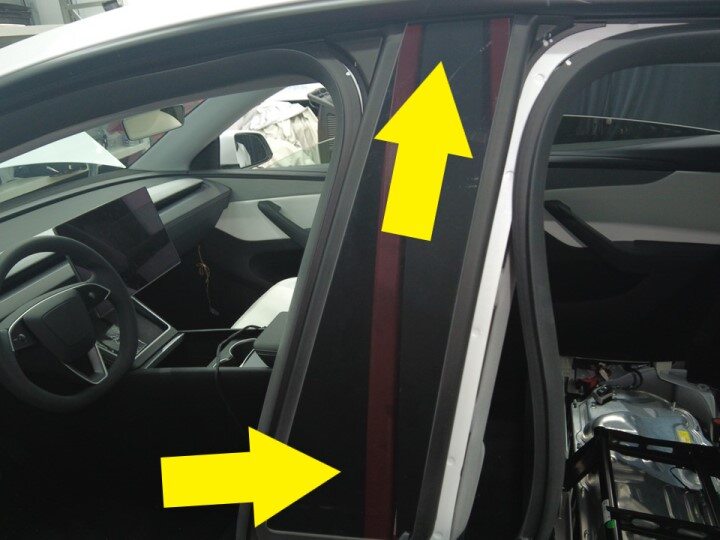

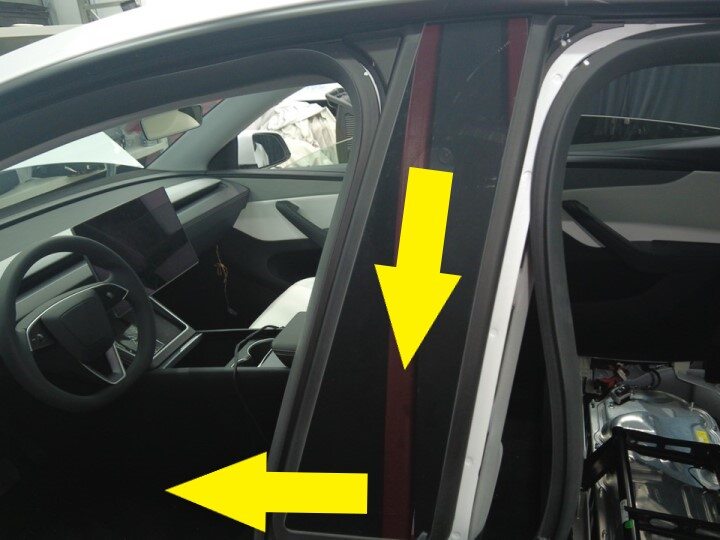

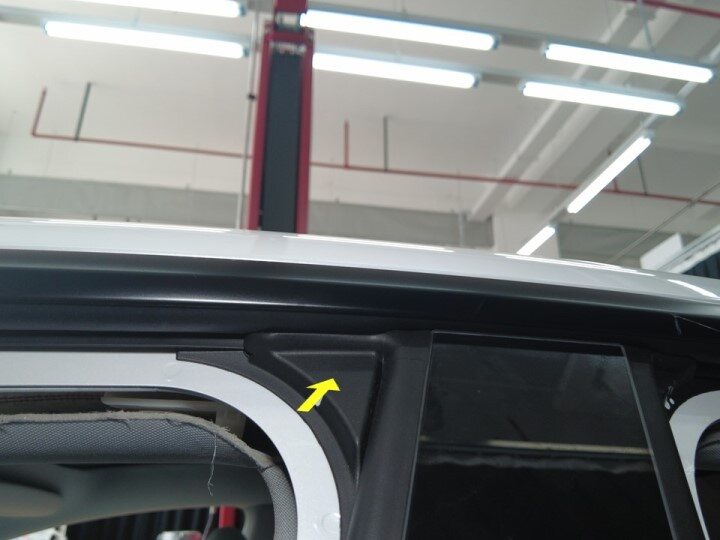

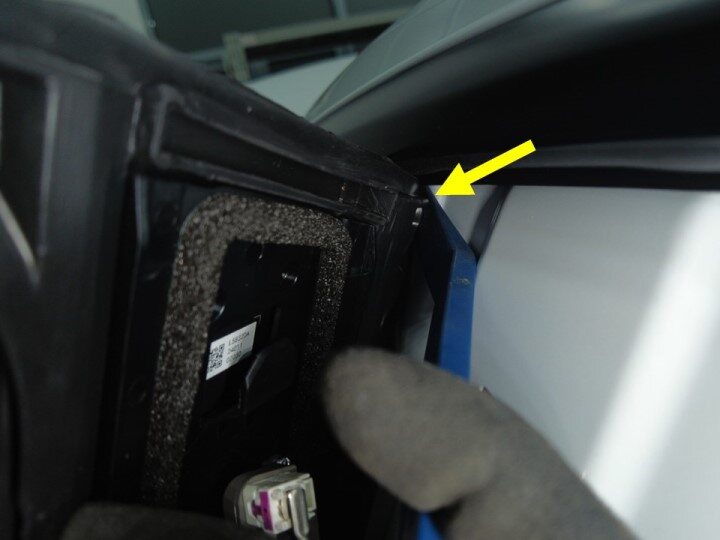

  46. Remove LH B-pillar applique
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 3x clips, 2x adhesive strips, 1x hook, 1x datum, Peel lower section of seal away from body to release adhesive, Gently pry away lower section of applique to release clips, Pry directly on clip when releasing upper seal clip as otherwise it may separate from seal, Release locking tabs

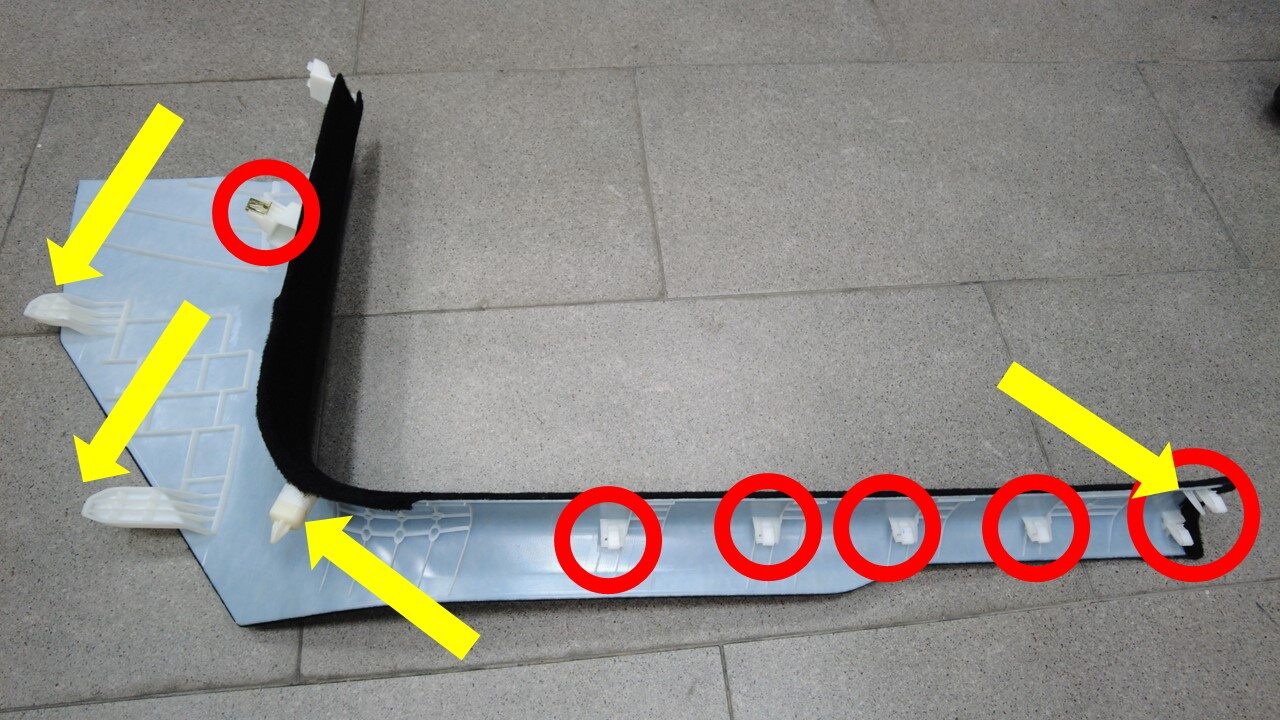

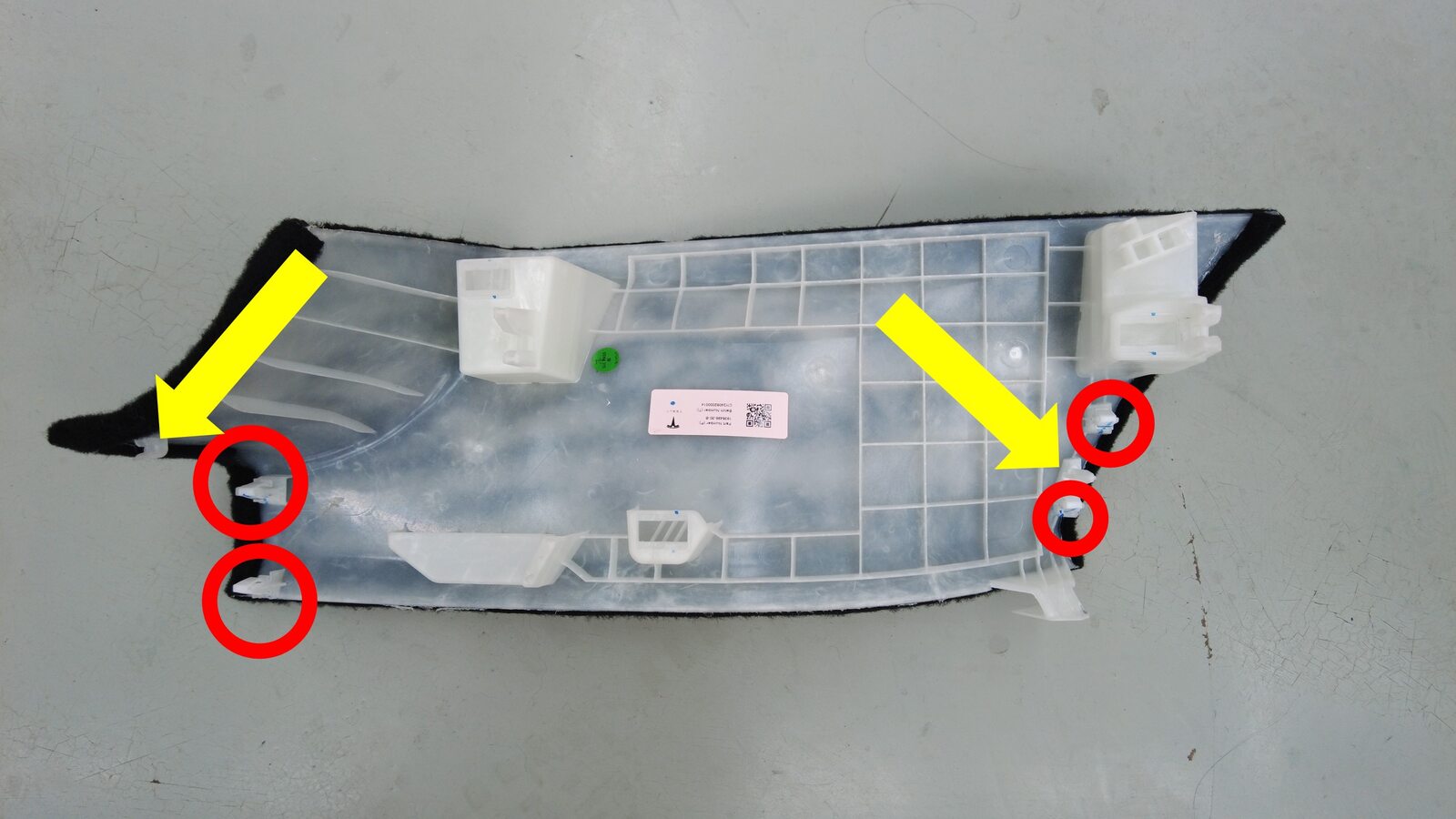

  47. Remove LH lower C pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 2x guide tabs, Pull the trim upward to release all clips

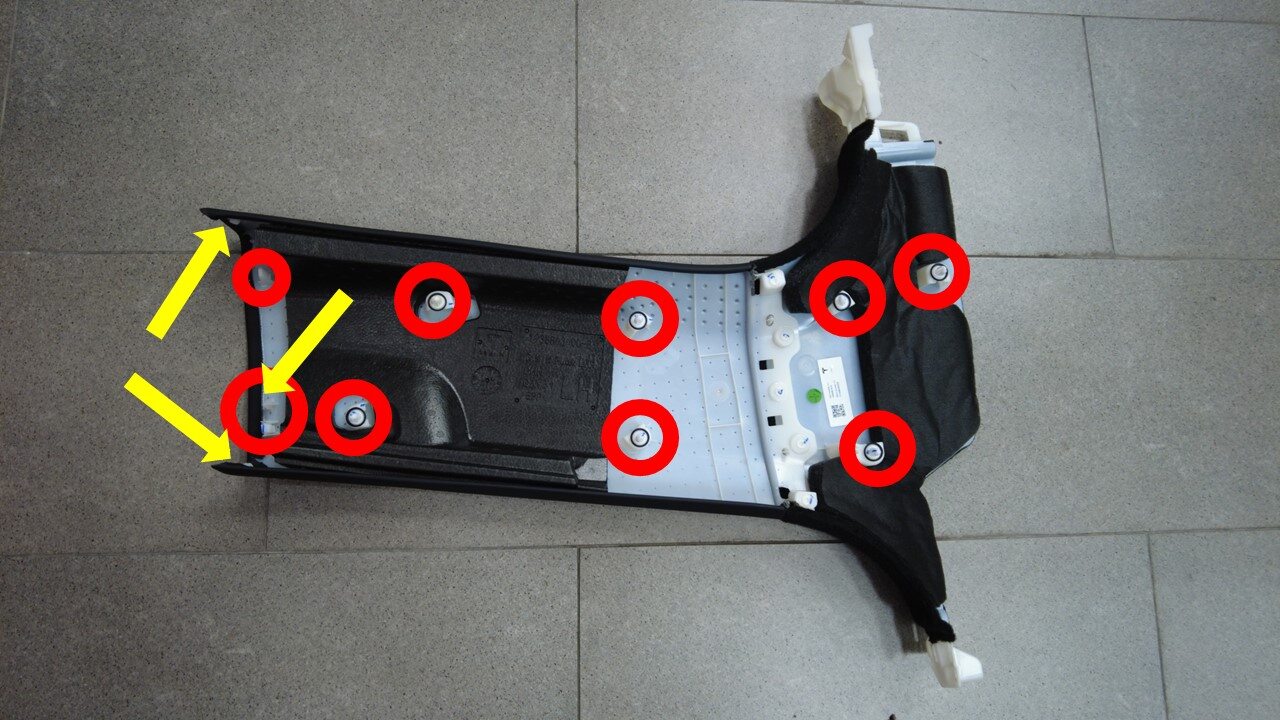

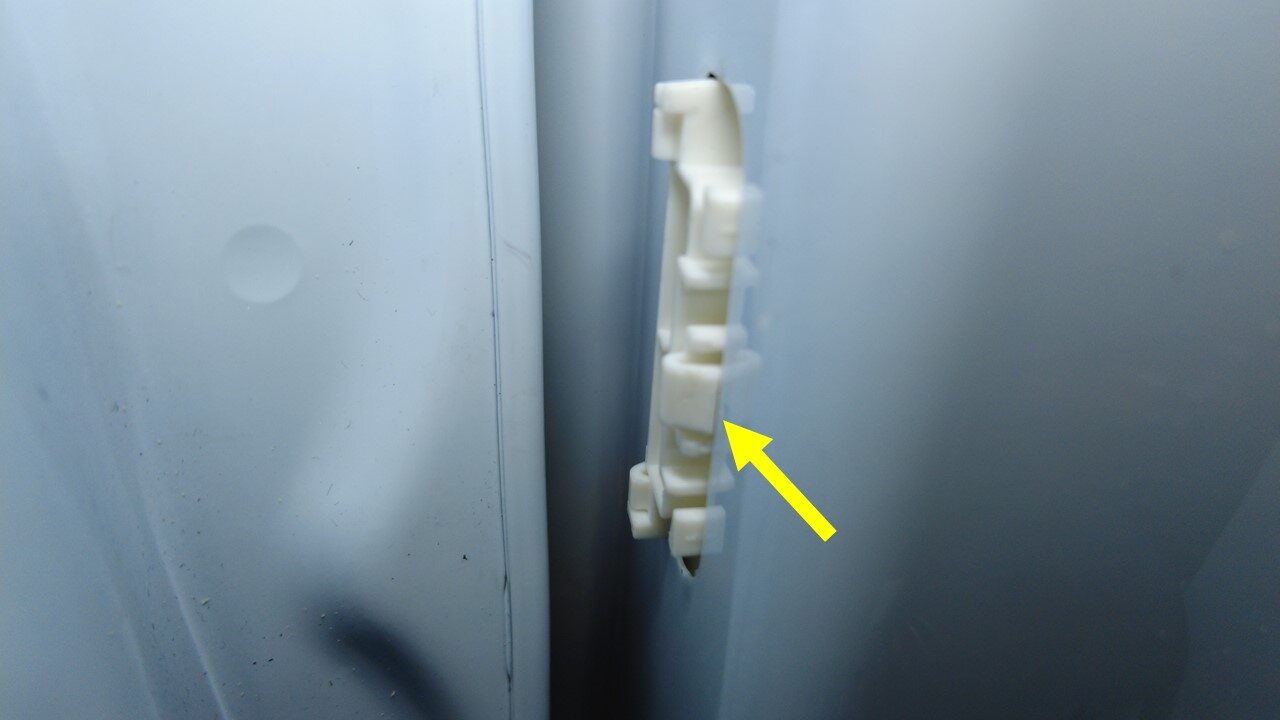

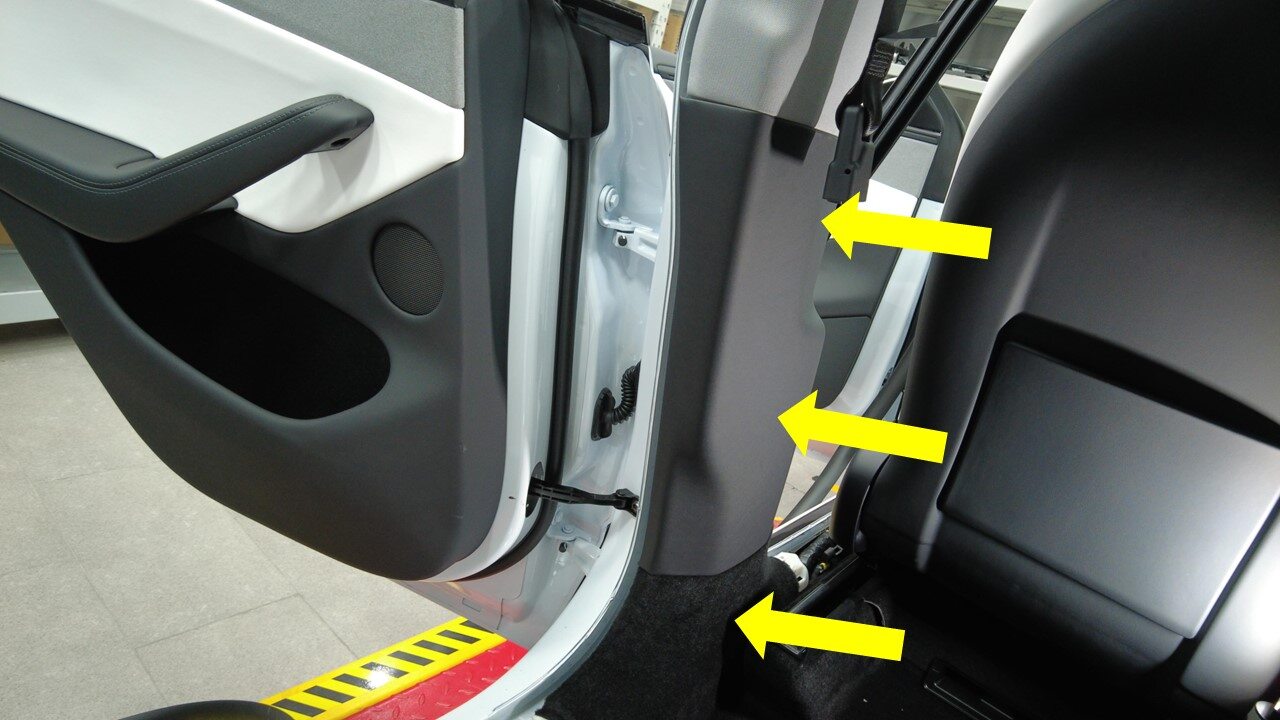

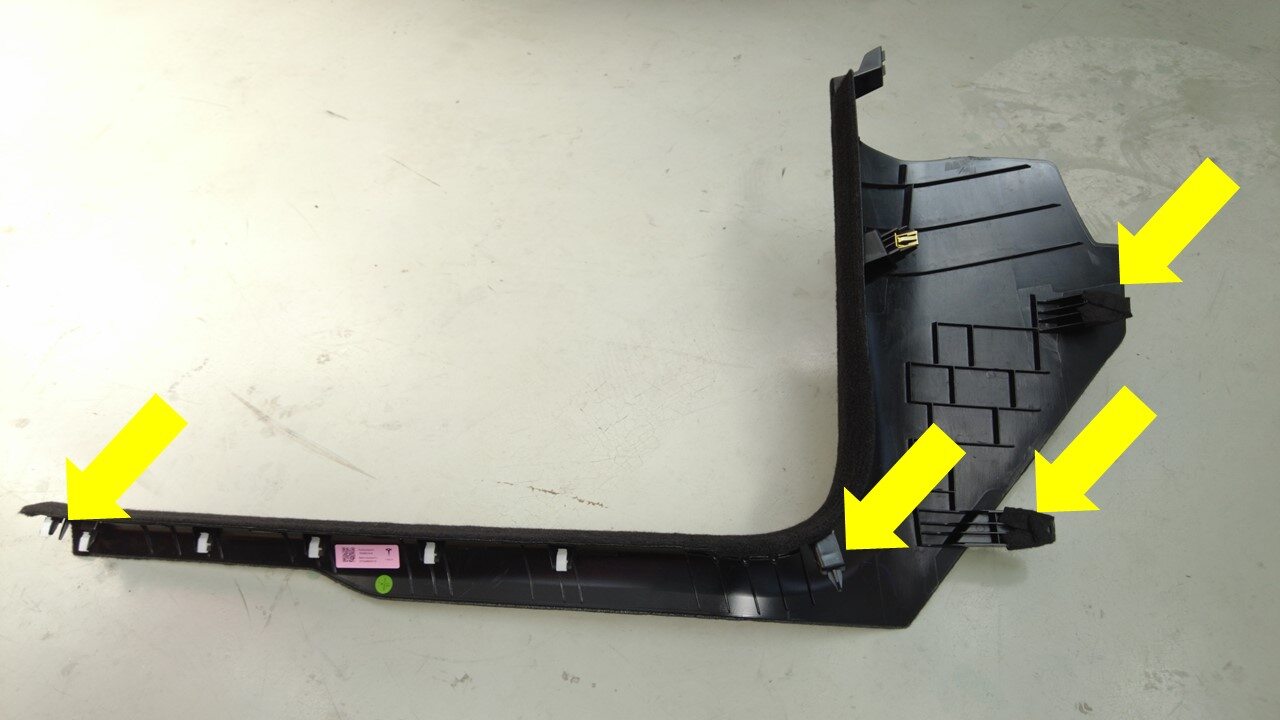

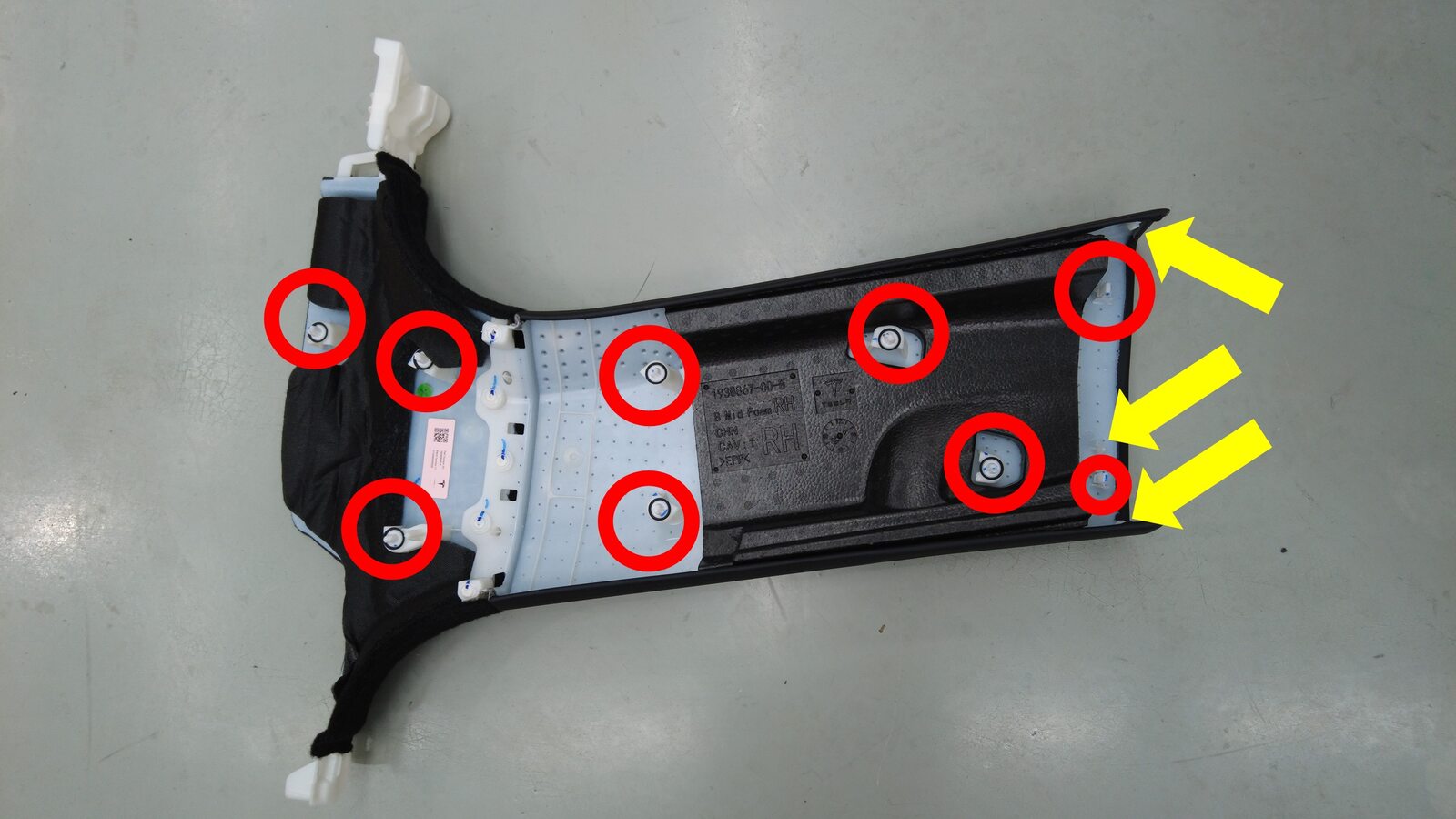

  48. Remove LH lower B pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 1x locator tab, 9x clips, 1x push clip, Release both top side tabs, first pull upper half trim toward inside of the car, and then pull lower half trim outward to release all clips

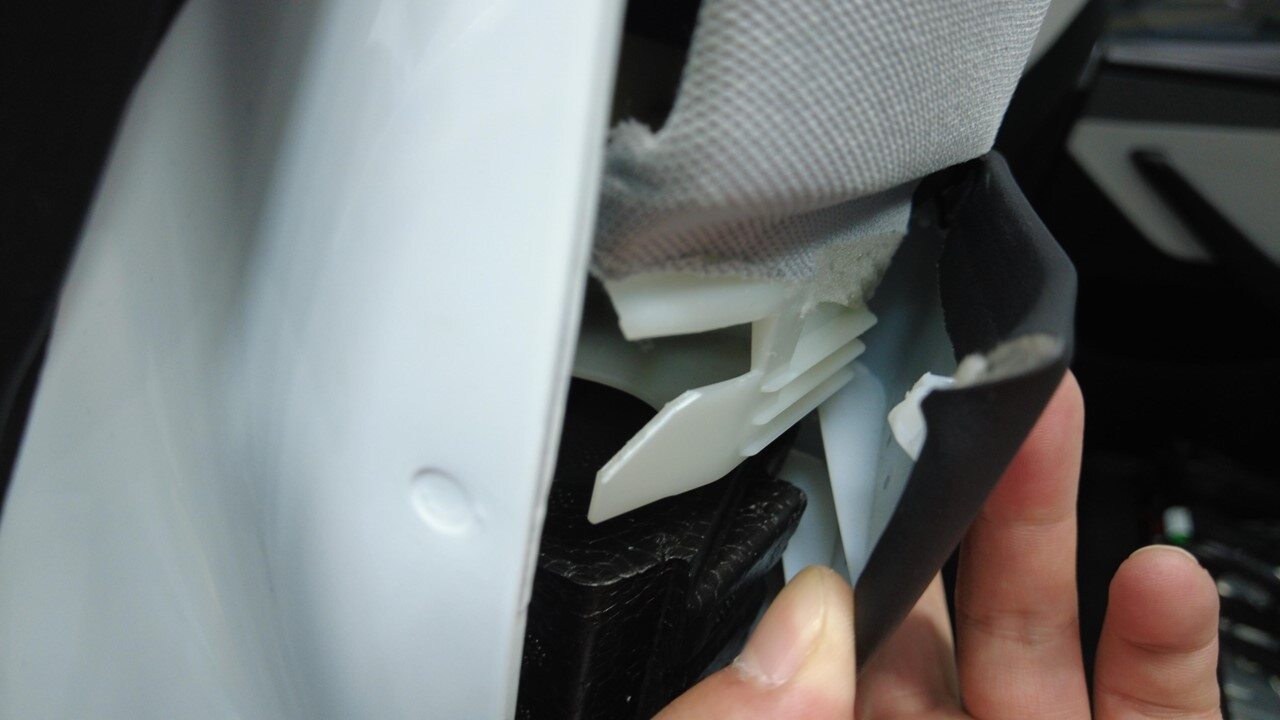

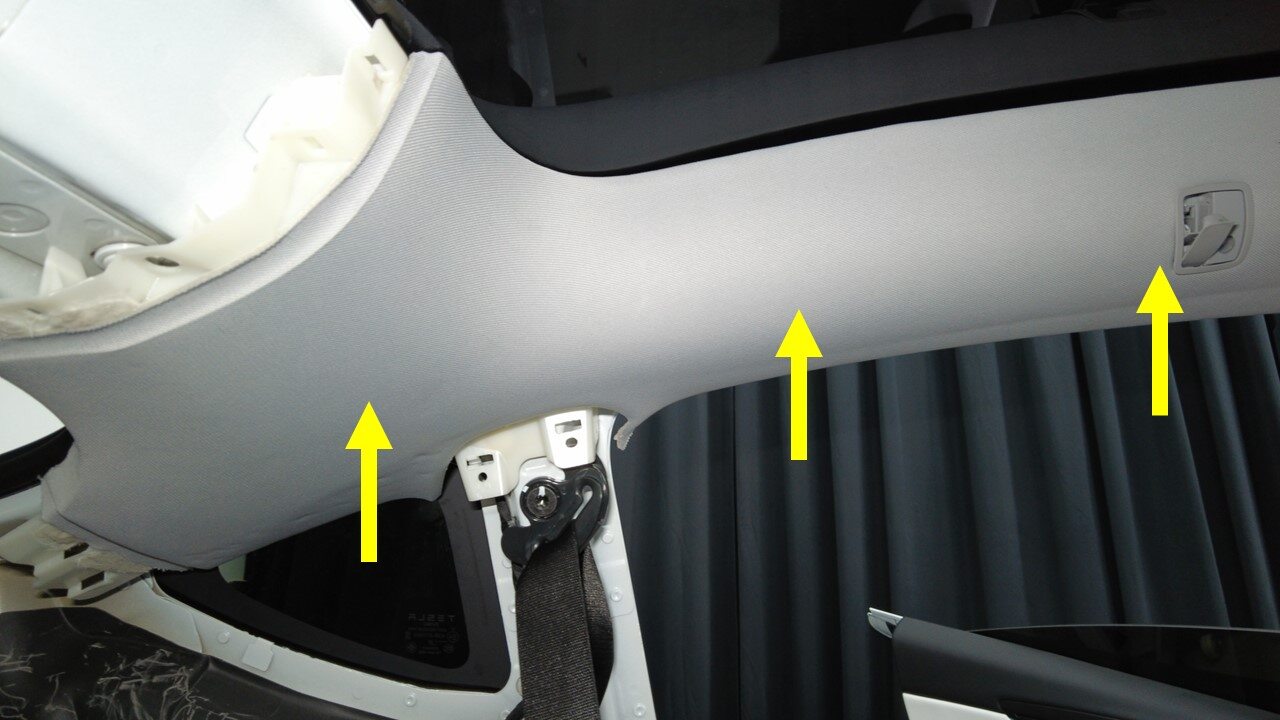

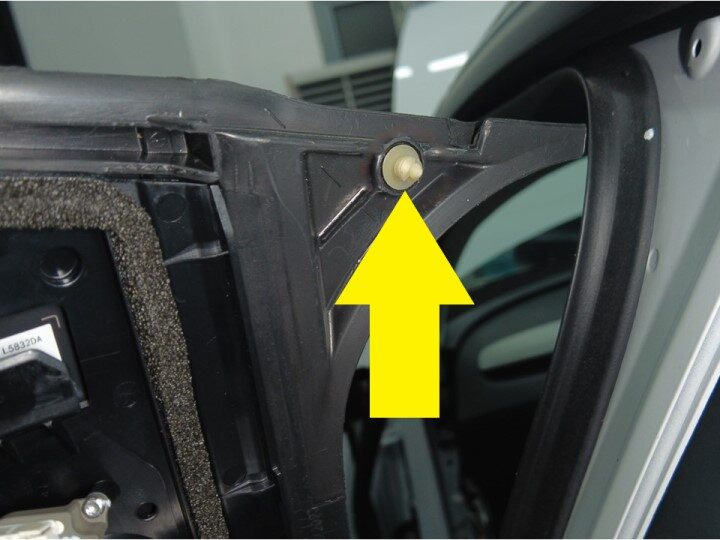

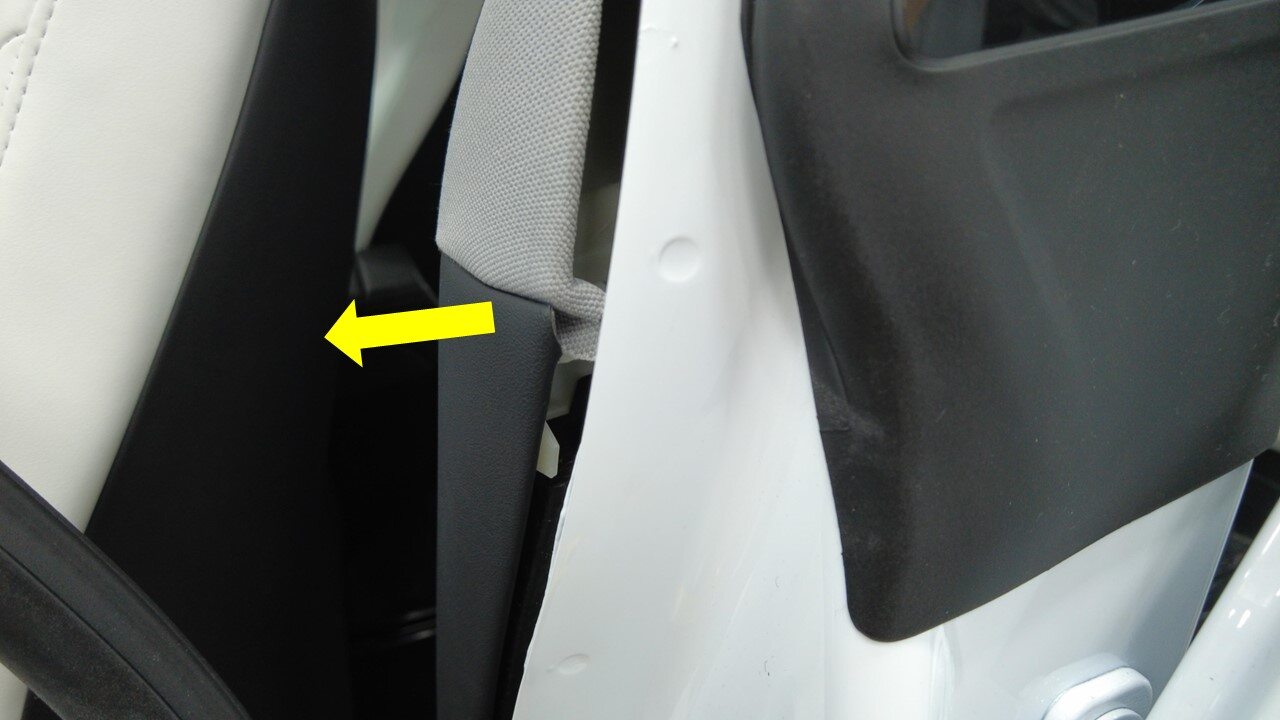

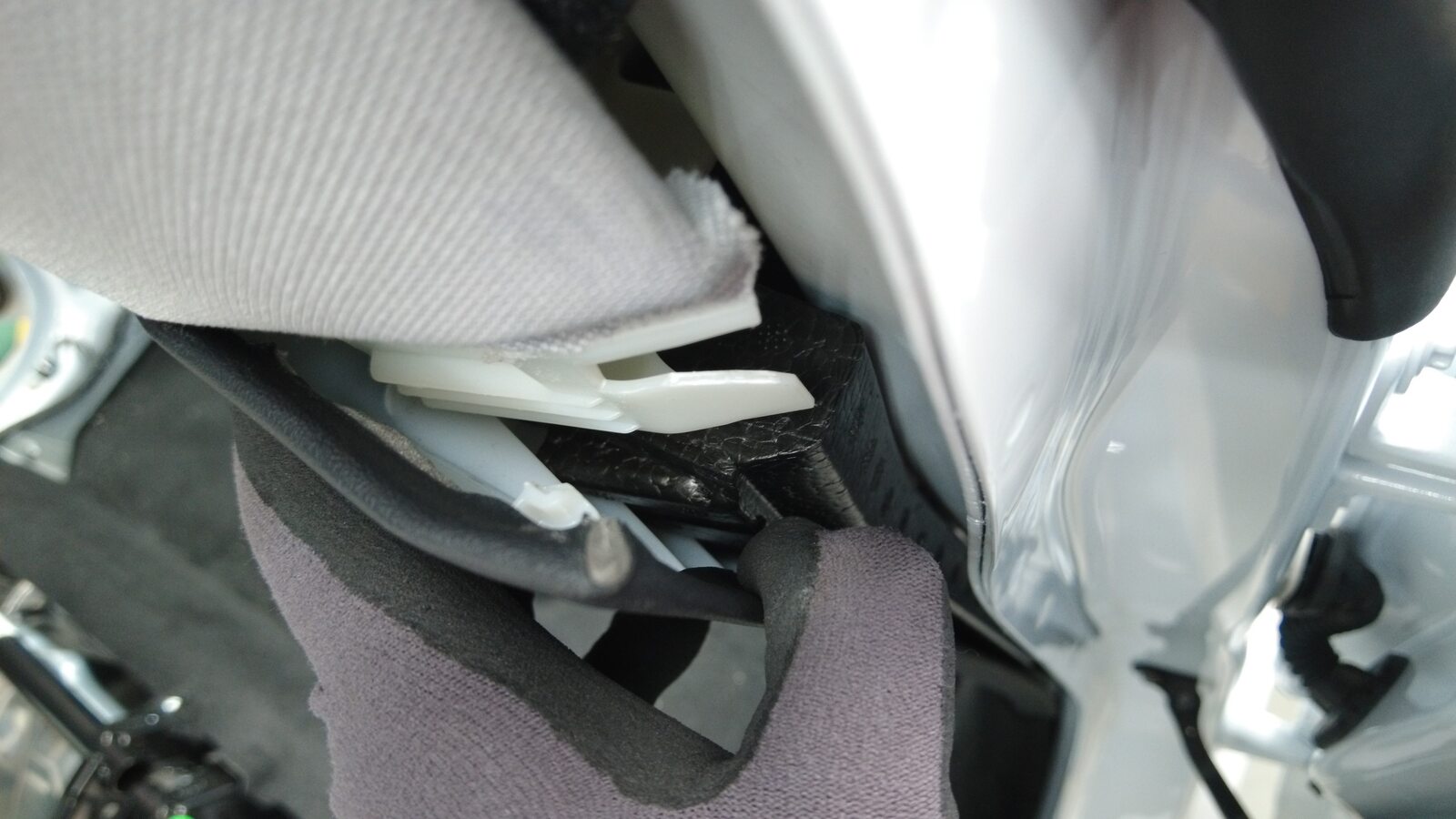

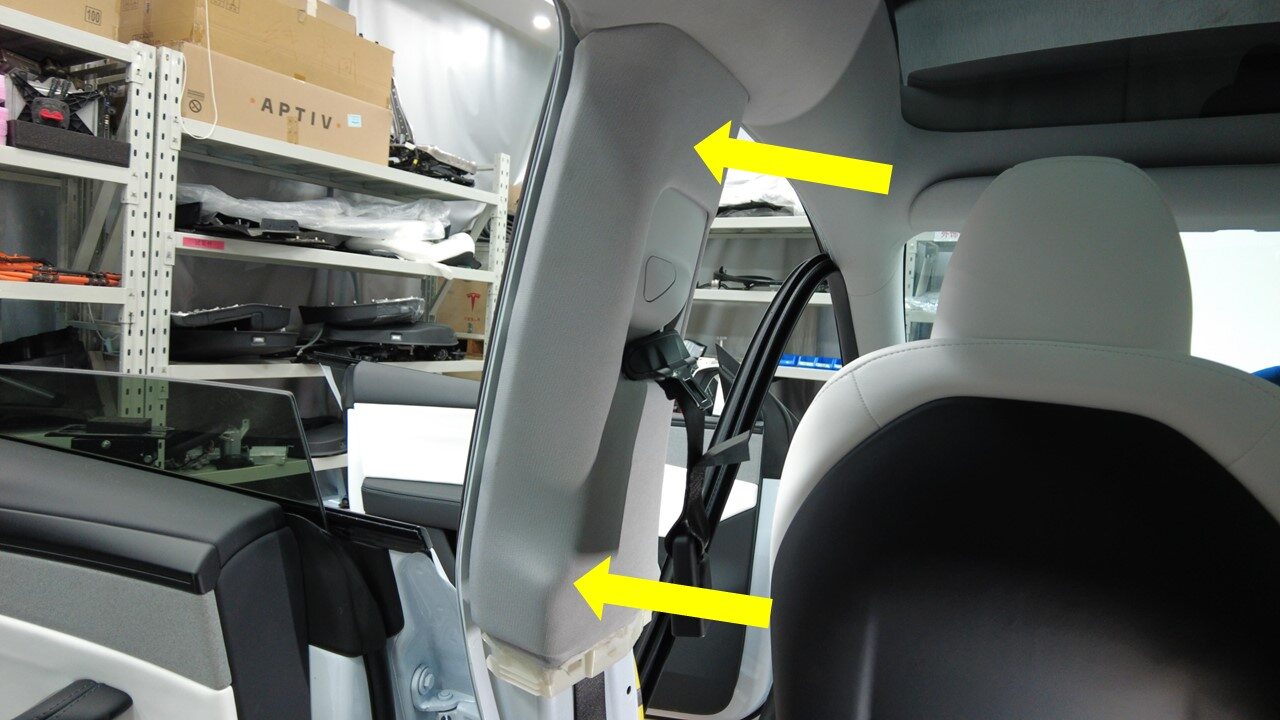

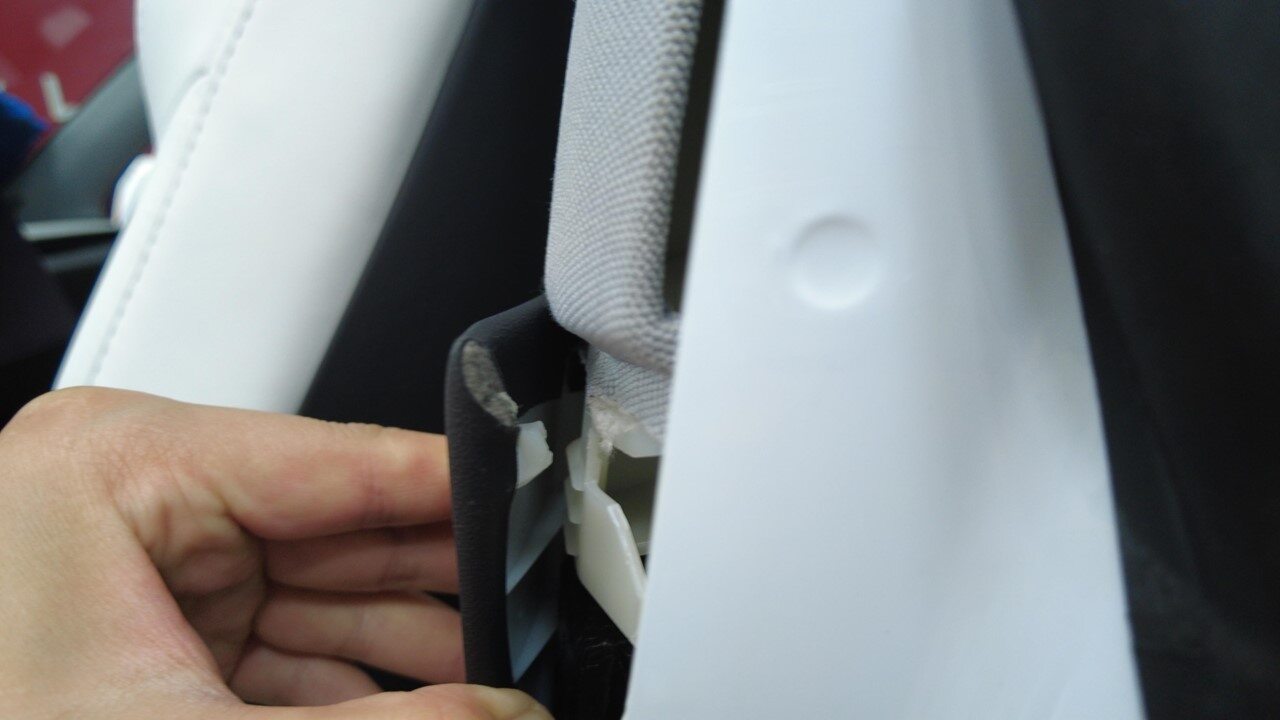

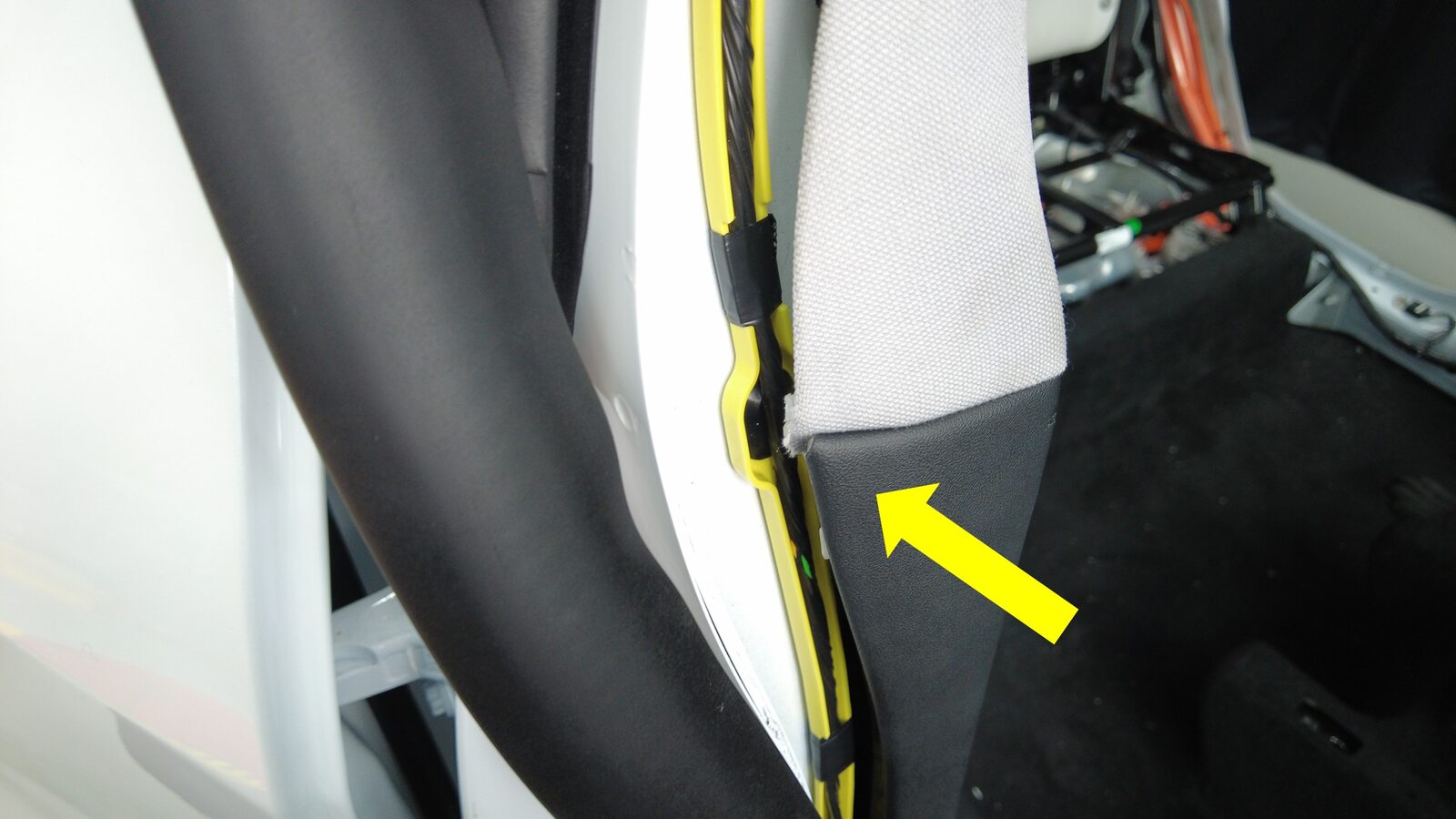

  49. Release LH upper B pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x edge clips, 2x clips, 2x locator pins, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips

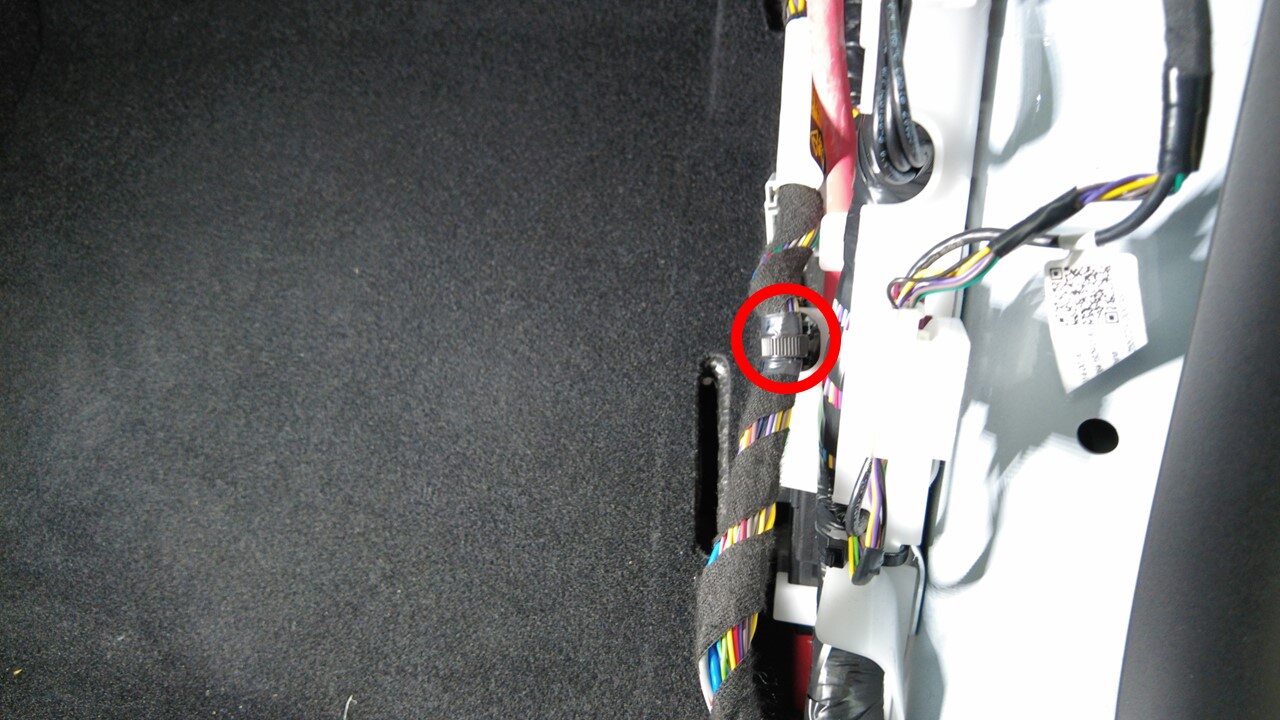

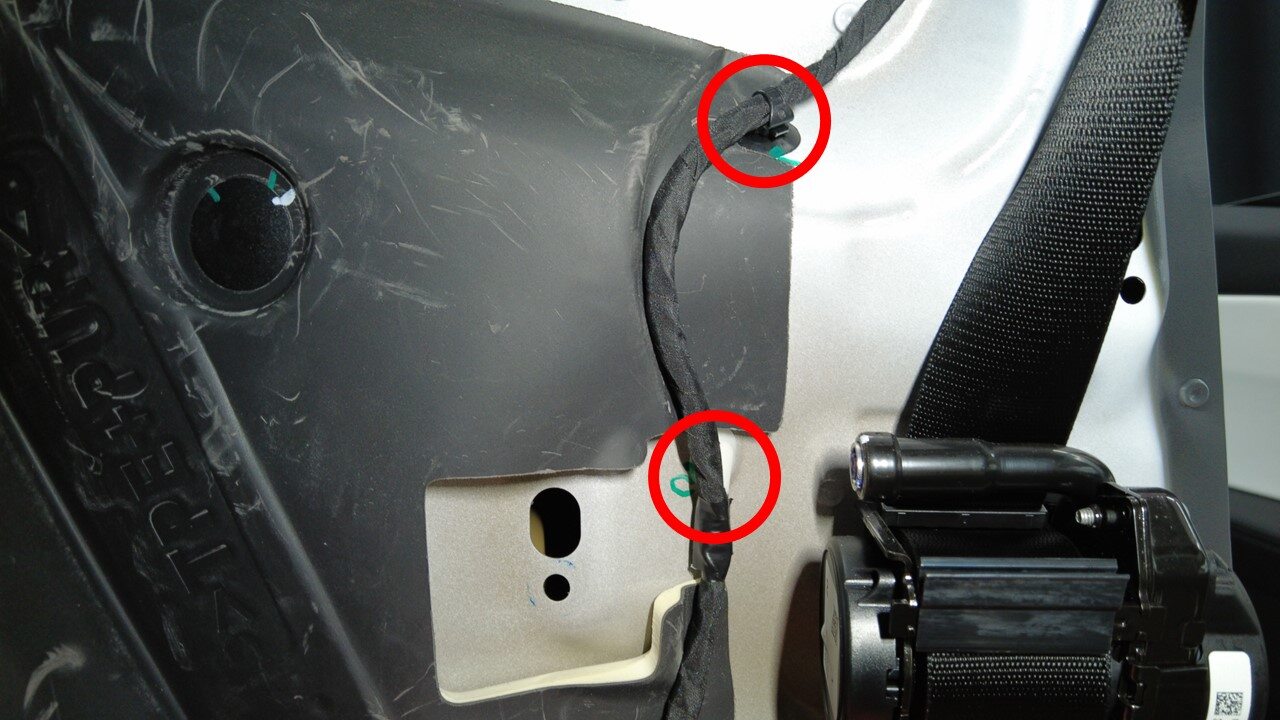

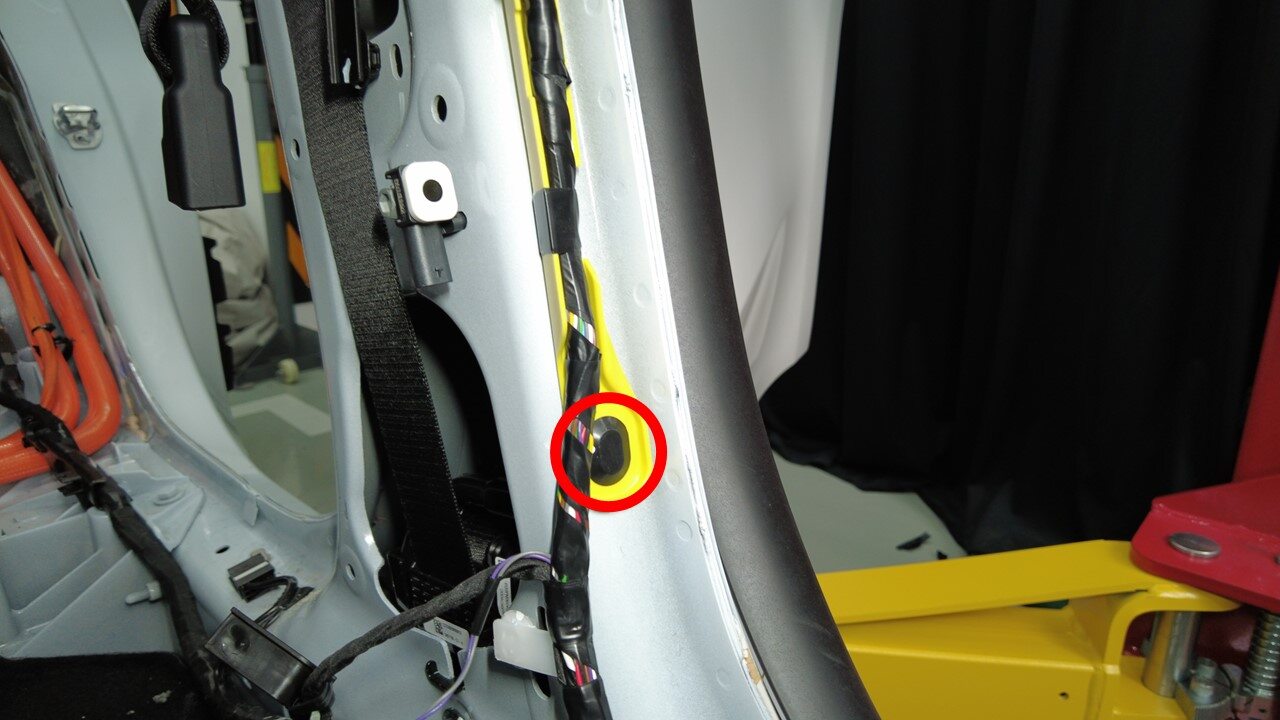

  50. Release LH body harness from lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips

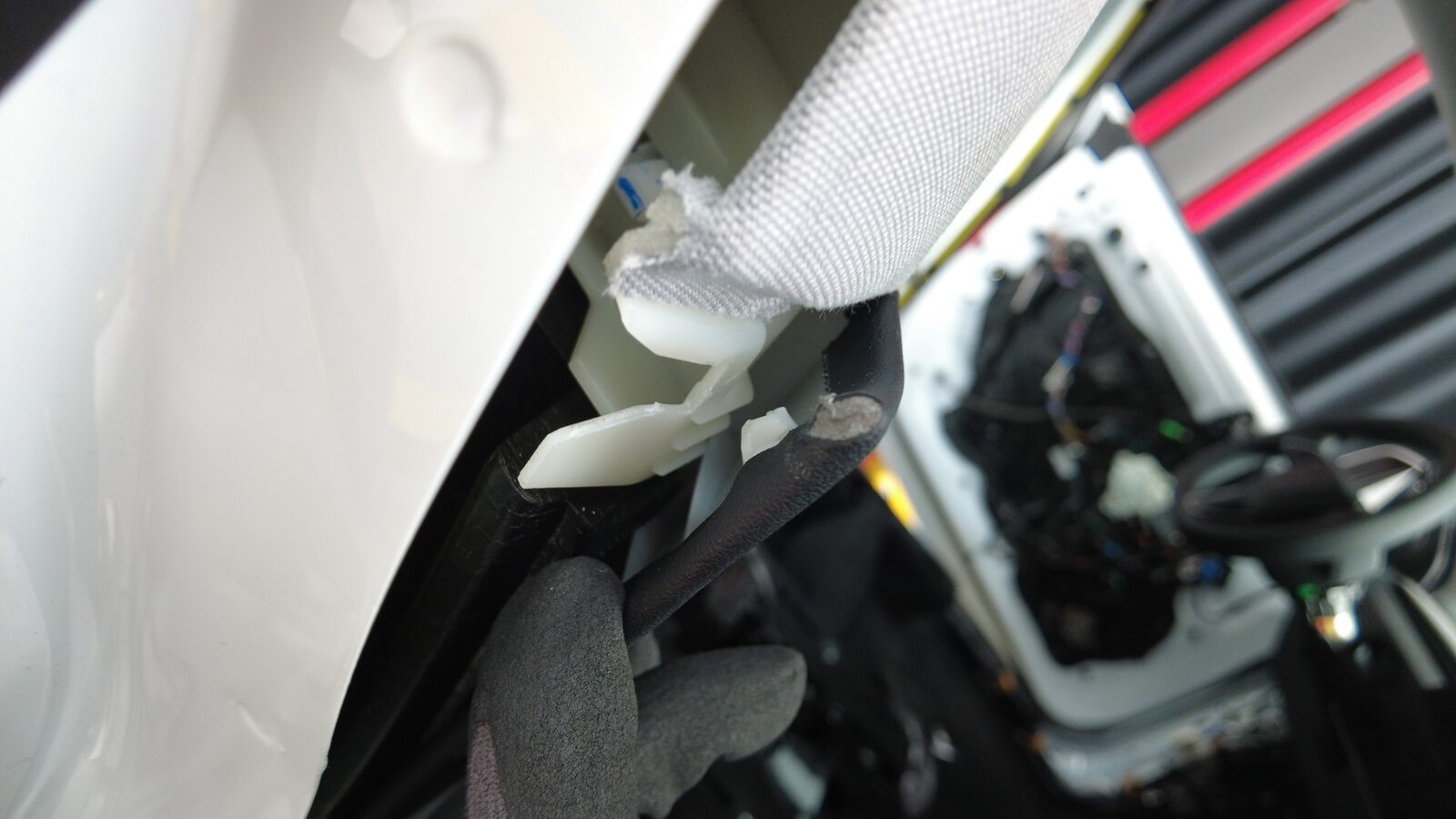

  51. Release LH body harness from upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Pull harness section into cabin from applique area

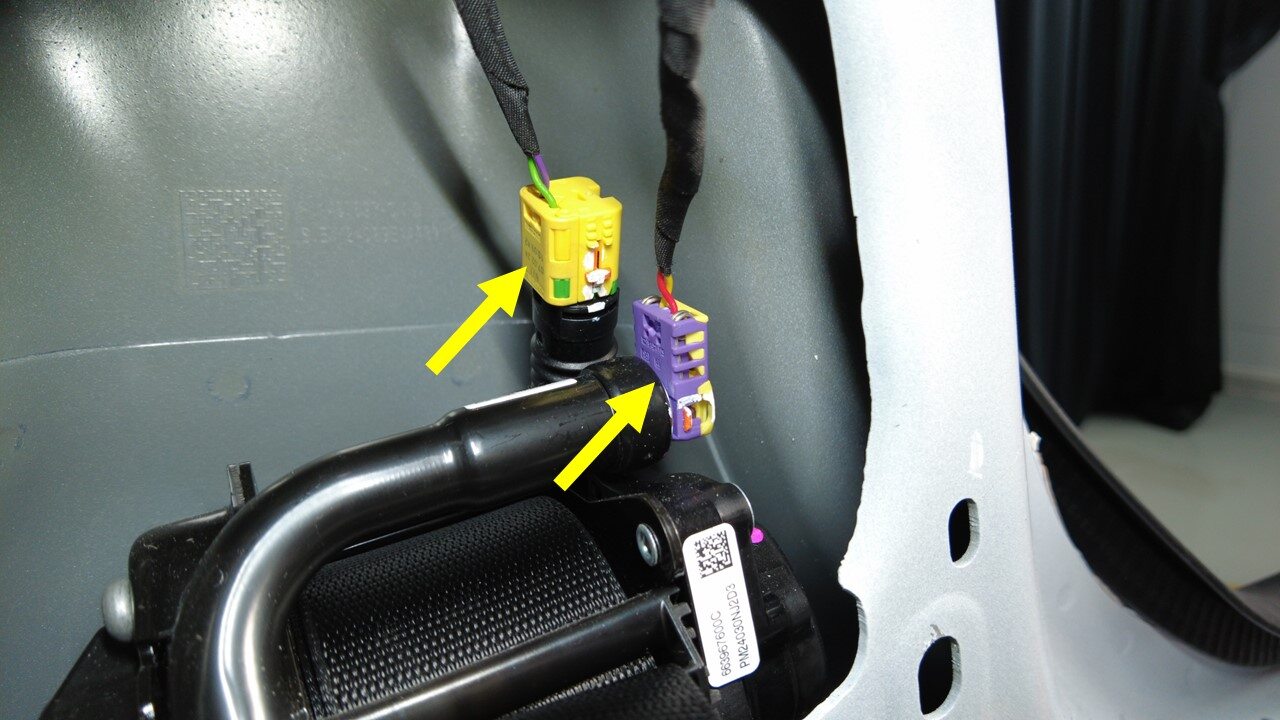

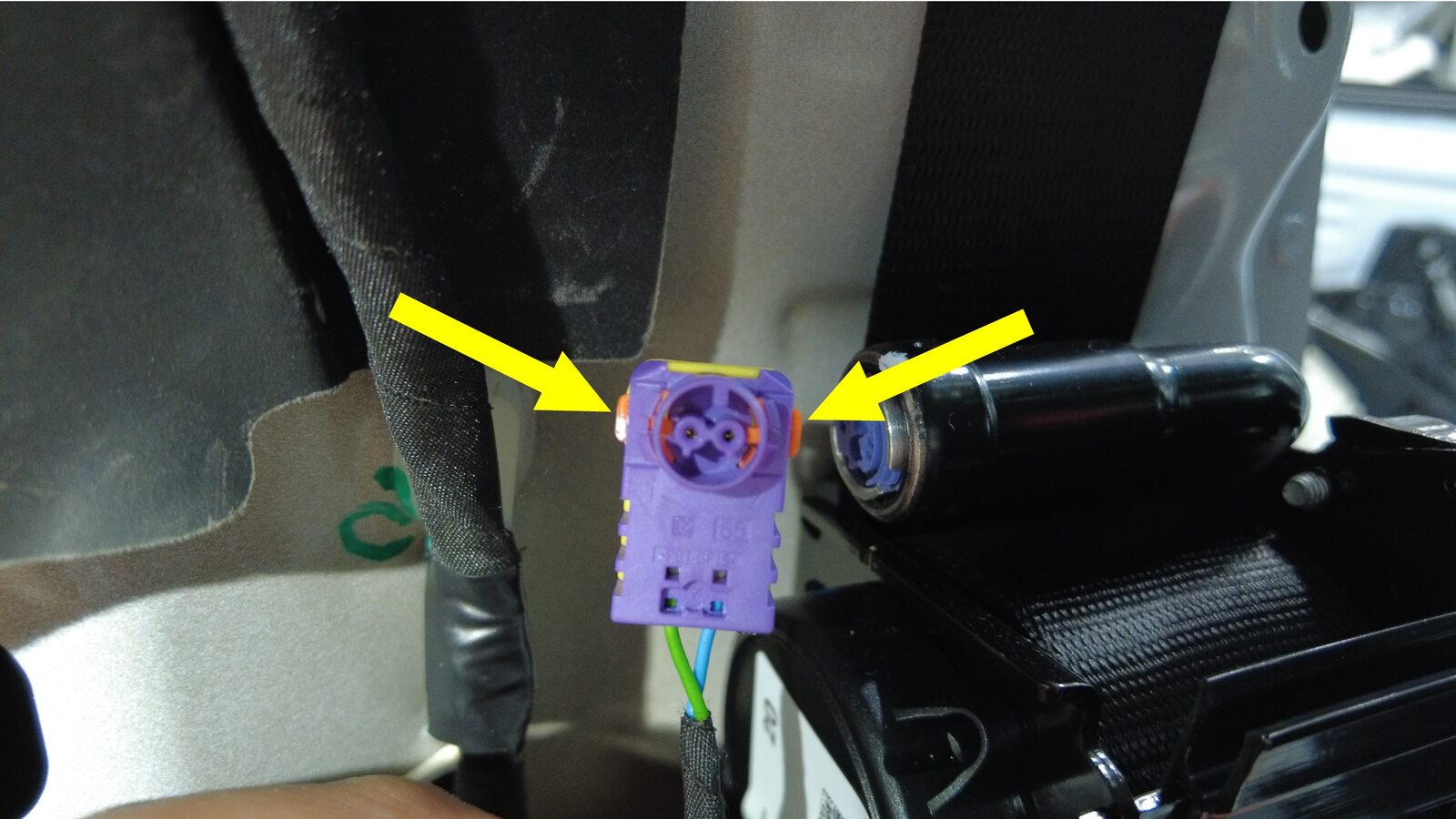

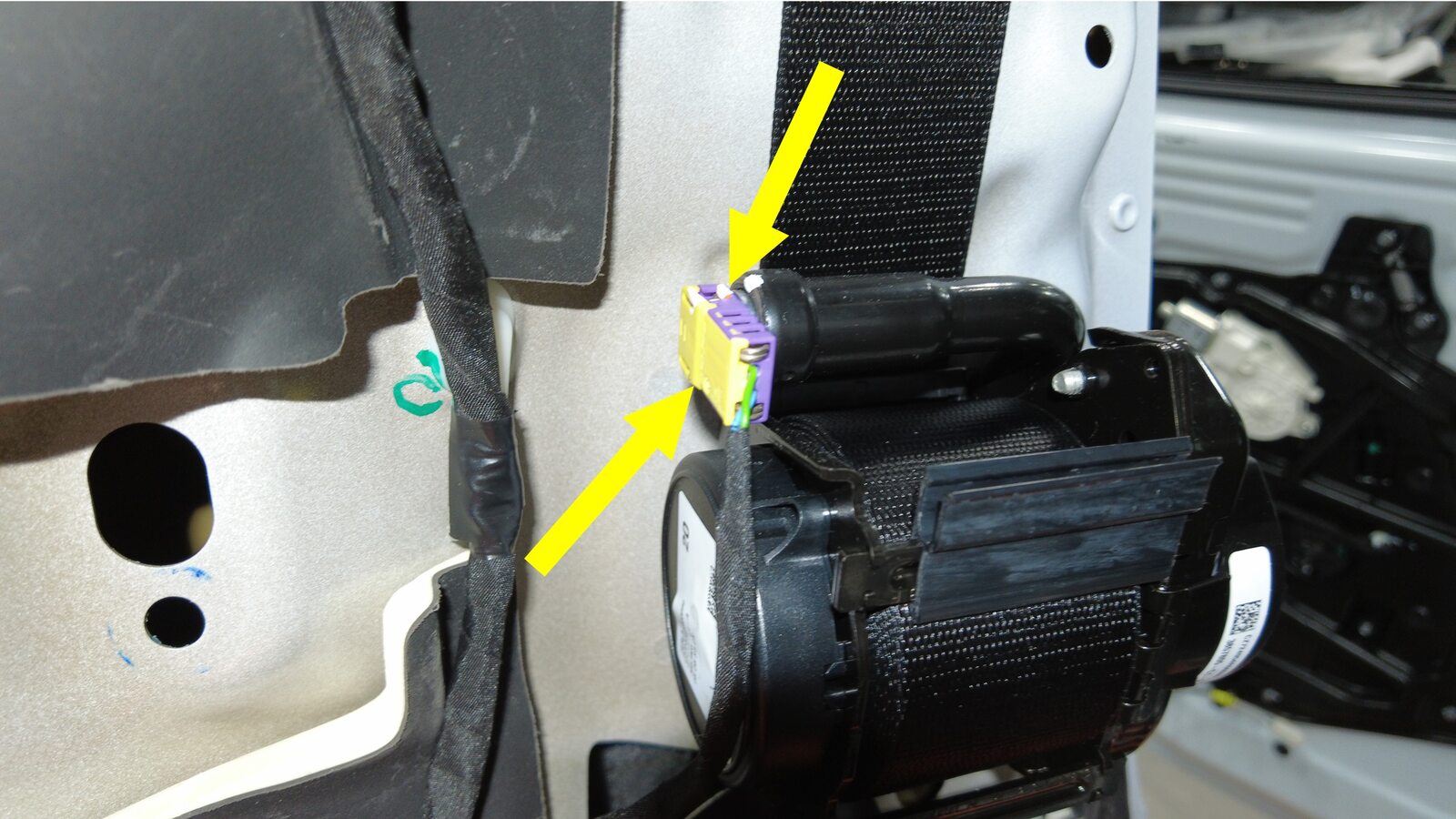

  52. Disconnect LH front retractor connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x stage locking connectors, Lift the orange tab to release the connector

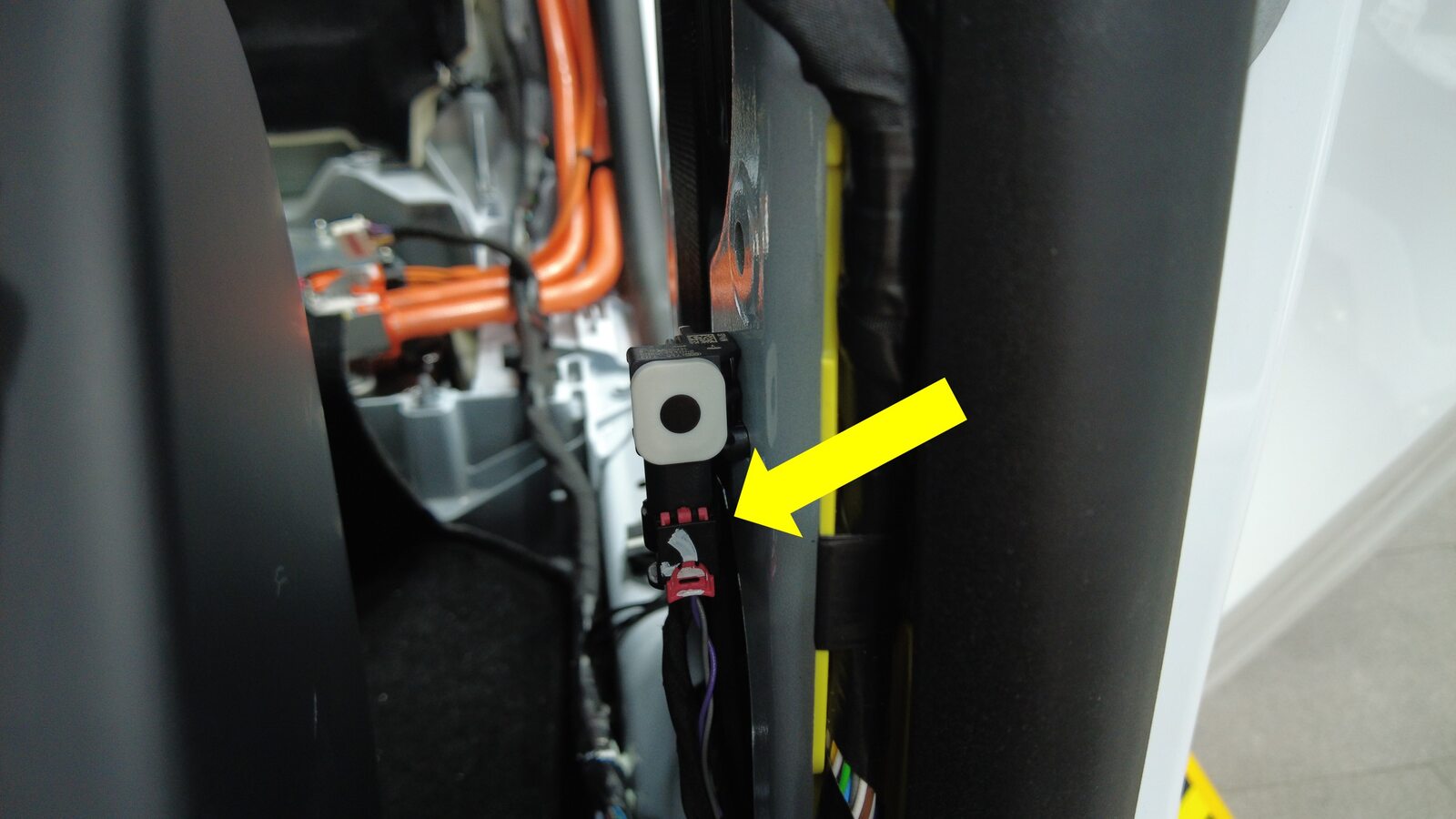

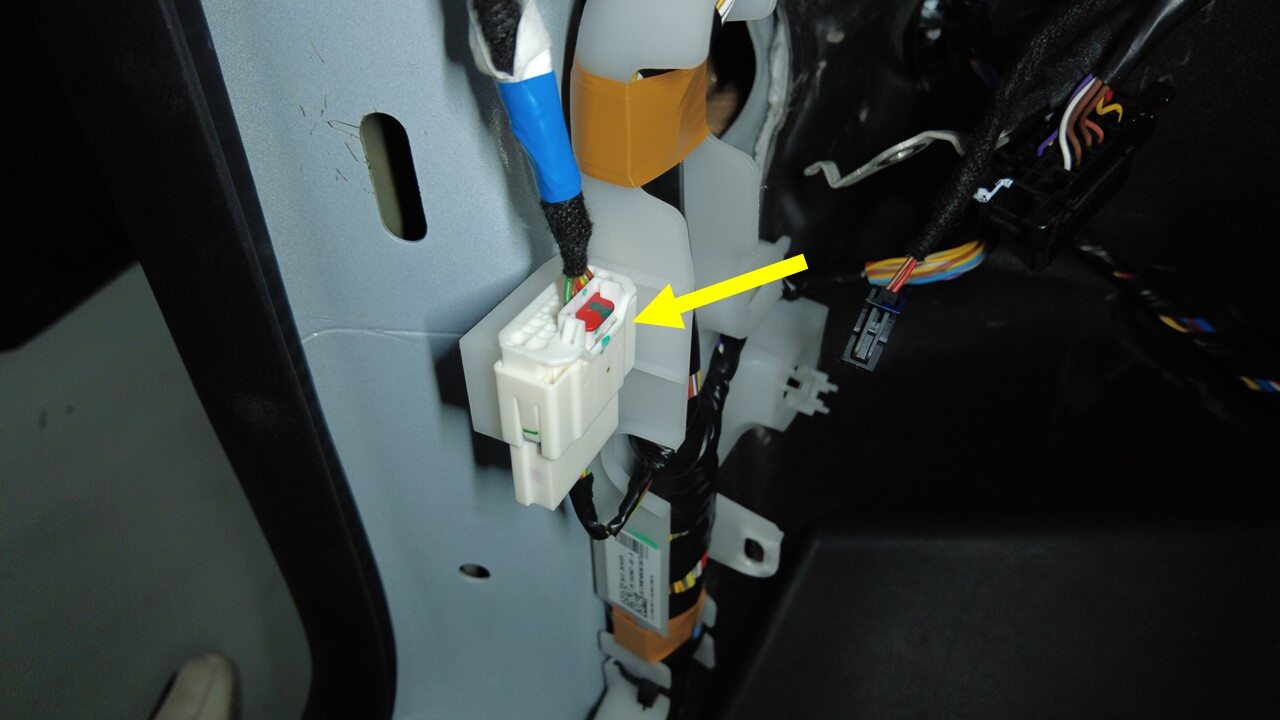

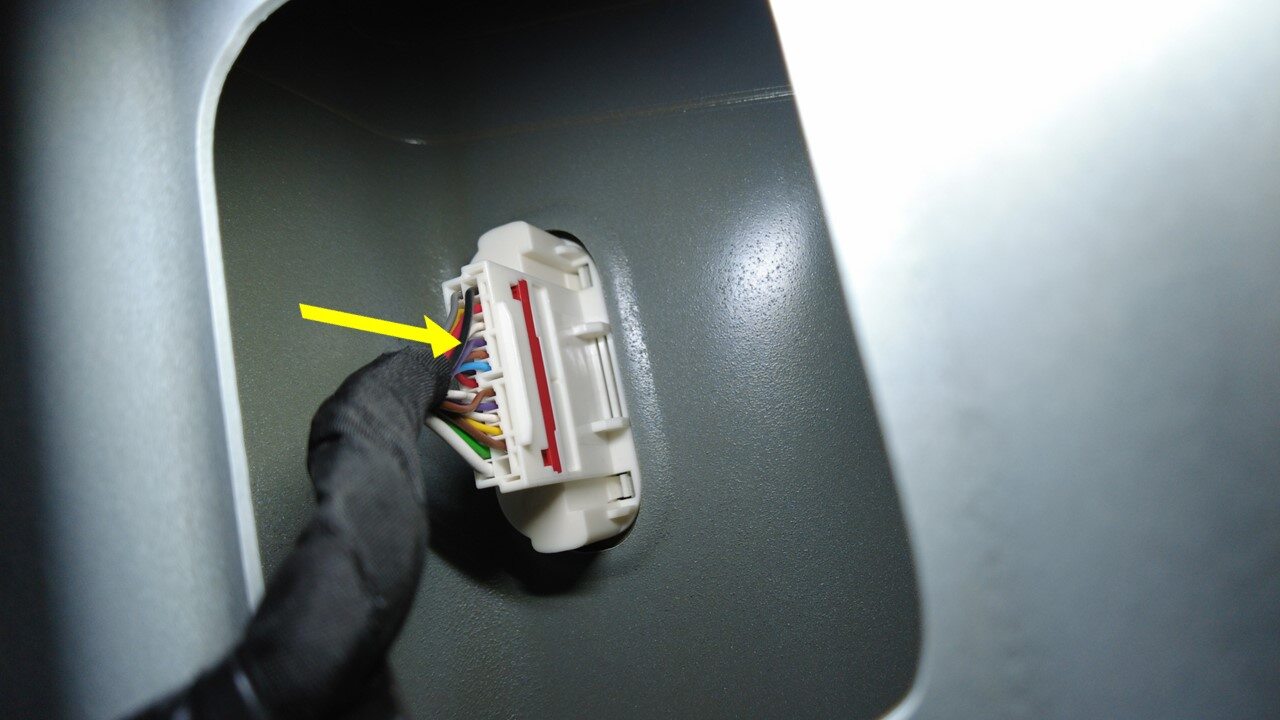

  53. Disconnect LH B pillar accelerometer sensor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector

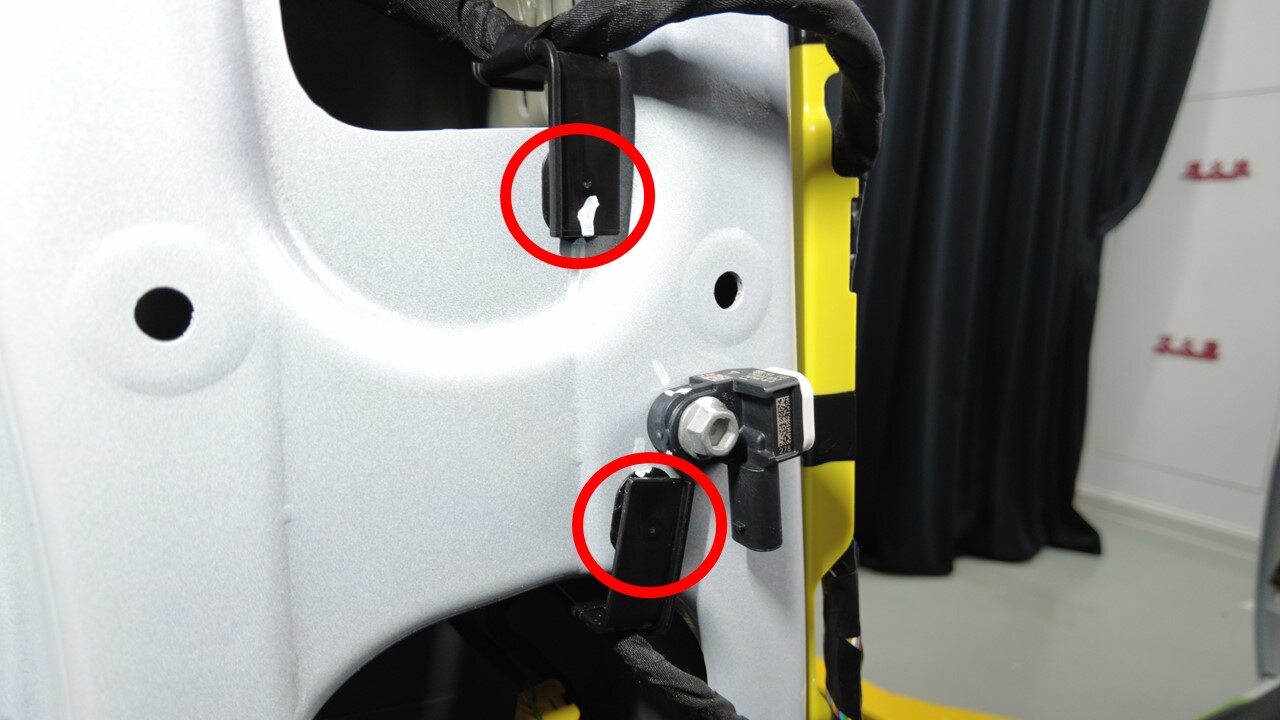

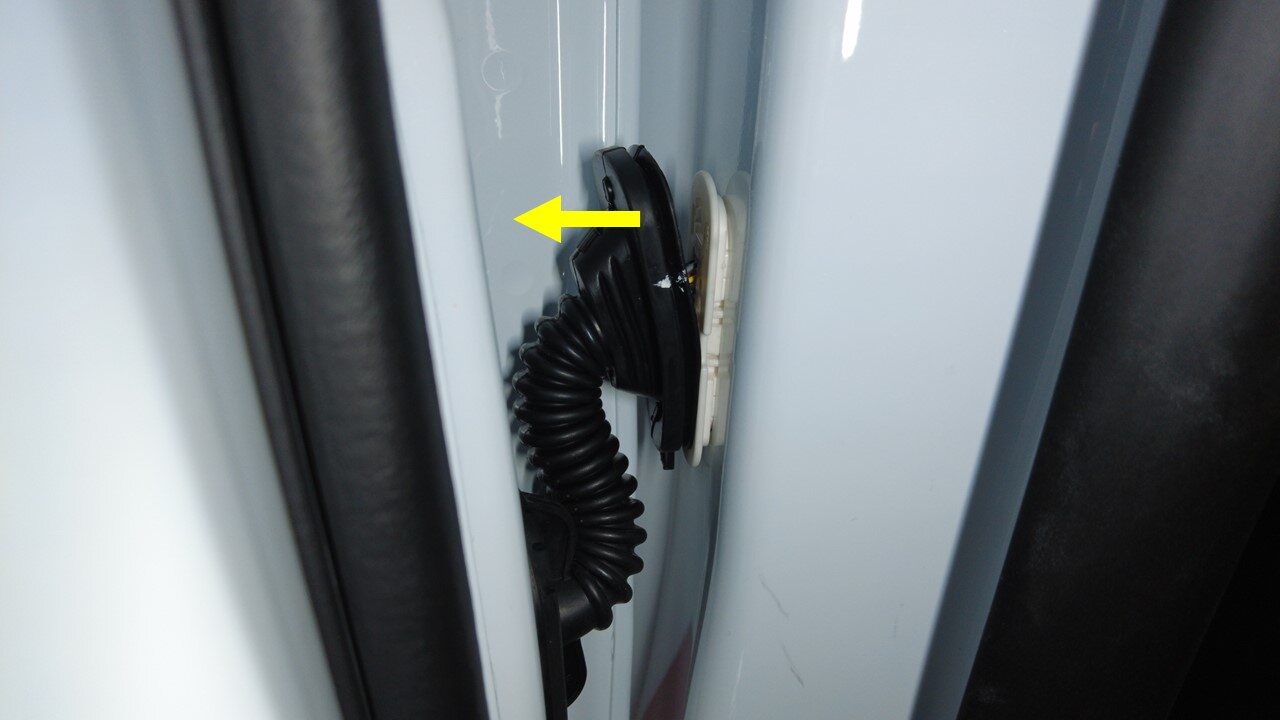

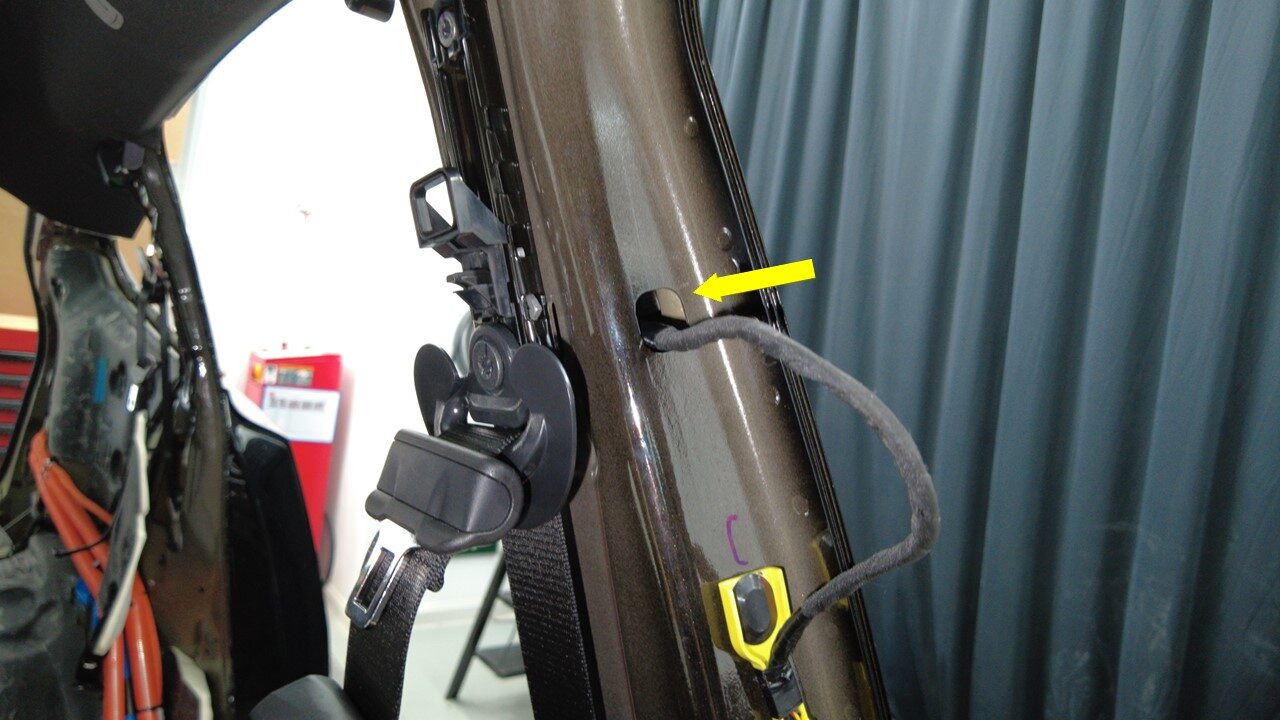

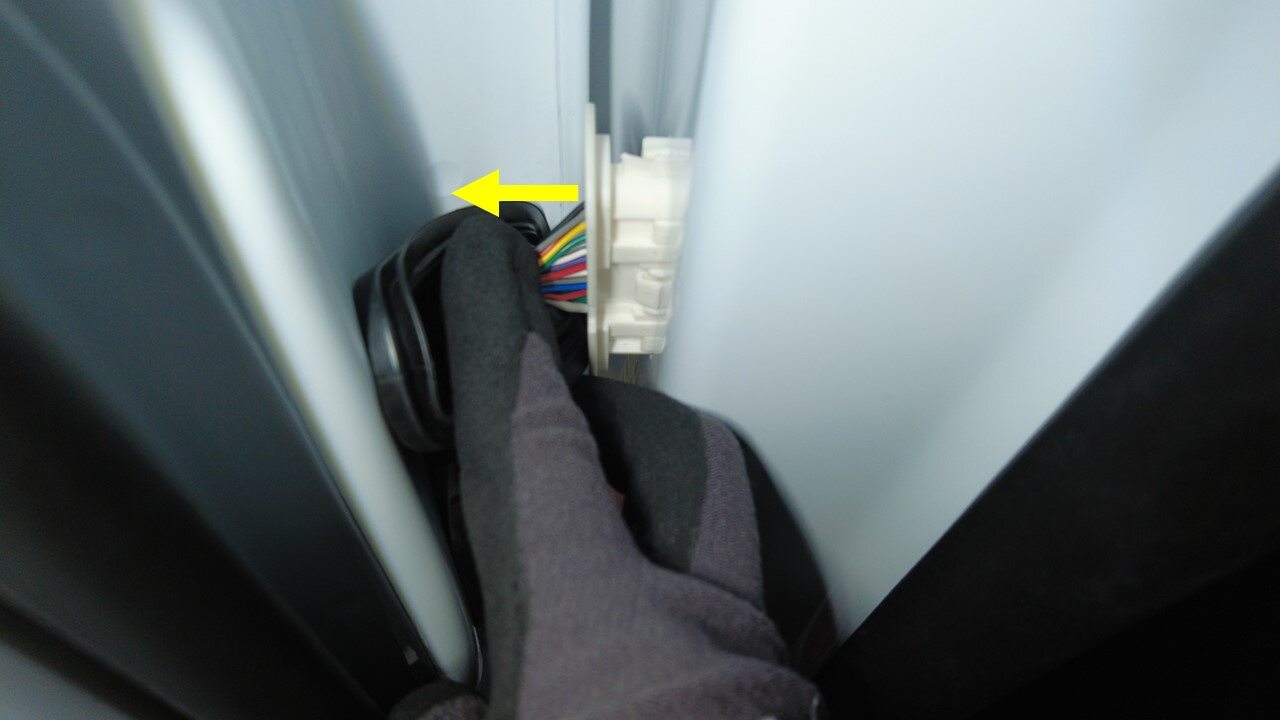

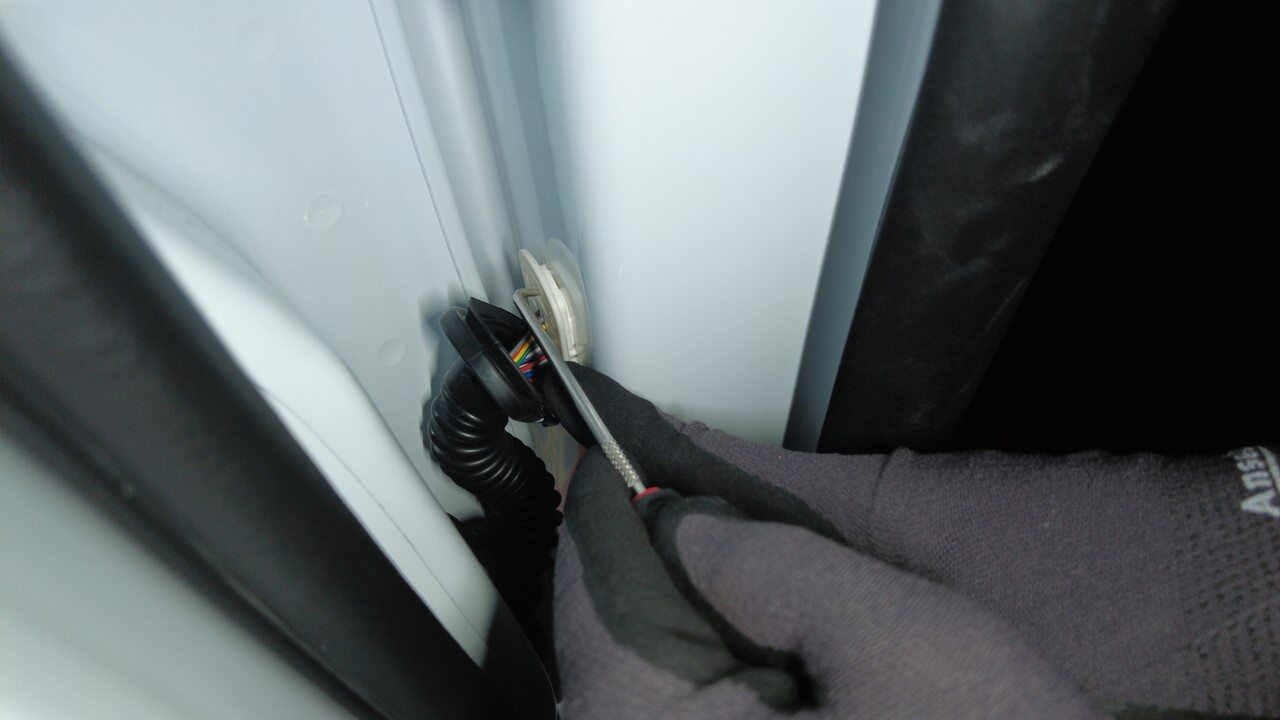

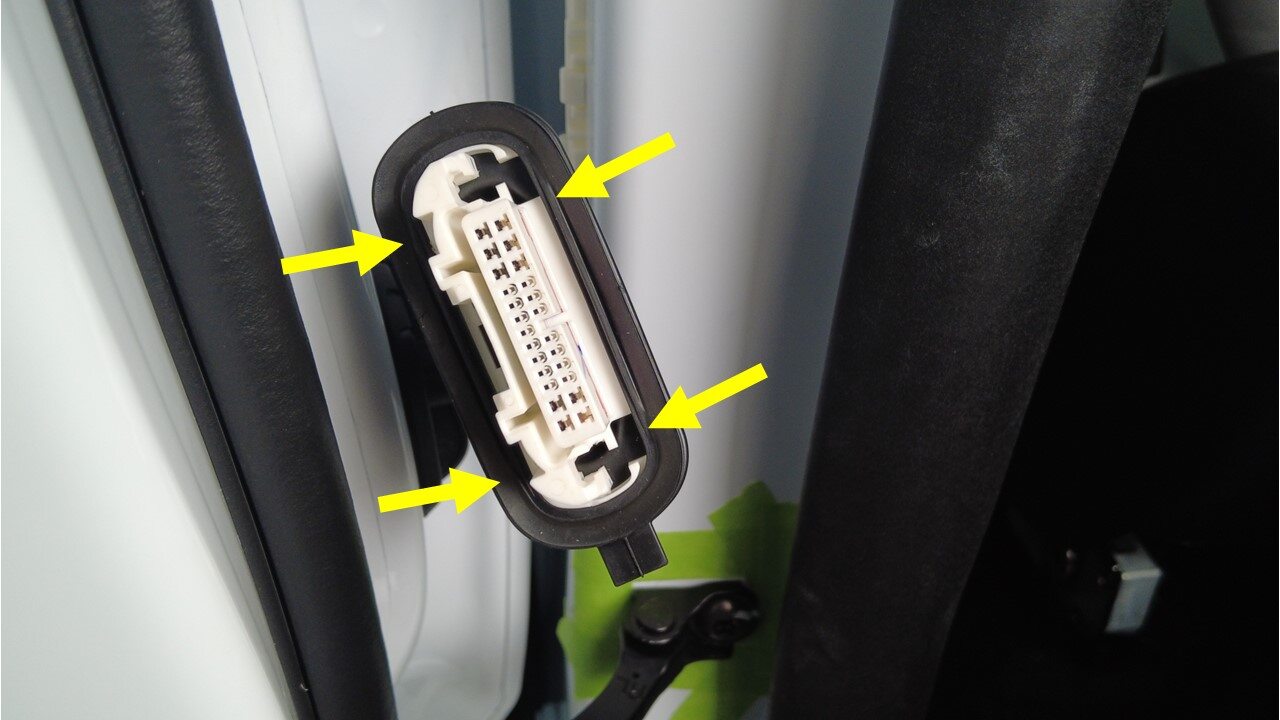

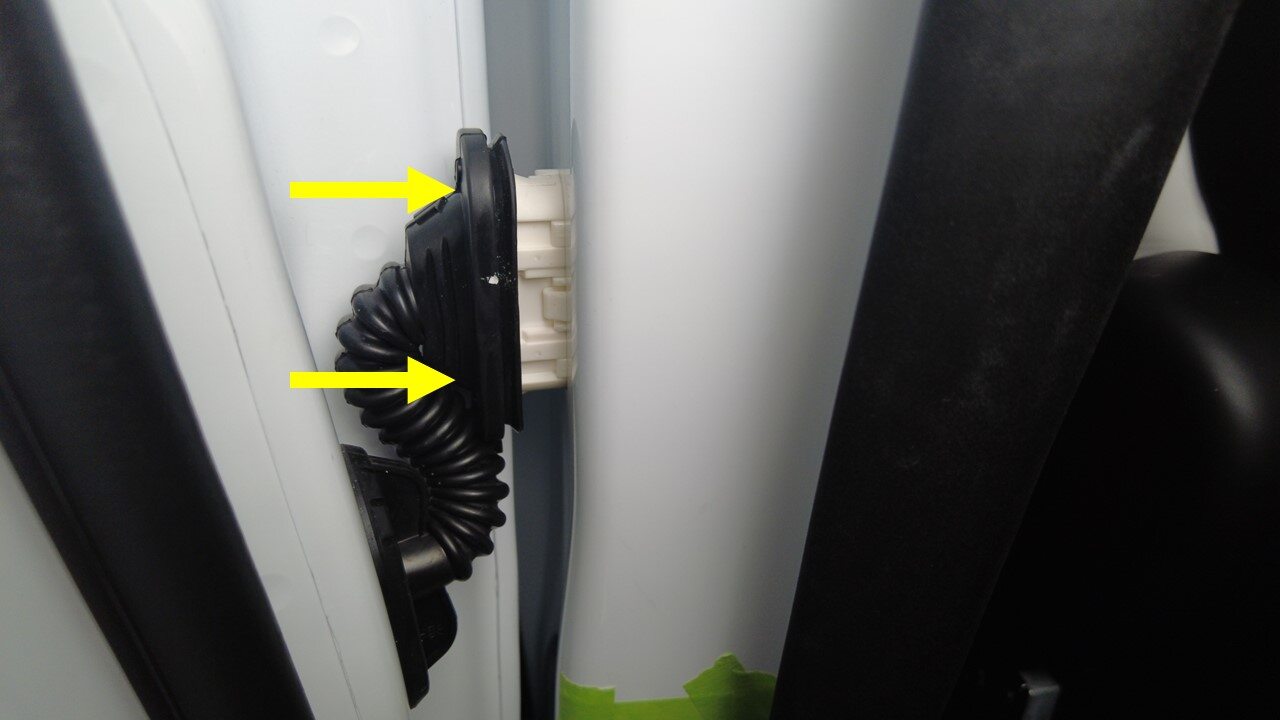

  54. Release grommet connector then remove LH rear door harness from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x clips, 1x grommet, Pry at both the top and then the bottom of rear door harness grommet while pulling away from B-pillar to release door harness

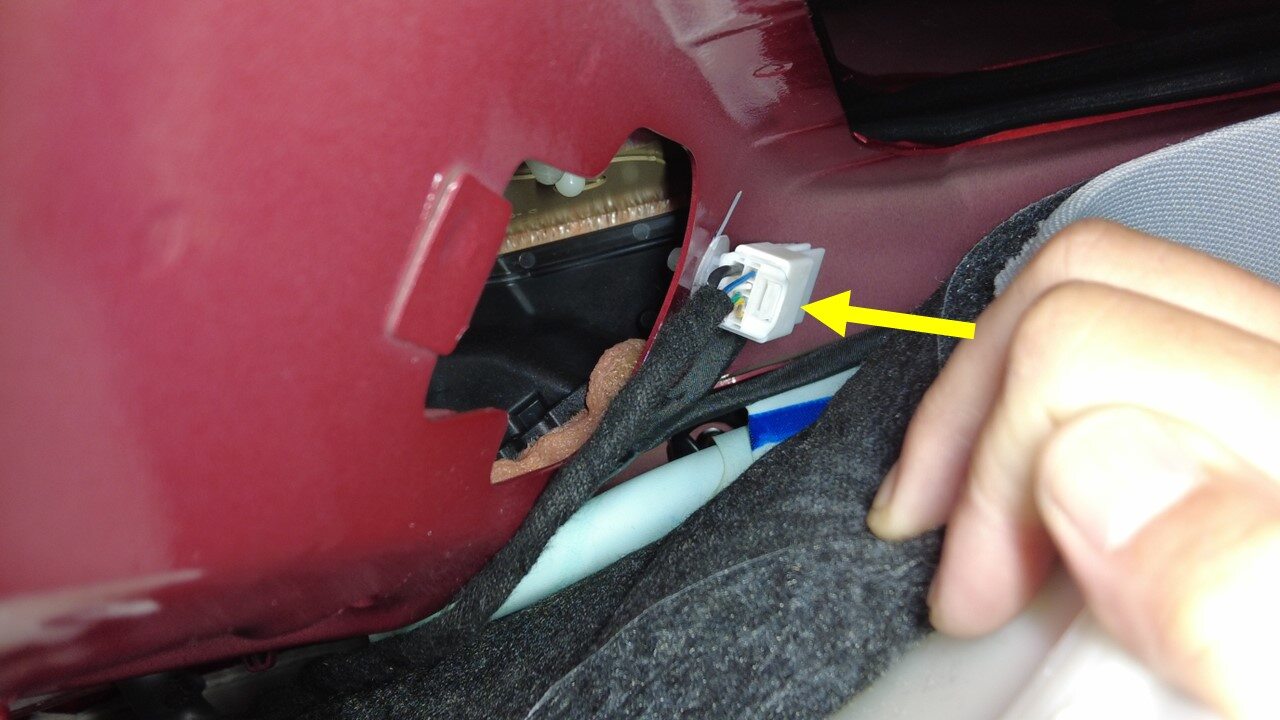

  55. Remove LH rear door harness connector from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Release the connector clip from outer the B-pillar

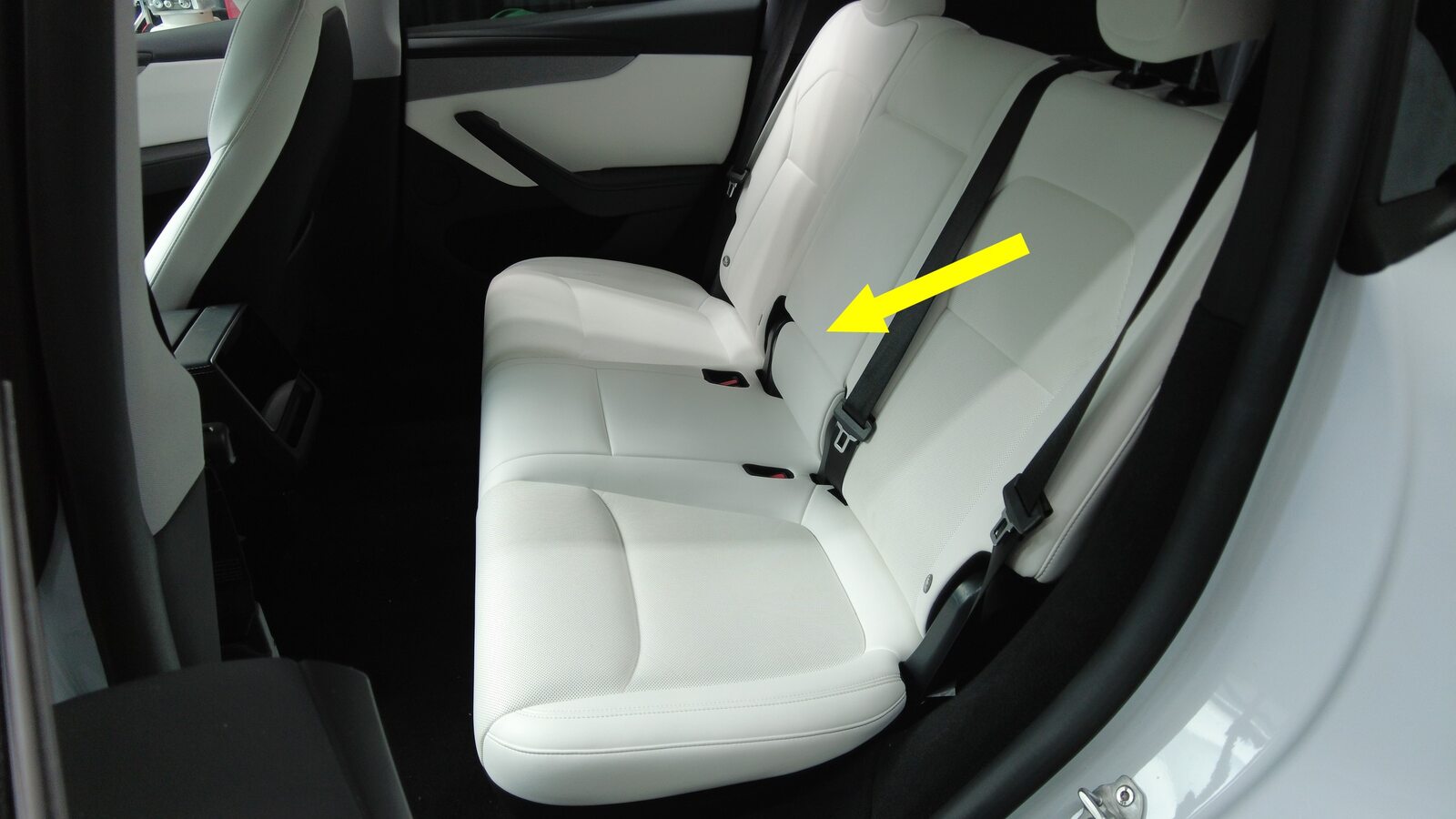

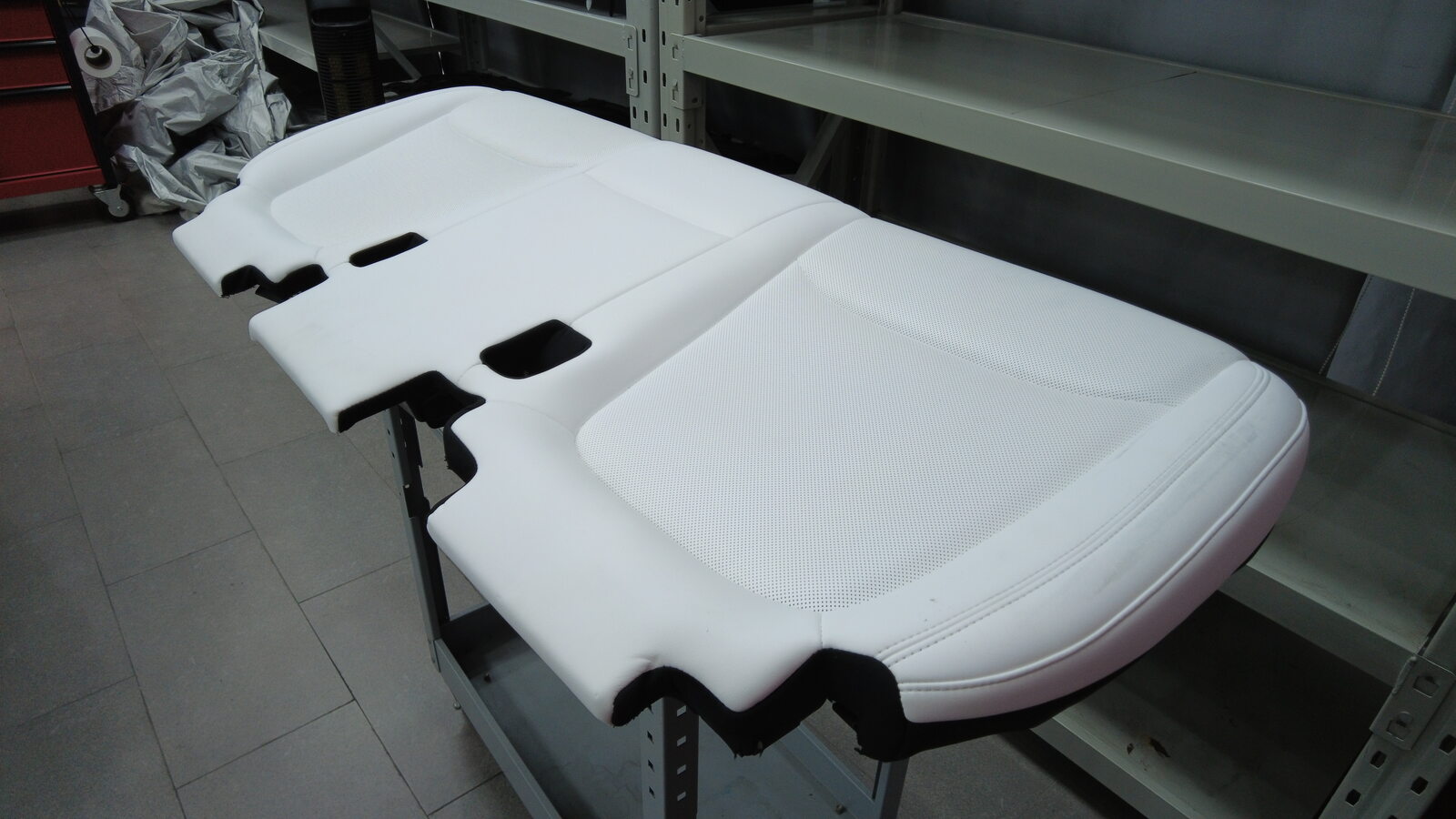

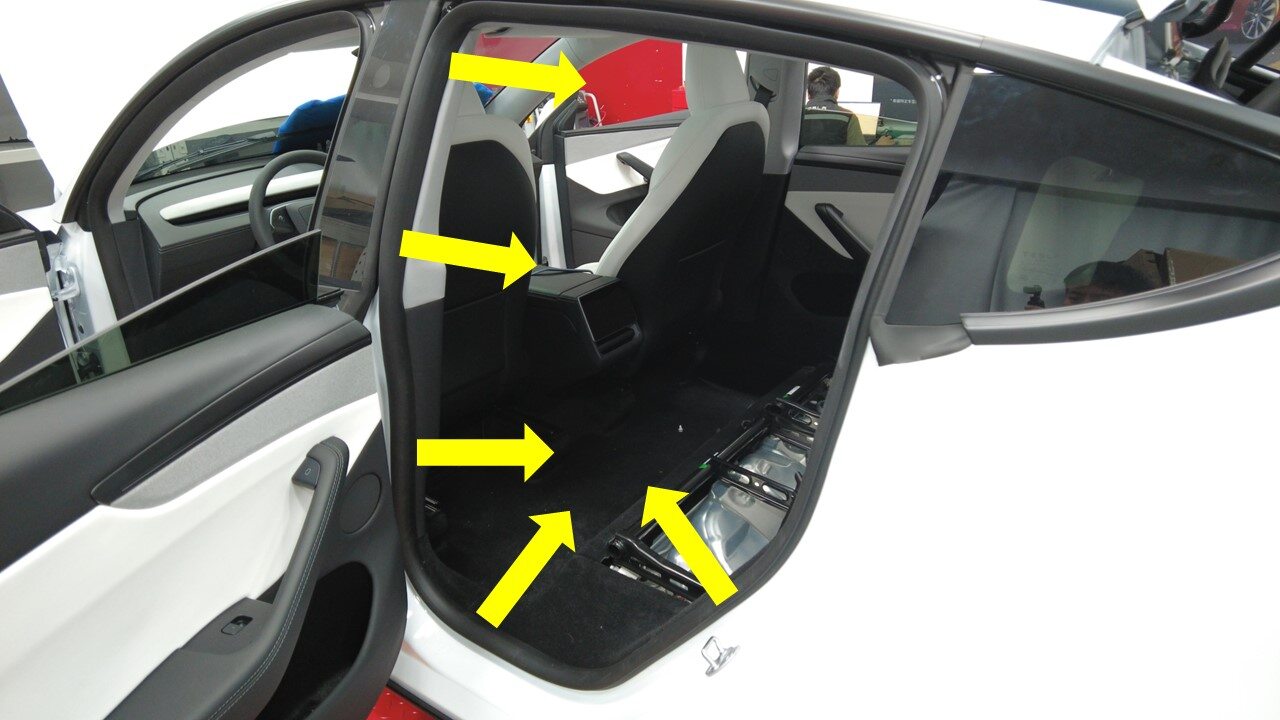

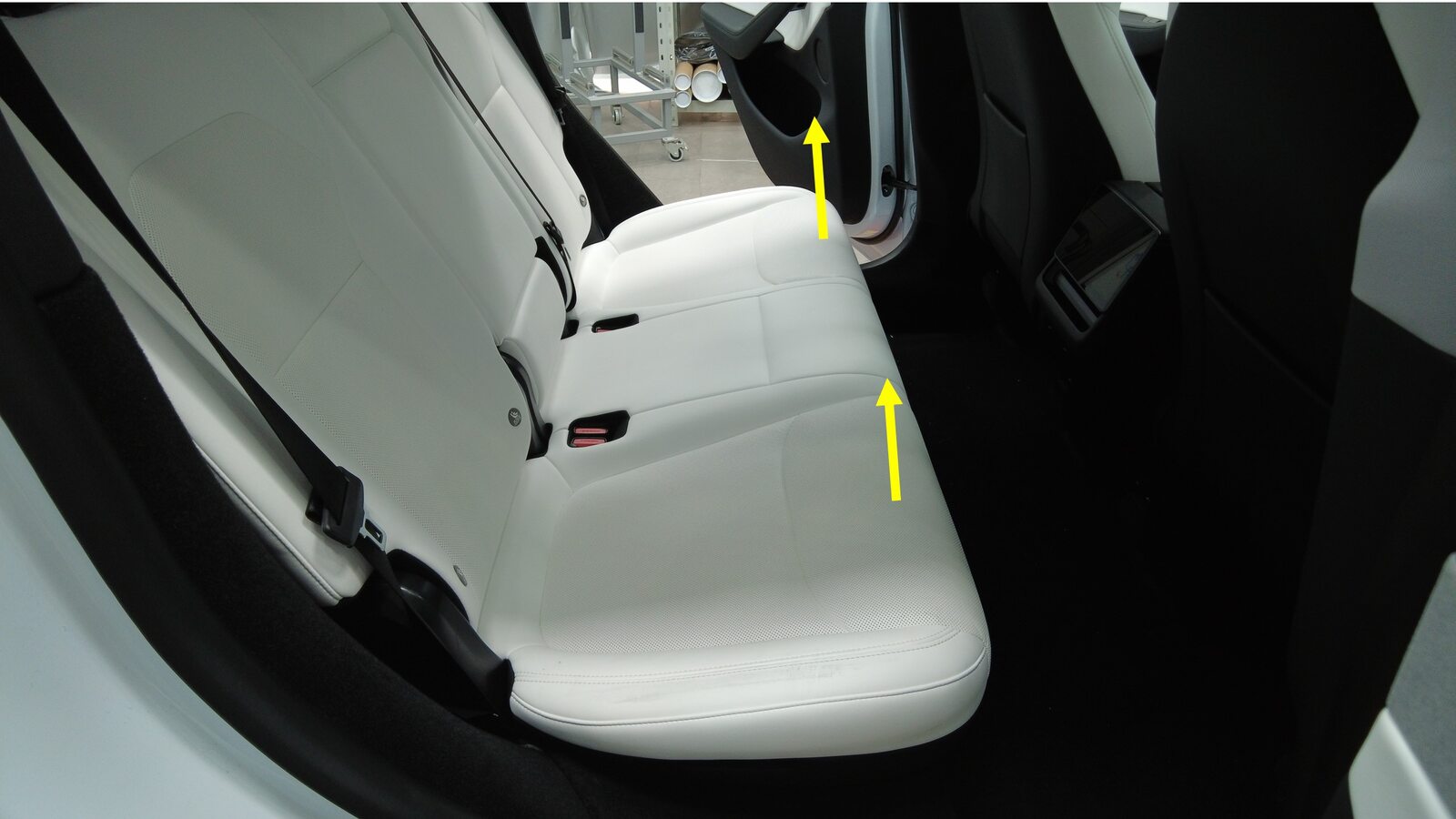

  56. Remove 2nd row seat cushion
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed

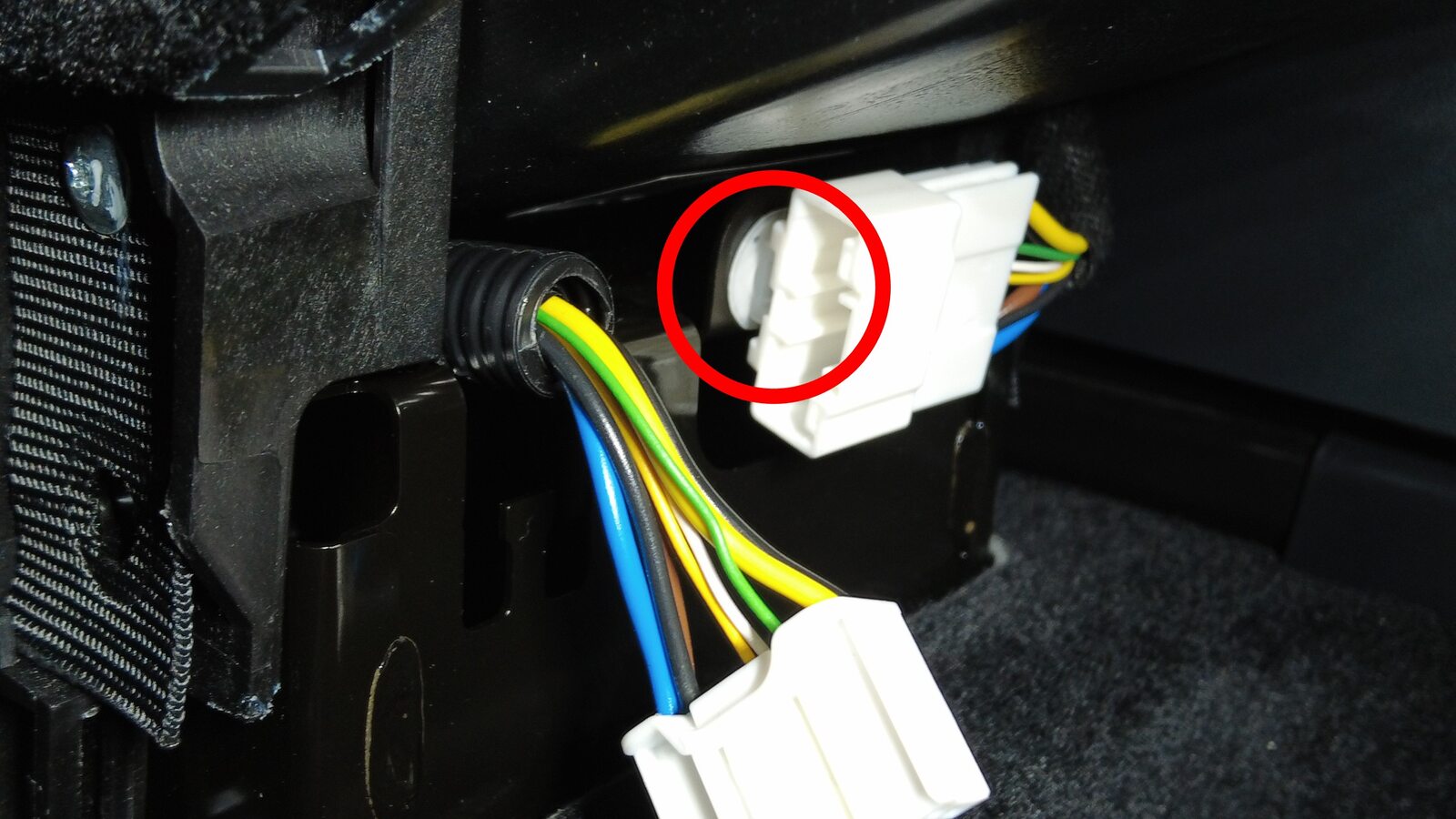

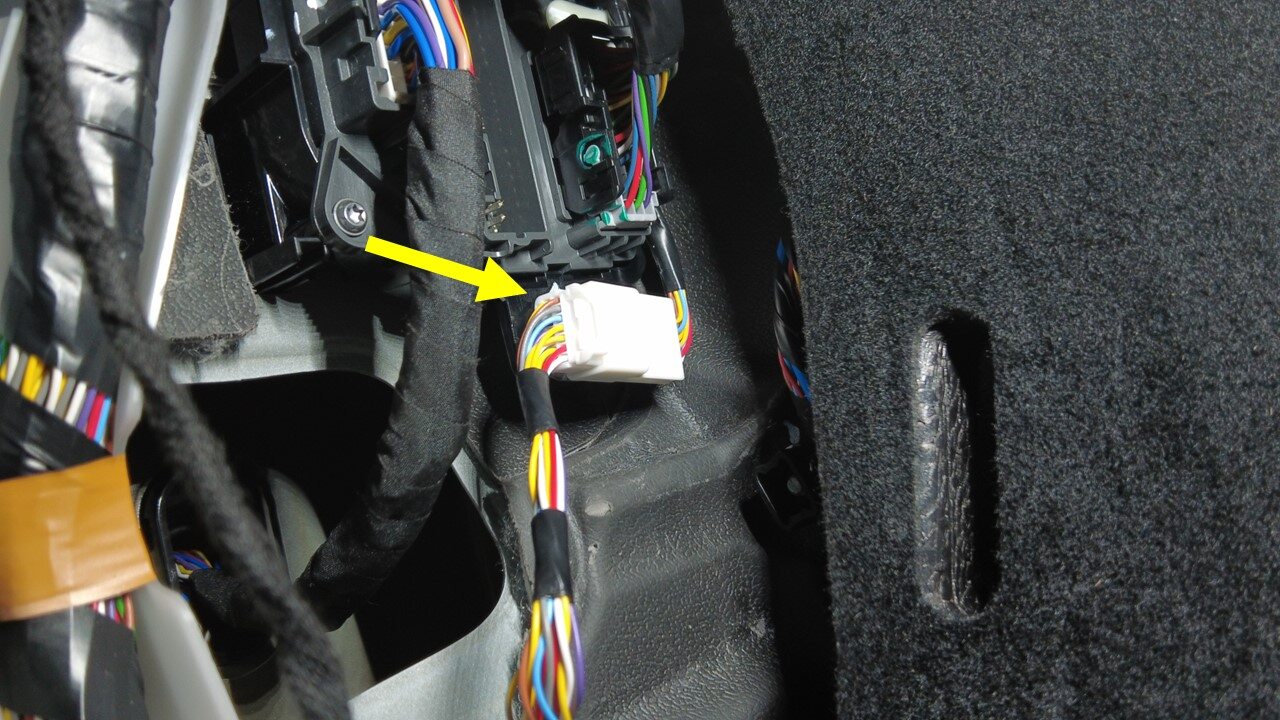

  57. Disconnect 2nd row 60 seat connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Disengage locking tab

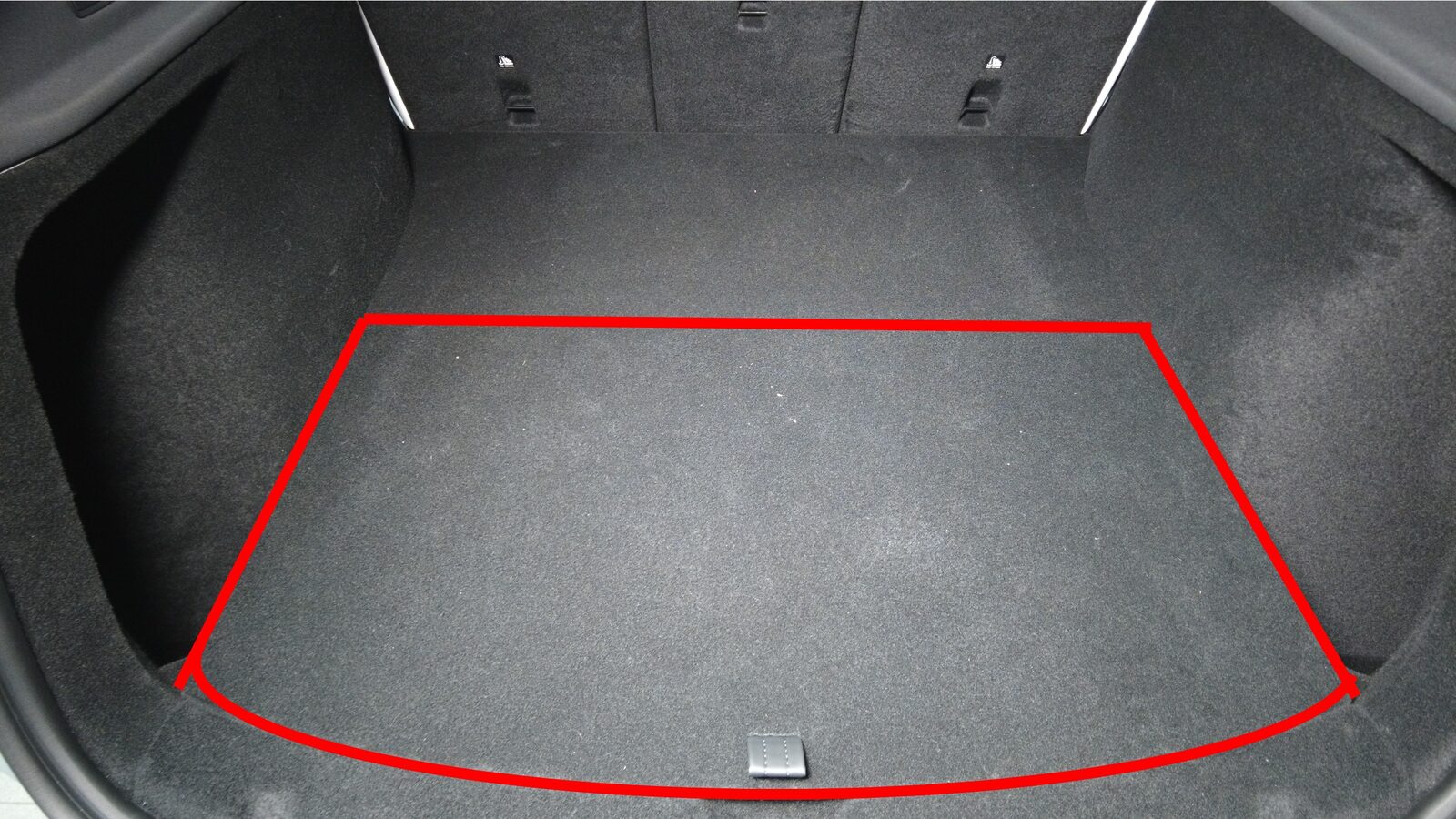

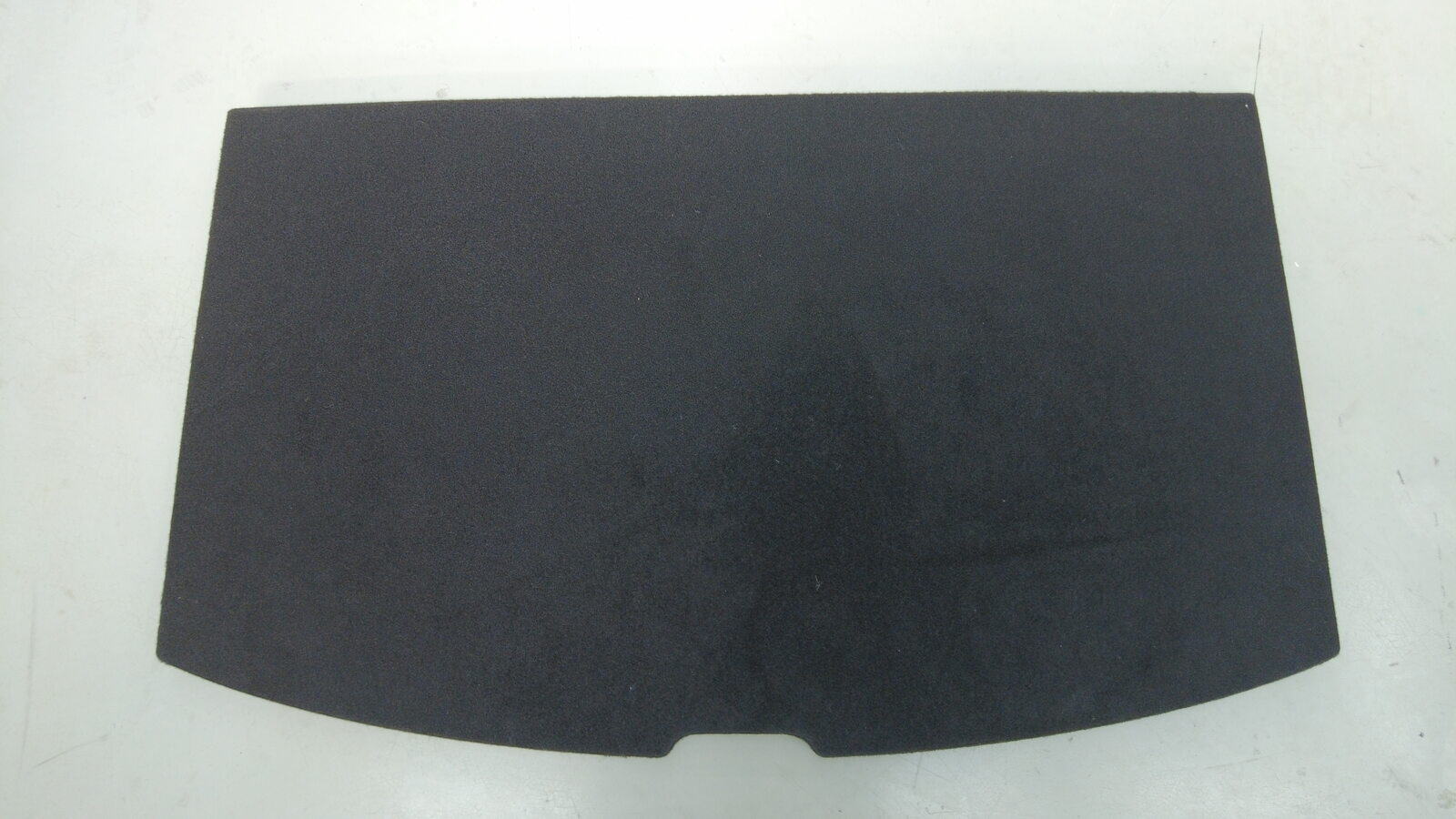

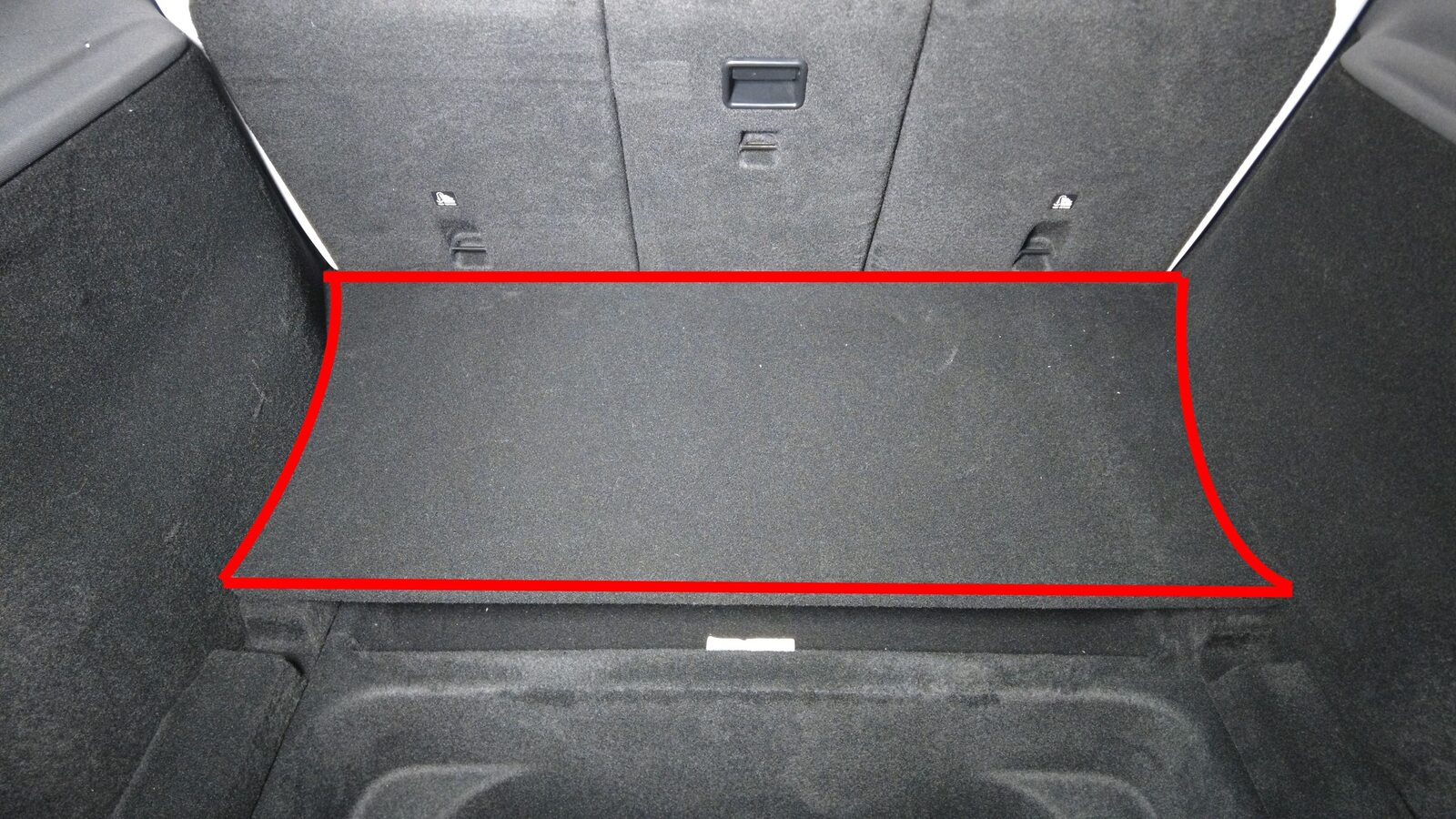

  58. Remove rear load floor
  59. Remove front load floor

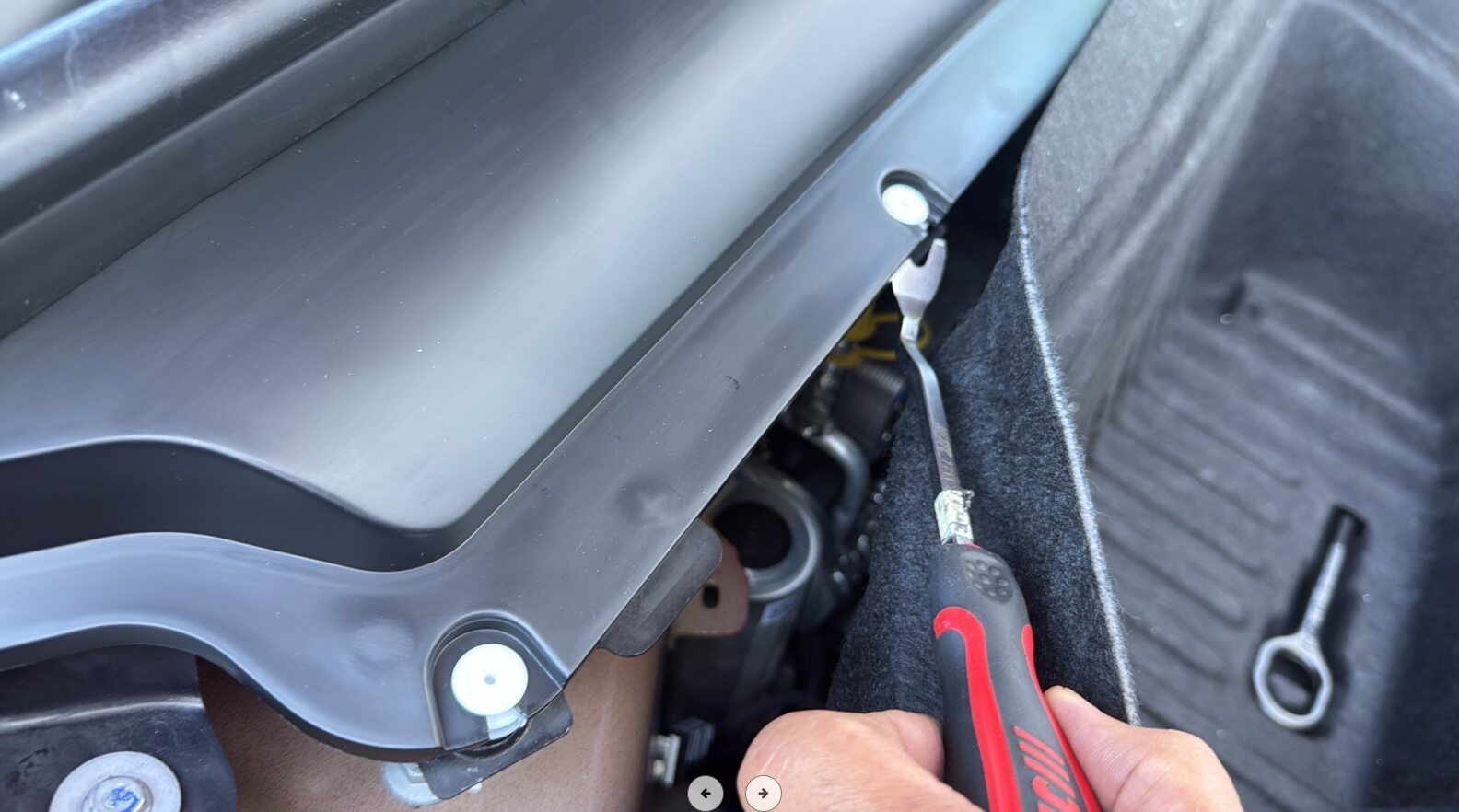

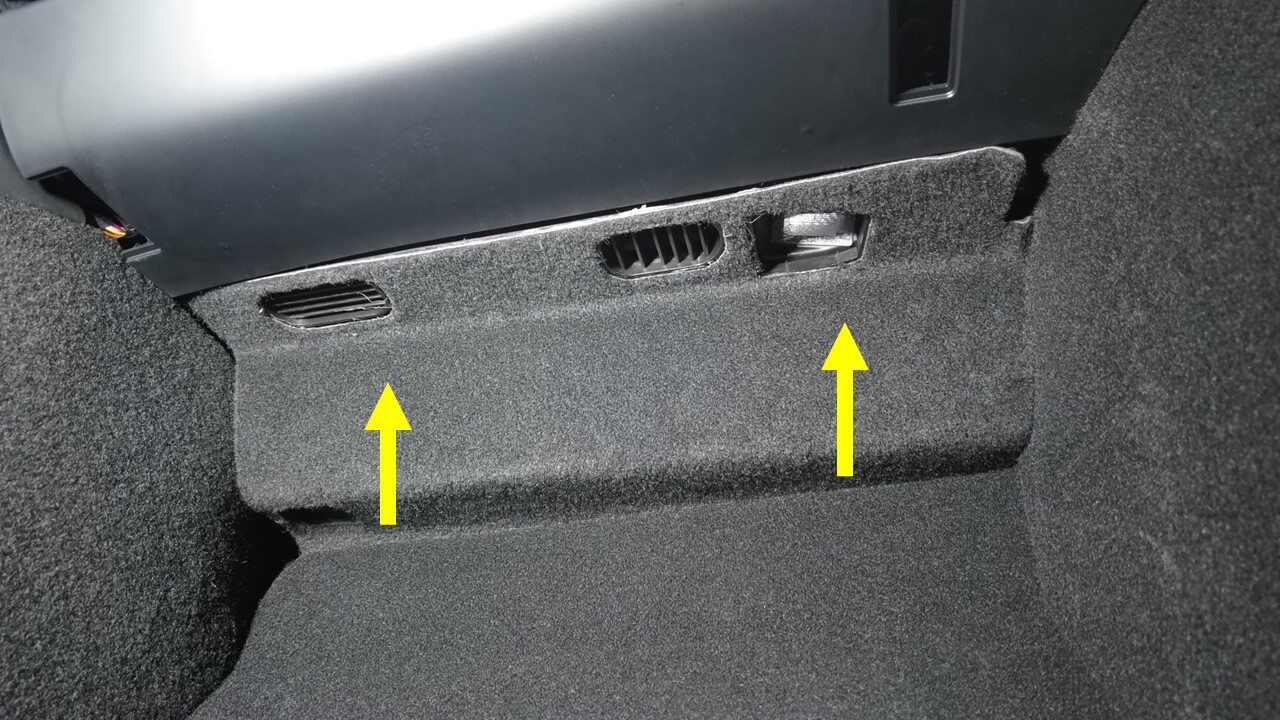

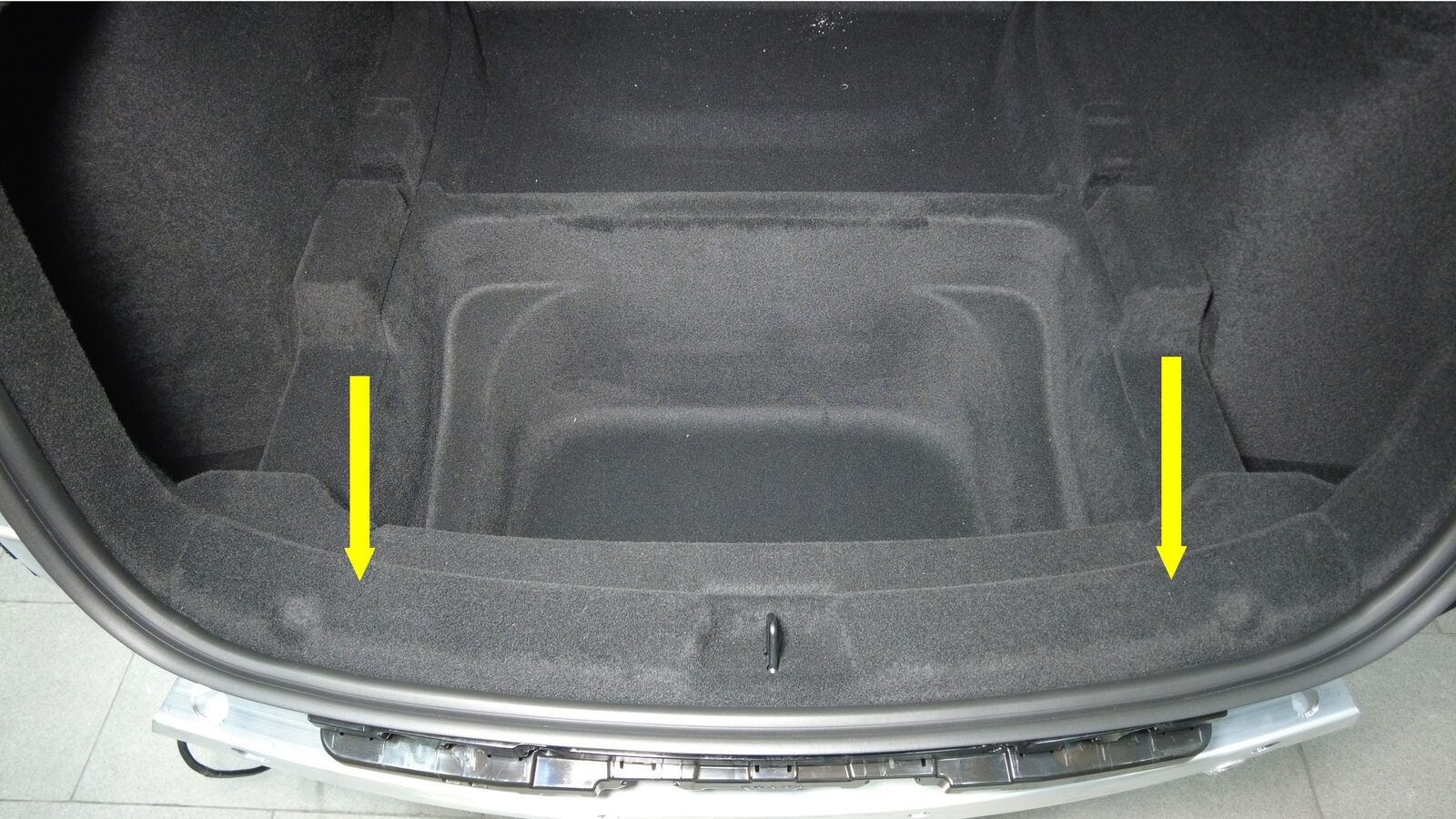

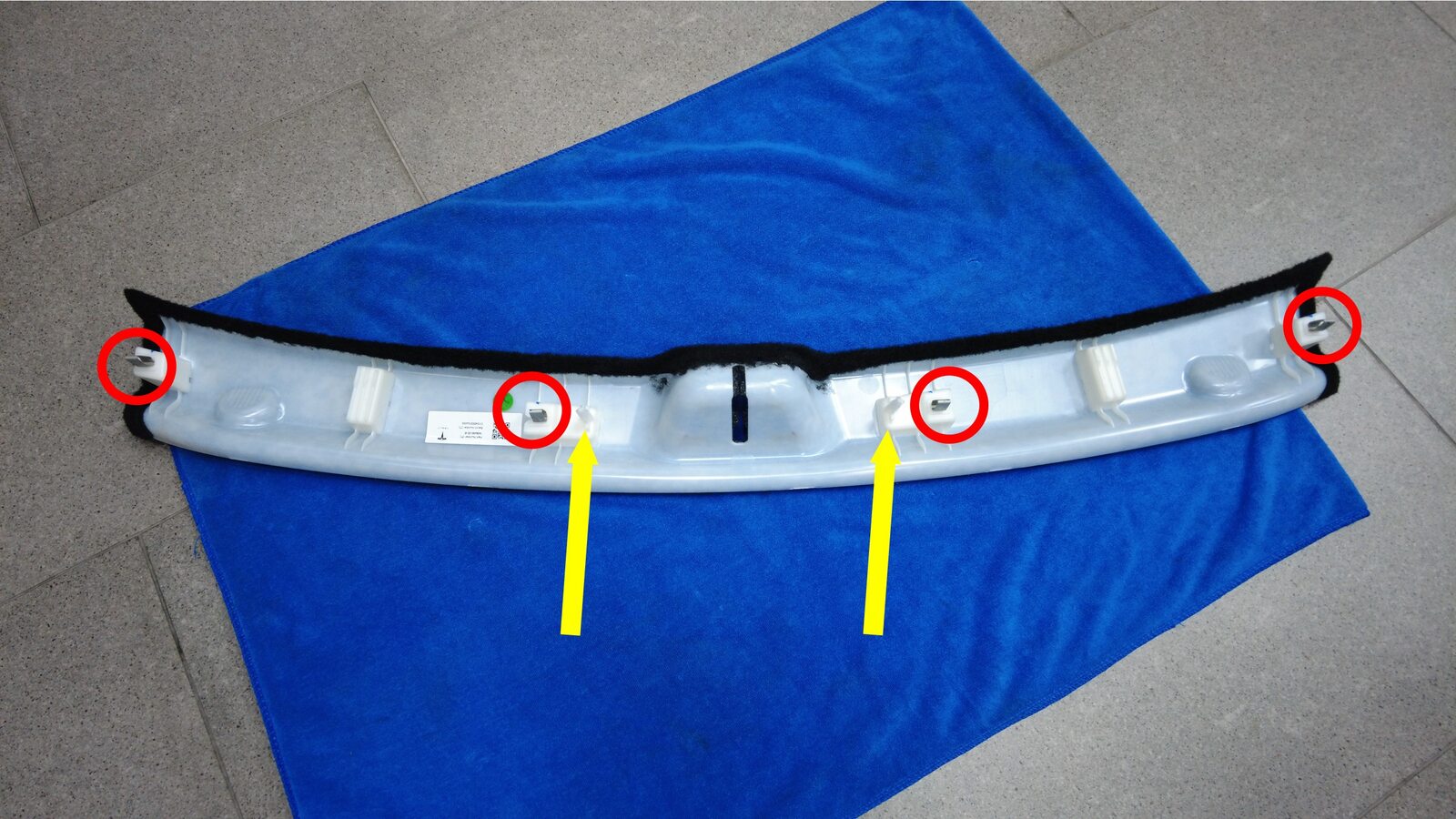

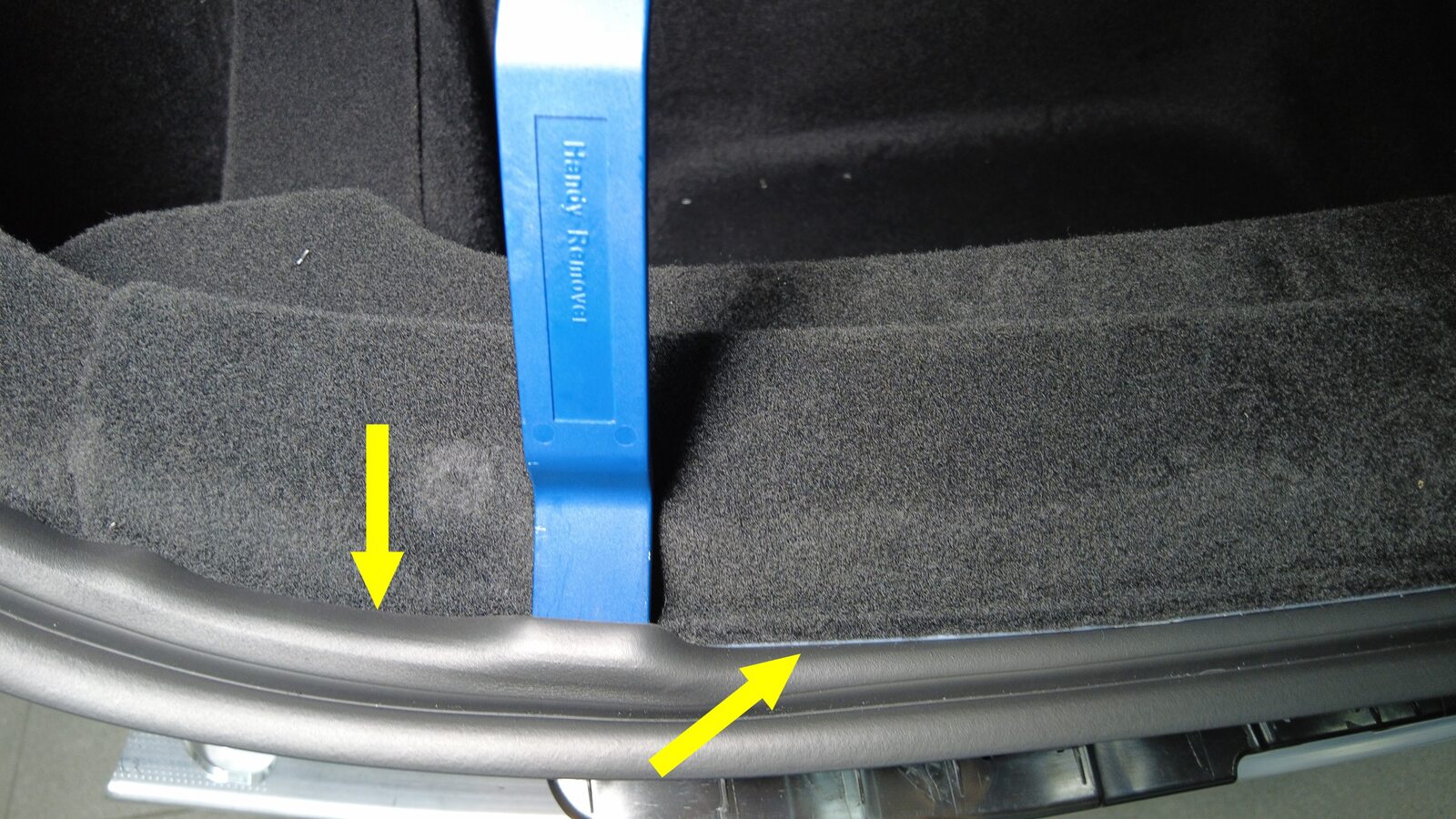

  60. Remove trunk sill trim from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 2x loaction pins

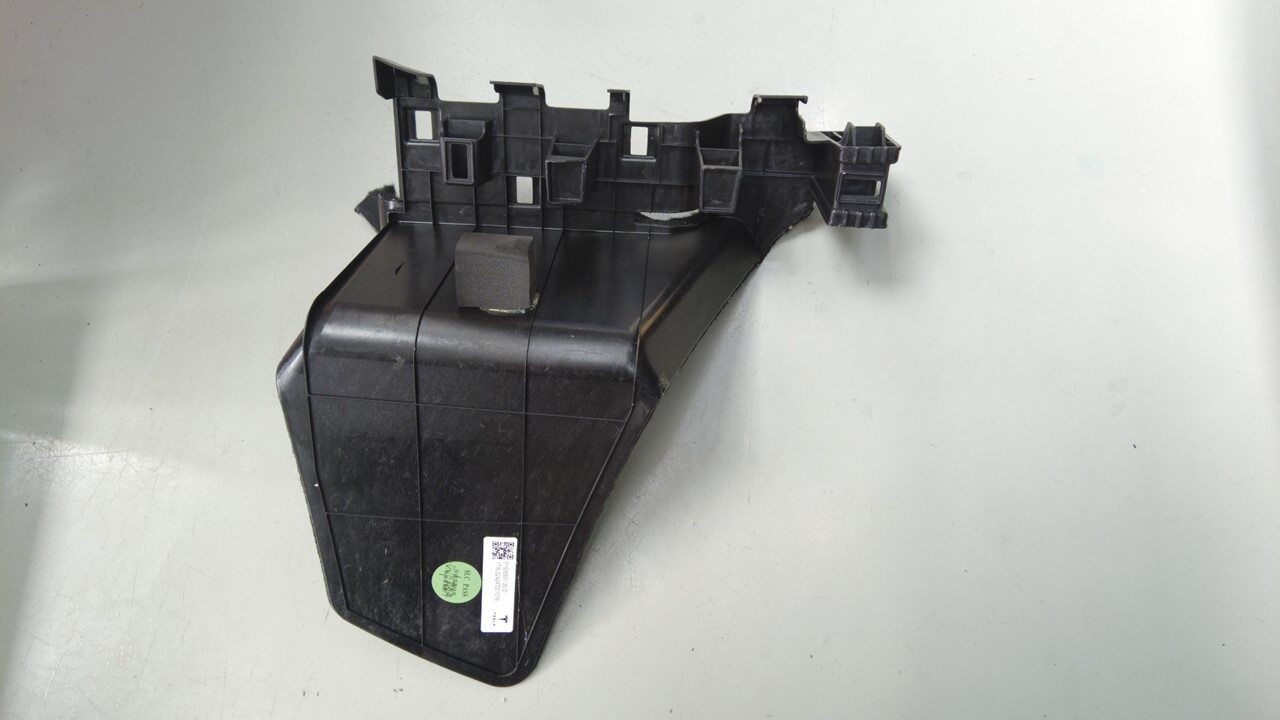

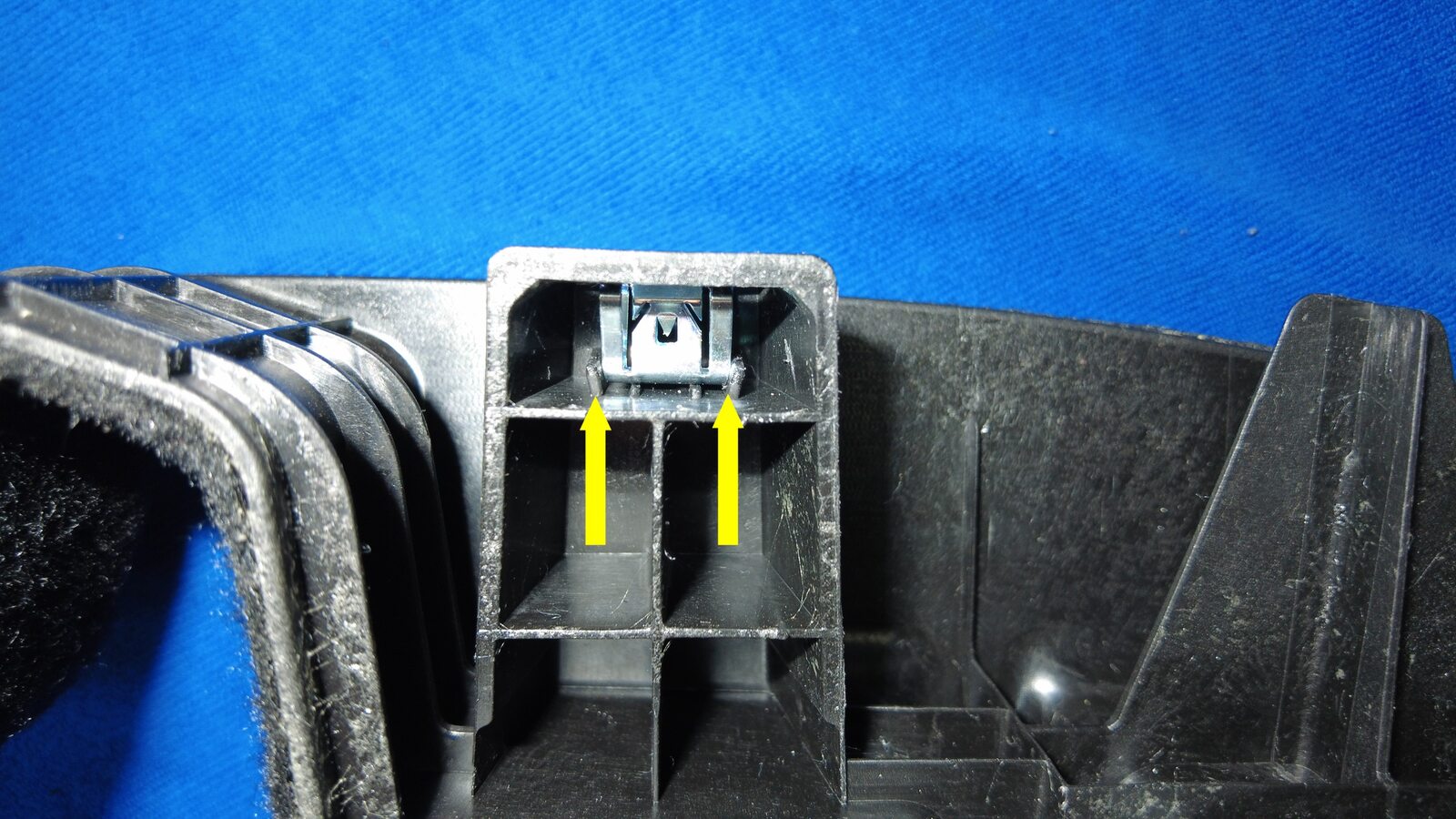

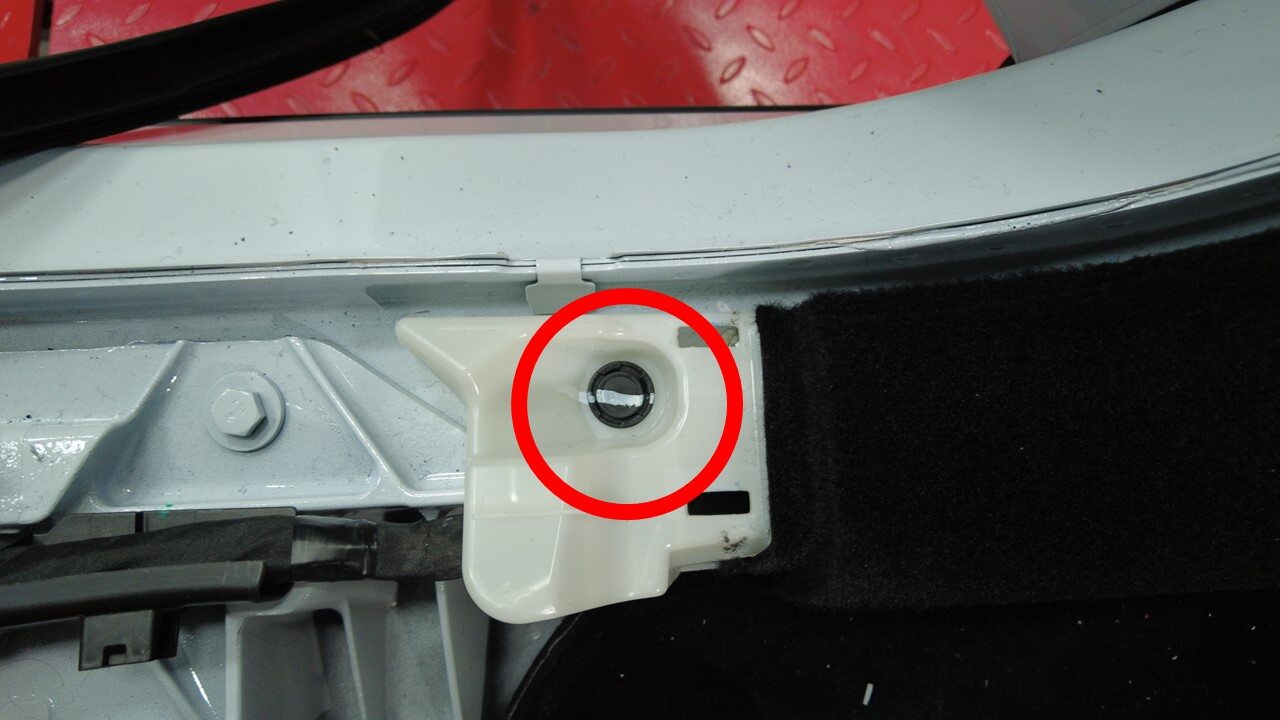

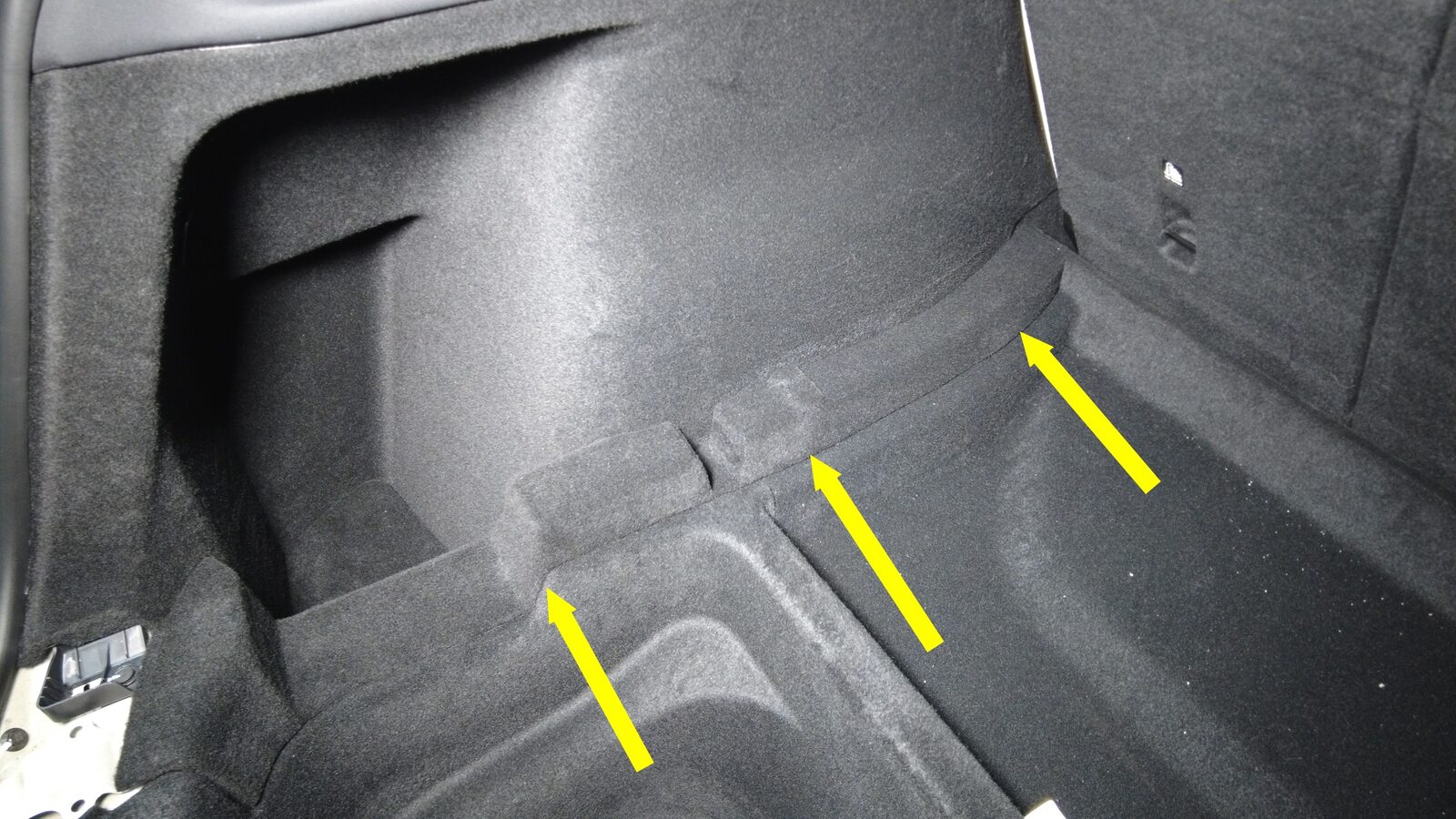

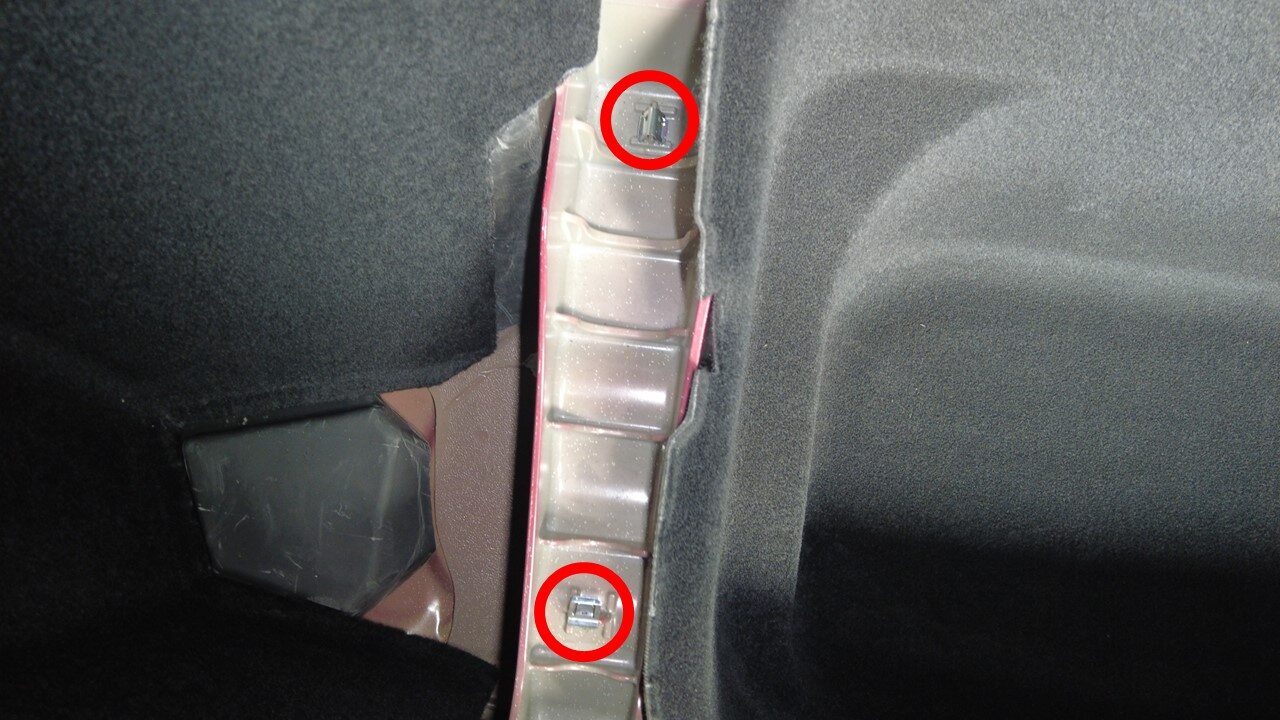

  61. Remove LH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    4x tabs, 2x clips, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly later
  62. Remove LH trunk pocket bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

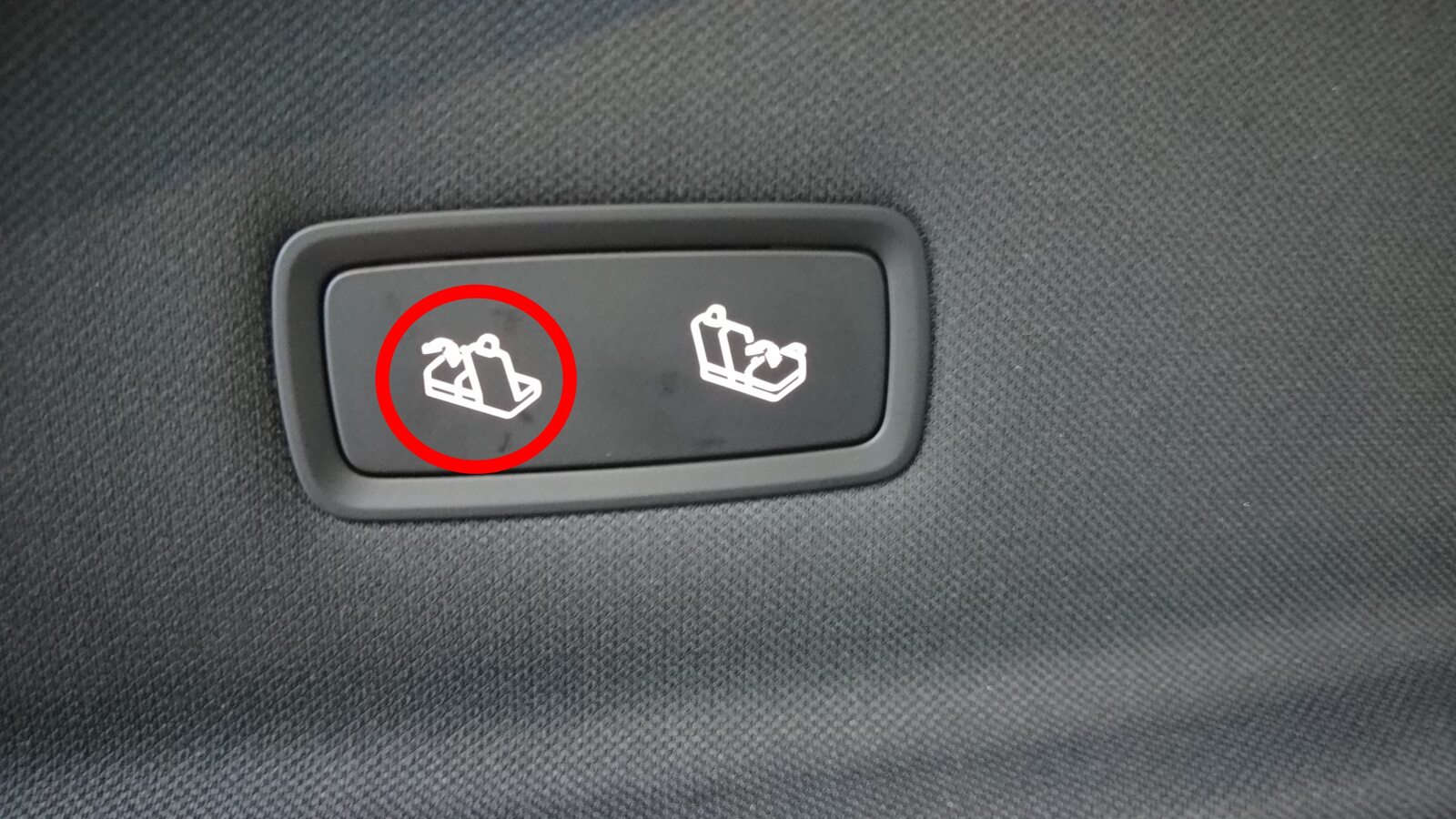

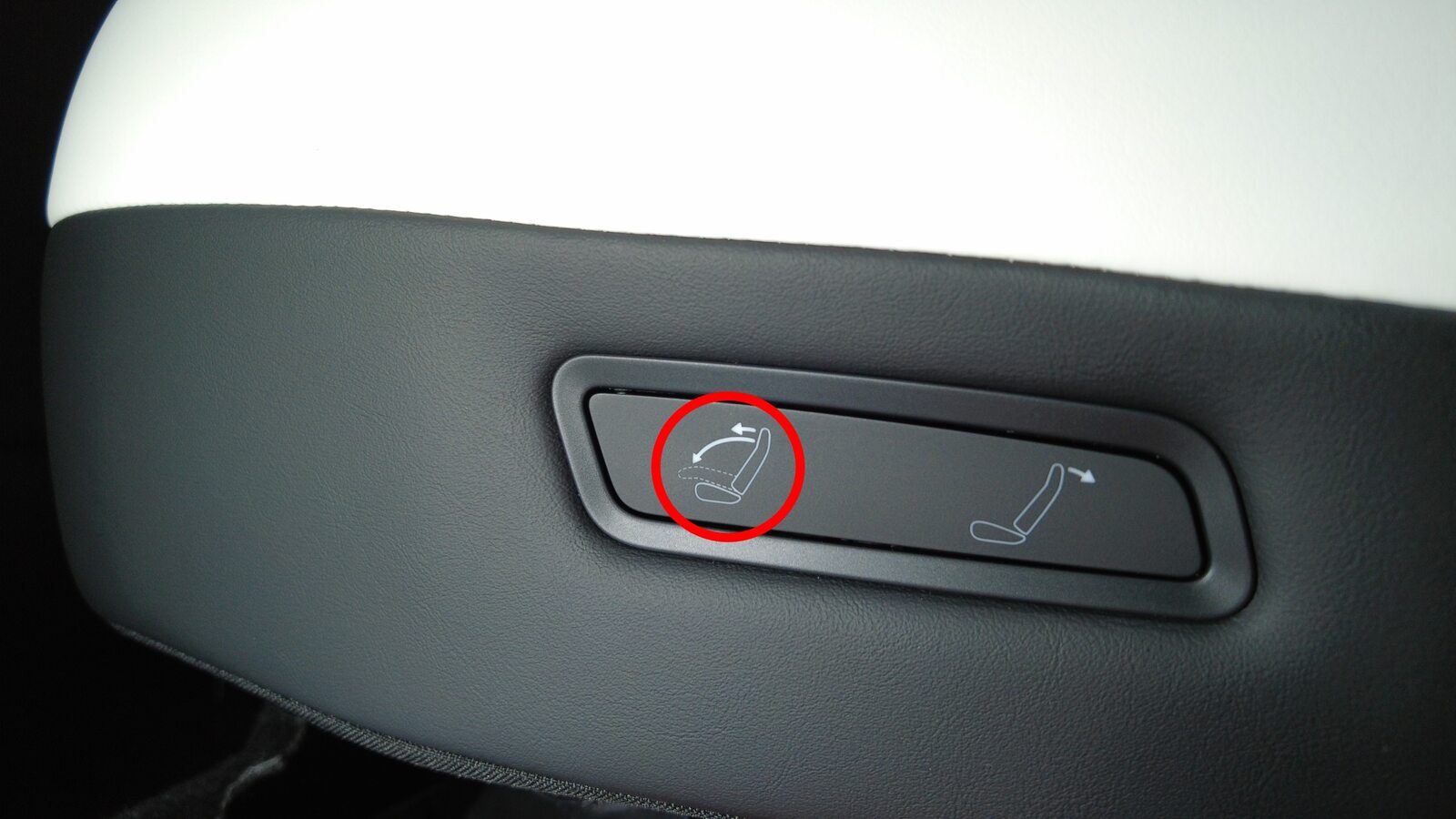

  63. Fold 2nd row 60 seatback down
    Informational PurposesAn informational icon, calling your attention
    Note
    Via seat switch or manual tether, Protect seat back upholstery if necessary

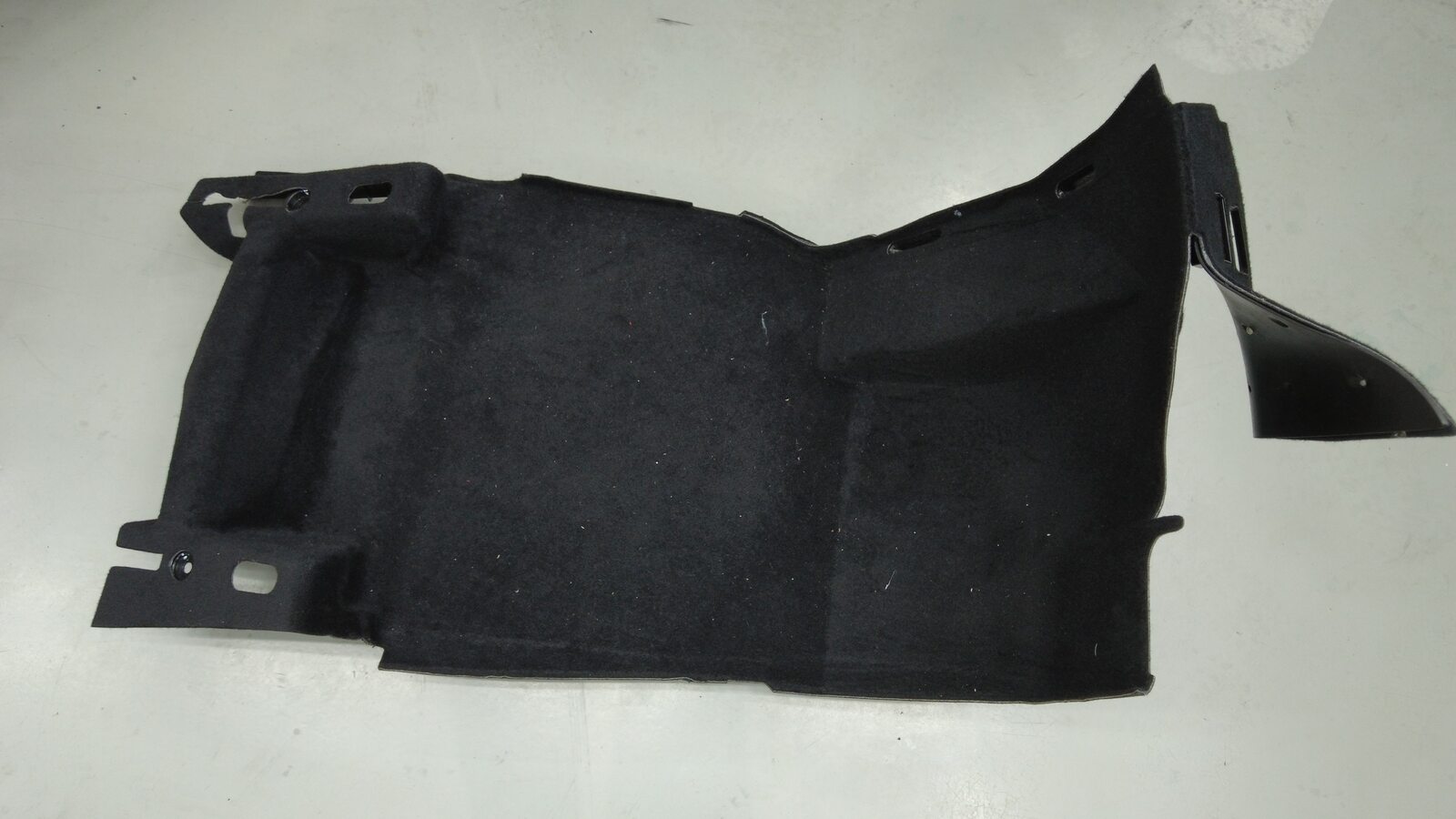

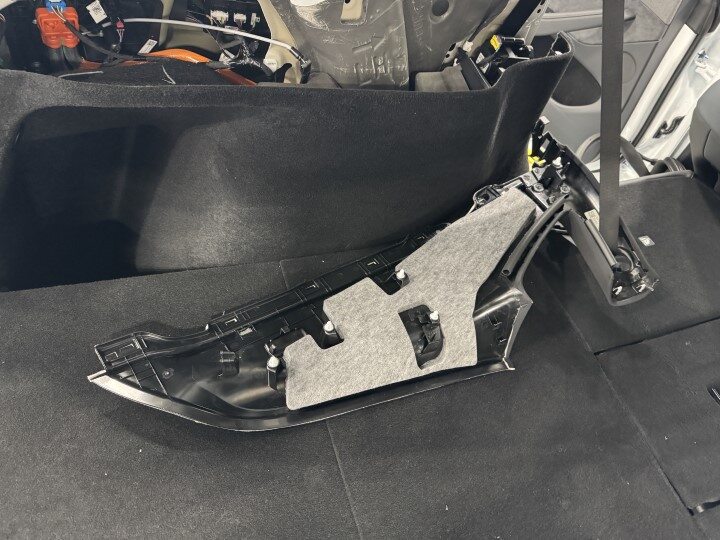

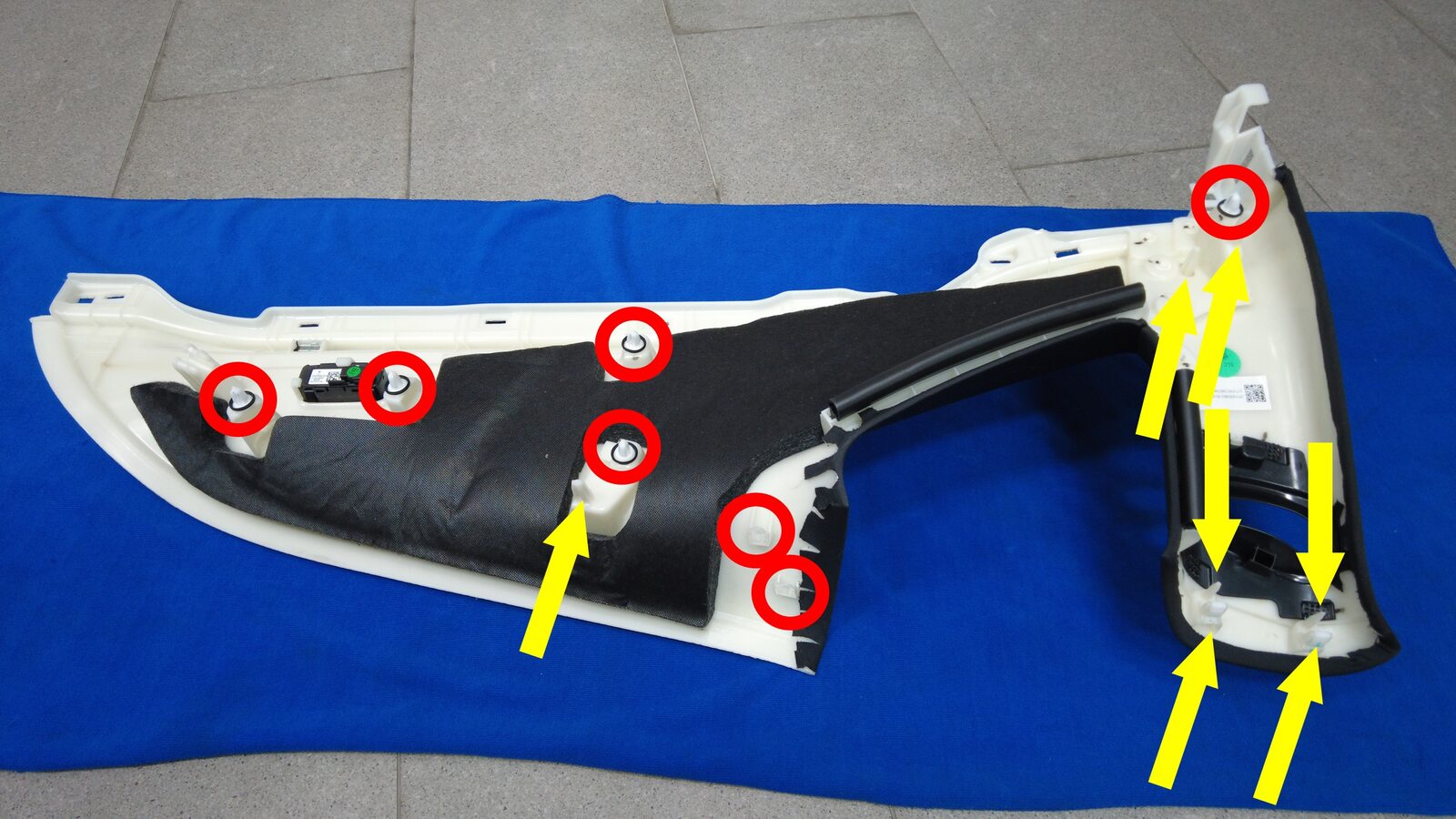

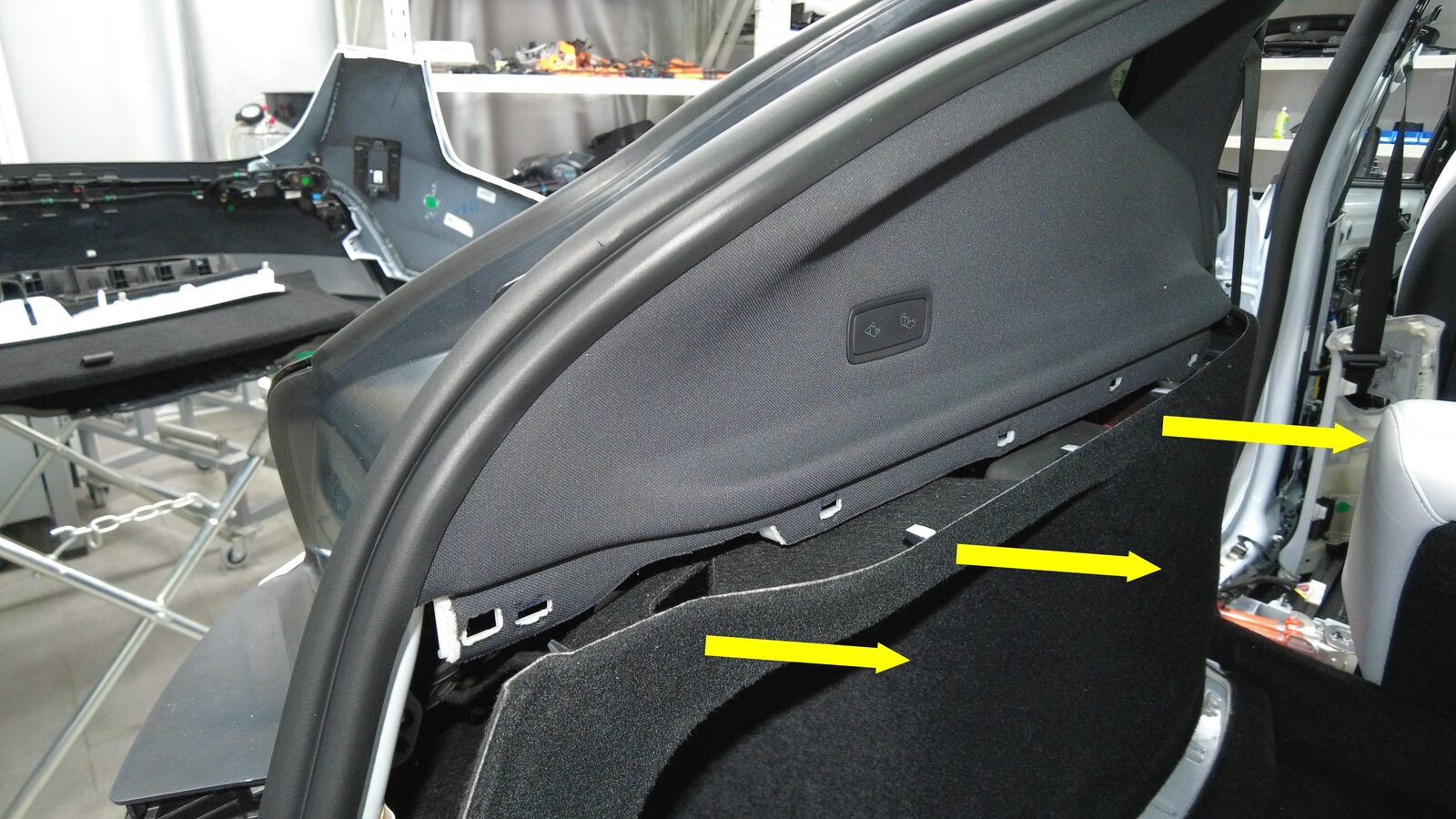

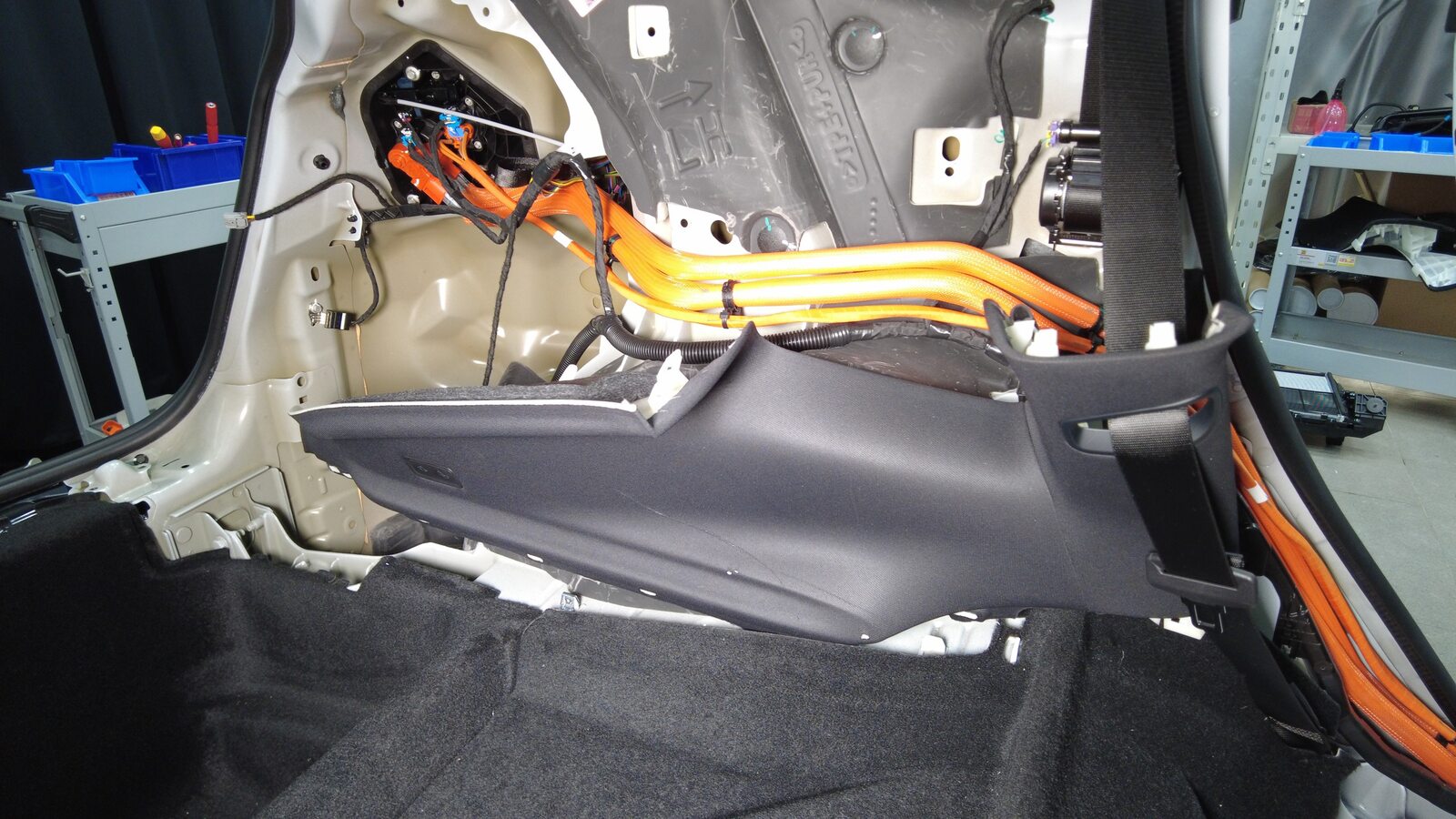

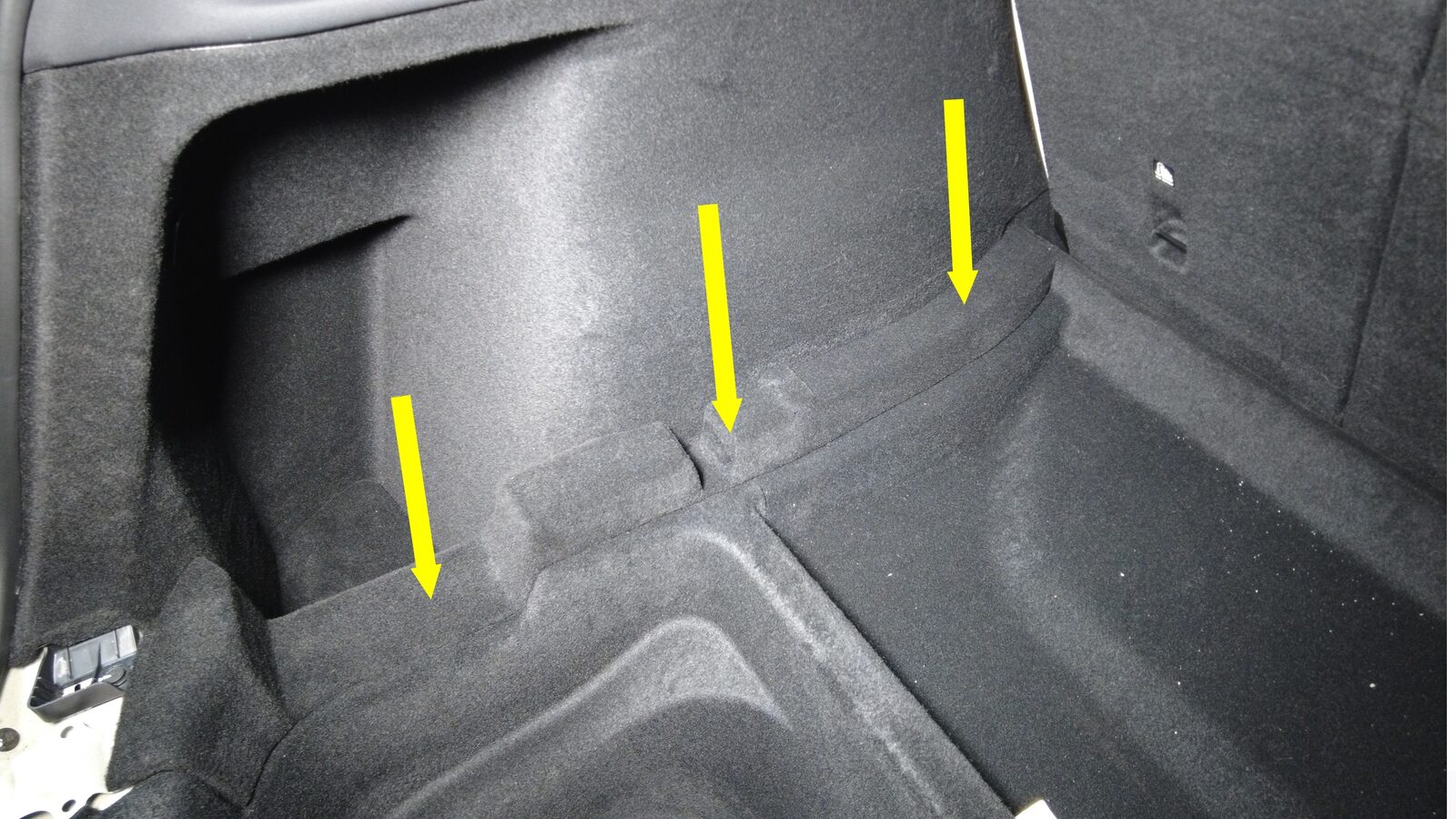

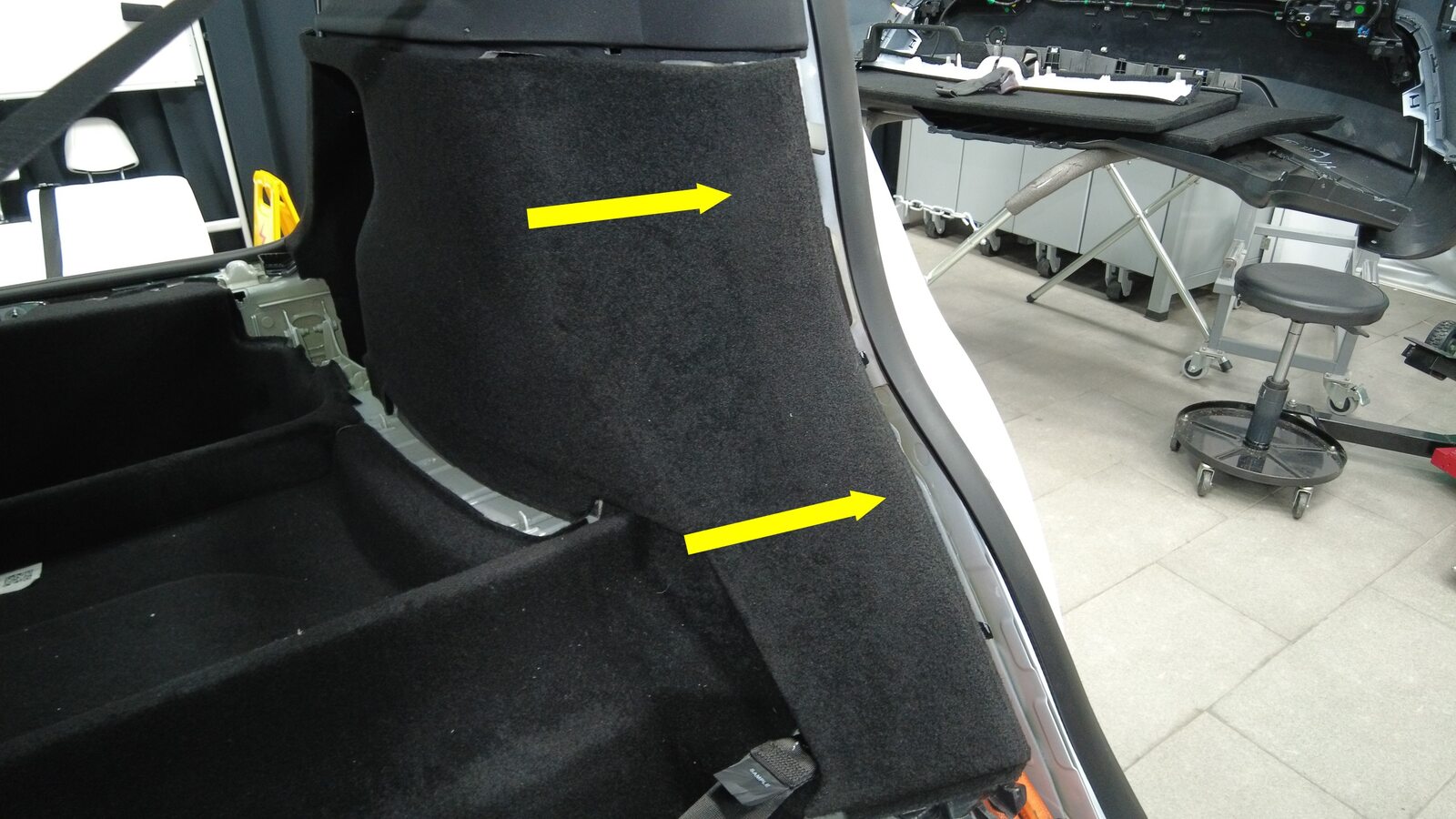

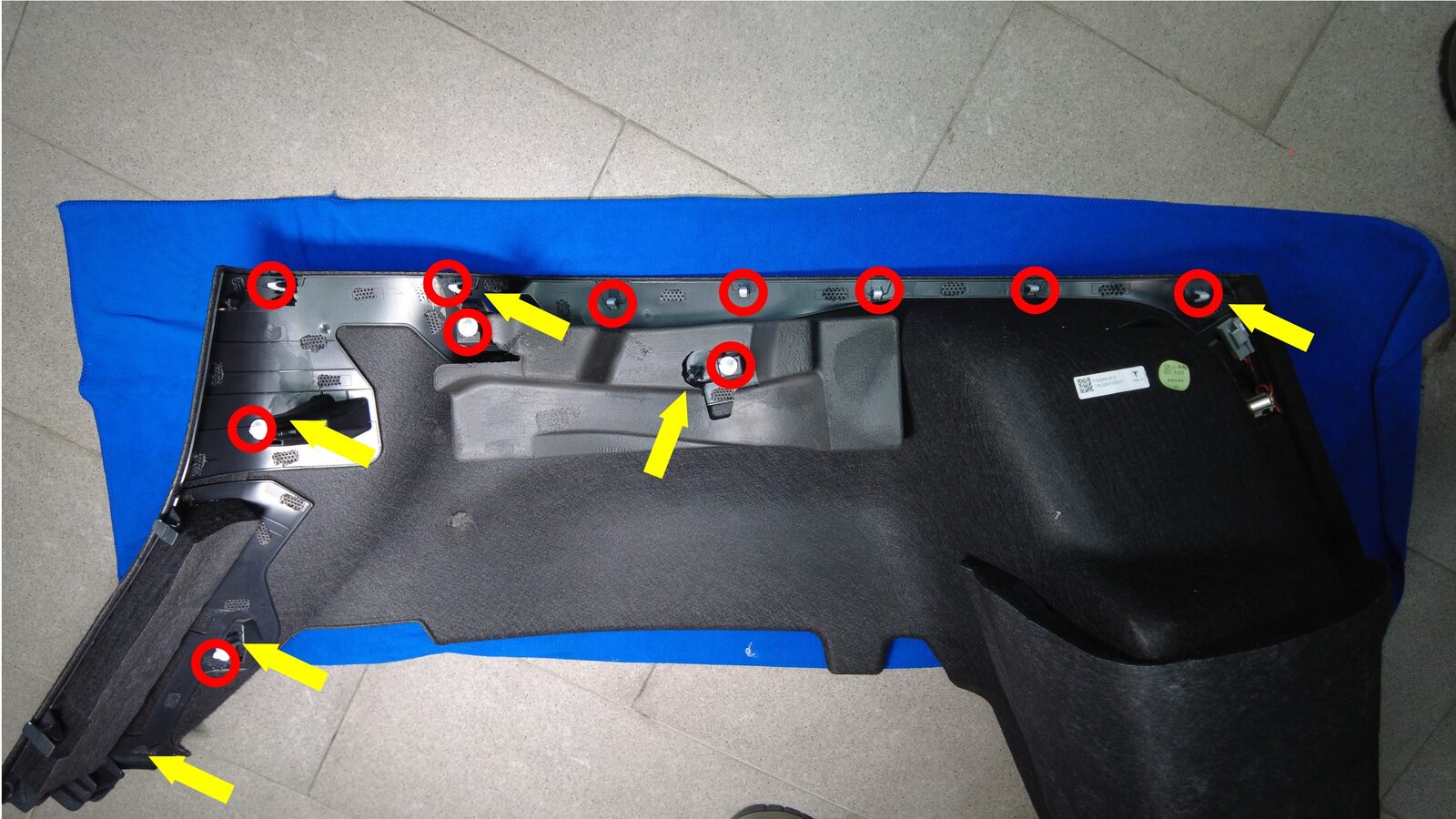

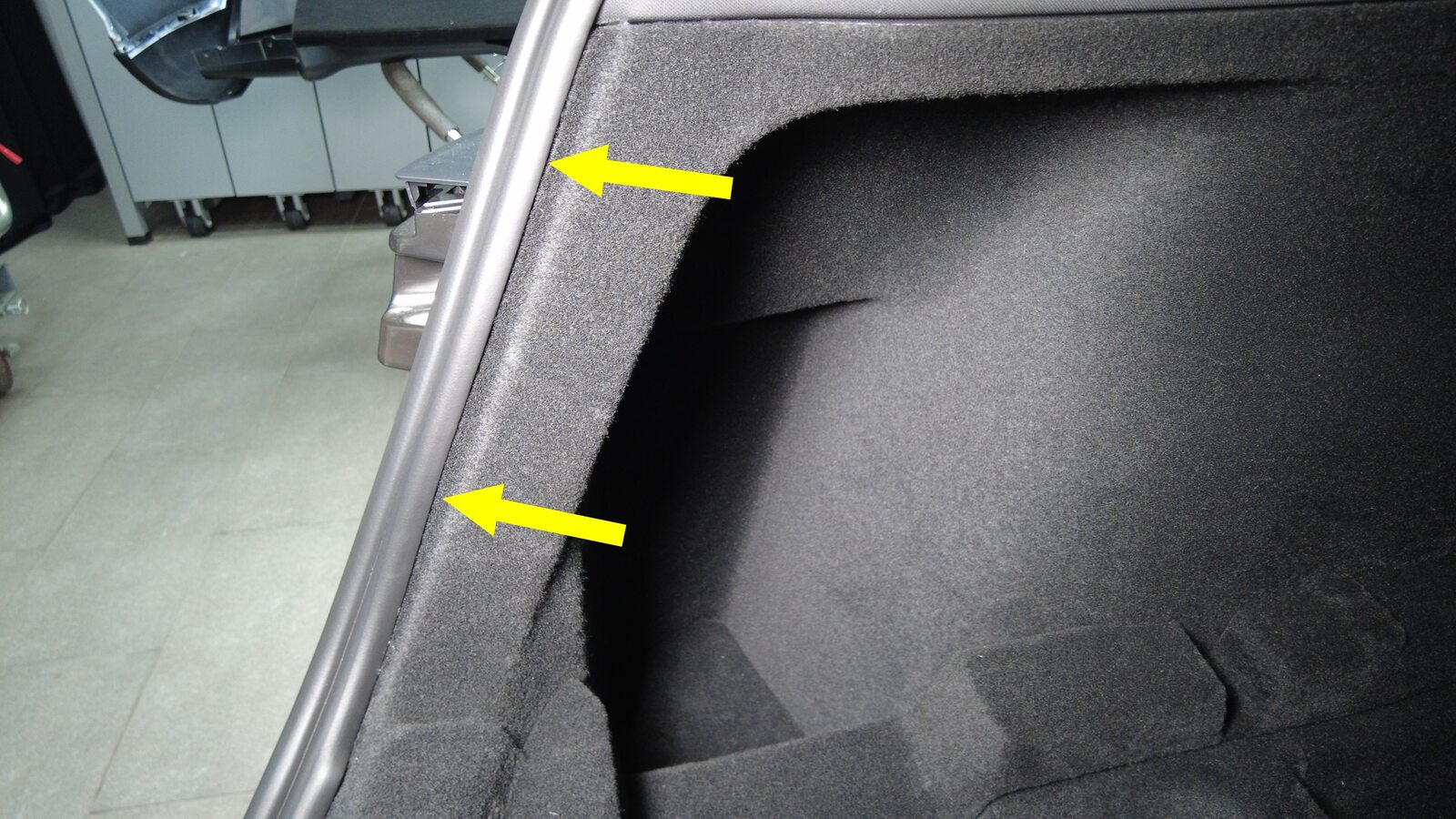

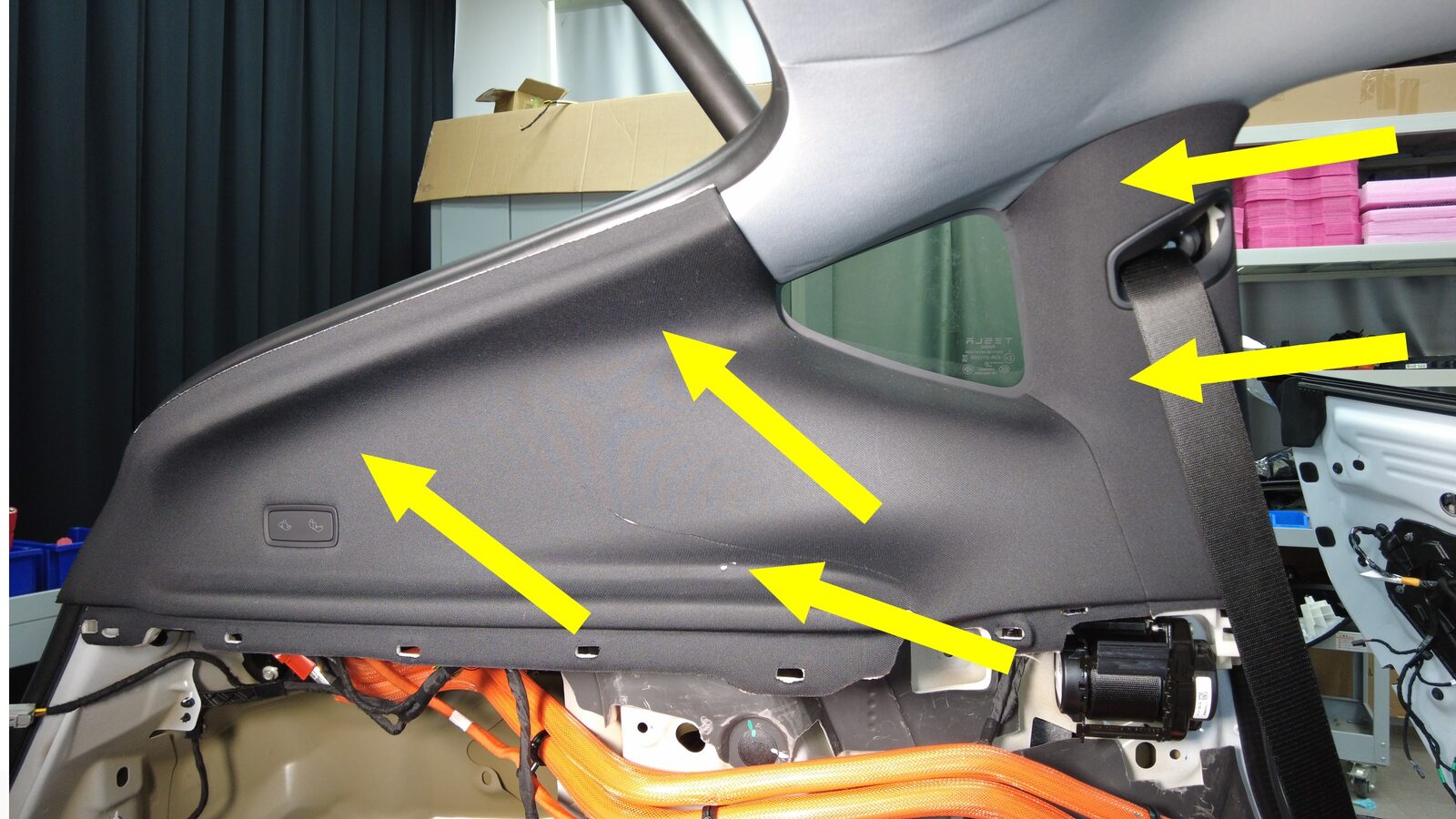

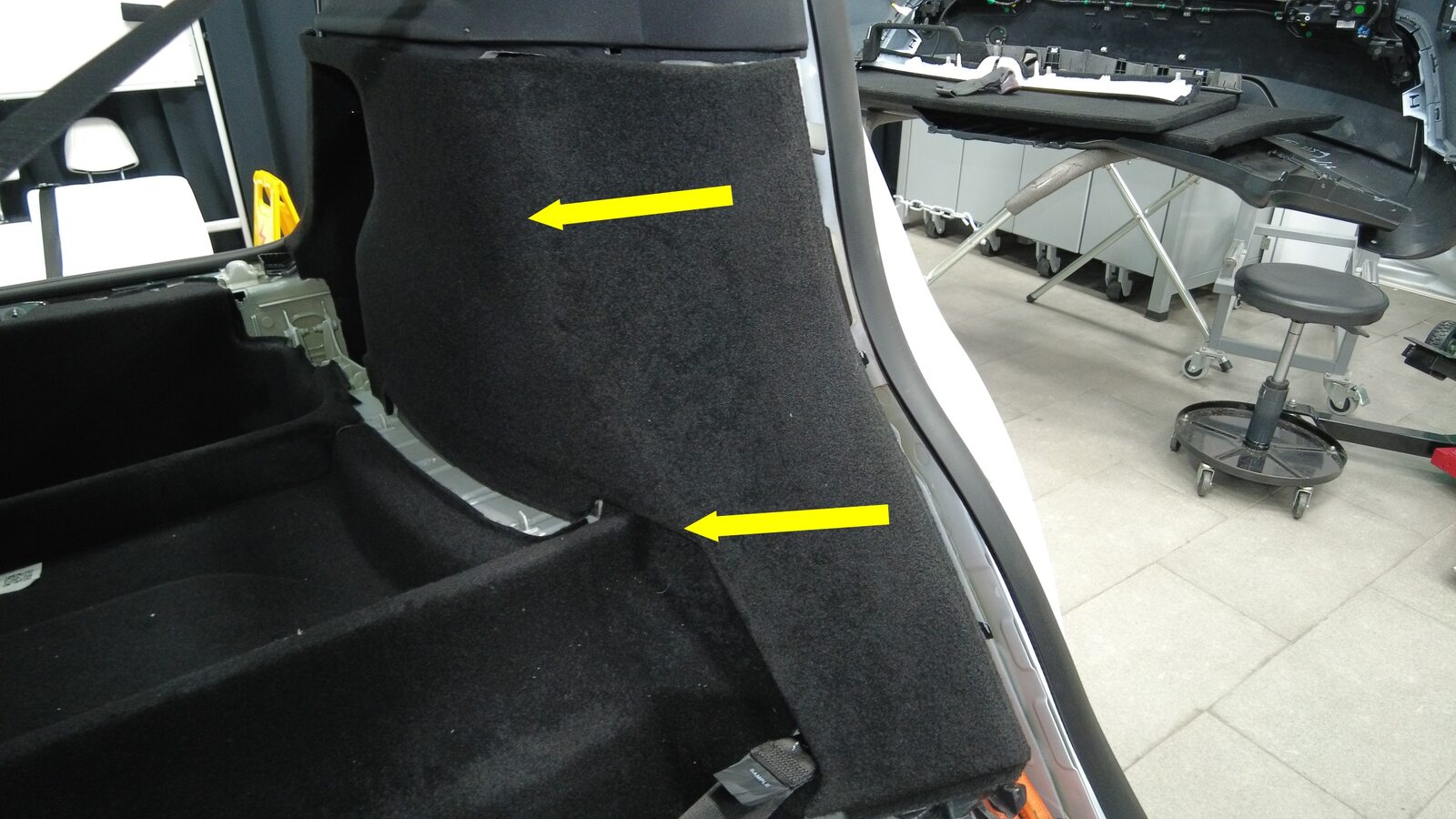

  64. Remove LH trunk side trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x push clip, 4x clips, 7x tabs, 6x location pins, guide front clip stanchions around LH C-pillar, trim part may slightly differ by vehicle build location, and the number of clips may also vary, Adjust the position of the 60 seat backrest as needed

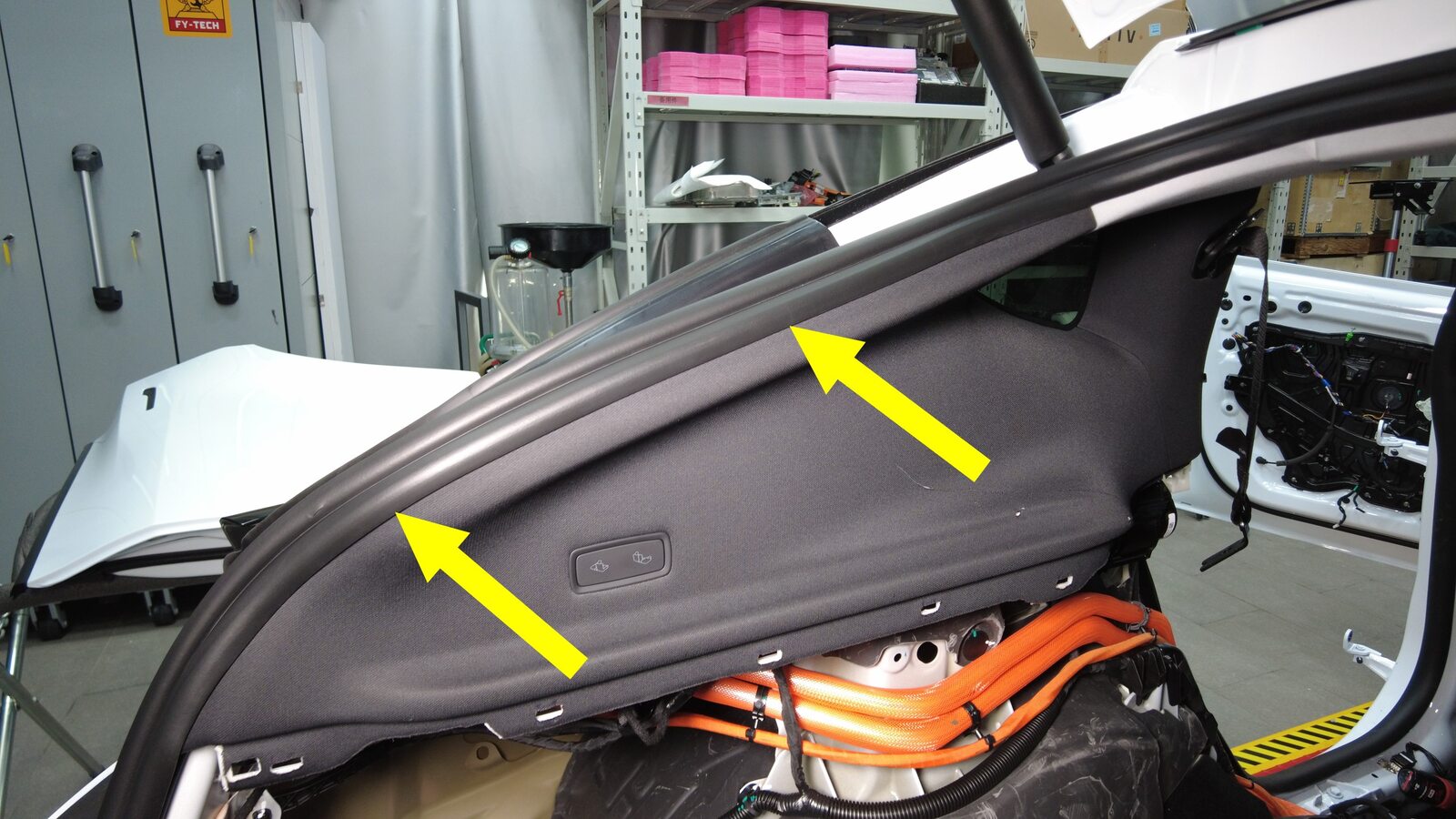

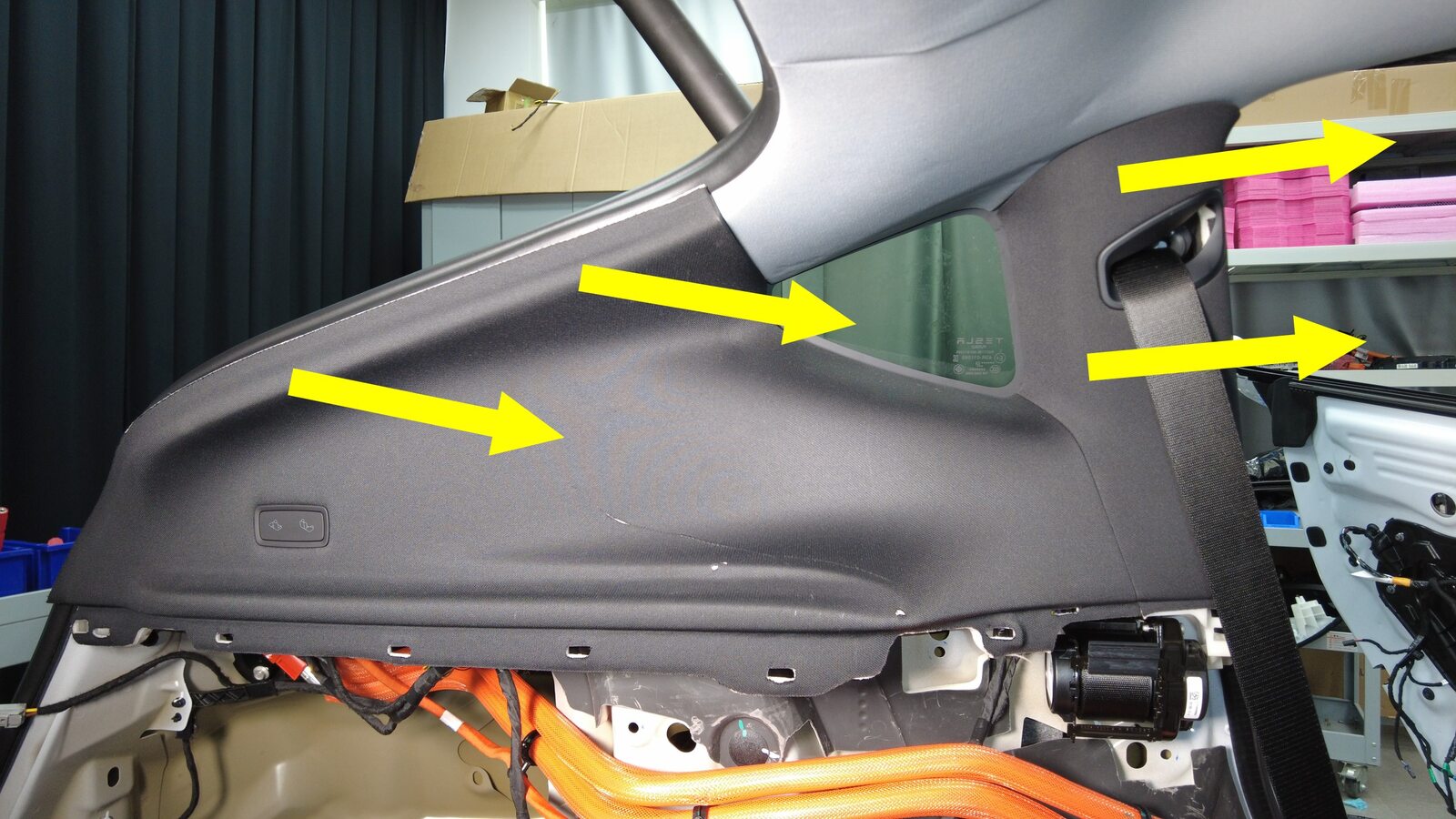

  65. Remove LH upper C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 5x datums, 2x tabs, 1x release cable, Release chargeport manual release cable from trim, Allow trim to rest on trunk floor

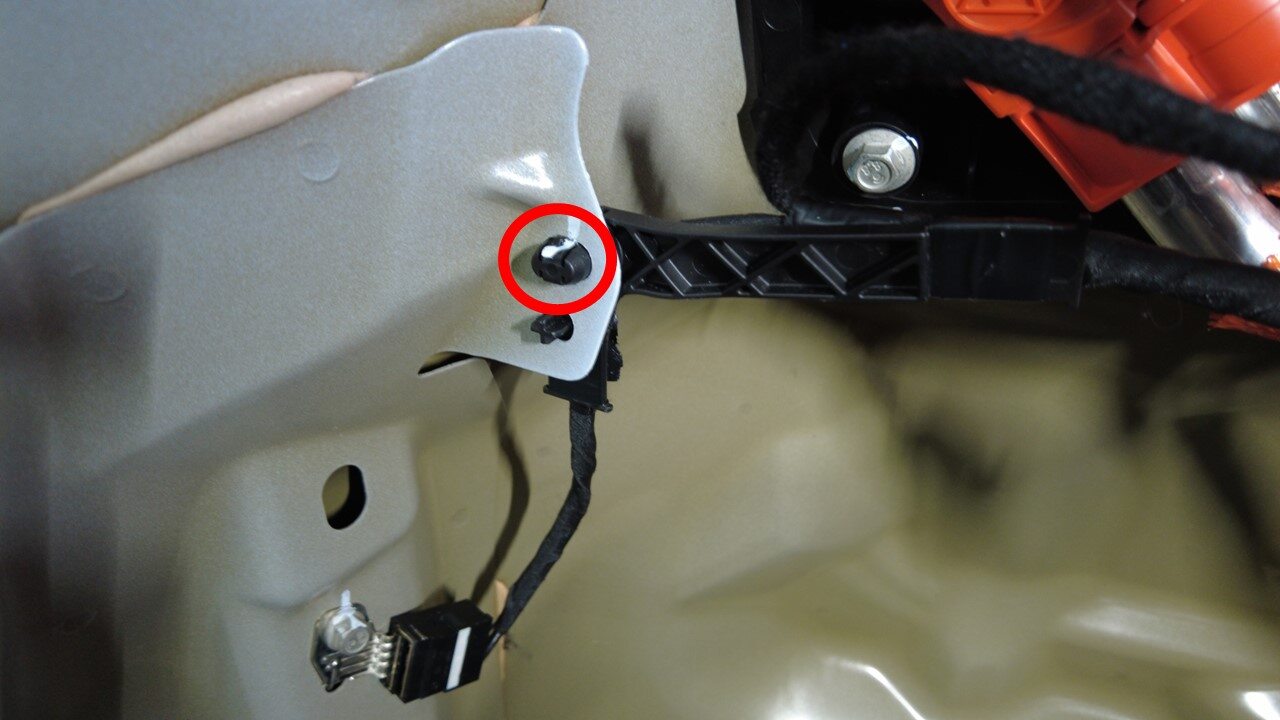

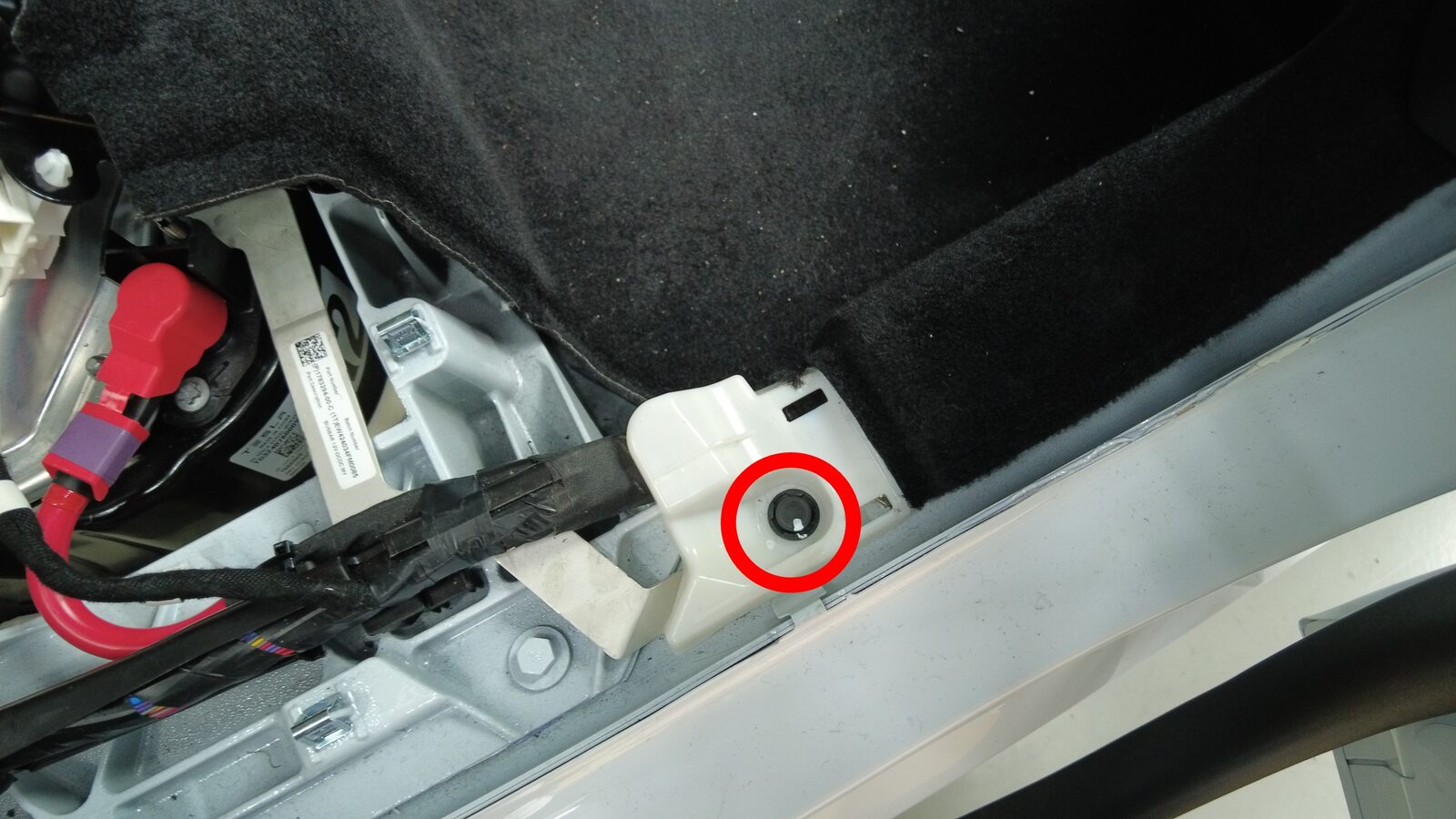

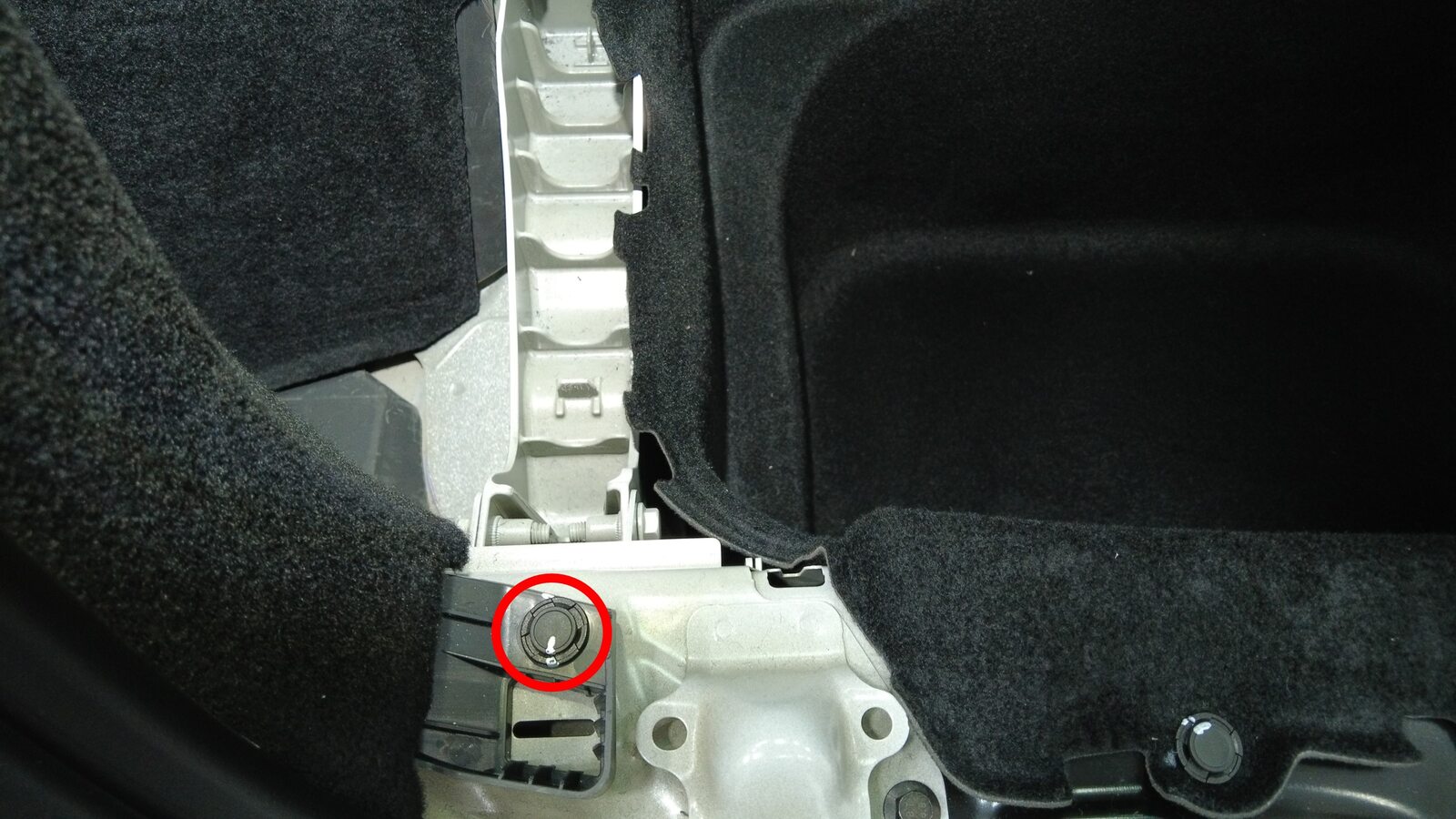

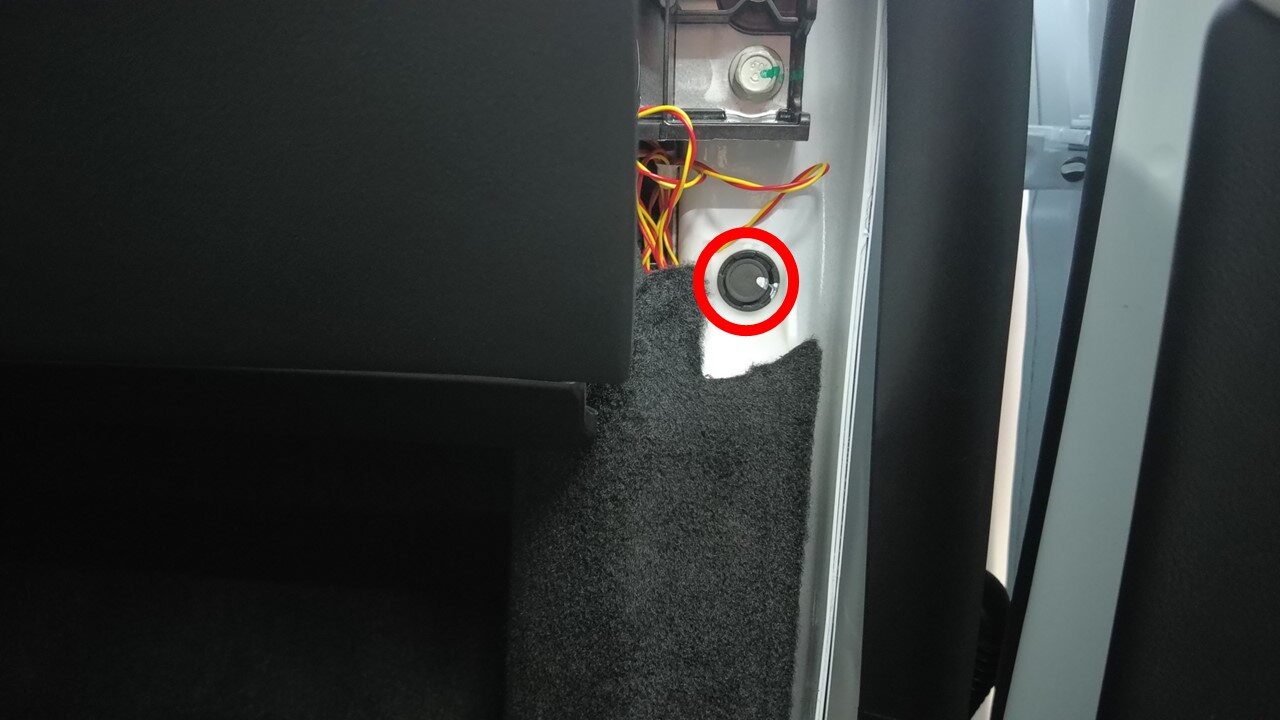

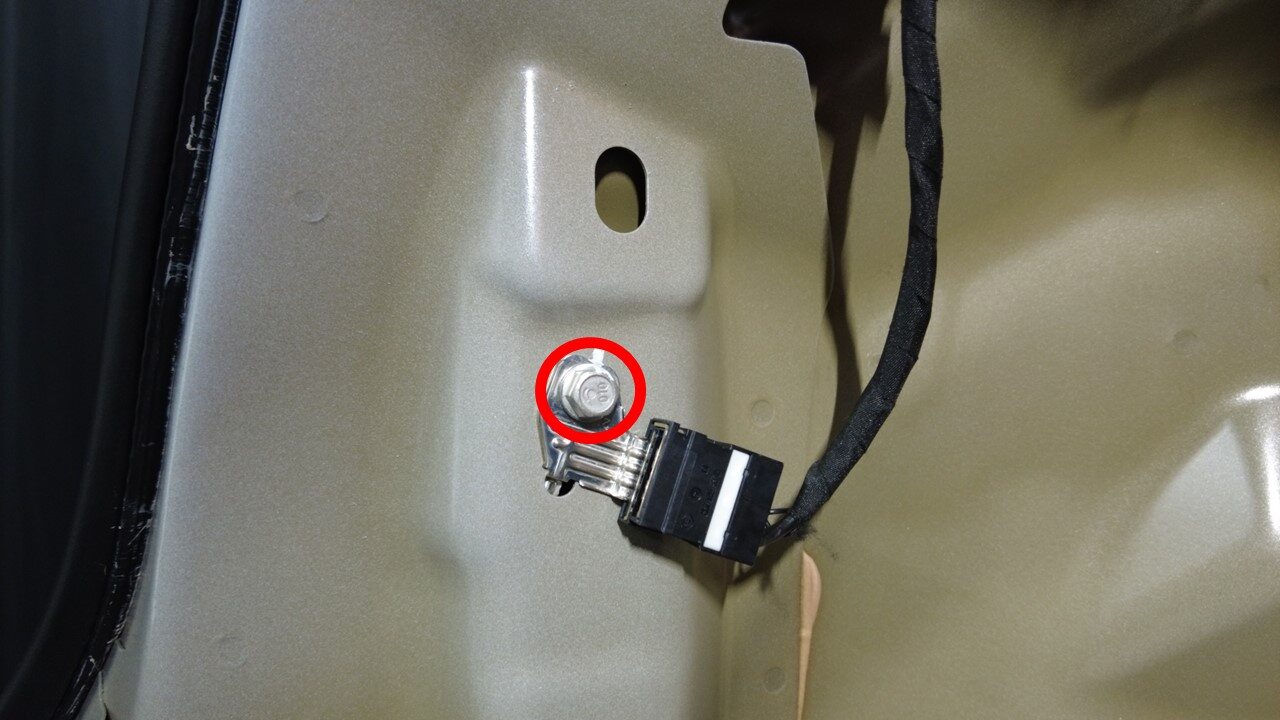

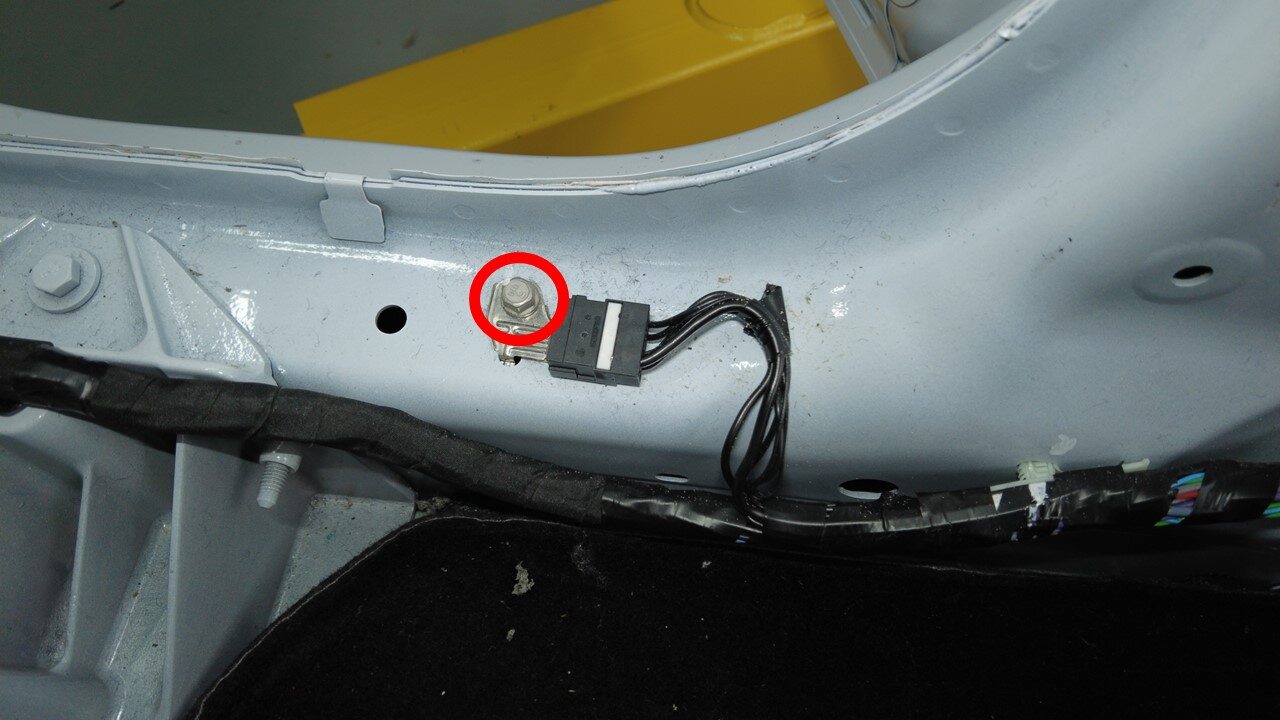

  66. Remove LH body harness ground strap from LH rear sill area
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10 Nm

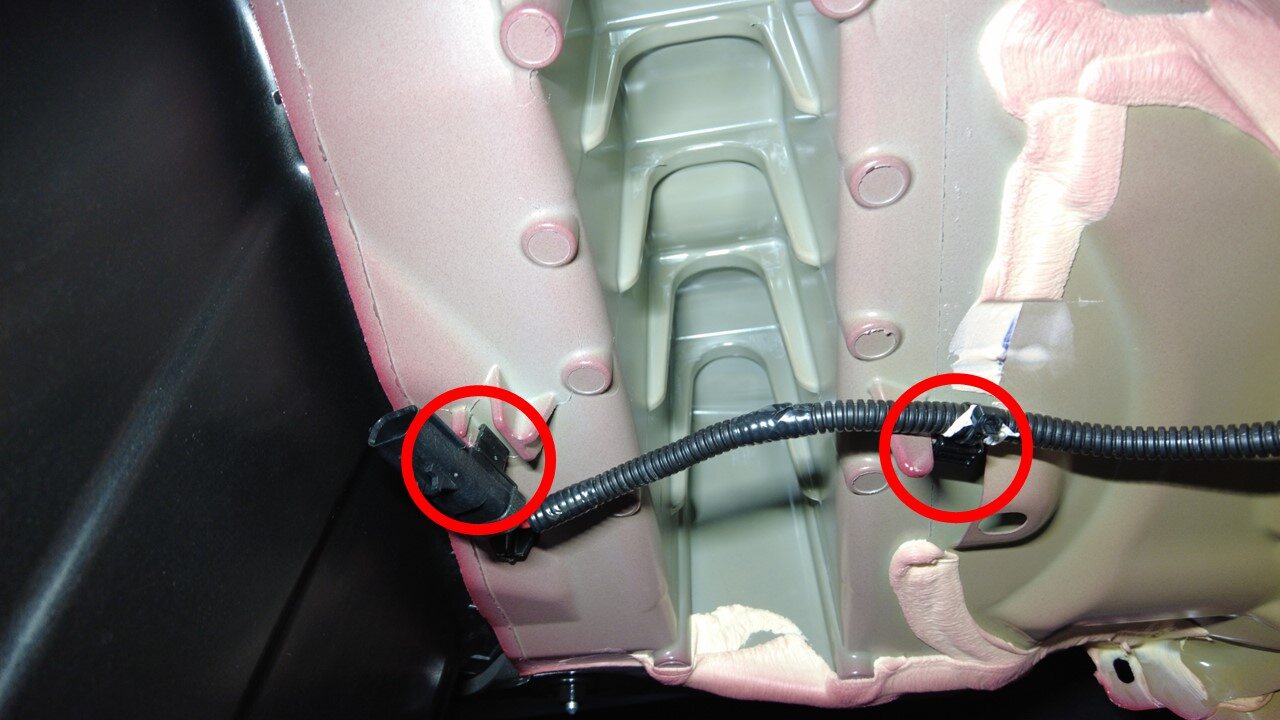

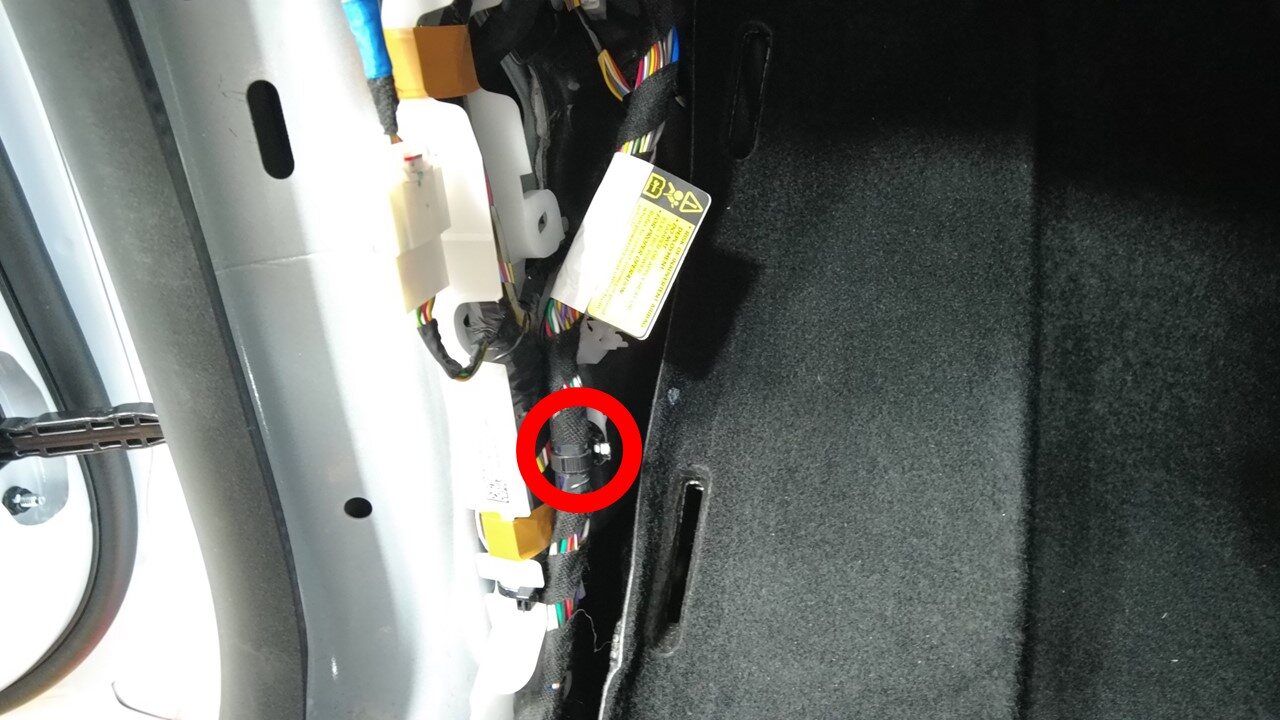

  67. Release LH body harness from rear body and move aside
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

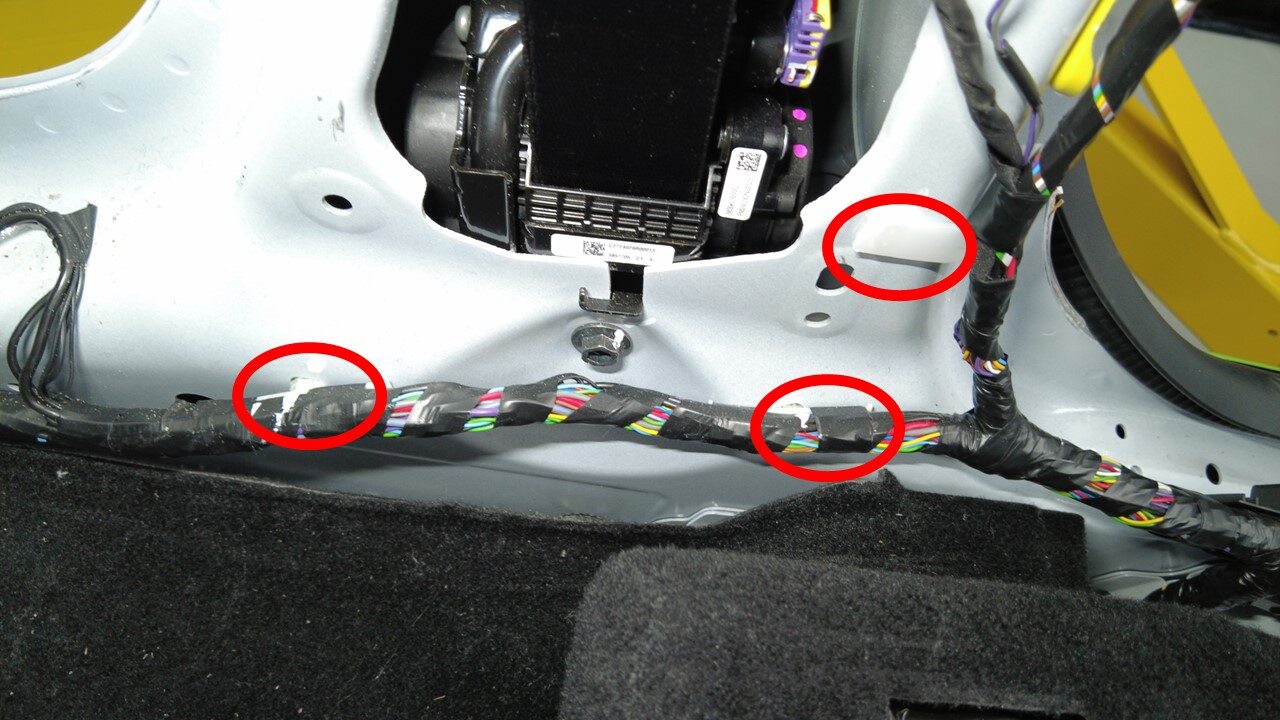

  68. Release clips LH body harness to rear body and move aside
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  69. Disconnect LH 2nd row retractor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Lift orange locking tab then release the connector

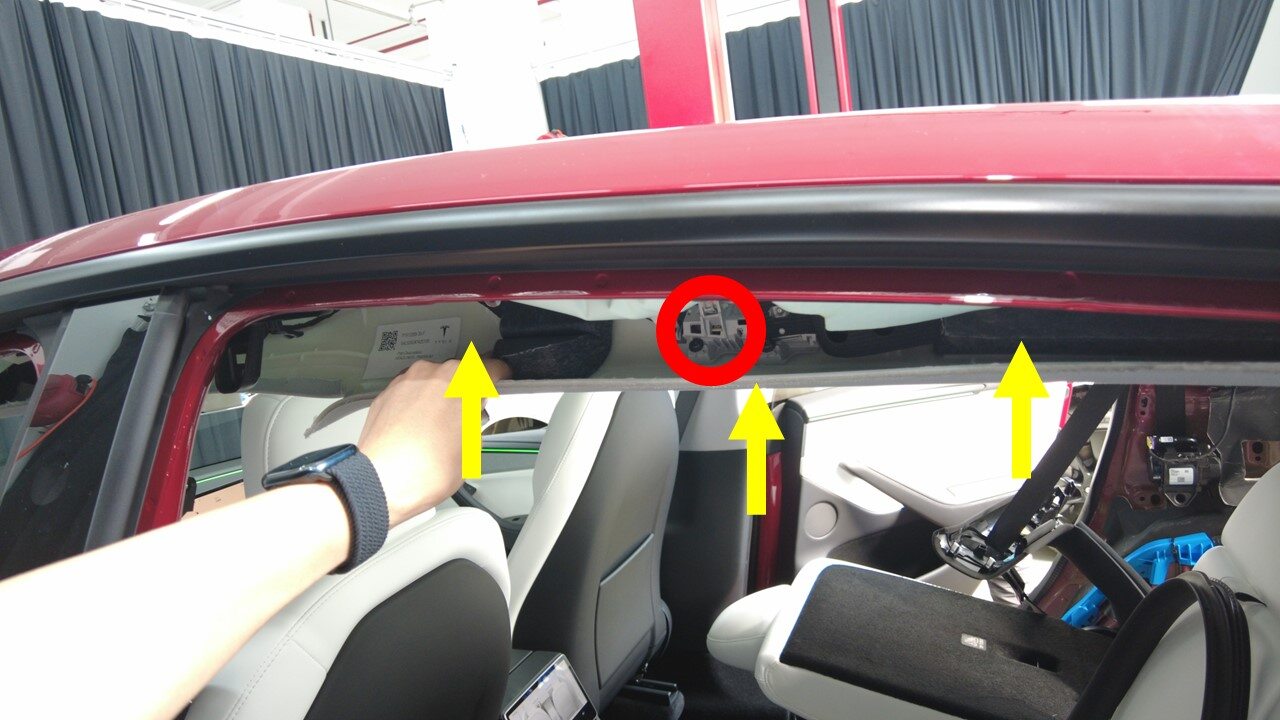

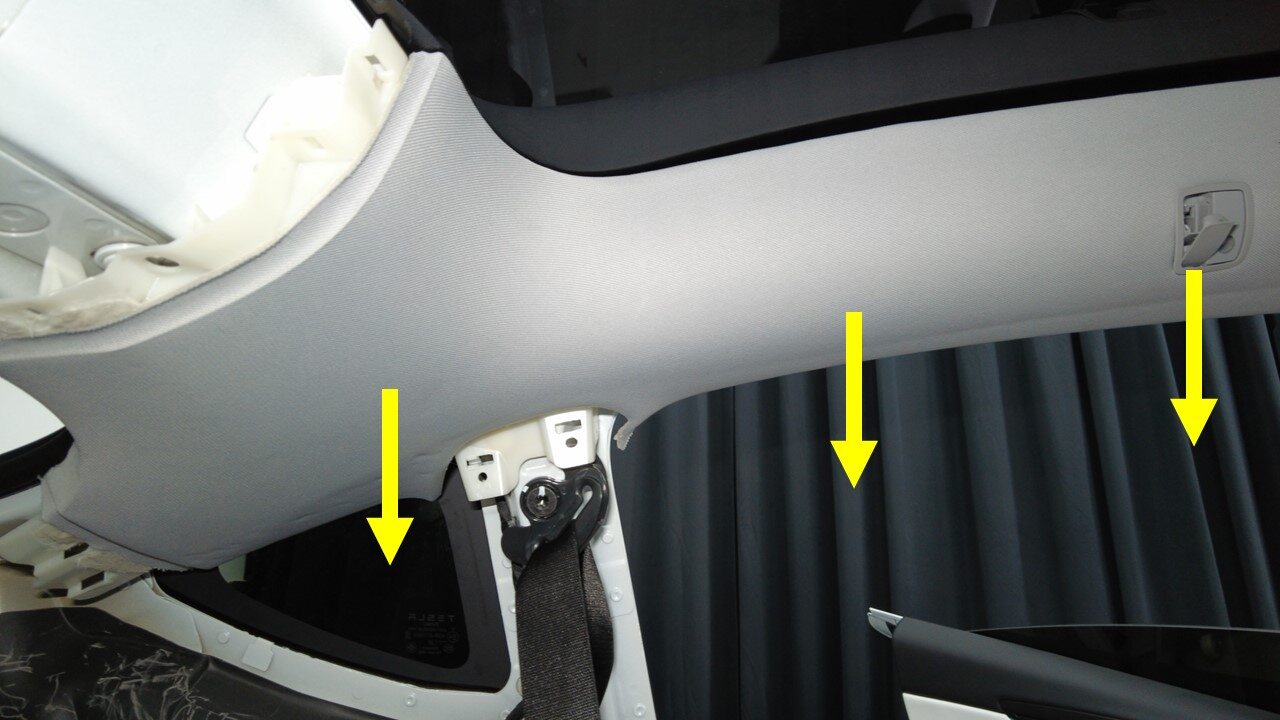

  70. Release LH rear section of headliner from body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, 1x location pin, Headliner will be partially supported 1x tether clips at rear corners

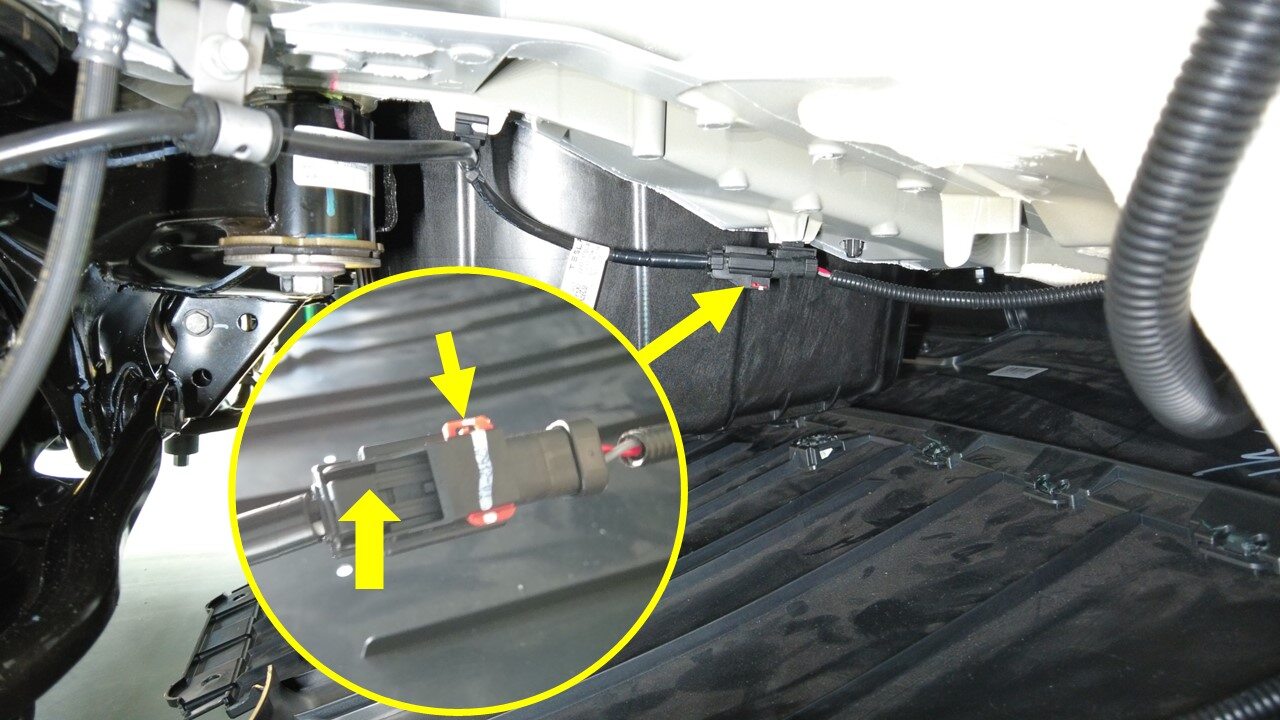

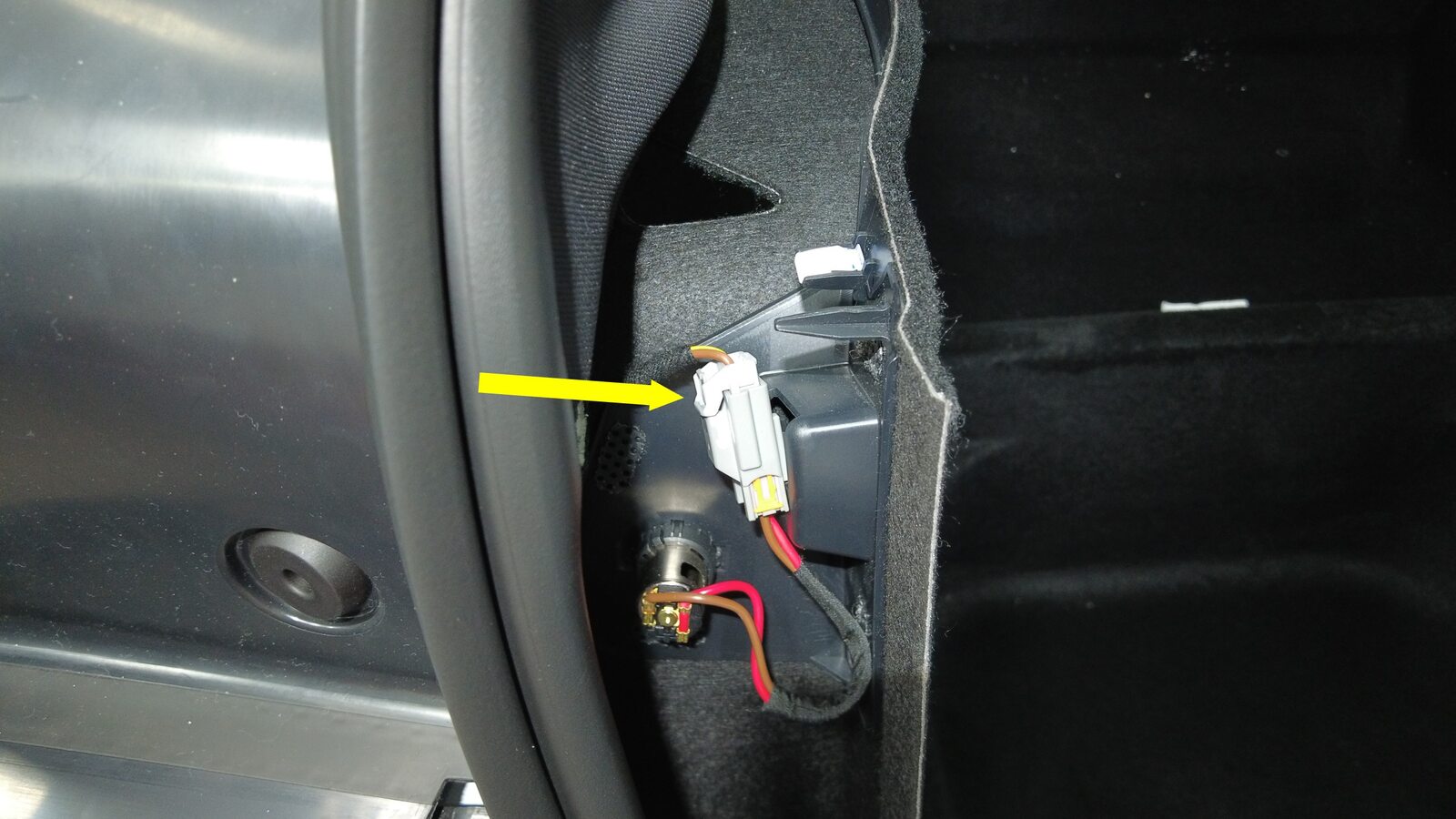

  71. Disconnect LH power strut connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

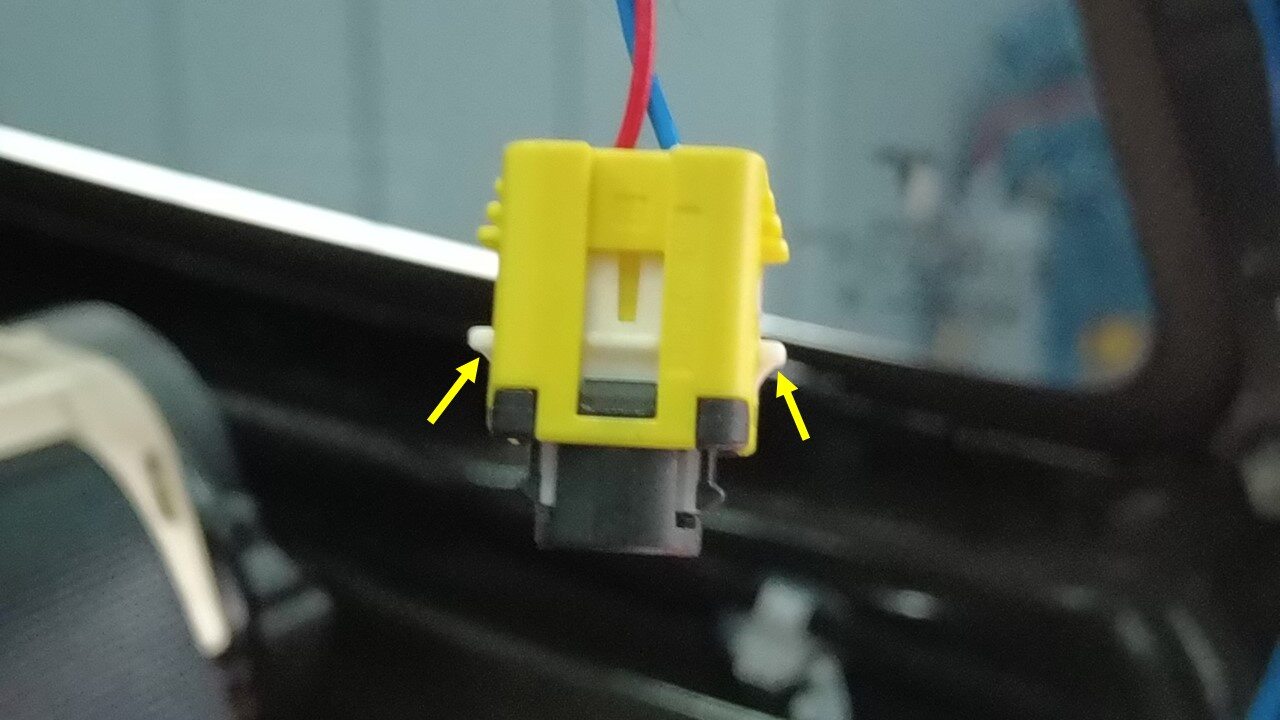

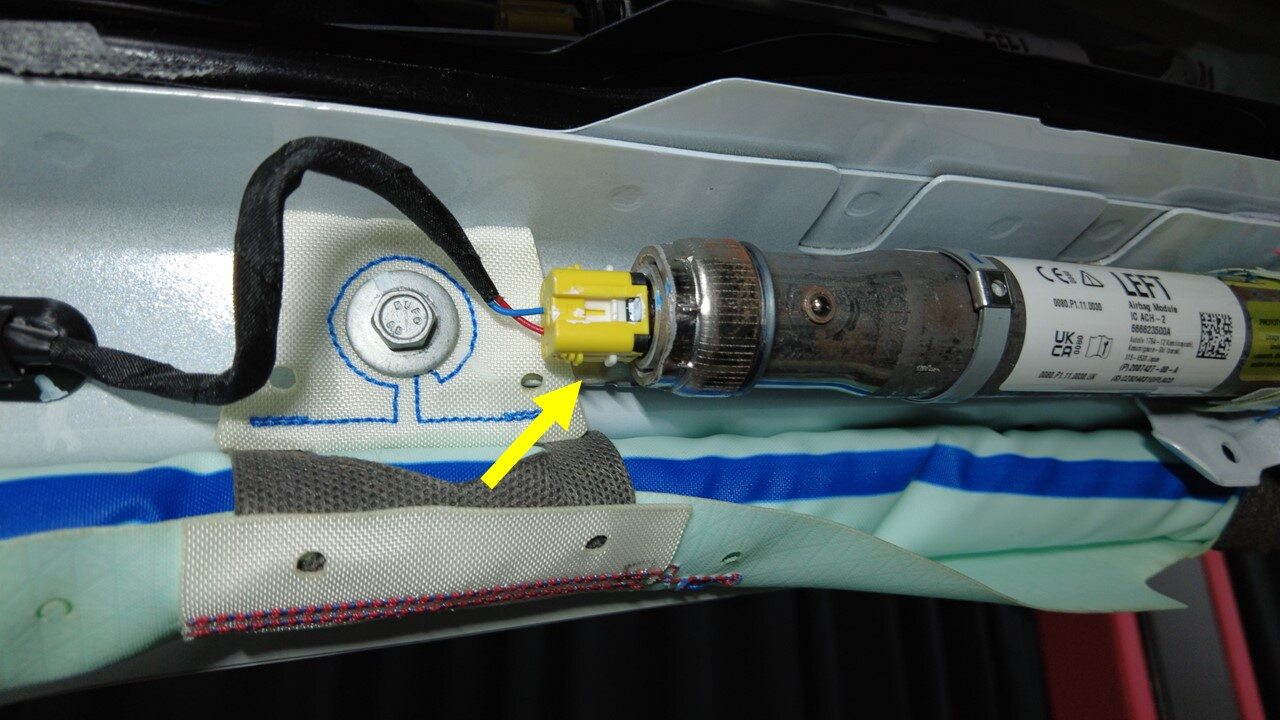

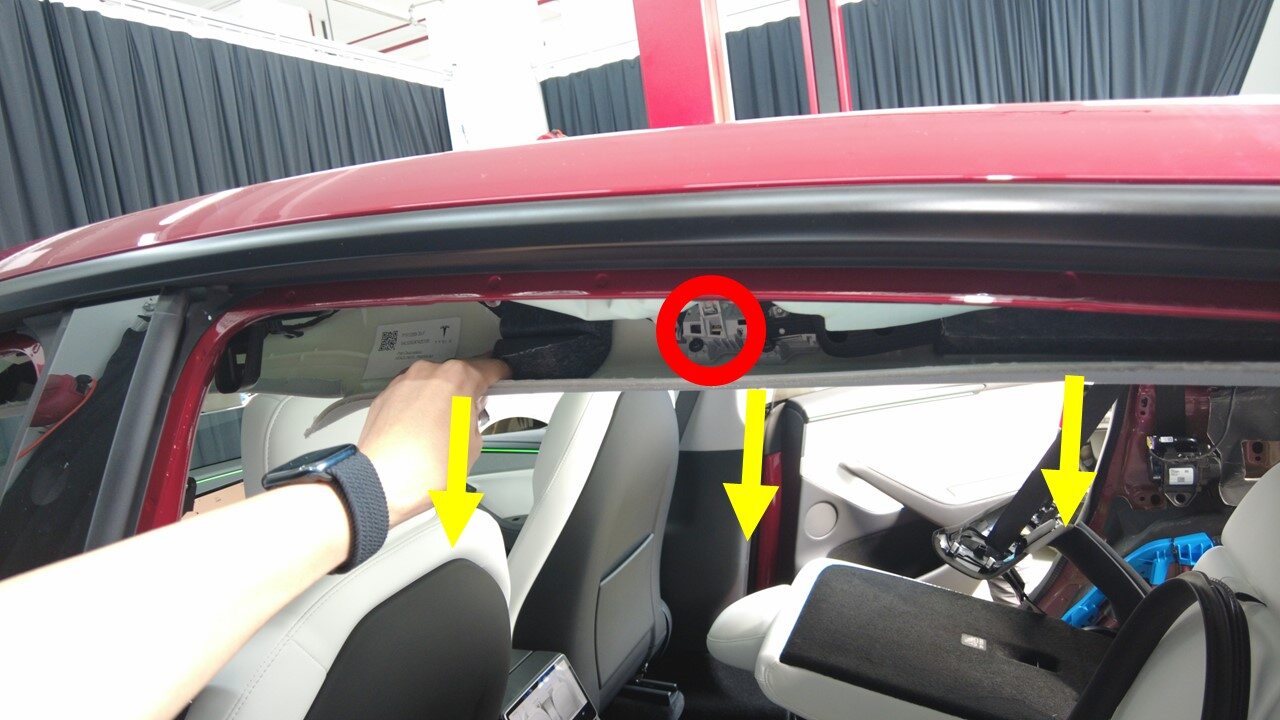

  72. Disconnect harness connector for LH side curtain air bag
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2 stage locking connectors, Lift the white tab to release the connector

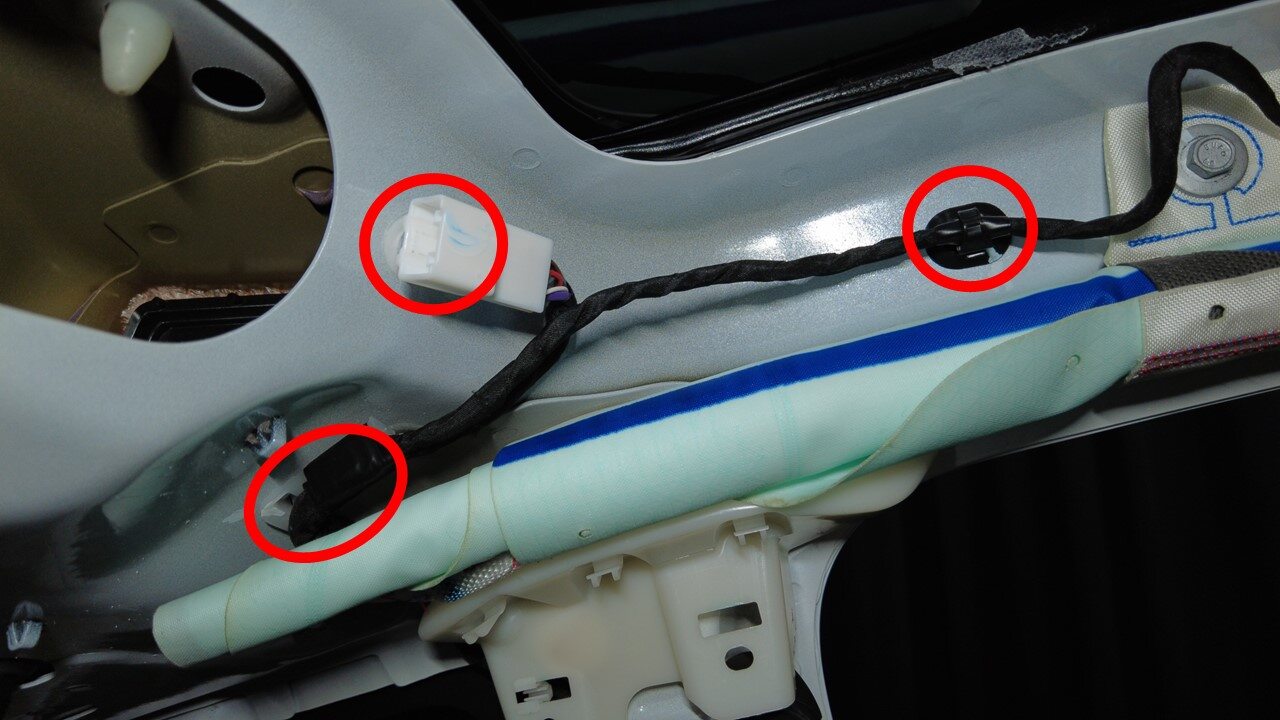

  73. Release LH body harness clips around LH C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips

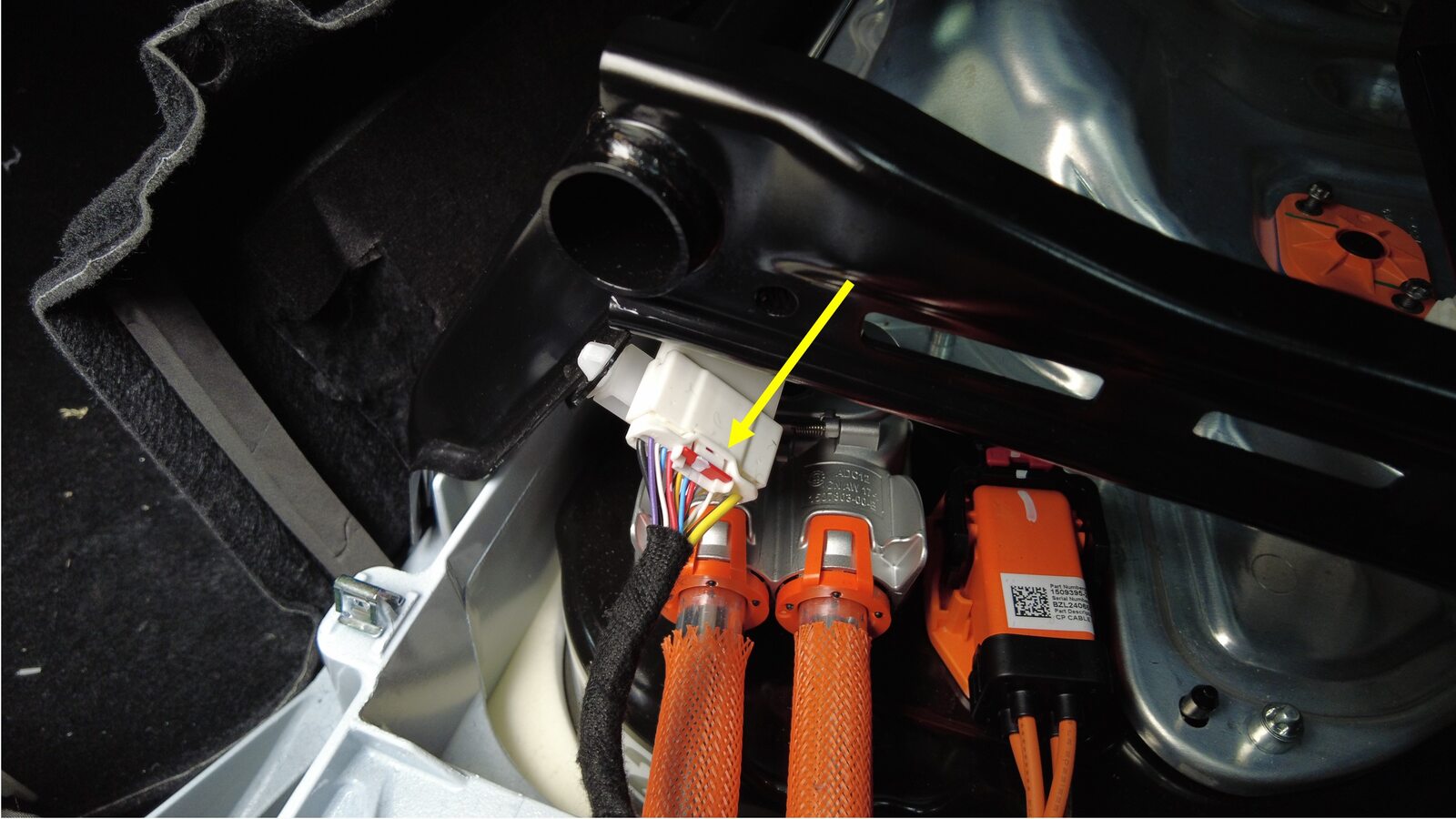

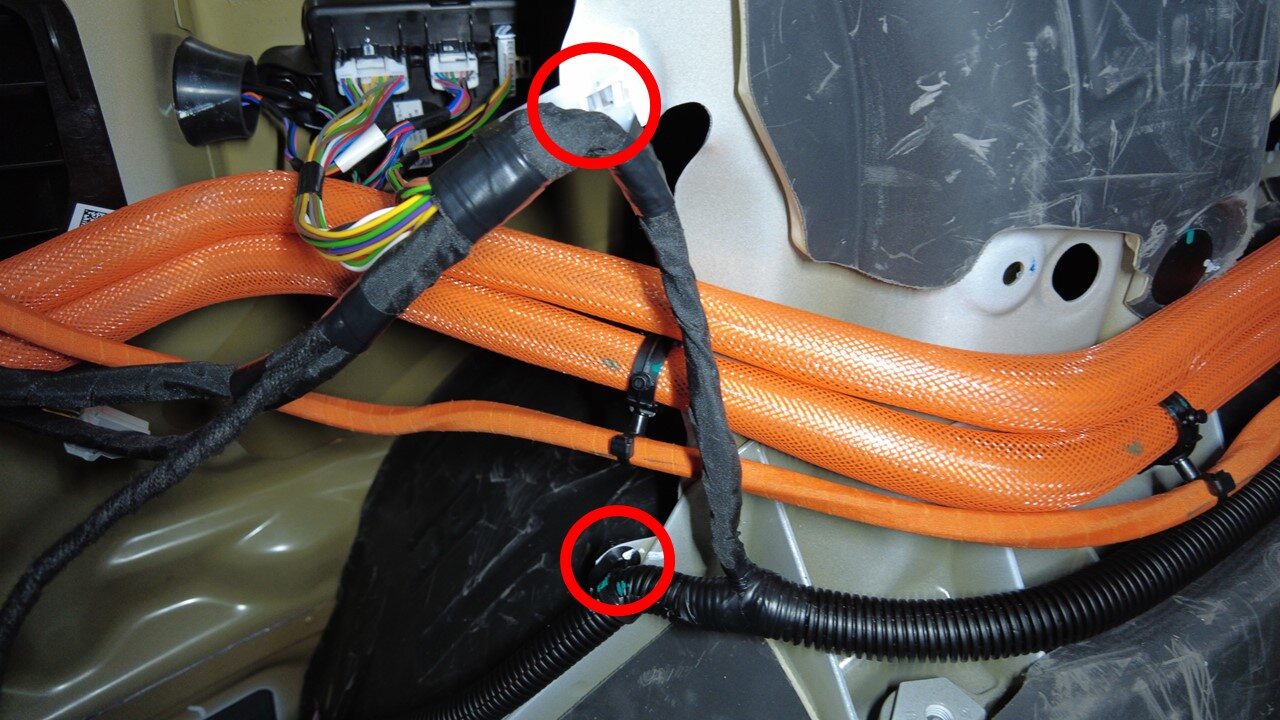

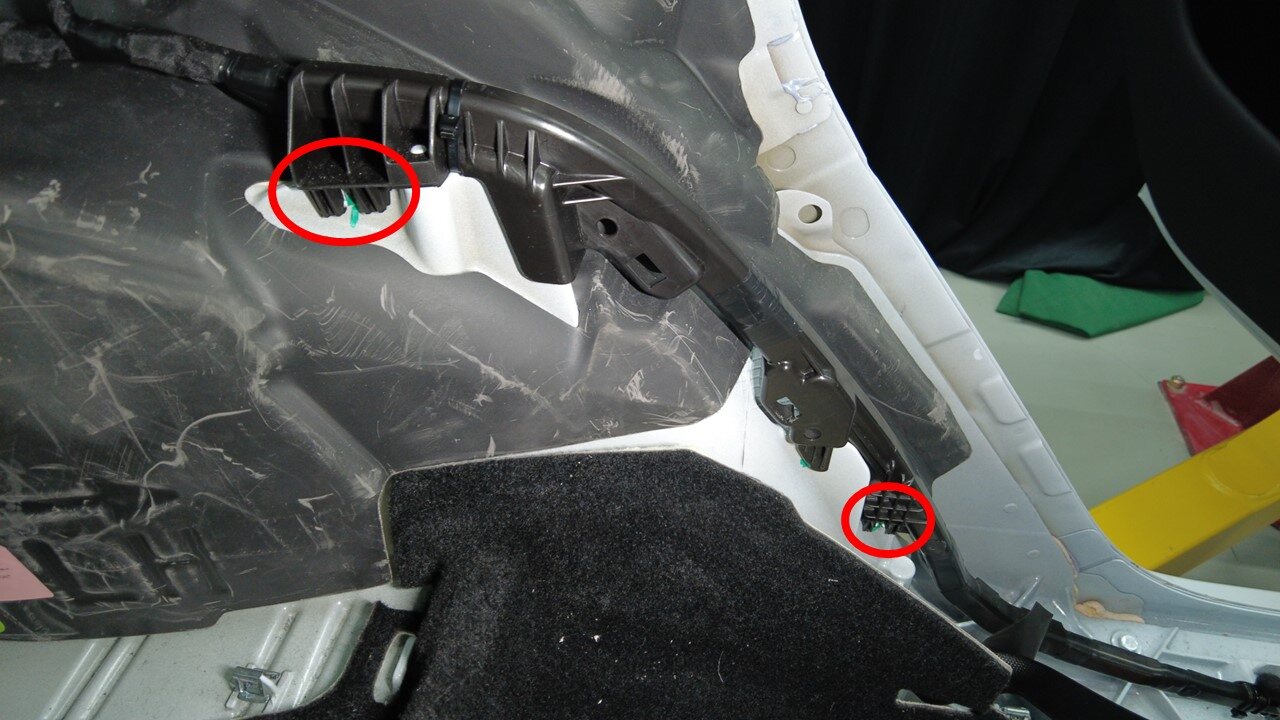

  74. Disconnect LH body harness from charge port ECU
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors
  75. Release LH body harness clips from LH side trunk area
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  76. Disconnect connectors from chargeport assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, Disengage locking tab
  77. Remove LH body harness ground strap from LH side trunk area
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10 Nm

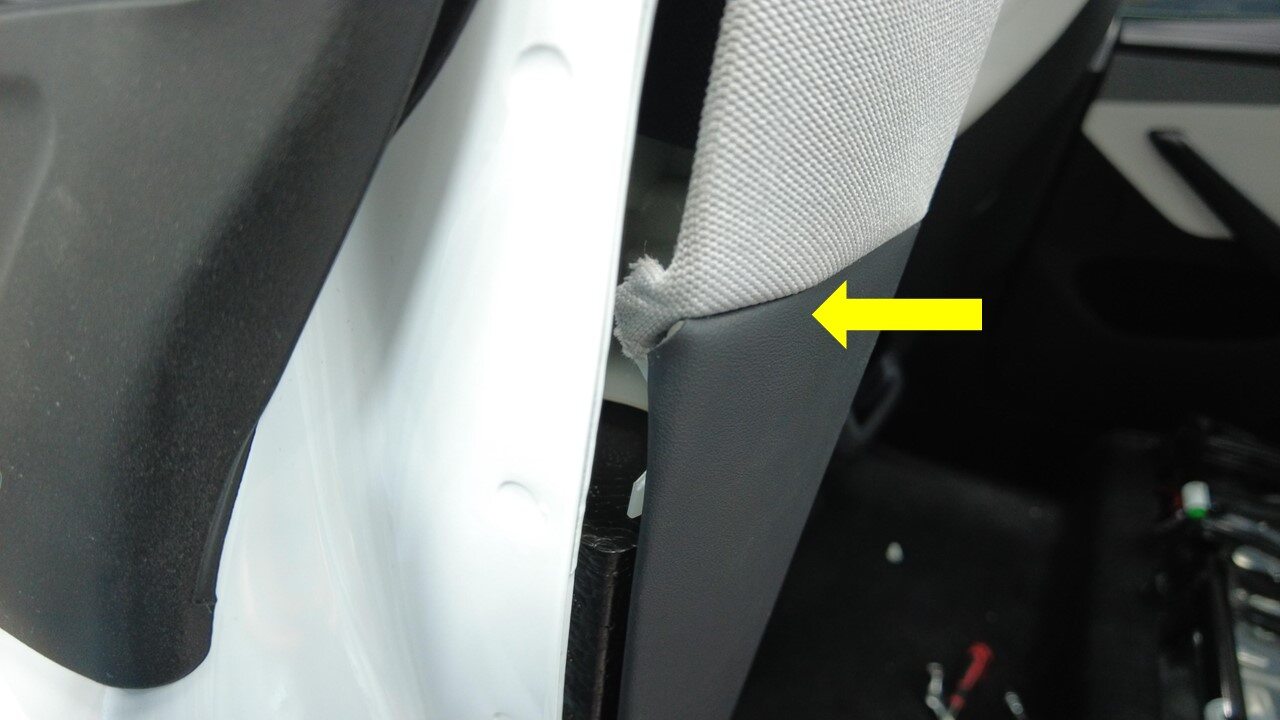

  78. Partially release RH front primary door seal
    Informational PurposesAn informational icon, calling your attention
    Note
    For remove RH IP end cap, RH lower A pillar trim, RH front B pillar trim

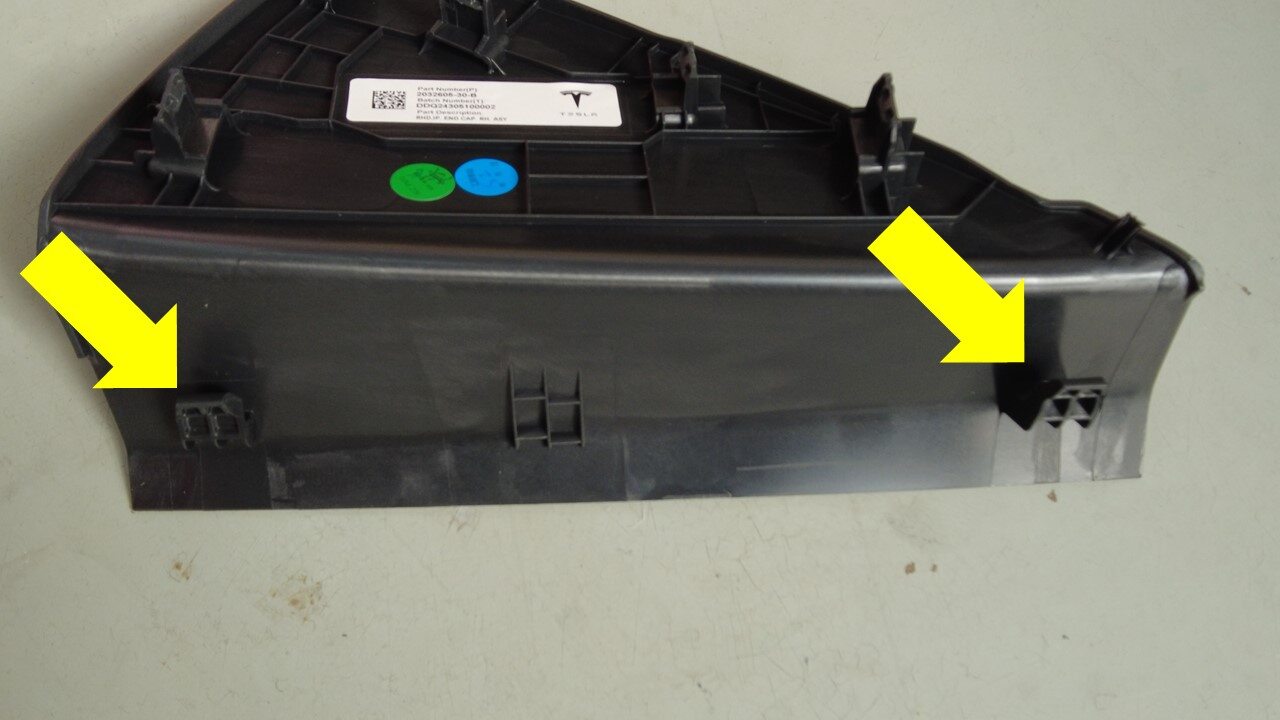

  79. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 2x guide tabs
  80. Remove RH lower A pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
  81. Partially release RH rear primary door seal from body
    Informational PurposesAn informational icon, calling your attention
    Note
    For remove RH rear B pillar trim, RH lower C pillar trim
  82. Remove RH lower C pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 2x guide tabs, Pull the trim upward to release all clips
  83. Remove RH lower B pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 1x locator tab, 9x clips, 1x push clip, Release both top side tabs, first pull upper half trim toward inside of the car, and then pull lower half trim outward to release all clips

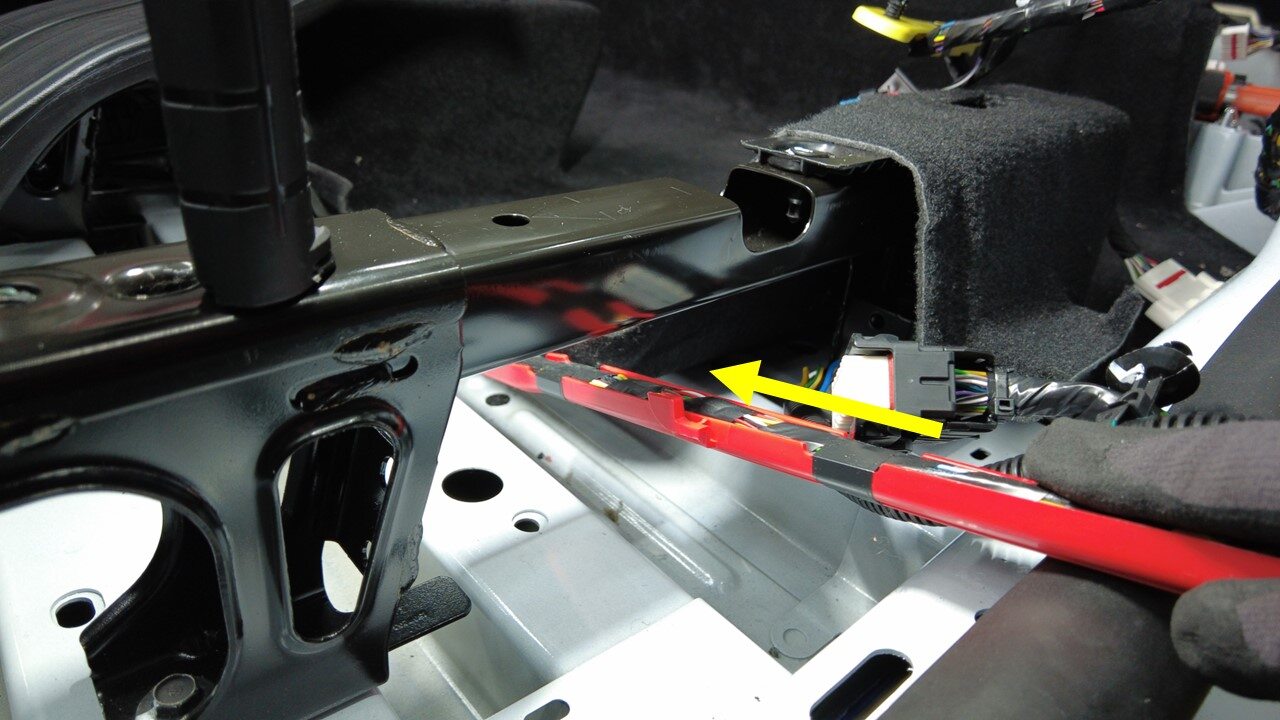

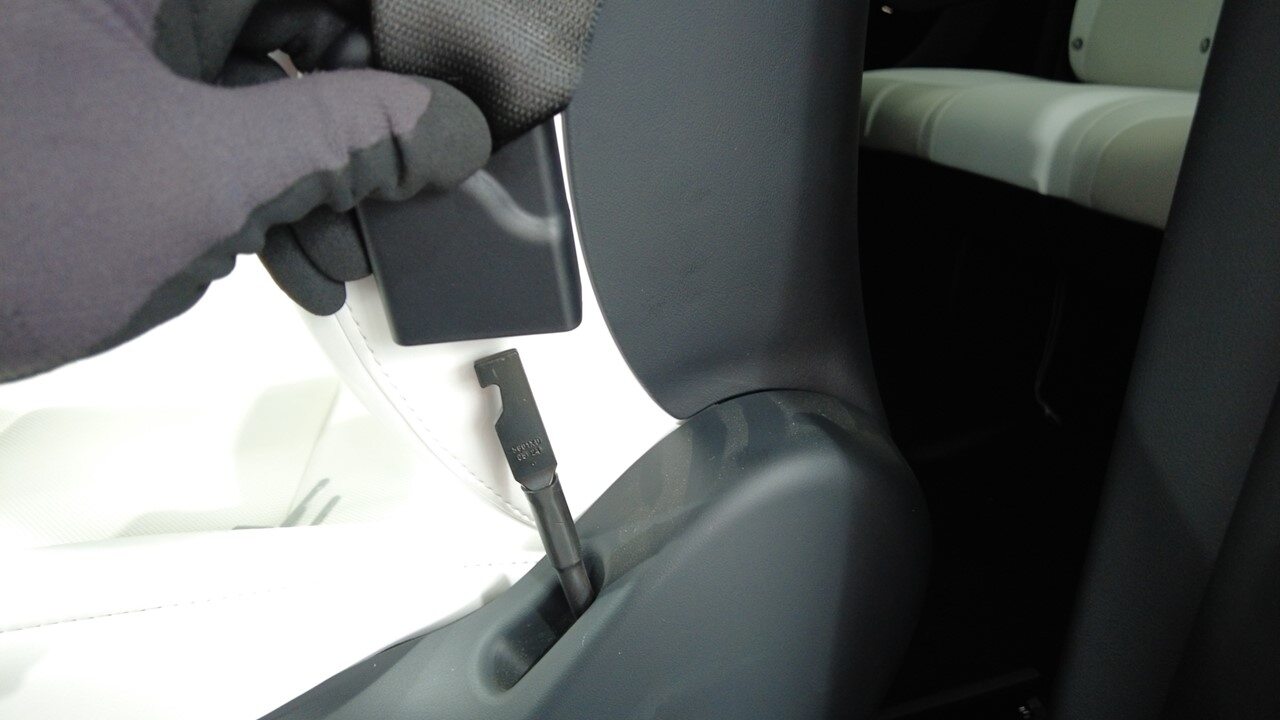

  84. Release seat belt retractor from RH front seat pre tensioner
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert seat belt release tool in bottom of retractor to release

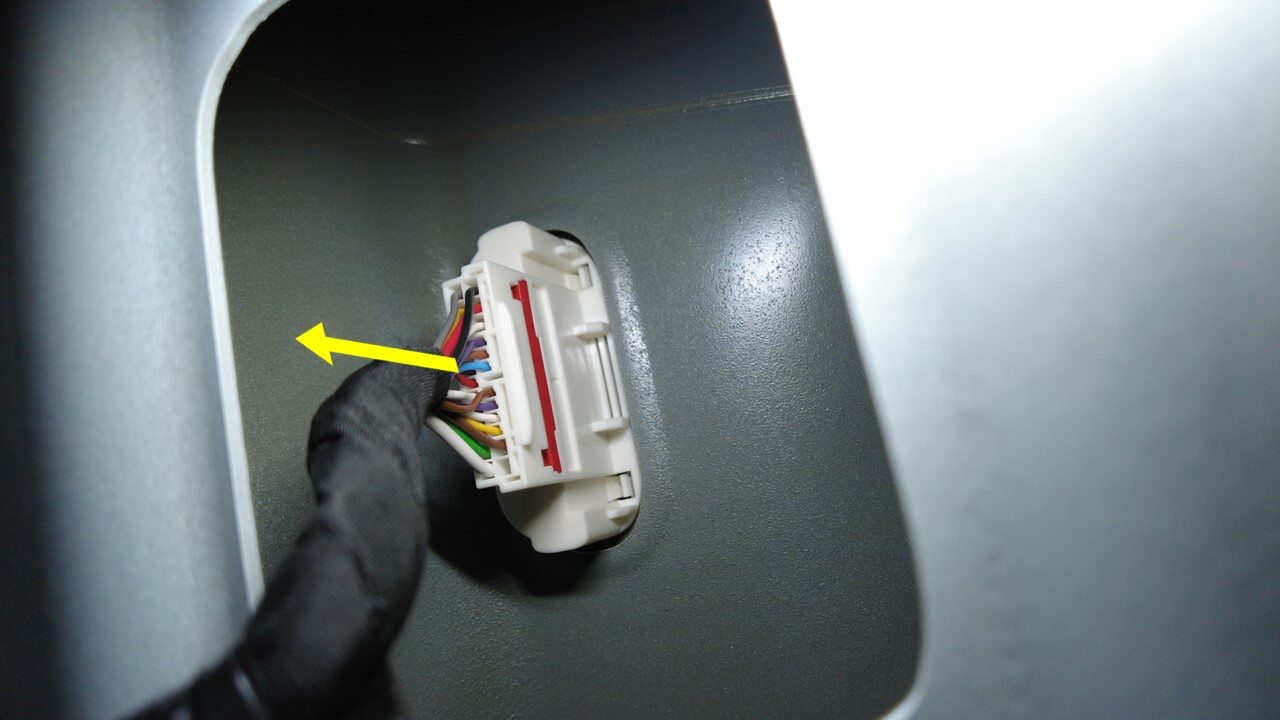

  85. Disconnect RH front seat harness connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release lock then remove
  86. Release RH front seat harness from sill trim clips
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  87. Pull RH front seat harness from under RH front cabin carpet

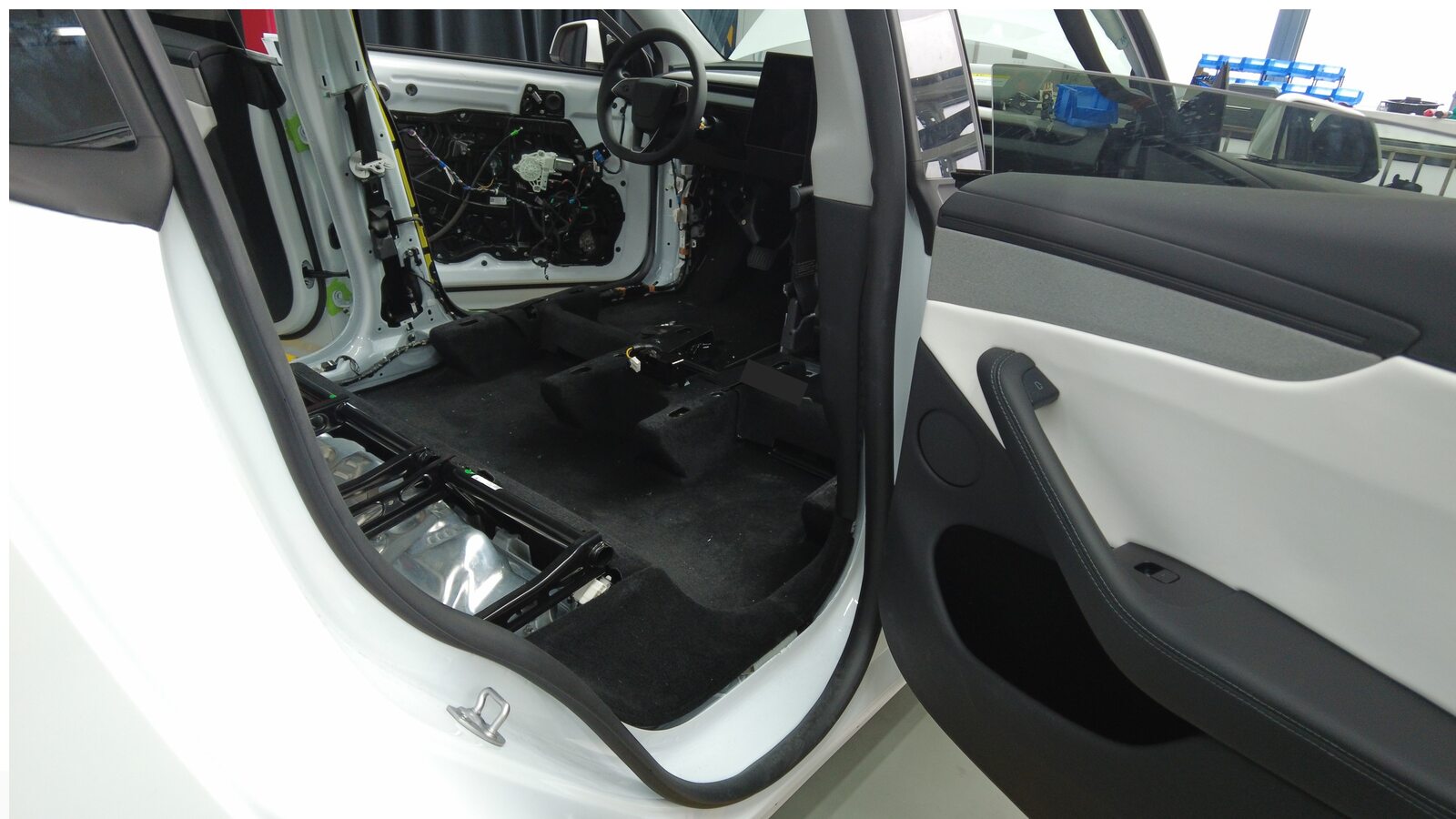

  88. Remove RH front seat from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, With assistant supporting seatback from 2nd row seat, Remove seat from front RH door opening, Caution not to damage any trim, Protect the seat upholstery when the seat is outside of the vehicle

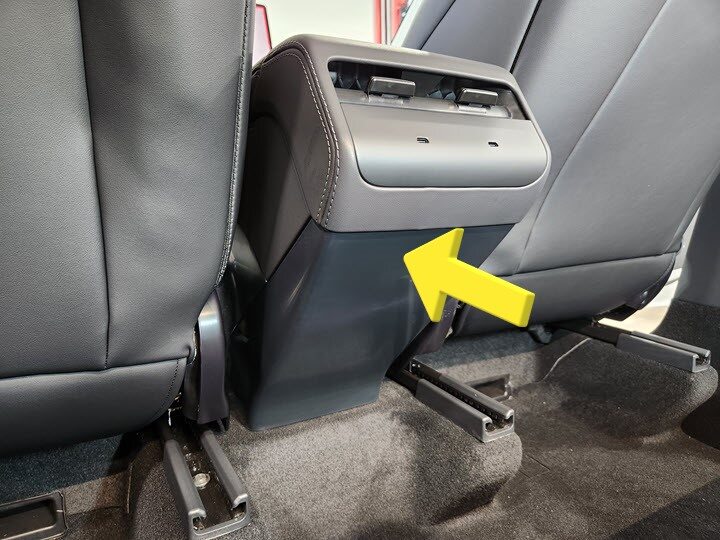

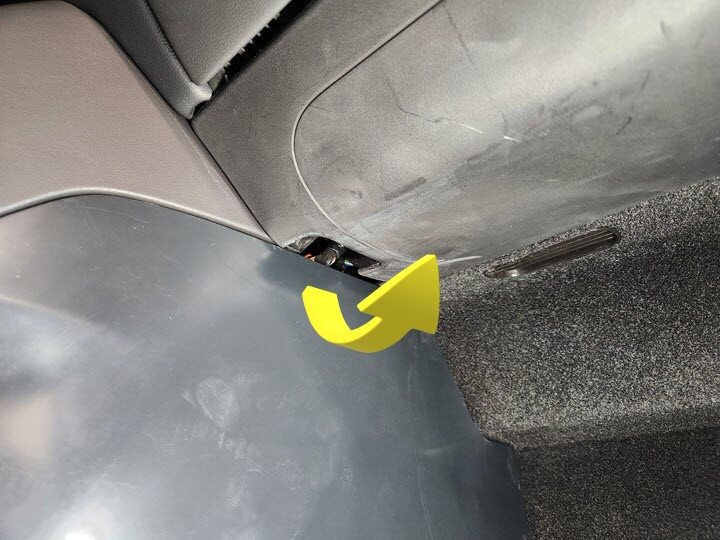

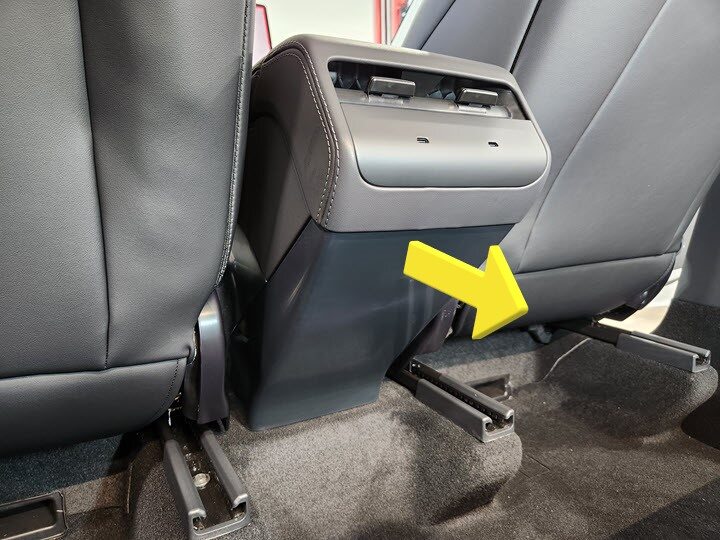

  89. Remove center console rear end panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 6x guides, Release upper clips then lower guides

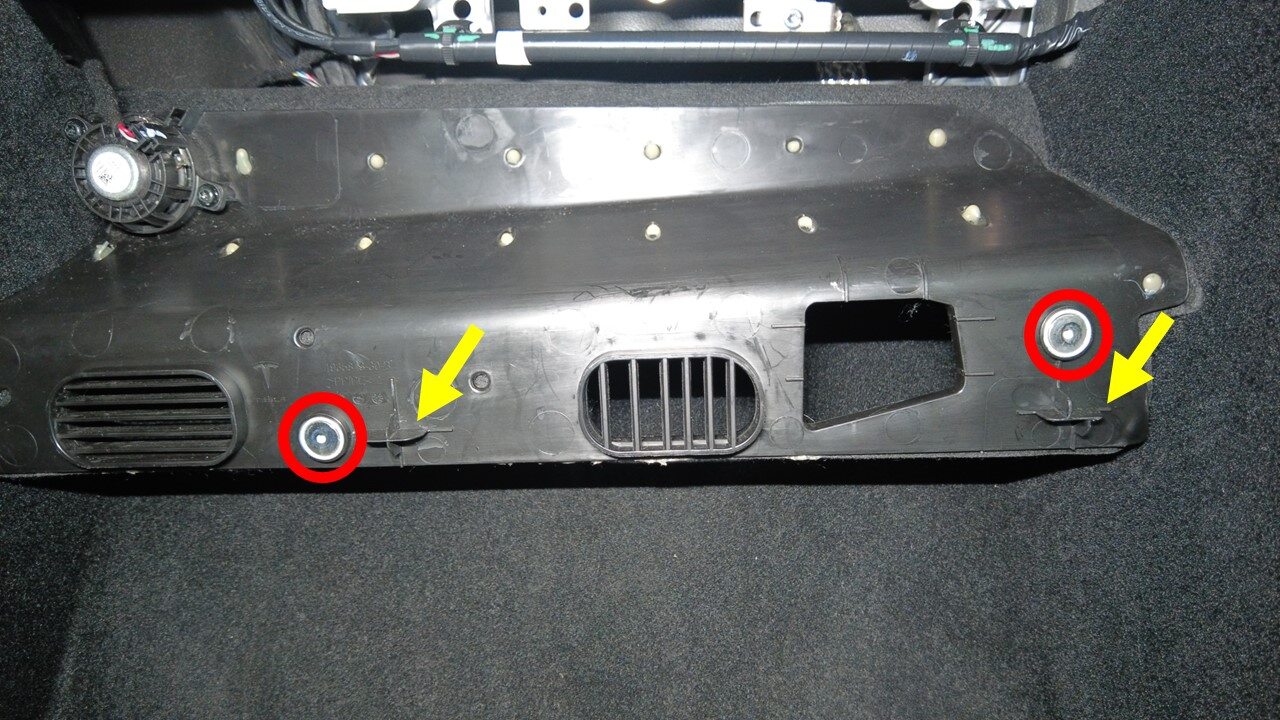

  90. Remove rear bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  91. Release front RH cabin carpet cover from RH knee air bag cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x magnets, 2x datums

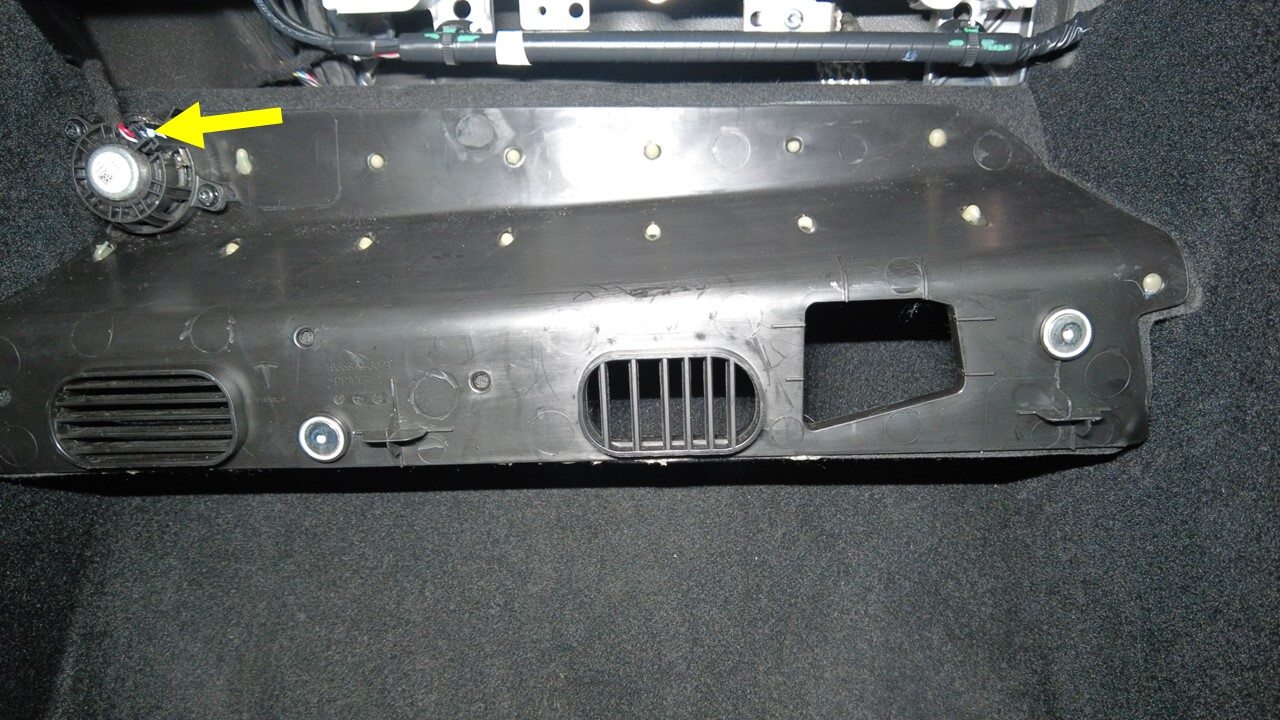

  92. Remove center console RH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips, 2x datums

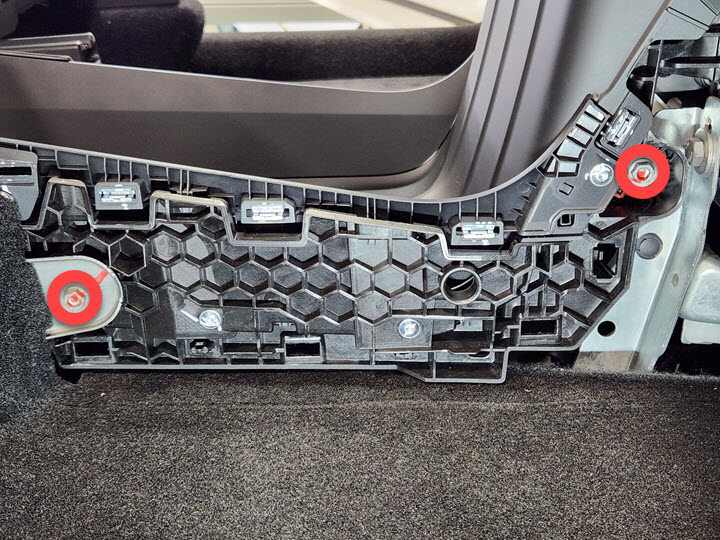

  93. Remove RH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  94. Remove RH front cabin carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips
  95. Release center console connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x clip

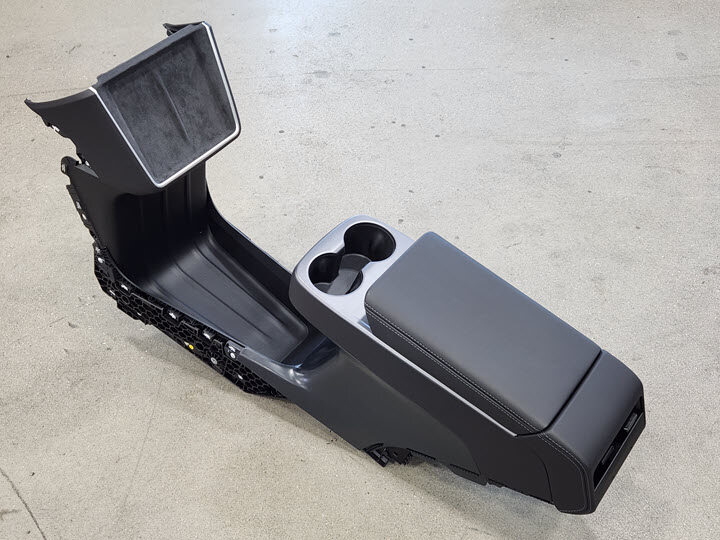

  96. Remove center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Tilt rear of console upward, Pull assembly toward rear of vehicle then tilt front of console upward, Both front seats must fully rearward
  97. Remove harness clips from 1st row podium
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

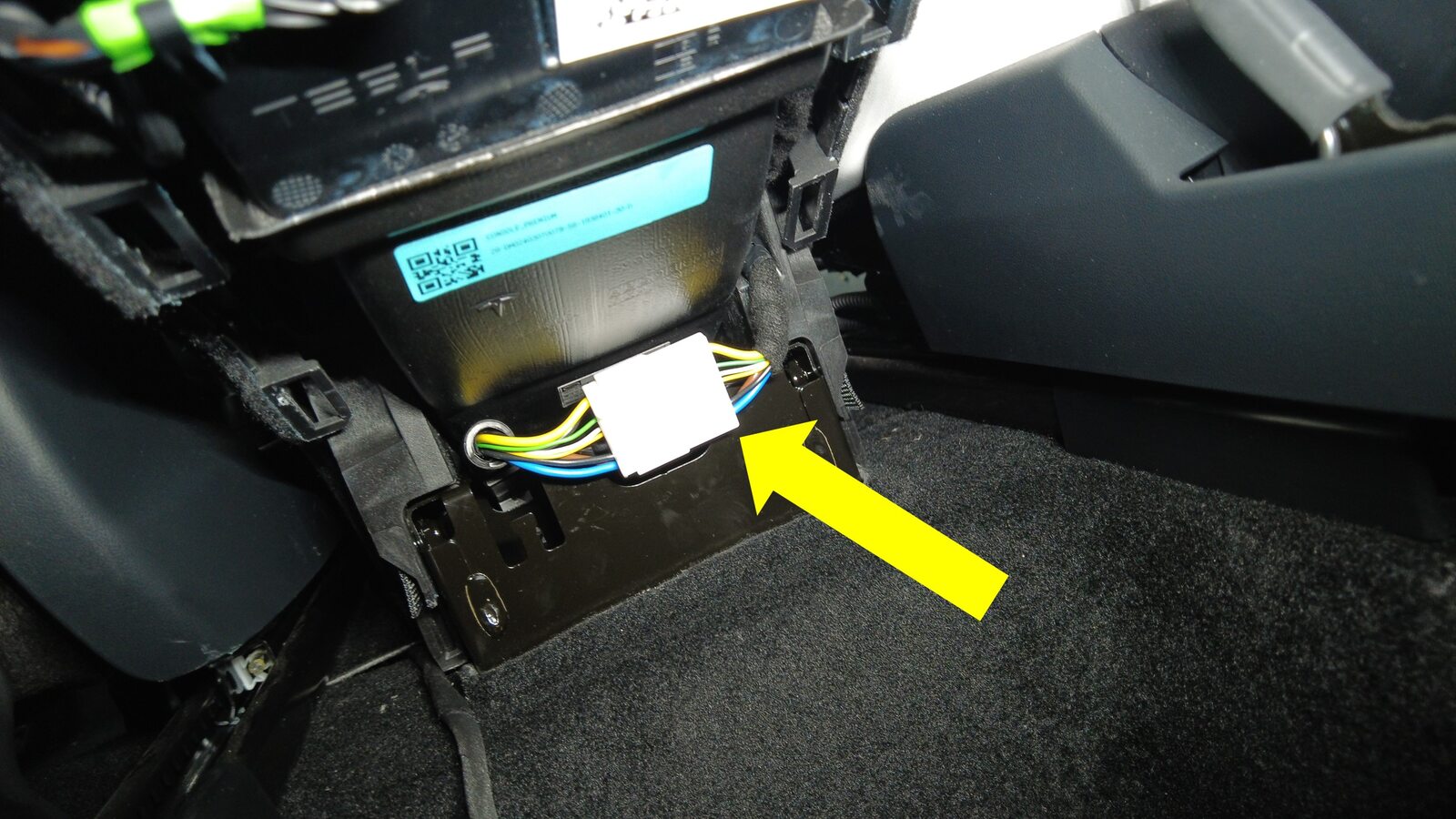

  98. Disconnect LH body harness connector from RCM
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Disengage locking tab

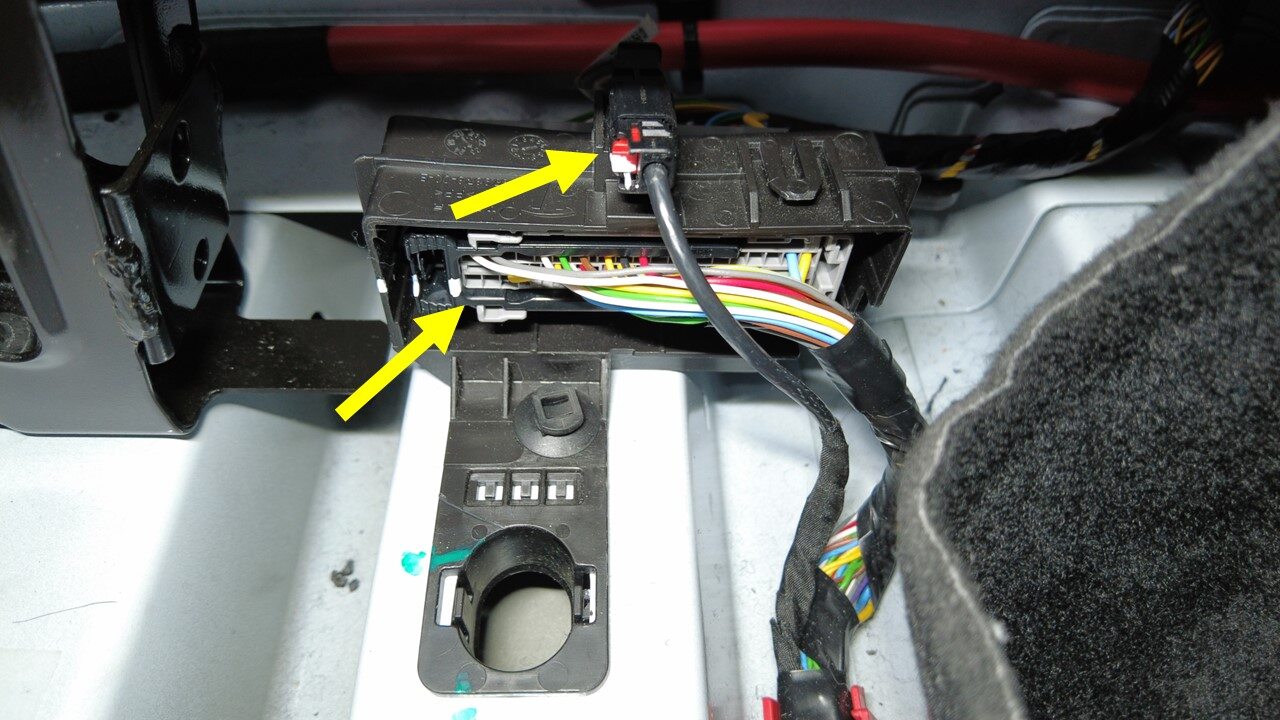

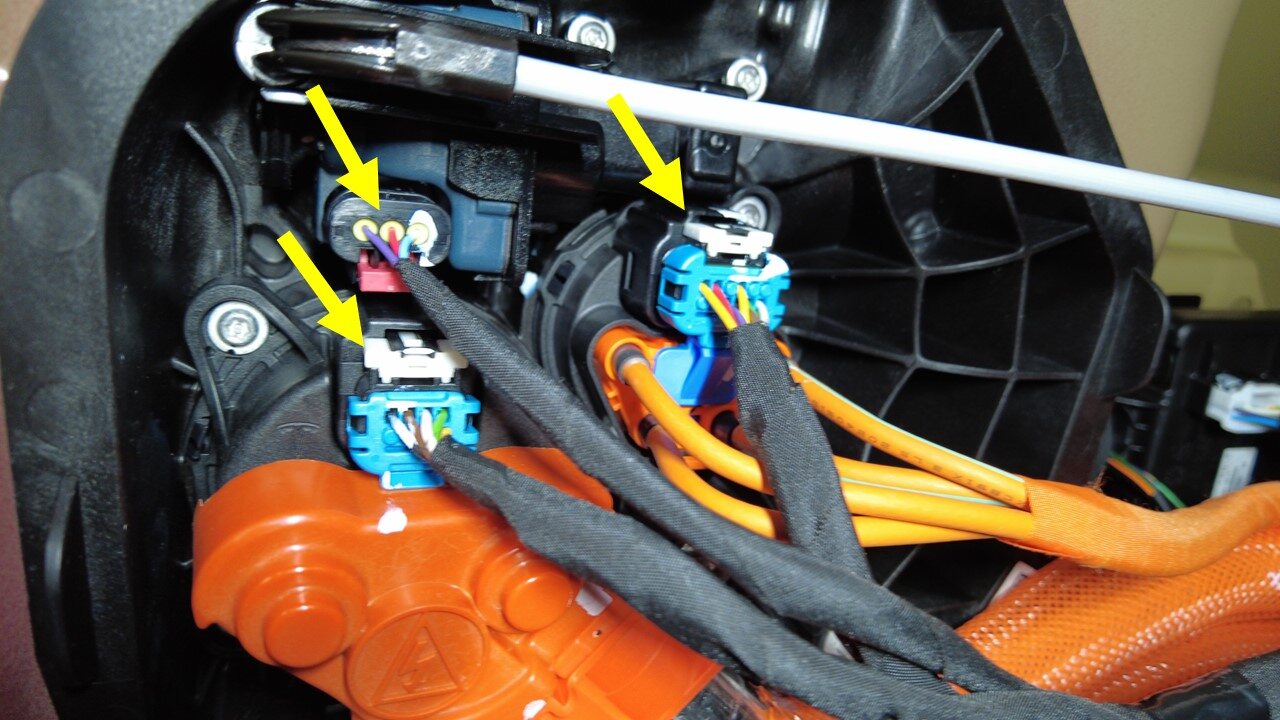

  99. Disconnect LH body harness connectors from below RH front seat
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Disengage locking tab

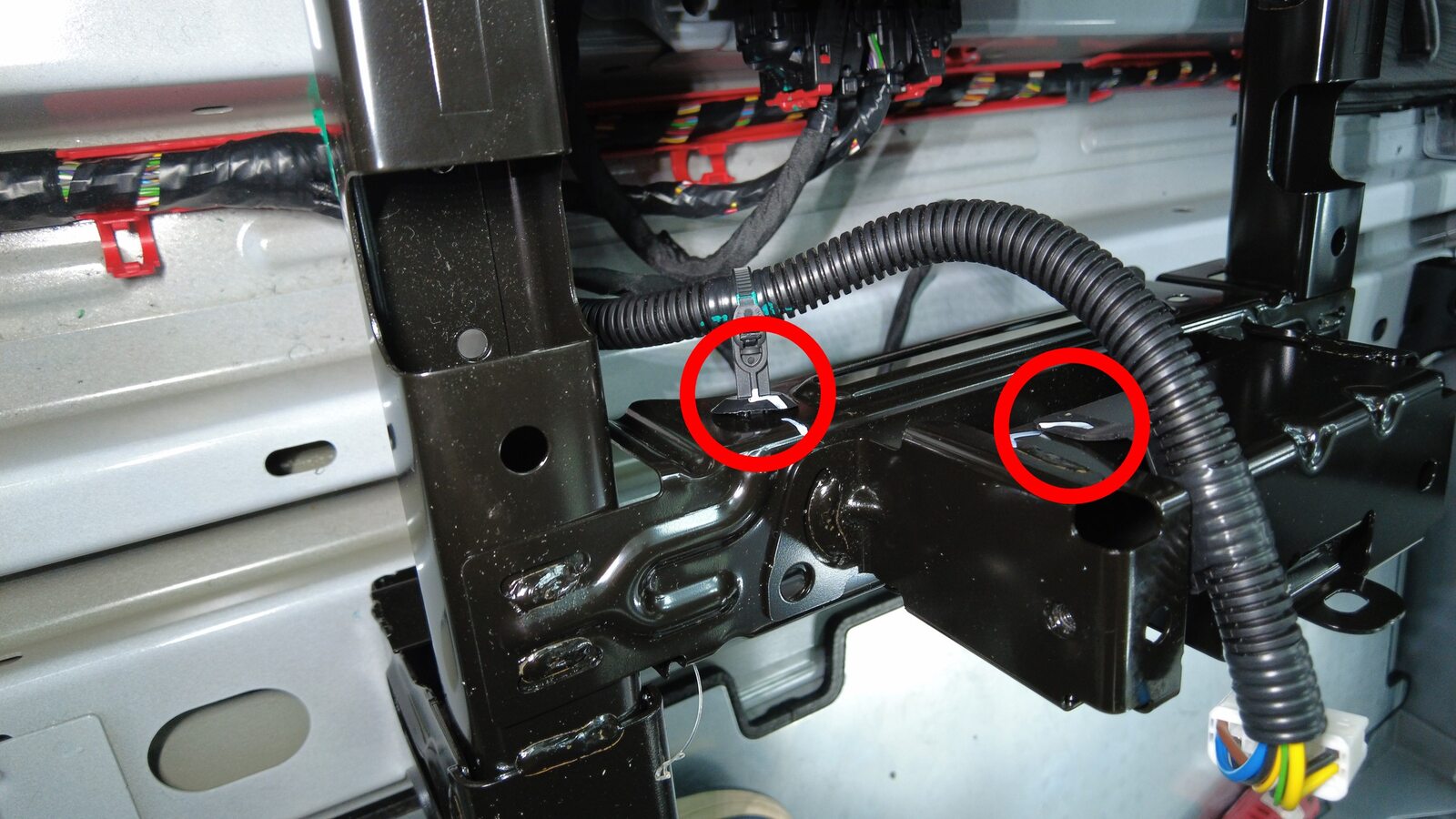

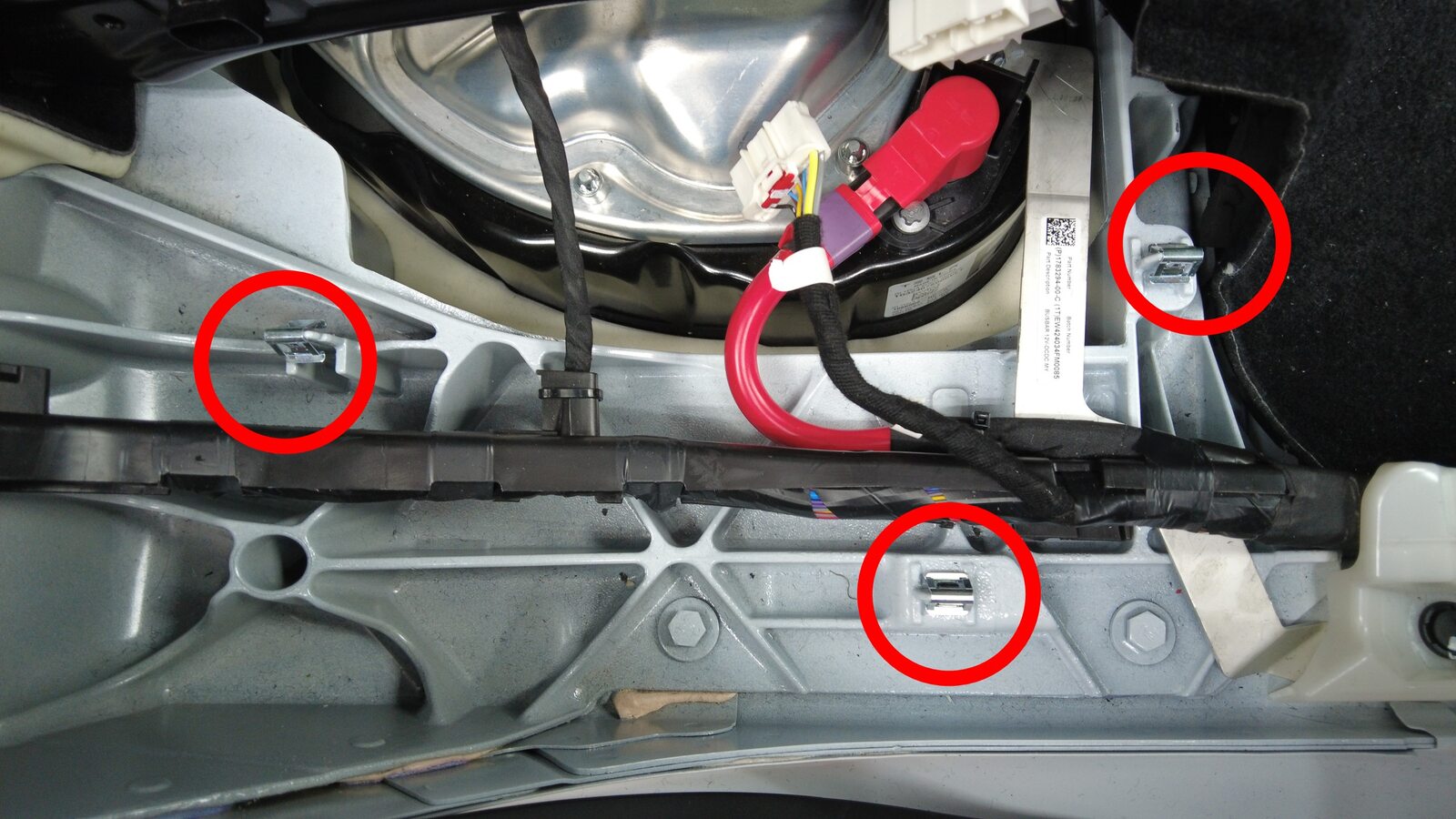

  100. Release LH body harness clips under front seats and center console
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x guide pin

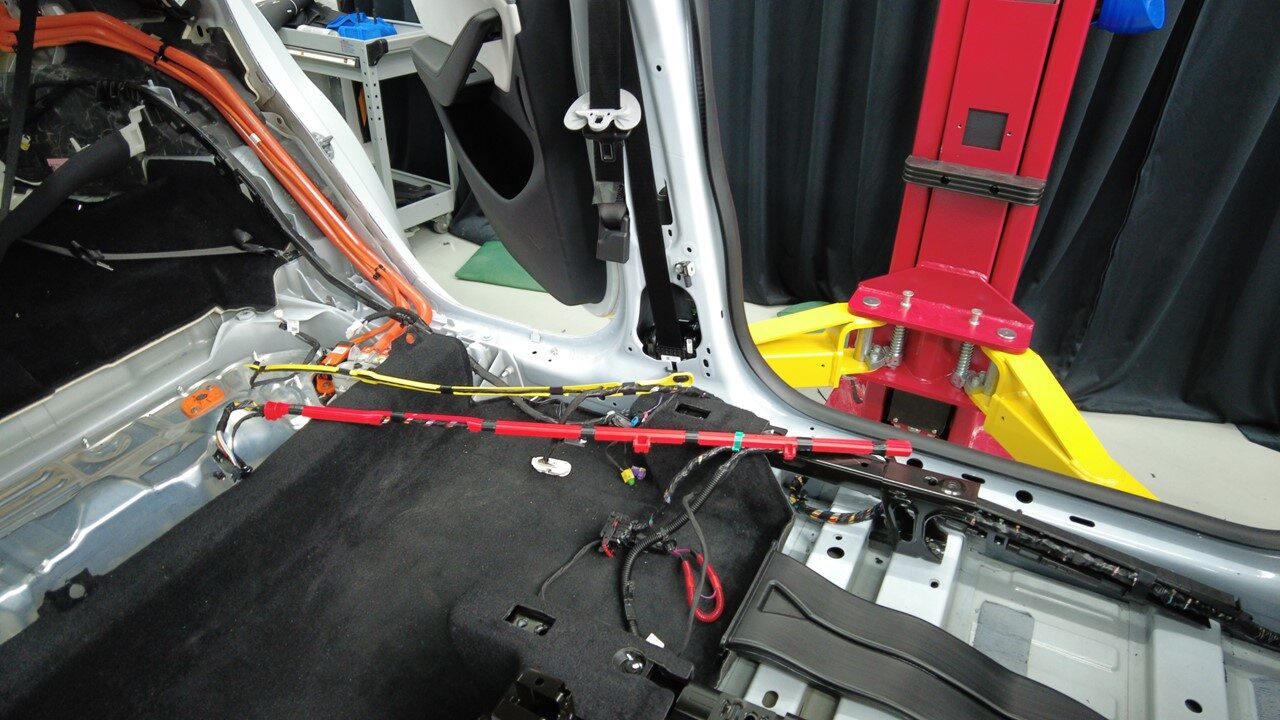

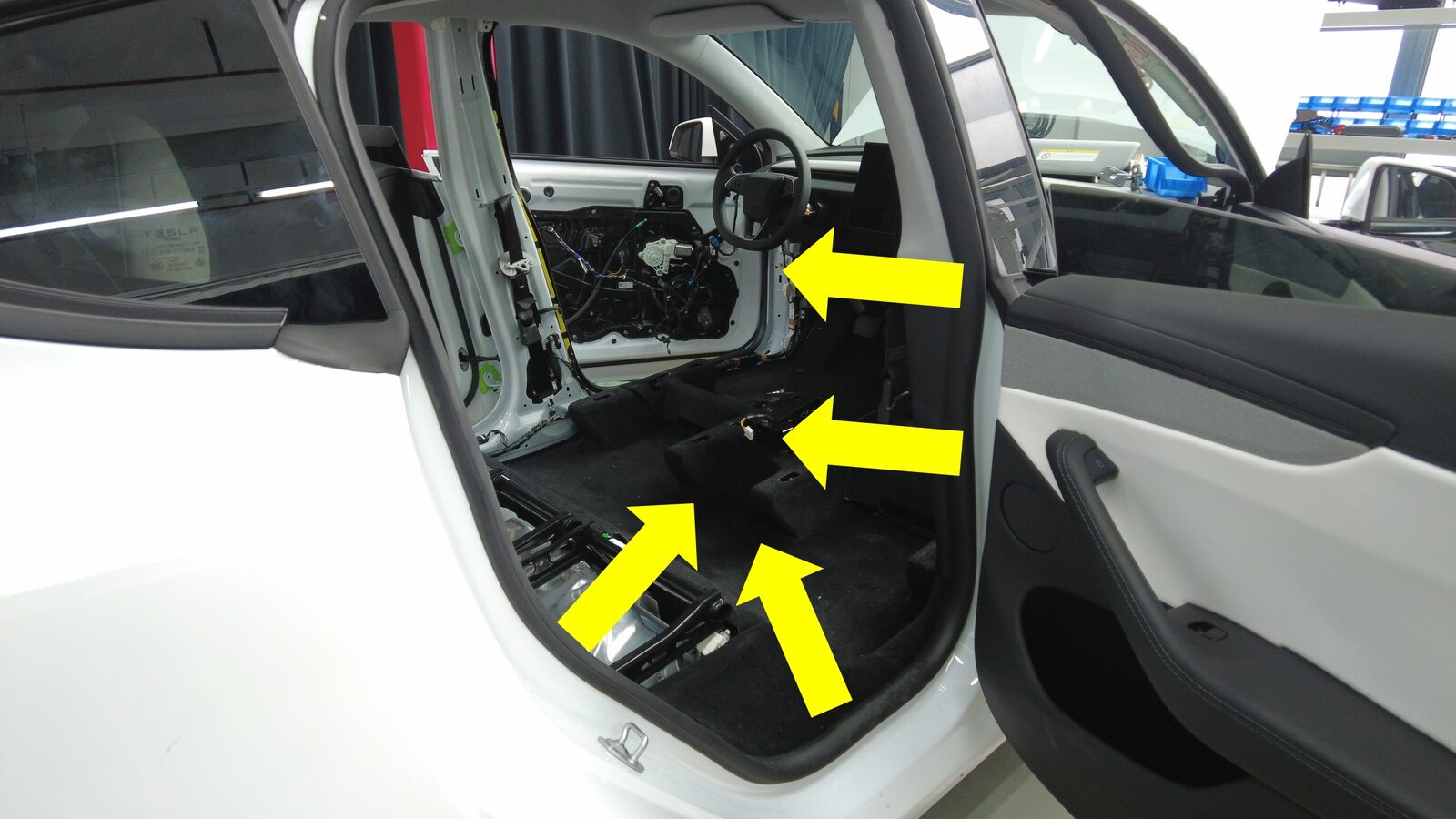

  101. Remove LH body harness from under front seats and center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that the LH body harness is drawn without resistance
  102. Remove wheel chocks and push vehicle onto lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed, close all doors enough as needed to fit between the lift and latch rear doors to prevent accidental closure, Replace wheel chocks once vehicle in correct position

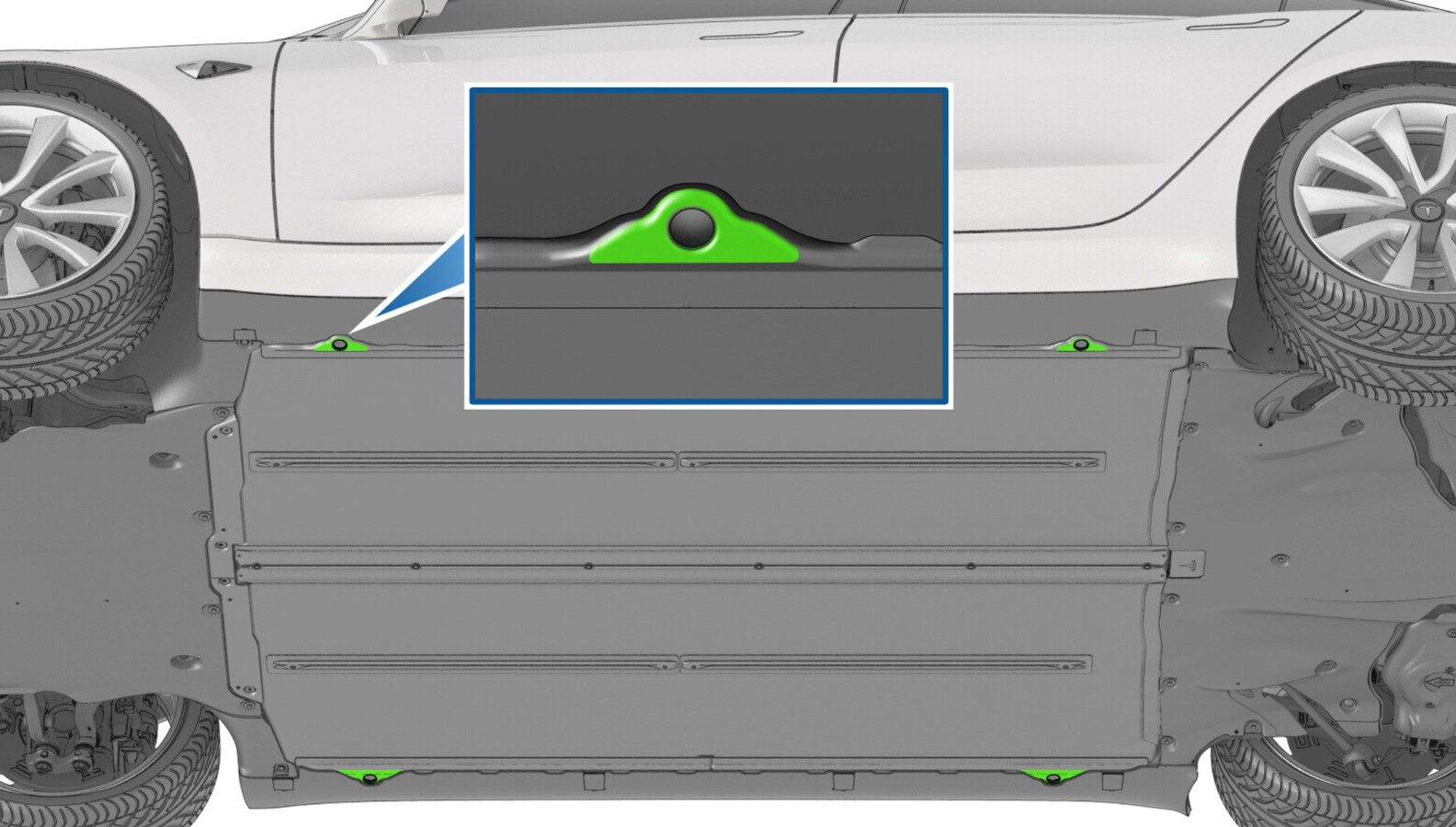

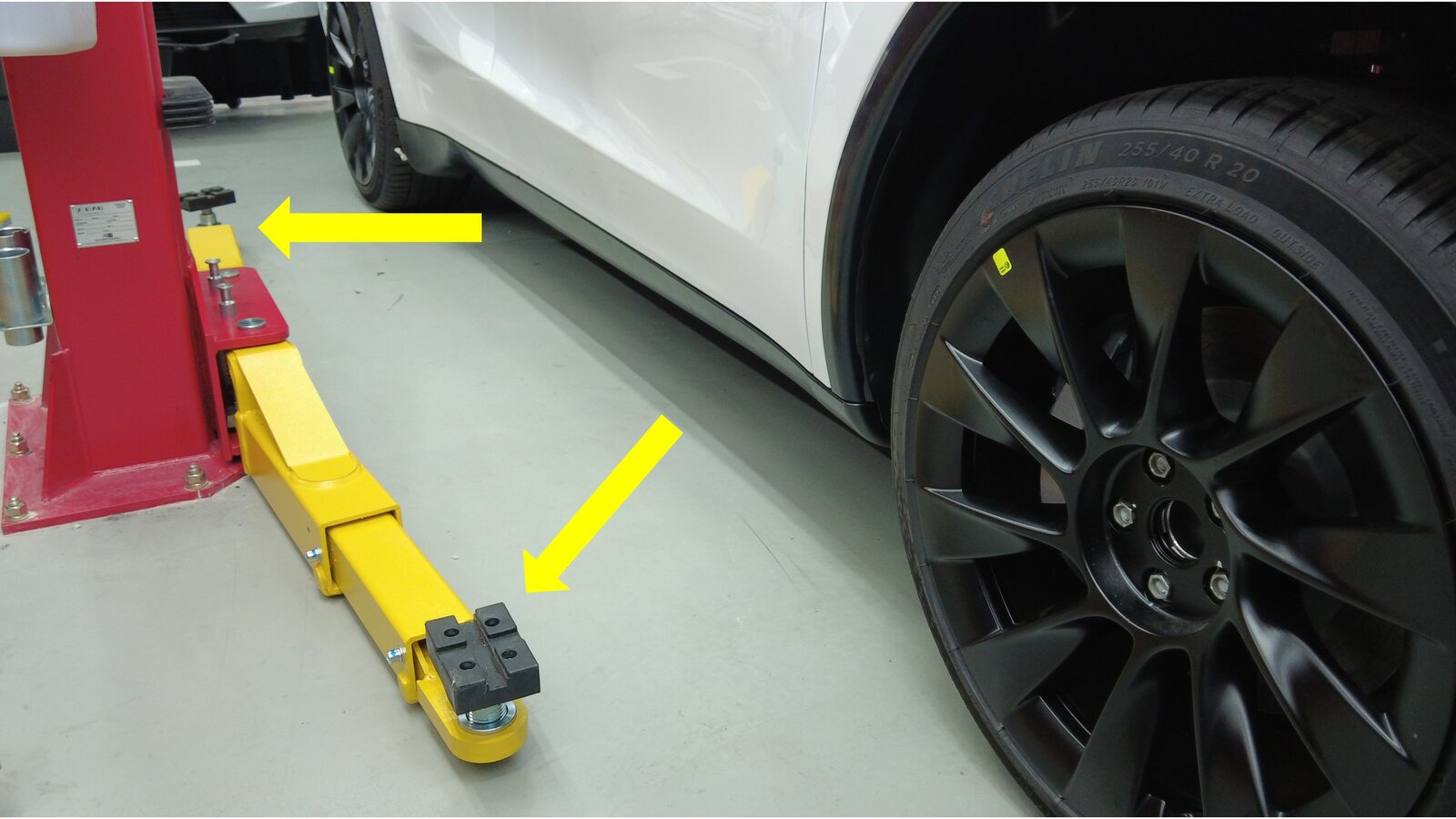

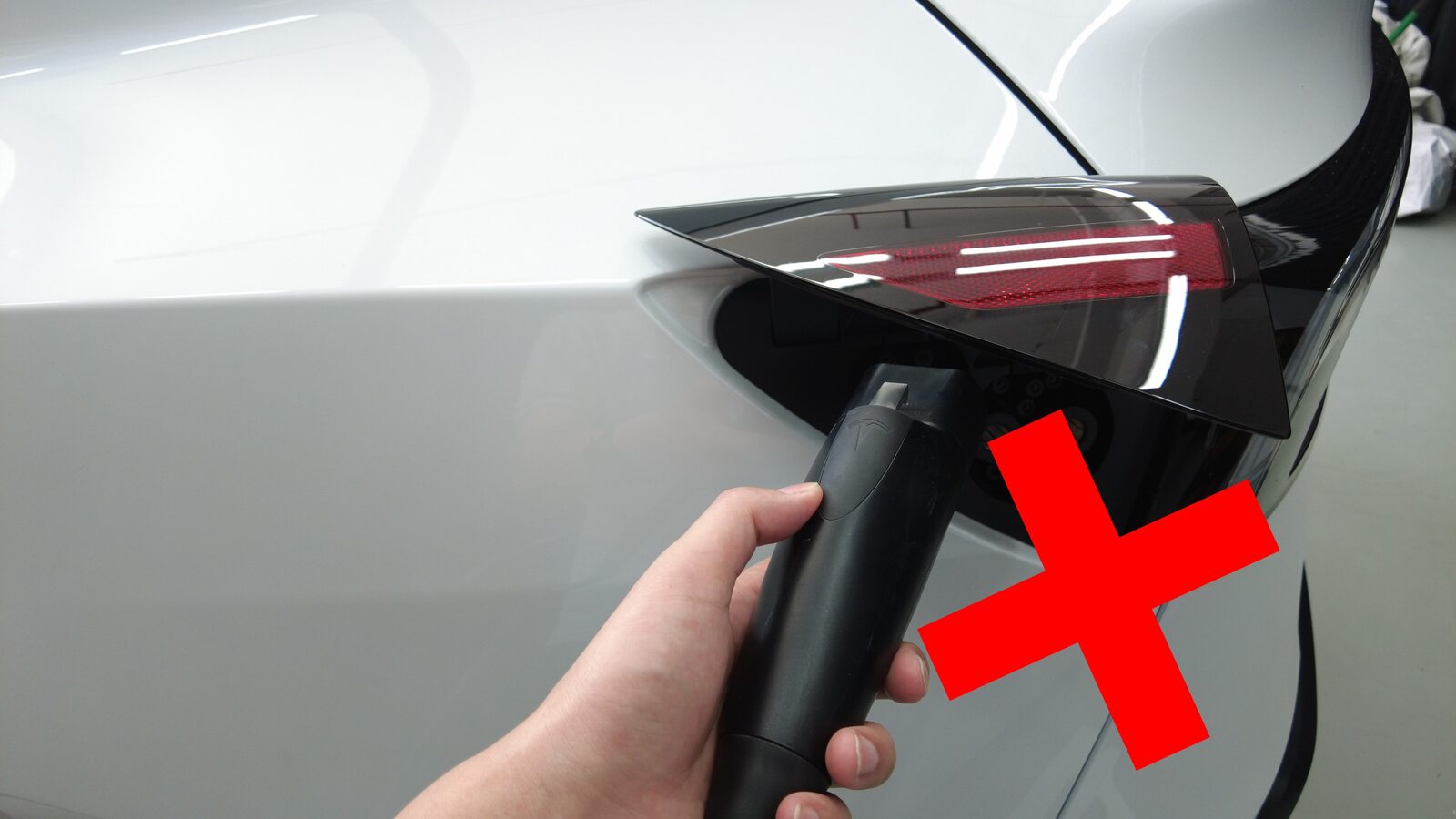

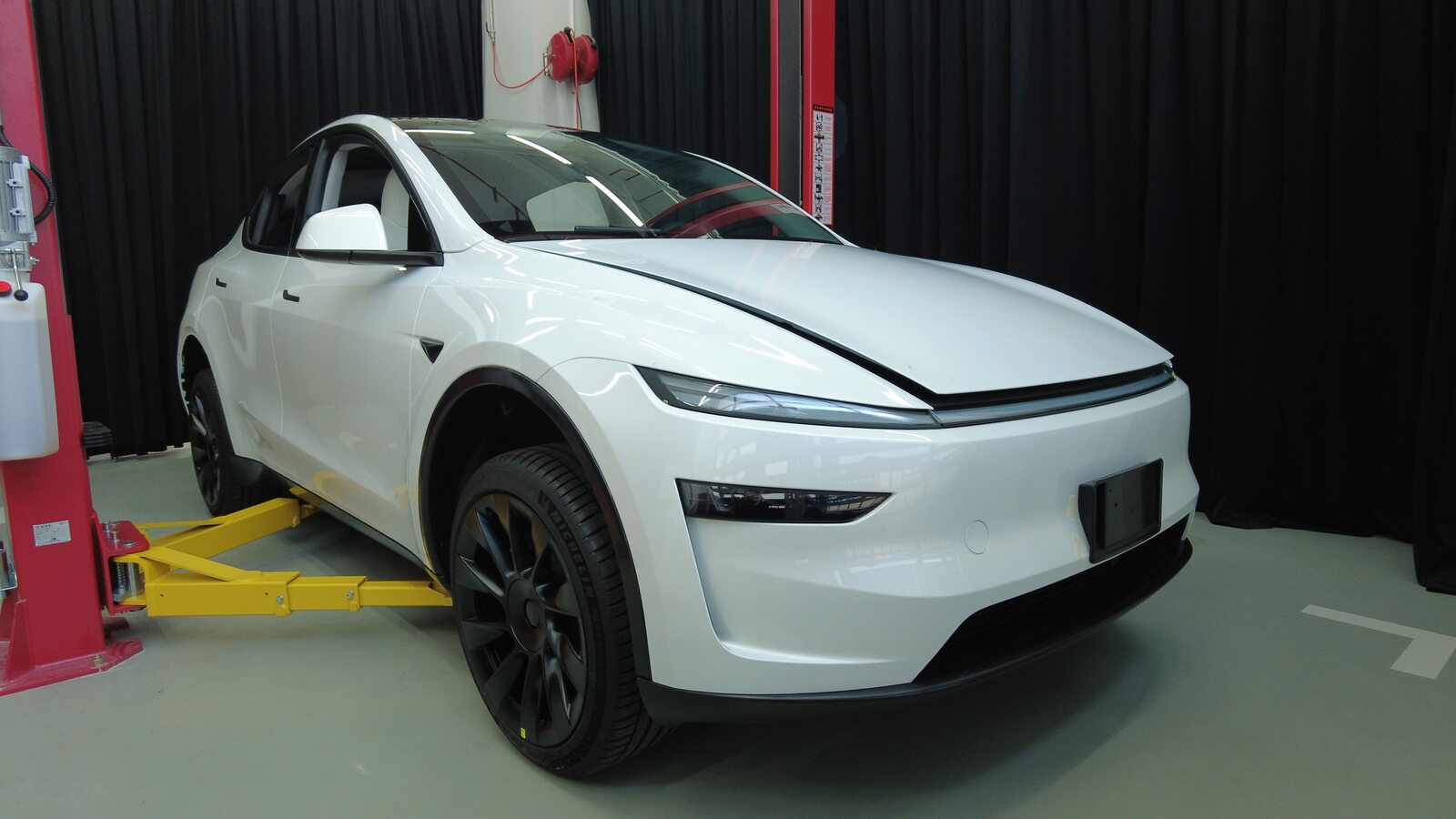

  103. Raise and support vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure vehicle is not charging, Remove charging cable if it's plugged in

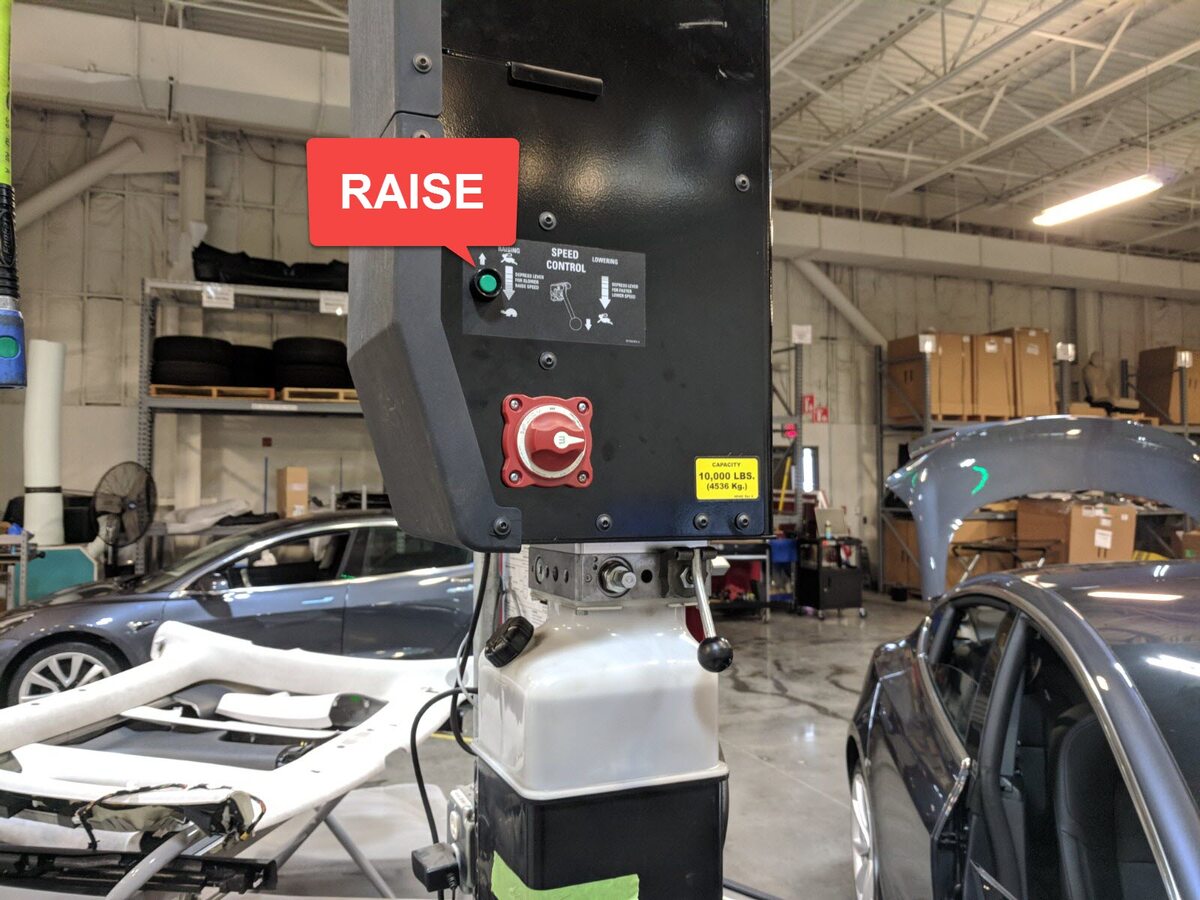

  104. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, Otherwise vehicle may tilt to side

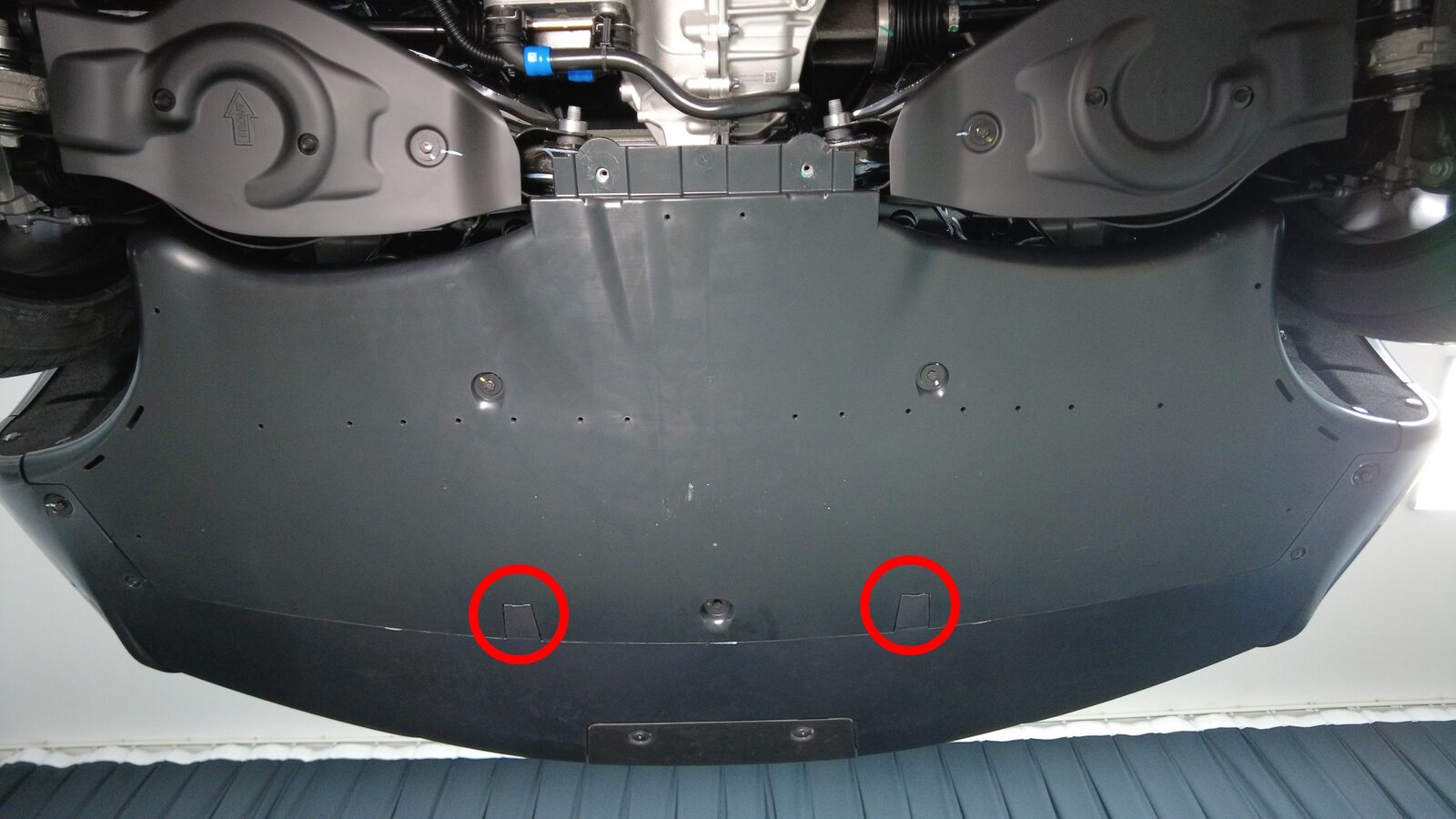

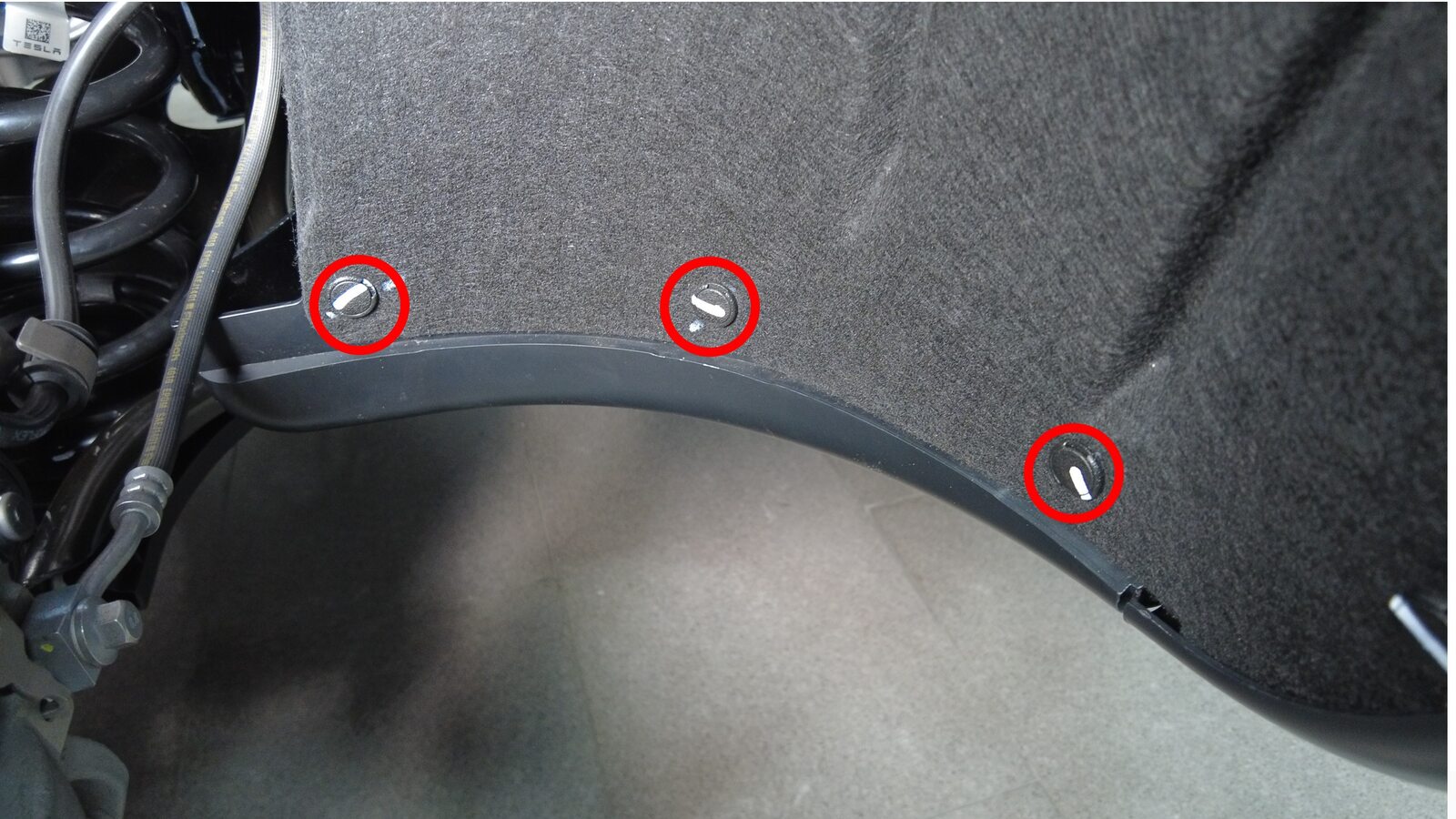

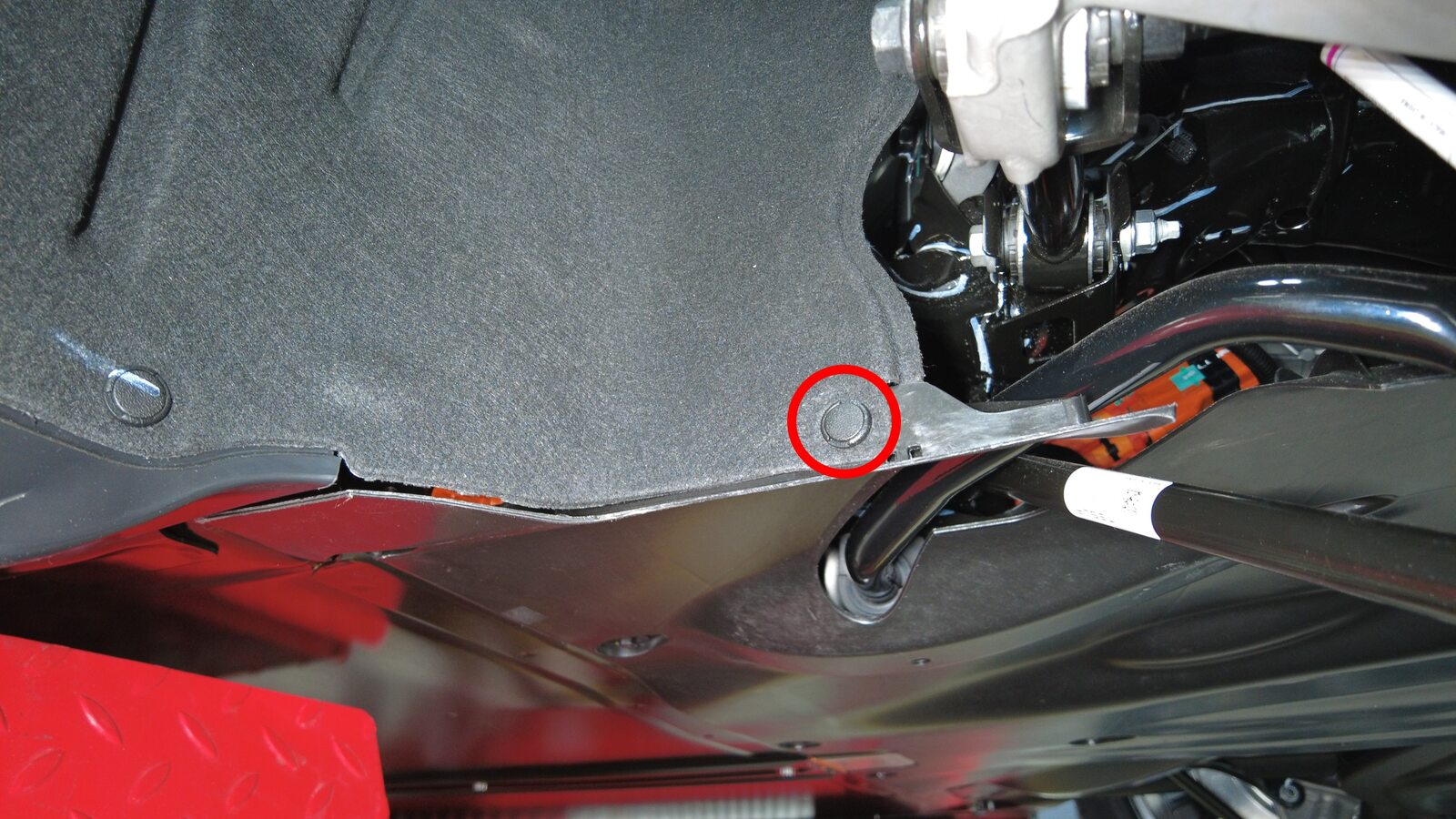

  105. Remove LH and RH push clips securing mid aero shield to wheel house liner
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

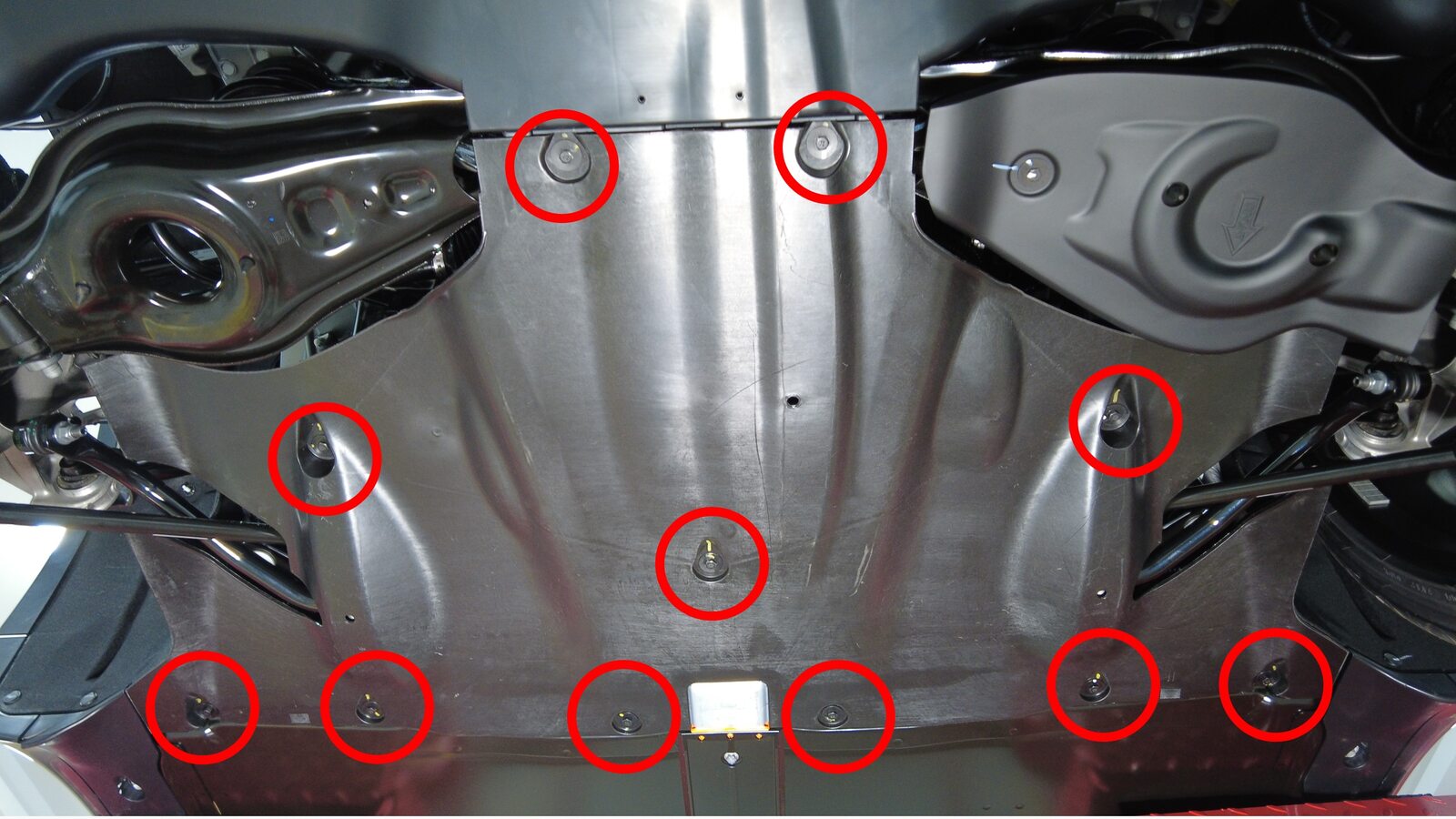

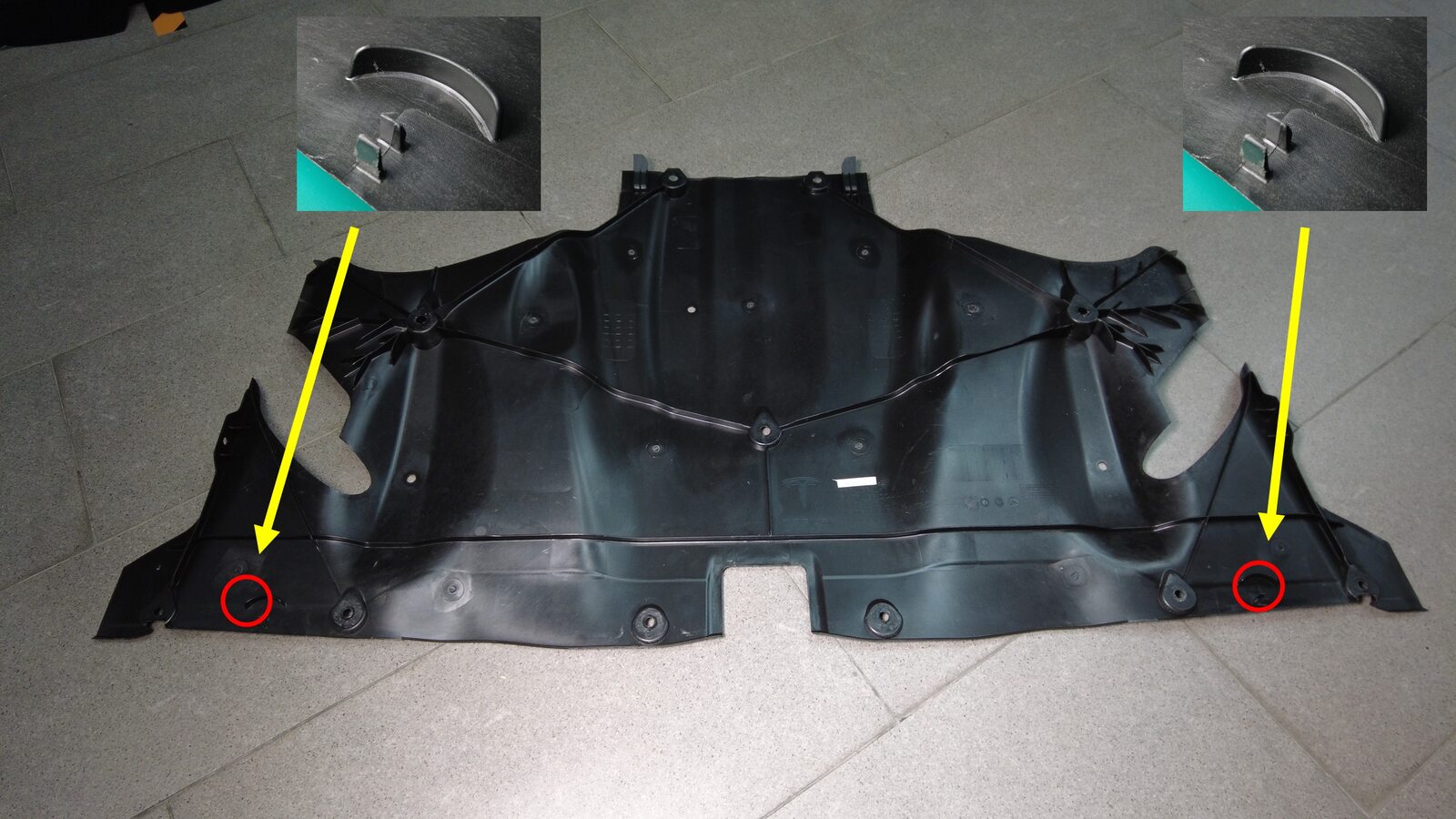

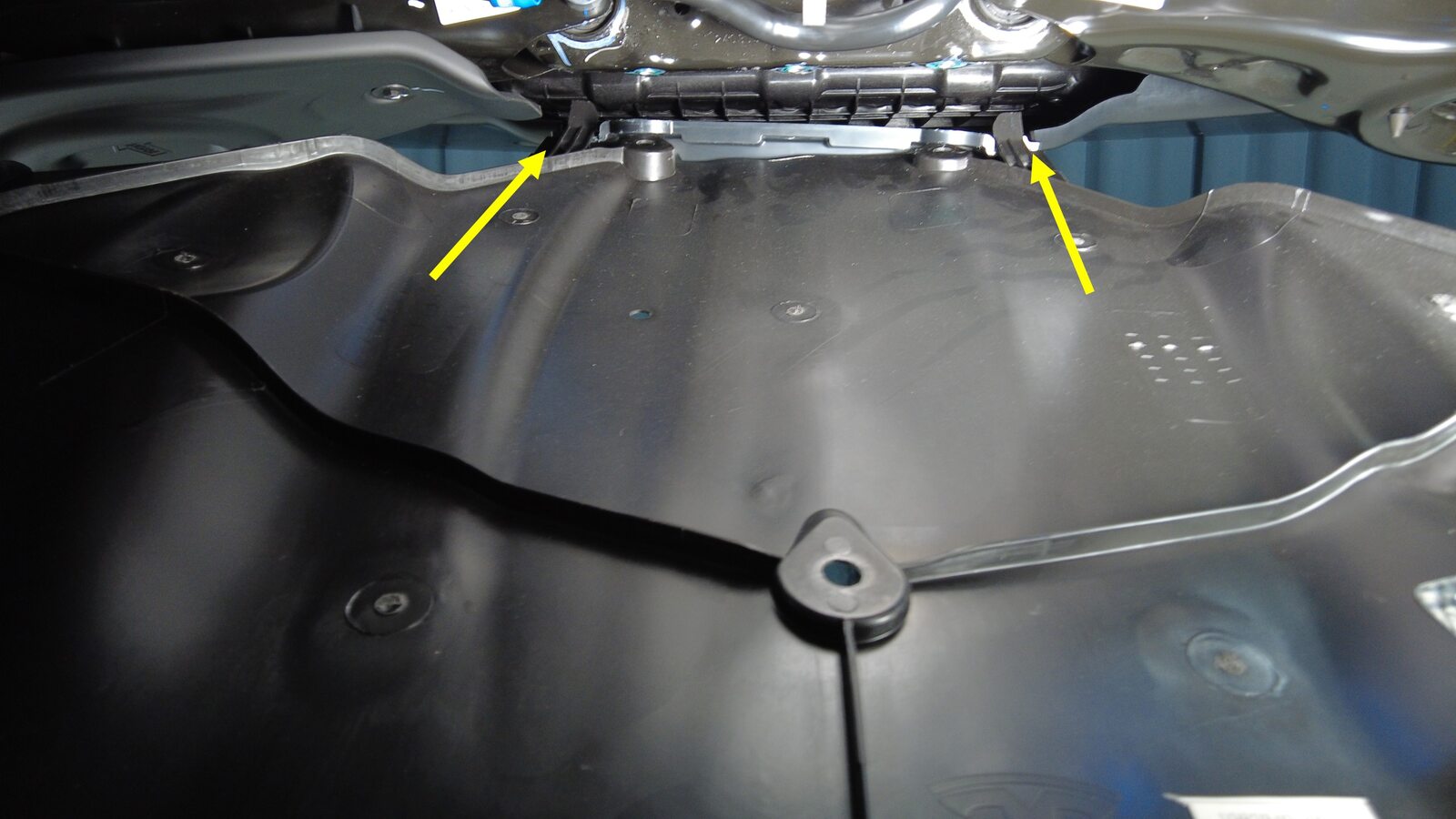

  106. Remove mid aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    11x bolts, 2x tabs, 10mm, 5 Nm

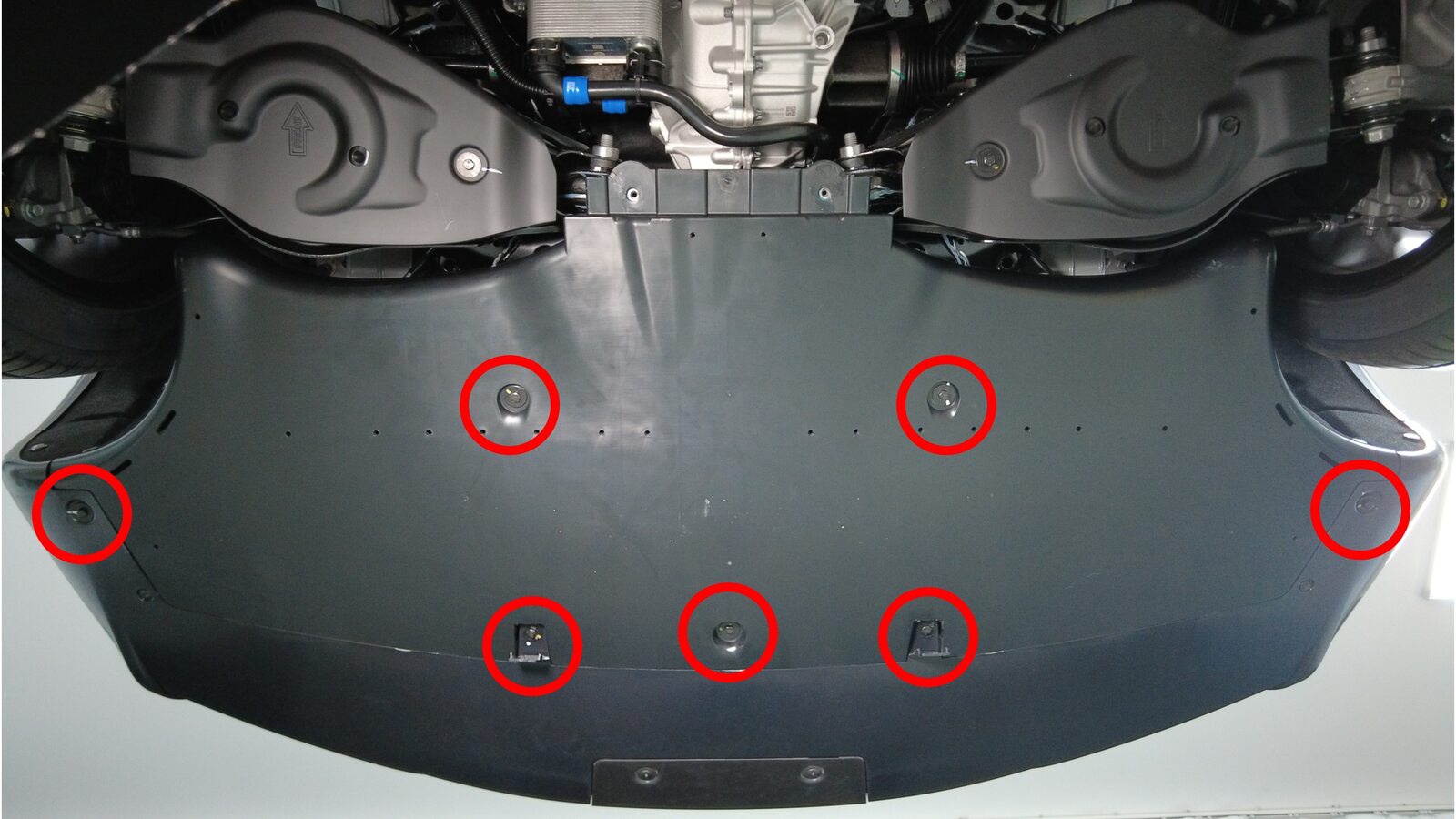

  107. Release rear fascia diffuser
    Informational PurposesAn informational icon, calling your attention
    Note
    7x bolts, 10mm, 5 Nm, 6x push clips, 2x fastener covers
  108. Disconnect LH rear EPB harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release red locking tab
  109. Release LH body harness clips from LH RUB area
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

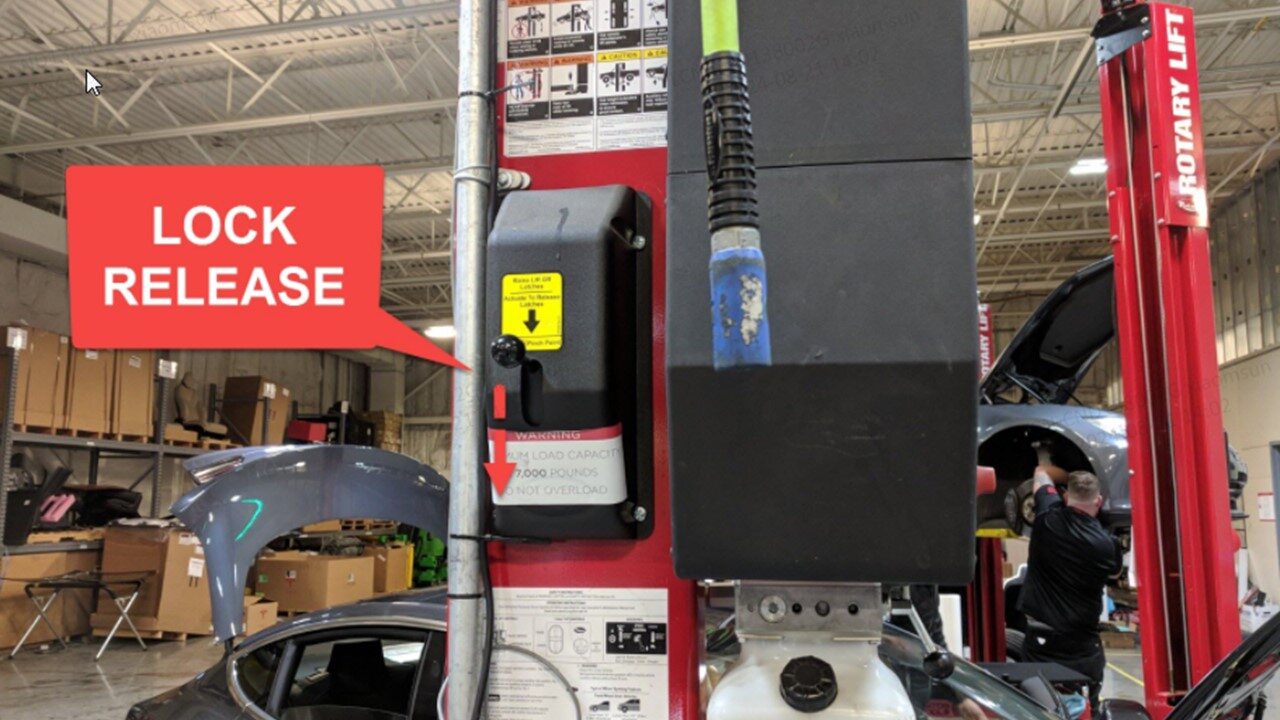

  110. Lower vehicle partially and set onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height

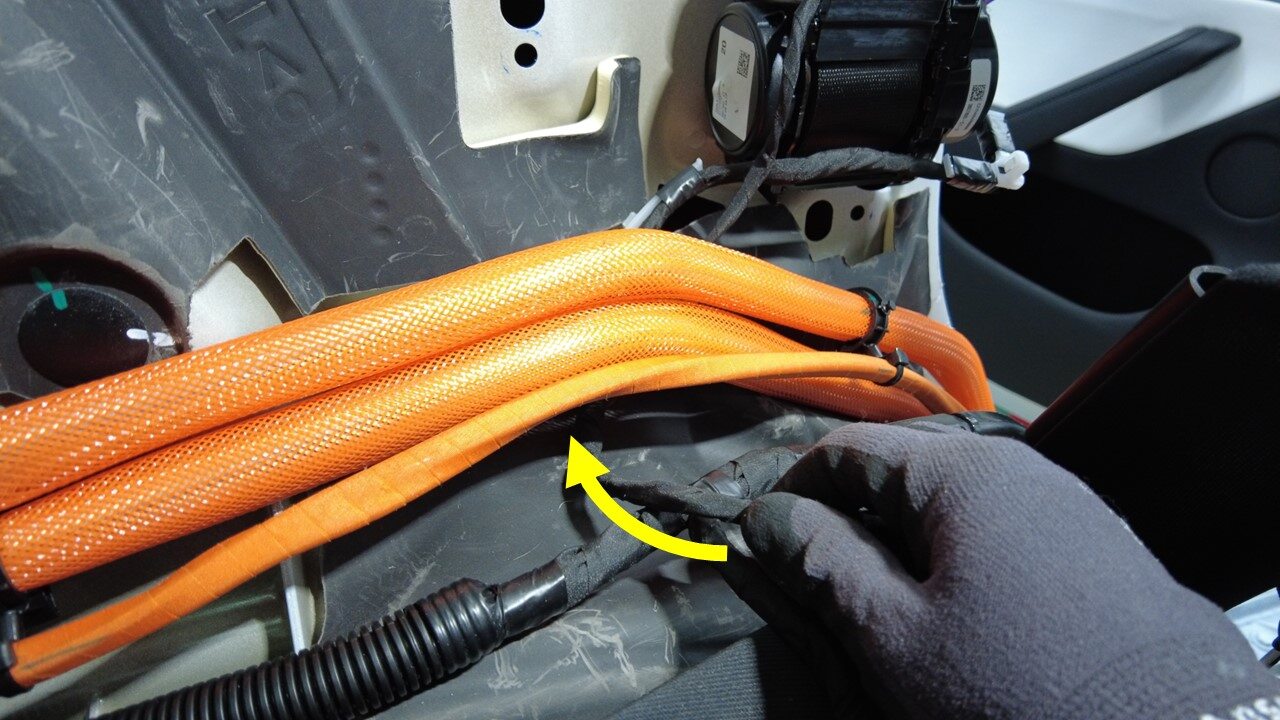

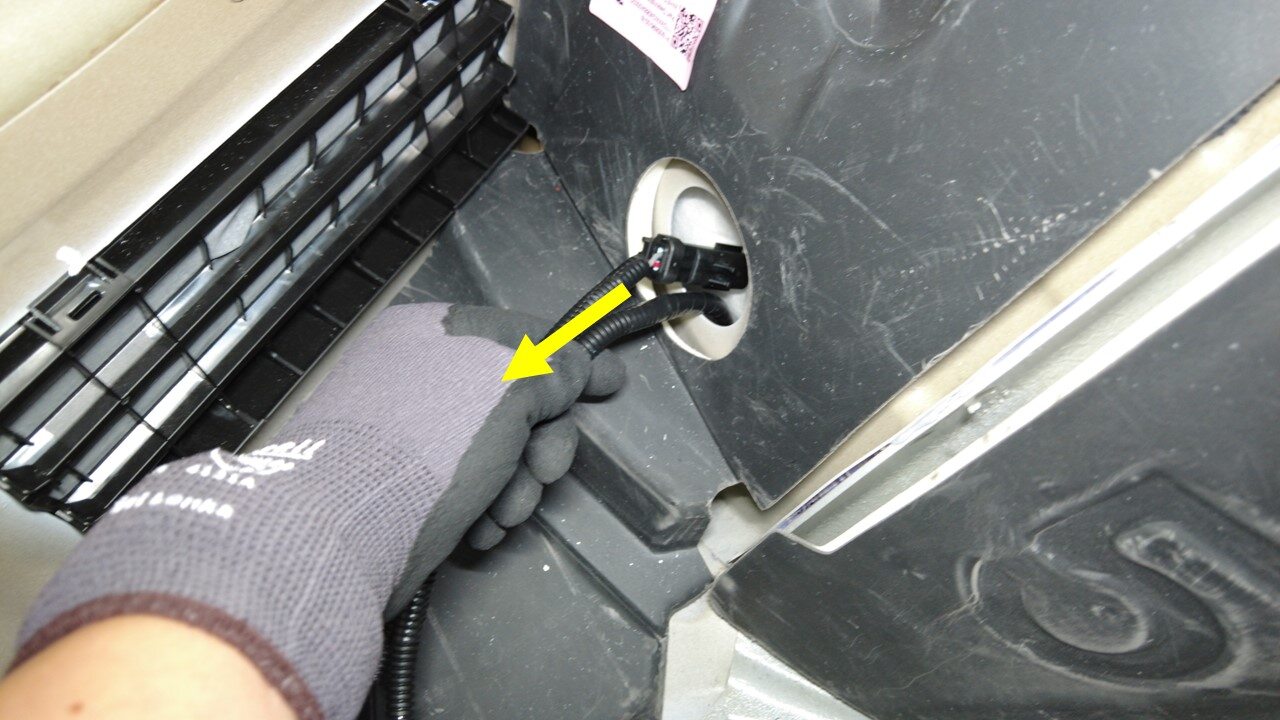

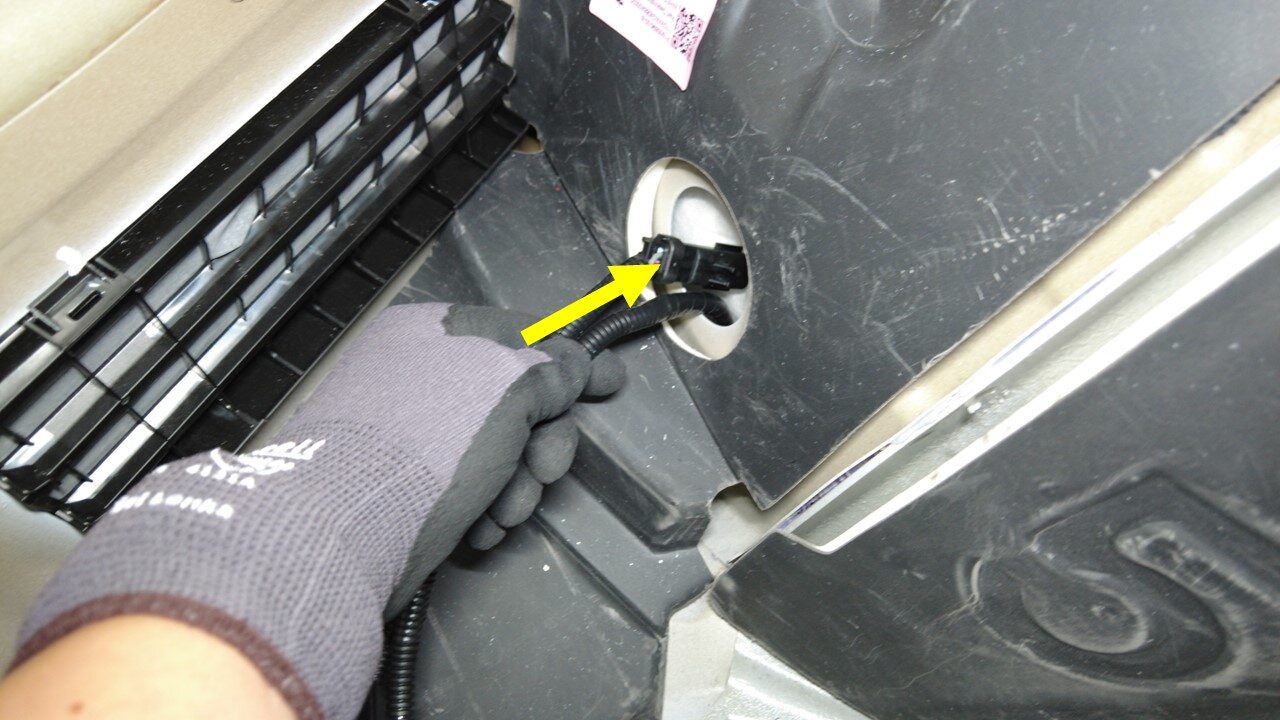

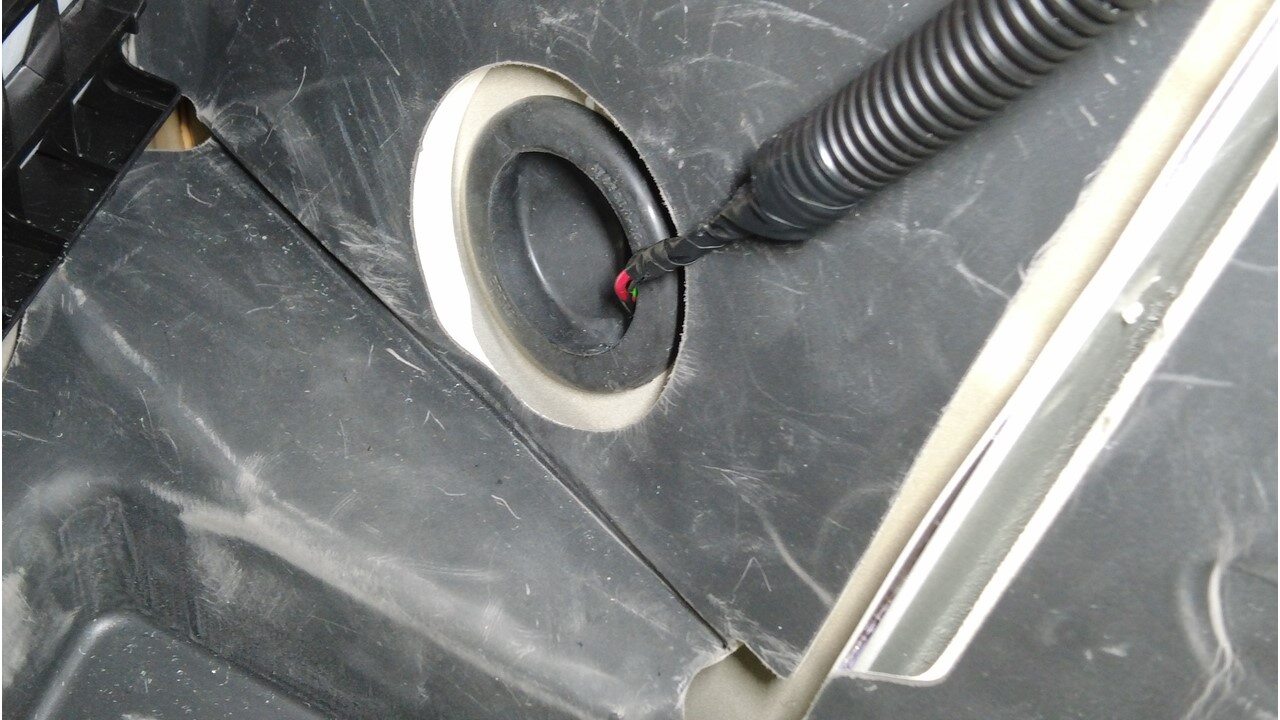

  111. Push LH body harness through LH wheelhouse outer assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x grommet, Harness passes through LH wheelhouse outer assembly

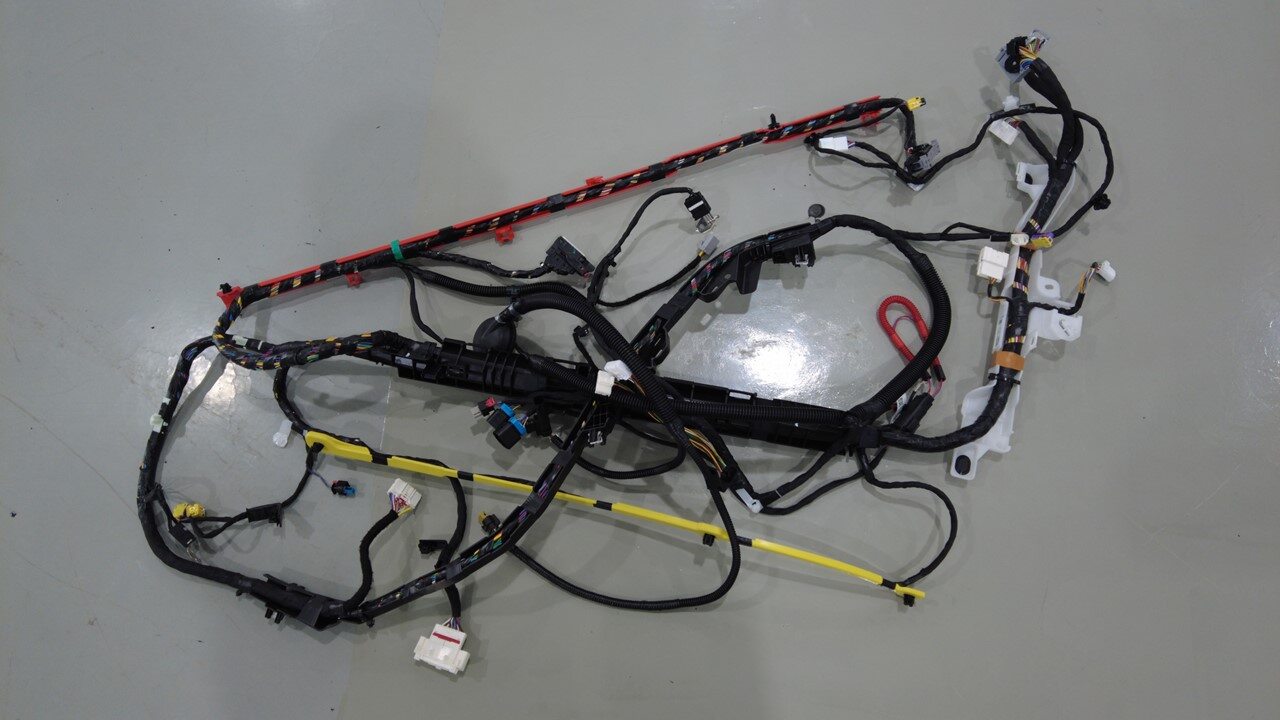

  112. Remove LH body harness from vehicle

Install

  1. Position LH body harness onto vehicle
  2. Push LH body harness through LH wheelhouse outer assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x grommet, Harness passes through LH wheelhouse outer assembly, Make sure to install grommet in proper orientation

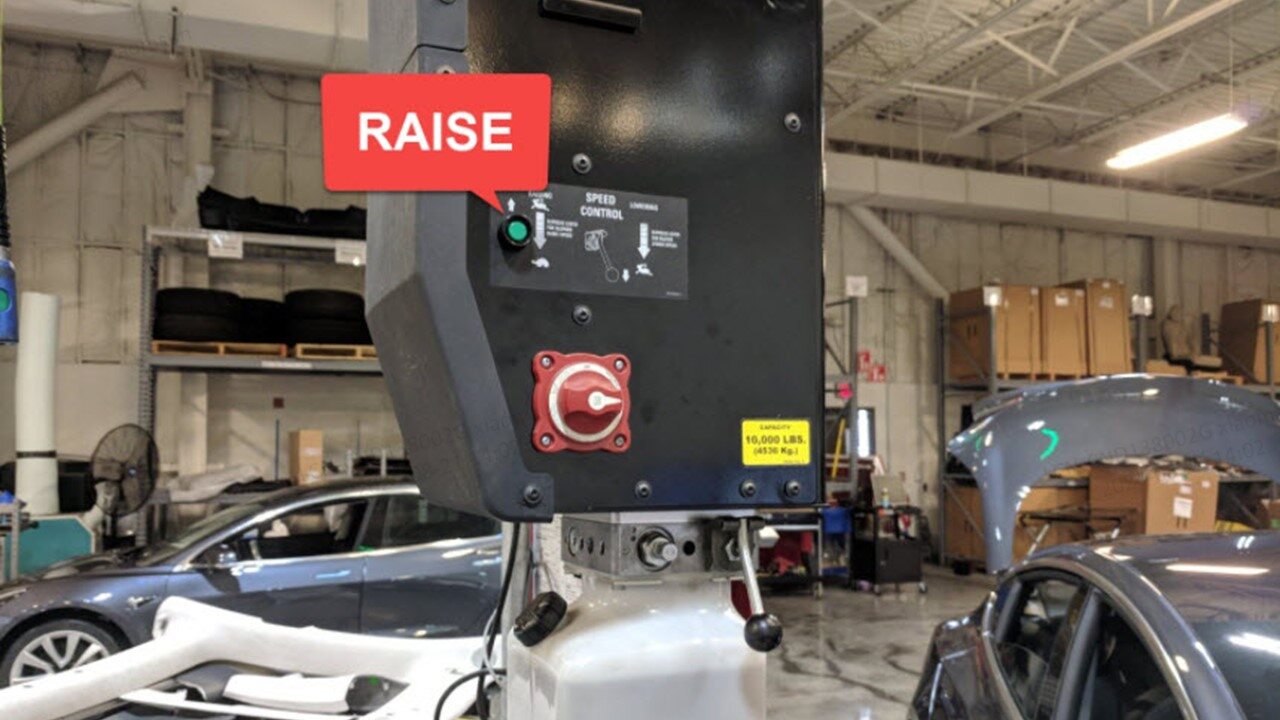

  3. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side
  4. Secure LH body harness clips to LH RUB area
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

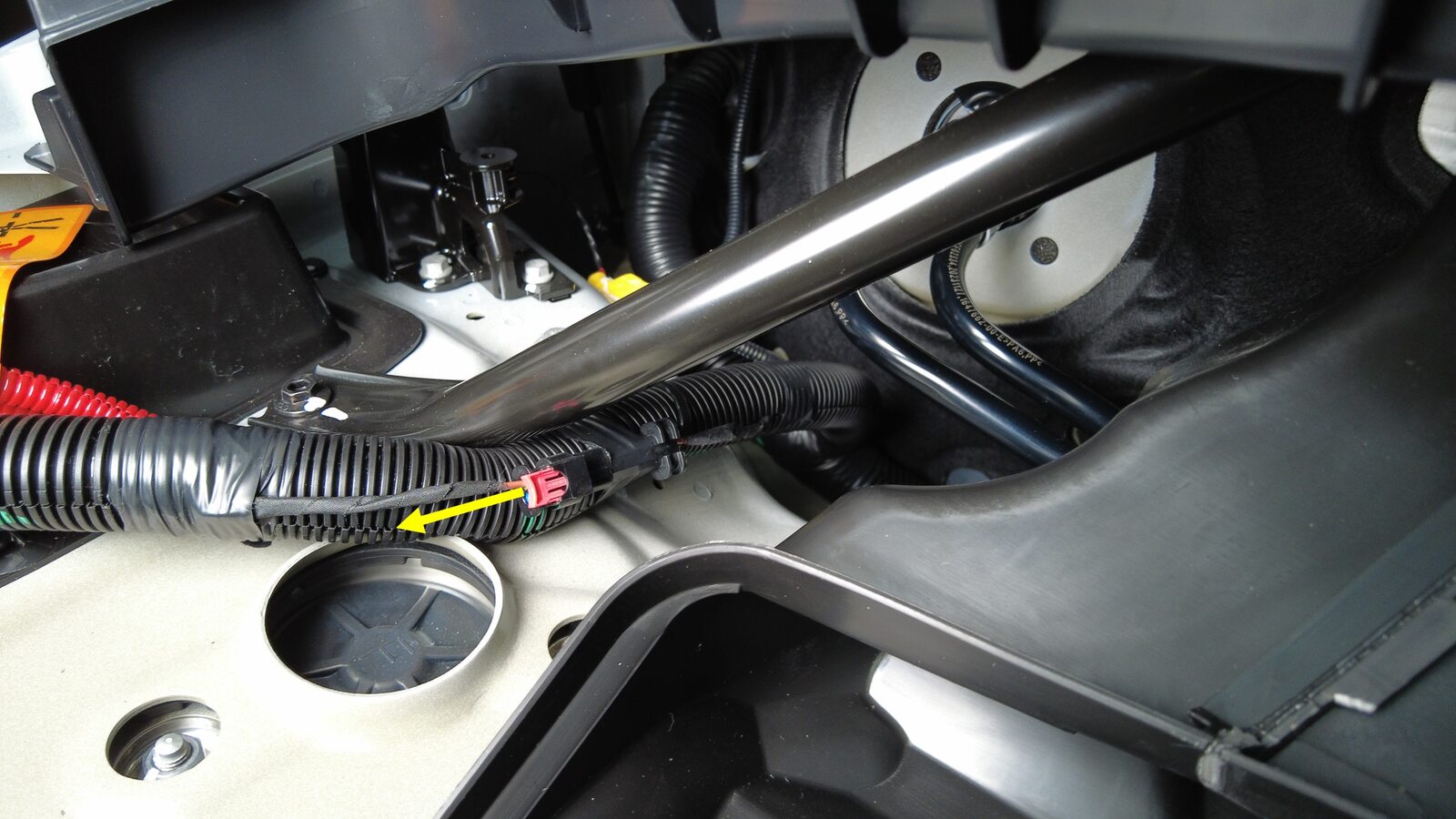

  5. Connect LH rear EPB harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage red locking tab

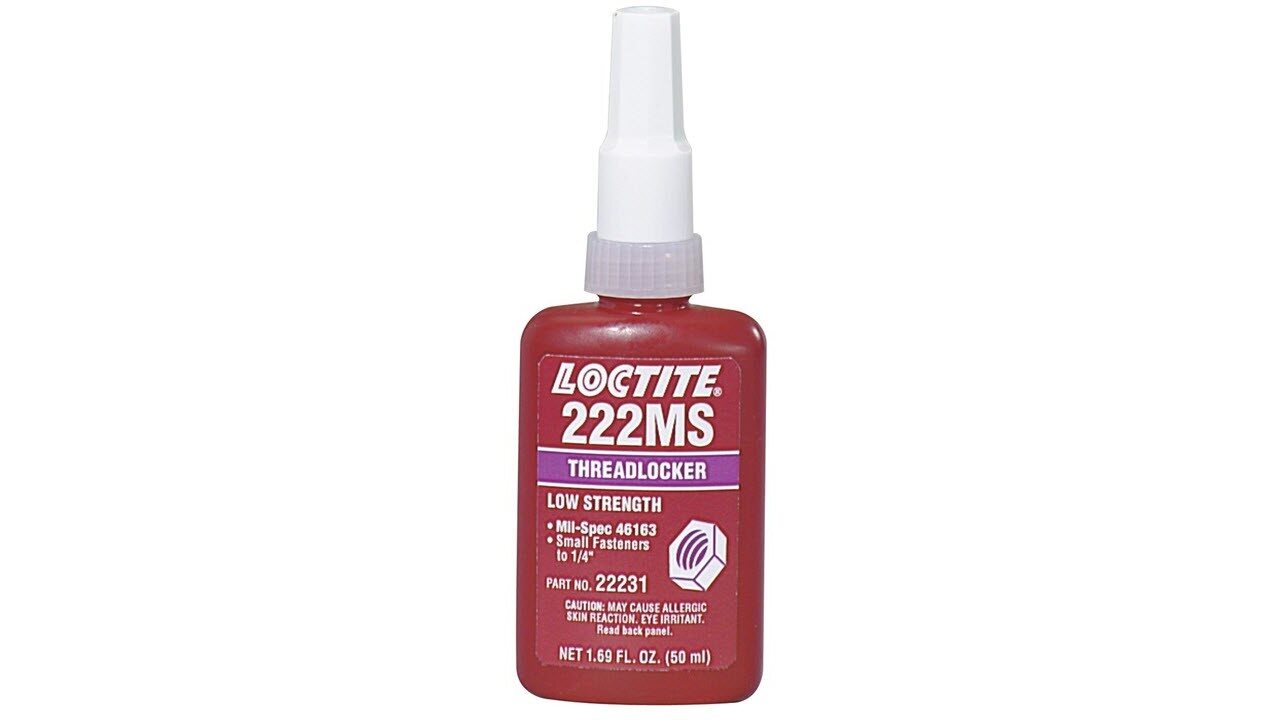

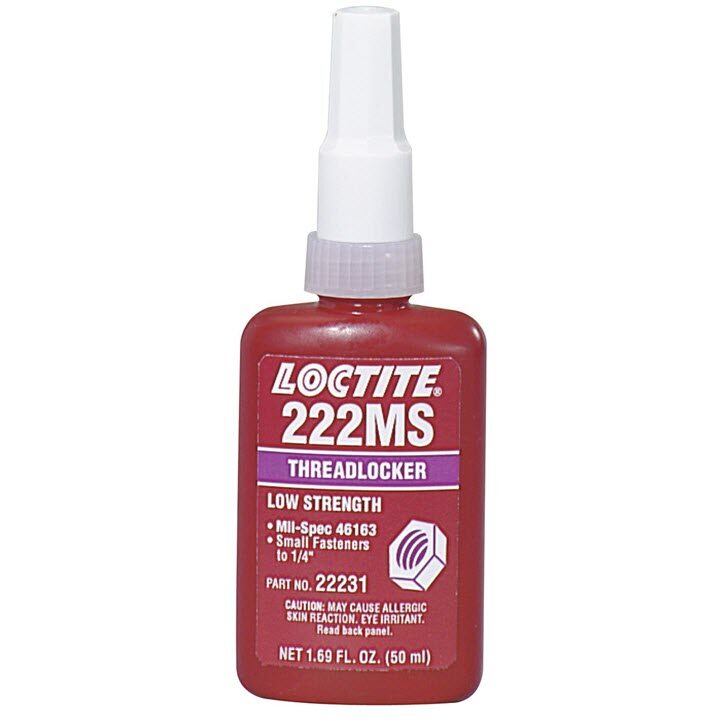

  6. Secure rear fascia diffuser
    Informational PurposesAn informational icon, calling your attention
    Note
    7x bolts, 10mm, 5 Nm, 6x push clips, 2x fastener covers, Apply Loctite 222 onto bolts
  7. lnstall mid aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 11x bolts, 10mm, 5 Nm, Position rear datums first, Apply Loctite 222 onto rear aero shield bolts

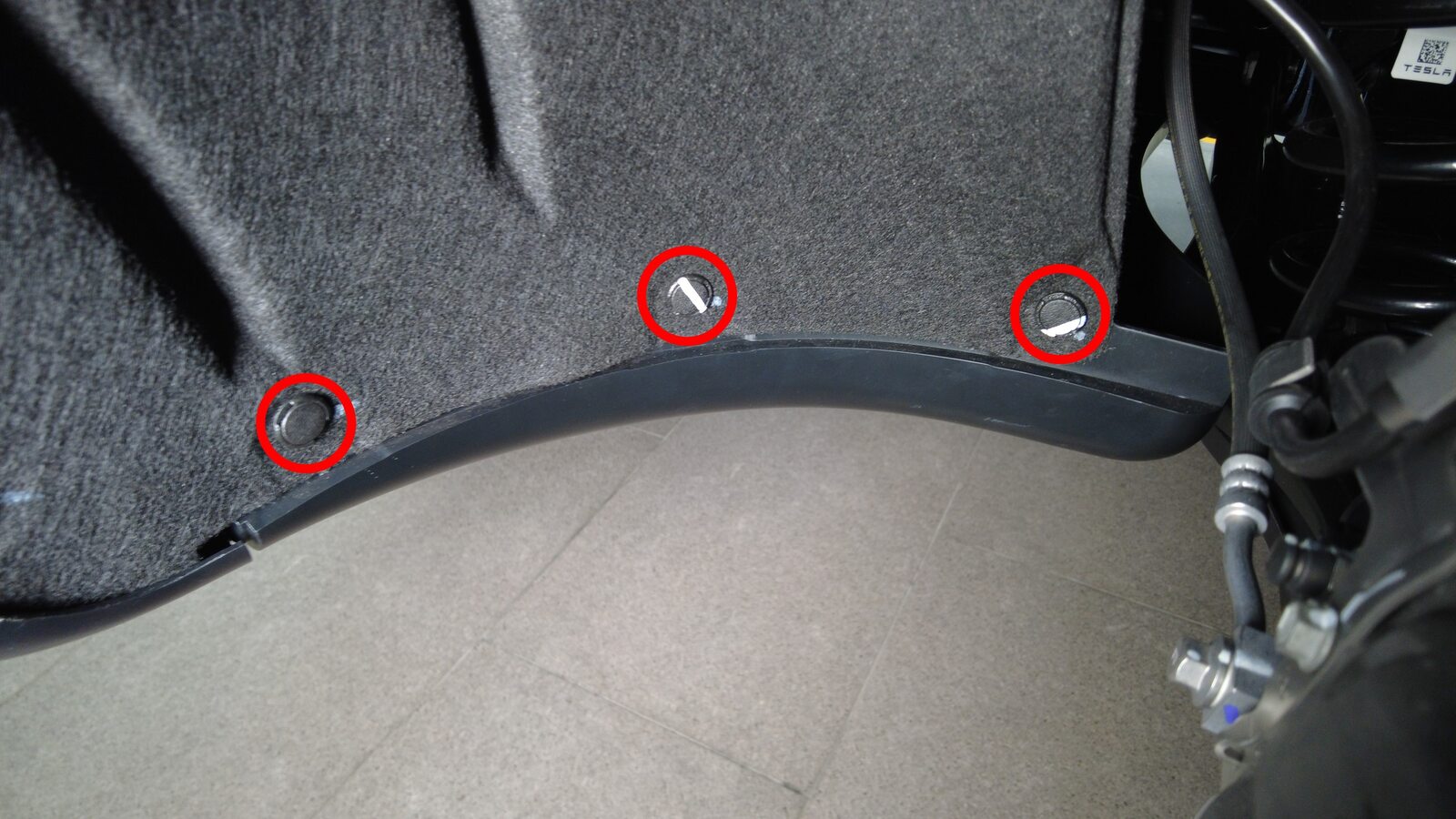

  8. Install LH and RH push clips securing mid aero shield to wheel house liner
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

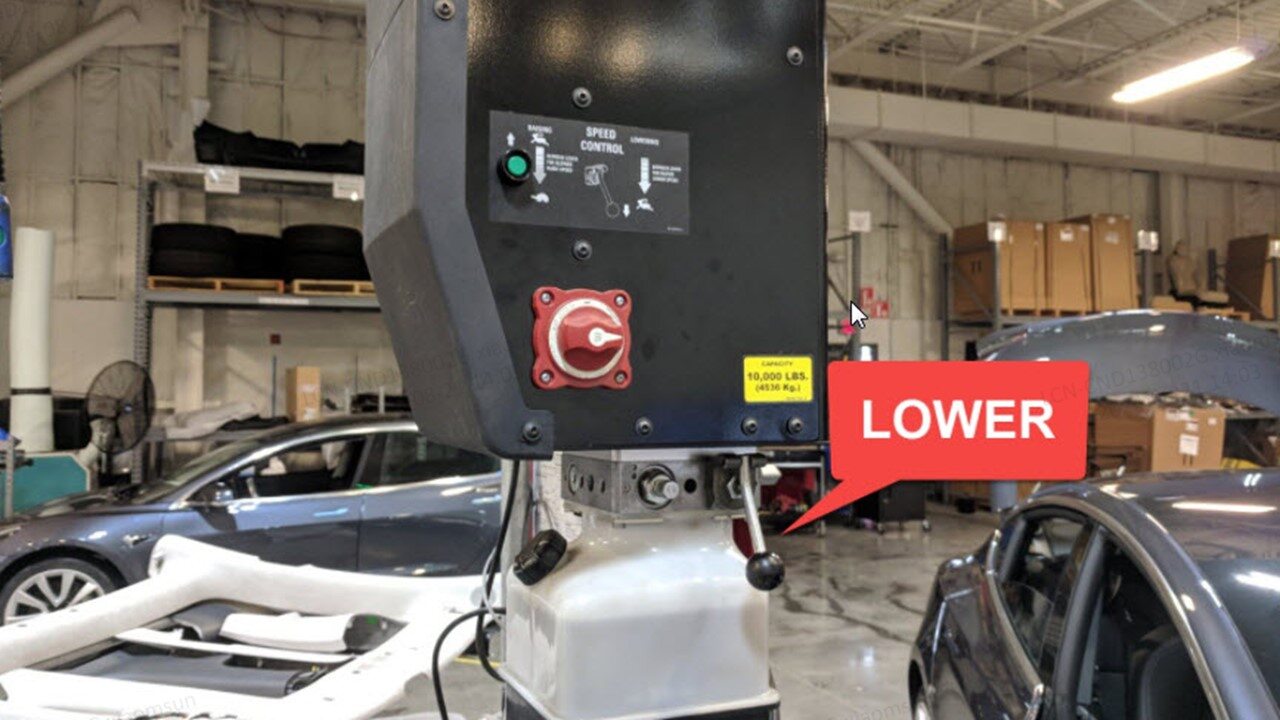

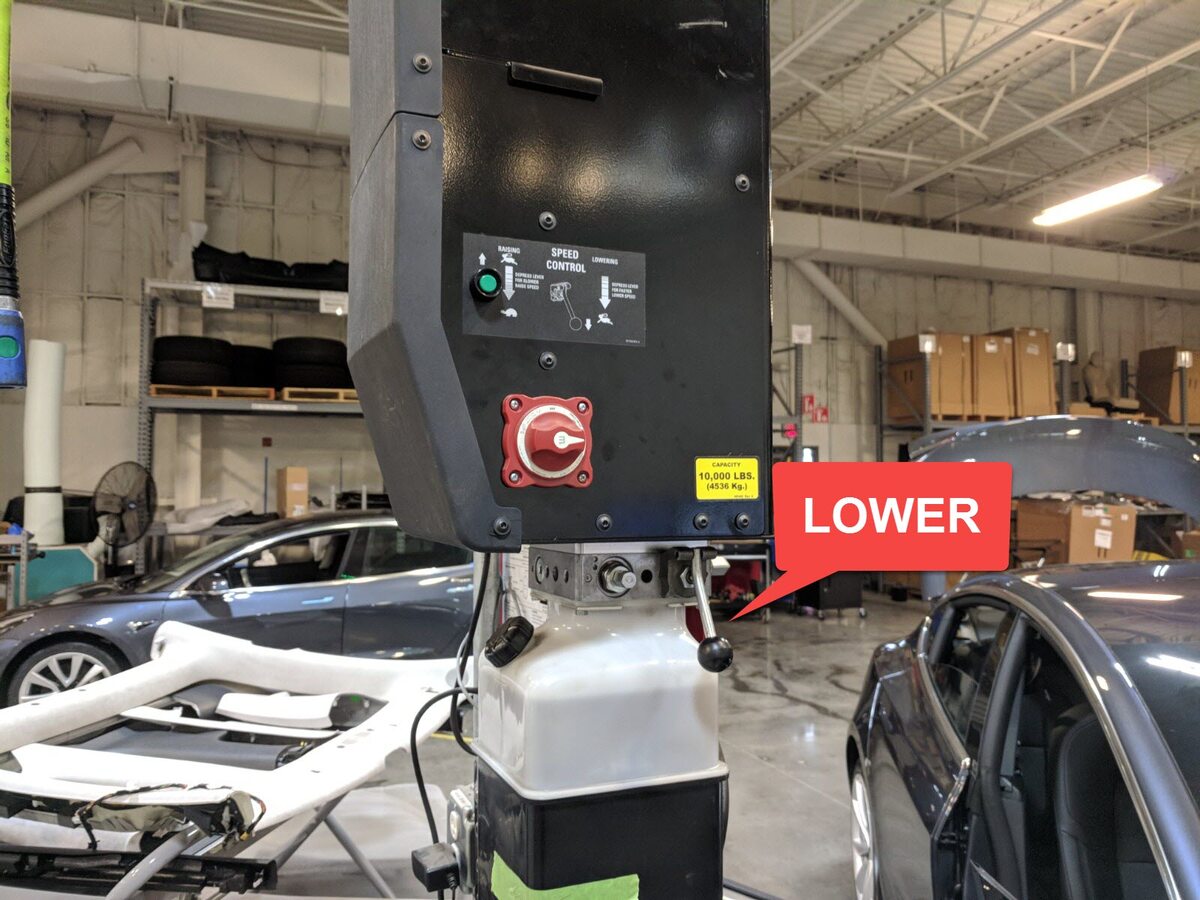

  9. Lower vehicle fully
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered
  10. Remove vehicle from lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Lower rack arms fully and remove from under vehicle
  11. Push vehicle away from lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Place wheel chocks to keep vehicle from moving, Note this vehicle can only be safely pushed for a very short distance and at very slow speed
  12. Install LH body harness ground strap to LH side trunk area
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10 Nm

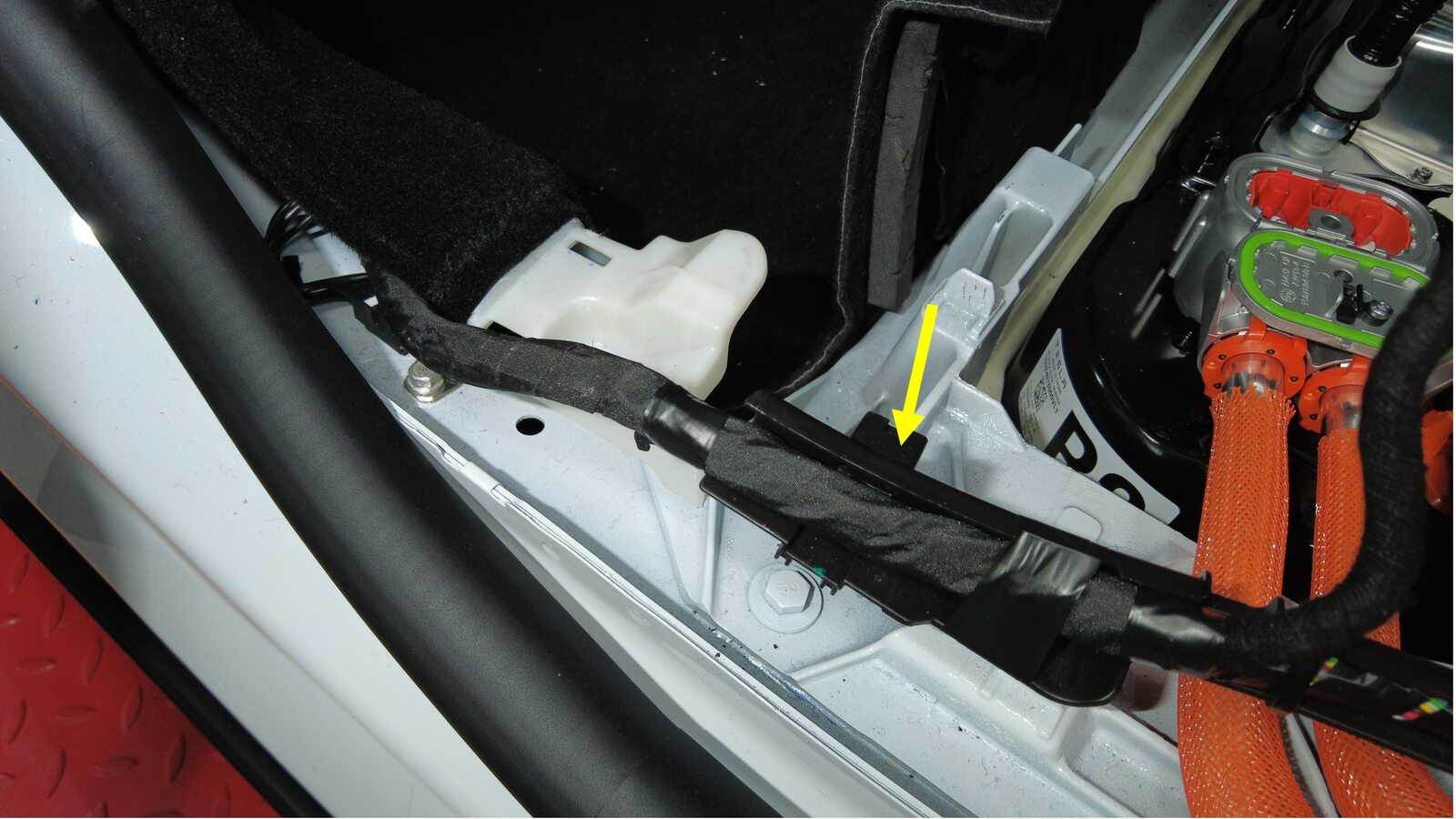

  13. Secure LH body harness clips onto LH side trunk area
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  14. Connect connectors to chargeport assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, Engage locking tab
  15. Connect charge port ECU two connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors

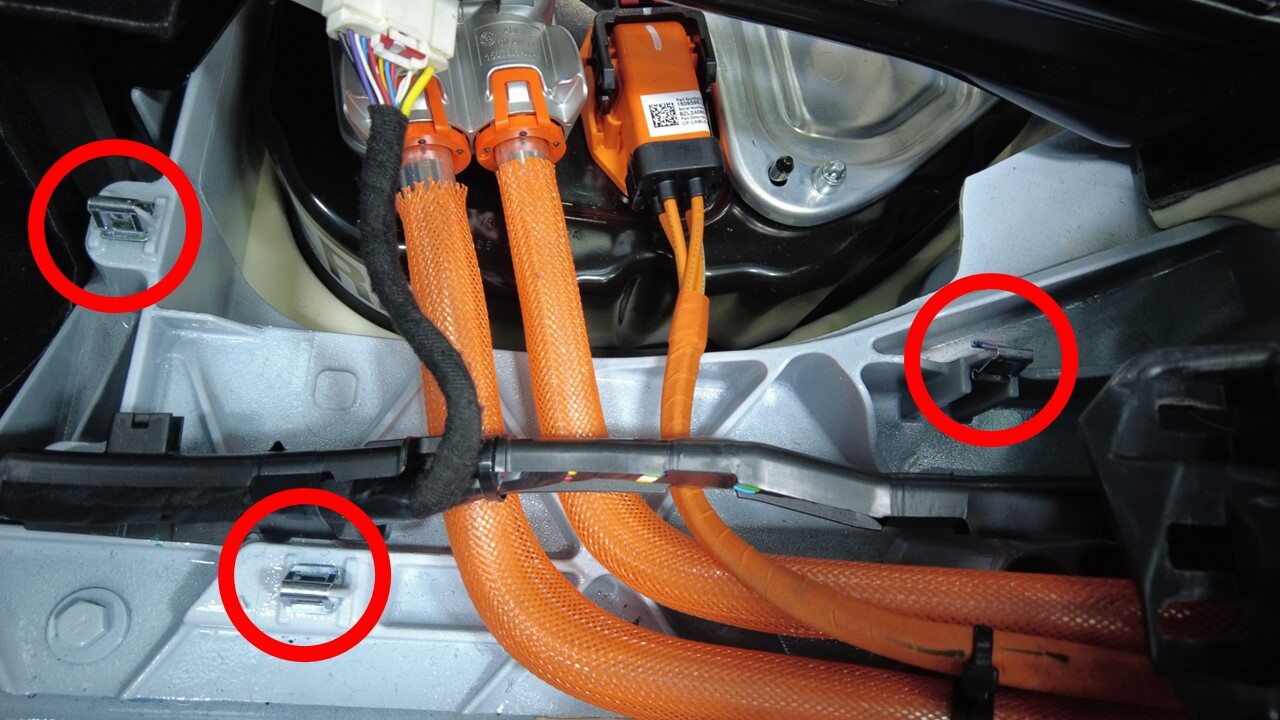

  16. Secure LH body harness clips around LH C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips
  17. Connect harness connector for LH side curtain air bag
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
  18. Connect LH power strut harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  19. Secure LH rear section of headliner to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, 1x location pin, Headliner will be partially supported 1x tether clips at rear corners
  20. Connect LH 2nd row retractor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, When the connector is fully seated, you will hear the "click" sound
  21. Fasten clips LH body harness to rear body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  22. Install LH body harness onto rear body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  23. Connect 2nd row 60 seat connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage the tab
  24. Install LH body harness ground strap to LH rear sill area
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10 Nm
  25. Secure charge port manual release cable onto cable bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  26. Install LH upper C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 5x datums, 2x tabs, 1x release cable, Secure chargeport manual release cable to trim, Feed seat belt through the trim if removed, Seat trunk seal to edge of trim
  27. Install LH trunk side trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x push clip, 4x clips, 7x tabs, 6x location pins, guide front clip stanchions around LH C-pillar, trim part may slightly differ by vehicle build location, and the number of clips may also vary
  28. Install LH trunk pocket bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  29. Install LH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    4x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, If clip position is changed or push-pull action shows bracket not secure, Remove clip from tab and seat clip into doghouse on bracket and reinstall
  30. Install trunk sill trim onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 2x location pins, Seat seal around edge of trim

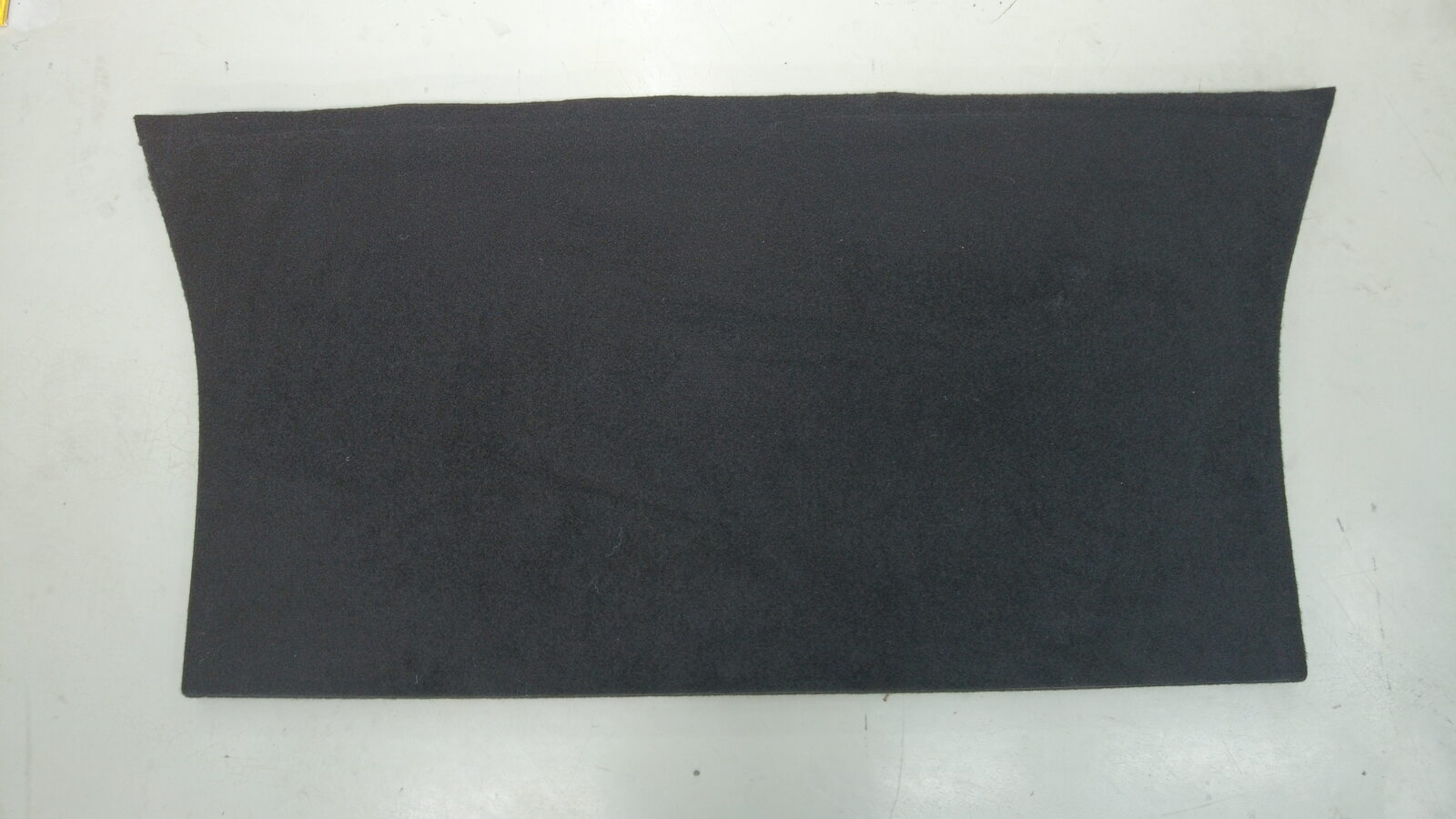

  31. Install front load floor
  32. Install rear load floor
  33. Return 2nd row 60 seatback to vertical position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via seat switch or manual tether, Remove seatback protection if necessary
  34. Install LH lower C pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 2x guide tabs, Align guide tabs, Then press down to securing all clips
  35. Partially install LH rear primary door seal
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify seal is seated properly on all trim panels

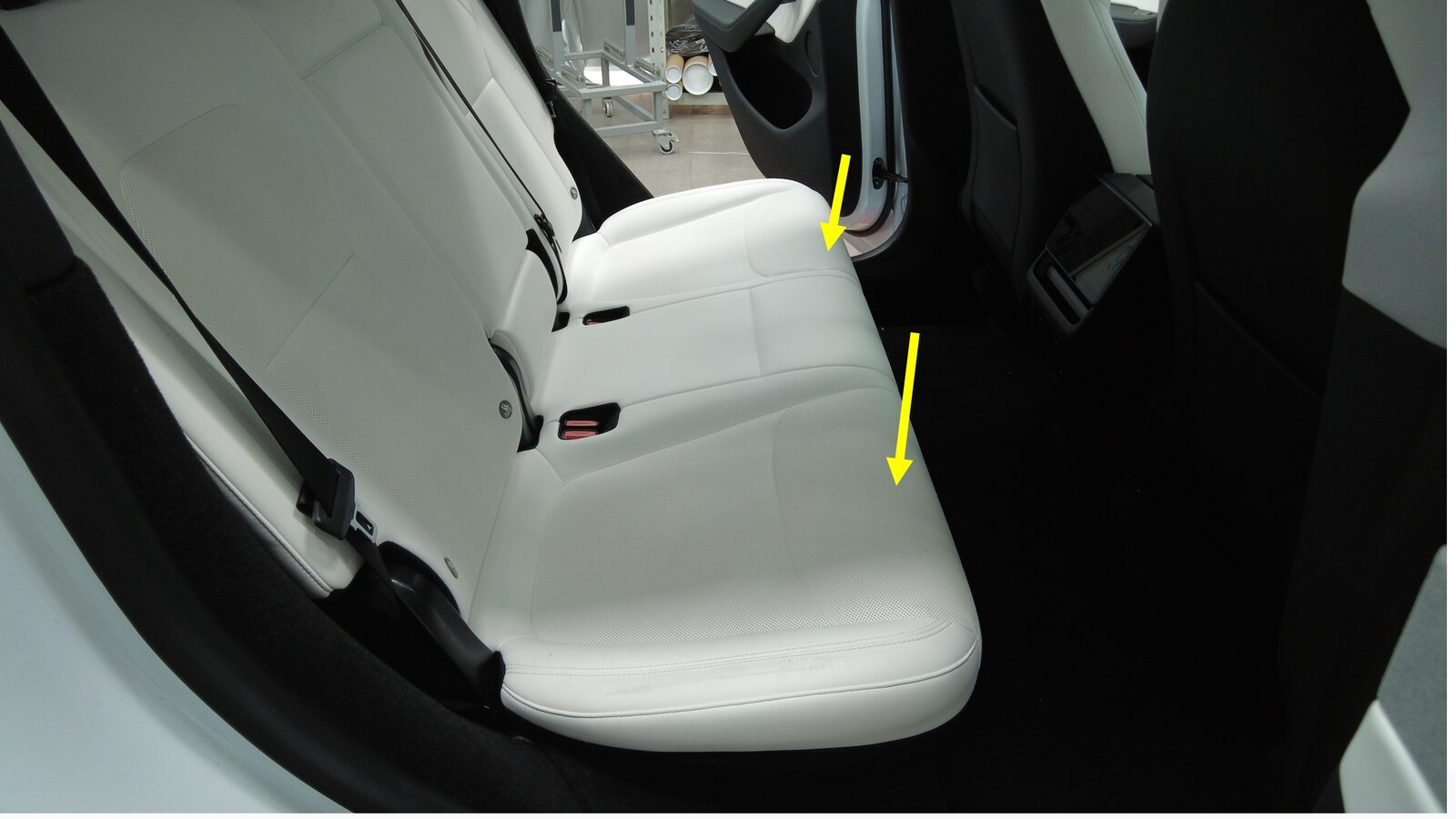

  36. Install 2nd row seat cushion
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion
  37. Install LH body harness to under front seats and center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure there is no resistance when arranging the LH body harness
  38. Connect LH body harness connectors to below RH front seat
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Engage locking tab
  39. Connect LH body harness connector to RCM
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  40. Install harness clip to 1st row podium
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  41. Secure LH body harness clips under front seats and center console
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x guide pin
  42. Position center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Tilt front of console downward, Slide assembly toward front of vehicle then tilt rear of console downward, Both front seats must fully rearward
  43. Secure center console connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x clip
  44. Install rear bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  45. Install center console rear end panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 6x guides, Position lower guides then secure upper clips
  46. Install LH rear door harness connector to B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  47. Install LH rear door harness connector to B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x clips, 1x grommet, Verify seal is fully seated around white clip prior to installation, Press LH rear door harness connector to body harness connector, Hold body harness connector in place till audible click is heard, Gently pull body harness connector to ensure its secure, Ensure door harness grommet is seated to B-pillar
  48. Connect LH B pillar accelerometer sensor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  49. Connect LH front retractor connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Press the connector. When the connector is fully seated, You will hear the click sound of the secondary locking pin returning
  50. Secure LH body harness to upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Feed applique section of harness through body opening
  51. Secure LH body harness to lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips

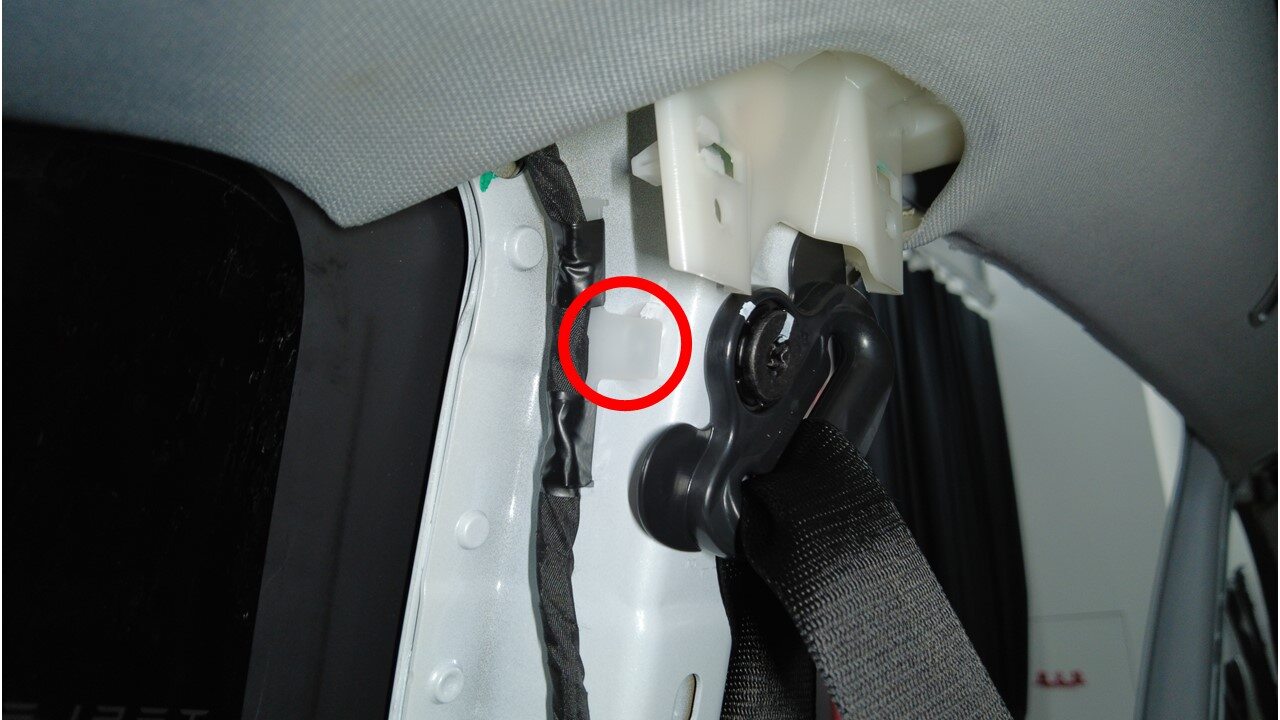

  52. Install LH upper B pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x edge clips, 2x clips, 2x locator pins, Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them
  53. Install LH lower B pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 1x locator tab, 9x clips, 1x push clip, Align the locator tab to slot, push in the direction of the arrow to install the clips after aligning them, then install both side tabs

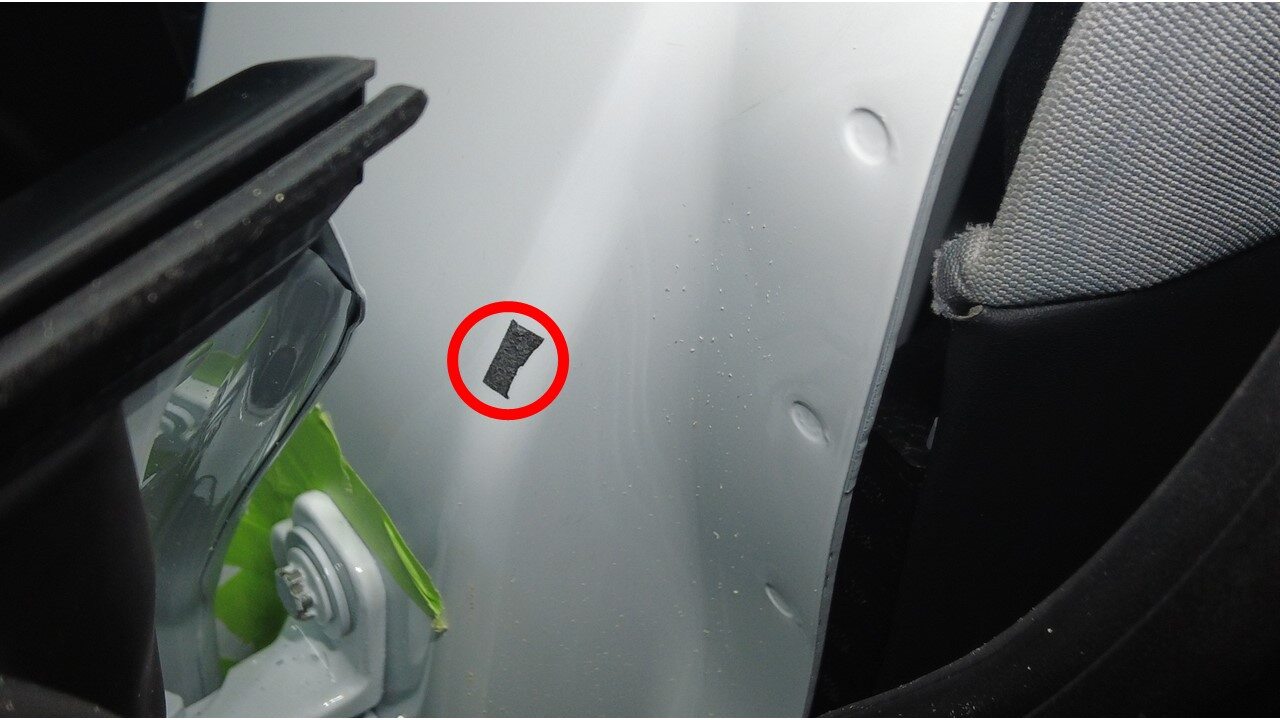

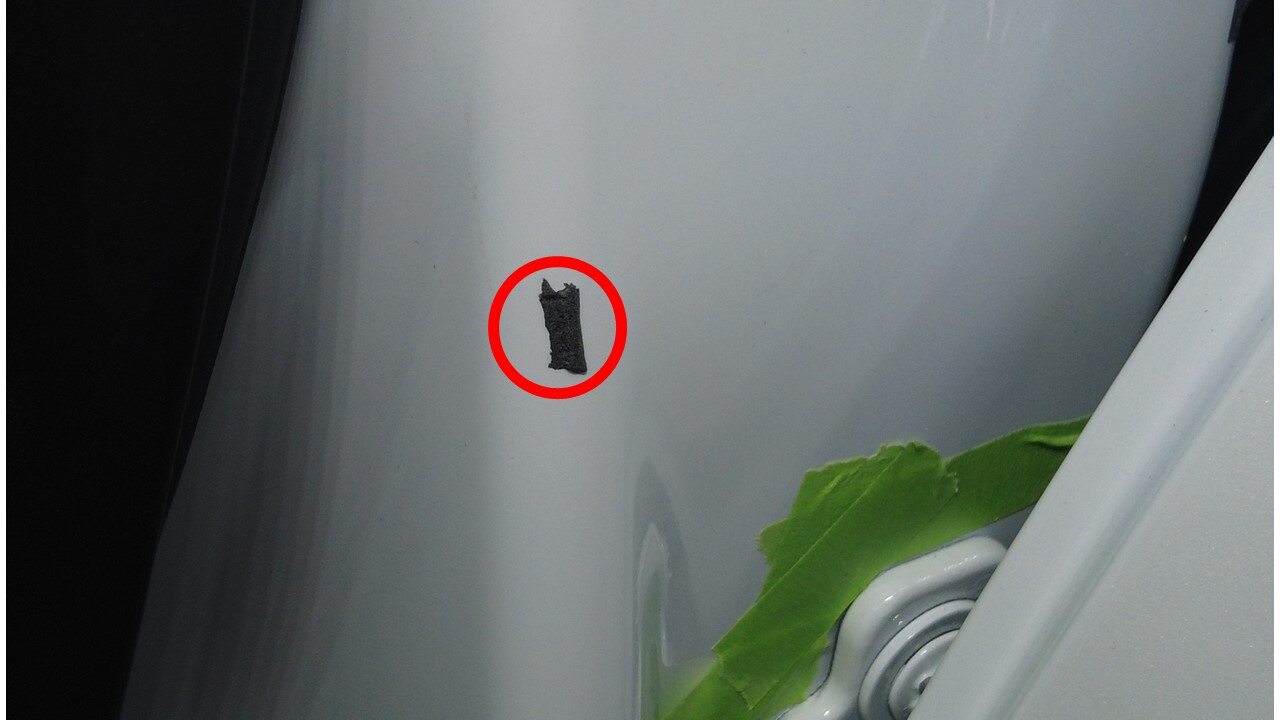

  54. Clean residual adhesive from B-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    Wipe surface with IPA once free from adhesive residue, Allow 1 minute for IPA to dry

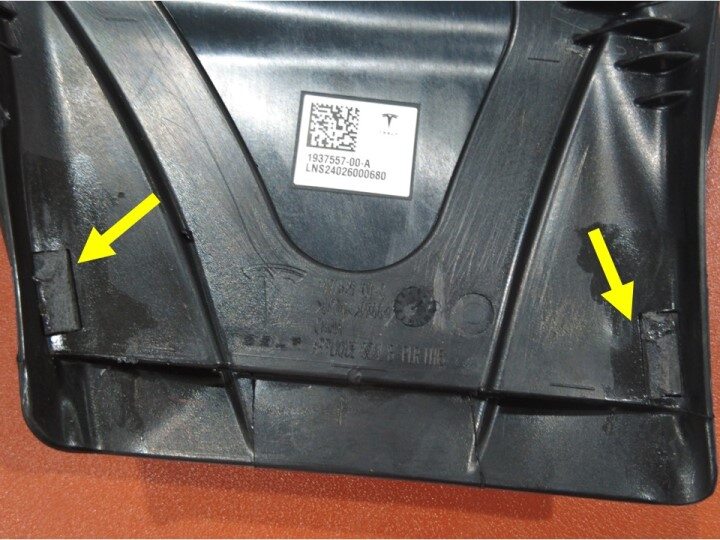

  55. Replace double-sided tape on B-pillar applique seal
    Informational PurposesAn informational icon, calling your attention
    Note
    Cut two sections of tape to match original adhesive strips, Apply to seal at indicated locations
  56. Install LH B-pillar applique
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 3x clips, 2x adhesive strips, 1x hook, 1x datum, Peel backing off double-sided adhesive, Secure connectors then engage locking tabs, Align hook by sliding upwards then push inwards from bottom of applique to secure clips, Apply pressure to applique seal to wet out adhesive strips
  57. Install RH front cabin carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, Ensure carpet seated on properly position
  58. Install RH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  59. Install center console RH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips, 2x datums
  60. Install RH front seat into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Install seat from front RH door opening, Assistant should be ready to support seatback once it is in the vehicle, Caution not to damage any trim
  61. Secure RH front seat harness under RH front cabin carpet
  62. Install clips securing RH seat harness to sill trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, Tuck excess harness between harness bracket and body
  63. Connect RH front seat harness to RH controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  64. Secure front RH cabin carpet cover to RH knee air bag cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x magnets, 2x datums
  65. Install RH lower A pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 4x guide tabs, 1x push clip, Align front guide tabs then align slot with harness bracket and then push rear clip to secure, Make sure all clips and tabs fully seated
  66. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 2x guide tabs, Pull the seal over end cap
  67. Install RH front primary door seal
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify seal is seated properly on all trim panels
  68. Install LH front cabin carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, Ensure carpet seated properly
  69. Secure LH body harness clips to LH front sill area
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x location pin
  70. Secure LH body harness clips to LH A-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  71. Connect headliner harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  72. Secure front main harness ground on LH A-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10 Nm
  73. Connect J4 body connector to vcleft
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Fully seat connector then engage lock
  74. Connect J2 body connector to vcleft
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Fully seat connector then engage lock
  75. Connect LH body harness to left controller
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, Connectors J2 J4 J5, Engage locking tabs
  76. Connect front main harness to LH body harness
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Connector X909
  77. Install LH front seat into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Install seat from front LH door opening, Assistant should be ready to support seat back once it is in the vehicle, Caution not to damage any trim
  78. Secure LH front seat harness under LH front cabin carpet
  79. Install clips securing LH seat harness to sill trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, Tuck excess harness between harness bracket and body
  80. Connect LH front seat harness connector to LH controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  81. Install LH lower A pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 4x guide tabs, 1x push clip, Align guide tabs with body and harness bracket then push downwards to secure
  82. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 2x guide tabs
  83. Partially install LH front primary door seal
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify seal is seated properly on all trim panels
  84. Install LH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  85. Install center console LH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note
    17x clips, 2x datums, Align with pedal cover, Maneuver around KAB cover to prevent damage

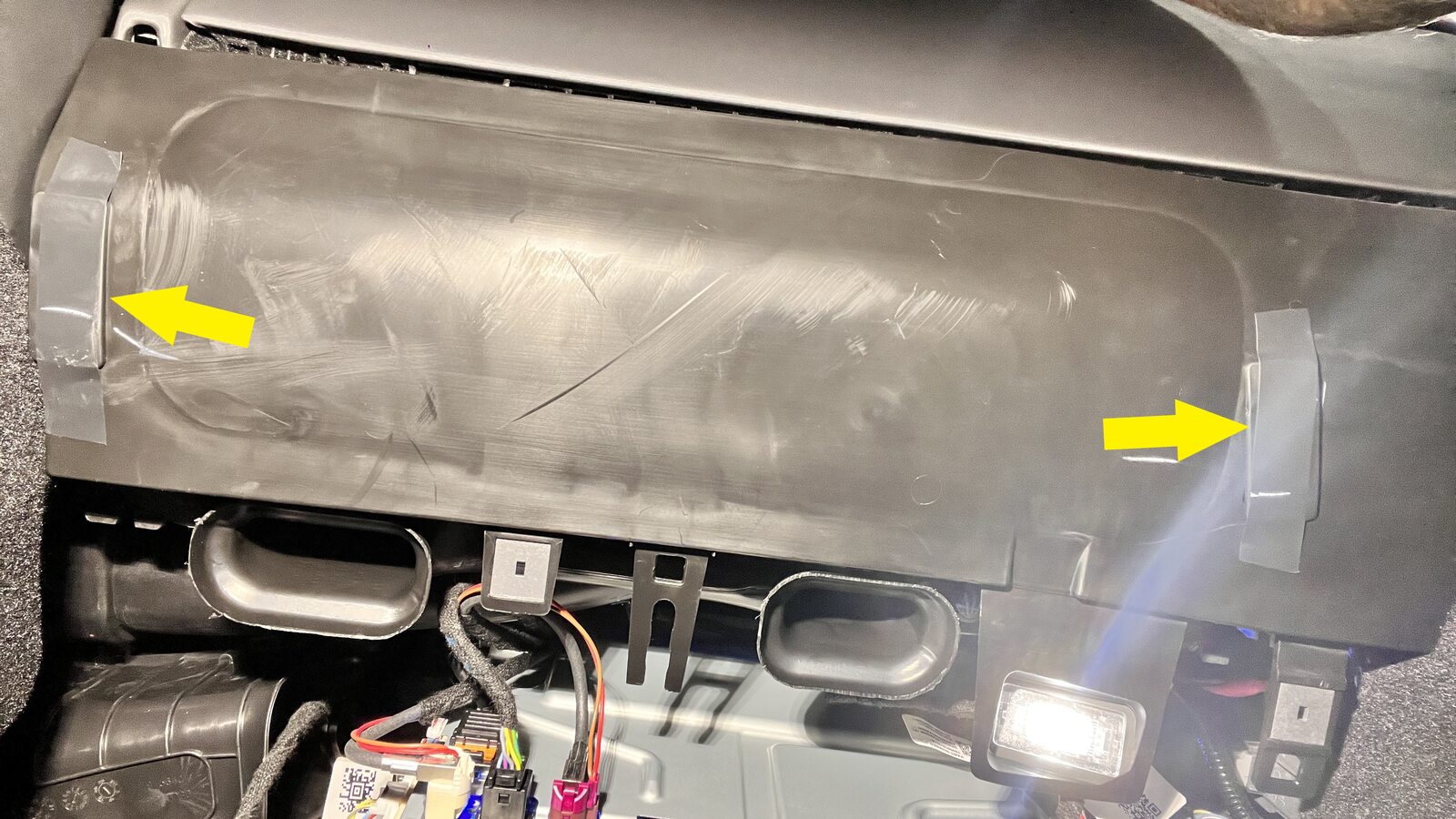

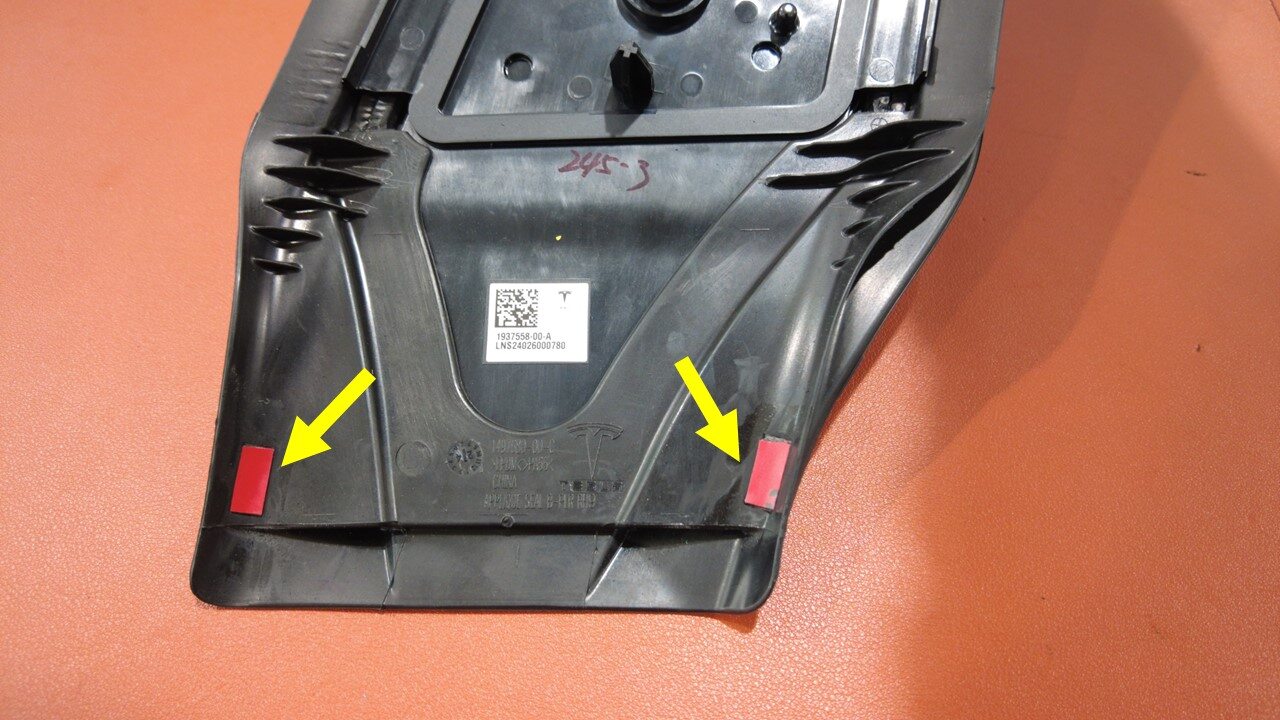

  86. Install LH knee air bag assembly onto IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Ensure air bag connector is fully engaged, Apply knee airbag label over squib assembly
  87. Install bolts securing LH knee air bag
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, EP10, 8.5 Nm, Install new bolts
  88. Install LH knee air bag bolt covers
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers

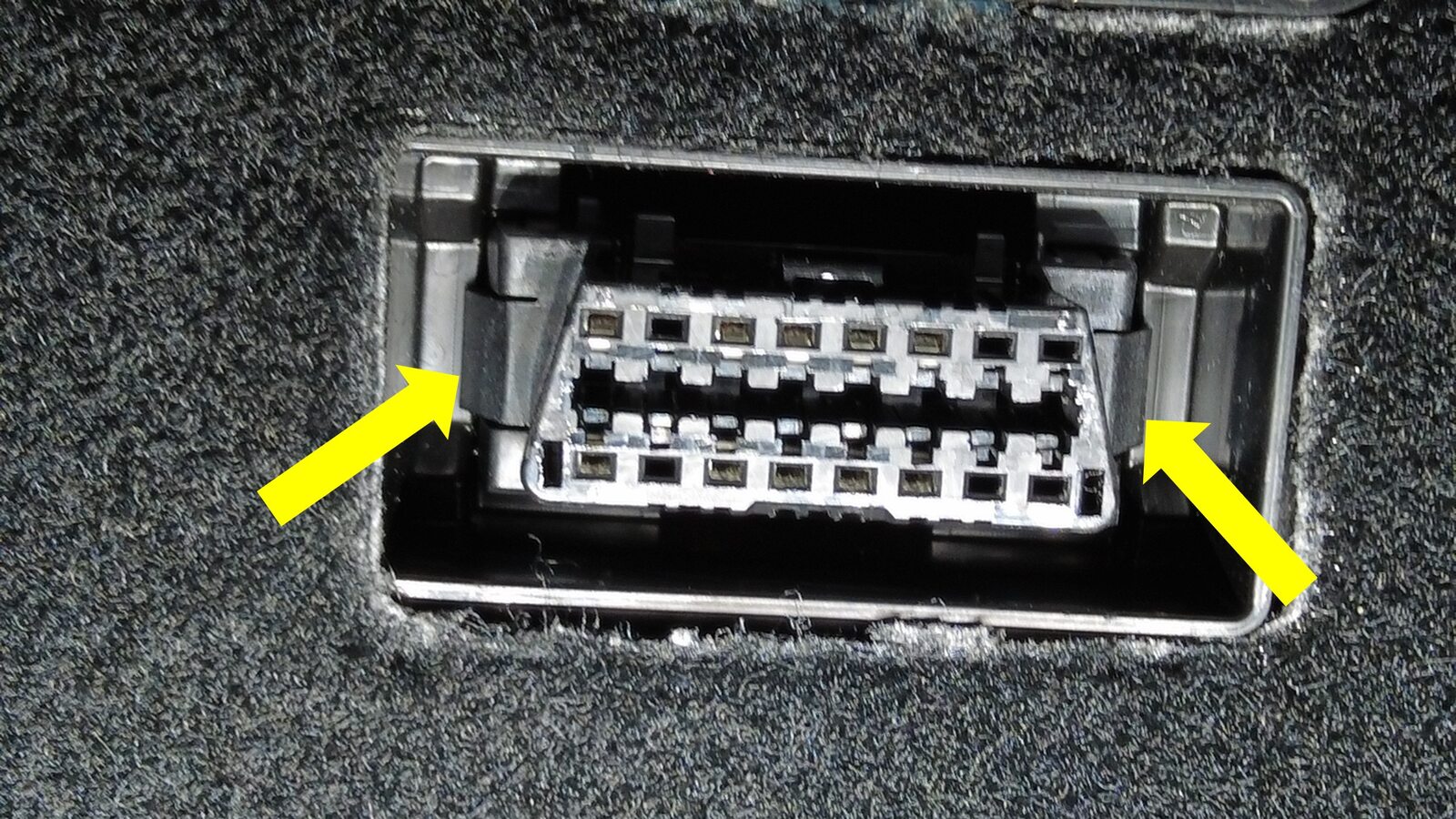

  89. Secure OBD port to LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, Ensure black tabs in lock position
  90. Secure LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x magnets, 2x datums
  91. Connect first responder loop and LV battery
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  92. Install HEPA filter or big basin
    Informational PurposesAn informational icon, calling your attention
    Note
    Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Secure basin fasteners then install basin cowl, Fold rear flap of base frunk back to access front row of clips to cowl, Replace any missing or damaged clips, Do not pinch washer line in between big basin and body

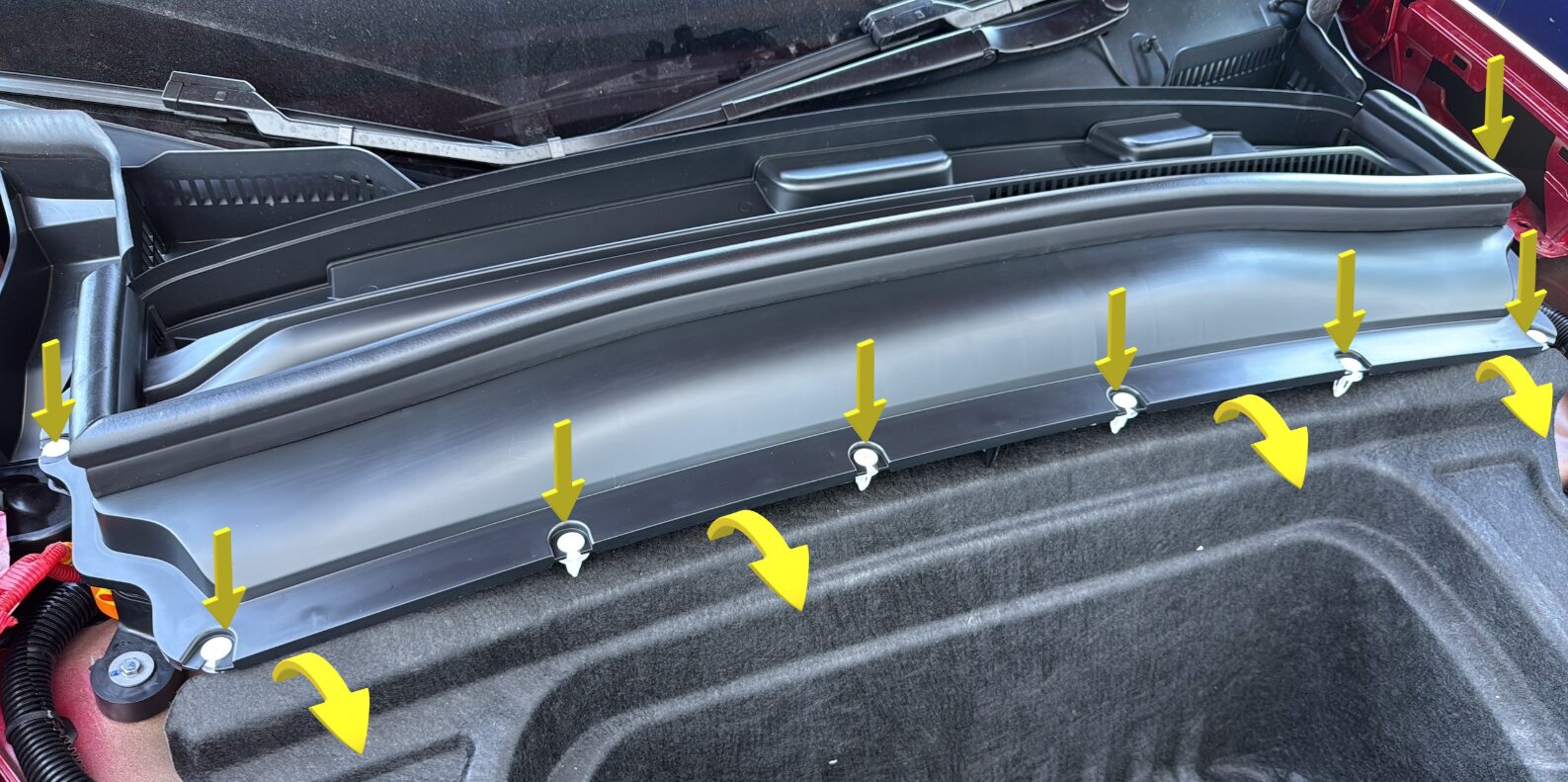

  93. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    Note
    16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron
  94. Close hood
  95. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  96. Install LH front seat front bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  97. Move LH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  98. Install LH front seat rear bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  99. Install seat belt retractor to LH front seat pre tensioner
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test
  100. Move RH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls
  101. Install RH front seat front bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  102. Move RH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls

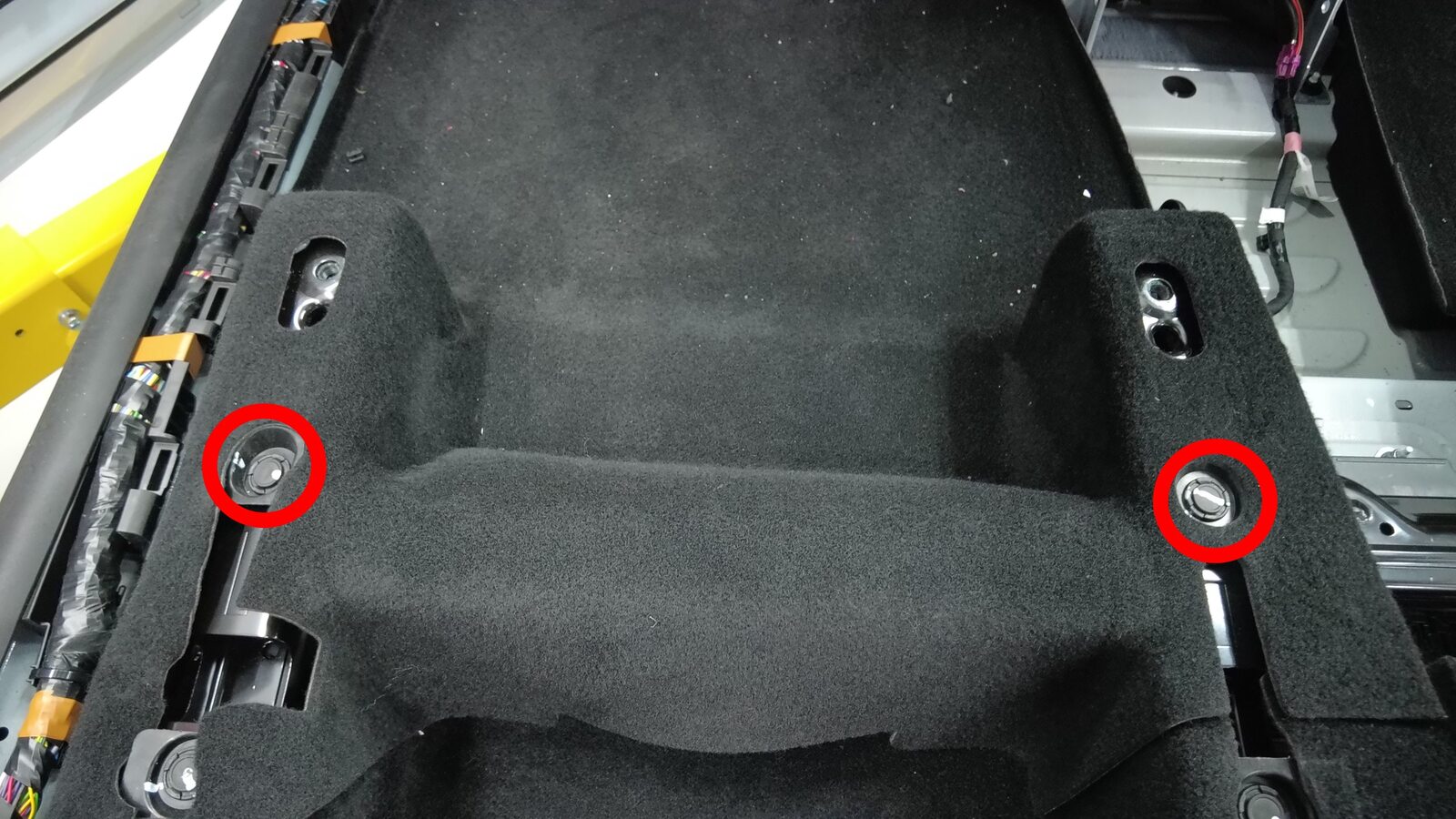

  103. Install RH front seat rear bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts

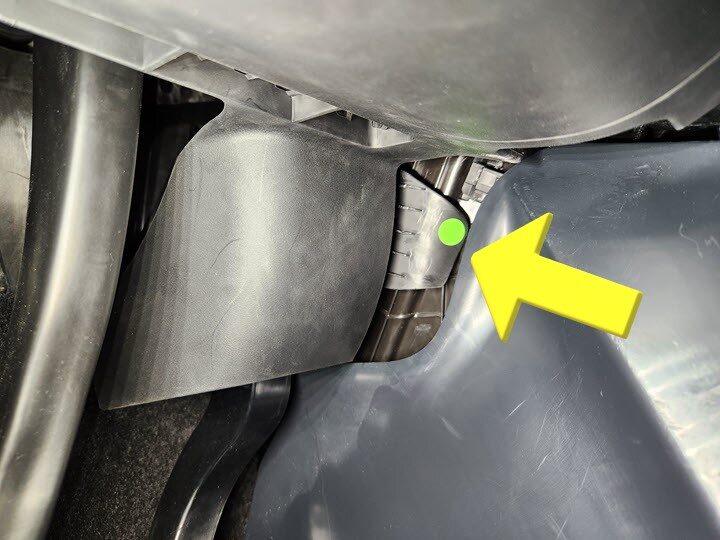

  104. Install seat belt retractor to RH front seat pre tensioner
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test
  105. Close liftgate
  106. Move RH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls
  107. Move LH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  108. Run ODIN routine
  109. Run ODIN routine
  110. Run ODIN routine
  111. Remove wheel chocks
  112. Raise all four window
  113. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    Note
    Unlatch doors before closing if necessary
