Web Guide - Seatbelt - 1st Row - LH (Remove and Replace)

Correction code 2005010202 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2025-04-21: Updated torque and image of the web guide bolt.

Torque Specifications

Table 1. Torque Specifications: Web Guide - Seatbelt - 1st Row - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes

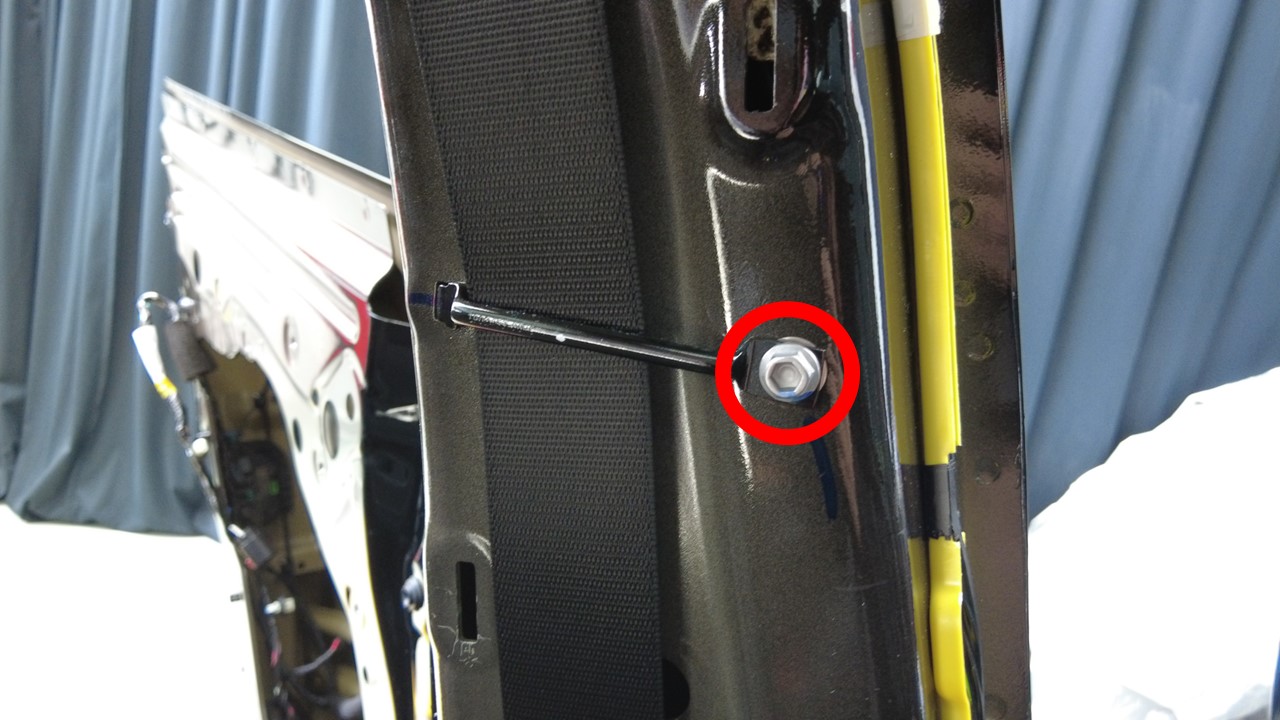

Bolt that attach the LH 1st web guide bar to the vehicle
10 Nm (7.4 lbs-ft)
  • 10 mm socket
  • Ratchet/torque wrench
  • Only for installation: Torque Wrench 1/4in Dr. + Angle - 1076971-02-A
 Replace

Remove

  1. Release the LH B-pillar upper trim and move it aside. See Trim - B-Pillar - Upper - LH (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to release the seatbelt from the pretensioner.
  2. Remove the LH front seat belt web guide.
    Informational PurposesAn informational icon, calling your attention
    Note
    The web guide will be supplied with bolt and gasket as an assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Ratchet/torque wrench
    • Only for installation: Torque Wrench 1/4in Dr. + Angle - 1076971-02-A

Install

  1. Install LH front seat belt web guide.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Ratchet/torque wrench
    • Only for installation: Torque Wrench 1/4in Dr. + Angle - 1076971-02-A
  2. Install the LH B-pillar upper trim. See Trim - B-Pillar - Upper - LH (Remove and Replace).
