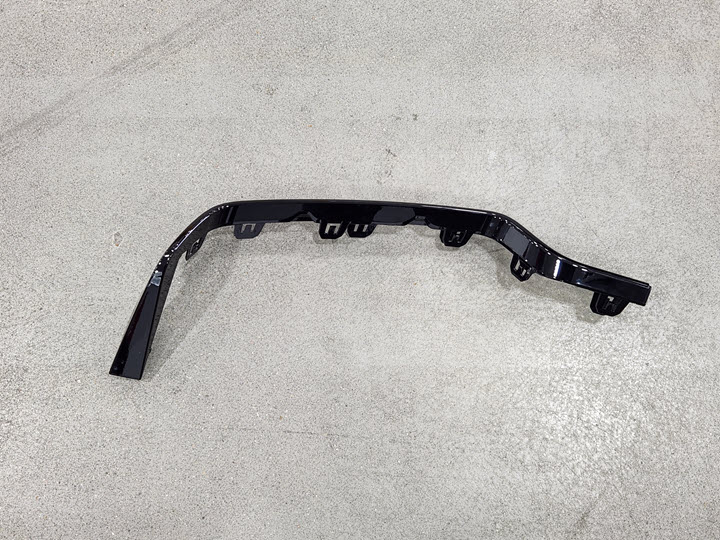

Splitter - Lower Rear Fascia - LH (Performance) (Remove and Replace)
Correction code
10010502802
FRT
0.42
NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.
Remove
- Remove the rear fascia assembly. See Assembly - Fascia and Diffuser - Rear (Remove and Install).
- Remove the rear fascia lower tow hitch cover splitter. See Splitter - Tow Hitch Cover - Lower Rear Fascia (Performance) (Remove and Replace).
-

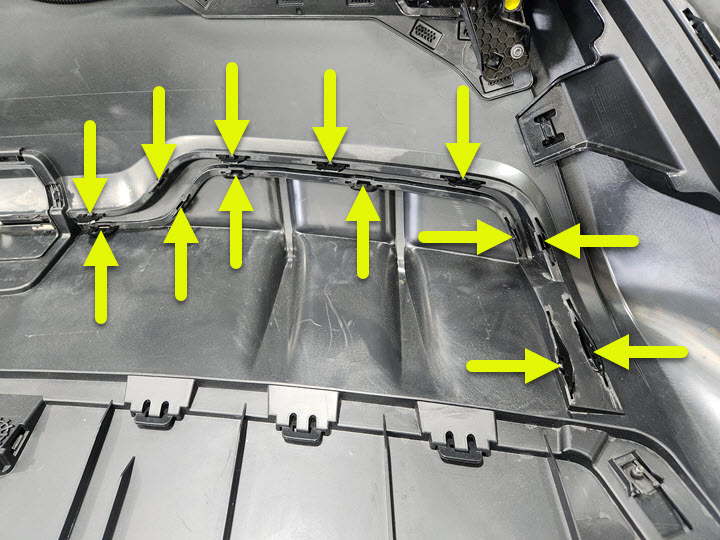

Release the clips (x13) that attach
the lower rear fascia splitter to the rear fascia assembly, and then remove the splitter
from the vehicle.
NotePush the clips from the inside of the fascia to release them.
Install
-
Install the clips (x13) that attach
the lower rear fascia splitter to the rear fascia assembly.
- Install the rear fascia lower tow hitch cover splitter. See Splitter - Tow Hitch Cover - Lower Rear Fascia (Performance) (Remove and Replace).
- Install the rear fascia assembly. See Assembly - Fascia and Diffuser - Rear (Remove and Install).
