Cover - E-Release - Liftgate (Remove and Replace)

Correction code 1513010162 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the liftgate.

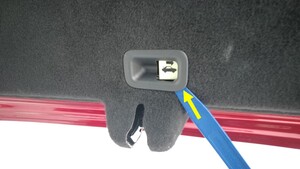

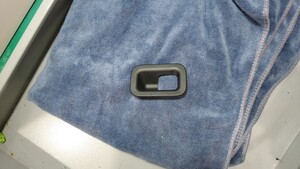

  2. Use a plastic trim tool to release the clips (x3) and tab that attach the E-release cover to the liftgate, and then remove the cover from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Start to release from the side near the release switch.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Take care not to damage the liftgate trim.

Install

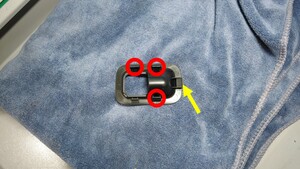

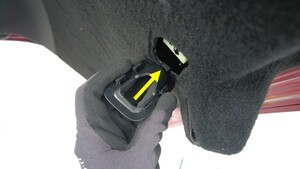

  1. Align the guide tab, and then install the clips (x3) that attach the E-release cover to the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that all clips are fully engaged.
  2. Close the liftgate.
