Air Intake Duct (Model Y Standard) (Remove and Replace)
Correction code TBD FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.
Remove
- Remove the HEPA filter or cowl assembly. See HEPA Filter Assembly (Remove and Replace) or Cowl Assembly (Model Y Standard) (Remove and Replace).
-

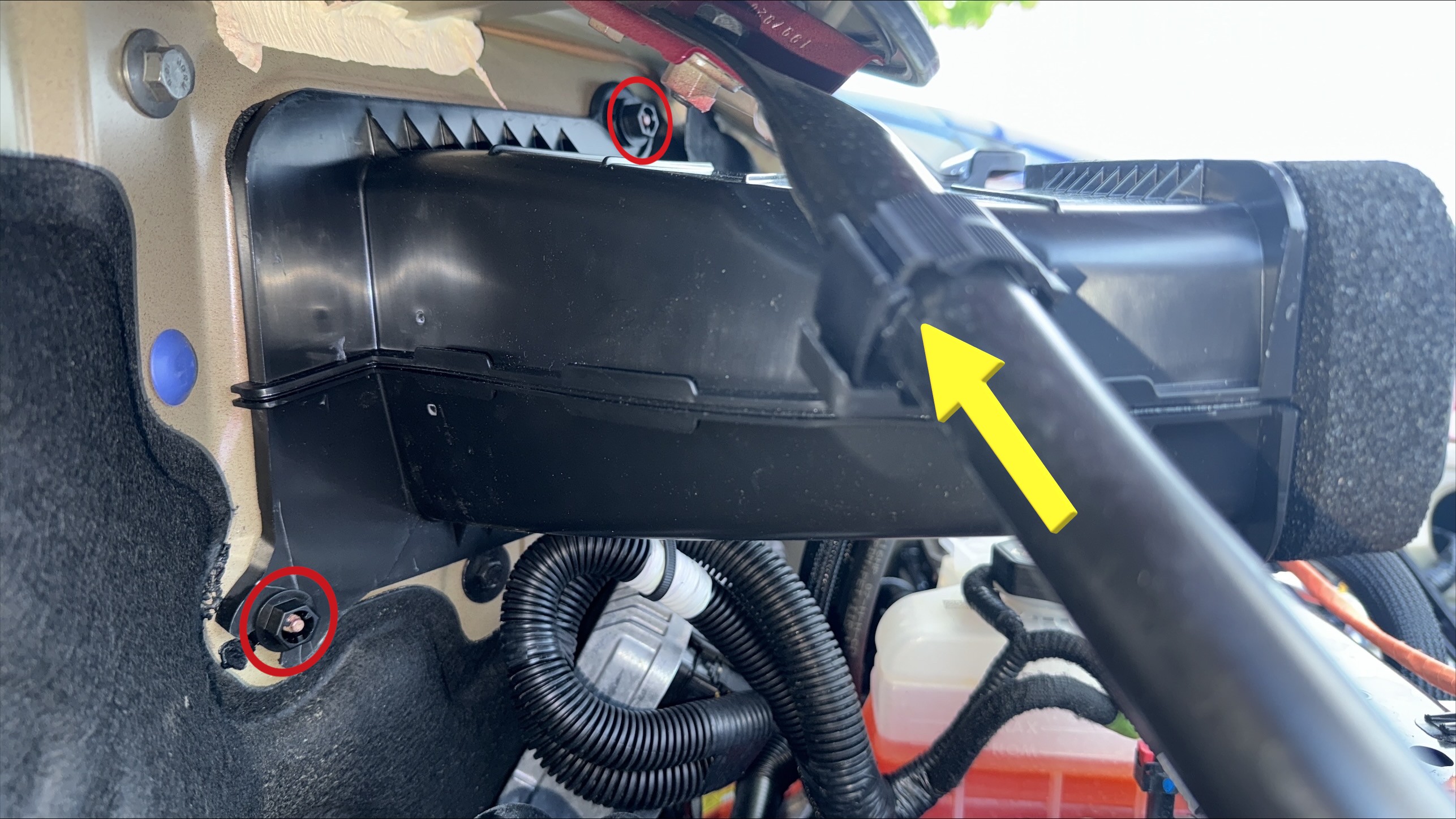

Remove the 13mm P-Nuts (x2) from the air intake duct (no torque spec), unscrew them
until fully released from the stud, and detach the P-Clamp from the strut brace.
Install
-

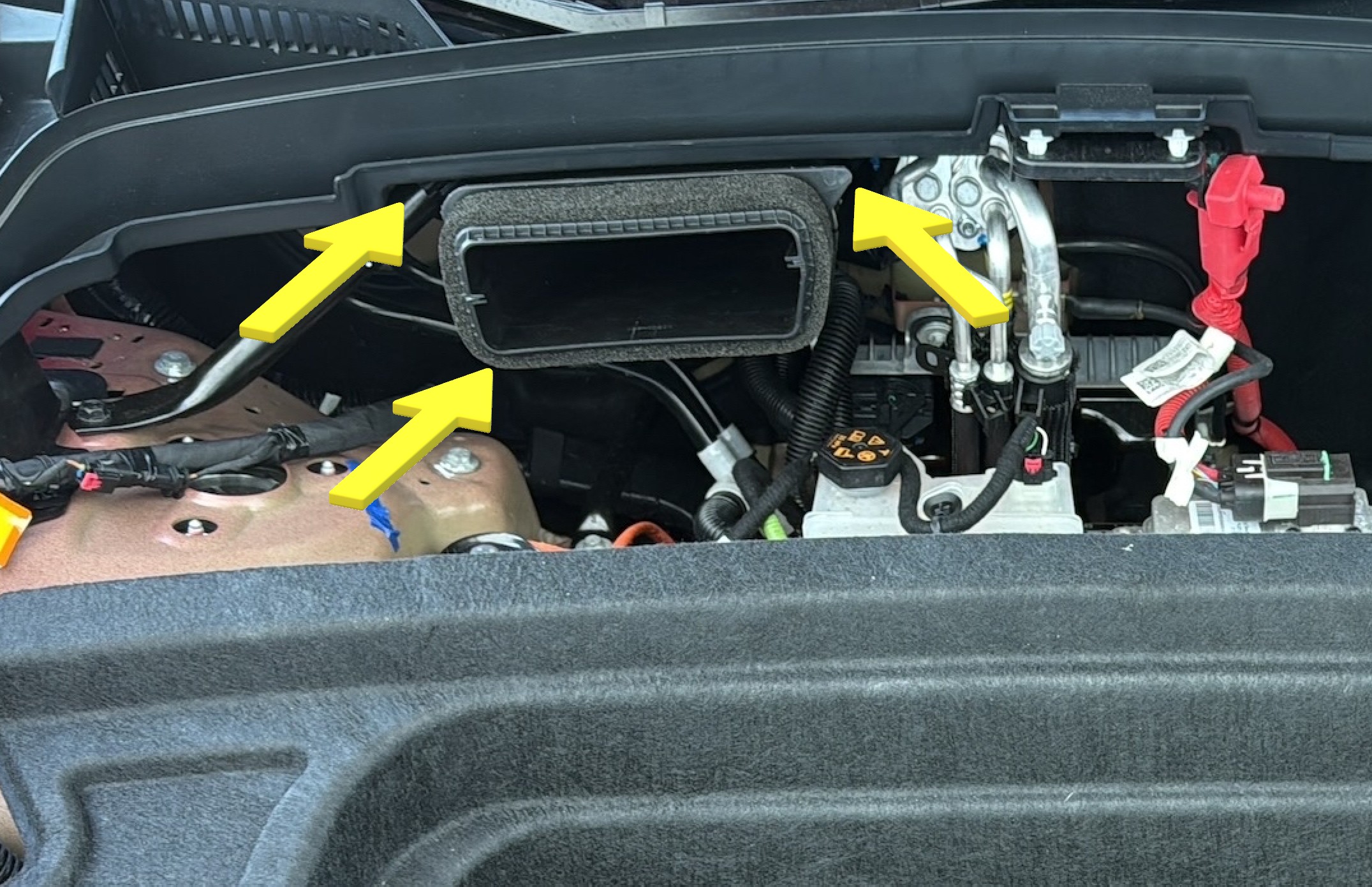

Install the air intake duct with the 13mm P-Nuts (no torque spec), push them in until
the intake seal is compressed on the dash, and secure the P-Clamp to the strut
brace.
- Install the HEPA filter or cowl assembly. See HEPA Filter Assembly (Remove and Replace) or Cowl Assembly (Model Y Standard) (Remove and Replace).
