Door Map Pocket - Door Trim - Rear - LH (Remove and Replace)
Correction code
1513091012
FRT
0.18
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Remove
- Remove the LH rear door panel. See Door Trim - Rear - LH (Remove and Install).
- Remove the LH rear door bolt cover. See Door Map Pocket - Door Trim - Rear - LH (Remove and Replace).
-

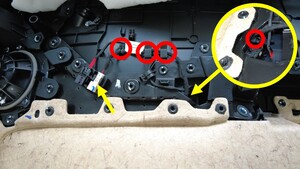

Release the tab and clips (x4) that
attach the LH rear door map pocket to the door trim, and then remove the door map pocket
from the trim.
Install
-
Position the LH rear door map pocket, and then install the tab and clips (x4) that
attach the door map pocket to the door trim.
- Install the LH rear door bolt cover. See Door Map Pocket - Door Trim - Rear - LH (Remove and Replace).
- Install the LH rear door panel. See Door Trim - Rear - LH (Remove and Install).
