Lower Front Fascia (Performance) (Remove and Replace)

Correction code TBD FRT 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

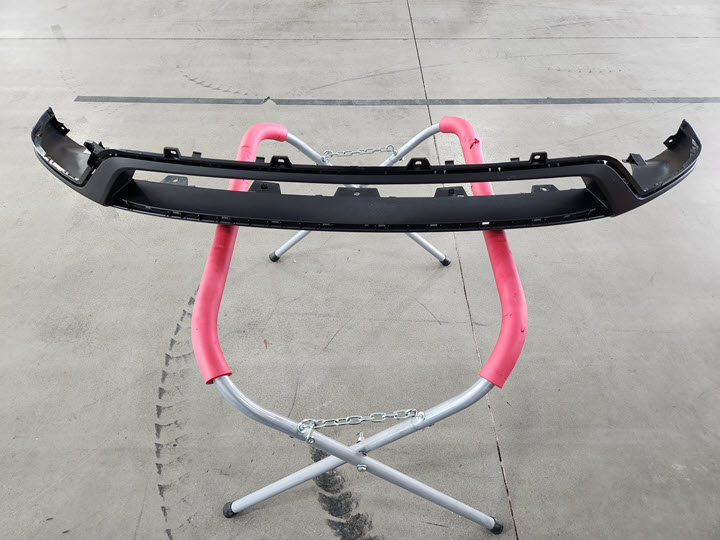

  1. Remove the lower front fascia assembly from the upper front fascia assembly. See Front Fascia (Performance) (Remove and Replace).

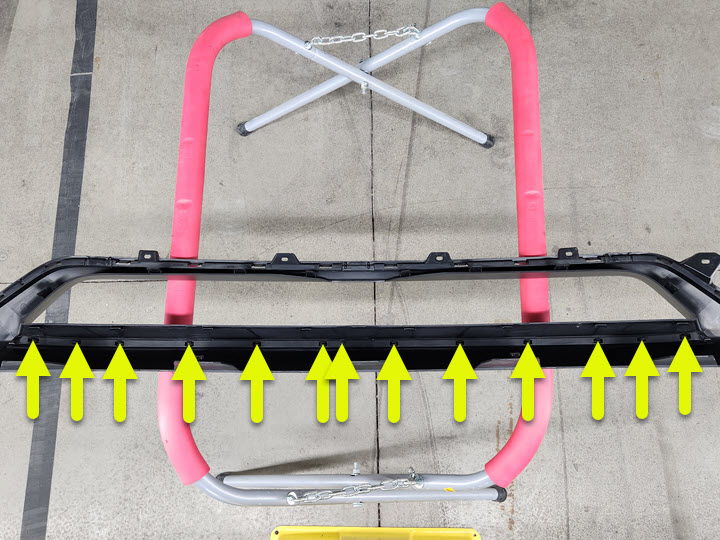

  2. Release the clips (x16) that attach the grille to the lower front fascia.

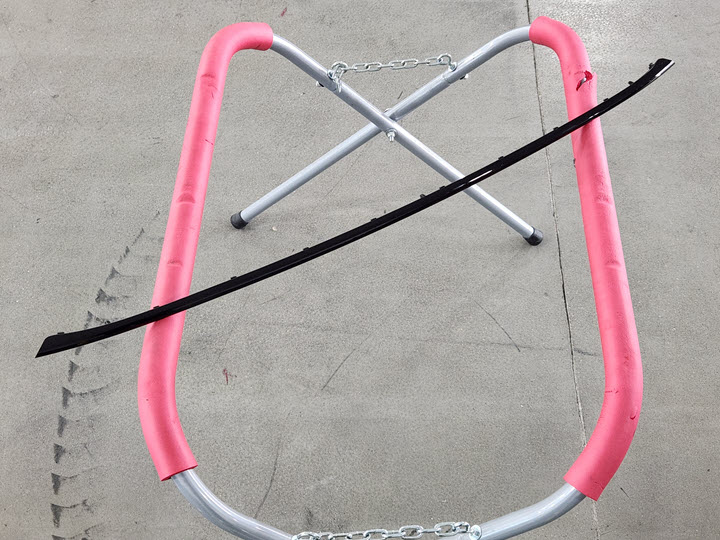

  3. Release the clips (x10) and datums (x3) that attach the splitter to the lower front fascia.

Replace

  1. Align the datums (x3), and then secure the clips (x10) that attach the splitter to the lower front fascia.
  2. Secure the clips (x16) that attach the grille to the lower front fascia.
  3. Install the lower front fascia assembly onto the upper front fascia assembly. See Front Fascia (Performance) (Remove and Replace).
