Correction code 1405020402 FRT 1.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

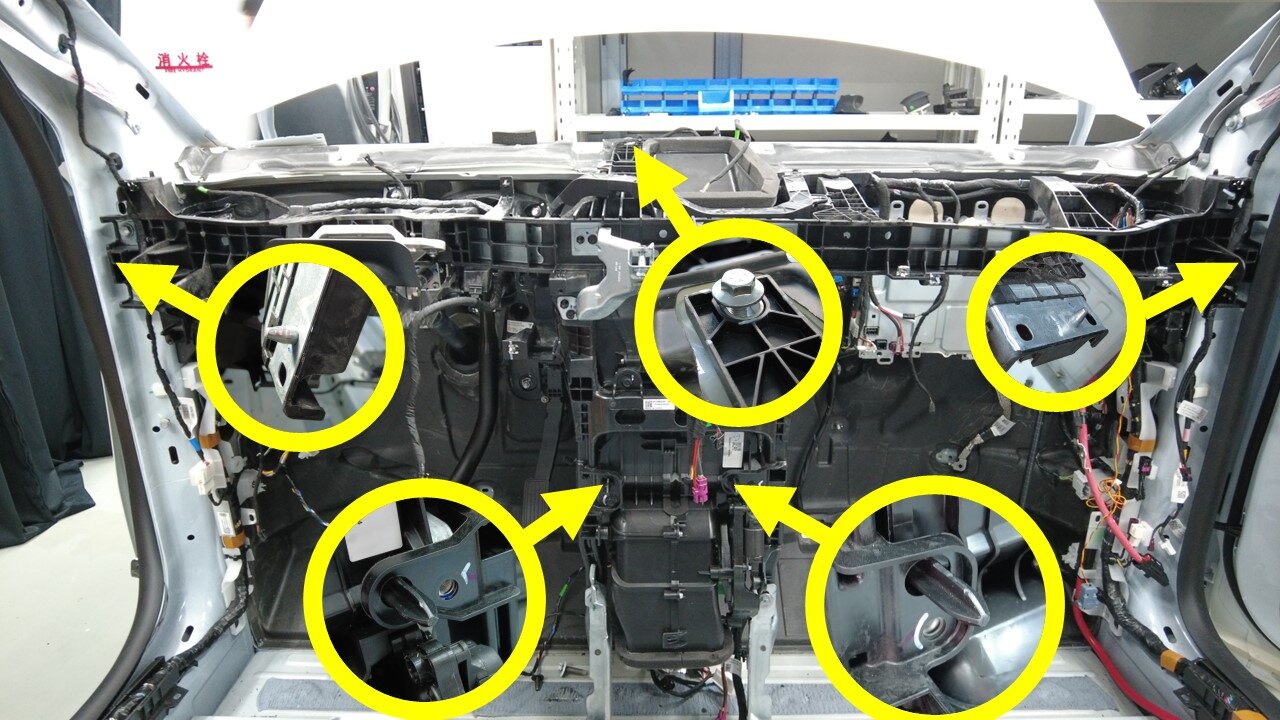

Table 1. Torque Specifications: Instrument Panel - Cross Car Beam (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Nuts (x4) that attach the steering column to the cross car beam	15 Nm (11.1 lbs-ft)	13 mm deep socket	Reuse
Bolts that attach the cross car beam to the A-pillar	29 Nm (21.4 lbs-ft)	13 mm deep socket	Reuse
Bolts that attach the cross car beam to the HVAC assembly	5.5 Nm (4.1 lbs-ft)	10 mm socket	Reuse
Bolt that attaches the cross car beam to the upper cowl	25 Nm (18.4 lbs-ft)	Combination Wrench 12pt 13mm 3/8in Dr. Open Crowfoot Socket x 13mm	Reuse
Bolts that attach the cross car beam to the body	25 Nm (18.4 lbs-ft)	13 mm deep socket	Reuse
