Module - Rear End - Center Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

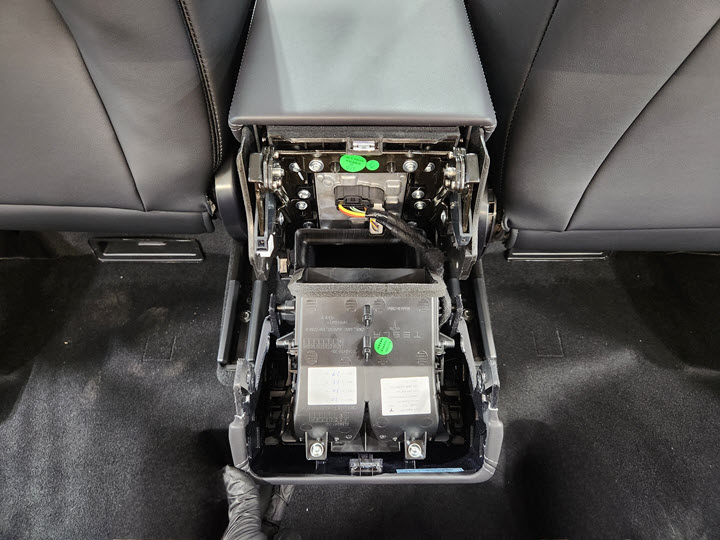

  1. Remove the U-shape panel assembly. See U-Panel Assembly - Center Console (Model Y Standard) (Remove and Replace).
  2. Move the front seats forward and tilt the front seatbacks forward.

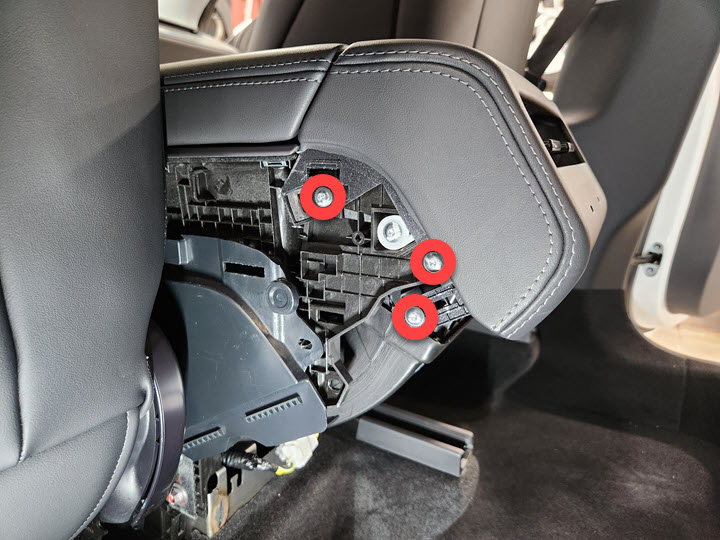

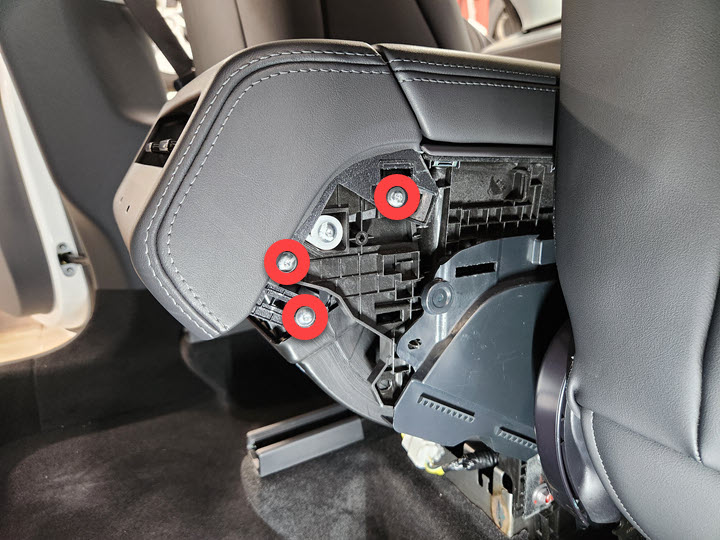

  3. Remove the screws (x6) that attach the rear end module assembly to the center console assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  4. Release the tabs (x2) that attach the rear end module to the center console assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not pull the module too far from the center console, as the rear end module connector is still attached.

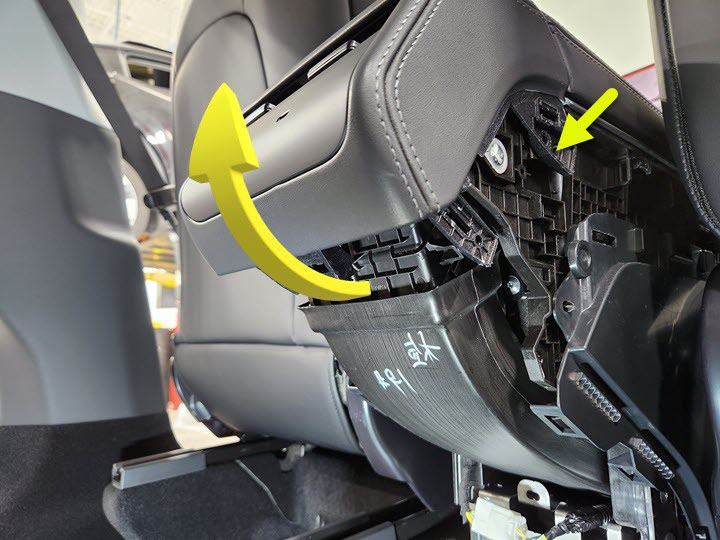

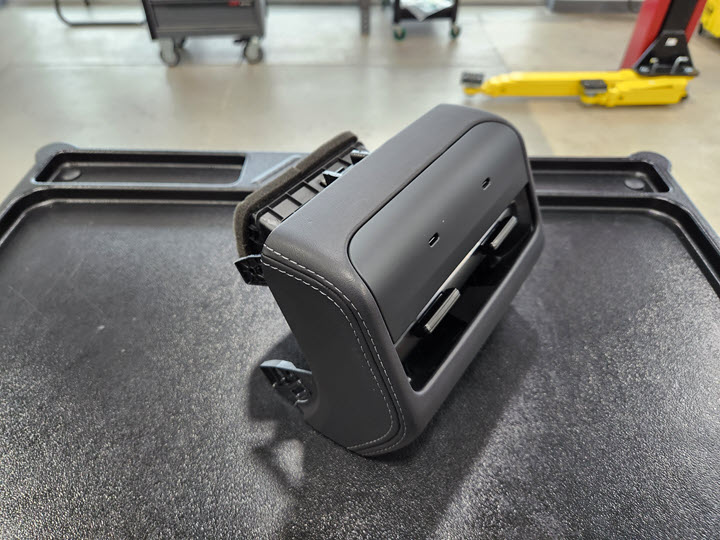

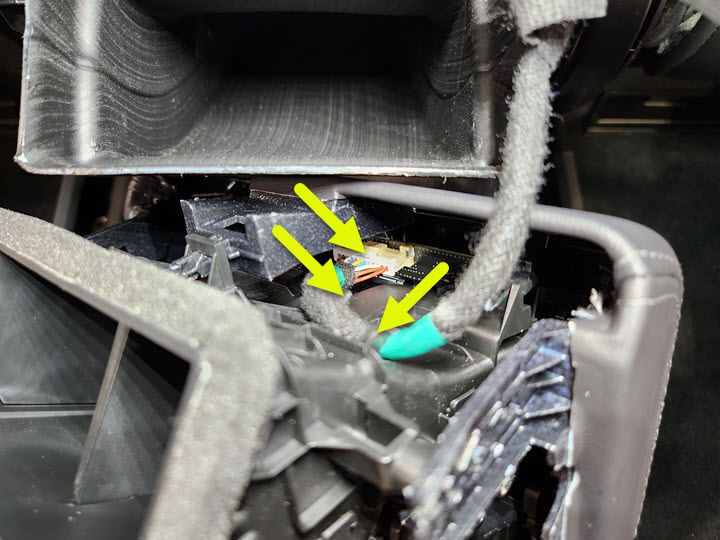

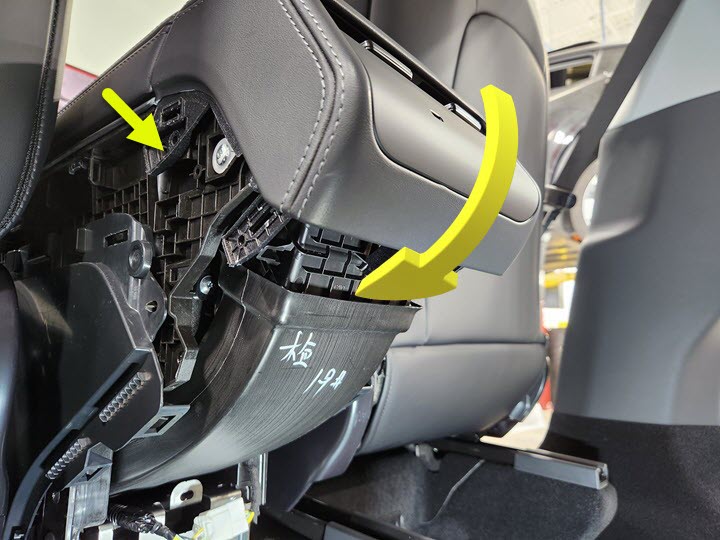

  5. Disconnect the rear end module connector, rotate the module to access and release the tabs (x2) that attach the center console harness to the module, and then remove the module from the vehicle.

Install

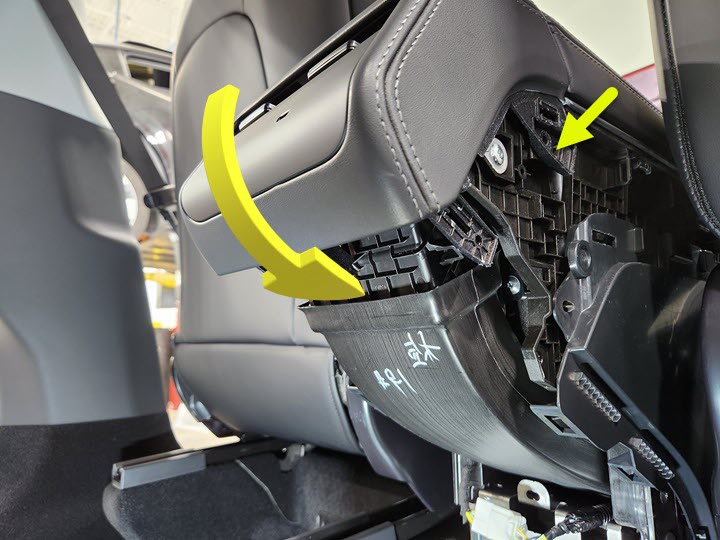

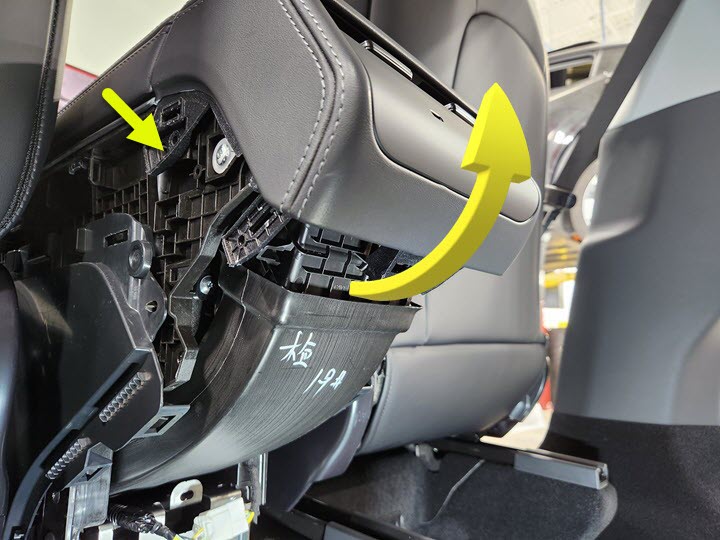

  1. Connect the rear end module connector, and then rotate the module to access and install the tabs (x2) that attach the center console harness to the module.
    Informational PurposesAn informational icon, calling your attention
    Note

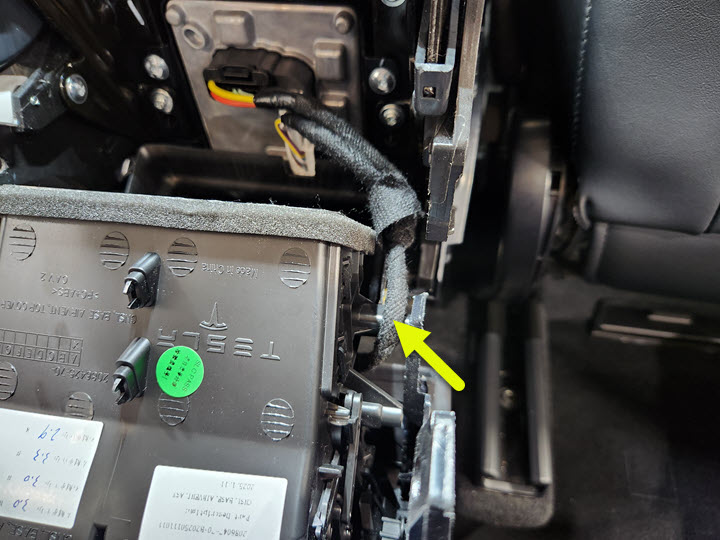

    Route the electrical harness around the fastener mount.
  2. Install the tabs (x2) that attach the rear end module to the center console assembly.
  3. Install the screws (x6) that attach the rear end module assembly to the center console assembly
    1.2 Nm (.9 lbs-ft)
    .
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  4. Move the front seats back to their original position.
  5. Install the U-shape panel assembly. See U-Panel Assembly - Center Console (Model Y Standard) (Remove and Replace).
