Exterior Fittings - Front Luggage Storage Compartment - Base Frunk (Model Y Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-02: Released new procedure.

Remove

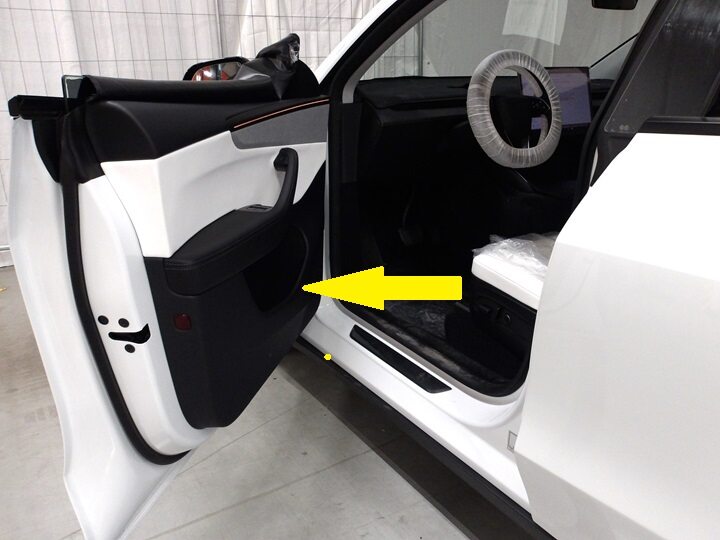

  1. Open LH front door

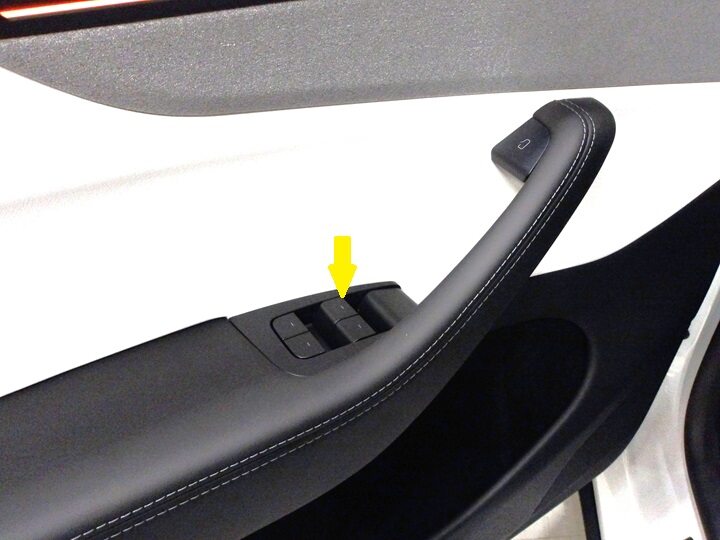

  2. Lower LH front window

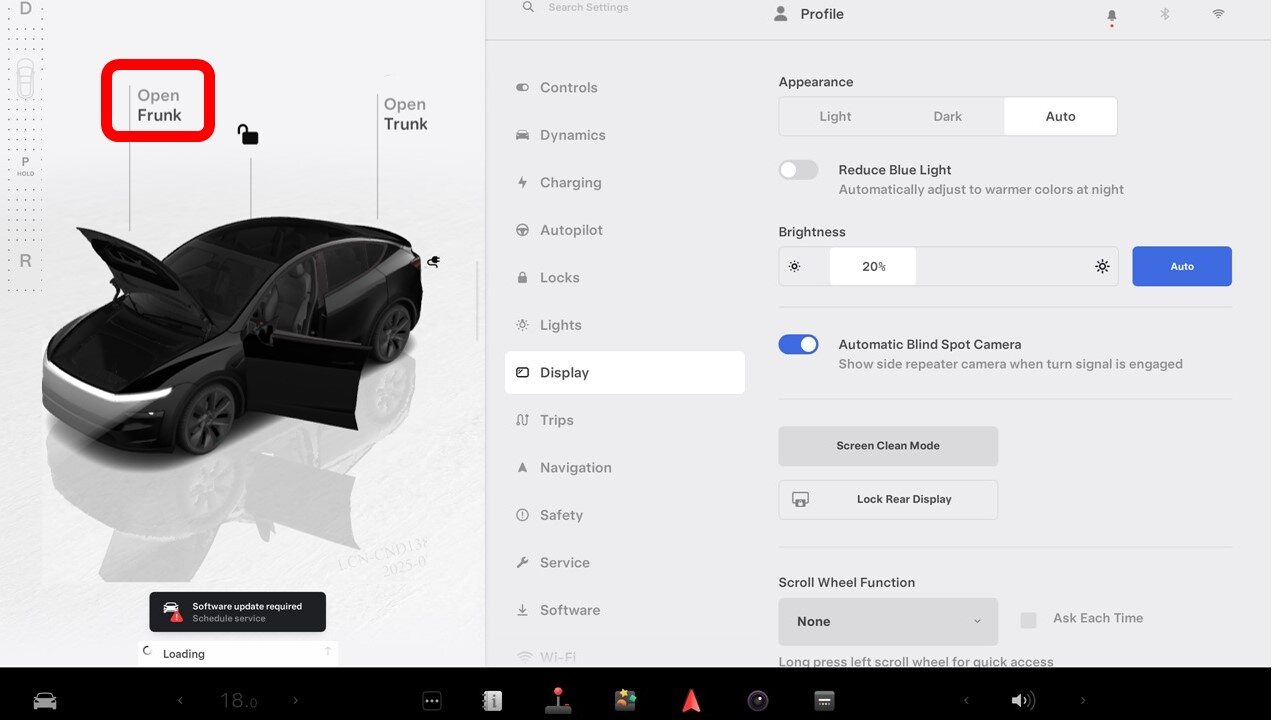

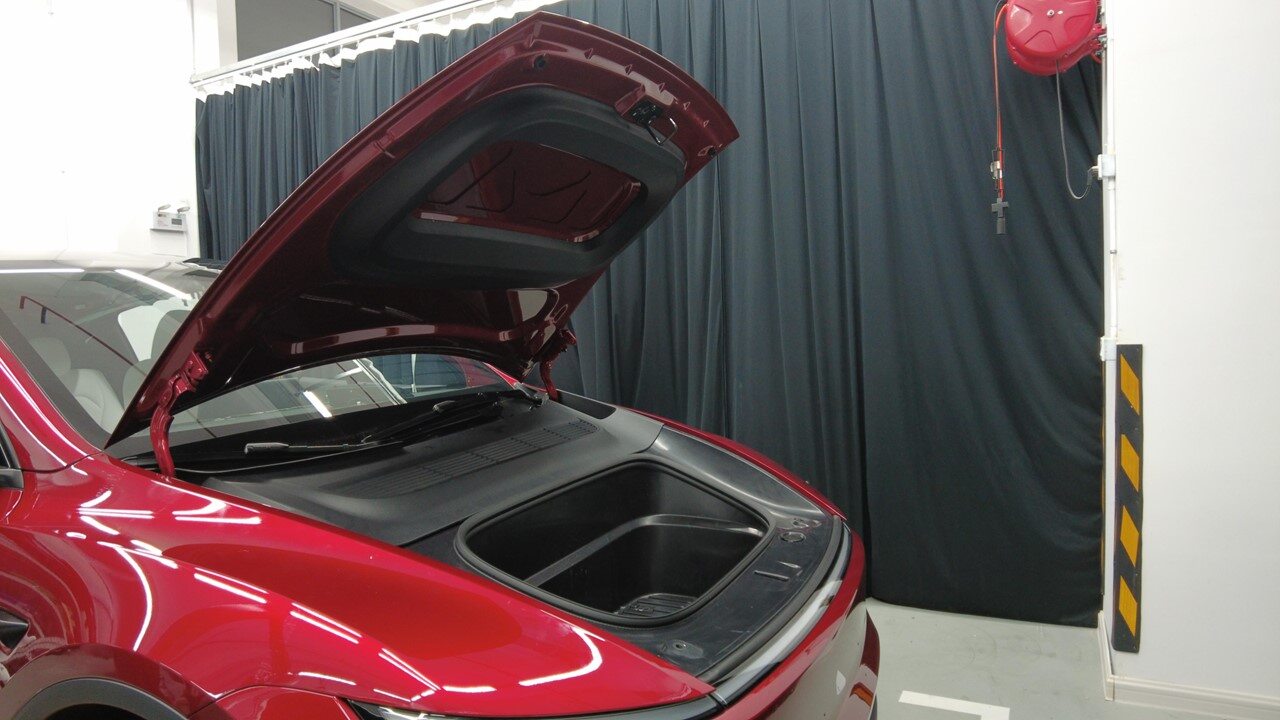

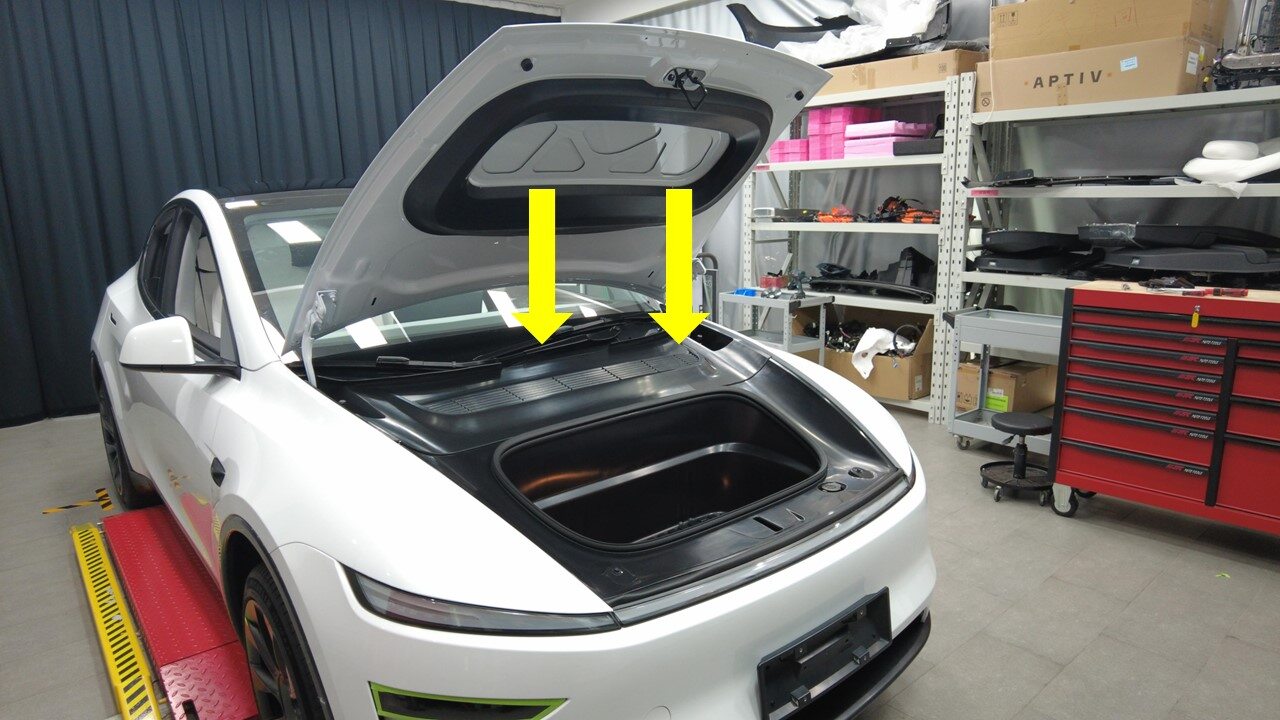

  3. Open hood

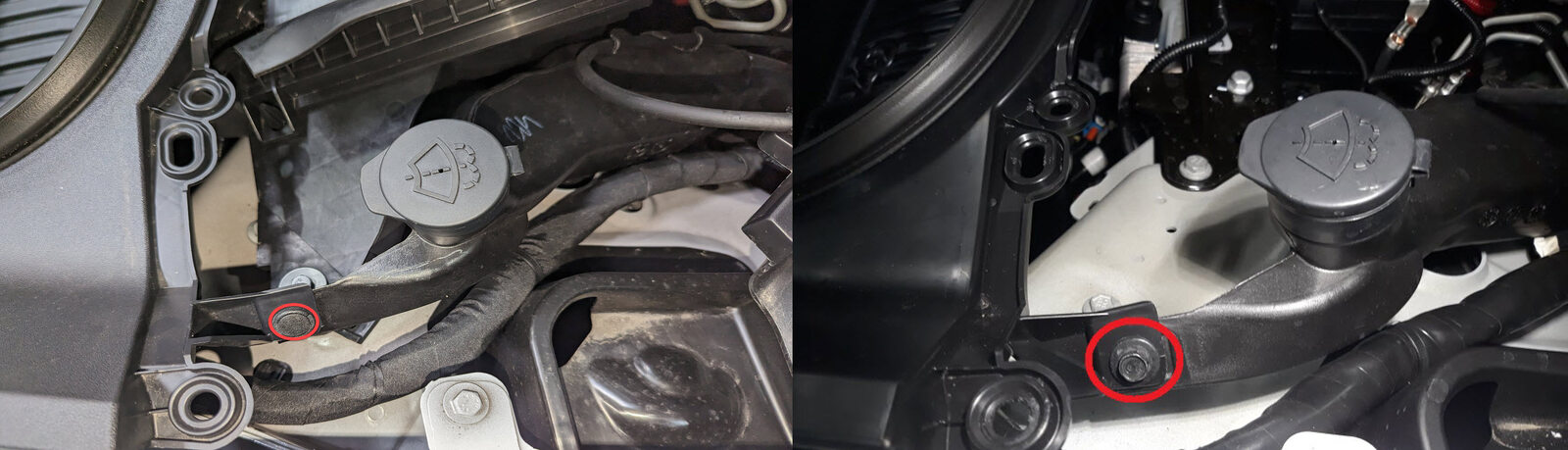

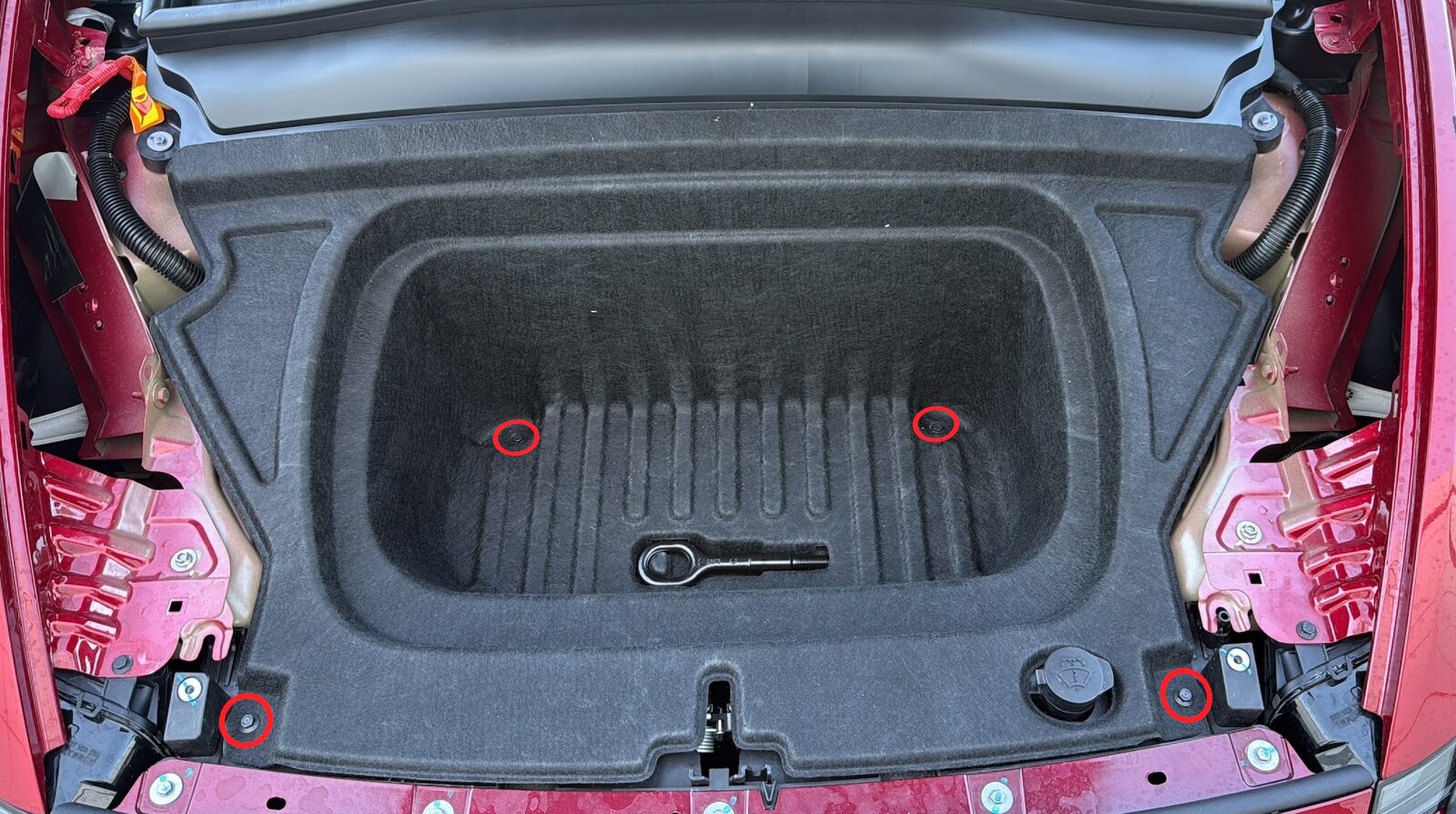

  4. Remove fasteners securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note

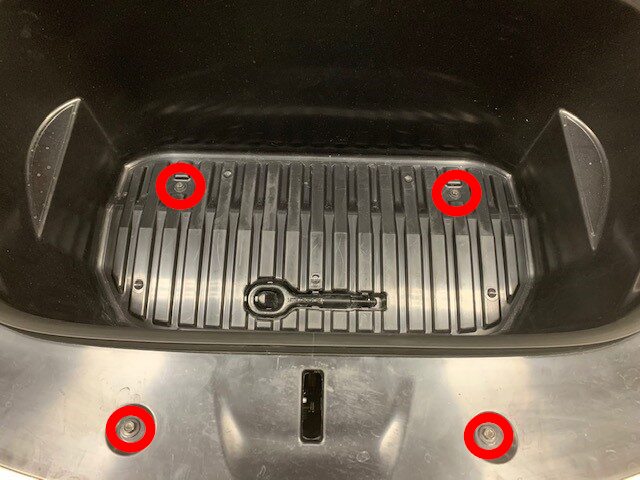

    (*Use this ALL MODELS version of the step for multiple-model type procedures) 5x bolts, 10mm, 5 Nm, Newer vehicles may be equipped with 4x bolts and 1x push clip securing frunk to reservoir neck

Install

  1. Install fasteners securing base frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 10mm, 5 Nm

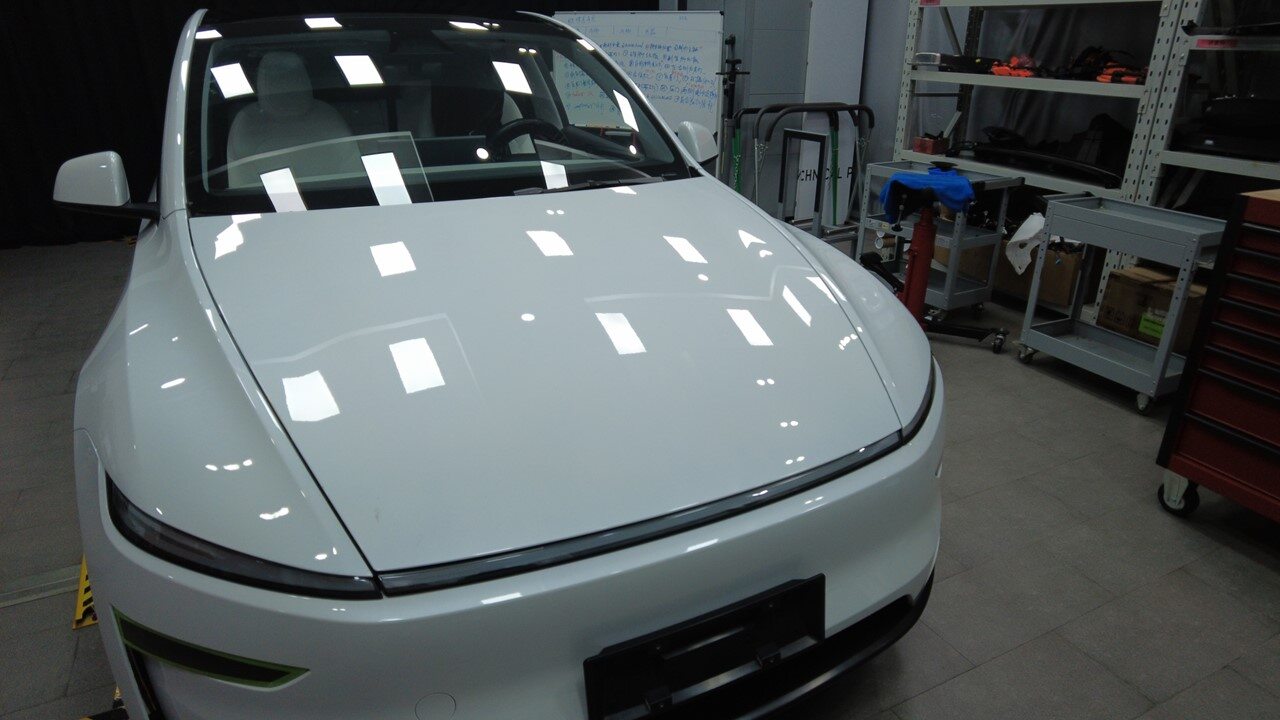

  2. Close hood

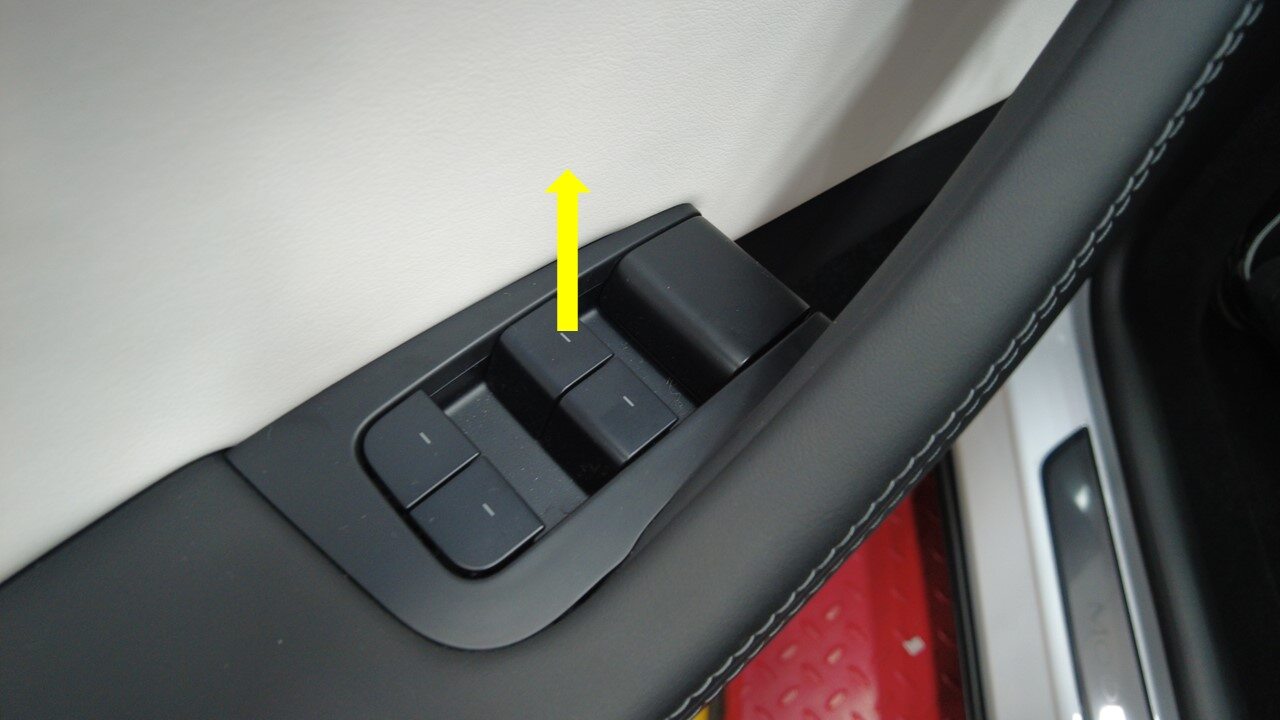

  3. Raise LH front window

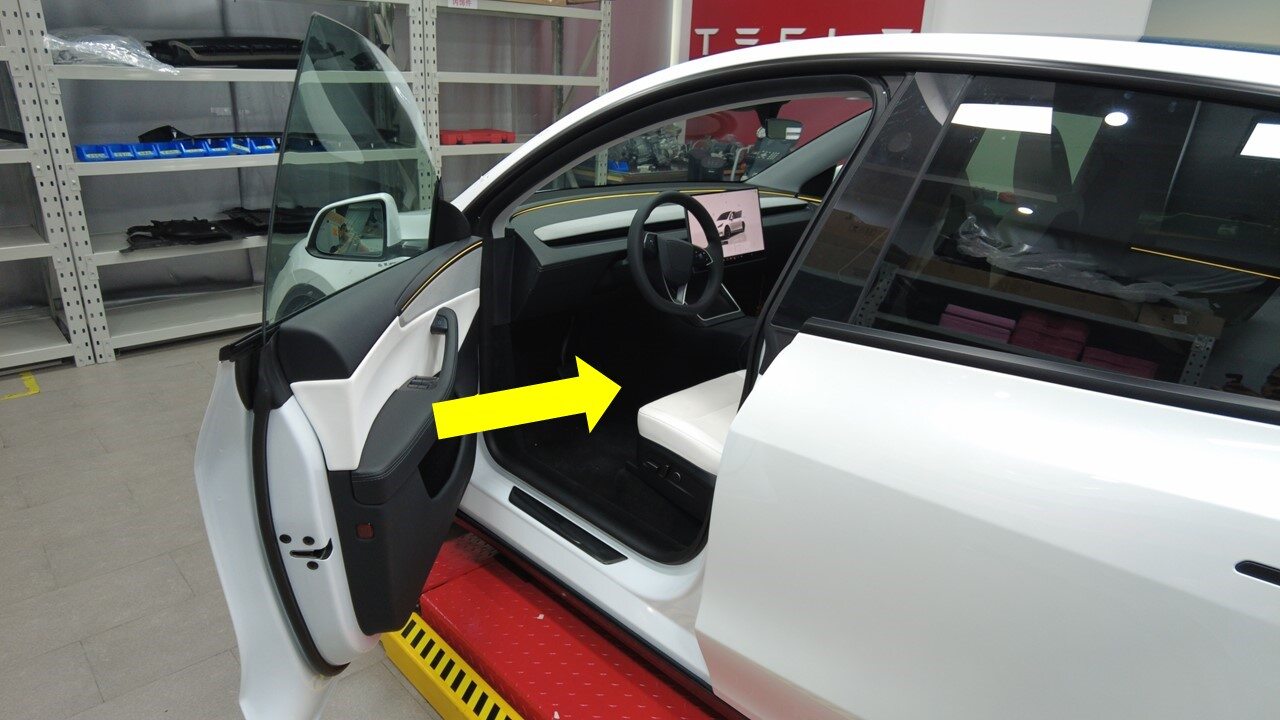

  4. Close LH front door
